Int. J. Mol. Sci. 2013, 14(3), 4545-4559; doi:10.3390/ijms14034545

Article
Cesium Inhibits Plant Growth through Jasmonate Signaling in Arabidopsis thaliana
Eri Adams , Parisa Abdollahi and Ryoung Shin *
RIKEN Plant Science Center, 1-7-22 Suehiro-cho, Tsurumi-ku, Yokohama, Kanagawa 230-0045, Japan; E-Mails: eriadams@psc.riken.jp (E.A.); parisa@psc.riken.jp (P.A.)
*
Author to whom correspondence should be addressed; E-Mail: rshin@psc.riken.jp; Tel.: +81-45-503-9577; Fax: +81-45-503-9650.
Received: 25 December 2012; in revised form: 25 January 2013 / Accepted: 6 February 2013 /
Published: 25 February 2013

Abstract

: It has been suggested that cesium is absorbed from the soil through potassium uptake machineries in plants; however, not much is known about perception mechanism and downstream response. Here, we report that the jasmonate pathway is required in plant response to cesium. Jasmonate biosynthesis mutant aos and jasmonate-insensitive mutant coi1-16 show clear resistance to root growth inhibition caused by cesium. However, the potassium and cesium contents in these mutants are comparable to wild-type plants, indicating that jasmonate biosynthesis and signaling are not involved in cesium uptake, but involved in cesium perception. Cesium induces expression of a high-affinity potassium transporter gene HAK5 and reduces potassium content in the plant body, suggesting a competitive nature of potassium and cesium uptake in plants. It has also been found that cesium-induced HAK5 expression is antagonized by exogenous application of methyl-jasmonate. Taken together, it has been indicated that cesium inhibits plant growth via induction of the jasmonate pathway and likely modifies potassium uptake machineries.
Keywords:
cesium; potassium; Arabidopsis thaliana; jasmonate; HAK5

1. Introduction

Cesium (Cs+) is a Group I alkali metal, which exists naturally at very low concentrations in the soil. Cs+ has no known beneficial function in plants; however, it can, at high concentrations, cause toxicity, observed as growth inhibition (reviewed in [1]). Thus far, Cs+ uptake and response in plants have not been thoroughly studied. However, the accident at the Fukushima nuclear power plant following the disaster in 2011 in Japan highlighted the importance of understanding the mechanism of cesium uptake in plants to improve phytoremediation efficiency for radiocesium. Radiocesium, 134Cs and 137Cs, produced from anthropogenic sources are of environmental and health concerns, since they are rapidly incorporated into the food chain, emit β and γ radiation and have relatively long half-lives (reviewed in [1]). The potential of plants to decontaminate radiocesium from soil was also focused after the accident in Chernobyl [2,3]. Earlier studies have suggested that Cs+ may be absorbed by plants in a competitive fashion with potassium (K+), which belongs to the same alkali metal group and shares similar chemical properties with Cs+. The first report that plants accumulate Cs+ through the same uptake mechanism as K+ was published as early as 1941 [4], and many other studies reinforced this view (reviewed in [1]). A theoretical modeling predicted that voltage-insensitive cation channels (VICCs) predominantly mediate Cs+ uptake under the K+ sufficient conditions and K+ uptake permeases (KUPs) significantly contribute under the K+ deficient conditions [1]. In Arabidopsis thaliana, some members of cyclic nucleotide gated channels (CNGCs), which belong to VICCs, such as CNGC1, CNGC2, CNGC4 and CNGC10, were predicted to form K+ channels and, thus, suggested as being involved in Cs+ uptake, also [58].

The first K+ channel identified in plants is KAT1 from Arabidopsis, which functions at high K+ concentrations as a voltage-dependent, low-affinity inward rectifying channel [9]. The major K+ channel functioning in the roots of Arabidopsis under the K+ sufficient conditions is assumed to be AKT1 [10]. However, the contribution of these channels to Cs+ uptake is small or negligible [9,11]. In response to K+ deficiency, expression of high-affinity K+ transporters, members of the KUP family, are induced, such as high affinity K+ transporter5 (HAK5) and KUP3[12,13]. HAK5 has been reported to be involved in Cs+ uptake in planta, consequently resulting in higher Cs+ accumulation under the K+ deficient conditions [12]. Another K+ transporter, KUP9, from Arabidopsis was also shown to transport Cs+ when expressed in a K+ transport-deficient mutant of Escherichia coli[14].

There have been a few reports pointing out interaction between K+ deficiency response and phytohormone signaling. Expression of ethylene biosynthesis genes and ethylene production are reported to be induced in response to K+ deficiency and, subsequently, activate reactive oxygen species production [15]. Expression of jasmonate (JA) biosynthesis genes is also induced in response to K+ deficiency and confers tolerance to insects [1618]. Cytokinins, by contrast, decrease under the K+ deficient conditions and allow downstream response for adaptation to take place [19]. Auxin-related mutants were found to be impaired in K+ deficiency-induced lateral root growth [20]. If Cs+ were to cause similar effects as K+ deficiency in plants, it is possible that Cs+ response is regulated through phytohormone pathways.

In this study, JA biosynthesis and signaling were demonstrated to be required in plant response to Cs+. JAs are a class of phytohormone that are involved in various physiological processes, such as growth inhibition, fertility, senescence and defense against biotic and abiotic stresses [21]. JAs are biosynthesized from linolenic acid through a series of steps, including allene oxide synthase (AOS) [22], and recognized by a receptor complex which is composed of an E3 ubiquitin ligase, SCF (SKP1, CDC53p/CUL1 F-box protein) complex. An active form of JAs, the jasmonyl-isoleucine conjugate (JA–Ile), directly binds to the F-box protein in the receptor complex, CORONATINE INSENSITIVE1 (COI1), and SCFCOI1 targets the negative regulators for proteolysis to activate downstream JA signaling in Arabidopsis[2327]. Therefore, mutations in COI1 can render the plants insensitive to JAs [28,29].

Here, we investigated the relationship between JA biosynthesis/signaling and Cs+ response in Arabidopsis in order to understand the fundamental mechanism of plant response to Cs+. Our studies revealed the induction of JA biosynthesis/signaling and consequent growth inhibition in response to Cs+. However, JA signaling was not apparently involved in Cs+ uptake under the K+ sufficient conditions. Meanwhile, induction of HAK5 was demonstrated in response to Cs+, suggesting the involvement of K+ uptake machineries in Cs+ uptake. The possibility of JA signaling casting an antagonistic effect on HAK5 expression was also implied. In this report, plant response to Cs+ is dissected.

2. Results

2.1. JA-Related Mutants Are Less Responsive to Cs+-Induced Growth Inhibition

In order to understand the mechanism of Cs+ response in plants, phytohormone-related mutants in Arabidopsis thaliana were tested on 0.5 mM KCl with or without 0.3 mM CsCl. This condition was chosen as a “stringent condition” for monitoring strong Cs+ resistance phenotype. In this condition, growth of Col-0 plants (wild-type) was severely retarded by the addition of CsCl (Figure 1A). However, a JA biosynthesis mutant aos[30,31] and a JA-insensitive mutant coi1-16 [29] showed significantly less response to Cs+-induced root growth retardation (p < 0.001, Figure 1). A mutant, which produces less bioactive JA-Ile and shows mild JA-insensitive phenotype, jasmonate resistant1 (jar1-1) [32], also showed less response to Cs+ in terms of root growth inhibition (p < 0.001, Table S1). Among them, the stronger phenotype of aos corresponds with the fact that the aos mutant is a knockout line [30]. The coi1-16 and jar1-1 mutants are known to be “leaky” [29,33], and this might be why their resistance to Cs+ was also compromised. Also, other phytohormone-related mutants were found to be less responsive to Cs+, such as an auxin-insensitive mutant, auxin resistant1 (aux1-7) [34] (p < 0.001), and, to a lesser extent (p < 0.01), a trans-zeatin-type cytokinin biosynthesis quadruple mutant, isopentenyltransferase1,3,5,7 (ipt1,3,5,7) [35] and a cytokinin-insensitive double mutant histidine kinase2;3 (ahk2;3) [36] (Table S1). An ethylene-insensitive mutant, ethylene insensitive2, (ein2-1) [37], but not ethylene response sensor1 (ers1-1) [38], was marginally less responsive to Cs+ (p < 0.05, Table S1). A GA-related DELLA double mutant, repressor of ga;gibberellic acid insensitive (rga-24;gai-t6) [39], showed increased growth % in response to Cs+ compared to its wild-type, Ler (p < 0.001, Table S1). This could be due to the absence of growth inhibitor proteins in the mutant [39], enabling the resistance to Cs+-induced growth inhibition, but further analysis is required for confirmation. The relationship between Cs+ response and JA signaling was further investigated.

2.2. Resistance of JA-Related Mutants to Cs+ Was Not Due to Less Uptake of Cs+

JA-related mutants were found to be less responsive to Cs+-induced growth inhibition compared to wild-type. One explanation could be that JA-related mutants might be impaired in Cs+ uptake. To test this possibility, K+ and Cs+ contents were measured in wild-type, aos and coi1-16 treated with or without 0.3 mM CsCl under the K+ sufficient condition (1.75 mM KCl) for seven days. Reduced K+ contents were observed upon Cs+ treatment (p < 0.05, Figure 2A). However, there was no statistically significant difference observed between wild-type and mutants for both K+ and Cs+ contents, regardless of Cs+ treatment (Figure 2). This suggests that the JA pathway is not involved in the uptake of Cs+ or K+ in this condition. More K+ and Cs+ were accumulated per mg dry weight at the later stage of growth (day 12), but the pattern was maintained (Figure S1).

2.3. Cs+ Induces JA Signaling as well as HAK5 Expression

To further analyze the interplay between Cs+ perception and JA signaling, expression of the marker genes for JA signaling, PDF1.2 and VSP2[4042], was investigated in response to Cs+. Both PDF1.2 and VSP2 levels were increased upon Cs+ treatment under the K+ sufficient condition, especially in the shoots (p < 0.05, Figure 3), suggesting the induction of the general JA pathway by Cs+. This induction was absent in the aos mutant (Figure S2). There was no additive effect of Cs+ on methyl jasmonate (MeJA)-induced VSP2 expression (Figure 3).

It has been reported that high-affinity K+ transporter, HAK5, is not only involved in K+ uptake, but also in Cs+ uptake [12]. The expression of HAK5 is sharply induced in response to K+ deficiency [12], and there are some indications that Cs+ may cause K+ deficiency in plants. Therefore, we analyzed the transcript levels of HAK5 in response to Cs+ under the K+ sufficient condition. Expression of HAK5 was, indeed, induced in response to Cs+, and this induction also occurred in JA-related mutants, aos and coi1-16 (p < 0.05, Figure 4).

2.4. JA Antagonizes Cs+-Induced HAK5 Expression

Since HAK5 was found to be induced in response to Cs+, spatial localization of HAK5 was investigated. Transgenic plants carrying the HAK5 promoter fused to the luciferase reporter construct (HAK5promoter::LUC) were used, and their activities are known to be induced in K+ deficiency [15]. In this study, low levels of luciferase activity were visible at root tips of untreated plants under the K+ sufficient condition (Figure 5). Upon Cs+ treatment, strong induction of luciferase activity was observed in the roots, and this induction was abolished by the addition of MeJA (Figure 5). The chemiluminescence intensity of these images and quantification of HAK5 transcripts in wild-type roots treated with Cs+ and MeJA are shown in Table S2 and Figure S3, respectively. Chemiluminescence images of HAK5promoter::LUC plants grown on 0.5 mM KCl with or without Cs+ are also presented in Figure S4.

3. Discussion

Cs+ has no known nutritional or other function in plants. Thus far, scarcely any knowledge has been gained on how plants absorb Cs+ from the soil, how it is transported inside the plant body, and what is the plant response. However, an urgent need for improved phytoremediation methods for radioactive Cs+ has urged scientists to better understand the mechanism of Cs+ uptake, transport and perception in plants. In Arabidopsis, a possible mechanism for tolerance to heavy metals, such as arsenic, mercury and cadmium, has been reported [43,44], but whether the same tolerance mechanism applies for Cs+ is not yet known. A T-DNA insertion mutant which is impaired in Cs+ uptake has been isolated; however, the identity of the gene disturbed is not revealed [45].

The similarity of the nature between Cs+ and K+ and the involvement of phytohormone pathways in K+ deficiency response provoked us to investigate the relationship between phytohormone pathways and Cs+ response. For this purpose, various phytohormone-related mutants in Arabidopsis thaliana were analyzed for their response to Cs+. It has been reported that K+ deficiency response is observed under 100 μM K+ concentrations in Arabidopsis[12]. Therefore, we used the 0.5 mM KCl condition, which is well above the threshold for “K+ deficient conditions”, but lower than what is generally taken as “K+ sufficient conditions” (1.75 mM KCl) [12], to create a “stringent condition” in selecting strong phenotype mutants for Cs+. Of those mutants tested, JA-related mutants, aos, coi1-16 and jar1-1, showed strong resistance to Cs+-induced growth inhibition. Our data suggest that the JA pathway, and possibly some other phytohormone pathways, is involved in plant response to Cs+. This is the first report, as far as we are aware, to demonstrate the interaction between Cs+ response and the JA pathway in plants. Some phytohormone pathways, including ethylene, auxin, cytokinin and JA, have been reported to be involved in response to K+ deficiency [1520]; therefore, in the future, it will be interesting to investigate the relationship of the Cs+-induced JA pathway with K+ deficiency.

Although aos and coi1-16 were less responsive to Cs+, this was not because they accumulated less Cs+. Cs+ contents, as well as K+ contents, were comparable to those of wild-type plants, suggesting that the JA pathway is involved, at least partly, in the perception of Cs+, not in uptake. Classic downstream marker genes of the JA pathway, PDF1.2 and VSP2, represent two distinct branches of the signaling pathway [4042]. Under the K+ sufficient condition, both of these marker genes were found to be increased in response to Cs+, especially in the aerial parts. This induction was not observed in the aos mutant, indicating that Cs+ induces JA biosynthesis and downstream signaling.

It was also interesting to observe that K+ contents were reduced upon Cs+ treatment under the K+ sufficient condition. The competitive nature between Cs+ and K+ accumulation in Arabidopsis was demonstrated in a previous report [46]. Although Cs+ has been used as a classic pharmacological inhibitor of K+ channels [47], our findings might also indicate that Cs+ could have been absorbed through the K+ uptake mechanism in a competitive manner. There are a few reports that suggest the possibility of K+ transporters/channels absorbing Cs+ in plants, including a low-affinity inward-rectifying channel in Arabidopsis, KAT1 [9], a high-affinity K+ transporter, HAK5 [12,48], and another K+ transporter, KUP9 [14]. In this study, we indicated that the transcript levels of HAK5 were increased in response to Cs+ under the K+ sufficient condition. The reporter construct study using HAK5promoter::LUC showed that its promoter activity was particularly notable in the actively growing part of the roots, and this pattern was similar to that of the K+-starved plants [15]. These findings, together with the results from the K+/Cs+ content study, agree with the hypothesis that Cs+ is absorbed through K+ uptake machinery in a competitive fashion.

JA treatment, on the other hand, was found to abolish Cs+-induced HAK5 expression in the reporter construct study, suggesting an antagonistic effect of JA on HAK5 expression. Since Cs+ seemingly induces both JA biosynthesis/signaling and HAK5 expression, this antagonism may function as a negative feedback mechanism to fine-tune Cs+ response in plants.

A summary of our findings on Cs+-induced growth inhibition and gene expression is shown as a model pathway in Figure 6. Cs+ induces JA biosynthesis and the downstream signaling pathway in Arabidopsis. This is probably the major pathway for Cs+-induced growth inhibition of roots, since a mutant incapable of producing JAs hardly shows any reduction in root length in response to Cs+. In parallel, Cs+ induces HAK5, a reporter gene for K+ deficiency [49]. Further studies are required to elucidate whether Cs+ treatment causes K+ deficiency to induce HAK5 expression in plants. It will be interesting to test plant response to Cs+ under various K+ conditions, since plants are expected to exhibit different K+ uptake mechanisms, according to K+ availability. It was also indicated that the JA pathway might antagonize HAK5 expression. The mechanism in which this antagonism occurs awaits elaboration; however, it is possible that one of APETALA2/Ethylene Response Factor (AP2/ERF) transcription factors induced by the JA signaling pathway binds to the GCC-box of the HAK5 promoter to regulate its expression. HAK5 has been reported to be regulated by an ERF/AP2 transcription factor, RAP2.11, in response to K+ deficiency [50]. Meanwhile, JA-inducible AP2/ERFs are known to regulate expression of a series of GCC-box-containing genes, such as PDF1.2, through direct binding to the GCC-boxes of the promoter region [5153]. Recently, involvement of cytokinin in K+ deficiency response and HAK5 expression has been reported [19]. It will be also interesting to further investigate the involvement of biosynthesis and the signaling of cytokinin and other phytohormones in Cs+ response in plants.

Here, we presented the first report that demonstrated the interplay between Cs+ response and JA signaling in plants. It was also highlighted that Cs+ uptake, Cs+-induced growth inhibition and gene expression were apparently regulated through different mechanisms. Elucidation of the fine balance between K+ and Cs+ to regulate plant response and growth is awaited.

4. Experimental Section

4.1. Plant Material and Growth Conditions

The Arabidopsis thaliana (L.) Heynh. accession Col-0 and Ler were used as wild-types. HAK5promoter::LUC was developed in the lab [15]. aos[30,31], ein2-1 [37] and jar1-1 [32] are NASC stocks (Nottingham Arabidopsis Stock Centre, Loughborough, UK). coi1-16 [29], ipt1,3,5,7[35], ahk2;3[36], ers1-1 [38], aux1-7 [34] and rga-24;gai-t6 [39] were gifts from Dr. Turner, Dr. Kakimoto, Dr. Wen, Dr. Schachtman and Dr. Harberd. Seeds were surface-sterilized with 70% (v/v) ethanol and 0.05% (v/v) Triton X-100 and sown on media, indicated below. For the growth assay, media contained 0.5 mM KCl, 2 mM Ca(NO3)2, 0.5 mM phosphoric acid, 0.75 mM MgSO4, 50 μM H3BO3, 10 μM MnCl, 2 μM ZnSO4, 1.5 μM CuSO4, 0.075 μM NH4Mo7O24 and 74 μM Fe-EDTA, pH 5.8, with Ca(OH)2, 1% (w/v) sucrose and 0.5% (w/v) SeaKem agarose (Cambrex, Rockland, ME, USA) supplemented with or without 0.3 mM CsCl and for the rest of the study, media contained 1.75 mM KCl, 2 mM Ca(NO3)2, 0.5 mM phosphoric acid, 0.75 mM MgSO4, 50 μM H3BO3, 10 μM MnCl, 2 μM ZnSO4, 1.5 μM CuSO4, 0.075 μM NH4Mo7O24 and 74 μM Fe-EDTA, pH 5.8, with Ca(OH)2, 1% (w/v) sucrose and 0.5% (w/v) SeaKem agarose (Cambrex) supplemented with or without 0.3 mM CsCl or 2.5 μM MeJA. After stratifying for 3 to 4 days at 4 °C, plants were placed in a vertical orientation in a growth cabinet at 22 °C in a 16 h light/8 h dark photocycle with a light intensity of 70–90 μmol/m2/sec.

4.2. Root Growth Assay

Seedlings grown for 7 days were removed from media, and the root lengths were measured directly on a ruler wetted with 70% (v/v) glycerol. The relative % of root growth was calculated according to the formula, y/x × 100, where x was the average of root lengths of untreated seedlings and y was the root lengths of each Cs+-treated seedling and was averaged. One-way ANOVA with Dunnett’s multiple comparison posttest (p < 0.05) was performed using Prism (GraphPad Software, La Jolla, CA, USA) to determine the statistical significance.

4.3. Element Analysis

Seedlings grown for 7 days were washed in Milli-Q water, dried on a piece of paper towel, placed in a paper envelope and dried in an oven at 65 °C for 3–4 days. Approximately 2 mg of dried samples were extracted in 1 mL of 60% (v/v) HNO3 at 125 °C for 1 h, followed by 1 mL of 30% (v/v) H2O2 and diluted with Milli-Q water to get a total volume of 10 mL. For K+ analysis, samples were further diluted 10 times with 6% (v/v) HNO3. For Cs+ analysis, 0.1% (w/v) KCl was added to each sample and standard solution to prevent ionization of Cs+, according to the manufacturer’s instructions (PerkinElmer, Waltham, MA, USA). K+ and Cs+ contents were measured on a flame atomic absorption spectrometer AAnalyst 200 (PerkinElmer). Concentrations were calculated against each standard curve, and one-way ANOVA with Bonferroni′s multiple comparison posttest (p < 0.05) was performed using Prism to determine the statistical significance.

4.4. qRT-PCR Analysis

Seedlings grown for 7 days (for HAK5 expression) or 11 days (for VSP2 and PDF1.2 expression) were flash-frozen in liquid N2 and ground using a mixer mill. Total RNA was extracted, treated with DNaseI (Invitrogen, Carlsbad, CA, USA) and synthesized into cDNA using SuperScript III (Invitrogen). Quantitative real-time reverse transcription-PCR (qRT-PCR) was performed using THUNDERBIRD SYBR qPCR mix (TOYOBO, Osaka, Japan) and a Mx3000P qPCR system (Agilent Technologies, Santa Clara, CA, USA). The amplification conditions were 95 °C for 15 s and 60 °C for 30 s. The cycle was repeated 40 times, preceded by 95 °C for 1 min and followed by a dissociation program to create melting curves. Three technical replicates for each sample were run. The β-tubulin gene (TUB2) was used as a reference gene. The primers used were as follows: HAK5 forward 5’-CGAGACGGACAAAGAAGAGGAACC and reverse 5’-CACGACCCTTCCCGACCTAATCT [49]; VSP2 forward 5’-CCTAAAGAACGACACCGTCA and reverse 5’-TCGGTCTTCTCTGTTCCGTA [54]; PDF1.2 forward 5’-TTGCTGCTTTCGACGCA and reverse TGTCCCACTTGGCTTCTCG [51]; and TUB2 forward 5’-GCCAATCCGGTGCTGGTAACA and reverse 5’-CATACCAGATCCAGTTCCTCCTCCC [49]. One-way ANOVA with Bonferroni’s multiple comparison posttest (p < 0.05) was performed using Prism to determine the statistical significance.

4.5. Luciferase Imaging

HAK5promoter::LUC grown for 11 days were sprayed with luciferin (Duchefa Biochemie, Haarlem, The Netherlands) and kept in the dark for a few minutes prior to imaging. NightSHADE LB 985 (Berthold, Bad Wildbad, Germany) was used to image luciferase chemiluminescence.

5. Conclusions

In this study, we have determined that JA signaling is involved in Cs+ perception in terms of root growth inhibition, but not in uptake of K+ and Cs+. This growth inhibition by Cs+ occurs presumably through biosynthesis of JAs and consequent stimulation of the downstream JA signaling pathway. In parallel, Cs+ induces expression of a high-affinity K+ transporter gene, HAK5, under the K+ sufficient condition in a JA signaling-independent manner. However, exogenous application of MeJA inhibits Cs+-induced expression of HAK5, suggesting a complicated “fine-tuning” regulation of Cs+ response in plants.

Supplementary Information

ijms-14-04545-s001.docx

Acknowledgments

Many thanks to Prof. John Turner (University of East Anglia) for providing coi1-16 seeds, Prof. Tatsuo Kakimoto (Osaka University) for ipt1,3,5,7 and ahk2;3 seeds, Prof. Chi-Kuang Wen (Shanghai Institute for Biological Science, Chinese Academy of Science) for ers1-1 seeds, Dr. Daniel Schachtman (Donald Danforth Plant Science Center) for aux1-7 seeds and Prof. Nicholas Harberd (University of Oxford) for rga-24;gai-t6 seeds. This work was supported by funding from RIKEN and the Ministry of Agriculture, Forestry and Fisheries of Japan (I2012101).

Conflict of Interest

The authors declare no conflict of interest.

References

  1. White, P.J.; Broadley, M.R. Mechanisms of caesium uptake by plants. New Phytol 2000, 147, 241–256. [Google Scholar]
  2. Lasat, M.M.; Norvell, W.A.; Kochian, L.V. Potential for phytoextraction of 137Cs from a contaminated soil. Plant Soil 1997, 195, 99–106. [Google Scholar]
  3. Entry, J.A.; Vance, N.C.; Hamilton, M.A.; Zabowski, D.; Watrud, L.S.; Adriano, D.C. Phytoremediation of soil contaminated with low concentrations of radionuclides. Water Air Soil Poll 1996, 88, 167–176. [Google Scholar]
  4. Collander, R. Selective absorption of cations by higher plants. Plant Physiol 1941, 16, 691–720. [Google Scholar]
  5. Kanter, U.; Hauser, A.; Michalke, B.; Draxl, S.; Schaffner, A.R. Caesium and strontium accumulation in shoots of Arabidopsis thaliana: Genetic and physiological aspects. J. Exp. Bot 2010, 61, 3995–4009. [Google Scholar]
  6. Leng, Q.; Mercier, R.W.; Hua, B.G.; Fromm, H.; Berkowitz, G.A. Electrophysiological analysis of cloned cyclic nucleotide-gated ion channels. Plant Physiol 2002, 128, 400–410. [Google Scholar]
  7. Balague, C.; Lin, B.Q.; Alcon, C.; Flottes, G.; Malmstrom, S.; Kohler, C.; Neuhaus, G.; Pelletier, G.; Gaymard, F.; Roby, D. HLM1, an essential signaling component in the hypersensitive response, is a member of the cyclic nucleotide-gated channel ion channel family. Plant Cell 2003, 15, 365–379. [Google Scholar]
  8. Li, X.L.; Borsics, T.; Harrington, H.M.; Christopher, D.A. Arabidopsis AtCNGC10 rescues potassium channel mutants of E. coli, yeast and Arabidopsis and is regulated by calcium/calmodulin and cyclic GMP in E. coli. Funct. Plant Biol 2005, 32, 643–653. [Google Scholar]
  9. Schachtman, D.P.; Schroeder, J.I.; Lucas, W.J.; Anderson, J.A.; Gaber, R.F. Expression of an inward-rectifying potassium channel by the Arabidopsis KAT1 cDNA. Science 1992, 258, 1654–1658. [Google Scholar]
  10. Basset, M.; Conejero, G.; Lepetit, M.; Fourcroy, P.; Sentenac, H. Organization and expression of the gene coding for the potassium transport system AKT1 of Arabidopsis thaliana. Plant Mol. Biol 1995, 29, 947–958. [Google Scholar]
  11. Broadley, M.R.; Escobar-Gutierrez, A.J.; Bowen, H.C.; Willey, N.J.; White, P.J. Influx and accumulation of Cs+ by the akt1 mutant of Arabidopsis thaliana (L.) Heynh. lacking a dominant K+ transport system. J. Exp. Bot 2001, 52, 839–844. [Google Scholar]
  12. Qi, Z.; Hampton, C.R.; Shin, R.; Barkla, B.J.; White, P.J.; Schachtman, D.P. The high affinity K+ transporter AtHAK5 plays a physiological role in planta at very low K+ concentrations and provides a caesium uptake pathway in Arabidopsis. J. Exp. Bot 2008, 59, 595–607. [Google Scholar]
  13. Kim, E.J.; Kwak, J.M.; Uozumi, N.; Schroeder, J.I. AtKUP1: An Arabidopsis gene encoding high-affinity potassium transport activity. Plant Cell 1998, 10, 51–62. [Google Scholar]
  14. Kobayashi, D.; Uozumi, N.; Hisamatsu, S.; Yamagami, M. AtKUP/HAK/KT9, a K+ transporter from Arabidopsis thaliana, mediates Cs+ uptake in Escherichia coli. Biosci. Biotechnol. Biochem 2010, 74, 203–205. [Google Scholar]
  15. Jung, J.Y.; Shin, R.; Schachtman, D.P. Ethylene mediates response and tolerance to potassium deprivation in Arabidopsis. Plant Cell 2009, 21, 607–621. [Google Scholar]
  16. Armengaud, P.; Breitling, R.; Amtmann, A. The potassium-dependent transcriptome of Arabidopsis reveals a prominent role of jasmonic acid in nutrient signaling. Plant Physiol 2004, 136, 2556–2576. [Google Scholar]
  17. Armengaud, P.; Breitling, R.; Amtmann, A. Coronatine-insensitive 1 (COI1) mediates transcriptional responses of Arabidopsis thaliana to external potassium supply. Mol. Plant 2010, 3, 390–405. [Google Scholar]
  18. Troufflard, S.; Mullen, W.; Larson, T.R.; Graham, I.A.; Crozier, A.; Amtmann, A.; Armengaud, P. Potassium deficiency induces the biosynthesis of oxylipins and glucosinolates in Arabidopsis thaliana. BMC Plant Biol. 2010, 10, 172. [Google Scholar] [CrossRef]
  19. Nam, Y.J.; Tran, L.S.P.; Kojima, M.; Sakakibara, H.; Nishiyama, R.; Shin, R. Regulatory roles of cytokinins and cytokinin signaling in response to potassium deficiency in Arabidopsis. PLoS One 2012, 7, e47797. [Google Scholar] [CrossRef]
  20. Shin, R.; Burch, A.Y.; Huppert, K.A.; Tiwari, S.B.; Murphy, A.S.; Guilfoyle, T.J.; Schachtman, D.P. The Arabidopsis transcription factor MYB77 modulates auxin signal transduction. Plant Cell 2007, 19, 2440–2453. [Google Scholar]
  21. Wasternack, C. Jasmonates: An update on biosynthesis, signal transduction and action in plant stress response, growth and development. Ann. Bot 2007, 100, 681–697. [Google Scholar]
  22. Laudert, D.; Pfannschmidt, U.; Lottspeich, F.; Hollander-Czytko, H.; Weiler, E.W. Cloning, molecular and functional characterization of Arabidopsis thaliana allene oxide synthase (CYP 74), the first enzyme of the octadecanoid pathway to jasmonates. Plant Mol. Biol 1996, 31, 323–335. [Google Scholar]
  23. Chini, A.; Fonseca, S.; Fernandez, G.; Adie, B.; Chico, J.M.; Lorenzo, O.; Garcia-Casado, G.; Lopez-Vidriero, I.; Lozano, F.M.; Ponce, M.R.; et al. The JAZ family of repressors is the missing link in jasmonate signaling. Nature 2007, 448, 666–671. [Google Scholar]
  24. Thines, B.; Katsir, L.; Melotto, M.; Niu, Y.; Mandaokar, A.; Liu, G.H.; Nomura, K.; He, S.Y.; Howe, G.A.; Browse, J. JAZ repressor proteins are targets of the SCFCOI1 complex during jasmonate signaling. Nature 2007, 448, 661–665. [Google Scholar]
  25. Yan, J.B.; Zhang, C.; Gu, M.; Bai, Z.Y.; Zhang, W.G.; Qi, T.C.; Cheng, Z.W.; Peng, W.; Luo, H.B.; Nan, F.J.; et al. The Arabidopsis CORONATINE INSENSITIVE1 protein is a jasmonate receptor. Plant Cell 2009, 21, 2220–2236. [Google Scholar]
  26. Sheard, L.B.; Tan, X.; Mao, H.B.; Withers, J.; Ben-Nissan, G.; Hinds, T.R.; Kobayashi, Y.; Hsu, F.F.; Sharon, M.; Browse, J.; et al. Jasmonate perception by inositol-phosphate-potentiated COI1-JAZ co-receptor. Nature 2010, 468, 400–405. [Google Scholar]
  27. Xie, D.X.; Feys, B.F.; James, S.; Nieto-Rostro, M.; Turner, J.G. COI1: An Arabidopsis gene required for jasmonate-regulated defense and fertility. Science 1998, 280, 1091–1094. [Google Scholar]
  28. Feys, B.J.F.; Benedetti, C.E.; Penfold, C.N.; Turner, J.G. Arabidopsis mutants selected for resistance to the phytotoxin coronatine are male-sterile, insensitive to methyl jasmonate, and resistant to a bacterial pathogen. Plant Cell 1994, 6, 751–759. [Google Scholar]
  29. Ellis, C.; Turner, J.G. A conditionally fertile coi1 allele indicates cross-talk between plant hormone signaling pathways in Arabidopsis thaliana seeds and young seedlings. Planta 2002, 215, 549–556. [Google Scholar]
  30. Park, J.H.; Halitschke, R.; Kim, H.B.; Baldwin, I.T.; Feldmann, K.A.; Feyereisen, R. A knock-out mutation in allene oxide synthase results in male sterility and defective wound signal transduction in Arabidopsis due to a block in jasmonic acid biosynthesis. Plant J 2002, 31, 1–12. [Google Scholar]
  31. von Malek, B.; van der Graaff, E.; Schneitz, K.; Keller, B. The Arabidopsis male-sterile mutant dde2–2 is defective in the ALLENE OXIDE SYNTHASE gene encoding one of the key enzymes of the jasmonic acid biosynthesis pathway. Planta 2002, 216, 187–192. [Google Scholar]
  32. Staswick, P.E.; Su, W.P.; Howell, S.H. Methyl jasmonate inhibition of root growth and induction of a leaf protein are decreased in an Arabidopsis thaliana mutant. Proc. Natl. Acad. Sci. USA 1992, 89, 6837–6840. [Google Scholar]
  33. Staswick, P.E.; Tiryaki, I.; Rowe, M.L. Jasmonate response locus JAR1 and several related Arabidopsis genes encode enzymes of the firefly luciferase superfamily that show activity on jasmonic, salicylic, and indole-3-acetic acids in an assay for adenylation. Plant Cell 2002, 14, 1405–1415. [Google Scholar]
  34. Pickett, F.B.; Wilson, A.K.; Estelle, M. The aux1 mutation of Arabidopsis confers both auxin and ethylene resistance. Plant Physiol 1990, 94, 1462–1466. [Google Scholar]
  35. Miyawaki, K.; Tarkowski, P.; Matsumoto-Kitano, M.; Kato, T.; Sato, S.; Tarkowska, D.; Tabata, S.; Sandberg, G.; Kakimoto, T. Roles of Arabidopsis ATP/ADP isopentenyltransferases and tRNA isopentenyltransferases in cytokinin biosynthesis. Proc. Natl. Acad. Sci. USA 2006, 103, 16598–16603. [Google Scholar]
  36. Higuchi, M.; Pischke, M.S.; Mahonen, A.P.; Miyawaki, K.; Hashimoto, Y.; Seki, M.; Kobayashi, M.; Shinozaki, K.; Kato, T.; Tabata, S.; et al. In planta functions of the Arabidopsis cytokinin receptor family. Proc. Natl. Acad. Sci. USA. 2004, 101, 8821–8826. [Google Scholar]
  37. Guzman, P.; Ecker, J.R. Exploiting the triple response of Arabidopsis to identify ethylene-related mutants. Plant Cell 1990, 2, 513–523. [Google Scholar]
  38. Hua, J.; Chang, C.; Sun, Q.; Meyerowitz, E.M. Ethylene insensitivity conferred by Arabidopsis ERS gene. Science 1995, 269, 1712–1714. [Google Scholar]
  39. Dill, A.; Sun, T.P. Synergistic derepression of gibberellin signaling by removing RGA and GAI function in Arabidopsis thaliana. Genetics 2001, 159, 777–785. [Google Scholar]
  40. Penninckx, I.A.M.A.; Thomma, B.P.H.J.; Buchala, A.; Metraux, J.P.; Broekaert, W.F. Concomitant activation of jasmonate and ethylene response pathways is required for induction of a plant defensin gene in Arabidopsis. Plant Cell 1998, 10, 2103–2113. [Google Scholar]
  41. Benedetti, C.E.; Xie, D.X.; Turner, J.G. COI1-dependent expression of an Arabidopsis vegetative storage protein in flowers and siliques and in response to coronatine or methyl jasmonate. Plant Physiol 1995, 109, 567–572. [Google Scholar]
  42. Berger, S.; Bell, E.; Sadka, A.; Mullet, J.E. Arabidopsis thaliana Atvsp is homologous to soybean VspA and VspB, genes encoding vegetative storage protein acid phosphatases, and is regulated similarly by methyl jasmonate, wounding, sugars, light and phosphate. Plant Mol. Biol 1995, 27, 933–942. [Google Scholar]
  43. Li, Y.J.; Heaton, A.C.P.; Carreira, L.; Meagher, R.B. Enhanced tolerance to and accumulation of mercury, but not arsenic, in plants overexpressing two enzymes required for thiol peptide synthesis. Physiol. Plant 2006, 128, 48–57. [Google Scholar]
  44. Li, Y.J.; Dankher, O.P.; Carreira, L.; Smith, A.P.; Meagher, R.B. The shoot-specific expression of g-glutamylcysteine synthetase directs the long-distance transport of thiol-peptides to roots conferring tolerance to mercury and arsenic. Plant Physiol 2006, 141, 288–298. [Google Scholar]
  45. Marmiroli, M.; Visioli, G.; Antonioli, G.; Maestri, E.; Marmiroli, N. Integration of XAS techniques and genetic methodologies to explore Cs-tolerance in Arabidopsis. Biochimie 2009, 91, 180–191. [Google Scholar]
  46. Hampton, C.R.; Bowen, H.C.; Broadley, M.R.; Hammond, J.P.; Mead, A.; Payne, K.A.; Pritchard, J.; White, P.J. Cesium toxicity in Arabidopsis. Plant Physiol 2004, 136, 3824–3837. [Google Scholar]
  47. Hagiwara, S.; Miyazaki, S.; Rosenthal, N.P. Potassium current and effect of cesium on this current during anomalous rectification of egg cell membrane of a starfish. J. Gen. Physiol 1976, 67, 621–638. [Google Scholar]
  48. Rubio, F.; Santa-Maria, G.E.; Rodriguez-Navarro, A. Cloning of Arabidopsis and barley cDNAs encoding HAK potassium transporters in root and shoot cells. Physiol. Plant 2000, 109, 34–43. [Google Scholar]
  49. Ahn, S.J.; Shin, R.; Schachtman, D.P. Expression of KT/KUP genes in Arabidopsis and the role of root hairs in K+ uptake. Plant Physiol 2004, 134, 1135–1145. [Google Scholar]
  50. Kim, M.J.; Ruzicka, D.; Shin, R.; Schachtman, D.P. The Arabidopsis AP2/ERF transcription factor RAP2.11 modulates plant response to low-potassium conditions. Mol. Plant 2012, 5, 1042–1057. [Google Scholar]
  51. Brown, R.L.; Kazan, K.; McGrath, K.C.; Maclean, D.J.; Manners, J.M. A role for the GCC-box in jasmonate-mediated activation of the PDF1.2 gene of Arabidopsis. Plant Physiol 2003, 132, 1020–1032. [Google Scholar]
  52. Lorenzo, O.; Piqueras, R.; Sanchez-Serrano, J.J.; Solano, R. ETHYLENE RESPONSE FACTOR1 integrates signals from ethylene and jasmonate pathways in plant defense. Plant Cell 2003, 15, 165–178. [Google Scholar]
  53. Zarei, A.; Korbes, A.P.; Younessi, P.; Montiel, G.; Champion, A.; Memelink, J. Two GCC boxes and AP2/ERF-domain transcription factor ORA59 in jasmonate/ethylene-mediated activation of the PDF1.2 promoter in Arabidopsis. Plant Mol. Biol 2011, 75, 321–331. [Google Scholar]
  54. Dombrecht, B.; Xue, G.P.; Sprague, S.J.; Kirkegaard, J.A.; Ross, J.J.; Reid, J.B.; Fitt, G.P.; Sewelam, N.; Schenk, P.M.; Manners, J.M.; Kazan, K. MYC2 differentially modulates diverse jasmonate-dependent functions in Arabidopsis. Plant Cell 2007, 19, 2225–2245. [Google Scholar]
Ijms 14 04545f1 1024

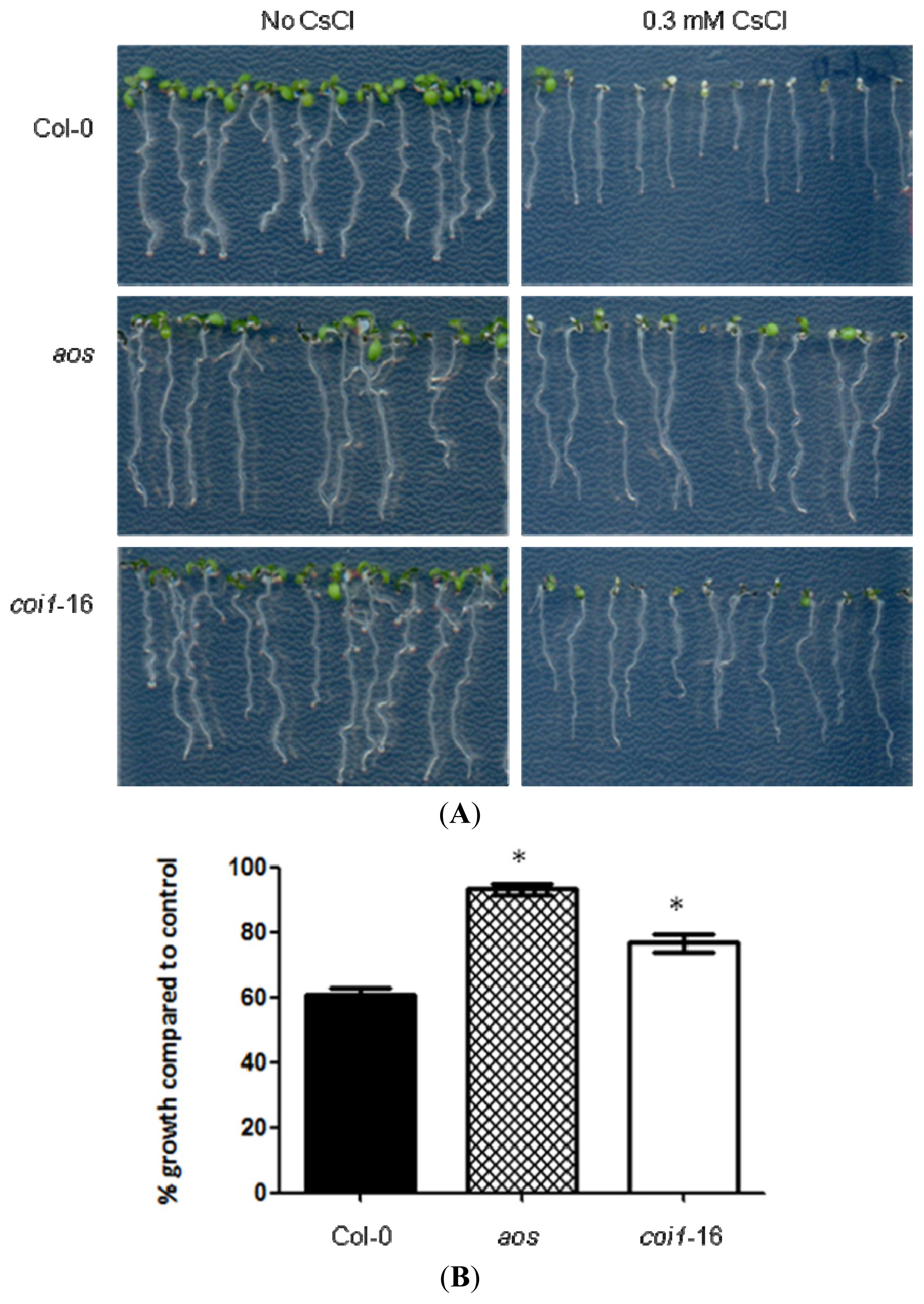

Figure 1. (A) Phenotype of Col-0 (wild type), aos and coi1-16 grown on 0.5 mM KCl with or without 0.3 mM CsCl for seven days. (B) Primary root % growth on 0.3 mM CsCl compared to the control condition. Primary root lengths of the seedlings treated with or without cesium were measured, and the % growth was calculated for Col-0 (black bar), aos (crisscross bar) and coi1-16 (white bar). Error bars indicate standard error (n ≥ 20). Statistically significant differences (p < 0.001) compared to Col-0 are indicated as asterisks.

Click here to enlarge figure

Figure 1. (A) Phenotype of Col-0 (wild type), aos and coi1-16 grown on 0.5 mM KCl with or without 0.3 mM CsCl for seven days. (B) Primary root % growth on 0.3 mM CsCl compared to the control condition. Primary root lengths of the seedlings treated with or without cesium were measured, and the % growth was calculated for Col-0 (black bar), aos (crisscross bar) and coi1-16 (white bar). Error bars indicate standard error (n ≥ 20). Statistically significant differences (p < 0.001) compared to Col-0 are indicated as asterisks.
Ijms 14 04545f1 1024
Ijms 14 04545f2 1024

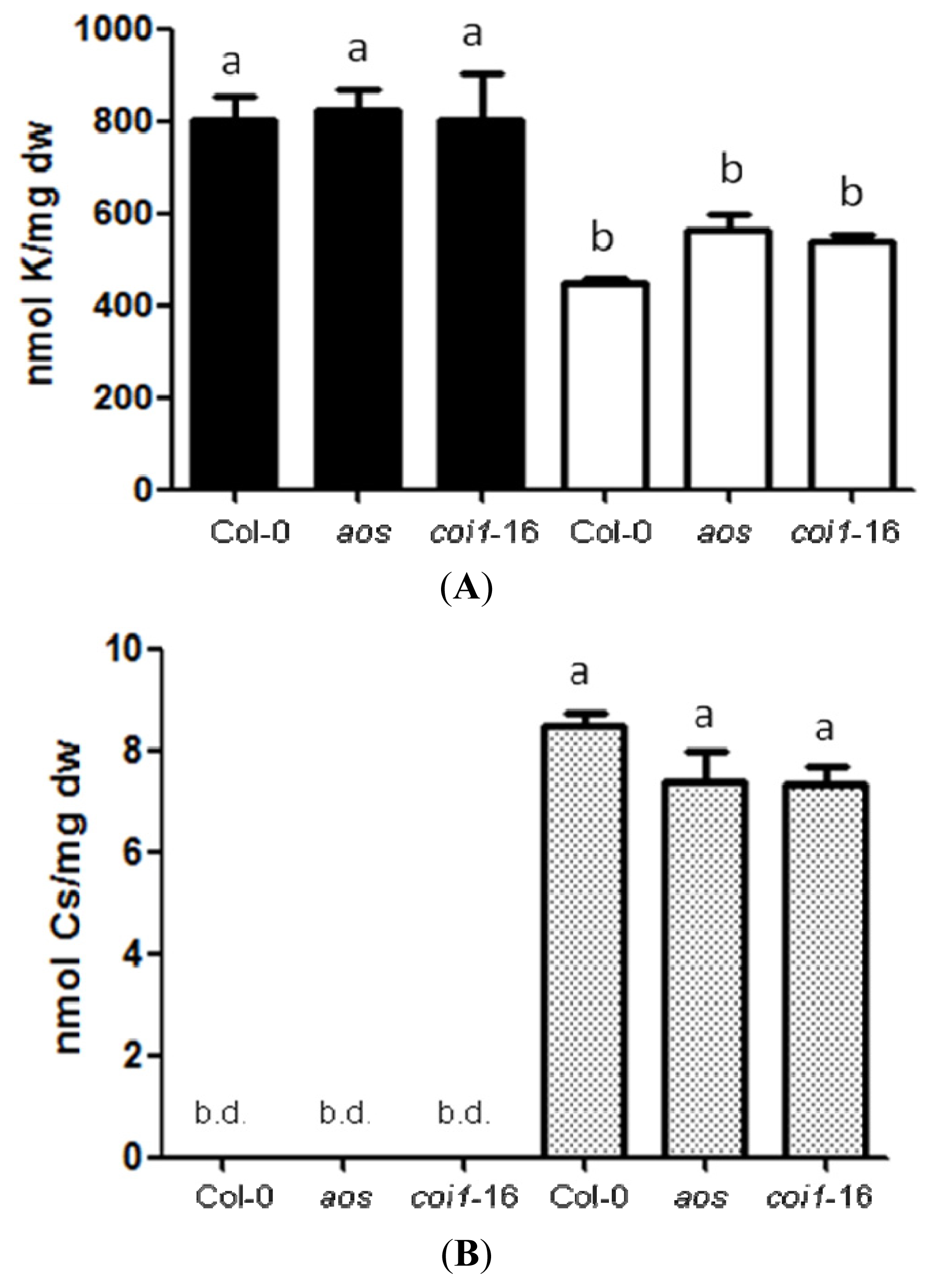

Figure 2. (A) K+ contents in Col-0, aos and coi1-16 grown on 1.75 mM KCl with (white bars) or without (black bars) 0.3 mM CsCl for seven days. (B) Cs+ contents in Col-0, aos and coi1-16 grown on 1.75 mM KCl with (dotted bars) or without 0.3 mM CsCl for seven days. Error bars indicate standard error for four biological replicates. Each sample contained more than 15 seedlings. b.d.: below the detection limit. Alphabetical letters show statistical differences (p < 0.05).

Click here to enlarge figure

Figure 2. (A) K+ contents in Col-0, aos and coi1-16 grown on 1.75 mM KCl with (white bars) or without (black bars) 0.3 mM CsCl for seven days. (B) Cs+ contents in Col-0, aos and coi1-16 grown on 1.75 mM KCl with (dotted bars) or without 0.3 mM CsCl for seven days. Error bars indicate standard error for four biological replicates. Each sample contained more than 15 seedlings. b.d.: below the detection limit. Alphabetical letters show statistical differences (p < 0.05).
Ijms 14 04545f2 1024
Ijms 14 04545f3 1024

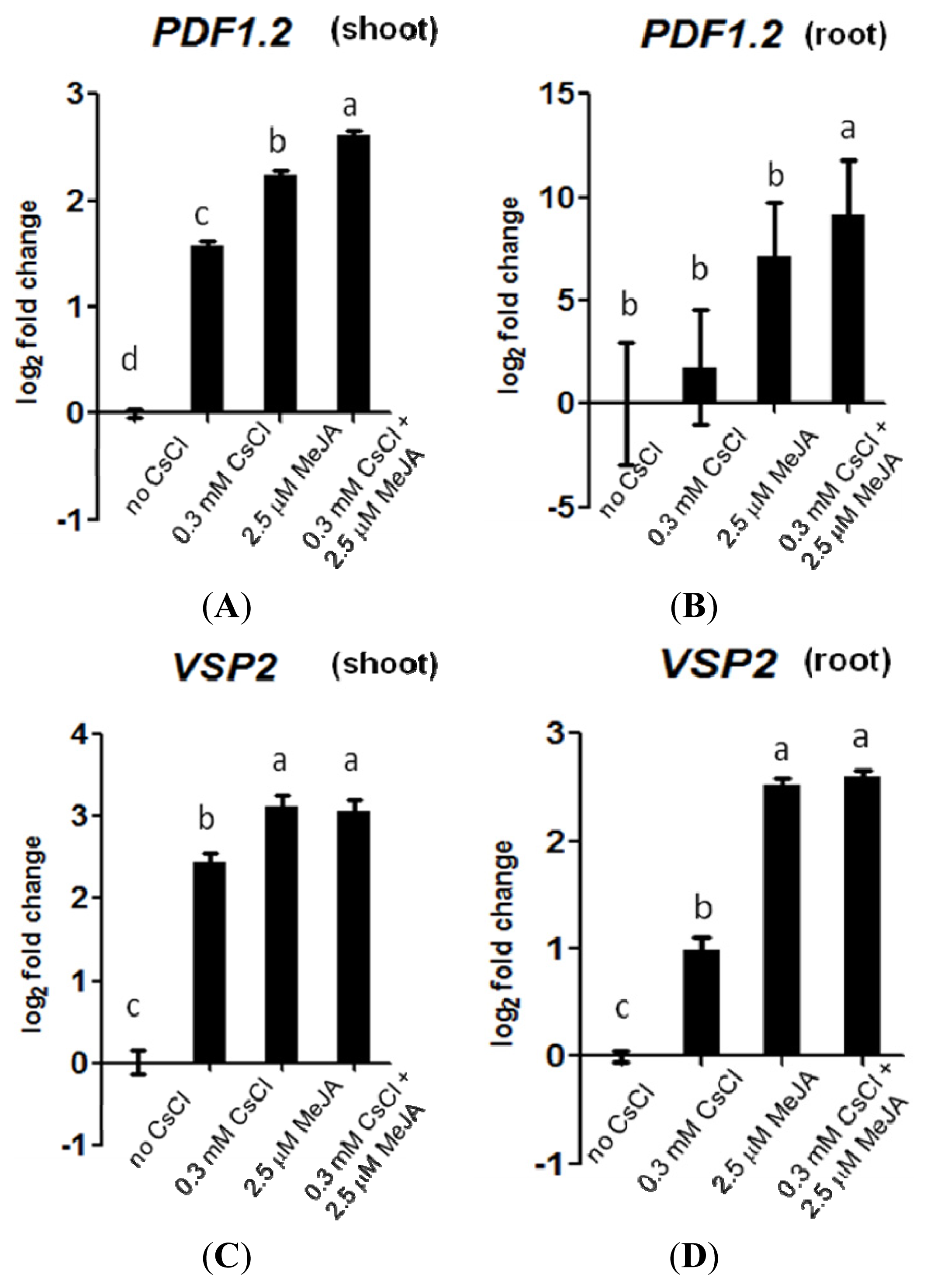

Figure 3. (A) Gene expression of PDF1.2 in Col-0 shoots and (B) roots, and (C) gene expression of VSP2 in Col-0 shoots and (D) roots, grown on 1.75 mM KCl with or without 0.3 mM CsCl and 2.5 mM methyl jasmonate (MeJA) for 11 days. Values are log2 ratios relative to the control. Error bars indicate standard error for three technical replicates. Each sample contained more than 15 seedlings, and the experiment was repeated three times, one of which is presented. Alphabetical letters show statistical differences (p < 0.05).

Click here to enlarge figure

Figure 3. (A) Gene expression of PDF1.2 in Col-0 shoots and (B) roots, and (C) gene expression of VSP2 in Col-0 shoots and (D) roots, grown on 1.75 mM KCl with or without 0.3 mM CsCl and 2.5 mM methyl jasmonate (MeJA) for 11 days. Values are log2 ratios relative to the control. Error bars indicate standard error for three technical replicates. Each sample contained more than 15 seedlings, and the experiment was repeated three times, one of which is presented. Alphabetical letters show statistical differences (p < 0.05).
Ijms 14 04545f3 1024
Ijms 14 04545f4 1024

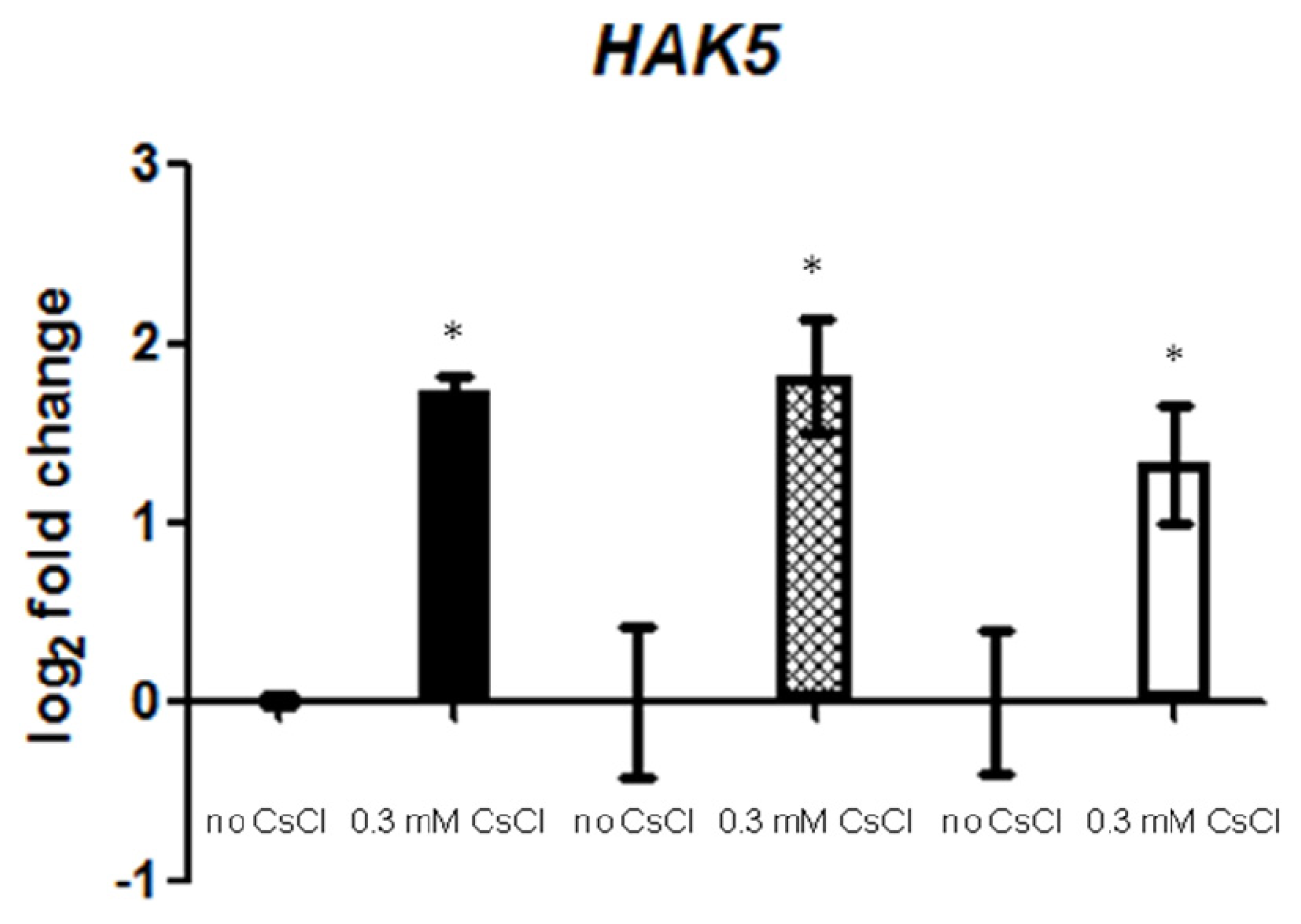

Figure 4. Gene expression of HAK5 in Col-0 (black bar), aos (crisscross bar) and coi1-16 (white bar) grown on 1.75 mM KCl with or without 0.3 mM CsCl for seven days. Values are log2 ratios relative to the controls. Error bars indicate standard error for three technical replicates. Each sample contained more than 15 seedlings, and the experiment was repeated three times, one of which is presented. Statistically significant differences (p < 0.05) compared to each non-treated sample are indicated as asterisks.

Click here to enlarge figure

Figure 4. Gene expression of HAK5 in Col-0 (black bar), aos (crisscross bar) and coi1-16 (white bar) grown on 1.75 mM KCl with or without 0.3 mM CsCl for seven days. Values are log2 ratios relative to the controls. Error bars indicate standard error for three technical replicates. Each sample contained more than 15 seedlings, and the experiment was repeated three times, one of which is presented. Statistically significant differences (p < 0.05) compared to each non-treated sample are indicated as asterisks.
Ijms 14 04545f4 1024
Ijms 14 04545f5 1024

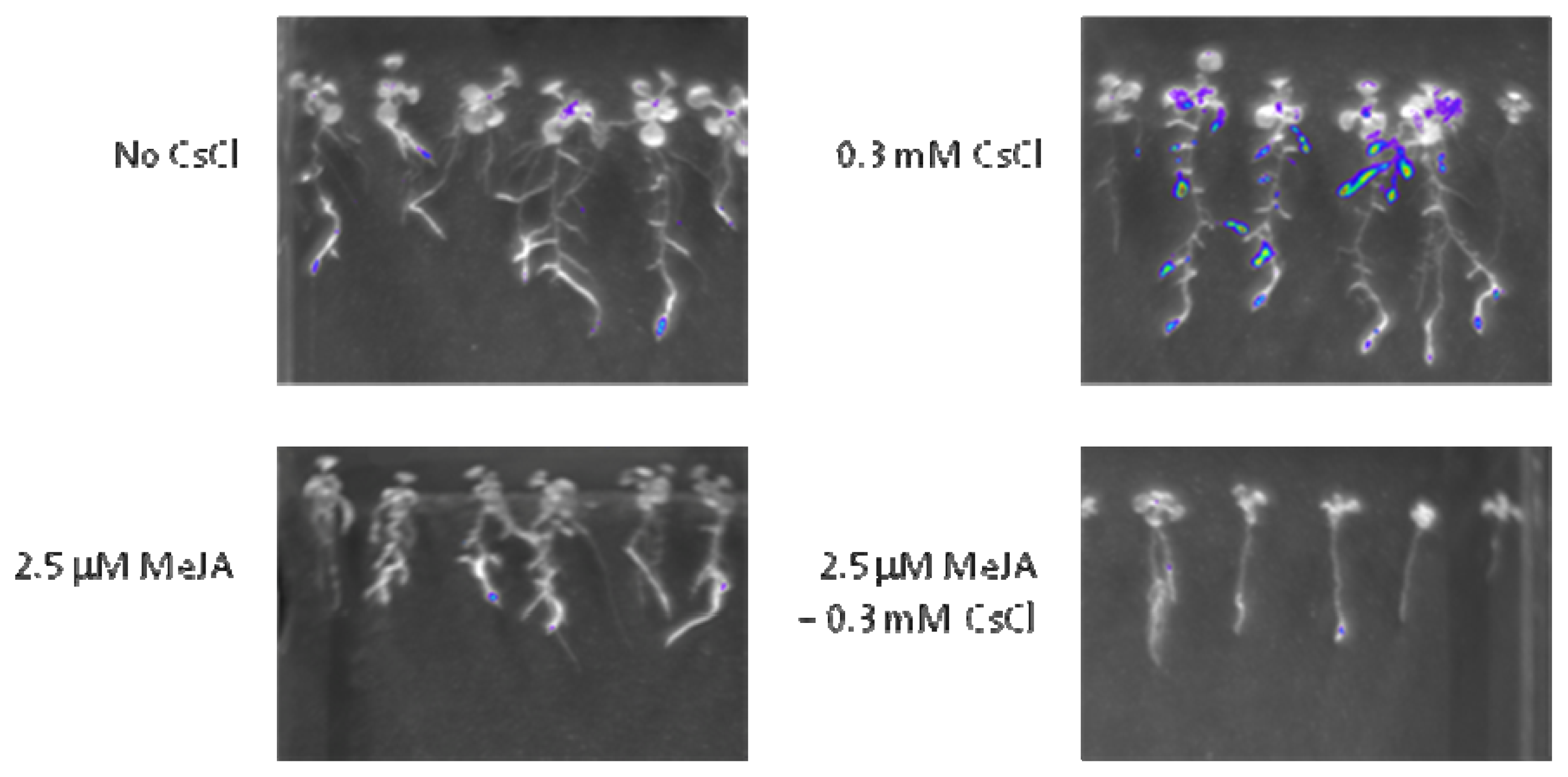

Figure 5. Chemiluminescence imaging of HAK5promoter::LUC plants grown on 1.75 mM KCl with or without 0.3 mM CsCl and 2.5 mM MeJA for 11 days. Pseudo color represents the intensity of chemiluminescence.

Click here to enlarge figure

Figure 5. Chemiluminescence imaging of HAK5promoter::LUC plants grown on 1.75 mM KCl with or without 0.3 mM CsCl and 2.5 mM MeJA for 11 days. Pseudo color represents the intensity of chemiluminescence.
Ijms 14 04545f5 1024
Ijms 14 04545f6 1024

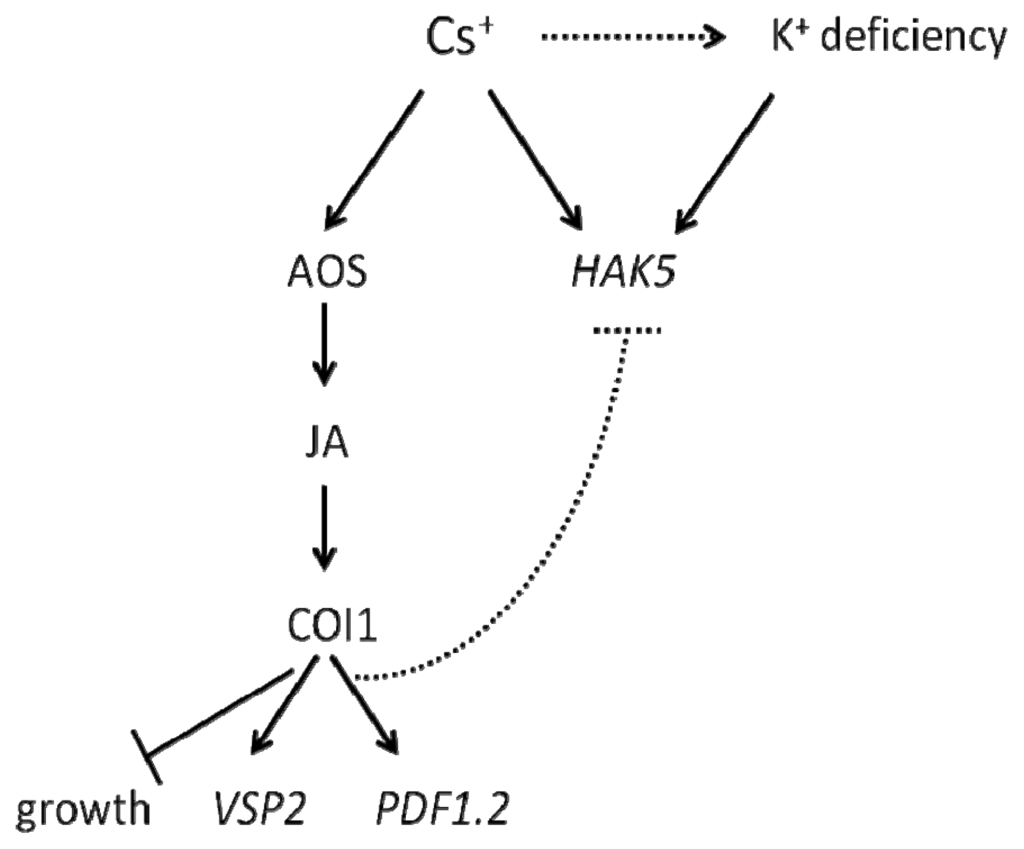

Figure 6. Model pathway. Cs+ induces the JA pathway and inhibits plant growth. Cs+ also induces HAK5 expression. Whether this expression is due to Cs+-induced K+ deficiency or the direct effect of Cs+ is not yet clear. An antagonistic effect of the JA pathway on HAK5 expression is also suggested.

Click here to enlarge figure

Figure 6. Model pathway. Cs+ induces the JA pathway and inhibits plant growth. Cs+ also induces HAK5 expression. Whether this expression is due to Cs+-induced K+ deficiency or the direct effect of Cs+ is not yet clear. An antagonistic effect of the JA pathway on HAK5 expression is also suggested.
Ijms 14 04545f6 1024
