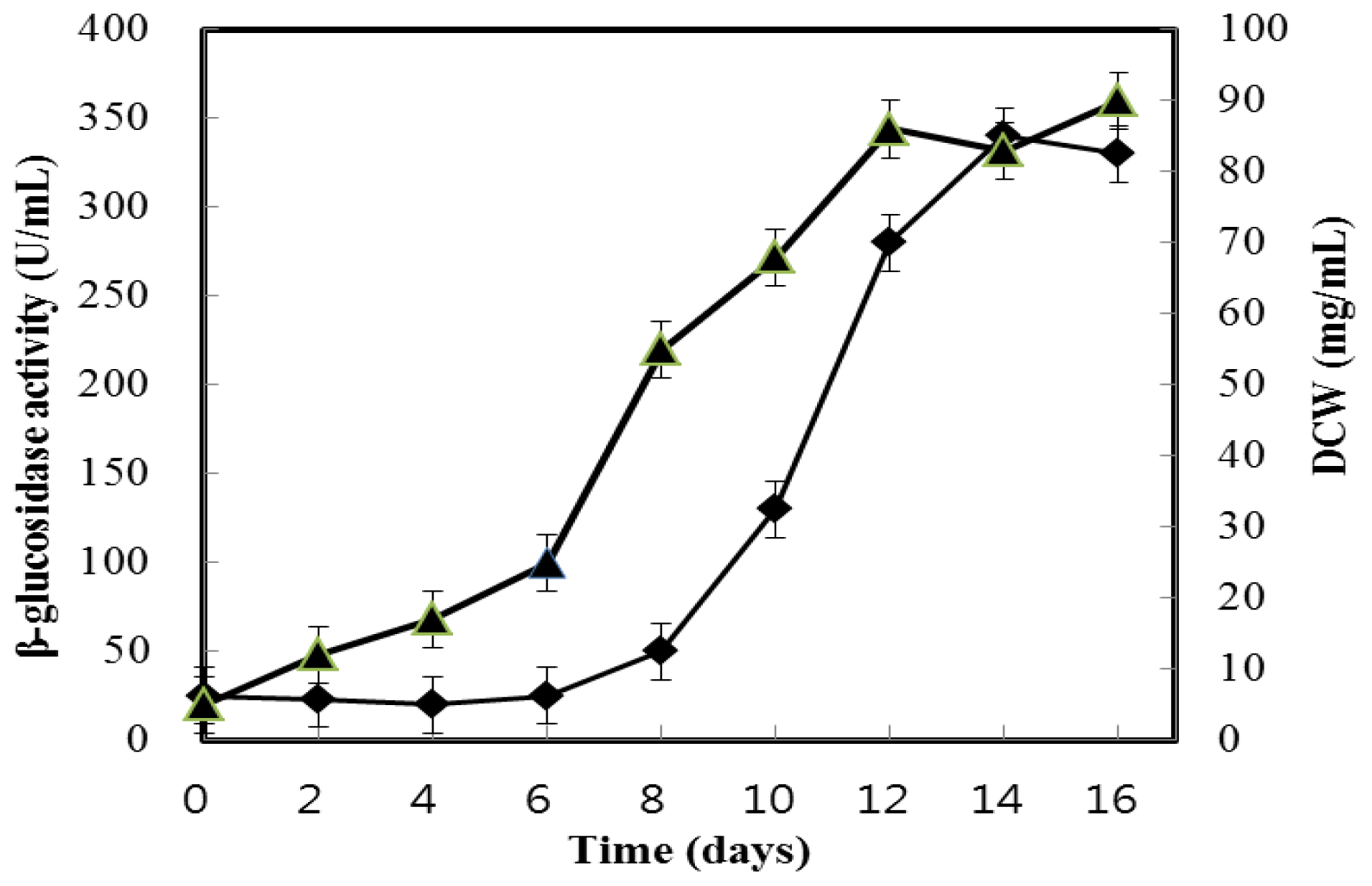

Changes in dry cell weight (DCW) and the β-glucosidase activity of A. niger KCCM 11239 on PDB medium at 30 °C were assessed under aerobic conditions. Figure 1 illustrates the relationship between β-glucosidase activity for the supernatant and cellular growth. As can be seen in Figure 1, the formation of extracellular β-glucosidase activity is growth-associated, ending when the stationary phase of growth is reached. A maximum β-glucosidase activity of cultivation medium was obtained after 16 days (specific activity, 9.9 U/mg). After that, the enzymatic activities were not changed during further culturing. Cultivation was, therefore, halted at 16 days. The culture supernatants were collected and employed as the source of enzyme purification.

The β-glucosidase from the culture supernatant of A. niger KCCM 11239 was purified using ammonium sulfate precipitation, gel chromatography, and ion-exchange chromatography. The protein in the crude enzyme was precipitated with 30%–90% ammonium sulfate, and was subsequently separated via gel filtration chromatography on a Sephadex G-100 column. The results of β-glucosidase activity and protein from each fraction during the elution of the ammonium precipitate absorbed onto a Sephadex G-100 column are depicted in Figure 2. A fraction volume was 3 mL and an activity measurement revealed only a single peak on the column and major peaks at fraction numbers 8–10. The active fractions were pooled and purified further via anion-exchange chromatography on DEAE-Sephadex. The β-glucosidase activity was observed at fraction numbers 28–29 in 0.15–0.20 M NaCl. The results of β-glucosidase activity and the protein profile on DEAE-Sephadex column are shown in Figure 3. The β-glucosidase was purified by approximately 46.5-fold, with a total volume yield of 1.5% relative to the crude enzyme. The specific activity of the purified enzyme was measured at 460.5 U/mg of protein. The purification steps subsequent to the removal of cells and their results are summarized in Table 1.

The purified β-glucosidase appeared to be homogeneous according to the criteria of SDS-PAGE, as shown in Figure 4. The molecular weight of the purified β-glucosidase was estimated at approximately 123 kDa, based on calculations of its mobility using standard calibration proteins. The β-glucosidase from A. niger KCCM 11239 differs from those of other β-glucosidases generated by A. niger reported thus far, which were 46, 110, and 240 kDa [16–18].

The optimal pH of the purified β-glucosidase was studied at the range of pH 3.0–pH 10.0. The optimal pH of the purified β-glucosidase was 4.0. The activity of the enzyme was rapidly reduced at pH values above 7.0. The enzyme proved to be highly stable at pH values of 5.0–10.0 and retained more than 70% of original activity after the incubation of the enzyme for 8 h in buffer solution at pH 4.0 at room temperature (data not shown).

The effects of temperature on enzyme activity were evaluated at the optimal pH of 4.0. In our previous study, it appeared that the β-glucosidase activity was significantly affected at higher temperatures and for a longer time (data not shown). An incubation at above 60 °C for 2 h resulted in a 98% loss of activity. In enzymatic assay at various temperatures for 10 min, the purified enzyme showed maximum activity at a temperature of 70 °C, presuming that the enzyme treated with these conditions was denatured in the direction of increasing the activity. At above 70 °C, the enzymatic activity dramatically decreased. The other β-glucosidase derived from A. niger exhibited a similar optimum pH and temperature [17,18].

The effects of various metal ions and reagents on the purified enzyme activity are shown in Table 2. The enzyme activity was reduced to 79% ± 0.27% by 10 mM Cu²⁺, and slightly inhibited by Mg²⁺ and Co²⁺. By way of contrast, Na⁺ and Ca²⁺ enhanced enzyme activity slightly at the same concentration. It has known that β-glucosidase from Cladosporium fulvum was inhibited strongly by Cu²⁺, and another enzyme from Melanocarpus sp. MTCC 3922 was also inhibited by Cu²⁺ [10,19]. In addition, it appeared that almost all reagents tested in this study did not inhibit enzyme activity except for acetic acid at 10 mM. On the other hand, an emulsifier, Triton X-100, activated the enzymatic activity although the mechanism has been clearly unknown yet. In particular, a chelating agent, EDTA, did not inhibit enzyme activity, thereby suggesting that metal ions are not essential for enzyme activation [20].

The substrate specificity of glycosidase is a critical factor for industrial biotransformation applications. The substrate specificity of the purified enzyme was determined by assaying the hydrolyzing activity of various ginsenosides: namely, Rb₁, Rb₂, Rc, Rd, Re, and Rg₁. When employing different ginsenosides as substrates, the purified enzyme showed marked high hydrolysis activity on ginsenoside Rb₁, as shown in Table 3. By way of contrast, the activities on Rb₂, Rc, Rd, and Re were either too low or were not detected. The protopanaxadiol (PPD)-type ginsenosides (Rb₁, Rb₂, Rc, and Rd) have identical disaccharide glucose-β-(1→2)-glucose linkages at C-3. Ginsenoside Rb₁ harbors four β-glucosidic linkages, including a C-3, glucose-β-(1→6)-glucose at C-20. Ginsenoside Rb₂, Rc, and Rd harbor arabinose-α-(1→6)-glucose, arabinose-α-(1→6)-glucose, and glucose-β-linkages at C-20, respectively. The protopanaxatriol (PPT)-type ginsenosides (Re, Rg1) harbor glucosidic linkages at C-6 and C-20. Ginsenoside Re harbors a rhamnose-α-(1→2)-glucose linkage. The results showed that purified β-glucosidase was highly selective for glucose hydrolysis.

To confirm the ginsenoside Rb₁ enzymatic transformation pathway by β-glucosidase from A. niger KCCM 11239, the Rb₁ ginsenoside was incubated at 50 °C and 200 rpm for 120 h. The hydrolyzed product was periodically assayed via HPLC, as shown in Figure 5. When ginsenoside Rb₁ was employed as the substrate, four products were identified as ginsenoside Rd, F₂, S-Rg₃, and R-Rg₃.

When ginsenoside Rb₁ was incubated, it was converted completely into Rd after 1 h. After 2 h, the ginsenoside Rd content decreased gradually, and the F₂ content increased gradually. After 12 h, both S-Rg₃ and R-Rg₃ began to be detected, and the content of total Rg₃ increased over time. This result indicated that the hydrolysis pathway of ginsenoside Rb₁ by β-glucosidase was Rb₁→Rd→F₂ and Rb₁→Rd→Rg₃, purified enzyme hydrolyzed a β-(1→6)-glucosidic linkage at C-20, as well as a β-(1→2)-glucosidic linkage at C-3 (Figure 6). These results are similar to those of the pathway by which ginsenoside Rb₁ is converted to Rg₃ by Microbacterium sp. GS514 [9]. Ginsenoside Rd has been shown to protect neurons against neurotoxic chemicals [21] and to prevent the contraction of blood vessels [22]. F₂ is a potent inhibitor of acetylcholine-evoked secretion [23]. Rg₃ induces a variety of pharmacological activities, such as tumor suppression [24], and hepatoprotective [25] and immune-enhancing effects [26]. Therefore, the β-glucosidase obtained from A. niger KCCM 11239 is considered a good candidate for use in biotransformation applications for the ginseng industry, and for the development of new drugs.

Ginsenosides Rb₁, Rc, Re, Rd, Rg₁, Rg₃, and Rh₂, and compound K were purchased from Vitrosys, Inc. (Yeongju, Korea). Sephadex G-100, DEAE Sephadex, bovine serum albumin (BSA), bicinchoninic acid (BCA), and ρ-nitrophenyl-β-d-glucopyranoside (PNPG) were purchased from Sigma-Aldrich (St. Louis, MO, USA). Potato dextrose broth was purchased from Difco (Miller, Becton Dickinson and Co., Sparks, MD, USA). High performance liquid chromatography (HPLC, Agilent 1100 series, Agilent Technologies, Palo Alto, CA, USA) was conducted by using a UV/Vis detector and a gradient pump system. All solvents were of analytical reagent grade.

A. niger KCCM 11239 was purchased from the Korean Culture Center of Microorganisms (KCCM, Seoul, Korea). The fungus was grown on potato dextrose agar at 30 °C for 4 days, and the stock culture was maintained at 4 °C. Erlenmeyer flasks were filled to 20% of their volume with potato dextrose broth, and were then inoculated with 5 day-old cultures. The cultures were grown under shaking conditions at 200 rpm for 16 days at 30 °C. During the shake flask culturing, a few glass beads were added to prevent mycelial clumping, and to achieve homogeneous growth. At the specified intervals, the dry weight and enzyme activity of the cells were evaluated.

β-Glucosidase activity was evaluated via a colorimetric method using PNPG as a substrate. The reaction mixture, which contained 1 mL of 5 mM PNPG and 100 μL of enzyme solution, was incubated for 10 min at 50 °C. The reaction was subsequently terminated via the addition of 1 mL of 0.5 M sodium hydroxide, and the absorption of the released ρ-nitrophenyl (PNP) was measured at 400 nm using a standard calibration curve. One unit (U) of β-glucosidase activity was defined as the quantity of enzyme required to liberate 1 μmole of PNP min⁻¹ under standard conditions [27].

Protein measurement was conducted with BCA reagent according to the method of Smith et al. [28], using bovine serum albumin as a standard protein.

All steps of β-glucosidase purification were conducted at 4 °C. The crude enzyme from a 16 day-old culture was harvested via 30 min of centrifugation at 8000× g, after which the supernatant was precipitated by ammonium sulfate (70%) at 0 °C, and then dissolved in buffer A (20 mM sodium acetate buffer, pH 4.0). The solution was dialyzed exhaustively against the same buffer for 24 h. The dialyzed protein was concentrated and loaded on a Sephadex G-100 column (1.5 cm × 30 cm) equilibrated with buffer A and eluted with 120 mL of the same buffer at a flow rate of 1.0 mL/min. The active fractions were pooled to make a total volume of 44 mL, which was then dialyzed and concentrated prior to ion-exchange chromatography. The active fractions from gel filtration chromatography were applied to a DEAE Sephadex column (3 cm × 15 cm) equilibrated with buffer A. The enzyme was eluted with a linear gradient of 150 mL NaCl from 0 to 0.30 M in the same buffer. The fractions eluted by 0.15 M to 0.20 M NaCl exhibited enzyme activity. The active fractions were pooled, exhaustively dialyzed against buffer A, and were then subjected to molecular weight determinations.

Sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) was conducted with a 10% gel via Laemmli’s method [29], using a mini-protein system (Bio-Rad). The gels were stained via 0.2% Coomassie’s brilliant blue in a solution containing 45% methanol and 10% acetic acid. The molecular weight was estimated using Protein Size Markers (20–140 kDa) from Elpis Biotech Inc. (Tae-Jeon, Korea).

The optimal pH was assessed in a pH range of 2.0–10.0 using the following buffer systems: 100 mM sodium citrate buffer (pH 3.0), 100 mM sodium acetate buffer (pH 4.0–6.0), 100 mM sodium phosphate buffer (pH 7.0–8.0), 100 mM glycine-NaOH buffer (pH 9.0) and 100 mM sodium hydroxide buffer (pH 10.0). The pH stability of the purified enzyme solution (0.5 mg/mL) was measured according to the residual activity following 8 h of pre-incubation of the enzyme in the above buffers at 50 °C.

The optimal temperature was determined by measuring the enzymatic activities with PNPG as a substrate at a range of temperatures from 20 °C to 80 °C in 20 mM sodium acetate buffer (pH 4.0). The thermal stability of the purified enzyme solution (0.5 mg/mL) was evaluated according to the residual activity after 2 h of pre-incubation of the enzyme in a temperature range from 20 °C to 80 °C.

The effects of metal ions and reagents on β-glucosidase activity were determined via the addition of 10 mM of various divalent (Fe²⁺, Cu²⁺, CO²⁺, Mg²⁺, Zn²⁺, Ca²⁺, and Mn²⁺) and monovalent cations (K⁺, Na⁺), as well as reagents (SDS, EDTA, Triton X-100, glycerol, acetic acid, ethanol, and methanol) to the reaction mixtures prior to 30 min incubation at 25 °C. The enzyme activities were subsequently measured in the presence of the metal ions or reagents under standard assay conditions [30].

Ginsenosides (Rb₁, Rb₂, Rc, Re, Rd, and Rg₁) were dissolved in distilled water to a concentration of 0.5 mg/mL as substrates. The mixture of ginsenosides (200 μL) and purified enzyme (200 μL, 460 U) was incubated for 30 min at 50 °C. The reaction was then halted via the addition of an equal volume of n-butanol. After centrifugation, the n-butanol phase was evaporated to dryness under vacuum and dissolved in methanol. The amount and pattern of hydrolyzed ginsenosides was detected via HPLC. The injection volume was 20 μL and a reverse phase column was used (C₁₈, 4.6 × 150 mm, particle size 5 μm). All peaks were determined according to their absorbance at 203 nm. The mobile phase utilized gradient conditions with solvents A (acetonitrile:water = 100:0) and B (acetonitrile:water = 14:86). The solvent A and B ratios were as follows: [20% A (0 min)]; 20% A (5 min); 30% A (10 min); 30% A (15 min); 60% A (20 min); 60% A (23 min); and 0% A (25 min)], with a 1.2 mL/min flow rate. The amount of product was calculated according to its peak area [31].

Two hundreds microliters of purified β-glucosidase (460 U) was incubated at 50 °C with 5 mL of 100 μM ginsenoside Rb₁ with shaking at 200 rpm. Aliquots were withdrawn at suitable time intervals (0, 1, 2, 4, 8, 12, 24, 48, 72, 96, and 120 h), and the reaction products were separated with 10 mL of water-saturated n-butanol and detected via HPLC under the conditions described above.
