Int. J. Mol. Sci. 2012, 13(7), 7938-7951; doi:10.3390/ijms13077938

Article
Degradability Enhancement of Poly(Lactic Acid) by Stearate-Zn3Al LDH Nanolayers
Mahboobeh Eili 1,*, Kamyar Shameli 1, Nor Azowa Ibrahim 1,* and Wan Md Zin Wan Yunus 2
1
Department of Chemistry, Faculty of Science, Universiti Putra Malaysia, Serdang, Selangor 43400, Malaysia; E-Mail: kamyarshameli@gmail.com
2
Department of Chemistry, Centre for Defence Foundation Studies, National Defence University of Malaysia, Kuala Lumpur 57000, Malaysia; E-Mail: wanmdzin@upnm.edu.my
*
Authors to whom correspondence should be addressed; E-Mails: m_eili@yahoo.com (M.E.); norazowa@science.upm.edu.my (N.A.I.); Tel.: +603-8946-6808 (N.A.I.); Fax: +603-8943-5380 (N.A.I.).
Received: 10 April 2012; in revised form: 23 May 2012 / Accepted: 13 June 2012 /
Published: 26 June 2012

Abstract

: Recent environmental problems and societal concerns associated with the disposal of petroleum based plastics throughout the world have triggered renewed efforts to develop new biodegradable products compatible with our environment. This article describes the preparation, characterization and biodegradation study of poly(lactic acid)/layered double hydroxide (PLA/LDH) nanocomposites from PLA and stearate-Zn3Al LDH. A solution casting method was used to prepare PLA/stearate-Zn3Al LDH nanocomposites. The anionic clay Zn3Al LDH was firstly prepared by co-precipitation method from a nitrate salt solution at pH 7.0 and then modified by stearate anions through an ion exchange reaction. This modification increased the basal spacing of the synthetic clay from 8.83 Å to 40.10 Å. The morphology and properties of the prepared PLA/stearate-Zn3Al LDH nanocomposites were studied by X-ray diffraction (XRD), transmission electron microscope (TEM), scanning electron microscope (SEM), thermogravimetric analysis (TGA), tensile tests as well as biodegradation studies. From the XRD analysis and TEM observation, the stearate-Zn3Al LDH lost its ordered stacking-structure and was greatly exfoliated in the PLA matrix. Tensile test results of PLA/stearate-Zn3Al LDH nanocomposites showed that the presence of around 1.0–3.0 wt % of the stearate-Zn3Al LDH in the PLA drastically improved its elongation at break. The biodegradation studies demonstrated a significant biodegradation rate improvement of PLA in the presence of stearate-Zn3Al LDH nanolayers. This effect can be caused by the catalytic role of the stearate groups in the biodegradation mechanism leading to much faster disintegration of nanocomposites than pure PLA.
Keywords:
poly(lactic acid); nanocomposites; layered double hydroxide; biodegradability enhancement; flexibility improvement

1. Introduction

Nowadays a great amount of various petroleum based polymers such as polyolefins, poly(vinyl chloride) and polystyrene are used. It is estimated that their production exceeds 108 t/a [1]. Since these polymers are highly stable towards most environmental conditions, their consumption and discarding into the environment are major contributions to non-degradable wastes. Although recycling is an environmentally attractive solution, only a minor portion of plastics is recycled, and most of these wastes end up in municipal burial sites [2]. In addition, satisfactory landfill sites are also limited and disposal of these wastes in incineration leads to the production of toxic or noxious products that contribute to global pollution. Therefore, it seems that the best solution to overcome these problems is the development of biodegradable polymers or green polymeric materials [3,4].

Biodegradable polymers are referred to as those environment friendly polymers that can be enzymatically or hydrolytically degraded after a limited time of exposure to humidity, light or microorganism without releasing any toxic or noxious gases [5].

Factors such as the chemical structure and the molar mass of the polymers, the rigidity of the polymer chain, the removal and dissolution of fission products from the surface, the surface activation of the enzyme, the kind and value of the microorganisms existing in the environment, etc. are determining factors to control the degradation process [6,7].

Depending upon the nature of the biodegradable polymers, their degradation might take three to twelve months [8]. Different biological, chemical and physical phenomena can be responsible for the biodegradation of polymers. In the environment (soil, compost, municipal waste deposits, etc.), polymers are usually degraded by microbial consortia. The biodegradation level can be monitored by determining the carbon dioxide evolution derived from the test samples or oxygen consumption by them. However, the most common biodegradability test is the soil burial test. In this method, biodegradability is studied by evaluating the weight loss of the samples over a specific time in a soil environment [9].

Aliphatic polyesters are a main category of biodegradable polymers. The degradation of aliphatic polyesters is a complex process, which consists of mainly four phenomena: water absorption, ester cleavage and formation of oligomer fragments, diffusion of soluble oligomers and solubilization of fragments [10]. Poly(lactic acid) (PLA, from L-Lactic acid, D-Lactic acid or mixes of both) is one of the most popular members of this group that can be naturally degraded in soil or compost by fungi (Aspergillus niger and Aspergillus flavus) or by enzymes [6]. Although PLA presents a much slower soil degradation rate compared to the other aliphatic polyesters like polybutylene succinate (PBS), polybutylene adipate (PBA) and poly(ɛ-caprolactone) (PCl), it can be completely degraded into water and carbon dioxide without any eco-toxicological effect [1113].

The biodegradability, thermoplasticity, transparency and fabricability of PLA as well as its high strength and high modulus make it a promising material for tissue engineering, service wares, waste-composting bags, mulch films, controlled release matrices for fertilizers, pesticides and herbicides [14,15]. However, its applications are limited due to its brittleness and nonflexibility, high crystallinity, slow degradation and costliness [16].

The effect of the montmorillonite (MMT) silicate layers on the biodegradability of aliphatic polyesters has been an interesting aspect of the research in the field of polymer/clay nanocomposites [17]. The research on the biodegradability of the PCL/MMT and PLA/MMT nanocomposites revealed a significant improvement of the biodegradability of the neat PCL and PLA after nanocomposite preparation with organo-modified MMT. However there is not any report in the literature regarding the effect of layered double hydroxide (LDH) nanolayers on the biodegradability of aliphatic polyesters.

LDHs or hydrotalcite-like compounds (HTs) are anionic clays which can be represented as [M(II)1−X M(III)X (OH)2]X+ [AX/nnmH2O]X where M (II) and M (III) are divalent and trivalent cations, respectively, and An is an exchangeable anion [18].

LDHs are composed of octahedral M2+(OH)6 brucite-like layers which are positively charged by the partial substitution of M3+ for M2+. Thus, anions are intercalated into the interlayers to achieve charge neutrality [19]. The most useful property of LDH is its anion exchangeable ability that has made it attractive as a subject of many researches in different fields such as catalysts [20], ion exchangers [21], sorbents [22], electrochemistry [23], etc.

Anions are typically intercalated into LDH interlayers by three approaches [24]. The first approach is the co-precipitation method, which requires an addition of a solution of M2+ and M3+ ions into a base solution of the desired anions. The second technique is the direct ion exchange method, in which LDHs are stirred in a solution of the chosen anions at a suitable concentration. The last method is the rehydration method in which calcined LDH is added to a solution of desired anions [25]. The selection of anions for modification of LDH depends on the next application of LDH. For example, Mg–Al LDHs intercalated with dodecylsulfate and dodecylbenzenesulfonate have been used to adsorb pesticides, such as triadimefon, linuron, atrazine, acephate, and diazinon, from aqueous solution [26]. Also LDHs containing interlayer carboxylate anions have attracted considerable attention in recent years due to interesting properties and potential applications e.g., LDH modified with citrate, malate and tartrate ions are able to take up hazardous organic materials and heavy metal ions from an aqueous solution [27].

The interest in using LDH as a filler for polymer matrixes is given by some advantages of LDH which are lacking in more common fillers from the smectite group mineral compounds such as montmorillonite (MMT). Some of these specific advantages of LDH are: its higher ion exchange capacity, its highly tunable properties like particle size and aspect ratio, and its positively layered charge that can be modified with anionic surfactants [28]. The preparation and characterization of different polymer/LDH nanocomposites have been reported [2936]. However, there are no reports on biodegradation studies of polymer/LDH nanocomposites. The objective of our research is to investigate the influence of the stearate-Zn3Al LDH nanolayers on the tensile properties and the biodegradability of PLA.

2. Results and Discussion

The X-ray diffraction (XRD) patterns in the range of 2θ from 2 to 50° for the pristine and modified Zn3Al LDH are shown in Figure 1. It is apparent that both Zn3Al LDH and stearate-Zn3Al LDH are crystalline in nature with a well-defined layered structure. The basal spacing (d) of the Zn3Al LDH or stearate-Zn3Al LDH is calculated from the first diffraction peak using Bragg’s equation, nλ = 2 dsinθ, where n is equal to 1 for the <003> peak, λ is the wave length of Cu-Kα radiation, and θ is the half of the scattering angle. The modification of Zn3Al LDH with stearate ions increases the clay interlayer distance from 8.83 Å in Zn3Al LDH (corresponding 2θ value of <003> peak is 10.00°) to 40.1 Å in stearate-Zn3Al LDH (2θ = 2.156°). The increase of the basal spacing indicates that the anions are successfully intercalated into the interlayers of Zn3Al LDH [37].

X-ray diffraction patterns of the stearate-Zn3Al LDH, pure PLA and PLA/stearate-Zn3Al LDH nanocomposites containing various amounts of stearate-Zn3Al LDH are shown in Figure 2. As it can be observed, in the case of PLA/stearate-Zn3Al LDH nanocomposites, the diffraction peaks disappear indicating complete exfoliation of the LDH layers in the PLA matrix.

The investigation of the internal structure of composites using XRD alone can often be misleading, since the XRD technique cannot detect layers that are in relatively disordered patterns in exfoliated nanocomposites [38] or it is unable to detect regular stacking that exceeds 88 Å in intercalated nanocomposites [39]. Figure 3 presents the high magnification transmission electron microscope (TEM) images of PLA/stearate-Zn3Al LDH nanocomposites containing 3.0, 5.0, 7.0 and 10.0 wt % stearate-Zn3Al LDH, respectively. The dark lines represent the LDH nanolayers, whereas the gray areas correspond to the PLA matrix. The images clearly reveal that the Zn3Al LDH layers have lost their stacking order and are randomly dispersed in the PLA matrix. The absence of aggregates confirms the high degree of exfoliation of the LDH plates within PLA matrix. Therefore the nanocomposites are the exfoliated type. The exfoliated structure observed here by TEM is in good agreement with the XRD results. Similar results are reported for Co Al LDH/polycaprolactone (PCL) nanocomposites [40].

The dependences of the tensile strength, elastic modulus and elongation at break of the PLA/stearate-Zn3Al LDH nanocomposites on the stearate-Zn3Al LDH content are plotted in Figures 4 and 5. The error bars represent s.d. of at least two independent experiments in duplicate wells. Figure 4 shows that both tensile strength and elastic modulus decrease gradually as the filler content is increased, while Figure 5 displays that the addition of stearate-Zn3Al LDH content from 1.0 to 3.0 wt % into the PLA matrix leads to a dramatical increase (of more than 600%) of elongation at break. The diminution of tensile strength besides the flexibility improvement is usually reported for different polymers in the presence of various plasticizers [4144]. It can be attributed to this fact that the plasticizer behaves like a solvent when mixed with a polymer, it causes the decrease of polymer chain cohesion and thus a reduction of tensile strength properties [45]. The significant increase in the elongation at break of the nanocomposites is maybe due to the presence of the long chain hydrocarbon parts of stearate anions in the modified stearate-Zn3Al LDH that act as a plasticizer. However the remarkable point is this that using a small amount of stearate-Zn3Al LDH promoted the flexibility and ductility of the final nanocomposites but did not decrease the tensile effectively, while the main drawback of most of the plasticizers that have been used for PLA matrix so far is the big drop of tensile strength and modulus of the products due to the large amount of plasticizer agent that is needed to plasticize it [46].

However, a further increase of the stearate-Zn3Al LDH content decreases the elongation at break. A high content of stearate-Zn3Al LDH can induce agglomerations of the filler that can cause reduction of elongation at break [47]. A similar finding was reported by Baiardo et al. [48] when acetyl tri-n-butyl citrate (ATBC) was applied as a plasticizer for PLA.

Figure 6 shows scanning electron microscopy (SEM) micrographs obtained from the fractured cross-section surfaces of unfilled PLA and its stearate-Zn3Al LDH nanocomposites. The micrographs of unfilled PLA reveal rather compact solid and brittle fracture surfaces with little plastic deformation. Few long threads of a deformed material are observed on the fracture surface of PLA. On the entire fracture surfaces of the PLA with 1.0, 3.0 and 5.0 wt % of stearate-Zn3Al LDH, a large amount of plastically deformed material is discernible due to ductility and flexibility improvement of new nanocomposites. Similar images were obtained for PLA plasticized with poly ethylene glycol [41].

Figure 7 shows the biodegradability of the pure PLA and PLA/stearate-Zn3Al LDH nanocomposites in soil for up to seven months. The nanocomposites exhibit a much higher disintegration rate than that of the pure PLA and the weight loss percentage increases as the filler loading is increased. The enhancement of biodegradation rate of PLA in soil as a result of the presence of stearate-Zn3Al LDH could be interpreted by the mechanism suggested by Ray et al. who found out that the disintegration rate of PLA is enhanced with the presence octadecyltrimethylammonium-modified MMT [49,50]. They suggested that this improvement might be caused by the existence of terminal hydroxylated edge groups in the silicate layers that homogeneously dispersed in the PLA matrix. These hydroxyl groups can absorb water from compost and start heterogeneous hydrolysis of the PLA matrix leading to faster degradation. The same mechanism can be assumed in the case of PLA/stearate-Zn3Al LDH nanocomposites, where the rates of weight loss of the PLA and PLA/stearate-Zn3Al LDH nanocomposites are almost the same up to around four months. However, after four months the weight loss rate of the nanocomposites is bigger than that of the unfilled PLA and a higher weight loss rate is observed when PLA/stearate-Zn3Al LDH is increased.

Another factor that may be associated with biodegradability improvement of the PLA nanocomposites is the faster degradation rate of stearate groups in the nanocomposite films than that of the PLA matrix. Therefore the PLA matrix will be broken down into smaller particles, resulting in an increased disintegration rate of nanocomposites films containing stearate-Zn3Al LDH than that of neat PLA film.

The biodegradability of the pure PLA and PLA/Zn3Al LDH composites in the soil for up to seven months is shown in Figure 8. The rate of weight loss of macrocomposites is higher than that of the pure PLA. However, comparison of the results in Figures 7,8 shows that the degradation rate of nanocomposites is much higher than that of the macrocomposites. This may be due to the compactness of the unmodified LDH plates, which hinders water diffusion. These experiments were repeated three times for all of samples to show biodegradable properties.

Thermogravimetric analysis (TGA) measurements were carried out to obtain information on the thermal stability of the nanocomposite samples.

The TGA and differential thermal analysis (DTA) curves of the pure PLA and its stearate-Zn3Al LDH nanocomposites are presented in Figures 9 and 10, respectively. A two-stage decomposition process is observed for all samples, the first stage is maybe related to the loss of physically bonded water below 200 °C. However, the main decomposition step associated with the degradation of the PLA and its nanocomposites occurs at the temperature of 250–350 °C. It is clear that the Tonset of the PLA/stearate-Zn3Al LDH nanocomposites decreases as the amount of the stearate-Zn3Al LDH is increased. This reduction of Tonset may be attributed to the presence of long chain hydrocarbons, which may increase chain mobility and decrease strength and toughness. Since this product is useful for the packaging industry, this reduction cannot influence the next applications of products.

3. Experimental Section

3.1. Materials

Aluminium nitrate nonahydrate was supplied by HmbG (Germany). Zinc nitrate hexahydrate was purchased from Bendosen Laboratory Chemicals (Malaysia). Sodium stearate was purchased from R & M chemicals (UK). Sodium hydroxide pellets and chloroform were obtained from Merk (Germany) and Polylactide resin 4042D (92% L, 8% D) was supplied by NatureWorks LLC (USA). All the above-mentioned commercial chemicals were used as received.

3.2. Synthesis of Zn3Al LDH

The Zn3Al LDH was prepared by adding drop-wise a solution of NaOH (1 M) into a 250 mL solution of 22.30 g Zn(NO3)2·6H2O and 9.38 g Al(NO3)3·9H2O (with the mol ratio of 3 to 1) until pH 7 was obtained. The resulting suspension was shaken at 100 rpm and 70 °C for 16 h. The slurry was filtered, washed thoroughly with deionized water and dried at 60 °C for 24 h to obtain the Zn3Al LDH.

3.3. Preparation of Stearate-Zn3Al LDH

The stearate-Zn3Al LDH was prepared by replacing nitrate ions in the LDH layers with stearate ions using the following procedure. One gram of the dry Zn3Al LDH was first transferred into 750 mL of 0.003 M solution of sodium stearate solution and stirred at room temperature for 24 h. The white solid obtained was then filtered, washed with deionized water three times and dried in a vacuum desicator at room temperature.

3.4. Preparation of PLA/Stearate-Zn3Al LDH Nanocomposites

The nanocomposites of PLA with different amounts of stearate-Zn3Al LDH were prepared by a solution casting method. The desired amount of stearate-Zn3Al LDH in 40 mL chloroform was first sonicated for 3 h, transferred into a solution of 10 g PLA in 200 mL chloroform and refluxed for 24 h. The viscous suspensions were casted in a glass petri dish and dried in the solvent atmosphere to obtain the sample sheets.

3.5. Characterization Techniques

X-ray diffraction (XRD) patterns of the LDHs and composites were recorded using a Shidmadzu XRD 6000 Diffractometer at 30 kV and 30 mA with Cu-Kα radiation of the wavelength of 1.5405 nm.

Scanning electron microscopy (SEM) images were obtained using a Philips XL30 Environmental scanning electron microscope. The clean and dry samples were first coated with gold using a Bal-Tec SCD 005 sputter coater.

The transmission electron microscopy (TEM) images were obtained by employing a transmission electron microscope Hitachi, H7100 with an accelerating voltage of 200 kV. The samples were dispersed in chloroform and diluted to the right concentration. The suspension was then dropped on to the TEM sample grid and allowed to dry. The very thin layer on the grid was observed on the microscope.

The pure PLA and its nanocomposites were subjected to thermogravimetric analysis using Perkin-Elmer Thermal Analyzer (model TGA 7). The tests were carried out under a nitrogen gas atmosphere with a flow rate of 20 cm3·min−1 using a scan rate of 10 °C·min−1. The temperature range of 40 to 800 °C was used to study the thermal decomposition of the samples. The weight of each sample was about 30 mg. The weight loss of the samples during heating was automatically recorded and plotted as a function of temperature.

Tensile tests were performed by using a Universal Tester, Instron–4302, LEO. Tensile tests were performed according to the guidelines of ASTM D-638-V. The samples were cut into dumbbell shapes using a dumbbell cutter (Die BS 6476). The thicknesses of the samples were measured using a thickness gauge. A load cell of 1.0 kN was applied at a constant crosshead speed of 10 mm/min at room temperature. The reported results were the average of at least five measurements of tensile determinations (in duplicate).

Biodegradability of the samples was studied by measuring the weight loss of the thin-plate specimens buried in soil. Samples of 30 × 30 × 1 mm were weighed and then buried at a depth of 15 cm in the garden pots with an approximate capacity of 15 L and some holes at the bottom of the pots. The soil used in the tests was fertile soil for gardening without any pretreatment. The pots were placed in an uncovered gazebo with the temperature varying from 20 °C to 30 °C and a humidity above 80%. The buried samples were taken out once a month, washed in distilled water to remove the soil, dried in an oven at 60 °C for 24 h and the weight of dry samples was recorded. Based on the sample weight before and after degradation, the average percentage of weight loss for each sample was calculated. Weight loss of the specimens with time was used to indicate degradation rate in the soil burial test. The soil burial degradation test started on 5 October 2009 and ended on 5 May 2010.

4. Conclusions

Stearate-Zn3Al LDH, which was prepared by co-precipitation and ion exchange reaction, was used as nanofiller in a poly lactic acid (PLA) matrix. The internal structure of the nanocomposites in the nanometer range was established using X-ray diffraction and transmission electron microscope analysis. The effect of stearate-Zn3Al LDH loading on tensile properties and soil biodegradation was studied. Significant improvement of elongation at break was observed as a result of the addition of 1.0–3.0 wt % of stearate-Zn3Al LDH to the poly lactic acid. The presence of stearate-Zn3Al LDH nanolayers increased the rate of degradation of PLA in the soil. The thermogravimetric analysis showed that the presence of modified LDHs nanolayers does not lead to any improvement in thermal stability of PLA/stearate-Zn3Al LDH nanocomposites.

Acknowledgments

The authors thank the staff at the Institute of Bioscience Universiti Putra Malaysia for their support with SEM and TEM instruments.

References

  1. Marten, E.; Müller, R.J.; Deckwer, W.D. Studies on the enzymatic hydrolysis of polyesters I. Low molecular mass model esters and aliphatic polyesters. Polym. Degrad. Stabil 2003, 80, 485–501. [Google Scholar]
  2. Wu, C.S. Physical properties and biodegradability of maleated-polycaprolactone/starch composite. Polym. Degrad. Stabil 2003, 80, 127–134. [Google Scholar]
  3. Ray, S.S.; Bousmina, M. Biodegradable polymers and their layered silicate nanocomposites: In greening the 21st century materials world. Prog. Mat. Sci 2005, 50, 962–1079. [Google Scholar]
  4. Tang, X.; Alavi, S. Recent advances in starch, polyvinyl alcohol based polymer blends, nanocomposites and their biodegradability. Carbohydr. Polym 2011, 85, 7–16. [Google Scholar]
  5. Umare, S.S.; Chandure, A.S.; Pandey, R.A. Synthesis, characterization and biodegradable studies of 1,3-propanediol based polyesters. Polym. Degrad. Stabil 2007, 92, 464–479. [Google Scholar]
  6. Chandra, R.; Rustgi, R. Biodegradable polymers. Prog. Polym. Sci 1998, 23, 1273–1335. [Google Scholar]
  7. Scherer, T.M.; Fuller, R.C.; Lenz, R.W.; Goodwin, S. Hydrolase activity of an extracellular depolymerase from aspergillus fumigatus with bacterial and synthetic polyesters. Polym. Degrad Stabil 1999, 64, 267–275. [Google Scholar]
  8. Athanasiou, K.A.; Agrawal, C.M.; Barber, F.A.; Burkhart, S.S. Orthopaedic applications for PLA-PGA biodegradable polymers. Arthrosc. J. Arthrosc. Relat. Surg 1998, 14, 726–737. [Google Scholar]
  9. Muller, R.J. Biodegradability of polymers: Regulations and methods for testing. Biopolym. Online 2005. [Google Scholar] [CrossRef]
  10. Liu, J.W.; Zhao, Q.; Wan, C.X. Research progresses on degradation mechanism in vivo and medical applications of polylactic acid. Space Med. Med. Eng 2001, 14, 308–312. [Google Scholar]
  11. Bordes, P.; Pollet, E.; Avérous, L. Nano-biocomposites: Biodegradable polyester/nanoclay systems. Prog. Polym. Sci 2009, 34, 125–155. [Google Scholar]
  12. Fukushima, K.; Abbate, C.; Tabuani, D.; Gennari, M.; Camino, G. Biodegradation of poly(lactic acid) and its nanocomposites. Polym. Degrad. Stabil 2009, 94, 1646–1655. [Google Scholar]
  13. Tuominen, J.; Kylma, J.; Kapanen, A.; Venelampi, O.; Itävaara, M.; Seppälä, J. Biodegradation of lactic acid based polymers under controlled composting conditions and evaluation of the ecotoxicological impact. Biomacromolecules 2002, 3, 445–455. [Google Scholar]
  14. Gupta, B.; Revagade, N.; Hilborn, J. Poly(lactic acid) fiber: An overview. Prog. Polym. Sci 2007, 32, 455–482. [Google Scholar]
  15. Lee, S.Y.; Chen, H.; Hanna, M.A. Preparation and characterization of tapioca starch-poly(lactic acid) nanocomposite foams by melt intercalation based on clay type. Ind. Crop. Prod 2008, 28, 95–106. [Google Scholar]
  16. Li, B.; Dong, F.X.; Wang, X.L.; Yang, J.; Wang, D.Y.; Wang, Y.Z. Organically modified rectorite toughened poly(lactic acid): Nanostructures, crystallization and mechanical properties. Eur. Polym. J 2009a, 45, 2996–3003. [Google Scholar]
  17. Pavlidou, S.; Papaspyrides, C.D. A review on polymer-layered silicate nanocomposites. Prog. Polym. Sci 2008, 33, 1119–1198. [Google Scholar]
  18. Carrado, K.A.; Kostapapas, A.; Suib, S.L. Layered double hydroxides (LDHs). Solid State Ion 1988, 26, 77–86. [Google Scholar]
  19. Hsueh, H.B.; Chen, C.Y. Preparation and properties of LDHs/polyimide nanocomposites. Polymer 2003, 44, 1151–1161. [Google Scholar]
  20. Li, E.; Xu, Z.P.; Rudolph, V. MgCoAl-LDH derived heterogeneous catalysts for the ethanol transesterification of canola oil to biodiesel. Appl. Catal. Environ 2009b, 88, 42–49. [Google Scholar]
  21. Coronado, E.; Martí-Gastaldo, C.; Navarro-Moratalla, E.; Ribera, A. Intercalation of [M(ox)3]3− (M = Cr, Rh) complexes into NiIIFeIII-LDH. Appl. Clay Sci 2009, 48, 228–234. [Google Scholar]
  22. Triantafyllidis, K.S.; Peleka, E.N.; Komvokis, V.G.; Mavros, P.P. Iron-modified hydrotalcite-like materials as highly efficient phosphate sorbents. J. Colloid Interf. Sci 2009, 342, 427–436. [Google Scholar]
  23. Schwenzer, B.; Neilson, J.R.; Sivula, K.; Woo, C.; Fréchet, J.M.J.; Morse, D.E. Nanostructured p-type cobalt layered double hydroxide/n-type polymer bulk heterojunction yields an inexpensive photovoltaic cell. Thin Solid Films 2009, 517, 5722–5727. [Google Scholar]
  24. Forano, C.; Hibino, T.; Leroux, F.; Taviot-Guého, C. Layered double hydroxides. Dev. Clay Sci 2006, 1, 1021–1095. [Google Scholar]
  25. Olfs, H.W.; Torres-Dorante, L.O.; Eckelt, R.; Kosslick, H. Comparison of different synthesis routes for Mg-Al layered double hydroxides (LDH): Characterization of the structural phases and anion exchange properties. Appl. Clay Sci 2009, 43, 459–464. [Google Scholar]
  26. Villa, M.V.; Sánchez-Martín, M.J.; Sánchez-Camazano, M. Hydrotalcites and organo-hydrotalcites as sorbents for removing pesticides from water. J. Environ. Sci. Health Pestic. Food Contam. Agric. Wastes 1999, 34, 509–525. [Google Scholar]
  27. Kameda, T.; Takeuchi, H.; Yoshioka, T. Preparation of organic acid anion-modified magnesium hydroxides by coprecipitation: A novel material for the uptake of heavy metal ions from aqueous solutions. J. Phys. Chem. Solids 2009, 70, 1104–1108. [Google Scholar]
  28. Costa, F.R.; Leuteritz, A.; Wagenknecht, U.; Jehnichen, D.; Häußler, L.; Heinrich, G. Intercalation of Mg–Al layered double hydroxide by anionic surfactants: Preparation and characterization. Appl. Clay Sci 2008, 38, 153–164. [Google Scholar]
  29. Sugahara, Y.; Yokoyama, N.; Kuroda, K.; Kato, C. AlN formation from a hydrotalcite-polyacrylonitrile intercalation compound by carbothermal reduction. Ceram. Int 1988, 14, 163–167. [Google Scholar]
  30. Oriakhi, C.O.; Farr, I.V.; Lerner, M.M. Incorporation of poly(acrylic acid), poly(vinylsulfonate) and poly(styrenesulfonate) within layered double hydroxides. J. Mater. Chem 1996, 6, 103–107. [Google Scholar]
  31. Hsueh, H.B.; Chen, C.Y. Preparation and properties of LDHs/polyimide nanocomposites. Polymer 2003, 44, 1151–1161. [Google Scholar]
  32. Yuan, Y.; Zhang, Y.; Shi, W. A novel approach for preparing exfoliated UV-cured polymer/LDH nanocomposites via pre-exfoliated organic LDH. Appl. Clay Sci 2011, 53, 608–614. [Google Scholar]
  33. Ardanuy, M.; Velasco, J.I.; Realinho, V.; Arencón, D.; Martínez, A.B. Non-isothermal crystallization kinetics and activity of filler in polypropylene/Mg–Al layered double hydroxide nanocomposites. Thermochim. Acta 2008, 479, 45–52. [Google Scholar]
  34. Tsai, T.Y.; Lu, S.W.; Li, F.S. Preparation and characterization of epoxy/layered double hydroxides nanocomposites. J. Phys. Chem. Solids 2008, 69, 1386–1390. [Google Scholar]
  35. Matusinovic, Z.; Rogosic, M.; Sipusic, J. Synthesis and characterization of poly(styrene-co-methyl methacrylate)/layered double hydroxide nanocomposites via in situ polymerization. Polym. Degrad. Stab 2009, 94, 95–101. [Google Scholar]
  36. Peng, D.; Baojun, Q. Synthesis and characterization of polystyrene/layered double-hydroxide nanocomposites via in situ emulsion and suspension polymerization. J. Appl. Polym. Sci 2006, 101, 3758–3766. [Google Scholar]
  37. Pradhan, S.; Costa, F.R.; Wagenknecht, U.; Jehnichen, D.; Bhowmick, A.K.; Heinrich, G. Elastomer/LDH nanocomposites: Synthesis and studies on nanoparticle dispersion, mechanical properties and interfacial adhesion. Eur. Polym. J 2008, 44, 3122–3132. [Google Scholar]
  38. Mai, Y.W.; Yu, Z.Z. Polymer Nanocomposites; Woodhead Publishing Ltd: Cambridge, UK, 2006. [Google Scholar]
  39. Kornmann, X.; Lindberg, H.; Berglund, L.A. Synthesis of epoxy-clay nanocomposites: Influence of the nature of the clay on structure. Polymer 2001, 42, 1303–1310. [Google Scholar]
  40. Peng, H.; Han, Y.; Liu, T.; Tjiu, W.C.; He, C. Morphology and thermal degradation behavior of highly exfoliated CoAl-layered double hydroxide/polycaprolactone nanocomposites prepared by simple solution intercalation. Thermochim. Acta 2010, 502, 1–7. [Google Scholar]
  41. Kulinski, Z.; Piorkowska, E. Crystallization, structure and properties of plasticized poly(L-lactide). Polymer 2005, 46, 10290–10300. [Google Scholar]
  42. Landreau, E.; Tighzert, L.; Bliard, C.; Berzin, F.; Lacoste, C. Morphologies and properties of plasticized starch/polyamide compatibilized blends. Eur. Polym. J 2009, 45, 2609–2618. [Google Scholar]
  43. Sun, S.; Song, Y.; Zheng, Q. Morphology and mechanical properties of thermo-molded bioplastics based on glycerol-plasticized wheat gliadins. J. Cereal Sci 2008, 48, 613–618. [Google Scholar]
  44. Yang, J.H.; Yu, J.G.; Ma, X.F. Study on the properties of ethylenebisformamide and sorbitol plasticized corn starch (ESPTPS). Carbohydr. Polym 2006, 66, 110–116. [Google Scholar]
  45. Baiardo, M.; Frisoni, G.; Scandola, M.; Rimelen, M.; Lips, D. Thermal and mechanical properties of plasticized poly(L-lactic acid). J. Appl. Polym. Sci 2003, 90, 1731–1738. [Google Scholar]
  46. Piorkowska, E.; Kulinski, Z.; Galeski, A.; Masirek, R. Plasticization of semicrystalline poly(L-lactide) with poly(propylene glycol). Polymer 2006, 47, 7178–7188. [Google Scholar]
  47. Chang, J.H.; An, Y.U.; Cho, D.; Giannelis, E.P. Poly(lactic acid) nanocomposites: Comparison of their properties with montmorillonite and synthetic mica (II). Polymer 2003, 44, 3715–3720. [Google Scholar]
  48. Murariu, M.; da Silva Ferreira, A.; Pluta, M.; Bonnaud, L.; Alexandre, M.; Dubois, P. Polylactide (PLA)-CaSO4 composites toughened with low molecular weight and polymeric ester-like plasticizers and related performances. Eur. Polym. J 2008, 44, 3842–3852. [Google Scholar]
  49. Ray, S.S.; Okamoto, M. Polymer/layered silicate nanocomposites: A review from preparation to processing. Prog. Polym. Sci 2003, 28, 1539–1641. [Google Scholar]
  50. Ray, S.S.; Yamada, K.; Okamoto, M.; Ueda, K. New polylactide-layered silicate nanocomposites. 2. Concurrent improvements of material properties, biodegradability and melt rheology. Polymer 2003, 44, 857–866. [Google Scholar]
Ijms 13 07938f1 1024
Figure 1. X-ray diffraction (XRD) pattern of (a) pristine Zn3Al layered double hydroxide (LDH) and (b) stearate-Zn3Al LDH.

Click here to enlarge figure

Figure 1. X-ray diffraction (XRD) pattern of (a) pristine Zn3Al layered double hydroxide (LDH) and (b) stearate-Zn3Al LDH.
Ijms 13 07938f1 1024
Ijms 13 07938f2 1024
Figure 2. XRD spectra of (a) pure poly(lactic acid) (PLA) and the nanocomposites of PLA with (b) 1.0, (c) 3.0, (d) 5.0, (e) 7.0, (f) 10.0 wt % stearate-Zn3Al LDH content and (g) stearate/Zn3Al LDH.

Click here to enlarge figure

Figure 2. XRD spectra of (a) pure poly(lactic acid) (PLA) and the nanocomposites of PLA with (b) 1.0, (c) 3.0, (d) 5.0, (e) 7.0, (f) 10.0 wt % stearate-Zn3Al LDH content and (g) stearate/Zn3Al LDH.
Ijms 13 07938f2 1024
Ijms 13 07938f3 1024
Figure 3. Transmission electron microscope (TEM) images of PLA/stearate-Zn3Al LDH nanocomposites with (a) 3.0, (b) 5.0, (c) 7.0, and (d) 10.0 wt % stearate-Zn3Al LDH content. (Magnification is 200 k).

Click here to enlarge figure

Figure 3. Transmission electron microscope (TEM) images of PLA/stearate-Zn3Al LDH nanocomposites with (a) 3.0, (b) 5.0, (c) 7.0, and (d) 10.0 wt % stearate-Zn3Al LDH content. (Magnification is 200 k).
Ijms 13 07938f3 1024
Ijms 13 07938f4 1024

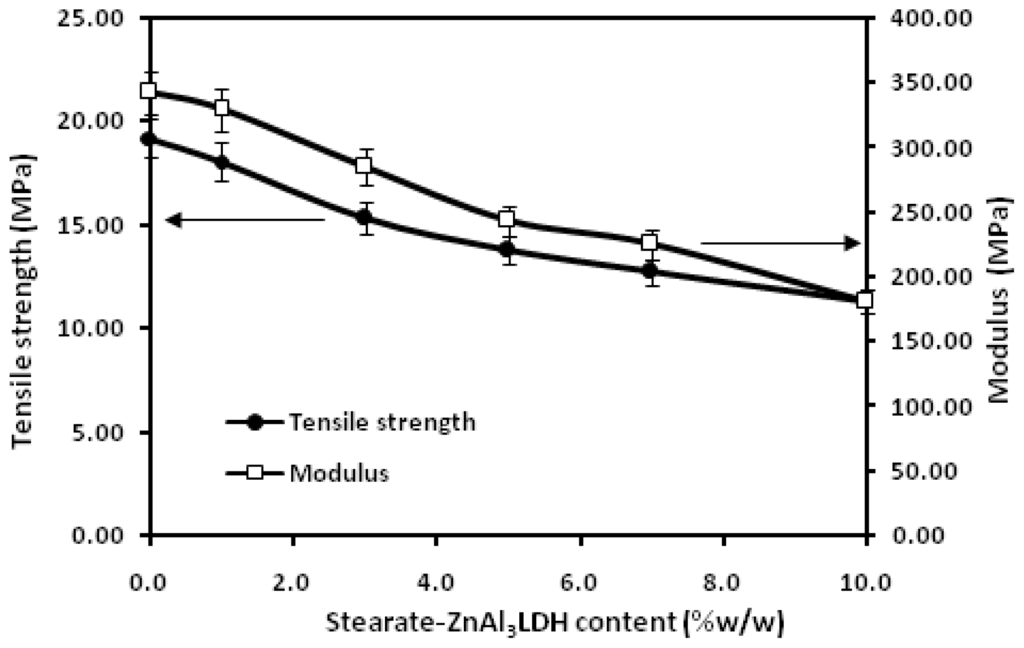

Figure 4. Tensile strength and elastic modulus of PLA with different stearate-Zn3Al LDH content.

Click here to enlarge figure

Figure 4. Tensile strength and elastic modulus of PLA with different stearate-Zn3Al LDH content.
Ijms 13 07938f4 1024
Ijms 13 07938f5 1024

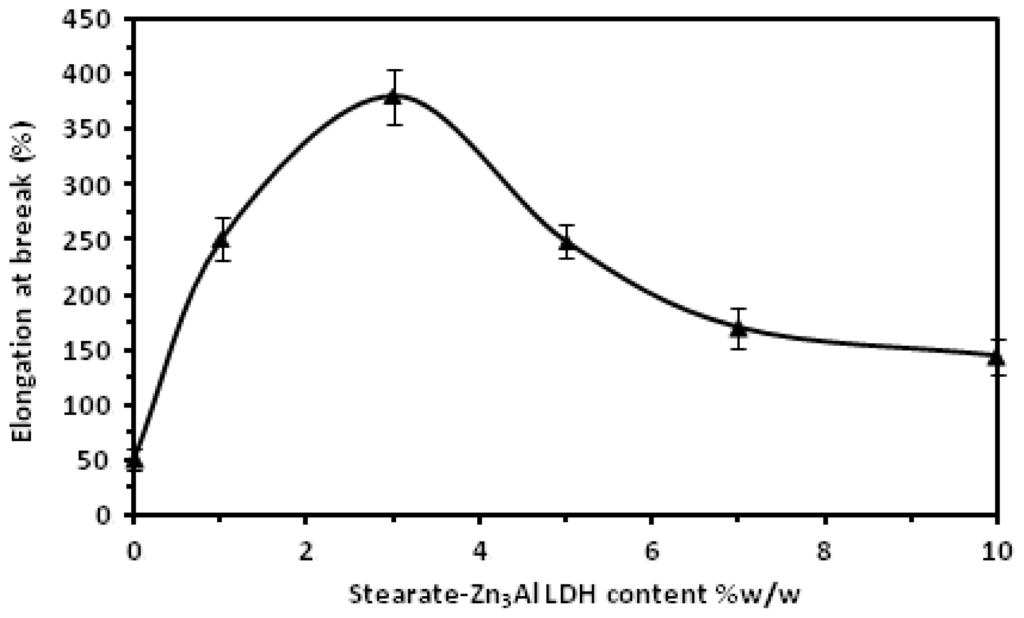

Figure 5. The elongation at break of PLA with different stearate-Zn3Al LDH content.

Click here to enlarge figure

Figure 5. The elongation at break of PLA with different stearate-Zn3Al LDH content.
Ijms 13 07938f5 1024
Ijms 13 07938f6 1024
Figure 6. The fractured morphology of pure PLA (a) and PLA/stearate-Zn3Al LDH nanocomposites with (b) 1.0, (c) 3.0, and (d) 5.0 wt % stearate-Zn3Al LDH content. (Magnification is 2500 k).

Click here to enlarge figure

Figure 6. The fractured morphology of pure PLA (a) and PLA/stearate-Zn3Al LDH nanocomposites with (b) 1.0, (c) 3.0, and (d) 5.0 wt % stearate-Zn3Al LDH content. (Magnification is 2500 k).
Ijms 13 07938f6 1024
Ijms 13 07938f7 1024
Figure 7. Weight losses of pure PLA and its stearate-Zn3Al LDH nanocomposites in soil for up to seven months.

Click here to enlarge figure

Figure 7. Weight losses of pure PLA and its stearate-Zn3Al LDH nanocomposites in soil for up to seven months.
Ijms 13 07938f7 1024
Ijms 13 07938f8 1024

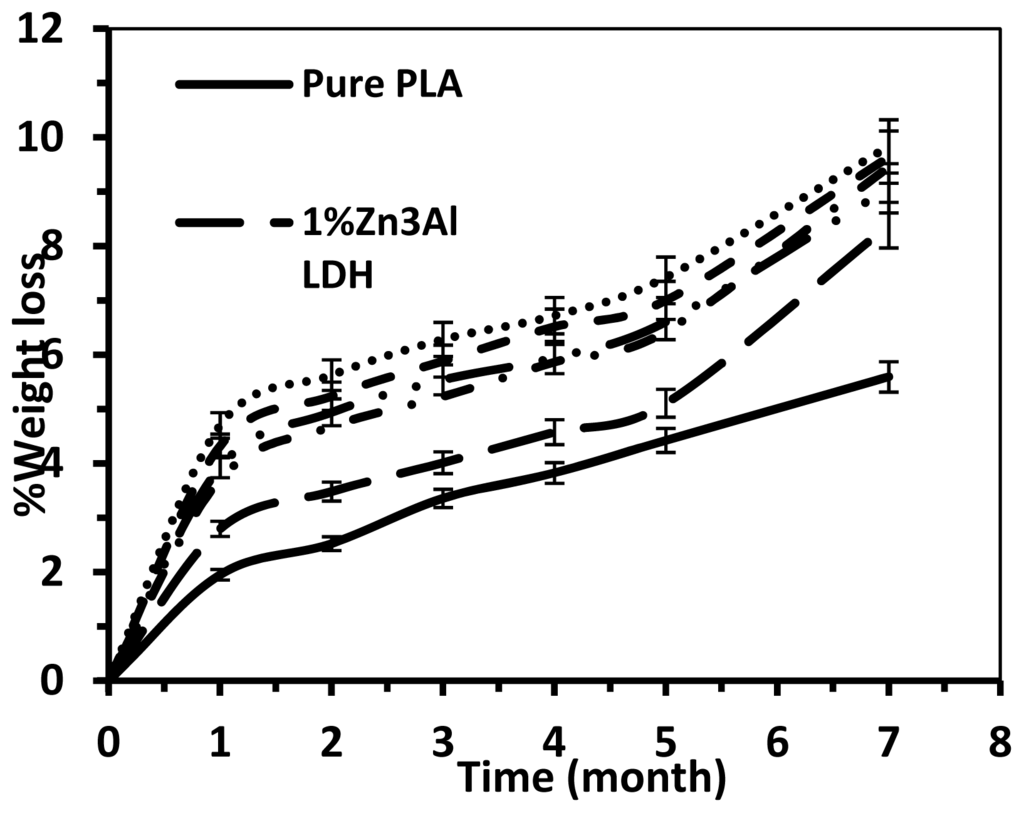

Figure 8. Weight losses of pure PLA and its Zn3Al LDH macrocomposites in soil for up to seven months.

Click here to enlarge figure

Figure 8. Weight losses of pure PLA and its Zn3Al LDH macrocomposites in soil for up to seven months.
Ijms 13 07938f8 1024
Ijms 13 07938f9 1024
Figure 9. Thermogravimetric analysis (TGA) thermograms of the pure PLA and its stearate-Zn3Al LDH nanocomposites.

Click here to enlarge figure

Figure 9. Thermogravimetric analysis (TGA) thermograms of the pure PLA and its stearate-Zn3Al LDH nanocomposites.
Ijms 13 07938f9 1024
Ijms 13 07938f10 1024

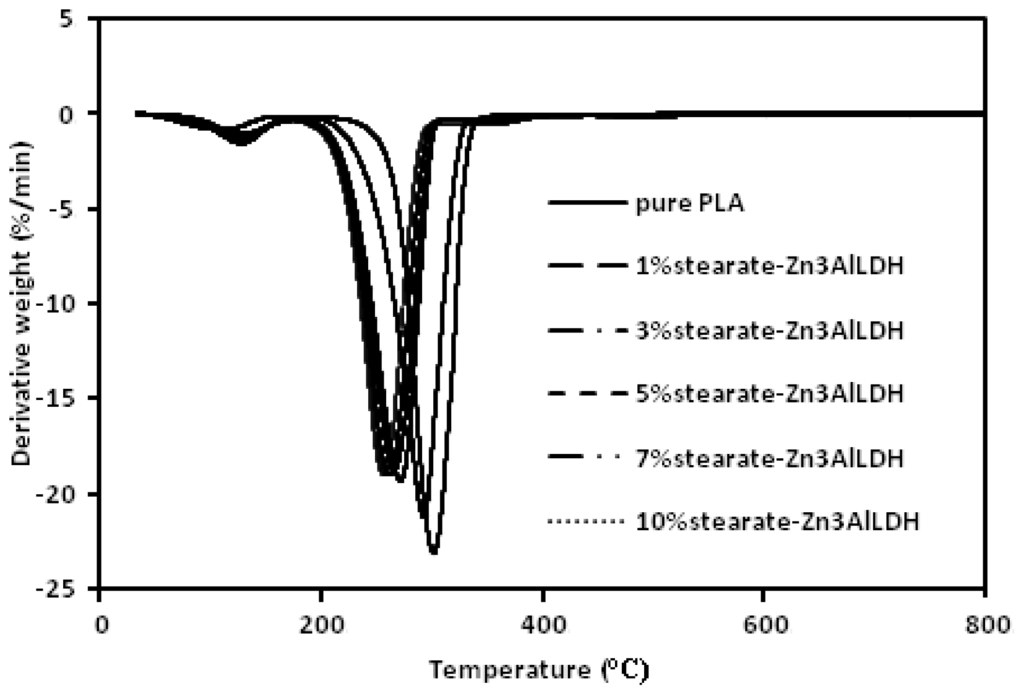

Figure 10. Differential thermal analysis (DTA) of the pure PLA and its stearate-Zn3Al LDH nanocomposites.

Click here to enlarge figure

Figure 10. Differential thermal analysis (DTA) of the pure PLA and its stearate-Zn3Al LDH nanocomposites.
Ijms 13 07938f10 1024
