Abstract

:
We have studied the dynamic scanning of liquid-crystalline (LC) poly(p-phenyleneterephthalamide) sulfuric acid (PPTA-H2SO4) solution, and its blend with single-walled carbon nanotubes (SWNTs), by using a flat plate rotational rheometer. The effects of weight concentration and molecular weight of PPTA, as well as operating temperature, on dynamic viscoelasticity of the PPTA-H2SO4 LC solution system are discussed. The transition from a biphasic system to a single-phase LC occurs in the weight concentration range of SWNTs from 0.1% to 0.2%, in which complex viscosity reaches the maximum at 0.2 wt% and the minimum at 0.1 wt%, respectively, of SWNTs. With increasing SWNT weight concentration, the endothermic peak temperature increases from 73.6 to 79.9 °C. The PPTA/SWNT/H2SO4 solution is in its plateau zone and storage modulus (G′) is a dominant factor within the frequency (ω) range of 0.1–10 rad/s. As ω increases, the G′ rises slightly, in direct proportion to the ω. The loss modulus (G″) does not rise as a function of ω when ω < 1 s−1, then when ω > 1 s−1 G″ increases faster than G′, yet not in any proportion to the ω.

Graphical Abstract

1. Introduction

A liquid-crystalline (LC) solution is an orientationally ordered liquid that displays fluidic characteristics of the liquid state while the molecules still maintain a directional order. There are three main classes of LC phases, i.e., nematic, smectic and cholesteric phase, which were originally identified by Friedel et al. according to the degree of order and molecular alignment of each phase [1]. Poly(p-phenyleneterephthalamide) (PPTA), a rigid-rod polymer as shown in Scheme 1, is typical of high tensile strength, remarkable stiffness, and excellent thermal stability [2]. One of the most interesting physical properties of PPTA macromolecules is their strong affinity to self-organize in a suitable solvent such as absolute sulfuric acid (H2SO4) and hence form LC phases [3]. Such strong molecular arrangement is attributed to the extreme anisometry of rigid PPTA and disruption of intermolecular hydrogen bonds in PPTA caused by the super-acidity of H2SO4. Nematic sulfuric acid LC solution of PPTA, referred to as PPTA-H2SO4, with a weight concentration range of 19–20% when heated to 80–95 °C has been used to fabricate high-strength fibers by dry-jet wet-spinning process [46]. The unusual rheology phenomena of PPTA-H2SO4 LC solution have been reported [711], including strong shear-thinning, long relaxation time, and high viscous activation energy. These notable behaviors inspired us to investigate the dynamic rheological properties of the PPTA-H2SO4 LC solution system in the spinning process. We then carried out the dynamic scanning of the PPTA-H2SO4 LC solution system with a flat plate rotational rheometer and discussed the effects of weight concentration and molecular weight of PPTA, as well as temperature, on such viscoelastic properties as complex viscosity (η*), storage modulus (G′), loss modulus (G″), and loss-tangent (tanδ). Our results shown in this paper provide some general fundamental insight for the LC spinning process.
Single-walled carbon nanotubes (SWNTs) have been shown to possess extraordinary mechanical, electrical and thermal properties [1215]. Polymers have been shown to be significantly reinforced with SWNTs [16,17], and some typical examples include pitch-based/SWNT composite carbon fibers [18], PBO/SWNT [19], and polyacrylonitrile/SWNT composite fibers [20]. The major challenge, however, remains to achieve uniform and stable dispersions of SWNTs in the polymer matrix with significant nanotube weight-fractions. It is known that SWNTs can be successfully dispersed in sulfuric acid. The nematic structure of SWNT/H2SO4 solution has been evidenced by birefringence and rheological curves [21]. It is thus of special interest to investigate whether rigid rod-like polymers (e.g., PPTA) can be reinforced with SWNTs in a large loading ratio, both in the LC solution, which will be of great significance to wet-spinning production of high-performance fibers. For this purpose, LC solution of PPTA/SWNT/H2SO4 was prepared, and its thermal and rheological behaviors were studied accordingly. Our study aims to assess the effects of SWNTs on the properties of the spinning solution. Through our studies, we are able to identify the optimal range of SWNTs concentration and spinning temperature for dry-jet wet-spinning process of PPTA fibers.

2. Results and Discussion

2.1. Effect of Weight Concentration of PPTA on Rheological Behaviors

Effects of the variation of weight concentrations of PPTA (PPTA wt%: 18.5, 19 and 19.5%) and temperatures (75, 80, 85, 90 °C) on rheological curves of the PPTA-H2SO4 LC solution are shown in Figure 1. The solution exhibits a typical shear-thinning behavior even at a low shearing frequency (ω), i.e., its η* decreases as ω increases, which results in the alignment of PPTA chains in parallel. With increasing ω, the density of junction points decreases since the crosslinks break significantly faster than they form owing to their shear-thinning behavior [22]. Such changes of chain configuration and orientation under shearing force indicate that both G″ and tanδ of PPTA-H2SO4 LC solution would increase as ω rises. At a high shearing rate, nearly all macromolecular chains orient, implying that G′ hardly follows the variation of frequency, since in this regard the first normal stress difference hardly follows frequency variation [23].However, when weight concentration of the solution increases, density of entanglement crosslinks and intermolecular forces both increase, and then macromolecular chains become more difficult to orient and diffuse, leading to the increase in all the rheological characteristics including η*, G′, G″, and tanδ. On the other hand, as the temperature increases, thermal motion of macromolecular chains increases, flow resistance decreases, and rheological curves of η*, G′, G″, and tanδ move down.

2.2. Effect of Molecular Weight of PPTA on Rheological Behaviors

Supramolecular structure is key to affecting the rheological characterization of the polymer system. Figure 2 displays the rheological behaviours of PPTA-H2SO4 LC solution at 19.5 wt% of PPTA as a function of Mw (i.e., 28169, 56170, 68407, and 80135 g/mol) and temperature (i.e., 80, 85, and 90 °C). All four rheological parameters (η*, G′, G″, and tanδ) increase with increasing Mw of polymers. Also, the larger Mw is, the longer relaxation time (λ) appears, meaning that oriented molecular chains upon shearing cannot resile, thus showing more distinct shear-thinning behaviour. This is greatly advantageous to obtain high degree of orientation in spinning process and hence obtain fibers with higher tenacity and modulus. Moreover, the larger Mw is, the more entanglement crosslinks are generated, meaning that the dynamic process of disentanglement and entanglement would again take place at less shear rate [24,25]. Hence, Mw of PPTA would be ideally neither high (difficult for molding) nor low (accelerating the relaxation).

2.3. Effect of Weight Concentration of SWNT on Rheological Behaviors

Variation of complex viscosity as a function of SWNT weight concentration (SWNT wt%) in PPTA/SWNT/H2SO4 dopes is plotted in Figure 3, showing the nonmonotonic characteristic as a function of frequency and temperature. The η* first gradually increases with increasing SWNT wt%, and then decreases abruptly when beyond ∼0.1 SWNT wt%, and arises again when beyond 0.2 SWNT wt% to reach about the same viscosity for three temperature-dependent curves. In general, this concentration dependent viscosity behavior of PPTA/SWNT/H2SO4 solution resembles that of SWNT/H2SO4 solution. As the SWNT concentration was below 0.1 wt%, the solution viscosity increased accordingly with increasing SWNT wt%. This can be considered as normal behavior of an isotropic solution. When SWNT concentration was exceeded 0.1 wt%, the viscosity decrease at increasing SWNT concentration can be considered as a unique behavior of anisotropic solution. It is caused by the liquid crystal behavior where SWNT are aligned upon shear and form domains of highly ordered structures.
It has been revealed in rheology and microscopy studies that SWNTs in H2SO4 exhibit roughly similar phase behavior as rod-like polymer solutions [21,26]. We have shown in optical microscopy studies that SWNTs in sulfuric acid solution tend to self-assemble into extremely long strandlike structures, which is typically characteristic of the LC phase [21]. The LC transition from a biphasic phase to a single phase occurs in the SWNT wt% range from 2.7 wt% (maximum viscosity) to 4 wt% (minimum viscosity) [21]. For a blend of SWNT with such a rigid-rod polymer as PPTA, SWNT appears easier to adopt a higher LC order as the transition occurs within the lower SWNT wt% range [27,28]. Thus, 0.1 wt% was the critical concentration of SWNT for PPTA/SWNT/H2SO4 system. A biphasic region of mixed isotropic and anisotropic phase existed between 0.1 wt% and 0.2 wt%. Beyond 0.2 wt%, the solution became an increasingly anisotropic-rich phase, and the solution viscosity increased again with increasing SWNT wt%.

2.4. Temperature Dependence of Rheological Behaviors

Temperature effect on complex viscosity (η*) as opposed to shearing frequency (ω) of PPTA/SWNT/H2SO4 dope is shown in Figure 4.
All three samples composed of pure PPTA and PPTA coupled with different portion of SWNT exhibit an obvious shear-thinning behavior through the entire ω range. As ω increases, η* decreases in direct proportion to ω. The slope of such decreasing line on the logarithmic plot remains similar, at about −0.91, for all three samples. This shear-thinning behavior is thought to arise from entanglements between macromolecular chains. For rigid-rod polymers such as PPTA, shearing decreases the number of entanglements and thus affords macromolecules to rearrange the configurations readily. By comparison, PPTA/SWNT/H2SO4 dopes are more highly shear-sensitive. (1) The η* of PPTA/H2SO4 dope decreases as temperature increases from 75 to 85 °C. Such behavior is often observed among conventional polymers. (2) The η* of PPTA/SWNT (98/2 wt%)/H2SO4 dope decreases as temperature increases from 80 to 85 °C, while it becomes nearly independent of temperature ranging between 75 °C and 80 °C. (3) The η* of PPTA/SWNT (97/3 wt%)/H2SO4 dope decreases slightly as temperature increases from 80 to 85 °C, but increases slightly as temperature increases from 75 to 80 °C.
To determine possible phase changes from 75 to 85 °C, we carried out thermal analysis on PPTA/SWNT/H2SO4 dopes. The DSC thermogram (Figure 5) reveals a broad endothermic peak for all samples, implying that multiple transitions occur including monothetic to the liquid state and also isotropic to nematic phase [25,29]. We also noted that with increasing SWNT wt%, the endothermic peak temperature increases from 73.6 to 79.9 °C, possibly because the curve of η* vs. SWNT wt% becomes nearly independent of temperature [30].
Figure 6 presents the temperature dependent plots of the dynamic modulus of PPTA/SWNT/H2SO4 dopes over ω. As SWNT wt% increases, G′ and G″ arise sharply regardless of temperature. For any temperature and SWNT wt%, elastic characteristic such as G′ of PPTA/SWNT/H2SO4 dope is a dominant factor within the frequency range from 0.1 to 10 rad/s. As ω increases, the G′ rises slightly in direct proportion to ω. The slope of Gversus ω on the logarithmic plot is 0.098, 0.085 and 0.063 as PPTA/SWNT is 100/0, 98/2 and 97/3, respectively. In a low ω region (ω < 1 s−1), the G″ does not rise, while in other regions (ω > 1 s−1), G″ rises faster than G′, but not in proportion to frequency.
According to the relative magnitude of G′ and G″, a logarithmic plot of G′ and G″ as a function of frequency comprising three zones: terminal, plateau and transition zone, has been proposed [31]. Referred to the literature, PPTA/SWNT/H2SO4 dope is in its plateau zone within the frequency range from 0.1 to 10 rad/s [32]. Rod-like macromolecules like PPTA are thought to exhibit longer relaxation times than flexible polymers due to the difficulty of molecular reorientation arising from the stiff molecular structure and close-packing. The dynamic behavior of Vectra®, for example, supports this argument [33]. As SWNT wt% increases, PPTA/SWNT/H2SO4 dope seems to exhibit more intermolecular interaction and chain rigidity, thus giving rise to the plateau-zone behavior [34].

3. Experimental Section

3.1. Materials and Preparation

Sulfuric acid with 0.2 wt% excess SO3 was prepared by mixing the fuming sulfuric acid (25 wt%) with concentrated sulfuric acid (98 wt%). The concentration of sulfuric acid was measured by acid-base titration. The SWNTs used in this study was acquired from Shenzhen Nanotechnologies Co., Ltd. and an average diameter of <2 nm. Finally, SWNTs were dried under vacuum overnight at 80–100 °C. Dispersions were prepared by mixing with a magnetic stir bar for 3 days in an anhydrous environment in a glovebox which was nitrogen atmosphere at room temperature [35]. The PPTA polymer was synthesized following the literature methods [36,37]. All glasswares were dried before use.
The PPTA-H2SO4 LC solutions were prepared with four different molecular weight polymers (Mw = 28169, 56170, 68407, 80135 g/mol), at different temperatures (75, 80, 85, 90 °C) and with different weight concentrations (18.5, 19, 19.5 wt%). For example, into a 250 mL three-neck flask equipped with a mechanical stirrer and a nitrogen inlet/outlet, were placed 34.01 g of PPTA and 140.4 g of H2SO4 at 75 °C. The mixture was then stirred for 2.5 h and opalescence was observed during this step. Likewise, the LC solutions of PPTA/SWNT/H2SO4, in which PPTA was kept at 19.5 wt% and PPTA/SWNT is 99/1 wt%, were prepared in a 250 mL three-neck flask. SWNTs (0.3401 g) were dispersed in H2SO4 (140.4 g) under an inert and anhydrous atmosphere with mechanical stirring and at room temperature for at least 3 days [21]. Into this flask were then added 34.01 g of PPTA at 80 °C. The mixture was stirred for 2.5 h and stir opalescence was observed during this step.

3.2. Rheological Properties

Subsequently, the PPTA-H2SO4 LC and PPTA/SWNT/H2SO4 dope solutions were performed with dynamical scanning on an ARES rotational rheometer (TA Instruments, New Castle, DE, USA) at four temperatures (75, 80, 85, 90 °C) in the frequency range of 0.01–100 rad·s−1 and 0.1–10 rad·s−1, respectively. Testing fixtures parallel plates (50 mm) were made of stainless steel 316 to avoid corrosion. In order to prevent water exchange between the sample and environment, the sample surface between the plate and the cone was coated with a mineral oil [38,39]. The effects of dynamic frequency (ω) on rheological behaviors such as η*, G′, G″ and tanδ have been examined.

3.3. Characterization

Thermal analysis on the PPTA/SWNT/H2SO4 dope was carried out on a differential scanning calorimeter (DSC) (Mettler Toledo 822) under a N2 atmosphere at a heating rate of 5 °C/min ranging from 25 to 90 °C.

4. Conclusions

We have shown that PPTA-H2SO4 LC solution exhibits a typical shear-thinning behavior. Our rheology studies are summarized as follows. (1) As PPTA wt% increases, rheological curves of η*, G′, G″ and tanδ all move up. By contrast; (2) as temperature rises, rheological curves of η*, G′, G″ and tanδ all move down. Finally, (3) η*, G′, G″ and tanδ all increase as Mw of PTTA increase.
When SWNTs are added into PPTA-H2SO4 LC solution, the protonation of SWNTs in superacids enables their good dispersion to form homogeneous PPTA/SWNT/H2SO4 dope solution. The dope solution exhibits a remarkable nematic LC phase. Our findings are multi-folds. (1) For all temperature and concentration of SWNT, the complex viscosity of PPTA/SWNT/H2SO4 dope shows an obvious shear-thinning behavior, and the slope of complex viscosity versus frequency on a logarithmic plot is about the identical at ca. −0.91. The DSC thermogram displays multiple phase transitions between monotetic and the liquid state, as well as isotropic and nematic phase. As concentration of SWNT increase, G′ and G″ rise sharply at various temperatures. (2) For all temperature and concentration of SWNT, the elastic characteristic such as G′ of PPTA/SWNT/H2SO4 dope is a dominant factor within the frequency range from 0.1 to 10 rad/s. At sufficiently high concentrations of SWNT, approximately 0.2 wt%, and at 85 °C, a novel type of single-phase nematic liquid crystal is formed. This allows the dope solution to produce superior-performance fibers by dry-jet wet-spinning process.

Acknowledgments

We are grateful for valuable discussions with Zhusheng Zhou, Qingji Wu, Xingsheng Zhu. This work was supported by Industrial Technology Development Foundation of National Development and Reform Commission of China.

References

  1. Friedel, G. Mesomorphic states of matter. Ann. Phys 1922, 18, 273–474. [Google Scholar]
  2. Yang, HH. Aromatic High-Strength Fibers, 1st ed; Wiley-VCH: New York, NY, USA, 1989; pp. 207–289. [Google Scholar]
  3. Zhou, M; Frydman, V; Frydman, L. On the Molecular organization of PPTA in sulfuric acid: an NMR study. J. Phys. Chem 1996, 100, 19280–19288. [Google Scholar]
  4. Kiyo-Oglu, VN; Rozhdestvenskaya, TA; Serova, LD. Rheological properties of liquid-crystalline solutions of poly(p-phenylene terephthalamide) and behavior of the jet in spinning through an air space. Fibre Chem 1997, 29, 81–86. [Google Scholar]
  5. Picken, SJ; Zwaag, SV; Northolt, MG. Molecular and macroscopic orientational order in aramid solutions: a model to explain the influence of some spinning parameters on the modulus of aramid yarns. Polymer 1992, 33, 2998–3006. [Google Scholar]
  6. Slugin, IV; Sklyarova, GB; Kashirin, AI; Tkacheva, LV; Komissarov, SV. Rusar microfilament yarn for ballistic protection. Fibre Chem 2006, 38, 22–24. [Google Scholar]
  7. Picken, SJ; Aerts, J; Doppert, HL; Reuvers, AJ; Northolt, MG. Structure and rheology of aramid solutions: transient rheological and rheo-optical measurements. Macromolecules 1991, 24, 1366–1375. [Google Scholar]
  8. Doppert, HL; Picken, SJ. Rheological properties of aramid solutions: transient flow and rheooptical measurements. Mol. Cryst. Liq. Cryst 1987, 153, 109–116. [Google Scholar]
  9. Picken, SJ. Phase transitions and rheology of aramid solutions. Liq. Cryst 1989, 5, 1635–1643. [Google Scholar]
  10. Picken, SJ; Aerts, J; Visser, R; Northolt, MG. Structure and rheology of aramid solutions: X-ray scattering measurements. Macromolecules 1990, 23, 3849–3854. [Google Scholar]
  11. Baird, DG; Ballman, RL. Comparison of the rheological properties of concentrated solutions of a rodlike and a flexible chain polyamide. J. Rheol 1979, 23, 505–524. [Google Scholar]
  12. Baughman, RH; Zakhidov, AA; De Heer, WA. Carbon nanotubes--the route toward applications. Science 2002, 297, 787–792. [Google Scholar]
  13. Wong, EW; Sheehan, PE; Lieber, CM. Nanobeam mechanics: elasticity, strength, and toughness of nanorods and nanotubes. Science 1997, 277, 1971–1975. [Google Scholar]
  14. Tans, SJ; Devoret, MH; Dai, HJ; Thess, A; Smalley, RE; Geerligs, LJ; Dekker, C. Individual single-wall carbon nanotubes as quantum wires. Nature 1977, 386, 474–477. [Google Scholar]
  15. Treact, MMJ; Ebbesen, TW; Gibson, JM. Exceptionally high Young’s modulus observed for individual carbon nanotubes. Nature 1996, 381, 678–680. [Google Scholar]
  16. Lee, HK; Pejanovic, S; Mondragon, I; Mijovic, J. Dynamics of single-walled carbon nanotube (SWNT)/polyisoprene (PI) nanocomposites in electric and mechanical fields. Polymer 2007, 48, 7345–7355. [Google Scholar]
  17. Kinloch, IA; Roberts, SA; Windle, AH. A rheological study of concentrated aqueous nanotube dispersions. Polymer 2002, 43, 7483–7491. [Google Scholar]
  18. Andrews, R; Jacques, D; Rao, AM; Rantell, T; Derbyshire, F. Nanotube composite carbon fibers. Appl. Phys. Lett 1999, 75, 1329–1331. [Google Scholar]
  19. Kumar, S; Dang, TD; Arnold, FE; Bhattacharyya, AR; Min, BG; Zhang, X; Vaia, RA; Park, C; Adams, WW; Hauge, RH; Smalley, RE; Ramesh, S; Willis, PA. Synthesis, structure, and properties of PBO/SWNT composites. Macromolecules 2002, 35, 9039–9043. [Google Scholar]
  20. Streekumar, TV; Liu, T; Min, BG; Gao, H; Kumar, S; Hauge, RH; Smalley, RE. Polyacrylonitrile single-walled carbon nanotube composite fibers. Adv. Mater 2004, 16, 58–62. [Google Scholar]
  21. Davis, VA; Ericson, LM; Parra-Vasquez, ANG; Fan, H; Wang, Y; Prieto, V; Longoria, JA; Ramesh, S; Saini, RK; Kittrell, C; Billups, WE; Adams, WW; Hauge, RH; Smalley, RE; Pasquali, M. Phase behavior and rheology of SWNTs in superacids. Macromolecules 2004, 37, 154–160. [Google Scholar]
  22. Lin, JP; Wu, HR; Li, SJ. Kinetics of phase transition in lyotropic liquid crystalline polymers. Polym. Int 1993, 32, 339–342. [Google Scholar]
  23. Gupta, RK. Polymer and Composite Rheology, 2nd ed; Marcel Dekker: New York, NY, USA, 2000. [Google Scholar]
  24. Schaefgen, JR; Foldi, VS; Logullo, FM; Good, VH; Gulrich, LW; Killian, FL. Viscosity-molecular weight relationshios in stiff-chain aromatic polyamides. Polym. Prepr 1976, 17, 69–74. [Google Scholar]
  25. Arpin, M; Strazielle, C. Conformation de polyamides aromatiques en solution diluée dans l’acide sulfurique concentré. 1. Étude par viscosité et diffusion de la lumière. Makromol. Chem 1976, 177, 581–584. [Google Scholar]
  26. Ramesh, S; Ericson, LM; Davis, VA; Saini, RK; Kittrell, C; Pasquali, M; Billups, WE; Adams, WW; Hauge, RH; Smalley, RE. Dissolution of pristine single walled carbon nanotubes in superacids by direct protonation. J. Phys. Chem. B 2004, 108, 8794–8798. [Google Scholar]
  27. Rommel, H; Forster, G. Topology of the ternary phase system poly(p-phenylene terephthalamide)-sulfuric acid-water. Macromolecules 1994, 27, 4570–4576. [Google Scholar]
  28. Picken, SJ. Orientational order in aramid solutions determined by diamagnetic susceptibility and birefringence measurements. Macromolecules 1990, 23, 464–470. [Google Scholar]
  29. Li, L; Li, CY; Ni, C; Rong, L; Hsiao, B. Structure and crystallization behavior of Nylon 66/multi-walled carbon nanotube nanocomposites at low carbon nanotube contents. Polymer 2007, 48, 3452–3460. [Google Scholar]
  30. Vlasveld, DPN; Fischer, HR; Swierenga, E; Picken, SJ. Interaction of SWCNT and PPTA with sulfuric acid—compatibilization of two materials in a common solvent. J. Polym. Sci. Part B: Polym. Phys 2008, 46, 1914–1922. [Google Scholar]
  31. Ferry, JD. Viscoelastic Properties of Polymers, 3rd ed; Wiley-VCH: New York, NY, USA, 1980. [Google Scholar]
  32. Piau, JM; Agassant, JF. Rheology for Polymer Melt Processing, 1st ed; Elsevier: Amsterdam, The Netherland, 1996. [Google Scholar]
  33. Hsieh, T; Tiu, C; Simon, GP. Rheology and miscibility of thermotropic liquid crystalline polymer blends. J. Non-Newtonian Fluid Mech 1999, 86, 15–35. [Google Scholar]
  34. Kim, JY; Han, SI; Hong, S. Effect of modified carbon nanotube on the properties of aromatic polyester nanocomposites. Polymer 2008, 49, 3335–3345. [Google Scholar]
  35. Chiang, IW; Brinson, BE; Huang, AY; Willis, PA; Bronikowski, MJ; Margrave, JL; Smalley, RE; Hauge, RH. Purification and characterization of single-wall carbon nanotubes (SWNTs) obtained from the gas-phase decomposition of CO (HiPco Process). J. Phys. Chem. B 2001, 105, 8297–8301. [Google Scholar]
  36. Morgan, PW. Synthesis and properties of aromatic and extended chain polyamides. Macromolecules 1977, 10, 1381–1390. [Google Scholar]
  37. Kwolek, SL; Morgan, PW; Schaefgen, JR; Gulrich, LW. Synthesis, anisotropic solutions, and fibers of poly(1,4-benzamide). Macromolecules 1977, 10, 1390–1396. [Google Scholar]
  38. Frey, MW; Cuculo, JA; Khan, SA. Rheology and gelation of cellulose/ammonia/ammonium thiocyanate solutions. J. Polym. Sci. Part B: Polym. Phys 1996, 34, 2375–2381. [Google Scholar]
  39. Kim, SO; Shin, WJ; Cho, H; Kim, BC; Chung, IJ. Rheological investigation on the anisotropic phase of cellulose–MMNO/H2O solution system. Polymer 1999, 40, 6443–6450. [Google Scholar]

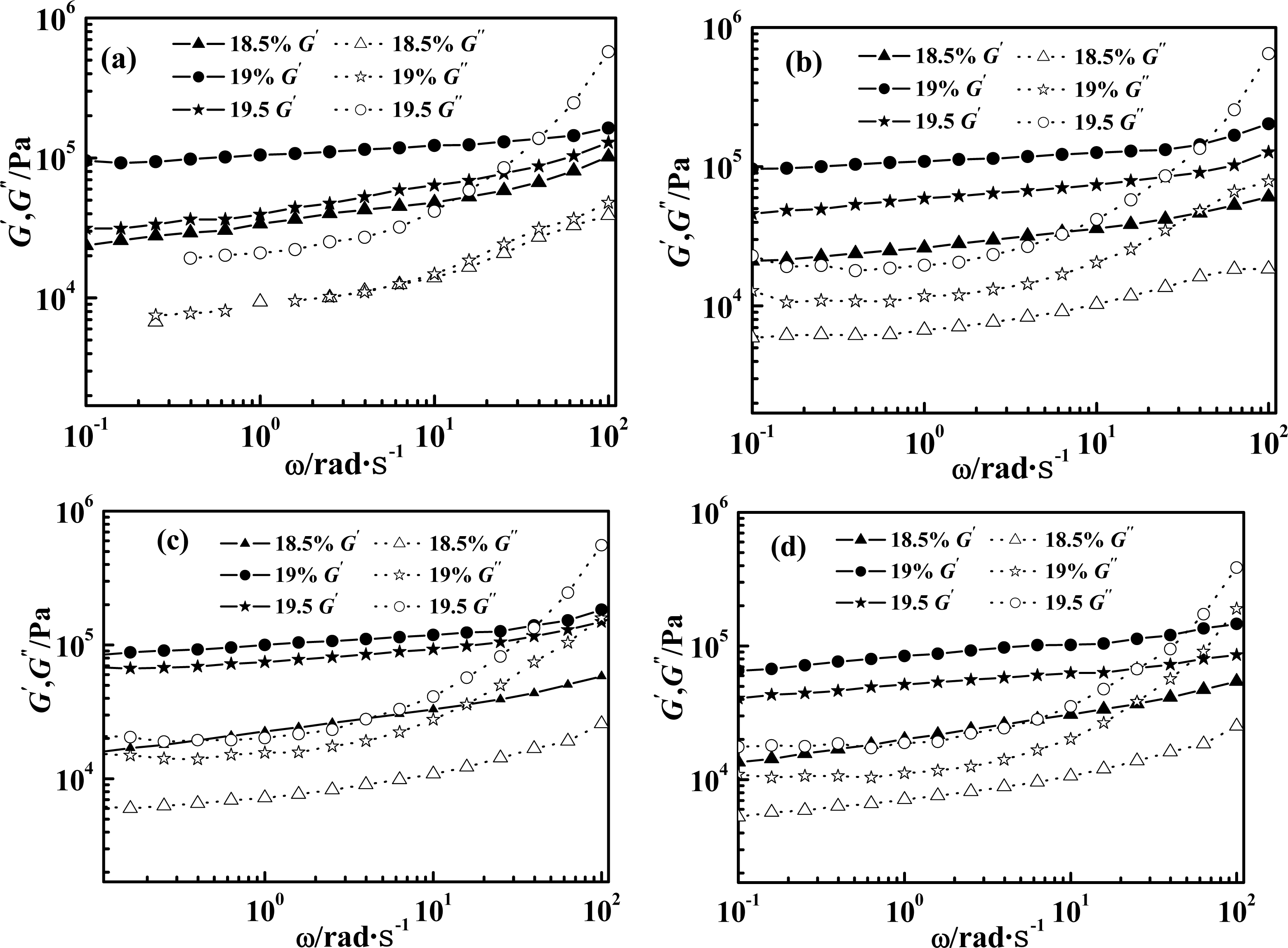

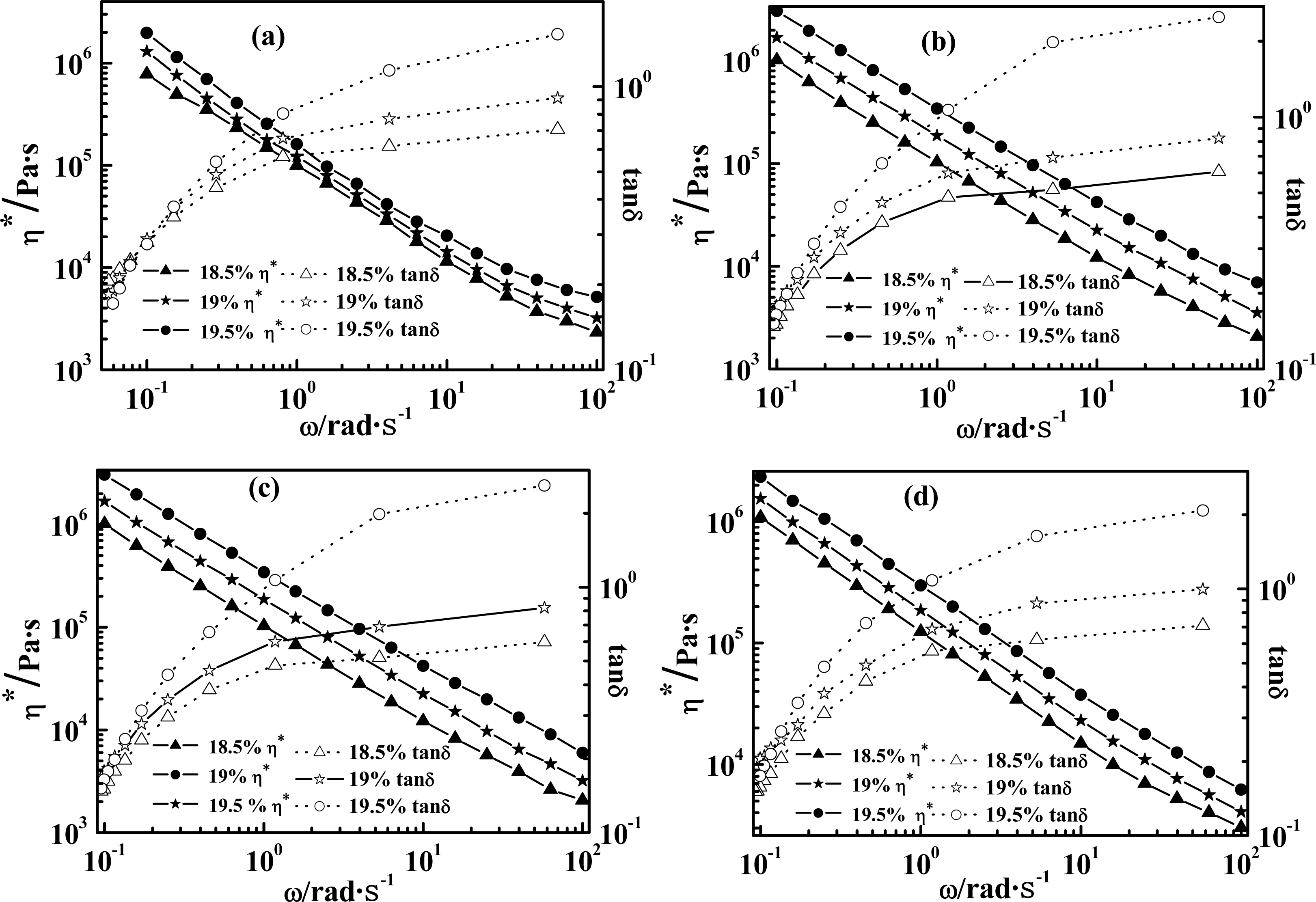

Figure 1. Rheological curves dependences of PPTA-H2SO4 LC solution on shearing frequency (ω), PPTA wt% at 18.5, 19 and 19.5%, and temperatures of (a) 75 °C, (b) 80 °C, (c) 85 °C and (d) 90 °C.
Figure 1. Rheological curves dependences of PPTA-H2SO4 LC solution on shearing frequency (ω), PPTA wt% at 18.5, 19 and 19.5%, and temperatures of (a) 75 °C, (b) 80 °C, (c) 85 °C and (d) 90 °C.
Ijms 11 01352f1aIjms 11 01352f1b

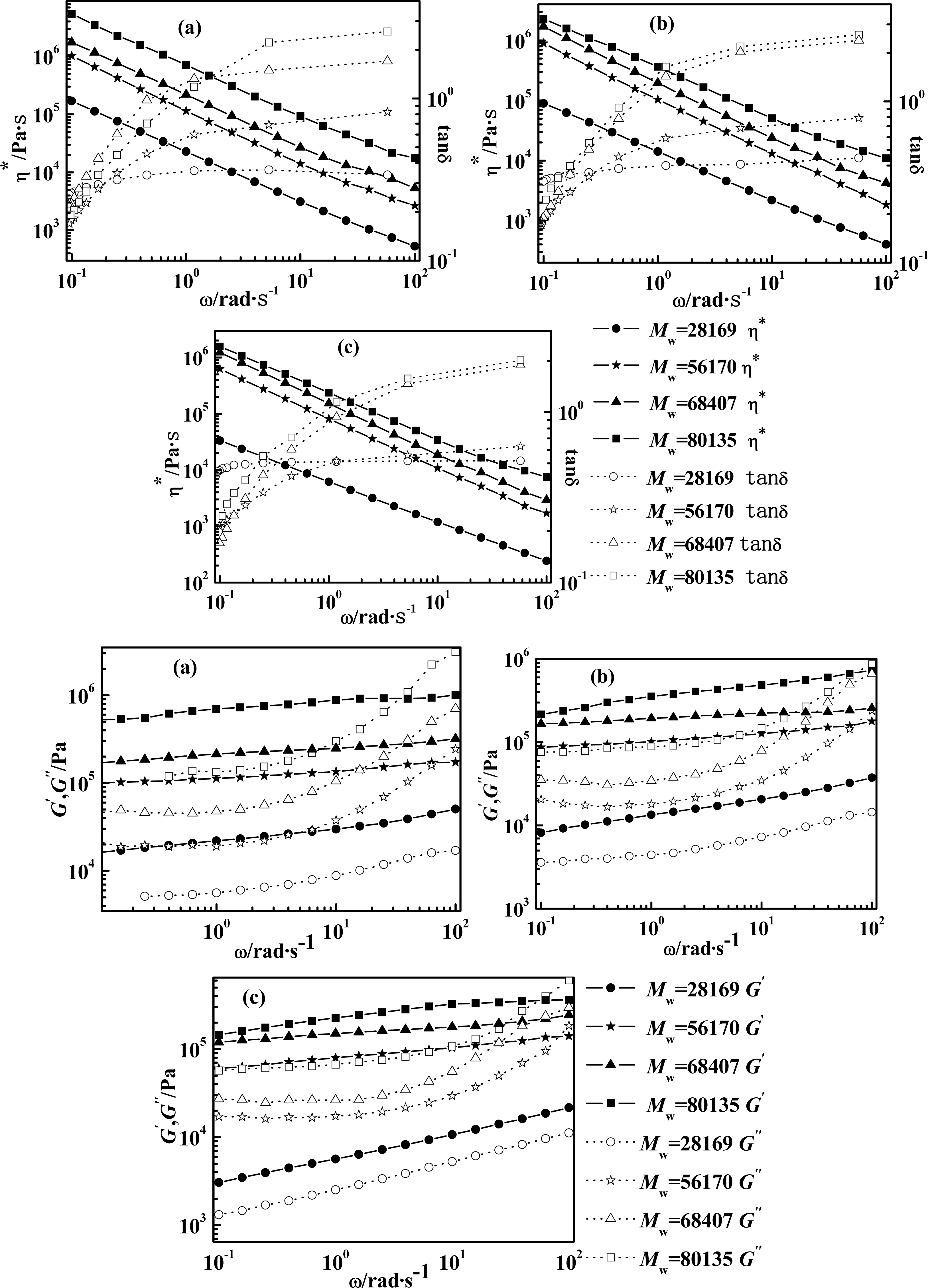

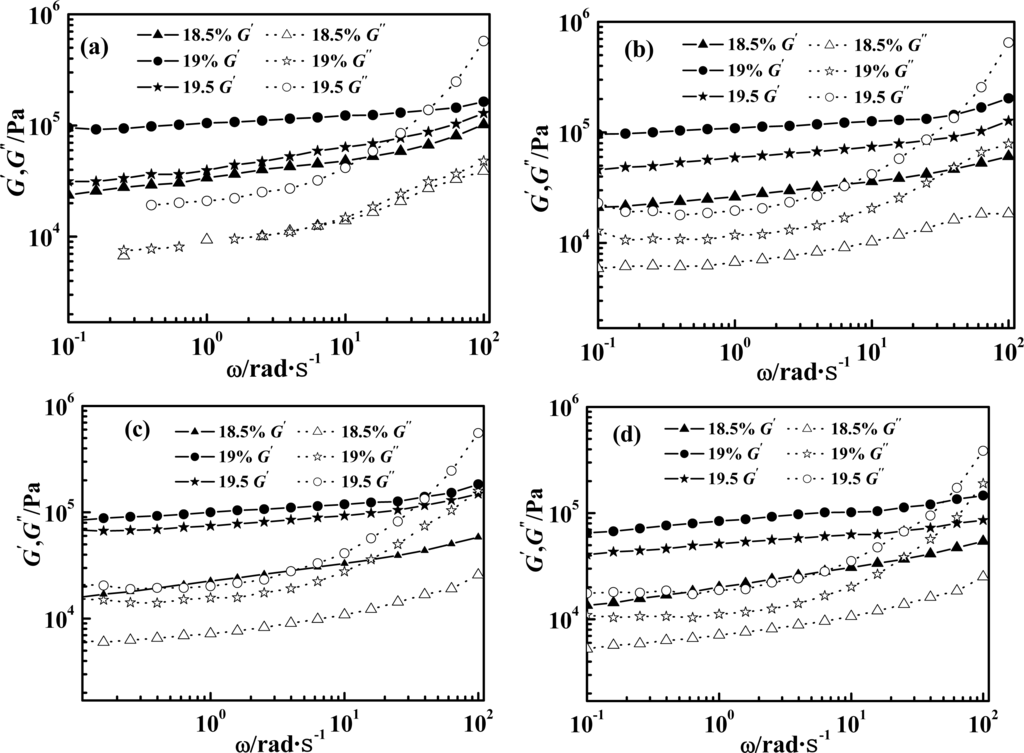

Figure 2. Effect of PPTA molecular weight of PPTA-H2SO4 LC solution on rheological curves versus shearing frequency (ω).
Figure 2. Effect of PPTA molecular weight of PPTA-H2SO4 LC solution on rheological curves versus shearing frequency (ω).
Ijms 11 01352f2

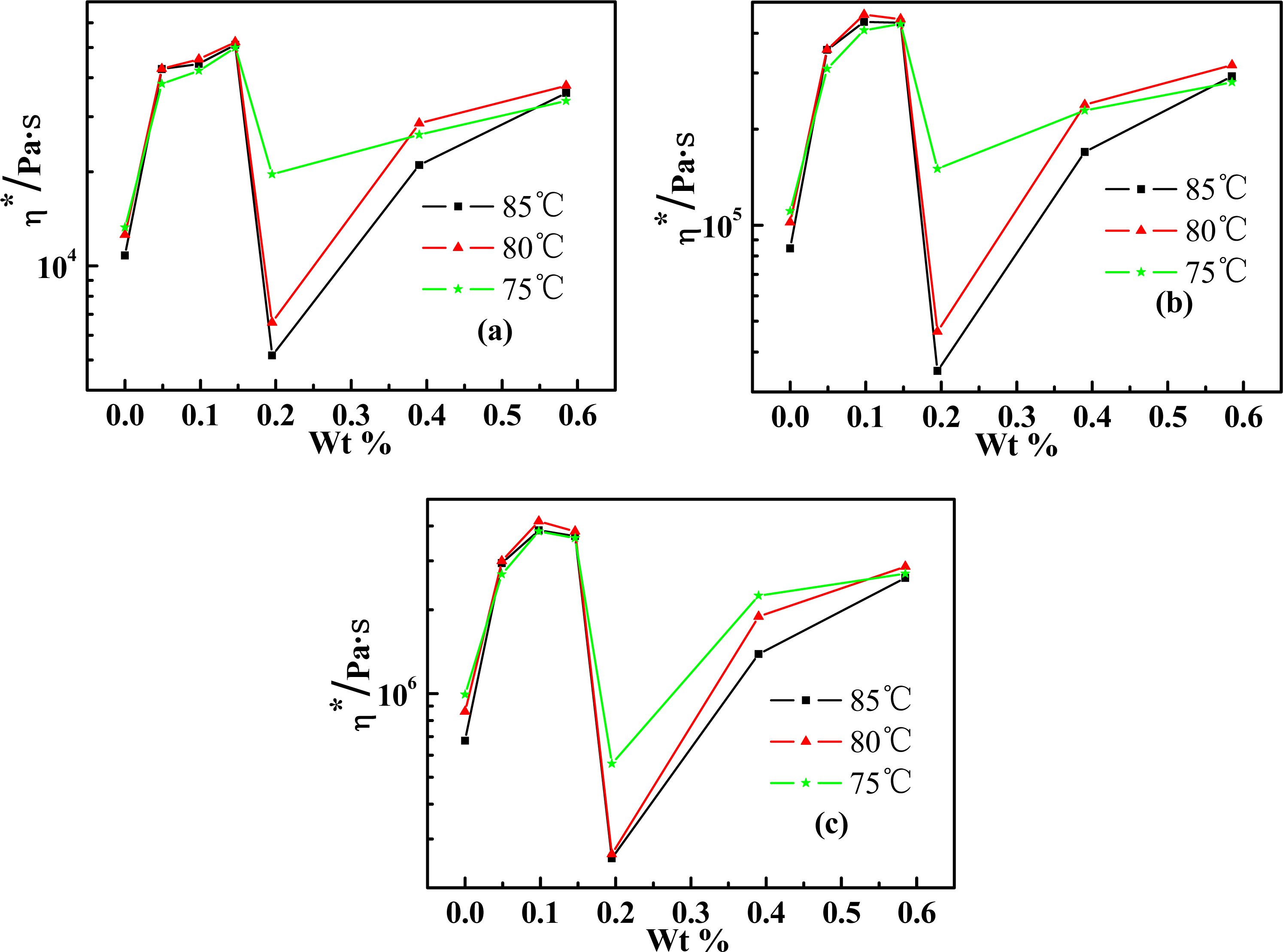

Figure 3. Dependence of complex viscosity (η*) of PPTA/SWNT/H2SO4 dopes on temperature and SWNT wt% at a shear frequency (ω) of (a) 10 s−1, (b) 1 s−1 and (c) 0.1 s−1.
Figure 3. Dependence of complex viscosity (η*) of PPTA/SWNT/H2SO4 dopes on temperature and SWNT wt% at a shear frequency (ω) of (a) 10 s−1, (b) 1 s−1 and (c) 0.1 s−1.
Ijms 11 01352f3

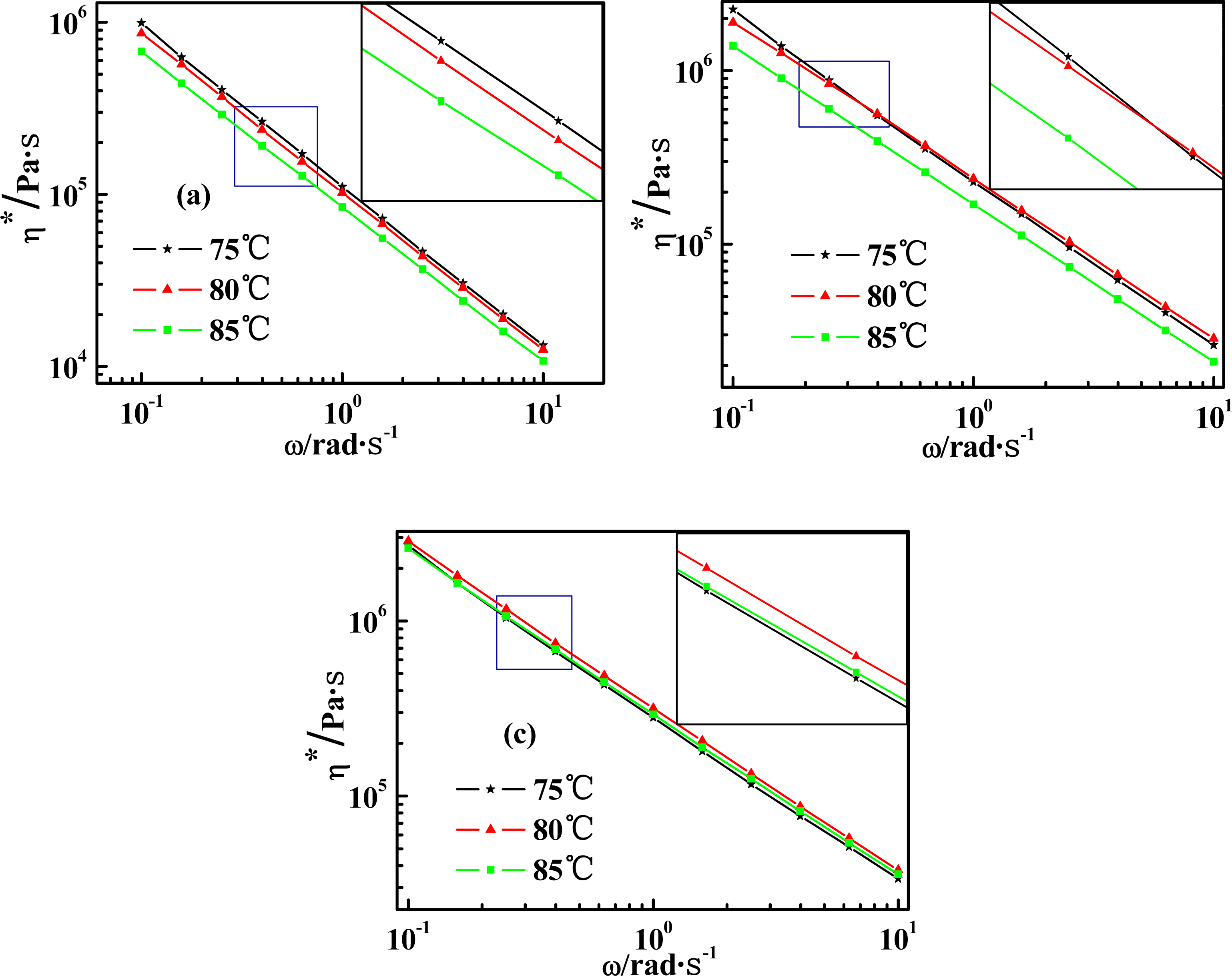

Figure 4. Temperature dependence of complex viscosity (η*) of (a) PPTA/H2SO4, (b) PPTA/SWNT (98/2 wt%)/H2SO4, and (c) PPTA/SWNT (97/3 wt%)/H2SO4 as a function of shearing frequency (ω). PPTA is kept at 19.5 wt% in all above cases.
Figure 4. Temperature dependence of complex viscosity (η*) of (a) PPTA/H2SO4, (b) PPTA/SWNT (98/2 wt%)/H2SO4, and (c) PPTA/SWNT (97/3 wt%)/H2SO4 as a function of shearing frequency (ω). PPTA is kept at 19.5 wt% in all above cases.
Ijms 11 01352f4

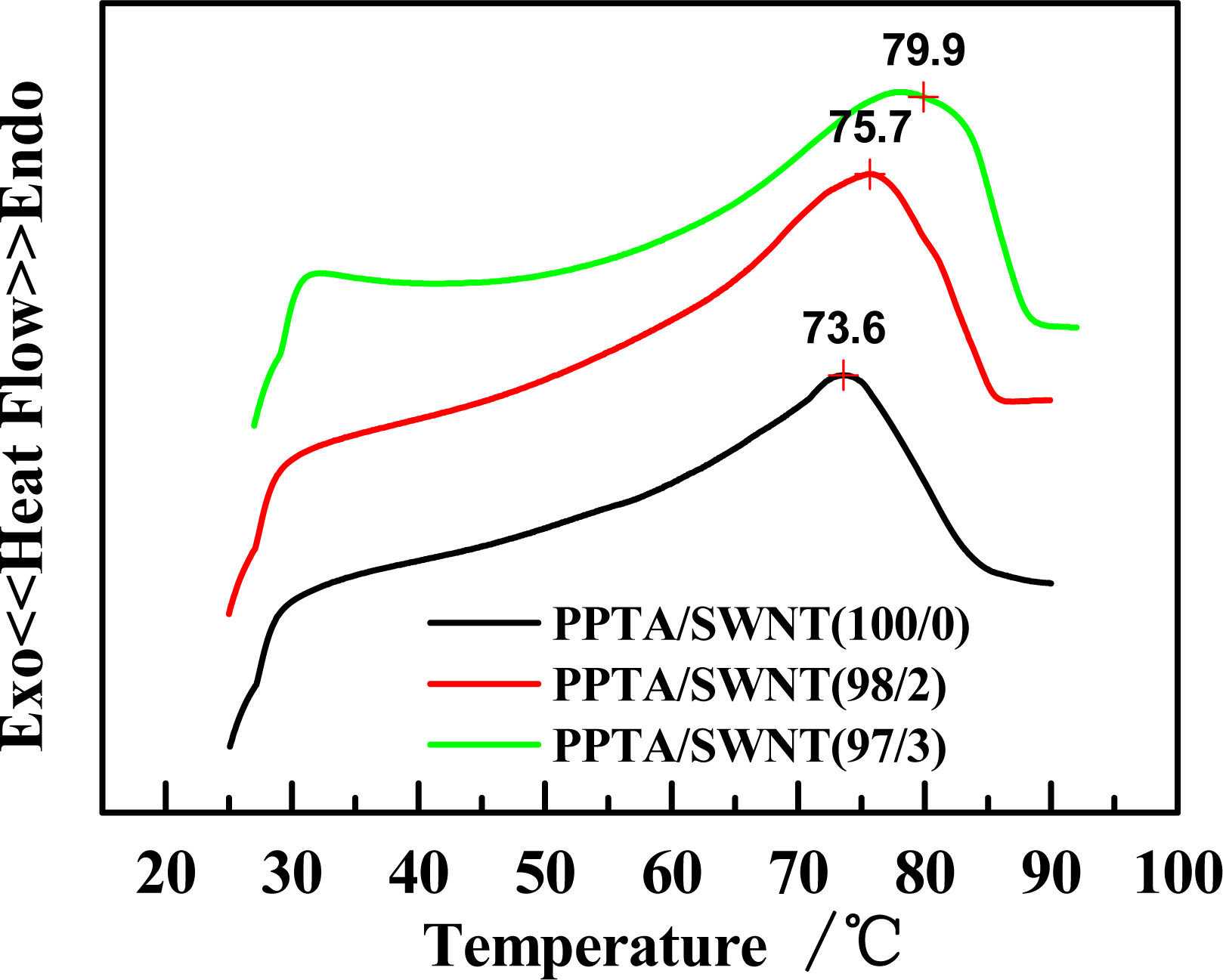

Figure 5. DSC heating curves of PPTA/SWNT/H2SO4 dope with different weight ration of PPTA and SWNT.
Figure 5. DSC heating curves of PPTA/SWNT/H2SO4 dope with different weight ration of PPTA and SWNT.
Ijms 11 01352f5

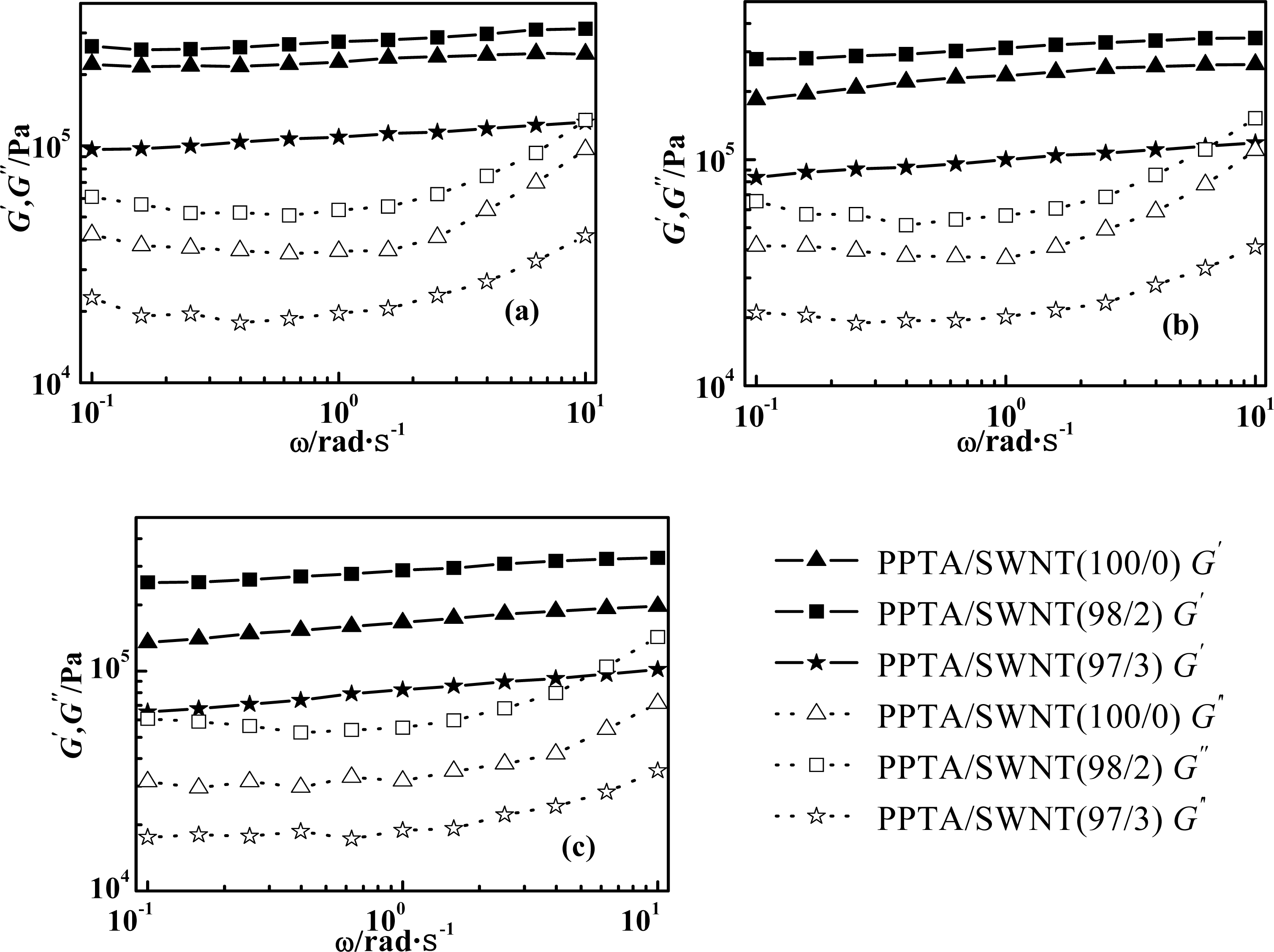

Figure 6. Dynamic modulus (G′ and G″) of PPTA/SWNT/H2SO4 dope as a function of shearing frequency (ω) at temperatures of (a) 75 °C, (b) 80 °C, and (c) 85 °C.
Figure 6. Dynamic modulus (G′ and G″) of PPTA/SWNT/H2SO4 dope as a function of shearing frequency (ω) at temperatures of (a) 75 °C, (b) 80 °C, and (c) 85 °C.
Ijms 11 01352f6

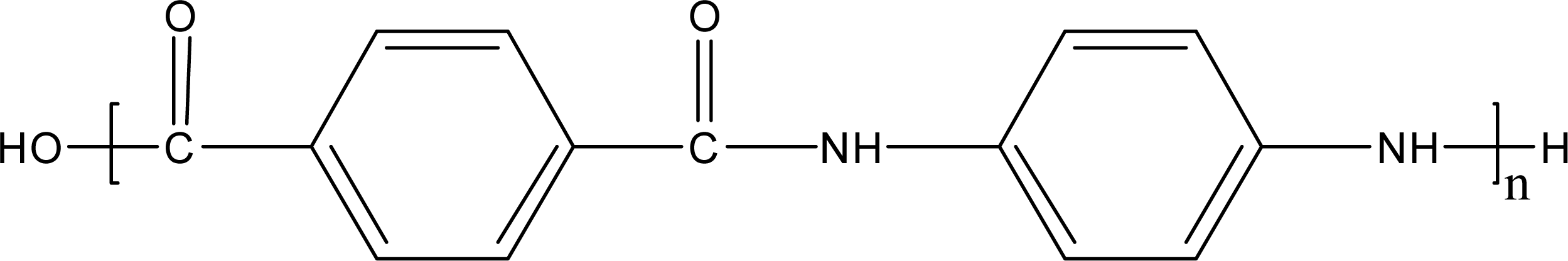

Scheme 1. Molecular structure of poly(p-phenylenetetraphthalamide) (PPTA).
