Doping-Promoted Solar Water Oxidation on Hematite Photoanodes

by
Yuchao Zhang
1,2,
Hongwei Ji
1,2,
Wanhong Ma
1,2,
Chuncheng Chen
1,2,
Wenjing Song
1,2,* and
Jincai Zhao
1,2,*
1
Beijing National Laboratory for Molecular Sciences, Key Laboratory of Photochemistry, Institute of Chemistry, The Chinese Academy of Sciences, Beijing 100190, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Authors to whom correspondence should be addressed.
Molecules 2016, 21(7), 868; https://doi.org/10.3390/molecules21070868
Submission received: 16 May 2016 / Revised: 15 June 2016 / Accepted: 25 June 2016 / Published: 1 July 2016
(This article belongs to the Special Issue Photocatalytic Water Splitting—the Untamed Dream)
Browse Figures
Versions Notes

Abstract

:
As one of the most promising materials for solar water oxidation, hematite has attracted intense research interest for four decades. Despite their desirable optical band gap, stability and other attractive features, there are great challenges for the implementation of hematite-based photoelectrochemical cells. In particular, the extremely low electron mobility leads to severe energy loss by electron hole recombination. Elemental doping, i.e., replacing lattice iron with foreign atoms, has been shown to be a practical solution. Here we review the significant progresses in metal and non-metal element doping-promoted hematite solar water oxidation, focusing on the role of dopants in adjusting carrier density, charge collection efficiency and surface water oxidation kinetics. The advantages and salient features of the different doping categories are compared and discussed.

1. Introduction

Water oxidation has been considered as the Holy Grail of chemistry in the 21th century, as it is the efficiency-controlling step of light-driven overall water splitting (2H2O → 2H2 + O2) to store solar energy in chemical bonds [1,2,3,4,5,6]. Photoelectrcochemical (PEC) cells are a promising technology to realize solar water splitting. In the PEC configuration, water oxidation occurs on the photoanode [2,3,6,7,8,9,10]. Metal oxide semiconductors such as TiO2 [11,12], BiVO4 [13], WO3 [14], and α-Fe2O3 (hematite) are the most widely explored materials as suitable photoanodes [2,3,6,7,9,10,15,16,17,18,19,20,21,22,23,24]. Hematite is promising due to its abundance, low cost, stability and visible light absorption [2,3,6,9,25,26,27,28,29,30]. Ideally, anodic photocurrent onset is close to its flatband potential (0.3–0.4 V vs. RHE) and the photocurrent density approaches a plateau of 12.6 mA/cm2 (calculated by hematite absorption and AM 1.5 G solar spectrum) [2,31]. However, the ultrashort excited states (carrier) lifetimes [15,32], low electron mobility [33] and a hole diffusion length of 2–4 nm [34] impair charge collection at the surface; the mid-bandgap states pinned Fermi level [18,35], as well as the sluggish interfacial hole transfer kinetics require a large overpotential to drive water oxidation [2,15]. Many strategies tackling these limitations have been developed, including morphology/nanostructure control to decouple the light penetration depth and hole diffusion length, and elemental doping to facilitate carrier transport. The keys are efficient electron hole separation, hole collection at the surface and rapid hole transfer at hematite/electrolyte interface for catalytic water oxidation [2,3,6,9]. Significant progress has been made in achieving higher water oxidation activity and solar to hydrogen (STH) efficiency. To date, the champion hematite-based PEC cell gives a photocurrent density of 4.68 mA/cm2 at 1.23 V vs. RHE [36].
One of major obstacles for efficient solar water oxidation is the extremely low electron mobility of hematite (10−2 cm2·V−1·s−1) [2]. According to DFT calculations, the conduction band edge of hematite is highly localized on the Fe 3d orbital, leading to an extremely heavy electron effective mass [37,38]. DFT calculation also predicts that the incorporation of heteroatoms could reduce the electron effective mass and improve the electron mobility [37,38]. Detailed fundamentals of the dopant- induced property change will be addressed hereinafter. Dopants are also found to affect other properties of hematite (crystalline disorder, morphology, etc.) or act as catalytic sites, playing multiple roles in boosting PEC water oxidation efficiency.
Here we review selected researches with major contributions to the doping-promoted water oxidation on hematite photoanodes, under the categories of metal and non-metal dopants [2,3,6,9]. For metal element doping, n-type dopants are represented by Ti4+ [39,40,41,42,43,44,45], Sn4+ [46,47,48,49,50,51], Zr4+ [52,53] and Pt4+ [54,55,56]; p-type dopants include Mg2+ [57,58], Zn2+ [59,60,61,62,63], Ag+ [64], Cu2+ [65]; and there is also nonisovalent substitutional doping by Al3+ [66]. Studies on non-metal element doping are dominated by Si [31,67,68,69,70,71] and P [33,34], which give superior activity. Indeed, theoretical calculations have suggested that non-metal element doping is a better choice to improve electron transport [31,33,67,68,69,70]. The role of heteroatoms in the hematite host will be elucidated by detailed analysis of carrier density and charge transfer kinetics, in the bulk and at hematite/electrolyte interface. Alternative mechanisms for efficiency enhancement are also discussed.

2. Metal Element Doping

2.1. n-Type Doping

Ti-doping is the most widely adapted approach to improve the water oxidation efficiency [39,40,41,42,43,44]. A survey of 3d transition metal (Sc, Ti, Cr, Mn, Ni) doping by DFT calculation revealed that incorporation of Ti gives the most dispersive conduction band density of state (Figure 1). In contrast to pristine hematite, doping introduces titanium d and s orbital character in the conduction band minimum (CBM), which reduces the effective mass of electron and enhance the electron mobility. The lattice strain (shorter intraplane Fe-Fe distance) in Ti-doped hematite further increases the polaron hopping probability [37]. These electronic features provide mechanistic fundamentals for the doping-facilitated charge transfer as well as the improved STH efficiency. Cr3+ doping shows a similar effect, however much less work has been done on Cr-doped hematite [72,73], which may be a promising endeavor in the future.
Several reports on Ti-doped hematite have demonstrated high photocurrent density in PEC water oxidation under AM 1.5 G simulated sunlight irradiation (the standard light source unless otherwise noted) [39,40,41,42,43,44,45]. In 2011, Wang et al. reported a novel deposition-annealing (DA) procedure to prepare Ti-doped hematite nanoparticles on fluorine-doped tin oxide (FTO) substrates, with titanium butoxide as the Ti precursor. At the surface of Ti-doped samples, Ti atoms are bonded to oxygen, with a binding energy consistent with that in TiO2 as suggested by X-ray photoelectron spectroscopy (XPS). The optimized photoanode (10% Ti atom percentage) achieved a photocurrent density of 2.8 mA/cm2 at 1.23 V vs. RHE (Figure 2). Notably, for Ti-doped photoanodes, the photocurrent onset potential was shifted cathodically by ~100–200 mV compared to the undoped hematite. The authors attributed the high activity to a two order of magnitude increase in carrier density and the reduced electron-hole recombination, based on Mott-Schottky and picosecond transient absorption measurements [39]. The J-V profile could be rationalized by the difference in bias- dependent electron-hole recombination of pristine and Ti-doped photoanode [23]. The cathodic shift of onset potential was ascribed to the surface TiO2-like motifs with O2p holes (compared to the Fe3+ character of valence band holes) that enhanced hole transfer kinetics for water oxidation [2,15,74]. That is, Ti doping is able to lower the overpotential by forming TiO2 heterostructures on the hematite surface.
Deng et al. developed a facile hydrothermal method to synthesize Ti-doped hematite on FTO with TiCN as the Ti precursor [45]. The doped photoanode showed favorable sea urchin-like nanostructures, whereas pure hematite nanorods were vertically aligned on FTO substrates. At 1.23 V vs. RHE, the photocurrent density reached 1.91 mA/cm2, or 2.5 times higher than the pristine hematite. The higher water oxidation activity was again attributed to the doping-enhanced carrier density, as evidenced by a decrease in the unoccupied states of the conduction band from X-ray absorption spectroscopy (XAS). It is interesting to note that in the Ti-doped hematite, the Ti 2p3/2 binding energy deviated by ~0.7 eV from that of TiO2, which is quite different from the above-mentioned Ti-doped nanoparticles and may account for the less pronounced change in photocurrent onset potential.
To establish the correlation between the effects of the incorporated Ti on the electronic structures of Ti-doped hematite, Kronawitter et al. performed synchrotron-based soft X-ray absorption measurements on five types of Ti-doped samples fabricated by different methods [39,40,41,42,43,44,45]. All samples demonstrated spectral characters that indicate mixing of Ti s and d states in the conduction band, as predicted by DFT calculations [37]. The degree of orbital mixing is found to be more pronounced in the near-surface region [43], consistent with the higher doping levels near the surface according to the XPS depth profile result [41]. However, in contradiction to the theoretical calculation [38], conversion from Fe3+ to Fe2+ was not observed by Fe L2,3-edge absorption spectra in any case. Although the extra electrons donated by heteroatoms are proposed as one dominant mechanism for doping to improve the electron mobility and charge collection, variation in the iron valence state has rarely been observed experimentally for metal-doped hematite [39,43]. However, conversion of Fe3+ to Fe2+ was evidenced in the P-doped hematite developed by our group (see Section 3.2 for details).
Although Ti-doping introduced increases in carrier density are usually related to the improved PEC water oxidation, other mechanisms may prevail. Zandi et al. synthesized Ti-doped hematite films with highly uniform planar morphology by atomic layer deposition (ALD) [41]. Doped photoanodes with a 3% Ti atomic percentage exhibited dramatic boosts in photocurrent density and more negative onset potential. By electrochemical impedance spectroscopy (EIS, Figure 3), the authors were able to quantify the enhanced hole collection efficiency in the bulk (low charge trapping resistance, Rtrap) and hole transfer/water oxidation kinetics (low interfacial charge transfer resistance, Rct,ss) at the surface. However, the carrier densities for undoped and Ti-doped hematite thin films were at the same level (4.0 × 1018–4.4 × 1018 cm−3). They attributed the improved hole collection efficiency to the resurrection of a dead layer (formed due to the lattice mismatch of FTO and hematite which causes a severe charge recombination) by the doped Ti atom. Ti doping was also hypothesized to give higher concentration of surface FeIIIOH that is active in the subsequent water oxidation [41]. Another study on ultrathin hematite photoanodes by ALD demonstrated a similar effect of Ti to increase the hole collection efficiency [75]. A more significant band bending in the space charge layer was suggested to facilitate electron-hole separation.
These studies revealed that the Ti dopant improves charge transfer/collection efficiency by alternating both bulk and surface properties of hematite. Activity enhancement by surface change could originate from passivation that reduces electron-hole recombination at surface or faster surface hole transfer kinetics. In a Ti-doped hematite nanowires fabricate by post growth strategy with titanium n-butoxide precursor, it was found that Ti dopant passivates particular mid-band gap surface states and inhibits electron-hole recombination mediates by these states. Therefore, a higher efficiency of hole transfer to water was achieved. Intriguingly, Zr doping with the same treatment led to similar donor density, but the insignificant surface passivation gave much less photocurrent enhancement [51].
More recently, Monllor-Satoca et al. prepared Ti-doped hematite film by mixing of preformed hematite/titania nanoparticles followed by 700 °C calcination, gaining 15 times photocurrent enhancement at 10% Ti [76]. Characterizations by Mott-Schottky and EIS evinced increases in bulk donor density (Nd) and surface states (Nss). Notably, Nss/Nd exhibited the same trend with %Ti as photocurrent and the relative importance of interfacial charge transfer (characterized by ratio of charge trapping resistance to surface charge transfer resistance). Such results clearly point to a favored surface charge transfer process owing to the Ti-introduced positive shift in surface state energy. Moreover, pseudobrookite (Fe2TiO5) forms near nanoparticle edges and the hematite/pseudobrookite heterojunction offer favorable cascades for vectorial diffusion of electrons and holes. This work highlights the multiple changes by doping and the interplay of these factors for optimized performance [76]. Fe2TiO5 is also a suitable n-type photoanode material [77]. It has a band gap of ~2.1 eV and the band energy levels allows formation of n-n junctions when combined with hematite. With such a configuration, Bassi et al. constructed a photoanode which gave photocurrent of 1.4 mA/cm2 (0.01 mA/cm2 for pristine hematite) [78]. Besides the band alignment facilitated bulk charge separation, surface states of Fe2TiO5 improved surface hole transfer kinetics was also proposed to boost the PEC water oxidation. The charge transfer dynamics in similar composite photoaonde was supported by independent transient absorption measurements [79].
Sn-doping is another popular strategy to improve the activities of hematite photoanodes [46,47,48]. The effect of Sn was first realized in 2010, where the unintentional incorporation of Sn (via diffusion from FTO substrates to hematite) occurred at high annealing temperature (800 °C) [80]. This was re-visited systematically and confirmed by Ling et al. [46]. The Sn-doped hematite nanowires prepared by annealing at 800 °C show pronounced photocurrent density of 1.24 mA/cm2 at 1.23 V vs. RHE (Figure 4). The authors then developed a hydrothermal method to fabricate Sn-doped hematite nanocorals on FTO by adding tin(IV) chloride as the Sn precursor, further increasing the photocurrent density to 1.86 mA/cm2 at 1.23 V vs. RHE. It is important to note a 5-times higher photocurrent density for Sn-doped hematite sintered at 650 °C, compared to undoped photoanodes, which reinforces the critical role of Sn. The substantial enhancement in PEC efficiency was a synergistic effect of Sn-introduced carrier density, the increased light harvesting efficiency and the high surface area [46]. More thorough investigations on Sn-doping were performed on sputter-deposited hematite thin films. The highly uniform coverage allows for precise quantification of Sn content by secondary ion mass spectrometry (SIMS). Surprisingly, compared to low temperature treatment, high temperature annealing led to a one magnitude increase in Sn content, but a 103 and 105 increase in photocurrent density and conductivity, respectively. These results indicate that higher temperature treatment is crucial to activate Sn in hematite [47].
Frydrych et al. developed a facile spin-coating based method that allows fabricating photoactive Sn-doped hematite at lower annealing temperature (650 °C) [48]. A high tin loading level (20:100, Sn:Fe) was found to give over a 10-times increase in photocurrent. XPS and magnetization measurements were used to determine the doping level and effect of tin on the crystal structure. The low annealing temperature suggested an alternative dopant activation mechanism. Despite the increase in donor density, DFT calculations by Annamalai et al. indicated that Sn-doping creates localized shallow donor levels, which are detrimental for conductivity. Luckily, this could be overcome by sequential ex-situ Sn4+ and Be2+ doping. The co-doped hematite exhibits less localized CBM and smaller effective electron mass, leading to further improvement in charge transport and a 1.7 times enhancement in photocurrent comparing to Sn-Fe2O3 [51]. Zr was also reported to be a suitable co-dopant for Sn to achieve higher electrical conductivity and PEC water oxidation activities [81].
In addition to the beneficial effect on charge transport and hole trapping step, there are evidences for Sn dopant impacting the charge transfer at hematite/electrolyte interface. Dunn et al. developed a solution process route to fabricate Sn-doped photoanodes while maintaining the mesoporous worm-like morphology [49]. A much higher surface hole transfer efficiency in doped hematite was confirmed by photocurrent transient analysis. By intensity modulated photocurrent spectroscopy (IMPS), the authors identified that the increase in hole transfer rate, not surface passivation (suppression of electron-hole surface recombination), was responsible for the improved efficiency. Such a phenomenon was attributed to Sn-enrichment at the nanostructure surface, which may define the energetics of intermediates (surface states) involved in water oxidation. Later, Shinde et al. systematically investigated the properties of hematite in which Sn was incorporated via substrate diffusion or surface treatment [50]. They related the water-oxidation surface states to the hematite (104) plane. High temperature annealing causes lattice distortion and deformation-direct Sn-doping, decreasing the density of favored surface states and causing an anodic shift in photocurrent onset potential. The performance of Sn-doped hematite depends collectively on surface states and donor density.
Pt is also an effective element that boosts hematite photoanode activity. Homogeneous distribution of Pt (3%–7%) in α-Fe2O3 was successfully prepared by simple electrodeposition route [55]. The Pt-doped nanoparticles were more densely packed and detailed structure characterization by Raman, XPS and XRD confirmed the incorporation of Pt4+ in the hematite lattice. Due to the increased donor concentration, the photocurrent increased from 0.69 mA/cm2 to 1.43 mA/cm2 at 0.4 V vs. Ag/AgCl. The doping-facilitated charge separation was also supported by a linear dependency of photocurrent on light intensities. Inspired by this work, Kim et al. employed Pt as dopant in worm-like hematite nanorods. The increased donor density and charge separation in Pt-Fe2O3 were confirmed by Mott-Schottky and EIS measurements. Moreover, the drop in charge transfer resistance at the interface suggested that Pt doping substantially accelerated the hole transfer to water and the catalytic oxygen evolution. Surface modification with Co-Pi catalyst gave a record-breaking photocurrent density of 4.32 mA/cm2 under standard conditions [56]. The remarkable feature of Pt doping was recently investigated by DFT + U calculations [54]. It was shown that Pt donates electrons to Fe sites, increasing the polaron hopping probability, and the electrical conductivity, but Pt substitution at the surface increases the free energy for O-H cleavage in water oxidation intermediates and decreases water adsorption at catalytic sites, which leads to high overpotential. Based on the calculation results, a gradient doping strategy has been proposed with low doping levels near the surface region to avoid the adverse effect.

2.2. p-Type Doping

Mg [57,58] and Zn [59,60,61,62,63] are broadly exploited for p-type doping. In contrast to the metal elements addressed above, they create new states above the hematite valance band. High doping density gives p-type hematite, which is a suitable candidate as an overlayer to hinder charge recombination by forming p-n junctions at the surface, offering an additional charge separation driving force from an increased build-in field potential. In 2012, Lin et al. [57] constructed a first high quality n-p junction by growing Mg-doped hematite overlayer on top of n-type hematite. As shown in Figure 5, compared to the control photoanode, hematite with the p-type overlayer shows a ~200 mV cathodic shift in onset potential and much higher IPCE value at 1 V vs. RHE. The built-in field-assisted charge separation was verified by interfacial hole transfer kinetics extracted from EIS and open circuit potential measurements [57]. Hou et al. prepared a p-n heterojunction hematite photoanode with a Mg-doped overlayer (MgFe2O4) featuring favorable charge transfer properties. The 3-dimension branched architecture facilitates surface water oxidation, leading to a benchmark photocurrent density of 3.34 mA/cm2 at 0.8 V vs. Ag/AgCl [58].
Successful PEC enhancement by p-type overlayer has also been reported for other metal dopants. Shen et al. used ultrasonication treatment of solution-based FeOOH in Ag acetate solution and obtained a Ag-doped overlayer on the hematite nanorods (α-Fe2O3/AgxFe2−2xO3 core shell structure). A 340% improved PEC water oxidation activity was observed in the optimized structure, in comparison to pristine hematite. Extensive Fe(3d)-O(2p) mixing in the valence band and greater contribution from O2p holes was confirmed by in-situ X-ray absorption near edge structure (XANES) characterization. Concomitantly, a charge transfer between AgI and photogenerated hole gives AgIII that promotes water oxidation (Figure 6) [64].
Zn doping was reported to greatly reduce the onset potential particularly by its contribution to the surface states and the faster surface hole transfer kinetics. In an effort to combine the better charge transport property by n-doping with the catalytic effect of Zn doping, Ti/Zn co-doped hematite was prepared by electrodeposition method with minimal change in morphology/optical properties[53]. Superior overall performance was observed compared to Ti-doped photoanode. Characterization by EIS suggested that Zn co-doping was beneficial for both charge transport in the bulk and water oxidation at the surface, the latter was supported by a two-fold increase in Tafel slope. This work, and other related studies pave the way to collaborate different mechanisms to promote solar water oxidation at doped hematite photoanodes.

3. Nonmetal Element Doping

The nonmetal dopants for hematite have been limited to Si [31,67,68,69,70] and P [33,34] so far. Ab initio quantum mechanics calculations on the carrier transport property of doped hematite suggested that the nonmetallic Si could be superior to Ti [82]. As shown in Figure 7A, in Ti-doped hematite, the potential energy curve reveals that electron carrier located at Ti sites is ~1.5 eV more stable than that at Fe sites. Consequently, photogenerated electron carriers prefer to reside at Ti site, i.e., Ti dopant acts as electron trapping site and hinders electron transport. While for the Si-doping, the electron carrier strongly prefers Fe site owing to a ~2.8 eV gain in potential energy (Figure 7B). The difference in electron transfer trend was rationalized by electron accepting orbitals: Ti4+ has empty 3d orbital favoring electron trapping, which may explain the absence of Fe2+ in Ti-doped hematite [43]. For Si, on the contrary, electron is forced to occupy the empty Si-O antibonding orbitals, which is a highly unfavored process. Thereby, the nonmetal Si dopant offers electron carriers without affecting the original polaron hopping mode for electron transport along iron atoms, which is more advantageous to improve the hematite conductivity and PEC water oxidation activity. The generation of electron polaron by electron transfer from Si to surrounding iron site was reproduced by DFT + U calculations, elucidating the origin for electrical conductivity enhancement [83].

3.1. Si-Doping

Si-doping has been widely studied in the past decade [31,67,68,69,70]. In 2006, Cesar et al. reported the preparation of Si-doped hematite by ultrasonic spray pyrolysis (USP) and atmospheric pressure chemical vapor deposition (APCVD) with tetraethoxysilane (TEOS) as silicon dopant [67]. Improvement of 50% and 90% in photocurrent densities was realized for the Si-doped photoanodes prepared by the two protocols. The high PEC performance was ascribed to the decreased feature size of the nanoleaflets (Figure 8), as well as the improved conductivity resulting from Si-doping. This study highlights the importance of Si in developing the favored nanostructure for hole transfer, an effective solution to the short hole diffusion length of hematite.
Following this pioneering work, Kay et al. fabricated a dendritic Si-doped hematite photoanode by APCVD which gave a benchmark photocurrent of 2.2 mA/cm2 at 1.23 V vs. RHE. Such high efficiency was attributed to the nanostructure size features, minimizing the traveling distance of photogenerated holes [69]. Further enhancement was achieved by an ultrathin insulating SiO2 layer on the FTO substrate (to block back electron hole recombination) and the decoration of a catalytic cobalt layer. Properties including crystallinity disorder, feature sizes and donor carrier density of hematite by APCVD under various operating conditions was investigated systematically, identifying a critical feature sizes for the active photoanode. The Si introduced unusually high donor density was confirmed to be essential for the formation of space charge field and the enhanced water oxidation efficiency. With these mechanistic insights, Tilley et al. obtained the benchmark activity of 3.3 mA/cm2 at 1.23 V vs. RHE with an IPCE value of 39% at 400 nm in the presence of iridium oxide catalyst overlayer (Figure 9) [31]. Considering its atomic size, Si4+ was also employed as co-dopant to balance the radius difference in Ti-Fe2O3 (Si4+ < Fe3+ < Ti4+). The co-doped sample shows more than a two-fold increase in donor density and photocurrent in comparison to Ti-doped hematite [71].

3.2. P-Doping

Recently our group introduced P-doped hematite to the photoanode catalogue for efficient solar water splitting [33,34]. Considering that phosphorous has five valence electrons (one more than Si) and the covalent nature of P-O bonds, P-doping was expected to be an effective strategy to avoid formation of electron trapping states. During the hydrothermal preparation of hematite electrode, we developed an impregnation process for P-doping [33]. The scanning transmission electron microscope (STEM) images and XPS depth profile confirmed the homogeneous distribution of P in bulk hematite. At optimal impregnation pH, the P-doped hematite photoanodes exhibited pronounced photocurrent densities of 2.3 mA/cm2 and 2.7 mA/cm2 at 1.23 V vs. RHE (annealed at 650 °C and 750 °C, denoted by PNW650 and PNW750) as shown in Figure 10. Loading of “Co-Pi” catalyst on the surface of PNW750 further increased the photocurrent density to 3.1 mA/cm2 at 1.23 V vs. RHE. DFT + U calculation revealed the greatly reduced electron effective mass upon P-doping, which is responsible to the substantial increase in electron mobility and the PEC activity.
During the preparation of the photoanode, it was found that solution pH in the impregnation process greatly affected the PEC performance of P-doped photoanodes. A systematical investigation indicated that high photocurrent density was obtained only when the soaking pH was around 8–9, as shown in Figure 11. Interestingly, comparison of Fe K-edge XANES spectra and P K-edge XANES spectra suggested an opposite trend in valence state between Fe and P. This provides the evidence for the doping introduced change in Fe valence state. As discussed above, extra electrons donated by doped element are critical for electron transport and PEC activity [84]. On the other hand, photoanode treated in acidic solution lost the well-defined crystallinity along (110) direction, which is detrimental to the activity based on the highly anisotropic electron mobility favoring this direction [2,46]. Overall, although acid treatment gives more Fe (II), the poor crystallinity hinders charge transfer, resulting in the observed low activity. From the above results, the novel P-doped hematite not only exhibited high PEC activity, but also provided a model system for studying the influences of iron valence state and crystallinity on the PEC behavior. Fine tune of these two parameters by a simple solution method is unprecedented in other doping studies.

4. Summary and Outlook

Although elemental doping has been intensely studied over the past years, the PEC activities of the doped hematite photoanodes via different synthetic routes are still far below the theoretical limitations of this material. There are important issues to be further explored in detail.
The specified efficiency-enhancement mechanisms and the major role played by dopants should be clarified. Most significantly, elements with extra valence electrons, represented by Ti, Sn, Pt, Si and P, increase the charge collection efficiencies by introducing additional electron carriers and/or tuning space charge layer; recent theoretical and experimental researches suggested that Si and P doping is more advantageous in terms of electron mobility and charge transport. The heteroatoms have the potential to promote the surface hole transfer (water oxidation) by changing the near surface electronic structure. However, the chemical nature and activity of the surface states involved in water oxidation remain elusive. From this point of view, bulk-sensitive and surface-sensitive characterizations, as well as theoretical modelling are necessary to identify the prevalent mechanisms. Whether these dopants can extend the carrier lifetime (fs-ps timescale) under cell operation is yet to be addressed. These insights are vital to guide the design of photoanodes by taking advantages of different dopant (co-doping) and control their spatial distribution to maximize the beneficial effects.
It has to be noted that the underlying mechanism and role of dopants depend on how electrode fabrication methods control the dopant “activation” process or their incorporation mode. Dopant alternated feature size and morphology also need to be addressed. Therefore, it is essential to explore these synergies for optimal performance.
Emerging new strategies, including high surface area 3D conducting substrate scaffold, metal nanostructure introduced buried Schottky junction, and plasmonic effect have shown promises in improving hematite performance. These methods, in combination with elemental doping, are envisioned to operative collectively to achieve high solar to fuel conversion efficiency.

Acknowledgments

The authors are grateful for the financial supports of this work from 973 project (No. 2013CB632405), NSFC (Nos. 21407153, 21537003, 21590811, 21521062) and the “Strategic Priority Research Program” of the Chinese Academy of Sciences (No. XDA09030200).

Author Contributions

Yuchao Zhang and Jincai Zhao conceived and designed the review; Yuchao Zhang and Wenjing Song drafted the manuscript; Hongwei Ji, Chuncheng Chen and Wanhong Ma discussed and commented on the manuscript. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Zhang, Y.; Zhang, H.; Ji, H.; Ma, W.; Chen, C.; Zhao, J. Pivotal role and regulation of proton transfer in water oxidation on hematite photoanodes. J. Am. Chem. Soc. 2016, 2705–2711. [Google Scholar]
  2. Sivula, K.; le Formal, F.; Gratzel, M. Solar water splitting: Progress using hematite (α-Fe2O3) photoelectrodes. ChemSusChem 2011, 4, 432–449. [Google Scholar] [PubMed]
  3. Hamann, T.W. Splitting water with rust: Hematite photoelectrochemistry. Dalton Trans 2012, 41, 7830–7834. [Google Scholar] [CrossRef] [PubMed]
  4. Valdes, A.; Qu, Z.W.; Kroes, G.J.; Rossmeisl, J.; Norskov, J.K. Oxidation and photo-oxidation of water on TiO2 surface. J. Phys. Chem. C 2008, 112, 9872–9879. [Google Scholar] [CrossRef]
  5. Chen, H.M.; Chen, C.K.; Liu, R.S.; Zhang, L.; Zhang, J.; Wilkinson, D.P. Nano-architecture and material designs for water splitting photoelectrodes. Chem. Soc. Rev. 2012, 41, 5654–5671. [Google Scholar] [CrossRef] [PubMed]
  6. Wheeler, D.A.; Wang, G.; Ling, Y.; Li, Y.; Zhang, J.Z. Nanostructured hematite: Synthesis, characterization, charge carrier dynamics, and photoelectrochemical properties. Energy Environ. Sci. 2012, 5, 6682–6702. [Google Scholar] [CrossRef]
  7. Bard, A.J. Inner-sphere heterogeneous electrode reactions. Electrocatalysis and photocatalysis: The challenge. J. Am. Chem. Soc. 2010, 132, 7559–7567. [Google Scholar] [CrossRef] [PubMed]
  8. Dau, H.; Limberg, C.; Reier, T.; Risch, M.; Roggan, S.; Strasser, P. The mechanism of water oxidation: From electrolysis via homogeneous to biological catalysis. ChemCatChem 2010, 2, 724–761. [Google Scholar] [CrossRef]
  9. Lin, Y.; Yuan, G.; Sheehan, S.; Zhou, S.; Wang, D. Hematite-based solar water splitting: Challenges and opportunities. Energy Environ. Sci. 2011, 4, 4862–4869. [Google Scholar] [CrossRef]
  10. Sivula, K. Metal oxide photoelectrodes for solar fuel production, surface traps, and catalysis. J. Phys. Chem. Lett. 2013, 4, 1624–1633. [Google Scholar] [CrossRef] [PubMed]
  11. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–39. [Google Scholar] [CrossRef] [PubMed]
  12. Hoang, S.; Berglund, S.P.; Hahn, N.T.; Bard, A.J.; Mullins, C.B. Enhancing visible light photo-oxidation of water with TiO2 nanowire arrays via cotreatment with H2 and NH3: Synergistic effects between Ti3+ and n. J. Am. Chem. Soc. 2012, 134, 3659–3662. [Google Scholar] [CrossRef] [PubMed]
  13. Jo, W.J.; Jang, J.-W.; Kong, K.-J.; Kang, H.J.; Kim, J.Y.; Jun, H.; Parmar, K.P.S.; Lee, J.S. Phosphate doping into monoclinic bivo4 for enhanced photoelectrochemical water oxidation activity. Angew. Chem. Int. Ed. 2012, 51, 3147–3151. [Google Scholar] [CrossRef] [PubMed]
  14. Mi, Q.; Ping, Y.; Li, Y.; Cao, B.; Brunschwig, B.S.; Khalifah, P.G.; Galli, G.A.; Gray, H.B.; Lewis, N.S. Thermally stable N2-intercalated WO3 photoanodes for water oxidation. J. Am. Chem. Soc. 2012, 134, 18318–18324. [Google Scholar] [CrossRef] [PubMed]
  15. Cowan, A.J.; Barnett, C.J.; Pendlebury, S.R.; Barroso, M.; Sivula, K.; Gratzel, M.; Durrant, J.R.; Klug, D.R. Activation energies for the rate-limiting step in water photooxidation by nanostructured α-Fe2O3 and TiO2. J. Am. Chem. Soc. 2011, 133, 10134–10140. [Google Scholar] [CrossRef] [PubMed]
  16. Dotan, H.; Sivula, K.; Grätzel, M.; Rothschild, A.; Warren, S.C. Probing the photoelectrochemical properties of hematite (α-Fe2O3) electrodes using hydrogen peroxide as a hole scavenger. Energy. Environ. Sci. 2011, 4, 958. [Google Scholar] [CrossRef]
  17. Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Bisquert, J.; Hamann, T.W. Electrochemical and photoelectrochemical investigation of water oxidation with hematite electrodes. Energy Environ. Sci. 2012, 5, 7626–7636. [Google Scholar] [CrossRef]
  18. Klahr, B.; Gimenez, S.; Fabregat-Santiago, F.; Hamann, T.; Bisquert, J. Water oxidation at hematite photoelectrodes: The role of surface states. J. Am. Chem. Soc. 2012, 134, 4294–4302. [Google Scholar] [CrossRef] [PubMed]
  19. Pendlebury, S.R.; Barroso, M.; Cowan, A.J.; Sivula, K.; Tang, J.; Gratzel, M.; Klug, D.; Durrant, J.R. Dynamics of photogenerated holes in nanocrystalline α-Fe2O3 electrodes for water oxidation probed by transient absorption spectroscopy. Chem. Commun. 2011, 47, 716–718. [Google Scholar] [CrossRef] [PubMed]
  20. Liao, P.; Keith, J.A.; Carter, E.A. Water oxidation on pure and doped hematite (0001) surfaces: Prediction of co and ni as effective dopants for electrocatalysis. J. Am. Chem. Soc. 2012, 134, 13296–13309. [Google Scholar] [CrossRef] [PubMed]
  21. Huang, Z.; Lin, Y.; Xiang, X.; Rodríguez-Córdoba, W.; McDonald, K.J.; Hagen, K.S.; Choi, K.-S.; Brunschwig, B.S.; Musaev, D.G.; Hill, C.L.; et al. In situ probe of photocarrier dynamics in water-splitting hematite (α-Fe2O3) electrodes. Energy Environ. Sci. 2012, 5, 8923–8926. [Google Scholar] [CrossRef]
  22. Kennedy, J.H.; Frese, K.W. Photo-oxidation of water at α-Fe2O3 electrodes. J. Electrochem. Soc. 1978, 125, 709–714. [Google Scholar] [CrossRef]
  23. Le Formal, F.; Pendlebury, S.R.; Cornuz, M.; Tilley, S.D.; Grätzel, M.; Durrant, J.R. Back electron–hole recombination in hematite photoanodes for water splitting. J. Am. Chem. Soc. 2014, 136, 2564–2574. [Google Scholar] [CrossRef] [PubMed]
  24. Le Formal, F.; Pastor, E.; Tilley, S.D.; Mesa, C.A.; Pendlebury, S.R.; Grätzel, M.; Durrant, J.R. Rate law analysis of water oxidation on a hematite surface. J. Am. Chem. Soc. 2015, 137, 6629–6637. [Google Scholar] [CrossRef] [PubMed]
  25. Mayer, M.T.; Du, C.; Wang, D. Hematite/si nanowire dual-absorber system for photoelectrochemical water splitting at low applied potentials. J. Am. Chem. Soc. 2012, 134, 12406–12409. [Google Scholar] [CrossRef] [PubMed]
  26. Le Formal, F.; Tétreault, N.; Cornuz, M.; Moehl, T.; Grätzel, M.; Sivula, K. Passivating surface states on water splitting hematite photoanodes with alumina overlayers. Chem. Sci. 2011, 2, 737–743. [Google Scholar] [CrossRef]
  27. Hou, Y.; Zuo, F.; Dagg, A.; Feng, P. Visible light-driven α-Fe2O3 nanorod/graphene/BiVO4 core/shell heterojunction array for efficient photoelectrochemical water splitting. Nano Lett. 2012, 12, 6464–6473. [Google Scholar] [CrossRef] [PubMed]
  28. Kim, J.Y.; Jang, J.-W.; Youn, D.H.; Magesh, G.; Lee, J.S. A stable and efficient hematite photoanode in a neutral electrolyte for solar water splitting: Towards stability engineering. Adv. Energy Mater. 2014, 4, 1400476. [Google Scholar] [CrossRef]
  29. Zhong, D.K.; Sun, J.; Inumaru, H.; Gamelin, D.R. Solar water oxidation by composite catalyst/α-Fe2O3 photoanodes. J. Am. Chem. Soc. 2009, 131, 6086–6087. [Google Scholar] [CrossRef] [PubMed]
  30. Zhong, D.K.; Gamelin, D.R. Photoelectrochemical water oxidation by cobalt catalyst ("Co-Pi")/α-Fe2O3 composite photoanodes: Oxygen evolution and resolution of a kinetic bottleneck. J. Am. Chem. Soc. 2010, 132, 4202–4207. [Google Scholar] [CrossRef] [PubMed]
  31. Tilley, S.D.; Cornuz, M.; Sivula, K.; Gratzel, M. Light-induced water splitting with hematite: Improved nanostructure and iridium oxide catalysis. Angew. Chem. Int. Ed. 2010, 49, 6405–6408. [Google Scholar] [CrossRef] [PubMed]
  32. Pendlebury, S.R.; Wang, X.; le Formal, F.; Cornuz, M.; Kafizas, A.; Tilley, S.D.; Grätzel, M.; Durrant, J.R. Ultrafast charge carrier recombination and trapping in hematite photoanodes under applied bias. J. Am. Chem. Soc. 2014, 136, 9854–9857. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, Y.; Jiang, S.; Song, W.; Zhou, P.; Ji, H.; Ma, W.; Hao, W.; Chen, C.; Zhao, J. Nonmetal p-doped hematite photoanode with enhanced electron mobility and high water oxidation activity. Energy Environ. Sci. 2015, 8, 1231–1236. [Google Scholar] [CrossRef]
  34. Zhang, Y.; Zhou, Z.; Chen, C.; Che, Y.; Ji, H.; Ma, W.; Zhang, J.; Song, D.; Zhao, J. Gradient FeOx(PO4)y layer on hematite photoanodes: Novel structure for efficient light-driven water oxidation. ACS Appl. Mater. Interfaces 2014, 6, 12844–12851. [Google Scholar] [CrossRef] [PubMed]
  35. Iandolo, B.; Hellman, A. The role of surface states in the oxygen evolution reaction on hematite. Angew. Chem. Int. Ed. 2014, 53, 13404–13408. [Google Scholar] [CrossRef] [PubMed]
  36. Peerakiatkhajohn, P.; Yun, J.-H.; Chen, H.; Lyu, M.; Butburee, T.; Wang, L. Stable hematite nanosheet photoanodes for enhanced photoelectrochemical water splitting. Adv. Mater. 2016. [Google Scholar] [CrossRef] [PubMed]
  37. Huda, M.N.; Walsh, A.; Yan, Y.; Wei, S.-H.; Al-Jassim, M.M. Electronic, structural, and magnetic effects of 3d transition metals in hematite. J. Appl. Phys. 2010, 107, 123712. [Google Scholar] [CrossRef]
  38. Velev, J.; Bandyopadhyay, A.; Butler, W.H.; Sarker, S. Electronic and magnetic structure of transition-metal-doped alpha-hematite. Phys. Rev. B 2005, 71, 205208. [Google Scholar] [CrossRef]
  39. Wang, G.; Ling, Y.; Wheeler, D.A.; George, K.E.; Horsley, K.; Heske, C.; Zhang, J.Z.; Li, Y. Facile synthesis of highly photoactive α-Fe2O3-based films for water oxidation. Nano Lett. 2011, 11, 3503–3509. [Google Scholar] [CrossRef] [PubMed]
  40. Morin, F.J. Electrical properties of α-Fe2O3 and α-Fe2O3 containing titanium. Phys. Rev. 1951, 83, 1005–1010. [Google Scholar] [CrossRef]
  41. Zandi, O.; Klahr, B.M.; Hamann, T.W. Highly photoactive Ti-doped α-Fe2O3 thin film electrodes: Resurrection of the dead layer. Energy Environ. Sci. 2013, 6, 634–642. [Google Scholar] [CrossRef]
  42. Rioult, M.; Magnan, H.; Stanescu, D.; Barbier, A. Single crystalline hematite films for solar water splitting: Ti-doping and thickness effects. J. Phys. Chem. C 2014, 118, 3007–3014. [Google Scholar] [CrossRef]
  43. Kronawitter, C.X.; Zegkinoglou, I.; Shen, S.H.; Liao, P.; Cho, I.S.; Zandi, O.; Liu, Y.S.; Lashgari, K.; Westin, G.; Guo, J.H.; et al. Titanium incorporation into hematite photoelectrodes: Theoretical considerations and experimental observations. Energy Environ. Sci. 2014, 7, 3100–3121. [Google Scholar] [CrossRef]
  44. Pu, A.; Deng, J.; Li, M.; Gao, J.; Zhang, H.; Hao, Y.; Zhong, J.; Sun, X. Coupling ti-doping and oxygen vacancies in hematite nanostructures for solar water oxidation with high efficiency. J. Mater. Chem. A 2014, 2, 2491. [Google Scholar] [CrossRef]
  45. Deng, J.; Zhong, J.; Pu, A.; Zhang, D.; Li, M.; Sun, X.; Lee, S.-T. Ti-doped hematite nanostructures for solar water splitting with high efficiency. J. Appl. Phys. 2012, 112, 084312. [Google Scholar] [CrossRef]
  46. Ling, Y.; Wang, G.; Wheeler, D.A.; Zhang, J.Z.; Li, Y. Sn-doped hematite nanostructures for photoelectrochemical water splitting. Nano Lett. 2011, 11, 2119–2125. [Google Scholar] [CrossRef] [PubMed]
  47. Bohn, C.D.; Agrawal, A.K.; Walter, E.C.; Vaudin, M.D.; Herzing, A.A.; Haney, P.M.; Talin, A.A.; Szalai, V.A. Effect of tin doping on α-Fe2O3 photoanodes for water splitting. J. Phys. Chem. C 2012, 116, 15290–15296. [Google Scholar] [CrossRef]
  48. Frydrych, J.; Machala, L.; Tucek, J.; Siskova, K.; Filip, J.; Pechousek, J.; Safarova, K.; Vondracek, M.; Seo, J.H.; Schneeweiss, O.; et al. Facile fabrication of tin-doped hematite photoelectrodes—Effect of doping on magnetic properties and performance for light-induced water splitting. J. Mater. Chem. 2012, 22, 23232. [Google Scholar] [CrossRef]
  49. Dunn, H.K.; Feckl, J.M.; Muller, A.; Fattakhova-Rohlfing, D.; Morehead, S.G.; Roos, J.; Peter, L.M.; Scheu, C.; Bein, T. Tin doping speeds up hole transfer during light-driven water oxidation at hematite photoanodes. Phys. Chem. Chem. Phys. 2014, 16, 24610–24620. [Google Scholar] [CrossRef] [PubMed]
  50. Shinde, P.S.; Choi, S.H.; Kim, Y.; Ryu, J.; Jang, J.S. Onset potential behavior in α-Fe2O3 photoanodes: The influence of surface and diffusion sn doping on the surface states. Phys. Chem. Chem. Phys. 2016, 18, 2495–2509. [Google Scholar] [CrossRef] [PubMed]
  51. Annamalai, A.; Lee, H.H.; Choi, S.H.; Lee, S.Y.; Gracia-Espino, E.; Subramanian, A.; Park, J.; Kong, K.J.; Jang, J.S. Sn/Be sequentially co-doped hematite photoanodes for enhanced photoelectrochemical water oxidation: Effect of Be2+ as co-dopant. Sci. Rep. 2016, 6, 11. [Google Scholar] [CrossRef] [PubMed]
  52. Shen, S.; Guo, P.; Wheeler, D.A.; Jiang, J.; Lindley, S.A.; Kronawitter, C.X.; Zhang, J.Z.; Guo, L.; Mao, S.S. Physical and photoelectrochemical properties of Zr-doped hematite nanorod arrays. Nanoscale 2013, 5, 9867–9874. [Google Scholar] [CrossRef] [PubMed]
  53. Franking, R.; Li, L.; Lukowski, M.A.; Meng, F.; Tan, Y.; Hamers, R.J.; Jin, S. Facile post-growth doping of nanostructured hematite photoanodes for enhanced photoelectrochemical water oxidation. Energy Environ. Sci. 2013, 6, 500–512. [Google Scholar] [CrossRef]
  54. Neufeld, O.; Toroker, M.C. Platinum-doped α-Fe2O3 for enhanced water splitting efficiency: A dft+ustudy. J. Phys. Chem. C 2015, 119, 5836–5847. [Google Scholar] [CrossRef]
  55. Hu, Y.-S.; Kleiman-Shwarsctein, A.; Forman, A.J.; Hazen, D.; Park, J.-N.; McFarland, E.W. Pt-doped α-Fe2O3 thin films active for photoelectrochemical water splitting. Chem. Mater. 2008, 20, 3803–3805. [Google Scholar] [CrossRef]
  56. Kim, J.Y.; Magesh, G.; Youn, D.H.; Jang, J.-W.; Kubota, J.; Domen, K.; Lee, J.S. Single-crystalline, wormlike hematite photoanodes for efficient solar water splitting. Sci. Rep. 2013, 3, 2681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Lin, Y.; Xu, Y.; Mayer, M.T.; Simpson, Z.I.; McMahon, G.; Zhou, S.; Wang, D. Growth of p-type hematite by atomic layer deposition and its utilization for improved solar water splitting. J. Am. Chem. Soc. 2012, 134, 5508–5511. [Google Scholar] [CrossRef] [PubMed]
  58. Hou, Y.; Zuo, F.; Dagg, A.; Feng, P. A three-dimensional branched cobalt-doped α-Fe2O3 nanorod/MgFe2O4 heterojunction array as a flexible photoanode for efficient photoelectrochemical water oxidation. Angew. Chem. Int. Ed. 2013, 52, 1248–1252. [Google Scholar] [CrossRef] [PubMed]
  59. Fan, Z.; Wen, X.; Yang, S.; Lu, J.G. Controlled p- and n-type doping of Fe2O3 nanobelt field effect transistors. Appl. Phys. Lett. 2005, 87, 013113. [Google Scholar] [CrossRef]
  60. Qi, X.; She, G.; Wang, M.; Mu, L.; Shi, W. Electrochemical synthesis of p-type Zn-doped α-Fe2O3 nanotube arrays for photoelectrochemical water splitting. Chem. Commun. 2013, 49, 5742–5744. [Google Scholar] [CrossRef] [PubMed]
  61. Mirbagheri, N.; Wang, D.; Peng, C.; Wang, J.; Huang, Q.; Fan, C.; Ferapontova, E.E. Visible light driven photoelectrochemical water oxidation by Zn- and Ti-doped hematite nanostructures. Acs Catal. 2014, 4, 2006–2015. [Google Scholar] [CrossRef]
  62. Kim, J.H.; Kim, J.H.; Jang, J.-W.; Kim, J.Y.; Choi, S.H.; Magesh, G.; Lee, J.; Lee, J.S. Awakening solar water-splitting activity of ZnFe2O4 nanorods by hybrid microwave annealing. Adv. Energy Mater. 2015, 5, 1401933. [Google Scholar] [CrossRef]
  63. Ingler, W.B.; Khan, S.U.M. A self-driven p/n-Fe2O3 tandem photoelectrochemical cell for water splitting. Electrochem. Solid State. Lett. 2006, 9, G144. [Google Scholar] [CrossRef]
  64. Shen, S.; Zhou, J.; Dong, C.L.; Hu, Y.; Tseng, E.N.; Guo, P.; Guo, L.; Mao, S.S. Surface engineered doping of hematite nanorod arrays for improved photoelectrochemical water splitting. Sci. Rep. 2014, 4, 6627. [Google Scholar] [CrossRef] [PubMed]
  65. Inglerjr, W.; Khan, S. Photoresponse of spray pyrolytically synthesized copper-doped p- thin film electrodes in water splitting. Int. J. Hydrogen Energy 2005, 30, 821–827. [Google Scholar] [CrossRef]
  66. Kleiman-Shwarsctein, A.; Huda, M.N.; Walsh, A.; Yan, Y.; Stucky, G.D.; Hu, Y.-S.; Al-Jassim, M.M.; McFarland, E.W. Electrodeposited aluminum-doped α-Fe2O3 photoelectrodes: Experiment and theory. Chem. Mater. 2010, 22, 510–517. [Google Scholar] [CrossRef]
  67. Cesar, I.; Kay, A.; Martinez, J.A.G.; Gratzel, M. Translucent thin film Fe2O3 photoanodes for efficient water splitting by sunlight: Nanostructure-directing effect of si-doping. J. Am. Chem. Soc. 2006, 128, 4582–4583. [Google Scholar] [CrossRef] [PubMed]
  68. Cesar, I.; Sivula, K.; Kay, A.; Zboril, R.; Graetzel, M. Influence of feature size, film thickness, and silicon doping on the performance of nanostructured hematite photoanodes for solar water splitting. J. Phys. Chem. C 2009, 113, 772–782. [Google Scholar] [CrossRef]
  69. Kay, A.; Cesar, I.; Graetzel, M. New benchmark for water photooxidation by nanostructured α-Fe2O3 films. J. Am. Chem. Soc. 2006, 128, 15714–15721. [Google Scholar] [CrossRef] [PubMed]
  70. Saremi-Yarahmadi, S.; Wijayantha, K.G.U.; Tahir, A.A.; Vaidhyanathan, B. Nanostructured α-Fe2O3 electrodes for solar driven water splitting: Effect of doping agents on preparation and performance. J. Phys. Chem. C 2009, 113, 4768–4778. [Google Scholar] [CrossRef]
  71. Zhang, M.; Luo, W.; Li, Z.; Yu, T.; Zou, Z. Improved photoelectrochemical responses of si and ti codoped α-fe2o3 photoanode films. Appl. Phys. Lett. 2010, 97, 042105. [Google Scholar] [CrossRef]
  72. Chemelewski, W.D.; Mabayoje, O.; Tang, D.; Rettie, A.J.E.; Buddie Mullins, C. Bandgap engineering of Fe2O3 with Cr—Application to photoelectrochemical oxidation. Phys. Chem. Chem. Phys. 2016, 18, 1644–1648. [Google Scholar] [CrossRef] [PubMed]
  73. Kleiman-Shwarsctein, A.; Hu, Y.-S.; Forman, A.J.; Stucky, G.D.; McFarland, E.W. Electrodeposition of α-Fe2O3 doped with mo or cr as photoanodes for photocatalytic water splitting. J. Phys. Chem. C 2008, 112, 15900–15907. [Google Scholar] [CrossRef]
  74. Braun, A.; Sivula, K.; Bora, D.K.; Zhu, J.; Zhang, L.; Grätzel, M.; Guo, J.; Constable, E.C. Direct observation of two electron holes in a hematite photoanode during photoelectrochemical water splitting. J. Phys. Chem. C 2012, 116, 16870–16875. [Google Scholar] [CrossRef]
  75. Kim, D.W.; Riha, S.C.; DeMarco, E.J.; Martinson, A.B.F.; Farha, O.K.; Hupp, J.T. Greenlighting photoelectrochemical oxidation of water by iron oxide. Acs Nano 2014, 8, 12199–12207. [Google Scholar] [CrossRef] [PubMed]
  76. Monllor-Satoca, D.; Bartsch, M.; Fabrega, C.; Genc, A.; Reinhard, S.; Andreu, T.; Arbiol, J.; Niederberger, M.; Morante, J.R. What do you do, titanium? Insight into the role of titanium oxide as a water oxidation promoter in hematite-based photoanodes. Energy Environ. Sci. 2015, 8, 3242–3254. [Google Scholar] [CrossRef]
  77. Bassi, P.S.; Chiam, S.Y.; Gurudayal; Barber, J.; Wong, L.H. Hydrothermal grown nanoporous iron based titanate, Fe2TiO5 for light driven water splitting. ACS Appl. Mater. Interfaces 2014, 6, 22490–22495. [Google Scholar] [CrossRef] [PubMed]
  78. Bassi, P.S.; Antony, R.P.; Boix, P.P.; Fang, Y.; Barber, J.; Wong, L.H. Crystalline Fe2O3/ Fe2TiO5 heterojunction nanorods with efficient charge separation and hole injection as photoanode for solar water oxidation. Nano Energy 2016, 22, 310–318. [Google Scholar] [CrossRef]
  79. Ruoko, T.-P.; Kaunisto, K.; Bärtsch, M.; Pohjola, J.; Hiltunen, A.; Niederberger, M.; Tkachenko, N.V.; Lemmetyinen, H. Subpicosecond to second time-scale charge carrier kinetics in hematite–titania nanocomposite photoanodes. J. Phys. Chem. Lett. 2015, 6, 2859–2864. [Google Scholar] [CrossRef] [PubMed]
  80. Sivula, K.; Zboril, R.; Le Formal, F.; Robert, R.; Weidenkaff, A.; Tucek, J.; Frydrych, J.; Grätzel, M. Photoelectrochemical water splitting with mesoporous hematite prepared by a solution-based colloidal approach. J. Am. Chem. Soc. 2010, 132, 7436–7444. [Google Scholar] [CrossRef] [PubMed]
  81. Tamirat, A.G.; Su, W.-N.; Dubale, A.A.; Chen, H.-M.; Hwang, B.-J. Photoelectrochemical water splitting at low applied potential using a niooh coated codoped (Sn, Zr) α-Fe2O3 photoanode. J. Mater. Chem. A 2015, 3, 5949–5961. [Google Scholar] [CrossRef]
  82. Liao, P.; Toroker, M.C.; Carter, E.A. Electron transport in pure and doped hematite. Nano Lett. 2011, 11, 1775–1781. [Google Scholar] [CrossRef] [PubMed]
  83. Zhou, Z.; Huo, P.; Guo, L.; Prezhdo, O.V. Understanding hematite doping with group iv elements: A DFT+U study. J. Phys. Chem. C 2015, 119, 26303–26310. [Google Scholar] [CrossRef]
  84. Ling, Y.; Wang, G.; Reddy, J.; Wang, C.; Zhang, J.Z.; Li, Y. The influence of oxygen content on the thermal activation of hematite nanowires. Angew. Chem. Int. Ed. 2012, 51, 4074–4079. [Google Scholar] [CrossRef] [PubMed]
Molecules 21 00868 g001 550
Figure 1. Total electronic DOS plot for pure Fe2O3 and Fe2O3 incorporated with Sc, Ti, Cr, Mn, and Ni at substitutional sites. The states are aligned with respect to the O 1s core level and the highest occupied state is indicated by the dashed vertical line in each case. Adapted with permission from [37]. Copyright 2010 American Institute of Physics Publishing.
Figure 1. Total electronic DOS plot for pure Fe2O3 and Fe2O3 incorporated with Sc, Ti, Cr, Mn, and Ni at substitutional sites. The states are aligned with respect to the O 1s core level and the highest occupied state is indicated by the dashed vertical line in each case. Adapted with permission from [37]. Copyright 2010 American Institute of Physics Publishing.
Molecules 21 00868 g001
Molecules 21 00868 g002 550

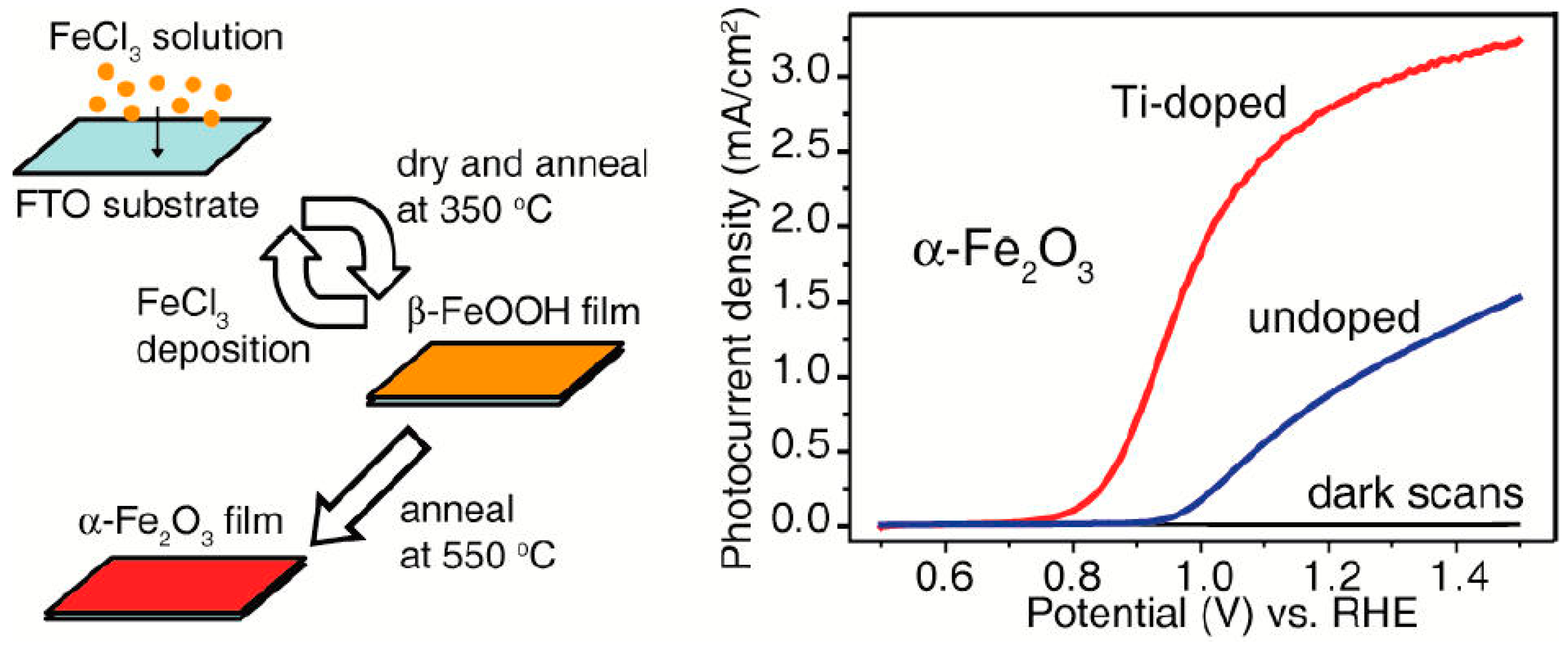

Figure 2. Synthesis process of deposition-annealing (left) and the J-V scan of the undoped and Ti-doped hematite photoaondes (right). Adapted with permission from [39]. Copyright 2011 American Chemical Society.
Figure 2. Synthesis process of deposition-annealing (left) and the J-V scan of the undoped and Ti-doped hematite photoaondes (right). Adapted with permission from [39]. Copyright 2011 American Chemical Society.
Molecules 21 00868 g002
Molecules 21 00868 g003 550
Figure 3. Impedance spectroscopy parameters calculated from fitting the EIS data to the equivalent circuit for an undoped (red diamonds) and a doped (orange circles) 300 cycle electrode. Adapted with permission from [41]. Copyright 2013 Royal Society of Chemistry.
Figure 3. Impedance spectroscopy parameters calculated from fitting the EIS data to the equivalent circuit for an undoped (red diamonds) and a doped (orange circles) 300 cycle electrode. Adapted with permission from [41]. Copyright 2013 Royal Society of Chemistry.
Molecules 21 00868 g003
Molecules 21 00868 g004 550

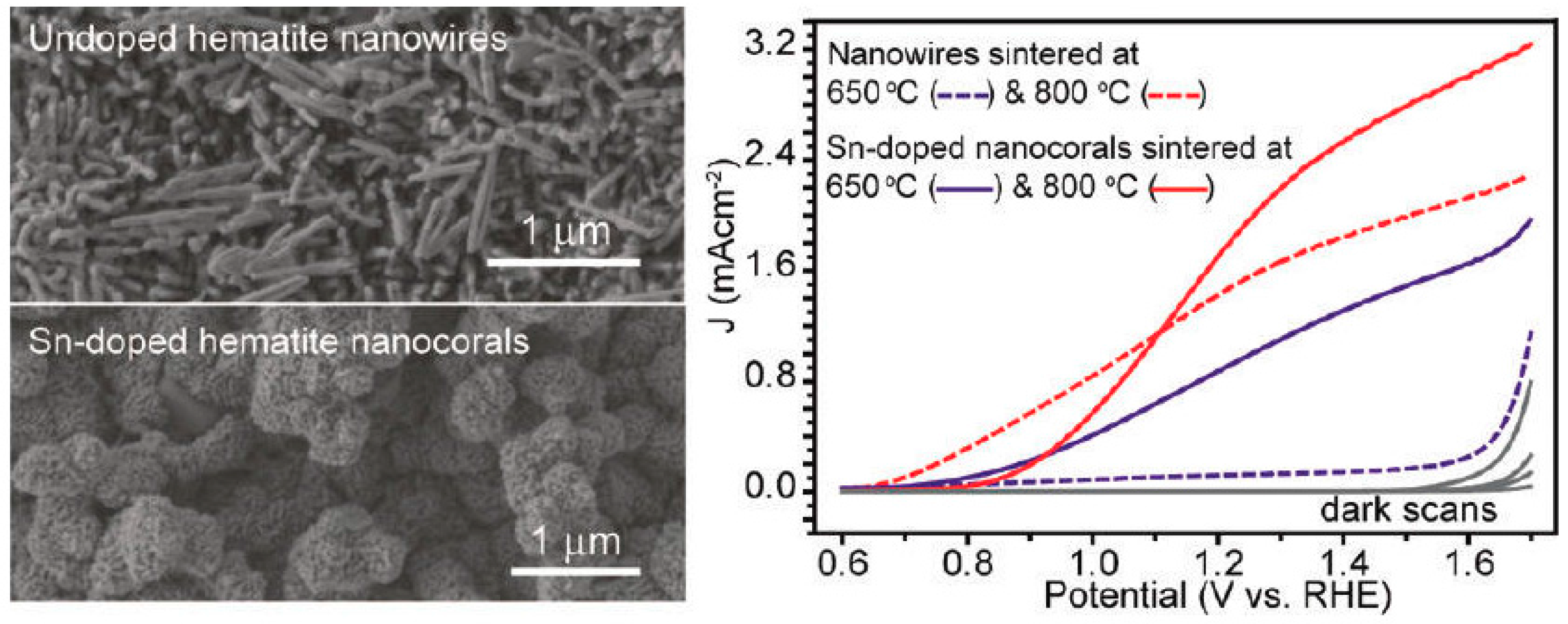

Figure 4. The morphology (left) and PEC activity (right) of the undoped and Sn-doped hematite photoanodes. Adapted with permission from [46]. Copyright 2012 American Chemical Society.
Figure 4. The morphology (left) and PEC activity (right) of the undoped and Sn-doped hematite photoanodes. Adapted with permission from [46]. Copyright 2012 American Chemical Society.
Molecules 21 00868 g004
Molecules 21 00868 g005 550

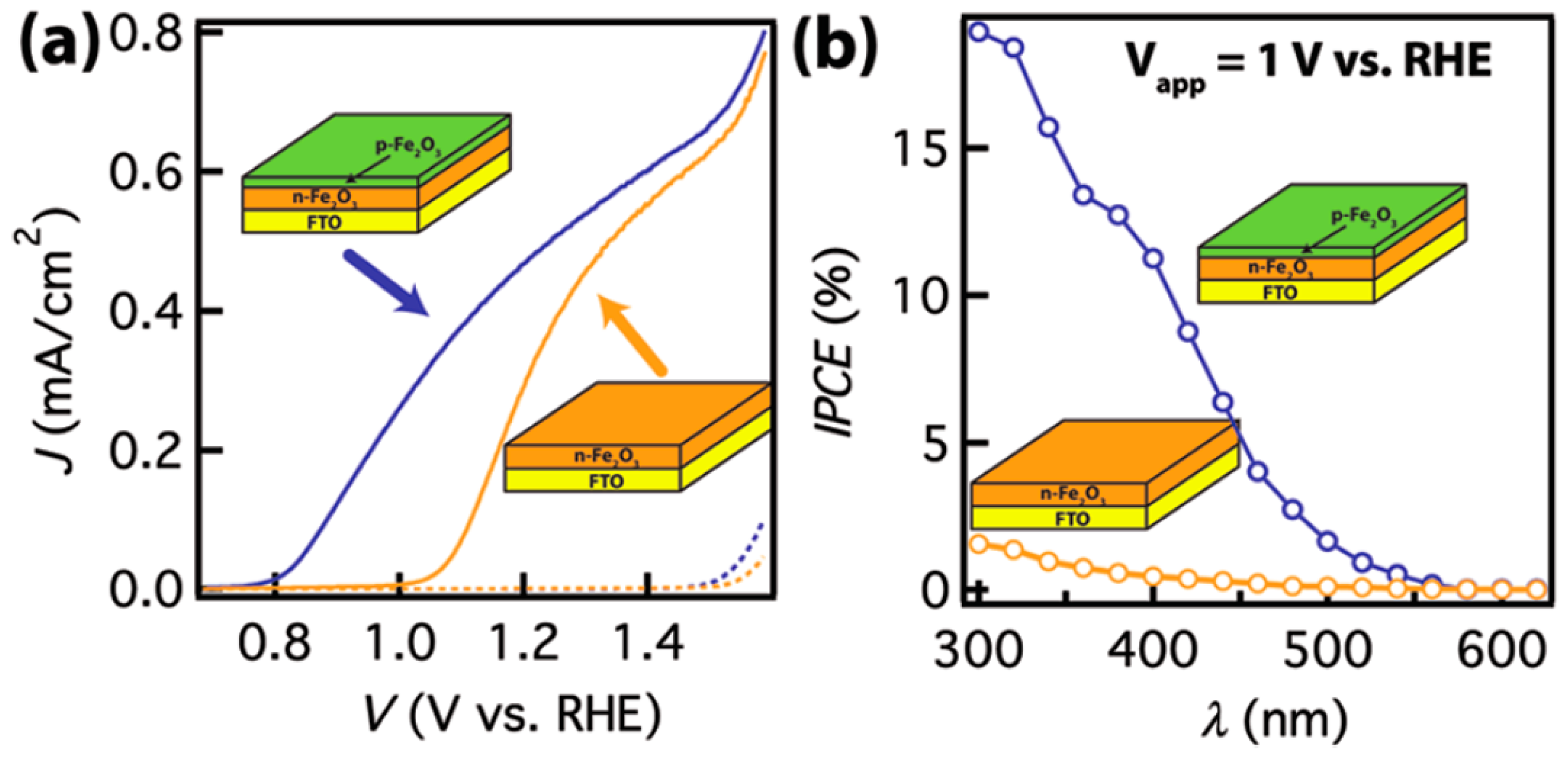

Figure 5. Photoelectrochemical characterizations of n-type Fe2O3 with and without p-type coating (total thickness: 25 nm). (a) A significant reduction of the turn-on voltage was observed on the sample with p-Fe2O3. Data measured under 1 Sun conditions (100 mW/cm2, AM 1.5 G). Dark currents shown in dashed lines; (b) IPCE characteristics of these samples at 1 V vs. RHE. Adapted with permission from [57]. Copyright 2012 American Chemical Society.
Figure 5. Photoelectrochemical characterizations of n-type Fe2O3 with and without p-type coating (total thickness: 25 nm). (a) A significant reduction of the turn-on voltage was observed on the sample with p-Fe2O3. Data measured under 1 Sun conditions (100 mW/cm2, AM 1.5 G). Dark currents shown in dashed lines; (b) IPCE characteristics of these samples at 1 V vs. RHE. Adapted with permission from [57]. Copyright 2012 American Chemical Society.
Molecules 21 00868 g005
Molecules 21 00868 g006 550
Figure 6. Core/shell structured α-Fe2O3/AgxFe2-xO3 nanorods and schematic of water oxidation reaction accelerated by AgxFe2−xO3 overlayer. Adapted with permission from [64]. Copyright 2014 Nature Publishing Group.
Figure 6. Core/shell structured α-Fe2O3/AgxFe2-xO3 nanorods and schematic of water oxidation reaction accelerated by AgxFe2−xO3 overlayer. Adapted with permission from [64]. Copyright 2014 Nature Publishing Group.
Molecules 21 00868 g006
Molecules 21 00868 g007 550

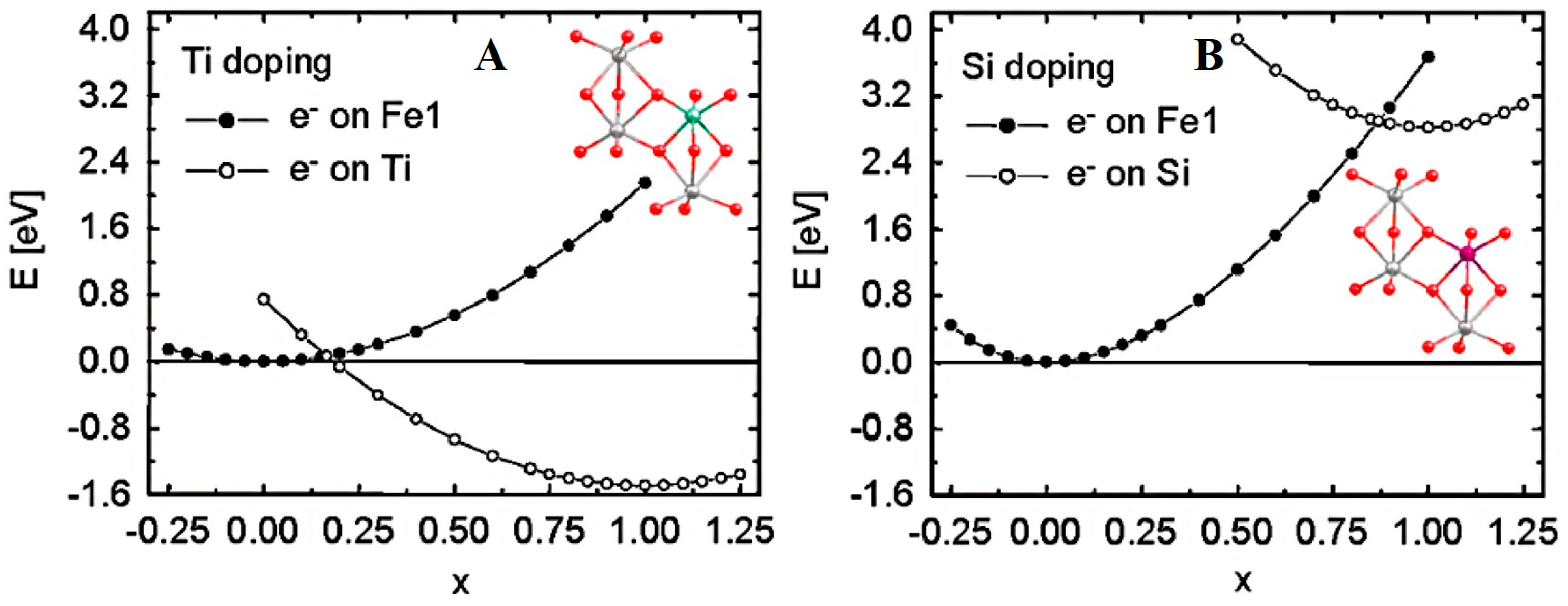

Figure 7. Unrestricted Hartree-Fock (UHF) potential energy curves along the nuclear reaction coordinates for electron transfer between Fe1 and (A) Ti with Ti doping (B) Si with Si doping. The hollow and solid circles represent actual calculation data points. The energy for x = 0 on the left curve is set to zero. Adapted with permission from [82]. Copyright 2011 American Chemical Society.
Figure 7. Unrestricted Hartree-Fock (UHF) potential energy curves along the nuclear reaction coordinates for electron transfer between Fe1 and (A) Ti with Ti doping (B) Si with Si doping. The hollow and solid circles represent actual calculation data points. The energy for x = 0 on the left curve is set to zero. Adapted with permission from [82]. Copyright 2011 American Chemical Society.
Molecules 21 00868 g007
Molecules 21 00868 g008 550
Figure 8. Typical HR-SEM images of Si-doped hematite films on TCO obtained from USP (A,B) and APCVD (C,D): a and c are side-view, b and d top-view images; (B, Inset) Hematite grains for undoped USP (D, Inset) Hematite grains for undoped APCVD electrodes. Adapted with permission from [67]. Copyright 2006 American Chemical Society.
Figure 8. Typical HR-SEM images of Si-doped hematite films on TCO obtained from USP (A,B) and APCVD (C,D): a and c are side-view, b and d top-view images; (B, Inset) Hematite grains for undoped USP (D, Inset) Hematite grains for undoped APCVD electrodes. Adapted with permission from [67]. Copyright 2006 American Chemical Society.
Molecules 21 00868 g008
Molecules 21 00868 g009 550

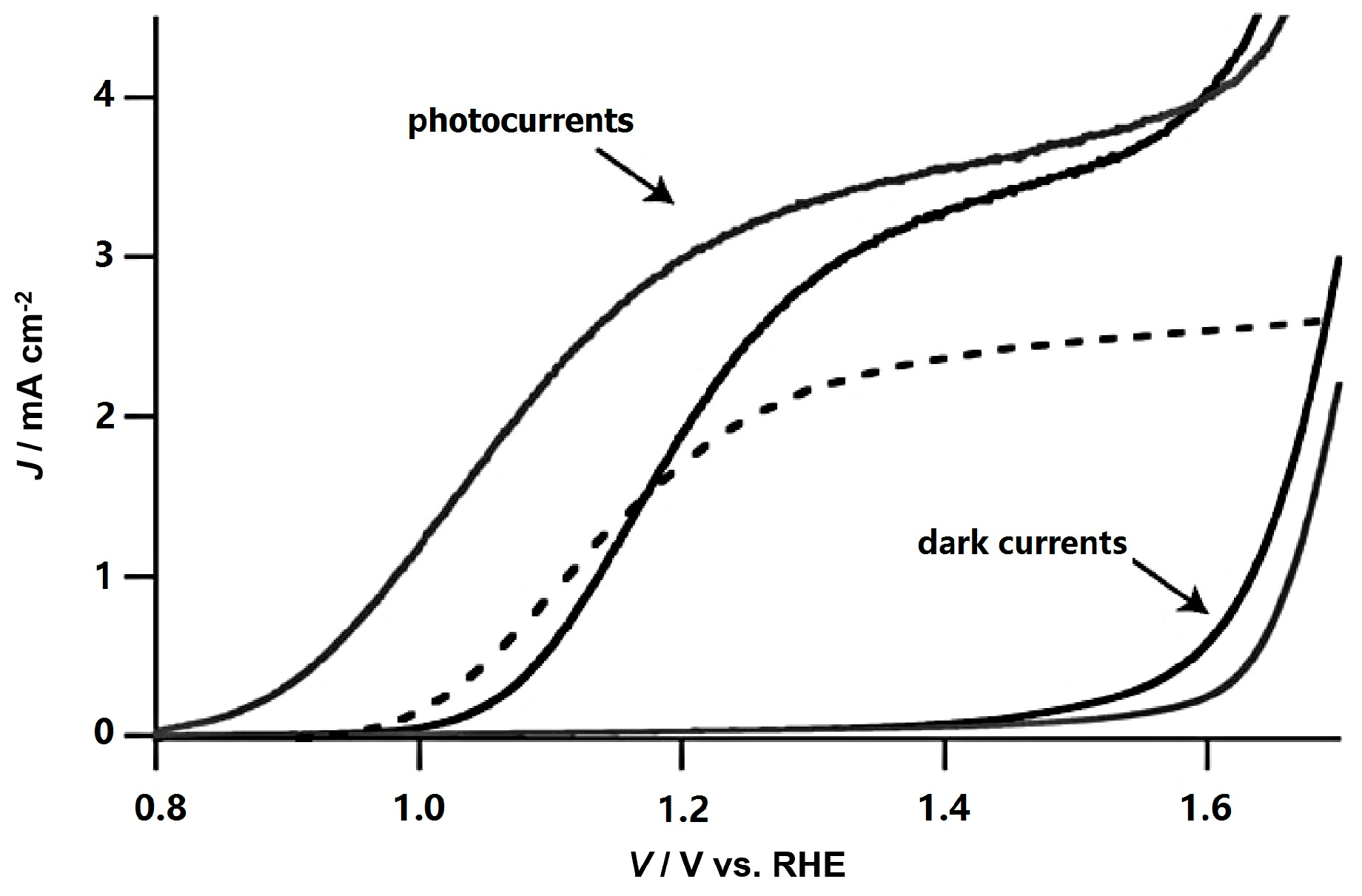

Figure 9. Performance of the unmodified hematite photoanode (solid black trace), and the same anode that was functionalized with IrO2 nanoparticles (solid gray trace). Conditions: 1 M NaOH solution (pH 13.6), 10 mV/s scan rate, uncorrected for Ohmic losses. The corresponding dark currents are also shown. The dashed trace is the photocurrent for the former state-of-the-art hematite photoanode. Adapted with permission from [31]. Copyright 2010 John Wiley & Sons.
Figure 9. Performance of the unmodified hematite photoanode (solid black trace), and the same anode that was functionalized with IrO2 nanoparticles (solid gray trace). Conditions: 1 M NaOH solution (pH 13.6), 10 mV/s scan rate, uncorrected for Ohmic losses. The corresponding dark currents are also shown. The dashed trace is the photocurrent for the former state-of-the-art hematite photoanode. Adapted with permission from [31]. Copyright 2010 John Wiley & Sons.
Molecules 21 00868 g009
Molecules 21 00868 g010 550
Figure 10. PEC performance of P-doped hematite photoanode. (A) J-V curves for the P-doped hematite anodes annealed at 650 °C under simulated AM 1.5 G illumination (solid lines) and in the dark (dash lines) in 1 M NaOH at a scan rate of 50 mV/s; (B) J-V curves for the P-doped hematite anodes annealed at 750 °C and “Co-Pi”-loaded P-doped hematite anode. Adapted with permission from [33]. Copyright 2015 Royal Society of Chemistry.
Figure 10. PEC performance of P-doped hematite photoanode. (A) J-V curves for the P-doped hematite anodes annealed at 650 °C under simulated AM 1.5 G illumination (solid lines) and in the dark (dash lines) in 1 M NaOH at a scan rate of 50 mV/s; (B) J-V curves for the P-doped hematite anodes annealed at 750 °C and “Co-Pi”-loaded P-doped hematite anode. Adapted with permission from [33]. Copyright 2015 Royal Society of Chemistry.
Molecules 21 00868 g010
Molecules 21 00868 g011 550

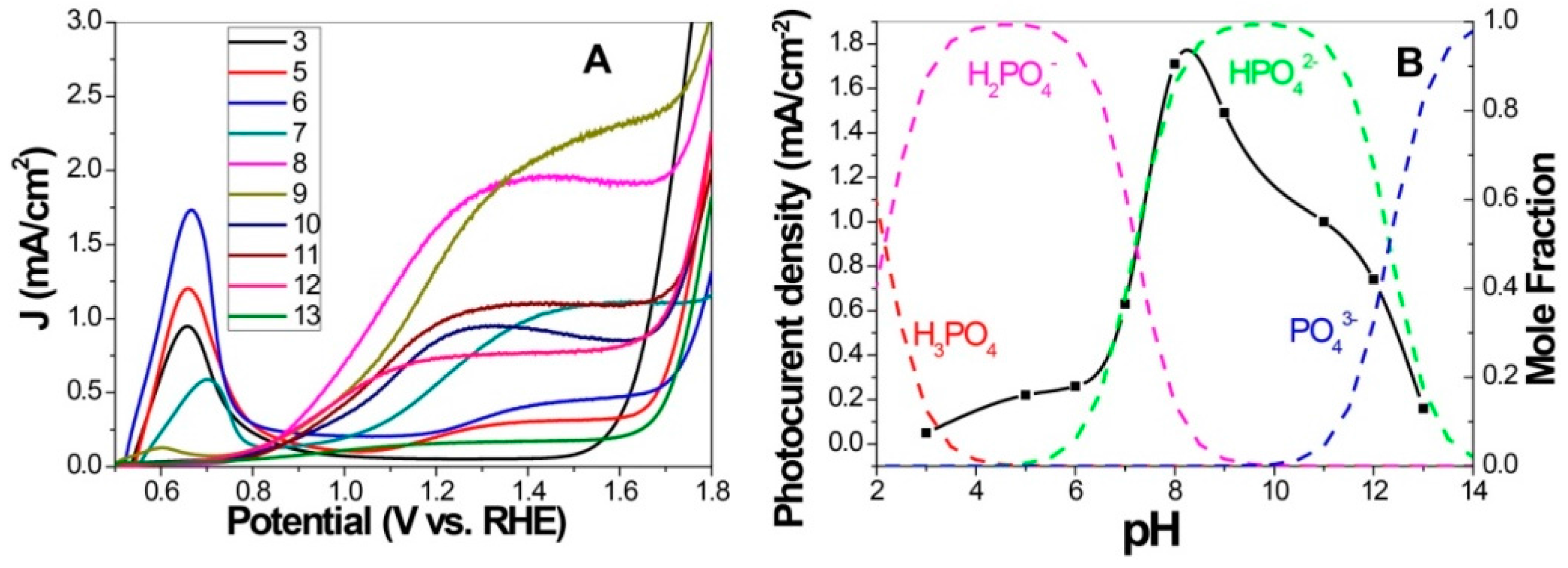

Figure 11. Effect of soaking solution pHs on hematite performance. (A) J-V scans collected for P-doped hematite synthesized by phosphate solutions with different pH and annealed at 650 °C. (B) Photocurrent densities obtained at 1.23 VRHE and molar fraction of HxPO4(3−x)− species as a function of pH. Adapted with permission from [33]. Copyright 2015 Royal Society of Chemistry.
Figure 11. Effect of soaking solution pHs on hematite performance. (A) J-V scans collected for P-doped hematite synthesized by phosphate solutions with different pH and annealed at 650 °C. (B) Photocurrent densities obtained at 1.23 VRHE and molar fraction of HxPO4(3−x)− species as a function of pH. Adapted with permission from [33]. Copyright 2015 Royal Society of Chemistry.
Molecules 21 00868 g011

Share and Cite

MDPI and ACS Style

Zhang, Y.; Ji, H.; Ma, W.; Chen, C.; Song, W.; Zhao, J. Doping-Promoted Solar Water Oxidation on Hematite Photoanodes. Molecules 2016, 21, 868. https://doi.org/10.3390/molecules21070868

AMA Style

Zhang Y, Ji H, Ma W, Chen C, Song W, Zhao J. Doping-Promoted Solar Water Oxidation on Hematite Photoanodes. Molecules. 2016; 21(7):868. https://doi.org/10.3390/molecules21070868

Chicago/Turabian Style

Zhang, Yuchao, Hongwei Ji, Wanhong Ma, Chuncheng Chen, Wenjing Song, and Jincai Zhao. 2016. "Doping-Promoted Solar Water Oxidation on Hematite Photoanodes" Molecules 21, no. 7: 868. https://doi.org/10.3390/molecules21070868

Article Metrics

Back to TopTop
