Article

Effects of Agronomic Practices on Volatile Composition of Hyssopus officinalis L. Essential Oils

1
Cátedra de Química Agrícola, E.T.S.I. Agrónomos de Albacete, Universidad de Castilla La Mancha, E- 02071 Albacete, Spain
2
Sailab, Parc tecnológic del Vallès, Argenters, 5 Ed. I. Bajos D, 08290 Cerdanyola del Vallès, Spain
3
Albacete Science & Technology Park Foundation, Universidad de Castilla La Mancha, E-02071 Albacete, Spain
*
Author to whom correspondence should be addressed.
Molecules 2011, 16(5), 4131-4139; https://doi.org/10.3390/molecules16054131
Submission received: 24 March 2011 / Revised: 6 May 2011 / Accepted: 12 May 2011 / Published: 19 May 2011

Abstract

:
The chemical composition of Hyssopus officinalis (Lamiaceae) essential oil grown in southeastern Spain was analyzed by GC-MS. Due to the high relevance of this species in the world market, the study is focused on chemical heterogeneity of different oil batches and their extraction yield, cultivated under irrigation and non-irrigation conditions and with different harvesting dates. All essential oil samples have two main terpene compounds which are pinocamphone and iso-pinocamphone, accounting for approximately 35–40% of the total oil content. Other relevant compounds were identified, with β-pinene, which accounted for 10–17% contribution to the total composition, standing out. Significant differences between their volatile composition have been observed between treatments, being limonene, (E)-β-ocimene, pinocarveol, α-pinene and β-phellandrene the compounds that contributed most to the discrimination. It was also observed that the irrigation period is the most favourable for the cultivation of hyssop in this region, specially for batch 7 which gives the highest extraction yield and the best EO quality.

Graphical Abstract

1. Introduction

Like other aromatic plants from the Lamiaceae family, hyssop (Hyssopus officinalis L.) has remarkable botanical and commercial interest [1,2]. Due to its great floristic and phytogenic richness, the Iberian Peninsula has the richest spontaneous aromatic plant flora in Europe. This situation has allowed for the establishment of an important production and export industry based on the harvest of wild aromatic plants, which have some problems as a consequence of the great heterogeneity among the chemical composition of the final products and lack of quality control, as it is the case of hyssop extracts.
The extraction from the aerial part (leaves and flowering top) of H. officinalis results in an essential oil (EO) with a wide number of applications. It is used mainly for flavouring and food preservation [2,3,4] and for phytotherapeutic uses [5].
The chemical heterogeneity of this EO maybe associated to factors such as the different varieties (ssp. aristatus, montanus, angustifolius, canescens, etc), chemotype/phenotypes (linalool-rich, etc) and different populations, that are not easily controlled. Some agrotechnical factors, such as fertilization, water supply, and harvesting can be followed to achieve a successful production [1,6,7,8,9]. At the same time, the chemical composition for hyssop oil is now controlled worldwide by the ISO 9841 [10], where 13 compounds are recognized as standards, being pinocamphone, iso-pinocamphone and β-pinene the most abundant (40–90%).
Due to the high demand for H. officinalis L. essential oil on world markets, our study is centred on how the irrigation and non-irrigation treatments over the same cultivation affect the quality of the EO chemical composition, in order to be able to provide some guidance for optimum cultivation conditions to commercial growers.

2. Results and Discussion

Although Hyssopus officinalis L. is a type of crop that needs a low water supply and its cultivation in the Mediterranean area is favourable, a significant water deficit in this type of aromatic crops, may cause negative changes in terms of oil quality [11]. In this regard, the region of Castilla-La Mancha (Albacete) is characterized by semiarid climatic conditions, with a low annual rainfall (300–400 mm) and particularly rigorous Spring seasons (max. value in 150 mm) in terms of drought periods [12]. For each plot (irrigated and non-irrigated) harvesting was carried out during five days close to the full bloom period as there were no choices to harvest the whole plot at once. Each harvest was processed separately in order to study by first time the evolution of the EO extraction yield and quality due to the irrigation effect over an annual crop of hyssop. According to the extraction yield, the lower percentages were obtained for batches 1 and 2, which belong to the non-irrigated samples, whereas the highest significant yield was observed for batch 7 (irrigated conditions). No significant differences were observed among the other conditions assays (batches 3 to 6, and 8 to 10). In terms of EO volatile composition, all batches showed similar volatile profiles described by 22 compounds analysed by GC-MS (Figure 1).
Thirteen of them are listed in the ISO 9841 [10] normative which is used for certifying EO quality in the international trade (Figure 1). Looking in detail at the EO composition for all samples (Table 1), there are four compounds that are out of range for the values fixed by ISO 9841:2007, α-pinene (1), iso-pinocamphone (12), β-bourbonene (15) and β-caryophyllene (18). With less frequency, myrtenyl methyl ether (10) is out of range in all the irrigated samples (batches 6 to 10) and one non-irrigated (batch 5). Also, β-pinene (3) is out of range in two non-irrigated sampling (batches 1 and 3), whereas allo-aromadendrene (19) and germacrene D (20) are out of range in only two out of ten samples, batches 7 and 1, respectively.

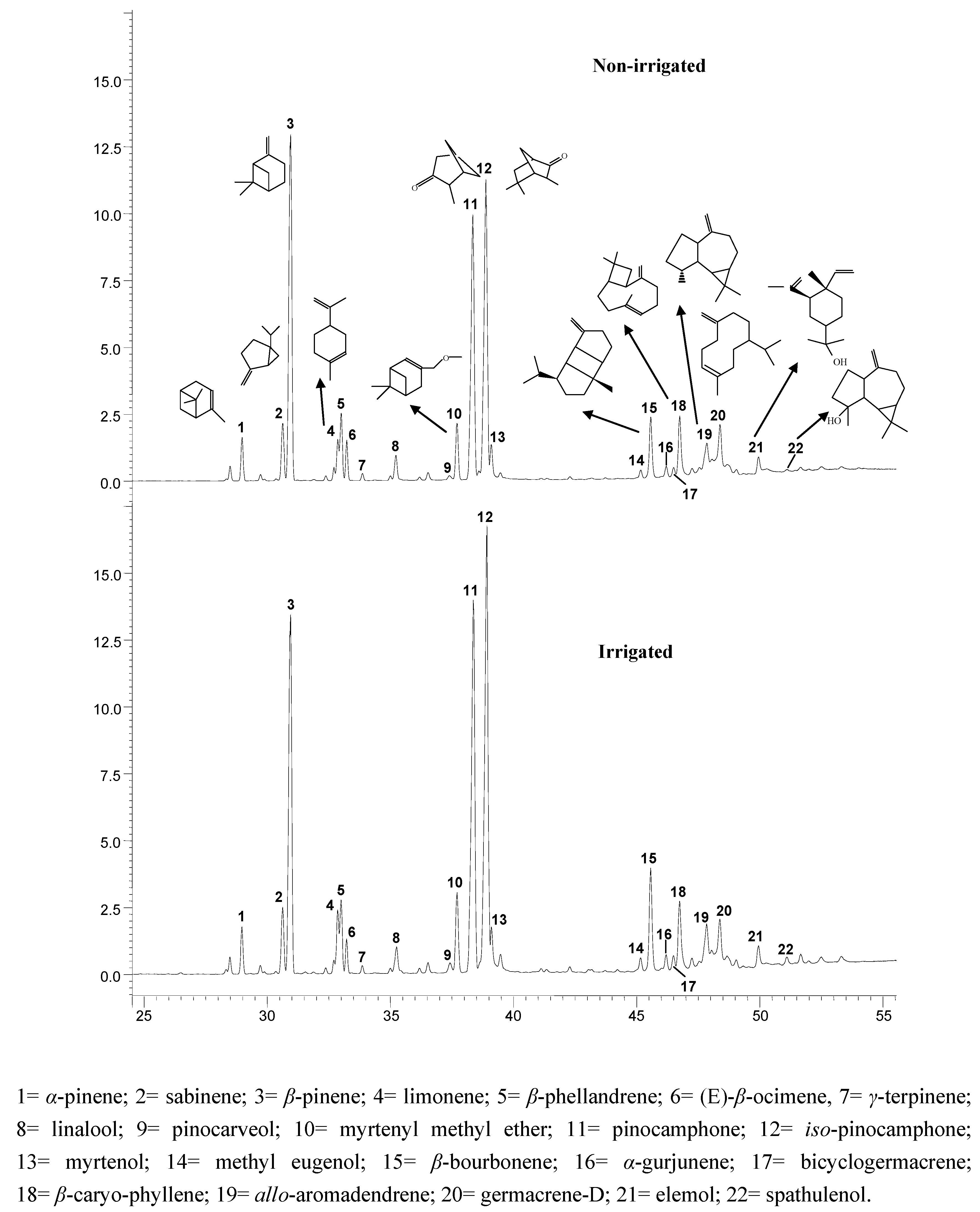

Figure 1. Representative GC profiles of Hyssopus officinalis L. from irrigated and non-irrigated crop. Chemical structures for ISO 9841 compounds are shown.
Figure 1. Representative GC profiles of Hyssopus officinalis L. from irrigated and non-irrigated crop. Chemical structures for ISO 9841 compounds are shown.
Molecules 16 04131 g001
Table 1. Extraction yield (%) and volatile composition (% area) obtained for each type of studied conditions (non-irrigated and irrigated crop) in essential oil of H. officinalis L.
Table 1. Extraction yield (%) and volatile composition (% area) obtained for each type of studied conditions (non-irrigated and irrigated crop) in essential oil of H. officinalis L.
Batch from non-irrigated crop (%)Batch from irrigated crop (%)ISO 9841:2007 (E)
12345678910
Average Oil volume (L/Batch)5.255.256.506.636.676.757.006.206.256.25
EO yield extraction (%)0.35a0.35a0.43b0.44b0.44b0.45b0.47c0.41b0.42b0.42b
Compounds identificationKI%
1α -pinene9391.87e1.83de1.84e1.77cd1.75c1.60ab1.54a1.58ab1.62b1.61ab0.4 - 1.5
2Sabinene9752.85b2.75ab2.74ab2.73ab2.70a2.65a2.68a2.64a2.72a2.62a1.0 - 3.5
3β -pinene97920.33cd19.88cd20.54d19.67cd19.25bc18.33ab17.72a17.62a17.73a17.65a7.0 - 20
4Limonene10291.73c1.61b1.53a1.57ab1.58ab2.09e2.01e1.93d2.03e2.22f0.6 - 4.0
11Pinocamphone116217.16a17.06a16.87a17.38ab17.62ab18.53c17.07a17.94bc19.33d19.75d8.0 - 25
12iso -pinocamphone117519.79a19.36a19.47a19.97a20.62ab21.43b24.58c24.22c23.65c23.93c25 - 45
10myrtenyl methyl ether13722.86a2.81a3.01b3.07b3.13b3.15b3.31c3.33c3.33c3.36c0.9 - 3.0
15β -bourbonene13883.48a3.91b4.07bc4.08bc4.32c4.11bc3.91b4.05bc4.19c4.25c0.8 - 2.6
18β -caryophyllene14193.88c4.16d4.16d3.94cd3.96cd3.56b3.11a3.29a3.27a3.28a1.0 - 3.0
19allo -aromadendrene14602.62a3.16a3.07a2.98a2.94a3.03a3.12a2.77a2.58a2.56a1.0 - 3.0
20germacrene-D14814.76f4.43ef4.28e4.04de3.63bcd3.70cd3.38abc3.38abc3.23ab3.06a1.2 - 4.5
21Elemol15490.97a1.19bc1.29c1.19bc1.23c0.96a1.02ab0.96a0.91a0.83a0.2 -2.5
22Spathulenol15780.14a0.25ab0.27ab0.42b0.31ab0.37b0.30ab0.32ab0.34ab0.29ab0.1 -1.5
Percentage for ISO compounds82.4482.4083.1482.8183.0583.4983.7884.0484.9485.42
5β -phellandrene10253.14e3.02de2.96cd2.89bcd2.87abc2.89bcd3.92g3.44f2.80ab2.74aN.I
6(E)- β -ocimene10501.57f1.46e1.32d1.31d1.18c1.12b1.15bc1.09b1.09ab1.04aN.I
7γ -terpinene10590.31a0.28a0.27a0.27a0.27a0.29a0.29a0.29a0.25a0.40aN.I
8Linalool10961.30a1.23a1.25a1.23a1.28a1.23a1.23a1.13a1.21a1.14aN.I
9Pinocarveol11840.25a0.25a0.30b0.30b0.34c0.41d0.42d0.46e0.48f0.50fN.I
13Myrtenol11951.82c1.77bc1.72bc1.78c1.75bc1.81c0.69a1.07ab1.07ab1.00aN.I
14methyl eugenol14020.43a0.48a0.45a0.44a0.49a0.47a0.44a0.46a0.48a0.48aN.I
16α -gurjunene14090.54ab0.60bc0.60bc0.60bc0.61c0.58abc0.55abc0.53ab0.48a0.48aN.I
17Bicyclogermacrene15000.50a0.56b0.56b0.57b0.57b0.53ab0.49a0.52ab0.53ab0.53abN.I
Percentage for other compounds (no ISO)9.879.639.449.399.359.339.189.008.388.30
Percentage of total area compounds92.3192.0492.5792.2092.4092.8292.9693.0393.3293.72
Note: Different upper script letters between columns indicate significant differences at p > 0.05; N.I.: Not Included in ISO 9841:2007.
The main compounds of hyssop are the terpene ketones pinocamphone (11) and iso-pinocamphone (12), contributing approximately 36 to 41% of the total extract, which have to be taken into account due to their toxicity problems [13]. Both compounds display similar behaviour respect to the harvesting date, as there are no significative (P ≤ 0.05) differences between the first five days of harvesting (batches 1 to 5) and from that moment their content increases till the last harvesting date, batch 10 (irrigated conditions) (Table 1). This effect is important for iso-pinocamphone (12) getting closer to the ISO minimum limit at the end of the period. Similar behaviour was observed for other three compounds, two of them of relevant contribution and included in ISO 9841: myrtenyl methyl ether (10) was steadily increasing and β-bourbonene (15) which increases more rapidly, during the last period. Both of them fall outside the limits established by the ISO normative, as plant maturation increases, the opposite behaviour than that seen for iso-pinocamphone (12). Finally, pinocarveol (9) present in a lesser amount, experienced a sharp increase in its values from batch 1 to batch 10.
Another compound with an important contribution to the volatile composition (17 to 20%) is β-pinene (3), recognised as one of the most bioactive component of some essential oils and a common constituent of oils from the Lamiaceae family [14,15,16]. In this case, the highest content is observed during the first four harvesting dates (batches 1 to 4), and later it is reduced to a practically stable level over time. Another six compounds share this behaviour decreasing during harvesting time: α-pinene (1), β-caryophyllene (18), germacrene D (20), β-phellandrene (5), (E)-β-ocimene (6) and myrtenol (13). In the case of α-pinene (1), β-pinene (3), β-caryophyllene (18) and germacrene D (20), their decrement is positive since their content are then included or closer to the ISO limits.
Finally there is a third group corresponding to the compounds maintaining their content through the whole period or having an erratic performance: sabinene (2), γ-terpinene (7), linalool (8), methyl eugenol (14), α-gurjenene (16), bicyclogermacrene (17), allo-aromadendrene (19), elemol (21) and spathulenol (22).
The descriptive analysis presented above was corroborated by a canonical discriminant analysis, carried out using all quantified compounds in order to evaluate if different irrigation and non-irrigation conditions affect the essential oil composition of hyssop EO. Differences were found between treatments (Figure 2), and a total variance of 97.1% was explained by two canonical functions (81.9% and 15.2%).
The volatile compounds that contributed most to the discriminant model were limonene (4), (E)-β-ocimene (6), pinocarveol (9), α-pinene (1) and β-phellandrene (5). Limonene (4) has a segmented and non-progressive behaviour (Table 1), as its content seems to be more related with the irrigation conditions, and is for this reason useful for discrimination analysis. It is interesting to find out that sample discrimination is due to another three compounds [(E)-β-ocimene, pinocarveol and β-phellandrene] that do not belong to the ISO standard. While (E)-β-ocimene (6), β-phellandrene (5) and α-pinene (1) decrease with the harvesting date, only pinocarveol (9) increases.

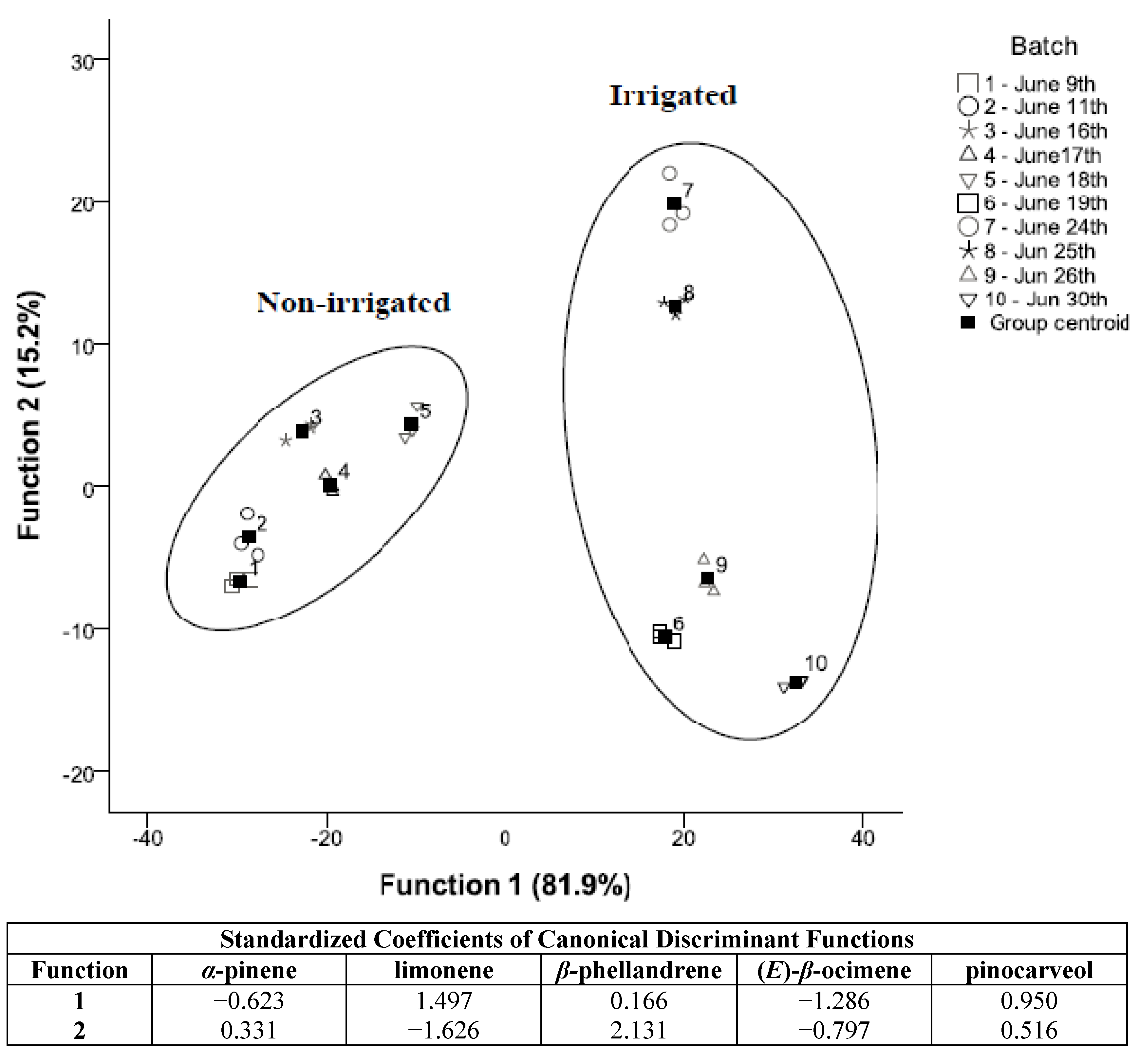

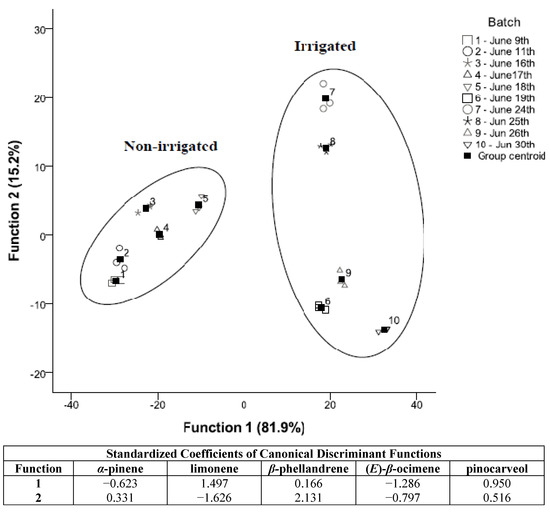

Figure 2. Application of discriminant analysis to the data expressed as data harvest of different samples.
Figure 2. Application of discriminant analysis to the data expressed as data harvest of different samples.
Molecules 16 04131 g002
When irrigated and non-irrigated samplings were compared, although there are values out of the range, as mentioned before, the values for α-pinene (1), iso-pinocamphone (12) and β-caryophyllene (18) are closer to the ISO values within non irrigated samples (batches 1 to 5) than irrigated ones (batches 6 to 10). The opposite effect has been observed with β-bourbonene (15). The EO compositional development of these compounds highlights the irrigation period as the most favourable, and especially when harvesting was carried out during 24 and 25th of June (batches 7 and 8, respectively) (Figure 2), although no significance differences have been observed with the next sampling for most compounds (Table 1).

3. Experimental

3.1. Plant Material

Hyssopus officinalis L. was cultivated and collected on Dehesa de los Llanos State, in the province of Albacete (Castilla-La Mancha, Spain), during 2009. Two groups of samples were collected, the ones that were collected from a non-irrigated agriculture plot (20 ha) and the ones collected from an irrigated plot (22 ha). Plant material from each crop type was harvested and distilled on five different days depending on the flowering states of each crop. Non-irrigated samples were collected June the 9th, 11th, 16th, 17th, and 18th (batches 1 to 5) and irrigated samples were collected on June 19th, 24th, 25th, 26th, and 30th (batches 6 to 10). All samples were dehydrated at room temperature until they reached a constant weight.

3.2. Essential Oil Extraction

The fresh aerial material (stems with their corresponding inflorescence) was distilled in the same state. Extractions of the samples have been carried out on an industrial scale during 1.5 h in three vessels of 5 m3 each. Temperature and pressure conditions in the process were 108 °C and 1.1 kg/cm2, Respectively. The biomass employed in the distillation was 1,500 kg per batch giving an oil volume, according to the process for each distillation cycle (Table 1). Samples were kept under dark conditions at room temperature till analysis. As a result of this distillation, 10 different batches of hyssop essential oil were obtained corresponding to non-irrigated (batches 1–5) and irrigated (batches 6–10) conditions.

3.3. Gas Chromatography-Mass Spectrometry Analysis (GC-MS)

Samples (0.2 µL) were subjected to analysis by capillary gas chromatography. A Varian CP-3800 gas chromatograph (GC) (Palo Alto, CA, USA), equipped with a Saturn 2200 ion trap mass spectrometry (MS) and an CombiPal autosampler (Palo Alto, CA, USA) provided with an Elite-Volatiles Specialty phase capillary column (30 m × 0.25 mm i.d.; 1.4 μm film thickness; Perkin Elmer, Shelton, CT, USA) were used. The chromatographic program was set at 35 °C (held for 10 min), raised to 240 °C at 5 °C/min (held for 30 min); injector temperature, 230 °C; detector temperature, 250 °C; Helium carrier gas flow was 1.0 mL/min. Each sample was analysed by triplicate.
Electron impact mode (EI) at 70 eV, was used for mass spectrometry analysis. The mass range varied from 35 to 300 u. Identification of volatile components in hyssop essential oil was carried out using the NIST/ADAMS library data of the GC/MS system [17] with their characteristic m/z values. Quantification was carried out according to the area percentage using the scan mode.

3.4. Statistical Analysis

SPSS Statistics 17.0 Software (Chicago, IL, USA) was used to evaluate one-way analysis of variance (ANOVA) at p ≤ 0.05. Canonical Discriminant Analysis was also used to establish differences between samples, and to evaluate the importance of different variables on discrimination.

4. Conclusions

The data obtained for each batch reveal volatile composition differences in relation to the quality of essential oil in function of the harvest period. Among all the batches analysed, the one with higher significant extraction yield belong to an irrigated plot (batch 7). In this regard, the irrigation and harvesting at the end of the maturity period are shown as the most favourable for the hyssop cultivation in Castilla-La Mancha (Spain). Most compounds with values initially outside the ranges established by the ISO9841:2007 (E) (iso-pinocamphone, α-pinene, β-pinene, β-caryophyllene, etc.), evolved favourably towards meeting the standard.

Acknowledgements

The authors thank Dehesa de los Llanos State for supplying the samples and Katty Walsh for proof-reading the English manuscript.

References

  1. Kerrola, K.; Galambosi, B.; Kallio, H. Volatile components and odor intensity of four phenotypes of Hyssop (Hyssopus officinalis L.). J. Agr. Food Chem. 1994, 42, 776–781. [Google Scholar]
  2. Fraternale, D.; Ricci, D. Composition and antifungal activity of two essential oils of Hyssop (Hyssopus officinalis L.). J. Essent. Oil Res. 2004, 16, 617–622. [Google Scholar] [CrossRef]
  3. Höld, K.M.; Sirisoma, N.S.; Sparks, S.E; Casida, J.E. Metabolism and mode of actions of cis- and trans-3-pinanones the active ingredients of hyssop oil). Xenobiotica 2002, 32, 251–265. [Google Scholar] [CrossRef]
  4. Özer, H.; Sahin, F.; Kiliç, H.; Güllüce, M. Essential Oil composition of Hyssopus officinalis L. subsp. angustifolius (Bieb.) Arcangeli from Turkey. Flav. Frag. J. 2005, 20, 42–44. [Google Scholar] [CrossRef]
  5. Babovic, N.; Djilas, S.; Jadranin, M.; Vajs, V.; Ivanovic, J.; Petrovic, S.; Zizovic, I. Supercritical carbon dioxide extraction of antioxidant fractions from selected Lamiaceae herbs and their antioxidant capacity. Innov. Food Sci. Emerg. Technol. 2010, 11, 98–107. [Google Scholar]
  6. The European Enviroment Agency (EEA) Web site. Available online: http://eunis.eea.europa.eu accessed on 13 October 2010.
  7. Garg, S.N.; Naqvi, A.A.; Singh, A.; Ram, G.; Kumar, S. Composition of essential oil from an annual crop of Hyssopus officinalis grown in Indian plains. Flav. Frag. J. 1999, 14, 170–172. [Google Scholar] [CrossRef]
  8. Mazzanti, G.; Battinelli, L.; Salvatore, G. Antimicrobial properties of the linalool-rich essential oil of Hyssopus officinalis L. var decumbens (Lamiaceae). Flav. Frag. J. 1998, 13, 289–294. [Google Scholar] [CrossRef]
  9. Rohloff, J.; Dragland, S.; Mordal, R.; Iversen, T. Effect of harvest time and drying method on biomass production, essential oil yield, and quality of Peppermint (Mentha × piperita L.). J. Agr. Food Chem. 2005, 53, 4143–4148. [Google Scholar]
  10. ISO, Oil of Hyssop Hyssopus officinalis L. ssp. officinalis, 2nd ed; International Organisation for Standardization: Geneva, Switzerland, 2007.
  11. Petropoulos, S.A.; Daferera, D.; Polissiou, M.G.; Passam, H.C. The effect of water deficit stress on the growth, yield and composition of essential oils of parsley. Sci. Hort. 2008, 115, 393–397. [Google Scholar] [CrossRef]
  12. The Meteorological National Agency of Spain (AEMET) Website. Available online: http://www.aemet.es/es/elclima/datosclimatologicos/valoresclimatologicos?k=clm accessed on 12 November 2010.
  13. Millet, Y.; Jouglard, J.; Steinmetz, M.D. Toxicity of some essentials plants oil. Clinical and experimental study. Clin. Toxicol. 1981, 18, 1485–1498. [Google Scholar] [CrossRef]
  14. Belletti, N.; Kamdem, S.S.; Tabanelli, G.; Lanciotti, R.; Gardini, F. Modeling of combined effects of citral, linalool and β-pinene used against Saccharomyces cerevisiae in citrus-based beverages subjected to a mild heat treatment. Int. J. Food Microbiol. 2010, 136, 283–289. [Google Scholar]
  15. Belletti, N.; Ndagijimana, M.; Sisto, C.; Guerzoni, M.E.; Lanciotti, R.; Gardini, F. Evaluation of the antimicrobial activity of citrus essences on Saccharomyces cerevisiae. J. Agr. Food Chem. 2004, 52, 6932–6938. [Google Scholar] [CrossRef]
  16. Burt, S. Essential oils: their antibacterial properties and potential applications in foods - a review. Int. J. Food Microbiol. 2004, 94, 223–253. [Google Scholar] [CrossRef]
  17. Adams, R.P. Identification of Essential Oil Components by Gas Chromatography/Mass Spectometry; Kozlowski, A.C., Ed.; Allured Business Media: Carol Stream, IL, USA, 2009. [Google Scholar]
