- freely available
Biology 2014, 3(2), 243-254; doi:10.3390/biology3020243
Published: 26 March 2014
Abstract: RNA-directed histone and/or DNA modification is a conserved mechanism for the establishment of epigenetic marks from yeasts and plants to mammals. The heterochromation formation in yeast is mediated by RNAi-directed silencing mechanism, while the establishment of DNA methylation in plants is through the RNA-directed DNA methylation (RdDM) pathway. Recently, splicing factors are reported to be involved in both RNAi-directed heterochromatin formation in yeast and the RdDM pathway in plants. In yeast, splicing factors may provide a platform for facilitating the siRNA generation through an interaction with RDRC and thereby affect the heterochromatin formation, whereas in plants, various splicing factors seem to act at different steps in the RdDM pathway.
Cytosine DNA methylation is widespread in eukaryotes and plays critical roles in diverse biological processes including development [1,2,3,4], the silencing of transposons and other DNA repeats [5,6,7], X-chromosome inactivation in mammals [8,9], and genomic imprinting [10,11,12,13]. In mammals, nearly 25% of all methylated cytosines occurs in non-CG contexts (mCHG and mCHH, where H = A, C or T) in embryonic stem cells, more than 99% of methylcytosines are in CG context in differentiated cells such as fetal fibroblasts and approximately 70%–80% of CG dinucleotides are methylated throughout the genome [14,15]. By contrast, in plants, cytosine methylation in non-CG contexts can reach an appreciated level, with 23% in CHG and 22% in CHH context in immature floral tissue . In adult leaves, the model plant Arabidopsis thaliana also has high levels of DNA methylation in non‑CG contexts, with 24% of CG, 6.7% of CHG and 1.7% of CHH methylation in the genome . Unlike mammals in which DNA methylation is present throughout the genome , plants contain DNA methylation predominantly at transposons, other repeat sequences and centromeric regions .
In mammals, DNA methylation is catalyzed by DNA methyltransferases (DNMTs). DNMT1 is responsible for maintaining the symmetric CG methylation, and DNMT3A and DNMT3B are responsible for de novo DNA methylation [2,19,20,21]. In plants, maintenance of symmetric CG methylation is catalyzed by the DNA METHYLTRANSFERASE 1 (MET1) enzyme, an ortholog of DNMT1 ; the symmetric CHG methylation is maintained by a plant-specific DNA methyltransferase, CHROMOMETHYLASE 3 (CMT3) [23,24]; the asymmetric CHH methylation is maintained by DOMAINS REARRANGED METHYLTRANSFERASE 2 (DRM2), a homolog of DNMT3A/DNMT3B [23,25]. De novo DNA methylation in plants is guided by small interfering RNAs (siRNAs) in a pathway known as RNA-directed DNA methylation (RdDM) and DRM2 is the enzyme required for de novo methylation and catalyzes cytosine methylation in all three sequence contexts [23,25,26,27].
In the RdDM pathway, two plant-specific RNA polymerases, Pol IV and Pol V, are involved. Pol IV and Pol V act at different steps of this pathway, with Pol IV being required for 24-nucleotide (nt) siRNA biogenesis and Pol V functioning as a downstream effector for DNA methylation . With the assistance of the SNF2-like putative chromatin remodeling protein CLSY1 and the homeodomain transcription factor-like DTF1/ SHH1, which interacts with Pol IV, Pol IV is recruited to transcribe transposons and repeat loci [29,30,31,32,33]. The resulting transcripts are copied into double-stranded RNAs (dsRNAs) by RNA-DEPENDENT RNA POLYMERASE2 (RDR2) and then processed into 24-nt siRNA duplexes by DICER-LIKE 3 (DCL3) [34,35]. Subsequently, the RNA methylase HEN1 methylates the siRNAs at their 3'ends for stability and then one strand of the siRNAs is loaded into AGO4 [36,37,38]. Pol V produces the nascent transcript to recruit siRNA-bound AGO4, through base‑pairing between the siRNA and nascent transcript . The stable association of AGO4 with the Pol V transcripts is also dependent on its interactions with the largest subunit NRPE1 of Pol V and KTF1, a homolog of yeast transcription elongation factor Spt5 [40,41,42]. A putative chromatin-remodeling complex termed DDR, which is consisted of DRD1, DMS3 and RDM1 proteins, is required for Pol V association with chromatin and Pol V transcription [28,43,44]. The association of RDM1 protein of DDR complex with AGO4 and DRM2 may help to recruit DRM2 to Pol V-target regions for catalyzing DNA methylation [28,43,45].
Pre-mRNA splicing is an essential process required for the expression of most eukaryotic genes. Splicing is carried out by a macromolecular machinery termed the spliceosome, which senses the splicing signals and catalyzes the removal of introns from pre-mRNAs. The spliceosome is comprised of four small ribonucleoprotein particles (snRNPs), U1, U2, U4/U6 and U5 snRNPs, and numerous snRNP-associated proteins [46,47]. The spliceosome assembles on each intron through an ordered and highly co-ordinated pathway. The U1 snRNP and the heterodimeric splicing factor U2AF (U2 snRNP auxiliary factor) recognize the 5' and 3'-splice sites, respectively, to initiate the pre-spliceosome assembly, and then the U2 snRNP is recruited to the branch point of the introns through an interaction with U2AF to form the pre-spliceosome. Subsequently, the mature spliceosome is formed by the recruitment of U4/U6.U5 tri-snRNP to the pre-spliceosome and then the complex rearranges to form the catalytically active conformation after the release of U1 and U4 snRNPs [47,48]. Besides the core snRNPs, the spliceosome complex also contains a myriad of non-snRNP-associated splicing factors, with an estimation of upwards of 300 proteins . It remains a challenge to characterize the function of the numerous non-snRNP-associated splicing factors.
In addition to the canonical function of splicing factors in pre-mRNA splicing, splicing factors might also play important roles in other biological processes. In support of this view, a group of splicing factors were reported to be involved in the RNAi-directed silencing process in fission yeast [49,50]. In parallel with the RNA-induced heterochromatin formation in S. pombe, recently, several splicing factors were shown to be involved in the RdDM pathway in plants. In this review, we will discuss the roles of splicing factors in RNA-directed silencing in yeast and RdDM pathway in plants, with emphasis on the distinct roles of different splicing factors in the RdDM pathway.
2. RNA Splicing Factors and RNAi-Directed Heterochromatin Formation in S. pombe
In S. pombe, heterochromatin is largely concentrated at dh and dg repeats and transposons that surround the centromeres, and the RNAi machinery is involved in the assembly of heterochromatin [51,52]. Biochemical studies in S. pombe have provided direct links between RNAi proteins and heterochromation . The chromodomain protein Chp1, which is required for heterochromatic silencing, is shown to be associated with Argonaute (Ago1) in the RNA-induced transcriptional gene‑silencing (RITS) complex that also contains the GW-motif-containing protein Tas3 and siRNAs derived from dg and dh transcripts . Through base-pairing of the siRNAs with nascent repeat transcripts transcribed by Pol II, the RITS recruits histone-modifying enzymes such as the H3K9 methyltransferase Clr4 to induce H3K9 methylation and the formation of heterochromatin [54,55,56]. The heterochromatin assembly in S. pombe involves a self-enforcing loop wherein siRNAs generated from heterochromatin feedback to facilitate the recruitment of heterochromatin-modification complexes [54,57]. In this mechanism, Pol II transcribes the dg and dh repeats and then Rdp1-containing RNA‑dependent RNA polymerase complex (RDRC) copies the transcripts into double stranded RNAs, which are processed by Dicer (Dcr1) into siRNAs [51,52]. The siRNAs are loaded into RITS complex, and the RITS localizes to heterochromatin region through the binding of Chp1 chromodomain to H3K9me and facilitates the association and recruitment of RDRC to nascent repeat transcripts transcribed from dg and dh repeats [57,58,59].
Through a screen for mutants with attenuated silencing of marker genes inserted in the dg region of S. pombe, Bayne et al. cloned a dozen of genes involved in the silencing of marker genes, which includes two genes, Cwf10 and Prp39, that encode splicing factors . To further examine the possible links between RNA splicing and centromere silencing, they also tested the effect of mutants of additional splicing factors on the silencing of marker genes. Their results indicate that many but not all splicing factors are involved in the centromere silencing. Expression analysis indicates that these splicing mutants with defective silencing have increased dg and dh transcripts and reduced centromeric siRNA accumulation, which suggests that splicing factors are involved in the siRNA accumulation . One explanation for these observations is that the defective silencing in splicing factor mutants might result from the impaired splicing of mRNA encoding RNAi components. However, their data showed that the splicing of known RNAi components were not affected in the splicing mutants compared to the wild-type, suggesting that the silencing defects in the splicing mutants could not be attributed to the inefficient splicing of the RNAi components . To examine the mechanisms of function of splicing factors involved in the siRNA accumulation, they analyzed immuoprecipitates of FLAG-tagged Cid12, a component of RDRC complex, and found that many splicing factors including those splicing factors involved in centromere silencing were associated with Cid12-FLAG. Therefore, they propose that spliceosomal complexes provide a platform that facilitates RDRC processing of centromeric transcripts for downstream siRNA generation, and thereby promote effective centromere silencing .
In a similar study, Chinen et al. found that the prp13-1 mutant with a single nucleotide change on U4 snRNA is defective in centromere silencing, suggesting that splicing factors are involved in the centromere silencing . Their work also confirmed that the processing of the centromeric transcripts into siRNAs were impaired in some splicing factors. Furthermore, they found that the centromeric dg and dh regions contain intron-like sequences and the spliced form of the dg transcript was detected, which suggests that the splicing factors are recruited to the repeat regions through the recognition of the intron sequences . Nevertheless, although the dg noncoding RNA can recruit the splicing factors, the siRNAs are generated from both exon and intron regions of dg RNA , suggesting that the splicing activity of splicing factors may be dispensable for the amplification of centromeric siRNAs.
It is still not clear how splicing factors are recruited. As suggested above, both RDRC and the intron-like sequence of dg and/or dh RNA may play roles in recruiting the splicing factors to the centromeric regions. It is well known that splicing can occur co-transcriptionally [61,62,63], and the recruitment of splicing factors to the transcription sites can be dependent on Pol II . The in vivo interaction of splicing factors with Pol II has also been documented . Therefore, it is also possible that splicing factors are recruited to the centromeric regions via the association with Pol II. Although the spliceosomal complexs are required for the siRNA generation, exactly how splicing factors regulate siRNA accumulation through the association with RDRC is still not clear. Since there are reports showing that splicing factors can regulate Pol II transcripts [66,67], further work is also required to examine whether splicing factors regulate siRNA generation through the influence on Pol II transcription of centromeric transcripts in addition to the proposed model that spliceosomal complexes provide a platform for siRNA generation .
3. RNA Splicing Factors and RNA-Directed DNA Methylation (RdDM) in Plants
The RdDM pathway in plants parallels the pathway of RNAi-directed silencing process in S. pombe. By using FWA transgene silencing as a reporter system in Arabidopsis thaliana, Ausin et al. screened for T-DNA insertion mutants that are defective in the de novo methylation of the transgene and identified a line with T-DNA insertion in the SR45 gene . The sr45 mutant has decreased DNA methylation in transgenic FWA and the associated late flowering phenotype. SR45 encodes an ARGININE/SERINE-RICH 45 protein belonging to a conserved family of structurally and functionally related, essential pre-mRNA splicing factors. These results reveal that, similarly to that in S. pombe, splicing factors are also involved in the RdDM pathway in Arabidopsis thaliana. The siRNA accumulation of both type I (dependent on both Pol IV and Pol V) and type II (only dependent on Pol IV) is decreased in sr45 mutant plants . Furthermore, the level of AGO4 protein that is destabilized in mutants upstream of siRNA biogenesis  is also reduced in the sr45 mutant. These data suggest that SR45 acts at an early step in the RdDM pathway in siRNA generation . Although the indirect effect of SR45 on the expression of genes encoding RdDM components via its RNA splicing function is not excluded in this study, we speculate that SR45 may be directly involved in the RdDM pathway because other splicing factors have been demonstrated to regulate RdDM pathway directly as described below.
How SR45 is recruited and how it regulates siRNA accumulation are still not clear. In Arabidopsis thaliana, RDR2 isolated from a pol IV mutant lacks polymerase activity in vitro, suggesting that RDR2 is coupled with Pol IV for dsRNA synthesis . It remains to be determined whether like in S. pombe, the Pol IV-RDR2 complex and/or Pol IV transcripts participate in the recruitment of SR45. The SR45 regulation of siRNA accumulation might be through regulation of Pol IV transcripts or affecting the processing of Pol IV transcripts into siRNAs.
Recently, Zhang et al. carried out a forward genetic screen to identify genes involved in RdDM pathway by using the RD29A promoter-driven luciferase (RD29A-LUC) reporter system . From this screen, they identified a zinc-finger and OCRE domain-containing protein, ZOP1, required for RdDM. ZOP1 is also a splicing factor based on the evidence that ZOP1 is associated with several typical components of the splicing machinery and that the zop1 mutant has increased intron-retention events compared to the wild-type . Although many genes have intron retentions in the zop1 mutant, genes encoding the RdDM components are not in the list. Furthermore, the expression of genes encoding RdDM components is also not affected by the zop1 mutation. These suggest that the ZOP1 involvement in the RdDM pathway is quite direct, although we cannot exclude the possibility that other unidentified genes involved in RdDM were influenced in their expression by the zop1 mutation. Similar to that in the sr45 mutant, Pol IV-dependent siRNA accumulation was reduced in the zop1 mutant . Additionally, immunofluorescence assay indicated that ZOP1 is present at condensed nucleolus-adjacent foci including the Cajal body as well as dispersed nucleoplasmic speckles, and that ZOP1 partially colocalizes with NRPE1 and DRM2 in the nucleolus-adjacent foci, but not with NRPD1. The Cajal body is the snRNP assembly center  and is also required for the assembly of the AGO4 effector complex . Therefore, the authors suggested that ZOP1 regulates RdDM, probably through influencing the assembly of the AGO4 effector complex, or that ZOP1 is associated with NRPE1 and DRM2 of the RdDM pathway.
Interestingly, coimmunoprecipitation assays indicated that ZOP1 interacts with Pol II in vivo . Pol II can also be involved in RdDM through its generation of non-coding transcripts that recruit the AGO4-containing effector complex [28,73]. This suggests that ZOP1 functions in the RdDM through the regulation of Pol II. However, it is also possible that the association of ZOP1 with Pol II only reflects a function of ZOP1 in pre-mRNA splicing, but not in RdDM. In addition to ZOP1, the study also identified several other splicing factors affecting siRNA accumulation and DNA methylation . Nevertheless, it remains to be demonstrated whether these splicing factors function in RdDM through a similar mechanism as ZOP1 does.
Using the same screening system, the same research group also identified a PRP6-like splicing factor, STA1, required for the RdDM . STA1 is a U5 snRNP-associated protein and has been demonstrated to be involved in pre-mRNA splicing in planta . Northern blot and small RNA deep sequencing analyses indicated that STA1 predominantly influences the accumulation of siRNAs that depend on both Pol IV and Pol V. Furthermore, Pol V-dependent transcripts are partially reduced in the sta1 mutant . These results suggest that STA1 regulates siRNA accumulation probably by influencing Pol V transcripts. Immunolocalization assays indicated that STA1 is almost exclusively present in the Cajal body and the subnuclear localization largely overlaps with that of AGO4. In addition, STA1 also partially colocalizes with NRPE1 . Therefore, STA1 might act at a late step in the RdDM pathway to facilitate the generation of Pol V transcripts and thereby feedback regulates siRNA biogenesis.
In a similar study, Huang et al. identified a U4/U6 snRNP-associated protein, RDM16, which is also required for RdDM . RNA-seq analysis confirmed that RDM16 is involved in pre-mRNA splicing in planta. The RNA-seq and mRNA expression analysis also revealed that the pre-mRNA splicing of known RdDM genes is not affected in the rdm16 mutant, suggesting that RDM16 might be directly involved in RdDM. Nevertheless, unlike the splicing factors described above, mutation of RDM16 does not affect siRNA accumulation. Chromatin immunoprecipitation (ChIP) assays revealed that RDM16 is enriched at Pol V target loci, suggesting that RDM16 might regulate the expression of Pol V transcripts. Consistently, the Pol V transcripts are reduced in the rdm16 mutant . The decrease in Pol V transcript levels but not siRNA abundance in the rdm16 mutant suggests that the reduced levels of Pol V transcripts in rdm16 may not be strong enough to cause a decrease in the siRNA accumulation. The association of RDM16 with Pol V target loci suggests that RDM16 might be recruited by Pol V and/or the nascent Pol V transcripts. However, it remains to be demonstrated how RDM16 regulates Pol V transcripts. RDM16 may regulate the transcription of Pol V target loci, or the processing or the stability of Pol V transcripts.

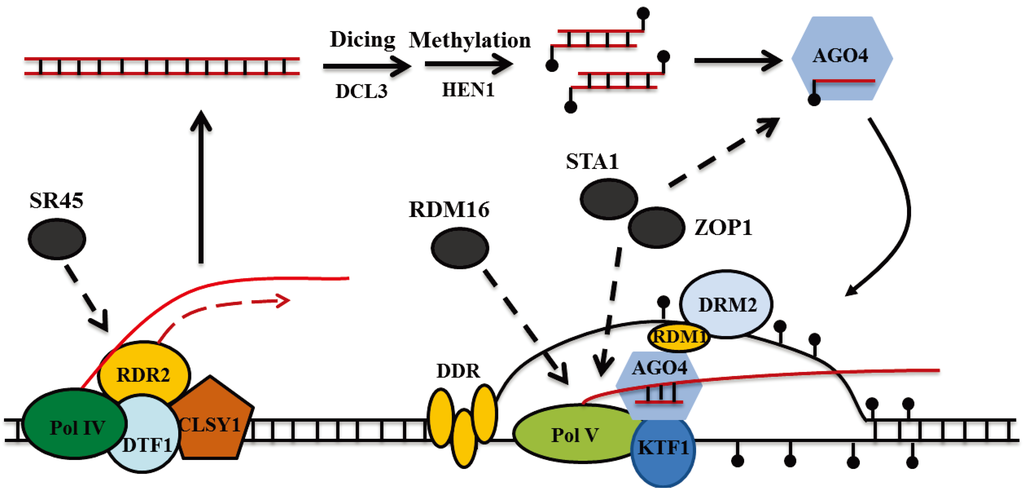

The above studies led us to propose that different splicing factors are recruited at different steps of the RdDM pathway (Figure 1). SR45 might be recruited by the Pol IV-RDR2 complex and act early in siRNA biogenesis, whereas ZOP1 might act after siRNA generation. How ZOP1 is recruited remains unclear. Besides the possibility that Pol II might be involved in recruiting ZOP1 for the regulation of RdDM, AGO4-containing effector complex, Pol V or DRM2 may also play roles in the recruitment of ZOP1. STA1 regulates siRNA accumulation as well as Pol V transcripts and it colocalizes with both AGO4 and NRPE1; therefore, STA1 seems to also act at a late step in RdDM and might be recruited by AGO4-containing effector complex, Pol V or Pol V transcripts. RDM16 is enriched at Pol V target loci and regulates Pol V transcripts, suggesting that RDM16 also functions at a late step in the RdDM and that Pol V or Pol V transcripts might be involved in the recruitment of RDM16.
The involvement of splicing factors in transcriptional silencing and epigenetic regulation seems to be a conserved mechanism in eukaryotic cells. In S. Pombe, splicing factors interact with RDRC to facilitate siRNA generation and thereby affect RNAi-directed heterochromatin formation. Nonetheless, the exact mechanisms of function of the splicing factors in the siRNA generation remain to be elucidated. Although the RdDM pathway in plants parallels the RNAi-directed silencing pathway in S. pombe, plants have evolved two specialized RNA polymerases, Pol II-derived Pol IV and Pol V, to participate in the RdDM pathway. The increased complexity in the RdDM might lead to the recruitment of splicing factors to different steps of the RdDM to regulate DNA methylation in plants. In the future, it remains to be demonstrated how different splicing factors are recruited to the different steps of the RdDM pathway, and the exact mechanisms of function of the various splicing factors in the RdDM pathway.
This work was supported by the National Natural Science Foundation of China (Grant No. 31272224), the Program for Changjiang Scholars and Innovative Research Team in University (Grant No. IRT1256), and the Chinese Academy of Sciences.
Conflicts of Interest
The authors declare no conflict of interest.
- Li, E.; Bestor, T.H.; Jaenisch, R. Targeted mutation of the DNA methyltransferase gene results in embryonic lethality. Cell 1992, 69, 915–926. [Google Scholar] [CrossRef]
- Okano, M.; Bell, D.W.; Haber, D.A.; Li, E. DNA methyltransferases Dnmt3a and Dnmt3b are essential for de novo methylation and mammalian development. Cell 1999, 99, 247–257. [Google Scholar] [CrossRef]
- Moritoh, S.; Eun, C.H.; Ono, A.; Asao, H.; Okano, Y.; Yamaguchi, K.; Shimatani, Z.; Koizumi, A.; Terada, R. Targeted disruption of an orthologue of DOMAINS REARRANGED METHYLASE 2, OsDRM2, impairs the growth of rice plants by abnormal DNA methylation. Plant J. 2012, 71, 85–98. [Google Scholar] [CrossRef]
- Soppe, W.J.; Jacobsen, S.E.; Alonso-Blanco, C.; Jackson, J.P.; Kakutani, T.; Koornneef, M.; Peeters, A.J. The late flowering phenotype of fwa mutants is caused by gain-of-function epigenetic alleles of a homeodomain gene. Mol. Cell 2000, 6, 791–802. [Google Scholar] [CrossRef]
- Lisch, D.; Bennetzen, J.L. Transposable element origins of epigenetic gene regulation. Curr. Opin. Plant Biol. 2011, 14, 156–161. [Google Scholar] [CrossRef]
- Mirouze, M.; Paszkowski, J. Epigenetic contribution to stress adaptation in plants. Curr. Opin. Plant Biol. 2011, 14, 267–274. [Google Scholar] [CrossRef]
- Bird, A. DNA methylation patterns and epigenetic memory. Genes Dev. 2002, 16, 6–21. [Google Scholar] [CrossRef]
- Kalantry, S. Recent advances in X-chromosome inactivation. J. Cell Physiol. 2011, 226, 1714–1718. [Google Scholar] [CrossRef]
- Heard, E. Recent advances in X-chromosome inactivation. Curr. Opin. Cell Biol. 2004, 16, 247–255. [Google Scholar] [CrossRef]
- Kinoshita, T.; Yadegari, R.; Harada, J.J.; Goldberg, R.B.; Fischer, R.L. Imprinting of the MEDEA polycomb gene in the Arabidopsis endosperm. Plant Cell 1999, 11, 1945–1952. [Google Scholar]
- Alleman, M.; Doctor, J. Genomic imprinting in plants: Observations and evolutionary implications. Plant Mol. Biol. 2000, 43, 147–161. [Google Scholar] [CrossRef]
- Raissig, M.T.; Baroux, C.; Grossniklaus, U. Regulation and flexibility of genomic imprinting during seed development. Plant Cell 2011, 23, 16–26. [Google Scholar] [CrossRef]
- Haig, D. Genomic imprinting and the evolutionary psychology of human kinship. Proc. Natl. Acad. Sci. USA 2011, 108, 10878–10885. [Google Scholar] [CrossRef]
- Ehrlich, M.; Gama-Sosa, M.A.; Huang, L.H.; Midgett, R.M.; Kuo, K.C.; McCune, R.A.; Gehrke, C. Amount and distribution of 5-methylcytosine in human DNA from different types of tissues of cells. Nucleic Acids Res. 1982, 10, 2709–2721. [Google Scholar] [CrossRef]
- Lister, R.; Pelizzola, M.; Dowen, R.H.; Hawkins, R.D.; Hon, G.; Tonti-Filippini, J.; Nery, J.R.; Lee, L.; Ye, Z.; Ngo, Q.M.; et al. Human DNA methylomes at base resolution show widespread epigenomic differences. Nature 2009, 462, 315–322. [Google Scholar] [CrossRef]
- Lister, R.; O'Malley, R.C.; Tonti-Filippini, J.; Gregory, B.D.; Berry, C.C.; Millar, A.H.; Ecker, J.R. Highly integrated single-base resolution maps of the epigenome in Arabidopsis. Cell 2008, 133, 523–536. [Google Scholar] [CrossRef]
- Cokus, S.J.; Feng, S.H.; Zhang, X.Y.; Chen, Z.G.; Merriman, B.; Haudenschild, C.D.; Pradhan, S.; Nelson, S.F.; Pellegrini, M.; Jacobsen, S.E. Shotgun bisulphite sequencing of the Arabidopsis genome reveals DNA methylation patterning. Nature 2008, 452, 215–219. [Google Scholar] [CrossRef]
- Zhang, X.; Yazaki, J.; Sundaresan, A.; Cokus, S.; Chan, S.W.; Chen, H.; Henderson, I.R.; Shinn, P.; Pellegrini, M.; Jacobsen, S.E.; et al. Genome-wide high-resolution mapping and functional analysis of DNA methylation in arabidopsis. Cell 2006, 126, 1189–1201. [Google Scholar] [CrossRef]
- Chen, T.; Li, E. Structure and function of eukaryotic DNA methyltransferases. Curr. Top. Dev. Biol. 2004, 60, 55–89. [Google Scholar] [CrossRef]
- Auclair, G.; Weber, M. Mechanisms of DNA methylation and demethylation in mammals. Biochimie 2012, 94, 2202–2211. [Google Scholar] [CrossRef]
- Chen, Z.X.; Riggs, A.D. DNA methylation and demethylation in mammals. J. Biol. Chem. 2011, 286, 18347–18353. [Google Scholar] [CrossRef]
- Saze, H.; Scheid, O.M.; Paszkowski, J. Maintenance of CpG methylation is essential for epigenetic inheritance during plant gametogenesis. Nat. Genet. 2003, 34, 65–69. [Google Scholar] [CrossRef]
- Cao, X.; Jacobsen, S.E. Locus-specific control of asymmetric and CpNpG methylation by the DRM and CMT3 methyltransferase genes. Proc. Natl. Acad. Sci. USA 2002, 99, 16491–16498. [Google Scholar] [CrossRef]
- Bartee, L.; Malagnac, F.; Bender, J. Arabidopsis cmt3 chromomethylase mutations block non-CG methylation and silencing of an endogenous gene. Genes Dev. 2001, 15, 1753–1758. [Google Scholar] [CrossRef]
- Chan, S.W.L.; Henderson, I.R.; Jacobsen, S.E. Gardening the genome: DNA methylation in Arabidopsis thaliana. Nat. Rev. Genet. 2005, 6, 351–360. [Google Scholar] [CrossRef]
- Wassenegger, M.; Heimes, S.; Riedel, L.; Sanger, H.L. RNA-directed de-novo methylation of genomic sequences in plants. Cell 1994, 76, 567–576. [Google Scholar] [CrossRef]
- Matzke, M.; Kanno, T.; Claxinger, L.; Huettel, B.; Matzke, A.J.M. RNA-mediated chromatin-based silencing in plants. Curr. Opin. Cell Biol. 2009, 21, 367–376. [Google Scholar] [CrossRef]
- Haag, J.R.; Pikaard, C.S. Multisubunit RNA polymerases IV and V: Purveyors of non-coding RNA for plant gene silencing. Nat. Rev. Mol. Cell Biol. 2011, 12, 483–492. [Google Scholar] [CrossRef]
- Herr, A.J.; Jensen, M.B.; Dalmay, T.; Baulcombe, D.C. RNA polymerase IV directs silencing of endogenous DNA. Science 2005, 308, 118–120. [Google Scholar] [CrossRef]
- Vaucheret, H. RNA polymerase IV and transcriptional silencing. Nat. Genet. 2005, 37, 659–660. [Google Scholar] [CrossRef]
- Smith, L.M.; Pontes, O.; Searle, L.; Yelina, N.; Yousafzai, F.K.; Herr, A.J.; Pikaard, C.S.; Baulcombe, D.C. An SNF2 protein associated with nuclear RNA silencing and the spread of a silencing signal between cells in Arabidopsis. Plant Cell 2007, 19, 1507–1521. [Google Scholar] [CrossRef]
- Liu, J.; Bai, G.; Zhang, C.J.; Chen, W.; Zhou, J.X.; Zhang, S.W.; Chen, Q.; Deng, X.; He, X.J.; Zhu, J.K. An atypical component of RNA-directed DNA methylation machinery has both DNA methylation-dependent and -independent roles in locus-specific transcriptional gene silencing. Cell Res. 2011, 21, 1691–1700. [Google Scholar] [CrossRef]
- Law, J.A.; Vashisht, A.A.; Wohlschlegel, J.A.; Jacobsen, S.E. SHH1, a homeodomain potein required for DNA methylation, as well as RDR2, RDM4, and chromatin remodeling factors, associate with RNA polymeras IV. PLoS Genet. 2011, 7, e1002195. [Google Scholar] [CrossRef]
- Kasschau, K.D.; Fahlgren, N.; Chapman, E.J.; Sullivan, C.M.; Cumbie, J.S.; Givan, S.A.; Carrington, J.C. Genome-wide profiling and analysis of Arabidopsis siRNAs. PLoS Biol. 2007, 5, 479–493. [Google Scholar]
- Xie, Z.X.; Johansen, L.K.; Gustafson, A.M.; Kasschau, K.D.; Lellis, A.D.; Zilberman, D.; Jacobsen, S.E.; Carrington, J.C. Genetic and functional diversification of small RNA pathways in plants. PLoS Biol. 2004, 2, 642–652. [Google Scholar]
- Li, J.J.; Yang, Z.Y.; Yu, B.; Liu, J.; Chen, X.M. Methylation protects miRNAs and siRNAs from a 3 '-end uridylation activity in Arabildopsis. Curr. Biol. 2005, 15, 1501–1507. [Google Scholar] [CrossRef]
- Yu, B.; Yang, Z.Y.; Li, J.J.; Minakhina, S.; Yang, M.C.; Padgett, R.W.; Steward, R.; Chen, X.M. Methylation as a crucial step in plant microRNA biogenesis. Science 2005, 307, 932–935. [Google Scholar] [CrossRef]
- Qi, Y.J.; He, X.Y.; Wang, X.J.; Kohany, O.; Jurka, J.; Hannon, G.J. Distinct catalytic and non-catalytic roles of ARGONAUTE4 in RNA-directed DNA methylation. Nature 2006, 443, 1008–1012. [Google Scholar] [CrossRef]
- Wierzbicki, A.T.; Ream, T.S.; Haag, J.R.; Pikaard, C.S. RNA polymerase V transcription guides ARGONAUTE4 to chromatin. Nat. Genet. 2009, 41, 630–634. [Google Scholar] [CrossRef]
- Li, C.F.; Pontes, O.; El-Shami, M.; Henderson, I.R.; Bernatavichute, Y.V.; Chan, S.W.L.; Lagrange, T.; Pikaard, C.S.; Jacobsen, S.E. An ARGONAUTE4-containing nuclear processing center colocalized with Cajal bodies in Arabidopsis thaliana. Cell 2006, 126, 93–106. [Google Scholar] [CrossRef]
- El-Shami, M.; Pontier, D.; Lahmy, S.; Braun, L.; Picart, C.; Vega, D.; Hakimi, M.A.; Jacobsen, S.E.; Cooke, R.; Lagrange, T. Reiterated WG/GW motifs form functionally and evolutionarily conserved ARGONAUTE-binding platforms in RNAi-related components. Gene Dev. 2007, 21, 2539–2544. [Google Scholar] [CrossRef]
- He, X.J.; Hsu, Y.F.; Zhu, S.H.; Wierzbicki, A.T.; Pontes, O.; Pikaard, C.S.; Liu, H.L.; Wang, C.S.; Jin, H.L.; Zhu, J.K. An effector of RNA-directed DNA methylation in Arabidopsis is an ARGONAUTE 4-and RNA-binding protein. Cell 2009, 137, 498–508. [Google Scholar] [CrossRef]
- Law, J.A.; Ausin, I.; Johnson, L.M.; Vashisht, A.A.; Zhu, J.K.; Wohlschlegel, J.A.; Jacobsen, S.E. A protein complex required for polymerase V transcripts and RNA-directed DNA methylation in Arabidopsis. Curr. Biol. 2010, 20, 951–956. [Google Scholar] [CrossRef]
- Zhong, X.; Hale, C.J.; Law, J.A.; Johnson, L.M.; Feng, S.; Tu, A.; Jacobsen, S.E. DDR complex facilitates global association of RNA polymerase V to promoters and evolutionarily young transposons. Nat. Struct. Mol. Biol. 2012, 19, 870–875. [Google Scholar] [CrossRef]
- Gao, Z.H.; Liu, H.L.; Daxinger, L.; Pontes, O.; He, X.J.; Qian, W.Q.; Lin, H.X.; Xie, M.T.; Lorkovic, Z.J.; Zhang, S.D.; et al. An RNA polymerase II- and AGO4-associated protein acts in RNA-directed DNA methylation. Nature 2010, 465, 106–109. [Google Scholar] [CrossRef]
- Jurica, M.S.; Moore, M.J. Pre-mRNA splicing: Awash in a sea of proteins. Mol. Cell 2003, 12, 5–14. [Google Scholar] [CrossRef]
- Sanford, J.R.; Ellis, J.; Caceres, J.F. Multiple roles of arginine/serine-rich splicing factors in RNA processing. Biochem. Soc. Trans. 2005, 33, 443–446. [Google Scholar] [CrossRef]
- Nilsen, T.W. The spliceosome: the most complex macromolecular machine in the cell? Bioessays 2003, 25, 1147–1149. [Google Scholar] [CrossRef]
- Bayne, E.H.; Portoso, M.; Kagansky, A.; Kos-Braun, I.C.; Urano, T.; Ekwall, K.; Alves, F.; Rappsilber, J.; Allshire, R.C. Splicing factors facilitate RNAi-directed silencing in fission yeast. Science 2008, 322, 602–606. [Google Scholar] [CrossRef]
- Chinen, M.; Morita, M.; Fukumura, K.; Tani, T. Involvement of the spliceosomal U4 small nuclear RNA in heterochromatic gene silencing at fission yeast centromeres. J. Biol. Chem. 2010, 285, 5630–5638. [Google Scholar] [CrossRef]
- Moazed, D. Small RNAs in transcriptional gene silencing and genome defence. Nature 2009, 457, 413–420. [Google Scholar] [CrossRef]
- Grewal, S.I. RNAi-dependent formation of heterochromatin and its diverse functions. Curr. Opin. Genet. Dev. 2010, 20, 134–141. [Google Scholar] [CrossRef]
- Verdel, A.; Jia, S.; Gerber, S.; Sugiyama, T.; Gygi, S.; Grewal, S.I.; Moazed, D. RNAi-mediated targeting of heterochromatin by the RITS complex. Science 2004, 303, 672–676. [Google Scholar] [CrossRef]
- Noma, K.; Sugiyama, T.; Cam, H.; Verdel, A.; Zofall, M.; Jia, S.; Moazed, D.; Grewal, S.I. RITS acts in cis to promote RNA interference-mediated transcriptional and post-transcriptional silencing. Nat. Genet. 2004, 36, 1174–1180. [Google Scholar] [CrossRef]
- Buhler, M.; Verdel, A.; Moazed, D. Tethering RITS to a nascent transcript initiates RNAi- and heterochromatin-dependent gene silencing. Cell 2006, 125, 873–886. [Google Scholar] [CrossRef]
- Hong, E.J.; Villen, J.; Gerace, E.L.; Gygi, S.P.; Moazed, D. A cullin E3 ubiquitin ligase complex associates with Rik1 and the Clr4 histone H3-K9 methyltransferase and is required for RNAi-mediated heterochromatin formation. RNA Biol. 2005, 2, 106–111. [Google Scholar] [CrossRef]
- Sugiyama, T.; Cam, H.; Verdel, A.; Moazed, D.; Grewal, S.I. RNA-dependent RNA polymerase is an essential component of a self-enforcing loop coupling heterochromatin assembly to siRNA production. Proc. Natl. Acad. Sci. USA 2005, 102, 152–157. [Google Scholar] [CrossRef]
- Motamedi, M.R.; Verdel, A.; Colmenares, S.U.; Gerber, S.A.; Gygi, S.P.; Moazed, D. Two RNAi complexes, RITS and RDRC, physically interact and localize to noncoding centromeric RNAs. Cell 2004, 119, 789–802. [Google Scholar] [CrossRef]
- Schalch, T.; Job, G.; Noffsinger, V.J.; Shanker, S.; Kuscu, C.; Joshua-Tor, L.; Partridge, J.F. High-affinity binding of Chp1 chromodomain to K9 methylated histone H3 is required to establish centromeric heterochromatin. Mol. Cell 2009, 34, 36–46. [Google Scholar] [CrossRef]
- Buhler, M.; Spies, N.; Bartel, D.P.; Moazed, D. TRAMP-mediated RNA surveillance prevents spurious entry of RNAs into the Schizosaccharomyces pombe siRNA pathway. Nat. Struct. Mol. Biol. 2008, 15, 1015–1023. [Google Scholar] [CrossRef]
- Perales, R.; Bentley, D. "Cotranscriptionality": The transcription elongation complex as a nexus for nuclear transactions. Mol. Cell 2009, 36, 178–191. [Google Scholar] [CrossRef]
- Kornblihtt, A.R. CTCF: From insulators to alternative splicing regulation. Cell Res. 2012, 22, 450–452. [Google Scholar] [CrossRef]
- Luco, R.F.; Allo, M.; Schor, I.E.; Kornblihtt, A.R.; Misteli, T. Epigenetics in alternative pre-mRNA splicing. Cell 2011, 144, 16–26. [Google Scholar] [CrossRef]
- Misteli, T.; Spector, D.L. RNA polymerase II targets pre-mRNA splicing factors to transcription sites in vivo. Mol. Cell 1999, 3, 697–705. [Google Scholar] [CrossRef]
- Das, R.; Yu, J.; Zhang, Z.; Gygi, M.P.; Krainer, A.R.; Gygi, S.P.; Reed, R. SR proteins function in coupling RNAP II transcription to pre-mRNA splicing. Mol. Cell 2007, 26, 867–881. [Google Scholar] [CrossRef]
- Auboeuf, D.; Dowhan, D.H.; Kang, Y.K.; Larkin, K.; Lee, J.W.; Berget, S.M.; O'Malley, B.W. Differential recruitment of nuclear receptor coactivators may determine alternative RNA splice site choice in target genes. Proc. Natl. Acad. Sci. USA 2004, 101, 2270–2274. [Google Scholar]
- Auboeuf, D.; Dowhan, D.H.; Li, X.; Larkin, K.; Ko, L.; Berget, S.M.; O'Malley, B.W. CoAA, a nuclear receptor coactivator protein at the interface of transcriptional coactivation and RNA splicing. Mol. Cell Biol. 2004, 24, 442–453. [Google Scholar] [CrossRef]
- Ausin, I.; Greenberg, M.V.C.; Li, C.F.; Jacobsen, S.E. The splicing factor SR45 affects the RNA-directed DNA methylation pathway in Arabidopsis. Epigenetics 2012, 7, 29–33. [Google Scholar] [CrossRef]
- Haag, J.R.; Ream, T.S.; Marasco, M.; Nicora, C.D.; Norbeck, A.D.; Pasa-Tolic, L.; Pikaard, C.S. In vitro transcription activities of Pol IV, Pol V, and RDR2 reveal coupling of Pol IV and RDR2 for dsRNA synthesis in plant RNA silencing. Mol. Cell 2012, 48, 811–818. [Google Scholar] [CrossRef]
- Zhang, C.J.; Zhou, J.X.; Liu, J.; Ma, Z.Y.; Zhang, S.W.; Dou, K.; Huang, H.W.; Cai, T.; Liu, R.; Zhu, J.K.; et al. The splicing machinery promotes RNA-directed DNA methylation and transcriptional silencing in Arabidopsis. EMBO J. 2013, 32, 1128–1140. [Google Scholar] [CrossRef]
- Morris, G.E. The Cajal body. Biochim. Biophys. Acta 2008, 1783, 2108–2115. [Google Scholar] [CrossRef]
- Li, C.F.; Henderson, I.R.; Song, L.; Fedoroff, N.; Lagrange, T.; Jacobsen, S.E. Dynamic regulation of ARGONAUTE4 within multiple nuclear bodies in Arabidopsis thaliana. PLoS Genet. 2008, 4, e27. [Google Scholar] [CrossRef]
- Zheng, B.L.; Wang, Z.M.; Li, S.B.; Yu, B.; Liu, J.Y.; Chen, X.M. Intergenic transcription by RNA Polymerase II coordinates Pol IV and Pol V in siRNA-directed transcriptional gene silencing in Arabidopsis. Gene Dev. 2009, 23, 2850–2860. [Google Scholar] [CrossRef]
- Dou, K.; Huang, C.F.; Ma, Z.Y.; Zhang, C.J.; Zhou, J.X.; Huang, H.W.; Cai, T.; Tang, K.; Zhu, J.K.; He, X.J. The PRP6-like splicing factor STA1 is involved in RNA-directed DNA methylation by facilitating the production of Pol V-dependent scaffold RNAs. Nucleic Acids Res. 2013, 41, 8489–8502. [Google Scholar] [CrossRef]
- Lee, B.H.; Kapoor, A.; Zhu, J.; Zhu, J.K. STABILIZED1, a stress-upregulated nuclear protein, is required for pre-mRNA splicing, mRNA turnover, and stress tolerance in Arabidopsis. Plant Cell 2006, 18, 1736–1749. [Google Scholar] [CrossRef]
- Huang, C.F.; Miki, D.; Tang, K.; Zhou, H.R.; Zheng, Z.; Chen, W.; Ma, Z.Y.; Yang, L.; Zhang, H.; Liu, R.; et al. A Pre-mRNA-splicing factor is required for RNA-directed DNA methylation in Arabidopsis. PLoS Genet. 2013, 9, e1003779. [Google Scholar] [CrossRef]
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
