Article

Induction of Redox-Active Gene Expression by CoCl2 Ameliorates Oxidative Stress-Mediated Injury of Murine Auditory Cells

by
Jhang Ho Pak
1,*,
Junyeong Yi
2,
Sujin Ryu
2,
In Ki Kim
1,
Jung-Woong Kim
3,
Haeri Baek
2 and
Jong Woo Chung
2,*
1
Department of Convergence Medicine, University of Ulsan College of Medicine and Asan Institute for Life Sciences, Asan Medical Center, 88 Olympic-ro 43-gil, Songpa-Gu, Seoul 05505, Korea
2
Department of Otolaryngology—Head and Neck Surgery, University of Ulsan College of Medicine, Asan Medical Center, 88 Olympic-ro 43-gil, Songpa-Gu, Seoul 05505, Korea
3
Department of Life Science, College of Natural Sciences, Chung-Ang University, 84 Heuksuk-ro, Dongjak-Gu, Seoul 06974, Korea
*
Authors to whom correspondence should be addressed.
Antioxidants 2019, 8(9), 399; https://doi.org/10.3390/antiox8090399
Submission received: 19 July 2019 / Revised: 4 September 2019 / Accepted: 10 September 2019 / Published: 16 September 2019
(This article belongs to the Section Antioxidant Enzyme Systems)
Browse Figures
Versions Notes

Abstract

Free radicals formed in the inner ear in response to high-intensity noise, are regarded as detrimental factors for noise-induced hearing loss (NIHL). We reported previously that intraperitoneal injection of cobalt chloride attenuated the loss of sensory hair cells and NIHL in mice. The present study was designed to understand the preconditioning effect of CoCl2 on oxidative stress-mediated cytotoxicity. Treatment of auditory cells with CoCl2 promoted cell proliferation, with increases in the expressions of two redox-active transcription factors (hypoxia-inducible factor 1α, HIF-1α, nuclear factor erythroid 2-related factor 2; Nrf-2) and an antioxidant enzyme (peroxiredoxin 6, Prdx6). Hydrogen peroxide treatment resulted in the induction of cell death and reduction of these protein expressions, reversed by pretreatment with CoCl2. Knockdown of HIF-1α or Nrf-2 attenuated the preconditioning effect of CoCl2. Luciferase reporter analysis with a Prdx6 promoter revealed transactivation of Prdx6 expression by HIF-1α and Nrf-2. The intense immunoreactivities of HIF-1α, Nrf-2, and Prdx6 in the organ of Corti (OC), spiral ganglion cells (SGC), and stria vascularis (SV) of the cochlea in CoCl2-injected mice suggested CoCl2-induced activation of HIF-1α, Nrf-2, and Prdx6 in vivo. Therefore, we revealed that the protective effect of CoCl2 is achieved through distinctive signaling mechanisms involving HIF-1α, Nrf-2, and Prdx6.

Graphical Abstract

1. Introduction

A noise exposure-induced reduction in hearing ability is referred to as noise-induced hearing loss (NIHL). Temporary NIHL is referred to as temporary threshold shift of hearing, and it is characterized by a reduced sensitivity to sound over a wide frequency range that is restored gradually to its original level within a short period of time. However, if the noise is intense or the duration of exposure is long enough, hearing loss might be irreversible, referred to as permanent threshold shift of hearing. The pathological mechanisms behind NIHL can be (1) direct mechanical destruction of the hair cell membranes and supporting structures of the organ of Corti, and (2) intense metabolic activities that lead to increased free radical (reactive oxygen and nitrogen species, ROS/RNS) generation in the inner ear tissue mitochondria. Excess generation of free radicals during and after noise exposure suppresses cochlear blood flow that promotes ischemia with further increase in free radical production and a decrease in blood flow. This positive feedback loop eventually induces both necrotic and apoptotic cell death in the organ of Corti [1,2].
Preconditioning is a non-damaging or minimal damage stress condition that potentiates the protective capability against a later and more injurious damage. Various preconditioning strategies such as hyperthermia and noise itself have been applied to protect the cochlea from potential hearing deficits that might be caused by later noise exposure [3,4,5]. In particular, hypoxic preconditioning (8% O2 for 4 h) confers significant protection against broadband noise administered 24–48 h after preconditioning in CBA mice. This inner ear resistance to noise injury is associated with increased expression of hypoxia-inducible factor-1α (HIF-1α) within the organ of Corti [6]. It was reported previously that pretreatment with CoCl2 under normoxic conditions mimics hypoxic preconditioning and upregulates HIF-1 expression that subsequently confers tolerance to severe hypoxic injury in chick embryos [7]. Additionally, it has been reported that in vivo administration of CoCl2 preconditions the mouse heart against global ischemia-reperfusion injury through the activation of HIF-1α, activator protein-1, and inducible nitric oxide synthase [8]. Induction of HIF-1α in inner ears of CoCl2-preconditioned mice inhibits noise-induced damage to the inner ear and leads to better recovery of hearing after noise exposure compared to its counterparts [9]. However, the downstream pathway of HIF-1α–mediated preconditioning effect on inner ear remains to be elucidated.
Peroxiredoxins (Prdxs) belong to a superfamily of nonseleno and thiol-dependent peroxidases, catalyzing the reduction of H2O2, short-chain hydroperoxides, and peroxinitrite. They are widely distributed throughout all kingdoms and are classified as 1/2-cys Prdxs according to the number of conserved catalytic cysteine residues [10]. Of the six mammalian Prdxs, the only 1-cys enzyme is Prdx6 that exhibits a bifunctional enzyme with both peroxidase and Ca+2-independent phospholipase A2 (aiPLA2) activities. Prdx6 has unique characteristics that distinguish it from the other Prdx family members. Notably, it utilizes glutathione (GSH) instead of thioredoxin as a physiological reductant, forms heterodimerization with glutathione S-transferase π (GSTπ) to complete its catalytic cycle, and reduces/hydrolyzes phospholipid hydroperoxides [11]. Prdx6 plays an important role in oxidative stress response as its overexpression in lung carcinoma cells (NCI-H441) reduced cellular OH- levels, and attenuated membrane phospholipid peroxidation and apoptosis induced by Cu2+-ascorbate treatment [12]. Meanwhile, antisense-mediated decrease in Prdx6 expression resulted in the accumulation of lipid peroxidation products in the plasma membrane with subsequent apoptotic cell death [13]. The antioxidant protective function of Prdx6 has been further supported by mouse model phenotypes. For example, transgenic Prdx6-overexpressing mice exhibited increased resistance to hyperoxia-induced lung injury [14], while Prdx6-null mice were more susceptible to lung damage with paraquat administration, resulting in increased mortality [15]. Multiple analyses of the Prdx6 promoter region have shown binding sites for various putative regulatory elements [16], Pax5 [17], and several redox-active transcription factors [18,19,20], suggesting that interior and exterior factors such as a change in redox milieu contribute to its transcriptional expression. We have reported recently that retinoic acid-induced Prdx6 expression is involved in rapid hearing recovery after temporary noise exposure. Its transactivation is mediated by a retinoic acid response element on the Prdx6 promoter [21].
In the present study, we examined the protective mechanism behind hypoxia-mediated preconditioning against oxidative burst. Pretreatment of inner ear sensory hair cells with CoCl2 resulted in the activation of HIF-1α and Nrf-2 that function as positive transcription factors of Prdx6 gene expression. Additionally, we aimed to determine the immunolocalization of HIF-1α, Nrf-2, and Prdx6 proteins in the cochlear tissues of CoCl2-administrated mice.

2. Materials and Methods

2.1. Materials

All cell culture medium components were purchased from Life Technologies (Gaithersburg, MD, USA) unless otherwise stated. The primary antibodies used in the present study are polyclonal rabbit-anti-Nrf-2 (sc-722), goat-anti-Keap1 (sc-15246), and monoclonal mouse anti-Lamin B (sc-374015) (Santa Cruz Biotechnology, Santa Cruz, CA, USA), polyclonal rabbit anti-HIF-1α, (ab2185, Abcam, Cambridge, MA, USA), polyclonal rabbit anti-Prdx6 (LF-PA0011) and rabbit anti-glyceraldehyde-3-phosphate dehydrogenase (GAPDH, LF-PA0018), AbFrontier Co., Seoul, Korea). Horseradish peroxidase (HRP)-conjugated secondary antibodies were purchased from Jackson ImmunoResearch Laboratories Inc. (West Grove, PA, USA). An immortalized auditory cell line (HEI-OC1) derived from the organ of Corti of Immortomouse transgenic mice was kindly provided by Dr. Federico Kalinec (Dept. of Cell and Molecular Biology, House Ear Institute, Los Angeles, CA, USA). All other chemicals (biotechnology grade) were purchased from Sigma-Aldrich (St. Louis, MO, USA).

2.2. Cell Culture and CoCl2/H2O2 Treatment

The establishment and characterization of the immortalized HEI-OC1 auditory cells were performed as described previously [22]. HEI-OC1 cells were cultured in high-glucose Dulbecco’s modified Eagle’s medium containing 10% fetal bovine serum (FBS) and penicillin (100 U/mL)/streptomycin (100 μg/mL) at 33 °C with 10% CO2 atmosphere in a humidified incubator. For experiments involving CoCl2 or H2O2 exposure, cells were seeded at ~70% confluence on 60-mm culture dishes and cultured for 24 h under standard conditions. Cells were deprived gradually of serum by incubation in 2% FBS overnight, followed by incubation in serum-free medium for 3 h. These serum-starved cells were exposed to different concentrations of CoCl2 or H2O2 at the indicated times. In preconditioning studies, cells were preincubated with 200 μM CoCl2 for 6 h. Next, the culture medium containing CoCl2 was changed, and cells were treated with 25 μM H2O2 for 9 h. This experimental procedure including time schedule is summarized in Figure 1.

2.3. Cytotoxicity Assay

Cell viability was measured by a Cell Counting Kit-8 (CCK-8, Dojindo Laboratories, Kumamoto, Japan) according to the manufacturer’s instructions. The cells were seeded onto 96-well plates at a density of 5 × 103 cells/well. Following serum starvation, cells were treated with CoCl2, H2O2, or both for 24 h as described above. The amount of dark blue formazan product was determined by measuring absorbance at 450 nm using a microplate spectrophotometer (Molecular Devices Corp., Sunnyvale, CA, USA). The absorbance value in untreated control cells was taken as 100% of viability.

2.4. Detection of Intracellular Oxygen Radicals

Intracellular ROS level was measured using a fluorescent dye, 5-(and-6)-chloromethyl-2′,7′-dichlorodihydrofluorescein diacetate acetylester (CM-H2DCFDA, Molecular Probes, Inc., Eugene, OR, USA). Serum-starved cells grown on 96-well plates (4 × 103 cells/well) were treated with 200 μM CoCl2 for 6 h, 25 μM H2O2 for 9 h, or both as described above. Cells were then washed twice with Hank’s balanced salt solution (HBSS) and incubated with 5 μM CM-H2DCFDA at 33 °C for 20 min in the dark. After washing with HBSS, the levels of DCF fluorescence were immediately measured using a luminescence spectrofluorometer (VICTOR 3; Perkin-Elmer, Waltham, MA, USA) with excitation and emission wavelengths of 485 and 535 nm, respectively. The values were converted to folds for comparison with the untreated control.

2.5. Construction of Murine NRF-2 or HIF-1α Gene Knockdown (KD) Plasmids

The shRNA expression vectors targeting the murine Nrf-2 and HIF-1α genes were generated by designing target DNA oligonucleotides (Table 1). The expression vectors were subcloned into pLKO.1-puro lentiviral vector (Addgene, Cambridge, MA, USA) double-digested with Age I and EcoR I (pLKO-mNrf-2 or pLKO-mHIF-1α). Subsequently, each recombinant plasmid was transformed into competent DH5α E. coli cells. Correct short hairpin (sh) sequence formation was confirmed by DNA sequencing.

2.6. Construction of ARE- and HRE-Deleted Reporter Plasmids (pGL3-mPxΔARE or pGL3-mPxΔHRE)

A luciferase reporter plasmid (pGL3-mPx) containing the proximal 5′-flanking region of the murine Prdx6 promoter (668bp) has been described elsewhere [17,21]. In each mutant-reporter plasmid, the deletion of the HRE or antioxidant response element (ARE) consensus sequences within the Prdx6 promoter was done with the QuikChange site-directed mutagenesis kit (Stratagene, La Jolla, CA, USA) using pGL3-mPx as the template and appropriate sets of primers. DNA sequencing was used to verify the mutant constructs with the deletions (pGL3-mPxΔARE or pGL3-mPxΔHRE).

2.7. Transfection of NRF-2 or HIF-1α KD Plasmids into HEI-OC1 Cells

HEI-OC1 cells that reached ~70% confluence, were transfected with the reporter plasmids using Lipofectamine 2000 (Invitrogen, Carlsbad, CA, USA). HEI-OC1 cells were transfected with the same amount of mock vector as an internal control. Forty-eight hours after transfection, cells were harvested for immunoblot analysis of Nrf-2 or HIF-1α expression. To evaluate the cell viability, each transfectant was treated with CoCl2, H2O2, or both as described above.

2.8. Luciferase Reporter Assay

HEI-OC1 cells were seeded in 24-well culture plates at a density of 1 × 105 cells/well and cotransfected with pGL3-mPx and each shRNA expression vector (pLKO-mNrf-2 or pLKO-mHIF-1α). Additionally, cells were cotransfected with wild- or mutant-reporter plasmids (pGL3-mPxΔARE or pGL3-mPxΔHRE) and Nrf-2 or HIF-1α overexpression plasmids (pcDNA-Nrf-2 or HA-HIF-1α-pcDNA3) as described elsewhere [20]. For the normalization of transfection efficiency, the pCMV-β-gal plasmid was simultaneously transfected into the cells. About 48 h after transfection, cells were treated with CoCl2 (200 μM) for 6 h. Luciferase and β-galactosidase activities from total cell lysate were measured according to respective Bright-Glo Luciferase and Beta-Glo Assay kits (Promega, Madison, WI, USA) using a microplate luminometer (Perkin-Elmer). The luciferase activities of individual reporter plasmids were normalized to those of β-galactosidase.

2.9. Immunoblot Analysis

Cells were washed with ice-cold PBS and lysed with RIPA buffer (Sigma-Aldrich) supplemented with complete protease inhibitor cocktail and centrifuged at 13,000× g at 4 °C for 20 min. Nuclear proteins were isolated using the NE-PER Cytoplasmic and Nuclear Protein extraction kit (Pierce Biotechnology, Rockford, IL, USA) according to the manufacturer’s instructions. Protein concentration was determined with the BCA Protein Assay kit (Pierce Biotechnology). Next, 30 μg of total soluble proteins or 5 μg of nuclear proteins were separated by SDS-PAGE and transferred to nitrocellulose membranes (Merck-Millipore, Billerica, MA, USA). The membranes were probed with primary antibodies (1:1000 dilution) described in Materials, followed by incubation with appropriate secondary antibodies (1:5000 dilution). The immunoreactive bands were visualized with a West-Q chemiluminescent Substrate kit (GenDEPOT, Barker, TX, USA) and the band intensities on films were analyzed by densitometry to quantify protein expression using a FluorS MultiImager (Bio-Rad, Hercules, CA, USA). The membranes then were washed with Restore Western Blot Stripping Buffer (Thermo Scientitis, Waltham, MA, USA) and reprobed with 1:1000 diluted anti-GAPDH polyclonal or anti-Lamin B polyclonal antibodies to normalize for cytosolic or nuclear protein loading, respectively.

2.10. Administration of Mice with CoCl2

All experimental procedures were performed in compliance with the guidelines of the National Institutes of Health and the Declaration of Helsinki. The Committee on the Use and Care of Animals of the University of Ulsan approved protocols. Animal care was performed under the supervision of the Laboratory Animal Unit of the Asan Institute for Life Sciences (IACUC No. 2016-13-271; date of approval, November 14, 2016). Male CBA mice at 5–6 weeks (~20 g) of age (Oriental Charles River Technology, Seoul, Korea) were intraperitoneally administered with vehicle (saline) or CoCl2 (60 mg/kg body weight). After 6 h, both cochleae were removed, fixed with 4% formaldehyde/1% glutaraldehyde in 0.1 M sodium phosphate buffer, decalcified in 5.5% EDTA, and embedded in paraffin.

2.11. Immunohistochemistry

Deparaffinized and rehydrated cochlear paraffin sections (5-μm thick) were heated in a microwave oven in 10 mM sodium citrate buffer (pH 6.0) for antigen retrieval and then pretreated with 3% H2O2 in 0.1 M Tris-buffered saline (TBS) (pH 7.4) to quench endogenous peroxidase activity. The sections were incubated with TBS containing 5% normal goat serum and the primary antibodies (1:500 dilution for HIF-1α and Nrf-2, 1:7500 dilution for Prdx6) overnight at 4 °C, followed by goat anti-rabbit polyclonal HRP-conjugated secondary antibody (1:100 dilution; DakoNorth America, Inc., Carpinteria, CA, USA). Immunostaining of each protein was visualized with an ImmPACT™ DAB Peroxidase Substrate kit (Vector Laboratories, Burlingame, CA, USA). The sections were counterstained with Mayer’s hematoxylin, dehydrated, cleared in xylene, and mounted in Permount. Images of sections were recorded with an upright microscope (Nikon Eclipse Ci, Tokyo, Japan).

2.12. Statistical Analysis

Data were expressed as means ± standard deviation (SD) of three or more independent experiments. Differences between groups were evaluated using the Student t-test or two-way ANOVA with Tukey’s post-hoc test, as appropriate. Differences between mean values were considered statistically significant at p < 0.05.

3. Results

3.1. Effects of CoCl2 on Cell Viability and HIF-1α, Nrf-2, and Prdx6 Protein Expression

We reported previously that hypoxic preconditioning mediated by CoCl2 injection prevented hearing loss in noise-exposed mice [9]. To know whether this preconditioning effect was applicable to auditory cells, serum-starved HEI-OC1 cells were exposed to 100–800 μM CoCl2 for 6 h, followed by incubation in serum-free medium for 24 h. The CCK-8 assay showed that CoCl2-induced cell proliferation increased in a dose-dependent manner up to 200 μM. Higher concentration treatment (400–800 μM) resulted in the reduction of cell viability, indicating that relatively low concentrations of CoCl2 (i.e., mild hypoxic condition) was required for cell proliferation (Figure 2A).
It has been well known that hypoxic conditions not only result in the upregulation of HIF-1α and its target genes but also ROS generation. Therefore, we examined whether the expressions of HIF-1α, another redox-active transcription factor, and target genes such as NRF-2 and Prdx6 were regulated by CoCl2 exposure. Immunoblot analysis revealed nuclear accumulation of HIF-1α and Nrf-2 at 100–300 μM of CoCl2, concomitant with increased Prdx6 expression. At 500 μM, the expression levels of HIF-1α and Nrf-2 decreased to nearly similar levels with those of untreated cells or below basal levels (Figure 2B). Since treatment of HEI-OC1 cells with 200 μM CoCl2 for 6 h triggered the highest proliferation and maximum increase in HIF-1α, NRF-2, and Prdx6 (Figure 2C) expression, the same CoCl2 concentration, and duration of exposure were used in subsequent preconditioning studies.

3.2. Cytotoxic Effect of H2O2 on HEI-OC1 Cells

HEI-OC1 cells were exposed to 12.5–200 μM of H2O2 for 24 h. Next, cell survival rates were examined by the CCK-8 assay. As Figure 3A shows, H2O2 treatment decreased the viability of cells in a dose-dependent manner, in which its significant reduction was evident at concentrations of 12.5 μM and higher, relative to that of an untreated control. Additionally, the expression levels of HIF-1α, Nrf-2, and Prdx6 proteins were inversely proportional to dose-dependent cytotoxicity (data not shown), suggesting that the expression of these proteins is indispensable for cell survival after exposure to oxidative stress. Indeed, while 6 h of CoCl2 (200 μM) treatment resulted in significantly elevated expression levels for these proteins, 24 h of H2O2 (100 μM) treatment resulted in dramatically reduced expression levels to below that of an untreated control (Figure 3B). Their self-inductions were detected as early as 3 h of the exposure and began to decline gradually at 6 h (Figure S1).

3.3. Effect of CoCl2 Preconditioning on H2O2-Induced Cytotoxicity

To examine the preconditioning effect of CoCl2 on H2O2-exposed cells, HEI-OC1 cells were first preincubated with 200 μM CoCl2 for 6 h followed by incubation with 25 μM H2O2 for 9 h. The CCK-8 assay was used to assess cell viability. As Figure 4A shows, pretreatment with CoCl2 improved cell viability by ~25% regarding that observed for H2O2 exposure alone. Concomitant with this, CoCl2 pretreatment resulted in the recovery of HIF-1α and Nrf-2 nuclear accumulation and Prdx6 expression, as well as degradation of cytosolic Keap1 (Figure 4B), suggesting that the maintenance of the expression levels of these proteins is closely associated with cell survival against oxidative insults.
Next, CoCl2 treatment resulted in increased generation of intracellular ROS, and further increases in H2O2-treated cells by ~2.6-fold. Pretreatment of CoCl2 significantly reduced ROS accumulation mediated by H2O2, but still higher than that of an untreated control (Figure 4C). Taken together, these results suggest that a relatively moderate level of ROS may induce the activities of antioxidant enzymes such as HIF-1α, Nrf-2, and Prdx6, preventing oxidative cytotoxicity.

3.4. Inhibitory Effect of HIF-1α or NRF-2 knockdown (KD) on Prdx6 Expression and Preconditioning

Since HIF-1α and Nrf-2 are known transcription factors for the Prdx6 gene [20], we examined whether changes in HIF-1α or NRF-2 expression levels had any effect on Prdx6 expression. Cells were transiently transfected with the HIF-1α and Nrf-2 KD plasmids, or an empty vector. At 48 h after transfection, cells were exposed to 200 μM CoCl2 for a further 6 h. Immunoblot analysis revealed ~0.8- or ~0.9-fold reduced expression of Nrf-2 or HIF-1α in HIF-1α and Nrf-2 KD cells treated with CoCl2 compared to their expression levels in mock plasmid transfected cells. Additionally, the level of Prdx6 expression in both KD transfectants was markedly decreased by ~0.5-fold. While Nrf-2 KD suppressed the expression of HIF-1α by ~0.25-fold, HIF-1α KD did not affect the level of Nrf-2 expression (Figure 5A). Cotransfection of pGL3-mPx reporter with each KD plasmid resulted in a ~0.6-fold decrease in Prdx6 promoter-driven luciferase activity induced by CoCl2 (Figure 5B), suggesting that both HIF-1α and Nrf-2 function as positive transcription factors for Prdx6. Relative luciferase activity of each KD transfectants was further decreased in the absence of CoCl2, probably due to the silence of residual HIF-1α or NRF-2 gene that was escaped from KD. Moreover, protective CoCl2-mediated preconditioning effect on H2O2-induced cytotoxicity was markedly attenuated in each KD transfectants relative to that of mock transfectants (Figure 5C). A lesser but significant reduction of cell viability by Nrf-2 or HIF-1α KD was observed in each untreated transfectant, indicating that their basal expressions are required for cell survival.

3.5. Transactivation of the Prdx6 Promoter by HIF-1α and Nrf-2

To evaluate the direct correlation between the expression of HIF-1α, Nrf-2, and Prdx6 genes, we analyzed the binding sites for HIF-1α and Nrf-2 in the murine Prdx6 promoter. A web-based computer analysis (Matlnspector; Genomatrix) revealed the presence of two putative HIF-1α binding sites on hypoxic response elements (HRE) at positions, −208 to −203 and −162 to −157, and validated Nrf-2 binding to the ARE between −474 and −465 (Figure 6A) described elsewhere [23]. To verify that the regions responsible for HIF-1α- and Nrf-2-mediated activation were HRE and ARE respectively, reporter constructs with deleted HRE or ARE regions were tested in cotransfection experiments with the HIF-1α or Nrf-2 overexpression plasmids with or without CoCl2 treatment. Generation of reporter HIF-1α or NRF-2 overexpression plasmids using the wild-type reporter (WT, pGL3mPx) markedly elevated the luciferase activity even in the absence of CoCl2 compared with that in the mock transfectant, demonstrating their roles in positive transcription factors of Prdx6 gene expression. The CoCl2-driven luciferase activity was further elevated by ~1.2-fold. On the other hand, this activity was significantly suppressed in ARE or HRE deletion constructs (pGL3-mPxΔARE or pGL3-mPxΔHRE) even after CoCl2 induction and exogenous overexpression of HIF-1α or Nrf-2 (Figure 6B), indicating that both ARE and HRE are indispensable for Prdx6 promoter activity.

3.6. Distribution of HIF-1α, NRF-2, and Prdx6 Expression in Mouse Cochleae

To know whether CoCl2-induced upregulation of HIF-1α, Nrf-2, and Prdx6 proteins occurred in vivo, we immunohistochemically examined their expressions in the cochlea tissues from mice intraperitoneally injected with saline or CoCl2. As Figure 7A shows, the expressions of HIF-1α and Nrf-2 were observed more intensely in the organ of Corti (OC), spiral ganglion cells (SGC), and stria vascularis (SV) of CoCl2-injected mice than those of saline-injected ones. Immunoreactive expression of Prdx6 in these regions was much stronger in CoCl2-injected mice. Overall increases in HIF1α, Nrf-2, and Prdx6 expression in CoCl2-injected cochlea were ~1.3-, ~2-, and ~3.3-fold, respectively, compared with saline-injected one (Figure 7B). These results indicating that elevated expression of Prdx6 is closely correlated with a CoCl2-induced increase in the protein expression levels of HIF-1α and Nrf-2 in the cochlear tissues.

4. Discussion

It is well established that a noise exposure induced elevation in free radical generation in the cochlea causes oxidative stress-induced sensory hair cell damage with subsequent acoustic trauma such as NIHL. Since the regeneration of injured auditory neurons and hair cells is difficult, there is no effective treatment after the development of a permanent threshold shift. In this respect, the paradigm of preconditioning is one of the most effective approaches for intrinsic protection of the cochlea against noise-induced damage. We reported previously the protective effect of intraperitoneal CoCl2 preinjection on sensory hair cell loss and hearing impairment induced by white band noise exposure in mice [9]. In the present study, we found that CoCl2 pretreatment protected auditory hair cells (HEI-OC1) from H2O2-mediated cytotoxicity via the activation of redox-sensitive transcription factors HIF-1α and Nrf-2 and their target gene Prdx6, demonstrating an in vitro hypoxic preconditioning mechanism for noise-induced cochlear cell injury.
Preconditioning with mild hypoxia can protect various tissues against subsequent lethal hypoxic/ischemic injuries. In the cochlea, sublethal ischemia prevented lethal ischemia-induced hair cell degeneration and ameliorated hearing impairment, suggesting ischemic tolerance [24]. Systemic hypoxia in mice resulted in smaller permanent threshold shifts at all tested frequencies, compared to the air-exposed control [6]. An appealing mechanism for hypoxia-mediated protection is the elevated antioxidative capacity regulation of later excessive free radical formation within the cochlea and other inner ear structures during and after noise exposure. Hypoxic preconditioning can be chemically mimicked using CoCl2, where ionized cobalt interferes with intracellular oxygen homeostasis. Cobalt is an essential element found in the form of cyanocobalamin (vitamin B12) and it is critical for animals due to its involvement in red blood cell production and nervous system function. Although exposure to a high dose or prolonged exposure to a low dose of CoCl2 induces apoptosis and necrosis with inflammatory responses, its beneficial effects include stimulation of erythropoiesis and angiogenesis, promotion of tissue adaptation to hypoxia, and improvement of ischemic/hypoxic tolerance [25]. In the present study, treatment with 100–200 μM CoCl2 for 6 h resulted in the proliferation of HEI-OC1 cells. However, at higher dose ranges, this proliferative effect was reduced (Figure 2), suggesting a dose and exposure time-dependent optimal preconditioning effect. The same CoCl2 concentration range has been reported to promote the proliferation and migration of rhesus choroid endothelial cells [26].
Cobalt triggers free radical generation via a Fenton-like reaction. We observed intracellular ROS generation slightly increased in HEI-OC1 cells exposed to CoCl2 for 6 h, as assessed by a peroxide-sensitive fluorescent probe, CM-H2DCFDA (Figure 4C). In contrast to the detrimental effects of an abrupt alternation of redox status probably due to massive ROS production, moderate amounts of ROS act as second messengers in signal transduction and gene regulation in various cell types, thus protecting against lethal oxidative stress. HIF-1α and Nrf-2 are well known redox-sensitive transcription factors that activate the expression of genes involved in the adaptation of cells and tissues to hypoxia and detoxification/antioxidant defense, respectively [27]. In the present study, maximal accumulation of HIF-1α and Nrf-2 was detected in the nuclei of HEI-OC1 cells treated with CoCl2 for 6 h, and a concurrent maximal elevation was observed in the cytosolic levels of their target, Prdx6 (Figure 2). This exposure time coincided with the highest proliferation rate mediated by CoCl2, indicating that ROS generation under these conditions promotes the induction of redox response genes and cellular proliferation.
Excessive free radical generation induced by noise exposure causes the accumulation of lipid peroxidation products, oxidized proteins, and oxidative DNA adducts in the cochlea and other inner ear cells, promoting the death of the hair cells and nerve endings with subsequent hearing loss. Exposure of mice to intense broadband noise resulted in the significant elevation of cochlear ROS levels within 1–2 h following the exposure, along with anatomical abnormalities of the OC and a permanent threshold shift [28]. Additionally, intense noise increased the expression of lipid peroxidation products such as 8-isoprostane in the SV, SGC, and the OC of guinea pigs. In the OC, the heavily immunoreactive outer hair cells than inner hair cells were well correlated with permanent hair cell damage [29]. The accumulation of ROS and RNS markers appeared rapidly and transiently in the inner ear during and following high-intensity noise exposure, while hair cell loss progressively increased over time, stabilizing two or more weeks after a single insult. Therefore, oxidative/nitrative stress triggered by noise begins early and persists for an extended time even after termination of noise exposure [30]. In all, these findings imply that noise-induced immediate hair cell injury might be attributable to mechanical irritation plus transiently intensive free radical generation, whereas its continuous generation contributes to long-term hair cell loss and eventually, permanent hearing loss. In the present study, noise-induced oxidative stress in hair cells was mimicked by direct H2O2 exposure, causing a dose-dependent increase in cell death and suppression of HIF-1α, NRF-2, and Prdx6 expression to below the expression levels observed in the untreated control (Figure 3). This oxidative stress-mediated cytotoxicity, protein degradation, and intracellular ROS accumulation were attenuated by CoCl2 pretreatment (Figure 4). The protective effect of CoCl2 on oxidative injury has been also reported in HepG2 tumor cells treated with tert-butyl hydroperoxide/serum deprivation [31], neonatal piglets that underwent hypothermic circulatory arrest [32], and in rats exposed to hypobaric hypoxia-induced oxidative stress [33], where the upregulation of HIF-1α and its target proteins play crucial roles for benefiting from CoCl2 preconditioning.
In addition to HIF-1α [6,9], a protective role has been reported for Nrf-2 in NIHL animal models. The Nrf-2/heme oxygenase-1 (HO-1) signaling pathway was activated in the OC of rats intraperitoneally administered with rosmarinic acid, resulting in the reduction of the noise-induced oxidative stress triggered a generation of superoxide and lipid peroxidation [34]. Nrf-2-null mice exhibited more severe impairment of hearing than its WT counterparts at day 7 after noise exposure, whereas treatment with Nrf-2-activating drugs before noise exposure preserved the integrity of hair cells and improved post-exposure hearing levels in only the WT mice. Moreover, a single nucleotide polymorphism in the human NRF-2 promoter was associated with sensory neuronal hearing loss [35]. In the present study, shRNA KD of HIF-1α or NRF-2 abolished the endogenous upregulation of HIF-1α or NRF-2 along with Prdx6 expression and cell proliferation induced by CoCl2 pretreatment, thus, failing subsequent cytoprotection against oxidative insults (Figure 5). A similar correlation between reduced HIF-1α and Nrf-2 expression and increased apoptotic cell death has been previously reported in chronic hypoxia-mediated neurodegeneration [36]. In particular, we found that Nrf-2 KD attenuated the induction of HIF-1α expression, suggesting its role as a transcriptional regulator of HIF-1α expression. This is consistent with a previous finding, where downregulation of NRF-2 expression via shRNA interference impaired the hypoxia-mediated induction of HIF-1α and its target gene expression in glioblastoma cells [37]. Nrf-2 is also required for the arsenite-mediated upregulation of HIF-1α in HepG2 hepatoma cells [38]. A direct regulatory connection between Nrf-2 and HIF-1α via the Nrf-2 binding site (ARE) in the enhancer region upstream of HIF-1α gene has been recently reported, indicating that Nrf-2 plays a role in HIF-1α expression [39].
Elevated ROS generation or oxidative stress actively induces Prdx6 expression. Prdx6 functions as an antioxidant through its peroxidase activity, reducing various oxidants including H2O2, short-chain hydroperoxides, oxidized fatty acids, and phospholipid hydroperoxides [11]. Transcriptional regulation of Prdx6 gene is mediated by multiple redox-active transcription factors to its promoter [20]. In the present study, one ARE and two HRE consensus sequences were observed in the murine Prdx6 promoter and both Nrf-2 and HIF-1α contributed to the CoCl2-induced expression of Prdx6, as confirmed by the KD and mutant promoter/reporter assays (Figure 5 and Figure 6). ChIP analyses using primer sets covering the ARE and HRE regions and a respective antibody revealed that their binding abilities were substantially increased by CoCl2 treatment (data not shown), confirming that both sequences are functionally responsible for the binding of Nrf-2 and HIF-1α, respectively. These results indicate that Nrf-2 and HIF-1α recognize their respective ARE and HRE sequences within the murine Prdx6 promoter and function as transactivators for the Prdx6 gene during the CoCl2 preconditioning period. Consistent with the findings from the present study, it has been shown in other studies that the transcriptional upregulation of other antioxidants/phase II-detoxifying enzymes such as HO-1 in Kupffer cells from ethanol-fed rats is mediated by the binding of Nrf-2 and HIF-1α to their respective sequences within the HO-1 promoter, thus protecting the liver from alcohol-induced injury [40]. The Keap1/Nrf-2/ARE pathway-mediated upregulation of Prdx6 mRNA expression has been reported in human lung carcinoma cells (A549) and primary rat alveolar type II cells treated with H2O2 or tert-butylhydroquinone [19]. Additionally, Prdx6 expression has been associated with cell viability in retinal ganglion cells treated with CoCl2, where the prolonged exposure triggered reduction in Prdx6 expression was related to an increase in hypoxia-induced cell death [41]. In all, these findings implicate that an Nrf-2/HIF-1α pathway regulated induction of Prdx6 expression plays protective roles in oxidative stress-induced cell death.
Accumulation of HIF-1α was reported previously in the noise-exposed cochlea of mice, where its expression was elevated in OC, SV, and SGC after a 3h exposure to white band noise with 120dB peak equivalent sound pressure level [42]. Furthermore, the induction of HIF-1α expression by CoCl2 preinjection minimized sensory hair cell loss caused by subsequent noise exposure in these regions, compared with the saline preinjected controls [9]. In the human cochlea, Nrf-2 immunoreactivity was detected in the cytoplasm and nuclei of hair and supporting cells of OC and the vestibular sensory epithelia, and its reactivity significantly decreased with age [43]. Consistent with these findings, the present study showed a more intense immunoreactivity for HIF-1α, Nrf-2, and Prdx6 in the OC, SV, and SGC regions of CoCl2-injected cochleae compared to that observed in the same regions of saline-injected controls (Figure 7). Considering the accumulation of free radicals in these regions during and after noise exposure and their antioxidant capacities, it is likely that the induction of HIF-1α and Nrf-2 by CoCl2 injection leads to the transcriptional upregulation of Prdx6, in turn protecting the cochlea from noise-triggered oxidative damage. Prdx6 is widely distributed throughout all major mammalian organs with high contents in the lung, brain, liver, kidney, and testis. Within tissues, Prdx6 expression is the highest in epithelium, including apical regions of olfactory and respiratory epithelium and skin epidermis, where it functions in vivo as an antioxidant enzyme [11]. Since noise-induced cochlear damage is caused by direct mechanical destruction, excessive free radical generation, and reduction of cochlear blood flow, elevated protein expression of Prdx6 in OC, SV, and SGC postulates that it might be involved in repairing noise-mediated mechanical wounds, antioxidative defense, as well as restoration of redox homeostasis. This is supported by findings from previous studies showing endogenous Prdx6 overexpression in the hyperproliferative epidermis of mouse skin wounds [44] and actively proliferating epithelia and anterior stroma of wounded rat corneas after photorefractive keratectomy [45]. Moreover, Prdx6 has been reported to participate in the protection of the epidermis from UV-induced damage and the formation of new blood vessels in inflamed tissues caused by excision injury, suggesting its requirement for blood vessel integrity and viability in the wounded tissue [46]. To our knowledge, this is the first report of Prdx6 immunolocalization to mouse cochlear tissues.

5. Conclusions

In conclusion, we have shown that CoCl2 pretreatment before severe oxidative insult attenuates oxidative stress-induced cytotoxicity in auditory hair cells. The protective effect of CoCl2 is achieved through the activation of an antioxidant defense signaling pathway involving Nrf-2, HIF-1α, and Prdx6. Our findings improve the knowledge of the beneficial mechanisms behind hypoxic preconditioning, and at the same time provide a new paradigm for the rational design of co-therapies for preventing/repairing cochlear injuries caused by acoustic trauma.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3921/8/9/399/s1, Figure S1: Expression of HIF-1, Nrf2, and Prdx6 at 0–6 h of 100 μM H2O2 treatment.

Author Contributions

Conceptualization, J.H.P. and J.W.C.; methodology, J.Y., S.R., H.B., I.K.K., and J.W.K.; validation, J.Y. and J.W.K.; investigation, I.K.K., J.W.K., and J.W.C.; resources, J.H.P.; writing—original draft preparation, J.Y. and S.R.; writing—review and editing, J.H.P.; visualization, J.Y. and S.R.; supervision, J.H.P. and J.W.C.; project administration, J.H.P. and J.W.C.; funding acquisition, J.H.P. and J.W.C.

Funding

This study was supported by grants from Asan Institute for Life Sciences, Korea [grant number 2017-349, JH Pak] and by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MEST) [grant number NRF-2016R1D1A1B03934900, JW Chung].

Acknowledgments

Authors thank Da Hyun Lee for the initial promoter assay and Bo Young Jeon for figure rearrangement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Henderson, D.; Bielefeld, E.C.; Harris, K.C.; Hu, B.H. The role of oxidative stress in noise-induced hearing loss. Ear Hear. 2006, 27, 1–19. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  2. Le Prell, C.G.; Yamashita, D.; Minami, S.B.; Yamasoba, T.; Miller, J.M. Mechanisms of noise-induced hearing loss indicate multiple methods of prevention. Hear. Res. 2007, 226, 22–43. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  3. Yoshida, N.; Kristiansen, A.; Liberman, M.C. Heat stress and protection from permanent acoustic injury in mice. J. Neurosci. 1999, 19, 10116–10124. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  4. Wang, Y.; Hirose, K.; Liberman, M.C. Dynamics of noise-induced cellular injury and repair in the mouse cochlea. J. Assoc. Res. Otolaryngol. 2002, 3, 248–268. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  5. Niu, X.; Canlon, B. Protective mechanisms of sound conditioning. Adv. Otorhinolaryngol. 2002, 59, 96–105. [Google Scholar] [PubMed]
  6. Gagnon, P.M.; Simmons, D.D.; Bao, J.; Lei, D.; Ortmann, A.J.; Ohlemiller, K.K. Temporal and genetic influences on protection against noise-induced hearing loss by hypoxic preconditioning in mice. Hear. Res. 2007, 226, 79–91. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  7. Giusti, S.; Fiszer de Plazas, S. Neuroprotection by hypoxic preconditioning involves upregulation of hypoxia-inducible factor-1 in a prenatal model of acute hypoxia. J. Neurosci. Res. 2012, 90, 468–478. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  8. Xi, L.; Taher, M.; Yin, C.; Salloum, F.; Kukreja, R.C. Cobalt chloride induces delayed cardiac preconditioning in mice through selective activation of HIF-1alpha and AP-1 and iNOS signaling. Am. J. Physiol. Heart Circ. Physiol. 2004, 287, 2369–2375. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  9. Chung, J.W.; Shin, J.E.; Han, K.W.; Ahn, J.H.; Kim, Y.J.; Park, J.W.; So, H.S. Up-regulation of hypoxia-inducible factor-1 alpha by cobalt chloride prevents hearing loss in noise-exposed mice. Environ. Toxicol. Pharmacol. 2011, 31, 153–159. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  10. Rhee, S.G.; Chae, H.Z.; Kim, K. Peroxiredoxins: A historical overview and speculative preview of novel mechanisms and emerging concepts in cell signaling. Free Radic. Biol. Med. 2005, 38, 1543–1552. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  11. Fisher, A.B. Peroxiredoxin 6: A bifunctional enzyme with glutathione peroxidase and phospholipase A2 activities. Antioxid. Redox Signal. 2011, 15, 831–844. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  12. Manevich, Y.; Sweitzer, T.; Pak, J.H.; Feinstein, S.I.; Muzykantov, V.; Fisher, A.B. 1-Cys peroxiredoxin overexpression protects cells against phospholipid peroxidation-mediated membrane damage. Proc. Natl. Acad. Sci. USA 2002, 99, 11599–11604. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Pak, J.H.; Manevich, Y.; Kim, H.S.; Feinstein, S.I.; Fisher, A.B. An antisense oligonucleotide to 1-cys peroxiredoxin causes lipid peroxidation and apoptosis in lung epithelial cells. J. Biol. Chem. 2002, 277, 49927–49934. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  14. Wang, Y.; Phelan, S.A.; Manevich, Y.; Feinstein, S.I.; Fisher, A.B. Transgenic mice overexpressing peroxiredoxin 6 show increased resistance to lung injury in hyperoxia. Am. J. Respir. Cell Mol. Biol. 2006, 34, 481–486. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  15. Wang, Y.; Feinstein, S.I.; Manevich, Y.; Ho, Y.S.; Fisher, A.B. Peroxiredoxin 6 gene-targeted mice show increased lung injury with paraquat-induced oxidative stress. Antioxid. Redox Signal. 2006, 8, 229–237. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  16. Lee, T.H.; Yu, S.L.; Kim, S.U.; Kim, Y.M.; Choi, I.; Kang, S.W.; Rhee, S.G.; Yu, D.Y. Characterization of the murine gene encoding 1-Cys peroxiredoxin and identification of highly homologous genes. Gene 1999, 234, 337–344. [Google Scholar] [CrossRef] [Scilit]
  17. Lee, I.S.; Choi, W.H.; Kim, J.Y.; Jeong, J.Y.; Kim, M.J.; Nam, J.H.; Kim, J.H.; Seo, S.B.; Pak, J.H. Transcriptional regulation of the murine 1-cys peroxiredoxin gene by the B cell-specific activator protein, Pax5. J. Cell. Biochem. 2008, 104, 465–476. [Google Scholar] [CrossRef] [Scilit]
  18. Fatma, N.; Singh, D.P.; Shinohara, T.; Chylack, L.T., Jr. Transcriptional regulation of the antioxidant protein 2 gene, a thiol-specific antioxidant, by lens epithelium-derived growth factor to protect cells from oxidative stress. J. Biol. Chem. 2001, 276, 48899–48907. [Google Scholar] [CrossRef] [Scilit]
  19. Chowdhury, I.; Mo, Y.; Gao, L.; Kazi, A.; Fisher, A.B.; Feinstein, S.I. Oxidant stress stimulates expression of the human peroxiredoxin 6 gene by a transcriptional mechanism involving an antioxidant response element. Free Radic. Biol. Med. 2009, 46, 146–153. [Google Scholar] [CrossRef] [Scilit]
  20. Pak, J.H.; Son, W.C.; Seo, S.B.; Hong, S.J.; Sohn, W.M.; Na, B.K.; Kim, T.S. Peroxiredoxin 6 expression is inversely correlated with nuclear factor-kappaB activation during Clonorchis sinensis infestation. Free Radic. Biol. Med. 2016, 99, 273–285. [Google Scholar] [CrossRef] [Scilit]
  21. Ahn, J.H.; Shin, J.E.; Chung, B.Y.; Lee, H.M.; Kang, H.H.; Chung, J.W.; Pak, J.H. Involvement of retinoic acid-induced peroxiredoxin 6 expression in recovery of noise-induced temporary hearing threshold shifts. Environ. Toxicol. Pharmacol. 2013, 36, 463–471. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Kalinec, G.M.; Webster, P.; Lim, D.J.; Kalinec, F. A cochlear cell line as an in vitro system for drug ototoxicity screening. Audiol. Neurootol. 2003, 8, 177–189. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  23. Gallagher, B.M.; Phelan, S.A. Investigating transcriptional regulation of Prdx6 in mouse liver cells. Free Radic. Biol. Med. 2007, 42, 1270–1277. [Google Scholar]
  24. Takeda, S.; Hata, R.; Cao, F.; Yoshida, T.; Hakuba, N.; Hato, N.; Gyo, K. Ischemic tolerance in the cochlea. Neurosci. Lett. 2009, 462, 263–266. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  25. Simonsen, L.O.; Harbak, H.; Bennekou, P. Cobalt metabolism and toxicology—a brief update. Sci. Total Environ. 2012, 432, 210–215. [Google Scholar] [CrossRef] [Scilit]
  26. Lin, K.; Ye, P.; Liu, J.; He, F.; Xu, W. Endostar inhibits hypoxia-induced cell proliferation and migration via the hypoxia-inducible factor-1alpha/vascular endothelial growth factor pathway in vitro. Mol. Med. Rep. 2015, 11, 3780–3785. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  27. Cadenas, S. ROS and redox signaling in myocardial ischemia-reperfusion injury and cardioprotection. Free Radic. Biol. Med. 2018, 117, 76–89. [Google Scholar] [CrossRef] [Scilit]
  28. Ohlemiller, K.K.; Wright, J.S.; Dugan, L.L. Early elevation of cochlear reactive oxygen species following noise exposure. Audiol. Neurootol. 1999, 4, 229–236. [Google Scholar] [CrossRef] [Scilit]
  29. Ohinata, Y.; Miller, J.M.; Altschuler, R.A.; Schacht, J. Intense noise induces formation of vasoactive lipid peroxidation products in the cochlea. Brain Res. 2000, 878, 163–173. [Google Scholar] [CrossRef] [Scilit]
  30. Yamashita, D.; Jiang, H.Y.; Schacht, J.; Miller, J.M. Delayed production of free radicals following noise exposure. Brain Res. 2004, 1019, 201–219. [Google Scholar] [CrossRef] [Scilit]
  31. Piret, J.P.; Mottet, D.; Raes, M.; Michiels, C. CoCl2, a chemical inducer of hypoxia-inducible factor-1, and hypoxia reduce apoptotic cell death in hepatoma cell line HepG2. Ann. N.Y. Acad Sci. 2002, 973, 443–447. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  32. Kerendi, F.; Kirshbom, P.M.; Halkos, M.E.; Wang, N.-P.; Kin, H.; Jiang, R.; Zhao, Z.-Q.; Kanter, K.R.; Guyton, R.A.; Vinten-Johansen, J. Cobalt chloride Pretreatment attenuates myocardial apoptosis after hypothermic circulatory arrest. Ann. Thorac. Surg. 2006, 81, 2055–2062. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  33. Thomas, P.; Bansal, A.; Singh, M.; Shukla, D.; Saxena, S. Preconditioning effect of cobalt chloride supplementation on hypoxia induced oxidative stress in male albino rats. Biomed. Prev. Nutr. 2011, 1, 84–90. [Google Scholar] [CrossRef] [Scilit]
  34. Fetoni, A.R.; Paciello, F.; Rolesi, R.; Eramo, S.L.; Mancuso, C.; Troiani, D.; Paludetti, G. Rosmarinic acid up-regulates the noise-activated Nrf2/HO-1 pathway and protects against noise-induced injury in rat cochlea. Free Radic. Biol. Med. 2015, 85, 269–281. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  35. Honkura, Y.; Matsuo, H.; Murakami, S.; Sakiyama, M.; Mizutari, K.; Shiotani, A.; Yamamoto, M.; Morita, I.; Shinomiya, N.; Kawase, T.; et al. NRF2 is a key target for prevention of noise-induced hearing loss by reducing oxidative damage of cochlea. Sci. Rep. 2016, 6, 19329. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  36. Hota, K.B.; Hota, S.K.; Srivastava, R.B.; Singh, S.B. Neuroglobin regulates hypoxic response of neuronal cells through Hif-1alpha- and Nrf2-mediated mechanism. J. Cereb. Blood Flow Metab. 2012, 32, 1046–1060. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  37. Ji, X.; Wang, H.; Zhu, J.; Zhu, L.; Pan, H.; Li, W.; Zhou, Y.; Cong, Z.; Yan, F.; Chen, S. Knockdown of Nrf2 suppresses glioblastoma angiogenesis by inhibiting hypoxia-induced activation of HIF-1alpha. Int. J. Cancer 2014, 135, 574–584. [Google Scholar] [CrossRef] [Scilit]
  38. Al Taleb, Z.; Petry, A.; Chi, T.F.; Mennerich, D.; Gorlach, A.; Dimova, E.Y.; Kietzmann, T. Differential transcriptional regulation of hypoxia-inducible factor-1alpha by arsenite under normoxia and hypoxia: Involvement of Nrf2. J. Mol. Med. 2016, 94, 1153–1166. [Google Scholar] [CrossRef] [Scilit]
  39. Lacher, S.E.; Levings, D.C.; Freeman, S.; Slattery, M. Identification of a functional antioxidant response element at the HIF1A locus. Redox Biol. 2018, 19, 401–411. [Google Scholar] [CrossRef] [Scilit]
  40. Yeligar, S.M.; Machida, K.; Kalra, V.K. Ethanol-induced HO-1 and NQO1 are differentially regulated by HIF-1alpha and Nrf2 to attenuate inflammatory cytokine expression. J. Biol. Chem. 2010, 285, 35359–35373. [Google Scholar] [CrossRef] [Scilit]
  41. Tulsawani, R.; Kelly, L.S.; Fatma, N.; Chhunchha, B.; Kubo, E.; Kumar, A.; Singh, D.P. Neuroprotective effect of peroxiredoxin 6 against hypoxia-induced retinal ganglion cell damage. BMC Neurosci. 2010, 11, 125. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  42. Chung, J.W.; Kang, H.H.; Shin, J.E.; Kim, J.U. Accumulation of hypoxia-inducible factor-1alpha in mouse inner ear by noise stimulation. Neuroreport 2004, 15, 2353–2356. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  43. Hosokawa, K.; Hosokawa, S.; Ishiyama, G.; Ishiyama, A.; Lopez, I.A. Immunohistochemical localization of Nrf2 in the human cochlea. Brain Res. 2018, 1700, 1–8. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  44. Munz, B.; Frank, S.; Hubner, G.; Olsen, E.; Werner, S. A novel type of glutathione peroxidase: Expression and regulation during wound repair. Biochem. J. 1997, 326, 579–585. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  45. Tchah, H.; Kim, M.J.; Kim, T.I.; Choi, H.J.; Kim, J.Y.; Kim, M.J.; Pak, J.H. Regulation of 1-cys peroxiredoxin expression in the process of stromal wound healing after photorefractive keratectomy. Invest. Ophthalmol. Vis. Sci. 2005, 46, 2396–2403. [Google Scholar] [CrossRef] [Scilit]
  46. Kumin, A.; Schafer, M.; Epp, N.; Bugnon, P.; Born-Berclaz, C.; Oxenius, A.; Klippel, A.; Bloch, W.; Werner, S. Peroxiredoxin 6 is required for blood vessel integrity in wounded skin. J. Cell Biol. 2007, 179, 747–760. [Google Scholar] [CrossRef] [Scilit]
Antioxidants 08 00399 g001

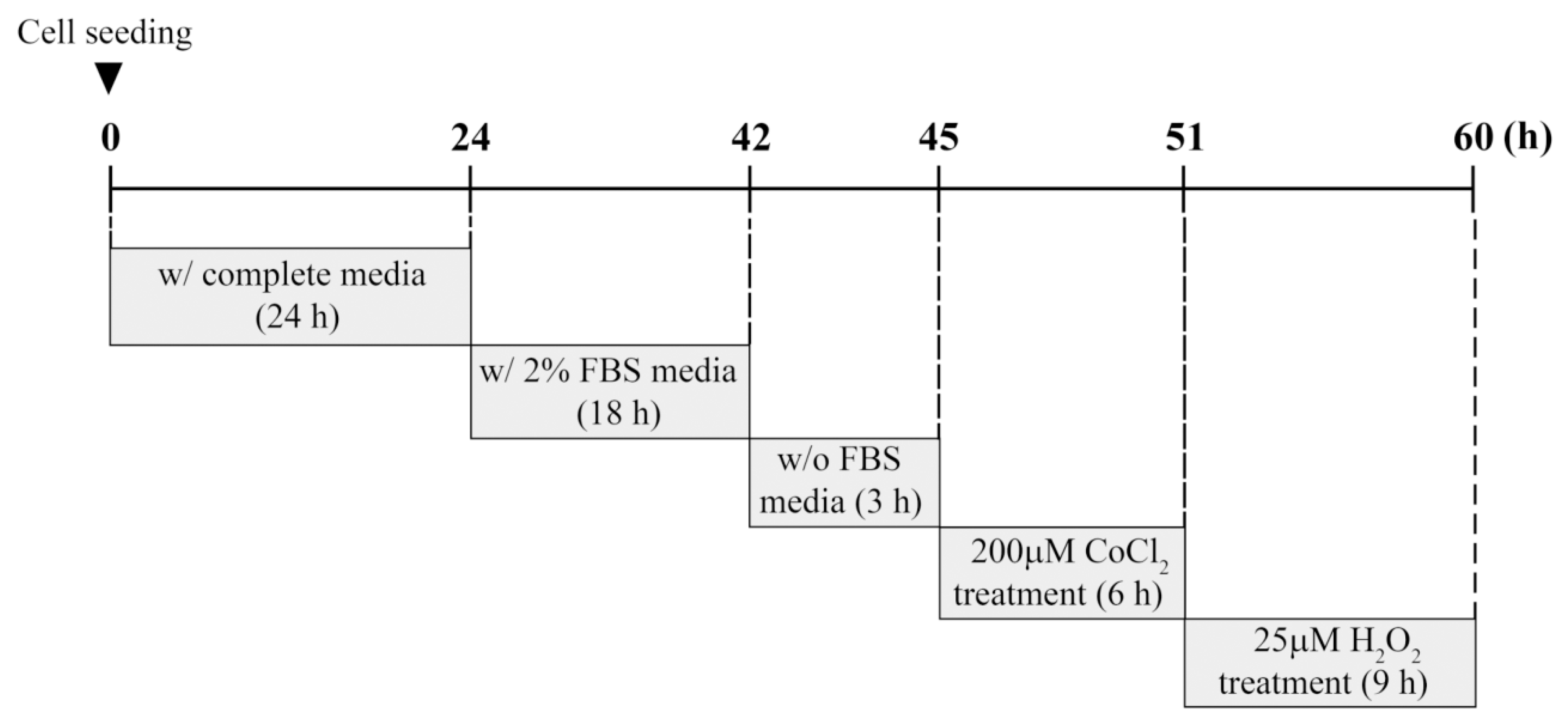

Figure 1. Experimental scheme for preconditioning with CoCl2 followed by H2O2 treatment.
Figure 1. Experimental scheme for preconditioning with CoCl2 followed by H2O2 treatment.
Antioxidants 08 00399 g001
Antioxidants 08 00399 g002

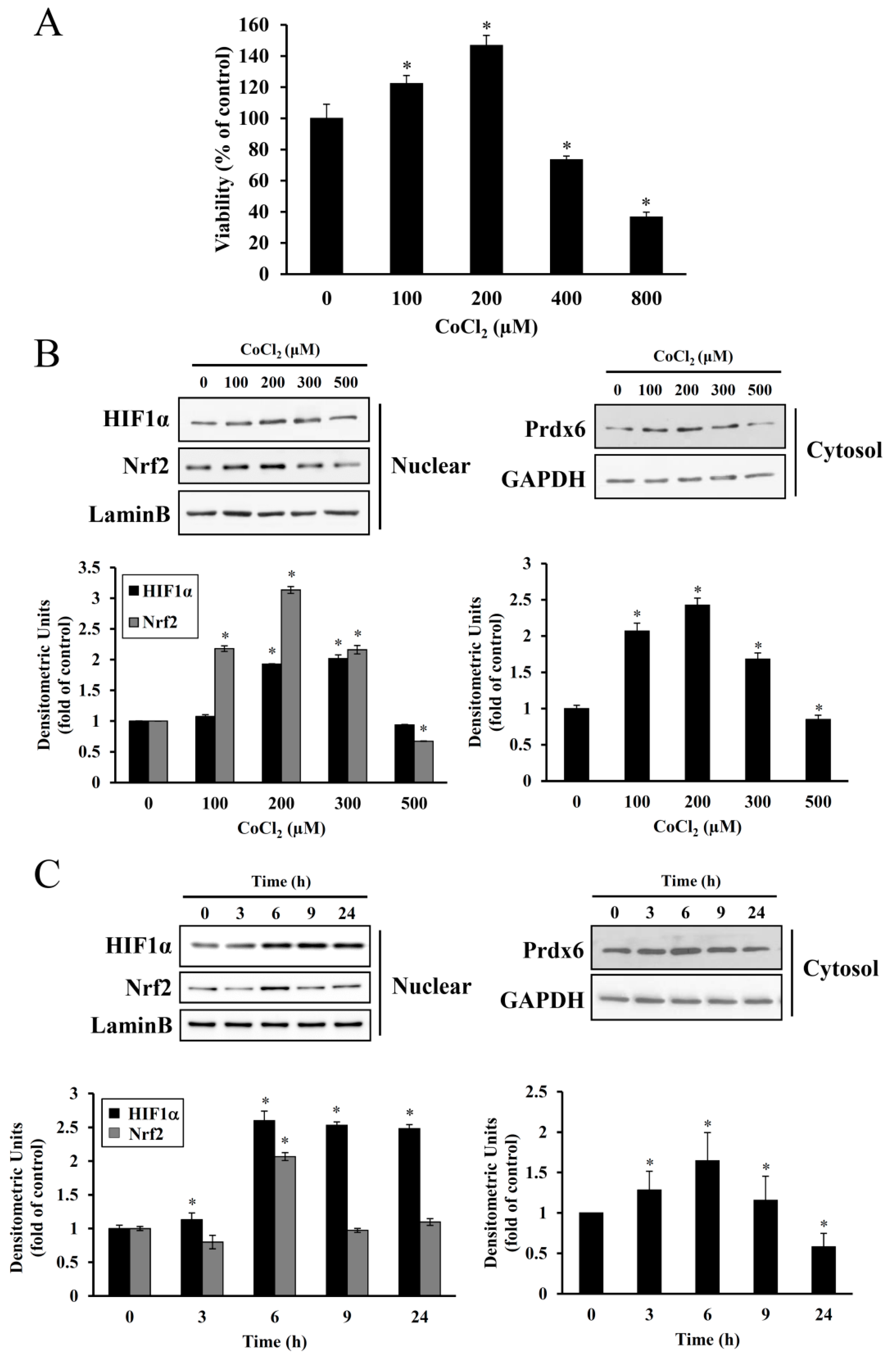

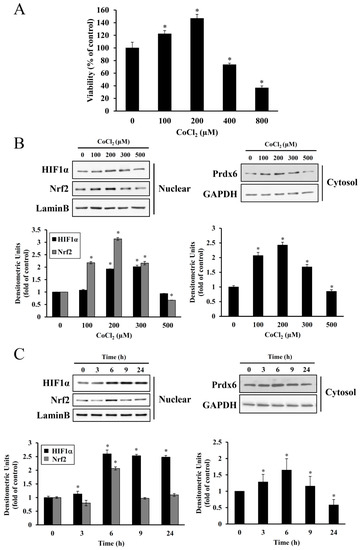

Figure 2. Effect of CoCl2 on HEI-OC1 cell proliferation and HIF-1α, NRF-2, and Prdx6 expression. (A) Cells were treated with 0–800 μM CoCl2 for 6 h, replaced with fresh medium, and further cultured for 24 h. Cell proliferation was then determined using a CCK-8 assay, which measures the production of formazan dye by live cells. Data are presented as means ± SDs for three independent experiments, expressed as a percentage of the untreated control. * p < 0.05, compared with untreated control. (B,C) After treatment with 0–500 μM CoCl2 for 6 h or 200 μM CoCl2 for the indicated times, nuclear or cytosolic proteins were immunoblotted for HIF-1α, Nrf-2, and Prdx6 expression, respectively. The membranes were then stripped and reprobed with Lamin B or GAPDH polyclonal antibody (a control for protein loading). Individual data were quantified as densitometric units and normalized with expected loading control proteins. Each data represents fold changes relative to untreated controls or the zero time point. Data are presented as means ± SDs for the three independent experiments (* p < 0.05, compared with untreated control or zero time point control).
Figure 2. Effect of CoCl2 on HEI-OC1 cell proliferation and HIF-1α, NRF-2, and Prdx6 expression. (A) Cells were treated with 0–800 μM CoCl2 for 6 h, replaced with fresh medium, and further cultured for 24 h. Cell proliferation was then determined using a CCK-8 assay, which measures the production of formazan dye by live cells. Data are presented as means ± SDs for three independent experiments, expressed as a percentage of the untreated control. * p < 0.05, compared with untreated control. (B,C) After treatment with 0–500 μM CoCl2 for 6 h or 200 μM CoCl2 for the indicated times, nuclear or cytosolic proteins were immunoblotted for HIF-1α, Nrf-2, and Prdx6 expression, respectively. The membranes were then stripped and reprobed with Lamin B or GAPDH polyclonal antibody (a control for protein loading). Individual data were quantified as densitometric units and normalized with expected loading control proteins. Each data represents fold changes relative to untreated controls or the zero time point. Data are presented as means ± SDs for the three independent experiments (* p < 0.05, compared with untreated control or zero time point control).
Antioxidants 08 00399 g002
Antioxidants 08 00399 g003

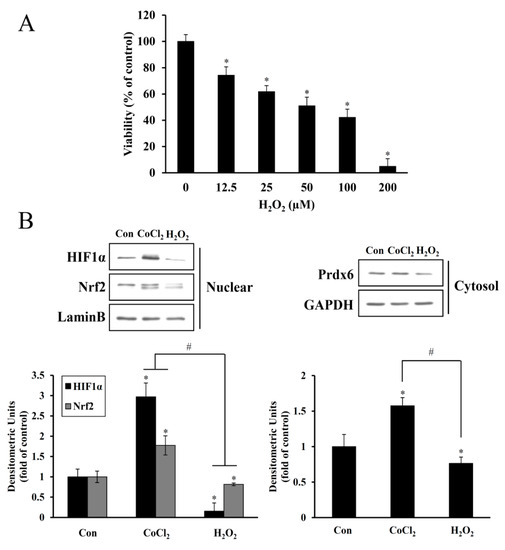

Figure 3. Inhibitory effect of H2O2 on HEI-OC1 cell viability and HIF-1α, NRF-2, and Prdx6 expression. (A) After exposure to 0–200 μM H2O2 for 24 h, cell viability was determined using the CCK-8 assay. Data are presented as means ± SDs for the three independent experiments, expressed as a percentage of the untreated control. * p < 0.05, compared with the untreated control. (B) Cells treated with 200 μM CoCl2 for 6 h or 100 μM H2O2 for 24 h were harvested, and nuclear and cytosolic proteins were analyzed by immunoblotting for HIF-1α, Nrf-2, and Prdx6. Protein bands were quantified using densitometry, and their abundances were expressed relative to the density of Lamin B or GAPDH band. The ratio of HIF-1α and Nrf-2 to Lamin B or Prdx6 to GAPDH are presented as fold changes relative to the untreated control. Data are presented as the means ± SDs of three independent experiments (* p < 0.05, compared with the control; # p < 0.05, CoCl2 versus H2O2).
Figure 3. Inhibitory effect of H2O2 on HEI-OC1 cell viability and HIF-1α, NRF-2, and Prdx6 expression. (A) After exposure to 0–200 μM H2O2 for 24 h, cell viability was determined using the CCK-8 assay. Data are presented as means ± SDs for the three independent experiments, expressed as a percentage of the untreated control. * p < 0.05, compared with the untreated control. (B) Cells treated with 200 μM CoCl2 for 6 h or 100 μM H2O2 for 24 h were harvested, and nuclear and cytosolic proteins were analyzed by immunoblotting for HIF-1α, Nrf-2, and Prdx6. Protein bands were quantified using densitometry, and their abundances were expressed relative to the density of Lamin B or GAPDH band. The ratio of HIF-1α and Nrf-2 to Lamin B or Prdx6 to GAPDH are presented as fold changes relative to the untreated control. Data are presented as the means ± SDs of three independent experiments (* p < 0.05, compared with the control; # p < 0.05, CoCl2 versus H2O2).
Antioxidants 08 00399 g003
Antioxidants 08 00399 g004

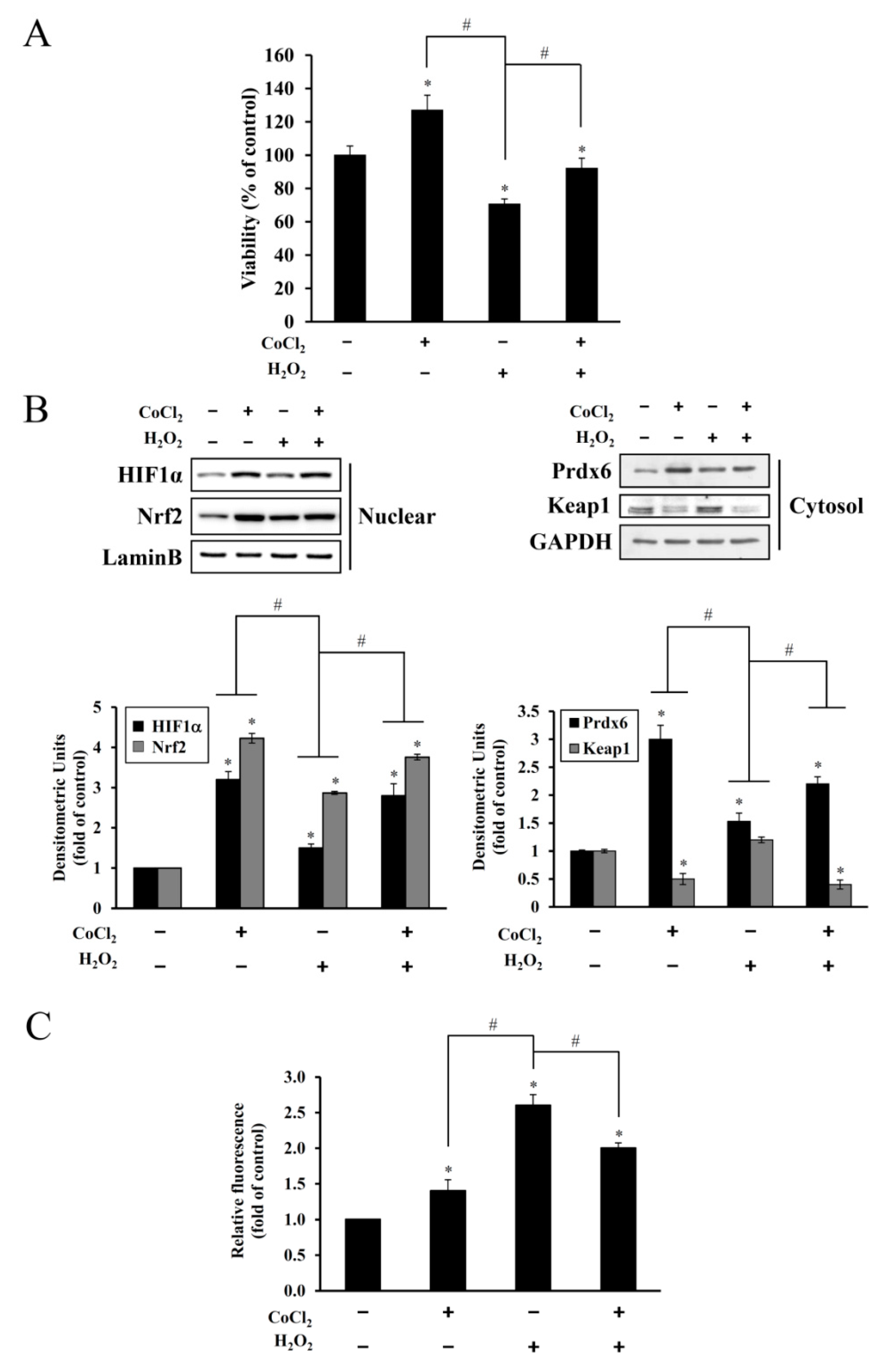

Figure 4. Protective effect of CoCl2 on H2O2-induced cytotoxicity, repression of HIF-1α, Nrf-2, Keap1, and Prdx6 expression, and ROS accumulation. HEI-OC1 cells were preincubated with 200 μM CoCl2 for 6 h before exposure to 25 μM H2O2 for 9 h. (A) The CCK-8 assay was used to determine cell viability. Data are presented as means ± SDs for three independent experiments expressed as a percentage of the untreated control (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2). (B) Representative immunoblot showing HIF-1α, Nrf-2, Keap1, and Prdx6 expression. Individual bands were quantified densitometrically and normalized to Lamin B (HIF-1α and Nrf-2) or GAPDH (Prdx6 and Keap1). Values in the graphs are presented as fold changes relative to the untreated control, expressed as means ± SDs of three independent experiments (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2). (C) After the treatment as described above, the levels of ROS were determined by measuring CM-H2DCFDA. Data are presented as fold changes relative to the untreated control, expressed as ± SDs of three independent experiments (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2).
Figure 4. Protective effect of CoCl2 on H2O2-induced cytotoxicity, repression of HIF-1α, Nrf-2, Keap1, and Prdx6 expression, and ROS accumulation. HEI-OC1 cells were preincubated with 200 μM CoCl2 for 6 h before exposure to 25 μM H2O2 for 9 h. (A) The CCK-8 assay was used to determine cell viability. Data are presented as means ± SDs for three independent experiments expressed as a percentage of the untreated control (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2). (B) Representative immunoblot showing HIF-1α, Nrf-2, Keap1, and Prdx6 expression. Individual bands were quantified densitometrically and normalized to Lamin B (HIF-1α and Nrf-2) or GAPDH (Prdx6 and Keap1). Values in the graphs are presented as fold changes relative to the untreated control, expressed as means ± SDs of three independent experiments (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2). (C) After the treatment as described above, the levels of ROS were determined by measuring CM-H2DCFDA. Data are presented as fold changes relative to the untreated control, expressed as ± SDs of three independent experiments (* p < 0.05, compared with the untreated control, # p < 0.05, CoCl2 only versus H2O2 only or CoCl2 plus H2O2).
Antioxidants 08 00399 g004
Antioxidants 08 00399 g005

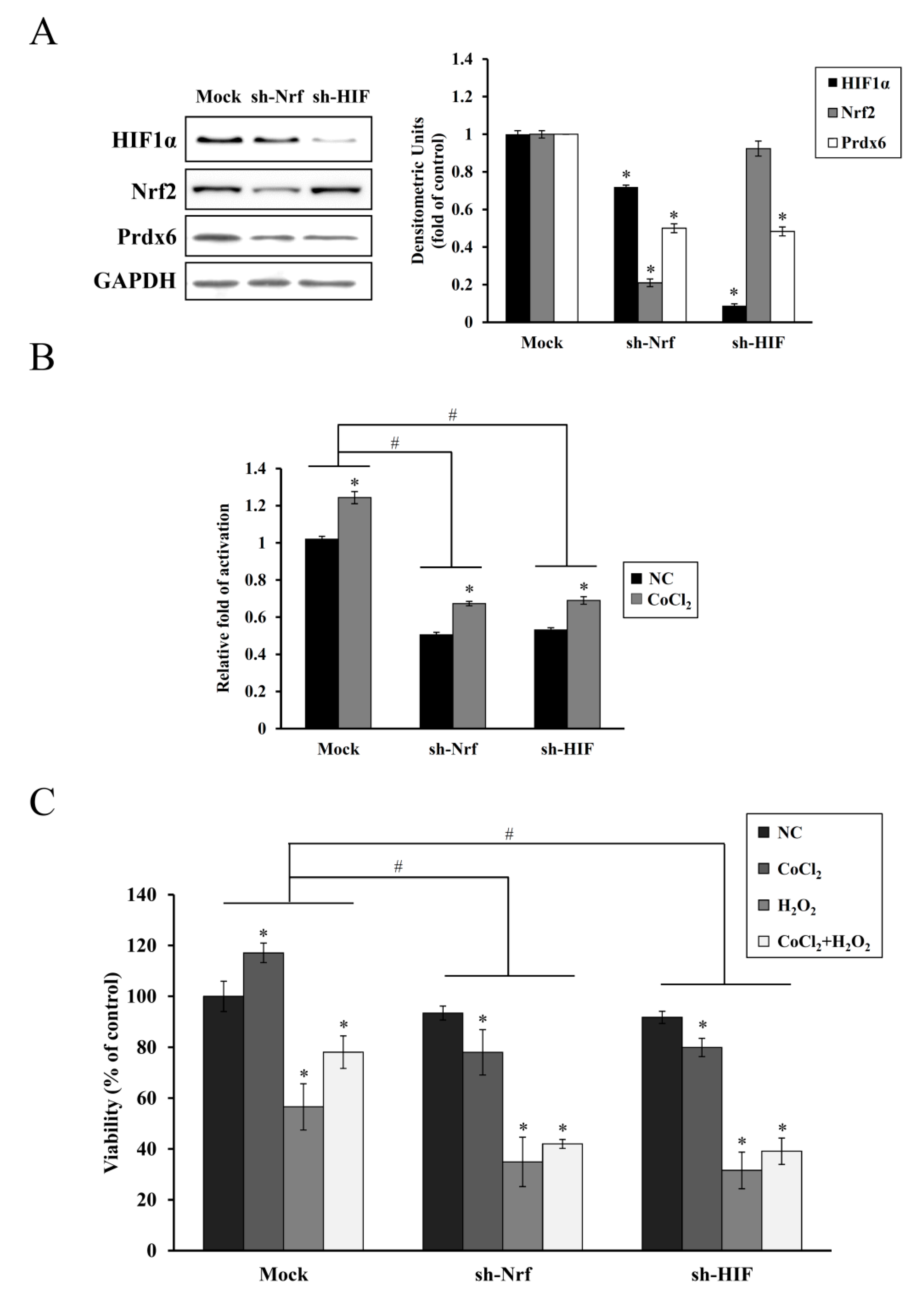

Figure 5. Inhibitory effect of Nrf-2 and HIF-1α knockdown on Prdx6 expression and preconditioning induced by CoCl2. (A) HEI-OC1 cells transfected with the pLKO.1(mock), pLKO-mNrf-2 (sh-Nrf), or pLKO-mHIF-1α (sh-HIF) were treated with 200 μM CoCl2 for 6 h. Next, Nrf-2, HIF-1α, and Prdx6 expression were analyzed via immunoblotting. Individual bands were quantified densitometrically and normalized to GAPDH. Values in the graph are presented as fold changes relative to the mock transfectant, expressed as means ± SDs of three independent experiments (* p < 0.05, compared with the mock control) (B) Cells were cotransfected with the pGL3-mPx luciferase reporter vector and each KD plus the β-galactosidase plasmid. After 24 h, cells were treated with 200 μM CoCl2 for 6 h, and luciferase activities were determined. Luciferase activities were normalized to that of β-galactosidase. Data are presented as means ± SDs for three independent experiments, expressed as a fold change relative to the mock transfectant. * p < 0.05, compared with the untreated control (NC), # p < 0.05, mock group versus sh-Nrf or sh-HIF group. (C) Cells transfected with mock or each KD plasmid were treated with 200 μM CoCl2 for 6 h, 25 μM H2O2 for 9 h, or CoCl2 plus H2O2, and cell viability was evaluated using the CCK-8 assay. Data are expressed as a percentage of the mock/untreated control and presented as means ± SDs for three independent experiments. * p < 0.05, compared with the untreated control (NC), # p < 0.05, mock group versus sh-Nrf or sh-HIF group.
Figure 5. Inhibitory effect of Nrf-2 and HIF-1α knockdown on Prdx6 expression and preconditioning induced by CoCl2. (A) HEI-OC1 cells transfected with the pLKO.1(mock), pLKO-mNrf-2 (sh-Nrf), or pLKO-mHIF-1α (sh-HIF) were treated with 200 μM CoCl2 for 6 h. Next, Nrf-2, HIF-1α, and Prdx6 expression were analyzed via immunoblotting. Individual bands were quantified densitometrically and normalized to GAPDH. Values in the graph are presented as fold changes relative to the mock transfectant, expressed as means ± SDs of three independent experiments (* p < 0.05, compared with the mock control) (B) Cells were cotransfected with the pGL3-mPx luciferase reporter vector and each KD plus the β-galactosidase plasmid. After 24 h, cells were treated with 200 μM CoCl2 for 6 h, and luciferase activities were determined. Luciferase activities were normalized to that of β-galactosidase. Data are presented as means ± SDs for three independent experiments, expressed as a fold change relative to the mock transfectant. * p < 0.05, compared with the untreated control (NC), # p < 0.05, mock group versus sh-Nrf or sh-HIF group. (C) Cells transfected with mock or each KD plasmid were treated with 200 μM CoCl2 for 6 h, 25 μM H2O2 for 9 h, or CoCl2 plus H2O2, and cell viability was evaluated using the CCK-8 assay. Data are expressed as a percentage of the mock/untreated control and presented as means ± SDs for three independent experiments. * p < 0.05, compared with the untreated control (NC), # p < 0.05, mock group versus sh-Nrf or sh-HIF group.
Antioxidants 08 00399 g005
Antioxidants 08 00399 g006

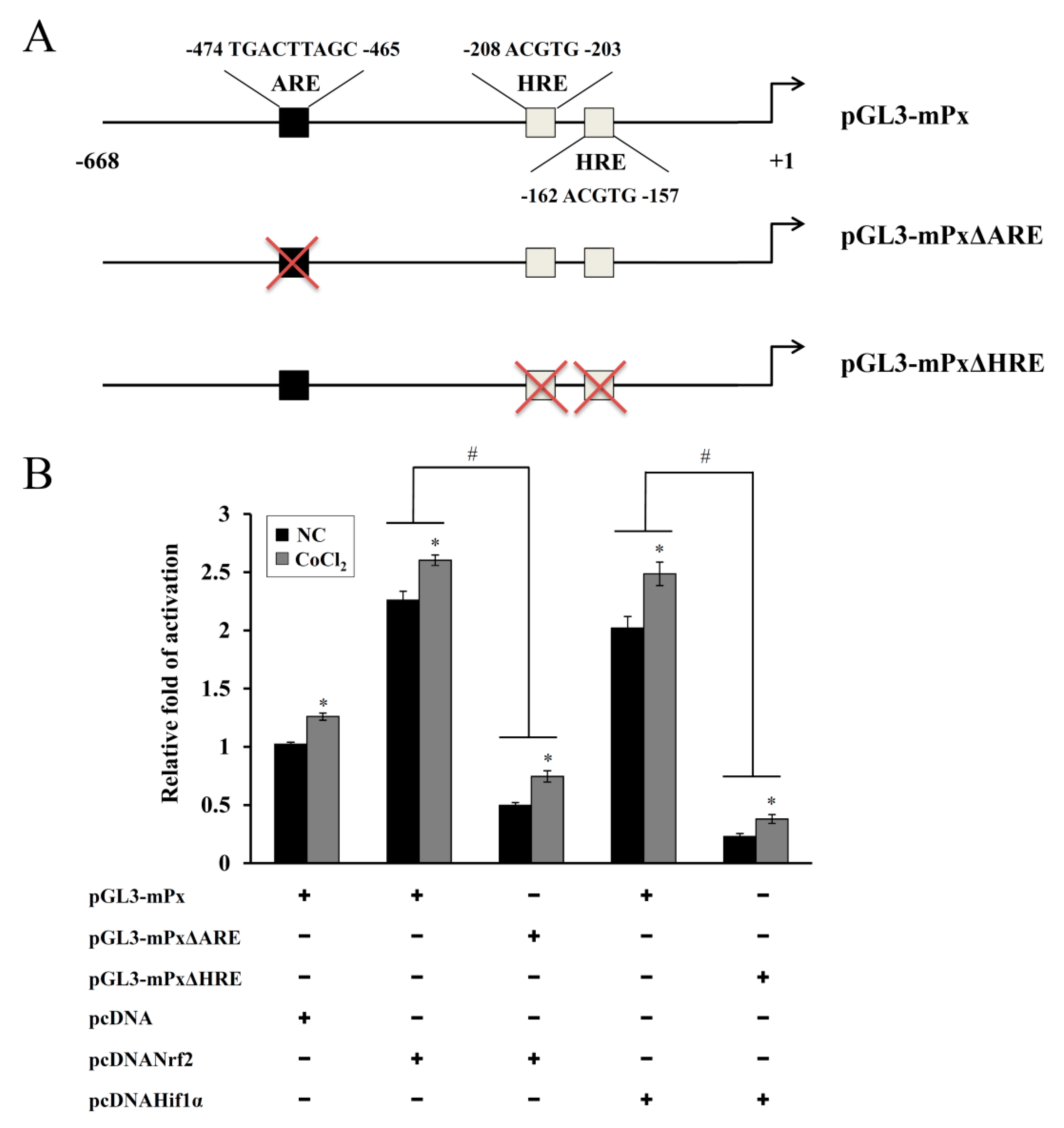

Figure 6. Role of the HRE and ARE in Prdx6 gene expression. (A) Schematic illustration of the Prdx6 promoter containing ARE and two HRE sites (a black box for Nrf-2 binding site, white boxes for HIF-1α binding sites). Deletion of the ARE or two HREs were generated by site-directed mutagenesis of the full-length promoter (pGL3-mPx) in the pGL3-Basic vector, namely pGL3-mPxΔARE and pGL3-mPxΔHRE. (B) Each reporter vector and the β-galactosidase expression plasmid were cotransfected with the empty pcDNA3 vector, the Nrf-2, or HIF-1α expression plasmid into HEI-OC1 cells. After 48 h, cells were incubated with 200 μM CoCl2 for 6 h, and the luciferase activity was determined. Luciferase activities were normalized to that of β-galactosidase. Data are presented as the means ± SDs of three independent experiments. * p < 0.05, compared with the untreated control (NC), # p < 0.05, pGL3-mPx group versus pGL3-mPxΔARE or pGL3-mPxΔHRE group.
Figure 6. Role of the HRE and ARE in Prdx6 gene expression. (A) Schematic illustration of the Prdx6 promoter containing ARE and two HRE sites (a black box for Nrf-2 binding site, white boxes for HIF-1α binding sites). Deletion of the ARE or two HREs were generated by site-directed mutagenesis of the full-length promoter (pGL3-mPx) in the pGL3-Basic vector, namely pGL3-mPxΔARE and pGL3-mPxΔHRE. (B) Each reporter vector and the β-galactosidase expression plasmid were cotransfected with the empty pcDNA3 vector, the Nrf-2, or HIF-1α expression plasmid into HEI-OC1 cells. After 48 h, cells were incubated with 200 μM CoCl2 for 6 h, and the luciferase activity was determined. Luciferase activities were normalized to that of β-galactosidase. Data are presented as the means ± SDs of three independent experiments. * p < 0.05, compared with the untreated control (NC), # p < 0.05, pGL3-mPx group versus pGL3-mPxΔARE or pGL3-mPxΔHRE group.
Antioxidants 08 00399 g006
Antioxidants 08 00399 g007

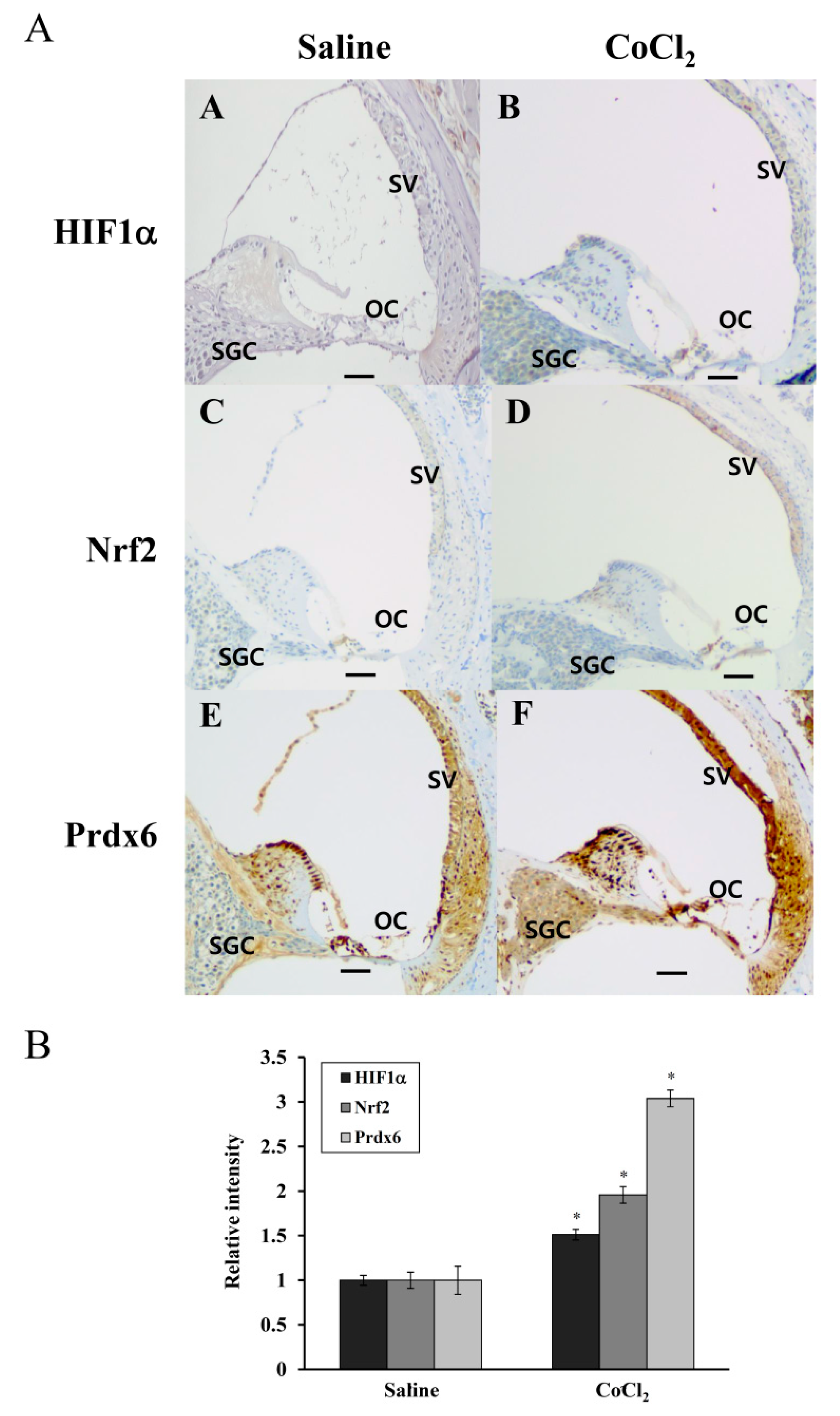

Figure 7. HIF-1α, Nrf-2, and Prdx6 expression in the cochleae of saline- or CoCl2-injected mice. Mouse cochlear paraffin sections were used for immunohistochemical analyses of HIF-1α, Nrf-2, and Prdx6 expression. (A) The expressions of HIF-1α (A: saline-injected, B: CoCl2-injected), Nrf-2 (C: saline-injected, D: CoCl2-injected), and Prdx6 (E: saline-injected, F: CoCl2-injected) are marked with brown-colored deposits and nuclei are counterstained with hematoxylin. OC, organ of Corti, SV, stria vascularis; SGC, spiral ganglion cells. Original magnification ×100, scale bar = 100 μm. (B) The intensities of the dark brown dots in images were quantified using an Image J program. Data in the graph is presented as fold changes relative to the saline-injected cochleae, expressed as ± SDs of three independent experiments. * p < 0.05, compared with the saline-injected cochleae.
Figure 7. HIF-1α, Nrf-2, and Prdx6 expression in the cochleae of saline- or CoCl2-injected mice. Mouse cochlear paraffin sections were used for immunohistochemical analyses of HIF-1α, Nrf-2, and Prdx6 expression. (A) The expressions of HIF-1α (A: saline-injected, B: CoCl2-injected), Nrf-2 (C: saline-injected, D: CoCl2-injected), and Prdx6 (E: saline-injected, F: CoCl2-injected) are marked with brown-colored deposits and nuclei are counterstained with hematoxylin. OC, organ of Corti, SV, stria vascularis; SGC, spiral ganglion cells. Original magnification ×100, scale bar = 100 μm. (B) The intensities of the dark brown dots in images were quantified using an Image J program. Data in the graph is presented as fold changes relative to the saline-injected cochleae, expressed as ± SDs of three independent experiments. * p < 0.05, compared with the saline-injected cochleae.
Antioxidants 08 00399 g007
Table 1. Murine HIF-1α and Nrf-2 short hairpin (sh) DNA sequences.
Table 1. Murine HIF-1α and Nrf-2 short hairpin (sh) DNA sequences.
Short Hairpin (sh) DNA Sequences (5′ to 3′)
HIF-1αF:CCG GTG GAT AGC GAT ATG GTC AAT GCT CGA GCA TTG ACC ATA TCG CTA TCC ATT TTT G
R:AAT TCA AAA ATG GAT AGC GAT ATG GTC AAT GCT CGA GCA TTG ACC ATA TCG CTA TCC A
Nrf-2F:CCG GCT TGA AGT CTT CAG CAT GTT ACT CGA GTA ACA TGC TGA AGA CTT CAA GTT TTT G
R:AAT TCA AAA ACT TGA AGT CTT CAG CAT GTT ACT CGA GTA ACA TGC TGA AGA CTT CAA
