Transformation Induced Plasticity Effects of a Non-Equal Molar Co-Cr-Fe-Ni High Entropy Alloy System

Abstract

Metastability-engineering strategy is an important topic for high entropy alloys (HEAs), owing to the transformation-induced plasticity effect (TRIP). In this work, TRIP effects of Co-Cr-Fe-Ni HEAs are investigated. Results indicate the tensile deformation-induced martensitic transformation occurs in Co₃₅Cr₂₅Fe_40−xNi_x (x = 0–15 at %) HEAs. The excellent combination of tensile strength (760 MPa–1000 MPa) and elongation (65–35%) owe to solid solution strengthening of Co and Cr, and the TRIP effect. In non-equal molar Co-Cr-Fe-Ni systems, with the decrease of Ni content, the values of stacking fault energy (SFE) decrease; thus, TRIP phenomena occurs. Based on the experimental investigation in three different regions of the Co-Cr-Fe-Ni multicomponent phase diagram, the face-centered cubic structured Co-Cr-Fe-Ni HEAs with VEC of ~8.0 is more metastable, and TRIP phenomena are more likely to occur.

1. Introduction

High entropy alloys (HEAs), or multi-principal-component alloys [1] show remarkable properties, mainly for their twinning induced plasticity (TWIP) effect [2], or transformation induced plasticity (TRIP) effect [3], due to overcoming the strength-ductility trade-off in the composition design of alloys. Generally, low stacking fault energy (SFE) HEAs with face-centered cubic (FCC) single phases are more likely to deform by twinning, with increased strain hardening rates [2,4,5,6]. With the decreasing temperature, the very low SFE values at cryogenic conditions suggest that the possible presence of the TRIP effect via ab initio calculations [7]. Nano-twins and hexagonal close packed (HCP) lamellae are observed to coexist in CoCrNi at 77 K, suggesting a possible evolution of the deformation mechanism from nano-twinning to phase transformation in equal molar CoCrNi [8]. Usually, the SFE of HEAs were experimentally measured by weak-beam dark-field transmission electron microscopy [5,9] or theoretically calculated by first principles calculations, such as the exact muffin-tin orbitals (EMTO) method [7,10].

CoCrNi alloy exhibits an excellent combination of strength and ductility—greater than that of CoCrFeMnNi alloy at both cryogenic and room temperatures [5]. This indicates that stronger alloys are not necessarily those with the most elements [11]. The Co diffusivity is higher in CoCrFeMnNi than in CoCrFeNi above 1020 K, which suggests that diffusion in HEAs need not be assumed to decrease with an increasing number of elements [12]. It is a challenge to design the proportions of the various elements necessary to obtain better mechanical properties in non-equal molar HEAs based on the nature of the constituent elements. Li et al. [3,13,14,15] reported a series of TRIP-dual phase-HEAs, such as Co₁₀Cr₁₀Fe_80−xMn_x, Co₂₀Cr₂₀Fe_40−xMn₂₀Ni_x. Ab initio calculations also play an important role in HCP-FCC phase stability analyses on Ni content. Simulation results indicate that enhanced HCP phase stability with reduced Ni concentration is beneficial for the appearance of TRIP phenomena in HEAs systems, which helps to obtain the excellent combination of strength and ductility [13]. However, few HEAs systems with the TRIP effects have been reported. Therefore, it is necessary to develop a new class of TRIP assisted HEAs.

It is worth noting that phase stability in HEAs with FCC single phase solid solutions is relative, or conditional. A polymorphic transition from FCC to HCP occurs in the CoCrFeMnNi under hydrostatic compression at room temperature, and the transition is irreversible, which reveals that the FCC phase is a stable polymorph at high temperatures, while the HCP structure is more thermodynamically favorable at lower temperatures [16]. The Cr-rich sigma phase forms at grain boundaries of CoCrFeMnNi HEAs following prolonged exposures at 700 °C [17,18]. A small amount of added Al accelerates the composition and decomposition, and induces the instability of Al_0.1CoCrFeNi HEAs in long duration annealed conditions [19]. These phenomena indicate that HEAs are metastable, and that the addition of certain elements increases their metastability. The valence electron concentration (VEC) is a useful criterion for phase prediction. At VEC ≥ 8.0, a sole FCC solid-solution phase is formed. At VEC < 6.87, a sole BCC solid-solution phase exists. And when 6.87 ≤ VEC < 8, both the FCC and BCC phases will coexist [20], noting that the FCC single phase HEAs with VEC of ~8.0 is more metastable. In the present study, the TRIP effect in non-equal molar Co-Cr-Fe-Ni systems was investigated, and the relationships among the VEC, SFE and TRIP effects were discussed.

2. Experimental Methods

Co₃₅Cr₂₅Fe_40−xNi_x (x = 15 at %, 10 at %, 5 at %, 0 at %), named as Ni-15, Ni-10, Ni-5, Ni-0, and Co₃₀Cr₃₀Fe₂₅Ni₁₅, and Co₂₀Cr₂₅Fe₄₅Ni₁₀ are selected to investigate the correlation of the VEC, SFE and TRIP phenomenas, compared with the previous investigation of Co_xCr₂₅Fe_50−xNi₂₅ with the TWIP phenomena [21]. Alloy ingots were prepared by arc-melting using the constituent pure metals (>99.9% pure) under an Ar atmosphere, and were subsequently homogenized at 1200 °C for 4 h. Then, the samples were warm-rolled at 700 °C by 70% reduction, and annealed at 900 °C for 10 min, followed by water quenching. The dog bone-shaped tensile samples were prepared with a gauge length 10 mm, a width 5 mm, and a thickness 1.2 mm. A SHIMADZU AGS universal electronic tensile testing machine was employed for tensile tests at room temperature with a nominal strain rate of 10⁻³ s⁻¹. X-ray diffraction (XRD) measurements were performed using a Bruker D8 DISCOVER equipped with Cu Kα radiation, operating at 40 kV and 40 mA, between 30° and 100° (2θ), with step size 3°/min, before and after the tensile test. Electron backscatter diffraction (EBSD) measurements were carried out using the JEOL 7100F SEM equipped with the TSL OIM data collection software. JEOL 8530F electron probe microanalysis (EPMA) measurements were used to obtain composition and for elements mapping of micro area. For the microstructural measurements, samples were electrically polished in a solution of 20% HClO₄ and 80% C₂H₅OH at 25 V for 60 s at 273 K, after mechanical polishing.

3. Results and Discussions

3.1. Strain Induced Phase Transformation

Chemical compositions of Co₃₅Cr₂₅Fe_40−xNi_x, measured by wavelength-dispersive spectroscopy, are shown in

Table 1. Chemical compositions of HEAs (at %) measured by wavelength-dispersive spectroscopy.

Alloys	Co	Cr	Fe	Ni	VEC
Co35Cr25Fe25Ni15	34.7 ± 0.3	25.4 ± 0.2	25.1 ± 0.1	14.8 ± 0.2	8.15
Co35Cr25Fe30Ni10	34.8 ± 0.2	25.3 ± 0.2	30.2 ± 0.1	9.7 ± 0.1	8.05
Co35Cr25Fe35Ni5	34.8 ± 0.2	25.4 ± 0.3	35.1 ± 0.2	4.7 ± 0.1	7.95
Co35Cr25Fe40Ni0	34.7 ± 0.2	25.2 ± 0.3	40.1 ± 0.1	0	7.85

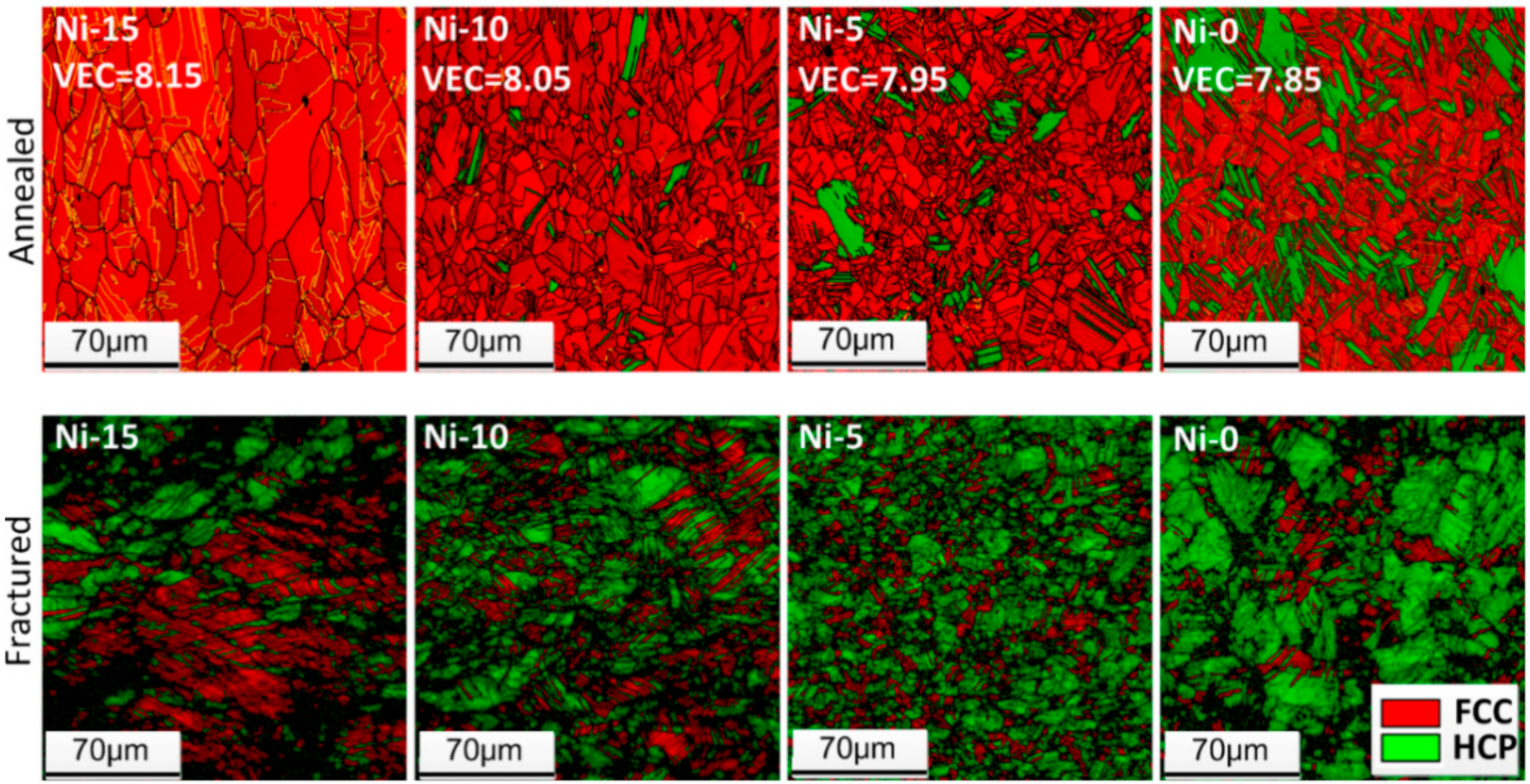

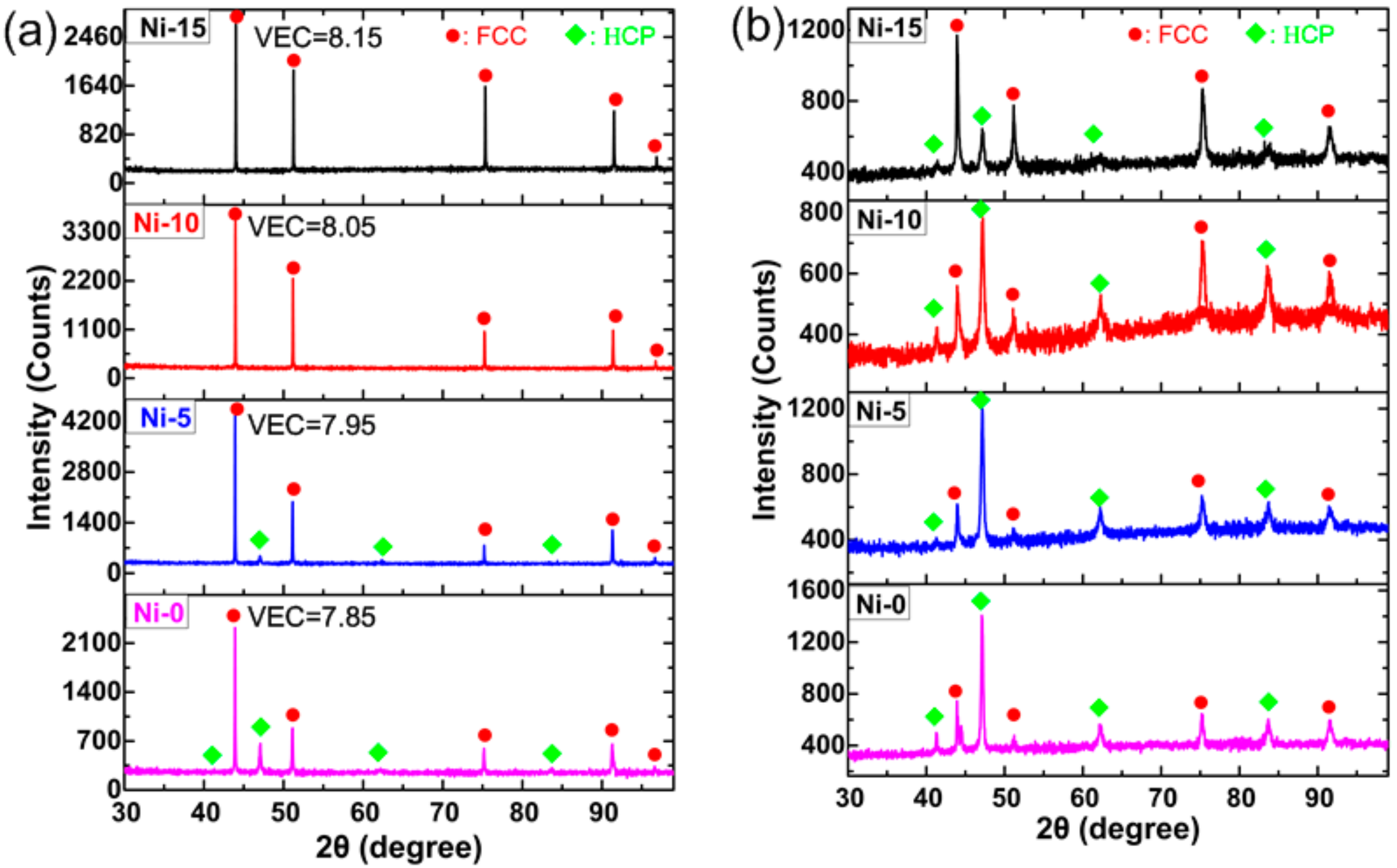

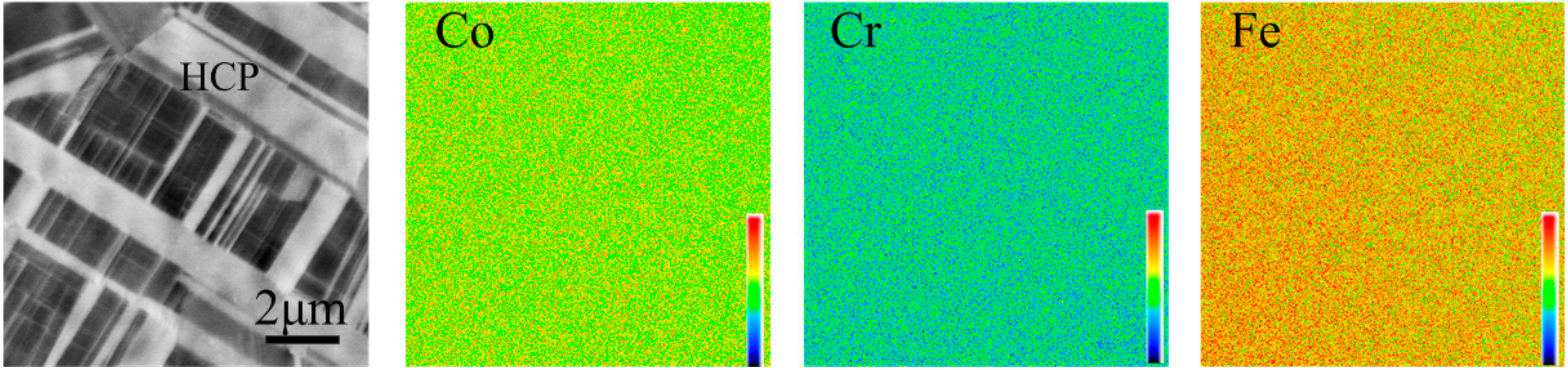

. The measured compositions of four alloys are close to the nominal compositions. VEC for a multi-component alloy is defined as $\mathrm{VEC}={\displaystyle {\sum }_{i=1}^n{c}_i{(\mathrm{VEC})}_i}$, where c_i and (VEC)_i are the atomic percentage, and VEC for the individual element. The VEC of element Co, Cr, Fe and Ni are 9, 6, 8 and 10, respectively. The values of VEC of Ni-15, Ni-10, Ni-5, Ni-0 are 8.15, 8.05, 7.95 and 7.85, respectively. Figure 1 presents the XRD patterns of Co₃₅Cr₂₅Fe_40−xNi_x (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs before and after tensile test. A single FCC phase was obtained when the Ni content is at 15% (Ni-15, VEC = 8.15). With further decrease of Ni content in the Co₃₅Cr₂₅Fe_40−xNi_x, the structure of the HEAs shifts from single FCC phase to FCC, and HCP dual phase. Note that the minor HCP phase was thermally induced during the water quenching, after the 900 °C annealing process, in Ni-5 and Ni-0, with VEC of 7.95 and 7.85. The XRD results of tensile tested samples show that FCC and HCP phase are both observed in all the four alloys, which indicates that the deformation-induced martensitic transformation (FCC → HCP) is a primary deformation mechanism. The intensities of FCC peaks decrease, while those of the HCP peaks increase significantly, indicating that the volume fraction of HCP phase increases after the tensile deformation with the decreasing Ni content. Figure 2 shows the EBSD phase maps of annealed samples and fractured samples of Co₃₅Cr₂₅Fe_40−xNi_x (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs. The results indicate that a ~3 vol % thermally induced HCP phase exists in the annealed Ni-10 sample, with VEC of 8.05, which is not captured in the XRD results. Meanwhile, ~10 vol % and ~30 vol % HCP phase exists in the annealed Ni-5 and Ni-0 samples, with VEC of 7.95 and 7.85, which is consistent with the XRD results in Figure 1a, noting that the volume fraction of thermally induced HCP phase increased with the disappearance of annealing twins. Based on EBSD phase maps of fractured samples of Co₃₅Cr₂₅Fe_40−xNi_x HEAs in Figure 2, deformation induced HCP phases were observed in all four alloys. The volume fractions of HCP phase of Ni-15, Ni-10, Ni-5, Ni-0 are ~45%, ~66%, ~76% and 85%, respectively, which follow the same trend as the XRD results in Figure 1b. The HCP phase is formed in the FCC matrix, and mainly exhibits laminate morphology; some thin HCP laminates are also exhibited, as shown in Figure 3. The results show that all elements are uniformly distributed in Co₃₅Cr₂₅Fe₄₀ with FCC and HCP dual-phase. Combining the XRD and EBSD analyses, we confirm that the stability of the FCC phase is lower, that the thermally induced HCP phase occurs with the decrease of Ni content when the VEC ≤ 8.05, and that the deformation-induced HCP phase occurs in all the four alloys.

3.2. Mechanical Properties

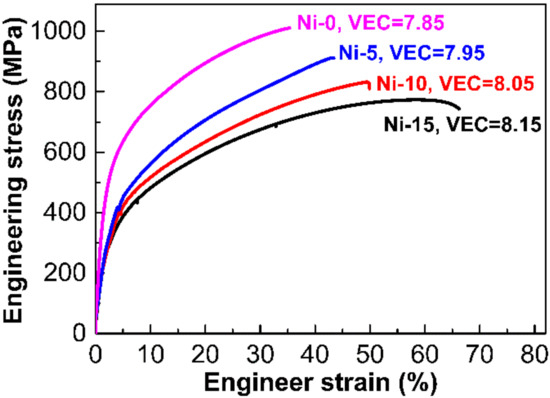

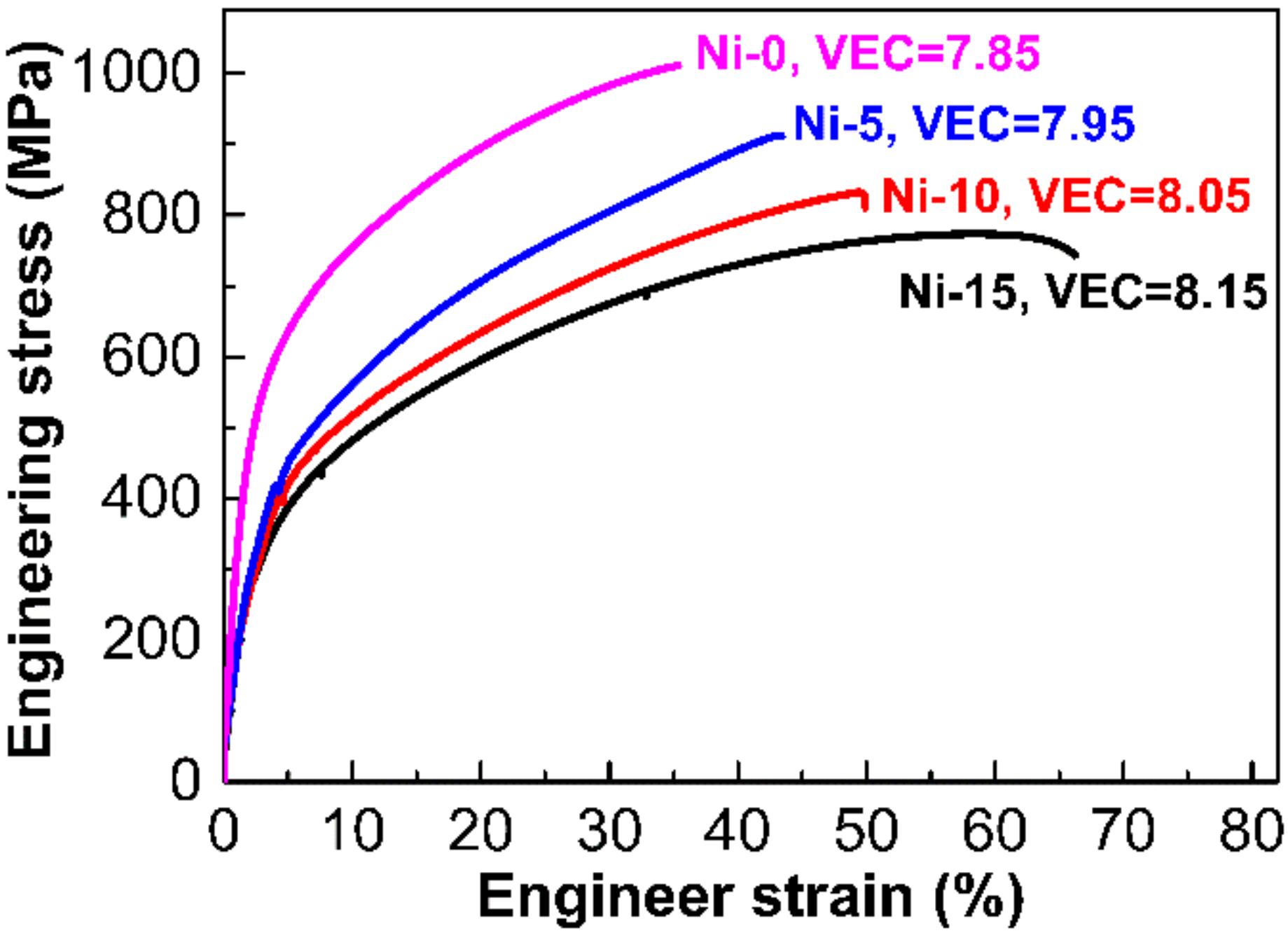

Figure 4 shows the representative tensile stress-strain curves of the Ni-15, Ni-10, Ni-5, and Ni-0. With the decrease of Ni content from 15% to 5%, the ultimate tensile strength increases from 760 MPa to 1000 MPa, and the total elongation decreases from 65% to 35%. As mentioned above, the initial HCP phase volume fraction of Ni-15 and Ni-0 are 0% and 30%, respectively. Meanwhile, the stability of the FCC phase of Ni-0 is lowest among the four alloys, which means that the rate of phase transformation of Ni-0 is relatively high, and that transformation capacity will be consumed already at a modest strain level [13,15], resulting in the lowest elongation of the four alloys. The phenomenon is similar to the reported results of Co₂₀Cr₂₀Fe_40−xMn₂₀Ni_x (x = 0–20 at %) HEAs [13], but the strength is higher in the Co₃₅Cr₂₅Fe_40−xNi_x HEAs, owing to the solid solution strengthening through the higher content of elements Co and Cr. Interestingly, the strength of Co₃₅Cr₂₅Fe_40−xNi_x HEAs is enhanced with a decrease of Ni content or VEC of alloys, while ductility is improved with an increase of Ni content or VEC of alloys, which is similar to the proposed strategy to balance the strength and ductility of FCC-BCC dual phase HEAs based upon the VEC [22]. In summary, the deformation induced martensitic transformation is a primary deformation mechanism, and the TRIP effect is the main reason for the good strength and ductility combination in the four alloys.

3.3. The Correlation among SFE, VEC and TRIP Effect in Co-Cr-Fe-Ni System

Previous studies indicate that TRIP effects are mainly determined by SFE [15], which can be expressed as Equation (1).

$$\mathrm{SFE}=2\rho \mathrm{\Delta }{G}^{FCC\to HCP}+2E^{FCC\to HCP},$$

(1)

where ρ is the planar packing density of a close packed plane. $\mathrm{\Delta }{G}^{FCC\to HCP}$ is the molar free energy difference between the FCC and HCP phase, and $E^{FCC\to HCP}$ is the coherent FCC-HCP interfacial energy. For a certain alloy system of transition metal FCC HEAs, if the planar packing density and coherent FCC-HCP interfacial energy are similar, then the SFE is mainly determined by the free energy difference between the FCC and HCP phases.

For the HEAs which are mainly constituted of transition metals, the integration of the density of states actually results in VEC, which includes not only s- and p-electrons, but d-electrons, forming the valance band, based on the First principles band calculations [23]. Our results indicate that VEC is useful to study the electron concentration effect on the phase stability in Co-Cr-Fe-Ni HEAs. The FCC phase HEAs with a VEC of ~8.0 is more metastable, which means that the HCP phase energies are generally lower than those of FCC phase, and that TRIP phenomena are more likely to occur.

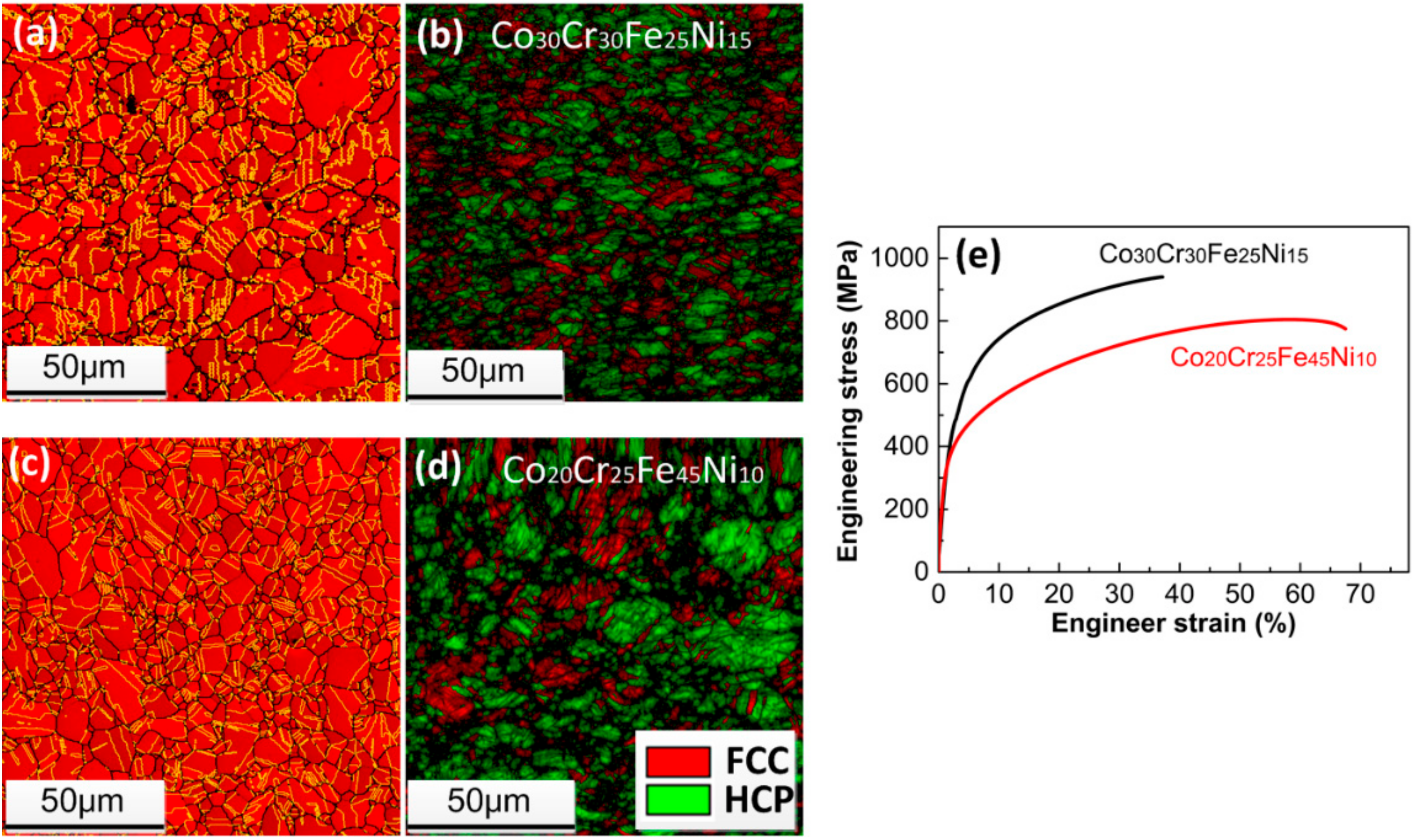

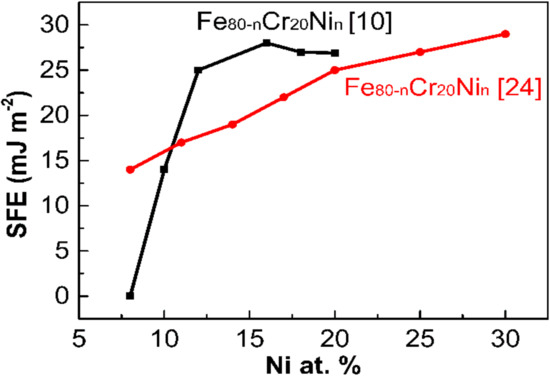

To verify the correlation among TRIP effects, SFE and VEC of HEAs, another two alloys in different regions of multicomponent phase diagram, are designed as Co₃₀Cr₃₀Fe₂₅Ni₁₅, Co₂₀Cr₂₅Fe₄₅Ni₁₀, with VEC of 8.0 and 7.9, respectively. As shown in Figure 5, deformation-induced martensitic transformation occurs in both two alloys. The higher Co and Cr content improves strength. But there is no thermally induced HCP phase in these two alloys, which is different from the Ni-10 with VEC of 8.05, indicating that the phase stability of non-equal Co-Cr-Fe-Ni HEA is different, even with the same VEC value of designed compositions. The VEC of equal molar CoCrFeNi HEA is 8.25. The calculated SFEs of Fe-Cr-Ni austenitic stainless steels, with respect to the Ni content [10,24], are shown in Figure 6. The stacking fault energies always decrease with a decreasing Ni content in Fe-Cr-Ni austenitic stainless steels [10,24], which is similar to FCC-structured Co-Cr-Fe-Ni alloy systems. Therefore, with the decrease of Ni content, the VEC of Co-Cr-Fe-Ni system decreases, and the SFEs are more likely to decrease sharply, based on the first principles study [10,24]. As a whole, phase transformation is more likely to occur with a VEC between 7.8 and 8.1 in non-equal Co-Cr-Fe-Ni HEAs, which means relatively low values of SFE.

3.4. Plastic Deformation Mechanism Transition

The TWIP and TRIP phenomena are mainly determined by the SFE [25]. The ability to predict the phase metastability from fundamental properties of constituent elements would benefit the alloy design greatly [20]. VEC was used to study the electron concentration effect on the phase stability in HEAs, which is found to be helpful for alloy design [20]. As mentioned above, TRIP phenomena are more likely to occur with a VEC of between 7.8 and 8.1, in non-equal Co-Cr-Fe-Ni HEAs. Further, in order to investigate the effect of VEC on TWIP and TRIP phenomena in universal HEAs, the composition and VEC of reported HEAs with TWIP and TRIP phenomena are summarized in

Table 2. Composition and VEC of reported HEAs with TWIP and TRIP phenomena.

Alloys	VEC	Dominated Mechanism	Ref.
Co35Cr25Fe15Ni25	8.35	TWIP	[21]
Co30Cr25Fe20Ni25	8.3	TWIP	[21]
Co25Cr25Fe25Ni25	8.25	TWIP	[21]
Co20Cr25Fe30Ni25	8.2	TWIP	[21]
Co35Cr25Fe25Ni15	8.15	TRIP	this work
Co35Cr25Fe30Ni10	8.05	TRIP	this work
Co35Cr25Fe35Ni5	7.95	TRIP	this work
Co35Cr25Fe40Ni0	7.85	TRIP	this work
Co30Cr30Fe25Ni15	8	TRIP	this work
Co20Cr25Fe45Ni10	7.9	TRIP	this work
Co33.3Cr33.3Ni33.3	8.33	TWIP+HCP lamellae *	[8]
Co33.3Cr33.3Ni33.3	8.33	TWIP	[5]
Co20Cr20Fe20Mn20Ni20	8.0	TWIP	[5]
Co20Cr20Fe20Mn20Ni20	8	TWIP	[13]
Co20Cr20Fe34Mn20Ni6	7.72	TRIP	[13]
Co20Cr20Fe40Mn20Ni0	7.6	TRIP	[13]
Co10Cr10Fe35Mn45	7.45	Dislocation slip	[3]
Co10Cr10Fe40Mn40	7.5	TWIP	[3,26]
Co10Cr10Fe45Mn35	7.55	TRIP	[3]
Co10Cr10Fe50Mn30	7.6	TRIP	[3]
Co23.6Cr23.6Fe23.6Ni23.6Mo5.6	8.12	TWIP	[27]
Co24.3Cr24.3Fe24.3Ni24.3Al2.8	8.12	TWIP	[28]
Co23.3Cr23.3Fe23.3Ni23.3Al6.8	7.89	TWIP	[29,30]

* At the cryogenic temperature.

.

TWIP phenomena occur in Co_xCr₂₅Fe_50−xNi₂₅ (x = 20–35 at %) with VEC between 8.35 and 8.2 [21]. Then, when the VEC < 8.2, TRIP phenomena occur in Co₃₅Cr₂₅Fe_40−xNi_x (x = 0–15 at %), Co₃₀Cr₃₀Fe₂₅Ni₁₅ and Co₂₀Cr₂₅Fe₄₅Ni₁₀, owing to the increase of metastability. TWIP phenomena were observed in the equal molar Co_33.3Cr_33.3Ni_33.3 alloy with SFE of ~22 mJ/m² and VEC of 8.33 [5,8]. But at the cryogenic temperature, a new phase with HCP lamellae also appeared, suggesting a possible evolution from TWIP to TRIP, because the HCP phase is indeed energetically favorable relative to FCC phase at 0 K, based on the first principles calculations [8,31]. It is worth noting that the VEC criterion for phase boundary prediction seems to work unsatisfactorily for Mn-containing HEA systems [20], which means the different value of VEC criterion for the phase boundary prediction. Co₂₀Cr₂₀Fe₂₀Mn₂₀Ni₂₀ HEAs with VEC of 8.0 have been adequately investigated in recent years [2,4,5,32,33], revealing the TWIP phenomena. With the decrease of Ni content, Co₂₀Cr₂₀Fe_40−xMn₂₀Ni_x (x = 6 at %, 0 at %) HEAs with VEC of 7.72 and 7.6 exhibit the TRIP phenomena [13], which is similar to the Co₃₅Cr₂₅Fe_40−xNi_x (x = 0–15 at %) in this work. A single FCC phase was obtained with the Mn content of 45 at % and 40 at %, and these two alloys exhibit a transition of deformation mechanisms from dislocation slip dominated plasticity to TWIP [3,26]. With the decrease of Mn content, TRIP phenomena were observed in Co₁₀Cr₁₀Fe₄₅Mn₃₅ and Co₁₀Cr₁₀Fe₅₀Mn₃₀. The FCC phase metastability of Co₁₀Cr₁₀Fe_80−xMn_x is enhanced with the decrease of Mn content [3], noting that the VEC of Fe, Mn are 8 and 7, respectively, and VEC value of Co₁₀Cr₁₀Fe_80−xMn_x increased with the decrease of Mn content. Therefore, the transition from TWIP to TRIP based on the VEC criterion in Co₁₀Cr₁₀Fe_80−xMn_x is opposite to the Co₃₅Cr₂₅Fe_40−xNi_x HEAs. Besides, a few additions of Mo and Al reduce the stability of alloys, as well as the VEC value. However, TRIP phenomena do not occur in CoCrFeNiMo_x and Al_xCoCrFeNi systems, based on the published literature [27,28,29,30,34,35]. The results indicate that a few additions of Mo and Al do not reduce the value of SFE enough to induce the phase transition during tensile deformation in Co-Cr-Fe-Ni system. More additions of Mo and Al in CoCrFeNi will induce the precipitates from the matrix, which form a multi-phase alloys [36,37]. It is worth noting that the effects of temperature on the SFE is remarkable. The variation of the deformation mechanism from martensitic transformation to deformation twinning, and to dislocation slip, are observed with the increase of deformation temperature (298 K to 873 K) in the reported TRIP/TWIP steel [38]. It would be useful to investigate the plastic deformation transition temperature in Co-Cr-Fe-Ni systems for potential applications, and more work in this direction is underway.

4. Conclusions

In summary, tensile deformation-induced martensitic transformations occur in Co₃₅Cr₂₅Fe_40−xNi_x (x = 15 at %, 10 at %, 5 at %, 0 at %) HEAs. The excellent combination of tensile strength (760 MPa–1000 MPa) and elongation (65–35%) are attibuted to the Co and Cr solid solution strengthening, and the TRIP effect. In non-equal molar Co-Cr-Fe-Ni systems, with a decrease of Ni content, the values of stacking fault energy (SFE) decrease; thus, a TRIP phenomena occurs. Based on the experimental investigation in three different regions of the Co-Cr-Fe-Ni multicomponent phase diagram, the face-centered cubic structured Co-Cr-Fe-Ni HEAs with VEC of ~8.0 is more metastable, and TRIP phenomena are more likely to occur. Related results and discussions are useful to the design of a new class of TRIP assisted HEAs.
