The 2D Finite Element Microstructure Evaluation of V-Shaped Arc Welding of AISI 1045 Steel

1
Department of Mechanical Engineering, Gaziantep University, Gaziantep 27310, Turkey
2
Department of Mechanical Engineering, Salahaddin University, Erbil 44001, Iraq
3
Department of Aeronautics and Astronautics Engineering, Gaziantep University, Gaziantep 27310, Turkey
4
Department of Mechanical Engineering, Gaziantep University, Gaziantep 27310, Turkey
*
Author to whom correspondence should be addressed.
Academic Editors: Halil Ibrahim Kurt, Adem Kurt and Necip Fazil Yilmaz
Received: 28 November 2016 / Revised: 16 January 2017 / Accepted: 1 February 2017 / Published: 3 February 2017
(This article belongs to the Special Issue Selected Papers from ICWET16)
View Full-Text   |   Download PDF [6424 KB, uploaded 3 February 2017]   |

Abstract

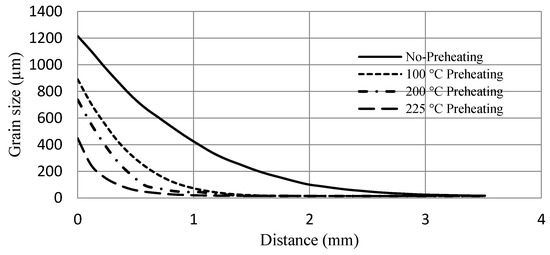

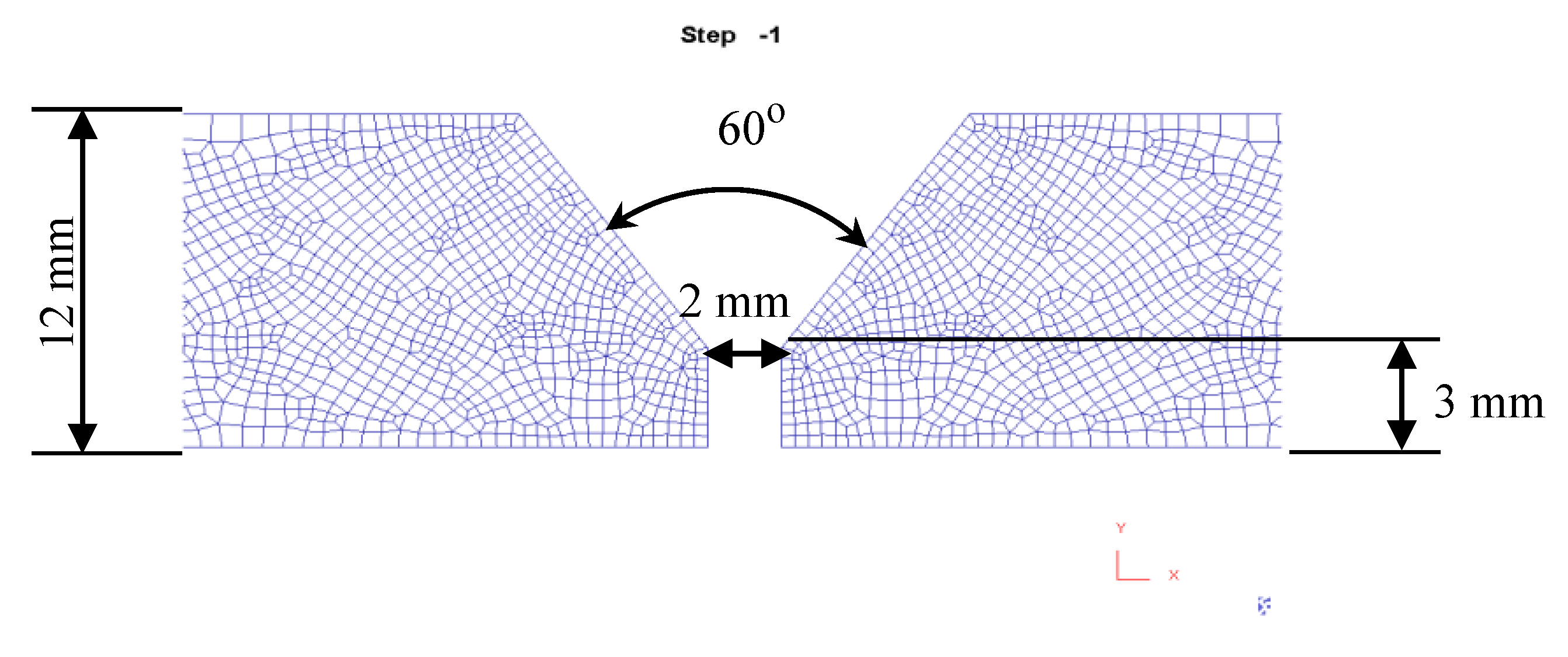

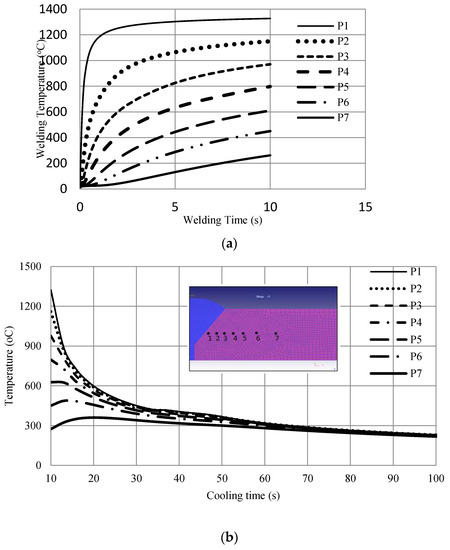

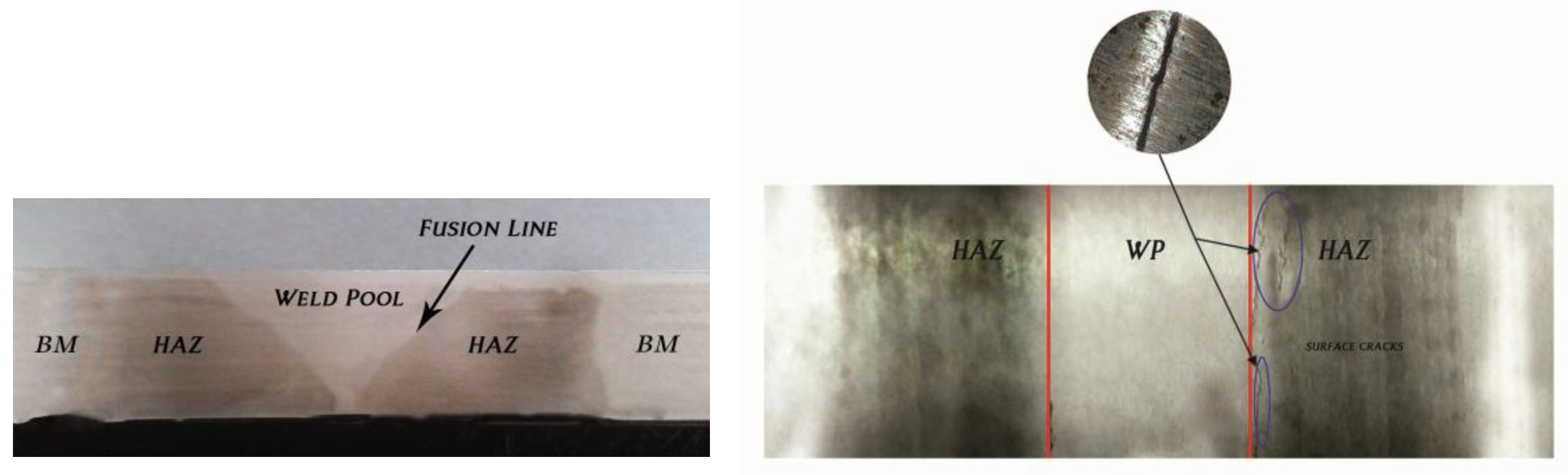

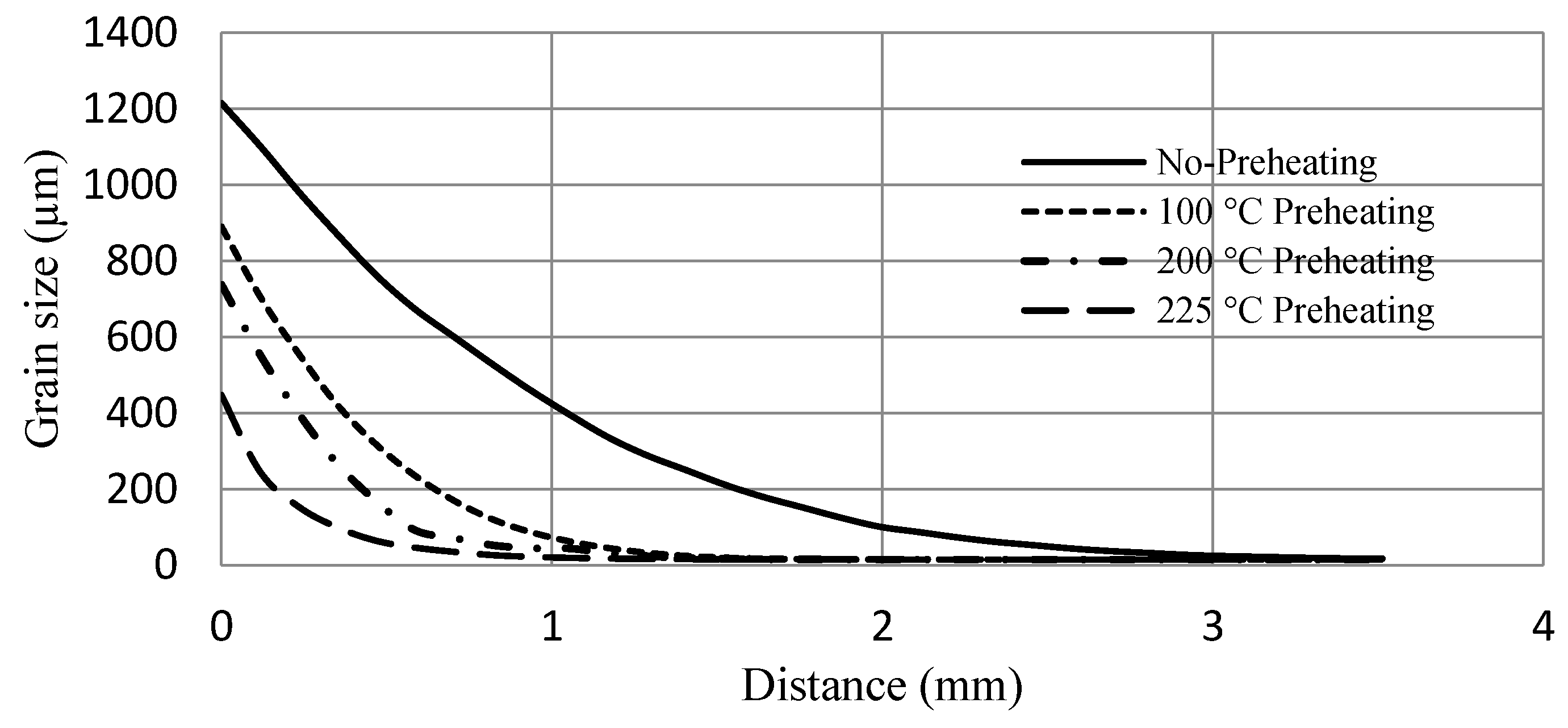

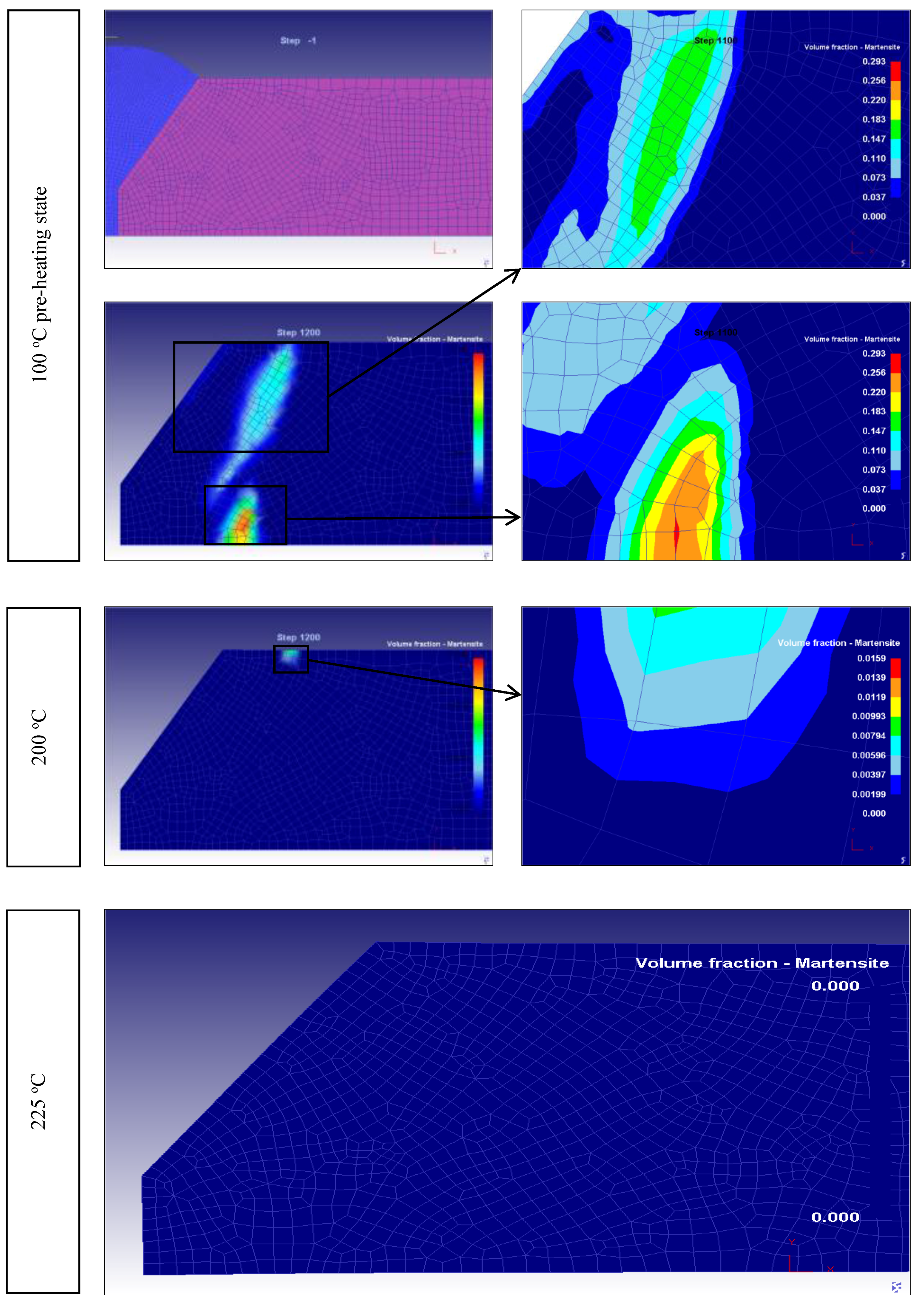

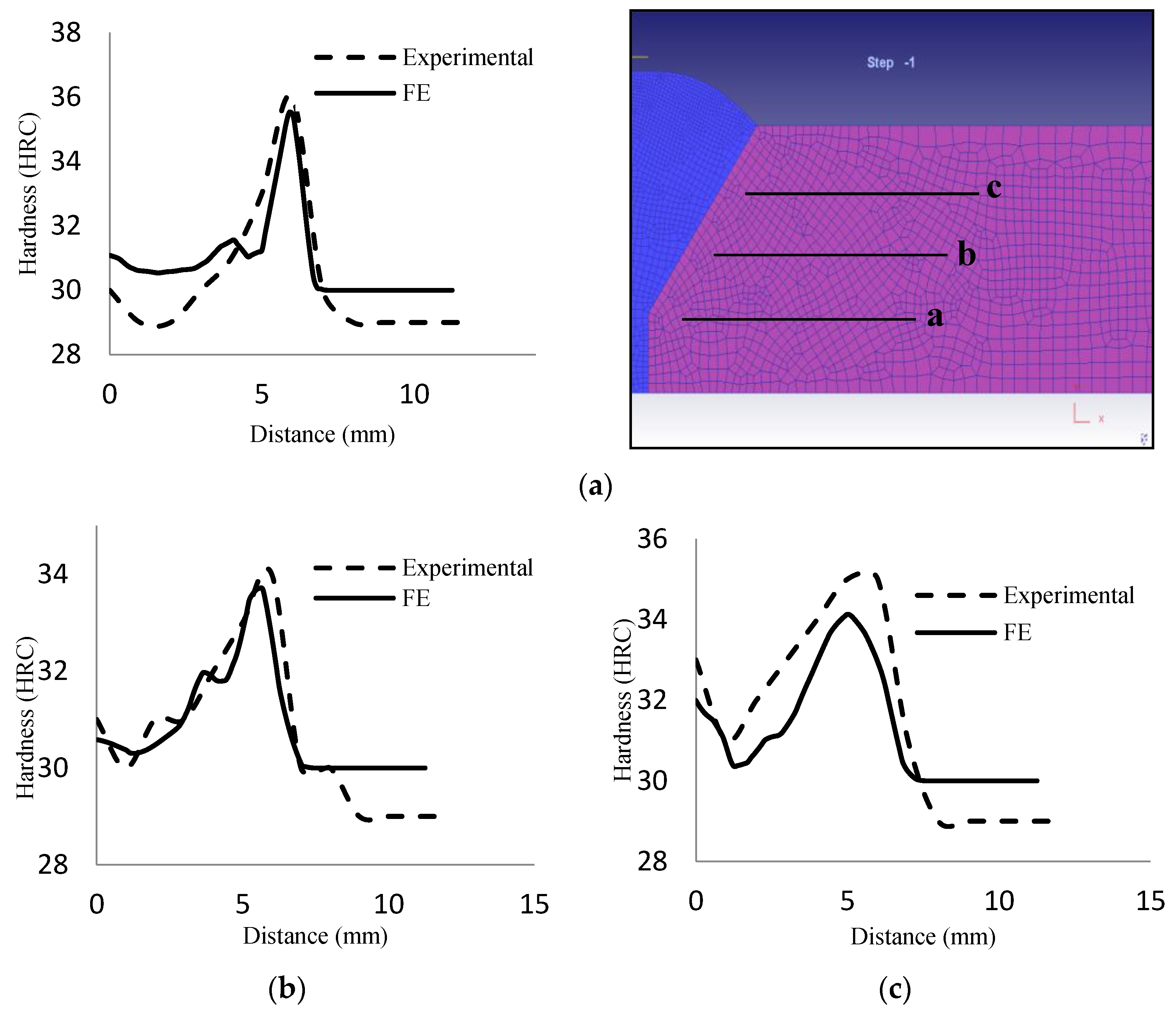

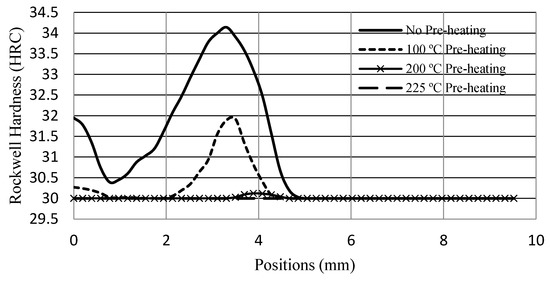

In the present study, V-shaped arc welding of the AISI 1045 steel is modeled by using 2D Finite Element Model (FEM). The temperature distribution, microstructure, grain growth, and the hardness of the heat-affected zone (HAZ) of the welding are simulated. The experimental work is carried out to validate the FE model. The very close agreement between the simulation and experimental results show that the FE model is very effective for predicting the microstructure, the phase transformation, the grain growth and the hardness. The effect of preheat temperature on the martensite formation is analysed, and it is shown that 225 °C preheating completely eliminates the martensite formations for the 12 mm thick plate. View Full-Text
Keywords: arc welding; AISI 1045 steel; DEFORM™ FE; pre-heating; HAZ; microstructure arc welding; AISI 1045 steel; DEFORM™ FE; pre-heating; HAZ; microstructure
