Combined Usage of TanDEM-X and CryoSat-2 for Generating a High Resolution Digital Elevation Model of Fast Moving Ice Stream and Its Application in Grounding Line Estimation
Seung Hee Kim and Duk-jin Kim *
School of Earth and Environmental Sciences, Seoul National University, Seoul 151-742, Korea
*
Correspondence: Tel.: +82-2-880-6631
Academic Editors: Richard Gloaguen, Xiaofeng Li and Prasad S. Thenkabail
Received: 9 August 2016 / Accepted: 16 February 2017 / Published: 20 February 2017

Abstract

:
Definite surface topography of ice provides fundamental information for most glaciologists to study climate change. However, the topography at the marginal region of ice sheets exhibits noticeable dynamical changes from fast flow velocity and large thinning rates; thus, it is difficult to determine instantaneous topography. In this study, the surface topography of the marginal region of Thwaites Glacier in the Amundsen Sector of West Antarctica, where ice melting and thinning are prevailing, is extracted using TanDEM-X interferometry in combination with data from the near-coincident CryoSat-2 radar altimeter. The absolute height offset, which has been a persistent problem in applying the interferometry technique for generating DEMs, is determined by linear least-squares fitting between the uncorrected TanDEM-X heights and reliable reference heights from CryoSat-2. The reliable heights are rigorously selected at locations of high normalized cross-correlation and low RMS heights between segments of data points. The generated digital elevation model with the resolved absolute height offset is assessed with airborne laser altimeter data from the Operation IceBridge that were acquired five months after TanDEM-X and show high correlation with biases of 3.19 m and −4.31 m at the grounding zone and over the ice sheet surface, respectively. For practical application of the generated DEM, grounding line estimation assuming hydrostatic equilibrium was carried out, and the feasibility was seen through comparison with the previous grounding line. Finally, it is expected that the combination of interferometry and altimetery with similar datasets can be applied at regions even with a lack of ground control points.
Keywords:
TanDEM-X; CryoSat-2; digital elevation model; Antarctica; ice sheet

1. Introduction

The importance of observing the West Antarctic Ice Sheet has been increasing following a number of alarming scientific results of its potential vulnerability due to its exposure to relatively warmer sea water [1,2,3]. In particular, observation of surface topography change can be important information for glacial remote sensing research and most glaciologists to study ice mass balance and its contribution to sea level. In addition, the marginal region requires continuous surface observation to understand the significant dynamic changes such as faster flow velocity and larger thinning rates [4].
In Antarctica, the surface height of glaciers and ice sheets is measured by satellite radar and laser altimeters, such as ERS-1/2, Envisat RA-2 and ICESat. These satellite altimeters have measured the surface height data from the early 1990s to present. The typical methods to utilize the accumulated altimeter data to extract the surface height variation are cross-track altimetry and along-track repeat altimetry [5,6]. These methods have limitations that may be potentially addressed using other methods such as radar interferometry. For example, studies that used radar altimeters rejected elevation data in the marginal regions of ice sheets where rough surfaces with crevasses and rapid slope variations were present because satellite radar altimeters have a tendency to lose their accuracy in regions of complex topography [7]. Laser altimeters have greater vertical precision with smaller footprint sizes than radar altimeter but large gaps between each track must be filled by interpolation. The GLAS/ICESat 500 m Laser Altimetry Digital Elevation Model of Antarctica is an example of an interpolated grid from laser point measurements and has a spatial spacing of 500 m and 1 km [8]. Besides, the DEM, especially in the marginal regions of glaciers with fast flow velocity and high thinning rate, might contain errors caused by the surface height variations during the data acquisition between 2003 and 2005. Thus, space-borne altimetry has mostly been effective in terms of measuring relative variation of the polar surface.
Synthetic aperture radar interferometry is another effective tool for measuring surface topography for an extended area. Generation of surface topography using interferometry is not a new approach for the Antarctic ice bodies. However, the main limitation of radar interferometry for ice sheets and glaciers has been the temporal decorrelation effect seen from low interferometric coherence. Low interferometric coherence can decrease the accuracy of generated surface topography. Thus, special tandem missions to reduce the repeat cycle between data acquisitions had been carried out a number of times. For example, COSMO-SkyMed (Constellation of small Satellites for the Mediterranean basin Observation), conducted by the Italian Space Agency (ASI), is a constellation system using four satellites to reduce the repeat cycle to a single day to minimize the temporal decorrelation. TanDEM-X (TerraSAR-X add-on for Digital Elevation Measurement) is a twin satellite of TerraSAR-X that almost completely eradicates the temporal difference between data acquisition [9,10]. Another major limitation of achieving the accurate elevation grid in high resolution in the marginal region of Antarctica is the lack of coincident ground reference at the time of SAR acquisition due to its continuously moving state. To generate precise digital elevation model (DEM) using radar interferometry, accurate ground truth data, known as ground control points (GCP), are necessary as reference. It is difficult to obtain these reference data over continuously flowing and changing ice and snow surfaces. A previous study by Baek et al. has combined ERS tandem mission data and ICESat laser altimetry to generate a DEM over King Edward VII Peninsula in West Antarctica [11]. However, the time gap between ERS and ICESat was eight years, thus the bias had to be compensated by assuming average thinning rate of the region. Although this technique provided the preliminary reference of the surface at the time, it can hardly be used when measuring the surface height variations and corresponding volume changes over time.
Thus, in this study, we overcome the mentioned limitations by combined usage of single-pass synthetic aperture radar interferometry (TanDEM-X/TerraSAR-X, denoted as TDM) and near-coincident radar altimetry (CryoSat-2, denoted as CS-2) for the first time. The basic idea of combining interferometry and altimetry is not completely new as in other studies such as Zhou et al. [12] in which utilized ICESat and 35-day repeat-pass interferometry to compensate the ice motion and atmospheric phase; single-pass bi-static configuration of TanDEM-X/TerraSAR-X easily solves the mentioned interferometric problem. Besides, Groh et al. [13] presented DEM analysis over Thwaites Glacier with near-coincident lidar altimeter; however, airborne campaign at every data acquisition is impossible. Therefore, CryoSat-2 in SAR Interferometric mode (SARIn) point measurements are used as ground control points (GCPs) to calculate absolute height offset. CryoSat-2 is the only available radar altimeter with an ability to provide near-coincident surface height measurements along with TanDEM-X/TerraSAR-X as discussed later in Section 2.1.2. The accuracy assessment is carried out with the Airborne Topographic Mapper (ATM) from the Operation IceBridge by NASA, acquired five months after the SAR acquisition. Finally, the generated high resolution DEM is used to estimate grounding line location of the ice shelf by utilizing hydrostatic equilibrium theorem. Section 2 gives detailed information about generating a DEM, datasets and study area. Section 3 shows result and its assessment. Section 4 and Section 5 follow with the discussion, and conclusions are in Section 6.

2. Methods and Materials

2.1. Methods

The main objective of TanDEM-X mission (TDM) is to build the most accurate DEM for the globe with the estimated relative vertical accuracy of about 2 m and the horizontal accuracy of 3 m [9,10]. Among several operational modes, TanDEM-X can be operated in a bi-static mode with which TanDEM-X transmits the microwave signal and both TerraSAR-X and TanDEM-X simultaneously receive the backscattered signal. This operational mode is practically appropriate in this particular study due to the following reason.
The typical drawbacks of SAR interferometric DEM over ice and snow have been the time difference between acquisitions and atmospheric artifacts. The first effect creates significant phase decorrelation that also adversely affects in the phase-unwrapping process. The second effect is observable in the Polar Regions where extreme weather conditions are common and change rapidly, although atmospheric phase delay is less critical than in low latitudes. These limitations are solved by simultaneous acquisitions of TanDEM-X and TerraSAR-X.

2.1.1. Absolute Height Estimation

A DEM is generated by calculating an interferogram with two SLC SAR scenes. Interferogram are multi-looked with various factors depending on wanted spatial resolution in azimuth and range directions. In this study, an interferogram is multi-looked by a factor of 2, resulting 3.89 m and 4.18 m of ground resolution in range and azimuth directions, respectively. Since two TanDEM-X Single Look Complex SAR images are provided as Co-registered Single-look Slant-range Complex (CoSSC) images, general co-registration step is not required for calculating an interferogram [14]. Then, the phase corresponding to Earth’s curvature is removed from the calculated interferogram with respect to the WGS84 ellipsoid. The Earth-curvature flattened interferogram is filtered using the Goldstein filter [15] and interferometric coherence is estimated to mask out regions with low coherence. Because the residual phase still has modulo of 2π, a phase unwrapping procedure is required in order to obtain an absolute phase corresponding to the ice topography. In this study, the Minimum Cost Flow method [16] is applied for phase unwrapping with the coherence of greater than 0.40.
After interferometric phase is unwrapped, there still exists a constant phase offset to represent the true topography, given by
z t r u e = α [ φ u n w + φ o f f ]
where φ u n w is unwrapped phase, φ o f f is an absolute phase offset, z t r u e is true topographic height represented by interferometric phase and α is the coefficients for converting phase to height [17]. α is a function of geometric parameters of SAR acquisition as given by
α = λ R sin ( θ ) 2 π B
where λ is a wavelength, R is slant range distance, θ is look angle and B is perpendicular baseline [17]. The height of ambiguity can be calculated by multiplying α by 2π.
In general, an absolute phase offset is determined using external reference topographic heights, known as ground control point (GCP), within a scene. The process takes the ground range coordinates and corresponding topographic height of GCPs are converted to slant range coordinate and corresponding unwrapped phase using SAR geometry; then a constant phase offset is determined by minimizing difference between converted phase of GCPs and previously unwrapped phase of an interferogram. In addition, GCPs are then used to minimize the phase ramp caused by small baseline inaccuracies.
Nonetheless, finding a constant absolute phase can be affected by a number of uncertainties, such as the accuracies of GCP positions, topographic changes between the periods of data acquisitions and systematic noise in the unwrapped interferograms. The error can induce topographic height error proportional to the geometric coefficient α such as
z g c p = α [ φ u n w + φ o f f g c p ]
Δ z = z g c p z t r u e = α [ φ o f f g c p φ o f f ] = α ε
where z g c p is the topographic height converted with an erroneous absolute phase offset, φ o f f g c p , and ε is the phase error as mentioned above. The topographic height error varies in the range direction with respect to the range, look angle and perpendicular baseline.
The bigger problem with the height error induced by the erroneous phase offset is that the vertical accuracy of the generated DEM significantly declines when the GCPs are vertically biased [17]. The GCPs can be vertically biased when surface height variation has occurred since the acquisition of the GCPs and a continuous measurement is not available. This can be an exceptional problem especially for the applications over the ice sheet surface because of continuous height variations as time goes by.
Perna et al. [17] tried to solve the problem by executing the initial phase offset estimation in phase domain and additionally by refining the phase error using an iterative height estimation approach in topography domain. The method verified that generation of an accurate DEM was practical even without precise reference points such as corner reflectors. However, areas with high slopes have to be masked in order to retain its robustness because of serious planar misalignment.
Although masking out high-sloped areas is a suitable solution, it can cause a notable complication if the study area is the marginal region of ice sheet where surface slope is relatively high. Therefore, in this study, we consider that selection of reliable GCPs must be carried out cautiously instead of masking out the entire region with high slopes.
In this study, the initial phase offset is assumed to be zero such that let z u n w be the topographic height derived directly from unwrapped phase expressed by
z u n w = α φ u n w
Then, we assume that
z e s t = A z u n w + B
where z e s t is the estimated topographic height with A and B being two linear least squares estimators (LSE) to satisfy that
f ( z u n w ) = 1 N [ z e s t z g c p ] 2
is the minimum where z g c p is the topographic height of N ground control points.
In this way, the method is slightly bypassed by directly determining unbiased estimators (A and B) to minimize height variance from reference heights using a linear least squares approach. Perna et al. [17] also demonstrates that it is possible to calculate absolute topography without accurate estimation of an initial phase offset.

2.1.2. Ground Control Points Selection

Because the glacier topography is constantly changing, it is quite difficult to obtain reliable GCPs that are coincident with the acquisition of SAR data. This becomes even a bigger problem over the fast flowing marginal region of ice sheet because installation of any ground-based references, such as corner reflectors and GPS, may be lost due to heavy snow or horizontal displacement. In addition, the number of GCPs needs to be large and the points are to be spatially distributed throughout the image to satisfy the quality of the absolute height estimation.
To solve the supply problem of GCPs, the usage of CryoSat-2 radar altimeter is introduced. After its launch in April 2010, CryoSat-2 (CS-2) has been continuously providing precise surface elevation data over the Polar Region along with TanDEM-X for which was also launched in 2010. Considering 92 degrees of inclination angle, a 369-day repeat period and a smaller effective footprint of CS-2, reliable and well distributed surface elevation points can be obtained even within a single SAR image [18]. Besides, unlike any other altimeters, CS-2 provides a location of the returning signal in across-track direction within 1.6 km from its nadir, mostly at the top of surface undulations of rough ice shelf [19].
Thus, in this study, the Level 2 product of CS-2 SARIn data, processed according to the ESA Baseline C [20], are considered as good candidates of GCPs for determining the absolute height. In order to secure GCPs well distributed within a scene, a composite of CryoSat-2 tracks during the period of 1 month, centered on the SAR acquisition date, is collected. There are usually 5–6 tracks crossing a single SAR scene as shown in Figure 1.
As mentioned above, the absolute height estimation is only robust when the GCPs are not located in the areas with high slope. Besides, GCPs may represent wrong topography due to temporal variation of the surface. Thus, a selection process is carried out with an introduction of two criteria to utilize only reliable CS-2 data as GCPs.
First, CS-2 Level 2 data are provided with quality flags so that the points with large orbital, height and angle errors can be easily identified. In addition, due to large slope and rough surfaces, problematic unwrapping could cause pointing errors leading to dislocation of the point-of-closest-approach (POCA) and significant height. Thus, the points with these systematic quality flags are disregarded.
As a second selection criterion, CS-2 points are chosen based on a correlation-based filter with two thresholds. The first threshold is normalized local pixel cross-correlation between a segment of CS-2 and corresponding uncorrected topographic height, z u n w given by
C o r r N o r m = i = 1 n [ ( z u n w ( i ) z ¯ u n w ) ( z g c p ( i ) z ¯ g c p ) ] i = 1 n [ z u n w ( i ) z ¯ u n w ] 2 i = 1 n [ z g c p ( i ) z ¯ g c p ] 2
where n is the number of points within a segment and overbars are mean heights of each segment.
Result not only represents height similarity, but also suggests spatial correlation between the data in a sense of digital image correlation technique because CS-2 SARIn data points are spatially distributed, displaced from the sub-satellite ground track. In other words, cross-correlation of a segment of points can also examine location accuracy of CS-2 data. For example, location of the POCA is determined by comparing the differential phases of the returned signal between two antennas and phase-wrapping can occur when the across track slope is great enough. This causes the POCA to appear on the other side of the nadir ground track; and thus, contains wrong topographic height. As a result, a segment with this erroneous positioning will display a low correlation coefficient and will be discarded.
Although the CS-2 elevation accuracy is relatively high, GCPs determined from CS-2 at a given time cannot be used for InSAR data that were acquired at a different time. Because CS-2 data are collected only near-coincident, the topography may have changed significantly even during one month. For example, if the surface thinning rate is around 3–4 m per year, which can be observed in the marginal region of the West Antarctic Ice Sheet, the vertical error of the GCPs can be nearly 0.3 m. The vertical error can be even greater if the thinning rate is not constant. In addition, as topographic changes may be spatially different, we anticipated that such CS-2 data would exhibit low correlation coefficients.
Along with the topographic variation between data acquisitions, the correlation coefficient determines the effect of dissimilarity between radar altimetric and interferometric penetration depths in similar fashion. To distinguish the effect of different penetration depths from the topographic variation is difficult without additional external ground reference information such as corner reflectors. However, if there is a spatially varying penetration depth difference, the coefficient between segments will be low.
The second threshold is RMS height of a segment of CS-2 given by
R M S C S 2 = 1 n i = 1 n [ z g c p ( i ) z ¯ g c p ] 2
where n is the number of points of a segment. Low RMS height of a segment illustrates a relatively plane area with low slope expecting high accuracy of CS-2; thus, CS-2 points with high correlation coefficients and low RMS height are extracted as reliable GCPs.

2.2. Study Area

The region of interest of this study is the marginal region of Thwaites Glacier, located along the Amundsen Sea in West Antarctica (Figure 1). Since Mercer [21] addressed the issue, the WAIS is considered vulnerable to collapse because its ocean base is exposed to relatively warmer sea water, Circumpolar Deep Water, and the base of these vast glaciers are located below sea level. Thwaites Glacier is one of these glaciers in West Antarctica and is well known for significant negative mass changes and a great deal of crevasses and steep slopes over fast flowing surface, nearly 4 km per year at the fastest [1,2,22,23,24,25,26]. In addition to its rapid grounding line retreat, surface thinning, and decreasing extent of floating ice, the region is known for strong katabatic wind and rapid and heavy precipitation with which the surface condition can change dramatically at any time.

2.3. Data

2.3.1. Synthetic Aperture Radar (SAR)

A pair of TanDEM-X and TerraSAR-X SAR Single Look Complex (SLC) data was acquired in 10 June 2011 in a descending orbit. The system uses X-band radar with center frequency of 9.6 GHz (Table 1). TanDEM-X and TerraSAR-X SLC data pair was acquired over the marginal region of Thwaites Glacier in HH polarization with a mean incidence angle of 44 degrees on 10 June 2011. The time difference between two SAR image acquisitions was about 7.99 × 10−6 second, which is considered to be simultaneous. The range and azimuth resolution of two SAR images in strip map mode were about 1.68 m and 3.30 m, respectively.

2.3.2. Radar Altimeter

It has been proven that radar altimeter can provide reliable measurement over snow and ice surface in Arctic and Antarctica [27,28]. However, some problem occurred in the regions where terrain is rough and slope is steep. The problem mainly comes from the large footprint size of typical radar altimeter systems.
In order to overcome the problem, CryoSat-2 was developed to be able to collect the size of a pulse-limited footprint of 1.67 km in across-track and 313 m in along-track direction. Its high-spatial resolution has been implemented using the Doppler beam formation, which allows recording the returned signal in along and across direction separately [29,30]. Besides, CryoSat-2 in Synthetic Aperture Interferometric mode (SARIn) operates with two receiving antennas to locate the POCA in the range direction diminishing position errors [19].
CryoSat-2 utilizes Ku-band with the center frequency of 13.375 GHz with 1.17 m of the baseline between two antennas (Table 1). The height accuracy of CryoSat-2 SARIn over Antarctic ice sheet is reported as 1.5 m where surface slope is less than 0.2 degrees [18].

2.3.3. Laser Altimeter

The airborne laser altimeter (IceBridge ATM L2 Icessn Elevation, Slope, and Roughness) data from Operation IceBridge from NASA, obtained on 4 November 2011 [31], were used as reference. It provided the location and slopes of each smoothed laser point block of which sampling frequency was 5 kHz. The airborne laser altimeter has a reported accuracy of 10 cm [32] and it is known that the penetration depth of laser signal on snow and ice surface is negligible, and thus represents the topography of the top layer of the ice sheet surface.

3. Results

Figure 2 illustrates the generated high resolution DEM using a composite of monthly CS-2 data as reliable GCPs after a selection process. ENVI SARScape is used to generate and unwrap interferograms of TanDEM-X data. After converting it to the uncorrected height and geocoding, the absolute height estimation as well as GCP selection is done using Matlab. GCPs are selected when correlation coefficient is greater than 0.95 with RMS less than 10 m. The number of points within a segment is 5 not only to maintain enough sample number of GCPs, but also to consider that a segment makes azimuth length of around 1.5 km which is nearly the length of azimuth footprint.
More than 1/3 of GCP candidates have higher than 0.95 correlation coefficients where high correlation was originally expected owing to high accuracy of CryoSat-2 data. Besides, RMS height plays a significant role in picking out bad candidates with large biases, dramatically decreasing the number of GCP candidates. Finally, a selected RMS height from the center of 1.5 km represents a slope of 0.76 degrees, indicating selected candidates are from relatively flatter regions.
Out of 368 GCP candidates, a total of 44 points are qualified under the criteria with the mean correlation coefficient of 0.97. They are mostly located over a grounded area of ice sheet; and a couple of points from floating area are seemed to be from relatively smoother area (Figure 1). The sampling space of the generated DEM is 5 m × 5 m, precise enough to show crevasses and large scale surface undulations over the ice shelf.
Figure 3 shows the scatter plots between the CS-2 heights, used as GCPs, and the corrected unwrapped heights using linear least-squares approach. The fitted curve of the unbiased estimators is shown in red along with the prediction bounds in dotted red. For each figure, the number of GCPs used in the estimation differs such that in Figure 3a, all of the available CS-2 heights were used as GCPs and the total number was 334. The R-square value of the fitted result was 0.98; however, the RMS error was 18.57 m. Figure 3b,c represents the cases when the correlation coefficient was the sole threshold and the coefficients and RMS heights both are combined, respectively. The width of the prediction bounds is the minimum when the correlation coefficients and RMS heights are used with the RMS error of 5.81 m. The mean difference between the CS-2 heights and the corrected unwrapped heights is nearly zero in all cases. This shows that the inclusion of the RMS height as the second threshold practically increases the accuracy of the absolute height estimation although the number of GCPs decreases.
The generated DEM is directly compared with nine ATM flight lines intersecting in longitudinal direction, west-to-east and east-to-west. Figure 2 shows locations of each flight line, numbered in the order of its acquisition time, shown on the right side of each box. Originally provided with nadir profile plus three off-nadir profiles per time stamp, surface elevation acquired only from nadir direction of ATM flight lines are extracted for a single height profile with a spatial resolution 80 m; and the profile is re-processed to provide an elevation point at every 283 m, which is close to the along-track footprint size of CryoSat-2. Since altimeter points are not located in the middle of each corresponding pixel of the DEM, the surface elevation of the generated DEM is bi-linearly interpolated to match exact locations of the ATM measurements.
Table 2 shows the mean height differences between TDM_CS2 and ATM (TDM_CS2 minus ATM) of each flight line as well as of three sub-sites of the study area: (1) ice sheet; (2) grounding zone; and (3) ice shelf (ice tongue) with respect to the grounding line from the MEaSUREs project.

3.1. Ice Sheet

The first site contains the lines 7, 4, 6 and 5 (in order from North to South), representing the grounded ice sheet (Figure 4a). The profiles with an odd flight number were flown in east-to-west direction and are re-projected to represent topographic profiles in west-to-east direction for easier visualization.
On average, TDM_CS2 shows lower elevation (negative bias) suggesting 4.31 m of the radar penetration if the surface had not changed during five months. The profiles of TDM_CS2 and ATM are also well correlated with some noticeable local height differences.
Higher penetration is usually expected with lower surface density, which can be associated with fresh snow or dryer conditions. In SAR images, it can be observed as low SAR backscattering coefficients. Besides, low backscattering also leads to low coherence decreasing accuracy of interferometry. Figure 4b illustrates a scatter plot of the height difference versus (black) backscattering coefficients in dB and (red) interferometric coherence. More values are plotted in the negative sign, as the mean difference is negative; however, the plot does not show any trend of height difference.

3.2. Grounding Zone

The second sub-site contains line 8 and 3 at where both profiles cross the grounding line in the western and eastern side and the floating ice tongue in-between (Figure 5). TDM_CS2 (red) and ATM (black) are well correlated with the mean bias of 2.19 m and 4.05 m and standard deviation of 4.31 m and 4.35 m for line 8 and 3, respectively.
The positive bias of TDM_CS2 may suggest surface lowering during the five months of period. The thinning corresponds with other studies [35,36] and sounds plausible; nevertheless, small bias and standard deviation infers that TanDEM-X DEM successfully extract long-wavelength surface elevation near the grounding line where elevation change is the highest.

3.3. Ice Shelf

Finally, the third sub-site contains lines 1, 9 and 2, located over the floating ice tongue and the edge of the estimated grounding line of Thwaites Glacier (Figure 6). Line 1 crosses a region of disintegrating ice tongue at which was reported as the division between the western and eastern ice tongue [37].
The mean height difference is the largest compared to the other flight lines, mainly due to continuous movement and calving events during the period of five months. Figure 6 illustrates such surface changes with a similar time span of six months with: (a) an intensity of TanDEM-X; and (b) a Landsat ETM+ image, respectively, acquired on 10 June 2011 and 15 December 2011.
As indicated in a black rectangle box inside the images, the surface feature in the box migrated about 1 km north in six months inferring a flow velocity of around 2 km·a−1. This flow velocity is roughly close to the velocity of Thwaites Glacier around its grounding line of 3 km·a−1, estimated using TanDEM-X in 2011 [13]. The comparison confirms that rapid variation of surface feature is possible during a short period of time and so is the large height difference between ATM and TDM_CS2 at such an area.
Besides, the height differences may be caused by tidal variation. However, when extracting the range of tide in this area using the FES2012 tide model, the range was up to about 1 m. Therefore, the height difference between ATM and TDM_CS2, larger than 1 m, seems to be derived from the time difference between two data.
Lines 9 and 2 show two distinct characteristics along the tracks before and after passing the previously predicted grounding line of [34] (Figure 6a). In particular, the profiles of line 2 in a dashed box are almost identical suggesting the fully or partially grounded surface. Surface profiles outside a dashed box in Figure 6 are located outward from the grounding line, up to 14.25 km from the west in line 9 and up to 19.33 km in line 2, experiencing rapid variation of the ice tongue during the five months.
Line 9 represents a relatively small bias and at the same time shows a very large standard deviation. This phenomenon is due to the horizontal movement of the ice surface for five months and the difference of these surfaces can be displayed in the height difference plot above which changes periodically. Therefore, a mean may become small while its standard deviation becomes high.

4. Grounding Line Estimation

Grounding location at a certain time is found by defining a point at which bottom surface meets bathymetry. Bottom is calculated by subtracting ice thickness from surface where thickness can be computed from ice freeboard assuming hydrostatic equilibrium of a two-layer ice column. Ice freeboard is a distance between surface and sea level which are extractable from satellite data.
A two-layer ice column model consists of layers of ice and firn. The total column thickness: T is given by
T = ρ s e a w a t e r ρ s e a w a t e r ρ i c e F ρ f i r n ρ i c e ρ s e a w a t e r ρ i c e H f i r n F = H D E M H A S L ,
where F is ice freeboard, H D E M is surface height derived from TanDEM-X, H A S L is apparent sea level near-coincident to the acquisition time of TanDEM-X and H f i r n is firn layer depth and it is included in the total ice column thickness. ρ i is density of sea water (1028 kg/m3), ice (917 kg/m3) and firn. We made an assumption that the firn layer depth is 10 m with a constant surface firn density of 330 kg/m3 throughout the floating ice tongue.
Apparent sea level is introduced and defined as virtual sea level under ice shelf. In the case of sea-ice, sea level can be extracted from a ridge and a single value might be enough to represent a whole ice floe because sea level does not vary significantly over a small region. However, in the case of ice sheet and ice shelf, the needed extent of sea level is much greater than which might introduce additional errors if a single value is used throughout the region. Besides, it even becomes more challenging to extract sea level at the front of ice shelf if sea ice is present.
In this study, apparent sea level is estimated by compensating EGM08 geoid using CryoSat-2 tide-corrected data acquired in June. After linear least-squares fit between the geoid and radar altimeter in the open water, the mean difference of the compensated sea level is 4.09 cm with RMS of 35 cm. Considering that the sea surface near the coast is covered with sea ice in June, the open water was only available near 73.5°S 113°W. CryoSat-2 data near the polynya in front of the shelf are not used in order to secure enough number of data points for the linear least-square fit.
For comparison with the bottom topography of the ice shelf, the IceBridge Sander AIRGrav L4 Bathymetry data set of the grounding line region of Thwaites Glacier with a spatial resolution of 1 km, constructed from a series of parallel airborne survey lines 10 km apart, is used. Errors are approximated as 70 m for the Thwaites dataset, incorporating errors in gravity measurement, radar ice thickness, ATM surface elevation, 2D model pinning point and some allowance for geological structures [38]. The bathymetry was interpolated to 25 m spatial resolution using spline interpolation method that is useful for interpolating unevenly distributed dataset [39]. We expected that spline interpolation could render irregular topographic pattern of the gravity-derived bathymetry which is influenced by non-linear sediment densities.
Figure 2 illustrates the grounding line from this study as well as from MEaSUREs project [34] and ASAID project [33]. The grounding line from ASAID project was derived using combined dataset from Landsat 7 and Ice, Cloud, and land Elevation Satellite (ICESat) laser altimetry spanning from 1999 to 2003. The grounding line from MEaSUREs project was measured in 2009 derived using differential satellite synthetic aperture radar interferometry. The ground line has small mismatch of less than 1 km in various places but shows high spatial correlation with the MEaSUREs grounding line. On the other hand, the comparison with the grounding line from ASAID project suggests around 10 km retreat in the central part of the study area.
Figure 5 also shows the previously estimated grounding line in 2009 and newly estimated grounding line from this study, respectively represented in red and black. The surface profile of line 8 and 3 are drawn to the equivalent scale and the locations of intersecting points of each line with ATM are extended. A comparison not only suggests possible grounding line retreat in the east, but also defines grounded region in the west where the previously grounding line might have missed.

5. Discussion

In this study, the absolute height is determined using selected ground control points after the unwrapped phase is converted to the unwrapped height and geocoded. The estimation of zero-phase-offset is proved valid as the coefficient A (Equation (6)) is very close to 1 otherwise the coefficient A must be other than 1 if there were any phase ramp; and this also shows that the phase ramp is negligible in this case.
We decided not to use other available external DEMs in phase unwrapping, estimating the absolute phase offset or minimizing the phase ramp. We had tried to use the available DEMs, such as ASTER and GLAS/ICESat DEMs, over this region; however, the usage of these DEMs over the marginal region of Thwaites Glacier created additional phase ramps due to very poor spatial resolution and relatively extreme surface deformation since the generation of these DEMs. Besides, DEMs are not available over the floating regions.
In spite of high correlation along with small bias and standard deviation between TDM_CS2 and ATM, there is a major factor that needs to be taken into account. The compensated elevation of TanDEM-X represents the scattered surface of Ku-Band radar altimeter instead of X-Band interferometric phase center. Besides, the temporal difference of about five months between the generated DEM and ATM must be taken into consideration and corresponding seasonal variation of surface characteristics may be present.
We strongly believe that the biggest contributors of the uncertainty are the five-month gap between the acquisitions of TanDEM-X and ATM as well as radar penetration. However, it is difficult to distinguish these two effects from a simple height comparison.
Although similar radar penetration was reported by Groh et al. [13], the comparison of TanDEM-X DEM and ATM data as reported here is insufficient to yield any meaningful penetration as well as temporal variation of the surface because of significant dynamical surface changes during the five-month time difference. Groh et al. [13] report surface lowering by several meters within one year (2011–2012) on the lower section of Thwaites glacier. Helm et al. [35] also report thinning of Thwaites Glacier up to 10 m/year based on analysis of CryoSat-2 data. If the thinning rate (10 m/year) is assumed to be linear and spatially homogeneous, the surface decreases about 5 m during five months. This thinning implies that the penetration depth in this area is greater than 9 m.
On the other hand, if the penetration is completely neglected, the result infers the surface increase of around 4 m within five months in an area where a surface lowering has been reported as previously mentioned. Although the result sounds contradictory, a monthly basis cross-point analysis between CryoSat-2 and ATM over the grounded ice sheet from 2011 to 2015 suggests that thickening in November 2011 is a possible event (Figure 7). While indicating surface thinning rate of −4.01 m/year, the relative mean height difference between June (blue) and November (red) in 2011 corresponding to the acquisition dates of TanDEM-X and ATM, respectively is, −4.94 m. What actually caused this thickening at this specific time of year needs additional analyses; however, the comparison between TDM and ATM may be explained without radar penetration. Besides, if seasonal surface variation, known as breathing is taken into consideration, then the penetration depth can vary again. Therefore, in our study, we decided not to interpret the calculated height bias as penetration depth because the actual interferometric penetration and the height variation during five months are indistinguishable.
Meanwhile, the grounding line is also a significant key factor in understanding ice sheet stability and grounding line retreat and its potential danger has been reported from a number of studies [22,24,38]. The line profiles in this study show grounding line migration, especially taking in place in the eastern part of the ice tongue. This gives an insight of the grounding line retreat that had been taking place as described in [24]. There can be numerous speculations about this, and yet the disappearance of large ice tongue and continuous rapid thinning of the glacier seemed to be the major contributor [22,36]. However, it must be reminded that this migration can also be observed mainly due to increase of spatial resolution. It is expected that more sequential TanDEM-X data in this region would be able to validate this result.
The comparison of the estimated grounding line with the ASAID grounding line suggests nearly 10 km retreat from the project to 2011. The same comparison with the MEaSUREs grounding line does not suggest any dramatic retreat since 2009. The existence of a deep trough and its shape around the estimated grounding line may suggest the retreat might have been caused by the basal melting from the intrusion of circumpolar deep water as suggested from many publications (i.e., [3,40,41]). However, the information is not enough to conclude whether the retreat had been progressive or abrupt due to a lack of continuous observation in-between and it is expected that a continuous grounding line observation using the technique in this study would be able to fill the gap in the future to understand the stability of Thwaites Glacier.
In contrast to the increasing resolution of the surface topography, the spatial and vertical uncertainty of the available bathymetry remains much lower than that of other datasets. As a result, the spatial uncertainty of the estimated grounding line caused by the 70 m vertical uncertainty of the bathymetry is around 1 km. It is also expected to increase the accuracy of the grounding line estimation if more accurate bathymetry is available.
The assumption hydrostatic equilibrium might not be satisfied near the grounding line because of the supporting force from the grounded ice. However, we expect that the error from this assumption is relatively minor because the estimated grounding line in 2011 shows high spatial correlation with the previous grounding line in 2009.
The grounding line also can be found using tidal flexure of ice of which can be observed from double- and quadruple-differential InSAR technique. This technique requires the minimum of four independent SAR acquisitions with a short revisit period between each InSAR pair for high interferometric coherence. Rignot et al. [19] evaluated the grounding line of Thwaites Glacier in 2011 using ERS-2 data that have a three-day repeat cycle and their result agrees with our result, i.e., a small ice rumple in front of the estimated grounding line is shown in both studies.
Besides, we tried to validate the grounding line location and its possible retreat in recent years using 17 Sentinel-1A images. Sentinel-1A has a revisit period of 12 days and the data were acquired from July 2015 to June 2016. We were unable to produce any acceptable interferograms because the interferometric coherence of all pairs was extremely low due to fast flow of Thwaites Glacier near the marginal region.

6. Conclusions

A high resolution digital elevation model in the marginal region of Thwaites Glacier was successfully generated by combined usage of TanDEM-X and TerraSAR-X single-pass interferometry and CryoSat-2 SARIn radar altimetry. Instead of estimating phase offset, the usage of near-coincident radar altimeter as ground control points determined absolute topographic height exploiting linear least-squares algorithm. Reliable GCPs were also carefully selected using normalized cross-correlation and RMS height.
Compared with airborne laser altimeter which was acquired five months after the acquisition of SAR data, a large height bias was observed on the ice tongue region at where intense activities were continuously occurring. Meantime, the result showed different spatial trends; surface lowering was observable near the grounding line (positive bias of 3.19 m), whereas laser altimeter represented higher elevation on the grounded ice sheet suggesting radar penetration (negative bias of −4.31 m). However, the height difference between two epochs was considered not enough to conclude temporal trend of which more time series data will be required.
Besides, it must be stated that the accuracy of the generated elevation model is expected to be different if the laser measurement with less time gap is available. Even without considering the height change due to the time gap, the current result contains errors arising from the radar penetration difference between TanDEM-X interferometry and CryoSat-2 altimetry as well as the difference from the laser measurement. If at least the error of the time gap can be reduced, more precise analysis will be possible.
Grounding line estimation was carried out by exploiting hydrostatic equilibrium of ice shelf. Ice thickness was calculated from freeboard height which required high resolution DEM and apparent sea level at the time of the acquisition. The newly estimated grounding line was compared with the previous grounding lines from different datasets and showed its feasibility of detecting the spatial evolution of grounding line in time series. A continuous observation of grounding line is important because it can directly provide the stability of an ice body. Our result will not only help collect continuous datasets, but also expect to detect small-scaled changes that we have been missing.
In conclusion, the most crucial part of this application was the presence of simultaneous dataset that could be used as ground control points in calculating absolute height. Besides, the importance of the selection process of reliable ground control point must be emphasized as well. After all, this study has shown that TanDEM-X can provide high-resolution elevation information even in the area without any ground truth data by using near coincident CryoSat-2 radar altimeter data.

Acknowledgments

This study is supported by the Korea Polar Research Institute under Project PE16900. TanDEM-X data used in this study are kindly provided by DLR as a part of ATI_OCEA0391. CryoSat-2 data used in this study are kindly provided by ESA as a part of Project C1P.9593.

Author Contributions

Seung Hee Kim performed data processing and analysis of SAR and radar altimeter. Duk-jin Kim conceived the research and provided an idea of GCP selection. All authors contributed to the writing, editing and reviewing of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
DEMDigital Elevation Model
GCPGround Control Point
MEaSUREsMaking Earth System Data Records for Use in Research Environments
ASAIDAntarctic Surface Accumulation and Ice Discharge
POCAPoint of Closest Approach

References

  1. Joughin, I.; Smith, B.E.; Medley, B. Marine ice sheet collapse potentially under way for the Thwaites Glacier Basin, West Antarctica. Science 2014, 344, 735–738. [Google Scholar] [CrossRef] [PubMed]
  2. Rignot, E.; Mouginot, J.; Morlighem, M.; Seroussi, H.; Scheuchl, B. Widespread, rapid grounding line retreat of Pine Island, Thwaites, Smith, and Kohler glaciers, West Antarctica, from 1992 to 2011. Geophys. Res. Lett. 2014, 41, 3502–3509. [Google Scholar] [CrossRef]
  3. Jenkins, A.; Dutrieux, P.; Jacobs, S.S.; McPhail, S.D.; Perrett, J.R.; Webb, A.T.; White, D. Observations beneath Pine Island Glacier in West Antarctica and implications for its retreat. Nat. Geosci. 2010, 3, 468–472. [Google Scholar] [CrossRef]
  4. Rignot, E.; Jacobs, S.; Mouginot, J.; Scheuchl, B. Ice-shelf melting around Antarctica. Science 2013, 341, 266–270. [Google Scholar] [CrossRef] [PubMed]
  5. Davis, C.H.; Ferguson, A.C. Elevation change of the Antarctic ice sheet, 1995–2000, from ERS-2 satellite radar altimetry. IEEE Trans. Geosci. Remote Sens. 2004, 42, 2437–2445. [Google Scholar] [CrossRef]
  6. Legresy, B.; Remy, F.; Blarel, F. Along track repeat altimetry for ice sheets and continental surface studies. In Proceedings of the Symposium on 15 Years of Progress in Radar Altimetry, Venice, Italy, 13–18 March 2006.
  7. Shepherd, A.; Wingham, D. Recent sea-level contributions of the Antarctic and Greenland ice sheets. Science 2007, 315, 1529–1532. [Google Scholar] [CrossRef] [PubMed]
  8. John, P.D. GLAS/ICESat 500 m Laser Altimetry Digital Elevation Model of Antarctica, Version 1; NSIDC (National Snow and Ice Data Center): Boulder, CO, USA, 2007. [Google Scholar]
  9. Krieger, G.; Moreira, A.; Fiedler, H.; Hajnsek, I.; Werner, M.; Younis, M.; Zink, M. TanDEM-X: A satellite formation for high-resolution SAR interferometry. IEEE Trans Geosci. Remote Sens. 2007, 45, 3317–3341. [Google Scholar] [CrossRef]
  10. Krieger, G.; Zink, M.; Bachmann, M.; Brautigam, B.; Schulze, D.; Martone, M.; Rizzoli, P.; Steinbrecher, U.; Antony, J.W.; De Zan, F.; Hajnsek, I. TanDEM-X: A radar interferometer with two formation-flying satellites. Acta Astronaut. 2013, 89, 83–98. [Google Scholar] [CrossRef]
  11. Baek, S.; Kwoun, O.I.; Braun, A.; Lu, Z.; Shum, C.K. Digital elevation model of King Edward VII Peninsula, West Antarctica, from SAR interferometry and ICESat laser altimetry. IEEE Geosci. Remote Sens. Lett. 2005, 2, 413–417. [Google Scholar] [CrossRef]
  12. Zhou, Y.; Zhou, C.X.; Deng, F.H.; Dongchen, E.; Liu, H.Y.; Wen, Y.M. Improving InSAR elevation models in Antarctica using laser altimetry, accounting for ice motion, orbital errors and atmospheric delays. Remote Sens. Environ. 2015, 162, 112–118. [Google Scholar] [CrossRef]
  13. Groh, A.; Ewert, H.; Rosenau, R.; Fagiolini, E.; Gruber, C.; Floricioiu, D.; Jaber, W.A.; Linow, S.; Flechtner, F.; Eineder, M.; et al. Mass, volume and velocity of the Antarctic ice sheet: Present-day changes and error effects. Surv. Geophys. 2014, 35, 1481–1505. [Google Scholar] [CrossRef]
  14. Rossi, C.; Gonzalez, F.R.; Fritz, T.; Yague-Martinez, N.; Eineder, M. TanDEM-X calibrated raw DEM generation. ISPRS J. Photogramm. 2012, 73, 12–20. [Google Scholar] [CrossRef]
  15. Goldstein, R.M.; Werner, C.L. Radar interferogram filtering for geophysical applications. Geophys. Res. Lett. 1998, 25, 4035–4038. [Google Scholar] [CrossRef]
  16. Costantini, M. A novel phase unwrapping method based on network programming. IEEE Trans. Geosci. Remote Sens. 1998, 36, 813–821. [Google Scholar] [CrossRef]
  17. Perna, S.; Esposito, C.; Berardino, P.; Pauciullo, A.; Wimmer, C.; Lanari, R. Phase offset calculation for airborne InSAR DEM generation without corner reflectors. IEEE Trans. Geosci. Remote Sens. 2015, 53, 2713–2726. [Google Scholar] [CrossRef]
  18. Wang, F.; Bamber, J.L.; Cheng, X. Accuracy and performance of CryoSat-2 SARIn mode data over Antarctica. IEEE Geosci. Remote Sens. Lett. 2015, 12, 1516–1520. [Google Scholar] [CrossRef]
  19. Wingham, D. CryoSat: A Mission to the Ice Fields of Earth; ESA (European Space Agency): Paris, France, 2005; pp. 10–17. [Google Scholar]
  20. Bouffard, J.; Manner, R.; Brockley, D. CryoSat Level-2 Product Evolutions and Quality Improvements in Baseline C; ESA Technical Document; ESA (European Space Agency): Paris, France, 2015. [Google Scholar]
  21. Mercer, J.H. West Antarctic ice sheet and CO2 greenhouse effect—A threat of disaster. Nature 1978, 271, 321–325. [Google Scholar] [CrossRef]
  22. MacGregor, J.A.; Catania, G.A.; Markowski, M.S.; Andrews, A.G. Widespread rifting and retreat of ice-shelf margins in the Eastern Amundsen Sea Embayment between 1972 and 2011. J. Glaciol. 2012, 58, 458–466. [Google Scholar] [CrossRef]
  23. Rignot, E. Evidence for rapid retreat and mass loss of Thwaites Glacier, West Antarctica. J. Glaciol. 2001, 47, 213–222. [Google Scholar] [CrossRef]
  24. Rignot, E.; Jacobs, S.S. Rapid bottom melting widespread near Antarctic ice sheet grounding lines. Science 2002, 296, 2020–2023. [Google Scholar] [CrossRef] [PubMed]
  25. Rignot, E.; Mouginot, J.; Scheuchl, B. Ice flow of the Antarctic ice sheet. Science 2011, 333, 1427–1430. [Google Scholar] [CrossRef] [PubMed]
  26. Rignot, E.; Vaughan, D.G.; Schmeltz, M.; Dupont, T.; MacAyeal, D. Acceleration of Pine island and Thwaites glaciers, West Antarctica. Ann. Glaciol. 2002, 34, 189–194. [Google Scholar] [CrossRef]
  27. Rémy, F.; Parouty, S. Antarctic ice sheet and radar altimetry: A review. Remote Sens. 2009, 1, 1212–1239. [Google Scholar] [CrossRef]
  28. Legresy, B.; Papa, F.; Remy, F.; Vinay, G.; van den Bosch, M.; Zanife, O.Z. ENVISAT radar altimeter measurements over continental surfaces and ice caps using the ICE-2 retracking algorithm. Remote Sens. Environ. 2005, 95, 150–163. [Google Scholar] [CrossRef]
  29. Raney, R.K. The delay/Doppler radar altimeter. IEEE Trans. Geosci. Remote Sens. 1998, 36, 1578–1588. [Google Scholar] [CrossRef]
  30. Wingham, D.; Francis, C.; Baker, S.; Bouzinac, C.; Brockley, D.; Cullen, R.; de Chateau-Thierry, P.; Laxon, S.; Mallow, U.; Mavrocordatos, C. CryoSat: A mission to determine the fluctuations in Earth’s land and marine ice fields. Adv. Space Res. 2006, 37, 841–871. [Google Scholar] [CrossRef]
  31. Blankenship, D.D.; Young, D.A.; Kempf, S.; Roberts, J.L.; Ommen, T.v.; Forsberg, R.; Siegert, M.J.; Palmer, S.J.; Dowdeswell, J.A. IceBridge Riegl Laser Altimeter L2 Geolocated Surface Elevation Triplets, Version 1; NSIDC (National Snow and Ice Data Center): Boulder, CO, USA, 2012. [Google Scholar]
  32. Krabill, W.B.; Abdalati, W.; Frederick, E.B.; Manizade, S.S.; Martin, C.F.; Sonntag, J.G.; Swift, R.N.; Thomas, R.H.; Yungel, J.G. Aircraft laser altimetry measurement of elevation changes of the Greenland ice sheet: Technique and accuracy assessment. J. Geodyn. 2002, 34, 357–376. [Google Scholar] [CrossRef]
  33. Bindschadler, R.; Choi, H.; Wichlacz, A.; Bingham, R.; Bohlander, J.; Brunt, K.; Corr, H.; Drews, R.; Fricker, H.; Hall, M.; et al. Getting around Antarctica: new high-resolution mappings of the grounded and freely-floating boundaries of the Antarctic ice sheet created for the international polar year. Cryosphere 2011, 5, 569–588. [Google Scholar] [CrossRef]
  34. Rignot, E.; Mouginot, J.; Scheuchl, B. Antarctic grounding line mapping from differential satellite radar interferometry. Geophys. Res. Lett. 2011. [Google Scholar] [CrossRef]
  35. Helm, V.; Humbert, A.; Miller, H. Elevation and elevation change of Greenland and Antarctica derived from Cryosat-2. Cryosphere 2014, 8, 1539–1559. [Google Scholar] [CrossRef]
  36. Paolo, F.S.; Fricker, H.A.; Padman, L. Volume loss from Antarctic ice shelves is accelerating. Science 2015, 348, 327–331. [Google Scholar] [CrossRef] [PubMed]
  37. Kim, J.W.; Kim, D.J.; Kim, S.H.; Ha, H.K.; Lee, S.H. Disintegration and Acceleration of Thwaites Ice Shelf on the Amundsen Sea revealed from remote sensing measurements. GISci. Remote Sens. 2015, 52, 498–509. [Google Scholar] [CrossRef]
  38. Tinto, K.J.; Bell, R.E. Progressive unpinning of Thwaites Glacier from newly identified offshore ridge: Constraints from aerogravity. Geophys. Res. Lett. 2011. [Google Scholar] [CrossRef]
  39. Sandwell, D.T.; Ruiz, M.B. Along-track gravity anomalies from Geostat and Seasat altimetry: GEBCO overlays. Mar. Geophys. Res. 1992, 14, 165–205. [Google Scholar] [CrossRef]
  40. Jacobs, S.S.; Jenkins, A.; Giulivi, C.F.; Dutrieux, P. Stronger ocean circulation and increased melting under Pine Island Glacier ice shelf. Nat. Geosci. 2011, 4, 519–523. [Google Scholar] [CrossRef]
  41. Ha, H.K.; Wahlin, A.K.; Kim, T.W.; Lee, S.H.; Lee, J.H.; Lee, H.J.; Hong, C.S.; Arneborg, L.; Bjork, G.; Kalen, O. Circulation and modification fo warm deep water on the Central Amundsen Shelf. J. Phys. Oceanogr. 2014, 44, 1493–1501. [Google Scholar] [CrossRef]

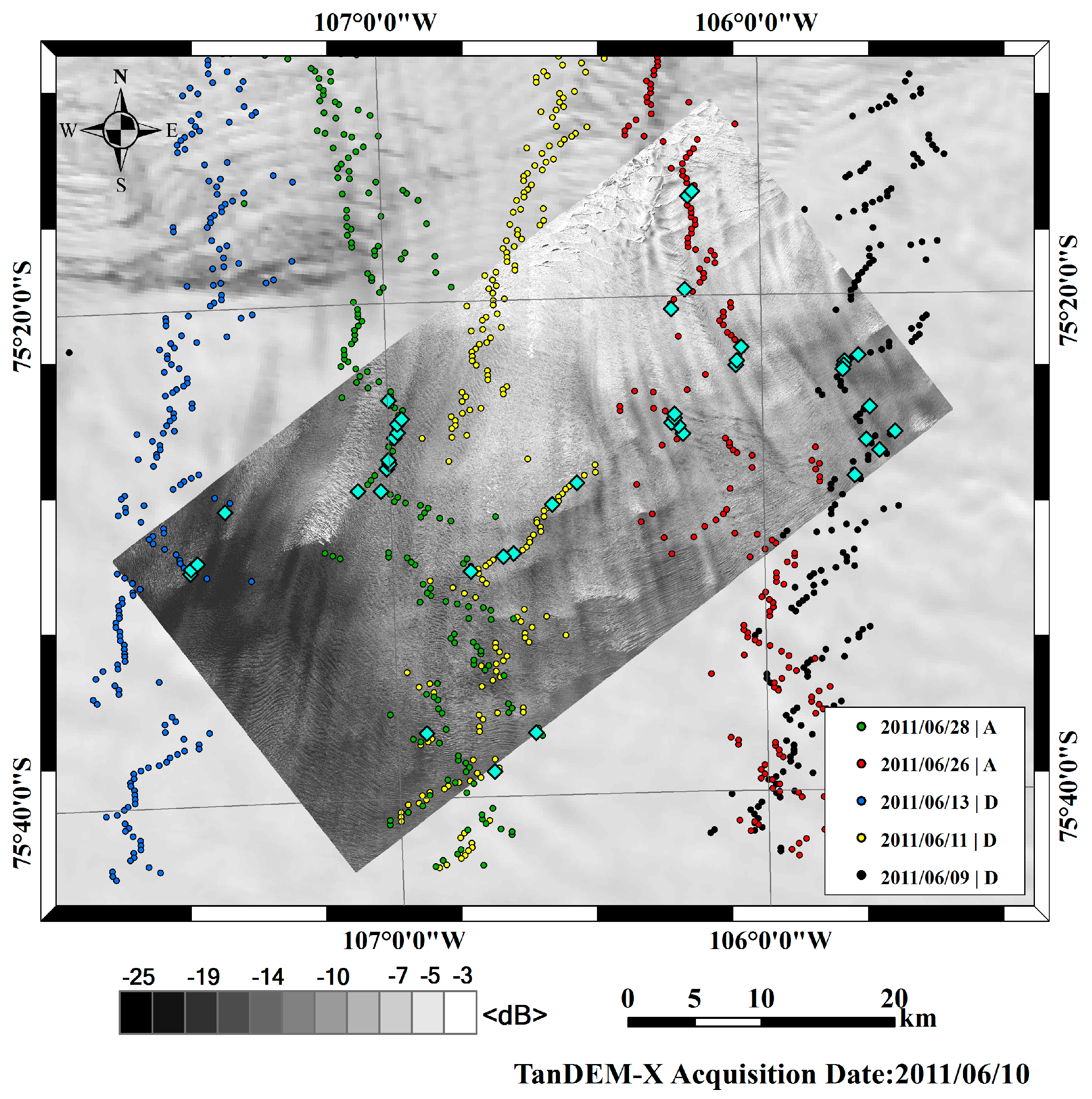

Figure 1. TanDEM-X intensity (10 June 2010) overlaid MODIS (8 December 2010); a composite of CryoSat-2 point data during the month of June in 2011 is plotted in colors to distinguish the acquisition dates; and locations of selected ground control points are in cyan diamonds.
Figure 1. TanDEM-X intensity (10 June 2010) overlaid MODIS (8 December 2010); a composite of CryoSat-2 point data during the month of June in 2011 is plotted in colors to distinguish the acquisition dates; and locations of selected ground control points are in cyan diamonds.
Remotesensing 09 00176 g001

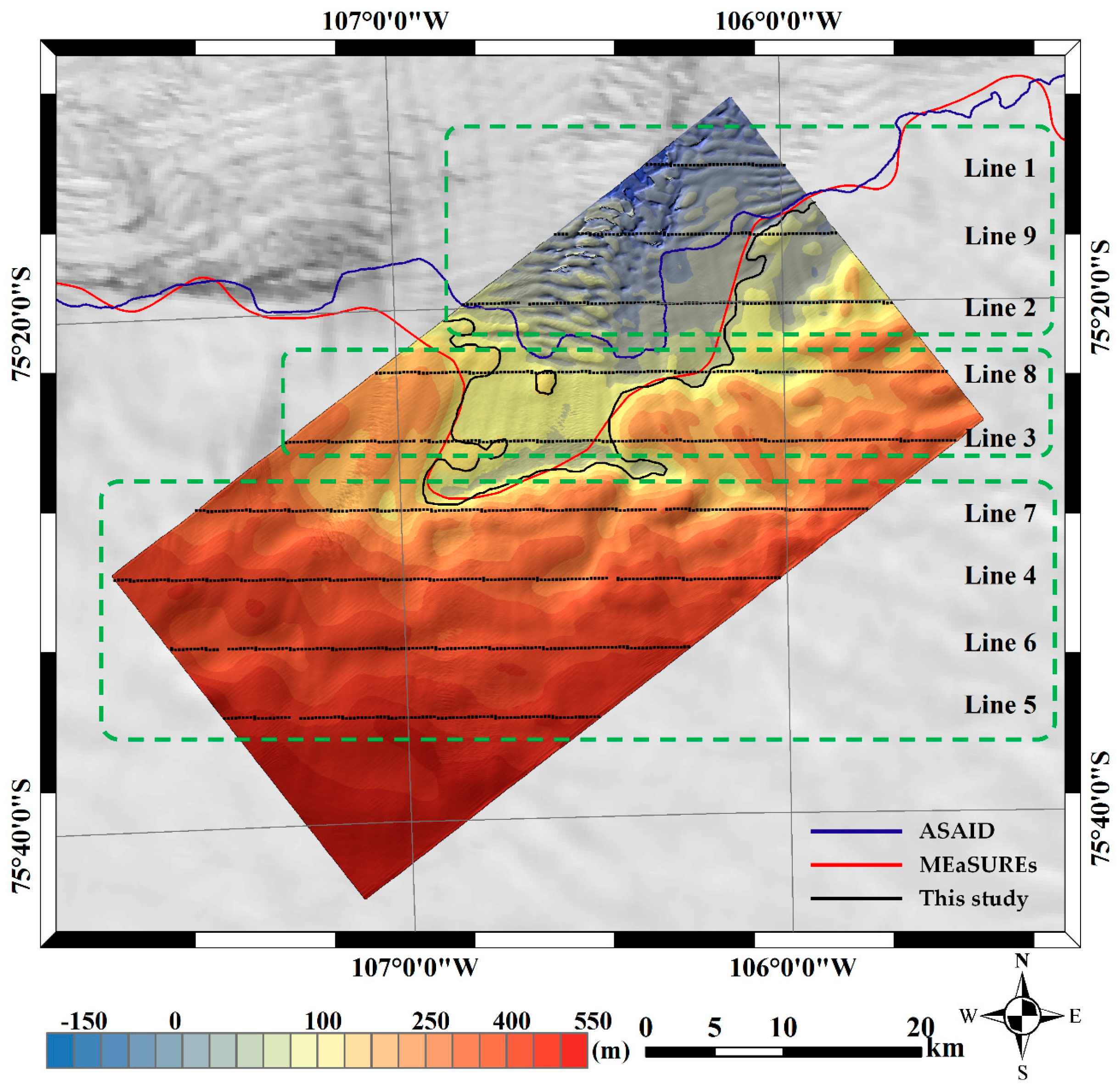

Figure 2. High resolution digital elevation model of TanDEM-X after absolute height correction with selected CryoSat-2 SARIn data; Airborne Topographic Mapper data from Operation IceBridge is plotted over the overlapping area; flight line is numbered in the order of acquisition time; the study area is separated into three sections (green dashed box). Finally, grounding lines from ASAID [33], MEaSUREs [34] and this study are drawn.
Figure 2. High resolution digital elevation model of TanDEM-X after absolute height correction with selected CryoSat-2 SARIn data; Airborne Topographic Mapper data from Operation IceBridge is plotted over the overlapping area; flight line is numbered in the order of acquisition time; the study area is separated into three sections (green dashed box). Finally, grounding lines from ASAID [33], MEaSUREs [34] and this study are drawn.
Remotesensing 09 00176 g002
Figure 3. Scatter plot between CryoSat-2 heights and the corrected unwrapped heights using linear least-squares approach when: (a) all of the available points are used as GCPs; (b) GCPs are selected with the correlation coefficients only; and (c) an additional threshold from RMS heights is used. The fitted curve is represented in red along with the prediction bounds in dotted line and the width is the minimum in (c).
Figure 3. Scatter plot between CryoSat-2 heights and the corrected unwrapped heights using linear least-squares approach when: (a) all of the available points are used as GCPs; (b) GCPs are selected with the correlation coefficients only; and (c) an additional threshold from RMS heights is used. The fitted curve is represented in red along with the prediction bounds in dotted line and the width is the minimum in (c).
Remotesensing 09 00176 g003

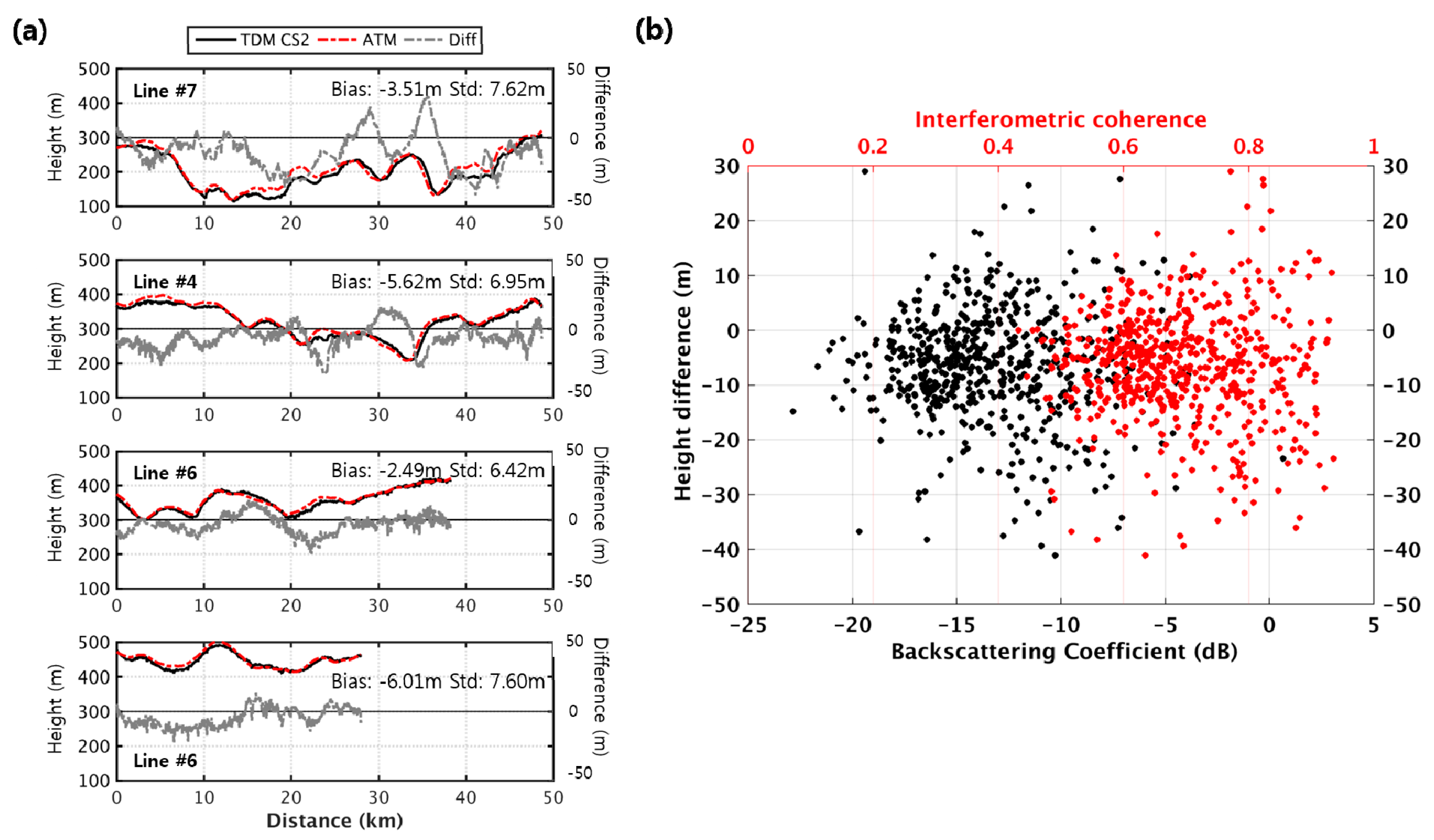

Figure 4. (a) Surface profiles of TDM_CS2 (black) and ATM (dashed red) over the grounded ice sheet; the height difference is in dashed grey line; and (b) scatter plot between the height difference and (black) backscattering coefficients in dB and (red) interferometric coherence to search for any relation with radar penetration.
Figure 4. (a) Surface profiles of TDM_CS2 (black) and ATM (dashed red) over the grounded ice sheet; the height difference is in dashed grey line; and (b) scatter plot between the height difference and (black) backscattering coefficients in dB and (red) interferometric coherence to search for any relation with radar penetration.
Remotesensing 09 00176 g004

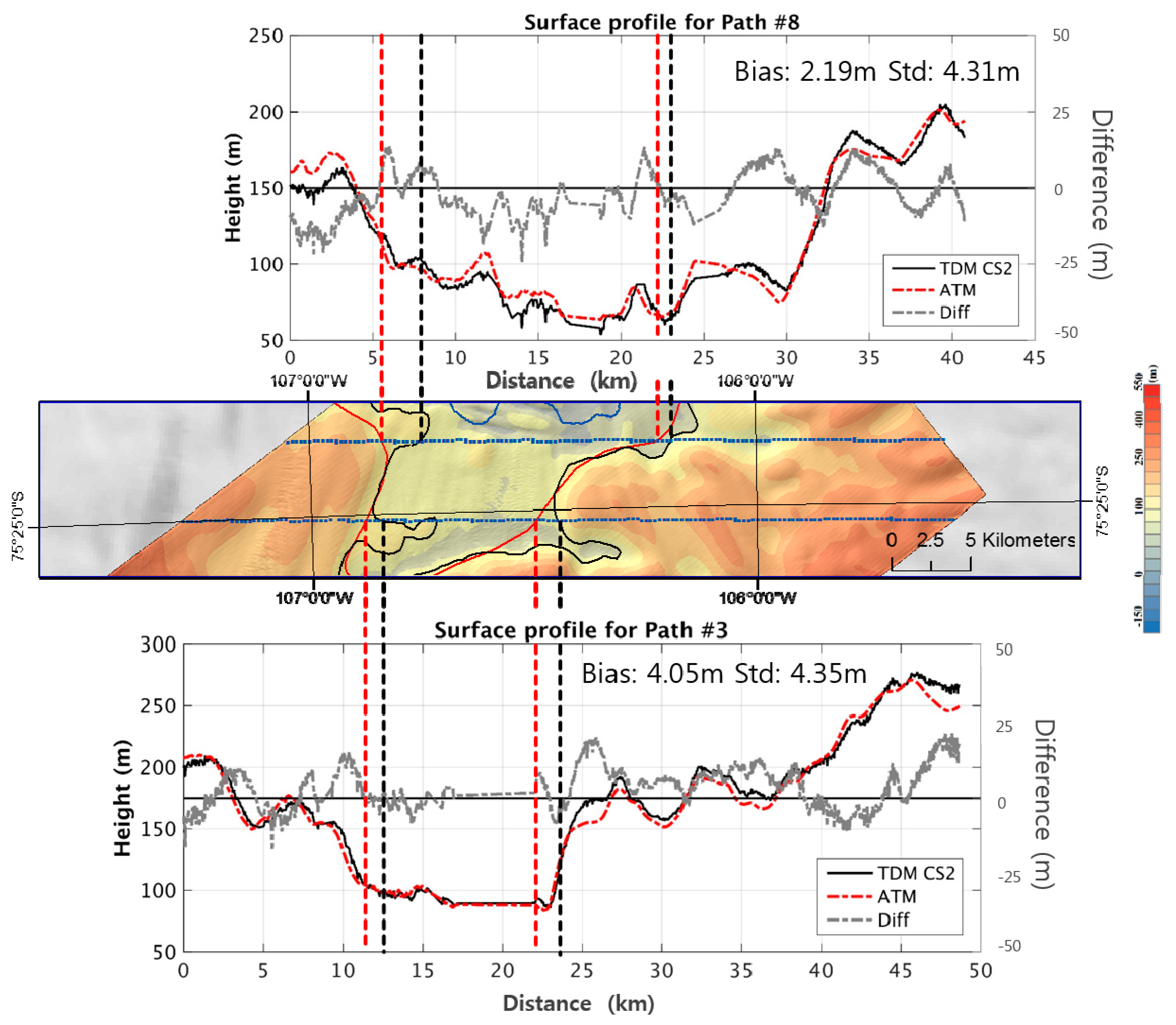

Figure 5. Surface profiles of line 8 (top) and 3 (bottom) are plotted along with the topography map (middle) for spatial comparison of grounding lines. The black, dashed red and dashed grey line represent TDM_CS2, ATM and the height difference, respectively. Inside the middle image, the locations of intersecting points between grounding lines (red: MEaSUREs, black: this study) and the ATM flight lines are extended from the map to the plots in red and black dashed lines, respectively. The blue dots across the map represent the ATM flight tracks.
Figure 5. Surface profiles of line 8 (top) and 3 (bottom) are plotted along with the topography map (middle) for spatial comparison of grounding lines. The black, dashed red and dashed grey line represent TDM_CS2, ATM and the height difference, respectively. Inside the middle image, the locations of intersecting points between grounding lines (red: MEaSUREs, black: this study) and the ATM flight lines are extended from the map to the plots in red and black dashed lines, respectively. The blue dots across the map represent the ATM flight tracks.
Remotesensing 09 00176 g005

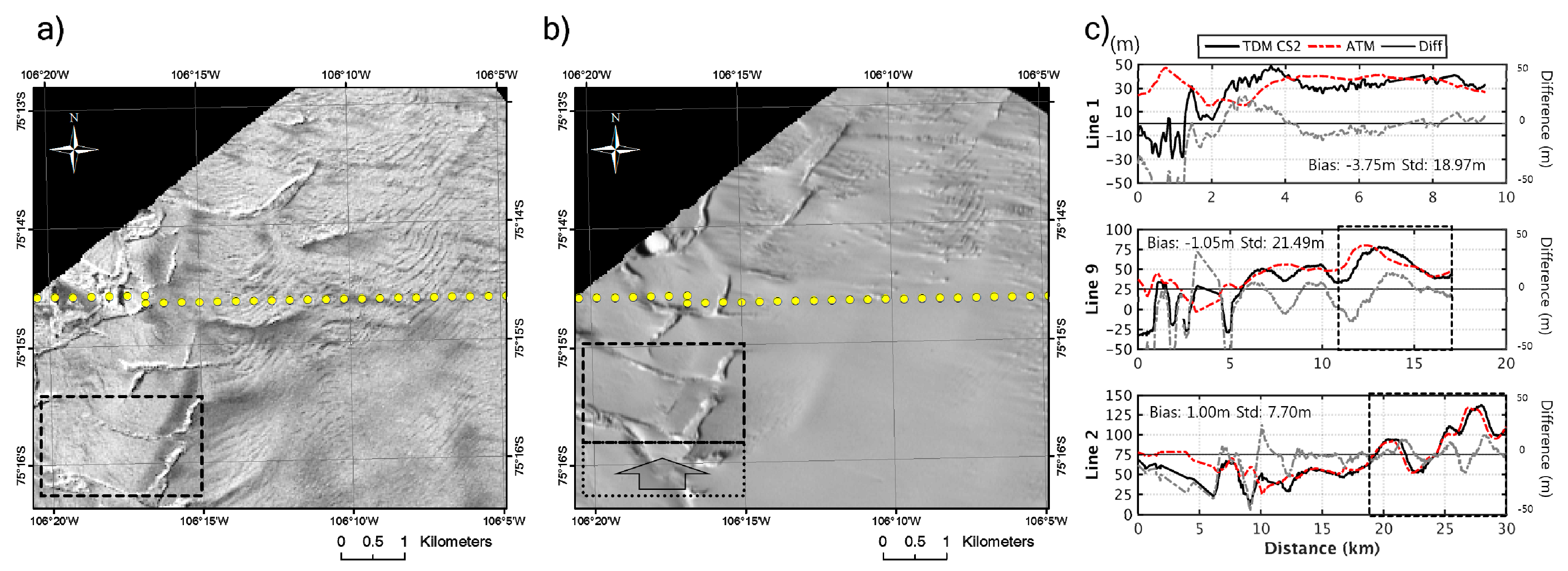

Figure 6. (a) TanDEM-X intensity image from 10 June 2011; and (b) Landsat ETM+ panchromatic image from 15 December 2011. The surface feature inside the dotted box moved 1 km north. The yellow dots represent the location of ATM line 1. (c) The surface profiles for line 1, 9 and 2. TDM_CS2 and ATM are shown in solid black and dashed red lines, respectively. The difference between TDM_CS2 and ATM is almost plotted in dashed grey line with a difference scale on the right axis. Dashed boxes for line 9 and 2 represent the grounded area.
Figure 6. (a) TanDEM-X intensity image from 10 June 2011; and (b) Landsat ETM+ panchromatic image from 15 December 2011. The surface feature inside the dotted box moved 1 km north. The yellow dots represent the location of ATM line 1. (c) The surface profiles for line 1, 9 and 2. TDM_CS2 and ATM are shown in solid black and dashed red lines, respectively. The difference between TDM_CS2 and ATM is almost plotted in dashed grey line with a difference scale on the right axis. Dashed boxes for line 9 and 2 represent the grounded area.
Remotesensing 09 00176 g006
Figure 7. A cross-point analysis between CryoSat-2 and ATM on a monthly basis over the grounded ice sheet region between 75.35°S and 75.75°S shows a decreasing trend of surface height at a rate of −2.38 m/year. The red and blue square indicates June and November in 2011 corresponding to TanDEM-X and ATM acquisition, respectively. The relative difference between two periods is −4.94 m.
Figure 7. A cross-point analysis between CryoSat-2 and ATM on a monthly basis over the grounded ice sheet region between 75.35°S and 75.75°S shows a decreasing trend of surface height at a rate of −2.38 m/year. The red and blue square indicates June and November in 2011 corresponding to TanDEM-X and ATM acquisition, respectively. The relative difference between two periods is −4.94 m.
Remotesensing 09 00176 g007
Table 1. Specification of datasets.
Table 1. Specification of datasets.
DatasetsAcquisition DateOrbitFrequency/WavelengthBaseline
TanDEM-X; TerraSAR-X10 June 2011DescendingX-band (9.65 GHz)106.06 m
CryoSat-29 June 2011DescendingKu-band (13.575 GHz)1.17 m
11 June 2011Descending
13 June 2011Descending
26 June 2011Ascending
28 June 2011Ascending
IceBridge ATM4 November 2011Not applicable532 nm
Table 2. Bias and standard deviation of height differences between TDM_CS2 and ATM (TDM_CS2 minus ATM) for each line. The lines are listed in the order to their locations from the north. Regional biases and standard deviations are also calculated.
Table 2. Bias and standard deviation of height differences between TDM_CS2 and ATM (TDM_CS2 minus ATM) for each line. The lines are listed in the order to their locations from the north. Regional biases and standard deviations are also calculated.
Line Number192837465
Bias (m)−3.75−1.051.002.194.05−3.51−5.62−2.49−6.01
Std (m)18.9721.497.704.314.357.626.956.427.60
RegionIce ShelfGrounding ZoneIce Sheet
Bias (m)0.233.19−4.31
Std (m)15.504.427.27
Remote Sens. EISSN 2072-4292 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
