Open AccessLetter
Energies 2017, 10(3), 330; doi:10.3390/en10030330

Effect of Load Change on the Thevenin Equivalent Impedance of Power System

1
Department of Electrical Engineering, Harbin Institute of Technology, 150001 Harbin, China
2
Department of Electrical and Computer Engineering, North Carolina State University, Raleigh, NC 27606, USA
*
Author to whom correspondence should be addressed.
Academic Editor: Chunhua Liu
Received: 24 December 2016 / Accepted: 1 March 2017 / Published: 8 March 2017
View Full-Text   |   Download PDF [1752 KB, uploaded 9 March 2017]   |

Abstract

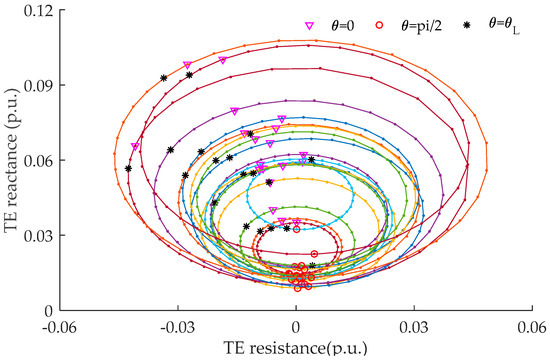

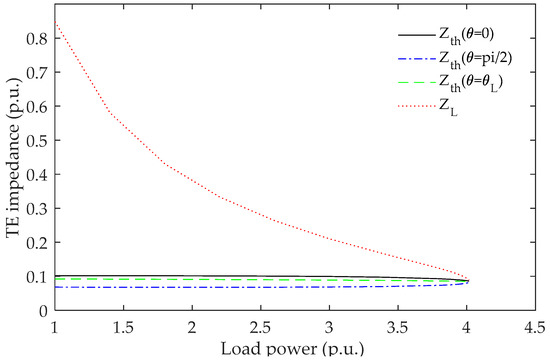

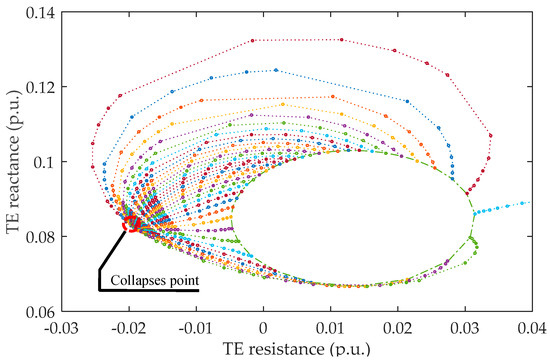

This paper discusses the effect of load change on the Thevenin equivalent impedance of power systems. In this paper, the Thevenin equivalent impedance influenced by the derivative of active load with respect to reactive load (dP dQ) is analyzed. The Thevenin equivalent impedance forms a closed curve in a complex plane and shrinks to one point when voltage collapses. The magnitude of the Thevenin equivalent impedance at the collapse point is equal to the magnitude of the load impedance. Therefore, the impedance match theory still holds under the effect of the load change. These features are verified on a New England 39-bus system. View Full-Text
Keywords: power systems; Thevenin equivalent impedance; load change; impedance match theory power systems; Thevenin equivalent impedance; load change; impedance match theory
Figures

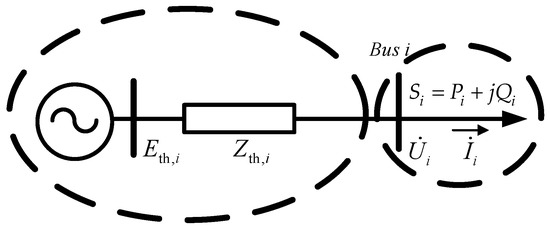

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
