Use of Ordered Beta Regression Unveils Cognitive Flexibility Index and Longitudinal Cognitive Training Signatures in Normal and Alzheimer’s Disease Pathological Aging

by
Daniel Alveal-Mellado
1,2 and
Lydia Giménez-Llort
1,2,*
1
Institut de Neurociències, Universitat Autònoma de Barcelona, 08193 Cerdanyola del Vallès, Barcelona, Spain
2
Department of Psychiatry and Forensic Medicine, School of Medicine, Universitat Autònoma de Barcelona, 08193 Cerdanyola del Vallès, Barcelona, Spain
*
Author to whom correspondence should be addressed.
Brain Sci. 2024, 14(5), 501; https://doi.org/10.3390/brainsci14050501
Submission received: 10 April 2024 / Revised: 7 May 2024 / Accepted: 11 May 2024 / Published: 15 May 2024
(This article belongs to the Special Issue Animal Models of Neurological Disorders)
Browse Figures
Versions Notes

Abstract

:
Generalized linear mixed models (GLMMs) are a cornerstone data analysis strategy in behavioral research because of their robustness in handling non-normally distributed variables. Recently, their integration with ordered beta regression (OBR), a novel statistical tool for managing percentage data, has opened new avenues for analyzing continuous response data. Here, we applied this combined approach to investigate nuanced differences between the 3xTg-AD model of Alzheimer’s disease (AD) and their C57BL/6 non-transgenic (NTg) counterparts with normal aging in a 5-day Morris Water Maze (MWM) test protocol. Our longitudinal study included 22 3xTg-AD mice and 15 NTg mice (both male and female) assessed at 12 and 16 months of age. By identifying and analyzing multiple swimming strategies during three different paradigms (cue, place task, and removal), we uncovered genotypic differences in all paradigms. Thus, the NTg group exhibited a higher percentage of direct search behaviors, while an association between circling episodes and 3xTg-AD animals was found. Furthermore, we also propose a novel metric—the “Cognitive Flexibility Index”—which proved sensitive in detecting sex-related differences. Overall, our integrated GLMMs-OBR approach provides a comprehensive insight into mouse behavior in the MWM test, shedding light on the effects of aging and AD pathology.

1. Introduction

Experimental research commonly requires sophisticated statistical methodologies capable of handling non-normally distributed data collected from dependently sampled observations, such as those clustered into groups or with repeated observations from the same individuals (i.e., longitudinal studies) [1,2]. As a result, there has been an increase in the use of innovative data analysis strategies including generalized linear mixed models (GLMMs). This methodology allows for the analysis of response variables from different distributions in longitudinal studies by including so-called random effects [3,4,5,6,7]. Although GLMMs have been used mainly to treat binary and categorical data [8], they have been recently applied in ecological and behavioral studies that gathered continuous response data such as percentages or ratios [9,10,11]. Previously, the beta regression model was proposed as an accurate method for handling percentage data [12]. Nevertheless, the model struggles with calculating degenerated data, wherein the range of values includes 0 or 1. In response, Kubinec [13] introduced the ordered beta regression model, which is capable of handling degenerated data. Nowadays, the continuous advancements in statistical software, such as R Software, offers the potential to amalgamate GLMMs and ordered beta regression models [13,14]. In our laboratory, we consider that this novel approach has broad applications, including handling various tests for assessing animal behavior, such as the neuroethological ones used in our translational behavioral neuroscience research. Notably, we hypothesize that applying this methodology to the Morris Water Maze (MWM) test, a common method for evaluating spatial learning and memory in rodents, might be highly beneficial in solving the complexity of data analysis of search strategies.
Generally, the MWM test is used to evaluate spatial cognitive performance in rodents and measure positive or negative effects of pharmacological and non-pharmacological preventive and therapeutic interventions in cognitive function; it can also be used to track the progression of cognitive dysfunction in models of neurological and psychiatric diseases. Thus, test performance enhancements are considered to be an indicator of therapeutic efficacy [15,16]. Despite several reported test protocols in the literature [17,18,19], a standard procedure typically involves three stages. The first stage, known as the visual perceptual learning or CUE stage, requires mice to swim in an opaque water-filled circular pool to reach a visible platform. The subsequent place task (PT) stage submerges and relocates the platform, requiring animals to search for it using external references. In the final probe trial or removal (RM) stage, the platform is removed, and the time animals spend in the previous platform location is analyzed.
Classical parameters such as escape latency, distance traveled, and mean speed are typically used to interpret an animal’s performance and infer its cognitive state in these paradigms [20]. However, criticisms have been raised about relying solely on these parameters as they may not provide meaningful information on animal behavior [21,22,23]. Therefore, researchers have proposed incorporating the analysis of swimming strategies adopted by animals into the standard MWM test protocol [24,25]. This approach aims to reveal behavioral disparities and memory deficits, enhancing our understanding of subtle signs of cognitive impairments. Our studies [26,27] and several others [28,29,30] showed that animals adopt a variety of swimming strategies during the test. These include search (i.e., thigmotaxis, random search, scanning, chaining, focal search, focal wrong, perseverance, and direct search) and non-search strategies (i.e., circling and floating).
Non-search strategies were previously highlighted as atypical behaviors in the test [31,32,33], indicating reduced attention to the platform search. Therefore, these are seen as confounding elements in the test analysis [34]. In addition, a correlation has been established between search strategies and different learning stages of animals [26,27,30]. This suggests that the spatial learning process evolves from an initial stage of self-centered or “egocentric” navigation, relying on sensorimotor information, to a later stage of “allocentric” navigation. In the latter stage, the animals’ trajectory is based on a non-self-centered cognitive map, where the hippocampus plays a significant role [30,35].
Cognitive flexibility, another potential aspect to evaluate in the test, involves the adaptation of behavior to new circumstances based on prior knowledge [36]. This concept has been proposed as a relevant measure to consider during the PT stage where animals are required to learn a new platform location [37,38]. Then, the inclusion of a swimming strategies analysis provides an opportunity to further investigate cognitive flexibility by examining the transition among different strategies.
The effect of prior experience in the test is another factor to consider when undertaking animal model assessment. A retest can impact performance, fluctuating based on mouse strain characteristics [39]. Longitudinal studies involving models of Alzheimer’s Disease (AD) [40,41] observed remarkable test performance stability, suggesting a potential training influence from the repeated test battery administration.
Based on our own experience in animal behavior analysis, we acknowledge the difficulty in differentiating AD and age-related impairments in mice in the MWM test. Challenges are due to the complex interplay of age, sex, and behavioral variability. Previously, our research suggested that the inclusion of multiple strategies within a single trial in the test may be an effective method to identify behavioral disparities in mice models of accelerated aging and in the triple-transgenic (3xTg-AD) model [26,27]. The 3xTg-AD model was created at the University of California, Irvine [42], and has been shown to have high face and construct validity [43,44].
Recent studies have expanded the multi-strategy approach by incorporating the classification of swimming strategies in other AD-like models [45,46]. Despite these advancements, the field lacks statistical methods to uncover the factors influencing these strategies and their evolution in longitudinal designs. Therefore, the aim of this study is to explore whether the application of GLMMs to a multi-strategy approach can identify differences by sex, genotype, or age in a group of normal (gold standard wild-type C57BL/6strain) and AD-pathologically aged mice (3xTg-AD mice) that may have been overlooked in traditional variable analysis.

2. Materials and Methods

2.1. Animals

Fifty-nine mice were used in the longitudinal experimental design. Twenty-two died during the follow-up period from 12 to 16 months of age, and finally, 37 were considered in the pre–post analysis including 22 3xTg-AD animals (n = 14 males and n = 8 females) from the Spanish colony established at the Universitat Autònoma de Barcelona, Barcelona, Spain, in a C57BL/6 background strain [47] and their 15 non-transgenic (NTg) counterparts (n = 8 males and n = 7 females). All groups were assessed at 12 and 16 months of age.
All animals were kept under standard laboratory conditions in macrolon cages (35 cm × 35 cm × 25 cm) with ad libitum food and water, at a temperature of 22 ± 2 °C and 50–70% humidity on a 12/12 h light/dark cycle starting at 8 a.m.

2.2. Morris Water Maze Protocol

The MWM test protocol was adapted from a previous study [48] and consisted of one day of the CUE stage, four consecutive days of the PT stage, and an RM stage on day 5.
Day 1 (CUE stage): Animals were trained to locate a visible platform (1 cm above the opaque water surface) situated in the northeast (NE) quadrant, which was marked with a black striped flag. External cues were not provided, and each animal completed four trials.
Days 2–5 (PT1-PT4 stage): The platform was submerged 1 cm below the water level and repositioned in the opposite quadrant (southwest, SW). External cues were present, and four consecutive trials were conducted daily. Mice were introduced into the pool from different starting points (north, south, west, and east) for each trial.
Day 5 (RM stage): The platform was removed 2.5 h after the last trial on PT4, and a single trial was performed.
Throughout the experiment, mice were gently placed into the pool facing the wall and allowed to swim for a maximum of 60 s per trial. When animals failed to find the platform in 60 s, they were gently guided to it and remained standing there for 10 s.

2.2.1. Classical MWM Test Analysis

Classic measurements (namely, escape latency, distance traveled, and mean speed) were automatically calculated at all stages using the video tracking software ANY-MAZE version 6.33. Additionally, during the RM stage, the time spent in each pool quadrant and in a zone surrounding 1.5 cm of the previous platform location was recorded.

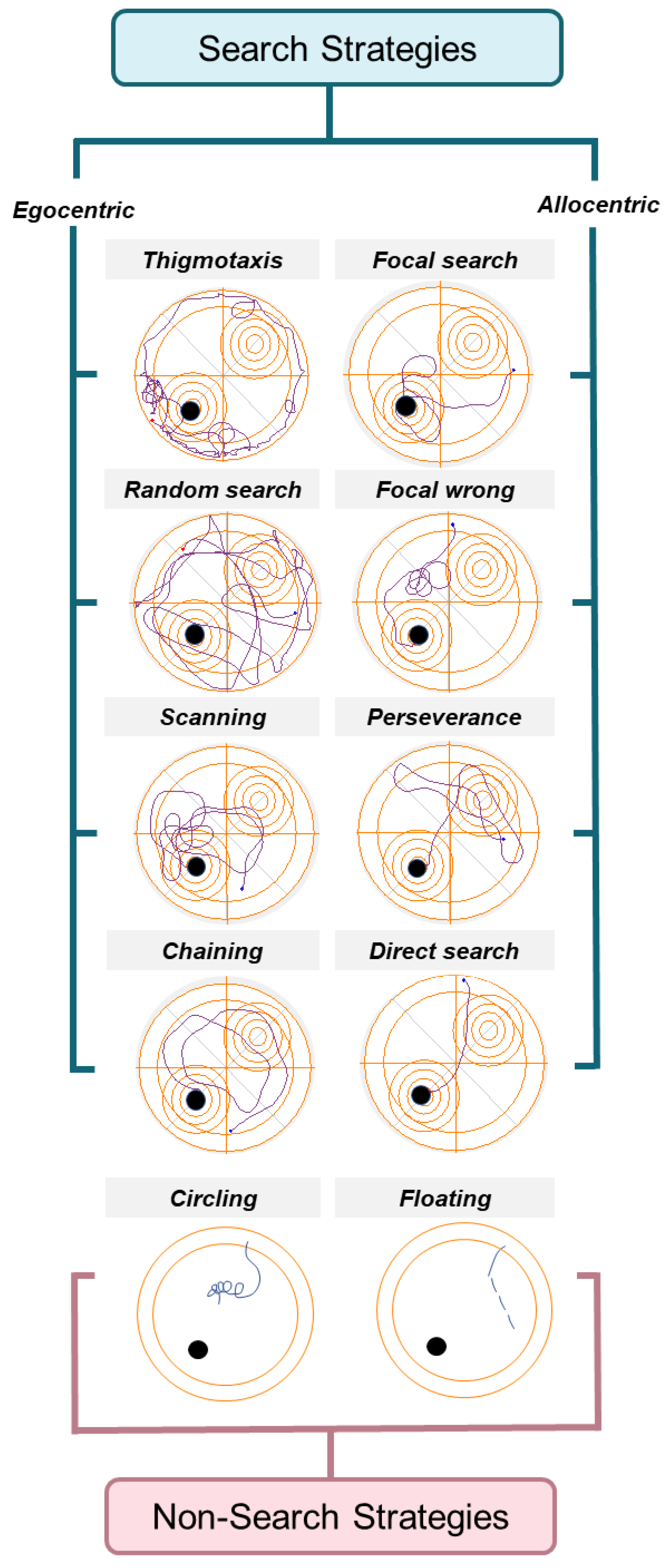

2.2.2. Swimming Strategy Classification

Swimming patterns were visually identified based on the track plots recorded by ANY-MAZE. Patter identification was undertaken by an observer trained for such a task and blind to the animal’s age, sex, and genotype. The initial and final trials (T1 and T4) were considered for the analysis since they represent the main changes in the animals at each stage [48]. Swimming strategies were classified according to previous reports [30,48] (see Figure 1):
  • Non-search Behavior:
(a)
Circling: Animals turn around their own axis in short loops without clear directionality.
(b)
Floating: The animal remains inactive, not swimming in a forward motion.
  • Search Behavior:
Search behavior was further divided into eight distinct swimming strategies as follows:
(a)
Thigmotaxis: A swim pattern performed near the pool walls or within an external ring accounting for 10% of the pool surface.
(b)
Random search: The animal covers all four pool quadrants in a pattern with frequent direction changes.
(c)
Scanning: Characterized by direction changes, but the pattern is limited to a couple of quadrants or a central area of the pool.
(d)
Chaining: The swimming pattern is executed at a fixed distance from the wall but closer to the pool’s center than in the thigmotaxis strategy.
(e)
Focal search: The search pattern is confined to the target quadrant, characterized by a dense concentration of overlapping loops and turns.
(f)
Focal wrong: A focal search performed in an incorrect quadrant.
(g)
Perseverance: The animal persists in searching in the target quadrant of the CUE stage after the platform has been moved to the PT position.
(h)
Direct search: A straight swim toward the platform location.

2.2.3. Variables Associated with Swimming Strategies

Percentage of Swimming Strategies

The video analysis approach facilitated the identification of multiple strategies within a single trial. Thus, the percentage of time spent on each was calculated as follows:
Search Strategy = Time spent in swimming strategy (s)/Escape Latency (s)

Cognitive Flexibility

In the present work, we propose a measurement of cognitive flexibility, which was calculated as the percentage of time spent until the first strategy used to find the platform changed.
Cognitive Flexibility = Time spent in first strategy (s)/Escape Latency (s)

Non-Search Strategy Episodes

The number of circling and floating episodes in each trial was recorded.

2.3. Statistical Analysis

All analyses were performed using R software (version 4.3.2). We used the afex package (version 1.3.0) to analyze classic parameters via a mixed model analysis of variance (Mixed ANOVA). Genotype and sex were treated as between-subject factors, while days, trials, and ages were considered within-subject factors.
An ordered beta regression model (glmmTMB package version 1.1.5) [13,49] was used to analyze proportion-dependent variables such as the proportion of swimming strategies and cognitive flexibility. A set of multiple models was generated from simplest to most complex to examine the effects of sex, genotype, trial, and age on the dependent variables. Animal ID was included as a random effect to account for repeated measures and individual variability. An AICc model selection (bbmle package version 1.0.25.1) was then applied to identify the top models.
A generalized linear mixed model (GLMM) with a negative binomial distribution was conducted to determine whether the number of non-search strategies (namely, circling and floating episodes) was influenced by the trial, sex, genotype, or age of the animals.
The DHARMa package (version 0.4.6) was used to examine the model fit and residual diagnostics.
Post hoc analyses with multiple comparisons were performed using the emmeans package (version 1.8.4.1). The p-value was then adjusted using the Tukey method for multiple comparisons.
Data were considered statistically significant when the p-value was less than 0.05.

3. Results

3.1. Survival Analysis

During the follow-up period, there was a 37.28% mortality rate, with a loss of 22 animals, with no genotype or sex differences (Fisher exact test, p = 1.000) since about half of them were NTg mice (9 females, 3 males) and the other were 3xTg-AD mice (5 females, 5 males).

3.2. Classical MWM Test Analysis

3.2.1. CUE Stage

In the CUE stage, the mixed ANOVA test for escape latency revealed a significant age effect (Figure 2) [F(1,33) = 24.37, p < 0.001], indicating a decrease in escape latency for all animals (n = 37) at 16 months of age [16 m vs. 12 m: t(33) = −11.4, p < 0.001]. Upon analyzing the distance covered, significant sex [F(1,33) = 10.68, p = 0.003] and age effects [F(1,33) = 29.38, p < 0.001] were found (Figure 2); thus, females outperformed males [females vs. males: t(33) = −1.27, p = 0.003], and all animals decreased the distance swam with age [16 m vs. 12 m: t(33) = −1.79, p < 0.001].
Regarding mean speed, a significant sex effect was detected [F(1,33) = 5.24, p = 0.029], with females swimming slower than males [females v/s males: t(33) = −0.024, p = 0.029].

3.2.2. PT Stage

A significant “stage” effect [F(2.87,94.73) = 4.23, p = 0.008] and a “stage × genotype” interaction effect [F(2.87,94.73) = 2.77, p = 0.48] were found in escape latency during the PT stage (Figure 2). Further analysis revealed that the “stage” effect accounted for differences between the PT1 and PT4 [t(33) = 6.38, p = 0.029] stages and the PT2 and PT4 [t(33) = 5.30, p = 0.031] stages in all animals (n = 37). The “stage × genotype” interaction can be explained by genotypical differences only on the fourth day of the task (PT4), where the 3xTg-Ad animals performed worse than the NTg animals [t(33) = 8.54, p = 0.022].
When the distance covered was analyzed, a significant stage effect [F(2.81,92.75) = 5.22, p = 0.003] indicated differences in the average values of the PT1 and PT4 [t(33) = 1.59, p = 0.011] stages and the PT2 and PT4 [t(33) = 1.07, p = 0.025] stages for all animals at both ages (n = 37).
In the mean swimming speed, a “stage” effect [F(1.94,63.87) = 5.46, p = 0.007] and a “sex × age” interaction effect [F(1,33) = 4.22, p = 0.048] were observed. The post hoc analysis revealed differences between the PT1 and PT3 [t(33) = 0.01, p = 0.018] stages and sex differences at 16 months of age only, with females swimming slower than males (t(33) = −0.03, p = 0.002).

3.2.3. RM Stage

Time and distance parameters were analyzed in each of the pool’s quadrants (Figure 2). A significant “quadrant” effect was observed for both time [F(2.18,72.03) = 4.08, p = 0.18] and distance [F(2.30,75.95) = 6.77, p = 0.001]. Further analysis revealed significant differences between the time spent in the adjacent left and opposite quadrants (AL vs. O: t(33) = −4.26, p = 0.002), the distance covered in the adjacent left and opposite quadrants (AL vs. O: t(33) = −4.547, p < 0.001), and the distance covered in the opposite and previous platform location quadrants (O vs. P: t(33) = −0.59, p = 0.025).
Additionally, a “sex × age” interaction effect was detected in the time spent [F(1,33) = 7.7, p = 0.009] within a zone surrounding the previous platform location by 1.5 cm. Consequently, females spent more time in this zone than males at 12 months of age (t(33) = 4.56, p = 0.014).
No differences were found in the mean swimming speed of the animals at any age.
Brainsci 14 00501 g002

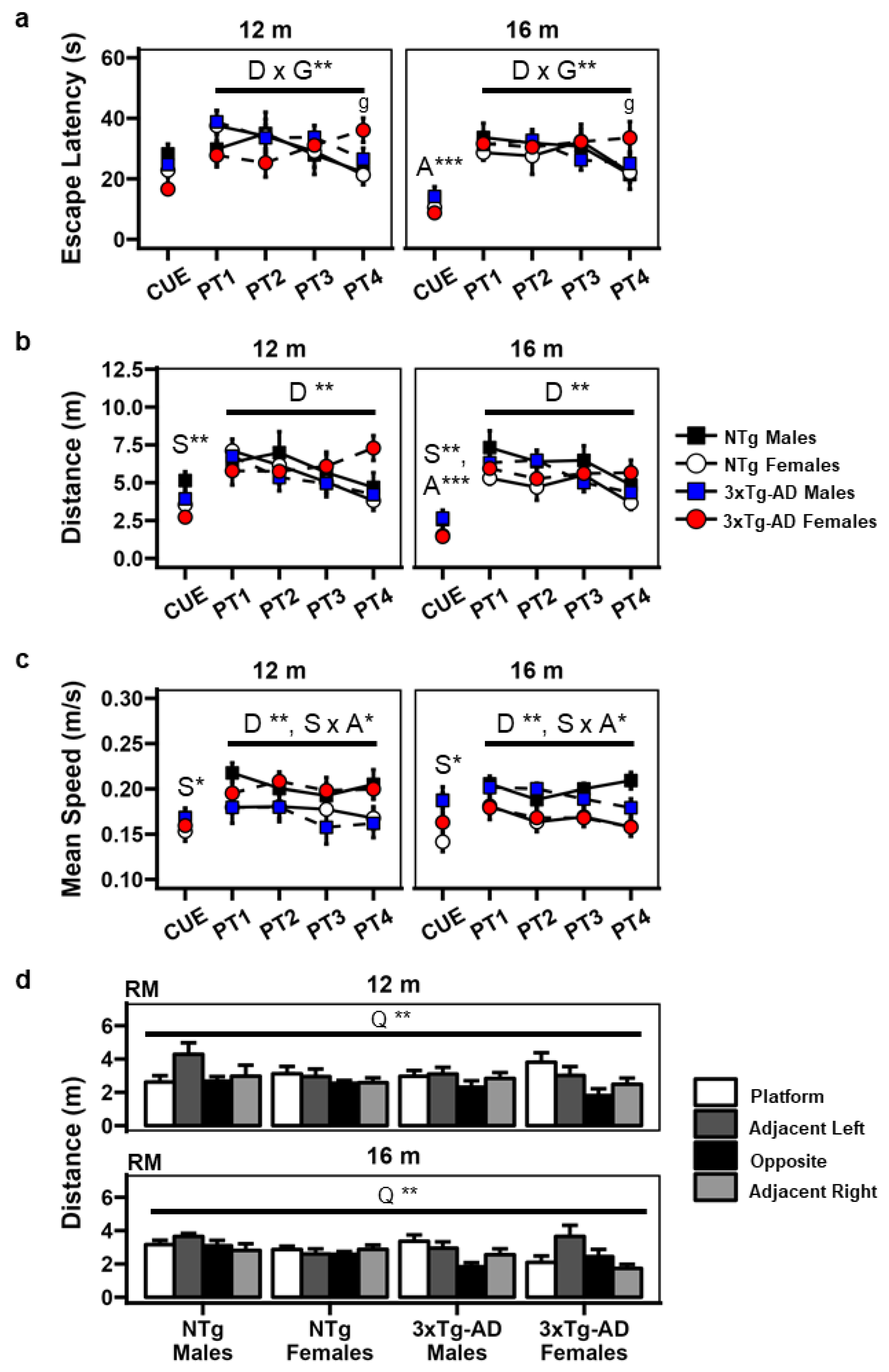

Figure 2. Classic parameters in the MWM test. (a) Escape latency. (b) Distance traveled. (c) Mean speed. (d) Distance traveled in the different quadrants during the removal stage. Mixed ANOVA: A, age effect; D, day effect; G, genotype effect; Q, quadrant effect; S, sex effect; g, genotype effect in stage PT4. * p < 0.05; ** p < 0.01; *** p < 0.001.
Figure 2. Classic parameters in the MWM test. (a) Escape latency. (b) Distance traveled. (c) Mean speed. (d) Distance traveled in the different quadrants during the removal stage. Mixed ANOVA: A, age effect; D, day effect; G, genotype effect; Q, quadrant effect; S, sex effect; g, genotype effect in stage PT4. * p < 0.05; ** p < 0.01; *** p < 0.001.
Brainsci 14 00501 g002

3.3. Swimming Strategy Analysis

A total of 814 trials were analyzed during both MWM tests at 12 and 16 months of age. The distribution of strategies in each trial was analyzed (Figure 3). We found that the animals used up to four strategies per trial to find the platform (1.36 ± 0.56). A mixed-regression Poisson analysis showed a significant trial effect (p = 0.036), with fewer strategies used in T4 (1.25 ± 0.06) compared with T1 (1.43 ± 0.06), regardless of age, sex, genotype, or stage.

3.3.1. Search Strategies

CUE Stage

The impact of sex, genotype, trials, and age on each strategy was evaluated. The optimal model varied depending on the strategy used as the dependent variable. Significant responses to predictors were observed in the random search, scanning, chaining, focal wrong, and direct search strategies (Table 1).
The genotype of the animals significantly influenced the proportion of random search, after adjusting for sex, age, and trials (p < 0.001). A pairwise test revealed that the 3xTg-AD mice were less likely to employ this strategy compared with their NTg counterparts (NTg vs. 3xTg-AD, odds ratio = 1.93, z = 18.646, p < 0.001).
An interaction effect between age and trial (p = 0.032) was detected in the scanning strategy. Specifically, a decrease in the likelihood of employing this strategy was observed in T4 compared with T1 at 12 months of age (odds ratio: 7.08, z = 3.73, p = 0.001).
An age effect (p = 0.002) was observed in the percentage of chaining, with an increase in its likelihood by 16 months of age (odds ratio: 0.55, z = −3.04, p = 0.002).
In the focal wrong strategy, a trial effect (p = 0.015) was found when adjusted by genotype, indicating that the likelihood of observing this strategy decreased by T4 compared with T1 (odds ratio = 2.70, z = 2.42, p = 0.015).
Regarding the direct search strategy, a model including age (p = 0.008) and trials (p < 0.001) was the top raked. Pairwise comparisons showed a significant increase in the likelihood of employing it by 16 months of age (odds ratio = 0.53, z = −2.65, p = 0.008) and by T4 (odds ratio = 0.23, z = −4.57, p < 0.001).

PT Stages

To evaluate the general changes in platform search patterns during this stage, data from PT1 to PT4 were pooled and analyzed, with a specific focus on T1 and T4. The response variables for each model included sex, genotype, trial, and age as predictors. Significant responses to some predictors were observed in the thigmotaxis, random search, and direct search strategies (Table 1).
A significant influence of age was found in the percentage of thigmotaxis used by the animals (p < 0.001). Specifically, a reduction was observed at 16 months of age compared with 12 months (odds ratio = 4.68, z = 4.40, p < 0.001). Additionally, age significantly influenced the percentage of random search (p = 0.008), with a reduction observed at 16 months (odds ratio = 1.73, z = 2.641, p = 0.008).
In the case of direct search, the top model included genotype and trial. A significant interaction effect was found (p = 0.002), with the NTg animals showing higher percentages than the 3xTg-AD animals in T4 (odds ratio: 1.81, z = 2.70, p = 0.035), regardless of sex and age.

RM Stage

During this stage, models that included sex, genotype, and age as predictors were evaluated. A significant influence of these predictors was found in the scanning, focal wrong, and direct search strategies (Table 1).
The age of the animals significantly influenced the percentage of scanning (p = 0.03), with a reduction observed at 16 months (odds ratio = 1.85, z = 2.16, p = 0.031).
For the focal wrong strategy, sex (p < 0.001), genotype (p < 0.001), and age (p < 0.001) significantly influenced this strategy. Specifically, an increase was observed at 16 months of age (odds ratio = 0.76, z = −43,924, p < 0.001), a higher percentage was observed in males (odds ratio = 1.42, z = 55,110, p < 0.001), and a higher percentage was observed in the non-transgenic (NTg) animals (odds ratio = 1.23, z = 33,454, p < 0.001).
Finally, the percentage of direct search was significantly influenced by genotype (p < 0.001), adjusted by age. Thus, the NTg animals showed a higher probability of using this strategy than the 3xTg-AD animals (odds ratio: 1.79, z = 4.451, p < 0.001).

3.3.2. Non-Search Strategies

The effects of age, genotype, sex, and trial were examined on the response variables circling and floating in the different MWM stages (Table 2).

Circling Behavior

Circling episodes were observed in 49.88% of the trials (406 out of 814), with an average duration of 3.23 s (SD: 6.37 s). A mixed-effect Poisson regression analysis during the CUE stage revealed significant influences from both trial (p < 0.001) and age (p < 0.001) on the number of circling episodes. Specifically, a decrease was noted by T4 (odds ratio = 4.67, z = 8.02, p < 0.001) and at 16 months of age (odds ratio = 2.26, z = 5.06, p < 0.001). In the PT stages, the number of circling episodes was significantly influenced by trial (p = 0.007), with a decrease observed in T4 compared with T1 (odds ratio = 1.44, z = 2.67, p = 0.007), and age (p = 0.013), with an increase noted at 16 months of age compared with 12 months (odds ratio = 0.70, z = −2.47, p = 0.013). During the RM stage, a significant interaction effect was found between genotype and age (p = 0.026). The post hoc analysis revealed a significant increase in the number of circling episodes only for the 3xTg-AD animals when comparing 12 and 16 months of age (odds ratio = 0.51, z = 0.24, p = 0.008)

Floating Behavior

Floating behavior was observed in 18.18% of the trials (148 out of 814), with an average duration of 1.92 s (SD: 6.28). During the CUE stage, the top model for the mixed-effect Poisson regression included only trial as a predictor, revealing a significant influence (p = 0.027). Specifically, a reduction was observed by T4 compared with T1 (odds ratio = 5.5, z = 2.28, p = 0.027). For the PT stages, the top model included both trial (p = 0.60) and age (p = 0.038) as predictors. The post hoc analysis showed a decrease in floating episodes by 16 months of age (odds ratio = 1.44, z = 2.07, p = 0.038). Finally, during the RM stage, no significant influences of sex, genotype, or age were found.

3.3.3. Cognitive Flexibility

Multiple mixed-model ordered beta regressions were built for each stage of the MWM test (Table 2). In the CUE stage, the top model included trial and sex as predictors, both of which showed a significant effect on the response variable (trial: p = 0.003, sex: p = 0.032). The post hoc analysis revealed an increase in the time taken to change the initial strategy across trials (Trial 1/Trial 4: odds ratio = 0.45, z= −2.91, p = 0.003) and that females required more time than males to change it (male/female: odds ratio = 0.64, z = −2.15, p = 0.032).
For the PT and RM stages, the null models, which included only the random effect of animal ID, were the top models. Thus, we assumed no influence of sex, genotype, age, or trials on cognitive flexibility during these stages.
Brainsci 14 00501 g003

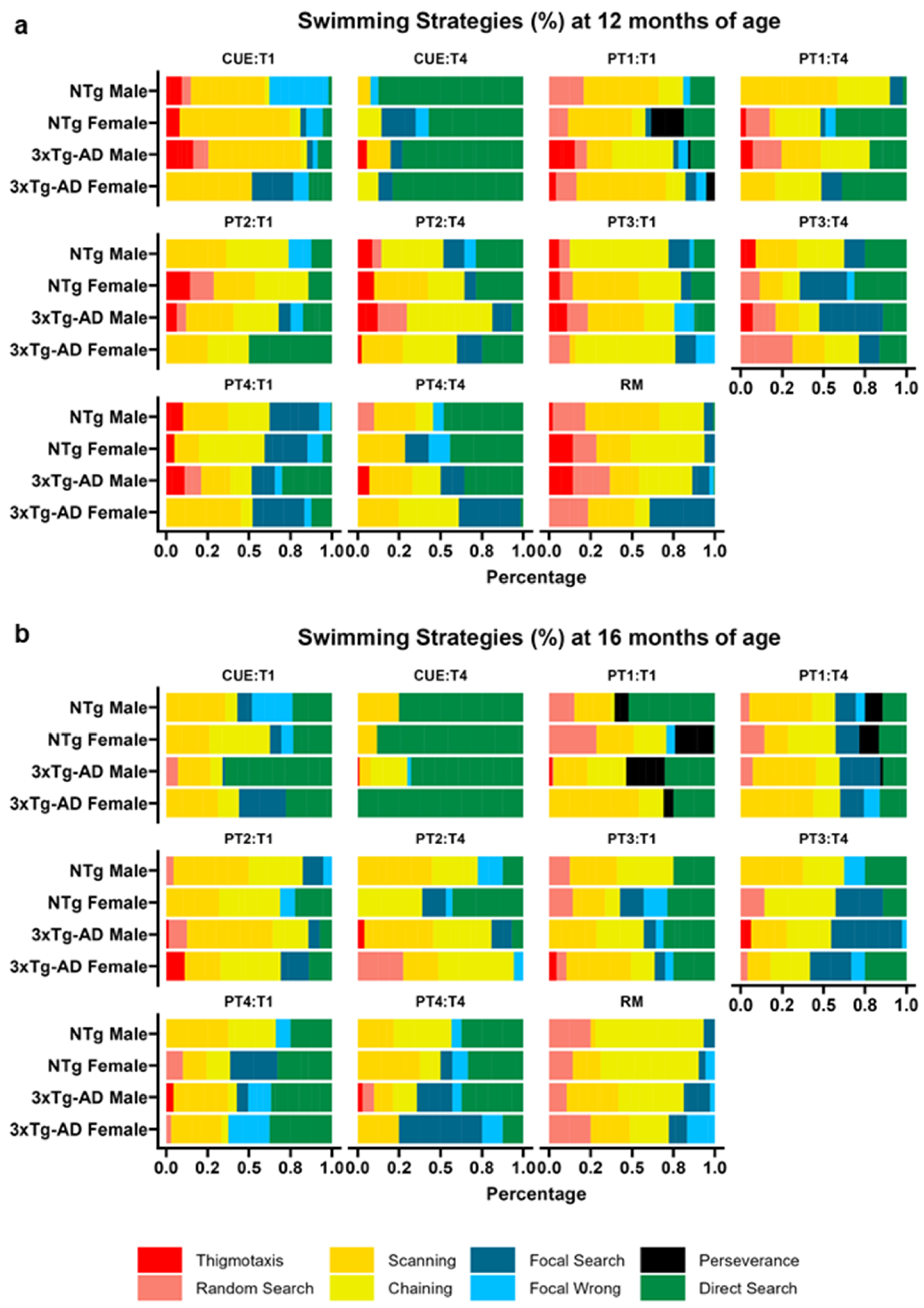

Figure 3. Comparative analysis of swimming strategies by group. Distribution of swimming strategies among different groups during the initial (T1) and final (T4) trials. Panels (a,b) represent the data collected at 12 and 16 months of age, respectively, showcasing the evolution in strategy adoption over time.
Figure 3. Comparative analysis of swimming strategies by group. Distribution of swimming strategies among different groups during the initial (T1) and final (T4) trials. Panels (a,b) represent the data collected at 12 and 16 months of age, respectively, showcasing the evolution in strategy adoption over time.
Brainsci 14 00501 g003

4. Discussion

Our findings harnessed state-of-the-art statistical tools, including ordered beta regression, to sensitively detect sex and genotype cognitive nuances between normal and pathologically aged mice in a multi-strategy identification approach in different stages/paradigms of the MWM test. The present work also advocates for a comprehensive perspective that integrates classical variables—such as escape latency, distance covered, and swimming speed—with search and non-search strategies analysis to enhance our understanding of animal behavior under normal and pathological scenarios.

4.1. Classical MWM Test Analysis

In our analysis, quantitative variables gained significance primarily during the CUE stage, where the animals were introduced to the fundamental principles of the test. This phase is thus considered a period of training [50]. Importantly, females covered shorter distances than males before finding the platform, which may indicate a better habituation in this group. Furthermore, females exhibited slower swimming speeds than males.
Genotypical differences were detected when escape latency was analyzed during the last day of PT stages (PT4). Thus, 3xTg-AD mice required a longer time to find the platform at both 12 and 16 months of age. Nevertheless, we expected these differences in the acquisition curve to be more evident and detectable between both groups sooner, i.e., already at PT3 [51]. This absence of clear differences supports the inclusion of other variables for a more thorough interpretation of the test when aged animals are evaluated.

4.2. Relevant Swimming Strategies

Previous studies underscored the significance of categorizing swimming strategies during the MWM test in mouse models of AD [45,46]. Others were probably discouraged because of statistical limitations in handling the percentage of multi-strategic performances. Therefore, in most studies, the focus was primarily centered on the predominant strategy. In our previous investigations, we proposed an approach considering multiple strategies in each single trial [26]. In the present work, we further develop this approach and include statistical tools to deal with the challenges that such data can cause. This allowed us to identify genotypic differences at all stages of the test (CUE, PT, and RM). The main differences were observed during the PT stages, where NTg animals employed a direct search strategy more frequently than their 3xTg-AD counterparts. Such differences extend beyond traditional analysis, highlighting the importance of the use of statistical tools in a multi-strategy classification.
Although genotypic differences in random search and direct search were observed during the CUE and RM stages, respectively, the magnitude of these differences was minimal and thus not considered relevant.
Strategies associated with lower hippocampal involvement declined with age, while those more reliant on hippocampal function increased. These findings align with prior research [32,52,53], suggesting a transition in rodent swimming patterns from wall proximity (thigmotaxis) to proactive search strategies (direct search) following training. In fact, our laboratory has proposed that batteries of tests, mainly in longitudinal designs should be considered a “behavioral” cognitive training [54]. As further discussed below (Section 4.5), the current data support this understanding and provide a comprehensive analysis with further evidence on the functional aspects of this cognitive training.

4.3. Importance of Non-Search Strategies

Circling behavior was more prevalent than floating. As animals became accustomed to the test, the occurrence of both behaviors decreased, both across trials and upon retesting after a four-month interval. Notably, only the 3xTg-AD group exhibited an increase in circling behavior during the RM stage. This might be interpreted as an intensification of neuropsychiatric-like symptoms in the transgenic group when confronted with a non-escapable paradigm, potentially impacting the animals’ engagement in an active platform search.
Our observation of an association between circling episodes and 3xTg-AD animals aligns with previous research [27,48]. Despite this, in the 3xTg-AD animal set assessed in the present study, built on a C57BL/6 pure genetic background, we did not observe the persistent hyperactive phenotype often associated with this animal model when based in their original hybrid C57BL/6 × 129 background [26,42], as typically evidenced by a higher mean speed in the test. This would also explain other differences between this and the previous report with respect to the higher incidence of floating episodes previously reported in their NTg (C57BL/6 × 129) counterparts [48], which is not observed under this background strain. In this respect, variations in the stress response profiles among these animals because of their “survival bias” (see Section 4.6) could explain these differences in the floating behavior, a natural characteristic of mice swimming patterns that depends on basal anxiety levels and the behavioral profile [55,56].

4.4. Cognitive Flexibility

We noted sex variations in the transition between initial and subsequent swimming strategies during the CUE test. Specifically, females transitioned slower from their first strategy used to locate the platform compared with males. We propose that the CUE test challenges the cognitive flexibility of the animals. In the first experience, the test may be perceived as non-escapable, while learning opportunities make escape possible in subsequent trials. This observation suggests that males exhibit enhanced adaptability when navigating a novel environment, which could be a potential manifestation of cognitive flexibility.
While previous research has not specifically examined the transition of swimming strategies as a method for evaluating cognitive flexibility, the present work provides further evidence of the importance of assessing it in the test.

4.5. Retest Effect

Our investigation explored the role of prior experience in the test, specifically considering mouse strain characteristics. Thus, according to the classical and multi-strategy approach, animals seemed to improve their performance when retested. Previous longitudinal assessments involving Tg2576 [40] and APP/PS1 [41], which are AD-like models, consistently reveal stable performance upon retesting, similar to control groups. Zhang [57] underscores the protective effect of prior experience against non-cognitive decline in AD-like models. Notably, genotypic differences in 3xTg-AD mice manifest early but attenuate at advanced ages [43,54,58,59]. This reduction may stem from training effects, mortality bias, and age-related declines observed across both the transgenic and non-transgenic cohorts [41,60].

4.6. Limitations

Only animals that survived were included throughout the follow-up period. This “mortality” selection process skews our sample toward animals with distinct behavioral profiles, mainly regarding their stress response characteristics. As recently reported in our laboratory in 3xTg-AD and APP/swe mice, this “survival bias” renders a new window of observation in the experimental scenario [54,60,61].
Our methodology, although comprehensive, has certain limitations. There were two potential issues in the strategy identification i.e., it can be labor-intensive and may lack of reliability. However, we addressed this latter concern by ensuring inter-evaluator agreement. Moreover, it is important to highlight that current track analysis software may not be fully accurate for advanced feature analysis. As such, visual analysis continues to be a practical approach for intricate tasks.

4.7. Future Directions

One significant aspect for future research involves contrasting our findings by integrating the analysis of swimming strategies in other AD-like models within longitudinal studies. This approach will not only strengthen inter-study and inter-laboratory reliability but also offer a more detailed understanding of the observed behavioral patterns.
Previous reports from our laboratory [60] have depicted a neuropathological progression in 3xTg-AD mice of similar ages, with extracellular A-beta plaques present in 12-month-old females and 16-month-old males across various brain regions. Consequently, delving deeper into the neuroanatomical aspects contributing to the behavioral signatures observed in the MWM test can shed light on the mechanisms propelling these behaviors. Most importantly, as shown here, the longitudinal design that scrutinizes the effects of prior training in the test presents an intriguing avenue for research.
In agreement with our prior work on normal and AD-pathological aging [15,27,62,63], we consider that employing swimming strategies adds stronger methodological sensitivity to assess the effects of new compounds or interventions. It is essential to pay close attention to any alterations in the variables, such as those outlined here. This approach holds promise for the development of more effective preventive and/or therapeutic interventions for AD and normal aging.

5. Conclusions

We have successfully integrated GLMMs and ordered beta regression into the MWM test analysis to interpret the swimming patterns of the animals. This integration has allowed us to gain a more comprehensive understanding of mouse behavior in normal and AD-pathological aging. The results of our study underscore the effectiveness of this methodology. We believe that future research, particularly those focusing on the evaluation of normal and pathological aging in animals under intrinsic (i.e., sex-perspective) and extrinsic factors (i.e., social and environmental conditions, non-pharmacological and pharmacological interventions), will consider this approach as an indicator of the performance in the test.

Author Contributions

Conceptualization, L.G.-L. and D.A.-M.; methodology, L.G.-L. and D.A.-M.; software D.A.-M.; formal analysis and statistics, D.A.-M.; investigation, D.A.-M.; resources, L.G.-L.; data curation, D.A.-M.; writing—original draft preparation, D.A.-M.; writing—review and editing, L.G.-L. and D.A.-M.; supervision L.G.-L.; project administration, L.G.-L.; funding acquisition, L.G.-L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by 2017-SGR-1468 and UAB-GE-260408 to L.G.-L. The colony of 3xTg-AD mice was sustained by ArrestAD H2020 Fet-OPEN-1-2016-2017-737390, European Union’s Horizon 2020 research and innovation program under grant agreement No. 737390 to L.G.-L. D.A.-M. is the recipient of a CONICYT-ANID/73200493 grant from the Chilean government.

Institutional Review Board Statement

This study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Ethics Committee of Departament de Medi Ambient i Habitatge, Generalitat de Catalunya (CEEAH 3588/DMAH 9452) on 8 March 2019.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in this study’s design; in the collection, analyses, or interpretation of data; in the writing of this manuscript; or in the decision to publish the results.

References

  1. Arnau, J.; Bendayan, R.; Blanca, M.J.; Bono, R. The Effect of Skewness and Kurtosis on the Robustness of Linear Mixed Models. Behav. Res. 2013, 45, 873–879. [Google Scholar] [CrossRef]
  2. Micceri, T. The Unicorn, the Normal Curve, and Other Improbable Creatures. Psychol. Bull. 1989, 105, 156–166. [Google Scholar] [CrossRef]
  3. Bolker, B.M.; Brooks, M.E.; Clark, C.J.; Geange, S.W.; Poulsen, J.R.; Stevens, M.H.H.; White, J.-S.S. Generalized Linear Mixed Models: A Practical Guide for Ecology and Evolution. Trends Ecol. Evol. 2009, 24, 127–135. [Google Scholar] [CrossRef]
  4. Dean, C.B.; Nielsen, J.D. Generalized Linear Mixed Models: A Review and Some Extensions. Lifetime Data Anal. 2007, 13, 497–512. [Google Scholar] [CrossRef]
  5. Breslow, N.E.; Clayton, D.G. Approximate Inference in Generalized Linear Mixed Models. J. Am. Stat. Assoc. 1993, 88, 9–25. [Google Scholar] [CrossRef]
  6. Bono, R.; Alarcón, R.; Arnau, J.; Javier García-Castro, F.; Blanca, M.J. Robustness of Generalized Linear Mixed Models for Split-Plot Designs with Binary Data. An. Psicol. 2023, 39, 332–343. [Google Scholar] [CrossRef]
  7. Fox, J.; Weisberg, S. An R Companion to Applied Regression, 3rd ed.; SAGE Publications, Inc.: Thousand Oaks, CA, USA, 2019; ISBN 978-1-5443-3647-3. [Google Scholar]
  8. Bono, R.; Alarcón, R.; Blanca, M.J. Report Quality of Generalized Linear Mixed Models in Psychology: A Systematic Review. Front. Psychol. 2021, 12, 666182. [Google Scholar] [CrossRef]
  9. Crossley, R.E.; Bokkers, E.A.M.; Browne, N.; Sugrue, K.; Kennedy, E.; Conneely, M. Risk Factors Associated with Indicators of Dairy Cow Welfare during the Housing Period in Irish, Spring-Calving, Hybrid Pasture-Based Systems. Prev. Vet. Med. 2022, 208, 105760. [Google Scholar] [CrossRef]
  10. Garcia, A.C.; Parsons, M.A.; Young, J.K. Effects of Early-Life Experience on Innovation and Problem-Solving in Captive Coyotes. Behav. Ecol. Sociobiol. 2022, 76, 141. [Google Scholar] [CrossRef]
  11. Adcock, S.J.J.; Tucker, C.B. Injury Alters Motivational Trade-Offs in Calves during the Healing Period. Sci. Rep. 2021, 11, 6888. [Google Scholar] [CrossRef]
  12. Ferrari, S.; Cribari-Neto, F. Beta Regression for Modelling Rates and Proportions. J. Appl. Stat. 2004, 31, 799–815. [Google Scholar] [CrossRef]
  13. Kubinec, R. Ordered Beta Regression: A Parsimonious, Well-Fitting Model for Continuous Data with Lower and Upper Bounds. Political Anal. 2023, 31, 519–536. [Google Scholar] [CrossRef]
  14. Hyjazie, B.F.; Forrest, J.R.K. Supplemental Nesting Habitat Increases Bee Abundance in Apple Orchards. J. Appl. Ecol. 2024, 61, 442–451. [Google Scholar] [CrossRef]
  15. Baeta-Corral, R.; Johansson, B.; Giménez-Llort, L. Long-Term Treatment with Low-Dose Caffeine Worsens BPSD-Like Profile in 3xTg-AD Mice Model of Alzheimer’s Disease and Affects Mice with Normal Aging. Front. Pharmacol. 2018, 9, 79. [Google Scholar] [CrossRef]
  16. Tian, H.; Ding, N.; Guo, M.; Wang, S.; Wang, Z.; Liu, H.; Yang, J.; Li, Y.; Ren, J.; Jiang, J.; et al. Analysis of Learning and Memory Ability in an Alzheimer’s Disease Mouse Model Using the Morris Water Maze. JoVE 2019, 152, 60055. [Google Scholar] [CrossRef]
  17. Steele, R.J.; Morris, R.G.M. Delay-Dependent Impairment of a Matching-to-Place Task with Chronic and Intrahippocampal Infusion of the NMDA-Antagonist D-AP5. Hippocampus 1999, 9, 118–136. [Google Scholar] [CrossRef]
  18. Garthe, A.; Kempermann, G. An Old Test for New Neurons: Refining the Morris Water Maze to Study the Functional Relevance of Adult Hippocampal Neurogenesis. Front. Neurosci. 2013, 7, 63. [Google Scholar] [CrossRef]
  19. Li, X.-Y.; Men, W.-W.; Zhu, H.; Lei, J.-F.; Zuo, F.-X.; Wang, Z.-J.; Zhu, Z.-H.; Bao, X.-J.; Wang, R.-Z. Age- and Brain Region-Specific Changes of Glucose Metabolic Disorder, Learning, and Memory Dysfunction in Early Alzheimer’s Disease Assessed in APP/PS1 Transgenic Mice Using 18F-FDG-PET. Int. J. Mol. Sci. 2016, 17, 1707. [Google Scholar] [CrossRef]
  20. Othman, M.Z.; Hassan, Z.; Che Has, A.T. Morris Water Maze: A Versatile and Pertinent Tool for Assessing Spatial Learning and Memory. Exp. Anim. 2022, 71, 264–280. [Google Scholar] [CrossRef]
  21. Graziano, A.; Petrosini, L.; Bartoletti, A. Automatic Recognition of Explorative Strategies in the Morris Water Maze. J. Neurosci. Methods 2003, 130, 33–44. [Google Scholar] [CrossRef]
  22. D’Hooge, R.; De Deyn, P.P. Applications of the Morris Water Maze in the Study of Learning and Memory. Brain Res. Rev. 2001, 36, 60–90. [Google Scholar] [CrossRef] [PubMed]
  23. Gallagher, M.; Burwell, R.D.; Burchinal, M. Severity of Spatial Learning Impairment in Aging: Development of a Learning Index for Performance in the Morris Water Maze. Behav. Neurosci. 2015, 129, 540–548. [Google Scholar] [CrossRef] [PubMed]
  24. Wolfer, D.P.; Lipp, H.P. A New Computer Program for Detailed Off-Line Analysis of Swimming Navigation in the Morris Water Maze. J. Neurosci. Methods 1992, 41, 65–74. [Google Scholar] [CrossRef]
  25. Dalm, S.; Grootendorst, J.; De Kloet, E.R.; Oitzl, M.S. Quantification of Swim Patterns in the Morris Water Maze. Behav. Res. Methods Instrum. Comput. 2000, 32, 134–139. [Google Scholar] [CrossRef] [PubMed]
  26. Baeta-Corral, R.; Giménez-Llort, L. Persistent Hyperactivity and Distinctive Strategy Features in the Morris Water Maze in 3xTg-AD Mice at Advanced Stages of Disease. Behav. Neurosci. 2015, 129, 129–137. [Google Scholar] [CrossRef] [PubMed]
  27. Castillo-Mariqueo, L.; Giménez-Llort, L. Indexes for Flotation and Circling, Two Non-Search Behaviors in the Water Maze, Sensitive to d-Galactose–Induced Accelerated Aging and Alzheimer’s Disease. Behav. Brain Res. 2020, 377, 112229. [Google Scholar] [CrossRef] [PubMed]
  28. Lang, U.E.; Lang, F.; Richter, K.; Vallon, V.; Lipp, H.P.; Schnermann, J.; Wolfer, D.P. Emotional Instability but Intact Spatial Cognition in Adenosine Receptor 1 Knock out Mice. Behav. Brain Res. 2003, 145, 179–188. [Google Scholar] [CrossRef] [PubMed]
  29. Janus, C. Search Strategies Used by APP Transgenic Mice during Navigation in the Morris Water Maze. Learn. Mem. 2004, 11, 337–346. [Google Scholar] [CrossRef] [PubMed]
  30. Garthe, A.; Behr, J.; Kempermann, G. Adult-Generated Hippocampal Neurons Allow the Flexible Use of Spatially Precise Learning Strategies. PLoS ONE 2009, 4, e5464. [Google Scholar] [CrossRef]
  31. Francis, D. Stress-Induced Disturbances in Morris Water-Maze Performance: Interstrain Variability. Physiol. Behav. 1995, 58, 57–65. [Google Scholar] [CrossRef]
  32. Wolfer, D.P.; Müller, U.; Stagliar, M.; Lipp, H.-P. Assessing the Effects of the 129/Sv Genetic Background on Swimming Navigation Learning in Transgenic Mutants: A Study Using Mice with a Modified β-Amyloid Precursor Protein Gene. Brain Res. 1997, 771, 1–13. [Google Scholar] [CrossRef]
  33. Giuliani, F.; Vernay, A.; Leuba, G.; Schenk, F. Decreased Behavioral Impairments in an Alzheimer Mice Model by Interfering with TNF-Alpha Metabolism. Brain Res. Bull. 2009, 80, 302–308. [Google Scholar] [CrossRef]
  34. Wahlsten, D.; Rustay, N.R.; Metten, P.; Crabbe, J.C. In Search of a Better Mouse Test. Trends Neurosci. 2003, 26, 132–136. [Google Scholar] [CrossRef] [PubMed]
  35. Lithfous, S.; Dufour, A.; Després, O. Spatial Navigation in Normal Aging and the Prodromal Stage of Alzheimer’s Disease: Insights from Imaging and Behavioral Studies. Ageing Res. Rev. 2013, 12, 201–213. [Google Scholar] [CrossRef] [PubMed]
  36. Anacker, C.; Hen, R. Adult Hippocampal Neurogenesis and Cognitive Flexibility—Linking Memory and Mood. Nat. Rev. Neurosci. 2017, 18, 335–346. [Google Scholar] [CrossRef]
  37. Appleby, P.A.; Wiskott, L. Additive Neurogenesis as a Strategy for Avoiding Interference in a Sparsely-Coding Dentate Gyrus. Netw. Comput. Neural Syst. 2009, 20, 137–161. [Google Scholar] [CrossRef]
  38. Burghardt, N.S.; Park, E.H.; Hen, R.; Fenton, A.A. Adult-born Hippocampal Neurons Promote Cognitive Flexibility in Mice. Hippocampus 2012, 22, 1795–1808. [Google Scholar] [CrossRef] [PubMed]
  39. Vicens, P.; Bernal, M.C.; Carrasco, M.C.; Redolat, R. Previous Training in the Water Maze. Physiol. Behav. 1999, 67, 197–203. [Google Scholar] [CrossRef]
  40. Zhuo, J.-M.; Prescott, S.L.; Murray, M.E.; Zhang, H.-Y.; Baxter, M.G.; Nicolle, M.M. Early Discrimination Reversal Learning Impairment and Preserved Spatial Learning in a Longitudinal Study of Tg2576 APPsw Mice. Neurobiol. Aging 2007, 28, 1248–1257. [Google Scholar] [CrossRef]
  41. Ferguson, S.A.; Sarkar, S.; Schmued, L.C. Longitudinal Behavioral Changes in the APP/PS1 Transgenic Alzheimer’s Disease Model. Behav. Brain Res. 2013, 242, 125–134. [Google Scholar] [CrossRef]
  42. Oddo, S.; Caccamo, A.; Shepherd, J.D.; Murphy, M.P.; Golde, T.E.; Kayed, R.; Metherate, R.; Mattson, M.P.; Akbari, Y.; LaFerla, F.M. Triple-Transgenic Model of Alzheimer’s Disease with Plaques and Tangles: Intracellular Aβ and Synaptic Dysfunction. Neuron 2003, 39, 409–421. [Google Scholar] [CrossRef] [PubMed]
  43. Oddo, S.; Caccamo, A.; Kitazawa, M.; Tseng, B.P.; Laferla, F.M. Amyloid Deposition Precedes Tangle Formation in a Triple Transgenic Model of Alzheimer’s Disease. Neurobiol. Aging 2003, 24, 1063–1070. [Google Scholar] [CrossRef] [PubMed]
  44. Bilkei-Gorzo, A. Genetic Mouse Models of Brain Ageing and Alzheimer’s Disease. Pharmacol. Ther. 2014, 142, 244–257. [Google Scholar] [CrossRef] [PubMed]
  45. Sánchez, C.Q.; Schmitt, F.W.; Curdt, N.; Westhoff, A.C.; Bänfer, I.W.H.; Bayer, T.A.; Bouter, Y. Search Strategy Analysis of 5xFAD Alzheimer Mice in the Morris Water Maze Reveals Sex- and Age-Specific Spatial Navigation Deficits. Biomedicines 2023, 11, 599. [Google Scholar] [CrossRef] [PubMed]
  46. Curdt, N.; Schmitt, F.W.; Bouter, C.; Iseni, T.; Weile, H.C.; Altunok, B.; Beindorff, N.; Bayer, T.A.; Cooke, M.B.; Bouter, Y. Search Strategy Analysis of Tg4-42 Alzheimer Mice in the Morris Water Maze Reveals Early Spatial Navigation Deficits. Sci. Rep. 2022, 12, 5451. [Google Scholar] [CrossRef] [PubMed]
  47. Gimenez-Llort, L.; Alveal-Mellado, D. Digging Signatures in 13-Month-Old 3xTg-AD Mice for Alzheimer’s Disease and Its Disruption by Isolation Despite Social Life Since They Were Born. Front. Behav. Neurosci. 2021, 14, 611384. [Google Scholar] [CrossRef] [PubMed]
  48. Baeta-Corral, R.; Giménez-Llort, L. Bizarre Behaviors and Risk Assessment in 3xTg-AD Mice at Early Stages of the Disease. Behav. Brain Res. 2014, 258, 97–105. [Google Scholar] [CrossRef] [PubMed]
  49. Brooks, M.E.; Kristensen, K.; van Benthem, K.J.; Magnusson, A.; Berg, C.W.; Nielsen, A.; Skaug, H.J.; Mächler, M.; Bolker, B.M. glmmTMB Balances Speed and Flexibility Among Packages for Zero-Inflated Generalized Linear Mixed Modeling. R J. 2017, 9, 378–400. [Google Scholar] [CrossRef]
  50. Gulinello, M.; Gertner, M.; Mendoza, G.; Schoenfeld, B.P.; Oddo, S.; LaFerla, F.; Choi, C.H.; McBride, S.M.J.; Faber, D.S. Validation of a 2-Day Water Maze Protocol in Mice Maria. Bone 2008, 23, 220–227. [Google Scholar] [CrossRef]
  51. Giménez-Llort, L.; Blázquez, G.; Cañete, T.; Johansson, B.; Oddo, S.; Tobeña, A.; LaFerla, F.M.; Fernández-Teruel, A. Modeling Behavioral and Neuronal Symptoms of Alzheimer’s Disease in Mice: A Role for Intraneuronal Amyloid. Neurosci. Biobehav. Rev. 2007, 31, 125–147. [Google Scholar] [CrossRef]
  52. Gehring, T.V.; Luksys, G.; Sandi, C.; Vasilaki, E. Detailed Classification of Swimming Paths in the Morris Water Maze: Multiple Strategies within One Trial. Sci. Rep. 2015, 5, 14562. [Google Scholar] [CrossRef] [PubMed]
  53. Higaki, A.; Mogi, M.; Iwanami, J.; Min, L.J.; Bai, H.Y.; Shan, B.S.; Kan-no, H.; Ikeda, S.; Higaki, J.; Horiuchi, M. Recognition of Early Stage Thigmotaxis in Morris Water Maze Test with Convolutional Neural Network. PLoS ONE 2018, 13, e0197003. [Google Scholar] [CrossRef] [PubMed]
  54. Castillo-Mariqueo, L.; Giménez-Llort, L. Impact of Behavioral Assessment and Re-Test as Functional Trainings That Modify Survival, Anxiety and Functional Profile (Physical Endurance and Motor Learning) of Old Male and Female 3xTg-AD Mice and NTg Mice with Normal Aging. Biomedicines 2022, 10, 973. [Google Scholar] [CrossRef] [PubMed]
  55. Whishaw, I.Q. A Comparison of Rats and Mice in a Swimming Pool Place Task and Matching to Place Task: Some Surprising Differences. Physiol. Behav. 1995, 58, 687–693. [Google Scholar] [CrossRef] [PubMed]
  56. Stryjek, R.; Modlińska, K.; Pisula, W. Species Specific Behavioural Patterns (Digging and Swimming) and Reaction to Novel Objects in Wild Type, Wistar, Sprague-Dawley and Brown Norway Rats. PLoS ONE 2012, 7, e40642. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, J.; Gorostiza, O.F.; Tang, H.; Bredesen, D.E.; Galvan, V. Reversal of Learning Deficits in hAPP Transgenic Mice Carrying a Mutation at Asp664: A Role for Early Experience. Behav. Brain Res. 2010, 206, 202–207. [Google Scholar] [CrossRef]
  58. Clinton, L.K.; Billings, L.M.; Green, K.N.; Caccamo, A.; Ngo, J.; Oddo, S.; McGaugh, J.L.; LaFerla, F.M. Age-Dependent Sexual Dimorphism in Cognition and Stress Response in the 3xTg-AD Mice. Neurobiol. Dis. 2007, 28, 76–82. [Google Scholar] [CrossRef] [PubMed]
  59. Várkonyi, D.; Török, B.; Sipos, E.; Fazekas, C.L.; Bánrévi, K.; Correia, P.; Chaves, T.; Farkas, S.; Szabó, A.; Martínez-Bellver, S.; et al. Investigation of Anxiety- and Depressive-like Symptoms in 4- and 8-Month-Old Male Triple Transgenic Mouse Models of Alzheimer’s Disease. Int. J. Mol. Sci. 2022, 23, 10816. [Google Scholar] [CrossRef] [PubMed]
  60. Muntsant, A.; Castillo-Ruiz, M.d.M.; Giménez-Llort, L. Survival Bias, Non-Lineal Behavioral and Cortico-Limbic Neuropathological Signatures in 3xTg-AD Mice for Alzheimer’s Disease from Premorbid to Advanced Stages and Compared to Normal Aging. Int. J. Mol. Sci. 2023, 24, 13796. [Google Scholar] [CrossRef] [PubMed]
  61. Torres-Lista, V.; López-Pousa, S.; Giménez-Llort, L. Impact of Chronic Risperidone Use on Behavior and Survival of 3xTg-AD Mice Model of Alzheimer’s Disease and Mice With Normal Aging. Front. Pharmacol. 2019, 10, 1061. [Google Scholar] [CrossRef]
  62. Giménez-Llort, L.; Santana-Santana, M.; Ratia, M.; Pérez, B.; Camps, P.; Muñoz-Torrero, D.; Badia, A.; Clos, M.V. Clock/Sleep-Dependent Learning and Memory in Male 3xtg-Ad Mice at Advanced Disease Stages and Extrinsic Effects of Huprine x and the Novel Multitarget Agent Avcri104p3. Brain Sci. 2021, 11, 426. [Google Scholar] [CrossRef] [PubMed]
  63. Giménez-Llort, L.; Rivera-Hernández, G.; Marin-Argany, M.; Sánchez-Quesada, J.L.; Villegas, S. Early Intervention in the 3xTg-AD Mice with an Amyloid β-Antibody Fragment Ameliorates First Hallmarks of Alzheimer Disease. mAbs 2013, 5, 665–864. [Google Scholar] [CrossRef] [PubMed]
Brainsci 14 00501 g001
Figure 1. Swimming strategy classification. The swimming strategies performed by the animals in the MWM test were categorized into search and non-search strategies. Search strategies, based on hippocampal involvement, were further divided into two types including egocentric dominance and allocentric dominance.
Figure 1. Swimming strategy classification. The swimming strategies performed by the animals in the MWM test were categorized into search and non-search strategies. Search strategies, based on hippocampal involvement, were further divided into two types including egocentric dominance and allocentric dominance.
Brainsci 14 00501 g001
Table 1. Mixed-effects beta regression model coefficients for the top models describing the proportion of time spent on different swimming strategies. The significant influence of independent variables and pairwise comparisons is indicated in bold.
Table 1. Mixed-effects beta regression model coefficients for the top models describing the proportion of time spent on different swimming strategies. The significant influence of independent variables and pairwise comparisons is indicated in bold.
MWM StageDependent VariableTop ModelIndependent VariablesEstimatePredictor p-ValuePairwise Comparison
(Estimated Marginal Mean ± Standard Error)		p-Value Pairwise Comparison
CUERandom search~Sex + Genotype + Trial + Age + (1|animal ID)Sex−0.1190.961
Genotype−0.659<0.0013xTg-AD (1.20 × 10−6 ± 0.0002) < NTg (2.32 × 10−6 ± 0.0004)<0.001
Trial−0.1220.960
Age−1.1510.384
Scanning~Trial + Age + Age: Trial + (1|animal ID)Trial −1.958 <0.001Trial 4 (0.27 ± 0.07) < Trial 1 (0.58 ± 0.04)<0.001
Age−0.5790.02816 m (0.43 ± 0.06) > 12 m (0.41 ± 0.07) 0.821
Age × Trial1.2940.03112 m Trial 4 (0.21 ± 0.08) < 12 m Trial 1 (0.65 ± 0.04)0.0011
16 m Trial 1 (0.51 ± 0.06) < 12 m Trial 1 (0.65 ± 0.04) 0.1267
16 m Trial 4 (0.35 ± 0.09) < 12 m Trial 1 (0.65 ± 0.04)0.0078
16 m Trial 1 (0.51 ± 0.06) > 12 m Trial 4 (0.21 ± 0.08)0.0391
16 m Trial 4 (0.35 ± 0.09) > 12 m Trial 4 (0.21 ± 0.08) 0.5466
16 m Trial 4 (0.35 ± 0.09) > 16 m Trial 1 (0.51 ± 0.06) 0.3127
Chaining~Age + (1|animal ID)Age0.6010.00216 m (0.53 ± 0.02) > 12 m (0.39 ± 0.04)0.002
Focal wrong~Trial + Genotype + (1|animal ID)Trial −0.994 0.015Trial 4 (0.24 ± 0.10) < Trial 1 (0.46 ± 0.09)0.015
Genotype−0.8570.062
Direct search ~Trial + Age + (1|animal ID)Trial1.414<0.001Trial 4 (0.49 ± 0.07) > Trial 1 (0.19 ± 0.03)<0.001
Age0.638<0.00116 m (0.40 ± 0.06) > 12 m (0.26 ± 0.04)0.008
PTThigmotaxis~Age + (1|animal ID)Age−1.543<0.00116 m (0.03 ± 0.02) < 12 m (0.13 ± 0.08)<0.001
Random search~Age + (1|animal ID)Age−0.5460.00816 m (0.40 ± 0.05) < 12 m (0.54 ± 0.05)0.008
Direct search~Trial + Genotype + Trial: Genotype + (1|animal ID)Trial0.4650.019Trial 4 (0.21 ± 0.02) > Trial 1 (0.21 ± 0.02) 0.858
Genotype0.2900.154
Genotype × Trial−0.8810.002NTg Trial 4 (0.26 ± 0.03) > NTg Trial 1 (0.18 ± 0.03) 0.0894
3xTg-AD Trial 1 (0.23 ± 0.02) > NTg Trial 1 (0.18 ± 0.03) 0.4844
3xTg-AD Trial 4 (0.17 ± 0.03) < NTg Trial 1 (0.18 ± 0.03) 0.9437
3xTg-AD Trial 1 (0.23 ± 0.02) < NTg Trial 4 (0.26 ± 0.03)0.8111
3xTg-AD Trial 4 (0.17 ± 0.03) < NTg Trial 4 (0.26 ± 0.03)0.0358
3xTg-AD Trial 4 (0.17 ± 0.03) < 3xTg-AD Trial 1 (0.23 ± 0.02)0.1732
RMScanning~Age + (1|animal ID)Age−0.6150.03112 m (0.61 ± 0.05) > 16 m (0.46 ± 0.06)0.031
Focal wrong~Sex + Genotype + Age + (1|animal ID)Sex−0.350<0.001Female (0.34 ± 1.01 × 10−6) < Male (0.43 ± 1.09 × 10−6)<0.001
Genotype−0.213<0.0013xTg-AD (0.36 ± 7.37 × 10−6) < NTg (0.41 ± 1.32 × 10−6)<0.001
Age0.278<0.00116 m (0.42 ± 7.6 × 10−7) > 12 m (0.35 ± 1.25 × 10−6)<0.001
Direct~Genotype + Age + (1|animal ID)Genotype−0.580<0.0013xTg-AD (1.11 × 10−8 ± 0.02) < NTg (1.99 × 10−8 ± 0.03)<0.001
Age −0.310 1
Table 2. Analysis of non-search strategies and cognitive flexibility. Significant influences of independent variables and results of pairwise comparisons are highlighted in bold.
Table 2. Analysis of non-search strategies and cognitive flexibility. Significant influences of independent variables and results of pairwise comparisons are highlighted in bold.
Dependent VariableMWM StageTop ModelIndependent VariablesEstimatePredictor p-ValuePairwise Comparison
(Estimated Marginal Mean ± Standard Error)		p-Value of
Pairwise
Comparison
Circling episodesCUE~ Trial + Age + (1|1|animal ID)Trial−1.54<0.001T4 (0.67 ± 0.14) < T1 (3.12 ± 0.41)<0.001
Age−0.82<0.00116 m (0.96 ± 0.17) < 12 m (2.17 ± 0.32)<0.001
PT~ Trial + Age + (1|animal ID)Trial−0.39<0.001T4 (0.99 ± 0.13) < T1 (1.48 ± 0.18)<0.001
Age0.230.056
RM~Sex + Genotype + Age + (Genotype × Age) + (1|animal ID)Sex0.1250.713
Genotype−0.7430.171
Age−0.0070.986
Genotype × age1.4190.0263xTg-AD 12 m (0.60 ± 0.27) < NTg 12 m (1.26 ± 0.50)0.519
NTg 16 m (1.25 ± 0.53) < NTg 12 m (1.26 ± 0.50)1
3xTg-AD 16 m (2.46 ± 0.71) > NTg 12 m (1.26 ± 0.50)0.402
3xTg-AD 12 m (0.60 ± 0.27)
< NTg 16 m (1.25 ± 0.53)		0.524
3xTg-AD 12 m (0.60 ± 0.27) < 3xTg-AD 16 m (2.46 ± 0.71)0.008
3xTg-AD 16 m (2.46 ± 0.71) > NTg 16 m (1.25 ± 0.53)0.383
Floating episodesCUE~Trial + (1|animal ID)Trial−1.7040.027T4 (0.02 ± 0.02) < T1 (0.11 ± 0.03)0.027
PT~Trial + Age + (1|animal ID)Trial0.0910.602
Age−0.3680.03816 m (0.075 ± 0.02) < 12 m (0.11 ± 0.04)0.038
RM~1 + (1|animal ID)
Cognitive flexibilityCUE~Trial + Sex + (1|animal ID)Trial0.8030.004T4 (0.72 ± 0.05) > T1 (0.53 ± 0.03)0.004
Sex0.4410.032Female (0.68 ± 0.04) < Male (0.58 ± 0.04)0.032
PT~1 + (1|animal ID)
RM~1 + (1|animal ID)
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Alveal-Mellado, D.; Giménez-Llort, L. Use of Ordered Beta Regression Unveils Cognitive Flexibility Index and Longitudinal Cognitive Training Signatures in Normal and Alzheimer’s Disease Pathological Aging. Brain Sci. 2024, 14, 501. https://doi.org/10.3390/brainsci14050501

AMA Style

Alveal-Mellado D, Giménez-Llort L. Use of Ordered Beta Regression Unveils Cognitive Flexibility Index and Longitudinal Cognitive Training Signatures in Normal and Alzheimer’s Disease Pathological Aging. Brain Sciences. 2024; 14(5):501. https://doi.org/10.3390/brainsci14050501

Chicago/Turabian Style

Alveal-Mellado, Daniel, and Lydia Giménez-Llort. 2024. "Use of Ordered Beta Regression Unveils Cognitive Flexibility Index and Longitudinal Cognitive Training Signatures in Normal and Alzheimer’s Disease Pathological Aging" Brain Sciences 14, no. 5: 501. https://doi.org/10.3390/brainsci14050501

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
