Evaluation of Adsorbent Biomaterials Based on Coconut Mesocarp for Treatment of Wastewater Contaminated with Tartrazine Dye
Abstract
:1. Introduction
2. Materials and Methods
2.1. Coconut Shell Pretreatment
2.2. Cellulose Extraction

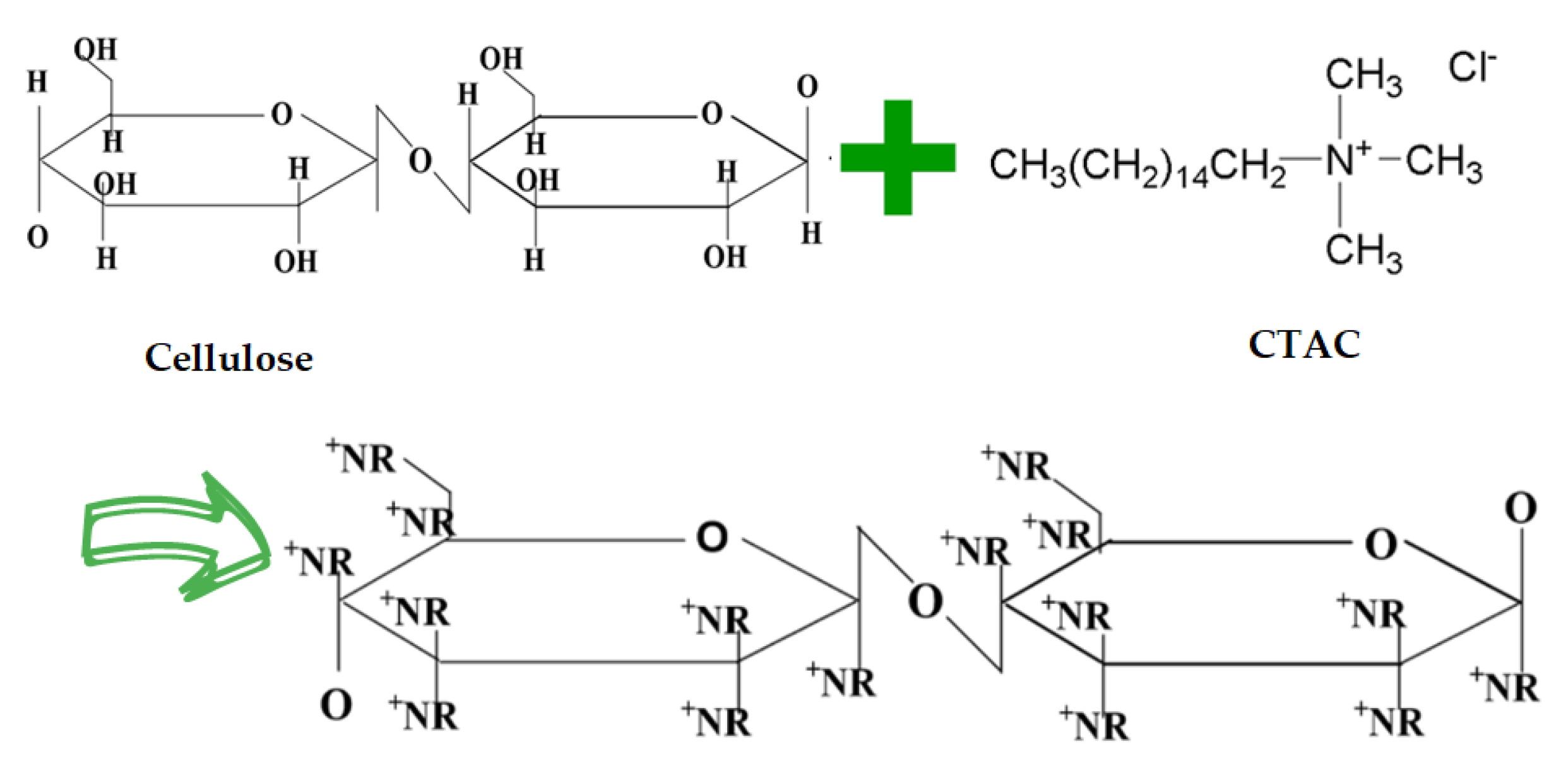

2.3. Cellulose Quaternization
2.4. Characterization of Bioadsorbents
2.5. Batch Adsorption Tests
2.6. Adsorption Isotherms
3. Results and Discussion

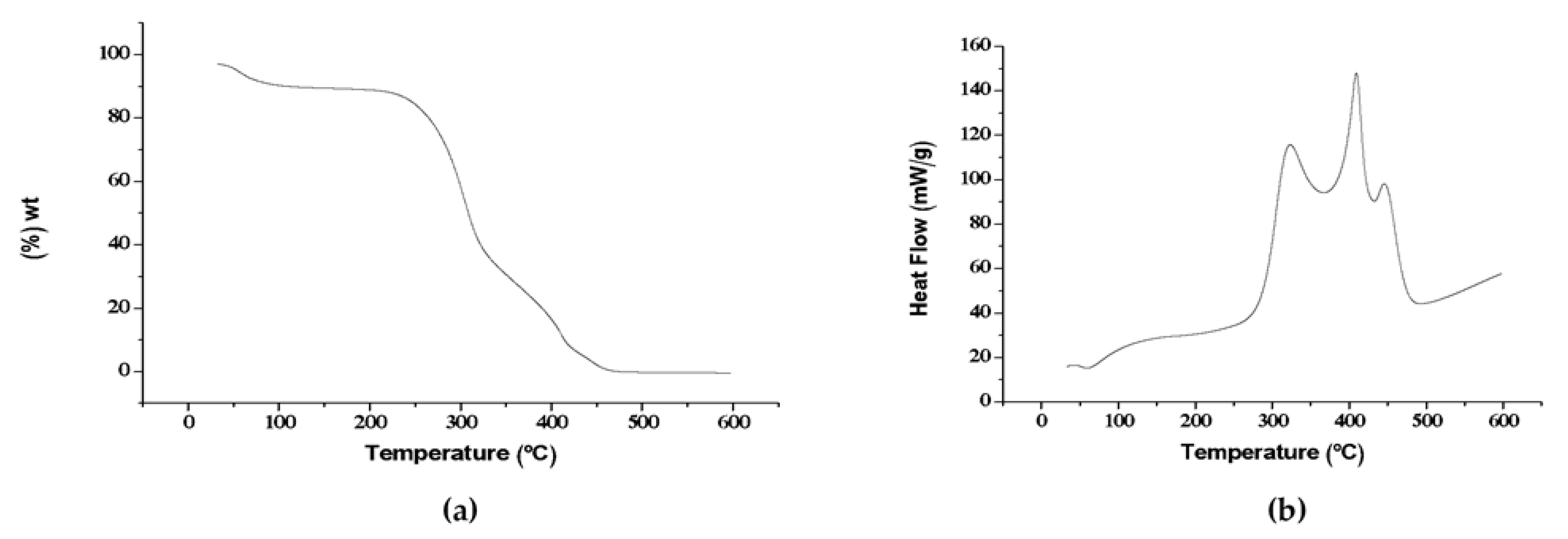

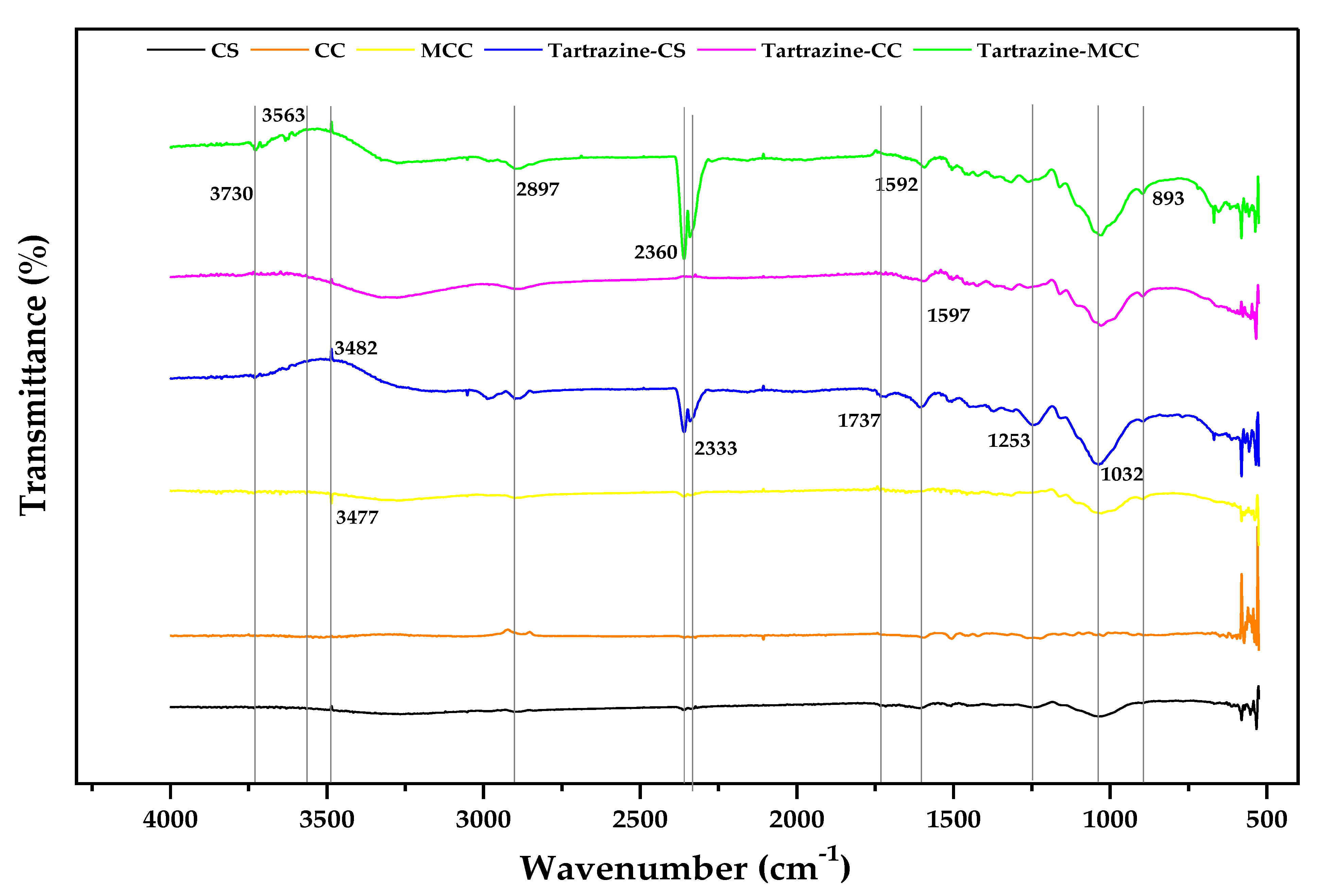

3.1. Characterization of Bioadsorbents
3.2. pH Point of Zero Charge

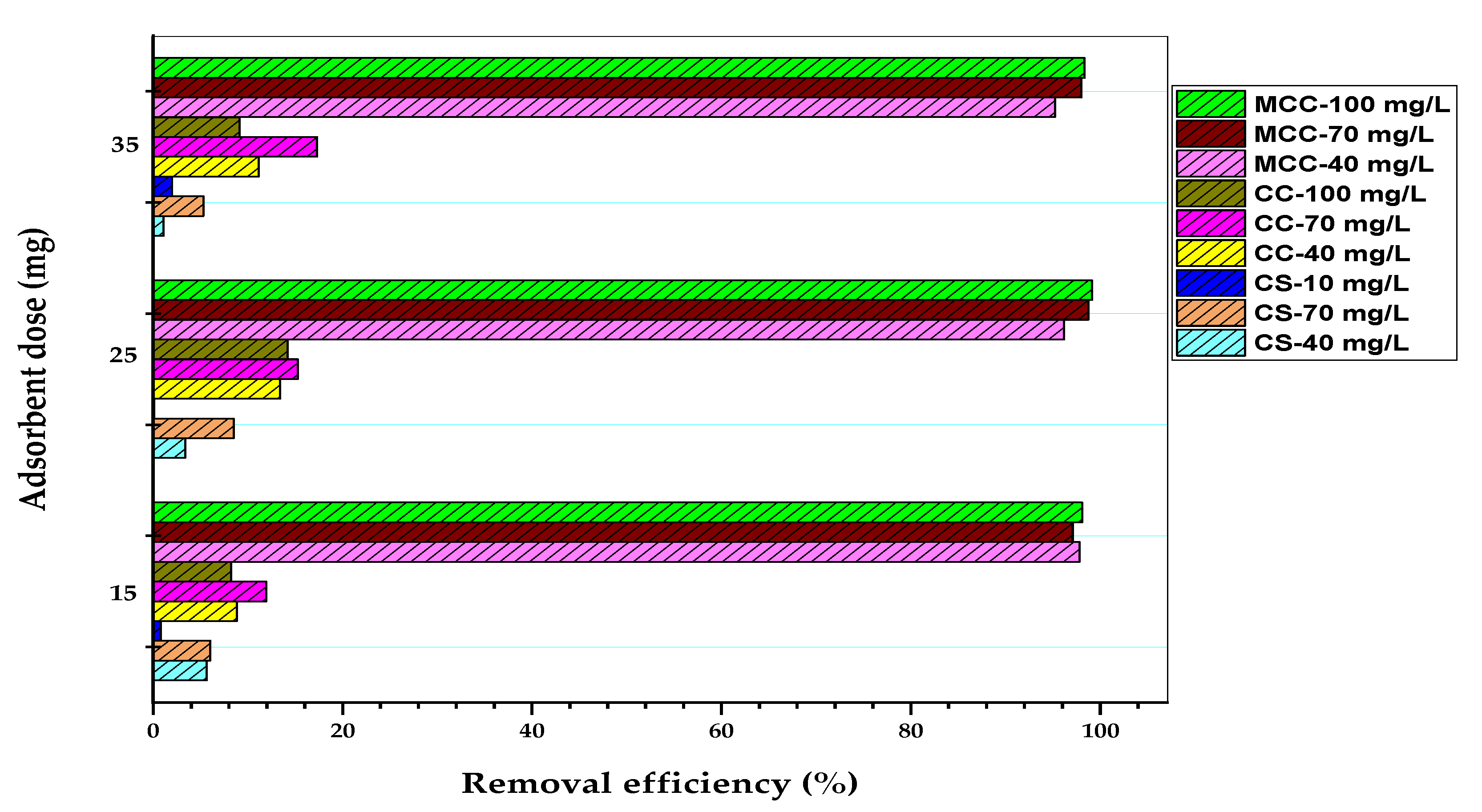

3.3. Effect of Adsorbent Dosage and Initial Concentration
3.4. Effect of the Time
3.5. Adsorption Equilibrium
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
Appendix A
Biomass | Adsorbent Dosage (mg) | Initial Concentration (ppm) | Final Concentration (ppm) | % Removal | Qt |
---|---|---|---|---|---|
Coconut shell | 15 | 39.88 | 37.6233766 | 5.65853404 | 0.45132468 |
25 | 39.88 | 38.5324675 | 3.37896807 | 0.1617039 | |
35 | 39.88 | 39.4415584 | 1.0994021 | 0.03758071 | |
15 | 68.79 | 64.6363636 | 6.03813979 | 0.83072727 | |
25 | 68.79 | 62.9480519 | 8.49243793 | 0.70103377 | |
35 | 68.79 | 65.1558442 | 5.28297114 | 0.31149907 | |
15 | 98.01 | 97.2337662 | 0.79199446 | 0.15524675 | |
25 | 98.01 | 97.8831169 | 0.12945936 | 0.01522597 | |
35 | 98.01 | 96.0649351 | 1.98455763 | 0.16671985 | |
Coconut cellulose | 15 | 39.88 | 36.4545455 | 8.58940458 | 0.68509091 |
25 | 39.88 | 34.6363636 | 13.1485365 | 0.62923636 | |
35 | 39.88 | 35.5454545 | 10.8689705 | 0.37153247 | |
15 | 68.79 | 61.6493506 | 10.3803596 | 1.42812987 | |
25 | 68.79 | 59.3116883 | 13.7786185 | 1.1373974 | |
35 | 68.79 | 57.8831169 | 15.8553323 | 0.9348757 | |
15 | 98.01 | 91.7792208 | 6.35728928 | 1.24615584 | |
25 | 98.01 | 85.8051948 | 12.4526122 | 1.46457662 | |
35 | 98.01 | 90.8701299 | 7.28483841 | 0.61198887 | |
Modified coconut cellulose | 15 | 39.88 | 0.87012987 | 97.8181297 | 7.80197403 |
25 | 39.88 | 1.51948052 | 96.1898683 | 4.60326234 | |
35 | 39.88 | 1.90909091 | 95.2129115 | 3.25464935 | |
15 | 68.79 | 2.03896104 | 97.035963 | 13.3502078 | |
25 | 68.79 | 0.87012987 | 98.7350925 | 8.15038442 | |
35 | 68.79 | 1.38961039 | 97.9799238 | 5.77717625 | |
15 | 98.01 | 1.90909091 | 98.0521468 | 19.2201818 | |
25 | 98.01 | 0.87012987 | 99.112203 | 11.6567844 | |
35 | 98.01 | 1.64935065 | 98.3171609 | 8.25948423 |
Equation | Q = (qmax × (b × C))/(1 + (b × C)) | ||
---|---|---|---|
R2 | 0.93263 | ||
Value | Standard Error | ||
Qe | Qmax | 2151.22167 | 250,240.23045 |
Qe | B | 2.0967 × 10−5 | 0.00244 |
Equation | Q = kf × (C(1/n)) | ||
---|---|---|---|
R2 | 0.93557 | ||
Value | Standard Error | ||
Qe | Kf | 0.03345 | 0.02537 |
Qe | N | 0.93716 | 0.1521 |
Equation | Q = (qmax × (b × C))/(1 + (b × C)) | ||
---|---|---|---|
R2 | −0.25 | ||
Value | Standard Error | ||
Qe | Qmax | 9.6761 | 2.85096 |
Qe | B | 4.34896 × 10−34 | -- |
Equation | Q = kf × (C(1/n)) | ||
---|---|---|---|
R2 | −0.25 | ||
Value | Standard Error | ||
Qe | Kf | 9.6761 | 2.85096 |
Qe | N | 3.48385 × 1024 | -- |
Appendix B
References
- Liu, W.; Wu, C.-H.; Blanco, Á.; Qian, C.; Gao, Y.; Chen, L. Green Supply Chain Circular Economy Evaluation System Based on Industrial Internet of Things and Blockchain Technology under ESG Concept. Processes 2023, 11, 1999. [Google Scholar] [CrossRef]
- Singh, H.; Goyal, A.; Bhardwaj, S.K.; Khatri, M.; Bhardwaj, N. Highly robust UiO-66@PVDF metal–organic framework beads for tartrazine removal from aqueous solutions. Mater. Sci. Eng. B 2023, 288, 116165. [Google Scholar] [CrossRef]
- Jabeen, A.; Bhatti, H.N. Adsorptive removal of reactive green 5 (RG-5) and direct yellow 50 (DY-50) from simulated wastewater by Mangifera indica seed shell and its magnetic composite: Batch and Column study. Environ. Technol. Innov. 2021, 23, 101685. [Google Scholar] [CrossRef]
- Sousa, J.C.G.; Ribeiro, A.R.; Barbosa, M.O.; Pereira, M.F.R.; Silva, A.M.T. A review on environmental monitoring of water organic pollutants identified by EU guidelines. J. Hazard. Mater. 2018, 344, 146–162. [Google Scholar] [CrossRef] [PubMed]
- Otavo-Loaiza, R.A.; Sanabria-González, N.R.; Giraldo-Gómez, G.I. Tartrazine Removal from Aqueous Solution by HDTMA-Br-Modified Colombian Bentonite. Sci. World J. 2019, 2019, 2042563. [Google Scholar] [CrossRef]
- Rovina, K.; Siddiquee, S.; Shaarani, S.M. A Review of Extraction and Analytical Methods for the Determination of Tartrazine (E 102) in Foodstuffs. Crit. Rev. Anal. Chem. 2017, 47, 309–324. [Google Scholar] [CrossRef]
- Batada, A.; Jacobson, M.F. Prevalence of Artificial Food Colors in Grocery Store Products Marketed to Children. Clin. Pediatr. 2016, 55, 1113–1119. [Google Scholar] [CrossRef]
- Bastaki, M.; Farrell, T.; Bhusari, S.; Pant, K.; Kulkarni, R. Lack of genotoxicity in vivo for food color additive Tartrazine. Food Chem. Toxicol. 2017, 105, 278–284. [Google Scholar] [CrossRef]
- World Health Organization. JECFA Evaluation of Certain Food Additives: Eighty-Second Report of the Joint FAO/WHO Expert Committee on Food Additives. 2016. Available online: https://apps.who.int/iris/handle/10665/250277 (accessed on 20 March 2022).
- Amin, K.A.; Al-Shehri, F.S. Toxicological and safety assessment of tartrazine as a synthetic food additive on health biomarkers: A review. African J. Biotechnol. 2018, 17, 139–149. [Google Scholar] [CrossRef]
- Khayyat, L.; Essawy, A.; Sorour, J.; Soffar, A. Tartrazine induces structural and functional aberrations and genotoxic effects in vivo. PeerJ 2017, 2017, 1–14. [Google Scholar] [CrossRef]
- Gičević, A.; Hindija, L.; Karačić, A. Toxicity of azo dyes in pharmaceutical industry. IFMBE Proc. 2019, 73, 581–587. [Google Scholar]
- Al-Tohamy, R.; Ali, S.S.; Li, F.; Okasha, K.M.; Mahmoud, Y.A.G.; Elsamahy, T.; Jiao, H.; Fu, Y.; Sun, J. A critical review on the treatment of dye-containing wastewater: Ecotoxicological and health concerns of textile dyes and possible remediation approaches for environmental safety. Ecotoxicol. Environ. Saf. 2022, 231, 113160. [Google Scholar] [CrossRef] [PubMed]
- De Lima Barizão, A.C.; Silva, M.F.; Andrade, M.; Brito, F.C.; Gomes, R.G.; Bergamasco, R. Green synthesis of iron oxide nanoparticles for tartrazine and bordeaux red dye removal. J. Environ. Chem. Eng. 2020, 8, 103618. [Google Scholar] [CrossRef]
- Perveen, S.; Nadeem, R.; Nosheen, F.; Asjad, M.I.; Awrejcewicz, J.; Anwar, T. Biochar-Mediated Zirconium Ferrite Nanocomposites for Tartrazine Dye Removal from Textile Wastewater. Nanomaterials 2022, 12, 2828. [Google Scholar] [CrossRef]
- Petrie, B.; Barden, R.; Kasprzyk-Hordern, B. A review on emerging contaminants in wastewaters and the environment: Current knowledge, understudied areas and recommendations for future monitoring. Water Res. 2015, 72, 3–27. [Google Scholar] [CrossRef]
- Rodriguez-Narvaez, O.M.; Peralta-Hernandez, J.M.; Goonetilleke, A.; Bandala, E.R. Treatment technologies for emerging contaminants in water: A review. Chem. Eng. J. 2017, 323, 361–380. [Google Scholar] [CrossRef]
- Porri, A.; Baroncelli, R.; Guglielminetti, L.; Sarrocco, S.; Guazzelli, L.; Forti, M.; Catelani, G.; Valentini, G.; Bazzichi, A.; Franceschi, M.; et al. Fusarium oxysporum degradation and detoxification of a new textile-glycoconjugate azo dye (GAD). Fungal Biol. 2011, 115, 30–37. [Google Scholar] [CrossRef]
- Adegoke, K.A.; Bello, O.S. Dye sequestration using agricultural wastes as adsorbents. Water Resour. Ind. 2015, 12, 8–24. [Google Scholar] [CrossRef]
- Singh, N.B.; Nagpal, G.; Agrawal, S. Rachna Water purification by using Adsorbents: A Review. Environ. Technol. Innov. 2018, 11, 187–240. [Google Scholar] [CrossRef]
- Zhou, Y.; Zhang, M.; Wang, X.; Huang, Q.; Min, Y.; Ma, T.; Niu, J. Removal of Crystal Violet by a Novel Cellulose-Based Adsorbent: Comparison with Native Cellulose. Ind. Eng. Chem. Res. 2014, 53, 5498–5506. [Google Scholar] [CrossRef]
- Chukwuemeka-Okorie, H.O.; Ekuma, F.K.; Akpomie, K.G.; Nnaji, J.C.; Okereafor, A.G. Adsorption of tartrazine and sunset yellow anionic dyes onto activated carbon derived from cassava sievate biomass. Appl. Water Sci. 2021, 11, 27. [Google Scholar] [CrossRef]
- Fennouh, R.; Benturki, O.; Mokhati, A.; Benturki, A.; Belhamdi, B.; Trari, M. Preparation and characterization of highly mesoporous activated carbon from Ziziphus Spina-Christi for tartrazine adsorption from a simulated effluent. Biomass Convers. Biorefinery 2023. [CrossRef]
- Khader, E.H.; Mohammed, T.J.; Albayati, T.M. Comparative performance between rice husk and granular activated carbon for the removal of azo tartrazine dye from aqueous solution. Desalin. Water Treat. 2021, 229, 372–383. [Google Scholar] [CrossRef]
- Ortega-Toro, R.; Tejada-Tovar, C.; Villabona-Ortíz, A.; Aguilar-Bermúdez, F.; Pájaro-Moreno, Y. Effective adsorption of Tartrazine by modified biomaterial from wheat residues. Ing. Compet. 2022, 24, 1. [Google Scholar] [CrossRef]
- Ademoriyo, C.; Enyoh, C. Batch Adsorption Studies of Sunset Yellow and Tartrazine Using Coconut and Groundnut Shells. J. Biomed. Res. Environ. Sci. 2020, 1, 163–172. [Google Scholar] [CrossRef]
- Villabona-Ortíz, Á.; Figueroa-Lopez, K.J.; Ortega-Toro, R. Kinetics and Adsorption Equilibrium in the Removal of Azo-Anionic Dyes by Modified Cellulose. Sustainability 2022, 14, 3640. [Google Scholar] [CrossRef]
- Pandey, D.; Daverey, A.; Dutta, K.; Yata, V.K.; Arunachalam, K. Valorization of waste pine needle biomass into biosorbents for the removal of methylene blue dye from water: Kinetics, equilibrium and thermodynamics study. Environ. Technol. Innov. 2022, 25, 102200. [Google Scholar] [CrossRef]
- Karaman, C.; Karaman, O.; Show, P.L.; Karimi-Maleh, H.; Zare, N. Congo red dye removal from aqueous environment by cationic surfactant modified-biomass derived carbon: Equilibrium, kinetic, and thermodynamic modeling, and forecasting via artificial neural network approach. Chemosphere 2022, 290, 133346. [Google Scholar] [CrossRef]
- Al-Ghouti, M.A.; Al-Absi, R.S. Mechanistic understanding of the adsorption and thermodynamic aspects of cationic methylene blue dye onto cellulosic olive stones biomass from wastewater. Sci. Rep. 2020, 10, 15928. [Google Scholar] [CrossRef] [PubMed]
- Mahmoud, M.E.; Abdelfattah, A.M.; Tharwat, R.M.; Nabil, G.M. Adsorption of negatively charged food tartrazine and sunset yellow dyes onto positively charged triethylenetetramine biochar: Optimization, kinetics and thermodynamic study. J. Mol. Liq. 2020, 318, 114297. [Google Scholar] [CrossRef]
- Martini, B.K.; Daniel, T.G.; Corazza, M.Z.; De Carvalho, A.E. Methyl orange and tartrazine yellow adsorption on activated carbon prepared from boiler residue: Kinetics, isotherms, thermodynamics studies and material characterization. J. Environ. Chem. Eng. 2018, 6, 6669–6679. [Google Scholar] [CrossRef]
- Kumari, S.; Mankotia, D.; Chauhan, G.S. Crosslinked cellulose dialdehyde for Congo red removal from its aqueous solutions. J. Environ. Chem. Eng. 2016, 4, 1126–1136. [Google Scholar] [CrossRef]
- Sharma, A.; Siddiqui, Z.M.; Dhar, S.; Mehta, P.; Pathania, D. Adsorptive removal of congo red dye (CR) from aqueous solution by Cornulaca monacantha stem and biomass-based activated carbon: Isotherm, kinetics and thermodynamics. Sep. Sci. Technol. 2018, 54, 916–929. [Google Scholar] [CrossRef]
- Tan, C.H.C.; Sabar, S.; Hussin, M.H. Development of immobilized microcrystalline cellulose as an effective adsorbent for methylene blue dye removal. South African J. Chem. Eng. 2018, 26, 11–24. [Google Scholar] [CrossRef]
- Foroutan, R.; Peighambardoust, S.J.; Peighambardoust, S.H.; Pateiro, M.; Lorenzo, J.M. Adsorption of crystal violet dye using activated carbon of lemon wood and activated carbon/fe3 o4 magnetic nanocomposite from aqueous solutions: A kinetic, equilibrium and thermodynamic study. Molecules 2021, 26, 2241. [Google Scholar] [CrossRef]
- Osagie, C.; Othmani, A.; Ghosh, S.; Malloum, A.; Kashitarash Esfahani, Z.; Ahmadi, S. Dyes adsorption from aqueous media through the nanotechnology: A review. J. Mater. Res. Technol. 2021, 14, 2195–2218. [Google Scholar] [CrossRef]
- Kaci, M.M.; Nasrallah, N.; Djaballah, A.M.; Akkari, I.; Belabed, C.; Soukeur, A.; Atmani, F.; Trari, M. Insights into the optical and electrochemical features of CuAl2O4 nanoparticles and it use for methyl violet oxidation under sunlight exposure. Opt. Mater. 2022, 126, 112198. [Google Scholar] [CrossRef]
- Alardhi, S.M.; Albayati, T.M.; Alrubaye, J.M. Adsorption of the methyl green dye pollutant from aqueous solution using mesoporous materials MCM-41 in a fixed-bed column. Heliyon 2020, 6, e03253. [Google Scholar] [CrossRef]
- Akkari, I.; Spessato, L.; Graba, Z.; Bezzi, N.; Kaci, M.M. A sustainably produced hydrochar from pomegranate peels for the purification of textile contaminants in an aqueous medium. Sustain. Chem. Pharm. 2023, 31, 100924. [Google Scholar] [CrossRef]
- Akkari, I.; Graba, Z.; Pazos, M.; Bezzi, N.; Atmani, F.; Manseri, A.; Kaci, M.M. Recycling waste by manufacturing biomaterial for environmental engineering: Application to dye removal. Biocatal. Agric. Biotechnol. 2023, 50, 102709. [Google Scholar] [CrossRef]
- Filho, A.; Aroucha, E.; Leite, R.; Dos Santos, F. Evaluation of adsortive potential of coconut mesocarp in the removal of reactive red dye 195 in aqueous effluents. Rev. Mater. 2020, 25, 1–9. [Google Scholar] [CrossRef]
- Tejada-Tovar, C.; Villabona-Ortiz, Á.; Gonzalez-Delgado, Á.D. Adsorption of Azo-Anionic Dyes in a Solution Using Modified Coconut (Cocos nucifera) Mesocarp: Kinetic and Equilibrium Study. Water 2021, 13, 1382. [Google Scholar] [CrossRef]
- Abdul, R.; Mohsin, H.; Chin, K.; Johari, K.; Saman, N. Promising Low-cost Adsorbent from Desiccated Coconut Waste for Removal of Congo Red Dye from Aqueous Solution. Water. Air. Soil Pollut. 2021, 232, 357. [Google Scholar] [CrossRef]
- Reck, I.M.; Paixão, R.M.; Bergamasco, R.; Vieira, M.F.; Vieira, A.M.S. Investigation of Moringa oleifera seeds as effective and low-cost adsorbent to remove yellow dye tartrazine in fixed-bed column. Sep. Sci. Technol. 2020, 55, 13–25. [Google Scholar] [CrossRef]
- Amin, M.T.; Alazba, A.A.; Shafiq, M. Comparative study for adsorption of methylene blue dye on biochar derived from orange peel and banana biomass in aqueous solutions. Environ. Monit. Assess. 2019, 191, 735. [Google Scholar] [CrossRef]
- Han, Y.; Cao, X.; Ouyang, X.; Sohi, S.P.; Chen, J. Adsorption kinetics of magnetic biochar derived from peanut hull on removal of Cr (VI) from aqueous solution: Effects of production conditions and particle size. Chemosphere 2016, 145, 336–341. [Google Scholar] [CrossRef]
- Xu, J.; Krietemeyer, E.F.; Boddu, V.M.; Liu, S.X.; Liu, W.C. Production and characterization of cellulose nanofibril (CNF) from agricultural waste corn stover. Carbohydr. Polym. 2018, 192, 202–207. [Google Scholar] [CrossRef]
- Xu, J.h.; Gao, N.y.; Deng, Y.; Sui, M.h.; Tang, Y.l. Perchlorate removal by granular activated carbon coated with cetyltrimethyl ammonium bromide. J. Colloid Interface Sci. 2011, 357, 474–479. [Google Scholar] [CrossRef]
- Herrera-Barros, A.; Tejada-Tovar, C.; Villabona-Ortíz, A.; Gonzalez-Delgado, A.D.; Benitez-Monroy, J. Cd (II) and Ni (II) uptake by novel biosorbent prepared from oil palm residual biomass and Al2O3 nanoparticles. Sustain. Chem. Pharm. 2020, 15, 100216. [Google Scholar] [CrossRef]
- Alcantara-Cobos, A.; Gutiérrez-Segura, E.; Solache-Ríos, M.; Amaya-Chávez, A.; Solís-Casados, D.A. Tartrazine removal by ZnO nanoparticles and a zeolite-ZnO nanoparticles composite and the phytotoxicity of ZnO nanoparticles. Microporous Mesoporous Mater. 2020, 302, 110212. [Google Scholar] [CrossRef]
- Sahnoun, S.; Boutahala, M. Adsorption removal of tartrazine by chitosan/polyaniline composite: Kinetics and equilibrium studies. Int. J. Biol. Macromol. 2018, 114, 1345–1353. [Google Scholar] [CrossRef] [PubMed]
- Mittal, A.; Kurup, L.; Mittal, J. Freundlich and Langmuir adsorption isotherms and kinetics for the removal of Tartrazine from aqueous solutions using hen feathers. J. Hazard. Mater. 2007, 146, 243–248. [Google Scholar] [CrossRef] [PubMed]
- Al-Ghouti, M.A.; Da’ana, D.A. Guidelines for the use and interpretation of adsorption isotherm models: A review. J. Hazard. Mater. 2020, 393, 122383. [Google Scholar] [CrossRef]
- Jiang, Z.; Hu, D. Molecular mechanism of anionic dyes adsorption on cationized rice husk cellulose from agricultural wastes. J. Mol. Liq. 2019, 276, 105–114. [Google Scholar] [CrossRef]
- Herlina Sari, N.; Wardana, I.N.G.; Irawan, Y.S.; Siswanto, E. Characterization of the Chemical, Physical, and Mechanical Properties of NaOH-treated Natural Cellulosic Fibers from Corn Husks. J. Nat. Fibers 2017, 15, 545–558. [Google Scholar] [CrossRef]
- Fan, C.; Zhang, Y. Adsorption isotherms, kinetics and thermodynamics of nitrate and phosphate in binary systems on a novel adsorbent derived from corn stalks. J. Geochemical Explor. 2018, 188, 95–100. [Google Scholar] [CrossRef]
- Afshin, S.; Rashtbari, Y.; Shirmardi, M.; Vosoughi, M.; Hamzehzadeh, A. Adsorption of Basic Violet 16 dye from aqueous solution onto mucilaginous seeds of Salvia sclarea: Kinetics and isotherms studies. Desalin. Water Treat. 2019, 161, 365–375. [Google Scholar] [CrossRef]
- Gupta, V.K.; Jain, R.; Shrivastava, M.; Nayak, A. Equilibrium and Thermodynamic Studies on the Adsorption of the Dye Tartrazine onto Waste “Coconut Husks” Carbon and Activated Carbon. J. Chem. Eng. Data 2010, 55, 5083–5090. [Google Scholar] [CrossRef]
- Bryś, A.; Bryś, J.; Ostrowska-Ligęza, E.; Kaleta, A.; Górnicki, K.; Głowacki, S.; Koczoń, P. Wood biomass characterization by DSC or FT-IR spectroscopy. J. Therm. Anal. Calorim. 2016, 126, 27–35. [Google Scholar] [CrossRef]
- Chen, X.; Liu, L.; Luo, Z.; Shen, J.; Ni, Q.; Yao, J. Facile preparation of a cellulose-based bioadsorbent modified by hPEI in heterogeneous system for high-efficiency removal of multiple types of dyes. React. Funct. Polym. 2018, 125, 77–83. [Google Scholar] [CrossRef]
- Ranjbari, S.; Ayati, A.; Tanhaei, B.; Al-Othman, A.; Karimi, F. The surfactant-ionic liquid bi-functionalization of chitosan beads for their adsorption performance improvement toward Tartrazine. Environ. Res. 2022, 204, 111961. [Google Scholar] [CrossRef] [PubMed]
- Goscianska, J.; Ciesielczyk, F. Lanthanum enriched aminosilane-grafted mesoporous carbon material for efficient adsorption of tartrazine azo dye. Microporous Mesoporous Mater. 2019, 280, 7–19. [Google Scholar] [CrossRef]
- Zhang, Q.; Zhang, P.; Pei, Z.; Wang, D. Investigation on characteristics of corn stover and sorghum stalk processed by ultrasonic vibration-assisted pelleting. Renew. Energy 2017, 101, 1075–1086. [Google Scholar] [CrossRef]
- Al-Lagtah, N.M.A.; Al-Muhtaseb, A.H.; Ahmad, M.N.M.; Salameh, Y. Chemical and physical characteristics of optimal synthesised activated carbons from grass-derived sulfonated lignin versus commercial activated carbons. Microporous Mesoporous Mater. 2016, 225, 504–514. [Google Scholar] [CrossRef]
- Wang, H.; Wang, S.; Gao, Y. Cetyl trimethyl ammonium bromide modified magnetic biochar from pine nut shells for efficient removal of acid chrome blue K. Bioresour. Technol. 2020, 312, 123564. [Google Scholar] [CrossRef] [PubMed]
- Rinaldi, R.; Yasdi, Y.; Hutagalung, W.L.C. Removal of Ni (II) and Cu (II) ions from aqueous solution using rambutan fruit peels (Nephelium lappaceum L.) as adsorbent. AIP Conf. Proc. 2018, 2026, 020098. [Google Scholar] [CrossRef]
- Zhuang, J.; Li, M.; Pu, Y.; Ragauskas, A.J.; Yoo, C.G. Observation of Potential Contaminants in Processed Biomass Using Fourier Transform Infrared Spectroscopy. Appl. Sci. 2020, 10, 4345. [Google Scholar] [CrossRef]
- Hospodarova, V.; Singovszka, E.; Stevulova, N. Characterization of Cellulosic Fibers by FTIR Spectroscopy for Their Further Implementation to Building Materials. Am. J. Anal. Chem. 2018, 9, 303–310. [Google Scholar] [CrossRef]
- Villabona-ortíz, Á.; Tejada-tovar, C.; Ortega-Toro, R.; Aguilar-Bermúdez, F.; Pájaro-Moreno, Y. Synthesis of adsorbents from wheat hulls, extracted cellulose and modified with Cetyl trimethyl ammonium chloride to remove Congo Red in aqueous solution. Rev. Mex. Ing. Química 2021, 20, 1–12. [Google Scholar] [CrossRef]
- Banerjee, S.; Chattopadhyaya, M.C. Adsorption characteristics for the removal of a toxic dye, tartrazine from aqueous solutions by a low cost agricultural by-product. Arab. J. Chem. 2017, 10, S1629–S1638. [Google Scholar] [CrossRef]
- Hu, Q.; Chen, N.; Feng, C.; Hu, W.; Liu, H. Kinetic and isotherm studies of nitrate adsorption on granular Fe–Zr–chitosan complex and electrochemical reduction of nitrate from the spent regenerant solution. RSC Adv. 2016, 6, 61944–61954. [Google Scholar] [CrossRef]
- Shen, Z.; Zhang, Y.; McMillan, O.; Jin, F.; Al-Tabbaa, A. Characteristics and mechanisms of nickel adsorption on biochars produced from wheat straw pellets and rice husk. Environ. Sci. Pollut. Res. 2017, 24, 12809–12819. [Google Scholar] [CrossRef] [PubMed]
- Silva, F.C.; Lima, L.C.B.; Bezerra, R.D.S.; Osajima, J.A.; Filho, E.C.S. Use of Cellulosic Materials as Dye Adsorbents—A Prospective Study. In Cellulose—Fundamental Aspects and Current Trends; InTech: London, UK, 2015; pp. 115–132. [Google Scholar]
- Saha, N.; Saba, A.; Reza, M.T. Effect of hydrothermal carbonization temperature on pH, dissociation constants, and acidic functional groups on hydrochar from cellulose and wood. J. Anal. Appl. Pyrolysis 2019, 137, 138–145. [Google Scholar] [CrossRef]
- Gautam, R.K.; Gautam, P.K.; Banerjee, S.; Rawat, V.; Soni, S.; Sharma, S.K.; Chattopadhyaya, M.C. Removal of tartrazine by activated carbon biosorbents of Lantana camara: Kinetics, equilibrium modeling and spectroscopic analysis. J. Environ. Chem. Eng. 2015, 3, 79–88. [Google Scholar] [CrossRef]
- Dawood, S.; Sen, T.K.; Phan, C. Synthesis and characterisation of novel-activated carbon from waste biomass pine cone and its application in the removal of congo red dye from aqueous solution by adsorption. Water. Air. Soil Pollut. 2014, 225, 1818. [Google Scholar] [CrossRef]
- Mushtaq, M.; Bhatti, H.N.; Iqbal, M.; Noreen, S. Eriobotrya japonica seed biocomposite efficiency for copper adsorption: Isotherms, kinetics, thermodynamic and desorption studies. J. Environ. Manag. 2016, 176, 21–33. [Google Scholar] [CrossRef] [PubMed]
- Dawodu, M.O.; Akpomie, K.G. Evaluating the potential of a Nigerian soil as an adsorbent for tartrazine dye: Isotherm, kinetic and thermodynamic studies. Alexandria Eng. J. 2016, 55, 3211–3218. [Google Scholar] [CrossRef]
- Reck, I.M.; Paixão, R.M.; Bergamasco, R.; Vieira, M.F.; Vieira, A.M.S. Removal of tartrazine from aqueous solutions using adsorbents based on activated carbon and Moringa oleifera seeds. J. Clean. Prod. 2018, 171, 85–97. [Google Scholar] [CrossRef]
- Zhang, J.; Zhang, P.; Zhang, S.; Zhou, Q. Comparative Study on the Adsorption of Tartrazine and Indigo Carmine onto Maize Cob Carbon. Sep. Sci. Technol. 2014, 49, 877–886. [Google Scholar] [CrossRef]
Bioadsorbent Material | Adsorbent Dosage (mg) | Contaminant Concentration (ppm) |
---|---|---|
coconut shells (CSs) | 15 | 40 |
25 | 70 | |
35 | 100 | |
coconut cellulose (CC) | 15 | 40 |
25 | 70 | |
35 | 100 | |
modified coconut cellulose (MCC) | 15 | 40 |
25 | 70 | |
35 | 100 |
Model | Equation | Parameters |
---|---|---|
Langmuir | qmax (mg/g): maximum amount of analyte removed per unit weight of biomass. b (L/mg): constant related to the affinity of binding sites to the contaminant. Ce (mg/L): concentration of the remaining contaminant in the solution. | |
Freundlich | kf: indicator of adsorption capacity. n indicates the effect of concentration on adsorption capacity and represents the intensity of adsorption. |
Bioadsorbent | pHPZC |
---|---|
Coconut shell | 7.27 |
Coconut shell cellulose | 5.88 |
CTAC-modified coconut shell cellulose | 5.73 |
Source | Bioadsorbents | ||||||||
---|---|---|---|---|---|---|---|---|---|
CS | CC | MCC | |||||||
Sum of Squares | F-Ratio | p-Value | Sum of Squares | F-Ratio | p-Value | Sum of Squares | F-Ratio | p-Value | |
A: Adsorbent dosage | 3.3227 | 1.44 | 0.32 | 12.22 | 2.88 | 0.19 | 0.33 | 0.42 | 0.56 |
B: Initial concentration | 16.30 | 7.05 | 0.077 | 0.58 | 0.14 | 0.74 | 6.65 | 8.52 | 0.06 |
AA | 3.66 | 1.58 | 0.29 | 20.39 | 4.80 | 0.12 | 0.71 | 0.91 | 0.41 |
AB | 8.27 | 3.58 | 0.16 | 0.47 | 0.11 | 0.76 | 2.04 | 2.61 | 0.20 |
BB | 33.65 | 14.55 | 0.032 | 32.17 | 7.57 | 0.07 | 0.47 | 0.60 | 0.49 |
Total error | 6.94 | 12.74 | 2.34 | ||||||
Total (corr.) | 72.15 | 78.55 | 12.55 |
Model | Parameters | Bioadsorbent | |
---|---|---|---|
CC | MCC | ||
Langmuir | qmax (mg/g) | 5.222 | 18.412 |
b (L/mg) | 2.0967 × 10−5 | 1.220 × 10−4 | |
R2 | 0.933 | 0.914 | |
Freundlich | kf | 0.033 | 0.956 |
n | 0.937 | 0.973 | |
R2 | 0.936 | 0.915 |
