Effect of Asphaltenes and Asphaltene Dispersants on Wax Precipitation and Treatment

Abstract

A detailed understanding of the interactions between wax and asphaltenes with other components of crude oils and the effect of treatments with paraffin inhibitors (PIs) and asphaltene dispersants (ADs), with a focus on identifying specific structure-activity relationships, is necessary to develop effective flow assurance strategies. The morphological and rheological consequences of treating wax and asphaltenes in oils of differing composition with a series of ADs having structural features in common with an alpha olefin-maleic anhydride (AO-MA) comb-like copolymer PI were assessed alone and in combination with said PI. Of the four ADs studied, two were identified as being effective dispersants of asphaltenes in heptane-induced instability tests and in a West Texas (WT) crude. The degree to which a low concentration of asphaltenes stabilizes wax in the absence of treatment additives is lessened in oils having greater aromatic fractions. This is because these stabilizing interactions are replaced by more energetically favorable aromatic–asphaltene interactions, increasing oil viscosity. Treatment with AD alone also reduces the extent of wax–asphaltene interactions, increasing oil viscosity. In concert with the PI, treatment with the AD having greater structural similarity with the PI appears to improve wax solubility in both the presence and absence of asphaltenes. However, the viscosity of the treated oils is greater than that of the oil treated with PI alone, while treatment with AD having lesser structural similarity with the PI does not adversely affect oil viscosity. These data suggest that rather than treating both wax and asphaltenes, AD may poison the function of the PI. These data illuminate the pitfalls of designing flow assurance additives to interact with both wax and asphaltenes and developing treatment plans.

1. Introduction

Wax and asphaltenes are stabilized in crude oils by the presence of light hydrocarbons such as methane and ethane as well as by high temperatures and pressures within the formation. When lifted to the surface, these oils are exposed to lower temperatures and pressures and the loss of light ends through evaporation may also occur, destabilizing wax and asphaltic components [1]. Separation and deposition of these components are known to cause significant challenges in oil production and transportation [2,3,4,5,6]. Containing 16 or more carbons, wax consists of linear, branched, and cyclic saturated hydrocarbons having freezing points as high as 90 °C when isolated [7]. In sufficient concentrations, van der Waals (vdW) forces between neighboring wax molecules can overcome the forces associated with solvation such that crystals consisting of wax platelets can form. These precursors can grow to form macroscopic deposits capable of blocking flow lines. Pour point depressants or paraffin inhibitors (PIs) interact with paraffin, interrupting wax crystal growth and preventing the formation of macroscopic deposits. As such, treatment with PIs will often reduce oil viscosity, particularly at lower temperatures, and can also reduce the wax appearance temperature (WAT) depending on how the WAT is defined [3,8,9,10,11,12,13,14,15].

The effects of oil and wax composition on the morphological and rheological consequences of treatment with maleic anhydride-alpha olefin (MA-AO) comb copolymer paraffin inhibitors (PIs, Structure I) have been investigated [16,17,18,19]. A series of PIs were selected and their effect on wax was evaluated in a simple wax-containing dodecane-based oil. The PIs were synthesized by the copolymerization of maleic anhydride and alpha-olefin, followed by a reaction of the anhydride in the copolymer with alkyl alcohols to give corresponding alkyl side chains. The molar ratio of alkyl sidechains to maleic units in the PIs, referred to as the sidechain density, ρsc, was found to be a better predictor of PI performance than the average carbon number of the sidechains. PIs having higher ρsc values were found to have greater efficacies, i.e., greater reductions in WAT and viscosity of treated oils relative to their untreated counterparts, than those having lower ρsc values. Synergies between PI and added asphaltenes were also observed such that oils containing both featured lower WATs and viscosities than oils containing either alone [16].

The efficacies of two PIs, differing in their ρsc values, and their interaction with wax were then evaluated in a diesel-based oil and a light West Texas (WT) crude to assess the effect of increasing oil complexity on PI performance. In the presence of asphaltenes, the efficacy of the PI having the lower ρsc improved with increasing oil complexity leading to similar PIs performances in more complex oil. Because the anhydrides in the PI backbone that were not reacted with alcohol were subsequently hydrolyzed, the carboxylic acid density of the PI, ρca, is inversely proportional to ρsc (Section 2.1.2). Interactions between wax and PIs have higher ρca, and by extension lower ρsc, are less energetically favorable than those between wax and PIs having lower ρca. We postulated that the presence of semi-polar components such as resins and, to a lesser extent aromatics, mitigate this effect. The fact that this trend was not observed in the absence of asphaltenes suggests that asphaltenes are required to facilitate interactions between wax, PI, resins, and aromatics [17].

Treatments with PIs with effective reductions in WAT and/or viscosity are characterized by their ability to transform continuous or semi-continuous wax crystals into discrete spherulites. Rather than crystal shape or size, the degree to which the crystals interacted with one another and the prevalence of bulk oil channels between crystals was found to be the greatest predictor of rheological performance. In studies involving waxes having different average chain lengths, wax composition dictated morphology to a greater extent than the choice of PI. In the absence of asphaltenes, the efficacy of the PI having the higher ρca depended more heavily on wax composition than that having the lower ρca, suggesting a steric effect. Because this effect was not observed in the presence of asphaltenes, we concluded that asphaltenes enhance electrostatic effects while minimizing steric effects [18].

In many cases, an effective reduction in the WAT and/or viscosity of crude oils involves the treatment of both wax and asphaltenes. Asphaltene dispersants (ADs) improve the solubility of asphaltenes in the crude and reduce agglomeration to maintain a dispersed state, minimizing deposition [20,21,22]. It is well-known that the presence of asphaltenes often results in high viscosities in general [23]; however, previous authors have shown that their presence can result in reductions in wax deposition from oils possessing a considerable paraffinic component. The magnitude of the reduction depends on whether the asphaltenes exist in dispersed or flocculated forms, with the former offering larger wax-accessible surface areas than the latter [24,25,26,27,28,29]. The tendency for asphaltenes to adopt a dispersed form strongly depends on concentration, with greater fractions existing in the said form at lower concentrations.

In the last two decades, a wealth of information concerning the molecular and assembled structures of asphaltenes has been gleaned. It has been established that asphaltene molecules have molecular weights in the range 500–1000 Da and are 750 Da on average [30,31]. A large fraction of these molecules possess a single polycyclic aromatic core having an average of seven fused rings in keeping with the so-called island model. A smaller fraction possesses between two and three cores, each composed of between two and three fused rings, connected through aliphatic linkages in keeping with the so-called archipelago model. Nanoaggregates consisting of 4–10 molecules can form at concentrations below 0.1 wt.%, for which the molecules form a single disordered π stack. Larger clusters having similar aggregation numbers can form at concentrations above about 0.3 wt.%, according to the Yen-Mullins model first proposed in 2010 [30,31,32].

In the present study, we investigate the morphological and rheological effects of the treatment of wax and asphaltenes in WT crude using asphaltene dispersants (ADs) that have structural features in common with the MA-AO PIs detailed above. Treatments involving the addition of both ADs and a PI are investigated to better understand the contributions from each and their dependence on oil composition.

2. Materials and Methods

2.1. Materials

2.1.1. Wax-Containing Synthetic Oils

Wax containing synthetic oils were prepared from four bases oils: (1) dodecane, (2) 1:1 w/w dodecane:toluene, (3) diesel, grade 2, and (4) West Texas (WT) crude. The oils were treated with 500 ppm of the polymeric, i.e., the active component of each AD and/or PI and heated to 75 °C to completely solubilize the wax prior to being characterized by cross-polarized microscopy (CPM) and rheology. Nomenclature and details of the oil samples studied are listed in

Table 1. Nomenclature, base oil, wax, and asphaltenes content and AD and PI added for oils studied.

Oil 1	Base Oil	Wax (wt.%)	Asphaltenes (wt.%)	AD 2	PI 2
Dw	Dodecane	10	---	---	---
Dw-1A	Dodecane	10	1	---	---
DTw	1:1 Dodecane: Toluene	10	---	---	---
DTw-1A	1:1 Dodecane: Toluene	10	1	---	---
DLw	Diesel	10	---	---	---
DLw-1A	Diesel	10	1	---	---
WT	WT Crude	---	---	---	---
WT-1A	WT Crude	---	1	---	---
WT-1A-AD3	WT Crude	---	1	AD3	---
WT-1A-AD4	WT Crude	---	1	AD4	---
WTw	WT Crude	10	---	---	---
WTw-1A	WT Crude	10	1	---	---
WTw-3A	WT Crude	10	3	---	---
WTw-AD3	WT Crude	10	---	AD3	---
WTw-AD4	WT Crude	10	---	AD4	---
WTw-1A-AD3	WT Crude	10	1	AD3	---
WTw-1A-AD4	WT Crude	10	1	AD4	---
WTw-PI	WT Crude	10	---	---	PI
WTw-AD3-PI	WT Crude	10	---	AD3	PI
WTw-AD4-PI	WT Crude	10	---	AD4	PI
WTw-1A-PI	WT Crude	10	1	---	PI
WTw-1A-AD3-PI	WT Crude	10	1	AD3	PI
WTw-1A-AD4-PI	WT Crude	10	1	AD4	PI

¹ D = dodecane, DT = 1:1 w/w dodecane:toluene, DL = diesel, WT = West Texas crude. Names that include the subscript ‘w’ refer to oils containing 10 wt.% added wax. ². AD and PI were added to give concentrations of 500 ppm of the polymeric component of each.

. Densities and SARA compositions of the base oils are given in

Table 2. Density and SARA analysis of base oils studied.

	Density 1	SARA 2 (%)				R/As	CII 3
		S	Ar	R	As
Asphaltic crude	948	24.6	42.8	16.3	16.2	1.0
Dodecane		100.0	0.0	0.0	0.0	1.0	---
Dw		100.0	0.0	0.0	0.0	1.0	---
Dw-1A		95.8	2.4	0.9	0.9	1.0	29.5
1:1 Dodecane:toluene		50.0	50.0	0.0	0.0	---	1.0
DTw		55.0	45.0	0.0	0.0	---	1.2
DTw-1A		53.6	44.6	0.9	0.9	1.0	1.2
Diesel		60.0	40.0	0.0	0.0	---	3.0
DLw		64.0	36.0	0.0	0.0	---	3.4
DLw-1A		62.0	36.2	0.9	0.9	1.0	3.1
WT crude	849	61.7	27.5	10.8	0.0	---	1.6
WTw		65.5	24.8	9.7	0.0	---	1.9
WTw-1A		63.4	25.6	10.0	0.9	11.1	1.8
WTw-3A		59.3	27.3	10.6	2.7	3.9	1.6

¹ 20 °C, Kg/m3. ² S = saturates, Ar = aromatics, R = resins, and As = asphaltenes. ³ CII = colloidal instability index.

. In our previous work [17], the rheological behavior of WT crude oil without wax addition showed that the viscosity versus temperature follows the Arrhenius law up to 1 Celsius, suggesting the absence of wax that could crystallize. A 55/45 w/w mixture of two commercial waxes, obtained from Sigma-Aldrich and having melting points of 53–58 °C and 65+ °C [16], was added to the base oils to give synthetic oils containing 10 wt.% wax. This wax content was chosen based on our previous works [16,17,18] and the fact that various crude oils present in the world contain wax contents between 3 and 40% [33]. The average carbon number of the wax blend is 29.1 ± 3.8 and its number distribution is provided in the Supporting Information. Despite the poor solubility of asphaltenes in hydrocarbons in general, no separation of the asphaltene dispersion was observed in any of the oils over the timescale of the experiments. Furthermore, the rheological characterization of independently prepared samples was found to be quite reproducible.

2.1.2. Asphaltenes

The asphaltic crude was found to have an acid value of 0.75 mg KOH/g according to an adaption of the ASTM method D4739 for the determination of base number by potentiometric titration. Asphaltene was isolated from the crude according to ASTM method D6560 and analyzed by GPC. Whereas, the crude is characterized by number-, <Mn>, and weight-, <Mw>, yielding average molecular weights of 560 and 1915 Da, respectively, with a peak molecular weight of 770 Da; the isolated asphaltene in toluene is much heavier, having <Mn>, <Mw>, and peak molecular weights of 2240, 15,360, and 4870 Da, respectively. However, we recognize that intermolecular interactions between asphaltene molecules are generally not disrupted by this form of analysis such that the molecular weights observed are of nanoaggregates and clusters rather than individual molecules. An overlay of the chromatograms is given in the Supporting Information. Elemental analysis via combustion of isolated asphaltenes revealed 83.92 wt.% carbon, 7.92 wt.% hydrogen, 2.06 wt.% oxygen, 1.25 wt.% nitrogen, and 4.21 wt.% sulfur.

2.1.3. Paraffin Inhibitor (PI)

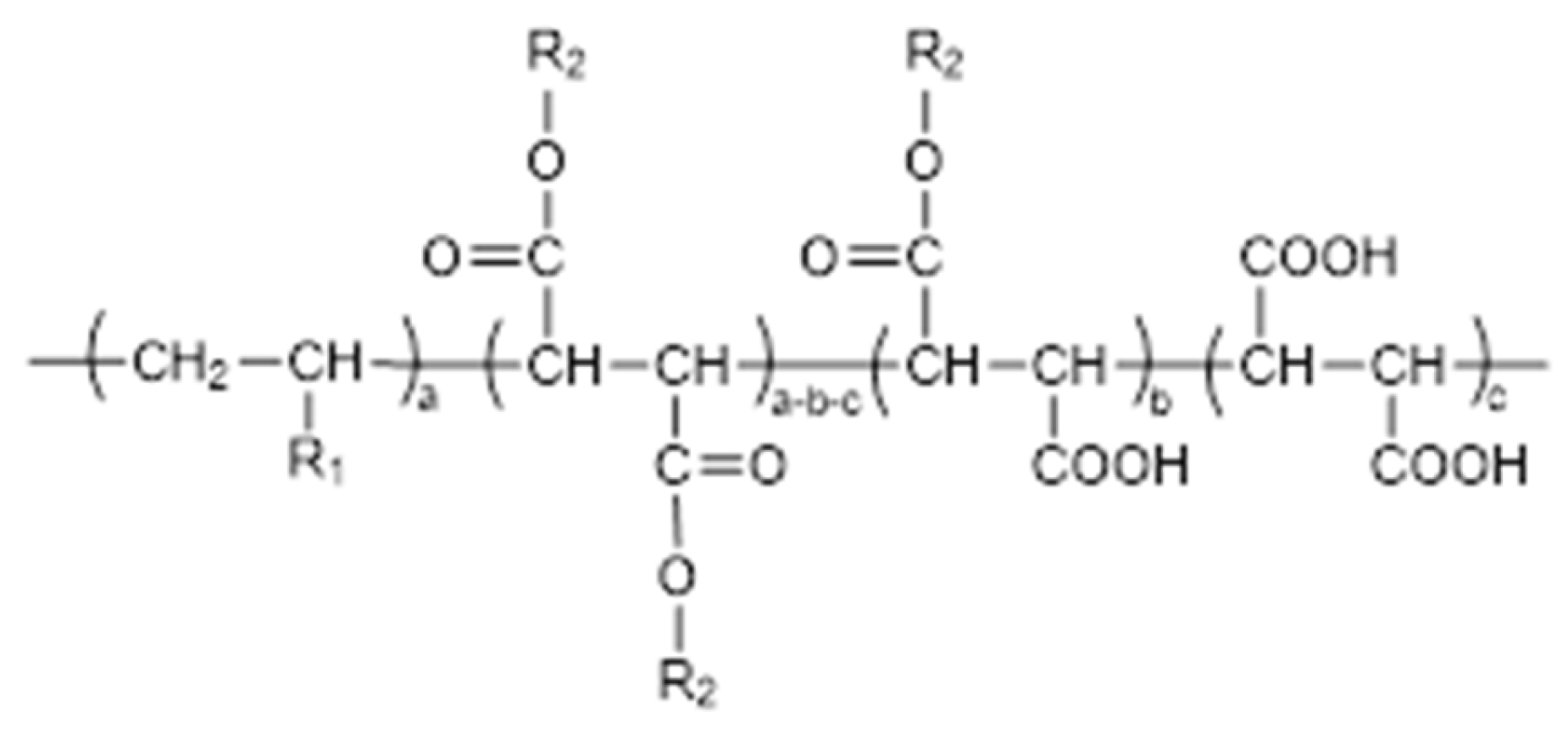

SURFONIC^® OFP 961, a commercially available PI provided by Indorama Ventures Oxides & Derivatives LLC, was selected for these studies because its interactions with wax and asphaltenes have been well-documented [16]. The PI consists of an AO-MA alternating copolymer backbone possessing saturated hydrocarbon sidechains and a weight-average molecular weight of ~ 5000 Da (GPC, THF, 1 mL/min, and poly(propylene glycol) standards). Linear alkyl sidechains, consisting of 21.1 ± 2.2 carbons, are attached via the reaction of the anhydride in the AO-MA copolymer with mixtures of fatty alcohols to give ester linkages (Scheme 1), with ρsc = ((2a − b − 2c))/a=1.6 and ρca = ((b + 2c))/a = 0.4. The distribution of hydrocarbon chains attached via the above-mentioned linkages as well as those originating from the alpha olefin monomers themselves are 21.1 ± 2.2 carbons in length and vary from 16 to 26.

2.1.4. Asphaltene Dispersants (ADs)

Four asphaltene dispersants, AD1-AD4, were also provided by Indorama Ventures Oxides & Derivatives LLC. Each dispersant consists of the reaction product of poly(maleic anhydride) with two or more fatty amines. These products are comb polymers featuring side chains with imide-functional points of attachment (Structure II). With regard to the side-chains, each possesses the same molar ratio of side-chain imide to anhydride moieties with the latter having been subsequently hydrolyzed (Structure II, a/b = constant = 0.65). In each, poly(maleic anhydride) was reacted with two or more of the following five classes of fatty amines: (1) 1-(2-aminoethyl)-2-alkylimidazoline (AEAI), (2) aminated nonylphenol propoxylate (ANPP), (3) aminated C12-14 linear alcohol propoxylate (ALAP), (4) tallowamine (TA), and (5) C16 and C18 Guerbet amine (G16 and G20) The active or polymeric component of each dispersant was solubilized in mixtures of organic solvents such as linear alkylbenzenes, xylene, and toluene. Further structural details can be found in

Table 3. Asphaltene dispersant composition and property.

AD	R	% AEAI 1	Pendant Length 2	Active 3 (wt.%)
AD1	AEAI, ANPP, ALAP	30	25.3	37
AD2	AEAI, G20	52	16.9	50
AD3	AEAI, TA	54	19.2	50
AD4	AEAI, G16	38	15.0	50

¹ Molar % of side chains that are AEAI -functional. ² Average equivalent carbon chain length. ³ Polymeric components of the formulation.

.

2.2. Methods

2.2.1. CPM and Rheological Methods

The methods employed to obtain CPM images and cooling–heating viscosity profiles of the oils have been described elsewhere [16,17]. Viscosity profiles have been used to evaluate the WAT of the waxy oil solution. WAT values for each sample were obtained from their viscosity curves as the on-set temperature at which the rate of viscosity increases becomes more dramatic with further cooling [16,17]. Both methods are, in general, good indicators to evaluate the effect of asphaltenes and asphaltenes dispersants on wax precipitation and treatment as the crystal structure can be directly observed with CPM; rheometry provides more information about the viscosity of the oil above and below WAT, which is important for understanding and solving wax-related flow assurance issues. However, these methods should be supported by cold finger or flow loop experiments to evaluate wax deposition as presented in our previous study [19].

2.2.2. Asphaltene Precipitation from Toluene

An asphaltic solution in toluene was prepared by mixing an asphaltic crude containing 16 wt.% asphaltenes (Table 2), i.e., heptane insolubles, with toluene in a 1:1 w/w ratio using an ultrasonic homogenizer. Treated solutions contained 500 ppm of the polymeric components of AD1-AD4 and PI separately. Heptane-induced instability tests were carried out by adding heptane to obtain a 1:1:40 w/w/w ratio of asphaltic crude, toluene, and heptane, respectively. Test solutions were mixed and allowed to stand at 20 °C. CPM images of the solutions were acquired 2 days and 10 days after preparation.

3. Results and Discussion

Maximum viscosity, μmax, % reduction in μmax relative to untreated oils, μred, and WAT obtained by rheological measurements of the oils appearing in Table 1 are summarized in

Table 4. μ_max, μ_red, and WAT from the cooling–heating viscosity profiles of oils studied.

Oil	μmax (cP)	μred (%)	WAT 1
			(°C)	Shape
Dw	331	---	35	Sharp
Dw-1A	91	72.5 2	23	Gradual
DLw	445	---	36	Sharp
DLw-1A	374	16.0 3	35	Sharp
DTw	96	72.0 2	30	Medium
DTw-1A	246	−156.3 4	29	Medium
WTw	991	---	38	Sharp
WTw-1A	1010	−1.9 5	37	Sharp
WTw-3A	3133	−216.1 5	37	Sharp
WTw-AD3	1111	−12.1 5	39	Sharp
WTw-AD4	855	13.7 5	38	Sharp
WTw-1A-AD3	1382	−36.8 6	38	Sharp
WTw-1A-AD4	1616	−60.0 6	38	Sharp
WTw-PI	327	67.0 5	37	Medium
WTw-AD3-PI	367	63.1 5	37	Medium
WTw-AD4-PI	595	40.0 5	37	Medium
WTw-1A-PI	37	96.3 5	---	---
WTw-1A-AD3-PI	33	10.8 5	---	---
WTw-1A-AD4-PI	133	259.5 7	---	---

¹ Onset temperatures. Transitions are characterized as being sharp, medium, or gradual. % reduction in maximum viscosity relative to oil. ² D_w. ³ DL_w. ⁴ DT_w. ⁵ WT_w. ⁶ WT_w-1A. ⁷ WT_w-1A-PI.

.

3.1. Treatment of Asphaltenes

3.1.1. Heptane-Induced Instability Tests

Solutions of 1:1:40 w/w/w asphaltic crude:toluene:heptane were treated with 500 ppm of the separate polymeric components of dispersants AD1-AD4. CPM images of the mixtures, taken after 2 and 10 days, are shown in Figure 1. In all cases, no visible precipitation was observed throughout the duration of the test. However, two days after the addition of heptane, asphaltenes deposits were observed by CPM in all cases. Relative to the control, those samples treated with AD feature reductions in both the quantity and size of asphaltene deposits at both two and 10-day intervals. Of the ADs evaluated, samples treated with AD3 and AD4 appear to show the least deposition, particularly after 10 days, with less agglomeration and smaller particles being observed relative to those oils treated with AD1 and AD2.

The superior performance of AD3 and AD4 over that of AD1 and AD2 does not correlate with the fraction of sidechains that are imidazoline functional or the average effective sidechain carbon length. Rather, it appears that the propoxylated sidechains in AD1 do not associate favorably with this asphaltene. AD2 and AD4 are the most similar of the dispersants studied, differing only in the length of their Guerbet sidechains. The latter, possessing C20 Guerbet sidechains, performs notably better than the former, possessing the shorter C16 Guerbet sidechains, which is somewhat surprising. Although similar in their performance, it could be argued that AD3, possessing C18 tallow sidechains, performs somewhat better than AD4.

3.1.2. In WT Crude

Dispersants AD3 and AD4, which performed best in heptane-induced instability tests, were selected for further study in WT crude. Samples of WT crude, oil WT, containing 1 wt.% asphaltenes via addition of asphaltic crude, oil WT-1A, and crudes containing asphaltenes that have been treated with 500 ppm of the polymeric components of AD3 and AD4 separately, and oils WT-1A-AD3 and WT-1A-AD4 were prepared. Following equilibration at 20 °C, CPM images of the crudes were obtained and are shown in Figure 2. No deposits were observed in oil WT, not containing added asphaltenes. Asphaltene-containing oils treated with AD3 and AD4 exhibit smaller more solvated deposits than those in the untreated oil WT-1A. These findings are similar to those obtained from heptane-induced instability tests, with differences in the images being more readily apparent. Viscosity profiles for the oils are not shown as the maximum viscosity, realized on cooling to ~9 °C, which is only ~10 cP for each, not containing the added wax. These data demonstrate the effectiveness of the dispersants in this crude.

3.2. Effects of Wax and Asphaltenes on the Rheology of Simple Oils and WT Crude

3.2.1. In Simple Oils

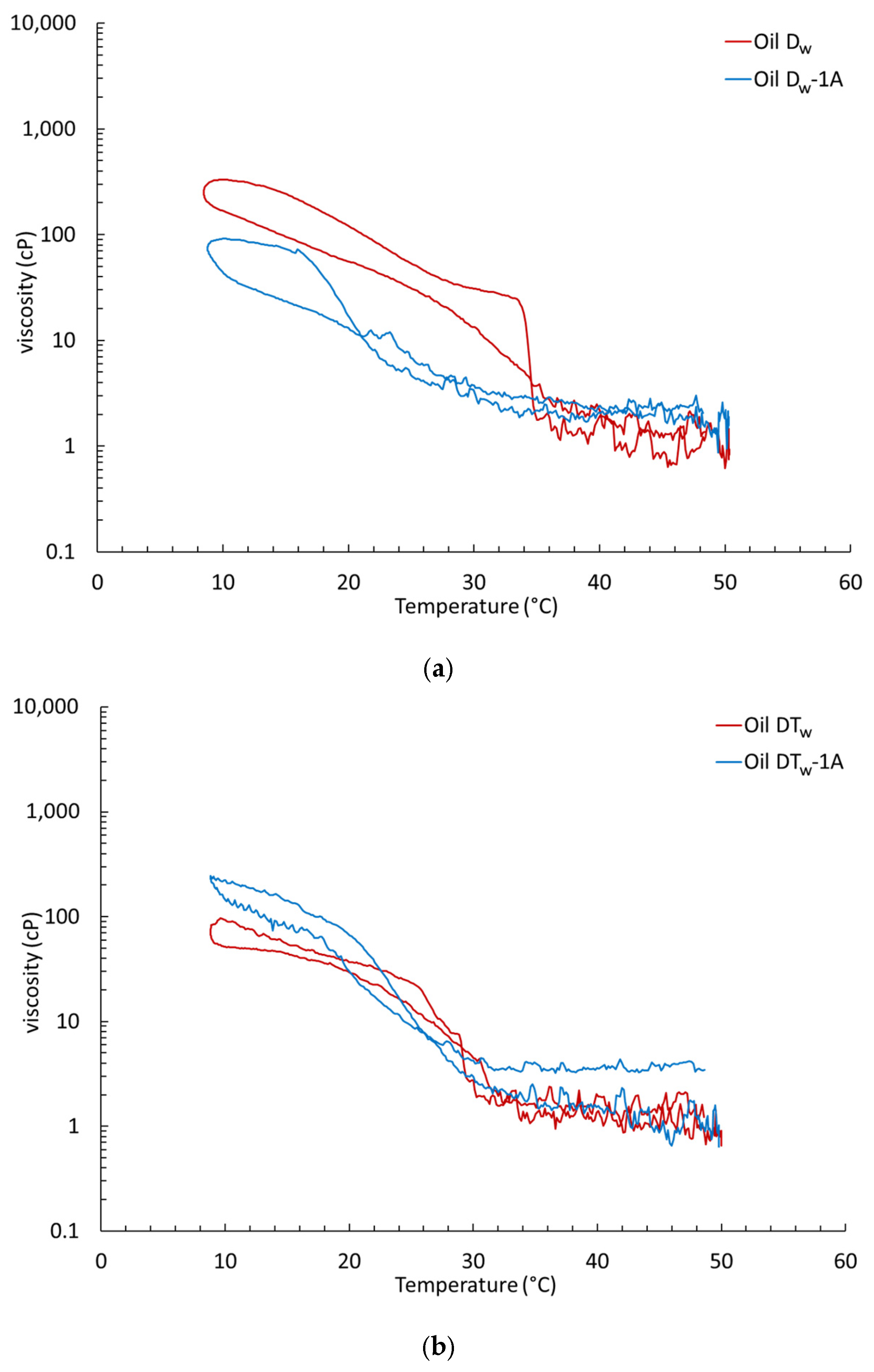

The rheometric effects of adding asphaltenes to dodecane, oil D_w, a 1:1 w/w blend of dodecane and toluene, oil DT_w, and diesel, DL_w, each containing 10 wt.% added wax, were investigated, with the viscosity cooling–heating profiles of the oils appearing in Figure 3. The addition of asphaltenes to oil D_w reduces the WAT from 35 to 23 °C and renders the transition more gradual. The maximum viscosity, μ_max, realized on cooling to ~9 °C, is also reduced from 331 to 91 cP, i.e., a 72.5% reduction (Figure 3a, Table 4). The CPM images of the oils D_w and D_w-1A are consistent with these observations (see Supporting Information), for which the addition of asphaltenes transforms the needle-like wax crystal network seen in oil D_w to a more amorphous better-solvated network of wax and asphaltenes in oil D_w-1A [16]. In contrast, the addition of asphaltenes to oil DT_w reduces the WAT by only 1°, from 30 to 29 °C, with the shape of the transition being little changed. μ_max is increased from 96 to 246 cP, a 156% increase (Figure 3b). Whereas added asphaltenes interact with and solvate wax in dodecane, they prefer to interact with the large toluene component in oil DT_w, leaving the wax component poorly solvated. The poorly solvated wax, due to the toluene presence, leads to wax crystallization, which increases viscosity. Because the aromatic fraction in diesel-based oil DL_w is only about half that in DT_w, the effects of adding asphaltenes in diesel more closely match those observed in dodecane alone rather than in the dodecane and toluene mixture. The WAT is decreased by only 1°, from 36 to 35 °C, with the shape of the transition remaining sharp, and μ_max is decreased from 445 to 374 cP, a 16% reduction (Figure 3c).

It is well known that the presence of resins has a stabilizing effect on asphaltenes. As their geological precursors, resins are thought to act as solvation shells for asphaltenes in crude oils [34]. Indeed, it has been shown that asphaltene clusters consist of ~15% resins [30]. The ratio of resins to asphaltenes, R/As, is often a predictor of oil stability, for which crudes having a R/As ratio less than ~3 tend to exhibit asphaltene precipitation and sedimentation [35]. However, the R/A ratios are 1.0 for each of the oils D_w, DT_w, and DL_w such that the effect of differing ratios is not a factor in this series. Another ratio that is often used to predict oil stability is the colloidal instability index (CII), defined as the ratio of the sum of saturates and asphaltenes to the sum of aromatics and resins, ((S + As))/((Ar + R)) [36]. Oils having lower CIIs are more stable, i.e., less likely to phase separately. Generally, asphaltenes and saturates in oils having CII values greater than ~0.9 tend to be poorly solvated, resulting in deposition [34,37,38]. The CII of oil D_w-1A, for which the addition of asphaltenes lowers viscosity, is 29.5 and the CII of oil DT_w-1A, for which the addition of asphaltenes raises viscosity, is only 1.2, which belays this trend (Table 2). However, these simple oils do not accurately reflect the more complex crudes for which the trend was initially identified. While the saturates component in oil D_w-1A is large, it consists entirely of species that are liquids at room temperature, with only the added wax contributing to oil instability.

3.2.2. In WT Crude

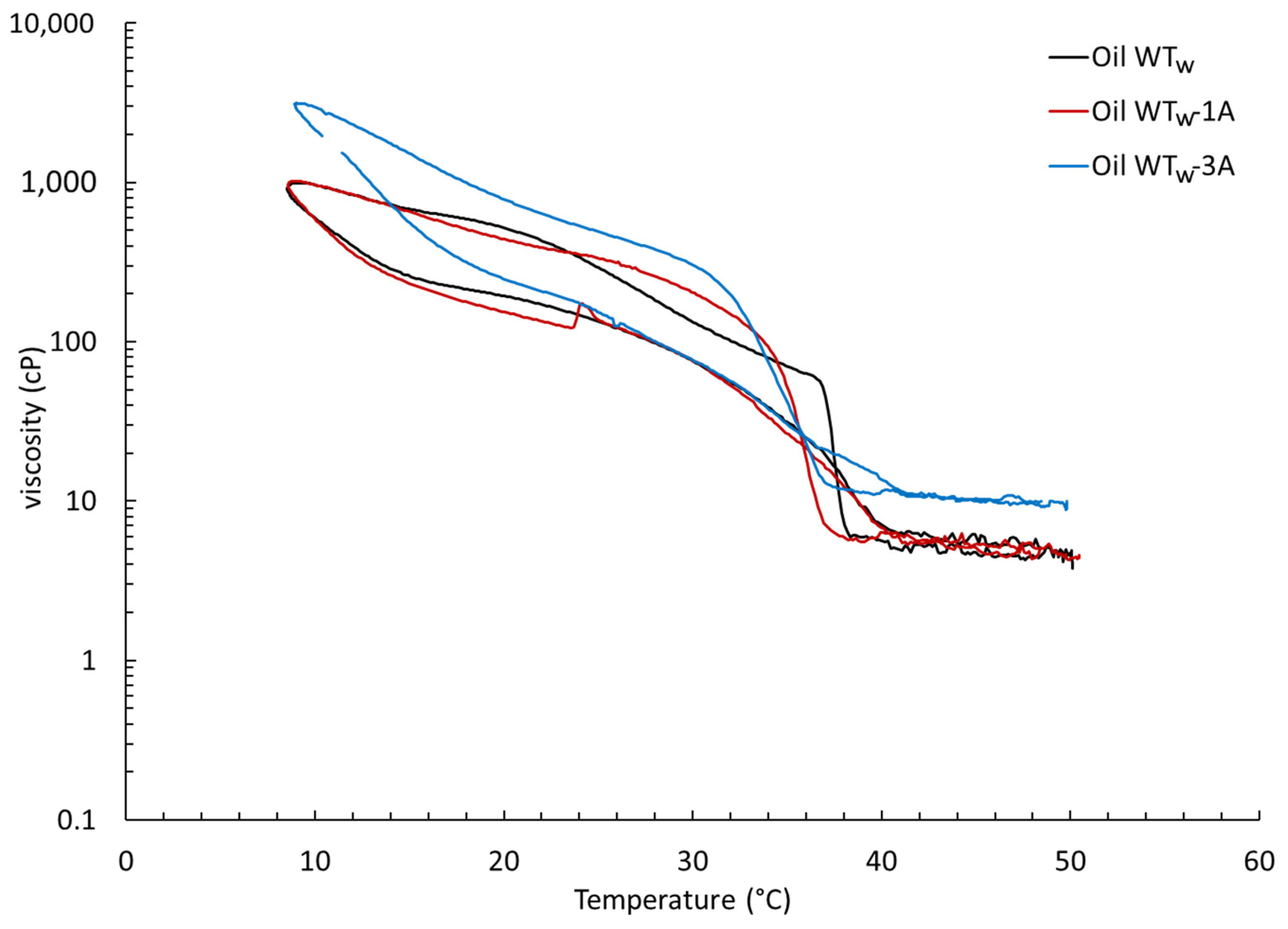

The 50 °C → 8 °C → 50 °C cooling–heating viscosity profiles of WT crude containing 10 wt.% wax, oil WT_w, and 1 and 3 wt.% asphaltenes via the addition of asphaltic crude and the oils WT_w-1A and WT_w-3A are shown in Figure 4. The shape of the WAT is largely unaffected and its onset is reduced to only 1 °C, from 38 °C for oil WT_w to 37 °C for both oils WT_w-1A and WT_w-3A. More notably, μ_max of oil WT_w-3A is three times that of oils WT_w and WT_w-1A, realized on cooling to ~9 °C (Table 4), despite only modest increases of 1–2% in aromatic and resin components on the addition of the asphaltic crude (Table 2). While the presence of asphaltenes has been shown to treat wax in a manner not unlike that of a PI in previous investigations [16,17], levels beyond this concentration do not prove beneficial in this oil. Although macroscopic phase separation is possible for higher concentrations [25], this phenomenon was not observed in our experiments. This is not surprising given that crudes with R/A ratios > 3 are typically stable (Table 2).

3.3. Treatment of Wax and Asphaltenes

3.3.1. Wax in WT Crude, Treatment with ADs

Oil WT_w was treated separately with dispersants AD3 and AD4, which performed best in heptane-induced instability tests. CPM images of the mixtures were collected 10 days after preparation for both treated and untreated oils WT_w, WT_w-AD3, and WT_w-AD4 (see Supporting Information Figure S4). Wax crystals can be observed in each of the three images, with little change in their consistency with perhaps fewer darker more amorphous deposits appearing in the image of oil WT_w-AD4 than the WT_w and WT_w-AD3. Little difference in either WAT or μ_max was also observed (see Supporting Information Figure S5). Thus, from the point of view of either CPM or rheology, the dispersants do not notably alter the state of wax in the crude. This finding was not unexpected given that these additives, while having some structural similarities with PIs, differ in certain aspects such in accommodating asphaltenes.

3.3.2. Wax and Asphaltenes in WT Crude, Treatment with ADs

CPM images and 50 °C → 8 °C → 50 °C cooling–heating viscosity profiles for oils WT_w-1A, WT_w-1A-AD3, and WT_w-1A-AD4 are given in Figure 5 and Figure 6. Clusters of wax crystals appear more ordered and better solvated in the treated oils, particularly oil WT_w-1A-AD4. Darker more amorphous regions, which are likely asphaltene-rich, are better defined as well. However, treatment does little to alter WAT and μ_max is increased by 37 and 60% on inclusion of the dispersants AD3 and AD4, respectively (Table 4).

In previous studies involving the effect of treatment with PIs, we have shown that the degree of aggregation and particularly the interconnectivity of wax deposits in WT crude observed by CPM are strongly correlated with viscosity. The fact that this is not the case herein speaks to the difference in the structure of the PIs previously studied and the ADs being studied presently. While the PIs are based on AO-MA copolymers, the ADs are based on MA homopolymers. Perhaps more notable, however, is the method of attachment of pendant moieties to the backbones. Treatment of oil WT_w with a PI with amide/imide attachment functionality (Structure II) eventuated in a treated crude having significantly different rheological and morphological properties than crudes treated with PIs having ester attachment functionality (Structure I) [17]. In some cases, the presence of clusters increases WAT and may serve as nucleation sites for wax crystal growth [27]. The fact that the wax crystals and asphaltene deposits observed in the CPM images appear less mingled, particularly in oil WT_w-1A-AD4, suggests that different mechanisms are at work in this system.

3.3.3. Wax in WT Crude, Treatment with ADs and PI

Interactions between each of AD3 and AD4 with PI in WT crude were investigated by comparing oils WT_w, WT_w-PI, WT_w-AD3-PI, and WT_w-AD4-PI. CPM images of the oils appear in Figure 7. Treatment with PI effectively transforms the wax crystals from needle-like to more spherical discrete clusters. The addition of each of AD3 and AD4 eventuates in deposits with markedly different appearances. In both cases, the crystalline structures appear smaller than those in oil WT_w-PI but these structures appear denser and less solvated in oil WT_w-AD3-PI than in WT_w-AD4-PI.

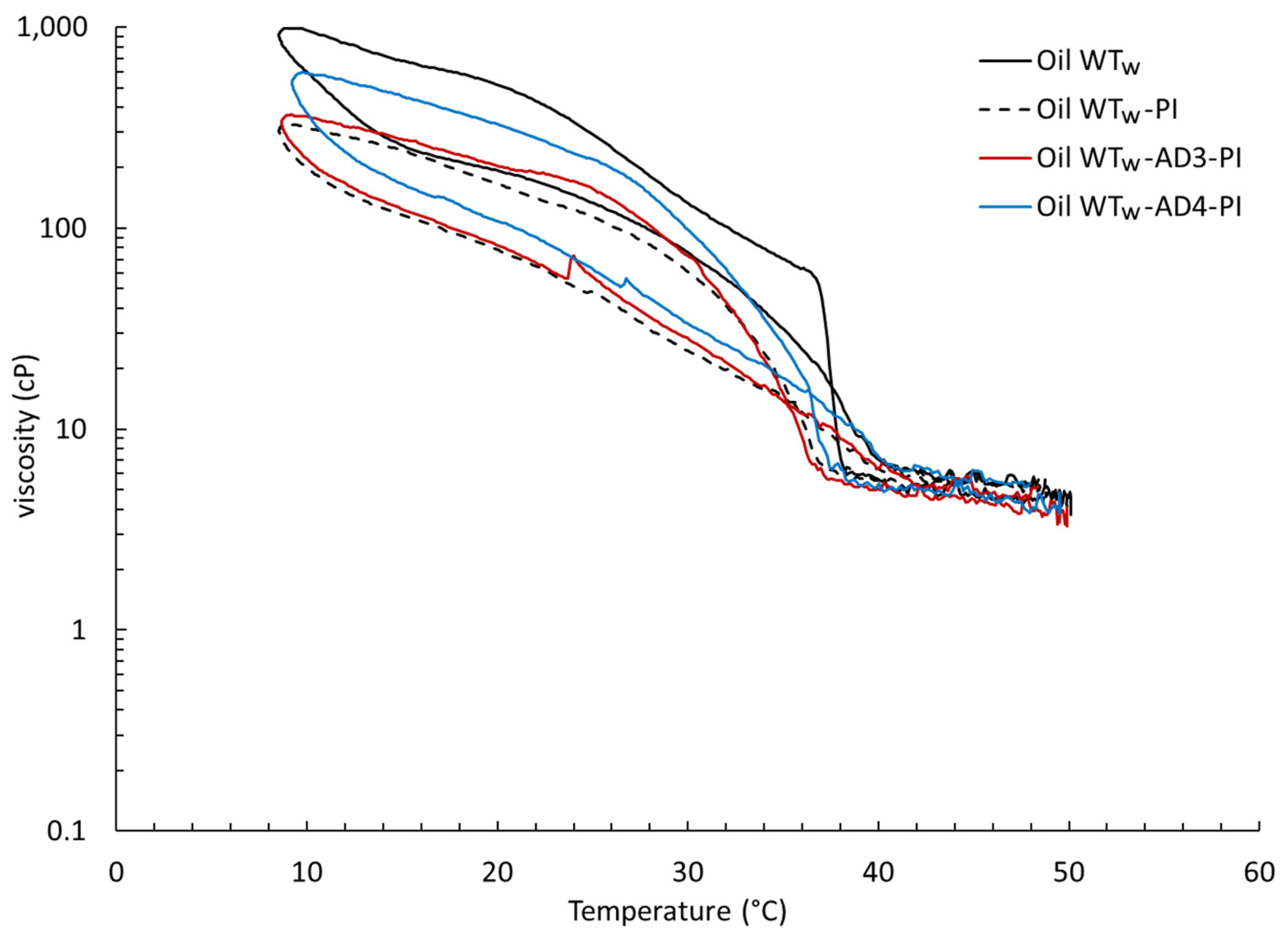

The viscosity cooling–heating profiles of oils WT_w, WT_w-PI, WT_w-AD3-PI, and WT_w-AD4-PI are shown in Figure 8. Treatment with PI reduces μ_max from 991 to 327 cP, a 67.0% reduction (Table 4), with the transformation in crystal morphology being consistent with this result. The addition of each of AD3 and AD4 increases μ_max to 367 and 595 cP, respectively. AD2-AD4 each contains 38–54 molar % of imidazoline-functional alkyl chains (AEAIs) relative to all sidechains in the molecules. The additives also contain 46–62% of branched C20 (G20), branched C16 (G16), and linear C18 (TA) alkyl chains, respectively (Table 3). As such, these dispersants have been engineered to treat asphaltenes as well as wax and may more accurately be described as hybrid dispersants. Although AD3 and AD4 possess different fractions of AEAIs, it is unlikely that this variation is responsible for differences in the viscosity profiles of the oils WT_w-AD3-PI and WT_w-AD4-PI because of the lack of such a correlation in heptane-induced stability tests. It is more likely that the lack of branching in the TA sidechains of AI3 relative to the G16 sidechains of AI4 is responsible for this difference.

In past studies, we have found that wax-containing oils featuring more greatly solvated less inter-connected wax crystals generally have lower viscosities. The rheological data herein appear to be incongruent with CPM in that the wax crystals present in oil WT_w-AD3-PI, which features the lower viscosity profile of the two treated oils, appear to be less discrete, i.e., more inter-connected, than those in oil WT_w-AD3-PI, having the higher viscosity profile. As such, treatment with ADs has different rheological consequences than treatment with PI.

3.3.4. Wax and Asphaltenes in WT Crude, Treatment with ADs and PI

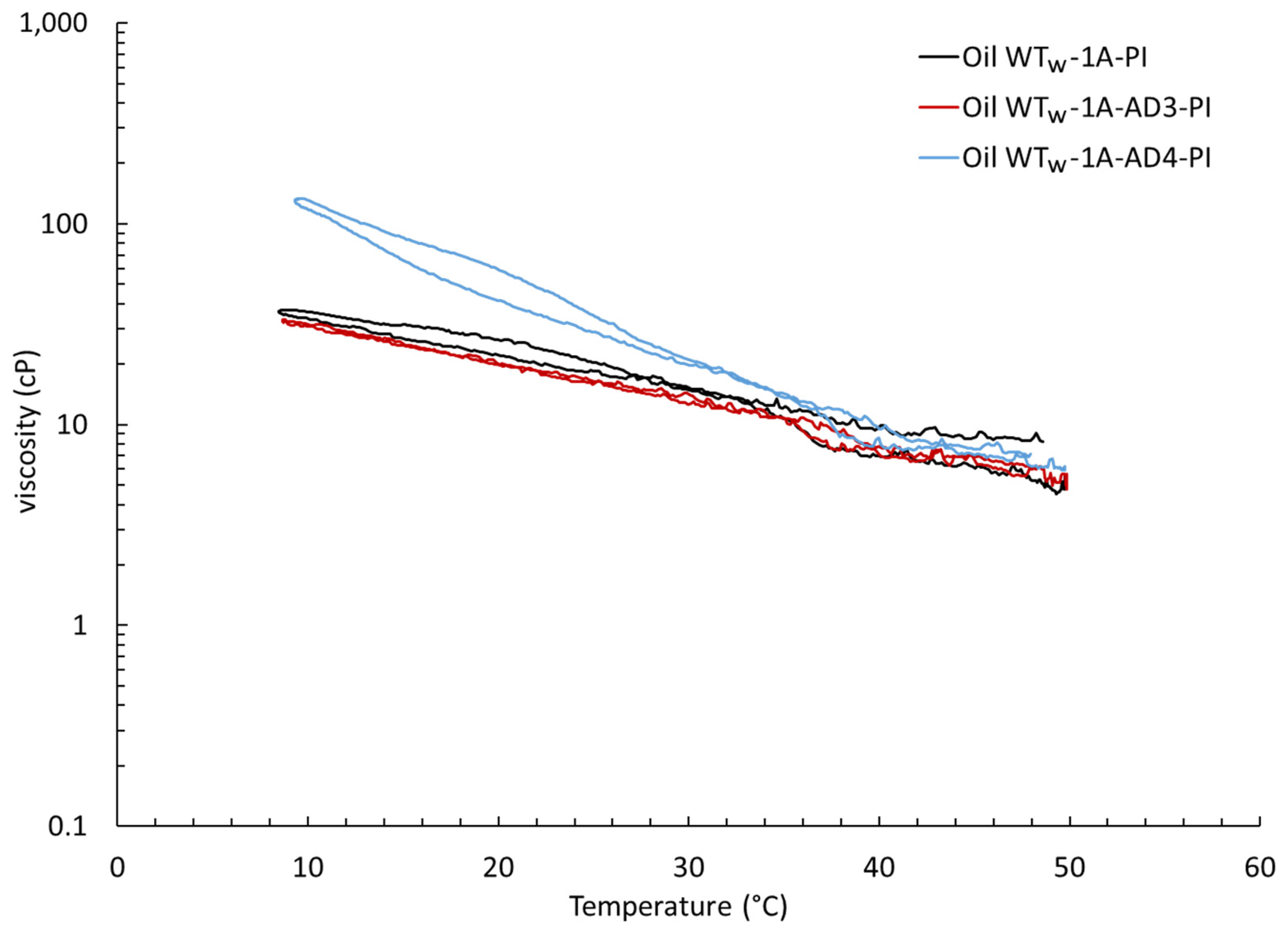

Treatment of crude containing both wax and asphaltenes by both ADs and PI was investigated in the oils WT_w-1A-PI, WT_w-1A-AD3-PI, and WT_w-1A-AD4-PI, with CPM images and 50 °C → 8 °C → 50 °C cooling–heating viscosity profiles of these oils appearing in Figure 9 and Figure 10. In all three oils, wax crystals and asphaltene clusters are clearly present, with little notable differences in morphology except perhaps that darker asphaltene clusters appear smaller and more dispersed in oil treated with AD3 than in oil treated with AD4. The viscosity profiles of oils WT_w-1A-PI and WT_w-1A-AD3-PI are nearly identical, having no discernable WAT and μ_max values of only 37 and 33 cP, a 96% reduction relative to oil WT_w. The viscosity profile of oil WT_w-1A-AD4-PI is only slightly higher, having a μ_max of 133 cP, and likewise possesses no discernable WAT.

Wax is stabilized in crude by solvation shells consisting mainly of saturates of shorter chain lengths that remain liquid at the test temperature. Asphaltene clusters are stabilized by solvation shells consisting of both aromatic and resin components, the latter being composed of complex O-, N-, and S-functional molecules that are typically quite viscous or glass-like solids when isolated. The presence of these differing solvation shells, which do not typically appear under polarized light and therefore cannot be directly observed by this technique, affects rheology differently. Treatment of oils WT_w-1A, WT_w-PI, and WT_w-1A-PI, containing asphaltenes, PI, and both, with AD3, yields a lower profile than treatment with AD4.

The AEAI-functional sidechains in AD3 and AD4 are basic whereas the asphaltic crude is acidic. Both ADs should therefore participate in favorable electrostatic interactions with asphaltenes and their resin precursors in the oils, with AD4 having the potential to engage in a greater number of such interactions than AD3. In the same manner, the addition of toluene to dodecane likely reduces the number of favorable interactions between asphaltenes and wax, destabilizing the latter. Thus, enhanced interactions between asphaltenes and AD4 relative to AD3 may come at a similar expense. This reasoning may explain the reduction in the mingling of wax crystals and asphaltenes clusters seen in the CPM images, particularly in the absence of PI (i.e., the image of oil WT_w-1A-AD3 compared with that of oil WT_w-1A-AD4) and the rheological consequences of treatment on those oils. However, it is difficult to assess the degree to which the acidic and basic moieties are charged as the degree of protonation/deprotonation is likely to be attenuated in a water-deficient environment.

4. Summary and Conclusions

The introduction of low concentrations of asphaltenes into wax-containing oils can reduce viscosity but the effect is dependent on the concentration of aromatics in the oil. Viscosity increases with higher concentrations. Treatment of WT crude containing added wax with ADs does little to alter wax crystal morphology or rheology. However, treatment in the presence of asphaltenes results in fewer wax–asphaltene interactions, particularly treatment with AD4, the structural features of which render it more compatible with wax than those of AD3. The loss of these interactions eventuates in increases in the viscosity profiles of the oils despite the presence of larger solvation channels in the CPM images.

Treatment of added wax in WT crude with PI alone effectively transforms the continuous wax crystal network into discrete spherulites, lowering oil viscosity considerably. The addition of ADs to the treatment regimen appears to introduce more pronounced solvation channels between wax crystals, particularly in oil treated with AD4. However, further rheological benefits are not realized. Relative to the oil treated with PI alone, the inclusion of AD3 has a minimal effect on viscosity while the inclusion of AD4 increases viscosity. In the presence of asphaltenes, treatment with PI alone effects morphological changes that are similar to those observed in the absence of asphaltenes. However, the viscosity of the treated oil is even lower than that of the analogous oil not containing added asphaltenes. The inclusion of ADs does not appear to affect wax crystal morphology appreciably, although asphaltene deposits appear to be somewhat better dispersed in the oils than in that treated with PI alone. The effects on oil viscosity mimic those in the absence of asphaltenes, with the inclusion of AD3 having a minimal effect and the inclusion of AD4 increasing viscosity relative to that of the oil treated with PI alone. While the structure of AD4 more closely resembles that of the PI than AD3, AD4 still possesses numerous AEAI sidechains, the presence of which likely renders the AD far less compatible with wax than the PI. If these structural similarities enhance interactions between AD4 and the PI relative to those between AD3 and the PI, then AD4 could more effectively poison the function of the PI, resulting in the higher viscosities observed for oils treated with this AD. If true, these data illustrate the pitfalls of designing a flow assurance additive to interact with both wax and asphaltenes.

Trends have been identified regarding the morphological and rheological effects of treatment of wax-containing oils with ADs and PI in the presence and absence of asphaltenes. These include the effects of differences in the structural aspects of the ADs and compositions of the oils studied. However, incongruences in the degree of solvation of wax crystals and the degree of dispersion of asphaltenes with oil viscosity exist. Thus, our understanding of these interactions is incomplete. Recognizing that rheology is but one measure of the effectiveness of treatment and because the degree of wax deposition does not always correlate with viscosity [19], cold-finger deposition experiments combined with high-temperature gas chromatography (HTGC) analysis of deposited wax may provide a clearer picture. Electrical conductivity analysis to assess the effects of treatment on asphaltene particle size may yield further insights [39], with the ultimate goal of developing more effective flow assurance strategies.
