The Conversion of Li₂SnO₃ Li-Ion Hybrid Supercapacitors from Pastes Containing LiCl-SnCl₂ Liquid Precursors Using an Atmospheric-Pressure Plasma Jet

Abstract

We fabricate lithium tin-based oxide Li₂SnO₃ on carbon cloth from a gel-state precursor containing LiCl and SnCl₂·2H₂O using a nitrogen atmospheric-pressure plasma jet (APPJ). APPJ treatment provides both a high-temperature environment for the conversion of precursor into Li₂SnO₃ and nitrogen plasma reactive species for electrode surface modification. Here, the best electrochemical performance for the Li₂SnO₃ Li-ion hybrid supercapacitors (Li–HSCs) is achieved with 480 s of APPJ processing. The areal capacity of the 480 s APPJ-processed Li₂SnO₃ Li–HSCs reached 46.113 mC/cm². The results indicate that APPJ is an effective tool for the rapid conversion processing of Li₂SnO₃ electrodes for Li–HSCs.

1. Introduction

As electrical energy storage (EES) systems progress, the focus of numerous researchers has turned to supercapacitors (SCs) and lithium-ion batteries (LIBs). These emerging technologies are driving a revolution across various domains, from small-scale portable electronics to hybrid electric vehicles [1,2,3,4]. Although LIBs have high energy density, their power density is relatively low [5,6]. By contrast, SCs have a much higher power density and a faster charging rate than LIBs, and thus can perfectly compensate for the shortcomings of LIBs [7,8]. Therefore, Li-ion hybrid SCs (Li-HSCs), which combine the advantages of SCs and LIBs, have become attractive for use in next-generation EES devices [9,10].

The energy storage mechanism of supercapacitors (SCs) can be categorized as electrical double-layer capacitance (EDLC) and pseudocapacitance (PC). EDLC is mainly related to accumulating charges on the chemical reactive surface, and PC is related to reversible redox reactions [11,12,13]. Li-HSCs need high-performance materials, and a high concentration of Li⁺ ions can offer intercalation and deintercalation charge storage mechanisms [14,15]. Various Li-containing materials, such as Li₂SnO₃, LiMn₂O₄, Li₂MnO₃, Li₂MnSiO₄, and Li₅FeO₄, are being rapidly developed for Li-HSCs because they are abundant, cost-effective, less polluting, and less harmful to humans [16,17,18]. Among these, Li₂SnO₃ has proven to be a promising material with great electrochemical performance. Li₂SnO₃ crystalizes in a monoclinic layered structure with space group C2/c and consists of eight molecules per unit cell. Patterson and difference Fourier maps have been used to determine the atomic positions of all Li⁺, Sn⁴⁺ and O^2- in a structure [19]. Because Li₂SnO₃ is sintered in high-temperature conditions, the medium-temperature APPJ technology can be applied.

Unlike low-pressure plasma (LPP), the atmospheric-pressure plasma jet (APPJ) can operate at regular atmospheric pressures without requiring vacuum systems. It contains highly reactive species and a high energy density, delivering rapid and cost-effective processing technology. The typical issues with APPJ technology, such as continuous arcing, instability, and high breakdown voltage problems, have been resolved, and the technology has become a suitable industrial processing method [20,21,22]. Practical applications, such as material surface modification, sterilization and bacteria inactivation, rapid annealing, and the rapid processing of transition metal oxides, widely employ APPJs in various fields [23,24]. Material processing utilizing medium-temperature atmospheric-pressure plasma jets (APPJs) relies on the combined impact of heat and reactive species from the plasma. This synergy results in the generation of practical medium-to-high temperatures within the plasma, along with diverse charge densities [25]. Among the many kinds of gases available, nitrogen is abundant, economical, and environmentally friendly. In previous studies, nitrogen APP has been proven to be highly reactive to carbonaceous materials. When carbonaceous materials were treated by nitrogen APPJ in our experiment, the screen-printed pastes containing ethyl cellulose on carbon cloth were completely removed within ~90 s, and the Li₂SnO₃ crystal was sintered within about 300 s. These results can be attributed to the synergetic effect of reactive plasma species and heat. In the present study, rapidly APPJ-processed Li₂SnO₃ Li-HSCs are investigated.

2. Experimental

2.1. Preparation of LiCl-SnCl₂·2H₂O Pastes

For the preparation of the LiCl-SnCl₂·2H₂O pastes, 0.5325 g of SnCl₂·2H₂O (purity: 99%, Aldrich, Munich, Germany), 0.1 g of anhydrous LiCl (purity: 99%, Alfa Aesar, Ward Hill, MA, USA), and 3.245 g of terpineol (anhydrous, #86480, Aldrich) were mixed with an ethanolic solution containing 1.75 g of 10 wt% ethyl cellulose (#46070, Sigma, Munich, Germany), 2.25 g of 10 wt% ethyl cellulose (#46080, Sigma), and 1.5 g of ethanol. The mixture was stirred well at 900 rpm for 24 h. The stirred mixture was then subjected to a rotary evaporator at 55 °C for 6 min to condense the pastes.

2.2. Fabrication of Li-HSCs

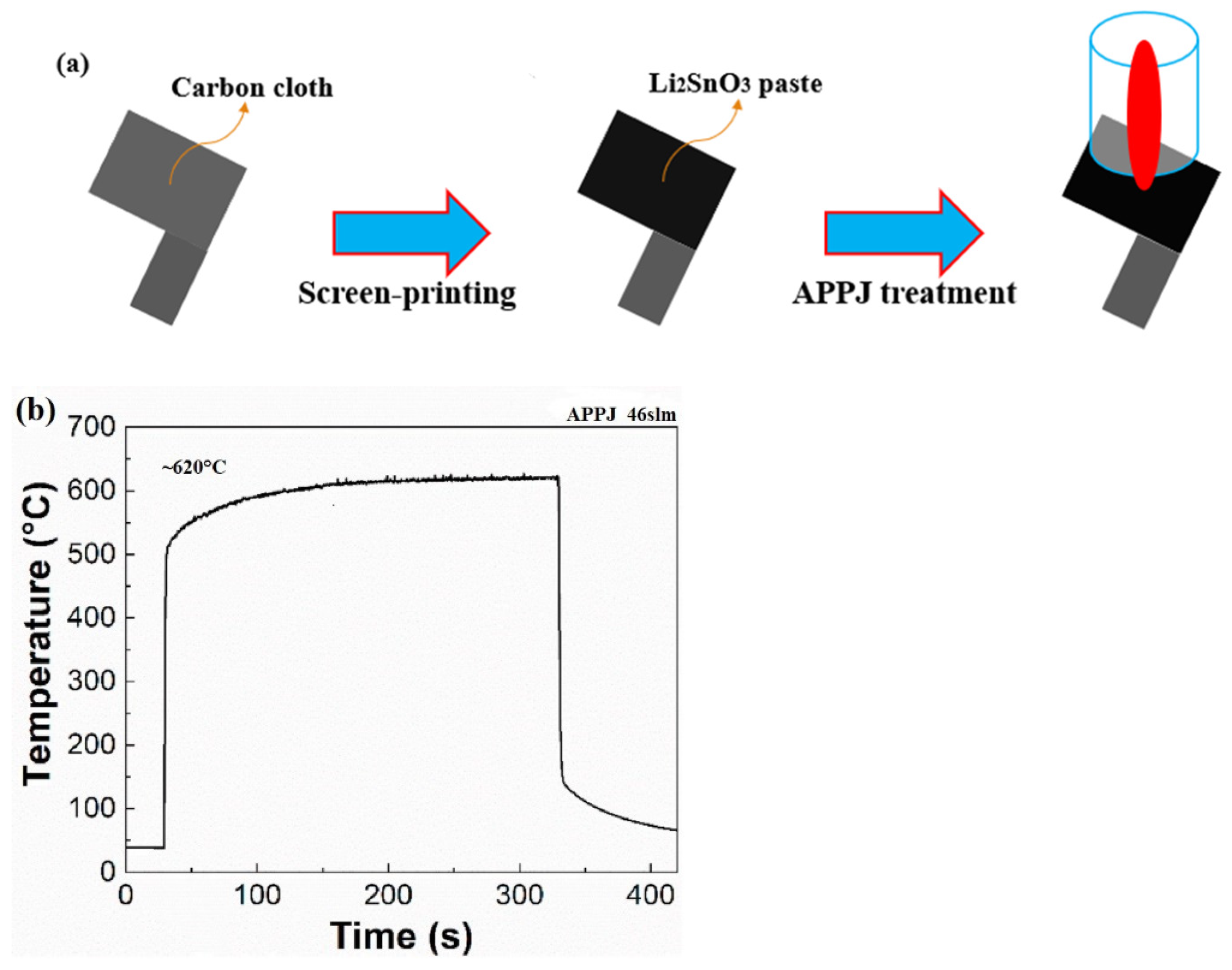

Figure 1a shows the fabrication process of the Li₂SnO₃ electrode. The LiCl-SnCl₂ pastes were applied to the carbon cloth (1.5 cm × 2 cm) through screen printing, repeated three times, and subsequently dried in an oven at 100 °C for 10 min. The screen-printed electrodes were then processed using a nitrogen APPJ. The nitrogen flow rate of the APPJ was 46 slm. The APPJ processing times were 0, 5, 30, 90, 180, 300, and 480 s for converting the LiCl-SnCl₂ precursor into Li₂SnO₃ and for burning out the excess binders on the electrodes. The electrodes were then used for the Li-HSCs. Figure 1b shows the carbon cloth temperature, measured using a K-type thermocouple. The temperature rapidly increased to 500 °C and then gradually increased to 620 °C after the APPJ was turned on. Other detailed APPJ operation parameters were described in a previous study [26]. Lastly, with a three-electrode configuration in a 1-M Li₂SO₄ liquid electrolyte, the Li₂SnO₃ Li-HSCs were used as the working electrode, and the reference and counter electrodes were represented by Ag/AgCl and Pt electrodes, respectively [27].

2.3. Characterizations of Li₂SnO₃ and Li-HSCs

A Sindetake Model 100SB goniometer measured the water contact angle of Li₂SnO₃ onto carbon cloth. The electrode surface morphology was inspected using a JEOL JSM-7800 F Prime scanning electron microscope (SEM) (Tokyo, Japan), equipped with the capacity to perform energy-dispersive X-ray spectroscopy (EDS). The crystallinity of Li₂SnO₃ was examined using a Bruker D2 Phaser X-ray diffractometer (Billerica, MA, USA) with a Cu-Kα source. Surface chemical components were analyzed using Thermo VG Scientific Sigma Probe X-ray photoelectron spectroscopy (XPS, Waltham, MA, USA) with an Al-Kα X-ray source. Cyclic voltammetry (CV) and galvanostatic charging/discharging (GCD) were performed using a Metrohm Autolab PGSTAT204 electrochemical workstation (Utrecht, The Netherlands), with potential windows of 0−0.8 V for both, potential scan speeds ranging from 2 to 200 mV/s for CV, and constant currents of 4, 2, 1, and 0.5 mA for GCD.

3. Results

3.1. Water Contact Angle

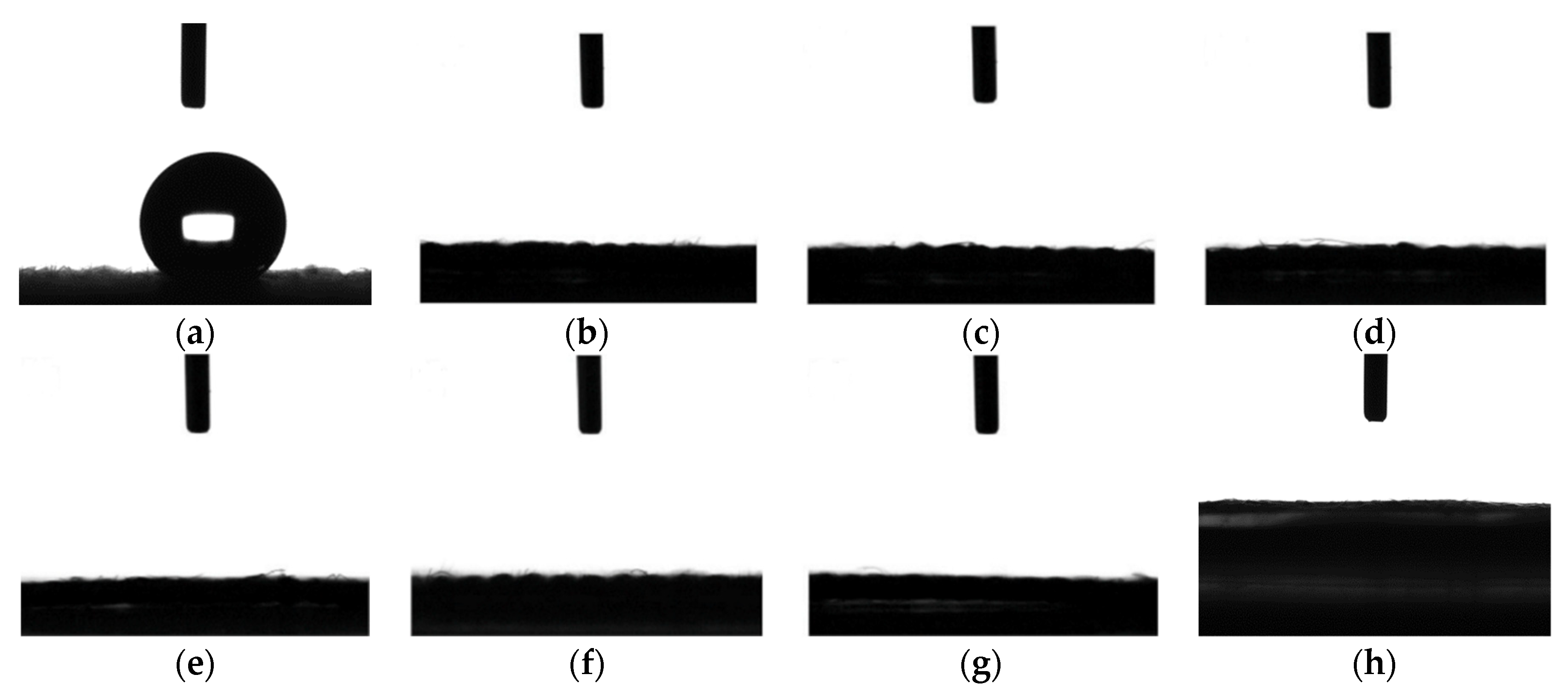

Figure 2 shows the water contact angle of the as-deposited LiCl-SnCl₂·2H₂O precursor on carbon cloth and those seen after APPJ treatment. Figure 2a shows that the pristine carbon cloth exhibited hydrophobic characteristics with a high contact angle of 133.18°; this value was consistent with our previous findings. However, the as-deposited samples and those after APPJ treatment were hydrophilic. Figure 2b shows that the water droplets completely penetrated the as-deposited sample surface within about 12 s. By contrast, it penetrated the APPJ-processed samples immediately after the droplet was dispensed. The enhanced hydrophilicity of the Li₂SnO₃ electrode surface could be attributed to the hydrophilic surface functional group containing nitrogen and oxygen conferred by the APPJ process in a nitrogen working environment [28,29]. The improved hydrophilicity promoted contact between the Li₂SnO₃ Li-HSCs electrode surface and the 1-M Li₂SO₄ liquid electrolyte, delivering better electrochemical performance [30].

3.2. SEM

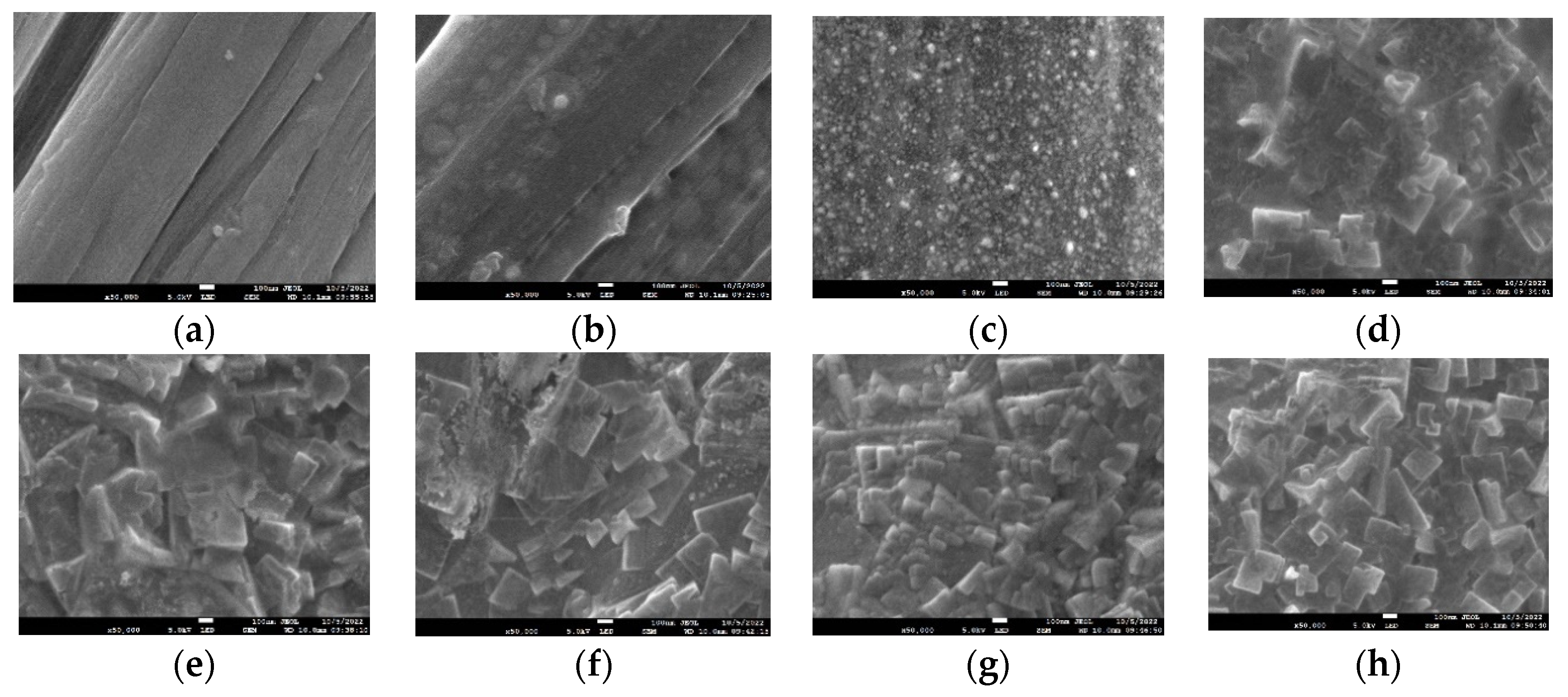

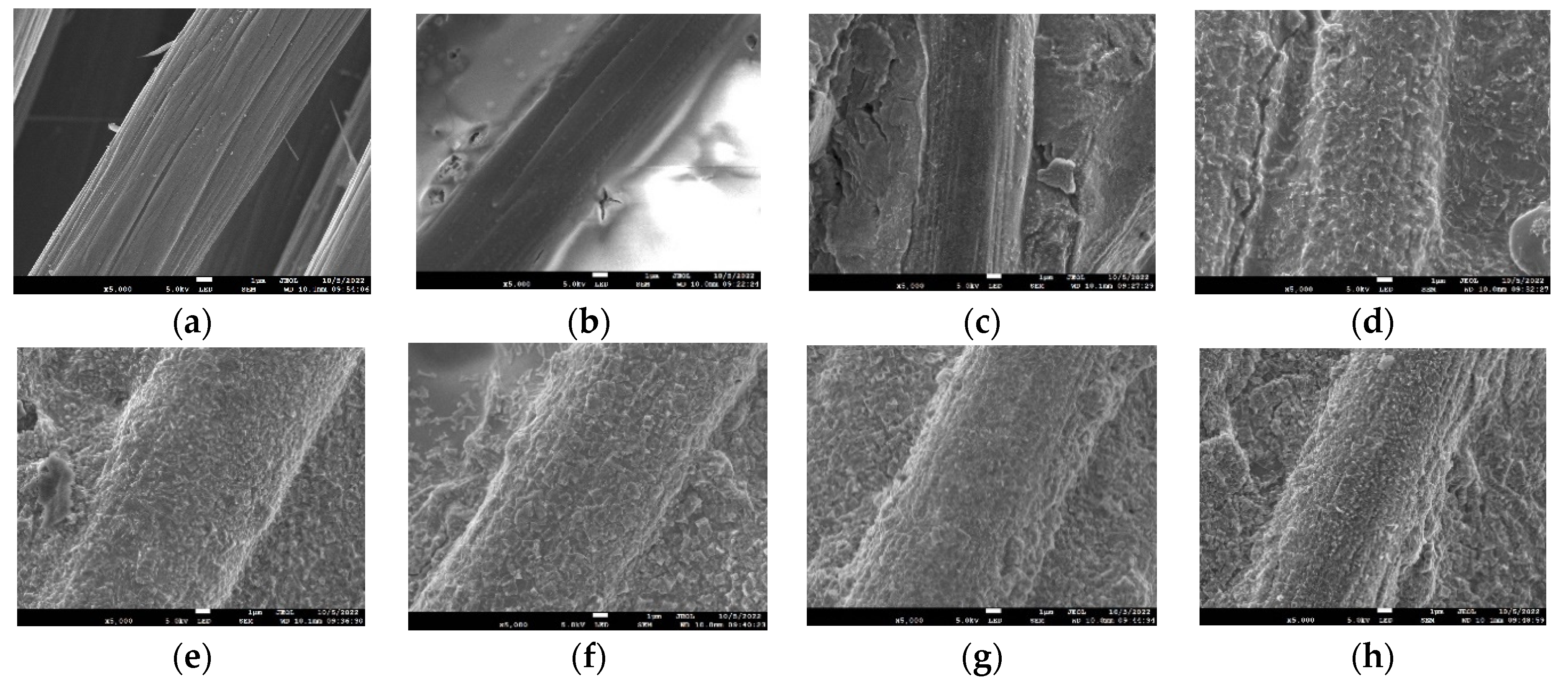

Figure 3 shows SEM images with a magnification rate (5000×). Figure 3b shows that the ethyl cellulose mostly wrapped the as-deposited LiCl-SnCl₂·2H₂O pastes. The thermal decomposition temperature of ethyl cellulose is about 312 °C [31]; therefore, it is burned out during APPJ treatment (620 °C). The attachment of the residual ethyl cellulose to the electrode surface hinders the ion adsorption and desorption capacity of the liquid electrolyte [32]. Figure 3h shows that ethyl cellulose was completely removed after APPJ processing time of 480 s; however, the carbon fibers became rough due to the plasma treatment. Figure 4 shows SEM images with a higher magnification rate (50,000×). As the APPJ processing time increased, we observed that a large amount of Li₂SnO₃ crystals had grown on the carbon fibers. Figure 4h shows that the 480 s APPJ-processed sample exhibited the best crystallinity. The results demonstrate that high-temperature nitrogen APPJ treatment can be used for the rapid conversion of Li₂SnO₃.

3.3. XRD

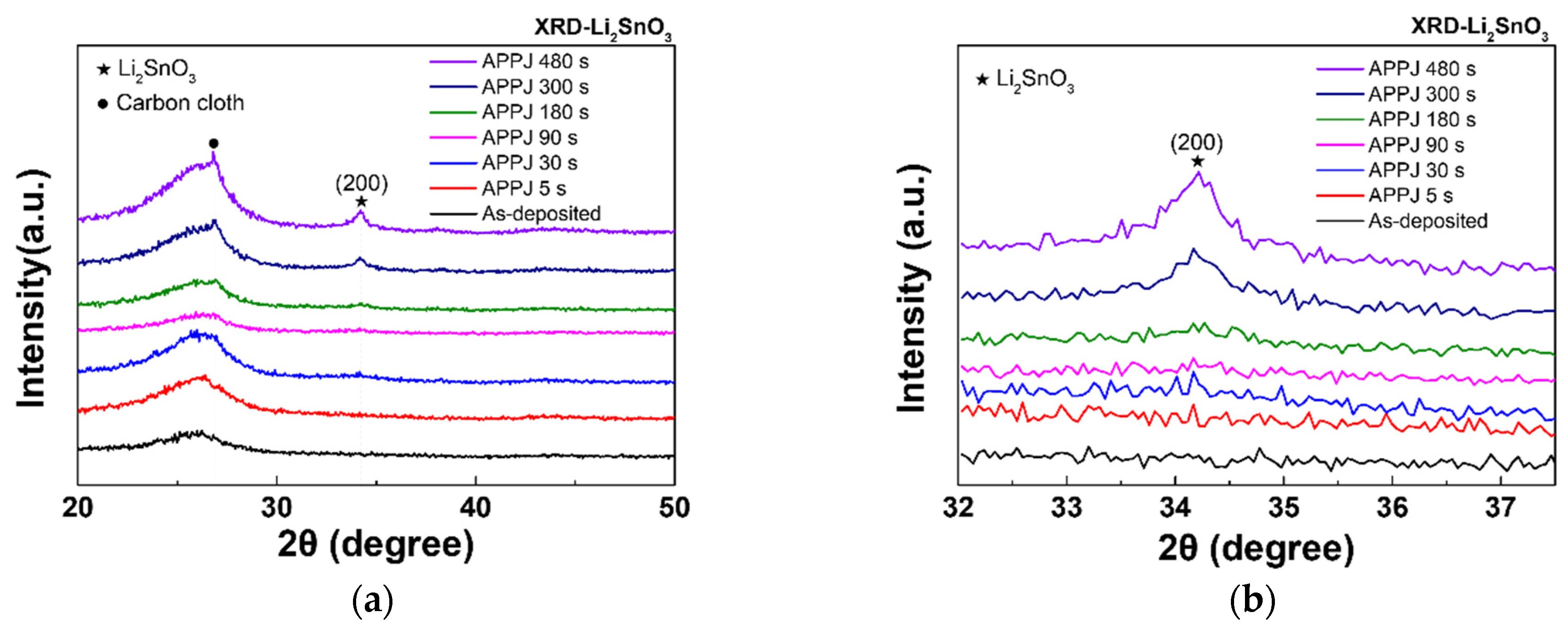

Figure 5 shows the XRD patterns of Li₂SnO₃ electrodes when processed by APPJ for 0 s, 5 s, 30 s, 90 s, 180 s, 300 s, and 480 s. Figure 5a shows the obvious diffraction peaks at 2θ = 26°, which can be attributed to the presence of the carbon cloth [33]. The intensity of the diffraction peak was particularly weak in the as-deposited sample because of the covering of the electrode surface with unburned ethyl cellulose. Furthermore, additional diffraction peaks corresponding to the (200) lattice plane of Li₂SnO₃ were found at 2θ = 34.1° [34]. These peaks could be attributed to a monoclinic-layered structure. Figure 5b shows a magnified view of the XRD pattern of the (200) Li₂SnO₃ lattice plane. No significant peaks were observed in the samples after APPJ processing for 0 s, 5 s, 30 s, 90 s, and 180 s. By contrast, diffraction peaks were observed in the 300 s and 480 s APPJ-processed samples. This phenomenon demonstrates that the monoclinic Li₂SnO₃ gradually grew on the carbon cloth fiber surface due to the high temperature of the nitrogen APPJ processing and its presence increased with processing time. Furthermore, the better crystallinity of Li₂SnO₃ helped to improve the electrochemical performance of Li-HSCs. These XRD results of crystallinity are also in good agreement with the SEM results.

3.4. XPS

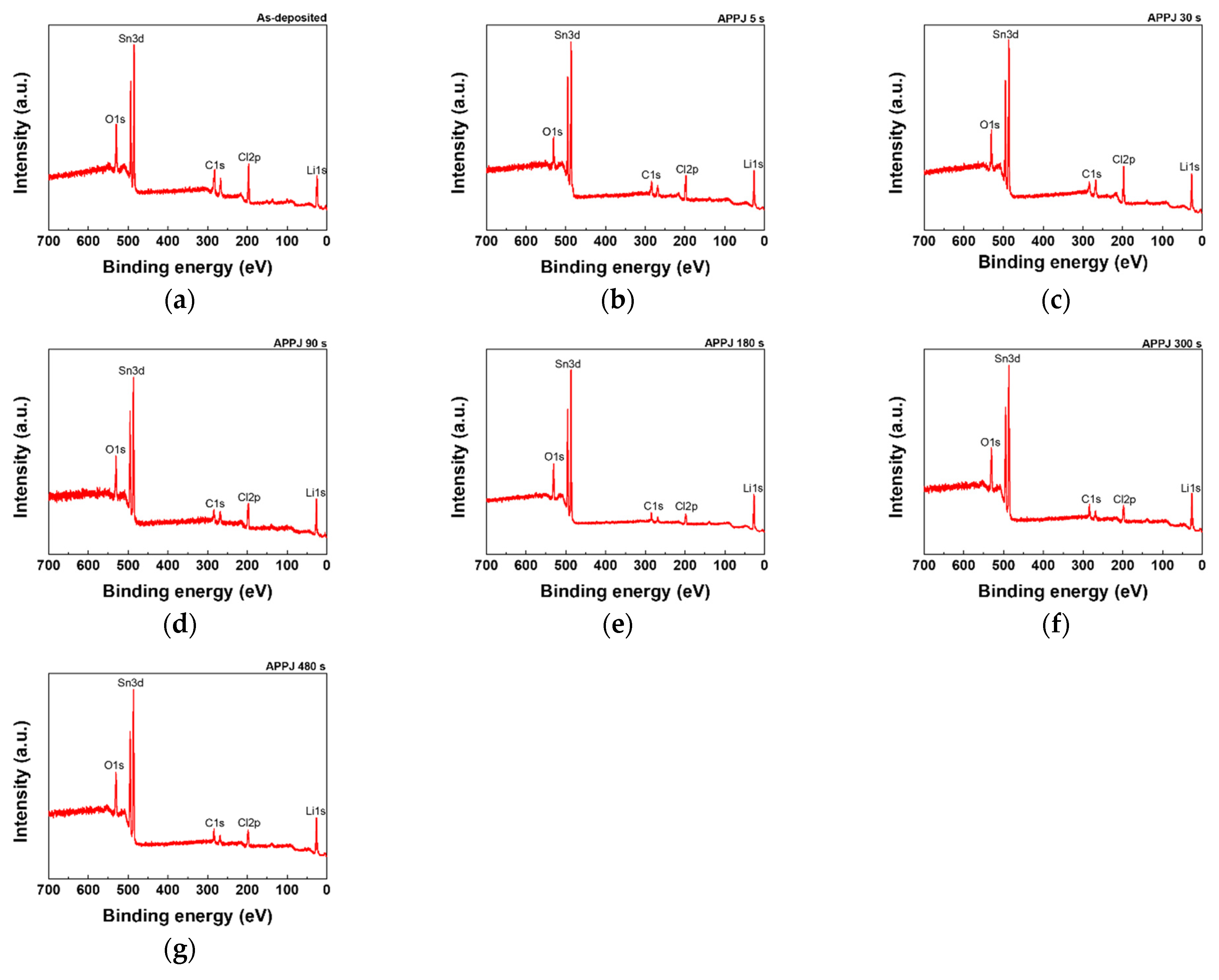

Figure 6 shows the XPS results of Li₂SnO₃ electrodes processed by APPJ. The chemical configurations of C1s, O1s, and Sn3d, as well as Li1s XPS spectra of Li₂SnO₃, were identified. Figure S1 shows the Sn3d^5/2 spectrum, which can be deconvoluted into three peaks at 485.8, 486.9, and 487.6 eV, corresponding to Sn⁰⁺, Sn²⁺, and Sn⁴⁺ [35,36]. Table S1 shows the relative bonding contents obtained from XPS analysis of Sn3d^5/2. The highest Sn⁴⁺ bonding content arose in the APPJ 480 s case, which indicates that most of the precursors on the electrode surface were transformed into Li₂SnO₃ crystals via APPJ. This is in good agreement with the SEM and XRD results. Figure S2 shows the Li1s spectra at 54.5–55.5 eV, which proves that the electrode surface really contained Li elements [37].

3.5. CV of Li-HSCs s

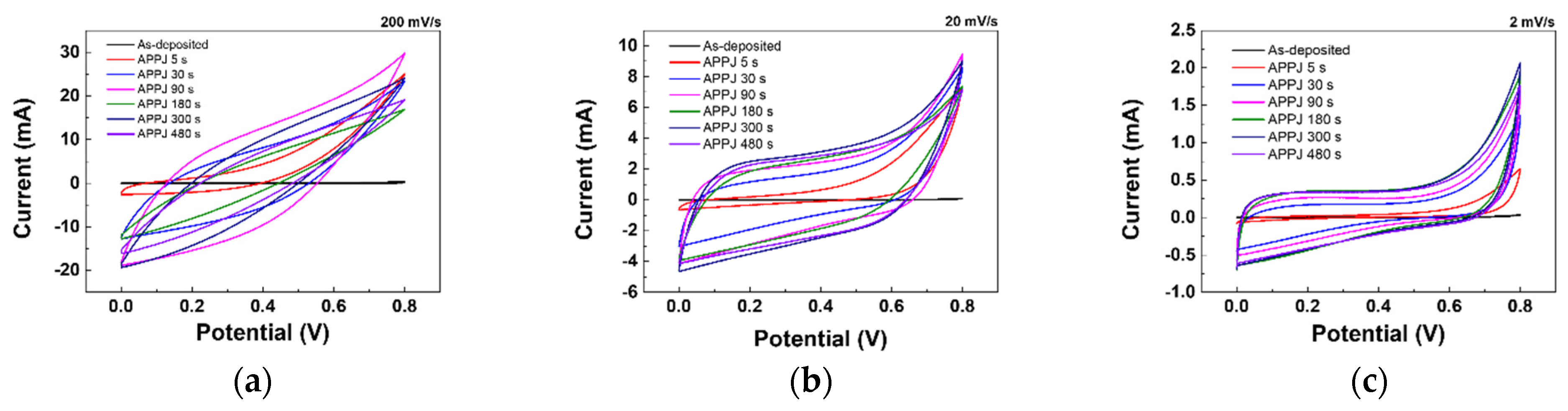

Figure 7 shows the areal capacity of Li₂SnO₃ Li-HSCs under various APPJ processing times. The CV results were conducted using potential scan rates of 200, 20, and 2 mV/s within a three-electrode system. The areal capacity Q_c (mC/cm²) was calculated using Equation (1):

$$Q_C=\frac{S}{2\times A\times v}$$

(1)

where A is the screen-printed area of the electrode (1.5 cm × 2 cm), v is the potential scan rate, and S is the total area enclosed by the CV curve. Figure S3 shows the CV results measured in the two-electrode symmetric system, and

Table 1. Areal capacity of Li₂SnO₃ Li-HSCs calculated based on CV results.

Areal Capacity (mC/cm2)
Potential Scan Rate	200 mV/s	20 mV/s	2 mV/s
As-deposited	0.143	0.079	0.146
APPJ 5 s	2.309	7.810	5.418
APPJ 30 s	6.479	19.165	23.401
APPJ 90 s	7.507	27.871	33.499
APPJ 180 s	3.627	24.542	36.076
APPJ 300 s	5.182	28.905	46.017
APPJ 480 s	7.309	32.611	46.113

shows that the 480 s APPJ-processed Li₂SnO₃ Li-HSCs had the largest area of those enclosed by the CV curve, with a corresponding areal capacity of 46.113 mC/cm² at a scan rate of 2 mV/s. As the APPJ processing time increased, the areal capacity gradually increased because of the removal of ethyl cellulose and the successful conversion of Li₂SnO₃ crystals. The results also showed that the areal capacity was higher under a low potential scan rate owing to the fact that Li-ions of 1-M Li₂SO₄ liquid electrolyte were available for sufficient time to complete the redox reactions and intercalate/deintercalate effectively on the electrode surface [38].

3.6. Trasatti Plots of Li-HSCs

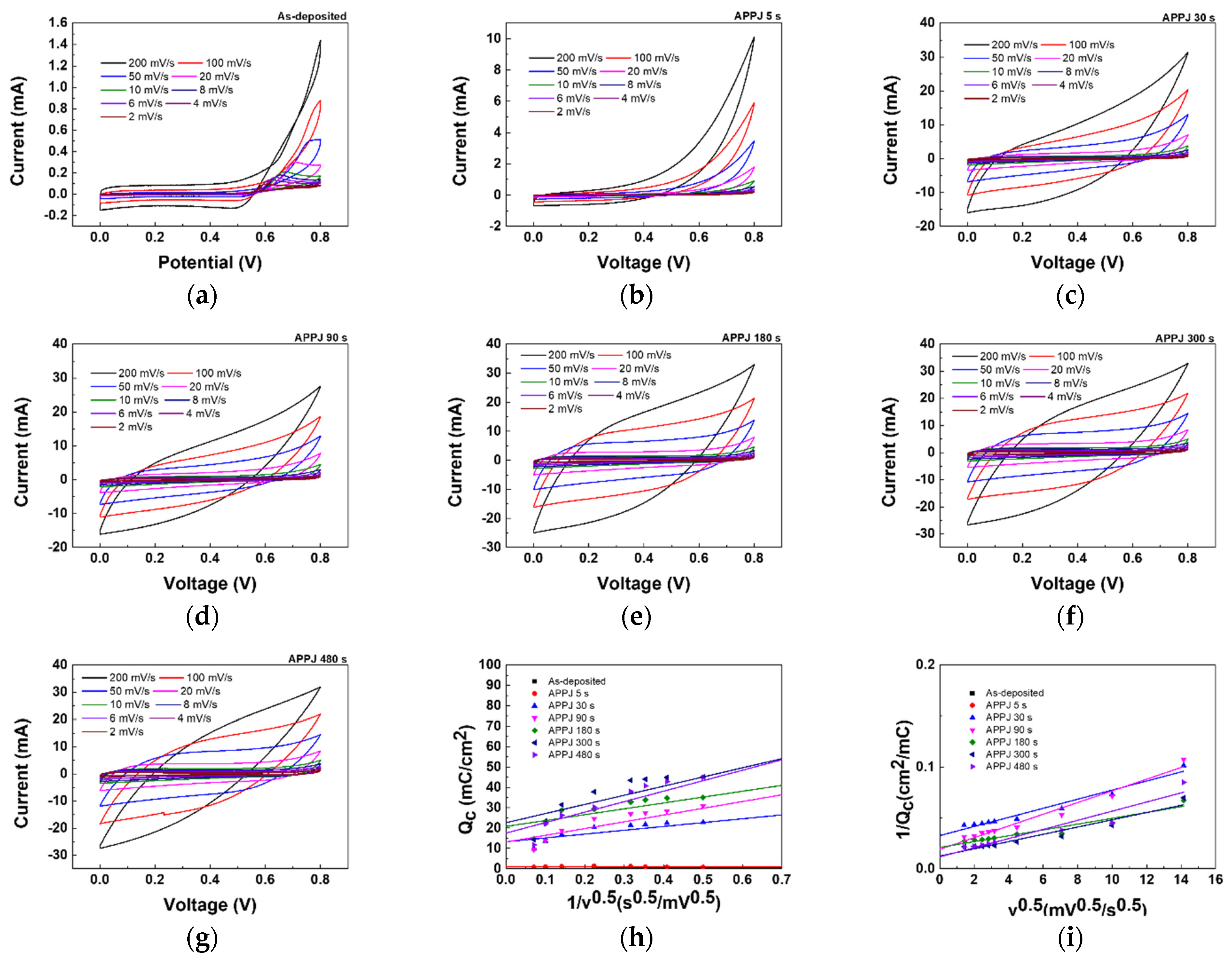

Trasatti analysis can assess the respective contributions of EDLC and PC. Its theoretical framework revolves around surface charges and diffusion-controlled charges. We can analyze the differences in the contribution of surface charge (Q_out), EDLC, diffusion-controlled charge (Q_in), and PC by applying various scan rates in the CV test (Figure 8a–g). As the scan rate decreases towards zero, sufficient time is provided for the enhanced diffusion of charges across both the inner and outer surfaces of the electrode, thereby attaining maximum capacity. By contrast, when the scan rate approaches infinity, only the surface charges contribute to the charge storage mechanism. Figure 8h shows the Q_out, the intercept of the vertical axis (when v^−1/2 = 0, the scanning rate is infinity), in the plot of Qc versus the horizontal axis v^−1/2. Figure 8i shows the Q_total (= Q_in + Q_out), the intercept of the fitted line, and the vertical axis 1/Qc (when v^1/2 = 0).

Table 2. Capacity contribution of Li₂SnO₃ Li-HSCs as analyzed using Trasatti method.

	Qtotal (mC/cm2)	Qout (mC/cm2)	Qin (mC/cm2)
As-deposited	1.346	0.059	1.288
APPJ 5 s	1.983	1.064	0.919
APPJ 30 s	30.619	13.277	17.341
APPJ 90 s	51.619	13.132	38.487
APPJ 180 s	52.247	20.841	31.406
APPJ 300 s	79.808	22.658	57.150
APPJ 480 s	85.324	17.567	67.757

shows the calculated capacity contribution of Li₂SnO₃ Li-HSCs. It exhibited the highest PC in the APPJ 480 s case. As PC is mainly related to redox reactions, the results can be explained by the formation of better Li₂SnO₃ crystals [39]. This outcome was also in good agreement with the previous SEM and XRD analyses. Further, we observed a decrease in EDLC values with 300 s and 480 s APPJ processing. Given that EDLC is mainly related to surface charges, this outcome can be attributed to the damage to the material by the high-temperature APPJ during extended processing periods.

3.7. GCD of Li-HSCs

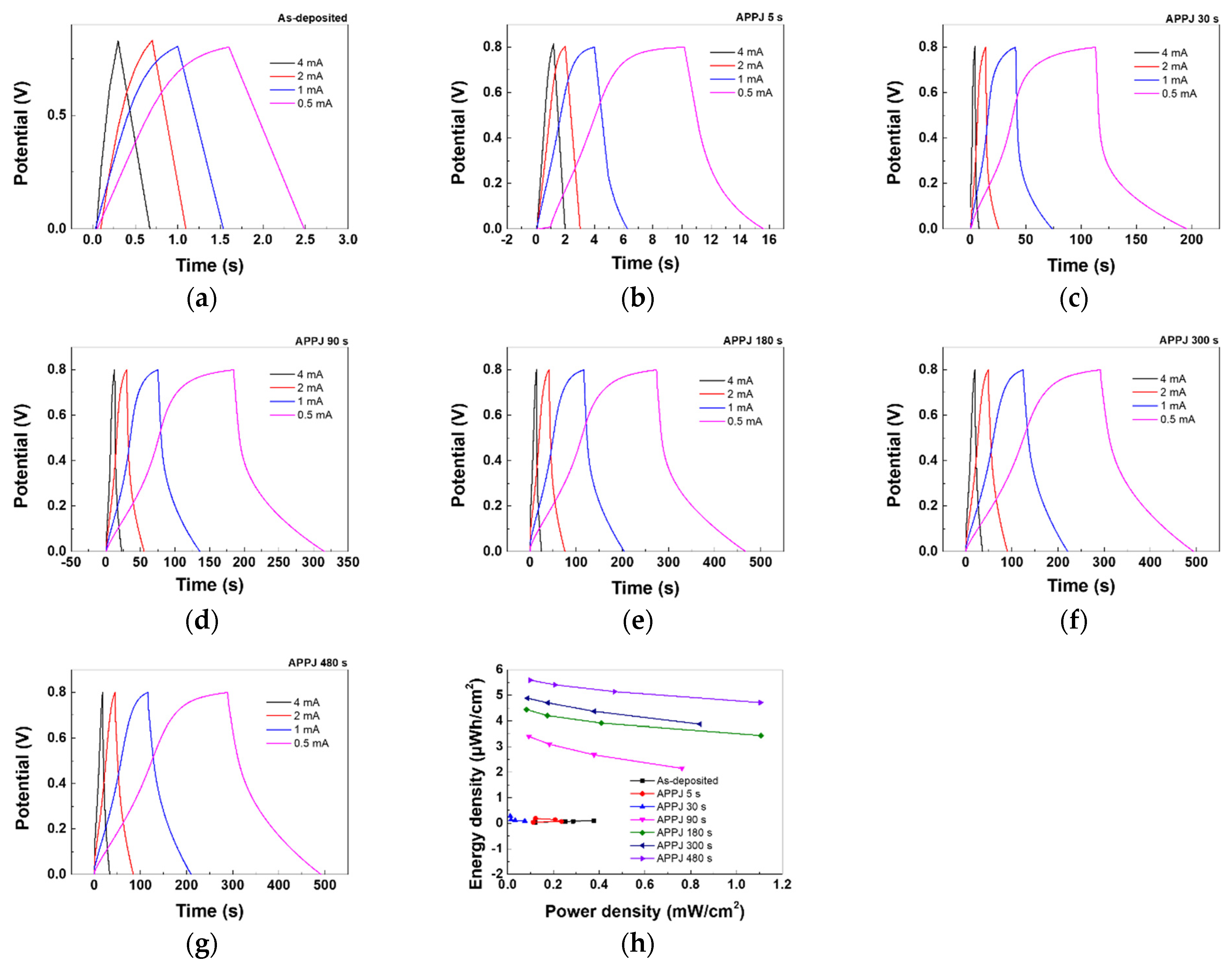

Figure 9 shows the GCD results of Li₂SnO₃ Li-HSCs processed by APPJ for 0 s, 5 s, 30 s, 90 s, 180 s, 300 s, and 480 s under constant currents of 4, 2, 1, and 0.5 mA. Equation (2) was used to calculate the areal capacity Qc (µA h/cm²):

$$Q_c=\frac{I\times T}{A}$$

(2)

where A is the area of the electrode (1.5 cm × 2 cm), I is the charging/discharging current, and T is the discharging time [31]. Figure 9 and

Table 3. Areal capacity of Li₂SnO₃ Li-HSCs calculated based on GCD results.

Areal Capacity (µA h/cm2)
Charging/ Discharging Current	4 mA	2 mA	1mA	0.5 mA
As-deposited	0.362	0.179	0.176	0.203
APPJ 5 s	0.379	0.194	0.217	0.252
APPJ 30 s	1.426	2.190	3.089	3.819
APPJ 90 s	3.762	4.725	5.628	6.095
APPJ 180 s	4.138	6.374	8.099	8.948
APPJ 300 s	6.142	7.706	8.922	9.374
APPJ 480 s	5.688	7.333	8.696	9.376

show the GCD results in the three-electrode system. Figure S4 and Table S3 show the GCD results in the two-electrode symmetric system. Together, these findings demonstrate that the Li₂SnO₃ Li-HSCs processed by APPJ for 480 s had the best performance in terms of areal capacity out of the two types of systems. These results also agree with the CV results. Additionally, the change in the slope of the GCD curve under constant currents of 1 and 0.5 mA indicates that Li₂SnO₃ performed a more obvious redox reaction for a low-discharging current in the three-electrode system [40]. This phenomenon was not observed in a two-electrode system because of the measurement inaccuracy caused by polarization currents. Figure 9h shows the Ragone plot, analyzed based on the GCD results. Ragone plots were used to evaluate the energy and power density of the Li₂SnO₃ Li-HSCs. The energy density E_A and power density P_A are, respectively, calculated using Equations (3) and (4):

$$E_A=\frac{C_A\times \Delta V^2}{7.2}$$

(3)

$$P_A=\frac{{3.6\times E}_A }{T}$$

(4)

where C_A is the areal capacitance obtained from the GCD results, ∆V is the scanning potential window, and T is the discharging time.

Table 4. Energy density of Li₂SnO₃ Li-HSCs calculated based on GCD results.

Energy Density (µWh/cm2)
Charging/ Discharging Current	4 mA	2 mA	1mA	0.5 mA
As-deposited	0.0328	0.0676	0.0756	0.1012
APPJ 5 s	0.0348	0.0684	0.1352	0.1848
APPJ 30 s	0.0804	0.1092	0.1376	0.2728
APPJ 90 s	2.1476	2.6748	3.0916	3.3972
APPJ 180 s	3.4320	3.9112	4.2036	4.4404
APPJ 300 s	3.8684	4.3696	4.7004	4.8816
APPJ 480 s	4.7104	5.1388	5.4064	5.5892

shows that the 480 s APPJ-processed Li₂SnO₃ Li-HSCs exhibited the best energy density of 5.59 µWh/cm² under a discharging current of 0.25 mA. This result indicates that the energy density increased with an increase in APPJ treatment time. Table 4 and

Table 5. Power density of Li₂SnO₃ Li-HSCs calculated based on GCD results.

The Power Density (mW/cm2)
Charging/ Discharging Current	4 mA	2 mA	1mA	0.5 mA
As-deposited	0.1216	0.2514	0.2856	0.3772
APPJ 5 s	0.1116	0.2350	0.2078	0.1221
APPJ 30 s	0.0752	0.0332	0.0149	0.0119
APPJ 90 s	0.7612	0.3774	0.1831	0.0929
APPJ 180 s	1.1059	0.4091	0.1730	0.0827
APPJ 300 s	0.8398	0.3780	0.1756	0.0868
APPJ 480 s	1.1043	0.4672	0.2072	0.0994

list the energy density and power density of the fabricated Li-HSCs.

3.8. Stability of Li-HSCs

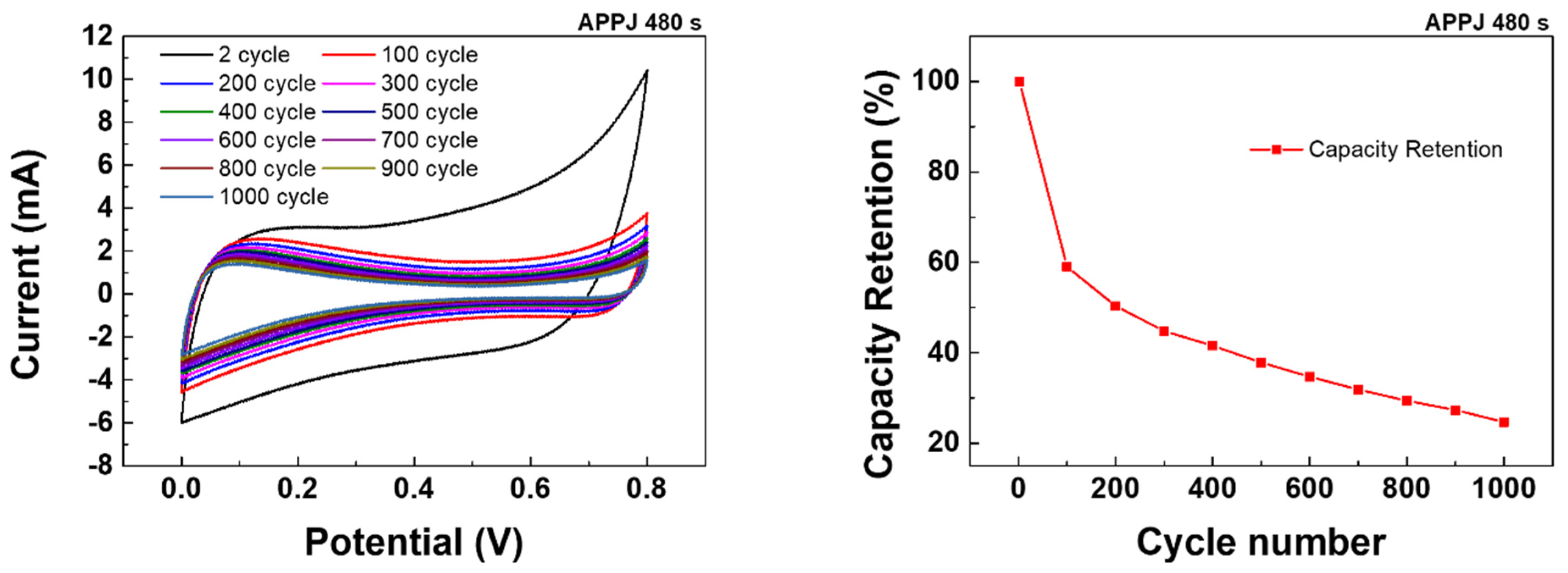

Figure 10 and

Table 6. Capacity retention rate of Li₂SnO₃ Li-HSCs.

Cycle Number	Capacity Retention (%)
2	100
100	59.04
200	50.38
300	44.82
400	41.58
500	37.87
600	34.70
700	31.91
800	29.46
900	27.38
1000	24.72

show the results of the 1000-cycle CV stability test in the three-electrode system (potential scan rate = 20 mV/s) of the 480 s APPJ-processed Li₂SnO₃ Li–HSCs. The areal capacity of the electrode decreased to 24.72% of the initial performance after 1000 cycles. By contrast, Figure S5 and Table S4 show the results in the two-electrode system; the areal capacity of the electrode decreased to 63.56%. The differences between these two measurement results can be attributed to the polarization current generated by the two-electrode system during the measurement process, resulting in a larger current value being measured and the distortion of the capacity retention rate [41].

4. Conclusions

In this study, we screen-printed LiCl-SnCl₂·2H₂O pastes on carbon cloth and converted the material using nitrogen APPJ to fabricate Li₂SnO₃ Li-HSCs. SEM, XRD, and XPS analyses confirmed the success of the conversion into Li₂SnO₃. CV and GCD tests were used to characterize electrochemical performance. The optimal APPJ processing time for Li₂SnO₃ SCs was 480 s. The 480 s APPJ-processed Li₂SnO₃ Li-HSCs exhibited an areal capacity of 46.113 mC/cm², which was far superior to that of the as-deposited sample. Through the above series of tests, we confirmed that high-temperature nitrogen APPJ processing was an efficient and rapid method for fabricating Li₂SnO₃ Li-HSCs electrodes.
