Bearing Performance of Prestressed High-Strength Concrete Pipe Pile Cap Connections under Truncated Pile Conditions

Abstract

To investigate the load-carrying performance of the nodes between tubular piles and bearing platforms, low circumferential reciprocating load foot-scale tests were performed on two truncated PHC B 600 130 tubular piles. The development law of node destruction was explored. The test results revealed that under the action of tensile–bending–shear loading, the bearing concrete in the node area buckled and was damaged, and an articulation point was formed. When the embedment depth increased from 200 mm to 300 mm, the ultimate bearing capacities of the positive and negative nodes increased by 57.60% and 54.60%, respectively. Numerical simulation was used to analyze the bearing capacities of nodes with different types and embedment depths. Formulas for the bearing capacity of the nodes were proposed. Furthermore, two preferred node types were proposed as follows: pipe pile core-filled longitudinal reinforcement anchored to the bearing node and pipe pile body longitudinal reinforcement anchored to the bearing node + pipe pile core-filled longitudinal reinforcement anchored to the bearing node, with preferred embedment depths of 350 mm and 200 mm, respectively.

1. Introduction

Prestressed concrete piles have achieved a wide range of applications in the construction field. In PHC pipe pile foundations, due to the unevenness of the ground layer, when the pile sinks and a pipe pile encounters a harder ground layer, it is often difficult for the pile to sink, and the phenomenon of pile cutting inevitably occurs. For the connection of the PHC pipe pile and bearing platform after pile cutting, three types of nodes are studied in this paper: a pipe pile filling a longitudinal bar anchored to the bearing platform node, a pipe pile body longitudinal bar anchored to the bearing platform node and a pipe pile body longitudinal bar anchored to the bearing platform + a pipe pile filling a longitudinal bar anchored to the bearing platform node. At present, the main purpose of an actual project is to fill the core of a pile, and longitudinal bars are anchored to the bearing platform. Since the node connecting the pile and the bearing platform is the centralized part of the force, many scholars have studied its bearing performance.

Arockiasamy et al. [1] reviewed the published experimental and analytical studies on the connection between prestressed concrete piles and caps.

The following authors have studied the load bearing performance of joints between columns/piles and caps through experiments. Cheng et al. [2] studied prefabricated reinforced concrete columns without prestressing. Zhang et al. [3] and Kappes et al. [4] studied concrete-filled steel tube columns/piles. Steunenberg et al. [5] and Kim et al. [6] studied steel pipe piles. Sadeghian et al. [7,8] studied concrete-filled fiber-reinforced polymer tubes. Blandon et al. [9], Roeder et al. [10], Lehman et al. [11] and Foltz et al. [12] studied octagonal prestressed piles and HP steel piles. Ni et al. [13] and Sun et al. [14,15] studied prestressed concrete square piles.

Guo et al. [16,17], He et al. [18,19], Yang et al. [20,21] and Wang et al. [22] analyzed the bearing performance of PHC pipe piles and cap joints by using full-scale tests and numerical simulation methods. Reference [16] proposed a formula for the calculation of the bearing capacity of PHC pipe piles and cap joints under horizontal earthquake action.

Koc et al. [23] prepared alkali-activated slag (AAS)–cement paste backfill (CPB) samples and considered ① the characterization of the tailings; ② the chemical, mineralogical and physical properties of the binders; and ③ the CPB design conditions. Guner et al. [24] experimentally explored the evolution of the slump/strength/structural properties of sand-substituted cementitious paste backfill (CPB). A summary of the basic physical features of the tailings, sand and cement and a CPB design recipe were provided. Kovalski et al. [25] and Kongar-Syuryun et al. [26] reviewed the compositions of hardening backfill used in the mining industry. Factors influencing the backfill composition were identified and promising components for potash mine conditions were given.

Currently, scholars both domestically and internationally focus on the node force problem in relation to different pile types and bearing platform connection nodes. The main focus is on bending–shear combination force, with reference [16] having studied the case of compression–bending–shear combination force. However, there has been less research on the case of tension–bending–shear force. Furthermore, in practical engineering, the pipe piles are often truncated, which reduces their strength. Unfortunately, there is limited research on this topic. This paper focuses on the design of type I, type II and type III nodes based on this issue. In transmission line tower foundations, PHC pipe piles are commonly used. Due to the critical nature of the transmission line, external forces such as seismic or wind loads can cause significant tension, bending moments and shear forces on the nodes of PHC pipe piles and bearing platforms. This paper relies on the actual engineering practice, through the method of foot measurement tests and numerical simulation, to study the tensile–bending–shear bearing performance of the node connecting the PHC pipe pile and bearing platform after pile cutting.

The finite element method, which is intuitive and easy to apply, can simulate complex working conditions. However, it is greatly influenced by the intrinsic model, model parameters, boundary conditions and interactions between components. Therefore, it is necessary to verify the finite element simulation results.

2. Experimental Design

2.1. Test Survey

Two full-size specimens were designed for the test. The force performance of the connection node of the PHC B600-130 (pile diameter of 600 mm, wall thickness of 130 mm) type pipe piles [27] and bearing platform under low circumferential reciprocating loads after the pile cutoff was investigated. The main parameters of the specimens are shown in

Table 1. Parameters of the specimens.

Specimen Number	Embedding Depth/mm	Prestressing Longitudinal Tendons	Pipe Pile Hoop	Prestressing of Tubular Piles before Pile Cutting/MPa	Anchoring Bar /HRB400	Anchoring Bar Length /mm	Anchor Reinforcement Distribution Circle Diameter/mm	Concrete Strength/MPa
								Pile	Pile Cap
JCT-200	200	16φ12.6	Φb5	8.40	6@18	600	260	80.0	30.0
JCT-300	300

.

The prestressed pipe piles were finished products produced by Jianhua Building Materials (Shanxi) Co., Ltd. (Lvliang, China). The pile cap reinforcement, filling core anchorage steel bar and filling core stirrups were produced by Shougang Changzhi Iron & Steel Co., Ltd. (Changzhi, China).

The bearing platform and core filling concrete were commercial concrete, and the concrete manufacturer was Taiyuan Huajinrong Concrete Co., Ltd. (Taiyuan, China). The commercial concrete consisted of water, cement, sand and stone. The ratio of water, cement, sand and stone in the concrete was 0.38:1:1.11:2.72. One cubic meter of concrete contained 175 kg water, 461 kg cement, 512 kg sand and 1252 kg stone. The sand and stone were produced by a machine. The sand particle size was 0.35–0.5 mm, using medium sand, with a sand fineness modulus of 2.6. The particle size of the stone was 10–40 mm. The particle size of 10–20 mm accounted for 43.2%, the particle size of 20–30 mm accounted for 39.7% and the particle size of 30–40 mm accounted for 17.1%. The cement was bulk cement, the manufacturer was Taiyuan Lionhead Cement Co., Ltd. (Taiyuan, China) and the strength grade was 42.5 ordinary silicate cement. The concrete mixing sequence was stone–cement–sand–water. The stirring rate was 15 RPM/min, and the stirring time was 3 min. The mixing machine was a JS1500 forced mixer.

The concrete specimens for the tubular piles were cubic specimens with a side length of 100 mm, and the concrete specimens for the bearing platforms and core-filled concrete were cubic specimens with a side length of 150 mm. The storage conditions before curing included a constant temperature and humidity in a concrete specimen box (20 °C, humidity 96%), and the storage time was 28 days.

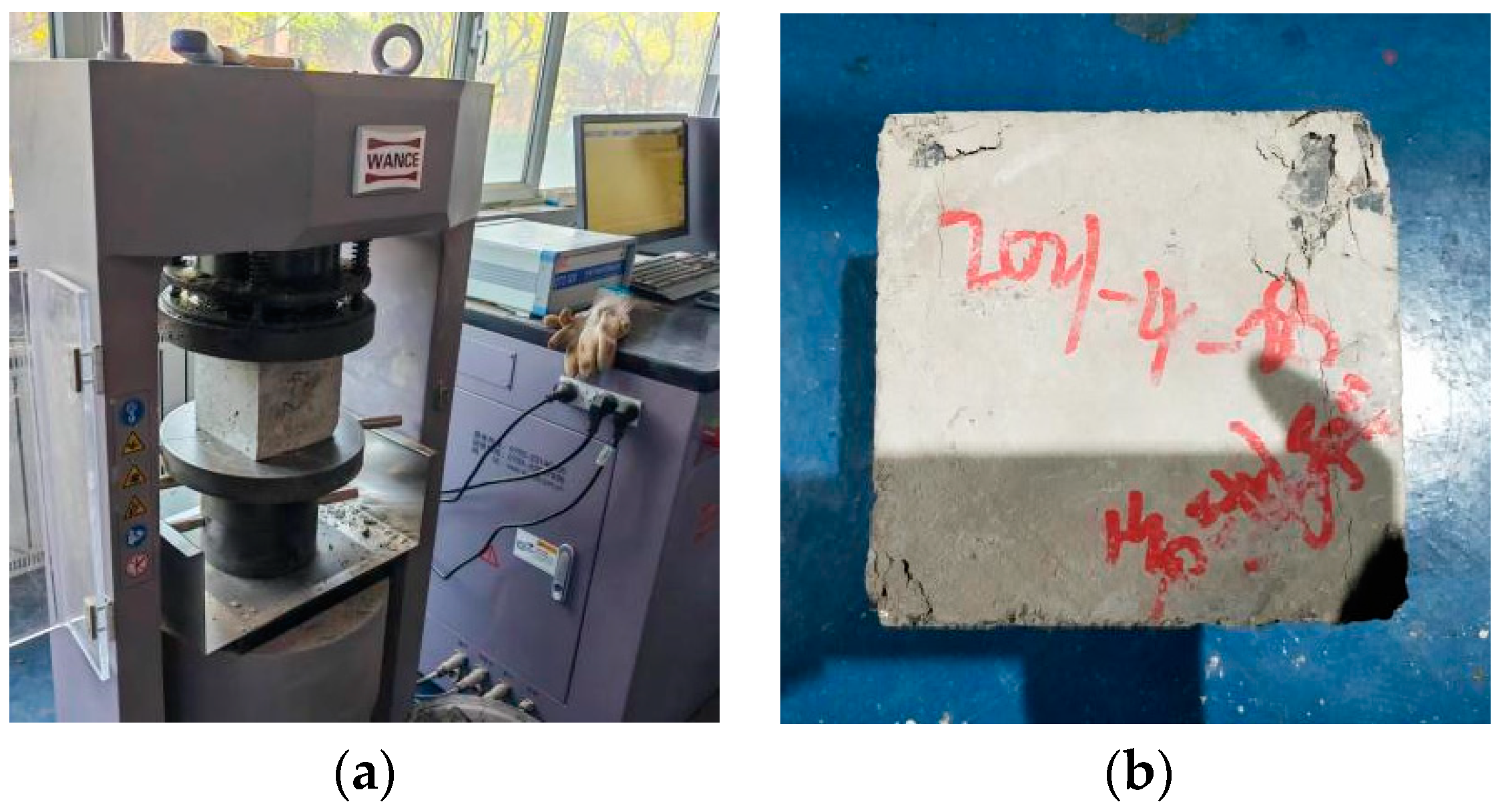

The compression tests of cubic concrete specimens with side lengths of 100 mm and 150 mm were carried out at a loading rate of 0.5 MPa/s. The tests were terminated when the concrete specimens were crushed during the experiment and the pressure of the press suddenly dropped. The equipment used in the study was a 2000 kN microcomputer-controlled electro-hydraulic servo pressure tester produced by Shenzhen Wanji Testing Equipment Co., Ltd. (Shenzhen, China). Figure 1 shows the compression test of the concrete specimens.

For the pile concrete used in the test, six cubic compressive strength tests with a side length of 100 mm were conducted, and the average compressive strength of the converted standard specimen was 93.20 MPa. For the JCT-I-200 and JCT-I-300 bearing platform (core-filled) concrete, six cubic compressive strength tests with a side length of 150 mm each were conducted, and the average compressive strengths of the specimens were 41.52 MPa and 40.30 MPa, respectively.

The material properties of the specimens are listed in

Table 2. Material parameters of the specimens.

Name	Model	Diameter/mm	Yield Strength/MPa	Elastic Modulus/GPa	Yield Point Elongation/%	Tensile Strength/MPa	Maximum Force Plastic Elongation/%	Maximal Load Stretching/%	Maximum Force Elongation/%	Percentage Elongation after Fracture/%
Pile stirrups	-	5.0	523.48	200.13	-	595.33	2.56	4.29	-	5.30
Prestressed steel rod of pile body	-	12.6	1370.61	227.65	-	1471.94	4.05	5.40	-	7.88
Filling core stirrups	HPB300	8.0	356.42	210.22	2.95	540.34	20.80	22.74	4.31	25.85
Pile cap reinforcement	HRB335	14.0	547.88	209.60	2.49	618.68	6.60	7.75	1.47	15.33
Filling core anchorage steel bar	HRB400	18.0	456.25	206.82	3.83	619.85	15.67	16.92	6.03	24.24

.

2.2. Production of Test

The prestressed concrete pipe pile was constructed by Jianhua Building Materials (Shanxi) Co., Ltd. (Lvliang, China), and the cap and core were constructed in the laboratory of the Bridge and Tunnel Engineering Research Institute of Shanxi Traffic Science and Technology R & D Co., Ltd. (Taiyuan, China). The length of the pipe pile was 2.2 m (with an embedded cap of 200 mm) and 2.3 m (with an embedded cap of 300 mm). The cap was 2.0 m in length, 1.2 m in width, 0.9 m in height (embedded cap 200 mm) and 1.0 m in length (embedded cap 300 mm). The pipe pile was a B-type pile with a 600 mm diameter; the bearing platform was equipped with HRB335 grade φ14@150/160 mm double-layer bidirectional steel reinforcement; and the axial tension added to the top of the pile was 340 kN during the test.

2.3. Test Loading and Measuring Devices

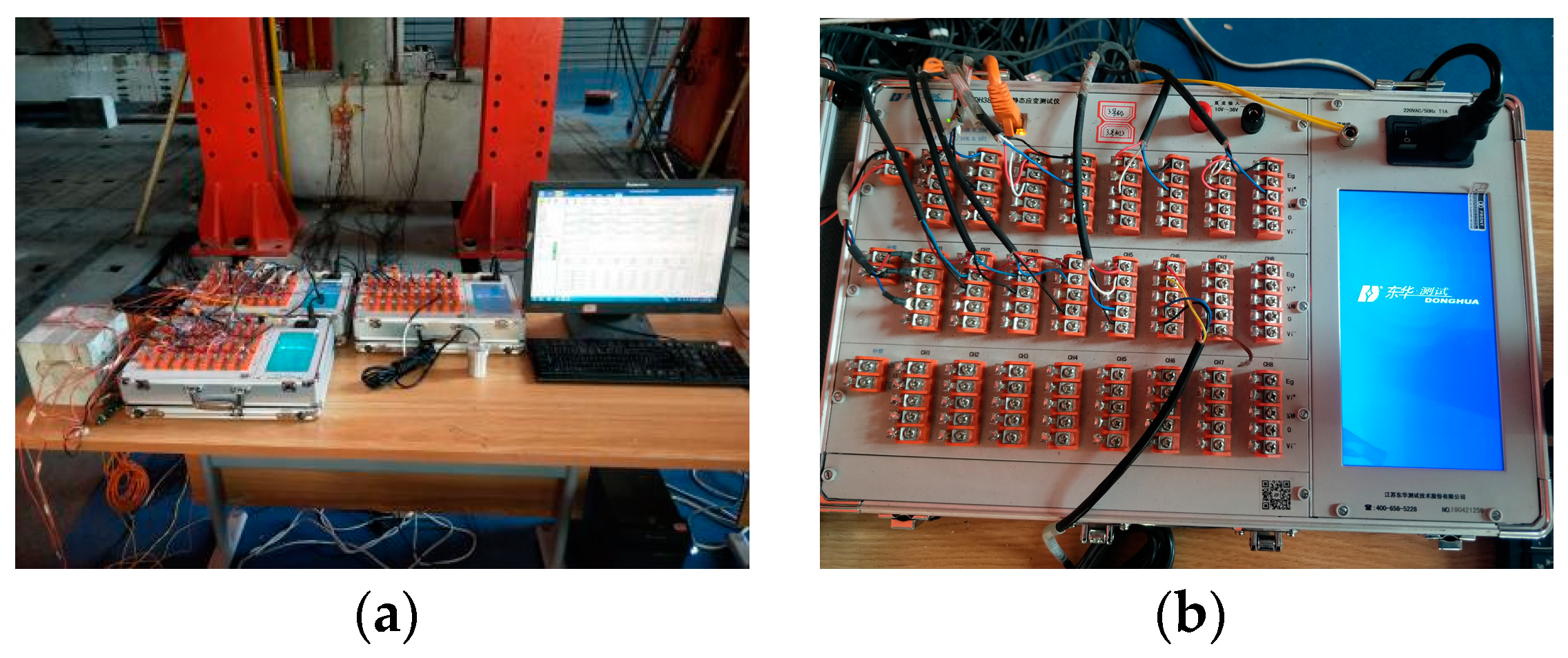

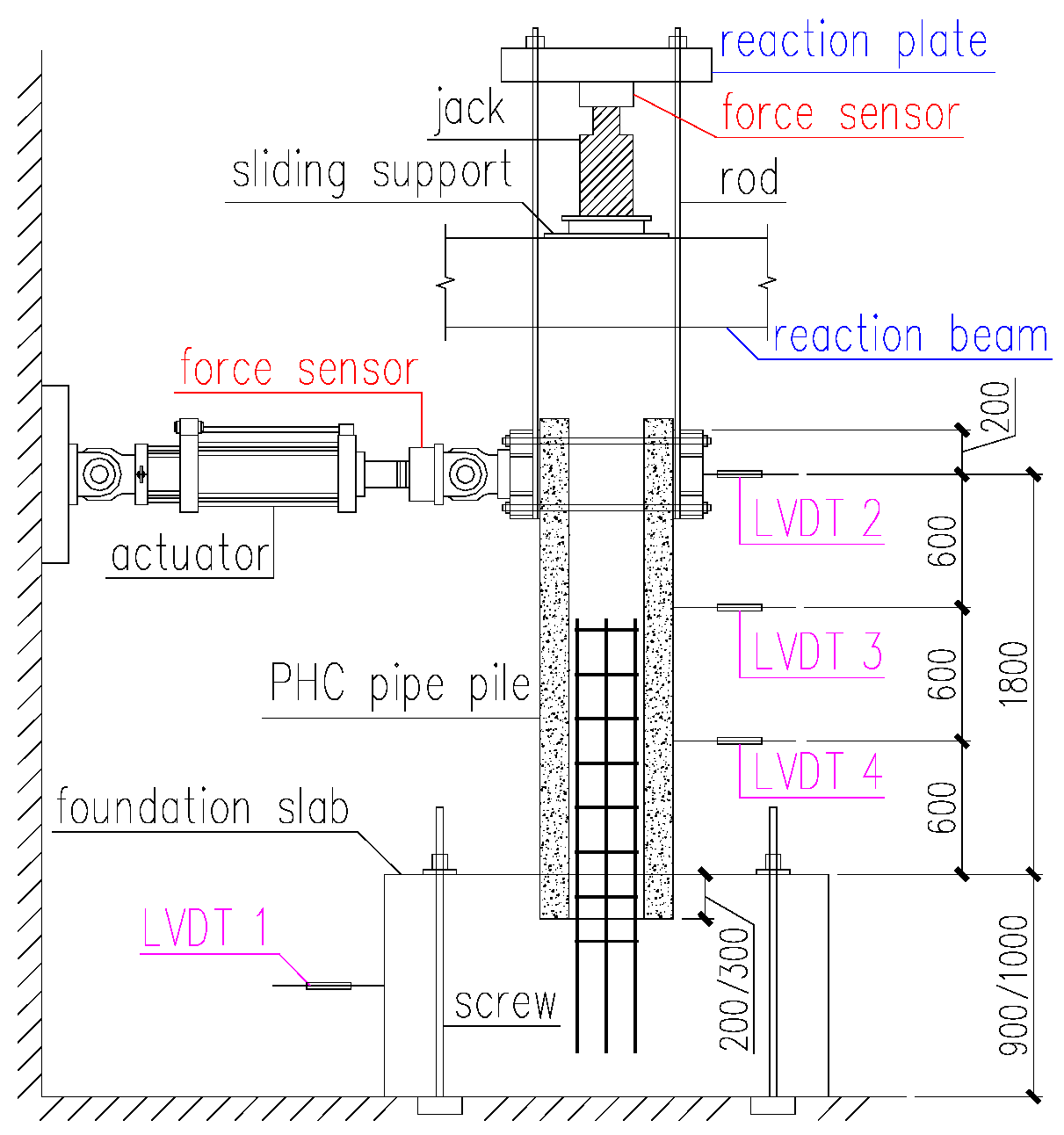

The specimens were loaded in the inverse position. The installation and schematic diagrams of the loading device are shown in Figure 2 and Figure 3, respectively. Reinforcement strain gauges, concrete strain gauges and displacement gauges were used to measure the reinforcement strain, concrete strain and specimen horizontal displacement, respectively, and force transducers were used to measure the vertical force at the top of the pile and the horizontal force of the actuator. The strain gauges, displacement gauges and force transducers are shown in Figure 4. The time interval when recording the changes during the test was 1.0 s. The acquisition system adopted the DH3818Y static strain tester produced by Jiangsu Donghua Testing Technology Co., Ltd. (Taizhou, China), the software adopted the DHDAS dynamic signal acquisition and analysis system and the collector and the acquisition software are shown in Figure 5.

The vertical axial tensile load was applied first during the test, and then the horizontal reciprocating load was applied after the vertical load increased to 340 kN and remained constant. The horizontal load was applied by the load–displacement hybrid control loading method specified in the “Regulations on Seismic Testing Methods for Buildings” [28] document. Considering the unity of the loading force and displacement between these two specimens and the other PHC pile-bearing node specimens, it was determined that the maximum value of the load loading was 135.0 kN, and the load was loaded to 135.0 kN in the forward and reverse directions in eight levels. Additionally, each level of load was loaded reciprocally once. The displacement loading took 3 mm as the control displacement and multiples of 3 mm as the loading level difference, and each level of displacement was loaded three times reciprocally. When the horizontal load exceeded the ultimate load and was reduced to 85% of the ultimate load, the specimen was considered damaged, and the loading was stopped at this time.

3. Test Results and Analysis

3.1. Experimental Phenomena

3.1.1. JCT-200 Test Phenomenon and Damage Characteristics

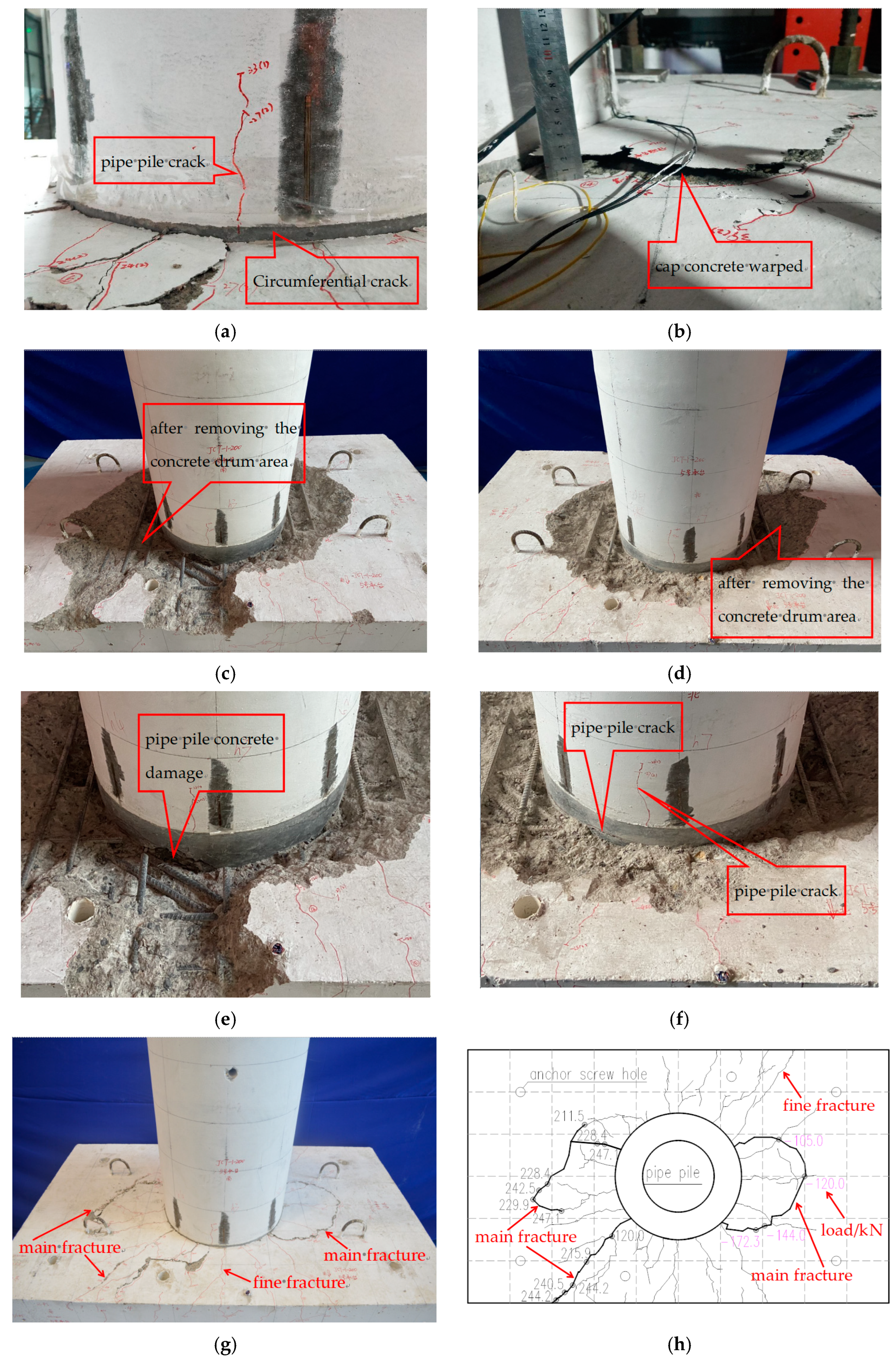

Throughout the testing, the reinforced concrete bearing platform exhibited clear cracking, while two smaller cracks formed on the PHC pipe pile, and the cracking of the specimen during the loading stage is shown in Figure 6. In the first step of loading, after the pipe pile was loaded by applying a vertical tension force of 340 kN, it exhibited a fine crack at its connection to the bearing platform (not penetrated). In the early stage of horizontal force loading, the specimen was in the elastic deformation stage, and there was no change between the bearing platform and the pipe pile.

During the loading process, cracks first appeared at the node of the pile and bearing platform. At a loading of 105 kN, at this time, the displacement of the pile top displacement gauge was 1.23 mm, and the first crack appeared on the surface of the bearing platform; this radial crack was centered around the center of the pile. With the increasing cycle and loading displacement, the cracks on the upper surface of the bearing platform and on the side of the bearing platform in the width direction gradually increased. These cracks gradually penetrated the material plane and developed vertically toward the inside of the bearing platform. The crack width and length gradually deepened and extended, respectively, along the surface and sides of the bearing platform.

At −27.0 mm (the second cycle), the displacement of the pile top displacement gauge was −27.61 mm, the actuator load was −186.5 kN and the first vertical crack appeared in the body of the tubular pile. With the increasing cycle and loading displacement, the vertical crack in the pile body became longer. Throughout the loading stage, no cyclic cracks appeared in the pile body. The direction of the vertical cracks was approximately perpendicular to the loading direction.

At 33.0 mm (the second cycle), the displacement of the pile top displacement gauge was 28.03 mm and the actuator load was 219.1 kN. The widest cracks on the surface, south side and north side of the bearing platform were 1.65 mm, 0.51 mm and 0.81 mm, respectively.

At the end of the testing, the concrete on the countertop bulged substantially and produced a noticeable hollow drum sound when tapped.

3.1.2. JCT-300 Test Phenomenon and Damage Characteristics

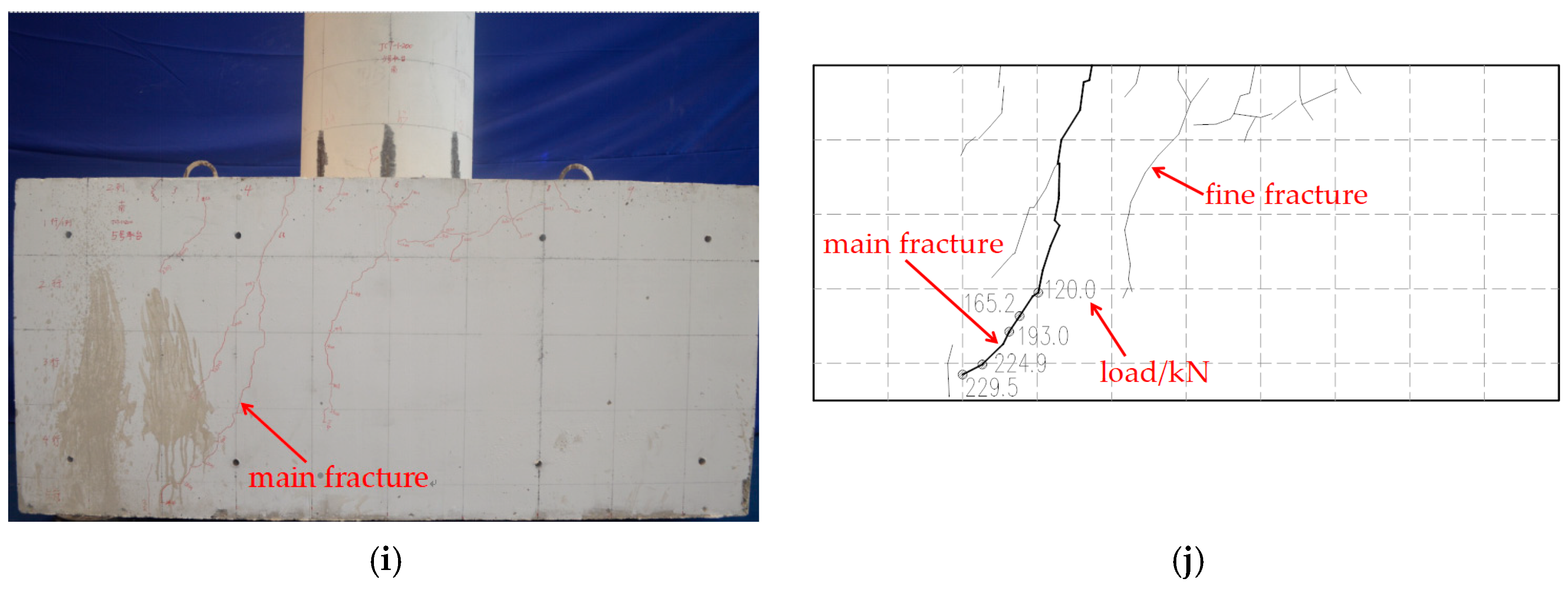

Throughout the test, the PHC pipe pile body and reinforced concrete bearing platform exhibited clear cracking, and the cracking of the specimen during the loading stage is shown in Figure 7. In the first step of loading, after the pipe pile was loaded by applying a vertical tension force of 340 kN, the connection between the pipe pile and the bearing platform showed a fine crack (not penetrated). In the early stage of horizontal force loading, the specimen was in the elastic deformation stage, and there was no change between the bearing platform and the pipe pile.

As the loading proceeded, cracks first appeared in the combination of the pile and the bearing platform. When the displacement was loaded to 6.0 mm (the first cycle), at this time, the displacement of the pile top displacement gauge was 4.80 mm, and the actuator load was 289.0 kN. The first crack appeared on the surface of the bearing platform and was a radial crack centered around the center of the pipe pile. With the increasing cycle and loading displacement, the cracks on the upper surface of the bearing platform and on the side of the bearing platform in the width direction gradually increased. These cracks gradually penetrated in the plane and developed vertically toward the inside of the bearing platform, gradually deepening the width and extending the length of the cracks on the surface and sides of the bearing platform.

At 12.0 mm (the first cycle), when the displacement of the pile top displacement gauge was 10.10 mm and the actuator load was 382.3 kN, the first circular crack appeared in the pile body of the tubular pile. With the increasing cycle and loading displacement, two vertical cracks were produced in the pile body.

At this time, the displacement of the pile top displacement gauge was −24.40 mm, and the actuator load was −345.6 kN. The widest crack on the bearing surface was 0.82 mm, the maximum height of the concrete buckling on the bearing surface was 12.0 mm and the concrete buckling was damaged.

At the end of the testing, the concrete on the countertop bulged substantially and produced a noticeable hollow drum sound when tapped.

3.1.3. Summary of Test Phenomena

During the test, under a vertical load of 340 kN, a small crack was generated at the contact ring between the pipe pile and the bearing platform. As the loading proceeded, the crack at the contact ring between the pile and the bearing platform penetrated through; after this, the first radial crack visible to the naked eye was generated on the surface of the bearing platform, and cracks were generated on the body of the pile. When the depth of the pile embedded in the bearing platform was 200 mm/300 mm, the pile body rotated greatly during the loading process, and the concrete in contact with the pipe pile was subjected to extrusion pressure when the pile body rotated. The concrete in the lower part of the contact between the bearing platform and the pipe pile was buckled and damaged, and the concrete at the top of the contact was crushed. Node damage occurred, the node area anchorage reinforcement constraint was weakened, articulated nodes formed, the rotation capacity increased, the anchorage reinforcement yielded and the bearing platform surface caused concrete buckling damage and crushing.

The buckling height of the bearing platform concrete was smaller than the embedment depth because the contact area between the pipe pile and the bearing platform was subjected to the extrusion pressure of the pile body under the reciprocating load. When the squeezing force on the contact area was greater than the bearing capacity of the concrete in the contact area, buckling damage occurred.

3.2. Skeleton Curve

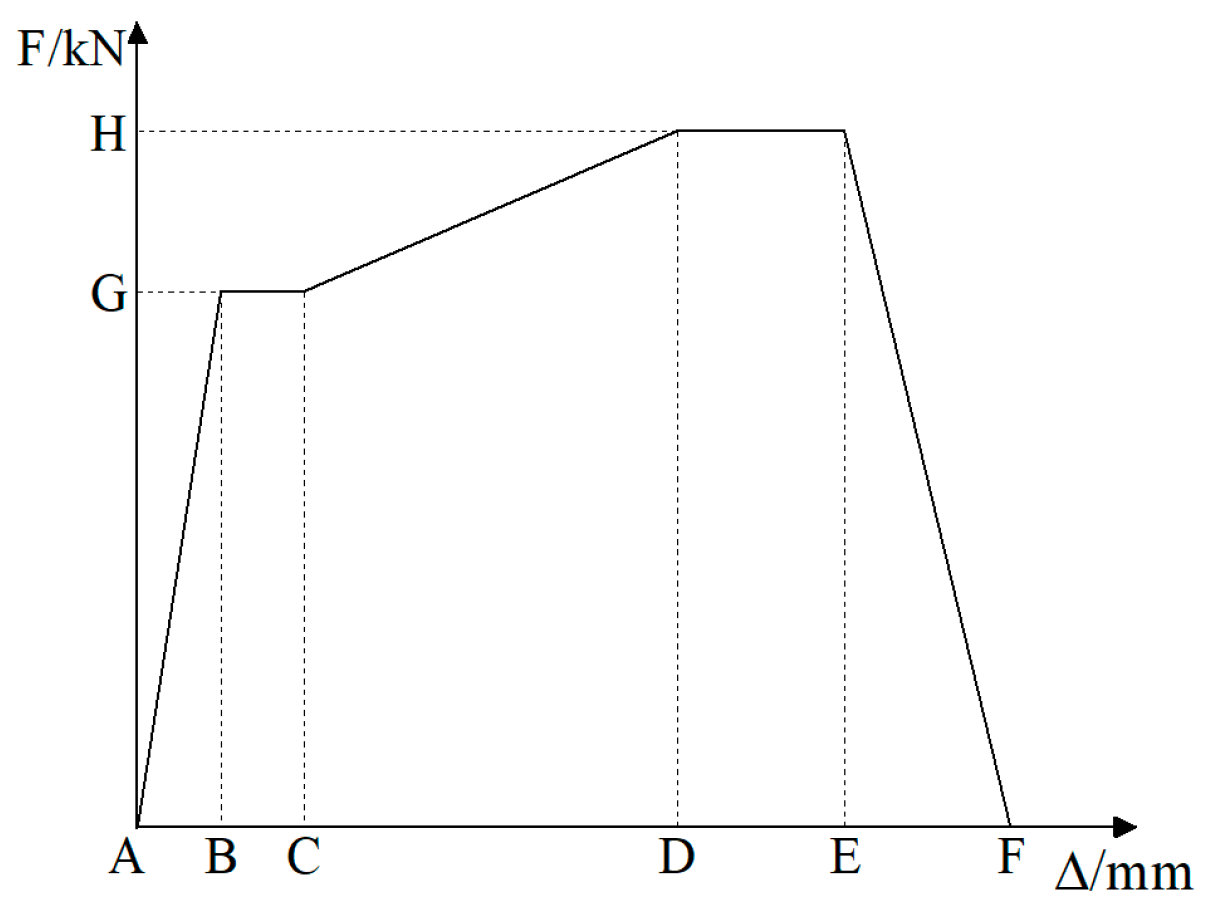

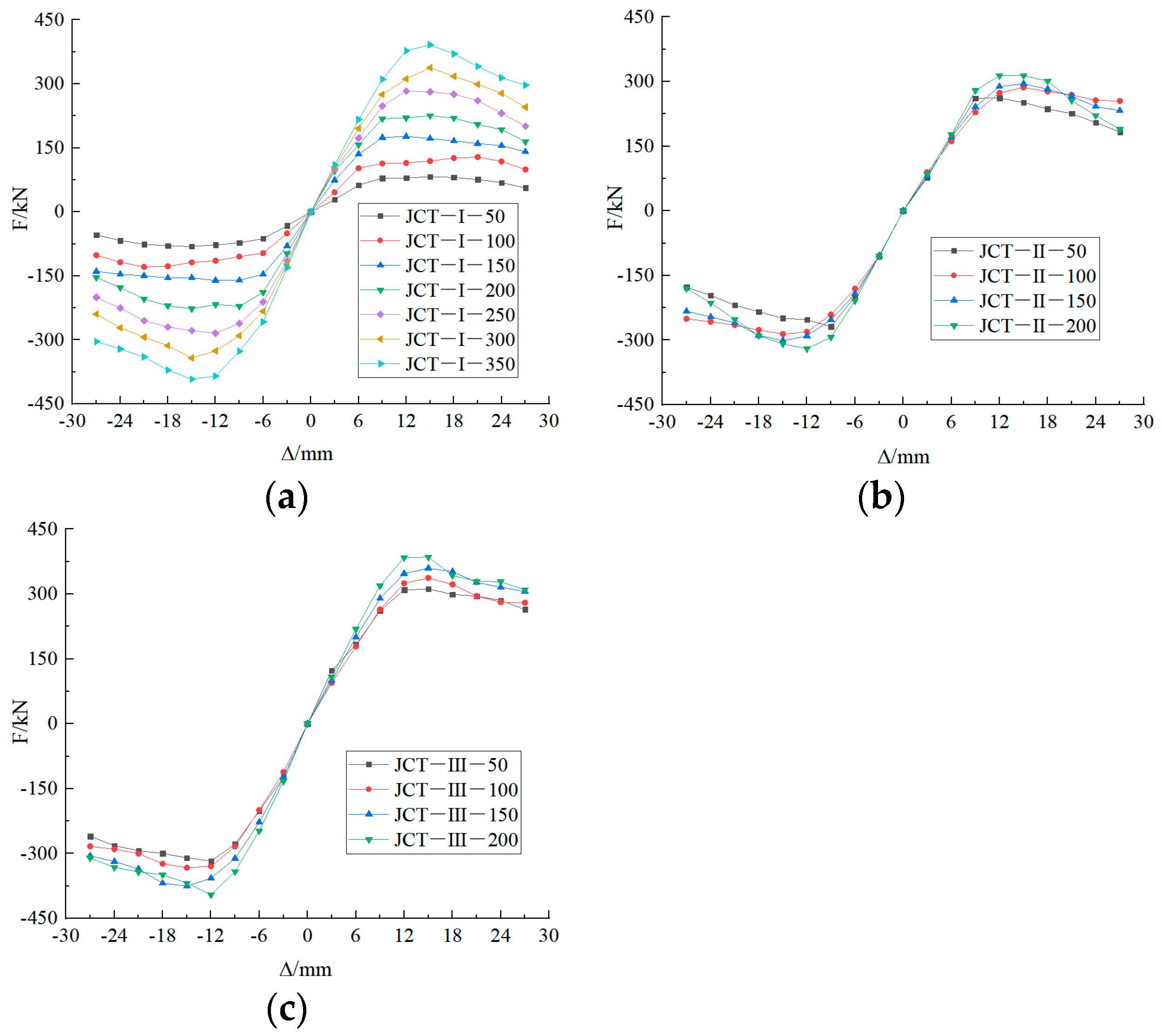

The load–displacement skeleton curves of test specimens JCT-200 and JCT-300 are shown in Figure 8.

As shown in Figure 8, both specimens underwent the elastic stage, elastic–plastic stage and plastic stage. In the initial loading stage, the specimens were in the elastic stage, and the nodal load–displacement relationship curves were linear. Following the elastic phase, the specimens were in the elastic–plastic phase until they reached the ultimate load capacity. After reaching the ultimate load capacity, the specimens were in the plastic stage.

In the elastic stage, the displacement of the specimen is small. After the specimen enters the elastic–plastic stage, during the loading process, the pipe pile and bearing platform in the specimen crack gradually, and the structural stiffness gradually decreases until the ultimate bearing capacity is reached. After reaching the ultimate load-carrying capacity, the rotational capacity of the nodes increases, the stiffness of the members decreases substantially with the increasing load and displacement and the members rapidly lose their load-bearing capacity.

4. Finite Element Analysis

4.1. Finite Element Model

To conduct an in-depth study on the mechanical performance of nodes between prestressed concrete pipe piles and caps, finite element simulations are performed at various nodes using the static general-purpose module in the ABAQUS finite element software (version 6.14). In these simulations, the geometrical and physical model parameters are identical to those of the test specimens.

The numerical simulation process of this project involves four steps: applying a prestressing force via the cooling method, applying a vertical axial force, applying a horizontal load and applying horizontal displacement. The whole process is controlled using automatic incremental steps with all nonlinear switches turned on.

The concrete damage principle is modeled by the concrete plastic damage model in the ABAQUS material library, and the stress–strain curve in the Code for the Design of Concrete Structures [29] is used. The expansion angle is set to 30°, the eccentricity is set to 0.1, the ratio of the biaxial compressive strength to the uniaxial compressive strength is set to 1.16, the ratio of the second stress invariant on the tensile meridian is set to 0.6667 and the coefficient of viscosity is set to 0.001.

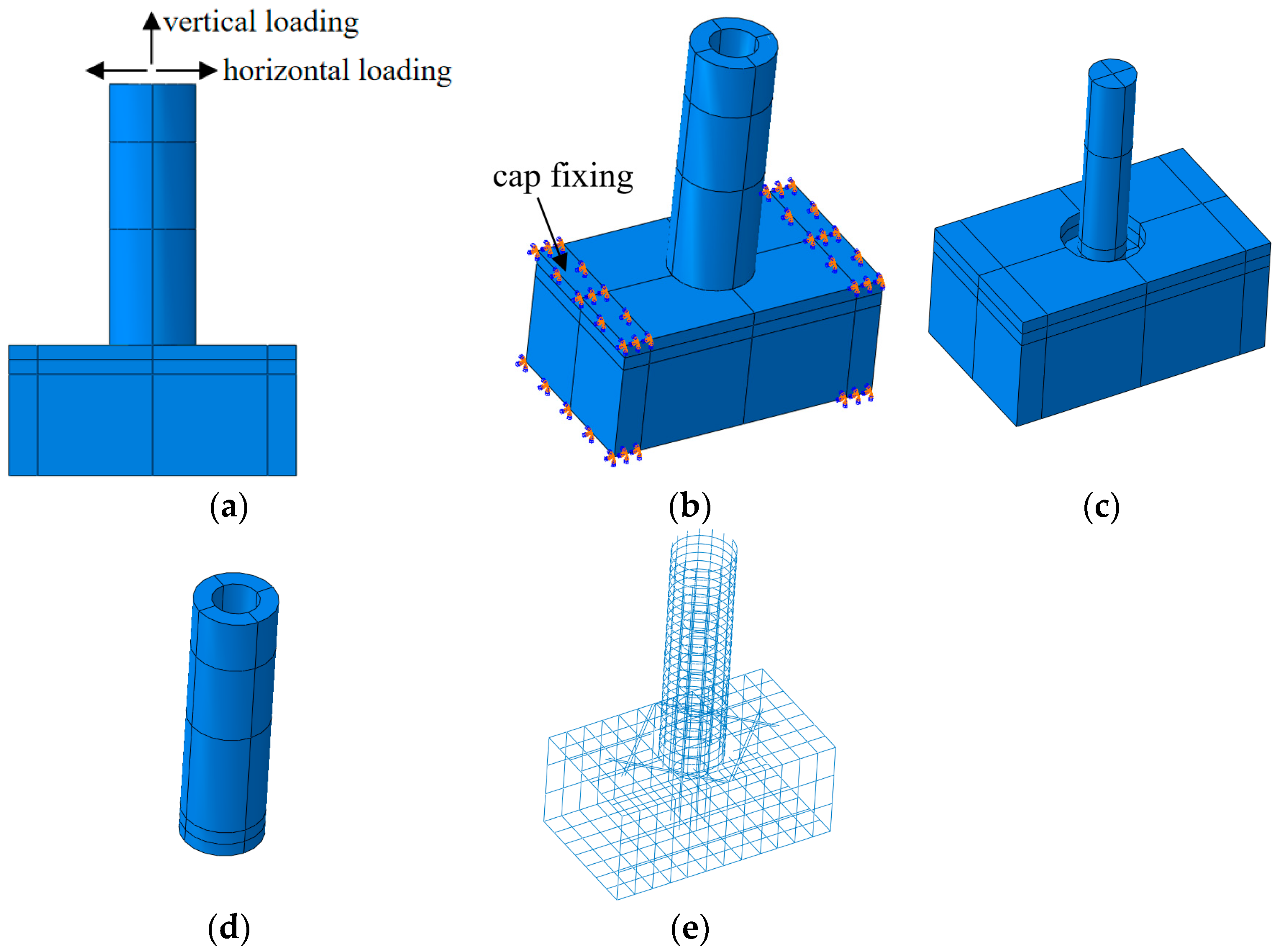

To accurately simulate the testing conditions, the boundary conditions in the finite element analysis are close to those of the test. Fixed boundary conditions are used within 200 mm of the bottom and top ends of the bearing platform.

Assuming that the core-filled concrete is strongly bonded to the inner wall of the pile, the bond slip between the two components is neglected in the finite element calculation, and the relationship between the two components is considered to be a “binding constraint”. During the loading process, cracks appear between the sidewall of the pile body and the bearing platform, so the bond slip between the pile body and the bearing platform is neglected, and Coulomb contact is used. Coulomb contact is adopted between the bottom of the pipe pile cutoff and the bearing platform. The core-filling concrete and bearing concrete are modeled by merging. Reinforcement bars are directly embedded in the concrete, and the numerical simulation neglects the error generated by the slip between the steel bar and the concrete structure.

According to the geometrical characteristics of the concrete and reinforcement, the concrete and reinforcement in the model are modeled by 8-node 3D solid units (C3D8R) and 2-node 3D truss units (T3D2), respectively, in a separated manner and coupled by embedded technology.

In this model, pile concrete, prestressing steel rods and pile hoops are used in the structured meshing technique. The finite element model is shown in Figure 9.

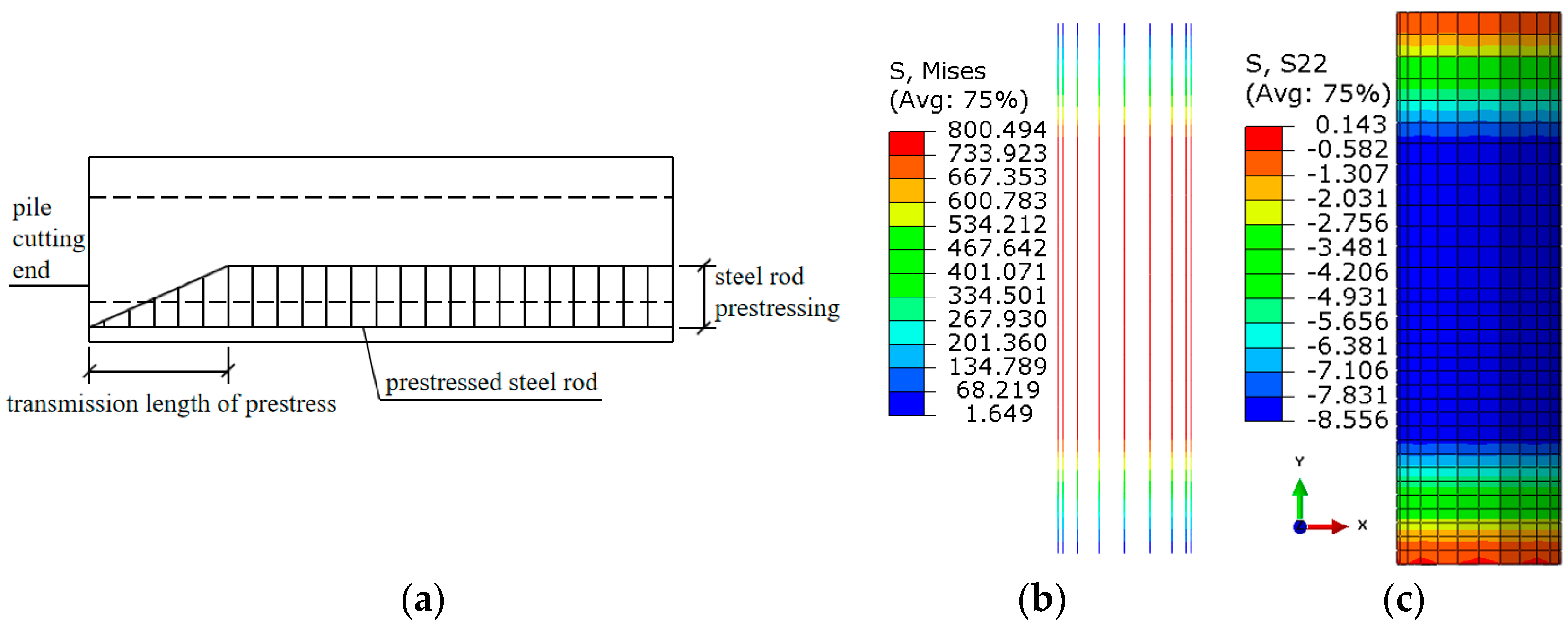

The initial prestressing force is applied in the ABAQUS software using the cooling method. The simulation is realized by using segmentation, where the prestressing tendons at the head part of the truncated pile are divided into 20 equal segments of prestressing loss; each segment is given a different coefficient of expansion, which is increased from 0 to 1.2 × 10⁻⁵, and the transfer of prestressing tendons at the truncated pile part is realized through the change in the coefficient of expansion.

During the prestressing application, non-prestressed components such as bearing platforms and core filling are deactivated and reactivated after prestressing is applied. The stress cloud of the pipe pile after prestressing application is shown in Figure 10.

After the pile cut-off, the prestressing force at the end of the prestressing steel bar is approximately 1.65 MPa, while, in the middle, it is around 800.50 MPa. Similarly, the prestressing force at the concrete end of the pile body is approximately 0.14 MPa, and, in the middle, it is around 8.40 MPa.

4.2. Finite Element Model Validation

During the model validation process, the same material property data as in the foot-scale tests are used to characterize the concrete and reinforcing steel (refer to Section 2.1 for more details).

4.2.1. Skeleton Curve Comparison

(1)

Intrinsic model for reinforcing steel

In the finite element analysis, according to the results of the material property test, fivefold and threefold models are used for reinforcement with and without the yielding stage, respectively, as shown in Figure 11 and Figure 12. The specific test parameters are listed in Table 2.

(2)

Intrinsic model of concrete

Recent research has extensively explored the ontology of concrete damage. Wang [30,31] proposed a stress–strain constitutive coupling damage model for fiber-reinforced recycled aggregate concrete (FRAC) via a series of cyclic compressive tests. This paper employs the traditional plastic damage ontology model of concrete [29]. The stress-strain curves of concrete in uniaxial tension and compression are shown in Figure 13.

The equation for the determination of the stress–strain curve of concrete in uniaxial tension is as follows:

$$\sigma =(1-d_{\mathrm{t}})E_{\mathrm{c}}\epsilon$$

(1)

$$d_{\mathrm{t}}=\left\{\begin{array}{l}1-{\rho }_{\mathrm{t}}[1.2-0.2x^5]\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}x\le 1\\ 1-\frac{{\rho }_{\mathrm{t}}}{a_{\mathrm{t}}{(x-1)}^{1.7}+x}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}x>1\end{array}\right.$$

(2)

$$x=\frac{\epsilon }{{\epsilon }_{\mathrm{t},\mathrm{r}}}$$

(3)

$${\rho }_{\mathrm{t}}=\frac{f_{\mathrm{t},r}}{E_{\mathrm{c}}{\epsilon }_{\mathrm{t},r}}$$

(4)

d_t is the uniaxial tensile damage evolution parameter of concrete; E_c is the modulus of elasticity of concrete; f_t,r is the representative value of the uniaxial tensile strength of concrete; ε_t,r is the peak tensile strain of concrete corresponding to f_t,r; and a_t is the parameter value of the descending section of the uniaxial tensile stress–strain curve of concrete.

The equation for the determination of the stress–strain curve for the uniaxial compression of concrete is as follows:

$$\sigma =(1-d_{\mathrm{c}})E_{\mathrm{c}}\epsilon$$

(5)

$$d_{\mathrm{c}}=\left\{\begin{array}{l}1-\frac{{\rho }_{\mathrm{c}}n}{n-1+x^n}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}x\le 1\\ 1-\frac{{\rho }_{\mathrm{c}}}{a_{\mathrm{c}}{(x-1)}^2+x}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}\hspace{0.33em}x>1\end{array}\right.$$

(6)

$${\rho }_{\mathrm{c}}=\frac{f_{\mathrm{c},r}}{E_{\mathrm{c}}{\epsilon }_{\mathrm{c},r}}$$

(7)

$$n=\frac{E_{\mathrm{c}}{\epsilon }_{\mathrm{c},r}}{E_{\mathrm{c}}{\epsilon }_{\mathrm{c},r}-f_{\mathrm{c},\mathrm{r}}}$$

(8)

$$x=\frac{\epsilon }{{\epsilon }_{\mathrm{c},r}}$$

(9)

d_c is the uniaxial compressive damage evolution parameter of concrete; f_c,r is the representative uniaxial compressive strength of concrete; ε_c,r is the peak compressive strain of concrete corresponding to f_c,r; and a_c is the parameter value of the descending section of the uniaxial compressive stress–strain curve of concrete.

(3)

Skeleton curve comparison

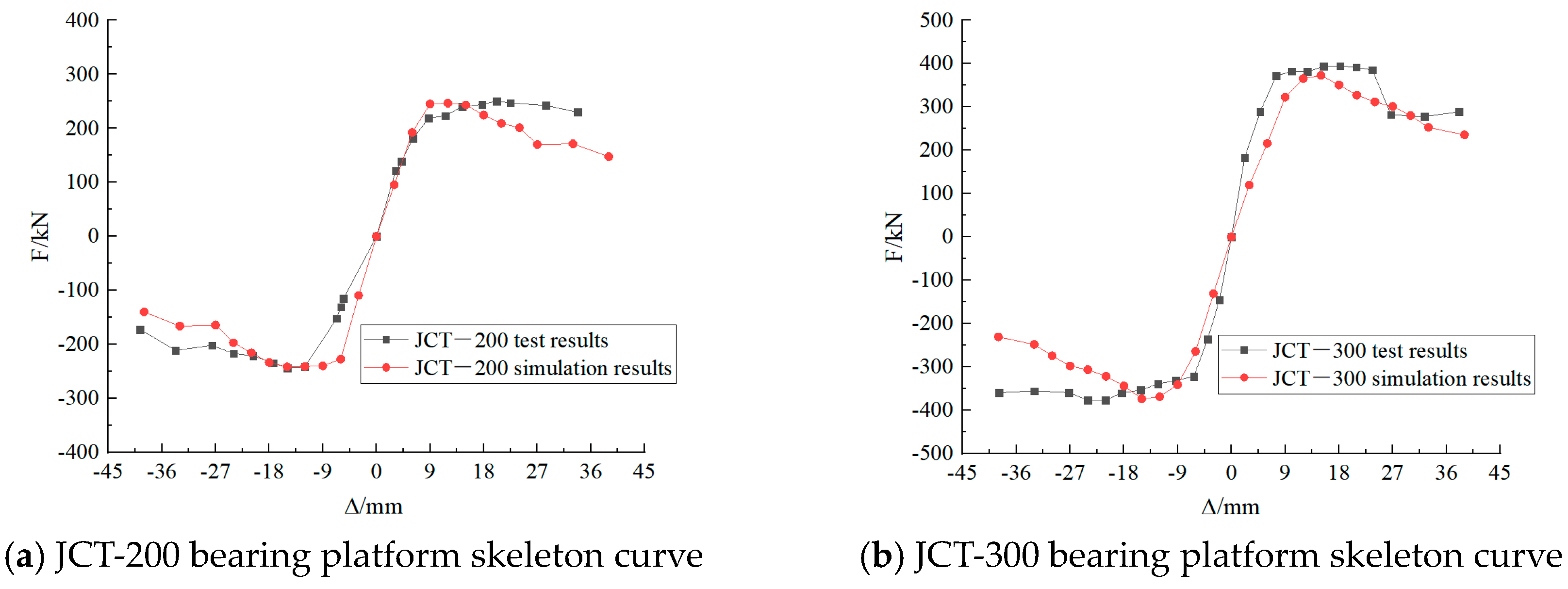

The numerical simulation loading scheme is the same as the loading scheme of the indoor foot-scale test, and the load–top displacement skeleton curves of the finite element calculation and the test are shown in Figure 8. The data indicate that the calculated skeleton curve agrees well with the test skeleton curve.

4.2.2. Nodal Load Capacity Comparison

A comparison of the numerically simulated nodal load capacity with the test nodal load capacity is shown in

Table 3. Comparison of the finite element calculation results and the test results of the bearing capacity of the specimens under cyclic loading.

Specimen Number	Load Direction	Test Limit Load/kN	Test Ultimate Bending Moment/kN·m	Displacement of Loaded End Corresponding to Ultimate Load/mm	Simulated Ultimate Loads/kN	Simulation of Ultimate Bending Moment/kN·m	Simulation of Limit Displacements/mm	Calculated Value of Ultimate Load/Experimental Value	Calculated Value of Ultimate Displacement/Experimental Value
JCT-200	Positive	250.5	450.9	20.15	246.47	443.65	12.0	0.98	0.60
	Negative	−243.6	−438.5	−15.00	−241.64	−434.95	−15.0	0.99	1.00
JCT-300	Positive	394.8	710.6	18.20	372.98	671.36	15.0	0.94	0.82
	Negative	−376.6	−677.9	−21.10	−373.44	−672.19	−15.0	0.99	0.71

Note: “Positive” in the table represents the direction in which the actuator pushes the top of the pile out for the first time, and “Negative” represents the direction in which the actuator pulls the top of the pile back.

.

As shown in Table 3, the specimens in the test have greater positive shear force and bending moments than negative shear force and bending moments. When the node embedment depth is increased from 200 mm to 300 mm, the ultimate shear force and ultimate bending moment of the specimens greatly increase; among these specimens, the positive and negative ultimate shear forces and bending moments increase by 57.60% and 54.60%, respectively, with an average increase of 56.10%. The ultimate bending moment is the result of the ultimate shear multiplied by 1.8 m (the distance between the pile top loading point and the cap surface).

The nodal bearing capacity in the numerical simulation is 0.94 to 0.99 times the nodal bearing capacity in the test, which is in favorable agreement. The pile end displacement at the top of the pipe pile in the numerical simulation is 0.60 to 1.00 times the pile end displacement in the test, and there is a certain difference between the pile end displacement in the numerical simulation and the pile end displacement during the test. Overall, the numerical simulation accurately predicts the bearing capacity.

The main factors causing the differences between the simulation results and the test results are as follows. (1) There are certain differences between the ontological relationships among the concrete, reinforcement and other components and between the actual stress–strain relationships, the test process of the concrete under repeated loading continues to crack and close, and its strength continues to decline with further simulation. (2) There is a difference in the contact relationships between the concrete, steel reinforcement and other components and the actual contact. Reinforced components are built into the concrete, and the bond-slip effect of the reinforcement is neglected in the simulation. (3) The axial force at the top of the pile is not completely constant during the loading process of the test, while the axial force can be kept constant during the calculation process when performing finite element analysis. (4) During testing, the slide movement and the displacement of the top of the pile cannot be synchronized, which leads to a certain horizontal component force in the vertical tension. These factors lead to differences between the simulation results and the test results in terms of the force and displacement.

Despite the influence of the above unfavorable factors, the finite element analysis results agree with the test results, which demonstrates that the parameters and methods used in the finite element simulation are correct. This can be used as a basis for the further analysis of the connection nodes of prestressed concrete pipe piles and bearing platforms.

4.2.3. Comparison of Node Destruction Patterns

The concrete damage clouds from the numerical simulation results of specimens with embedment depths of 200 mm and 300 mm are listed in Figure 14.

As shown in Figure 14, the tensile damage of the pile body and bearing platform is greater than the compression damage, and the pile body is not crushed during the loading process. Compared with that at an embedment depth of 200 mm, greater tensile damage to the pile body occurs at an embedment depth of 300 mm. These phenomena agree well with the phenomena of the footing test, which also proves that the numerical simulation results are accurate.

4.3. Bearing Capacity of Pipe Piles Filled with Core Longitudinal Reinforcement Anchored to Bearing Platform Nodes (Type I Nodes)

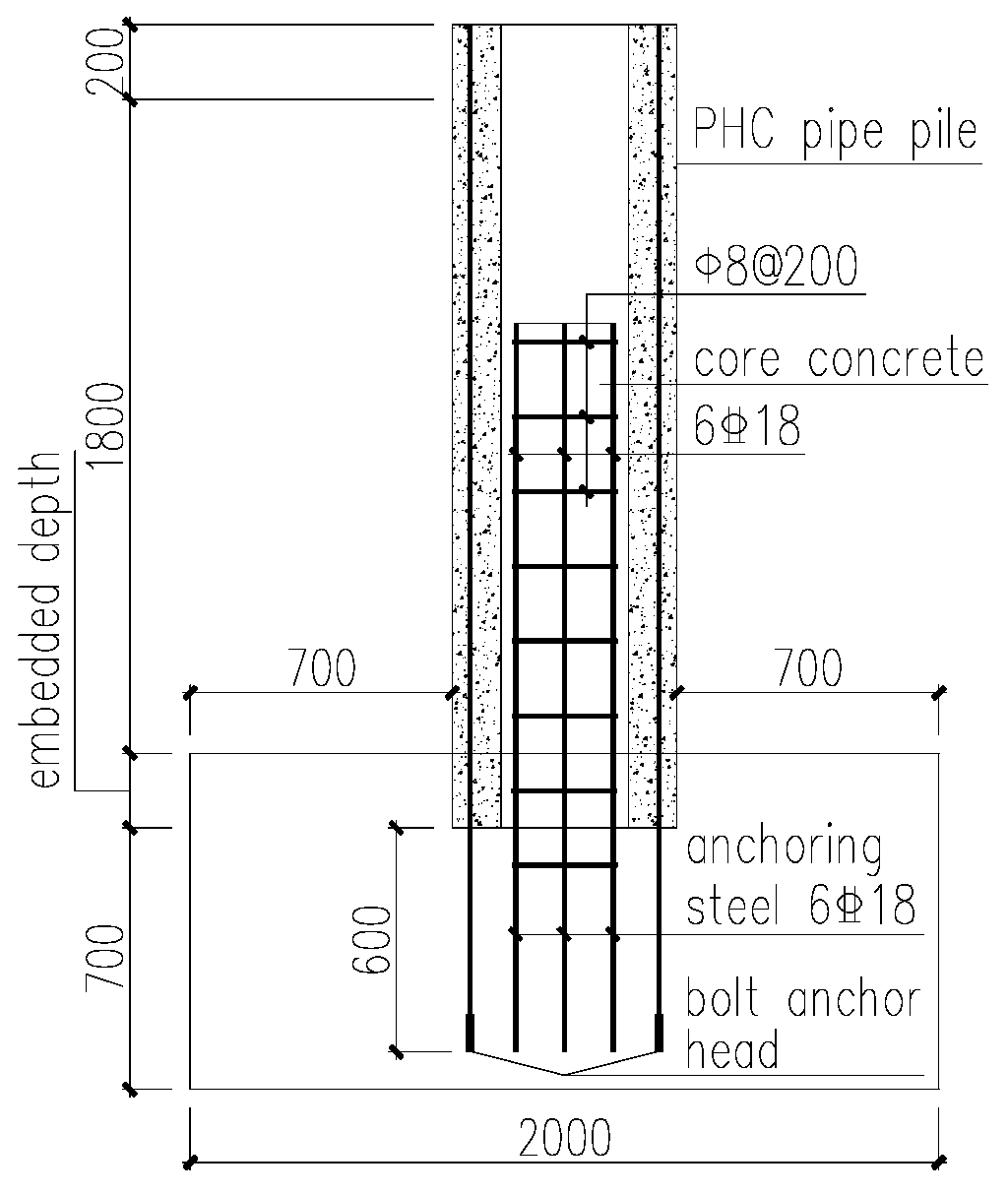

A type Ⅰ node is the node of a tubular pile filled with core longitudinal bars anchored to the bearing platform and is commonly used in engineering. The specific structure is shown in Figure 4. The two node specimens used in this test were type Ⅰ, and the numerical simulation of these specimens with embedded depths of 200 mm and 300 mm was performed by using the parameters of the test material properties.

To ensure that the simulation results are universally applicable, the material property parameters shown in Table 1 are used in the numerical analysis process of type I, type II and type III nodes, instead of using the material property parameters in the foot measurement test, while the modeling method is the same as that in Section 3.1.

C30 concrete is used for the core-filling and bearing platform concrete, and C80 concrete is used for the pipe piles.

Pile hoops, pile prestressing steel rods, core-filling hoops, core-filling anchoring steel bars and bearing platform reinforcements are used in the elastic reinforcement model, i.e., the bifold model, which includes elastic and reinforced segments, where the steel is perfectly elastic before yielding, the stress–strain relationship after yielding is simplified as a very smooth sloping straight line and the Young’s modulus of the steel bar after yielding is 0.01 times the Young’s modulus before yielding [32].

According to the “Prestressed Concrete Pile” [27], the specified nonproportional elongation strength of prestressed steel rods should not be less than 1280 MPa, and the standard tensile strength should not be less than 1420 MPa. According to Article 6.4 of the “Cold-Drawn Low-Carbon Steel Wire for Concrete Products” [33], the tensile strength of cold-drawn low-carbon steel wires should not be less than 550 MPa, and the elongation at break should not be less than 2.0%. The ABAQUS models of the physico-mechanical parameters of the steel rods and hoops are listed in

Table 4. Physical and mechanical parameters of the steel bars and stirrups.

Name	Model Number	Caliber/mm	Yield Strength/MPa	Tensile Strength/MPa	Plastic Strain
Pile hoop	-	5.0	515	550	0.020
Pile prestressing steel rods	-	12.6	1280	1420	0.076
Core-filling hoop	HPB300	8.0	300	420	0.057
bearing reinforcement	HRB335	14.0	335	455	0.060
Core-filled anchoring reinforcement	HRB400	18.0	400	540	0.070

.

Based on the model’s verification, a numerical simulation was performed for the specimens of tubular piles with core-filled longitudinal bars anchored to the bearing node for the specimens with embedment depths ranging from 50 to 500 mm. The results of this numerical simulation are listed in

Table 5. Finite element analysis results of the bearing capacity and displacement of the pipe pile cap nodes.

Specimen Number	Ultimate Shear/kN		Limit Moment/kN·m		Limit Displacement/mm		Ratio to Ultimate Shear Force of Type I Nodes
	Forward	Reverse	Forward	Reverse	Forward	Reverse	Forward	Reverse
JCT-Ⅰ-50	82.31	−81.31	148.16	−146.36	15	−15	1.00	1.00
JCT-Ⅱ-50	261.64	−268.74	470.95	−483.73	12	−9	3.18	3.31
JCT-Ⅲ-50	311.64	−317.23	560.95	−571.01	15	−12	3.79	3.90
JCT-Ⅰ-100	128.30	−128.74	230.94	−231.73	21	−21	1.00	1.00
JCT-Ⅱ-100	286.31	−285.99	515.36	−514.78	15	−15	2.23	2.22
JCT-Ⅲ-100	336.92	−332.79	606.46	−599.02	15	−15	2.63	2.58
JCT-Ⅰ-150	176.84	−154.79	318.31	−278.62	12	−18	1.00	1.00
JCT-Ⅱ-150	294.81	−301.50	530.66	−542.70	15	−15	1.67	1.95
JCT-Ⅲ-150	359.72	−375.42	647.50	−675.76	15	−15	2.03	2.43
JCT-Ⅰ-200	225.72	−227.14	406.30	−408.85	15	−15	1.00	1.00
JCT-Ⅱ-200	313.80	−319.86	564.84	−575.75	15	−12	1.39	1.41
JCT-Ⅲ-200	385.29	−395.49	693.52	−711.88	15	−12	1.71	1.74
JCT-Ⅰ-250	283.20	−284.21	509.76	−511.58	12	−12	1.00	1.00
JCT-Ⅱ-250	315.08	−314.57	567.14	−566.23	12	−12	1.11	1.11
JCT-Ⅲ-250	390.61	−392.10	703.10	−705.78	12	−12	1.38	1.38
JCT-Ⅰ-300	337.71	−342.46	607.88	−616.43	15	−15	1.00	1.00
JCT-Ⅱ-300	317.28	−323.20	571.10	−581.76	12	−12	0.94	0.94
JCT-Ⅲ-300	395.94	−396.41	712.69	−713.54	12	−12	1.17	1.16
JCT-Ⅰ-350	391.32	−391.97	704.38	−705.55	15	−15	1.00	1.00
JCT-Ⅱ-350	317.10	−316.94	570.78	−570.49	12	−12	0.81	0.81
JCT-Ⅲ-350	394.93	−399.19	710.87	−718.54	12	−12	1.01	1.02
JCT-Ⅰ-400	393.65	−398.67	708.57	−717.61	12	−12	1.00	1.00
JCT-Ⅱ-400	316.65	−322.50	569.97	−580.50	12	−12	0.80	0.81
JCT-Ⅲ-400	398.23	−396.52	716.81	−713.74	12	−12	1.01	0.99
JCT-Ⅰ-500	393.46	−395.18	708.23	−711.32	12	−12	1.00	1.00
JCT-Ⅱ-500	315.75	−311.90	568.35	−561.42	12	−12	0.80	0.79
JCT-Ⅲ-500	397.87	−391.97	716.17	−705.55	12	−12	1.01	0.99

.

As shown in Table 5, for a type I node, when the embedment depth is less than or equal to 300 mm (0.50 times the pipe pile outer diameter D), the node bending moment is mainly provided by the core-filling longitudinal reinforcement and the bearing concrete on the pile side. Under the repeated action of tensile and compressive loads, the bearing platform concrete was damaged by the extrusion of the pipe pile, and this damage to the bearing platform concrete in the loading direction was greater than that to the concrete on both sides of the loading direction. No compressive damage occurred in the concrete body of the tubular pile. When the bearing platform concrete near the node is damaged, the node becomes an articulation point.

For a type I node, when the embedment depth is greater than or equal to 350 mm (0.58D), the node-bearing capacity essentially remains unchanged. Therefore, after the embedment depth exceeds 350 mm, the damage to the node is considered to be caused by damage to the pile body. According to the node-bearing capacity, the recommended embedment depth is 350 mm.

For a type I node, when the embedment depth is less than or equal to 350 mm, the nodal bearing capacity can be estimated according to the following mathematical formulas. Where the reverse loading values take absolute values, H is the embedding depth and its unit is mm, M’s unit is kN·m and M_{H = 350} is the limit moment when H is 350 mm.

When the embedding depth is 50 ≤ H < 150 mm,

$$M=M_{\mathrm{H}=350}-100\times (\frac{400-H}{50}-1)+25$$

(10)

When the embedding depth is 150 ≤ H ≤ 350 mm,

$$M=M_{\mathrm{H}=350}-100\times (\frac{400-H}{50}-1)$$

(11)

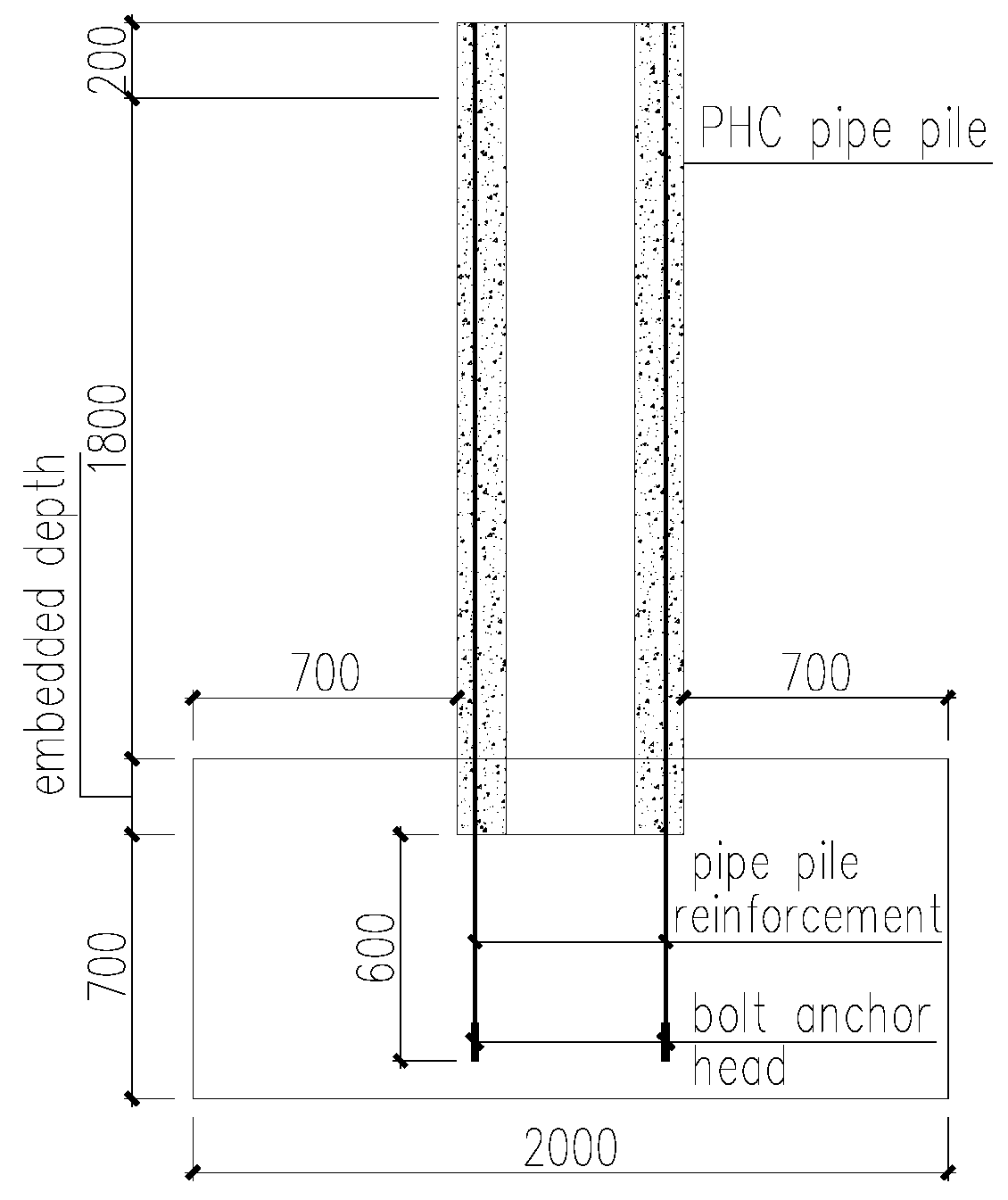

4.4. Bearing Capacity of Tubular Pile Body Longitudinal Bars Anchored to Bearing Platform Node (Type II Node)

When the project cut off the pile, the PHC pipe pile body concrete and spiral hoop tendons were truncated, and the prestressing longitudinal tendons were retained. A small wire lassoing machine was used to close the ends of the prestressing longitudinal tendons, and a bolt anchor head was screwed into the end of the wire fastener to increase the anchorage performance of the prestressing steel rods. A detailed illustration of the node is shown in Figure 15.

The finite element simulation results of the bearing capacity of the tubular pile body longitudinal bars anchored to the bearing node under the same loading conditions are listed in Table 5.

As shown in Table 5, when the embedment depth is less than or equal to 250 mm (0.42D), the ultimate bearing capacity of the type II node is greater than that of the type I node. When the embedment depth is greater than or equal to 300 mm (0.50D), the ultimate bearing capacity of the type II node is smaller than that of the type I node. When the embedment depth is greater than or equal to 200 mm (0.33D), the type II node’s bearing capacity essentially remains constant. The maximum bearing capacity of type II nodes is smaller than that of type I nodes. Therefore, type II nodes are not recommended.

For the type II node, when the embedment depth is less than or equal to 200 mm, the nodal bearing capacity can be estimated according to the following mathematical formula. M_{H = 200} is the limit moment when H is 200 mm.

$$M=M_{\mathrm{H}=200}\times {\left(0.94\right)}^{\left(\frac{250-\mathrm{H}}{50}-1\right)}$$

(12)

4.5. Tubular Pile Body Longitudinal Reinforcement Anchored to Bearing Platform + Tubular Pile Core-Filling Longitudinal Reinforcement Anchored to Bearing Platform Node (Type III Node)

When the project was cut off, the concrete and spiral hoop bars of the PHC pipe pile body were truncated, and the prestressing longitudinal bars were retained. A small wire lassoing machine was used to close the ends of the prestressing longitudinal bars, and a bolt anchor head was screwed into the end of the wire fastener to increase the anchorage performance of the prestressing steel bars. A detailed illustration of the node is shown in Figure 16.

A comparison of the ultimate bearing capacities of type III nodes and type I nodes under the same loading conditions is shown in Table 5.

As shown in Table 5, the ultimate bearing capacity of type III nodes is not less than that of type I and type II nodes. When the embedment depth is greater than or equal to 200 mm (0.33D), with an increasing embedment depth, the node-bearing capacity essentially remains constant. Therefore, the recommended embedment depth is 200 mm.

The maximum bearing capacities of type I and type III nodes are similar, and the average values are approximately 698.95 kN·m and −708.71 kN·m, respectively. The bearing capacities of type Ⅱ nodes are approximately 564.84 kN·m and −575.75 kN·m. The reinforced concrete filling has a great effect on the bearing capacity of the node, in which the positive growth rate is approximately 23.74%, and the negative growth rate is approximately 23.09%.

Considering that the numerical simulation does not consider the error caused by the slip between the steel bar and the concrete structure, the simulated pile top displacement is smaller than the actual pile top displacement, and the embedment depth can be appropriately increased in the project.

In terms of the bearing capacity, in actual engineering, when the embedment depth is large, type I nodes are recommended, and the embedment depth is 350 mm. When a large embedment depth is infeasible, type III nodes with an embedment depth of 200 mm are recommended.

In Article 4.4.4 of “The Building Seismic Testing Procedures” [28] (JGJ/T 101-2015), it is stated that in the damage characterization test under the bearing capacity, the load should be applied to the descending section of the test curve, and the descending value should be controlled to 85% of the ultimate load. In the simulation, when the displacement is ±27 mm, the bearing capacity of the specimen essentially decreases to 85% of the ultimate load; the skeleton curves of type Ⅰ, Ⅱ and Ⅲ nodes less than or equal to the optimal embedment depth are plotted in Figure 17.

As shown in Figure 17, when the optimal embeddedness depth is less than or equal to the optimal embeddedness depth, the embeddedness depth of the node has a great influence on the ultimate bearing capacity of the node. The skeleton curve can be divided into an elastic stage, an elastoplastic stage and a plastic stage. The initial stiffness of type Ⅰ nodes increases with an increasing embedment depth. The embedment depth has little effect on the initial stiffness of type II and type III nodes.

For type III nodes, when the embedment depth is less than or equal to 200 mm, the nodal bearing capacity can be estimated according to the following mathematical formula.

$$M=M_{\mathrm{H}=200}\times {\left(0.93\right)}^{\left(\frac{250-\mathrm{H}}{50}-1\right)}$$

(13)

4.6. Node-Bearing Capacity under Different Vertical Tensile Forces

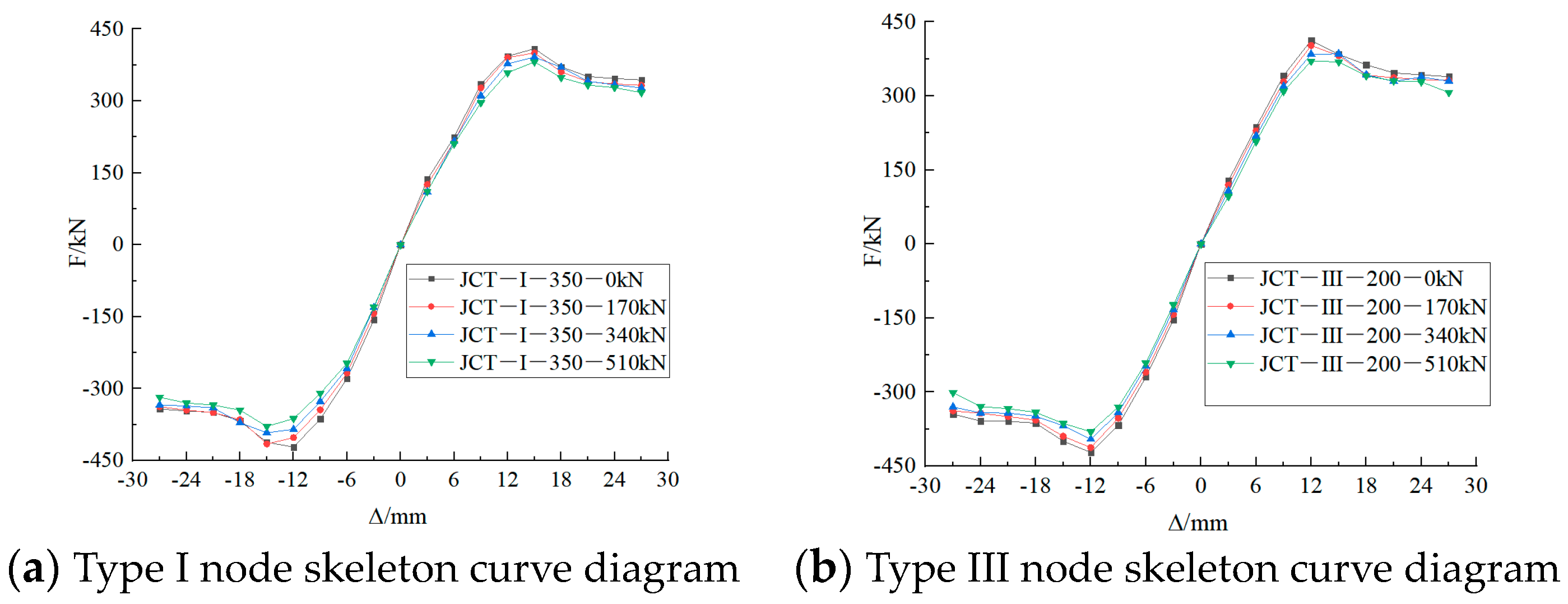

For the recommended node types and their optimal embedment depths, their node-bearing capacity is analyzed under different uplift force conditions. Since the core-filled longitudinal reinforcement is composed of six 18 mm diameter HRB400-grade bars, the maximum tensile force that can be withstood by the bars before yielding is 610.42 kN. According to reference [27], the design value of the axial tensile bearing capacity of the PHC B600-130 pipe pile body is 1700 kN, so the vertical force in this paper adopts a loading interval of 170 kN, from 0 to 510 kN. The finite element calculation results of the bearing capacity of the pipe pile cap nodes under different vertical tensile forces are shown in

Table 6. Finite element calculation results of the bearing capacity of cap nodes under different levels of vertical tension.

Specimen Number and Vertical Tension		Ultimate Shear/kN		Limit Moment/kN·m		Limit Displacement/mm		Ratio to Ultimate Shear Force
		Forward	Reverse	Forward	Reverse	Forward	Reverse	Forward	Reverse
JCT-Ⅰ-350	0	408.91	−421.86	736.04	−759.35	15	−12	1.00	1.00
	170	400.09	−415.37	720.16	−747.67	15	−15	0.98	0.98
	340	391.32	−391.97	704.38	−705.55	15	−15	0.96	0.93
	510	381.36	−378.67	686.45	−681.61	15	−15	0.93	0.90
JCT-Ⅲ-200	0	412.55	−422.31	742.59	−760.16	12	−12	1.00	1.00
	170	402.11	−412.57	723.80	−742.63	12	−12	0.97	0.98
	340	385.29	−395.49	693.52	−711.88	15	−12	0.93	0.94
	510	370.67	−380.45	667.21	−684.81	12	−12	0.90	0.90

.

The skeleton curves of type I and type III nodes with optimal embeddedness under different vertical pulling forces are drawn in Figure 18.

As shown in Table 6 and Figure 18, the node’s ultimate load capacity decreases after the increase in vertical tension, and the displacement corresponding to the ultimate load capacity remains essentially unchanged.

After reaching the optimum embedment depth of type Ⅰ and type Ⅲ nodes, the bearing capacity of the nodes decreases with increasing vertical tension. When the vertical tension increases from 0 to 510 kN, the positive and negative bearing capacities decrease by 7% and 10%, respectively, for type I nodes, and both decrease by 10% for type III nodes.

The nodal bearing capacity, under different axial tensile forces, can be estimated according to the following mathematical formula.

$$M=M_{\max }-0.1F$$

(14)

5. Conclusions

In this paper, two PHC piles and bearing platform connection nodes were tested with low, weakly reciprocating loads, and the test phenomena and node-bearing capacity were analyzed. The bearing capacity of nodes with different node types and embedment depths was analyzed by finite element analysis. Thus, formulas for the bearing capacity of nodes, the optimal node type and the optimal embedment depth were proposed to provide a reference for practical engineering applications. The main conclusions are as follows.

(1)

According to the test results, under tension–bending–shear, buckling damage occurs in the node area bearing the platform concrete. When the anchorage bars in the node area yield, an articulation point is formed. Additionally, as the embedment depth increases from 200 mm to 300 mm, the forward and backward nodes’ ultimate bearing capacities increase by 57.60% and 54.60%, respectively.

(2)

From the bearing capacity perspective, it is recommended to use a core-filled anchored steel node (type I node) with a recommended embedding depth of 350 mm, which is 0.58 times the diameter of the tubular pile. Moreover, it is recommended to use a tubular pile body longitudinal reinforcement anchored to the bearing platform + a tubular pile core-filled longitudinal reinforcement anchored to the bearing platform node (type III node), with a recommended embedding depth of 200 mm, which is 0.33 times the diameter of the tubular pile. A type II node is not recommended.

(3)

When the vertical tension increases from 0 to 510 kN, the positive and negative bearing capacities decrease by no more than 10% for type I nodes at the optimal embedment depth of 350 mm and for type III nodes at the optimal embedment depth of 200 mm.
