1. Introduction
The desulfurization of oil products primarily focuses on removing organic sulfur compounds from petroleum products [
1]. This crucial process not only reduces sulfur dioxide emissions from burning sulfur-containing fuels, which helps improve air quality and protect the environment, but also safeguards human health. Furthermore, desulfurized fuels enhance the combustion efficiency and extend the life of engines while minimizing wear. Many countries and regions enforce stringent regulations on the sulfur content in petroleum products, compelling refineries to adopt desulfurization practices to comply with environmental standards. Removing sulfur from fuel not only boosts its combustion efficiency but also increases the overall energy system’s efficiency. As the focus on environmental protection and energy efficiency intensifies, advancements in desulfurization technologies are spurring research and innovations in this area, particularly in the development of new desulfurization methods and the enhancement of catalysts [
2].
Phosphotungstic acid has emerged as a versatile and vital catalyst across a range of applications including the synthesis of fine chemicals, petrochemical processing, water treatment, environmental purification, renewable energy production, organic synthesis, and materials science. Recent advances have particularly highlighted its role in the catalytic oxidative desulfurization of oil products. Wu et al. [
3] created spherical PEHA-HPW by simply combining pentamethylene hexamine (PEHA) with phosphotungstic acid (HPW) and used it with hydrogen peroxide to achieve the 100% removal of dibenzothiophene (DBT) within 30 min. Wang et al. [
4] developed nanospherical HPW-ZrO
2 catalysts by loading phosphotungstic acid onto zirconium dioxide (ZrO
2), which, when used with hydrogen peroxide, completely removed DBT, with GC-MS analysis revealing DBTO
2 as the oxidation product. Jangi et al. [
5] supported phosphotungstic acid on natural zeolites—clinoptilolite, mordenite, ferrierite, and natrolite—and found that PTA-Ferr exhibited the highest catalytic activity, removing 82.02% of DBT. Xiong et al. [
6] formulated phosphotungstic acid ionic liquid materials by dissolving it in octadecyl dimethyl ammonium chloride (OTAC), showing exceptional catalytic performance in the treatment of DBT, 4-MDBT, and 4,6-DMDBT. After 60 min, the desulfurization rates of the three sulfur-containing organic compounds were all close to 100%.
Choline, found naturally, is leveraged in green chemistry due to its environmental friendliness, low volatility, high solubility, affordability, thermal stability, and recyclability. Choline chloride, primarily serving as a hydrogen bond donor, is integral to developing deep eutectic solvents and has emerged as a key player in oil desulfurization [
7]. Liu et al. [
8] synthesized a choline chloride/2-polyethylene glycol (ChCl/2PEG) deep eutectic solvent that, powered by hydrogen peroxide, removed 99.1% of dibenzothiophene (DBT) in just 3 h. Abbasi et al. [
9] combined trichloroacetic acid (TCA) with choline chloride to produce a solvent that, when used with hydrogen peroxide, achieved a 99.6% removal rate for DBT and 91.4% for benzothiophene (BT). Fan et al. [
10] formulated a novel deep eutectic solvent by blending choline chloride, benzene sulfonic acid, and ethylene glycol, which removed 100% of DBT, BT, and 4,6-DMDBT within two hours, retaining a 91% desulfurization efficiency even after five cycles. Yue et al. [
11] applied molecular dynamics’ simulations and free energy perturbation to model the extraction processes of TS/DBT/MDBT with choline chloride-based deep eutectic solvents.
In the process of catalytic oxidative desulfurization, hydrogen peroxide is predominantly used as the oxidant because of its high reactivity and environmentally friendly oxidation byproducts. However, its use is limited by its instability, strong corrosiveness, and high cost. In earlier studies [
12,
13,
14], our team employed peroxymonosulfate as an alternative oxidant in conjunction with cobalt-based ionic liquid catalysts, achieving highly efficient desulfurization. Peroxymonosulfate stands out for its potent oxidative strength, minimal corrosiveness, affordability, and exceptional stability as a solid salt.
Response surface methodology (RSM) is a statistical approach grounded in experimental design and analysis that seeks the optimal conditions for various processes. It offers numerous benefits including high efficiency, low cost, strong optimization and data analysis capabilities, and wide applicability. RSM is an invaluable tool for researchers and engineers to optimize process parameters, thereby improving production efficiency and product quality while simultaneously reducing costs and enhancing competitiveness. In the realm of desulfurization, RSM has facilitated significant advances: Mahmoudi et al. [
15] optimized a magnetically recoverable polyoxometalate-based nanocatalyst with hydrogen peroxide to remove dibenzothiophene (DBT), conducting 20 experiments to pinpoint optimal temperature, oxidant-to-sulfur ratio, and catalyst dosage; Danmaliki et al. [
16] optimized the adsorption of DBT using AC-Ni in a flowing phase, identifying ideal conditions for DBT concentration, AC-Ni amount, bed height, flow rate, and contact time; Almashjary et al. [
17] formulated a deep eutectic solvent using choline chloride (ChCl) and propionic acid (Pr), employing RSM to fine-tune the desulfurization process and establish the best conditions for the ChCl/Pr ratio, synthesis temperature, extraction temperature, extraction duration, and liquid-to-liquid ratio.

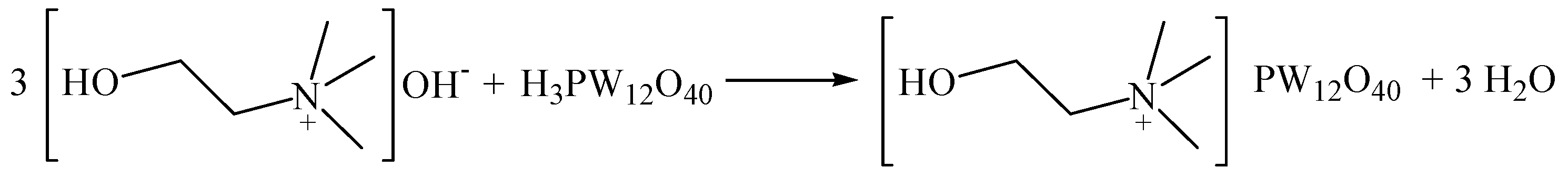

In this research, the desulfurization catalyst Ch-PW was synthesized through an acid-base neutralization reaction between choline hydroxide (ChOH) and phosphotungstic acid (HPW). This catalyst was then integrated with potassium peroxymonosulfate (PMS), a complex salt, to establish a catalytic system for desulfurization. To simulate oil, dibenzothiophene sulfone was dissolved in octane, and acetonitrile (ACN) was employed as the extraction solvent. Utilizing response surface methodology, the optimal process conditions were determined by designing and optimizing the variables of Ch-PW, PMS, ACN, and temperature based on the desulfurization rate.
The main objective of this article is to establish that the coupling of choline phosphotungstate with persulfate constitutes an effective desulfurization system. Subsequently, using response surface methodology, the optimal conditions for the desulfurization process are rapidly determined, offering a less toxic, more convenient, and highly efficient approach for desulfurization in the oil industry.
2. Results and Discussion
2.1. Experimental Results and Model Selection
Table 1 outlines the desulfurization rates obtained from 29 experimental setups, structured according to the Box–Behnken design. The rates of desulfurization achieved by the Ch-PW/PMS system varied between 29.7% and 93.4%. Notably, the experiments for Run 1, Run 4, Run 14, Run 18, and Run 27 were conducted under the central level conditions (0,0,0,0), achieving desulfurization rates of 90.3%, 88.6%, 93.4%, 91.6%, and 88.4%, respectively. This repetition of experiments under identical conditions serves to assess the random errors inherent in the experimental procedure [
18].
To forecast the experimental conditions that yield the highest desulfurization rates, the Design Expert 8.06 software was utilized to develop a quadratic model. This model delineates the relationship [
19] between four experimental factors—the dosage of choline phosphotungstate, potassium peroxymonosulfate solution, acetonitrile addition, and temperature—and the desulfurization rate (removal), as detailed in Equation (1) (a coded factor equation). The selection of the quadratic model, characterized by a Prob>F value less than 0.0001, significantly underscores the model’s robustness and confirms its validity.

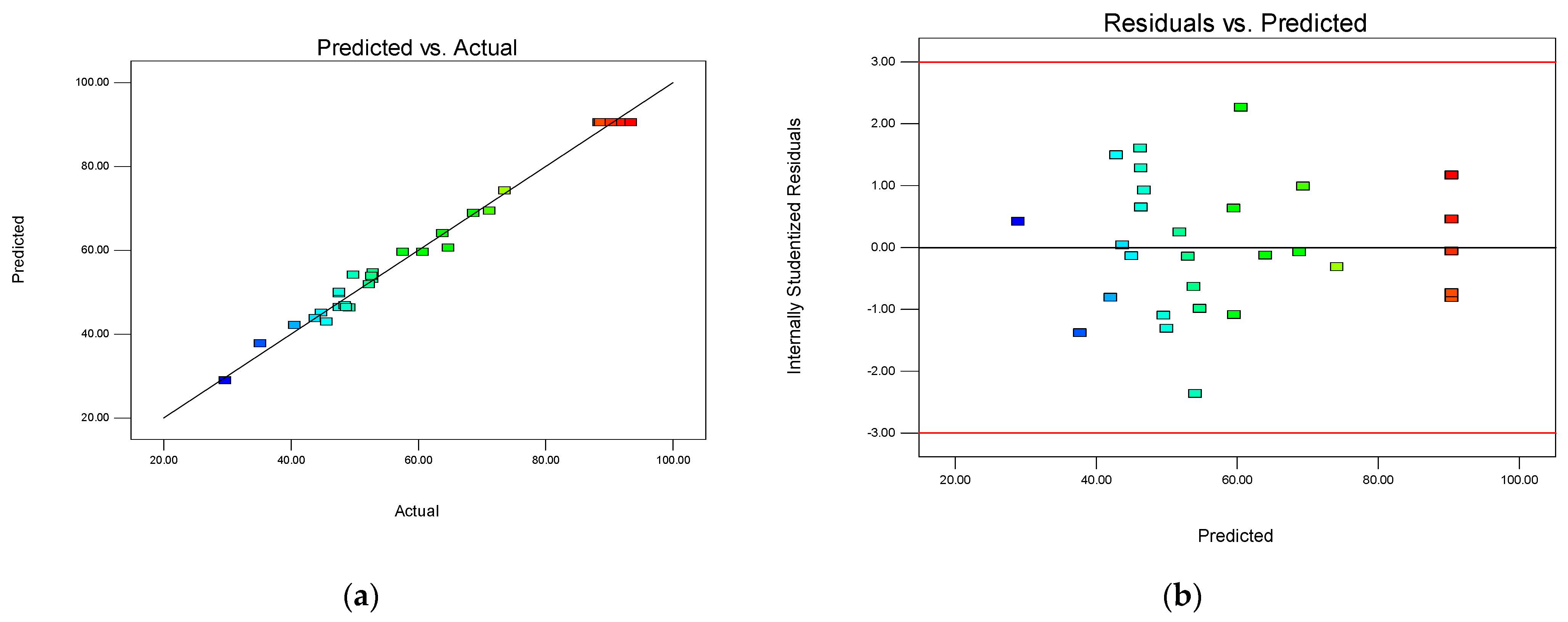

Figure 1 depicts the correlation between 29 experimental desulfurization rates and the corresponding 29 predicted rates calculated using Equation (1). The color of the data points in
Figure 1 changes from blue to red, representing the change in desulfurization rate from low to high. The alignment of all data points along the coordinate system’s diagonal in
Figure 1a confirms that the predicted values closely match the experimental results, affirming the appropriateness of the quadratic model.
Figure 1b presents the residual plot for these 29 data points, showing a random distribution of residuals. This pattern indicates that the errors are random, lacking any systematic or gross errors. Furthermore, the majority of residuals fall within the −2 to 2 range, underscoring the robustness and credibility of the quadratic model.
In
Figure 1a, the upper right corner displays five parallel red dots, while
Figure 1b features five vertical dots on the extreme right. These dots represent the discrepancies between experimental and predicted values, obtained by repeating the central points of 29 Box–Behnken design experiments five times. This repetition is used to ascertain the experimental error at these points, which is essential for evaluating the overall error across all experimental points. Such errors are critical for assessing the model’s predictive accuracy and for facilitating further statistical analysis. Since the predicted values remain constant under identical experimental conditions, variations in experimental values lead to the formation of five closely clustered red horizontal dots in
Figure 1a, indicating the high precision of the experimental values under consistent conditions. Similarly, the residuals—differences between experimental and predicted values—with constant predicted values result in vertically aligned residual dots as depicted in
Figure 1b.
2.2. ANOVA Analysis
Table 2 displays the analysis of variance (ANOVA) derived from the response surface methodology. The model shows a total sum of squares (SS) of 8691.62, with 14 degrees of freedom, a mean square of 620.83, and an F-value of 78.13. The Prob>F value, significantly less than 0.0001, confirms the quadratic model’s extreme significance, validating the use of this model to establish the relationships between the four factors and the desulfurization rate (removal). According to the results, the desulfurization rate is predominantly influenced by factor B (PMS), with factor C (ACN) also having a notable impact. In contrast, factors A (Ch-PW) and D (temperature) show a minimal influence. The coefficients for factors A and D in Equation (1) are considerably smaller than those for B and C, indicating that variations in B and C have a more substantial effect on the desulfurization rate than A and D. The influence hierarchy of the factors on the desulfurization rate is PMS > ACN > Ch-PW > temperature. The minimal influence of the Ch-PW catalyst on the desulfurization rate may be attributed to the chosen levels of the Ch-PW addition being too close to the optimal, resulting in inadequate differentiation.
From
Table 2, the standard deviation (std. dev.) of 2.82 indicates that the data points closely cluster around the mean, suggesting minimal predictive errors for the model. With a coefficient of variation (C.V.%) of 4.80%, the response variable demonstrates little variability relative to the mean, indicating a low degree of dispersion in the data. An R
2 value of 0.9874 is exceptionally high, illustrating that the model accounts for nearly all the variability in the data, which signifies an excellent fit. The adjusted R
2 (Adj-R
2) of 0.9747 adjusts for the number of predictors in the model and the degrees of freedom, further validating the model’s accuracy. A predictive R
2 (Pred-R
2) of 0.9356 assesses the model’s effectiveness in forecasting new datasets, indicating strong predictive performance, though slightly lower than its explanatory capability (i.e., Adj-R
2). An adequacy precision (Adeq Precision) of 30.345, which is the ratio of signal to noise, signifies the model’s robust ability to distinguish significant effects from random noise, with values above 4 generally indicating a sufficient discriminative capability. Here, a value of 30.345 highlights the model’s exceptional predictive discriminative power.
Overall, the ANOVA data demonstrate that the selected quadratic model fits exceptionally well, possesses strong predictive capabilities, minimal errors, and powerful discriminative ability, enabling it to accurately predict response variables.
2.3. Response Surface Analysis

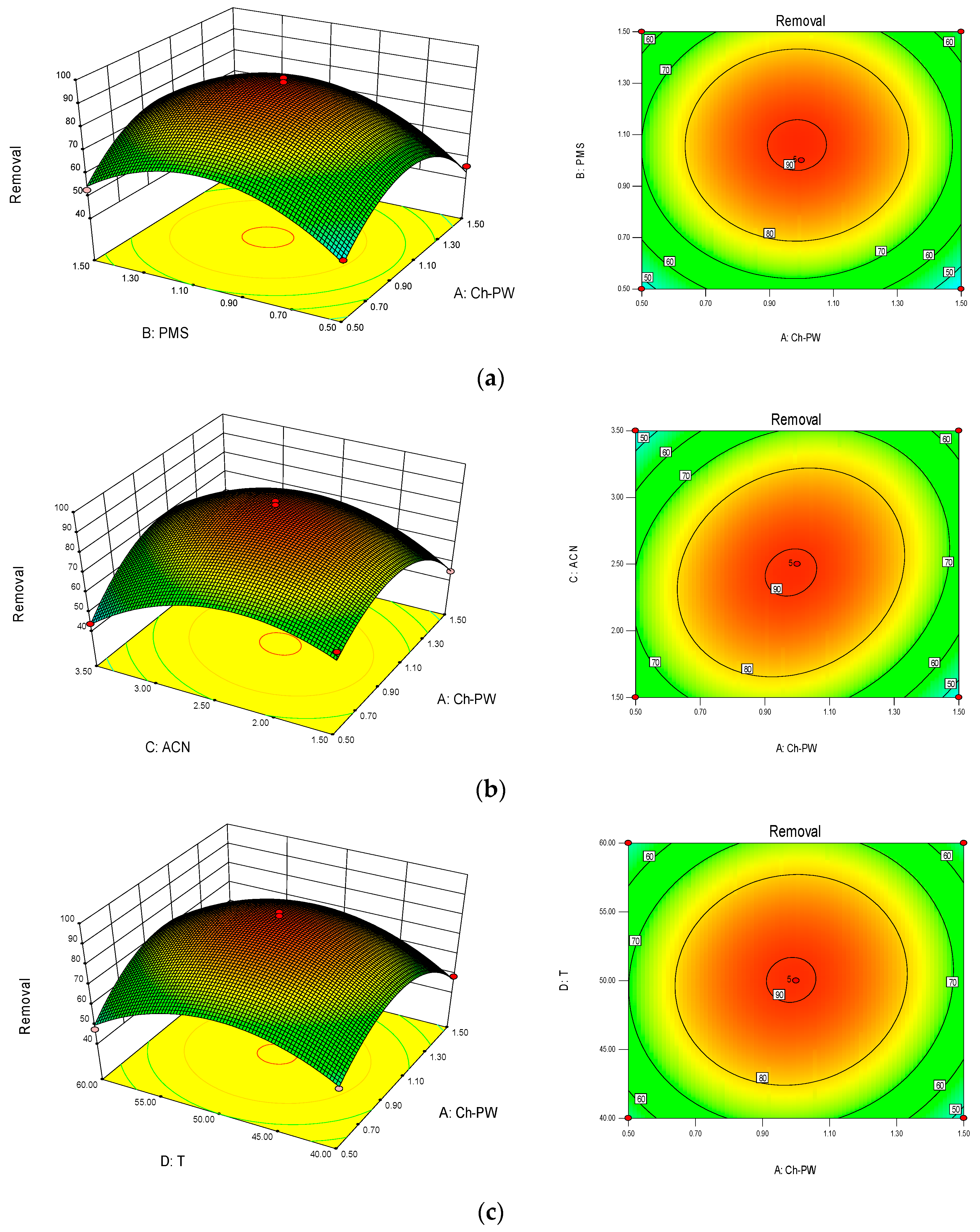

Figure 2 illustrates the response surface plots and contour maps that depict the influence of four factors—catalyst Ch-PW (A), oxidant PMS (B), extraction solvent ACN (C), and temperature T (D)—on the desulfurization rate. Specifically,
Figure 2a displays the interaction between factors A and B, while
Figure 2b explores the interaction between factors A and C, and
Figure 2c again shows the interaction between factors A and C. From
Figure 2a, it is evident that keeping factor B constant, the response (removal) initially rises and then falls as factor A increases from 0.5 to 1.5. Similarly, with factor A constant, factor B exhibits an increase followed by a decrease from 0.5 to 1.5. In
Figure 2b,c, with factor A constant, both factors C and D show an initial increase followed by a decrease when increased from 1.5 to 3.5 and from 40 to 60, respectively. These response surface plots demonstrate that optimal values exist for factors A, B, C, and D, confirming that the chosen ranges for these factors are appropriate.
From
Figure 2a’s contour map, the contours formed by factors A and B, as well as A and D, are nearly circular, while those formed by factors A and C deviate from this shape, forming an ellipse. Circular contours suggest weaker correlations between factors, whereas elliptical contours with an increased curvature indicate stronger correlations. Accordingly, factors A and B, as well as A and D, show relatively weak correlations, while a stronger correlation exists between factors A and C. This aligns with findings from earlier ANOVA analyses.
Reasoning analysis: The desulfurization mechanism hinges on the catalyst Ch-PW, with tungsten atoms serving as electron acceptors. During catalytic oxidation, these facilitate electron transfer to activate the oxidant (B)–peroxymonosulfate-generating sulfate and hydroxyl radicals. These radicals can oxidize dibenzothiophene in the acetonitrile phase, thereby driving desulfurization. Increasing the catalyst enhances the catalytic performance by raising free radical production, thus improving desulfurization rates. However, as the catalyst is solid, it may also consume active radical species, potentially diminishing its effectiveness, indicating an optimal catalyst dosage. Similarly, while more oxidant also increases free radical production, excess ions from the salt can quench these radicals, pointing to an optimal oxidant dosage. Regarding the extraction solvent, its increase can dilute the catalyst and oxidant concentrations, affecting the desulfurization outcomes; optimal concentrations are required for peak efficiency. Finally, while higher temperatures improve reaction rates by reducing solution viscosity, excessive temperatures might increase radical collision and quenching, suggesting an optimal temperature range is essential.
2.4. Optimal Experimental Conditions Determined by Response Surface Methodology
The optimal conditions for the four factors were identified through careful analysis. The response surface methodology yielded the following optimal settings: 0.99 g of catalyst Ch-PW, 1.07 g of PMS, 2.5 g of extraction solvent, and a temperature of 50.48 °C, predicting a desulfurization rate of 90.79%. Experimentally, under these conditions, a desulfurization rate of 93.64% was achieved, with a mere 3.04% deviation between the predicted and actual values, validating the model’s predictive accuracy.
Seven experiments were conducted under optimal conditions, each following a consistent cycle: After completing the initial desulfurization, the liquid quickly separated into layers. The upper oil phase (octane phase) was removed, leaving behind the lower extraction phase (ACN phase). Next, 6 g of simulated oil containing 500 ppm sulfur and 1.07 g of PMS (20 wt.%) was added. Both the temperature and reaction time were maintained constant for the subsequent desulfurization trial, and the corresponding desulfurization rate was recorded. This procedure was repeated through seven trials in total. As depicted in

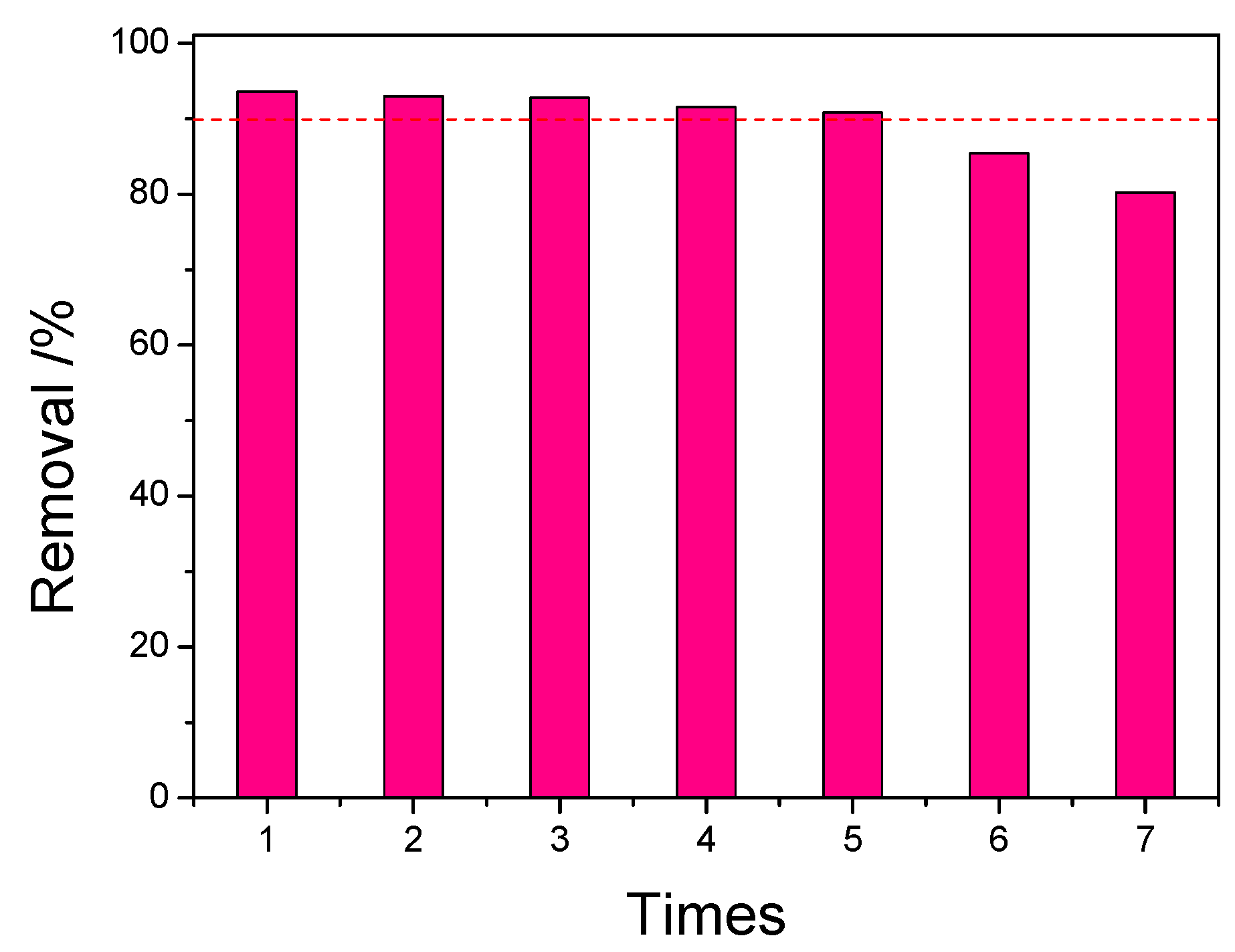

Figure 3, the desulfurization rate stayed above 90% for the first five trials. However, it dropped to 85% after the sixth trial and further decreased to 80% after the seventh. The desulfurization system demonstrated robust recyclability characteristics.
During the cyclic experimental process, the upper oil phase is removed after each experiment, and fresh oil and oxidant are introduced for the next trial. Over time, the contamination on the surface of Ch-PW decreases its activity. Furthermore, the accumulation of sulfate ions, oxidation byproducts in the acetonitrile phase, is not removed throughout the cycles. This leads to a significant impairment of the desulfurization activity, ultimately causing deactivation.
2.5. Analysis of Desulfurization Products and Mechanism

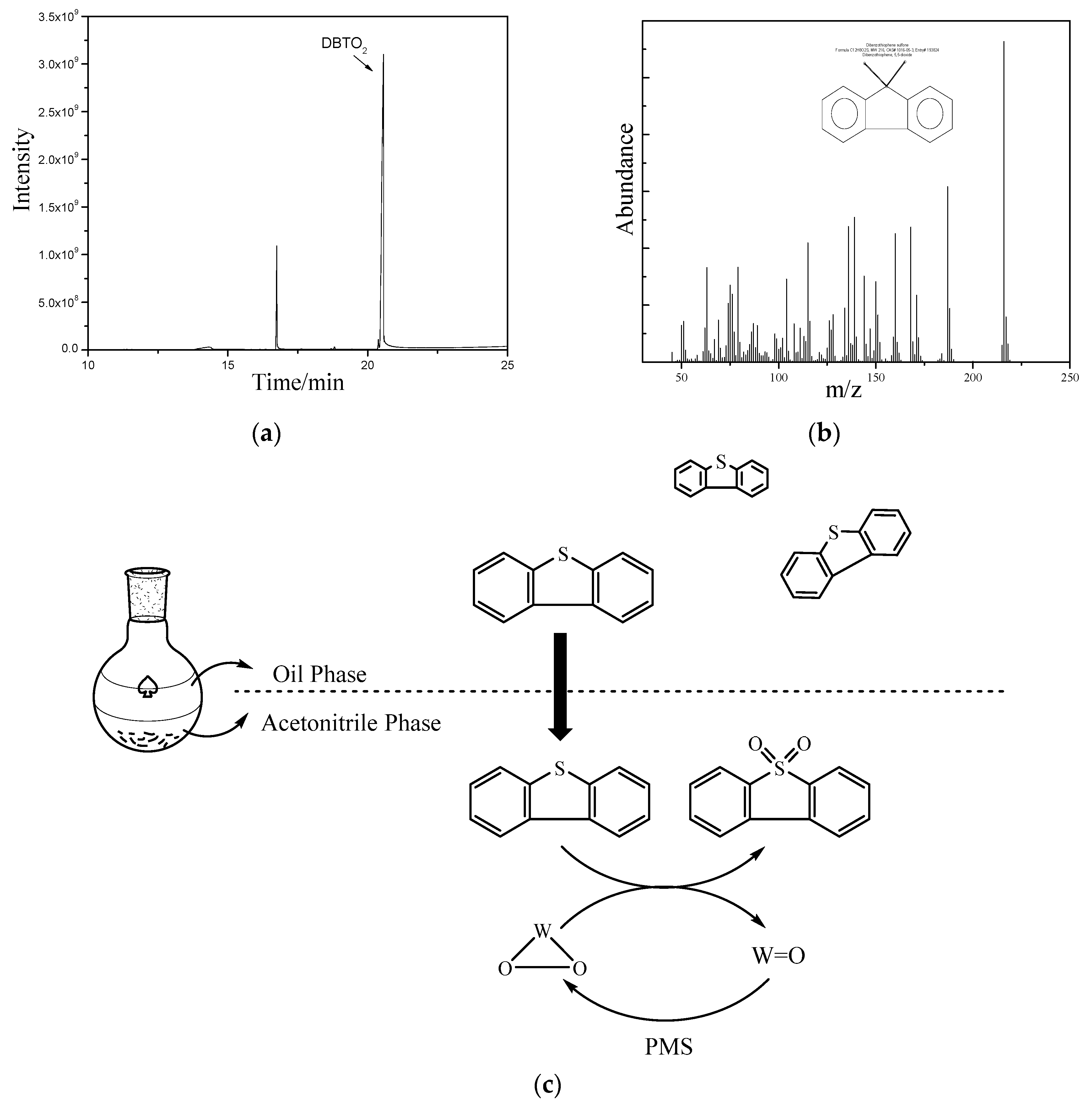

To elucidate the desulfurization mechanism of Ch-PW coupled with PMS, GC-MS analysis was conducted on the desulfurization products within the acetonitrile phase, as depicted in
Figure 4a,b. The GC trace in
Figure 4a reveals two distinct peaks, one high and one low. The lower peak, with a retention time of 16.3 min, was identified as DBT, while the higher peak at 20.65 min was determined to be DBTO
2, as illustrated in
Figure 4b. This analysis confirms that DBTO
2 is the principal oxidation product of DBT.
The desulfurization mechanism, inferred from the GC-MS findings, is outlined in
Figure 4c. Initially, acetonitrile, serving as the extraction solvent, extracts dibenzothiophene from the simulated oil into the acetonitrile phase. Subsequently, dibenzothiophene is oxidized by the combined action of the oxidant PMS and catalyst Ch-PW in the acetonitrile phase. Ch-PW interacts with PMS to generate
anionic species, with the tungsten-oxygen active centers exhibiting potent oxidizing capabilities, swiftly converting thiophenic compounds and their derivatives into sulfoxides or sulfones. Owing to acetonitrile’s presence, dibenzothiophene continuously extracted into the acetonitrile phase is transformed into a sulfone, increasing its polarity and thus retaining it within the acetonitrile phase. Throughout this process, Ch-PW remains catalytically active, facilitated by the activation of PMS, until the consumption of PMS is complete.
