Use of Botanical Ingredients: Nice Opportunities to Avoid Premature Oxidation of NABLABs by Increasing Their ORAC Values Strongly Impacted by Dealcoholization or Pasteurization

by
Margaux Simon
,
Hubert Kageruka
and
Sonia Collin
*
Unité de Brasserie et des Industries Alimentaires, Louvain Institute of Biomolecular Science and Technology (LIBST), Faculté des Bioingénieurs, Université Catholique de Louvain, Croix du Sud, 2 Box L7.05.07, B-1348 Louvain-la-Neuve, Belgium
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(10), 2370; https://doi.org/10.3390/molecules29102370
Submission received: 21 March 2024 / Revised: 17 April 2024 / Accepted: 15 May 2024 / Published: 17 May 2024
(This article belongs to the Section Flavours and Fragrances)
Browse Figures
Versions Notes

Abstract

:
Even when fresh, non-alcoholic, and low-alcoholic beers (NABLABs) exhibit significant staling defects due to premature oxidation. In this study, the antioxidant power of eleven fresh commercial NABLABs was assessed by means of three different assays: the oxygen radical absorbance capacity (ORAC), the linoleic acid-induced oxidation (TINH), and the indicator time test (ITT). Only the first two assays, both involving radicalar degradations initiated by AAPH, were found to correlate with each other. NABLABs displayed lower ORAC values than conventional beers (on average, 6127 μmol eq. Trolox/L), except for three samples made with special-colored malts or dry-hopped. Dealcoholization was the step with the greatest impact on the ORAC value (up to a 95% loss) and on flavan-3-ols, sotolon, and polyfunctional thiols, while pasteurization strongly affected color, TBA, and Strecker aldehydes. ORAC assays applied to hop, alternative cereals, and various botanical ingredients indicated that mashing with red sorghum, dry hopping/spicing, and wood maturation could bring the antioxidant power of a NABLAB close to those of conventional beers. With an ORAC value not reached by any other tested botanical ingredient (5234 µmol eq. Trolox/g), African Vernonia amygdalina leaves (traditionally used for Rwandan Ikigage beers) emerged here as the best candidate.

1. Introduction

Slowing down aroma staling to extend a beer’s shelf life remains one of the major challenges for the brewing industry [1,2]. Oxidation is often the primary contributor to flavor instability [3]. Much effort has been devoted to minimizing oxygen uptake during brewing and packaging [1,4,5,6]. Increasing antioxidant concentrations can also inhibit the effects of oxygen by scavenging reactive oxygen species or free radicals, chelating transition metal ions (copper and iron), decomposing peroxides, etc. [3,7,8,9,10,11,12]. A large number of assays have been published in the literature for measuring antioxidant activity, some of them taking into account more specific properties [7,11,13,14]. As many oxidative mechanisms can occur in a complex matrix, it could be advised to combine several assays for beer investigations.
Interest was first concentrated on the oxidoreduction reactions (colorimetric or electrochemical methods), which could inform about the reducing power of wort and beer (e.g., 2,6-dichlorophenolindophenol in the indicator time test (ITT) [15], iron dipyridyl complex [16], redox potential [17], FRAP (ferric reducing antioxidant parameter) [9], and CUPRAC (cupric reducing antioxidant capacity) [18]) (Figure 1a). Nowadays, it is accepted that reactive oxygen species (ROS) such as hydroxyl radical HO° and superoxide radical O2°− are agents causing beer damage. Therefore, most assays prefer measuring the free radical scavenging activity of the medium (e.g., DPPH° reducing activity [19], ABTS° decolorization assay [20], superoxide scavenging activity in the xanthine/xanthine oxidase system [21], and the scavenging of the hydroxyl radical in deoxyribose [21] or leucomethylene blue [22] assays) (Figure 1b).
In many cases (including the ORAC and TINH assays), peroxyl radicals are artificially created by the thermal decomposition of 2,2′-azobis(2-methylpropionamidine) dihydrochloride (AAPH). A great advantage of the ORAC method (in which the radicalar degradation of fluorescein is easily monitored by UV fluorescence) is its very high sensitivity [23]. Moreover, ORAC values have been determined for a wide range of food matrices [24], for example, 5693 μmol eq. Trolox/100 g for red wine, 9645 μmol eq. Trolox/100 g for hazelnut, or 20,823 μmol eq. Trolox/100 g for black chocolate. Another sensitive method in which the oxidation kinetic of an aqueous dispersion of linoleic acid is followed was described by Liégeois et al. [25] as more representative of what happens in a dispersed lipid matrix such as wort or beer. Products resulting from this peroxidation are the conjugated diene hydroperoxides, which absorb at 234 nm. When antioxidants are present in beer, oxidation is delayed, and the resulting inhibition period (TINH) is determined. In order to assess also the pro-oxidant activity of the medium (iron cations, etc.), radicals in beer can still be monitored by electron spin resonance (ESR) or luminescence analysis (Figure 1c) [26,27,28].
In conventional beers, both endogenous and exogenous antioxidants can play a crucial role in delaying or preventing oxidative damage [2,29]. Natural antioxidants originate mainly from barley malt and kettle hopping [11,30]. Both contribute to beer polyphenols [31,32,33], while only special malts bring significant amounts of reductones and melanoidins [3,8,11,34,35]. Therefore, in most cases, the total polyphenol content of a beer correlates directly (R2 = 0.8) with its antioxidant activity (contribution of 55–88%) [1,8,31,36]. Unfortunately, oxidation products derived from polyphenols can also negatively affect color and colloidal stability [8,37,38]. During fermentation, yeast also produces antioxidants, mainly sulfites (through the conversion of sulfates, methionine, or cysteine) and glutathione [3,8,26,39]. Moreover, sulfites and ascorbic acid can be added to the bottle as exogenous antioxidants. In addition to their antimicrobial activity, sulfites consume bottled oxygen, thus protecting other antioxidant fractions [5,8,35]. Other antioxidants present in beer at very low levels include carotenoids and tocopherols [31,32,40], saponarin, and hordatines A-C [8,41]. Some additional antioxidants may come from dry hopping [37], spices/herbs (e.g., hibiscus, juniper, lemon balm, etc. [42,43]), fruits (e.g., cherry juice and goji berry [44,45]), flavorings and colorings [7], or alternative raw materials (e.g., sorghum and buckwheat [46,47]).
Whatever the process used (dealcoholization, cold contact, special yeast, etc.), non-alcoholic and low-alcoholic beers (NABLABs, NAB ≤ 0.5% ABV and LAB 0.5–1.2% ABV in most European countries) are usually brewed at lower original extract levels, leading to lower total polyphenol contents (75–366 mg GAE/L versus 875 mg GAE/L for bock beer) [30,48,49] and lower melanoidin levels (0.58 mg/L versus 1.49 mg/L for dark beer) [11,34,35]. Furthermore, the dealcoholization and stronger pasteurization (at least 50 UP versus 15 UP for conventional beers [50,51]) usually applied to NABLABs can also degrade the antioxidant capacity of the medium. Dealcoholized beers have been found to display about a third of the antioxidant power of bock beers (1525 versus 4663 µmol Fe2+/L as determined by FRAP assay) [31].
Unsurprisingly, fresh NABLABs often suffer from premature oxidation (Figure 2). This has an impact on both bitterness and astringency, by enhancing isohumulone and flavan-3-ol oxidation [38]. trans-Isohumulones are known to be the most degraded fraction, given their propensity to be converted to tricyclohumols. For cis-isohumulones, oxidative degradation to alloisohumulones is the main concern [52,53]. For flavan-3-ols, it is now recognized that the oxidation of catechins to dehydrodicatechins increases color, while oligomer oxidation leads to colloidal instability and astringency [38]. The odorants sotolon (curry), phenylacetaldehyde (floral, honey), methional (boiled potato), and dimethyltrisulfide (onion) have recently been detected at higher levels in such beers [54].
The aim of the present work was to compare the antioxidant power of eleven commercial NABLABs with conventional beers. ORAC, TINH, and ITT values were related to levels of various previously quantitated beer constituents. The impacts of both dealcoholization and pasteurization on the ORAC value and aromas were further assessed on two pilot samples. Lastly, to determine the feasibility of increasing NABLAB antioxidant activity, an ORAC assay was applied to sorghum, spices, wood, and other promising botanical extracts in order to calculate the amount required to reach in NABLABs an ORAC value similar to that of conventional beers.

2. Results and Discussion

2.1. ORAC Values of Fresh NABLABs and Relationship to Color, Phenols, and Bitterness

As depicted in Table 1, almost all fresh NABLABs, whatever the process used, showed significantly lower antioxidant power (on average 6127 μmol eq. Trolox/L) than a conventional lager (10,171 μmol eq. Trolox/L), a dry-hopped beer (11,456 μmol eq. Trolox/L), or a Trappist brown ale (12,332 μmol eq. Trolox/L). The relatively low densities of the worts commonly employed in NABLAB production (around 5 °P) most probably limit their polyphenol content (43–150 mg/L, Table 1). Moreover, intrinsic antioxidants can be altered by dealcoholization and pasteurization, procedures often applied to NABLABs.
Interestingly, beers E and K exhibited the highest values (11,637 and 9193 μmol eq. Trolox/L, respectively), likely due to the use of special/colored malts known to contain antioxidant melanoidins [11]. As shown in Figure 3a, a correlation was observed between the ORAC value and color (R2 = 0.81 if the red fruit wheat beer G was not included).
Beer B also reached a slightly higher value (7906 μmol eq. Trolox/L) because of its dry hopping process. Hop is known to show a 30 times greater intrinsic antioxidant capacity than pale malt [25,55], thanks to its very high level of polyphenols [37,55,56]. The total polyphenol content, as already shown by other studies [8,41,57], appeared to contribute most to the antioxidant power of each beer (42–100%; Table 1), with a major proportion attributed to flavan-3-ols (catechin ORAC value = 11.2 μmol eq. Trolox/μmol) [1,31,41] and phenolic amino acids (2.1 and 1.0 μmol eq. Trolox/μmol for tryptophan and tyrosine, respectively) [41,58]. No relationship was found here with polyphenols.
Surprisingly, we also observed a correlation between the ORAC value and the isohumulone content (R2 = 0.77 without beer E whose cold contact process provided better protection against oxidation, Figure 3b). There should be no direct causative link here, as isohumulones (produced by isomerization in the boiling kettle from hop humulones) showed almost no antioxidant activity (ORAC value = 0.1 μmol eq. Trolox/μmol; Table 1). Yet, the level of bitter compounds depends on the amount of hop used, as does the level of polyphenols (which indirectly elucidates this correlation).

2.2. Comparison of the ORAC Assay with Two Other Antioxidant Assays Used on NABLABs

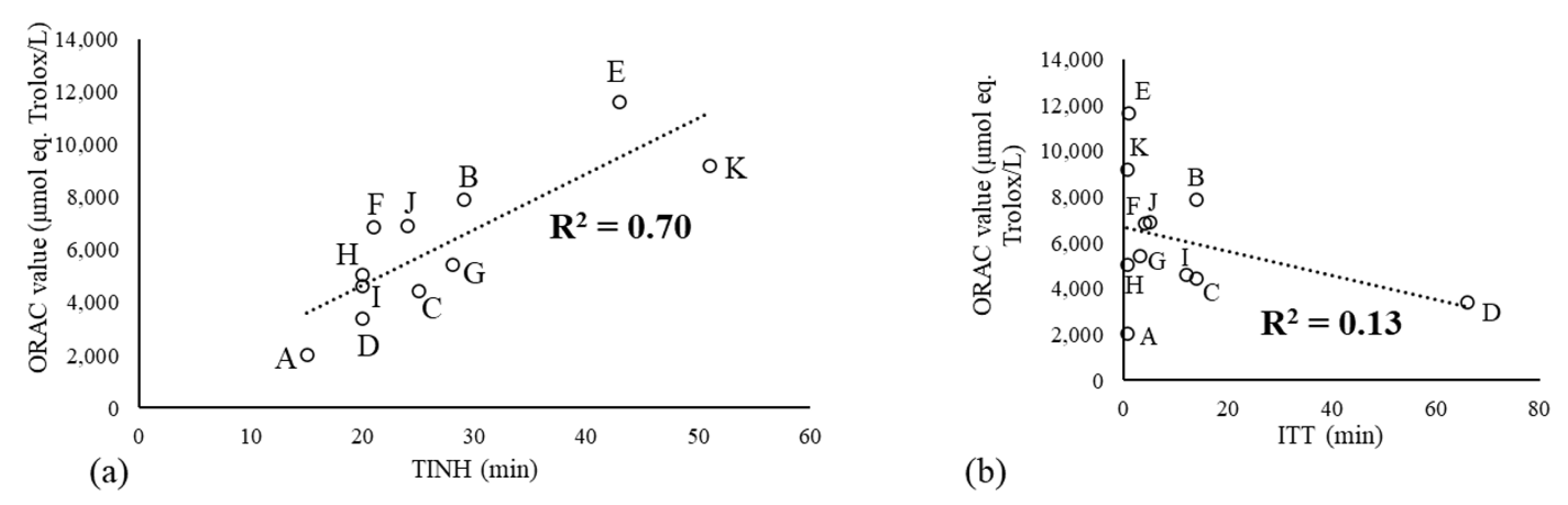

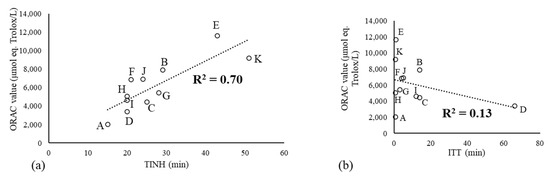

In parallel with the ORAC assay, two additional antioxidant power measurements were applied to the eleven NABLABs: TINH, which also involves a radicalar reaction initiated by AAPH (linoleic acid used here as substrate instead of fluorescein), and the ITT test, which involves a simpler redox reaction (Figure 1). Whatever the method used, the antioxidant power of NABLABs remained poor (Table 1). Not surprisingly, a correlation was found only between the ORAC and TINH values (R2 = 0.70, Figure 4a). The non-radicalar ITT test showed no correlation with the ORAC value (R2 = 0.13, Figure 4b).

2.3. Impact of NABLAB Dealcoholization and Pasteurization on ORAC Values, Thermal Indicators, Bitter Compounds, Phenols, and Aromas

Two pilot blond beers (A and B; initially at 5.6% and 4.7% ethanol (v/v), respectively) were subjected to vacuum distillation (industrial NABLAB production operating at 35–40 °C and 100 mbar) and tunnel pasteurization (50 UP for A and 90 UP for B). Antioxidant activity (ORAC), thermal indicators (color and TBA), bitter compounds, phenols, stale odorants, and hoppy polyfunctional thiols were determined before dealcoholization (BD), after dealcoholization (AD), and after pasteurization (AP) (Table 2).
The dealcoholization of either sample led to a huge ORAC value decrease (loss of up to 59% for sample A and 95% for sample B). The antioxidant activity decreased further through pasteurization, leading to only 1042 and 291 μmol eq. Trolox/L (which is even lower than the values found in the eleven investigated commercial NABLABs, probably due to the lower-scale experiments). The data of previous chemiluminescence studies confirm an increase in the level of oxidation in conventional beers (a five times higher OH-radical signal intensity) after pasteurization [59,60,61,62], whereas, surprisingly, Lund et al. found an increased antioxidant capacity, likely due to formation of Maillard compounds [2,59].
As previously reported by Callemien et al. [63], total polyphenol values are not good indicators of intrinsic oxidative changes in flavan-3-ol chemical structures (loss of only 10 mg/L after dealcoholization in sample A). On the other hand, catechin and procyanidin B3 dropped strongly from 3.2 to 1.3 mg/L and from 1.8 to 0.9 mg/L in sample B, respectively, clearly evidencing the occurrence of oxidation through both dealcoholization [64] and pasteurization.
Our two thermal indicators showed that dealcoholization had little impact on heat-related reactions, compared to pasteurization: Specifically, an increase of 2.5–3 °EBC and 17–22 TBA was observed between AD and AP, whereas color slightly decreased during dealcoholization [64]. A higher degree of pasteurization (50–90 UP) and, consequently, a greater thermal load are required for NABLABs. Colored compounds resulting from Maillard reactions are logically formed at this step.
Oxidation of cis- and trans-isohumulones occurred during both dealcoholization and pasteurization (a loss of cis-isohumulones up to 2.6 mg/L, in sample B), in parallel with the synthesis of their oxidative degradation products such as alloisohumulones [53,65], reaching 0.2–0.4 mg/L isohumulone equivalents (other by-products, including tricyclohumols, were not determined here).
Among the stale odorants often detected in NABLABs even when fresh, sotolon was found at 0.9–1.4 µg/L after pasteurization (values significantly above its sensory threshold of 0.8 µg/L in both samples). In both cases, dealcoholization already slightly increased the amount of this oxidative aroma. On the other hand, only pasteurization caused a marked increase in methional and phenylacetaldehyde (oxygen not required for thermal Strecker degradation).
In contrast, most fresh hoppy/citrus polyfunctional thiols were lost upon dealcoholization (3SHol dropped from 4.3 µg/L to 0.3 µg/L in sample A). One should note, however, that some can be added at the time of pasteurization, most probably coming from cysteinyl precursors.

2.4. Potential to Increase NABLAB ORAC Values by Using Sorghum, Vernonia amygdalina, Spices, or Wood Chips

In order to assess how to enhance the NABLAB antioxidant capacity, ORAC values of alternative cereals, spices, other botanical ingredients, and wood chips were determined, and for each, the quantity needed to achieve the antioxidant power of a conventional beer in NABLABs was calculated (Table 3). For comparison, ORAC values of ascorbic acid and potassium metabisulfite (KMS) (antioxidants often used in breweries; Table 3) show that extravagant spiking would be required, both with KMS (386 g/hL = 3860 mg/L for a maximum of 20 mg/L allowed) and ascorbic acid (87 g/hL= 870 mg/L; compared to the 30–50 mg/L amount usually added).
As shown here with the Citra hop sample (one of the varieties richest in flavanoids, along with Saaz [56]), dry hopping above 850 g/hL would effectively boost the ORAC value of a NABLAB into the target range (this was only partially achieved in the Belgian dry-hopped commercial beer B, with its 7906 μmol eq. Trolox/L). In the United States, hop is often used up to 500–1000 g/hL (2000 g/hL even reached for NEIPAs).
Interestingly, Vernonia amygdalina leaves (used in some traditional Rwandan sorghum beers known as Ikigage [66]) exhibited the highest antioxidant power (5234 μmol eq. Trolox/g). Only 99 g/hL would be needed (if no loss occurs through the process) to reach the antioxidant capacity of a conventional beer. Malted red sorghum (855 μmol eq. Trolox/g) should also make it possible to substantially increase the antioxidant activity of NABLABs (only 5–10% of barley malt should be here replaced by sorghum malt). Red sorghum is known to contain exceptional amounts of flavan-4-ols, 3-deoxyanthocyanidins, flavones, and flavan-3-ols (up to hexamers) [67]. As an additional advantage, this cereal also contains little beta-amylase, the enzyme that brewers avoid in NABLAB wort mashing (lower maltose content). Among the spices/herbs investigated here, the best candidates were cinnamon, ginger, and orange peel (ORAC values of 907, 721 and 510 μmol eq. Trolox/g, respectively), although more than 500 g/hL would be required during boiling or fermentation/maturation to reach the antioxidant activity of a conventional beer (probably too much in terms of flavor; generally added from 5 to 225 g/hL, depending on the type of spice). With their 1036 and 980 μmol eq. Trolox/g, acacia and oak chips, possibly added during maturation, also appear as reasonable candidates (500 g/hL often used by brewers for wood-aged beers [68]).

3. Materials and Methods

3.1. Chemicals

Acetic acid, acetone, acetonitrile, ammonia solution 28–30%, anhydrous sodium sulfate, citric acid monohydrate, dichloromethane, dipotassium hydrogen phosphate trihydrate, ethanol absolute 99%, formic acid, hydrochloric acid 37%, methanol, potassium dihydrogen phosphate, potassium hydroxide, sodium chloride, and sodium hydroxide were purchased from VWR International (Leuven, Belgium). 2-Acetylthiophene, ammonium iron (III) citrate 16%, 2,2′-azobis(2-methylpropionamidine) dihydrochloride (AAPH), Amberlite XAD-2 resin, boric acid, carboxymethylcellulose sodium salt, >98% L-cysteine hydrochloride monohydrate, (±)-catechin hydrate, decane, 2,6-dichlorophenolindophenol, 6 mL Discovery Ag-ion SPE tube, (−)-epicatechin, fluorescein sodium salt, linoleic acid 99%, methional, nonadecane, phenylacetaldehyde, Sephadex LH-20 resin, sotolon, 3-sulfanylhexan-1-ol (3SHol), 3-sulfanylhexyl acetate (3SHA), 6-sulfanylhexan-1-ol, 2-thiobarbituric acid, titriplex III, Trolox® ((±)-6-hydroxy-2,5,7,8-tetramethylchromane-2-carboxylic acid), tryptophan and tyrosine were purchased from Sigma-Aldrich (Overijse, Belgium). Isohumulone standard was purchased from Labor Veritas Co. (Zürich, Switzerland). Procyanidin B3 and (+)-taxifolin standards were from Extrasynthèse (Genay, France). AccQ•Tag Ultra Reagent derivatization (6-aminoquinolyl-N-hydroxysuccinimidyl carbamate, AQC), AccQ•Tag Ultra Eluent I, AccQ•Tag Ultra Eluent II, and AccQ•Tag Ultra borate buffer were purchased from Waters Corporation (Milford, CT, USA). Milli-Q water was used (Millipore, Bedford, MA, USA).

3.2. Samples

Eleven commercial NABLABs were investigated: Star Light (A; special blond), Energibajer (B; dry-hopped), Pico Bello (C; dry-hopped), Leopold 7 Road Trip (D; sour beer), Palm N.A. (E; amber), Maes 0.0% (F; lager), Hoegaarden rosée 0.0% (G; red fruit white beer), Carlsberg 0.0% (H; lager), Jupiler 0.0% (I; lager), Leffe Blonde 0.0% (J; abbey beer), and Brugse Sport Zot alcoholvrij (K; special blond). The beers, either received from brewers or bought at Belgian markets (freshly released), were analyzed in duplicate. Pilot samples of two beers (A and B), taken both before dealcoholization (BD) and after dealcoholization (AD), as well as after pasteurization (AP; 50 UP for A and 90 UP for B), were provided by AB-Solutions (Courcelles, Belgium) and brewers. Spices/herbs (coriander, orange peel, cardamom, licorice, cinnamon, ginger, and hibiscus) were supplied by Fagron (Nazareth, Belgium), and wood chips (oak, mulberry, and acacia) were obtained from Wilhelm Eder GmbH (Bad Dürkheim, Germany). Vernonia amygdalina leaves and flowers were harvested in Rwanda.

3.3. Standard Analyses on NABLABs and Pilot Samples

Prior to analysis, beers were degassed by shaking and filtered through paper filters (MN 614 ¼ Macherey-Nagel, Düren, Germany). The alcohol content was determined with DM4500 apparatus (Anton Paar GmbH, Graz, Austria), and color was analyzed by means of Analytica-EBC 9.2. and 9.6 [69]. TBA (thiobarbituric Acid Index) was analyzed according to the ASBC method Wort 21 [70].

3.4. Antioxidant Assays

The solid matrices (1 g), after grinding, were first extracted with 10 mL of a mixture of acetone/water/acetic acid (70:29.5:0.5, v/v/v) and centrifuged for 15 min at 3000 rpm. The extraction and ORAC analysis were conducted in duplicate.

3.4.1. ORAC Values of NABLABs, Chemical Standards, Pilot Samples, and Botanical Extracts

The ORAC procedure with fluorescein as a “fluorescent probe” (substrate) was carried out at 37 °C on an automated 96 white opaque wells plate reader (Synergy HT, Bio-Tek, Winooski, VT, USA) working at an excitation wavelength of 485 nm and an emission wavelength of 520 nm. The reaction was started by the thermal decomposition of AAPH. Working solutions of fluorescein (55 nM), AAPH (153 µM), and Trolox® (200 µM) were freshly prepared in phosphate buffer (75 mM, pH 7.4) from stock solutions stored under refrigeration conditions. In each well, 250 µL of fluorescein and 25 µL of the sample (suitable dilution to prepare in advance), blank, or standard (Trolox® at 8, 16, 24, 32, and 40 µM) were added. The plate was then heated to 37 °C for 10 min prior to the addition of 25 µL of AAPH. The fluorescence was measured immediately and every minute for 50 min. The ORAC values, expressed as µmol Trolox equivalents/g fresh mass (or /L for liquid extracts), were calculated with the following equation: ORAC value = (AUCsample − AUCblank)/(AUCTrolox − AUCblank) × Trolox® concentration (µM) × dilution factor with AUC = area under fluorescence curve.

3.4.2. TINH Values of NABLABs

The antioxidant activity was determined as the inhibition times of linoleic acid oxidation induced in an aqueous solution by the free radical initiator AAPH [25]. Briefly, 30 μL of the 16 mM linoleic acid dispersion (in borate buffer 0.05 M, pH 9) was added to the UV cuvette containing 2.81 mL of phosphate buffer (0.05 M, pH 7.4), prethermostated at 40 °C. The oxidation reaction was initiated at 37 °C under air by the addition of 150 µL of 40 mM AAPH solution (in phosphate buffer). Oxidation was carried out in the presence of 10 µL of beer samples. In the assay without antioxidants, lipid oxidation was measured in the presence of the same level of methanol. The oxidation rate at 37 °C was monitored by recording the increase in absorption at 234 nm caused by conjugated diene hydroperoxides. A Shimadzu UV–visible 240 spectrophotometer (Antwerp, Belgium) equipped with an automatic sample positioner allowed for the analysis of six samples every minute. The measurements were run in duplicate against the buffer and compared with a separate AAPH-free control to check for any spontaneous oxidation (AAPH has a relatively high absorbance below 260 nm, which changes as the compound decomposes). Therefore, its absorbance measured in a separate cuvette in the absence of linoleic acid was subtracted from each experimental point. The inhibition time (TINH) was estimated with Microsoft Excel (Microsoft 365 version 2404) and Geogebra Classic software (version 6.0.841.0) as the point of intersection between the tangents to the inhibition and propagation phase curves.

3.4.3. ITT Values of NABLABs

The ITT assay measures the discoloration time of an indicator, 2,6-dichlorophenolindophenol (DCPIP, 1450 mg/L), which is blue in its oxidized form and turns colorless when reduced by antioxidants in beer. First, four samples were prepared: 50 mL water with pH adjusted to that of beer + 250 µL DCPIP (comparator solution); 10 mL beer + 250 µL DCPIP (indicator solution); beer; and distilled water. Subsequently, 10 mL of each solution was placed in a Hellige’s comparator. The comparator solution, with a dilution resembling 80% DCPIP discoloration, was introduced into the left-hand lens of the comparator. This was positioned in front of the tube containing the beer to simulate the turbidity present in the indicator solution on the right. The DCPIP indicator, influenced by the antioxidants in beer, was gradually reduced and discolored. The time required for the indicator solution to reach the same discoloration as the comparator solution was then measured.

3.5. Analyses of Bitter Compounds in NABLABs and Pilot Samples by High-Performance Liquid Chromatography–Ultraviolet Detection (HPLC-UV)

Beer samples were degassed by shaking and diluted twice in methanol. After 15 min, the mixture was filtered through a Chromafil polyester filter (0.45 µm, Macherey-Nagel, Düren, Germany). Separation was performed on two C8 columns in tandem: the Zorbax Eclipse XDB-C8 150 × 4.6 mm, 5 µm, and the Zorbax Eclipse XDB-C8 150 × 4.6 mm, 3.6 µm (Agilent Technologies, Santa Clara, CA, USA), using the binary solvent system of Analytica EBC method 9.47 [69] with A: methanol; B: 1% aqueous citric acid solution (pH 7.0)–acetonitrile (70:30, v/v). Gradient elution was as follows: 15% A for 5 min, increasing A to 80% over 25 min, and 80% A for 3 min. The column temperature was kept at 35 °C, the flow rate at 1.0 mL/min, and the injection volume was 50 µL. Chromatograms were recorded throughout elution with the Empower software version 2002 (Build 1154, Waters Corporation, Milford, CT, USA). The retention time and absorption spectrum of isohumulones were obtained by injection of standards. An absorbance wavelength of 270 nm was chosen for isohumulone and alloisohumulone quantitation (absorbance spectrum λmax = 228 and 280 nm [65]). Quantitation was performed using a single-point calibration, as suggested by the EBC method 9.47 [69].

3.6. Phenols Quantitation in NABLABs and Pilot Samples

3.6.1. Total Polyphenol Measurement

Total polyphenol content was analyzed according to Analytica EBC method 9.11 [69].

3.6.2. Catechin, Epicatechin, and Procyanidin B3 Determination by HPLC-UV

Beer flavan-3-ols (catechin, epicatechin, and procyanidin B3) were extracted on Sephadex LH-20 resin. Briefly, 3 g of resin packed in a 12 mL filtration tube SPE with a polyethylene frit was preconditioned for 4 h with methanol–water (30:70, v/v). The flux was set at 0.5 mL/min. After loading 50 mL of degassed beer containing 2.8 mg/L of IST ((+)-taxifolin), the column was washed with 40 mL of methanol–water (30:70, v/v). Flavan-3-ols were recovered with 70 mL of acetone–water (70:30, v/v). The eluate was concentrated to dryness by vacuum rotary evaporation (35 °C) and dissolved in 2 mL of acetonitrile–water (30:70, v/v). The extracts were kept at −80 °C prior to analysis.
An Agilent 1200 Series liquid chromatography system (Agilent Technologies, Santa Clara, CA, USA) equipped with an autosampler, a quaternary pump, and a UV detector set at 280 nm was used. A 150 × 2.1 mm, 3 µm C18 Prevail column (HICHROM, Deerfield, IL, USA) was used at a flow rate of 0.2 mL/min. Chromatographic separation was obtained using a multilinear gradient of water containing 0.1% formic acid (A) and acetonitrile containing 0.1% formic acid (B). Gradient elution was 97–91% A, 0–5 min; 91–85% A, 5–30 min; 85–67% A, 30–60 min; 67–0% A, 60–70 min; 0–97% A, 70–75 min; and then return to the initial conditions for 15 min. Ten microliters of beer extract were injected into the column kept at 25 °C. Chromatograms were recorded throughout elution using ChemStation software (version B.04.03). Quantitation was achieved using the calibration curves (relative to the IST).

3.6.3. Tryptophan and Tyrosine Quantitation by Ultra-Performance Liquid Chromatography–UV Detection (UPLC-UV)

Briefly, 10 μL of a degassed beer sample, filtered through a Chromafil polyester filter (0.22 μm, Macherey-Nagel, Düren, Germany), was mixed with 70 μL of borate buffer and 20 μL of AQC derivatization reagent. The mixture was then heated at 55 °C for 10 min. An ACQUITY UPLC liquid chromatography system (Waters Corporation, Milford, CT, USA), equipped with a degasser, an autosampler, an oven, a quaternary pump, and a UV detector set at 210 nm was used. Separation was carried out on ACQUITY UPLC BEH C18 (100 × 2.1 mm, 1.7 μm column—Waters Corporation) at a flow rate of 0.65 mL/min, with a mixture of A (Eluent I), B (10% Eluent II in water), C (water), or D (Eluent II). Gradient elution was as follows: 0.0–0.29 min, 10–9.9% A and 90–90.1% C; 0.29–5.49 min, 9.9–9% A, 0–80% B, and 90.1–11% C; 5.49–7.10 min, 9–8% A, 80–15.6% B, 11–57.9% C, and 0–18.5% D; 7.10–7.30 min, 8% A, 15.6% B, 57.9% C, and 18.5% D; 7.30–7.69 min, 8–7.8% A, 15.6–0% B, 57.9–70.9% C, and 18.5–21.3% D; 7.69–7.99 min, 7.8–4% A, 70.9–36.3% C and 21.3–59.7% D; 7.99–8.59 min, 4% A, 36.3% C, and 59.7% D; 8.59–8.68 min, 4–10% A, 36.3–90% C, and 59.7–0% D; 8.68–10.20 min, 10% A and 90% C. One microliter of mixture was injected into the column kept at 42 °C. Chromatograms were recorded throughout elution using Empower 2 software. Tryptophan and tyrosine identification was performed by the injection of a commercial mixture of standards. Quantification was achieved using the calibration curves.

3.7. Pilot Sample Aroma Extraction

3.7.1. XAD-2 Resin Extraction of Sotolon, Methional, and Phenylacetaldehyde, and Quantification by Gas Chromatography-Electron-Impact Mass Spectrometry (GC-MS)

For apolar compounds extraction, 2 g of Amberlite XAD-2 resin was added to a 50 mL degassed beer sample containing 150 µL of 2-acetylthiophene (IST, 8 mg/L, final beer concentration = 24 µg/L). For sotolon extraction, the pH of the beer was adjusted to 11.5 with sodium hydroxide. The two mixtures were shaken at 200 rpm for 2 h. The content of the flask was then transferred into a glass column (60 × 1 cm, i.d.). For apolar aromas, the resin was first rinsed with 4 × 50 mL of Milli-Q water to eliminate sugar and other water-soluble substances. They were then eluted with 2 × 20 mL of bidistilled dichloromethane. For sotolon, the eluate from the resin and the first 50 mL of resin washing water were mixed before bringing the pH to 3.0 with hydrochloric acid. This aqueous phase was extracted three times with 40 mL of bidistilled dichloromethane (10 min, 2500 rpm). All extracts were then dried with anhydrous sodium sulfate, and 25 µL of decane or nonadecane (for sotolon) solution (250 mg/L) was added as EST before concentration reached 500 µL in a Danish– Kuderna at 45 °C (total concentration factor = 100). The final extracts were stored at −80 °C until analysis by GC-MS.
One microliter of each aroma extract was analyzed with an Agilent Technologies 7890 NB Gas Chromatograph System equipped with a splitless injector (250 °C). Apolar compounds were separated using a wall-coated open tubular (WCOT) apolar capillary column (CP-Sil 5 CB, 50 m × 0.32 mm, 1.2 µm). The oven temperature was programmed to rise from 36 to 85 °C at 20 °C/min, then to 145 °C at 1 °C/min, and to 250 °C at 3 °C/min, and then held for 30 min. Sotolon was analyzed with a WCOT polar capillary column (FFAP CB, 25 m × 0.32 mm, 0.3 µm). The oven temperature was programmed to rise from 36 to 85 °C at 20 °C/min, then to 145 °C at 1 °C/min, followed by 160 °C at 3 °C/min, and 230 °C at 3 °C/min, and then held for 30 min. The carrier gas was helium, and the pressure was set at 100 kPa (50 kPa for sotolon). The column was connected to a quadrupole mass spectrometer (Agilent 5977 MSD) operating in single-ion monitoring (SIM) mode with electron ionization at 70 eV. The following m/z values were monitored: 111 and 126 for 2-acetylthiophene, 71 and 85 for decane and nonadecane, 91 and 120 for phenylacetaldehyde, 104 and 76 for methional, and 83 and 128 for sotolon. Chromatograms were recorded throughout elution (Agilent OpenLab software version 2.1 used). Calibration curves (with areas relative to IST) were constructed for each compound, and the following equation was used for quantitation of compound A: concentration of A (in µg/L) = IST concentration (in µg/L) × (A area/IST area) × (IST response coefficient/A response coefficient). The IST relative recovery factor was set at 1 for all compounds.

3.7.2. Ag Selective Extraction of Polyfunctional Thiols, and Quantification by Gas Chromatography–Pulsed-Flame Photometric Detection (GC-PFPD)

Briefly, 2 µg/L 6-sulfanylhexan-1-ol was added as IST to 150 mL beer, which was then saturated with NaCl and stirred with 50 mL dichloromethane for 15 min. The mixture was centrifuged at 4500 rpm for 15 min. The recovered organic phase was loaded onto a Discovery Ag-ion SPE cartridge conditioned beforehand with 10 mL dichloromethane. The cartridge was rinsed with 10 mL dichloromethane, then with 20 mL acetonitrile, and finally with 10 mL ultrapure water (reversed cartridge in this last case). Free thiols were released from the Ag cartridge by percolating 20 mL washed cysteine solution (4 × 20 mL dichloromethane for washing 215 mg cysteine in 20 mL water). The eluent was extracted twice with bidistilled dichloromethane (5 mL for 5 min and 10 mL for 10 min). The resulting organic phase was dried on anhydrous sodium sulfate and concentrated to 250 µL in a Danish–Kuderna distillation apparatus and to 70 µL on a Dufton column at 45 °C. 2-Acetylthiophene was added as EST (0.5 mL at 200 µg/L added before concentration).
One microliter of free thiol extract was analyzed with an Agilent 6890N gas chromatograph equipped with a splitless injector maintained at 250 °C. Compounds were analyzed with WCOT apolar capillary column (CP-Sil 5 CB, 50 m × 0.32 mm, 1.2 µm). The helium pressure was set at 90 kPa. The oven temperature was programmed to increase from 36 to 85 °C at 20 °C/min, then to 145 °C at 1 °C/min, and finally to 220 °C at 3 °C/min, and was held for 30 min. The column was connected to the OI Analytical PFPD detector (model 5380, combustor internal diameter: 2 mm). The following parameters were selected for the PFPD detector: temperature, 250 °C; voltage, 600 V; gate width, 18 ms; gate delay, 6 ms; trigger level, 400 mV; pulse frequency, 3.33 Hz. PFPD chromatograms were recorded throughout elution. The ChemStation software was used to process the resulting data. For all thiols, the IST-relative recovery factor was set at 1 (experimental values from 0.8 to 1.2, determined beforehand by standard addition). The following equation was used for the quantitation of the commercially available standards 3SHol, and 3SHA: thiol concentration (in µg/L) = IST concentration (in µg/L) × (thiol area/IST area) × (IST weight response coefficient/thiol weight response coefficient). For the commercially unavailable standards, 3-sulfanyl-4-methylpentanol (3S4MPol), and 3-sulfanyl-4-methylpentyl acetate (3S4MPA), the good equimolarity of the PFPD detector enabled us to set the IST-relative molar response coefficients at 1 and to apply only the corrective molar weight ratio: thiol concentration (in µg/L) = IST concentration (in µg/L) × (thiol area/IST area) × (thiol molar weight /IST molar weight).

3.8. Statistical Analyses

All analytical measurements were carried out in duplicate. Multiple comparisons of means were performed with Student–Newman–Keuls tests (JMP Program). Values sharing no common letter are significantly different (p < 0.05).

4. Conclusions

Commercial NABLABs displayed only half the antioxidant capacity of conventional beers, except for three samples made with special-colored malts or dry-hopped. Surprisingly, a correlation (R2 = 0.77) was observed between the ORAC value and the isohumulone content, even though isohumulones showed almost no antioxidant activity. Phenolic compounds contributed most to the antioxidant power of NABLABs. Dealcoholization had a strong impact on the ORAC value, flavan-3-ols, sotolon, and hop polyfunctional thiols, while pasteurization mainly affected color, TBA, and Strecker aldehydes. Red sorghum mashing, dry hopping/spicing, and wood maturation could reasonably increase the antioxidant power of a NABLAB to a level approaching those of conventional beers. Interestingly, Vernonia amygdalina leaves emerged here as the best candidate, with an ORAC value (5234 μmol eq. Trolox/g) not reached by any other tested botanical ingredient. NABLAB production trials should be carried out to confirm these findings.

Author Contributions

Conceptualization, M.S. and S.C.; methodology, M.S. and H.K.; software, M.S.; validation; S.C.; formal analysis, M.S. and H.K.; investigation, M.S. and H.K.; resources, S.C.; data curation, M.S. and H.K.; writing—original draft preparation, M.S. and S.C.; writing—review and editing, S.C. and M.S.; visualization, M.S. and H.K.; supervision, S.C.; project administration, S.C.; funding acquisition, S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

The authors are indebted to ARES (Académie de Recherche et d’Enseignement Supérieur) for financial support. We are also indebted to AB-Solutions and Brasserie Licorne for kindly providing pilot dealcoholized and pasteurized samples.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

NABLABs: non-alcoholic and low-alcoholic beers, ABV: alcohol by volume, HPLC: high-performance liquid chromatography, UV: ultraviolet detection, GC: gas chromatography, PFPD: pulsed flame photometric detection, MS: mass spectrometry, IST: internal standard, EST: external standard, ORAC: oxygen radical absorbance capacity, TINH: inhibition time, ITT: indicator time test, AAPH: 2,2′-azobis(2-methylpropionamidine) dihydrochloride, TBA: thiobarbituric acid index, GAE: gallic acid equivalent, UP: pasteurization unit, 3SHol: 3-sulfanylhexan-1-ol, 3SHA: 3-sulfanylhexyl acetate, 3S4MPol: 3-sulfanyl-4-methylpentanol, 3S4MPA: 3-sulfanyl-4-methylpentyl acetate, BD: before dealcoholization, AD: after dealcoholization, AP: after pasteurization, DCPIP: 2,6-dichlorophenolindophenol, SPE: solid-phase extraction.

References

  1. Zhao, H.; Chen, W.; Lu, J.; Zhao, M. Phenolic profiles, and antioxidant activities of commercial beers. Food Chem. 2010, 119, 1150–1158. [Google Scholar] [CrossRef]
  2. Pascoe, H.M.; Ames, J.M.; Chandra, S. Critical stages of the brewing process for changes in antioxidant activity and levels of phenolic compounds in ale. J. Am. Soc. Brew. Chem. 2003, 61, 203–209. [Google Scholar] [CrossRef]
  3. Vanderhaegen, B.; Neven, H.; Verachtert, H.; Derdelinckx, G. The chemistry of beer aging–a critical review. Food Chem. 2006, 95, 357–381. [Google Scholar] [CrossRef]
  4. Uchida, M.; Ono, M. Technological approach to improve beer flavor stability: Analysis of the effect of brewing processes on beer flavor stability by the electron spin resonance method. J. Am. Soc. Brew. Chem. 2000, 58, 8–13. [Google Scholar] [CrossRef]
  5. Noel, S.; Metais, N.; Bonte, S.; Bodart, E.; Peladan, F.; Dupire, S.; Collin, S. The use of oxygen 18 in appraising the impact of oxidation process during beer storage. J. Inst. Brew. 1999, 105, 269–274. [Google Scholar] [CrossRef]
  6. Bamforth, C.W. Making sense of flavor change in beer. Tech. Q. Master Brew. Assoc. Am. 2000, 37, 165–171. [Google Scholar]
  7. Tafulo, P.A.R.; Queirós, R.B.; Delerue-Matos, C.M.; Sales, M.G.F. Control and comparison of the antioxidant capacity of beers. Food Res. Int. 2010, 43, 1702–1709. [Google Scholar] [CrossRef]
  8. Yang, D.; Gao, X. Research progress on the antioxidant biological activity of beer and strategy for applications. Trends Food Sci. Technol. 2021, 110, 754–764. [Google Scholar] [CrossRef]
  9. Rothe, J.; Fischer, R.; Cotterchio, C.; Gastl, M.; Becker, T. Analytical determination of antioxidant capacity of hop-derived compounds in beer using specific rapid assays (ORAC, FRAP) and ESR-spectroscopy. Eur. Food Res. Technol. 2023, 249, 81–93. [Google Scholar] [CrossRef]
  10. Bamforth, C.W.; Muller, R.E.; Walker, M.D. Oxygen and oxygen radicals in malting and brewing: A review. J. Am. Soc. Brew. Chem. 1993, 51, 79–88. [Google Scholar] [CrossRef]
  11. Martinez-Gomez, A.; Caballero, I.; Blanco, C.A. Phenols and melanoidins as natural antioxidants in beer. Structure, reactivity and antioxidant activity. Biomolecules 2020, 10, 400. [Google Scholar] [CrossRef] [PubMed]
  12. Koren, D.; Kun, S.; Hegyesné Vecseri, B.; Kun-Farkas, G. Study of antioxidant activity during the malting and brewing process. J. Food Sci. Technol. 2019, 56, 3801–3809. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, D.; Ou, B.; Prior, R.L. The chemistry behind antioxidant capacity assays. J. Agric. Food Chem. 2005, 53, 1841–1856. [Google Scholar] [CrossRef]
  14. Mareček, V.; Mikyška, A.; Hampel, D.; Čejka, P.; Neuwirthová, J.; Malachová, A.; Cerkal, R. ABTS and DPPH methods as a tool for studying antioxidant capacity of spring barley and malt. J. Cereal Sci. 2017, 73, 40–45. [Google Scholar] [CrossRef]
  15. De Clerck, J. Cours de Brasserie: Matières Premières, Fabrication, Installations; Volume 1 de Cours de Brasserie; Université de Louvain—Institut Agronomique Section de Brasserie: Louvain, Belgium, 1962. [Google Scholar]
  16. Chapon, L. Oxygen and beer. In Brewing Science; Pollock, J.R.A., Ed.; Academic Press: London, UK, 1981; pp. 407–455. [Google Scholar]
  17. van Strien, J. Direct measurement of the oxidation-reduction condition of wort and beer. J. Am. Soc. Brew. Chem. 1987, 45, 77–79. [Google Scholar] [CrossRef]
  18. Apak, R.; Güçlü, K.; Özyürek, M.; Bektas¸ oğlu, B.; Bener, M. Cupric ion reducing antioxidant capacity assay for food antioxidants: Vitamins, polyphenolics, and flavonoids in food extracts. In Advanced Protocols in Oxidative Stress I; Methods in Molecular Biology; Springer: Berlin/Heidelberg, Germany, 2008; Volume 477, pp. 163–193. [Google Scholar]
  19. Kaneda, H.; Kobayashi, N.; Furusho, S.; Sahara, H.; Koshino, S. Reducing activity and flavor stability of beer. Tech. Q. Master Brew. Assoc. Am. 1995, 32, 90–94. [Google Scholar]
  20. Araki, S.; Kimura, T.; Shimizu, C.; Furusho, S.; Takashio, M.; Shinotsuka, K. Estimation of antioxidative activity and its relationship to beer flavor stability. J. Am. Soc. Brew. Chem. 1999, 57, 34–37. [Google Scholar] [CrossRef]
  21. Walters, M.T.; Hughes, P.S.; Bamforth, C.W. The evaluation of natural antioxidants in beer and its raw materials. In Proceedings of the 24th European Brewery Convention, Singapore, 17–22 March 1996; pp. 103–109. [Google Scholar]
  22. Bright, D.; Stewart, G.G.; Patino, H. A novel assay for antioxidant potential of specialty malts. J. Am. Soc. Brew. Chem. 1999, 57, 133–137. [Google Scholar] [CrossRef]
  23. Carvalho, J.R.; Meireles, A.N.; Marques, S.S.; Gregório, B.J.; Ramos, I.I.; Silva, E.M.; Segundo, M.A. Exploiting kinetic features of ORAC assay for evaluation of radical scavenging capacity. Antioxidants 2023, 12, 505. [Google Scholar] [CrossRef]
  24. Haytowitz, D.B.; Bhagwat, S. USDA Database for the Oxygen Radical Absorbance Capacity (ORAC) of selected foods; Release 2; US Department of Agriculture: Beltsville, MD, USA, 2010; Volume 3, pp. 10–48.
  25. Liégeois, C.; Lermusieau, G.; Collin, S. Measuring antioxidant efficiency of wort, malt, and hops against the 2,2′-azobis (2-amidinopropane) dihydrochloride-induced oxidation of an aqueous dispersion of linoleic acid. J. Agric. Food Chem. 2000, 48, 1129–1134. [Google Scholar] [CrossRef]
  26. Andersen, M.L.; Outtrup, H.; Skibsted, L.H. Potential antioxidants in beer assessed by ESR spin trapping. J. Agric. Food Chem. 2000, 48, 3106–3111. [Google Scholar] [CrossRef] [PubMed]
  27. Uchida, M.; Suga, S.; Ono, M. Improvement for oxidative flavor stability of beer—Rapid prediction method for beer flavor stability by electron spin resonance spectroscopy. J. Am. Soc. Brew. Chem. 1996, 54, 205–211. [Google Scholar] [CrossRef]
  28. Kaneda, H.; Kobayashi, N.; Tsuchiya, Y.; Munekata, M.; Koshino, S. Some applications of chemiluminescence analysis to brewing. J. Am. Soc. Brew. Chem. 1994, 52, 163–168. [Google Scholar] [CrossRef]
  29. Guido, L.F.; Boivin, P.; Benismail, N.; Gonçalves, C.R.; Barros, A.A. An early development of the nonenal potential in the malting process. Eur. Food Res. Technol. 2005, 220, 200–206. [Google Scholar] [CrossRef]
  30. Čechovská, L.; Konečný, M.; Velíšek, J.; Cejpek, K. Effect of Maillard reaction on reducing power of malts and beers. Czech J. Food Sci. 2012, 30, 548–558. [Google Scholar] [CrossRef]
  31. Piazzon, A.; Forte, M.; Nardini, M. Characterization of phenolics content and antioxidant activity of different beer types. J. Agric. Food Chem. 2010, 58, 10677–10683. [Google Scholar] [CrossRef]
  32. Goupy, P.; Hugues, M.; Boivin, P.; Amiot, M.J. Antioxidant composition and activity of barley (Hordeum vulgare) and malt extracts and of isolated phenolic compounds. J. Sci. Food Agric. 1999, 79, 625–1634. [Google Scholar] [CrossRef]
  33. Callemien, D.; Collin, S. Involvement of flavanoids in beer color instability during storage. J. Agric. Food Chem. 2007, 55, 9066–9073. [Google Scholar] [CrossRef] [PubMed]
  34. Rivero, D.; Pérez-Magariño, S.; González-Sanjosé, M.L.; Valls-Belles, V.; Codoñer, P.; Muñiz, P. Inhibition of induced DNA oxidative damage by beers: Correlation with the content of polyphenols and melanoidins. J. Agric. Food Chem. 2005, 53, 3637–3642. [Google Scholar] [CrossRef]
  35. Zhao, H.; Li, H.; Sun, G.; Yang, B.; Zhao, M. Assessment of endogenous antioxidative compounds and antioxidant activities of lager beers. J. Sci. Food Agric. 2013, 93, 910–917. [Google Scholar] [CrossRef]
  36. Rahman, M.J.; Liang, J.; Eskin, N.M.; Eck, P.; Thiyam-Holländer, U. Identification of hydroxycinnamic acid derivatives of selected canadian and foreign commercial beer extracts and determination of their antioxidant properties. LWT 2020, 122, 109021–109029. [Google Scholar] [CrossRef]
  37. Silva Ferreira, C.; Simon, M.; Collin, S. Why catechin and epicatechin from early hopping impact the color of aged dry-hopped beers while flavan-3-ol oligomers from late and dry hopping increase colloidal instability. J. Am. Soc. Brew. Chem. 2023, 81, 255–264. [Google Scholar] [CrossRef]
  38. Simon, M.; Collin, S. Why oxidation should be still more feared in NABLABs: Fate of polyphenols and bitter compounds. Beverages 2022, 8, 61. [Google Scholar] [CrossRef]
  39. Guido, L.F. Sulfites in beer: Reviewing regulation, analysis and role. Sci. Agric. 2016, 73, 189–197. [Google Scholar] [CrossRef]
  40. Sisein, E.A. Biochemistry of free radicals and antioxidants. Sch. Acad. J. Biosci. 2014, 2, 110–118. [Google Scholar]
  41. Spreng, S.; Hofmann, T. Activity-guided identification of in vitro antioxidants in beer. J. Agric. Food Chem. 2018, 66, 720–731. [Google Scholar] [CrossRef] [PubMed]
  42. Djordjević, S.; Popović, D.; Despotović, S.; Veljović, M.; Atanacković, M.; Cvejić, J.; Nedović, V.; Leskošek-Čukalović, I. Extracts of medicinal plants as functional beer additives. Chem. Ind. Chem. Eng. Q. 2016, 22, 301–308. [Google Scholar] [CrossRef]
  43. Martínez, A.; Vegara, S.; Herranz-López, M.; Martí, N.; Valero, M.; Micol, V.; Saura, D. Kinetic changes of polyphenols, anthocyanins and antioxidant capacity in forced aged hibiscus ale beer. J. Inst. Brew. 2017, 123, 58–65. [Google Scholar] [CrossRef]
  44. Kawa-Rygielska, J.; Adamenko, K.; Kucharska, A.Z.; Prorok, P.; Piórecki, N. Physicochemical and antioxidative properties of Cornelian cherry beer. Food Chem. 2019, 281, 147–153. [Google Scholar] [CrossRef]
  45. Ducruet, J.; Rébénaque, P.; Diserens, S.; Kosińska-Cagnazzo, A.; Héritier, I.; Andlauer, W. Amber ale beer enriched with goji berries–The effect on bioactive compound content and sensorial properties. Food Chem. 2017, 226, 109–118. [Google Scholar] [CrossRef]
  46. Deng, Y.; Lim, J.; Lee, G.H.; Nguyen, T.T.H.; Xiao, Y.; Piao, M.; Kim, D. Brewing rutin-enriched lager beer with buckwheat malt as adjuncts. J. Microbiol. Biotechnol. 2019, 29, 877–886. [Google Scholar] [CrossRef] [PubMed]
  47. Garzón, A.G.; Torres, R.L.; Drago, S.R. Changes in phenolics, γ-aminobutyric acid content and antioxidant, antihypertensive and hypoglycaemic properties during ale white sorghum (Sorghum bicolor (L.) Moench) brewing process. Int. J. Food Sci. Technol. 2019, 54, 1901–1908. [Google Scholar] [CrossRef]
  48. Gorjanovic, S.Z.; Novakovic, M.M.; Potkonjak, N.I.; Leskosek-Cukalovic, I.; Suznjevic, D.Z. Application of a novel antioxidative assay in beer analysis and brewing process monitoring. J. Agric. Food Chem. 2010, 58, 744–751. [Google Scholar] [CrossRef] [PubMed]
  49. Vinson, J.A.; Mandarano, M.; Hirst, M.; Trevithick, J.R.; Bose, P. Phenol antioxidant quantity and quality in foods: Beers and the effect of two types of beer on an animal model of atherosclerosis. J. Agric. Food Chem. 2003, 51, 5528–5533. [Google Scholar] [CrossRef] [PubMed]
  50. Milani, E.A.; Silva, F.V. Pasteurization of beer by non-thermal technologies. Front. Food. Sci. Technol. 2022, 1, 798676–798690. [Google Scholar] [CrossRef]
  51. Rachon, G.; Rice, C.J.; Pawlowsky, K.; Raleigh, C.P. Challenging the assumptions around the pasteurisation requirements of beer spoilage bacteria. J. Inst. Brew. 2018, 124, 443–449. [Google Scholar] [CrossRef]
  52. Ferreira, C.S.; Collin, S. Fate of bitter compounds through dry-hopped beer aging. Why cis-humulinones should be as feared as trans-isohumulones? J. Am. Soc. Brew. Chem. 2020, 78, 103–113. [Google Scholar] [CrossRef]
  53. Intelmann, D.; Hofmann, T. On the autoxidation of bitter-tasting iso-α-acids in beer. J. Agric. Food Chem. 2010, 58, 5059–5067. [Google Scholar] [CrossRef]
  54. Simon, M.; Vuylsteke, G.; Collin, S. Flavor defects of fresh and aged NABLABs: New challenges against oxidation. J. Am. Soc. Brew. Chem. 2023, 81, 533–543. [Google Scholar] [CrossRef]
  55. Lermusieau, G.; Liégeois, C.; Collin, S. Reducing power of hop cultivars and beer ageing. Food Chem. 2001, 72, 413–418. [Google Scholar] [CrossRef]
  56. Chenot, C.; Simon, M.; Dusart, A.; Collin, S. Exploring hop varieties with discriminating flavan-3-ol profiles likely to improve color and colloidal stability of beers. Beverages 2023, 9, 67. [Google Scholar] [CrossRef]
  57. Rice-Evans, C.A.; Miller, N.J.; Paganga, G. Structure-antioxidant activity relationships of flavonoids and phenolic acids. Free Radic. Biol. Med. 1996, 20, 933–956. [Google Scholar] [CrossRef] [PubMed]
  58. Wannenmacher, J.; Cotterchio, C.; Schlumberger, M.; Reuber, V.; Gastl, M.; Becker, T. Technological influence on sensory stability and antioxidant activity of beers measured by ORAC and FRAP. J. Sci. Food Agric. 2019, 99, 6628–6637. [Google Scholar] [CrossRef]
  59. Lund, M.N.; Hoff, S.; Berner, T.S.; Lametsch, R.; Andersen, M.L. Effect of pasteurization on the protein composition and oxidative stability of beer during storage. J. Agric. Food Chem. 2012, 60, 12362–12370. [Google Scholar] [CrossRef] [PubMed]
  60. Liu, C.; Shen, Y.; Yin, X.; Peng, L.; Li, Q. Influence of pasteurization and microfiltration on beer aging and anti-aging levels. J. Am. Soc. Brew. Chem. 2014, 72, 285–295. [Google Scholar] [CrossRef]
  61. Hoff, S.; Lund, M.N.; Petersen, M.A.; Frank, W.; Andersen, M.L. Storage stability of pasteurized non-filtered beer. J. Inst. Brew. 2013, 119, 172–181. [Google Scholar] [CrossRef]
  62. Kaneda, H.; Kano, Y.; Osawa, T.; Kawakishi, S.; Koshino, S. Free radical reactions in beer during pasteurization. Int. J. Food Sci. Technol. 1994, 29, 195–200. [Google Scholar] [CrossRef]
  63. Callemien, D.; Collin, S. Polyphenol and colour stability through beer ageing: Comparison of polyphenol quantification assays. In Proceedings of the European Brewery Congress, Venice, Italy, 6–10 May 2007; Volume 55, pp. 1–6. [Google Scholar]
  64. Liguori, L.; De Francesco, G.; Russo, P.; Perretti, G.; Albanese, D.; Di Matteo, M. Production and characterization of alcohol-free beer by membrane process. Food Bioprod. Process. 2015, 94, 158–168. [Google Scholar] [CrossRef]
  65. Verzele, M.; De Keukeleire, D. Chemistry and Analysis of Hop and Beer Bitter Acids; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
  66. Lyumugabe, F.; Gros, J.; Thonart, P.; Collin, S. Occurrence of polyfunctional thiols in sorghum beer ‘ikigage’ made with Vernonia amygdalina ‘umubirizi’. Flavour Fragr. J. 2012, 27, 372–377. [Google Scholar] [CrossRef]
  67. Bröhan, M.; Jerkovic, V.; Wilmotte, R.; Collin, S. Catechins and derived procyanidins in red and white sorghum: Their contributions to antioxidant activity. J. Inst. Brew. 2011, 117, 600–607. [Google Scholar] [CrossRef]
  68. Sterckx, F.L.; Saison, D.; Delvaux, F.R. Wood aging of beer. Part I: Influence on beer flavor and monophenol concentrations. J. Am. Soc. Brew. Chem. 2012, 70, 55–61. [Google Scholar] [CrossRef]
  69. European Brewery Convention. Analytica-EBC; Fachverlag Hans Carls: Nürnberg, Germany, 2006. [Google Scholar]
  70. ASBC. Methods of Analysis, Method Wort 21. Thiobarbituric Acid Index; American Society of Brewing Chemists: St. Paul, MN, USA, 2009. [Google Scholar]
Molecules 29 02370 g001

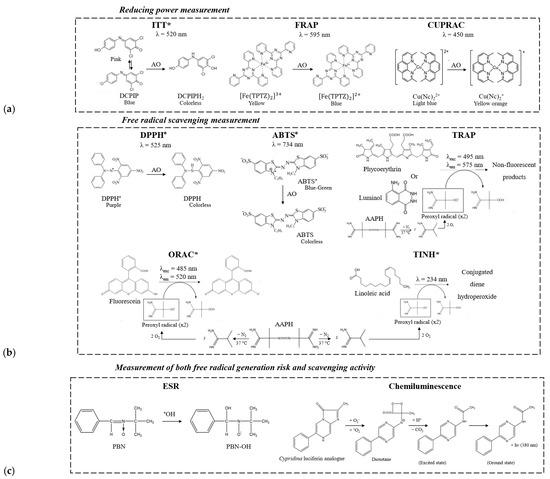

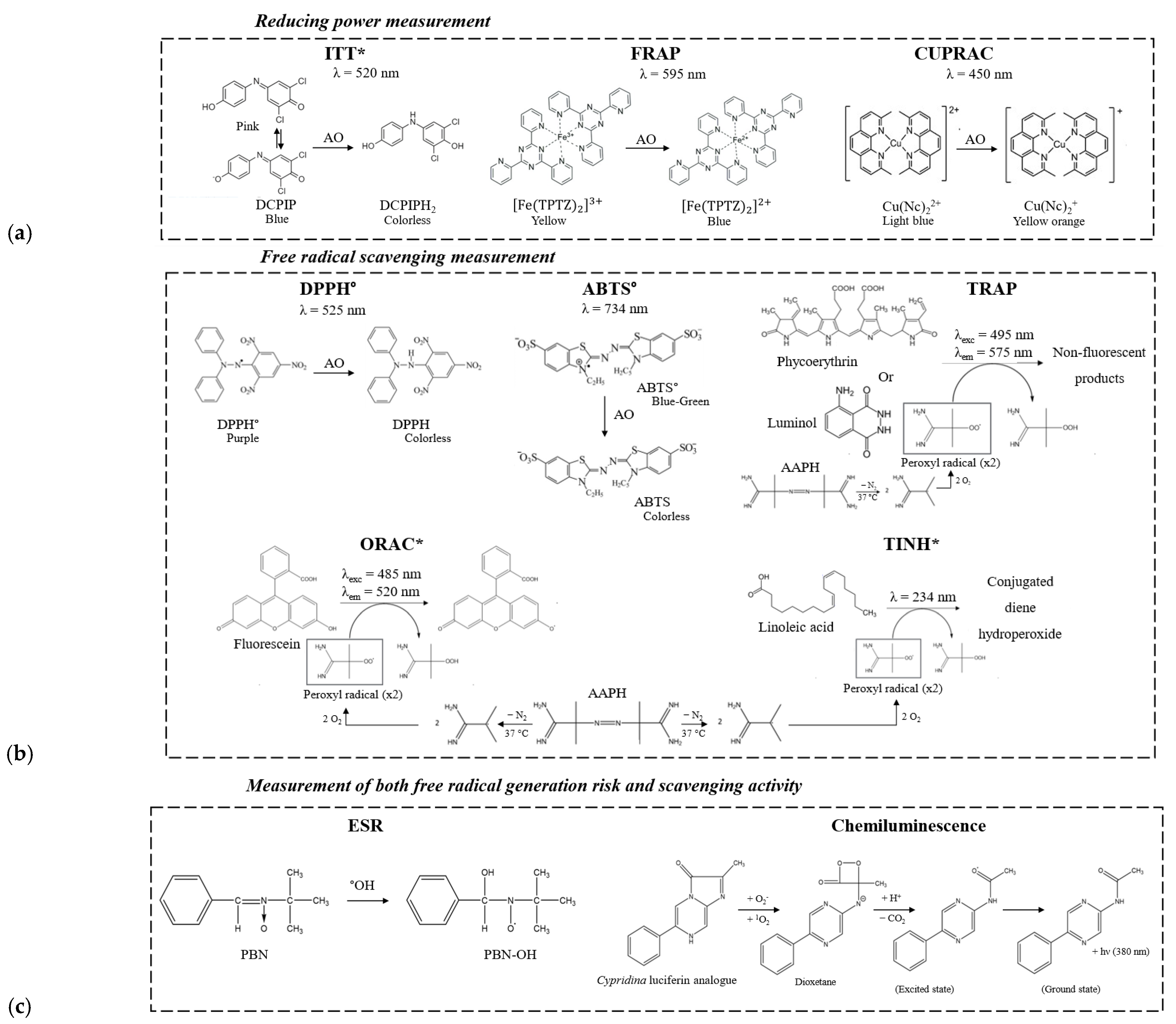

Figure 1. Examples of antioxidant activity assays used in the brewing field. * Selected in the present study.
Figure 1. Examples of antioxidant activity assays used in the brewing field. * Selected in the present study.
Molecules 29 02370 g001
Molecules 29 02370 g002

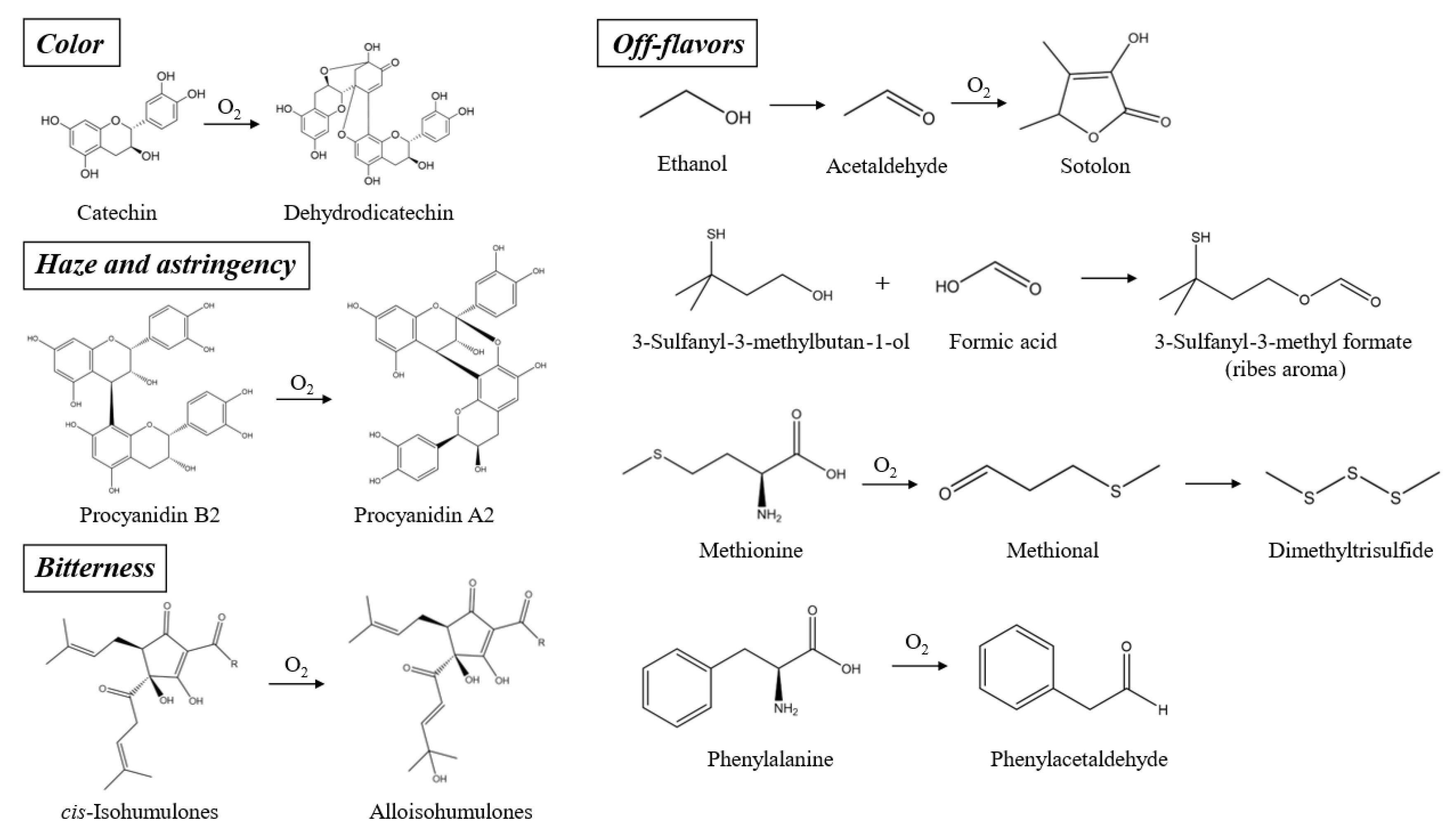

Figure 2. Oxidation of flavan-3-ols, isohumulones, and precursors of odorants, impacting color, haze, astringency, bitterness, and flavor.
Figure 2. Oxidation of flavan-3-ols, isohumulones, and precursors of odorants, impacting color, haze, astringency, bitterness, and flavor.
Molecules 29 02370 g002
Molecules 29 02370 g003

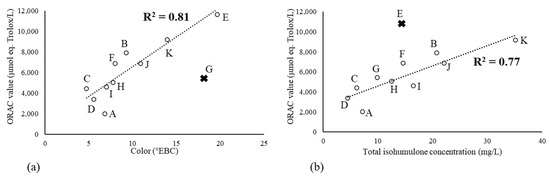

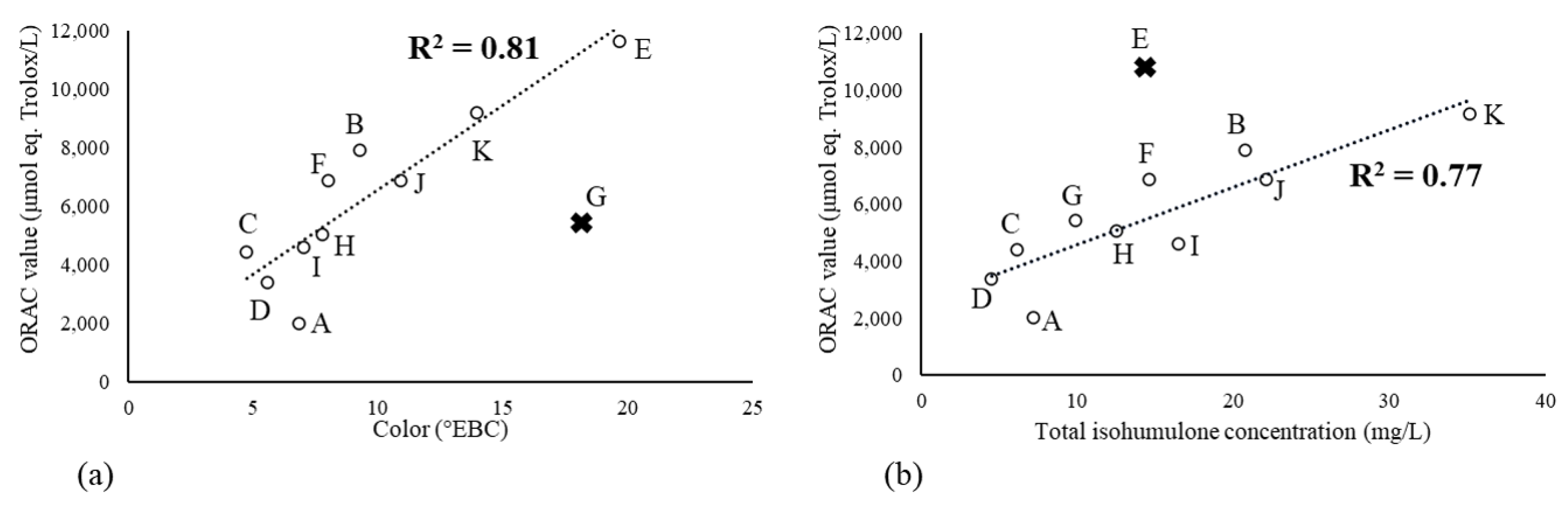

Figure 3. Correlations for fresh NABLABs between ORAC value and (a) color or (b) total isohumulone concentration (letter: name of sample and cross: sample exclude from correlation).
Figure 3. Correlations for fresh NABLABs between ORAC value and (a) color or (b) total isohumulone concentration (letter: name of sample and cross: sample exclude from correlation).
Molecules 29 02370 g003
Molecules 29 02370 g004
Figure 4. Correlations for fresh NABLABs between ORAC values and (a) TINH or (b) ITT values (letter: name of sample).
Figure 4. Correlations for fresh NABLABs between ORAC values and (a) TINH or (b) ITT values (letter: name of sample).
Molecules 29 02370 g004
Table 1. Ethanol, color, isohumulones, phenols, and antioxidant activity (ORAC, TINH, and ITT values) determined for fresh NABLABs. Values in parentheses give the contribution (%) of each fraction to the measured ORAC value, determined on the basis of analyses performed on four reference standards (0.1, 11.2, 2.1, and 1.0 μmol eq. Trolox/μmol for isohumulone, catechin, tryptophan, and tyrosine).
Table 1. Ethanol, color, isohumulones, phenols, and antioxidant activity (ORAC, TINH, and ITT values) determined for fresh NABLABs. Values in parentheses give the contribution (%) of each fraction to the measured ORAC value, determined on the basis of analyses performed on four reference standards (0.1, 11.2, 2.1, and 1.0 μmol eq. Trolox/μmol for isohumulone, catechin, tryptophan, and tyrosine).
Beer SamplesEthanol (% v/v)Color (°EBC)Isohumulones (mg/L)Phenols (mg/L)Antioxidant Activity
cis-trans-Total
polyphenols 		(+)-Catechin(−)-EpicatechinProcyanidin B3TryptophanTyrosineORAC value (μmol eq. Trolox/L)TINH (min)ITT
(min)
NABLABsSpecial yeasts
A0.56.95.5 e (<0.1)1.7 e,f (<0.1)43 f (82)1.0 f (1.9)0.3 f (0.6)1.1 c (1.1)2.7 g (1.3)4.8 i (1.3)2014 g15 f0.7 d
B0.39.316.0 c (<0.1)4.7 b (<0.1)124 d (60)1.5 e (0.7)1.0 b (0.5)2.0 b (0.5)15.9 d (2.0)25.5 f (1.7)7906 c29 c14 b
C0.24.75.8 e (<0.1)0.3 g (<0.1)135 d (>100)3.5 a (3.0)1.2 a (1.0)1.0 c (0.4)15.4 e (3.5)26.0 e (3.2)4428 e25 d14 b
Limited fermentation or cold contact
D0.85.64.3 e (<0.1)0.2 g (<0.1)56 f (64)2.1 b (2.3)0.9 c (1.0)1.2 c (0.7)nd12.4 h (2.0)3382 f20 e66 a
E0.119.710.9 d (<0.1)3.6 c (<0.1)149 d (49)1.1 f (0.4)0.8 c,d (0.3)0.7 c (0.1)16.0 d (1.4)35.0 c (1.6)11,637 a43 b0.8 d
Vacuum dealcoholization
F<0.18.012.0 d (<0.1)2.6 d,e (<0.1)84 e (47)1.4 e (0.8)0.8 c,d (0.5)0.9 c (0.3)17.6 b (2.6)33.0 d (2.6)6865 d21 e4 c
G<0.117.89.4 d (<0.1)0.5 g (<0.1)171 c (>100)1.6 d,e (1.1)0.6 e (0.4)0.9 c (0.3)0.7 h (0.1)3.4 j (0.3)5420 e28 c3 c
H0.17.810.7 d (<0.1)1.8 e,f (<0.1)68 e,f (52)1.8 c,d (1.4)0.3 f (0.2)1.0 c (0.4)16.5 c (3.3)38.0 a (4.1)5047 e20 e0.7 d
I<0.17.015.3 c (<0.1)1.2 f,g (<0.1)50 f (42)0.9 f (0.7)0.3 f (0.2)0.7 c (0.3)8.6 f (1.9)24.1 g (2.8)4621 e20 e12 b
J<0.110.918.9 b (<0.1)3.2 c,d (<0.1)269 b (>100)1.9 b,c (1.1)0.7 d (0.4)1.1 c (0.3)ndnd6890 d24 d5 c
Filtration dealcoholization
K0.513.928.9 a (<0.1)6.2 a (<0.1)304 a (>100)3.6 a (1.5)1.0 b (0.4)2.6 a (0.5)19.0 a (2.1)35.5 b (2.1)9193 b51 a0.7 d
Conventional beers
Lager5.25.7 10,171 b
Dry-hopped 6.018.211,456 a
Trappist brown beer9.060.012,332 a
Within a column, values with different letters are significantly different (p < 0.05) according to the Student–Newman–Keuls test; nd: not detected in sample by UPLC.
Table 2. Antioxidant activity, color, thermal load, bitter compounds, phenols, and aromas in two pilot samples before dealcoholization (BD), after dealcoholization (AD), and after pasteurization (AP).
Table 2. Antioxidant activity, color, thermal load, bitter compounds, phenols, and aromas in two pilot samples before dealcoholization (BD), after dealcoholization (AD), and after pasteurization (AP).
Sample ASample B
BDADAPBDADAP
Antioxidant Activity
ORAC value (μmol eq. Trolox/L)8238 a3372 b1042 c7204 a355 b291 b
Thermal indicators
Color (°EBC)9.07.09.56.55.58.5
TBA35 c43 b60 a12 c14 b36 a
Bitter compounds
Alloisohumulones (mg/L eq. isohumulones)0.2 a0.4 a0.6 a0.1 b0.2 a,b0.3 a
cis-Isohumulones (mg/L)9.3 a8.6 a,b7.6 b11.4 a10.0 b8.8 c
trans-Isohumulones (mg/L)6.0 a5.2 a,b3.5 b6.0 a5.1 b4.8 b
Phenols (mg/L)
Total polyphenols 144 a134 a148 a154 a89 b107 a
Catechin2.0 a1.2 b0.5 c3.2 a1.5 b1.3 b
Epicatechin1.0 a0.6 a0.5 a1.4 a0.8 a0.6 a
Procyanidin B32.0 a1.4 a1.4 a1.8 a1.2 a0.9 a
Stale odorants and pleasant polyfunctional thiols (μg/L)
Sotolon (thr. = 0.8 μg/L)0.2 c0.6 b0.9 a0.1 c0.3 b1.4 a
Methional (thr. = 0.5 μg/L)0.5 b0.5 b1.3 a0.7 b0.6 b2.5 a
Phenylacetaldehyde (thr. = 5.4 μg/L)7.0 b8.1 b28.4 a7.2 b5.9 b10.4 a
3SHol (thr. = 0.055 μg/L)4.3 a0.3 bndndndnd
3SHA (thr. = 0.005 μg/L)nqndnd0.3 a0.1 b0.1 b
3S4MPol (thr. = 0.07 μg/L)0.3 and0.3 b0.7 a0.4 b0.3 b
3S4MPA (thr. = 0.16 μg/L)0.9 and0.5 b0.7 andnd
thr. = perception threshold, nd = not detected in sample, nq = not quantifiable; within a line, values with different letters are significantly different (p < 0.05) according to the Student–Newman–Keuls test.
Table 3. ORAC values of brewing antioxidants, alternative cereals, botanical ingredients, spices, and wood chips, and amounts required to achieve the antioxidant power of a conventional beer.
Table 3. ORAC values of brewing antioxidants, alternative cereals, botanical ingredients, spices, and wood chips, and amounts required to achieve the antioxidant power of a conventional beer.
ORAC Value
(μmol eq. Trolox/g)		Amount Required (g/hL Beer for 100% Recovery) to Bring the ORAC Value of a NABLAB (on Average 6127 μmol eq. Trolox/L) to the Antioxidant Power of a Conventional Beer
(on Average 11,320 μmol eq. Trolox/L)
Common brewing antioxidants
Ascorbic acid5982 a87
Potassium metabisulfite1344 c,d386
Non-conventional cereals
Unmalted white sorghum24 k21,638
Unmalted red sorghum390 h,i,j,k1332
Rwandan traditional malted red sorghum855 d,e,f,g,h607
Hops
Citra T-90 pellets615 e,f,g,h,i,j844
Saaz T-90 pellets1101 c,d,e472
Spices/herbs and other botanical ingredients
Coriander273 i,j,k1902
Orange peel510 f,g,h,i,j,k1018
Cardamom56 k9273
Licorice212 i,j,k2450
Cinnamon907 d,e,f,g,h573
Ginger721 e,f,g,h,i720
Hibiscus477 g,h,i,j,k1089
Vernonia amygdalina leaves5234 b99
Vernonia amygdalina flowers 1457 c356
Wood chips
Oak980 c,d,e,f,g530
Acacia1036 c,d,e,f501
Mulberry148 j,k3509
Within a column, values with different letters are significantly different (p < 0.05) according to the Student–Newman–Keuls test.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Simon, M.; Kageruka, H.; Collin, S. Use of Botanical Ingredients: Nice Opportunities to Avoid Premature Oxidation of NABLABs by Increasing Their ORAC Values Strongly Impacted by Dealcoholization or Pasteurization. Molecules 2024, 29, 2370. https://doi.org/10.3390/molecules29102370

AMA Style

Simon M, Kageruka H, Collin S. Use of Botanical Ingredients: Nice Opportunities to Avoid Premature Oxidation of NABLABs by Increasing Their ORAC Values Strongly Impacted by Dealcoholization or Pasteurization. Molecules. 2024; 29(10):2370. https://doi.org/10.3390/molecules29102370

Chicago/Turabian Style

Simon, Margaux, Hubert Kageruka, and Sonia Collin. 2024. "Use of Botanical Ingredients: Nice Opportunities to Avoid Premature Oxidation of NABLABs by Increasing Their ORAC Values Strongly Impacted by Dealcoholization or Pasteurization" Molecules 29, no. 10: 2370. https://doi.org/10.3390/molecules29102370

Article Metrics

Back to TopTop
