Genetic Variation and Biological Activity of Two Closely Related Alphabaculoviruses during Serial Passage in Permissive and Semi-Permissive Heterologous Hosts

by
Isabel M. Belda
1,
Inés Beperet
2,
Trevor Williams
3,* and
Primitivo Caballero
1,2,*
1
Institute for Multidisciplinary Research in Applied Biology, Universidad Pública de Navarra, 31006 Pamplona, Navarra, Spain
2
Departamento de Investigación y Desarrollo, Bioinsectis SL, Pol. Ind. Mocholi Plaza Cein 5, Nave A14, 31110 Noain, Navarra, Spain
3
Instituto de Ecología AC, Xalapa, 91073 Veracruz, Mexico
*
Authors to whom correspondence should be addressed.
Viruses 2019, 11(7), 660; https://doi.org/10.3390/v11070660
Submission received: 14 June 2019 / Revised: 16 July 2019 / Accepted: 17 July 2019 / Published: 18 July 2019
(This article belongs to the Special Issue Insect Viruses and Pest Management)
Browse Figures
Versions Notes

Abstract

:
Phylogenetic analyses suggest that Mamestra brassicae multiple nucleopolyhedrovirus (MbMNPV) and Helicoverpa armigera multiple nucleopolyhedrovirus (HearMNPV) may be strains of the same virus species. Most of the studies comparing their biological activities have been performed in their homologous hosts. A comparison of host range and stability in alternative hosts was performed. The host range of these viruses was compared using high concentrations of inoculum to inoculate second instars of six species of Lepidoptera. One semi-permissive host (Spodoptera littoralis) and one permissive host (S. exigua) were then selected and used to perform six serial passages involving a concentration corresponding to the ~25% lethal concentration for both viruses. Restriction endonuclease analysis showed fragment length polymorphisms in every host-virus system studied. In S. littoralis, serial passage of MbMNPV resulted in decreased pathogenicity and an increase in speed-of-kill, whereas no significant changes were detected for HearMNPV with respect to the initial inoculum. In contrast, both viruses showed a similar trend in S. exigua. These results highlight the low genetic diversity and a high phenotypic stability of HearMNPV with respect to the original inoculum after six successive passages in both insect hosts. This study concludes that host-baculovirus interactions during serial passage are complex and the process of adaptation to a novel semi-permissive host is far from predictable.

1. Introduction

The family Baculoviridae comprises double-stranded DNA viruses that are specific to invertebrate hosts. Their insecticidal properties combined with high host specificity mean that they can be valuable agents for the biological control of insect pests of field and greenhouse crops and in forest ecosystems [1,2]. Baculoviruses belonging to the genus Alphabaculovirus (lepidopteran-specific nucleopolyhedroviruses, NPV) show important variation in their host range, from viruses that are highly host specific, such as Lymantria dispar multiple nucleopolyhedrovirus (LdMNPV), to viruses that can productively infect multiple species of hosts from different lepidopteran families, such as Autographa californica multiple nucleopolyhedrovirus (AcMNPV) [3].
Baculovirus classification based on the host from which the virus was isolated has obvious drawbacks for viruses that can productively infect multiple species of hosts. This can also create confusion when several baculoviruses are isolated from the same host species. To address this issue, the International Committee on Taxonomy of Viruses (ICTV) determined that the definition of species status should involve phylogenetic criteria for lepidopteran specific baculoviruses, based on the genetic distances of the lef-8, lef-9 and polh/gran genes measured by the Kimura 2-parameter (K2P) value [4]. For viruses with intermediate K2P values, additional information is needed to decide whether particular baculoviruses belong to the same species or not. Therefore, information on biological properties and ecological niche can contribute to species definitions for closely-related viruses [5]. For example, according to their genetic distance characteristics, Helicoverpa armigera multiple NPV (HearMNPV), Mamestra brassicae multiple NPV (MbMNPV) and Mamestra configurata NPV-B (MacoMNPV-B) may be considered as strains of the same virus species [4,5,6,7,8,9], although the ICTV currently considers MbMNPV and MacoMNPV-B as different species [10]. Notwithstanding the above, recent alternative approaches based on coalescence theory allow the clustering of sequences into species groups, which may prove particularly valuable for species delimitation in baculoviruses [9].
Both MbMNPV and HearMNPV can productively infect a relatively wide range of lepidopteran species [11,12,13]. Biological studies confirm that these viruses share a high degree of similarity [14,15]. However, the biological activity of these viruses has only been quantified and compared in the respective homologous hosts, M. brassicae and H. armigera [14]. Importantly, the homologous host, which is usually the host species from which the virus was first isolated, is not necessarily the species in which the virus has the highest biological activity [3,13]. In this sense, further studies of host range and biological activities in alternate hosts could provide a better understanding of the biological similarities between MbMNPV and HearMNPV.
Host range in baculoviruses is characterized by high variation in the susceptibility of different hosts to a particular virus [16], but is currently difficult to predict from phylogenetic relationships [3]. A host species that dies from polyhedrosis disease following inoculation with a dose of occlusion bodies (OBs) similar to that of the homologous host of the same developmental stage, is usually classified as a permissive species. In contrast, a host species that requires a much larger inoculum dose to elicit lethal polyhedrosis disease, or in which the virus replicates poorly and OB yields are low, is usually classified as a semi-permissive species [17].
Natural baculovirus populations are characterized by high genetic variability that is likely to influence the host range and their ability to adapt to novel hosts [18]. Serial passage experiments have shown that baculoviruses can undergo genetic and phenotypic changes due to genetic bottlenecks and genetic drift when the inoculum is repeatedly used to infect semi-permissive insect hosts and cells [19,20,21,22]. During serial passage, adaptation to the semi-permissive host can involve complex genetic diversification, including alterations in the abundance of particular genotypic variants or the emergence of new genotypes due to recombination events [18,21]. Furthermore, replication in a particular host also affects virus composition, as a proteomic analysis of budded virions (BV) and occlusion derived virions (ODV) of MbMNPV following replication in two different host species has revealed the presence of host-specific proteins associated with virions [23].
In this study, MbMNPV and HearMNPV were selected in order to investigate the degree of similarity of their biological properties in alternative hosts. First, the degree of susceptibility to these viruses was studied in six different lepidopteran pest species. One semi-permissive and one permissive host were then selected for serial passage studies. The genetic variability and biological activity of each virus in the semi-permissive host Spodoptera littoralis and in the permissive host S. exigua was studied with the aim of identifying the variables (type of host, virus identity or number of passages) that most affect the genetic and phenotypic characteristics that contribute to improving the insecticidal properties of these viruses.

2. Materials and Methods

2.1. Insects and Viruses

The larvae of lepidopteran species were obtained from laboratory colonies reared at the Universidad Pública de Navarra (UPNA) and maintained at 25 ± 1 °C, 75% relative humidity and 16 h light: 8 h dark photoperiod on a wheat germ-based semi-synthetic diet [24]. A colony of S. littoralis was obtained from Israel, whereas the S. exigua colony was provided by Universitat de Valencia, Valencia, Spain. Due to the detection of a SeMNPV infection during serial passage in this species, a new S. exigua colony was established from eggs provided by Entomotech (Almería, Spain). These insects were tested for the presence of persistent SeMNPV infections by qPCR before establishing the new colony.
The MbMNPV strain was isolated from the microbial insecticide Mamestrin® (NPP, Nogueres, France). In contrast, HearMNPV, originally from the former USSR [25], was kindly provided by D. Winstanley (Horticulture Research International, Wellesbourne, Warwick, UK). The OBs of each virus were used to orally inoculate fifth instars of the respective homologous hosts, M. brassicae and H. armigera, at a concentration that resulted in approximately 90% mortality, to obtain the passage zero population of each virus, named MbMNPV-P0 and HearMNPV-P0.

2.2. Host Range Screening of MbMNPV and HearMNPV

In order to compare the host range of each virus, susceptibility tests were performed on six lepidopteran species (H. armigera, Lobesia botrana, M. brassicae, Ostrinia nubilalis, S. exigua and S. littoralis). For each species, groups of 28 newly-molted second instars that had been starved for 12 h were inoculated with a single high concentration (5 × 106 OBs/mL) of MbMNPV OBs or HearMNPV OBs using the droplet feeding method [26]. The larvae that drank OB suspension within 10 min were reared individually at 25 ± 1 °C in cups with semi-synthetic diet and mortality was recorded until larvae had died or pupated. The groups of 28 mock-infected larvae were used as the control. Each test was performed in triplicate using different batches of insects. Host species were classified as non-permissive (0% mortality), semi-permissive (<70% mortality) or permissive (>70% mortality). In order to preclude the activation of a hypothetical latent infection in a host species that experienced virus-induced mortality, the OBs from virus-killed cadavers of each species were re-amplified in fourth instars of the corresponding experimental host. The resulting virus-killed cadavers were homogenized in sterile water and filtered through muslin. The OBs were washed twice with 0.1% sodium dodecyl sulfate (SDS) and twice with double-distilled water and re-suspended in double-distilled water. Genomic DNA was then extracted and subjected to restriction endonuclease analysis to confirm the identity of the virus produced. For this, ODVs were released from 2 × 108 OBs by mixing 20 μL of OB suspension with 50 μL of 0.5 M Na2CO3, 25 μL of 10% (w/v) SDS and 155 μL of sterile double-distilled water followed by incubation at 60 °C during 10 min. The undissolved OBs were removed by centrifugation at 2300× g for 5 min. The supernatant was treated with 15 μL of proteinase K (20 mg/mL) and incubated at 50 °C for 30 min. Protein was then precipitated by the addition of 150 μL of MPC Protein Precipitation Reagent (Epicentre Technologies Corp., Madison, WI, USA). Viral DNA was isolated by alcohol precipitation. The resulting pellet was re-suspended in 60 μL of 0.1 × TE buffer (10 mM Tris, 1 mM EDTA, pH 8.0). Approximately 1 μg of DNA was digested with 2 µL PstI and HindIII (FastDigest, ThermoFisher) in a total volume of 20 µL at 37 °C for 1 h. The restriction fragments were separated by electrophoresis in 1% agarose gels in TAE buffer (40 mM Tris, 20 mM acetic acid, 1 mM EDTA, pH 8.0) at 16V for 15 h. The fragments were visualized on a UV transiluminator after GelRed® (Biotium) staining.

2.3. Serial Passage in S. littoralis and S. exigua

For each virus, six steps of serial passage were performed in fourth instars of the semi-permissive host, S. littoralis, and the permissive host, S. exigua (Figure 1). Fourth instar larvae were selected to ensure the production of relatively large quantities of OBs required for each step of the serial passage experiments. For each host-virus combination, three replicate lineages were performed (lineages 1 - 3). To establish these lineages, for the first passage, the original inoculum of each virus (MbMNPV-P0 and HearMNPV-P0) was used to infect three batches of larvae of each species. Then, following death by polyhedrosis, dead infected insects of each lineage were pooled, purified and the resulting OBs were used for the next passage. At each passage, three groups of 36 larvae in each lineage were orally inoculated and were reared individually on semi-synthetic diet at 25 ± 1 °C until death or pupation. For every lineage and passage, groups of 28 larvae were mock-infected as controls. The serial passages were performed using a 25% lethal concentration (LC25). This was undertaken as low inoculum concentrations are likely to favor the transmission of virus genotypes that are prevalent in the inocula due to efficient replication in the previous heterologous host, and to hinder the transmission of defective genotypes that can arise during serial passage [27]. To ensure a ~25% prevalence of mortality, three inoculum concentrations (labelled a, b and c in Figure 1) were used to infect each group of insects at each passage using the droplet feeding method [26]. The inoculum concentrations were 2 × 106, 2 × 107 and 2 × 108 OBs/mL for both viruses in S. littoralis and 6 × 102, 3 × 103 and 1.5 × 104 OBs/mL for both viruses in S. exigua. Once the SeMNPV infection was detected in lineage 2 of S. exigua-MbMNPV system, the whole S. exigua population was replaced with free-virus insects from southern Spain. The new insect colony was subjected to qPCR screening to ensure the absence of persistent SeMNPV infections, as described previously [28]. The new S. exigua population was found to be more resistant to infection, and inoculum concentrations were increased to 3 × 103, 1.5 × 104 and 7.5 × 104 OBs/mL for passages four to six. Virus-killed cadavers of the treatment that resulted in ~25% mortality were pooled within each lineage, purified, counted twice using a Neubauer hemocytometer and used as oral inoculum for the next passage. This same methodology was performed for every passage (Figure 1).

2.4. Genetic Variation in Viruses during Serial Passage

To study the genetic variation in the viral populations during serial passage in a particular host, restriction endonuclease (REN) analysis of DNA from OBs obtained at each passage was performed and compared with the MbMNPV-P0 and HearMNPV-P0 initial inoculum. The REN analysis was performed using PstI and HindIII for both viruses as described in Section 2.2. Additionally, when contamination by an unexpected NPV was detected, additional bands present in the REN profile were studied to establish the identity of the contaminant virus. The presence of contaminant viruses was determined by quantitative PCR (qPCR) using specific primers targeted at the bro-a1 and se28 genes of MbMNPV and SeMNPV, respectively (Table 1). For this, DNA was extracted as described in Section 2.2, adjusted to a total concentration of 1 ng/μL and quantified by qPCR, as described previously [29].

2.5. Insecticidal Properties of Viruses Following Serial Passage

To examine changes in the biological activity of MbMNPV and HearMNPV after serial passage in the selected permissive and semi-permissive hosts, bioassays were performed on the OB suspensions obtained at passages three and six of each host-virus combination and for each lineage to determine OB pathogenicity and speed-of-kill (Figure 1). The OBs used as the initial inoculum (MbMNPV-P0 and HearMNPV-P0) were used as reference treatments in every bioassay.
Pathogenicity, expressed as 50% and 90% lethal concentrations (LC50 and LC90), was estimated in newly-molted second instars of each host species using the droplet feeding method [26]. Further, groups of 28 larvae were inoculated with one of five OB concentrations for S. exigua and one of six OB concentrations for S. littoralis. The same OB concentrations were used for both viruses in S. littoralis (8 × 105, 4 × 106, 2 × 107, 1 × 108, 5 × 108 and 2.5 × 109 OBs/mL) and in S. exigua (3 × 103, 1.5 × 104, 7.5 × 104, 3.75 × 105 and 1.88 × 106 OBs/mL). In both cases, the range of concentrations was estimated to kill between 5 and 95% of inoculated insects. The larvae that ingested the inoculum suspension in a 10 min period were individually transferred to 28-well plates containing semi-synthetic diet and were incubated at 25 ± 1 °C. The control insects were treated identically but did not consume OBs. Virus-induced mortality was recorded at 24 h intervals until death or pupation. The bioassays were performed in triplicate using different batches of insects. Virus-induced mortality results were subjected to probit analysis using POLO-PLUS software [30].

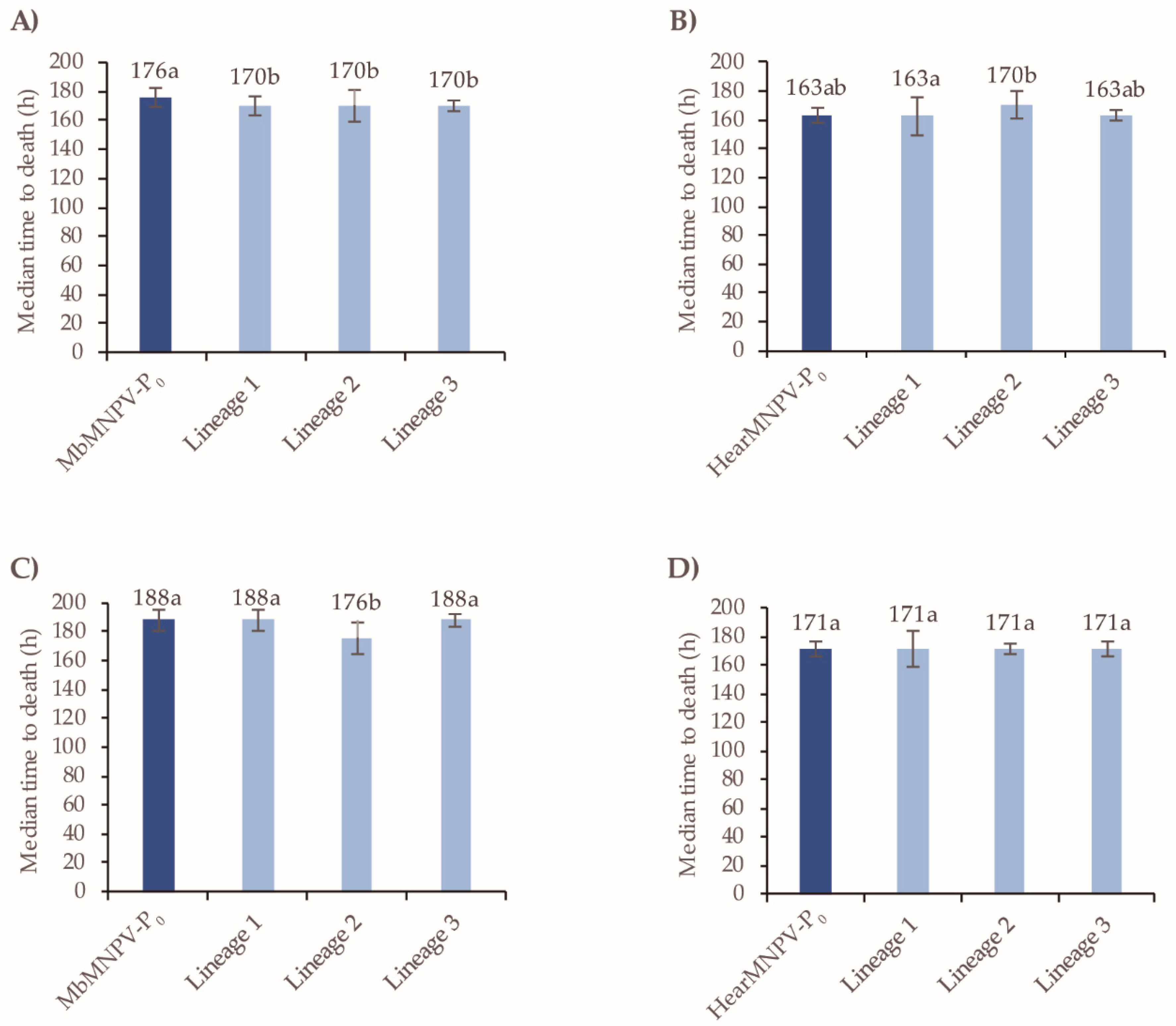

To determine the speed-of-kill responses (median time to death), groups of 28 newly-molted second instars of each host species were treated with a single OB concentration estimated to result in ~90% mortality (LC90), or a sucrose solution free of OBs as a control treatment. Larvae that drank the inoculum within 10 min were reared individually at 25 ± 1 °C and virus-induced mortality was recorded at 8 h intervals until all the larvae had died or pupated. The experiment was performed on three occasions. The time-mortality data were subjected to Kaplan–Meier survival analysis using SPSS Statistics v.25.0 software [31].

3. Results

3.1. Host Range Screening

The insect species tested in the host range evaluation were classified as non-permissive, semi-permissive and permissive (Table 2). Semi-permissive species experienced 34–38% mortality, whereas the mortality range observed in the permissive species was 87–100%. The mortality responses were similar for MbMNPV and HearMNPV in all lepidopteran species tested, which resulted in two non-permissive hosts (L. botrana and O. nubilalis), one semi-permissive host (S. littoralis) and three permissive hosts (H. armigera, M. brassicae and S. exigua) (Table 2). As a result, S. littoralis was selected as the semi-permissive host for the serial passage experiment, whereas S. exigua was selected as the permissive host.

3.2. Virus-Induced Mortality Observed during Serial Passage

In every host-virus combination, three different concentrations (shown as a: low, b: medium; c: high in Figure 2) were used for each passage. The inoculum that caused ~25% mortality was selected for the subsequent passage. The inoculum concentration selected in each host-virus combination was not always the same, but varied at different passages and among the three lineages (Figure 2).

3.3. Genetic Analysis of OBs Produced during Serial Passage

Restriction endonuclease analysis of the starting inoculum of both viruses (MbMNPV-P0 and HearMNPV-P0) was performed using PstI and HindIII in order to compare broadly the genetic characteristics of these viruses and to establish the initial identities of the starting inocula (Figure 3). REN profiles showed fragment length polymorphisms that were used for virus identification during serial passage. Variability in restriction fragments was readily detected with PstI in MbMNPV and with HindIII in HearMNPV. Therefore, only one REN profile per virus passage is presented.

3.3.1. Analysis of Viral DNA Produced in S. littoralis

In MbMNPV profiles, two weak submolar PstI bands were present in MbMNPV-P0 with a size of approximately 7.5 kb and 9 kb, both of which gradually disappeared in the three infection lineages during the serial passage and were not visible at the final passage (Figure 4). However, MbMNPV changed only in lineage 1 after passage six with the appearance of three new weak submolar PstI bands of approximately 5.5, 7.6 and 15 kb (Figure 4).
The HearMNPV-P0 inoculum showed four weak submolar HindIII fragments of ~3.6, 7, 11 and 12 kb (Figure 5). The 3.6 kb HindIII fragment totally disappeared after the first passage in all the lineages. The 7 kb HindIII fragment was not modified in lineages 2 and 3, but it disappeared in lineage 1 after the fifth passage. The 11 kb minor HindIII fragment disappeared after passage two in lineage 1 and after passage one in lineage 2, whereas in lineage 3, this fragment was maintained and slightly intensified at passage six. The 12 kb submolar HindIII fragment disappeared in lineage 1 after the second passage, whereas in lineage 3, it disappeared after two passages but reappeared at the final passage. In lineage 2 however, the 12 kb HindIII fragment increased in intensity until the final passage. Furthermore, in lineage 1 at passage five, a new HindIII fragment appeared of ~5.5 kb and was maintained at passage six (Figure 5).

3.3.2. Analysis of Viral DNA Produced in S. exigua

The submolar PstI fragments of 7.5 and 9 Kb observed in MbMNPV-P0 tended to disappear in lineages 1 and 2, whereas they remained present through all the passage steps in lineage 3 (Figure 6). In lineage 1, a new PstI restriction fragment of ~7 kb appeared at passage four and a 6.3 kb fragment was lost. In lineage 2, faint new bands were observed after the third passage that increased in intensity after passage four. A marked change in the MbMNPV profile was observed after the fifth passage, which revealed that the new PstI fragments detected in passage three corresponded to the apparent activation of a previously inapparent SeMNPV infection [32]. An analysis by qPCR using specific primers confirmed the presence of 5.85 × 10−1 ng SeMNPV DNA/ng total DNA after the third passage in lineage 2. Passage four yielded 8.55 × 10−1 ng SeMNPV DNA/ng total DNA and at passage five, SeMNPV had totally displaced MbMNPV, as all the DNA present in the sample was SeMNPV genomic DNA in this lineage. Lineage 2 was then eliminated from the study and a new S. exigua population was established and checked to confirm the absence of a persistent SeMNPV infection. Passages four and five were repeated for MbMNPV lineages 1 and 3. The presence of SeMNPV was then quantified in passages one and two of lineage 2, passages three and six of the remaining lineages and the original MbMNPV-P0. In all cases, only trace quantities of SeMNPV DNA were present, with a mean (±SE) of 2.88 × 10−6 ± 1.50 × 10−6 ng SeMNPV DNA/ng total DNA (range 0.00–1.13 × 10−5 ng SeMNPV DNA/ng total DNA), which were consistent with the presence of very low level SeMNPV replication in the persistently infected S. exigua colony.
For HearMNPV, an intensification of the 12 kb submolar HindIII fragment present in HearMNPV-P0 was detected from the first passage to the last one in lineages 1 and 2 (Figure 7). In contrast, this HindIII fragment disappeared in lineage 3 from the second passage. Both the 11 kb and 7 kb submolar HindIII fragments were maintained in the three lineages, but the latter disappeared at the third passage in lineage 3. A 3.6 kb fragment totally disappeared in lineages 1 and 2, but markedly intensified in lineage 3 after the second passage. A new restriction HindIII fragment of approximately 5.1 kb was detected in lineage 2, whereas a 2.4 kb HindIII-fragment was lost in lineage 3. In addition in this lineage, six new HindIII fragments were detected at passage three. An examination of the HindIII-digested DNA of MbMNPV revealed that a cross-infection with this virus occurred in lineage 3. However, MbMNPV was not observed again after the fourth passage, so passages were completed for this lineage until the sixth passage. The presence of MbMNPV in these samples was quantified by qPCR at 0.34 ng MbMNPV DNA/ng of total DNA for passage three of lineage 3. The MbMNPV content diminished progressively in the following passages with values of 2.09 × 10−4, 1.18 × 10−5 and 9.58 × 10−6 ng MbMNPV DNA/ng total DNA for passages four, five and six, respectively. This is in agreement with the results of the REN study. SeMNPV was also quantified by qPCR in samples from passages three and six with an average of 3.84 × 10−6 ± 1.55 × 10−6 ng SeMNPV DNA/ng total DNA (range 0.00–1.10 × 10−5 ng SeMNPV DNA/ng total DNA). This is consistent with a very low level persistent infection in the S. exigua colony.

3.4. Insecticidal Properties of OBs after Passage in Semi-Permissive and Permissive Hosts

3.4.1. Pathogenicity and Speed-of-Kill of OBs Following Passage in S. littoralis

The LC50 value of MbMNPV-P0 OBs varied from 2.6 × 107 to 4.1 × 106 OBs/mL in the semi-permissive host S. littoralis, depending on the bioassay, whereas LC90 values varied from 5.4 × 108 to 1.3 × 108 OBs/mL (Table 3). Similarly, the estimated LC50 value for HearMNPV-P0 OBs varied from 6.2 × 107 to 1.9 × 107 OBs/mL, whereas LC90 values were 27- to 89-fold higher. In all cases, the passage zero values were taken as the reference treatment (relative potency = 1) for bioassays of the pathogenicity of OBs from subsequent passages. After the third passage, all the lineages of MbMNPV OBs showed a 3- to 10-fold decrease in pathogenicity, whereas no marked changes were observed in the HearMNPV lineages compared to the P0 inoculum (Table 3).
A moderate decrease in pathogenicity of the MbMNPV lineage detected after passage three was maintained at passage six, with one exception in the LC50 value estimated for lineage 3. This was intermediate between the corresponding value for MbMNPV-P0 and the LC50 values estimated for lineages 1 and 2 (Table 3). No differences were observed in OB pathogenicity at the final passage when compared to the HearMNPV-P0 inoculum.
In terms of the speed-of-kill, a significant but small reduction of 6 h was observed in all three linages of MbMNPV after passage three compared to the MbMNPV-P0 inoculum (Log-Rank test: χ2 = 16.184, d.f. = 3, p = 0.001) (Figure 8A). These differences were not sustained in lineage 1 and 3 at the sixth passage, whereas lineage 2 remained slightly faster killing than the MbMNPV-P0 inoculum and the other lineages tested (Log-Rank test: χ2 = 14.207, d.f. = 3, p = 0.003) (Figure 8C). For HearMNPV, the speed-of-kill values did not change significantly at the third passage (Log-Rank test: χ2 = 5.291, d.f. = 3, p = 0.152), or the sixth passage compared to the HearMNPV-P0 inoculum (Log-Rank test: χ2 = 1.294, d.f. = 3, p = 0.731) (Figure 8B,D).

3.4.2. Pathogenicity and Speed-of-Kill of OBs Following Passage in S. exigua

The LC50 values of MbMNPV-P0 OBs varied from 1.1 × 105 to 5.3 × 104 OBs/mL in the permissive host, whereas LC90 values varied from 1.6 × 106 to 3.6 × 106 OBs/mL (Table 4). For HearMNPV-P0 OBs, LC50 values varied from 6.2 × 104 to 3.0 × 104 OBs/mL, whereas the estimated LC90 values were between 8.9 × 105 and 1.0 × 106 OBs/mL. After the third passage, MbMNPV lineage 2 showed a 2- to 3-fold increase in pathogenicity, which seemed to be related to the SeMNPV contamination event detected in REN profiles at the third passage, which was confirmed by qPCR. This lineage was excluded from the study. Additionally, a 1.6-fold decrease in terms of LC50 was detected in lineage 3. Unexpectedly, a 6- to 17-fold reduction in pathogenicity was observed in HearMNPV lineage 3 compared to HearMNPV-P0, in which MbMNPV cross-infection was detected by REN and qPCR analysis (Table 4). After the sixth passage, no significant changes in pathogenicity were detected in either virus compared to MbMNPV-P0 and HearMNPV-P0.
In terms of the speed-of-kill, after passage three, a significant increase in median time to death (MTD) of 18 h was observed in lineage 1 for MbMNPV (Log-Rank test: χ2 = 22.339; d.f. = 3, p < 0. 001) and of 17 h in lineage 2 for HearMNPV (Log-Rank test: χ2 = 6.227; d.f. = 3, p = 0.101) compared to the P0 inoculum (Figure 9A,B). However, a significant decrease in MTD of 28 h was detected in lineage 2 for MbMNPV. This is probably related to the SeMNPV infection that was detected. Following the sixth passage, an increase in MTD of 7 h was observed in lineage 1 for MbMNPV (Log-Rank test: χ2 = 14.054; d.f. = 2, p = 0.001) and of 12 h in lineage 1 for HearMNPV (Log-Rank test: χ2 = 23.394; d.f. = 3, p < 0.001) (Figure 9C,D).

4. Discussion

In the present study, MbMNPV and HearMNPV had a similar host range when used to inoculate heterologous lepidopteran species. The same lepidopteran species were considered as permissive, semi-permissive and non-permissive for both viruses. These species had been previously described as susceptible species for both viruses with the exception of S. littoralis [13,14,33,34]. In the present study, it was clear that S. littoralis was a semi-permissive host for both viruses, at lower inoculum concentrations than used in a previous study [13]. As restriction endonuclease profiles were checked in the OBs produced in each host, the authors are confident that this inconsistency was not the result of activation of latent virus infection in larvae of S. littoralis inoculated with heterologous viruses.
The OB concentration selected for the serial passage experiment was based on the desire to maintain a near-constant 25% prevalence of virus-induced mortality. Virus entry to midgut cells is the main barrier to the establishment of a successive infection [35], but once the secondary infection process has initiated, a low viral concentration may allow the production of a higher number or infection cycles within the host, which results in an increased viral yield [36,37]. In a previous study, low doses of the single-nucleocapsid HearNPV in H. armigera larvae resulted in an increase in genetic diversity [38]. Baillie and Bouwer [38] suggested that low doses may favor the production of a variety of novel genotypes that would not be detectable at high doses. At high multiplicities of infection, competition among genotypes may favor the proliferation of cooperative genotypes, or defective variants that exploit competent genotypes by complementation [38,39,40].
Despite the fact that all lineages were treated identically to increase the reproducibility of the technique, genetic analysis revealed differences in the REN profiles among the lineages in each host-virus combination, indicating that host-virus interactions did not follow a common genetic trajectory. This variability among lineages has been previously reported following serial passage of lineages established from a single common inoculum of HearNPV OBs [41]. Despite having a similar name, the single-nucleocapsid HearNPV is not closely related to the HearMNPV strain that we studied. Variation in host susceptibility, genotypic variant interactions within hosts, or transmission bottlenecks could be a possible explanation for the observed variation among different lineages [41]. Indeed, the insect midgut is a major site of selection for genotypes during transmission [42,43]. As such, it also represents a genetic bottleneck that is likely to strongly influence the diversity of founder genotypes in each host. Indeed, for nucleopolyhedroviruses, the number of virions that establish an infection has been estimated at approximately 1 - 2 virions in each insect for inoculum doses in which 20–30% of individuals become infected [44]. Although additional virions may achieve initial infection, processes such as clearance by host immune defenses, variation in the capacity to disperse to other host tissues during systemic infection, or the presence of defective genotypes is likely to further reduce the effective founder population [44]. In contrast, the presence of marked heterogeneity in host susceptibility can increase the effective founder population [45], as can the fact that multicapsid ODVs may contain multiple genotypic variants that are transmitted in groups [46]. In the present study, the authors considered this bottleneck as an opportunity for selection of the genotypes that were best adapted to each host during serial passage, as only the more infectious variants, or the genotypes that had replicated most efficiently and had reached the highest prevalence in each type of host, would be likely to establish a productive infection in the following passage step.
Changes in submolar bands were detected during serial passage in every host-virus system. Minor changes in restriction profiles may be associated with significant changes in the phenotypic characteristics of the virus [47,48,49]. These variations in the genetic structure of the wild-type isolates were likely due to a combination of founder effects during serial passage and virus interactions with the hosts or among genotypic variants [44]. Genetic diversity in wild-type nucleopolyhedrovirus populations is selectively advantageous and has clear ecological and evolutionary benefits to these viruses [50]. For example, mixtures of genotypes present in wild-type NPV isolates can increase the pathogen’s ability to develop productive infections over that of the component genotypic variants alone [51,52,53,54].
Modifications in REN profiles could also be due to the proliferation of minority genotypes or because new genotypes appeared. Genotypic variants can be generated by several mechanisms, such as recombination events, insertion or deletions of viral sequences, point mutations, horizontal gene transfer, as well as alterations in the relative abundance of genotype variants [18,20,21,55,56]. Further studies on the genetic structure of these isolates are required to elucidate the nature and genomic location of the genotypic variation detected in this study.
The REN profile variations detected in MbMNPV lineage 2 and HearMNPV lineage 3 after the third passage in the permissive host S. exigua were identified by qPCR as SeMNPV and a MbMNPV contamination event, respectively. The activation of persistent infections in lepidopteran larvae by alphabaculoviruses is well documented [57,58,59,60,61]. As SeMNPV totally displaced MbMNPV in the fifth passage in S. exigua, lineage 2 of MbMNPV had to be discarded and the other lineages were continued using a new population of S. exigua. After passage four, the presence of MbMNPV clearly decreased in HearMNPV lineage 3, so the presence of MbMNPV in the HearMNPV-inoculum was considered to be a transient contamination event and the experiment was continued.
In the biological activity analyses, some small differences were observed among the lineages of each host-virus system. Although pathogenicity characteristics were similar among the lineages in each of the host-virus combinations, small differences in the speed-of-kill were detected in four out of the eight host-virus systems studied. Rovesti et al. [14] reported no differences in biological activity of isolates of these same viruses in their respective homologous and heterologous hosts, M. brassicae and H. armigera. In the present study, differences were observed between MbMNPV and HearMNPV in the insecticidal characteristics of the OBs following serial passage in S. littoralis. After the sixth passage, the insecticidal properties of HearMNPV did not show any alteration in pathogenicity or speed-of-kill compared to passage zero inoculum, whereas a significant decrease in MbMNPV pathogenicity was detected. The speed-of-kill of MbMNPV varied in each lineage but recovered the speed-of-kill of the original passage zero inoculum after six passages in two of the lineages. Several studies have demonstrated an increase in the insecticidal activity of a baculovirus in a particular semi-permissive host through serial passage [19,20,21,62], whereas others have reported no success in attempts at baculovirus adaptation to heterologous hosts [57,63,64]. The authors found no published evidence of deterioration in baculovirus insecticidal properties after serial passages in a heterologous host. Surprisingly, in view of the results obtained, lineage 2 of MbMNPV in S. littoralis showed an increase in its speed-of-kill, which was the only significant improvement in the insecticidal properties detected after the last passage in all the host-virus systems in this study.
In the permissive host S. exigua, the only alteration in insecticidal activity observed at the sixth passage compared to passage zero, was a significant decrease in the speed-of-kill in lineage 1 of both MbMNPV and HearMNPV, whereas the other lineages remained unchanged at the final passage. However, a significant improvement in biological activity, both in pathogenicity and speed-of-kill in lineage 2 of MbMNPV was detected after three passages, which was probably related to the presence of SeMNPV in the OB inoculum, as explained before. It is important to note that the activation of latent infections should not be excluded as a possible reason for marked improvements in insecticidal activity in serial passage host-adaptation studies in which no genetic characterization was performed on the progeny OBs [20]. As no improvements in the biological characteristics of the remaining lineages were observed, a biological effect of the minimal levels of SeMNPV present in the inocula was discarded. Furthermore, after the third passage, a significant decrease was observed in the pathogenicity of HearMNPV OBs from lineage 3 in S. exigua with respect to passage zero and the other lineages, which was associated with a transient contamination by MbMNPV that subsequently disappeared, possibly due to competitive exclusion by the HearMNPV population.
No clear correlation was observed between genetic and biological changes in any of the host-virus combinations analyzed. Indeed, lineages with REN profiles that seemed to be very similar elicited different biological responses. Others have reported changes in REN profiles with no marked effects on pathogenicity after passages in homologous and heterologous hosts [65,66].
Most studies on baculovirus adaptation to heterologous hosts have involved performing a high number of passages, often between 12 and 20. In some cases, an increase in the speed-of-kill and mortality has been detected after fewer than ten passages or even after a single passage [62,67]. However, the progeny OBs were not genetically characterized, therefore, a latent infection activation or a cross-contamination with another baculovirus cannot be precluded. In the present study, three passages in the heterologous hosts were sufficient to detect biological differences between MbMNPV and HearMNPV isolates. Optimization theory suggests that adaptation to a particular host is likely to constrain the pathogen’s ability to infect other host species. Consequently, pathogens that can infect multiple host species are likely to trade-off infectivity towards a particular host against host range. Due to this reason, they generally show lower levels of infectiousness, as the virus factors that promote infectivity cannot be optimized simultaneously for all possible hosts [68]. Therefore, the ability of broad host range pathogens to co-evolve with any one host is constrained.
This study highlighted similarities in the host range of HearMNPV and MbMNPV, but also indicated that HearMNPV appeared to be more phenotypically-stable than MbMNPV following serial passage in a semi-permissive host. However, host-baculovirus interactions are highly complex and differences among the three lineages in our study demonstrate that the process of adaptation to a novel host is far from predictable.

Author Contributions

Conceptualization, P.C.; methodology, I.B. and P.C.; formal analysis, I.M.B.; funding acquisition, P.C.; investigation, I.M.B. and I.B.; writing—original draft preparation, I.M.B.; writing—review and editing, I.B., T.W. and P.C.

Funding

This research was funded by project “AGL2014-57752-C2-1-R (Ministerio Español de Economía, Industria y Competitividad)”. I.M.B. received a studentship from Ministerio Español de Economía, Industria y Competitividad. I.B. received a Torres Quevedo postdoctoral fellowship from Ministerio de Ciencia, Innovación y Universidades.

Acknowledgments

We thank Noelia Gorría, Itxaso Ibáñez and Amaia Redín (Universidad Pública de Navarra) for insect rearing. Gabriel Mercado (INECOL) provided logistical support to TW.

Conflicts of Interest

The authors declare no conflict of interest. Bioinsectis SL had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; nor in the decision to publish the results.

References

  1. Popham, H.J.R.; Nusawardani, T.; Bonning, B.C. Introduction to the use of baculoviruses as biological insecticides. In Baculovirus and Insect Cell Expression Protocols; Murhammer, D.W., Ed.; Springer: New York, NY, USA, 2016; pp. 383–392. ISBN 978-1-4939-3043-2. [Google Scholar]
  2. Grzywacz, D. Basic and applied research: Baculovirus. In Microbial Control of Insect and Mite Pests: From Theory to Practice; Lacey, L.A., Ed.; Academic Press: Cambrige, MA, USA, 2017; pp. 27–46. [Google Scholar]
  3. Goulson, D. Can host susceptibility to baculovirus infection be predicted from host taxonomy or life history? Environ. Entomol. 2003, 32, 61–70. [Google Scholar] [CrossRef]
  4. Jehle, J.A.; Lange, M.; Wang, H.; Hu, Z.; Wang, Y.; Hauschild, R. Molecular identification and phylogenetic analysis of baculoviruses from Lepidoptera. Virology 2006, 346, 180–193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Wennmann, J.T.; Keilwagen, J.; Jehle, J.A. Baculovirus Kimura two-parameter species demarcation criterion is confirmed by the distances of 38 core gene nucleotide sequences. J. Gen. Virol. 2018, 99, 1307–1320. [Google Scholar] [CrossRef] [PubMed]
  6. Mukawa, S.; Goto, C. In vivo characterization of a group II nucleopolyhedrovirus isolated from Mamestra brassicae (Lepidoptera: Noctuidae) in Japan. J. Gen. Virol. 2006, 87, 1491–1500. [Google Scholar] [CrossRef] [PubMed]
  7. Rowley, D.L.; Popham, H.J.R.; Harrison, R.L. Genetic variation and virulence of nucleopolyhedroviruses isolated worldwide from the heliothine pests Helicoverpa armigera, Helicoverpa zea, and Heliothis virescens. J. Invertebr. Pathol. 2011, 107, 112–126. [Google Scholar] [CrossRef] [PubMed]
  8. Choi, J.B.; Heo, W.I.; Shin, T.Y.; Bae, S.M.; Kim, W.J.; Kim, J.I.; Kwon, M.; Choi, J.Y.; Je, Y.H.; Jin, B.R.; et al. Complete genomic sequences and comparative analysis of Mamestra brassicae nucleopolyhedrovirus isolated in Korea. Virus Genes 2013, 47, 133–151. [Google Scholar] [CrossRef] [PubMed]
  9. Thézé, J.; Lopez-Vaamonde, C.; Cory, J.S.; Herniou, E.A. Biodiversity, evolution and ecological specialization of baculoviruses: A treasure trove for future applied research. Viruses 2018, 10, 366. [Google Scholar] [CrossRef] [PubMed]
  10. International Committee on Taxonomy of Viruses. Available online: https://talk.ictvonline.org/ (accessed on 17 July 2019).
  11. Allaway, G.P.; Payne, C.C. Host range and virulence of five baculoviruses from lepidopterous hosts. Ann. Appl. Biol. 1984, 105, 29–37. [Google Scholar] [CrossRef]
  12. Gröner, A. Specificity and safety of baculoviruses. In The Biology of Baculoviruses; Granados, R.R., Federici, B.A., Eds.; CRC Press: Boca Raton, FL, USA, 1986; Volume 1, pp. 177–202. [Google Scholar]
  13. Doyle, C.J.; Hirst, M.L.; Cory, J.S.; Entwistle, P.F. Risk assessment studies: Detailed host range testing of wild-type cabbage moth, Mamestra brassicae (Lepidoptera: Noctuidae), nuclear polyhedrosis virus. Appl. Environ. Microbiol. 1990, 56, 2704–2710. [Google Scholar] [PubMed]
  14. Rovesti, L.; Crook, N.E.; Winstanley, D. Biological and biochemical relationships between the nucleopolyhedroviruses of Mamestra brassicae and Heliothis armigera. J. Invertebr. Pathol. 2000, 75, 2–8. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, Y.; Liu, L.; Zhang, Z. Potential use of a group II alphabaculovirus isolated from Mamestra brassicae as a broad-spectrum biological pesticide. Biocontrol Sci. Technol. 2018, 3157, 1–16. [Google Scholar] [CrossRef]
  16. Cory, J.S.; Myers, J.H. The ecology and evolution of insect baculoviruses. Annu. Rev. Ecol. Evol. Syst. 2003, 34, 239–272. [Google Scholar] [CrossRef]
  17. Simón, O.; Williams, T.; López-Ferber, M.; Caballero, P. Virus entry or the primary infection cycle are not the principal determinants of host specificity of Spodoptera spp. nucleopolyhedroviruses. J. Gen. Virol. 2004, 85, 2845–2855. [Google Scholar] [CrossRef] [PubMed]
  18. Hitchman, R.B.; Hodgson, D.J.; King, L.A.; Hails, R.S.; Cory, J.S.; Possee, R.D. Host mediated selection of pathogen genotypes as a mechanism for the maintenance of baculovirus diversity in the field. J. Invertebr. Pathol. 2007, 94, 153–162. [Google Scholar] [CrossRef] [PubMed]
  19. Pavan, O.H.O.; Ribeiro, H.C.T. Selection of a baculovirus strain with a bivalent insecticidal activity. Mem. Inst. Oswaldo Cruz 1989, 84, 63–65. [Google Scholar] [CrossRef]
  20. Kolodny-Hirsch, D.M.; Van Beek, N.A.M. Selection of a morphological variant of Autographa californica nuclear polyhedrosis virus with increased virulence following serial passage in Plutella xylostella. J. Invertebr. Pathol. 1997, 69, 205–211. [Google Scholar] [CrossRef]
  21. Graillot, B.; Blachère-López, C.; Besse, S.; Siegwart, M.; López-Ferber, M. Host range extension of Cydia pomonella granulovirus: Adaptation to oriental fruit moth, Grapholita molesta. BioControl 2016, 62, 19–27. [Google Scholar] [CrossRef]
  22. Zwart, M.P.; Pijlman, G.P.; Sardanyés, J.; Duarte, J.; Januário, C.; Elena, S.F. Complex dynamics of defective interfering baculoviruses during serial passage in insect cells. J. Biol. Phys. 2013, 39, 327–342. [Google Scholar] [CrossRef] [Green Version]
  23. Hou, D.; Chen, X.; Zhang, L.K. Proteomic analysis of Mamestra brassicae nucleopolyhedrovirus progeny virions from two different hosts. PLoS ONE 2016, 11, 1–13. [Google Scholar] [CrossRef]
  24. Greene, G.L.; Leppla, N.C.; Dickerson, W.A. Velvetbean caterpillar: A rearing procedure and artificial medium. J. Econ. Entomol. 1976, 69, 487–488. [Google Scholar] [CrossRef]
  25. Williams, C.F.; Payne, C.C. The susceptibility of Heliothis armigera larvae to three nuclear polyhedrosis viruses. Ann. Appl. Biol. 1984, 104, 405–412. [Google Scholar] [CrossRef]
  26. Hughes, P.R.; Wood, H.A. In vivo and in vitro bioassay methods for baculoviruses. In The Biology of Baculoviruses; Granados, R.R., Federici, B.A., Eds.; CRC Press: Boca Raton, FL, USA, 1987; Volume II, pp. 1–30. [Google Scholar]
  27. Zwart, M.P.; Erro, E.; van Oers, M.M.; de Visser, J.A.G.M.; Vlak, J.M. Low multiplicity of infection in vivo results in purifying selection against baculovirus deletion mutants. J. Gen. Virol. 2008, 89, 1220–1224. [Google Scholar] [CrossRef]
  28. Virto, C.; Navarro, D.; Tellez, M.M.; Herrero, S.; Williams, T.; Murillo, R.; Caballero, P. Natural populations of Spodoptera exigua are infected by multiple viruses that are transmitted to their offspring. J. Invertebr. Pathol. 2014, 122, 22–27. [Google Scholar] [CrossRef]
  29. Beperet, I.; Simón, O.; Williams, T.; López-Ferber, M.; Caballero, P. The “11K” gene family members sf68, sf95 and sf138 modulate transmissibility and insecticidal properties of Spodoptera frugiperda multiple nucleopolyhedrovirus. J. Invertebr. Pathol. 2015, 127, 101–109. [Google Scholar] [CrossRef]
  30. Polo Plus; Version 1.0; LeOra Software: Parma, MO, USA, 2003.
  31. IBM SPSS Statistics. IBM SPSS Statistics for Windows, Version 25.0; IBM Corp: Armonk, NY, USA, 2017. [Google Scholar]
  32. Murillo; Muñoz; Lipa; Caballero. Biochemical characterization of three nucleopolyhedrovirus isolates of Spodoptera exigua and Mamestra brassicae. J. Appl. Entomol. 2001, 125, 267–270. [Google Scholar] [CrossRef]
  33. McKinley, D.J.; Brown, D.A.; Payne, C.C.; Harrap, K.A. Cross-infectivity and activation studies with four baculoviruses. Entomophaga 1981, 26, 79–90. [Google Scholar] [CrossRef]
  34. Hamm, J.J. Relative susceptibility of several noctuid species to a nuclear polyhedrosis virus from Heliothis armigera. J. Invertebr. Pathol. 1982, 39, 255–256. [Google Scholar] [CrossRef]
  35. Passarelli, A.L. Barriers to success: How baculoviruses establish efficient systemic infections. Virology 2011, 411, 383–392. [Google Scholar] [CrossRef] [Green Version]
  36. White, S.M.; Burden, J.P.; Maini, P.K.; Hails, R.S. Modelling the within-host growth of viral infections in insects. J. Theor. Biol. 2012, 312, 34–43. [Google Scholar] [CrossRef] [Green Version]
  37. Kitchin, D.J. The effects of in vivo passaging, solar radiation exposure and inoculum dose on the genetic diversity of Helicoverpa armigera nucleopolyhedrovirus. Ph.D. Thesis, University of the Witwatersrand, Johannesburg, South Africa, 2017. [Google Scholar]
  38. Baillie, V.L.; Bouwer, G. The effect of inoculum dose on the genetic diversity detected within Helicoverpa armigera nucleopolyhedrovirus populations. J. Gen. Virol. 2013, 94, 2524–2529. [Google Scholar] [CrossRef]
  39. Bull, J.C.; Godfray, H.C.J.; O’Reilly, D.R. Persistence of an occlusion-negative recombinant nucleopolyhedrovirus in Trichoplusia ni indicates high multiplicity of cellular infection. Appl. Environ. Microbiol. 2001, 67, 5204–5209. [Google Scholar] [CrossRef]
  40. Clavijo, G.; Williams, T.; Muñoz, D.; Caballero, P.; Lopez-Ferber, M. Mixed genotype transmission bodies and virions contribute to the maintenance of diversity in an insect virus. Proc. R. Soc. B Biol. Sci. 2010, 277, 943–951. [Google Scholar] [CrossRef]
  41. Kitchin, D.; Bouwer, G. Significant differences in the intra-host genetic diversity of Helicoverpa armigera nucleopolyhedrovirus dnapol after serial in vivo passages in the same insect population. Arch. Virol. 2018, 163, 713–718. [Google Scholar] [CrossRef]
  42. Zwart, M.P.; Hemerik, L.; Cory, J.S.; de Visser, J.A.G.M.; Bianchi, F.J.J.A.; Van Oers, M.M.; Vlak, J.M.; Hoekstra, R.F.; Van der Werf, W. An experimental test of the independent action hypothesis in virus–insect pathosystems. Proc. R. Soc. B Biol. Sci. 2009, 276, 2233–2242. [Google Scholar] [CrossRef]
  43. Clavijo, G.; Williams, T.; Muñoz, D.; López-Ferber, M.; Caballero, P. Entry into midgut epithelial cells is a key step in the selection of genotypes in a nucleopolyhedrovirus. Virol. Sin. 2009, 24, 350–358. [Google Scholar] [CrossRef]
  44. Zwart, M.P.; Elena, S.F. Matters of Size: Genetic bottlenecks in virus infection and their potential impact on evolution. Annu. Rev. Virol. 2015, 2, 161–179. [Google Scholar] [CrossRef]
  45. Van der Werf, W.; Hemerik, L.; Vlak, J.M.; Zwart, M.P. Heterogeneous host susceptibility enhances prevalence of mixed-genotype micro-parasite infections. PLoS Comput. Biol. 2011, 7, e1002097. [Google Scholar] [CrossRef]
  46. Sanjuán, R. Collective infectious units in viruses. Trends Microbiol. 2017, 25, 402–412. [Google Scholar] [CrossRef]
  47. Simón, O.; Williams, T.; López-Ferber, M.; Caballero, P. Genetic structure of a Spodoptera frugiperda nucleopolyhedrovirus population: High prevalence of deletion genotypes. Appl. Environ. Microbiol. 2004, 70, 5579–5588. [Google Scholar] [CrossRef]
  48. Arrizubieta, M.; Williams, T.; Caballero, P.; Simón, O. Selection of a nucleopolyhedrovirus isolate from Helicoverpa armigera as the basis for a biological insecticide. Pest. Manag. Sci. 2014, 70, 967–976. [Google Scholar] [CrossRef]
  49. Aguirre, E.; Beperet, I.; Williams, T.; Caballero, P. Genetic variability of Chrysodeixis includens nucleopolyhedrovirus (ChinNPV) and the insecticidal characteristics of selected genotypic variants. Viruses 2019, 11, 581. [Google Scholar] [CrossRef]
  50. Williams, T. Viruses. In Ecology of Invertebrate Diseases; Hajek, A.E., Shapiro-Ilan, D.I., Eds.; Wiley: Chichester, UK, 2018; pp. 213–285. ISBN 9781119256106. [Google Scholar]
  51. López-Ferber, M.; Simón, O.; Williams, T.; Caballero, P. Defective or effective? Mutualistic interactions between virus genotypes. Proc. R. Soc. B Biol. Sci. 2003, 270, 2249–2255. [Google Scholar] [CrossRef] [Green Version]
  52. Barrera, G.; Williams, T.; Villamizar, L.; Caballero, P.; Simón, O. Deletion genotypes reduce occlusion body potency but increase occlusion body production in a Colombian Spodoptera frugiperda nucleopolyhedrovirus population. PLoS ONE 2013, 8, e77271. [Google Scholar] [CrossRef]
  53. Thézé, J.; Cabodevilla, O.; Palma, L.; Williams, T.; Caballero, P.; Herniou, E. Genomic diversity in European Spodoptera exigua multiple nucleopolyhedrovirus isolates. J. Gen. Virol. 2014, 95, 2297–2309. [Google Scholar] [CrossRef]
  54. Bernal, A.; Simón, O.; Williams, T.; Muñoz, D.; Caballero, P. A Chrysodeixis chalcites single-nucleocapsid nucleopolyhedrovirus population from the Canary Islands is genotypically structured to maximize survival. Appl. Environ. Microbiol. 2013, 79, 7709–7718. [Google Scholar] [CrossRef]
  55. Ikeda, M.; Hamajima, R.; Kobayashi, M. Baculoviruses: Diversity, evolution and manipulation of insects. Entomol. Sci. 2015, 18, 1–20. [Google Scholar] [CrossRef]
  56. Erlandson, M.A. Genetic variation in field populations of baculoviruses: Mechanisms for generating variation and its potential role in baculovirus epizootiology. Virol. Sin. 2009, 24, 458–469. [Google Scholar] [CrossRef]
  57. Pavan, O.H.; Boucias, D.G.; Pendland, J.C. The effects of serial passage of a nucleopolyhedrosis virus through an alternate host system. Entomophaga 1981, 26, 99–108. [Google Scholar] [CrossRef]
  58. Hughes, D.S.; Possee, R.D.; King, L.A. Activation and detection of a latent baculovirus resembling Mamestra brassicae nuclear polyhedrosis virus in M. brassicae insects. Virology 1993, 194, 608–615. [Google Scholar] [CrossRef]
  59. Burden, J.P.; Nixon, C.P.; Hodgkinson, A.E.; Possee, R.D.; Sait, S.M.; King, L.A.; Hails, R.S. Covert infections as a mechanism for long-term persistence of baculoviruses. Ecol. Lett. 2003, 6, 524–531. [Google Scholar] [CrossRef]
  60. Virto, C.; Navarro, D.; Tellez, M.M.; Murillo, R.; Williams, T.; Caballero, P. Chemical and biological stress factors on the activation of nucleopolyhedrovirus infections in covertly infected Spodoptera exigua. J. Appl. Entomol. 2017, 141, 384–392. [Google Scholar] [CrossRef]
  61. Murillo, R.; Hussey, M.S.; Possee, R.D. Evidence for covert baculovirus infections in a Spodoptera exigua laboratory culture. J. Gen. Virol. 2011, 92, 1061–1070. [Google Scholar] [CrossRef]
  62. Shapiro, M.; Martignoni, M.E.; Cunningham, J.C.; Goodwin, R.H. Potential use of the saltmarsh caterpillar as a production host for nucleopolyhedrosis viruses. J. Econ. Entomol. 1982, 75, 69–71. [Google Scholar] [CrossRef]
  63. Maleki-Milani, H. Influence de passages répétés du virus de la polyèdrose nucléaire de Autographa californica chez Spodoptera littoralis (Lep.: Noctuidae). Entomophaga 1978, 23, 217–224. [Google Scholar] [CrossRef]
  64. Tompkins, G.J.; Dougherty, E.M.; Adams, J.R.; Diggs, D. Changes in the virulence of nuclear polyhedrosis viruses when propagated in alternate noctuid (Lepidoptera: Noctuidae) cell lines and hosts. J. Econ. Entomol. 1988, 81, 1027–1032. [Google Scholar] [CrossRef]
  65. Croizier, G.; Croizier, L.; Biache, G.; Chaufaux, J. Évolution de la composition génétique et du pouvoir infectieux du baculovirus de Mamestra brassicae l. au cours de 25 multiplications successives sur les larves de la noctuelle du chou. Entomophaga 1985, 30, 365–374. [Google Scholar] [CrossRef]
  66. McIntosh, A.H.; Ignoffo, C.M. Restriction endonuclease cleavage patterns of commercial and serially passaged isolates of Heliothis baculovirus. Intervirology 1986, 25, 172–176. [Google Scholar] [CrossRef]
  67. Stairs, G.R. Effects of Galleria mellonella nuclear polyhedrosis virus passaged once in Manduca sexta on growth and survival of young M. sexta larvae. J. Invertebr. Pathol. 1990, 56, 139–141. [Google Scholar] [CrossRef]
  68. Woolhouse, M.E.; Webster, J.P.; Domingo, E.; Charlesworth, B.; Levin, B.R. Biological and biomedical implications of the co-evolution of pathogens and their hosts. Nat. Genet. 2002, 32, 569–577. [Google Scholar] [CrossRef] [Green Version]
Viruses 11 00660 g001 550

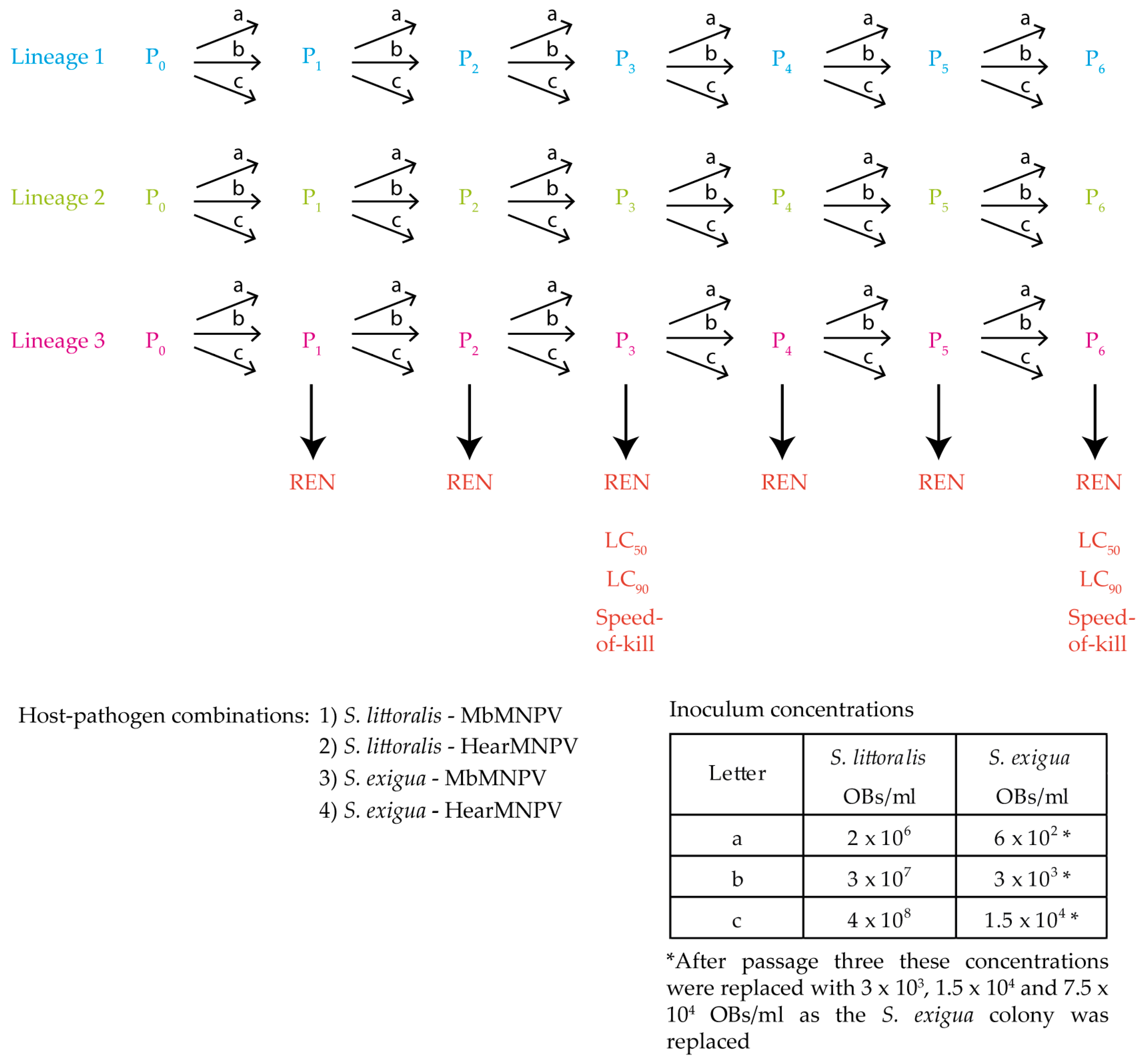

Figure 1. Schematic figure of the serial passage infection process from passage zero to six (P0–P6). The inoculum concentration (a, b or c) that resulted in ~25% mortality in experimental insects was used as the inoculum for the following passage. Inoculum occlusion bodies were subjected to restriction endonuclease analysis (REN) at every passage. LC50 and LC90: Lethal concentration 50% and 90%.
Figure 1. Schematic figure of the serial passage infection process from passage zero to six (P0–P6). The inoculum concentration (a, b or c) that resulted in ~25% mortality in experimental insects was used as the inoculum for the following passage. Inoculum occlusion bodies were subjected to restriction endonuclease analysis (REN) at every passage. LC50 and LC90: Lethal concentration 50% and 90%.
Viruses 11 00660 g001
Viruses 11 00660 g002 550

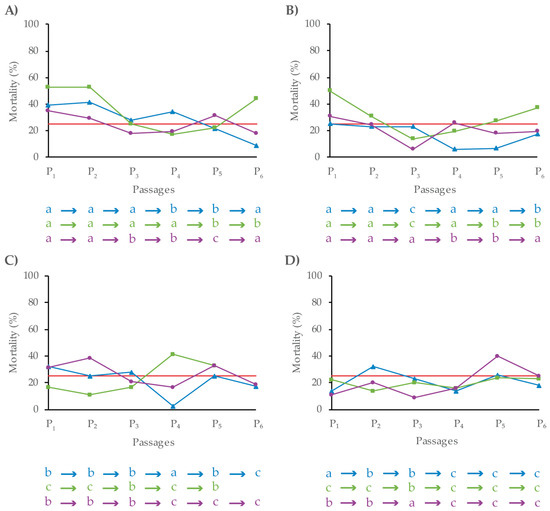

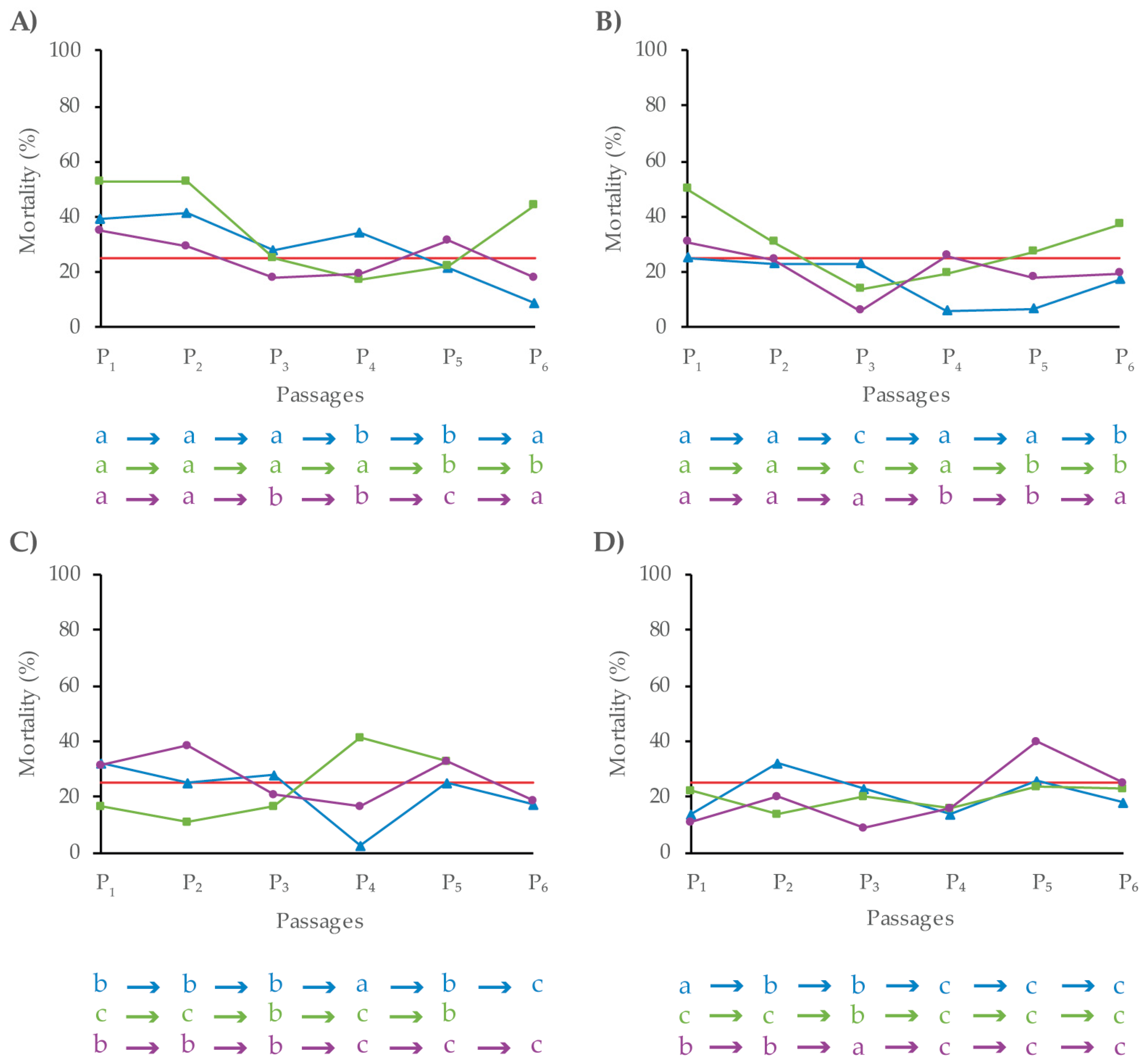

Figure 2. The percentage of mortality recorded in each passage in the three lineages of four host-pathogen systems. (A) S. littoralis – MbMNPV, (B) S. littoralis – HearMNPV, (C) S. exigua – MbMNPV, (D) S. exigua – HearMNPV. Lineage 1 is indicated in blue, lineage 2 in green and lineage 3 in purple. The horizontal red line indicates 25% mortality. The letters of the different lineages correspond to the three concentrations of inocula used in each passage: (a) low, (b) medium, (c) high.
Figure 2. The percentage of mortality recorded in each passage in the three lineages of four host-pathogen systems. (A) S. littoralis – MbMNPV, (B) S. littoralis – HearMNPV, (C) S. exigua – MbMNPV, (D) S. exigua – HearMNPV. Lineage 1 is indicated in blue, lineage 2 in green and lineage 3 in purple. The horizontal red line indicates 25% mortality. The letters of the different lineages correspond to the three concentrations of inocula used in each passage: (a) low, (b) medium, (c) high.
Viruses 11 00660 g002
Viruses 11 00660 g003 550

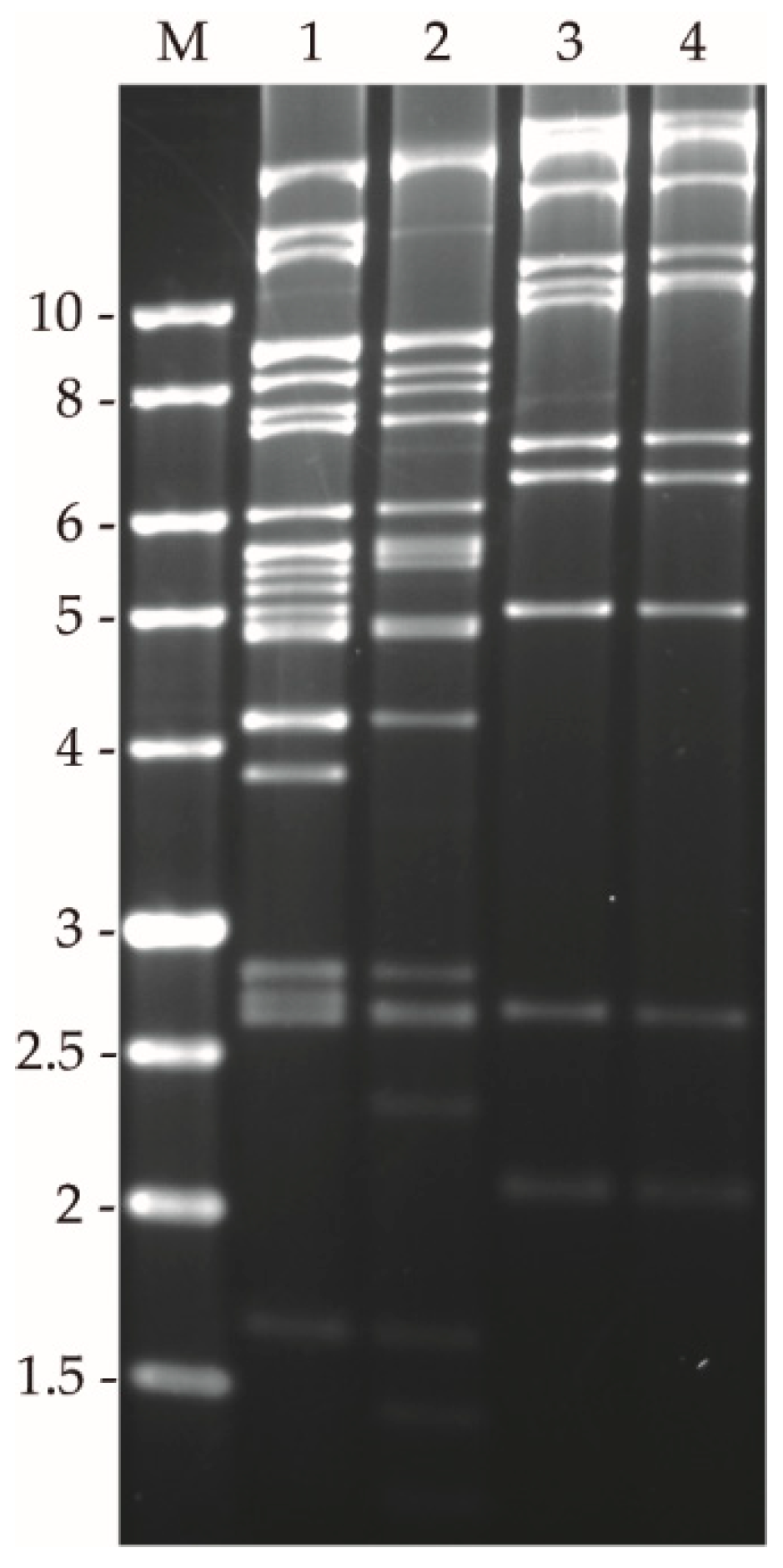

Figure 3. REN profiles of MbMNPV and HearMNPV initial inocula (P0). 1–2: HindIII restriction profile; 3–4: PstI restriction profile. 1 and 3: MbMNPV-P0; 2 and 4: HearMNPV-P0. M indicates 1 Kb molecular size marker (Nippon) and fragment sizes in kilobases (Kb) are indicated on the left.
Figure 3. REN profiles of MbMNPV and HearMNPV initial inocula (P0). 1–2: HindIII restriction profile; 3–4: PstI restriction profile. 1 and 3: MbMNPV-P0; 2 and 4: HearMNPV-P0. M indicates 1 Kb molecular size marker (Nippon) and fragment sizes in kilobases (Kb) are indicated on the left.
Viruses 11 00660 g003
Viruses 11 00660 g004 550
Figure 4. PstI profiles of the genomic DNAs of OBs obtained after serial passage of MbMNPV in the semi-permissive host, S. littoralis, from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate P0 submolar bands. The new restriction fragments with respect to the MbMNPV-P0 profile are indicated by blue asterisks.
Figure 4. PstI profiles of the genomic DNAs of OBs obtained after serial passage of MbMNPV in the semi-permissive host, S. littoralis, from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate P0 submolar bands. The new restriction fragments with respect to the MbMNPV-P0 profile are indicated by blue asterisks.
Viruses 11 00660 g004
Viruses 11 00660 g005 550

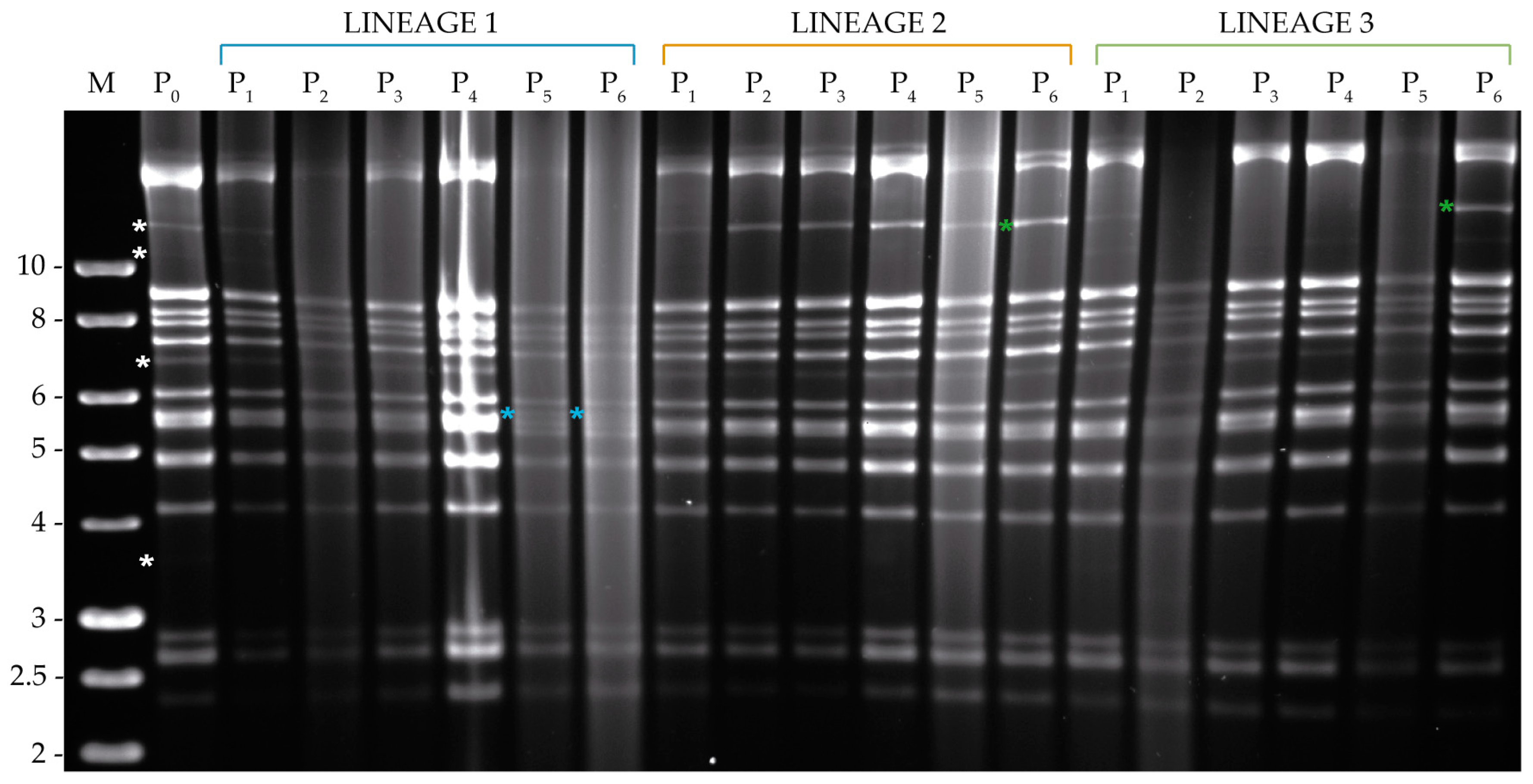

Figure 5. HindIII profiles of the genomic DNAs of the OBs obtained after serial passage of HearMNPV in the semi-permissive host, S. littoralis, from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate HearMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment and green asterisks to indicate the intensification of an existing submolar fragment.
Figure 5. HindIII profiles of the genomic DNAs of the OBs obtained after serial passage of HearMNPV in the semi-permissive host, S. littoralis, from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate HearMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment and green asterisks to indicate the intensification of an existing submolar fragment.
Viruses 11 00660 g005
Viruses 11 00660 g006 550

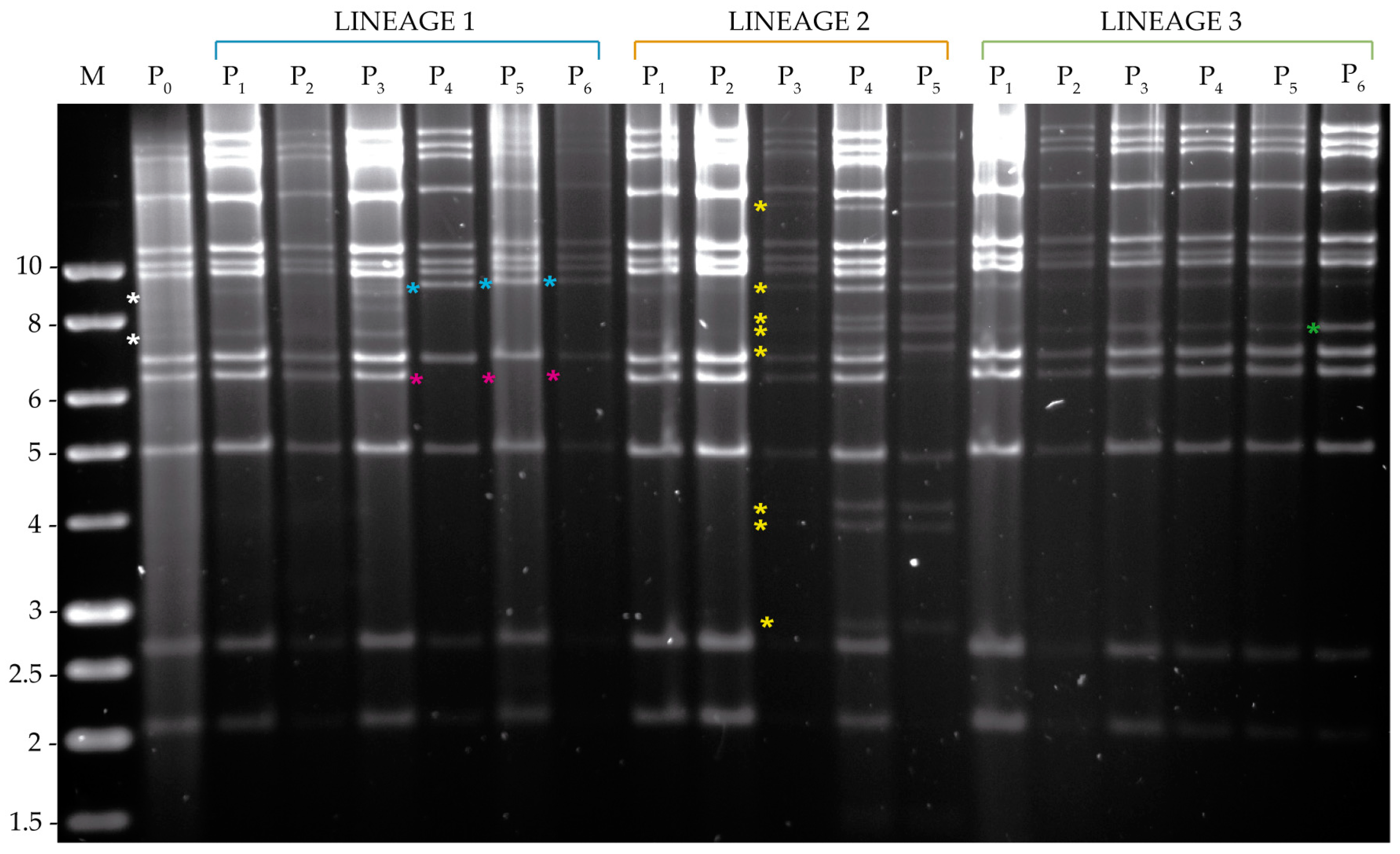

Figure 6. PstI restriction profiles of the genomic DNAs of OBs obtained after serial passage of MbMNPV in the permissive host, S. exigua from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate MbMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment, magenta asterisks to indicate the disappearance of a band and green asterisks to indicate the intensification of an existing submolar fragment. Yellow asterisks indicate SeMNPV characteristic fragments from a SeMNPV contamination event.
Figure 6. PstI restriction profiles of the genomic DNAs of OBs obtained after serial passage of MbMNPV in the permissive host, S. exigua from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate MbMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment, magenta asterisks to indicate the disappearance of a band and green asterisks to indicate the intensification of an existing submolar fragment. Yellow asterisks indicate SeMNPV characteristic fragments from a SeMNPV contamination event.
Viruses 11 00660 g006
Viruses 11 00660 g007 550

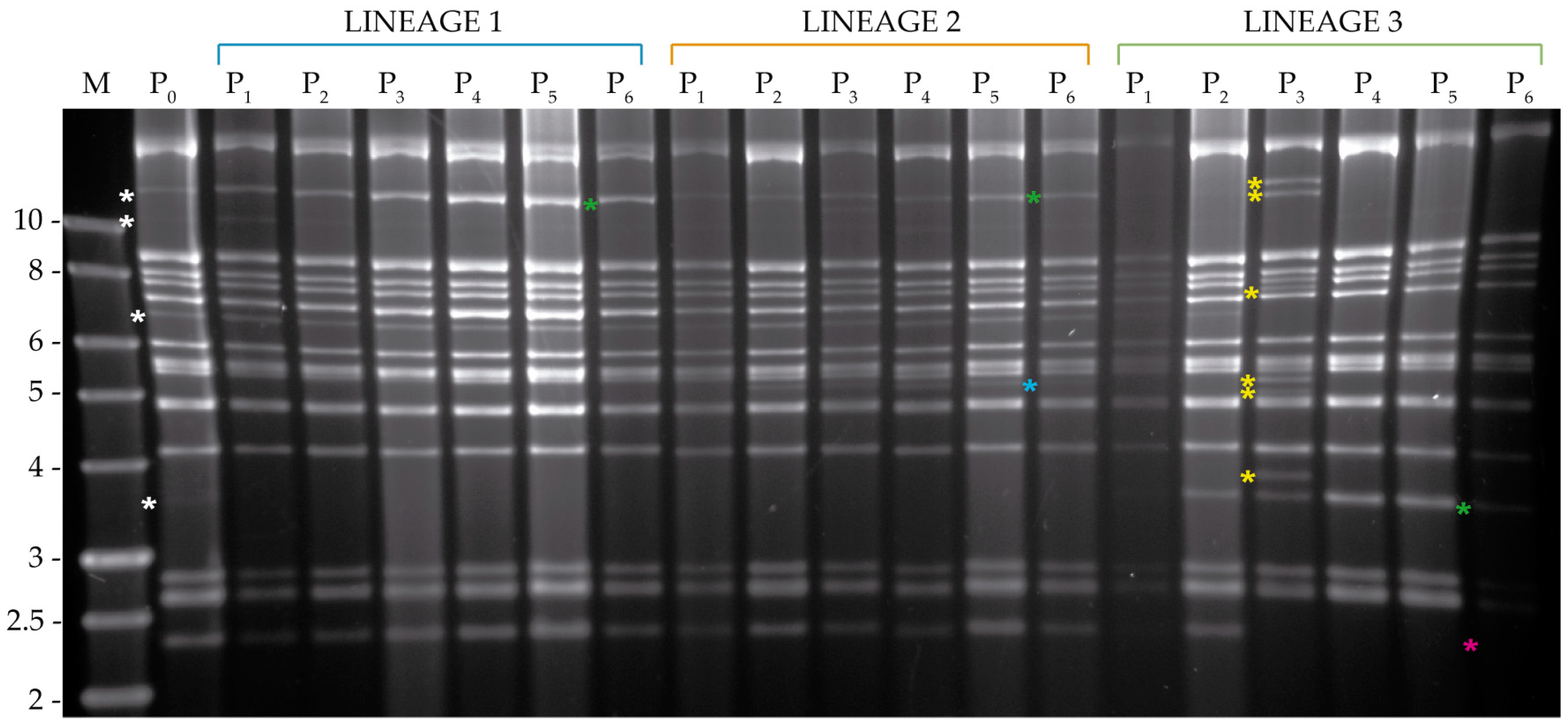

Figure 7. HindIII profiles of the genomic DNAs of OBs obtained after serial passages of HearMNPV in the permissive host, S. exigua from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate HearMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment, magenta to indicate the disappearance of a band and green to indicate the intensification of an existing submolar fragment. Yellow asterisks indicate MbMNPV characteristic fragments from a cross-contamination event.
Figure 7. HindIII profiles of the genomic DNAs of OBs obtained after serial passages of HearMNPV in the permissive host, S. exigua from passage zero to six (P0–P6). M indicates 1 kb molecular size marker (Nippon) and fragment sizes are indicated on the left. White asterisks indicate HearMNPV-P0 submolar bands. The changes with respect to the P0 REN profile are marked by blue asterisks to indicate the appearance of a new fragment, magenta to indicate the disappearance of a band and green to indicate the intensification of an existing submolar fragment. Yellow asterisks indicate MbMNPV characteristic fragments from a cross-contamination event.
Viruses 11 00660 g007
Viruses 11 00660 g008 550
Figure 8. The speed-of-kill of MbMNPV and HearMNPV after passages three and six in S. littoralis. (A) MbMNPV-P0 and lineages after passage three, (B) HearMNPV-P0 and lineages after passage three, (C) MbMNPV-P0 and lineages after passage six, (D) HearMNPV-P0 and lineages after passage six. The median time to death values (MTD) were estimated by a Kapan-Meier analysis. The error bars correspond to 95% confidence limits. Values followed by different letters differ significantly (p < 0.05).
Figure 8. The speed-of-kill of MbMNPV and HearMNPV after passages three and six in S. littoralis. (A) MbMNPV-P0 and lineages after passage three, (B) HearMNPV-P0 and lineages after passage three, (C) MbMNPV-P0 and lineages after passage six, (D) HearMNPV-P0 and lineages after passage six. The median time to death values (MTD) were estimated by a Kapan-Meier analysis. The error bars correspond to 95% confidence limits. Values followed by different letters differ significantly (p < 0.05).
Viruses 11 00660 g008
Viruses 11 00660 g009 550

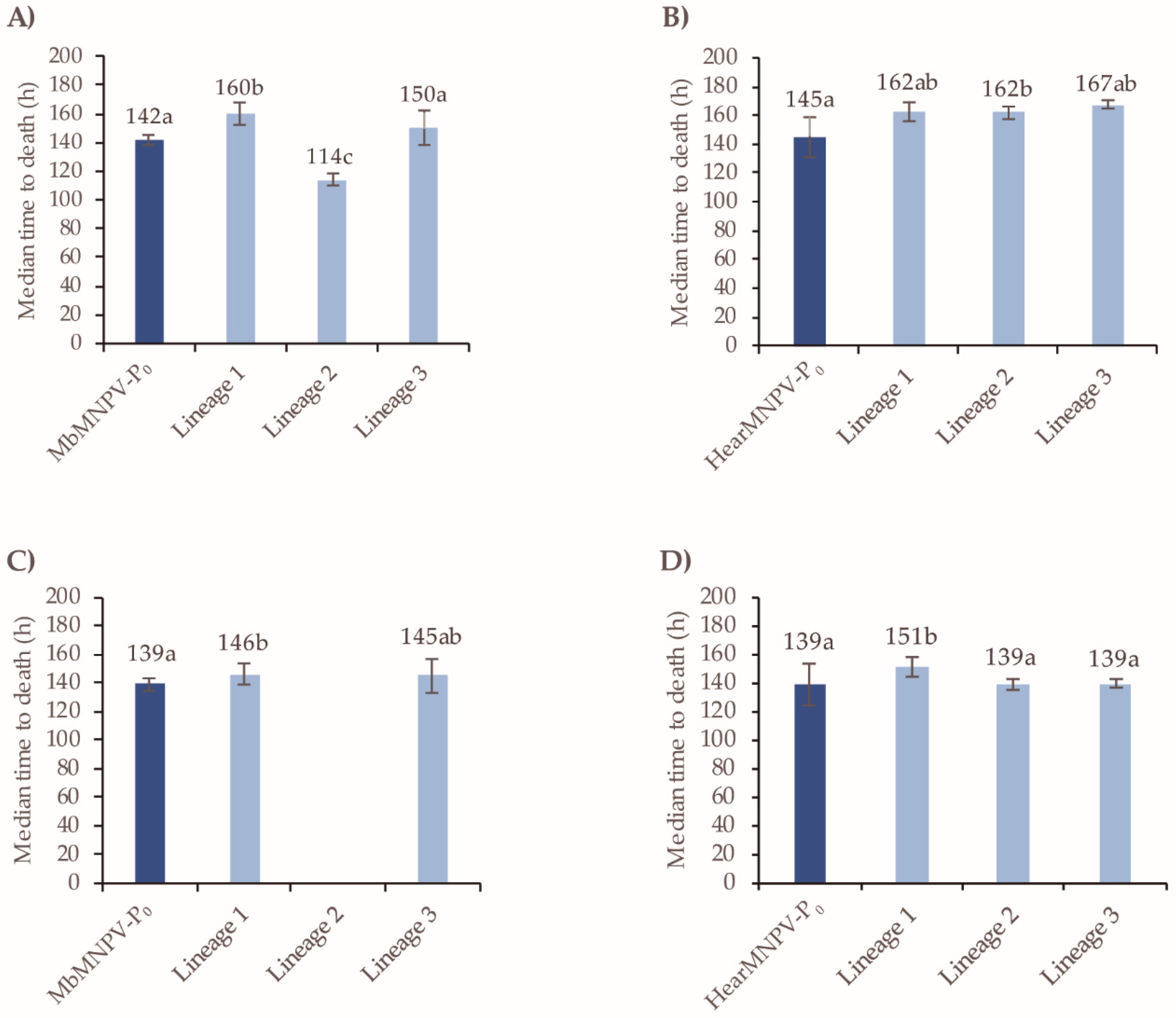

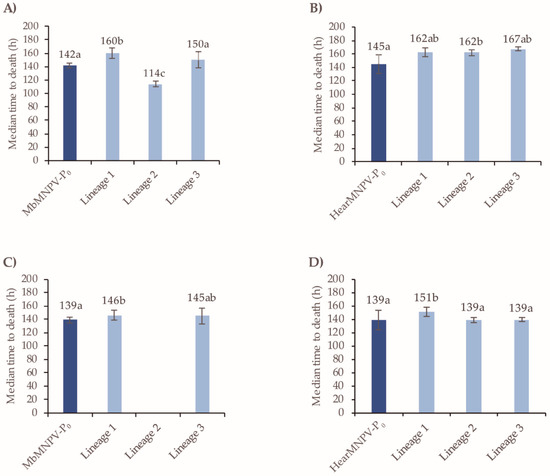

Figure 9. The speed-of-kill of MbMNPV and HearMNPV after passages three and six in S. exigua. (A) MbMNPV-P0 and lineages after passage three, (B) HearMNPV-P0 and lineages after passage three, (C) MbMNPV-P0 and lineages after passage six, (D) HearMNPV-P0 and lineages after passage six. The median time to death values (MTD) were estimated by Kapan-Meier analysis. The error bars correspond to 95% confidence limits. Values followed by different letters differ significantly (p < 0.05).
Figure 9. The speed-of-kill of MbMNPV and HearMNPV after passages three and six in S. exigua. (A) MbMNPV-P0 and lineages after passage three, (B) HearMNPV-P0 and lineages after passage three, (C) MbMNPV-P0 and lineages after passage six, (D) HearMNPV-P0 and lineages after passage six. The median time to death values (MTD) were estimated by Kapan-Meier analysis. The error bars correspond to 95% confidence limits. Values followed by different letters differ significantly (p < 0.05).
Viruses 11 00660 g009
Table
Table 1. Primers used in this study.
Table 1. Primers used in this study.
PrimersSequencesAmplification
Mb.F5′- GGTATTAACGCCGCAACAAC-3′MbMNPV, bro-a1 (forward)
Mb.R5′- TGGTTCTCCATGTTCGTCAA-3′MbMNPV, bro-a1 (reverse)
Se.F5′- TCGTGCCGAAAGTGCCAGTA-3′SeMNPV, se28 (forward)
Se.R5′- TTTGGCCAAAGTCGCGTTCG-3′SeMNPV, se28 (reverse)
Table
Table 2. The host range of MbMNPV and HearMNPV in second instars of different lepidopteran pest species.
Table 2. The host range of MbMNPV and HearMNPV in second instars of different lepidopteran pest species.
Host SpeciesMbMNPVHearMNPV
H. armigerapermissivepermissive
L. botrananon-permissivenon-permissive
M. brassicaepermissivepermissive
O. nubilalisnon-permissivenon-permissive
S. exiguapermissivepermissive
S. littoralissemi-permissivesemi-permissive
Table
Table 3. Pathogenicity of MbMNPV and HearMNPV after passages three and six in S. littoralis.
Table 3. Pathogenicity of MbMNPV and HearMNPV after passages three and six in S. littoralis.
VirusLC50 (OBs/mL)Relative Potency95% Confidence LimitsLC90 (OBs/mL)Relative Potency95% Confidence Limits
LowHighLowHigh
MbMNPV passage 3
MbMNPV-P02.6 × 107a1 5.4 × 108a1
Lineage 11.1 × 108b0.230.140.403.1 × 109b0.180.060.49
Lineage 27.6 × 107b0.340.190.584.1 × 109b0.130.040.42
Lineage 31.1 × 108b0.230.130.426.6 × 109b0.080.020.28
HearMNPV passage 3
HearMNPV-P06.2 × 107a1 1.7 × 109a1
Lineage 18.8 × 107a0.700.371.343.4 × 109a0.510.151.71
Lineage 27.8 × 107a0.800.431.461.8 × 109a0.990.332.93
Lineage 36.9 × 107a0.900.471.712.6 × 109a0.680.212.25
MbMNPV passage 6
MbMNPV-P04.1 × 106a1 1.3 × 108a1
Lineage 11.2 × 107b0.340.190.603.8 × 108b0.350.150.80
Lineage 21.1 × 107b0.370.200.686.2 × 108b0.220.090.54
Lineage 36.6 × 106a,b0.620.341.163.6 × 108b0.370.150.90
HearMNPV passage 6
HearMNPV-P01.9 × 107a1 1.7 × 109a1
Lineage 12.4 × 107a0.780.421.472.1 × 109a0.820.252.69
Lineage 22.2 × 107a0.870.471.601.5 × 109a1.210.393.78
Lineage 31.4 × 107a1.410.722.771.9 × 109a0.930.273.24
Probit regressions were fitted in POLO Plus (Leora). A test for non-parallelism was not significant for MbMNPV passage three (χ 2 = 7.57; d.f. = 3; p= 0.056), HearMNPV passage three (χ2 = 1.83; d.f. = 3; p= 0.608), MbMNPV passage six (χ 2 = 2.97; d.f. = 3; p= 0.396) and for HearMNPV passage six (χ 2 = 1.69; d.f. = 3; p= 0.639). The relative potencies were calculated as the ratio of effective concentrations relative to MbMNPV-P0 or HearMNPV-P0.
Table
Table 4. The pathogenicity of MbMNPV and HearMNPV after three and six passages in S. exigua.
Table 4. The pathogenicity of MbMNPV and HearMNPV after three and six passages in S. exigua.
VirusLC50 (OBs/mL)Relative Potency95% Confidence LimitsLC90 (OBs/mL)Relative Potency95% Confidence Limits
LowHighLowHigh
MbMNPV passage 3
MbMNPV-P01.1 × 105a1 1.6 × 106a1
Lineage 18.4 × 104a,b,c1.310.842.069.4 × 105a,b1.710.803.66
Lineage 25.9 × 104b1.861.202.885.4 × 105b2.981.456.15
Lineage 31.8 × 105c0.620.400.982.1 × 106a,b0.770.341.73
HearMNPV passage 3
HearMNPV-P06.2 × 104a1 8.9 × 105a1
Lineage 18.9 × 104a0.690.421.141.8 × 106a0.490.211.15
Lineage 26.5 × 104a0.950.591.539.1 × 105a0.980.452.12
Lineage 33.9 × 105b0.160.090.281.5 × 107b0.060.020.20
MbMNPV passage 6
MbMNPV-P05.3 × 104a1 3.6 × 106a1
Lineage 14.0 × 104a1.330.762.331.4 × 106a2.480.837.44
Lineage 2
Lineage 34.7 × 104a1.140.642.062.7 × 106a1.350.424.39
HearMNPV passage 6
HearMNPV-P03.0 × 104a1 1.0 × 106a1
Lineage 12.3 × 104a1.300.742.291.4 × 106a0.740.272.06
Lineage 22.6 × 104a1.140.661.951.1 × 106a0.990.382.55
Lineage 32.5 × 104a1.220.722.077.8 × 105a1.340.543.33
The probit regressions were fitted in POLO Plus (Leora). A test for non-parallelism was not significant for MbMNPV passage three (χ2 = 2.78; d.f. = 3; p= 0.426), HearMNPV passage three (χ2 = 7.025; d.f. = 3; p= 0.071), MbMNPV passage six (χ2 = 2.11; d.f. = 2; p= 0.349) and for HearMNPV passage six (χ2 = 2.71; d.f. = 3; p= 0.439). The relative potencies were calculated as the ratio of effective concentrations relative to each MbMNPV-P0 or HearMNPV-P0.

Share and Cite

MDPI and ACS Style

Belda, I.M.; Beperet, I.; Williams, T.; Caballero, P. Genetic Variation and Biological Activity of Two Closely Related Alphabaculoviruses during Serial Passage in Permissive and Semi-Permissive Heterologous Hosts. Viruses 2019, 11, 660. https://doi.org/10.3390/v11070660

AMA Style

Belda IM, Beperet I, Williams T, Caballero P. Genetic Variation and Biological Activity of Two Closely Related Alphabaculoviruses during Serial Passage in Permissive and Semi-Permissive Heterologous Hosts. Viruses. 2019; 11(7):660. https://doi.org/10.3390/v11070660

Chicago/Turabian Style

Belda, Isabel M., Inés Beperet, Trevor Williams, and Primitivo Caballero. 2019. "Genetic Variation and Biological Activity of Two Closely Related Alphabaculoviruses during Serial Passage in Permissive and Semi-Permissive Heterologous Hosts" Viruses 11, no. 7: 660. https://doi.org/10.3390/v11070660

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
