Article

Disinfectant-Assisted Preparation of Hierarchical ZSM-5 Zeolite with Excellent Catalytic Stabilities in Propane Aromatization

by
Peng Zhang
1,
Jianguo Zhuang
1,
Jisheng Yu
1,
Yingjie Guan
1,
Xuedong Zhu
1,* and
Fan Yang
2,*
1
Engineering Research Center of Large-Scale Reactor Engineering and Technology, East China University of Science & Technology, Ministry of Education, Shanghai 200237, China
2
State Key Laboratory of Green Chemical Engineering and Industrial Catalysis, Sinopec Shanghai Research Institute of Petrochemical Technology Co., Ltd., Shanghai 201208, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2024, 14(9), 802; https://doi.org/10.3390/nano14090802
Submission received: 3 April 2024 / Revised: 23 April 2024 / Accepted: 4 May 2024 / Published: 5 May 2024
(This article belongs to the Special Issue Nanostructured Materials for Carbon Neutrality)
Browse Figures
Versions Notes

Abstract

:
A series of quaternary ammonium or phosphonium salts were applied as zeolite growth modifiers in the synthesis of hierarchical ZSM-5 zeolite. The results showed that the use of methyltriphenylphosphonium bromide (MTBBP) could yield nano-sized hierarchical ZSM-5 zeolite with a “rice crust” morphology feature, which demonstrates a better catalytic performance than other disinfect candidates. It was confirmed that the addition of MTBBP did not cause discernable adverse effects on the microstructures or acidities of ZSM-5, but it led to the creation of abundant meso- to marco- pores as a result of aligned tiny particle aggregations. Moreover, the generation of the special morphology was believed to be a result of the coordination and competition between MTBBP and Na+ cations. The as-synthesized hierarchical zeolite was loaded with Zn and utilized in the propane aromatization reaction, which displayed a prolonged lifetime (1430 min vs. 290 min compared with conventional ZSM-5) and an enhanced total turnover number that is four folds of the traditional one, owing to the attenuated hydride transfer reaction and slow coking rate. This work provides a new method to alter the morphological properties of zeolites with low-cost disinfectants, which is of great potential for industrial applications.

1. Introduction

Light aromatics, especially BTX (benzene, toluene, and xylene) are fairly important basic raw materials that find applications in pharmacy, synthetic fibers, solvents, etc., which are usually obtained by the catalytic reforming of naphthalene [1,2,3,4]. It is of great importance to explore alternative strategies for BTX production to address concerns about crude oil depletion. On the other hand, propane is an important byproduct produced during petroleum processing and an important component of natural gas with the beneficial properties of adequacy and low cost [5,6,7]. Therefore, the aromatization of propane has emerged as a promising source of BTX, which can alleviate the severe dependence of aromatic production on petroleum resources [8,9,10,11].
Metal-modified zeolites have been used to enhance propane dehydrogenation and aromatic production [12,13,14], among which Zn/ZSM-5 showed superior catalytic performance in propane activation and aromatization. In addition, the Zn/ZSM-5 catalyst has been applied to industrial-scale processes such as the Topas process from Topsoe and the Alpha process from Sanyo [15]. Previous studies have revealed the bifunctional mechanism of propane aromatization over Zn/ZSM-5. Propane is firstly dehydrogenated on the Zn site or Lewis acid site (LAS) to obtain propylene and ethylene, followed by oligomerization and cyclization of intermediates on the Brønsted acid site (BAS) [16,17].
Based on the above discussion of the bifunctional mechanism, recent research studies have primarily focused on the modification of ZSM-5, which mainly involves structure optimization and acid regulation [18,19]. Specifically, structural modification can improve diffusion performance and reduce coke deposition, while multi-metal synergy can enhance the catalytic performance of a catalyst [20,21,22,23]. Furthermore, the catalytic performance of a catalyst can also be promoted by changing the ratio of BAS and LAS in the catalyst [24]. Although numerous modification methods have been proposed to enhance catalytic properties in the propane aromatization reaction, common catalysts are still not optimal with respect to their rapid coke deactivation [20,25,26].
Hierarchical zeolites or nanocrystalline zeolites can effectively shorten diffusion pathways, thereby reducing the probability of side reactions and suppressing carbon deposition, which is a well-known solution to extend catalytic lifetime [27,28,29]. Compared with its nano-sized counterpart, the approaches to obtain hierarchical ZSM-5 are versatile, and the recovery of hierarchical ZSM-5 from precursor solutions is much easier [30]. Hence, the preparation of hierarchical ZSM-5 has remained a hot field of research during the past decades. Briefly, hierarchical ZSM-5 can be obtained through “top-down”, methods like desilication, or through “bottom-up” routes with the assistance of zeolite growth modifiers (e.g., organosilane, quaternary ammonium salts, etc.) [31,32,33]. However, the post-treatment usually results in a low yield of target materials because of SiO2 leaching, and the zeolite growth modifiers [34,35] are very cost-sensitive in terms of industrial applications. Consequently, exploiting less expensive ways to create hierarchical zeolites is of great importance from the perspective of large-scale applications. Similar to the widely reported amphiphilic surfactant used in the synthesis of hierarchical ZSM-5, disinfectants containing tetra-ammonium salts or tetra-phosphonium salts also comprise long hydrocarbon tails and N+/P+ cation heads. Thus, these disinfectants could be potential zeolite growth modifiers or even templates to obtain hierarchical or nano-sized zeolites, with the advantage of lower prices relative to amphiphilic surfactants. Nevertheless, to the best of our knowledge, these disinfectants have only been reported in the synthesis of zeolites for unknown reasons.
In this work, a series of commonly used tetra-ammonium or tetra-phosphonium disinfectants were utilized as zeolite growth modifiers to reveal their potential effects on the final products. The results showed that disinfectants could only effectively exert their role in moderate Na+ environments, and a series of ZSM-5 zeolites with different morphologies could be acquired by changing the disinfectants employed. The obtained zeolites were systematically characterized and evaluated in propane aromatization, and the zeolite synthesized with the assistance of methyltriphenylphosphonium bromide, owning a “rice crust” feature, disclosed the most excellent catalytic performances. This work provides a new method for altering the morphological properties of zeolites with low-cost disinfectants, which is of great potential for industrial applications.

2. Experimental Section

2.1. Materials

Tetrapropylammonium hydroxide (TPAOH, 25 wt.% aqueous solution) and sodium meta aluminate (NaAlO2) were purchased from Shanghai Dibo Chemical Technology Co., Ltd. (Shanghai, China). Ethanol (AR) was purchased from Shanghai Lingfeng Chemical Reagent Co., Ltd. (Shanghai, China). Aluminum isopropoxide was purchased from TCI Co., Ltd. (Shanghai, China) Tetraethyl orthosilicate (TEOS, 99%), NaOH (98%), NH4Cl (99%), and Zn(NO3)2·6H2O (99%) were all purchased from Shanghai Titan Scientific Co., Ltd. (Shanghai, China). Methyltriphenylphosphonium bromide (MTBBP, 98%), Didecyl Dimethyl Ammonium Chloride (DDAC, 99%), Tetradecyltributylphosphonium chloride (TBTCP, 98%), and Benzyldimethyldodecylammonium chloride (DDBAC, 98%) were purchased from Shanghai Macklin Biochemical Technology Co., Ltd. (Shanghai, China).

2.2. Catalyst Preparation

The precursor solution for the preparation of ZSM-5 was synthesized with the composition of 30 TEOS: 1 NaAlO2: 2 NaOH: 900H2O:6 TPAOH: 3 X, where X was labeled as a different phosphorus modifier. Firstly, 6.51 g TPAOH was dissolved in 16.72 g deionized water followed by 8.33 g TEOS addition and stirring for 6 h. Then, 0.17 g NaAlO2 was introduced into the above solution and stirred for another 3 h. Next, different phosphorus modifiers were added (1.42 g MTBBP/1.74 g TBTCP/1.44 g DDAC/1.36 g DDBAC), and the final mixtures were stirred for 3 h again before sealing into a Teflon-lined stainless-steel autoclave to carry out hydrothermal crystallization at 170 °C for 72 h under dynamic conditions.
After hydrothermal synthesis, the product was filtrated, followed by drying at 120 °C overnight and calcinating at 550 °C for 6 h. The sample was converted into the H-form by performing three ion exchanges in 1 M NH4Cl solution at 80 °C for 6 h and then calcined at 550 °C for 6 h. After the ion exchanges, the sample was labeled as X-ZSM-5, while the sample synthesized without the phosphorus modifier added was labeled as C-ZSM-5.
Conventional incipient wetness impregnation was used to prepare Zn catalysts. Typically, Zn(NO3)2·6H2O corresponds to 2 wt.%. Zn was dissolved in deionized water and was added dropwise to X-ZSM-5. After drying overnight at 120 °C, the sample was calcined at 550 °C for 6 h. The final samples were remarked as Zn/C-ZSM-5, Zn/MTBBP-ZSM-5, Zn/TBTCP-ZSM-5, Zn/DDBAC-ZSM-5, and Zn/DDAC-ZSM-5.

2.3. Catalyst Characterization

Powder X-ray diffraction (XRD) was conducted on a Bruker D8-Advance (Brucker, Karlsruhe, Germany) with monochromatized Cu Kα radiation (40 kV and 80 mA).
Nitrogen (N2) adsorption–desorption isotherms were measured on a Micromeritics ASAP2460 analyzer (Norcross, GA, USA). The specific surface areas were calculated by the Brunauer–Emmett–Teller (BET) method, the microporous volumes and surfaces were determined by the t-plot method, and the pore size distributions were obtained from the adsorption isotherm branch by the NLDFT method.
Scanning electron microscopy (SEM) micrographs were obtained on a Zeiss Sigma500 instrument (Zeiss, Oberkochen, Germany) with an accelerating voltage of 0.02–30 kV.
An inductively coupled plasma atomic emission spectrometer (ICP-AES) was used to determine the accurate Si/Al ratios of the catalysts on Agilent 710-ES (Agilent, Santa Clara, CA, USA) [36].
The temperature-programmed desorption of ammonia (NH3-TPD) dates were studied by an ASAP2720 Micromeritics device (Norcross, GA, USA)fitted with a thermal conductivity detector (TCD).
Fourier transform infrared spectra (FT-IR) and pyridine adsorption infrared spectra (Py-IR) were measured on a Thermo Fisher Nicolet IS50 infrared spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) with a CaF2 window and vacuum system at 0.482 cm−1 optical resolution. The determination of the infrared spectrum at the -OH vibration region was made after sample treatment under high vacuum conditions for 1 h at 500 °C. Py-IR spectral data were obtained after the adsorption and desorption of pyridine at 200, 300, and 400 °C. The Brønsted and Lewis acids were quantified according to the formulas reported by Emeis [37].
Thermogravimetric (TG) analysis was used to analyze the carbon deposits of the spent catalysts using a PerkinElmer TGA 8000 (PerkinElmer, Waltham, MA, USA) under air flow from room temperature to 800 °C.

2.4. Catalyst Evaluation

A fixed-bed reactor was utilized to evaluate the propane aromatization reaction at 550 °C under atmospheric pressure. A total of 0.3 g 20–40 mesh catalyst was packed in a quartz tube reactor with an inner diameter of 8 mm. The feed ratio was n(N2): n(C3H8) = 7:3, corresponding to a propane space velocity of 3000 h−1.
The gaseous products consisting mainly of C1~C3 species were analyzed online using Shimadzu’s hydrogen flame ionization detector (FID) and TCD detector (Shimadzu, Tokyo, Japan). The detectors were connected to a PLOT-Q column and TDX-01 column, respectively. The liquid phase aromatic products, including benzene (C6H6), toluene (C7H8), and ethylbenzene/p-xylene/m-xylene/o-xylene (C8H10), were measured online using Agilent’s FID detector connected to a DB-WAX column (Agilent, Santa Clara, CA, USA). Propane conversion and aromatic selectivity were calculated based on the carbon number. The conversion of propane and the selectivity of products were calculated by the carbon atom conservation method and the area normalization method. The calculation formulas are described in Equations (1) and (2) as follows:
X p r o p a n e = n p 1 − n p 2 n p 1 × 100 %
S i = n i ∑ n i − n p 2 × 100 %
where Xpropane is the conversion of propane, Si is the selectivity of different products, np1 and np2 are the molar amounts of propane before and after the reaction, respectively, and ni is the molar amount of different product.

3. Results and Discussion

3.1. Catalytic Characterization

3.1.1. Texture Properties

MTBBP, TBTCP, DDAC, and DDBAC are all traditional disinfectants used in daily life. The ZSM-5 samples acquired with the assistance of these disinfectants were firstly subjected to a series of characterization to identify their physiochemical properties. The powder XRD patterns of C-ZSM-5 and MTBBP-ZSM-5 are shown in Figure 1. It can be seen that both profiles exhibit sharp diffraction peaks within 7.7–7.9° and 22.5–25°, which matches well with the standard patterns out of MFI topology. No peaks suggesting amorphous or impurities aside from the MFI structure could be detected, suggesting the successful formation of ZSM-5 zeolite and the total conversion of raw materials [38]. Relative crystallinities (R.C.s) were calculated from the areas underneath the peaks within 5~26°, by defining the value of C-ZSM-5 as 100%. The R.C.s were 93%, 90%, 88%, and 91% for MTBBP-ZSM-5, TBTCP-ZSM-5, DDAC-ZSM-5, and DDBAC-ZSM-5, respectively (Figure 1 and Figure S1). Actually, the catalytic performances of the samples synthesized with the addition of TBTCP, DDAC, and DDBAC were not very compelling; hence, their properties will not be discussed in detail. Obviously, only slight differences in relative crystallinities could be found, suggesting that the addition of disinfectants did not cause adverse effects for these final products.
The SEM micrographs of synthesized samples are presented in Figure 2. C-ZSM-5 prepared in conventional hydrothermal conditions displayed uniform hexagonal particles of ca. 500 nm, with clear contours, smooth surfaces, and rigid corners (Figure 2b). Similarly, MTBBP-ZSM-5 was also composed of ~500 nm hexagonal particles; however, different from C-ZSM-5, a “rice crust” feature could be observed for the particles therein, which has a much coarser surface composed of tiny secondary crystals (Figure 2a). The SEM analyses of ZSM-5 samples synthesized utilizing other disinfectants can be found in Figure S2, which also illustrates relatively coarser surfaces but with rather ununiform size distributions, indicating their weak interactions with zeolites. Therefore, it can be concluded that MTBBP plays a significant role in the morphology of ZSM-5. A further discussion of possible growth mechanisms will be made in the following sections of this paper. The TEM pictures of C-ZSM-5 and MTBBP-ZSM-5, as illustrated in Figure 3, further corroborated that C-ZSM-5 was constructed by separated hexagonal crystals with easily recognized margins, while the elementary units of MTBBP-ZSM-5 were surrounded by tiny particles attached to the surfaces. Interestingly, the selected area electron diffraction patterns, as shown in Figure 3a, manifested a spot-like pattern, hinting at an oriented attachment during zeolite growth.
The pore and surface information was analyzed by N2 adsorption–desorption. The isotherms and related structure parameters of the synthesized samples are shown in Figure 4, Figure 5, Table 1 and Table S1, respectively. MTBBP-ZSM-5 showed a type Ⅳ isotherm and C-ZSM-5 showed a type Ⅰ isotherm, according to the IUPAC classification [39]. A steep increase at relative pressure p/p0 <0.01 was found in both isotherms, which was ascribed to the rapid absorption of N2 within the micropores. As for C-ZSM-5, the adsorption soon reached a plateau at p/p0 = 0.2, and the uptake at high p/p0 regions was not discernable, indicating that C-ZSM-5 is a microporous material. In contrast, a hysteresis loop and an uptake were found at p/p0 > 0.9 in the isotherms of MTBBP-ZSM-5, which proves the existence of macropores in MTBBP-ZSM-5.
The exact values of the pore and surface parameters are summarized in Table 1. Both samples possess similar micropore surfaces (~180 m2·g−1) as well as micropore volumes (0.11 cm3·g−1), consistent with their intrinsic MFI topology. Nevertheless, the total specific surface of MTBBP-ZSM-5 (373 m2·g−1) was significantly higher than that of C-ZSM-5 (322 m2·g−1), which resulted from a larger external specific surface (195 m2·g−1 vs. 141 m2·g−1). Another evident feature was that the mesopore volume of MTBBP-ZSM-5 (0.29 cm3·g−1) was larger than C-ZSM-5 (0.12 cm3·g−1). It is possible that the differences in pore volumes and specific surfaces were ascribed to the coarser surfaces. The pore size distribution (PSD) curves of C-ZSM-5 and MTBBP-ZSM-5 derived from the adsorption branch using the NLDFT method are compared in Figure 5. The PSD curve of C-ZSM-5 shows a unique peak at 0.56 nm due to the intrinsic micropores of MFI topology [40] and a flat region within 5~100 nm. In addition to the sharp peak at 0.56 nm, another peak centering at 20 nm as well as a shoulder at 70 nm can also be observed for MTBBP-ZSM-5, indicating the existence of meso- to marco-pores. Hence, MTBBP-ZSM-5 can be regarded as a hierarchical zeolite [41,42,43].

3.1.2. Acidic Properties

Acidities were investigated by NH3-TPD and Py-IR. The semblable NH3-TPD curves of C-ZSM-5 and MTBBP-ZSM-5 before Zn impregnation are shown in Figure 6. A low-temperature peak located at ~250 °C and a high-temperature one at 450 °C were distinguished, which can be used to describe the strength and amount of strong or weak acid sites. The quantification analysis, as listed in Table 2, identified that the total acidity amount was 242.8 μmol·g−1 for MTBBP-ZSM-5 and 264.8 μmol·g−1 for C-ZSM-5.
For the samples after Zn impregnation, significant reductions in strong acid peaks were observable in the corresponding NH3-TPD profiles (Figure S3). However, slight increases in the total acidities can be seen in Table 2, indicating the Zn engagements could transform several strong acid sites into weak sites. It was also noteworthy that the acid properties of the two samples were comparable to each other before and after Zn impregnation, as can be inferred from the area and peak locations (Figure 6 and Figure S3).
The NH3-TPD curves only provide information on total acidity and strength, which cannot be used to differentiate the types of acid sites [44]. As a supplement, pyridine adsorption infrared spectra (Py-IR) were used to investigate Brønsted acid sites (BAS) and Lewis acid sites (LAS), as shown in Figure 7 and Figure S4 and Table 3. The peak at 1540 cm−1 was ascribed to the N-H bond in the protonated Pyridium cation absorbed on BAS [37,45], while the peak at 1450 cm−1 corresponded to the C-N bond vibration in the pyridine molecule adsorbed on the LAS [46]. As shown in Table 3 and Figure 7, the BAS concentration of MTBBP-ZSM-5 was 264.6 μmol·g−1, which is slightly lower than the value of C-ZSM-5 (297.2 μmol·g−1). After Zn impregnation, decrements in BAS and increments in LAS could be observed resulting from the replacement of protons by Zn species and the generation of Zn-related LAS [47].
Based on the above analysis, it was obvious that the addition of disinfectants (MTBBP) changed the morphology of the obtained zeolites, but their micro-structures were well retained. Mesopores and macropores could be introduced with the help of disinfectants, in contrast to conventional ZSM-5, which is a microporous material. Among all the disinfectants used, MTBBP was the most excellent one, which resulted in rice-crust-like surfaces possessing a hierarchical structure, and the acid sites remained almost intact.

3.2. Crystallization Process Analysis

MTBBP-ZSM-5 was selected to investigate the effect of disinfectants on the zeolite growth process. The crystallization was periodically interrupted to extract the solid intermediates. These intermediates were then characterized by XRD and SEM. These findings are presented in Figure 8, Figure 9, Figures S5 and S6. A plausible crystallization mechanism of MTBBP-ZSM-5 was proposed based on the above findings.
Figure S6 presents the SEM images of the hydrothermal products at 1 h. This sample consisted of amorphous particles, which are interpreted as irregular aggregations of nano-sized worm-like particles. This observation is further supported by the XRD patterns in Figure S5, in which only the amorphous phase can be seen. When the hydrothermal treatment was prolonged to 3 h, amorphous particles and rough hexagonal slates co-exist in the products, as shown in Figure 9. The XRD results at 3 h, as portrayed in Figure 8, also proved the successful formation of ZSM-5 zeolite. Thereafter, the intensities of XRD signals were saturated, and no significant changes could be observed in the corresponding SEM images. This finding aligned with previous studies that have also observed a rapid amorphous-to-crystalline transformation during the early stages of ZSM-5 crystallization [48].
Considering that there might be a competitive relationship between the Na+ cation and the disinfectants, samples with different Na/Al ratios were synthesized to examine their respective roles. Figure S7 displays the SEM images of samples obtained at Na/Al = 0.5, and the related XRD patterns are presented in Figure S8. Unlike the previous observations in Figure S2, abundant particles with rather small sizes could be distinguished in all samples, suggesting the existence of unconverted precursors, while only several incompletely crystallized particles could be found in MTBBP-ZSM-5 and DDAC-ZSM-5. This result indicated that Na+ was necessary for the production of ZSM-5 zeolite, possibly because the low charge densities of TPA+ and MTBBP could not balance the framework charge. Actually, nothing other than amorphous worm-like particles could be obtained in the totally Na+-free systems (Figure S9), and a higher Na+ ratio (Na+/Si = 0.2) yielded conventional coffin-shaped crystals like C-ZSM-5. In addition, the phosphorus contents of the mother liquid before and after hydrothermal treatment were determined as 0.45 wt.% and 0.47 wt.%, respectively, both of which were very close to the theoretical value of 0.5%. Therefore, it could be concluded that MTBBP was essentially a kind of zeolite growth modifier that cannot enter zeolite frameworks, and it was feasible for cyclic utilization after a simple filtration process.
Taking everything into consideration, MTBBP-ZSM-5 was a result of the competition-coordination relationships between MTBBP and sodium cations. MTBBP should interact with zeolite precursors via Coulomb force as the aluminosilicates were negatively charged [49] and MTBBP has a positive charge. Accordingly, MTBBP would be adsorbed on the precursors during crystal growth, yet its large molecular size rendered it incapable as a template, and it could only fulfill the role of a growth modifier. At the same time, the large size of MTBBP led to a low charge density, implying its interaction with the aluminosilicates is weak. Thus, in a Na+-rich environment, the attached MTBBP was possibly substituted by Na+ considering Na+ owns higher charge density as well as stronger interactions with aluminosilicates, which finally generated traditional smooth hexagonal particles. However, the negative charges of the ZSM-5 zeolite cannot be properly compensated solely by TPA+, and Na+ must be engaged in the system. Resultantly, the relative contents of Na+ and MTBBP were decisive for the successful formation of the “rice crust” morphology, as a low Na+ content will lead to failed crystallization, while a high one will eliminate the effects of MTBBP.

3.3. Catalytic Performance Evaluation

The as-prepared MTBBP-ZSM-5 and C-ZSM-5 were loaded with Zn to afford Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5, which were used as catalysts in propane aromatization. The catalytic performances are displayed in Table 4 and Figure 10. The catalyst was deemed deactivated when propane conversion was lower than 50%, and the lifetimes were determined as 290 min for Zn/C-ZSM-5 and 1430 min for Zn/MTBBP-ZSM-5. Before describing the reaction results, it was useful to elucidate the mechanism again (Figure 11). This reaction began with the activation of propane. Propane can be turned into propene via hydride transfer or dehydrogenation, and propane can also be transformed into methane and ethene via α-scission [50,51,52]. Propene and ethene are rather reactive and undergo oligomerization to afford C4~C10 olefins, then the olefins are further converted into dienes. Once dienes are formed, they can yield aromatics through cyclization and aromatization. When Zn-modified ZSM-5 was used as a catalyst, dehydrogenation processes mainly took place over Zn-related active sites; meanwhile, other reactions like cyclization and oligomerization depended on the acid sites.
Propane conversions were plotted against time on stream, as shown in Figure 10. The initial propane conversion over Zn/C-ZSM-5 was 83.8% (10 min), which was higher than the conversion over Zn/MTBBP-ZSM-5 at 77.9% (10 min). However, the conversion dropped rapidly for Zn/C-ZSM-5 to 48.9% at 300 min and further to 33.6% at 550 min. In contrast, the propane conversion over Zn/MTBBP-ZSM-5 declined only from 77.9% to 71.7% in the same period and reached 64.8% at 550 min. The total turnover number (TON) for the two catalysts was calculated to be 0.98 molC3H8·gcat−1 and 0.25 molC3H8·gcat−1 for Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5, respectively. The TON of Zn/MTBBP-ZSM-5 was approximately fourfold that of Zn/C-ZSM-5, which highlighted the advantage of Zn/MTBBP-ZSM-5 in terms of catalytic stabilities. Combined with previous characterizations, the higher initial propane conversions over Zn/C-ZSM-5 could be attributed to its stronger acidities, as concluded from the NH3-TPD and Py-IR results. On the other hand, the better reaction stability of Zn/MTBBP-ZSM-5 should arise from its hierarchical structure, which shortened the residence time and alleviated coke formation.
The trend in BTX selectivity changed similarly to the conversions. At 10 min, the total BTX selectivity of Zn/C-ZSM-5 was 65.3%, which was higher than 58.8% for the counterpart. Nevertheless, BTX selectivity for Zn/C-ZSM-5 suffered from a steep decline of ~30% within the first 300 min, while the drop was only ~3% for Zn/MTBBP-ZSM-5. As mentioned above, the formation of aromatics depended on both the acidities and Zn species. Even though Zn/C-ZSM-5 manifested a higher BTX selectivity at the onset of the reaction, the sluggish diffusion and strong acidities induced more cokes, which blocked the channels and covered the active sites. Hence, the BTX selectivity over Zn/C-ZSM-5 dropped significantly relative to Zn/MTBBP-ZSM-5. Table 4 compares the specific product distributions. In addition to BTX, the other products included methane, ethene, ethane, and propene. C4~C5 species were not detected as they are more reactive and can be cracked or aromatized once formed [53]. For the product distributions at identical TOSs, the conversion of Zn/MTBBP-ZSM-5 was higher than that of Zn/C-ZSM-5 (71.7% vs. 48.9%), which originated from the lower deactivation rate of Zn/MTBBP-ZSM-5. Also at this time, the methane selectivity over Zn/C-ZSM-5 (17.4%) was obviously higher than that of Zn/MTBBP-ZSM-5 (10.8%), indicating enhanced α-scission as a result of pore blockage and retarded diffusion [54]. Meanwhile, the total aromatics selectivity over Zn/C-ZSM-5 was only 34.3% relative to 52.9% for the counterpart, which could be attributed to the coverage of active centers by cokes. The reaction results at comparable propane conversions are also juxtaposed in Table 4, where Zn/C-ZSM-5 manifested a propane conversion of 71.5% and a total aromatic selectivity of 55.6% at 90 min, very close to the date of Zn/MTBBP-ZSM-5 at 300 min. Despite the similar performance, the main difference was the ethane/ethene ratio: for Zn/MTBBP-ZSM-5, the value was 3.7, and for Zn/C-ZSM-5, the value was 7.9, implying the hydride transfer reaction was more severe in Zn/C-ZSM-5 [55]. In terms of the similar conversion, which denotes an equivalent number of available active sites, exacerbated hydride transfer should arise from a sluggish diffusion for Zn/C-ZSM-5 because of the absence of secondary pores or channels. Notably, the hydride transfer reaction is believed to be the primary motivation for the emergence of heavy aromatics that are regarded as coke precursors [56]. Hence, poor diffusion was the main reason for the weak stability of Zn/C-ZSM-5, which resulted in a higher rate for the formation of cokes because of the prolonged residence time and the intensified hydride transfer reaction.
TG was adopted to further investigate the amount of carbonaceous deposits in the spent catalysts (at 50% conversion), and the results are shown in Figure 12. As can be seen in the DTG curves, the weight loss before 300 °C was due to dehydration, and the weight loss between 400 °C and 650 °C was caused by the oxidative combustion of carbon deposits. The TG curves in Figure 12 evidenced a weight loss of 1.2% for spent Zn/MTBBP-ZSM-5 and a weight loss of 2.7% for spent Zn/C-ZSM-5. The average coking rate corresponding to Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5 was calculated to be 8 × 10−4 gcoke/gcat and 9 × 10−3 gcoke/gcat, respectively. Obviously, the hierarchical structure of Zn/MTBBPT-ZSM-5 could accelerate diffusion and suppress hydride transfer, which effectively reduced carbon deposits and protected the active sites. Therefore, the stability of Zn/MTBBP-ZSM-5 was much better than Zn/C-ZSM-5 [57].

4. Conclusions

In this research, a series of quaternary ammonium or phosphonium salts were applied as zeolite growth modifiers in the one-step hydrothermal synthesis of hierarchical ZSM-5 zeolite. Compared with the other modifiers, the use of methyltriphenylphosphonium bromide (MTBBP) could yield nano-sized hierarchical ZSM-5 with a “rice crust” morphology feature. It was confirmed that the addition of MTBBP led to aligned tiny particle aggregations without discernable adverse effects on the microstructures and acidities, but abundant meso- and marco- pores were created. In addition, the related crystallization process was also discussed. The generation of the special morphology was believed to be a result of the coordination and competition between MTBBP and Na cations. The catalytic performance of the as-synthesized hierarchical ZSM-5 loaded with Zn was tested in propane aromatization, which possessed enhanced catalytic properties and a prolonged lifetime. Lifetime and enhanced total turnover numbers were nearly fivefold longer (1430 min vs. 290 min) and fourfold larger (0.98 vs. 0.25) than traditional ZSM-5. The superior catalytic performance was ascribed to the attenuated hydride transfer reaction and slow coking rate. Introducing mesopores can help alleviate diffusion limitations in ZSM-5, yet achieving precise control over the morphology and pore channels of multi-level pore ZSM-5 molecular sieves remains a challenging task in the academic field. The findings in this research provide a new strategy for synthesizing hierarchical ZSM-5 with surface modification that is less time-consuming and energy-consuming than the two-step treatment, and it is believed that this synthesis strategy can be extended to other porous materials in the near future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano14090802/s1, Figure S1. XRD patterns of TBTCP-ZSM-5, DDAC-ZSM-5, and DDBAC-ZSM-5; Figure S2. SEM micrographs of TBTCP-ZSM-5 (a), DDAC-ZSM-5 (b), and DDBAC-ZSM-5 (c); Figure S3. NH3-TPD desorption curves of Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5; Figure S4. Py-IR spectra of Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5; Figure S5. XRD patterns of synthesized MTBBP-ZSM-5 within 1 h; Figure S6: SEM micrographs of synthesized MTBBP-ZSM-5 within 1 h; Figure S7. SEM micrographs of MTBBP-ZSM-5 (a), TBTCP-ZSM-5 (b), DDAC-ZSM-5 (c), and DDBAC-ZSM-5 (d) synthesized with Na/Al = 0.5; Figure S8. XRD patterns of synthesized samples with Na/Al = 0.5; Figure S9. SEM micrograph of MTBBP-ZSM-5 synthesized with Na/Al = 0; Table S1. Textural properties of the synthesized samples derived from N2 adsorption-desorption isotherms.

Author Contributions

Conceptualization, P.Z.; methodology, P.Z.; investigation, P.Z., J.Z., J.Y. and Y.G.; data curation, P.Z. and F.Y.; writing—original draft preparation, P.Z.; writing—review and editing, X.Z. and F.Y.; visualization, F.Y.; supervision, X.Z.; funding acquisition, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was sponsored financially by the National Natural Science Foundation of China (21776076) and the Fundamental Research Funds for the Central Universities (JKA01211710).

Data Availability Statement

Data are available upon request.

Conflicts of Interest

The authors declare no conflicts of interest. Author Fan Yang was employed by the company State Key Laboratory of Green Chemical Engineering and Industrial Catalysis, Sinopec Shanghai Research Institute of Petrochemical Technology Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Xiang, Y.Z.; Wang, H.; Cheng, J.H.; Matsu, J. Progress and prospects in catalytic ethane aromatization. Cat. Sci. Technol. 2018, 8, 1500–1516. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Wu, S.D.; Xu, X.; Jiang, H.Q. Ethane aromatization and evolution of carbon deposits over nanosized and microsized Zn/ZSM-5 catalysts. Cat. Sci. Technol. 2020, 10, 835–843. [Google Scholar] [CrossRef]
  3. Cheng, J.J.; Zhao, Y.T.; Xu, G.H.; Zhang, P.; Zhu, X.D.; Yang, F. ZnxZr/HZSM-5 as efficient catalysts for alkylation of benzene with carbon dioxide. Front. Chem. Sci. Eng. 2023, 17, 404–414. [Google Scholar] [CrossRef]
  4. Zhang, D.; Yang, M.B.; Feng, X.; Yang, Y.F. Integration of Methanol Aromatization with Light Hydrocarbon Aromatization toward Increasing Aromatic Yields: Conceptual Process Designs and Comparative Analysis. ACS Sustain. Chem. Eng. 2020, 8, 11376–11388. [Google Scholar] [CrossRef]
  5. Rodrigues, V.D.O.; Júnior, A.C.F. On catalyst activation and reaction mechanisms in propane aromatization on Ga/HZSM5 catalysts. Appl. Catal. Gen. 2012, 435, 68–77. [Google Scholar] [CrossRef]
  6. Zhou, W.; Liu, J.; Wang, J.; Lin, L.; He, N.; Zhang, X.; Guo, H. Transformation of Propane over ZnSnPt Modified Defective HZSM-5 Zeolites: The Crucial Role of Hydroxyl Nests Concentration. Catalysts. 2019, 9, 571. [Google Scholar] [CrossRef]
  7. Akhtar, M.N. Transformation of Light Alkanes into High-Value Aromatics. Catalysts 2024, 14, 196. [Google Scholar] [CrossRef]
  8. Bhan, A.; Nicholas Delgass, W. Propane Aromatization over HZSM-5 and Ga/HZSM-5 Catalysts. Catal. Rev. 2008, 50, 19–151. [Google Scholar] [CrossRef]
  9. Sattler, J.J.H.B.; Ruiz-Martinez, J.; Santillan-Jimenez, E.; Weckhuysen, B.M. Catalytic Dehydrogenation of Light Alkanes on Metals and Metal Oxides. Chem. Rev. 2014, 114, 10613–10653. [Google Scholar] [CrossRef] [PubMed]
  10. Guisnet, M.; Gnep, N.S.; Alario, F. Aromatization of short chain alkanes on zeolite catalysts. Appl. Catal. Gen. 1992, 89, 1–30. [Google Scholar] [CrossRef]
  11. Biscardi, J.A.; Iglesia, E. Structure and function of metal cations in light alkane reactions catalyzed by modified H-ZSM5. Catal. Today 1996, 31, 207–231. [Google Scholar] [CrossRef]
  12. Sattler, J.J.H.B.; Gonzalez-Jimenez, I.D.; Luo, L.; Stears, B.A.; Malek, A.; Barton, D.G.; Kilos, B.A.; Kaminsky, M.P.; Verhoeven, T.W.G.M.; Koers, E.J.; et al. Platinum-Promoted Ga/Al2O3 as Highly Active, Selective, and Stable Catalyst for the Dehydrogenation of Propane. Angew. Chem. Int. Ed. 2014, 53, 9251–9256. [Google Scholar] [CrossRef]
  13. Erofeev, V.I.; Khasanov, V.V.; Dzhalilova, S.N.; Reschetilowski, W.P.; Syskina, A.A.; Bogdankova, L.A. Acidic and Catalytic Properties of Zeolites Modified by Zinc in the Conversion Process of Lower C3–C4 Alkanes. Catalysts 2019, 9, 421. [Google Scholar] [CrossRef]
  14. Shim, H.; Hong, J.; Ha, K.-S. Efficient Utilization of Hydrocarbon Mixture to Produce Aromatics over Zn/ZSM-5 and Physically Mixed with ZSM-5. Catalysts 2022, 12, 501. [Google Scholar] [CrossRef]
  15. Nagamori, Y.; Kawase, M. Converting light hydrocarbons containing olefins to aromatics (Alpha Process). Microporous Mesoporous Mater. 1998, 21, S1387–S1811. [Google Scholar] [CrossRef]
  16. He, P.; Jarvis, J.; Liu, L.J.; Song, H. The promoting effect of Pt on the co-aromatization of pentane with methane and propane over Zn-Pt/HZSM-5. Fuel 2019, 239, 946–954. [Google Scholar] [CrossRef]
  17. Guisnet, M.; Gnep, N.S. Aromatization of propane over GaHMFI catalysts. Reaction scheme, nature of the dehydrogenating species and mode of coke formation. Catal. Today 1996, 31, 275–292. [Google Scholar] [CrossRef]
  18. Zhang, H.X.; Wei, L.H.; Sun, Y.W.; Liang, F.G.; Wang, C. Transformation of metal species and catalytic reaction mechanism of metal modified ZSM-5 in alkane aromatization. Fuel Process. Technol. 2023, 245, 107739. [Google Scholar] [CrossRef]
  19. Wang, Y.H.; Zhang, Y.Y.; Wu, Q.; Shi, D.X.; Chen, K.C.; Li, H.S. Research progress of gallium modified HZSM-5 catalysts for aromatization of light alkanes. Chem. Ind. Eng. Process 2023, 42, 5162–5178. [Google Scholar] [CrossRef]
  20. Gao, X.; Zhang, L.; Tao, Z.C.; Chen, H.M.; Zhang, Y.; Gong, H.Y.; Wen, X.D.; Yang, Y.; Li, Y.W. New insight into seeding process leading to improved zeolitic acidity and surface properties for its catalytic application in propane aromatization. Catal. Today 2021, 368, 232–242. [Google Scholar] [CrossRef]
  21. Li, H.; Zhang, Y.; Diao, J.; Qiang, M.; Chen, Z. Synthesis and Photocatalytic Activity of Hierarchical Zn-ZSM-5 Structures. Catalysts. 2021, 11, 797. [Google Scholar] [CrossRef]
  22. Yu, Y.; Xi, Z.; Zhou, B.; Jiang, B.; Liao, Z.; Yang, Y.; Wang, J.; Huang, Z.; Sun, J.; Yang, Y. Enhancing Methane Conversion by Modification of Zn States in Co-Reaction of MTA. Catalysts 2021, 11, 1540. [Google Scholar] [CrossRef]
  23. Ding, H.; Zhang, J.; Feng, W.; Yao, Q.; Zhang, L.; Ren, Y.; Ye, L.; Yue, B.; He, H. Precise Confinement and Position Distribution of Atomic Cu and Zn in ZSM-5 for CO2 Hydrogenation to Methanol. Nanomaterials 2023, 13, 3053. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, Y.W.; Wei, L.H.; Zhang, Z.; Zhang, H.X.; Li, Y.L. Coke Formation over Zeolite Catalysts in Light Alkanes Aromatization and Anti-Carbon-Deposition Strategies and Perspectives: A Review. Energy Fuels 2023, 37, 1657–1677. [Google Scholar] [CrossRef]
  25. Campo, P.; Martínez, C.; Corma, A. Activation and conversion of alkanes in the confined space of zeolite-type materials. Chem. Soc. Rev. 2021, 50, 8511–8595. [Google Scholar] [CrossRef] [PubMed]
  26. Choudhary, V.R.; Sivadinarayana, C.; Devadas, P.; Sansare, S.D.; Magnoux, P.; Guisnet, M. Characterization of coke on H-gallosilicate (MFI) propane aromatization catalyst.: Influence of coking conditions on nature and removal of coke. Microporous Mesoporous Mater. 1998, 21, 91–101. [Google Scholar] [CrossRef]
  27. Milina, M.; Mitchell, S.; Crivelli, P.; Cooke, D.; Perez-Ramirez, J. Mesopore quality determines the lifetime of hierarchically structured zeolite catalysts. Nat. Commun. 2014, 5, 3922. [Google Scholar] [CrossRef]
  28. Hu, Y.; Wang, C.; Li, T.; Bao, X.; Yue, Y. Nitrogen- and Halogen-Free Multifunctional Polymer-Directed Fabrication of Aluminum-Rich Hierarchical MFI Zeolites. Nanomaterials 2022, 12, 1633. [Google Scholar] [CrossRef] [PubMed]
  29. Niu, X.; Feng, F.; Yuan, G.; Zhang, X.; Wang, Q. Hollow MFI Zeolite Supported Pt Catalysts for Highly Selective and Stable Hydrodeoxygenation of Guaiacol to Cycloalkanes. Nanomaterials 2019, 9, 362. [Google Scholar] [CrossRef]
  30. Hu, J.; Zhu, C.; Xia, F.; Fang, Z.; Yang, F.; Weng, J.; Yao, P.; Zheng, C.; Dong, H.; Fu, W. Acidic Mesoporous Zeolite ZSM-5 Supported Cu Catalyst with Good Catalytic Performance in the Hydroxysulfurization of Styrenes with Disulfides. Nanomaterials 2017, 7, 459. [Google Scholar] [CrossRef]
  31. Shamzhy, M.; Opanasenko, M.; Concepcion, P.; Martinez, A. New trends in tailoring active sites in zeolite-based catalysts. Chem. Soc. Rev. 2019, 48, 1095–1149. [Google Scholar] [CrossRef]
  32. Verboekend, D.; Nuttens, N.; Locus, R.; Van Aelst, J.; Verolme, P.; Groen, J.C.; Pérez-Ramírez, J.; Sels, B.F. Synthesis, characterization, and catalytic evaluation of hierarchical faujasite zeolites: Milestones, challenges, and future directions. Chem. Soc. Rev. 2016, 45, 3331–3352. [Google Scholar] [CrossRef]
  33. Panasenko, A.E.; Shichalin, O.O.; Yarusova, S.B.; Ivanets, A.I.; Belov, A.A.; Drankov, A.N.; Azon, S.A.; Fedorets, A.N.; Buravlev, I.Y.; Shlyk, D.K.; et al. A novel approach for rice straw agricultural waste utilization: Synthesis of solid aluminosilicate matrices for cesium immobilization. Nucl. Eng. Technol. 2022, 54, 3250–3259. [Google Scholar] [CrossRef]
  34. Hoff, T.C.; Gardner, D.W.; Thilakaratne, R.; Proano-Aviles, J.; Tessonnier, J.P. Elucidating the effect of desilication on aluminum-rich ZSM-5 zeolite and its consequences on biomass catalytic fast pyrolysis. Appl. Catal. Gen. 2017, 529, 68–78. [Google Scholar] [CrossRef]
  35. Choi, M.; Cho, H.S.; Srivastava, R.; Venkatesan, C.; Choi, D.H.; Ryoo, R. Amphiphilic organosilane-directed synthesis of crystalline zeolite with tunable mesoporosity. Nat. Mat. 2006, 5, 718–723. [Google Scholar] [CrossRef] [PubMed]
  36. Shichalin, O.O.; Papynov, E.K.; Ivanov, N.P.; Balanov, M.I.; Dran’kov, A.N.; Shkuratov, A.L.; Zarubina, N.V.; Fedorets, A.N.; Mayorov, V.Y.; Lembikov, A.O.; et al. Study of adsorption and immobilization of Cs+, Sr2+, Co2+, Pb2+, La3+ ions on Na-Faujasite zeolite transformed in solid state matrices. Sep. Purif. Technol. 2024, 332, 125662. [Google Scholar] [CrossRef]
  37. Emeis, C.A. Determination of integrated molar extinction coefficients for infrared absorption bands of pyridine adsorbed on solid acid catalysts. J. Catal. 1993, 141, 347–354. [Google Scholar] [CrossRef]
  38. Derouane, E.G.; Determmerie, S.; Gabelica, Z.; Blom, N. Synthesis and characterization of ZSM-5 type zeolites I. physico-chemical properties of precursors and intermediates. Appl. Catal. 1981, 1, 201–224. [Google Scholar] [CrossRef]
  39. Sing, K.S.W. Reporting Physisorption Data for Gas/Solid Systems with Special Reference to the Determination of Surface Area and Porosity. Pure Appl. Chem. 1985, 57, 603–619. [Google Scholar] [CrossRef]
  40. Zhang, W.; Huang, B.; Yu, X.; Zhang, J. Interpretation of BJH method for calculating aperture distribution process. Univ Chem. 2020, 35, 98–106. [Google Scholar] [CrossRef]
  41. Khaledi, K.; Haghighi, M.; Sadeghpour, P. On the catalytic properties and performance of core-shell ZSM-5@MnO nanocatalyst used in conversion of methanol to light olefins. Microporous Mesoporous Mater. 2017, 246, 51–61. [Google Scholar] [CrossRef]
  42. Liu, X.H.; Yan, C.; Wang, Y.L.; Zhang, P.; Yan, S.Y.; Zhuang, J.G.; Zhu, X.D.; Yang, F. Simultaneously enhanced aromatics selectivity and catalyst lifetime in methanol aromatization over [Zn, Al]-ZSM-5 via isomorphous substitution with optimized acidic properties and pore structure. Fuel 2023, 349, 128758. [Google Scholar] [CrossRef]
  43. Lin, F.; Ye, Z.; Kong, L.; Liu, P.; Zhang, Y.; Zhang, H.; Tang, Y. Facile Morphology and Porosity Regulation of Zeolite ZSM-5 Mesocrystals with Synergistically Enhanced Catalytic Activity and Shape Selectivity. Nanomaterials 2022, 12, 1601. [Google Scholar] [CrossRef] [PubMed]
  44. Al-Dughaither, A.S.; Lasa, H. HZSM-5 Zeolites with Different SiO2/Al2O3 Ratios. Characterization and NH3 Desorption Kinetics. Ind. Eng. Chem. Res. 2014, 53, 15303–15316. [Google Scholar] [CrossRef]
  45. Zhang, L.L.; Song, Y.; Li, G.D.; Zhang, Q.; Zhang, S.L.; Xu, J.; Deng, F.; Gong, Y.J. F-assisted synthesis of a hierarchical ZSM-5 zeolite for methanol to propylene reaction: A b-oriented thinner dimensional morphology. RSC Adv. 2015, 5, 61354–61363. [Google Scholar] [CrossRef]
  46. Barzetti, T.; Selli, E.; Moscotti, D.; Forni, L. Pyridine and ammonia as probes for FTIR analysis of solid acid catalysts. J. Chem. Soc. Faraday Trans. 1996, 92, 1401–1407. [Google Scholar] [CrossRef]
  47. Dauda, I.B.; Yusuf, M.; Gbadamasi, S.; Bello, M.; Atta, A.Y.; Aderemi, B.O.; Jibril, B.Y. Highly Selective Hierarchical ZnO/ZSM-5 Catalysts for Propane Aromatization. ACS Omega 2020, 5, 2725–2733. [Google Scholar] [CrossRef] [PubMed]
  48. Chen, X.S.; Jiang, R.L.; Gao, Y.; Zhou, Z.H.; Wang, X.W. Synthesis of nano-ZSM-5 zeolite via a dry gel conversion crystallization process and its application in MTO reaction. CrystEngComm 2021, 23, 2793–2800. [Google Scholar] [CrossRef]
  49. Bij, H.E.; Weckhuysen, B.M. Phosphorus promotion and poisoning in zeolite-based materials: Synthesis, characterization and catalysis. Chem. Soc. Rev. 2015, 44, 7406–7428. [Google Scholar] [CrossRef]
  50. Bhan, A.; Hsu, S.H.; Blau, G.; Caruthers, J.M.; Venkatasubramanian, V.; Delgass, W.N. Microkinetic modeling of propane aromatization over HZSM-5. J. Catal. 2005, 235, 35–51. [Google Scholar] [CrossRef]
  51. Krishnamurthy, G.; Bhan, A.; Delgass, W.N. Identity and chemical function of gallium species inferred from microkinetic modeling studies of propane aromatization over Ga/HZSM-5 catalysts. J. Catal. 2010, 271, 370–385. [Google Scholar] [CrossRef]
  52. Oseke, G.G.; Atta, A.Y.; Mukhtar, B.; El-Yakubu, B.J.; Aderemi, B.O. Synergistic effect of Zn with Ni on ZSM-5 as propane aromatization catalyst: Effect of temperature and feed flowrate. J. Porous Mater. 2022, 29, 1839–1852. [Google Scholar] [CrossRef]
  53. Biscardi, J.A.; Iglesia, E. Reaction pathways and rate-determining steps in reactions of alkanes on H-ZSM5 and Zn/H-ZSM5 catalysts. J. Catal. 1999, 182, 117–128. [Google Scholar] [CrossRef]
  54. Almutairi, S.M.T.; Mezari, B.; Magusin, P.C.M.M.; Pidko, E.A.; Hensen, E.J.M. Structure and Reactivity of Zn-Modified ZSM-5 Zeolites: The Importance of Clustered Cationic Zn Complexes. ACS Catal. 2012, 2, 71–83. [Google Scholar] [CrossRef]
  55. Biscardi, J.; Meitzner, G.; Iglesia, E. Structure and Density of Active Zn Species in Zn/H-ZSM5 Propane Aromatization Catalysts. J. Catal. 1998, 179, 192–202. [Google Scholar] [CrossRef]
  56. Choudhary, V.R.; Kinage, A.K.; Choudhary, T.V. Simultaneous aromatization of propane and higher alkanes or alkenes over H-GaAlMFI zeolite. Chem. Commun. 1996, 22, 2545–2546. [Google Scholar] [CrossRef]
  57. Xue, T.; Liu, H.; Zhang, Y.; Wu, H.; He, M. Synthesis of ZSM-5 with hierarchical porosity: In-situ conversion of the mesoporous silica-alumina species to hierarchical zeolite. Microporous Mesoporous Mater. 2017, 242, 190–199. [Google Scholar] [CrossRef]
Nanomaterials 14 00802 g001

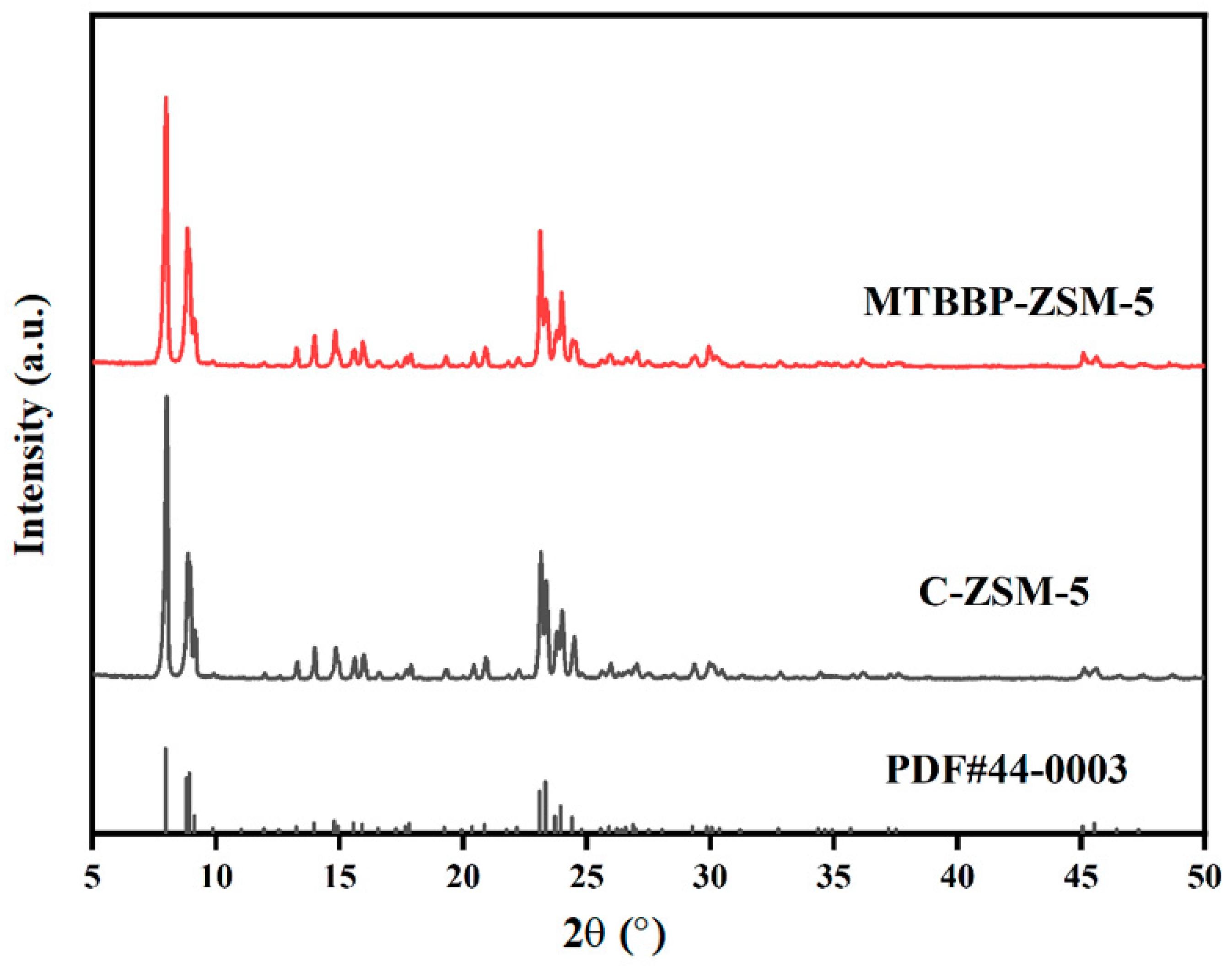

Figure 1. XRD patterns of MTBBP-ZSM-5 and C-ZSM-5.
Figure 1. XRD patterns of MTBBP-ZSM-5 and C-ZSM-5.
Nanomaterials 14 00802 g001
Nanomaterials 14 00802 g002
Figure 2. SEM micrographs of MTBBP-ZSM-5 (a) and C-ZSM-5 (b).
Figure 2. SEM micrographs of MTBBP-ZSM-5 (a) and C-ZSM-5 (b).
Nanomaterials 14 00802 g002
Nanomaterials 14 00802 g003
Figure 3. TEM micrographs of MTBBP-ZSM-5 (a) and C-ZSM-5 (b).
Figure 3. TEM micrographs of MTBBP-ZSM-5 (a) and C-ZSM-5 (b).
Nanomaterials 14 00802 g003
Nanomaterials 14 00802 g004

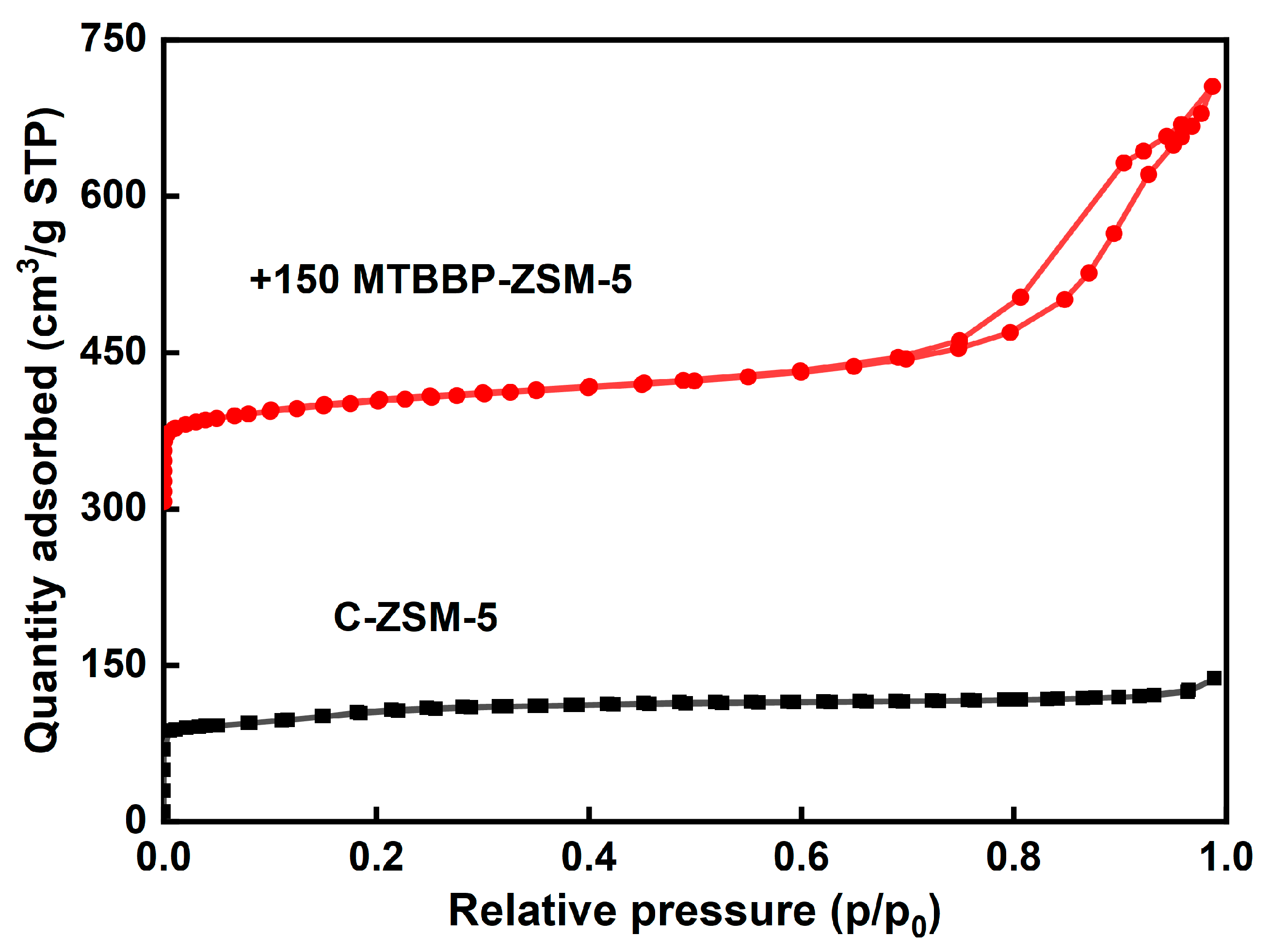

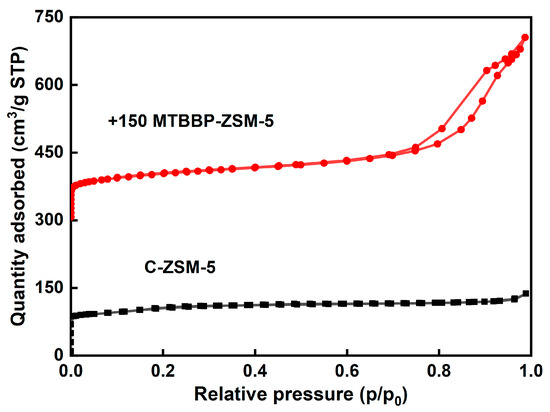

Figure 4. N2 adsorption–desorption isotherms of different samples.
Figure 4. N2 adsorption–desorption isotherms of different samples.
Nanomaterials 14 00802 g004
Nanomaterials 14 00802 g005

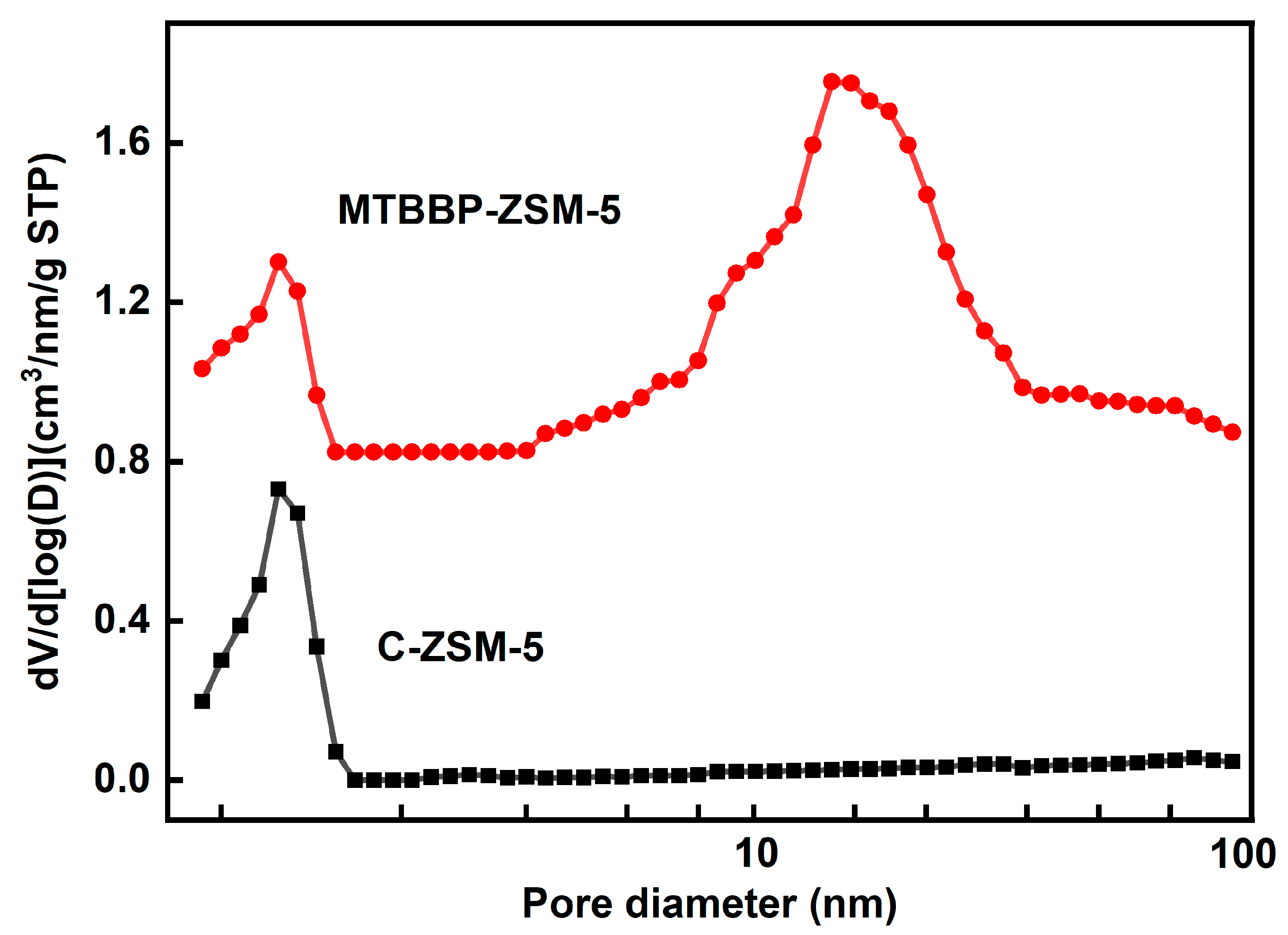

Figure 5. Pore size distributions of different samples.
Figure 5. Pore size distributions of different samples.
Nanomaterials 14 00802 g005
Nanomaterials 14 00802 g006

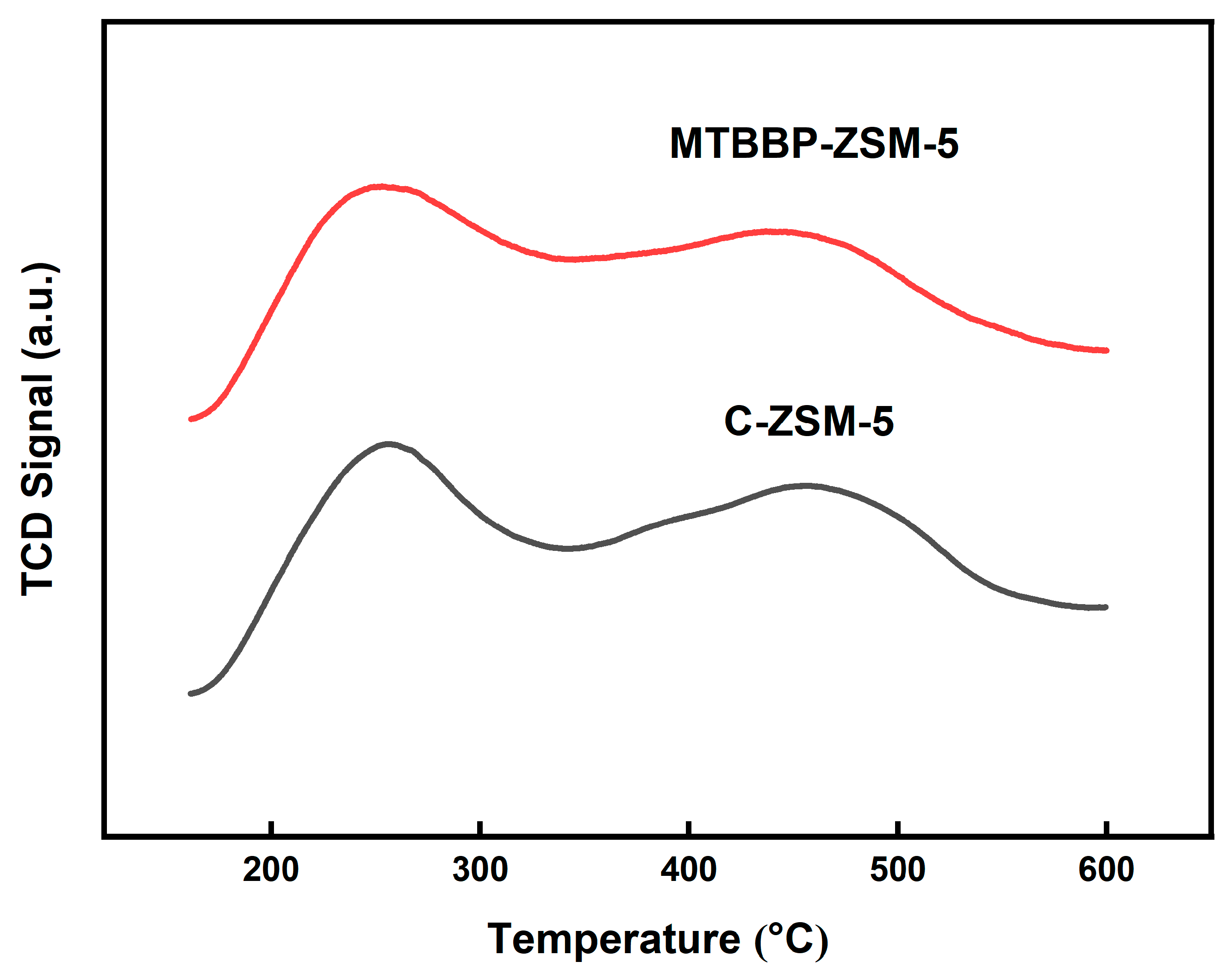

Figure 6. NH3-TPD desorption curve of MTBBP-ZSM-5 and C-ZSM-5.
Figure 6. NH3-TPD desorption curve of MTBBP-ZSM-5 and C-ZSM-5.
Nanomaterials 14 00802 g006
Nanomaterials 14 00802 g007

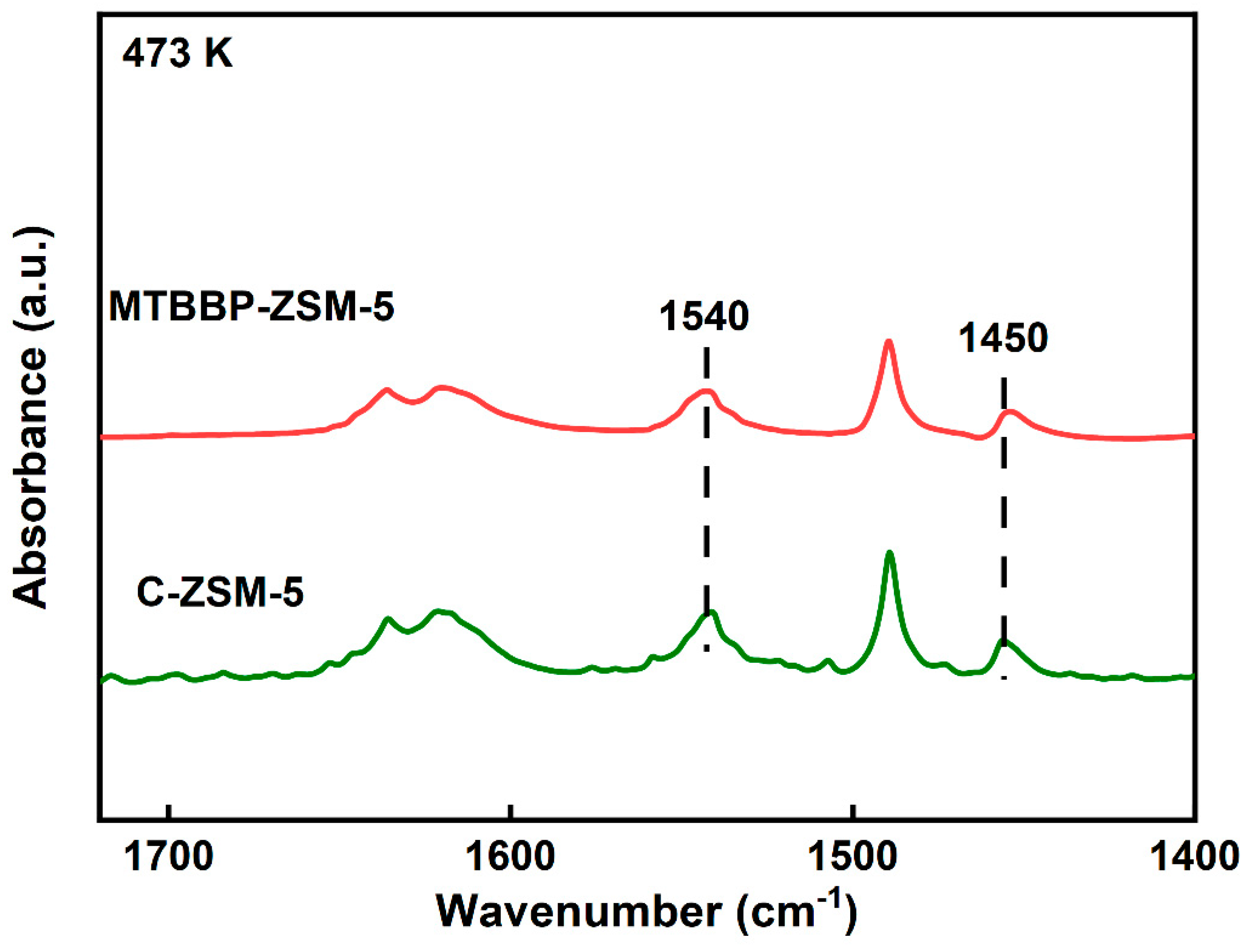

Figure 7. Py−IR spectra of MTBBP−ZSM-5 and C−ZSM−5.
Figure 7. Py−IR spectra of MTBBP−ZSM-5 and C−ZSM−5.
Nanomaterials 14 00802 g007
Nanomaterials 14 00802 g008

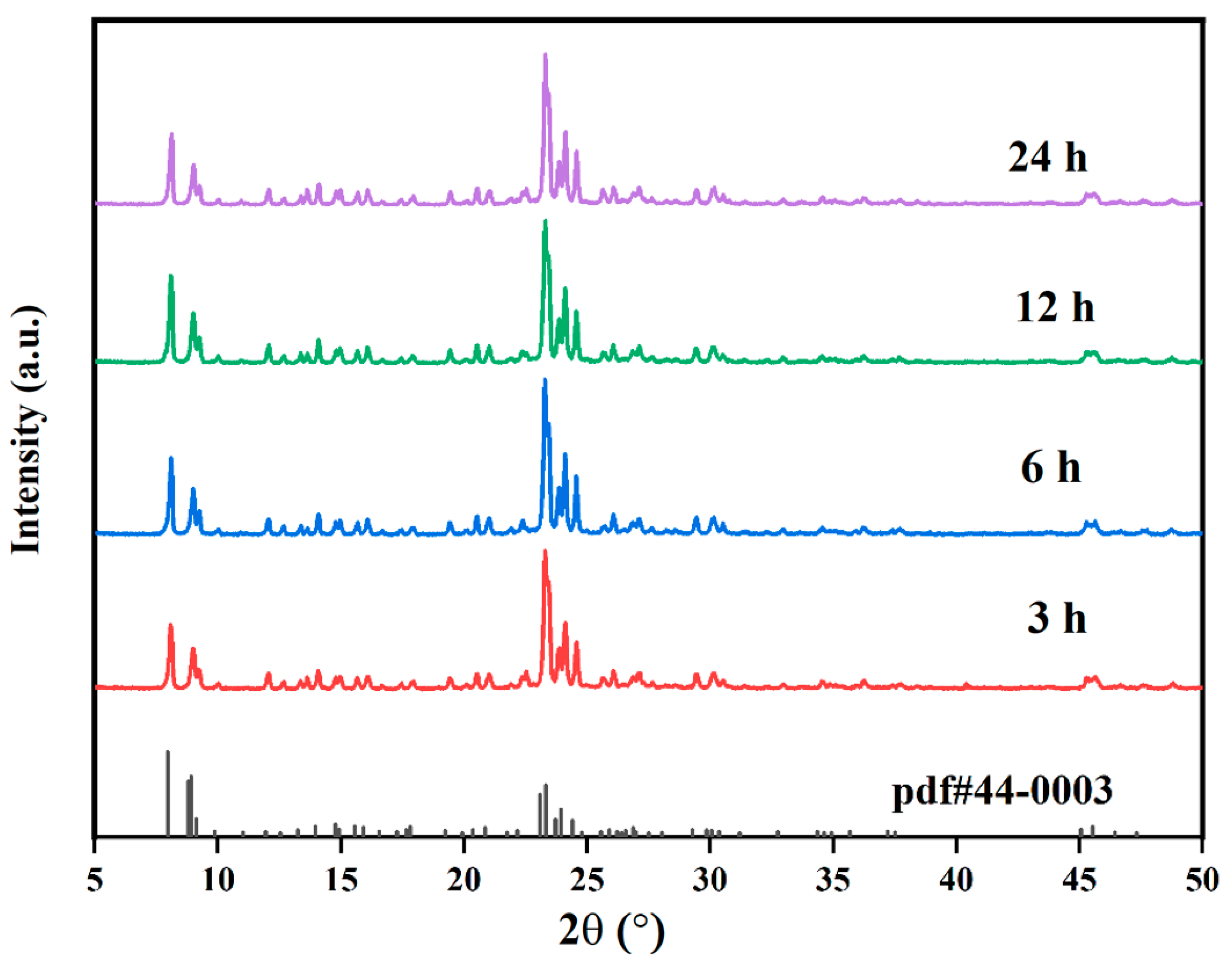

Figure 8. Time-dependent XRD patterns of MTBBP at various crystallization periods.
Figure 8. Time-dependent XRD patterns of MTBBP at various crystallization periods.
Nanomaterials 14 00802 g008
Nanomaterials 14 00802 g009
Figure 9. Time-dependent SEM micrographs of MTBBP at various crystallization periods.
Figure 9. Time-dependent SEM micrographs of MTBBP at various crystallization periods.
Nanomaterials 14 00802 g009
Nanomaterials 14 00802 g010

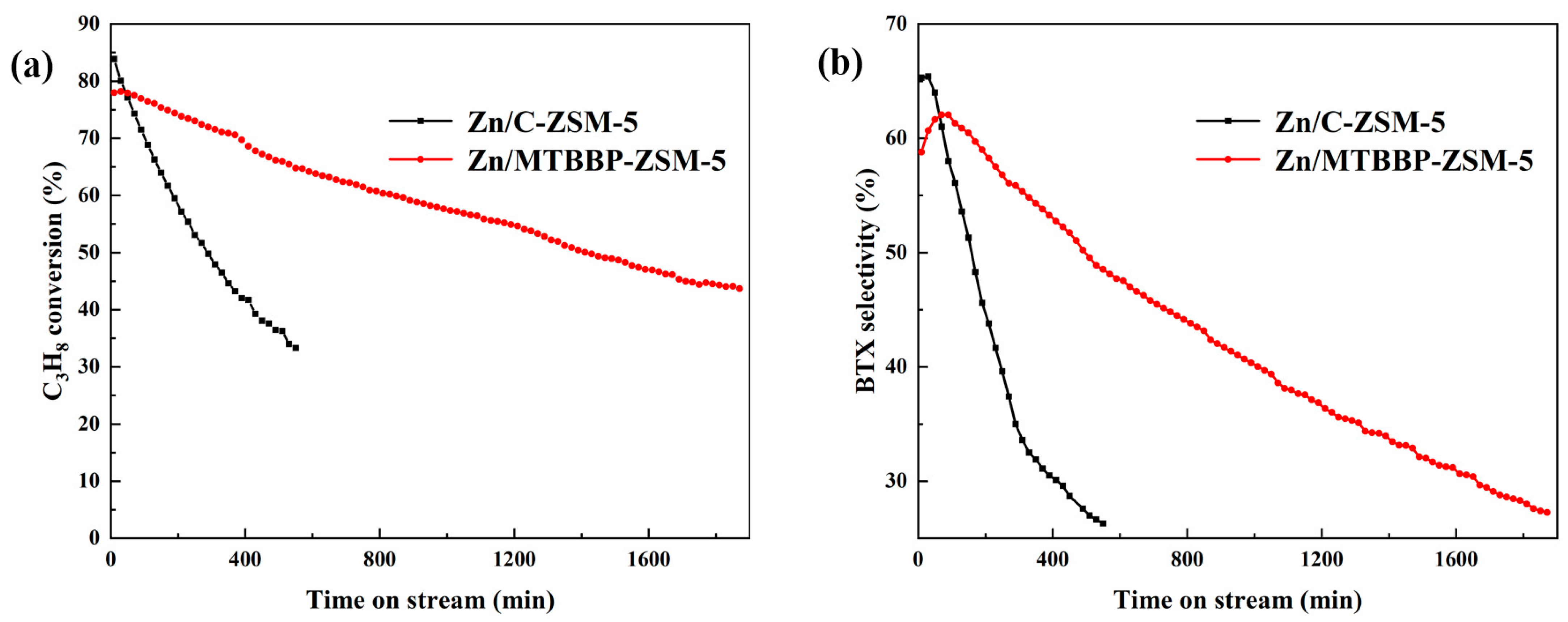

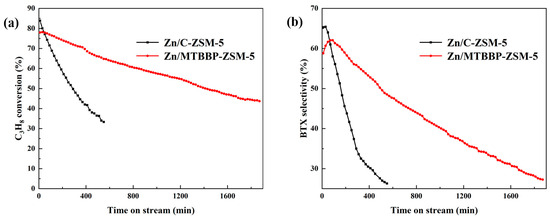

Figure 10. The conversion of propane aromatization with time on stream (TOS) over different catalysts (a); BTX selectivity with time on stream (TOS) over different catalysts (b).
Figure 10. The conversion of propane aromatization with time on stream (TOS) over different catalysts (a); BTX selectivity with time on stream (TOS) over different catalysts (b).
Nanomaterials 14 00802 g010
Nanomaterials 14 00802 g011

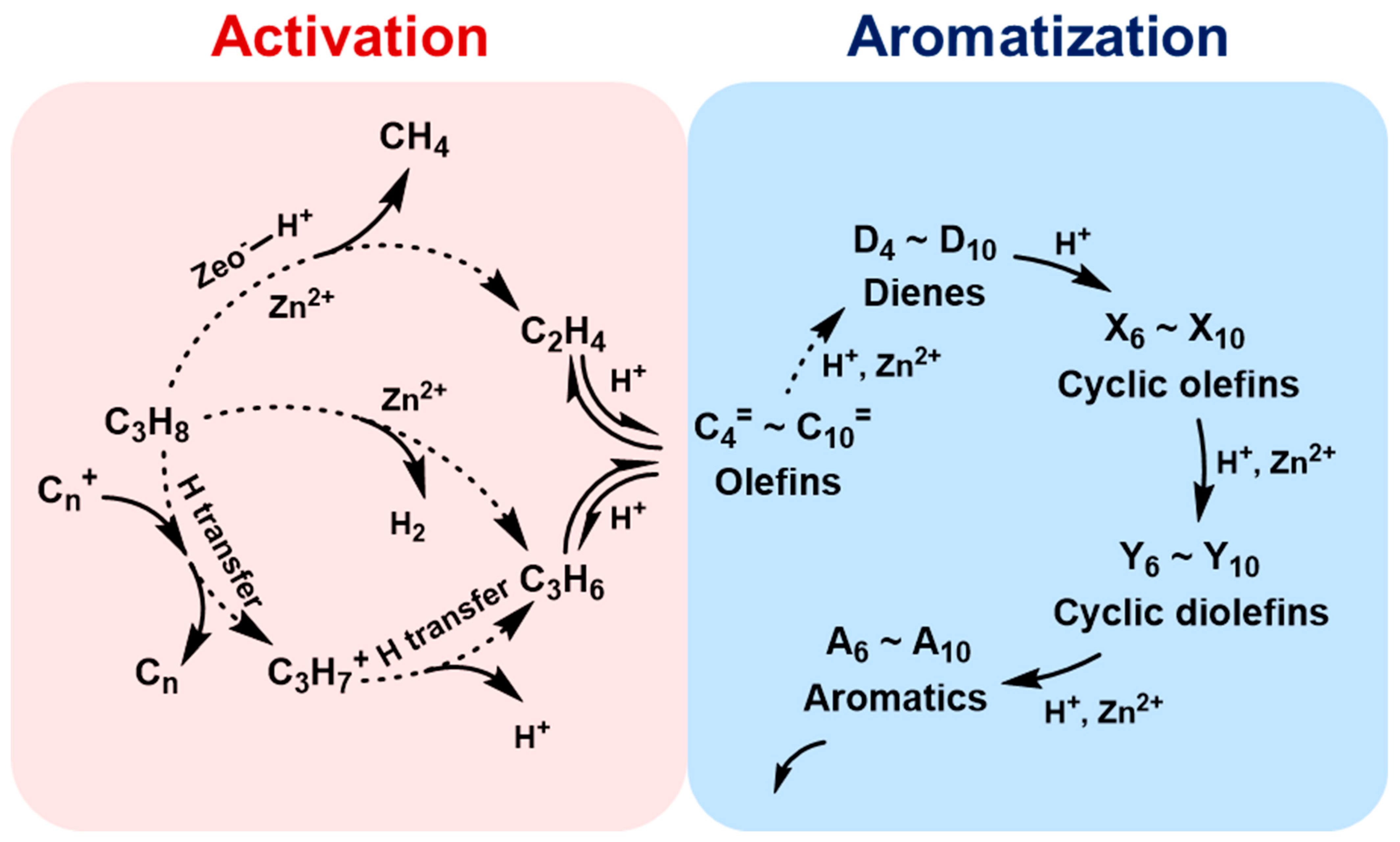

Figure 11. The reaction paths of propane on Zn/ZSM−5 molecular sieve (dashed lines represent slower reactions).
Figure 11. The reaction paths of propane on Zn/ZSM−5 molecular sieve (dashed lines represent slower reactions).
Nanomaterials 14 00802 g011
Nanomaterials 14 00802 g012

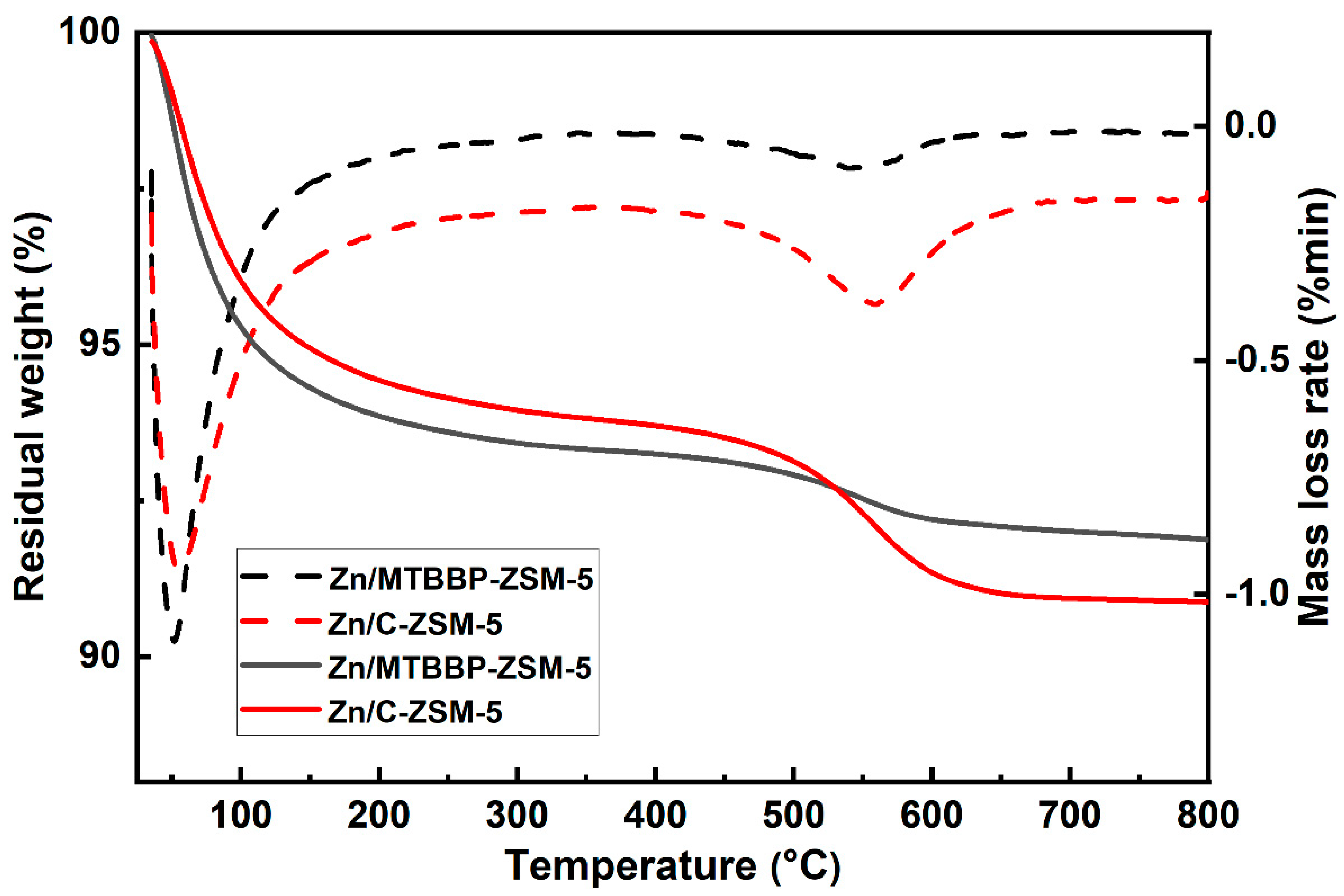

Figure 12. TG and DTG curves of different spent catalysts.
Figure 12. TG and DTG curves of different spent catalysts.
Nanomaterials 14 00802 g012
Table 1. Textural properties of the synthesized samples derived from N2 adsorption–desorption isotherms.
Table 1. Textural properties of the synthesized samples derived from N2 adsorption–desorption isotherms.
SampleSBET
(m2·g−1)		Sext
(m2·g−1)		Smicro
(m2·g−1)		Vtotal
(cm3·g−1)		Vmicro
(cm3·g−1)		Vmeso
(cm3·g−1)
MTBBP-ZSM-53731951780.400.110.29
C-ZSM-53221411810.230.110.12
Table 2. Acid properties of the synthesized samples by NH3-TPD.
Table 2. Acid properties of the synthesized samples by NH3-TPD.
SampleTotal Acidity Amount
(μmol·g−1)
MTBBP-ZSM-5
C-ZSM-5
Zn/MTBBP-ZSM-5		242.8
264.8
267.5
Zn/C-ZSM-5286.8
Table 3. Acid properties of the synthesized samples by Py-IR.
Table 3. Acid properties of the synthesized samples by Py-IR.
SampleBrønsted Acid Amount
(μmol·g−1)		Lewis Acid Amount
(μmol·g−1)
MTBBP-ZSM-5
C-ZSM-5
Zn/MTBBP-ZSM-5		264.6
297.2
91.5		70.2
76.4
368.8
Zn/C-ZSM-5107.6392.5
Table 4. Product distributions of Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5.
Table 4. Product distributions of Zn/MTBBP-ZSM-5 and Zn/C-ZSM-5.
CatalystConversion
(%)		Selectivity (%)
CH4C2H4C2H6C3H6C6H6C7H8C8H10Total
Aromatics
Zn/MTBBP-ZSM-5
(300 min)		71.710.86.825.44.123.521.67.852.9
Zn/C-ZSM-5
(300 min)		48.917.49.533.65.214.113.36.934.3
Zn/C-ZSM-5
(90 min)		71.511.63.326.03.524.123.08.555.6
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, P.; Zhuang, J.; Yu, J.; Guan, Y.; Zhu, X.; Yang, F. Disinfectant-Assisted Preparation of Hierarchical ZSM-5 Zeolite with Excellent Catalytic Stabilities in Propane Aromatization. Nanomaterials 2024, 14, 802. https://doi.org/10.3390/nano14090802

AMA Style

Zhang P, Zhuang J, Yu J, Guan Y, Zhu X, Yang F. Disinfectant-Assisted Preparation of Hierarchical ZSM-5 Zeolite with Excellent Catalytic Stabilities in Propane Aromatization. Nanomaterials. 2024; 14(9):802. https://doi.org/10.3390/nano14090802

Chicago/Turabian Style

Zhang, Peng, Jianguo Zhuang, Jisheng Yu, Yingjie Guan, Xuedong Zhu, and Fan Yang. 2024. "Disinfectant-Assisted Preparation of Hierarchical ZSM-5 Zeolite with Excellent Catalytic Stabilities in Propane Aromatization" Nanomaterials 14, no. 9: 802. https://doi.org/10.3390/nano14090802

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
