Nanoparticle-Based Therapeutics to Overcome Obstacles in the Tumor Microenvironment of Hepatocellular Carcinoma

by
Yuanfei Lu
1,
Na Feng
1,
Yongzhong Du
2,* and
Risheng Yu
1,*
1
Department of Radiology, Second Affiliated Hospital, School of Medicine, Zhejiang University, 88 Jiefang Road, Hangzhou 310009, China
2
Institute of Pharmaceutics, College of Pharmaceutical Sciences, Zhejiang University, 866 Yuhangtang Road, Hangzhou 310058, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2022, 12(16), 2832; https://doi.org/10.3390/nano12162832
Submission received: 7 July 2022 / Revised: 15 August 2022 / Accepted: 16 August 2022 / Published: 17 August 2022
(This article belongs to the Special Issue Applications of Nanomaterials in Biomedical Imaging and Cancer Therapy II)
Browse Figures
Versions Notes

Abstract

:
Hepatocellular carcinoma (HCC) is still a main health concern around the world, with a rising incidence and high mortality rate. The tumor-promoting components of the tumor microenvironment (TME) play a vital role in the development and metastasis of HCC. TME-targeted therapies have recently drawn increasing interest in the treatment of HCC. However, the short medication retention time in TME limits the efficiency of TME modulating strategies. The nanoparticles can be elaborately designed as needed to specifically target the tumor-promoting components in TME. In this regard, the use of nanomedicine to modulate TME components by delivering drugs with protection and prolonged circulation time in a spatiotemporal manner has shown promising potential. In this review, we briefly introduce the obstacles of TME and highlight the updated information on nanoparticles that modulate these obstacles. Furthermore, the present challenges and future prospects of TME modulating nanomedicines will be briefly discussed.

1. Introduction

Hepatocellular carcinoma (HCC) remains the most commonly diagnosed type of primary liver cancer [1]. According to the global cancer statistics 2020, HCC ranks sixth in terms of incidence and third in terms of mortality rates [1]. HCC accounts for ~80–90% of patients diagnosed with cirrhosis [2]. Therefore, the high prevalence of liver dysfunction in HCC patients limits the application of different treatments [2,3]. For HCC patients in early-stage and with well-preserved liver function, surgical approaches, including resection, ablation, and liver transplantation, are the possible curative options. However, high recurrence rates after resection locally continue to be a major obstacle [4]. Only a small subgroup (~15%) of patients are eligible for surgery, with a 5-year survival rate of 33–50% [5]. For the majority of patients found in the advanced stage, loco-regional and systemic therapies are the treatments of choice [6]. Sorafenib and Lenvatinib are the first Food and Drug Administration (FDA)-approved first-line therapies for advanced and unresectable HCC [7]. Unfortunately, because of overexpression of the multidrug resistance genes, HCC is inherently a chemotherapy-resistant tumor [8,9].
The management of cancer has changed dramatically since the rapid development of systemic treatments with immune therapies [10]. Immunotherapy, which employs immune cells to boost natural defenses to assault cancer cells, has achieved significant advances over the decades [11]. Nivolumab, the anti-PD-1 monoclonal antibody, has been approved by FDA for HCC immunotherapy [12]. In the CheckMate 040 study, nivolumab treatment showed durable responses and hopeful long-term survival in sorafenib-experienced patients with advanced HCC [13]. Though several major types of immunotherapies, including immune checkpoint inhibitors, cancer vaccines, adoptive cell transfer, etc., show durable anti-tumor effects, the limited response rate is one of the major obstacles in application [14,15], which may attribute to “immunological ignorance” and immune escape in the tumor microenvironment (TME) [16]. The overall objective response rate of nivolumab was approximately 15–20% [17]. Therefore, for better stimulating anti-tumor immunity, it is vital to comprehend and modify the microenvironment of HCC.
Until recently, pharmacological efforts to find new medications have primarily focused on oncogenic signaling networks, but the TME, where cancers originate, has just recently emerged as a prominent target for anti-cancer therapies. When cancer cells invade and alter homeostasis, the TME is formed. The cells of the immune system (e.g., T lymphocytes, dendritic cells (DCs), macrophages and neutrophils, and non-immune components (e.g., extracellular matrix (ECM), fibroblasts, and endothelial cells of vessels) form the TME, which immediately surrounds cancer cells. The TME not only provides a protective “ecological niche” for tumor cells to thrive, progress, and metastasize but also affects the responses to therapy [18,19]. Previous studies have demonstrated that immunosuppressive TME facilitates cancer evasion from immunosurveillance [20,21,22]. With the improved understanding of TME, modulation of TME from an immunosuppressive one toward an immune-promoting one provides a new direction in cancer immunotherapy. Reprogramming or re-educating tumor-promoting and suppressive TME may increase anti-tumor immunity by recognizing antigens by the reawakened immune system.
The TME plays an important role in the efficiency of HCC immunotherapy, which attracts increasing attention and drives TME-based research. Due to the impact of renal clearance and biological barriers, the majority of drugs cannot successfully reach the tumor site [23]. Therefore, nanoparticles are utilized as potential vehicles for medicine delivery for their function of prolonging retention time and targeting agents [24]. On the one hand, the enhanced permeability and retention (EPR) effect facilitates tumor accumulation of nanomedicines [25]. Besides passive medication delivery via nanoparticles, nanoparticles can also be modified to further increase their compatibility and efficacy. For instance, mannose-modified nanoparticles can actively target the mannose receptors on tumor-associated macrophages (TAM) which “re-educated” the TME, thus improving therapeutic efficacy [26]. Various innovative nanoparticle-based drugs targeting components of TME of HCC have emerged, with significant advances in both lab and clinic experiments [27,28,29,30]. This review mainly focuses on applications of different nanoparticles to modulate and reprogram components in TME that are major obstacles to HCC therapy. We first introduce the tumor-promoting components of TME and then discuss the recent achievements of TME modulating nanomedicines, which offer a critical perspective on the future development of TME modulating nanomedicines in HCC.

2. Major Constituents of the Tumor Microenvironment

The TME of HCC is a dynamic system, which consists of various types of cells (including cancer cells, immune cells, stromal cells, etc.), ECM, vasculature, and other secreted molecules [31,32]. Below, we describe the major components that are major obstacles to HCC therapy.

2.1. Abnormal Vasculature of TME

Like other solid tumors, the growth and progression of HCC will induce tumor angiogenesis in order to supply oxygen and nutrients during this period. Unlike normal vessels, tumor vessels are aberrant in structure and function, which impair blood perfusion in tumors, spatially and temporally [33]. The resulting hypoxia not only promotes tumor progression and metastasis by changing the gene expression of tumor cells but confers resistance to therapy [34,35], thereby creating a vicious cycle. The enhanced interstitial fluid pressure and inadequate perfusion caused by these leaky blood vessels increase the number of immunosuppressive cell types and decrease the delivery of therapeutic medications to the tumor [36]. HCC treatment can involve angiogenesis as a target. Major pro-angiogenic factors include but are not limited to vascular endothelial growth factor (VEGF)-A, basic fibroblast growth factor (bFGF), and interleukin-8 (IL-8) [37]. Accumulating evidence indicates that increased VEGF levels in HCC are related to tumor angiogenesis and progression [38].

2.2. Cancer-Associated Fibroblasts and ECM

Cancer-associated fibroblasts (CAFs) constitute a dominant cellular component of the TME, which act as key players in the development of tumors and cancer cell evasion of therapies [39]. CAFs release a variety of ECM proteins (such as type I-V collagen and fibronectin), paracrine factors, cytokines, and vasculogenic mimicry, all of which aid in the start of HCC with a malignant character [40]. CAFs secrete angiogenic factors, including VEGF, bFGF, angiopoietin-1(ANG-1), and ANG-2, which induce neovascularization [41]. ECM is mainly produced by CAFs, which act as a scaffold in the tumor [42]. ECM undergoes extensive remodeling during cancer progression with characteristics of stiffness and degradation [43]. ECM stiffness is a physical barrier to the efficient absorption or transport of drugs to deeper regions of the tumor [44].

2.3. Immunosuppressive Immune Cells in TME

Tumor-associated immune cells can both assist and impede therapeutic efficacy, and their activation status and location within the TME can vary. Representative immunosuppressive immune cells are the focus of this essay.

2.3.1. Myeloid-Derived Suppressor Cells

Myeloid-derived suppressor cells (MDSCs) are immature myeloid cells with heterogeneity and immunosuppressive properties that are important components of the suppressive TME. MDSCs can be divided into two subsets: monocytic (M-MDSC) and polymorphonuclear (PMN-MDSC). M-MDSCs are more prevalent in tumors and have greater suppressive activity than PMN-MDSCs [45]. MDSCs induce immunosuppressive cells, regulatory T cells (Tregs), and M2-polarized TAM (M2-TAMs) or inhibited immune effector cells (CD8+ T cells, DCs, NK cells, etc.) by a variety of methods [46]. Infection with the hepatitis B virus (HBV) is the most common risk factor for HCC, accounting for around 50–80% of all cases [47]. Importantly, MDSCs play a crucial role in maintaining immunotolerance to high levels of HBV replication [48]. Considerable evidence that has implicated the abundance of MDSCs could be employed as an independent prognostic and predictor in human HCC [49]. Infiltrated MDSCs in HCC overexpressed two enzymes: ARG1 and iNOS, which deplete the essential amino acid L-arginin for T cells [50,51]. Therefore, MDSCs could be a promising target for reversing the immunotolerant state in HCC.

2.3.2. Regulatory T Cells

A subgroup of CD4+ T cells called Tregs is crucial for preserving immunological immune homeostasis and preventing excessive autoimmunity deleterious to the host [52]. In healthy conditions there is an equilibrium between Tregs and T helper 17 cells to keep peripheral tolerance [53]. However, this balance is disturbed in TME. The number of Tregs increases in TME of HCC patients, which links to compromised immune responses [54]. To mediate their suppressive functions, Tregs secrete inhibitory cytokines (such as transforming growth factor-β (TGF-β), IL-10, etc.), promote cytolysis, and “metabolic disruption” of the effector T cells, and inhibit the maturation of DCs [55].

2.3.3. M2-Polarized Macrophages

TAMs are another important component of immune cells in TME, which are broadly classified into M1-TAMs (tumor-suppressing subtype) and M2-TAMs (tumor-promoting subtype) [56]. As opposed to M1-TAMs, M2-TAMs, alternatively activated by TH2 cytokines IL-4/IL-13 [57], facilitate HCC progression by producing mediators that support tumor cell proliferation and immune escape [58,59]. According to several studies, HCC-derived exosomes can activate macrophages and exhibit the M2 phenotype, thereby promoting HCC development [60,61,62]. In theory, reprograming TAMs from M2 to M1 phenotype or eliminating present TAMs may be a considerable therapeutic approach to arouse their anti-tumor efficacy.

2.4. Crosstalk in the Dynamic TME

The TME of HCC is a dynamic network and complex connections affect the growth of HCC and hinder the immune system’s ability to fight it by promoting the activation of immune cells with immunosuppressive qualities (Figure 1). For example, the hypoxia induced by abnormal vasculature drives tumor and stromal secretion of pro-angiogenic factors (hypoxia-inducible factor (HIF), VEGF, insulin-like growth factor-2 (IFG-2), etc.) [63]. Most immune cell types have their functions directly or indirectly modulated by hypoxia, which promotes the growth of tumors. IL-10 and interferon-γ (IFN-γ) produced by MDSDs affect Treg induction, while Tregs can, in turn, control the proliferation and function of MDSCs [64]. The CAFs can induce M2-TAMs via secretion of IL-6 and granulocyte-macrophage colony-stimulating factor (GM-CSF) [65]. Therefore, improvements in our knowledge of the local microenvironment of a growing tumor may present greater options for precise drug delivery.

3. Nanomedicine-Based Strategies for TME Modulation

Nanotechnology offers a novel opportunity to deliver medicine to the site of the tumor via passive or active targeting ways. In passive targeting, the therapeutic substance is incorporated into a nanoparticle that passively travels to the target organ without a ligand. To increase the preferential accumulation of the drug at the targeted site, active targeting through the conjugation of receptor-specific ligands is a promising approach [66]. Compared with normal cells, some molecules and proteins are upregulated on the surface of HCC cells, such as asialoglycoprotein receptor, gycyrrhizin/glycyrrhetinic acid receptor [67], transferrin receptor [68], folate receptors [69], CD44 [70], and so on. Thus, their ligands can be used to decorate nanoparticles for active targeting. For example, folic acid (FA) can bind to folate receptors on cancer cells with high specificity. In vitro and in vivo data showed that the functional nanodroplets with FA enhance selective accumulation when targeting Hepa1–6 cells more than non-targeting nanodroplets [71]. Another study designed a type of FA-modified Fe3O4 nanoparticles to specifically co-deliver anti-tumor drugs to HCC [72].
A variety of nanomaterials, including polymeric nanoparticles, liposomes, and metal nanoparticles [73], have gained a lot of attention in potentiating cancer therapies, especially in cancer immunotherapy [74,75,76]. It is noteworthy that parameters such as shape, surface functionalization, and surface charge would have remarkable effects on drug delivery kinetics and biodistribution [77]. Pegylated liposomal formulation Doxil® showed promising activity and low cardiotoxicity compared with doxorubicin (DOX) in metastatic breast cancer [74]. Compared with free DOX, DOX-loaded liposomes significantly increased the uptake of DOX by HCC cells. DOX-loaded liposomes robustly enhanced mild ablation therapy in HCC and represented a viable nanoparticle-based therapeutic approach for HCC treatment [78]. Cubosomes, a type of lyotropic liquid crystalline lipid nanoparticles, are an emerging class of lipid-based nanoparticles. Recently, Pramanik, A. et al. developed Affimer-tagged cubosomes loaded with the anti-cancer drug copper acetylacetonate as a colorectal cancer therapeutic [75], which showed a higher survival rate than the control groups. A recent study revealed that compared with negatively charged PEG-stabilized polymeric nanoparticles, positive ones were better suited for HCC [76]. Furthermore, another study revealed the ability of metal-based ZnS@BSA nanoclusters to facilitate anti-tumor immunotherapy for HCC [79].
Cancer immunotherapy has undergone a revolution over the past decades. The application of nanomedicine has made significant progress in overcoming the constraints of immunological tolerance created by clinic-approved immunotherapies. With the advancement of nanotechnology, an increasing number of intelligent nanomaterials have been designed to re-mode the TME to improve the efficacy of anti-tumor therapies [80]. Since the first nano-drug was approved by the FDA in 1995 (Doxil®) [81], more researchers have an increasing interest in exploring novel nanomedicines targeting non-tumoral cells of TME [82], which held great promise in treating primary and metastatic tumors. Hence, in this section, we will review the nanomedicine-based strategies for TME modulation in HCC (Table 1).

3.1. Anti-Angiogenesis Nanotherapy

In response to the low level of oxygen, cancer cells promote the angiogenesis of tumors by an imbalance between pro-and anti-angiogenic factors [33]. Through neovascularization, more delivery of oxygen and nutrients promote tumor proliferation [63]. However, the rapid and uncontrolled growth of tumors causes more severe hypoxia thus creating a vicious cycle. Additionally, because of anatomical and functional vascular abnormalities, therapeutic drug delivery are strongly impaired [83]. So, modulating tumor vessels might be a viable approach to increase the effectiveness of tumor treatment.
Anti-angiogenic therapy is widely accepted and used in treating HCC [84]. In fact, most currently approved first- and second-line therapies for advanced HCC target angiogenic pathways, in which the VEGF/VEGF receptor (VEGFR) signaling pathway has been validated as a therapeutic target in HCC [85]. Though sorafenib and Lenvatinib exert anti-angiogenic and antiproliferative effects are the first-line treatment options, the drugs are rarely delivered at high concentrations to reach the cancerous tissues. Nanoparticles, as an effective platform for drug delivery, can overcome the adverse side effects of systemic chemotherapeutic administration by improving their pharmacokinetics and accumulation in tumor sites [86,87].
Nanomedicines can be delivered to tumor sites by active and/or passive targeting. In passive targeting, nanovectors are deposed within the TME due to the leaky vasculature and impaired lymphatic drainage [88]. Recently, a nanoassemblie based on biodegradable dendritic polymers poly(amidoamine)-poly(γ-benzyl-L-Glutamate)-b-D-α-tocopheryl polyethylene glycol 1000 succinate (PAM-PBLG-b-TPGS) to carry sorafenib have been developed. Under physiological conditions, the nanoassemblie releases a small portion of sorafenib, which indicates its characteristic stability [89]. Compared with the free sorafenib, the nanoassemblie induces higher therapy efficiency of HCC in both vitro and vivo, which may be attributed to the high accumulation of nanoparticles in HCC. In addition to anti-angiogenic drug delivery, down-regulating the production of VEGF is another nano-therapeutic strategy against angiogenesis in the HCC. Despite the great therapeutic potential of siRNA, the rapid degradation by nucleases and poor internalization by cancer cells restrict their application [90]. Thus, Han, L. et al. developed oral polymeric nanoparticles based on trimethyl chitosan-cysteine (GTC) conjugate to effectively deliver VEGF small interfering RNA (siVEGF) and survivin short hairpin RNA-expression pDNA (iSur-pDNA) [91]. According to the ELISA assay, GTC nanoparticles can effectively silence VEGF with a reduction of 70.2%. Zheng, et al. have developed an ASGPR-targeting nanovector that delivers sorafenib and siVEGF simultaneously to enhance the targeting ability of the nanodrug delivery system and significantly induce cytotoxicity of three different HCC cell lines [92], which showed the high anti-tumor efficiency as a potential nanovector for targeted delivery to HCC (Figure 2).
Aside from VEGF inhibitors, vascular disruption agents (VDAs) are another type of medicine that can electively disrupt established tumor blood vessels causing necrosis in the center of HCC due to a lack of blood supply. As a representative VDA, combretastatin A4-phosphate (CA4P) has entered phase III clinical trials [93]. Wang, Y. et al. designed a pH-sensitive nanoparticle based on N-urocanyl pullulan (URPA) loaded with the anti-angiogenic drug combretastatin A4 (CA4) and cytotoxic drugs methotrexate (MTX) [94]. The experiments demonstrated that CA4/MTX-URPA exhibited significant inhibitory effects on tumor angiogenesis and growth. However, the use of CA4P frequently upregulates VEGF expression, which limits its application [95]. This disadvantage might be addressed when VDAs were combined with VEGF/VEGFR2 inhibitors which can inhibit the activity of VEGF in response to CA4P, momentarily normalizing the tumor vasculature. Bao, X. et al. designed poly (L-glutamic acid)-graft-methoxy poly (ethylene glycol) containing CA4 (CA4-NPs), and investigated the effectiveness of CA4-NPs together with VEGF/VEGFR2 inhibitor DC101 in improving anti-PD-1 therapy in an H22 tumor model [96]. Immunofluorescent images of the tumors showed that CA4-NP + DC101 co-treatment could normalize tumor vasculature, enhance tumor pericyte coverage, enhance tumor blood vessel perfusion, and overcome tumor hypoxia. Meanwhile, combining CA4-NP with DC101 raised the proportion of intra-tumoral CD8+ T cells, which significantly improved the treatment efficacy of anti-PD-1 in HCC.

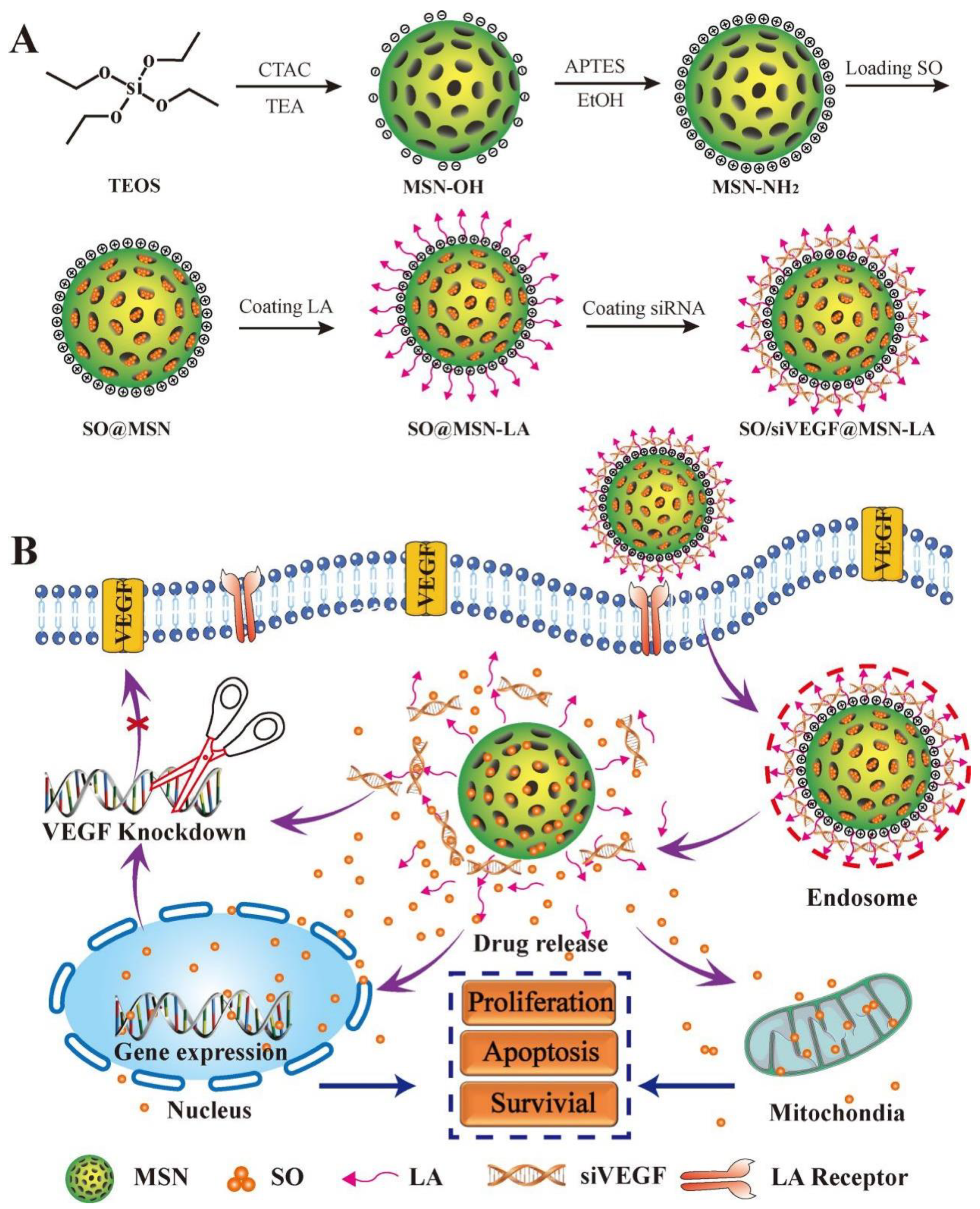

Moreover, nanoparticles can simultaneously deliver anti-angiogenic agents and other drugs to achieve their spatiotemporal cooperation in tumors, improving the efficacy of cancer treatment. Chang et al. developed a tumor-targeted multifunctional nanoparticle MnO2 and a shell composed of lipids and poly(lactic-co-glycolic) acid (PLGA) loaded with sorafenib. These multifunctional nanoplatforms co-deliver sorafenib and MnO2 for oxygen production to overcome hypoxia-induced drug resistance [97]. Since the favorable drug delivery system is expected to selectively deliver drug payloads in tumor sites and be time-release controlled, different stimulus-responsive nanoparticles, releasing drugs triggered by various external or internal stimuli, are tailored [98]. Zhang et al. designed a pH-sensitive nanoparticle for co-delivering the pro-apoptotic drug DOX and anti-angiogenic drug curcumin [99]. This nanoplatform promoted a spike in drug release in the acid TME. Curcumin inhibits the expression of VEGFR-1, VEGFR-2, VEGFR-3, and epidermal growth factor receptors [100]. Meanwhile, curcumin suppresses the main caspase pathway and activates the main caspase-independent pathway to reduce the adverse effects associated with doxorubicin [101]. Compared with chemotherapy alone, combining treatment with anti-angiogenic medications can enhance the therapeutic efficiency synergistically.
Anti-angiogenic therapy, on the other hand, must address a number of concerns. Firstly, new targets for anti-angiogenic therapy are needed. To date, the majority of anti-angiogenic drugs have targeted VEGF/VEGFR signaling pathways in tumor endothelial cells. However, tumor endothelial cells are heterogeneous [102]. Therefore, more investigation is necessary to explore new targets for anti-angiogenic therapy that increase angiogenesis capability. Moreover, achieving efficient and accurate delivery of nanocarrier to tumor sites remains a stumbling block in nanomedicine. For the application of nanomedicine in HCC, circulation, stability, degradability, and the balance between side effects and curative efficacy must all be carefully studied.

3.2. Nanomedicines Designed to Overcome Tumor Physiological Barrier

Current studies aim to regulate the ECM in two ways: degradation and stiffness. The disruption of the balance between degradation and stiffening is contributed to tumor growth and progression [103]. ECM stiffness can be targeted by reprogramming CAFs and blocking the TGF-β signal pathway [43]. Matrix metalloproteinase (MMP) inhibitors can be used to suppress ECM degradation [104]. For example, Liang, S. et al. constructed a stroma modulation nanosystem based on PEG–PLGA nanospheres [105]. The immunohistochemistry images showed that ECM formation collagen fibers were significantly reduced, via inhibiting TGF-β signaling. The regulation of the tumor ECM greatly enhanced the penetration of nanospheres and facilitated further tumor therapy. HCC is frequently accompanied by marked fibrosis [106]. Mycophenolic acid, the active metabolite of mycophenolate mofetil, exhibits a powerful antifibrotic activity [107]. Yang, Z. et al. designed nanoparticles loaded with mycophenolate mofetil based on 1, 2-distearoyl-sn-glycero-3-phosphoethanolamine-N-poly (ethylene glycol) (MMF-LA@DSPE-PEG) target CAFs [108] (Figure 3). It was shown that the number of CAFs accumulated in tumors was remarkably reduced, as the expression levels of proteins associated with CAF, such as α-smooth muscle actin (α-SMA), fibroblast activation protein (FAP), and collagen IV, were significantly decreased. In mouse models bearing HCC xenograft, mycophenolate mofetil-loaded nanoparticles significantly suppressed fibrotic as well as tumor progression.

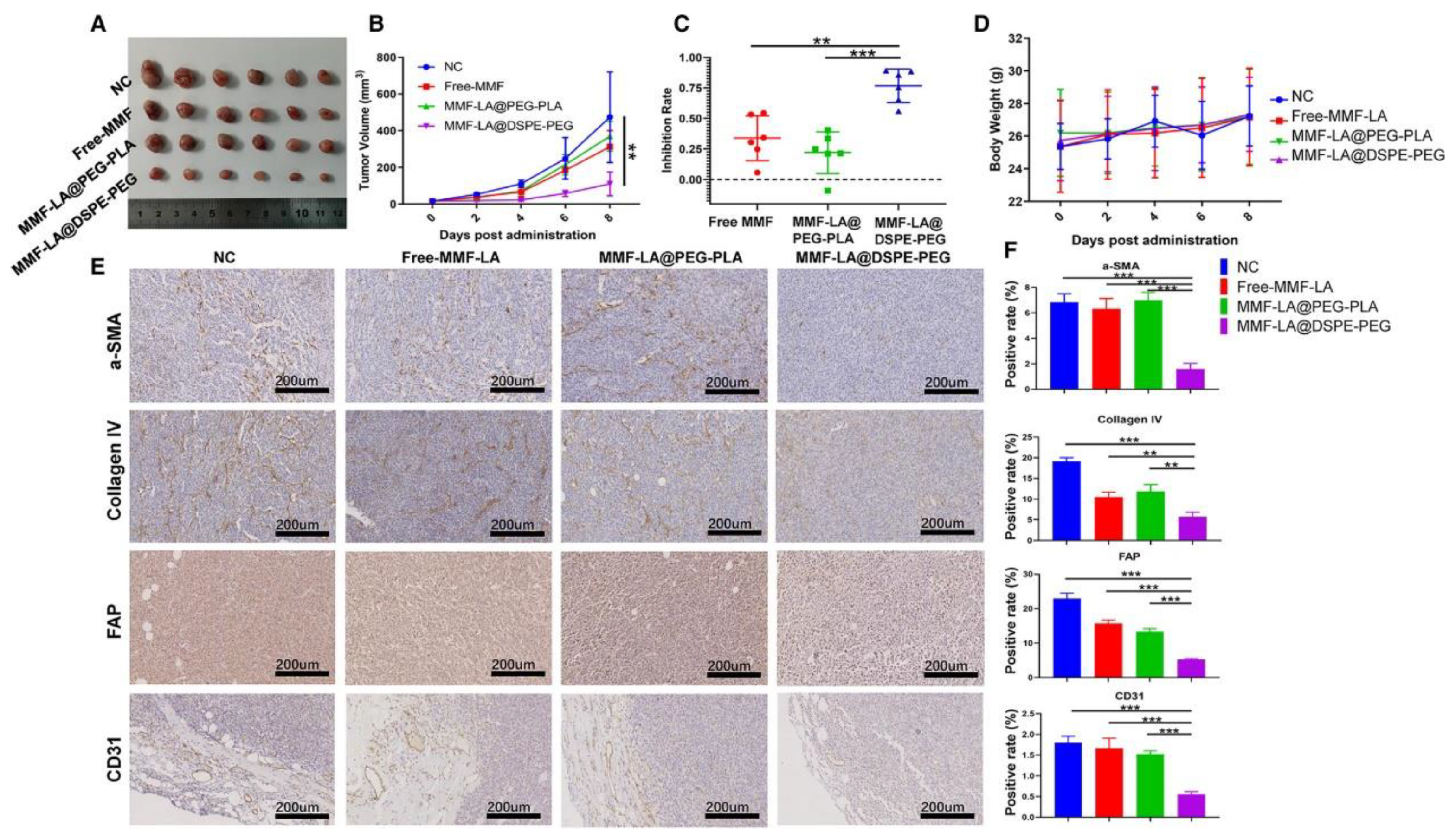

In addition to regulating ECM stiffness, some researchers have focused on MMPs as a chemotherapy target in the HCC. MMPs are zinc-dependent endopeptidases that are responsible for degrading basement membrane and various proteins in EMC. According to unambiguous evidence, the release and activation of MMPs facilitate the migration and infiltration of the HCC cells through the damaged basement membrane [109,110]. Moreover, co-workers reported “two-in-one” nanofiber systems containing an anti-tumor drug (DOX) and an MMP inhibitor hexapeptide (KGFRWR) (DOX-KGFRWR) [111]. After administration, the initial liquid DOX-KGFRWR transitioned into nanofibers in the tumor sites, contributing to the inhibition of MPP and antiproliferative effect on HCC. As the results showed, DOX-KGFRWR enhanced the local concentration in the HCC and exerted a synergistic inhibiting effect on HCC cells (SMMC7721) migration. DOX-KGFRWR not only suppressed tumor growth in situ but decreased the number of metastatic nodules. On the other hand, Yeow et al. verified that specific ECM depletion is a viable strategy for boosting the accumulation and uptake of nanoparticles in poorly perfused malignancies such as HCC [112]. According to their results, the lectin-staining in HCC treated with ECM depletion was significantly higher than with PBS, which improved blood vessel function and perfusion in HCC. Notably, nanocarrier itself benefits from ECM depletion therapy. Decreasing the amount of ECM in advance induced significantly higher nanoparticle accumulation in HCC. So, the combination of nanoparticles and ECM depletion might be an ideal option. Based on the above hypothesis, Luo, J. et al. developed a chondroitin sulfate (CSN) modified lipid nanoparticles co-delivery, an ECM depletion drug (retinoic acid, RA), and a chemotherapy drug (DOX) (DOX + RA-CSNs) [113]. The nanoparticle delivery system DOX + RA-CSNs for the Golgi apparatus-specific delivery inhibited the production of type I collagen, which complements the anti-tumor effects of DOX loaded within the nanoparticles. Importantly, the collapse of the ECM barrier greatly boosted the accumulation of DOX + RA-CSNs in HCC and improved the uptake of DOX and RA in HCC cells.

3.3. Nanomedicine for Immunosuppressive Cells Inhibition

3.3.1. MDSCs Regulating Nanomedicine

The recruited MDSCs in TME act as a major obstacle for immunotherapy, which plays an important role in immune escape. The following steps have been proposed for therapeutic targeting of MDSCs: (1) interfering with their production by regulation of myelopoiesis, (2) promoting MDSCs differentiation into mature fully mature myeloid cells, (3) eliminating MDSCs, and (4) suppressing their immunosuppressive function.
The chemotherapeutic drug gemcitabine was able to selectively reduce the majority of s MDSCs in tumor-bearing animals while having no effect on macrophages, CD4+/CD8+ T cells, B cells, or NK cells [114]. To encapsulate Gem derivatives, Suzuki, E. et al. designed a lipid-coated calcium phosphate (LCP) nanocarrier which could effectively deplete MDSCs in the B16F10 mouse melanoma model. Plebanek, M.P. et al. designed high-density lipoprotein-like nanocarriers, with a strong affinity to scavenger receptor type B expressed by MDSCs, to suppress the function of MDSCs [115]. For instance, Lai, C. et al. designed folate (FA) modified chitosan nanoparticles loaded with mouse interferon-γ-inducible protein-10 (mIP-10) plasmid (FA-chitosan/mIP-10) which could efficiently attract and activate T cells, B cells and NK cells with an increase in the number of MDSCs [116] on HCC tumor models. Therefore, Hu, Z. et al. combined FA-chitosan/mIP-10 with DC/tumor fusion vaccine to improve the immunosuppressive TME and enhance anti-cancer efficiency [117]. The results showed that compared with the administration of FA-chitosan/mIP-10 alone, the growth of implanted HCC tumors was effectively inhibited upon the treatment with both FA-chitosan/mIP-10 and DC/tumor fusion vaccine. The results suggested that DC/tumor fusion vaccine, together with FA-chitosan/mIP-10, greatly increased anti-tumor immune responses which inhibited the recruitment of MDSCs. In comparison to other malignancies, however, a few researchers have looked at the regulatory influence of nanoparticles on MDSCs in HCC. At present, MDSCs were generally regulated by combining other immune cell therapy. Further studies targeting MDSCs specifically are necessary due to the importance of MDSCs in HCC progression.

3.3.2. T Cell-Modulating Nanoparticles

T cells are crucial components of the adaptive immune system that help to defend against pathogens like viruses, bacteria, and cancers. T cells are classified into three categories based on their functions: helper T lymphocytes (HTLs), Tregs, and cytotoxic T lymphocytes (CTLs). The presence of a large number of Treg cells in the TME, as well as a low CD8+ T cells to Treg cells ratio, is linked to poor prognosis, suggesting that Treg cells block tumor antigen-specific T cell immune responses [118]. Treg cell elimination or modulation of its activities may provide potential immunotherapies. In view of the vital key of T cells in cancer immunotherapy, we look at nanoparticles that control T cell viability in the following section.
IL-2, which is recognized as a T cell growth factor to enhance memory T cell responses and regulate T cell maintenance, is the first FDA-approved immunotherapy for human cancer [119]. Treg cells that express the transcription factor Foxp3 play an important role in immune tolerance and autoimmunity prevention and a low dose of IL-2 has been proven to boost Tregs and improve their suppressive abilities [120]. Tregs consume IL-2 primarily through high-affinity IL-2 receptors (CD25), which limit the amount of IL-2 available for effector T cell proliferation and activation. Therefore, injection of a sufficient dose of IL-2 can neutralize Tregs suppressive abilities. In order to obtain sufficient exposure at tumor sites and induce tumor suppression with decreasing side effects, several investigations have focused on nanocarrier-based IL-2 application. Wu, J. et al. developed an N, N, N-trimethyl chitosan (TMC) based nanocarrier to realize co-delivery DOX and recombinant human IL-2 (FTCD/rhIL-2) which increased the anti-cancer therapeutic benefits with toxicity reduced [121]. These nanoparticles could suppress tumor progression through apoptosis induced by DOX and enhance anti-cancer immunity by rhIL-2. The nanocomplexes FTCD/rhIL-2 could promote humoral and cellular immunity by activating the vitality of T, B lymphocytes, and NK cells. The in vivo investigations in an HCC model have revealed that FTCD/rhIL-2 exhibited stronger anti-tumor efficacy than DOX or rhIL-2, respectively. In addition to administrating IL-2 protein directly, delivery of immunostimulatory IL-2–encoding plasmid DNA (Pdna) can also remodel the immunosuppressive TME of HCC. Huang, K.-W. et al. developed tumor-targeted lipid-dendrimer-calcium-phosphate nanoparticles (TT-LDCP) loaded with siRNA silencing immune checkpoint ligand PD-L1 gene and Pdna upregulating expression of the immunostimulating cytokine IL-2 [122] (Figure 4). Confocal microscopy detection of fluorescence intensity showed that TT-LDCP nanoparticles could efficiently deliver siRNA and Pdna into two HCC cell lines (murine HCA-1 and human Hep3B) with effective gene transfection. Experiments showed that TT-LDCP nanoparticles that co-delivered PD-L1 siRNA and IL-2 Pdna could reverse the immunosuppressive TME of HCC by increasing tumoral infiltration CD8+ T cells and promote the maturation of tumor-infiltrating DCs.

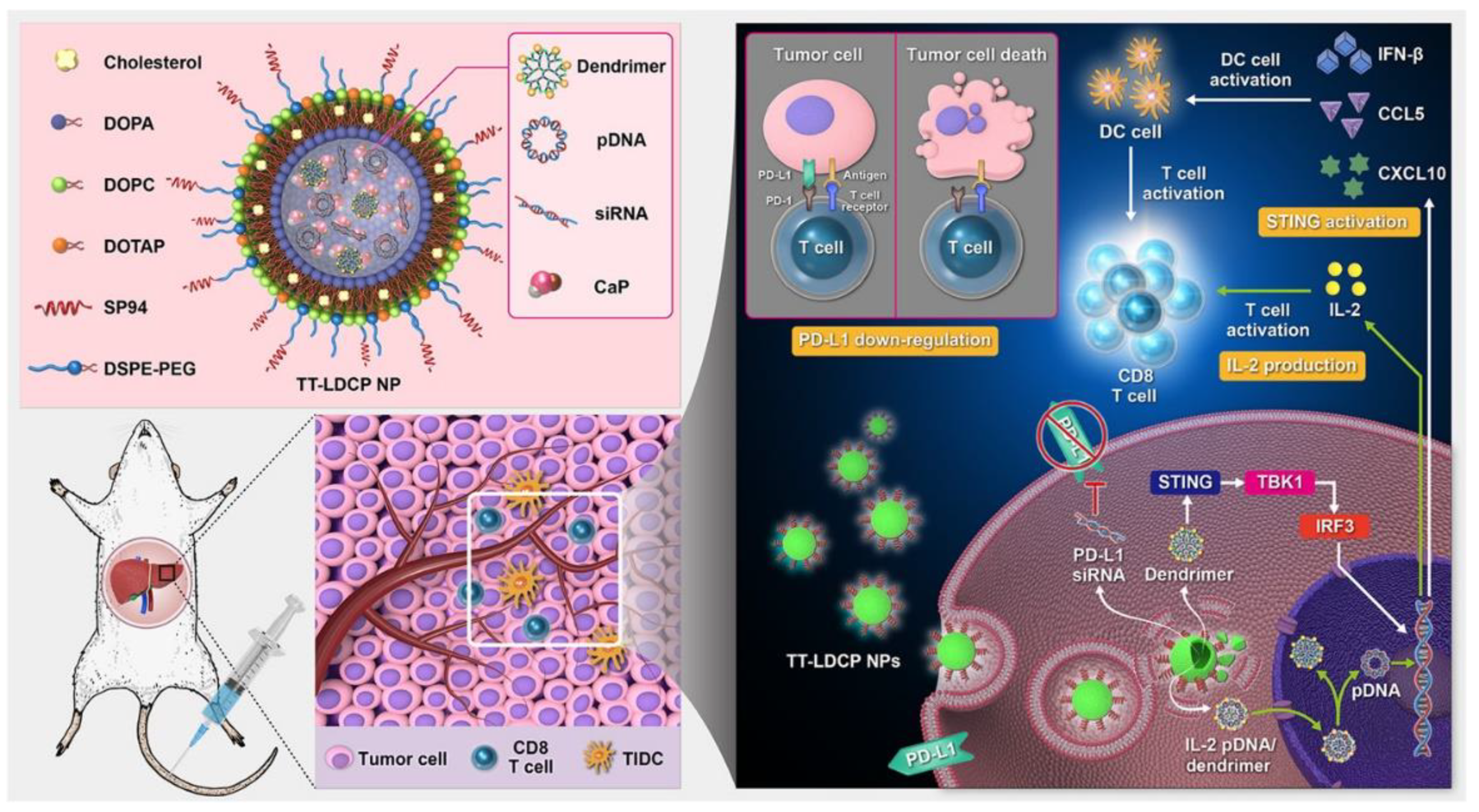

The thymine-capped PAMAM dendrimer/CaP complexes achieved highly efficient gene transfection efficacy by enhancing the nuclear delivery of the Pdna. Furthermore, thymine-capped PAMAM dendrimers stimulate the STING pathway and serve as an adjuvant to promote the maturation of intra-tumoral DCs. Efficient tumor-targeted co-delivery of PD-L1 siRNA and IL-2 Pdna achieves tumor-specific expression of IL-2 and down-regulation of PD-L1, increases infiltration and activation of CD8+ T cells in HCC, and induces a strong tumor-suppressive effect in HCC in synergy with a vaccine. CaP, calcium phosphate; TIDC, tumor-infiltrating dendritic cell; TT-LDCP NPs, tumor-targeted lipid-dendrimer-calcium-phosphate NPs; IFN-γ, interferon-γ. (Copyright © 2020 The Authors, some rights reserved; exclusive licensee American Association for the Advancement of Science. http://dx.doi.org/10.1126/sciadv.aax5032).
IL-12 is another potent cytokine in provoking anti-tumor immune responses [123]. Li, J. et al. newly created CD8 and Glypican-3 antibodies modified PLGA nanoparticles loaded with IL-12 [123]. Cell counting revealed that compared with other groups, the proliferation of CD8+ T cells was more effective in the group treated with the targeted immune nanoparticles (TINPs). TINPs are attached precisely to the two target cells (CD8+ T cells and HepG-2 cells) to form T cell-HepG-2 cell clusters to induce robust immune responses. Moreover, compared to soluble IL-12, the expression of CD107a, which was a degranulation marker and a predictor of T lymphocytes’ ability to lyse tumor cells, was 5-fold higher when treated with TINPs.
The metabolism in tumors differs from the normal tissues from which they develop, indicating that metabolic pathways may make effective targets for cancer therapy [124]. Accelerated glycolysis of a tumor, known as the “Warburg effect”, leads to increased lactate production [125]. Lactate, which drives cancer cells, has been demonstrated to strongly inhibited the activation of T cells [126,127]. 2-Deoxy-D-glucose (2DG), a hexokinase inhibitor, can interrupt glycolysis [128]. Sasaki, K. et al. designed 2DG-encapsulated PLGA nanoparticles (2DG-PLGA-NPs) to improve the delivery efficiency of 2DG to HCC [129]. It was found that 2DG-PLGA-NPs may boost T-cell trafficking in the TME by reducing the generation of lactate by tumor cells and increase the production of IFN-γ and the uptake of glucose by CD8+ T cells.

3.3.3. TAM Modulating Nanoparticles

In view of the key role of macrophages in cancer immunity, current therapies targeting TAMs utilize four strategies: (1) restricting macrophage recruitment, (2) depleting TAMs, (3) re-educating TAMs, and (4) blocking the CD47-signal regulatory protein alpha (SIRPα) pathway.
Several studies have proven that hypoxia induced by sorafenib could upregulate the expression of stromal-derived factor 1α (SDF-1α) and its receptor, C-X-C receptor type 4 (CXCR4) in HCC [130,131]. AMD3100, a CXCR4 inhibitor, could suppress cancer cell proliferation and M2-TAM polarization by blocking SDF1α/CXCR4 pathway [130]. Gao, D. et al. contrasted AMD3100 modified lipid-coated PLGA nanoparticles with sorafenib-containing (ADOPSor-NPs) [132]. These ADOPSor-NPs delivered sorafenib and AMD3100 into HCC, triggered tumor apoptosis, prevented the infiltration of TAMs, and overcame the acquired sorafenib resistance. In the orthotopic HCC mice model, ADOPSor-NPs effectively suppressed primary HCC development and metastasis and thus improved overall survival. Li, G. et al. prepared a nanoliposome loaded a sphingolipid metabolite C6-ceramide (LipC6). In liver tumor-bearing mice, LipC6 administration decreased the quantity of TAMs and their capacity to inhibit the anti-tumor immune response [133].
Apart from decreasing TAMs infiltration, another strategy is to re-educate TAMs. In response to changes in the TME during tumor progression, the TAMs go through a shift of polarized phenotypes from M1 to M2. The macrophage, on the other hand, retains the ability for plasticity, including the capacity to transition between M1/M2 status in response to microenvironmental signals. A number of studies have looked into the applications of nanoparticles to modulate TAM polarization from an immune-suppressive phenotype to an immune-promoting one [134]. Wang, T. et al. created twin-like core-shell nanoparticles: SF loaded cationic lipid-based nanoparticles (CLN) coated with O-Carboxymethyl-chitosan (CMCS) (CMCS/SF-CLN) and mannose-modified IMD-0354 (a TAM re-polarization agents) loaded CLN coated with CMCS (M-IMD-CLN) [135]. To improve tumor-localized chemoimmunotherapy, CMCS/SF-CLN and CMCS/M-IMD-CLN could simultaneously target cancer cells and TAM separately via SF and mannose on the surface of CLN. Flow cytometry assay showed that the M1/M2 ratio of CMCS/M-IMD-CLN was ~2.5-fold higher than the PBS group, which indicated enhanced polarization. Immunogenic cytokines IFN-γ and IL-12 secreted by M1-TAM were higher than those in CMCS/SF-CLN. Moreover, the administration of CMCS/M-IMD-CLN normalized abnormal tumor blood vessels induced by CMCS/SF-CLN. These findings revealed that CMCS/M-IMD-CLN considerably improved the immunosuppression caused by CMCS/SF-CLN via M2-TAM polarization. In order to deliver siRNA to M2-TAM selectively, Kaps, L. et al. prepared α-mannosyl modified cationic nanohydrogel particles (ManNP) loaded with siRNA [136]. ManNP specifically targeted M2-TAMs with no organ or cellular toxicity, indicting them as promising nanocarriers for macrophage repolarization in HCC.
Hypoxia is frequent in HCC, which leads to an inhibitory TME, such as macrophage recruitment and polarization. In other words, improving hypoxia contributes to a reduction in the amounts of TAMs as well as in transit pro-tumor M2-TAM into anti-tumor M1-TAM [137]. Dai, X. et al. synthesized oxygen microcapsules based on polydopamine nanoparticles to improve the hypoxia microenvironment in HCC [138]. The ratio of TAMs to total lymphocytes in the TME of radiation + oxygen microcapsules group showed a significant drop of 55.8% when compared with the PBS group, indicating the suppressed TAMs recruitment. Meanwhile, radiotherapy combined with oxygen microcapsules reprogramed M2-TAMs towards an M1-type phenotype. In detail, the ratio of M1/M2 in the radiotherapy + oxygen microcapsules group was 33-fold higher than in the PBS group.
The binding of the SPIRα on macrophages to CD47, a “don’t eat me” signal on cancer cells, protects cancer cells from being phagocytosed. Thus, blocking the CD47-SIRPα pathway can enhance the phagocytosis of macrophages. Comparetti, E.J. et al. reported that plasma membrane-derived nanostructures (MNPs), co-delivery siRNA (inactivation of the proto-oncogene c-MYC), and the immune adjuvant monophosphoryl lipid A (MPLA) (MNPs-MPLA-siRNA) [139]. The prepared MNPs-MPLA-siRNA downregulated CD47 and PD-L1 expression on Hep-G2 cells and upregulated expression of classical activation markers on macrophages, such as CD64, CD80, CD83, and CD86 (Table 1).
Table
Table 1. Nanomedicine-based strategies for TME modulation in HCC.
Table 1. Nanomedicine-based strategies for TME modulation in HCC.
TargetNPSize (nm)MechanismAnimal ModelCell LinesRef
Anti-angiogenesisencapsulating sorafenib with PAM-PBLG-b-TPGS118.3 ± 5.1release sorafenib target angiogenic pathwaysBalb/C nude mice HepG2 and LO2 [89]
galactose modified GTC co-delivery iSur-Pdna and siVEGF130−160VEGF was depleted with siVEGFfemale Balb/c nude mice and female Kunming miceBEL-7402 [91]
co-delivery of sorafenib and siVEGF based on mesoporous silica nanoparticles148.5 ± 3.5sustained release of sorafenib and siVEGFNAHepG2, Huh, HeLa and A549 [92]
MTX and CA4 loaded N-urocanyl pullulan187.1 ± 15.2 Release anti-tumor drug MTX and vascular disruption agents CA4Balb/c and nude miceHepG2, PLC/PRF/5 and A549 [94]
ECM/CAFloaded MMF based on 1, 2-distearoyl-sn-glycero-3-phosphoethanolamine-N-poly156.23 ± 60.38MMF inhibited fibroblasts proliferation and tubulin expression; reduced CAF densityC57BL/6 mice, nude miceHuh7, SUN 449, LM3, LX2, Hep1-6, NIH-3T3 [108]
DOX-KGFRWRlong nanofibers with average widths of 10.51 nmMMP inhibition and antiproliferative effectsmale Sprague–Dawley rats; male Institute of Cancer Research miceSMMC7721 [111]
RA- and DOX-loaded lipid nanoparticles modified with chondroitin sulfatesmaller than 100RA disrupted the ECM barrier by destroying the Golgi structure of hepatoma cells and HSCs, while DOX-induced cell death.Male Kunming miceSMMC-7721 and H22 [113]
MDSCFA-chitosan/mIP-10 nanoparticles315.5sustained local IP-10 expression reduced the number of MDSCs, and attracted CXCR3+CD8+ T cells to the tumorFemale C57BL/6 miceHepa1-6 [117]
T cellFA modified TMC co-delivery DOX and IL-2198.1 ± 1.4improve the amounts of infiltrated cytotoxic T lymphocytes cells.Female Kunming miceSMMC-7721 and A549 [121]
poly(d,l-lactide-co-glycolide) nanoparticle, by loading IL-12 and modifying with CD8 and Glypican-3 antibodies o145−172target T cells and deliver IL-12 to T cells for effective activation and proliferation.NAHepG-2 [123]
2DG-encapsulated PLGA nanoparticles120activated CD8+ T-cell chemotaxis in the tumor microenvironment via the decreased production of lactate in tumors, the increased IFN-γ production and glucose uptake in CD8+ T cells, and production of CXCL9/CXCL10/CXCL11 in both the tumors and CD8+ T cellsnude mice with xenograft tumorsThe Huh7, HepG2, B16F10, BxPC3, OS-RC-2, and HT29 cells [129]
TAMAMD3100 modified lipid-coated PLGA nanoparticles with sorafenib-containing150−200suppressed the infiltration of TAMsMale C3H/HeNCrNarl miceHCA-1 and JHH-7 [132]
a nanoliposome-loaded C6-ceramideNAreduces not only TAM frequency but also its suppressive function and increased the activity of CD8+ T cellsMale C57BL/6 miceTAg-transformed B6/WT-19 cells [133]
mannose-modified IMD-0354 loaded cationic lipid-based nanoparticles coated with polymer O-carboxymethyl-chitosan129.4 ± 6.8TAM re-polarizationC57BL/6 mice Hepa1-6 [135]
MNPs-MPLA-siRNA40−400inhibiting the activity of c-MYC oncogene to reduce the pro-tumoral response from M2 macrophages.NAHep-G2 [139]
PAM-PBLG-b-TPGS: poly(amidoamine)-poly(γ-benzyl-L-Glutamate)-b-D-α-tocopheryl polyethylene glycol 1000 succinate; GTC: trimethyl chitosan-cysteine; VEGF: vascular endothelial growth factor; NA: not available; MTX: methotrexate; CA4: combretastatin A4; ECM: extracellular matrix; CAF: cancer-associated fibroblasts; MMF: mycophenolate mofetil; DOX-KGFRWR: doxorubicin-conjugated hexapeptide; MMP: matrix metalloproteinases; RA: retinoic acid; HSCs: Hepatic stellate cells; MDSC: Myeloid-derived suppressor cells; FA: folate; mIP-10: mouse interferon-induced protein-10 gene; TMC: N,N,N-trimethyl chitosan; IL-2: Interleukin-2; 2DG: 2-deoxy-D-glucose; PLGA: poly(lactic-co-glycolic acid); IFN-γ: Interferon-γ; TAM: tumor-associated macrophage; MNPs: Plasma membrane-derived nanoparticles co-delivery monophosphoryl lipid A and small interfering RNA.

4. Conclusions and Future Perspectives

HCC is one of the most prevalent malignancies in the world, with rising incidence and high mortality rates. Immunotherapy for HCC is both promising and challenging due to its unique characteristic of immunity and immune tolerance. As a protective “ecological niche” for tumor cells, the different components and complex crosstalk in TME promote HCC progression and impair therapeutic effects. Since the TME of HCC plays a key role in its initiation and progression, it is worth considering the regulation of TME to enhance anti-cancer immune responses. Given the rapid development of nanotechnology and the success of cancer immunotherapy in the clinic, the convergence of the two therapies will certainly achieve significant progress in cancer treatment. In this study, we review recent advancements in the treatment of HCC using nano-delivery technologies to regulate immunosuppressive TME. There is a plethora of studies to reprogram the components of TME, such as tumor cells, T lymphocytes, tumor endothelial cells, TAMs, and ECM. TME-modulating nanoparticles can contain various drugs and be modified by targeting ligands in order to highly and specifically accumulate in tumor sites while reducing side effects.
However, there exist a few obstacles to be faced and overcome when it comes to regulating the HCC microenvironment. For example, despite the fact that TME-modulating nanoparticles have demonstrated promising results in preclinical studies, several challenges remain in their clinical translation. First of all, the potential toxicity and immunogenicity of nanomaterials restrict their application in clinical experiments. Immune responses toward the nanomaterials may induce severe complications, such as allergic reactions, thrombogenesis, and so on [140]. Thus, future clinical translations of nanoparticles should concentrate on the low antigenicity with a carefully controlled dose. Secondly, considering the unique immunological landscape of HCC, which contains large amounts of immune cells and some of these, such as Kupffer cells, cannot be found in any other parts of the body, the components in the HCC microenvironment should be further investigated. The TME is a complex network and the impact of one component’s depletion or suppression on the entire system is unknown. Inhibition of one or more components in HCC may be compensated by overexpression of other pathways. A better understanding of components in TME of HCC and the long-term effects of nanoparticles targeting these TME components is critical in future research. Thirdly, because of the existing individual differences in reactions to nanomedicines, it will also be important to develop biomarkers that are both reliable and predictive.
Altogether, modulation of the TME of HCC is seen to be promising as it can effectively improve anti-cancer immunity. Significant progress in the treatment of HCC is believed to be made in the near future.

Author Contributions

Conceptualization, Y.L. and N.F.; Formal Analysis, Y.D. and R.Y.; Investigation, Y.L. and N.F.; Visualization, Y.L.; Writing—Review and Editing, Y.D. and R.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported in part by grants from the Natural Science Foundation of Zhejiang province (LZ22H180002), and the National Natural Science Foundation of China (General Program: 82171998).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

HCC: hepatocellular carcinoma; TME: tumor microenvironment; FDA: Food and Drug Administration; DC: dendritic cells; ECM: extracellular matrix; EPR: the enhanced permeability and retention; TAM: tumor-associated macrophages; MDSC: myeloid-derived suppressor cells; VEGF: vascular endothelial growth factor; bFGF: basic fibroblast growth factor; IL-8: interleukin-8; CAFs: cancer-associated fibroblasts; PMN-MDSC: polymorphonuclear-MDSC; M-MDSC: monocytic MDSC; HBV: hepatitis B virus; Tregs: regulatory T cells; TGFβ: transforming growth factor-β; VEGFR: VEGF receptor; PAM-PBLG-b-TPGS: poly(amidoamine)-poly(γ-benzyl-L-Glutamate)-b-D-α-tocopheryl polyethylene glycol 1000 succinate; GTC: trimethyl chitosan-cysteine; siVEGF: VEGF small interfering RNA; iSur-pDNA: survivin hort hairpin RNA-expression pDNA; ASGPR: asialoglycoprotein receptor; VDAs: vascular disruption agents; CA4P: combretastatin A4-phosphate; URPA: N-urocanyl pullulan; MTX: methotrexate; PLGA: poly(lactic-co-glycolic) acid; MMP: matrix metalloproteinase; DOX: doxorubicin; CSN: chondroitin sulfate; LCP: lipid-coated calcium phosphate; mIP-10: mouse interferon-γ-inducible protein-10; FA: folate; HTLs: helper T lymphocytes; CTLs: cytotoxic T lymphocytes; TMC: N, N, N-trimethyl chitosan; rhIL-2: recombinant human IL-2;pDNA: plasmid DNA; TT-LDCP: tumor-targeted lipid-dendrimer-calcium-phosphate; TINPs: targeted immune nanoparticles; SDF-1α: stromal-derived factor 1α; CXCR4: C-X-C receptor type 4; CLN: cationic lipid-based nanoparticles; CMCS: O-Carboxymethyl-chitosan; MNPs: plasma membrane-derived nanostructures; MPLA: monophosphoryl lipid A; MMF-LA: Mycophenolate mofetil-linoleic acid; DSPE-PEG: 1, 2-distearoyl-sn-glycero-3-phosphoethanolamine-N-poly (ethylene glycol); α-SMA: alpha-smooth muscle actin; FAP: fibroblast activation protein.
