Molecular Cloning of Toll-like Receptor 2 and 4 (SpTLR2, 4) and Expression of TLR-Related Genes from Schizothorax prenanti after Poly (I:C) Stimulation

by
Jianlu Zhang
1,2,
Jiqin Huang
1 and
Haitao Zhao
1,*
1
Shaanxi Key Laboratory of Qinling Ecological Security, Shaanxi Institute of Zoology, Xi’an 710032, China
2
College of Urban and Environmental Sciences, Northwest University, Xi’an 710127, China
*
Author to whom correspondence should be addressed.
Genes 2023, 14(7), 1388; https://doi.org/10.3390/genes14071388
Submission received: 15 May 2023 / Revised: 25 June 2023 / Accepted: 29 June 2023 / Published: 1 July 2023
(This article belongs to the Special Issue Genetics and Genomics in Aquatic Animals)
Browse Figures
Review Reports Versions Notes

Abstract

:
Toll-like receptor (TLR) signaling is conserved between fish and mammals, except for TLR4, which is absent in most fish. In the present study, we aimed to evaluate whether TLR4 is expressed in Schizothorax prenanti (SpTLR4). The SpTLR2 and SpTLR4 were cloned and identified, and their tissue distribution was examined. The cDNA encoding SpTLR4 and SpTLR2 complete coding sequences (CDS) were identified and cloned. Additionally, we examined the expression levels of seven SpTLRs (SpTLR2, 3, 4, 18, 22-1, 22-2, and 22-3), as well as SpMyD88 and SpIRF3 in the liver, head kidney, hindgut, and spleen of S. prenanti, after intraperitoneal injection of polyinosinic-polycytidylic acid (poly (I:C)). The SpTLR2 and SpTLR4 shared amino acid sequence identity of 42.15–96.21% and 36.21–93.58%, respectively, with sequences from other vertebrates. SpTLR2 and SpTLR4 were expressed in all S. prenanti tissues examined, particularly in immune-related tissues. Poly (I:C) significantly upregulated most of the genes evaluated in the four immune organs compared with the PBS-control (p < 0.05); expression of these different genes was tissue-specific. Our findings demonstrate that TLR2 and TLR4 are expressed in S. prenanti and that poly (I:C) affects the expression of nine TLR-related genes, which are potentially involved in S. prenanti antiviral immunity or mediating pathological processes with differential kinetics. This will contribute to a better understanding of the roles of these TLR-related genes in antiviral immunity.

1. Introduction

The immune system of vertebrates includes the innate and adaptive immune systems, which are essential in fish immunity [1]. In fish, innate pattern recognition receptors (PRRs) activate the innate immune response through a series of highly conserved pathogen-associated molecular patterns [2]. The PRRs in fish include the RIG-I-like receptor, NOD-like receptor, C-type lectin receptor, and the toll-like receptor (TLR) family [3]. Among the PRR families, the TLR family is the most widely studied [4]. These receptors were first identified in Drosophila melanogaster in 1985 [5]. The TLR family is divided into six subfamilies, based on evolutionary relatedness: TLR1, 3, 4, 5, 7, and 11 subfamily. To date, at least 22 TLRs have been cloned and identified in bony fish (TLR1, 2, 3, 4, 5M, 5S, 7, 8, 9, 13, 14, and 18-28), some of which are bony fish-specific TLRs, such as TLR18-28 [6,7]. In this study, another two TLRs, the SpTLR2 (belonging to the TLR1 subfamily) and SpTLR4 (belonging to the TLR4 subfamily) were cloned and identified. Gene cloning and functional identification of fish-specific TLRs have also become research hotspots. Studying fish TLRs is necessary for understanding the immune system of lower vertebrates.
TLRs play crucial roles in the identification of microbial pathogens that infect fish. Together with myeloid differentiation factor 88 (MyD88), interferon regulatory factors (IRFs), and other factors in the immune signaling pathway, TLRs are involved in the identification of most pathogenic microorganisms, including bacteria, viruses, and parasites [8,9,10,11]. The adapter molecules are recruited by the toll/IL-1 receptor (TIR) domain of TLR during TLR signal transduction, leading to the activation of diverse signaling pathways. These signaling pathways involving TLRs can be divided into two categories: MyD88-dependent and MyD88-independent pathways. In the former pathway, MyD88 acts as an adaptor protein and is recruited by TLRs as the first signaling protein, playing a key role in TLR signal transduction [12,13,14]. The MyD88-independent pathway is a specific signaling pathway involving only a few TLRs, mainly related to antiviral signaling, also known as the TIR-domain-containing adaptor-inducing interferon (IFN)-β-dependent pathway [7,10]. For example, TLR3 and TLR22 activate IRF3 and IRF7 to complete the immune response via a TIR-domain-containing adaptor-inducing IFN-β-dependent pathway [2,15]. IRF family members (IRF1-11) have immunoregulatory functions; IRF3 plays a crucial role in the innate immune resistance system against viruses [16] and in the MyD88-independent pathway [17].
The immune-related components of teleost fish differ from those in mammals [18]. TLR4, an ancient TLR and the only member of the TLR4 subfamily [6], is present in mammals but not in all fish. The first mammalian TLR4 discovered was human TLR4, which is thought to be homologous to TLR1 in D. melanogaster [19]. In fish, TLR4 is mostly found in cyprinids, having been identified in zebrafish (Danio rerio) [20], rohu (Labeo rohita) [21], rare minnow (Gobiocypris rarus) [22], common carp (Cyprinus carpio) [23], grass carp (Ctenopharyngodon idella) [24], and Przewalski’s naked carp (Gymnocypris przewalskii) [25]. Additionally, TLR4 is also expressed in other fish families such as channel catfish (Ictalurus punctatus) [26] and blunt snout bream (Megalobrama amblycephala) [27]. Conversely, TLR4 is not found in most fish [6,28] and is absent in spotted green pufferfish (Tetraodon nigroviridis) [29] and pufferfish (Fugu rubripes) [30]. In the gilthead seabream (Sparus aurata), the presence of a TLR4 ortholog is unknown [29].
Prenant’s schizothoracin (Schizothorax prenanti) belongs to the fish family Cyprinidae, known locally as “yang-fish” in Hanzhong city (Shaanxi, China) or “ya-fish,” together with S. davidi, in Ya’an city (Sichuan, China). As rare and high-quality cold-water fish in production areas, economically important fish have been artificially cultivated and marketed for consumption at approximately 120 yuan/kg [31]. Because of intensive feeding, yang-fish are susceptible to bacterial infections, such as Aeromonas hydrophila [32,33] or Streptococcus agalactiae [34], as well as reoviruses [35], which hinder the healthy development of yang-fish farming.
In this study, we aimed to evaluate the expression of TLR2 and TLR4 in S. prenanti in physiological conditions and after induction of antiviral response mechanisms with a poly (I:C) challenge. Poly (I:C) is a viral analog that has been shown to trigger innate and adaptive immune responses involving TLR signaling, depending on the species [36,37,38]. We first confirmed the existence of TLR4 in yang-fish and its secondary structure composition; furthermore, we predicted the 3D-structural models of SpTLR4 and SpTLR2 proteins. The expression patterns of TLR-related genes in different immune organs (liver, head kidney, hindgut, and spleen), in response to poly (I:C), were analyzed by quantitative real-time PCR (qRT-PCR). The genes we analyzed included SpTLR2, 3, 4, 18, 22-1, 22-2, 22-3, SpIRF3, and SpMyD88. Our findings contribute to further clarifying the roles of SpTLRs, SpIRF3, and SpMyD88 in the immune mechanisms of fish and to a better understanding of the function of SpTLR4.

2. Materials and Methods

2.1. Animal Treatments

Healthy S. prenanti (121.7 ± 28 g) were purchased from the Qunfu Yang-fish professional breeding cooperative (Hanzhong, China). The experimental fish were kept in glass tanks with a volume of (60 × 30 × 40) cm3 with aerated tap water at a temperature of 20 ± 1 °C. Twelve fish were placed per tank, and feed conditions for the fish refer to our previous research [31] After 10 days of acclimatization, S. prenanti in the test group were stimulated with intraperitoneal injection of poly (I:C) (P1530, Sigma-Aldrich, St. Louis, MO, USA) at a dose of 5 mg/kg body weight. Fish in the control group were injected with the same dose of phosphate-buffered saline (PBS). To evaluate the expression of SpTLR2, 3, 4, 18, SpTLR22s (22-1, 22-2, 22-3), SpIRF3, and SpMyD88 under poly (I:C) stimulation, anatomical samples of the poly (I:C)-injected animals were obtained at 12 and 24 h after infection (4 animals per time point). Four PBS-injected fish were used as controls and their tissues were collected at the 24 h. The fish were anesthetized with 80 mg/L eugenol (Daoyuan Biotechnology Co. LTD, Guangzhou, China) for 3 min before dissection. The heart, head kidney, liver, hindgut, intraperitoneal fat, muscle, and spleen were sampled and preserved in liquid nitrogen.

2.2. RNA Extraction and cDNA Synthesis

Tissue total RNA was extracted using TRIzol reagent (Invitrogen, Waltham, MA, USA). The concentration of total RNA and purity was determined with agarose gel electrophoresis, and an A260/280 ration was determined using a Nanodrop One spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). The cDNA was synthesized from total RNA with the RevertAid First Strand cDNA Synthesis Kit (Thermo Fisher Scientific) following to the manufacturer’s instructions.

2.3. CDS Cloning of SpTLR2 and SpTLR4

Based on the transcriptome sequencing of S. prenanti and the sequences from Cyprinidae fish, specific TLR2 and TLR4 primers were designed (Table 1) with the help of PrimerQuest. The primers were synthesized by Tsingke Biotechnology Co., Ltd. (Xi’an, China). The SpTLR2 and SpTLR4 genes were amplified using PrimerStar Max DNA polymerase (Takara Bio, Shiga, Japan) with spleen cDNA as template. The PCR was carried out as follows: 35 cycles of denaturing under 98 °C for 10 s, annealing under 50 °C for 15 s, and extending under 72 °C for 40 s. A tailing was added to the 3’ end of the PCR product with the DNA A-Tailing Kit (Takara Bio). The products were ligated with pMD19-T vector (Takara Bio) and then transformed into competent cells of Escherichia coli DH5α (TIANGEN, Beijing, China). Then competent cells were cultured on an LB agar plate (containing 100 mg/L ampicillin) at 37 °C. Subsequently, positive bacterial clones were sequenced to confirm the cloning.

2.4. Sequence Analysis

The SpTLR2 and SpTLR4 complete CDS were identified with ORF Finder (http://www.ncbi.nlm.nih.gov/orffinder/, accessed on 16 February 2023). Several SpTLR2 and SpTLR4 properties were predicted using diverse online tools: the molecular weight and isoelectric point (https://web.expasy.org/compute_pi/, accessed on 16 February 2023); signal peptides, leucine-rich repeats (LRRs), transmembrane domains, and TIR domains (http://smart.emblheidelberg.de/, accessed on 25 February 2023); secondary structures (http://bioinf.cs.ucl.ac.uk/psipred, accessed on 22 February 2023); and 3D structures (https://swissmodel.expasy.org/, accessed on 16 February 2023). Multiple amino acid sequences were aligned with Clustal X2 [39], and the phylogenetic trees of TLR2 and TLR4 from different vertebrates were constructed using the neighbor-joining method with the MEGA 11.0 software [40].

2.5. Tissue Distribution of SpTLR2 and SpTLR4 mRNA

Total RNA was isolated from the different tissues (heart, liver, spleen, intraperitoneal fat, head kidney, muscle, and hindgut) and cDNA was prepared as described. A qRT-PCR was performed using FastStart Essential DNA Green Master (Roche, Basel, Switzerland) on Applied Biosystems Step One Plus (Life Technologies, Carlsbad, CA, USA). The primers used in this study are listed in Table 1. S. prenanti-specific actin primers were used as an internal control. Triplicat analyses of SpTLR2, SpTLR4, and actin mRNA expression were performed for all samples, and the data were analyzed according to the 2−ΔΔCT method [41]. Tissues collected from poly (I:C)-challenged animals were processed and analyzed using the same methods to assess the changes in the expression levels of TLR-related genes, induced by the viral analog.

2.6. Statistical Analysis

SPSS 22.0 (IBM Corp., Armonk, NY, USA), and GraphPad Prism 5 (GraphPad Software Inc., San Diego, CA, USA) software were performed for data analysis and visualization, respectively. The mRNA expression abundance was analyzed using a one-way analysis of variance. All data are presented as the mean ± standard error (n = 4); statistical significance was established as p < 0.05.

3. Results

3.1. Identification and Structural and Phylogenetic Analysis of SpTLR2 and SpTLR4

First, we set out to confirm the expression of TLR2 and TLR4 in S. prenanti. We observed the expression of both genes and investigated their features. We found that the CDS length of SpTLR2 was 2379 bp (GenBank accession no. OQ676992), and the predicted SpTLR2 ORF encoded a protein with 792 amino acids. The calculated molecular mass and theoretical isoelectric point of SpTLR2 was 199.19 kDa and 4.89, respectively. Domain architecture analysis of SpTLR2, using the SMART tool (http://smart.emblheidelberg.de/, accessed on 28 February 2023), revealed the presence of canonical structural motifs in TLR family proteins. These include a signal peptide, six LRRs, and one TIR domain; this SpTLR2 domain structure is similar to that of other vertebrate TLR2s (Figure 1).
For SpTLR4, we found that the CDS length was 2343 bp (GenBank accession no. OQ108869). The predicted SpTLR4 ORF encoded a 780 amino acid protein, and its calculated molecular mass and theoretical isoelectric point were 197.68 kDa and 4.93, respectively. Using the SMART tool, we identified the following structural domains in SpTLR4: six LRRs, one transmembrane domain, and one TIR domain (Figure 2). The TLR4 domain regions in other vertebrates are shown in Figure 2. Figure 3 shows the secondary structure and predicted 3D structure of SpTLR2 (Figure 3a,b, respectively) and SpTLR4 (Figure 3c,d, respectively). Similar to SpTLR2, SpTLR4 has a horseshoe-shaped solenoid structure with parallel β-sheet lining the inner circumference and α-helices flanking its outer circumference.
To infer the evolutionary relationships between SpTLR2 and SpTLR4, a phylogenetic tree was constructed based on the alignment of SpTLR2 and SpTLR4 amino acid sequences with other available vertebrate amino acid sequences for these two proteins. The SpTLR2 amino acid sequence was most similar to that of fish and was closest to the golden mahseer (Tor putitora) TLR2, with 96.21% identity. We analyzed the phylogeny of the SpTLR2 and SpTLR4 amino acid sequences to determine the relationships between S. prenanti and other vertebrates based on sequences in the GenBank database (Figure 4). The results revealed a high TLR2 and TLR4 amino acid sequence identity between S. prenanti and the fish of the cyprinid family, to which both S. prenanti and T. putitora belong to. Similar results were obtained for SpTLR4.

3.2. Tissue Distribution of SpTLR2 and SpTLR4 Expression

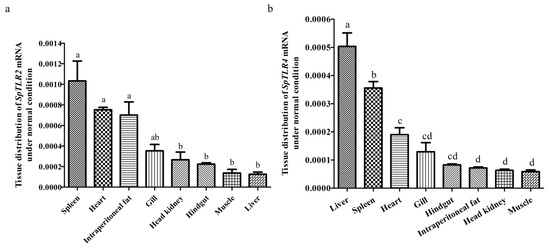

We quantified SpTLR2 and SpTLR4 mRNA expression in the eight tissues (heart, head kidney, spleen, liver, muscle, gill, hindgut, and intraperitoneal fat) of 4 fish using qRT-PCR to determine the transcript abundance of both TLRs. The liver, head kidney, spleen, and hindgut of fish are generally regarded as immune organs that mediate the immune response [42]. The mRNA abundance of β-actin was used for normalization. The expression of splenic SpTLR2 was the highest, followed by the heart and intraperitoneal fat. Conversely, SpTLR2 levels in the head kidney, hindgut, muscle, and liver were significantly lower (p < 0.05), except in the gills where no significant differences were found. In contrast, SpTLR4 was found to be most abundant in the liver, in which its expression was significantly higher than that for the other seven tissues (p < 0.05); the spleen had the second-highest tissue expression of SpTLR4, which was much higher than those in the other six tissues (p < 0.05). Moreover, the SpTLR4 level in the heart was more pronounced and higher than those in the intraperitoneal fat, head kidney, and muscle tissues (p < 0.05), (Figure 5).

3.3. Expression of TLR-Related Genes Following Poly (I:C) Challenge

To determine the changes in TLR2, 3, 4, 18, TLR22s (22-1, 22-2, and 22-3), MyD88, and IRF3 in S. prenanti tissues at 12 and 24 h after poly (I:C) stimulation, the mRNA levels of the genes were quantified using qRT-PCR in the liver, head kidney, spleen, and hindgut tissues. The results are shown in Figure 6.

3.3.1. Expression of SpTLR2

The SpTLR2 transcripts in the head kidney increased significantly at the 12 h time point (p < 0.001). Conversely, at the 24 h time point, the level of SpTLR2 was significantly decreased relative to both the control and to the poly (I:C) 12 h conditions (p < 0.05 and p < 0.001, respectively). Similarly, the expression level of hepatic SpTLR2 at 24 h was significantly lower than that in the control group (p < 0.05). In the hindgut, the SpTLR2 mRNA was pronounced and upregulated at 24 h after poly (I:C) stimulation (p < 0.001). Conversely, the spleen was the only organ in which the levels of SpTLR2 were downregulated at both 12 and 24 h post-poly (I:C) challenge (p < 0.001), (Figure 6a).

3.3.2. Expression of SpTLR3

In the liver, SpTLR3 levels were significantly higher at both time points than those in the PBS-injection control (p < 0.01 at 12 h; p < 0.001 at 24 h), but no significant difference was found between the two poly (I:C) challenge groups. Similar to the effects observed for SpTLR2 in the hindgut, the expression level of the SpTLR3 gene in this organ was significantly upregulated at 12 h, relative to the control (p < 0.01), and downregulated at 24 h, relative to both the PBS-injected group (p < 0.001) and the 12 h poly (I:C)-injection group (p < 0.001). In contrast, SpTLR3 mRNA levels were not significantly different in the head kidney or spleen following poly (I:C) injection (Figure 6b).

3.3.3. Expression of SpTLR4

The relative transcript level of SpTLR4 was generally higher than that of most other genes examined. The highest expression level of SpTLR4 was detected in the spleen, at 24 h after poly (I:C) injection (approximately 113-fold of the transcript level in the PBS-injected group; p < 0.001). In addition, the level of hepatic SpTLR4 was significantly upregulated at 12 (p < 0.01) and 24 h (p < 0.001) post-poly (I:C) stimulation. In both the head kidney and hindgut, SpTLR4 mRNA was significantly upregulated at 12 h (p < 0.01) and 24 h (p < 0.05), compared to the PBS-control; when compared to the 12 h time point, the level of SpTLR4 at 24 h was slightly decreased (p < 0.05) in the head kidney (Figure 6c).

3.3.4. Expression of SpTLR22s

Compared with the PBS control, the relative expression of SpTLR22-1 mRNA at 12 h post-poly (I:C) injection was unchanged in the liver, head kidney, and spleen; at this time point, the only organ showing a significant increase in the level of this transcript was the hindgut (p < 0.05). In contrast, at the 24 h time point, all four organs displayed significant changes in the levels of SpTLR22-1 mRNA (upregulated: liver (p < 0.05), hindgut (p < 0.001), and spleen (p < 0.05); downregulated: head kidney (p < 0.01)) (Figure 6d). In the head kidney and hindgut, the temporal pattern of expression was similar to that of the SpTLR22-1 transcript (downregulated at 24 h post-injection and upregulated at 12 and 24 h, respectively). Conversely, in the spleen, the transcript was significantly downregulated at both time points (p < 0.001), whereas the level of hepatic SpTLR22-2 was only downregulated at 24 h (p < 0.05) after the poly (I:C) injection (Figure 6e). The expression levels of SpTLR22-3 followed a different pattern than that of SpTLR22-1 or SpTLR22-2. The expression level of SpTLR22-3 was unchanged at either time point in the liver and hindgut. In the head kidney, however, SpTLR22-3 mRNA was significantly increased at both 12 (p < 0.01) and 24 h (p < 0.001) after the poly (I:C) injection. Moreover, the level of splenic SpTLR22-3 was significantly increased but only at the 24 h point (p < 0.001) (Figure 6f).

3.3.5. Expression of SpTLR18

The levels of hepatic SpTLR18 were most significantly upregulated at both 12 and 24 h relative to the PBS-injection group (p < 0.001). Additionally, the expression at 24 h was also significantly higher than that at 12 h (p < 0.01). At 12 h post-poly (I:C) challenge, SpTLR18 expression remained unchanged in the kidney, hindgut, and spleen. However, at 24 h, the levels of SpTLR18 were significantly downregulated in the head kidney (compared to PBS, p < 0.05; and to the 12 h, p < 0.01), upregulated in the hindgut (p < 0.01), and remained unchanged in the spleen (Figure 6g).

3.3.6. Expression of SpMyD88

The relative levels of SpMyD88 in the liver and hindgut were unchanged. Only the head kidney and spleen displayed different temporal expression patterns of this transcript. Compared to the PBS group, the levels of SpMyD88 in the head kidney were extremely upregulated at 24 h after poly (I:C) stimulation (p < 0.05). The levels of SpMyD88 mRNA in the spleen were significantly upregulated at the 12 h time point (p < 0.05) and then significantly downregulated at 24 h compared to the 12 h stimulation group (p < 0.001) and the PBS-injection group (p < 0.01) (Figure 6h).

3.3.7. Expression of SpIRF3

The SpIRF3 transcripts were upregulated in all four tissues at both time points after the poly (I:C) treatment. The expression of hepatic SpIRF3 at 12 and 24 h was pronounced higher than that in the PBS control (p < 0.05 and p < 0.01, respectively). In the head kidney, SpIRF3 mRNA was significantly upregulated at both time points but lower in the 24 h condition, relative to the 12 h post-poly (I:C) group (p < 0.001). The temporal expression patterns of SpIRF3 in the hindgut and spleen were similar; both tissues displayed increased levels in this transcript at 12 h, which remained stable at 24 h the after poly (I:C) injection (hindgut, p < 0.01; spleen, p < 0.001). Additional time points would be required to establish whether these transcripts’ expression reached a peak in these organs (Figure 6i).

4. Discussion

Our study firstly identified the presence of TLR2 and TLR4 in S. prenanti. The predicted SpTLR2 and SpTLR4 amino acid sequence we describe in this study includes the typical conserved structure of the TLR protein family. Previous studies have confirmed that the LRR domains in TLR proteins are related to the identification of pathogen components and that the number of LRR domains present in the protein sequence varies in different animals [43,44]. SpTLR3, SpTLR5, SpTLR22, and SpTLR25 contain a signal peptide [18,45,46,47], as does SpTLR2. However, we found no signal peptide in SpTLR4 in this study, which is consistent with TLR4 proteins from other species: TLR4.1, TLR4.2 from Ctenopharyngodon idella [24], and TLR4a from D. rerio [29]. The absence of the signal peptide suggests that these proteins may play a role in the cytoplasm. TLR4 is not expressed in most fish species, probably because of the diversity of environments in which they live and their evolutionary history [28]. Contrary to the mammalian protein, D. rerio TLR4 cannot recognize lipopolysaccharide (LPS) [29], thus indicating that some species of fish have different subtypes of the TLR4 protein, some of which may only function as cytoplasmic pattern recognition receptors.
The main function of IRFs is to interfere with viral replication by inducing the production of IFN [48,49]. Some IRFs, such as IRF3 and IRF9, activate IFN-α/β and their downstream pathways in the host’s antiviral immune process [50,51]. In fish, IRF3 was first detected in rainbow trout (Oncorhynchus mykiss), and its expression was found to be induced after treatment with poly (I:C) [52]. In Atlantic salmon (Salmo salar), MyD88 interacts with IRF3 and IRF7 to regulate the IRF-induced IFN response [53]. Moreover, IRF3 overexpression greatly induces the transcriptional activity of IFN, and the transcription of type I IFN was regulated by IRF3 after challenged by a double-stranded virus [54]. In this study, we found that SpIRF3 was upregulated in all four tissues examined, especially in the head kidney and liver. These results lend support to the antiviral role exerted by fish IRF3.
MyD88 plays a key role in the transduction of TLR-mediated signaling and is frequently evaluated in studies investigating signaling pathways involving TLRs. After yellow drum (Nibea albiflora) [55] and Japanese flounder (Paralichthys olivaceus) were treated with Pseudomonas plecoglossicida and Edwardsiella tarda, respectively, NaMyD88 and PcMyD88 were extremely raised in the kidney and spleen, compared to the expression levels in the corresponding control groups [56]. To date, few studies have evaluated the effect of viruses on MyD88 expression in fish. Of the few available reports, most have focused on changes in the expression level of MyD88 after stimulation with the viral nucleic acid analog poly (I:C). MyD88 levels in the blood cells of Litopenaeus vannamei are lower than those in control conditions, except at 4 h and 12 h after poly (I:C) stimulation. Conversely, white spot virus (dsDNA virus) significantly increases the expression level of LvMyD88 [57], and SAV3 (ssRNA virus) upregulates the level of MyD88 in S. salar spleen, which remains elevated for 28 days [58]. Similar results are presented in this study, whereas the timing of the immune response varies depending on the pathogen and the species of fish.
To date, 22 TLRs have been identified in bony fish belonging to six TLR subfamilies: TLR1 (TLR1, 2, 14, 18 (fish-specific), 24, 25, 27, and 28), TLR3 (TLR3), TLR4 (TLR4), TLR5 (TLR5M and 5S), TLR7 (TLR7, 8, and 9), and TLR11 (TLR13, 19, 20, 21, 22, 23, and 26) [7,28,59]. TLR2 forms homodimers or heterodimers with TLR1 and TLR6, recognizes various ligands from bacteria, and participates in viral recognition. TLR2 from Epinephelus coioides participates in the immune response to anti-LPS and poly (I:C) [60]. In the early stage of viral hemorrhagic septicemia virus (VHSV) infection in olive flounder (P. olivaceus), TLR2 and IRF3 are significantly upregulated. Accordingly, we observed that SpTLR2 and SpTLR18 are upregulated following a poly (I:C) challenge, particularly in the head kidney at 12 h and hindgut at 24 h. Our previous study demonstrated that LPS significantly increases SpTLR18 levels [46], and the results of the present study support the likely role of this protein in the innate immune responses of bony fish. Moreover, in the spleen, the expression level of SpTLR2 was significantly downregulated compared to that in the PBS-control group at 12 and 24 h, and the SpTLR18 level was unchanged at these two time points. Based on these observations, we speculate that the upregulation of SpTLR2 and SpTLR18 after poly (I:C) induction may occur at intermediate or later time points; however, validation of this hypothesis requires further investigation.
TLR3 is the single member of the TLR3 subfamily. In mammals, TLR3 mediates the antiviral immune response to dsRNA viruses, which is similar to its function in fish. Studies have shown that fish TLR3 genes were significantly upregulated in immune-related tissues and organs infected with viruses or poly (I:C), including D. rerio infected with VHSV [61], renal leukocytes from rainbow trout [62] and large yellow croak (Pseudosciaena crocea) [63], and G. rarus infected with grass carp reovirus (GCRV) [64]. In this study, SpTLR3 transcripts in the liver and hindgut were significantly upregulated 12 h after poly (I:C) induction. These results suggest that fish TLR3 recognizes viruses and plays an important role in the immune response.
TLR22 is another fish-specific TLR belonging to the TLR11 subfamily that was first discovered in goldfish in 2003 [65]. Subsequently, TLR22 has been cloned and identified in 17 fish species, including D. rerio [20], P. olivaceus [66], S. salar [67], Fugu rubripes [68], Pseudosciaena crocea [69], C. idella [70], Epinephelus coioides [71], Gadus morhua [72], I. punctatus [26], L. rohita [73], C. mrigala [74], S. aurata [75], Scophthalmus maximus [76], Seriola lalandi [77], C. carpio L. [78], and S. prenanti [18]. Initially, two subtypes of TLR22 (named TLR22-1 and TLR22-2) were discovered in rainbow trout, which have highly similar functions and were called ‘twin’ TLRs. Subsequently, TLR22-1, -2, and -3 were identified in S. salar (GenBank accession no.: AM233509, FM206383, and BT045774, respectively). These reports, as well as the results from the present study, suggest that fish TLR22 is a multifunctional immune receptor involved in the defense and immune response of almost all pathogenic microorganisms; however, the corresponding recognition mechanisms and downstream signaling pathways remain unclear. To date, only two studies have explored the downstream signaling pathways mediated by TLR22. In the first report, TLR22 of T. rubripes was demonstrated to be located in the cell membrane and to induce IFN expression in response to viral infection [68]. In contrast, another report showed EcTLR22 to be located in the endosome and to mediate protective mechanisms, inhibiting the transmission of antiviral and inflammatory signals to prevent excessive inflammation [79]. These results suggest that TLR22 may have different functions in different fish species. Therefore, additional studies are needed to shed light on the signaling mechanism mediated by TLR22. A previous study reported that the mRNA levels of SpTLR22-1 in the head kidney and spleen were upregulated 12 h after a poly (I:C) challenge, while SpTLR22-3 significantly increased at both 12 and 24 h points in the head kidney; conversely, SpTLR22-2 did not change at either the 12 or 24 h time points [18]. The results described here show some differences relative to this previous report. We found that the transcripts of SpTLR22-3 were much higher than that of TLR22-1 and -2, especially in the head kidney and spleen, at 24 h after infection. Our findings suggest that the ‘triplet’ SpTLR22s (TLR22-1, -2, and -3) jointly mediate the recognition of poly (I:C) and are involved in the immune response.
The biggest difference in TLR-signaling pathways between mammals and fish pertains to the TLR4-mediated signaling pathway [80]. TLR4 is a direct receptor of bacterial LPS [2]. Unlike in mammals, TLR4 is absent in most fish and is mainly found in cyprinids. This discrepancy in protein expression raises the question of whether mammal and fish TLR4 have similar functions in viral recognition. In C. idella infected with GCRV, the expression of TLR4 has been reported to be increased in the muscle and liver [24]. Similar results have been observed in G. rarus infected with GCRV [22]. Our present findings support these previous reports. We found that the relative transcript level of SpTLR4 was generally higher, compared to the other genes examined, and that its expression was highest in the spleen at 24 h after the poly (I:C) stimulation relative to the control group. These results suggest that fish TLR4 expression is induced in response to viral infection and may play a crucial role in the immune response not just in antimicrobial immunity. However, its ligand specificity and function require further study. Overall, our study found evidence of the following: TLR4 is present in S. prenanti; SpTLR4 is involved in antiviral immunity; the spleen is the most sensitive immune organ for SpTLR4 detection at 24 h following the poly (I:C) injection. Of the nine genes examined in this study, the upregulation of SpTLR4 expression was higher, especially for the level in the spleen at 24 h which significantly increased 110-fold. In addition, the SpTLR3 and SpTLR18 in the spleen and SpTLR22-3 and SpMyD88 in both the liver and hindgut were noninducible by poly (I:C), and the other genes in the four immune tissues were inducible by poly (I:C) in this study.

5. Conclusions

In this study, the CDS of SpTLR2 and SpTLR4 were successfully cloned and characterized. Phylogenetic analysis showed that SpTLR2 and SpTLR4 proteins were most closely related to TLR2 and TLR4 from golden mahseer. Multiple sequence alignment showed that SpTLR2 and SpTLR4 are moderately conserved. These two proteins were expressed in all tissues examined; SpTLR2 was the most abundantly expressed in the spleen and SpTLR4 in the liver. The poly (I:C) challenge affected the expression of several TLR-related genes in an organ-specific manner, suggesting their involvement in antiviral immunity or pathological processes. Overall, our findings demonstrate that SpTLR2 and SpTLR4 are likely involved in the immune response. These findings contribute to a better understanding of the mechanisms of immunity in lower vertebrates, which may shed light on response mechanisms to infections in economically relevant fish species.

Author Contributions

J.Z. and H.Z. designed the experiments. J.H. performed the experiments. J.Z. analyzed the data and wrote the paper. H.Z. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was jointly funded by the China Postdoctoral Science Foundation (No. 2021M702653) and the General project of Shaanxi Science and Technology Department, China (No. 2018NY-108). It was also supported by the Special Foundation of Shaanxi Academy of Sciences, China (No. 2021k-05, 2022k-07).

Institutional Review Board Statement

All experimental procedures in this study involving Schizothorax prenanti were approved by the Animal Ethics Review and Approval Form of Shaanxi Institute of Zoology (permit number: L23D011A51; date of approval: 25 April 2022).

Informed Consent Statement

Not applicable.

Data Availability Statement

Publicly available datasets were analyzed in this study. The rest of the data presented in this study are available on request from the corresponding author.

Acknowledgments

We sincerely thank Xiaogang Du of Sichuan Agricultural University for providing the transcriptome sequence of SpTLR4 for our study and Ling Chen and Xingquan Xiong for providing the S. prenanti for our research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Alcorn, S.W.; Murra, A.L.; Pascho, R.J. Effects of rearing temperature on immune functions in sockeye salmon (Oncorhynchus nerka). Fish Shellfish Immunol. 2002, 12, 303–334. [Google Scholar] [CrossRef]
  2. Takeuchi, O.; Akira, S. Pattern recognition receptors and inflammation. Cell 2010, 140, 805–820. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ishii, K.J.; Koyama, S.; Nakagawa, A.; Coban, C.; Akira, S. Host innate immune receptors and beyond: Making sense of microbial infections. Cell Host Microbe 2008, 3, 352–363. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Akira, S.; Uematsu, S.; Takeuchi, O. Pathogen recognition and innate immunity. Cell 2006, 124, 783–801. [Google Scholar] [CrossRef] [Green Version]
  5. Anderson, K.V.; Jürgens, G.; Nüsslein-Volhard, C. Establishment of dorsal-ventral polarity in the Drosophila embryo: Genetic studies on the role of the Toll gene product. Cell 1985, 42, 779–789. [Google Scholar] [CrossRef]
  6. Rebl, A.; Goldammer, T.; Seyfert, H.M. Toll-like receptor signaling in bony fish. Vet. Immunol. Immunopathol. 2010, 134, 139–150. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, J.; Kong, X.; Zhou, C.; Li, L.; Nie, G.; Li, X. Toll-like receptor recognition of bacteria in fish: Ligand specificity and signal pathways. Fish Shellfish Immunol. 2014, 41, 380–388. [Google Scholar] [CrossRef]
  8. Aoki, T.; Hikima, J.; Hwang, S.D.; Jung, T.S. Innate immunity of finfish: Primordial conservation and function of viral RNA sensors in teleosts. Fish Shellfish Immunol. 2013, 35, 1689–1702. [Google Scholar] [CrossRef] [PubMed]
  9. Hansen, J.D.; Vojtech, L.N.; Laing, K.J. Sensing disease and danger: A survey of vertebrate PRRs and their origins. Dev. Comp. Immunol. 2011, 35, 886–897. [Google Scholar] [CrossRef]
  10. Takano, T.; Hwang, S.D.; Kondo, H.; Hirono, I.; Aoki, T.; Sano, M. Evidence of molecular toll-like receptor mechanisms in teleosts. Fish Pathol. 2010, 45, 1–16. [Google Scholar] [CrossRef] [Green Version]
  11. Wang, Y.; Li, J.; Han, J.; Shu, C.; Xu, T. Identification and characteristic analysis of TLR28: A novel member of the TLR1 family in teleost. Dev. Comp. Immunol. 2016, 62, 102–107. [Google Scholar] [CrossRef]
  12. Bhoj, V.G.; Chen, Z.J. Ubiquitylation in innate and adaptive immunity. Nature 2009, 458, 430–437. [Google Scholar] [CrossRef] [PubMed]
  13. Lin, S.C.; Lo, Y.C.; Wu, H. Helical assembly in the MyD88-IRAK4-IRAK2 complex in TLR/IL-1R signalling. Nature 2010, 465, 885–890. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Wang, C.; Deng, L.; Hong, M.; Akkaraju, G.R.; Inoue, J.; Chen, Z.J. TAK1 is a ubiquitin-dependent kinase of MKK and IKK. Nature 2001, 412, 346–351. [Google Scholar] [CrossRef] [PubMed]
  15. Kawai, T.; Akira, S. The role of pattern-recognition receptors in innate immunity: Update on toll-like receptors. Nat. Immunol. 2010, 11, 373–384. [Google Scholar] [CrossRef]
  16. Stein, C.; Caccamo, M.; Laird, G.; Leptin, M. Conservation and divergence of gene families encoding components of innate immune response systems in zebrafish. Genome Biol. 2007, 8, R251. [Google Scholar] [CrossRef] [Green Version]
  17. Jiang, X.; Chen, Z.J. The role of ubiquitylation in immune defence and pathogen evasion. Nat. Rev. Immunol. 2011, 12, 35–48. [Google Scholar] [CrossRef] [Green Version]
  18. Du, X.; Li, D.; Li, Y.; Wu, J.; Huang, A.; Bu, G.; Meng, F.; Kong, F.; Cao, X.; Han, X.; et al. Clone, identification and functional character of two toll-like receptor 5 molecules in Schizothorax prenanti. Fish Shellfish Immunol. 2019, 95, 81–92. [Google Scholar] [CrossRef]
  19. Rock, F.L.; Hardiman, G.; Timans, J.C.; Kastelein, R.A.; Bazan, J.F. A family of human receptors structurally related to Drosophila Toll. Proc. Natl. Acad. Sci. USA 1998, 95, 588–593. [Google Scholar] [CrossRef]
  20. Sullivan, C.; Charette, J.; Catchen, J.; Lage, C.R.; Giasson, G.; Postlethwait, J.H.; Millard, P.J.; Kim, C.H. The gene history of zebrafish tlr4a and tlr4b is predictive of their divergent functions. J. Immunol. 2009, 183, 5896–5908. [Google Scholar] [CrossRef] [Green Version]
  21. Samanta, M.; Basu, M.; Swain, B.; Paichha, M.; Lenka, S.S.; Das, S.; Jayasankar, P.; Maiti, N.K. Molecular cloning and characterization of LrTLR4, analysis of its inductive expression and associated down-stream signaling molecules following lipopolysaccharide stimulation and Gram-negative bacterial infection. Fish Shellfish Immunol. 2017, 60, 164–176. [Google Scholar] [CrossRef] [PubMed]
  22. Su, J.; Yang, C.; Xiong, F.; Wang, Y.; Zhu, Z. Toll-like receptor 4 signaling pathway can be triggered by grass carp reovirus and Aeromonas hydrophila infection in rare minnow Gobiocypris rarus. Fish Shellfish Immunol. 2009, 27, 33–39. [Google Scholar] [CrossRef] [PubMed]
  23. Kongchum, P.; Palti, Y.; Hallerman, E.M.; Hulata, G.; David, L. SNP discovery and development of genetic markers for mapping innate immune response genes in common carp (Cyprinus carpio). Fish Shellfish Immunol. 2010, 29, 356–361. [Google Scholar] [CrossRef] [PubMed]
  24. Huang, R.; Dong, F.; Jang, S.; Liao, L.; Zhu, Z.; Wang, Y. Isolation and analysis of a novel grass carp toll-like receptor 4 (tlr4) gene cluster involved in the response to grass carp reovirus. Dev. Comp. Immunol. 2012, 38, 383–388. [Google Scholar] [CrossRef] [PubMed]
  25. Tong, C.; Lin, Y.; Zhang, C.; Shi, J.; Qi, H.; Zhao, K. Transcriptome-wide identification, molecular evolution and expression analysis of toll-like receptor family in a Tibet fish, Gymnocypris przewalskii. Fish Shellfish Immunol. 2015, 46, 334–345. [Google Scholar] [CrossRef]
  26. Quiniou, S.M.A.; Boudinot, P.; Bengtén, E. Comprehensive survey and genomic characterization of toll-like receptors (TLRs) in channel catfish, Ictalurus punctatus: Identification of novel fish TLRs. Immunogenetics 2013, 65, 511–530. [Google Scholar] [CrossRef]
  27. Lai, R.; Liu, H.; Jakovlić, I.; Zhan, F.; Wei, J.; Yang, P.; Wang, W. Molecular cloning and expression of toll-like receptor 4 (tlr4) in the blunt snout bream (Megalobrama amblycephala). Dev. Comp. Immunol. 2016, 59, 63–76. [Google Scholar] [CrossRef]
  28. Palti, Y. Toll-like receptors in bony fish: From genomics to function. Dev. Comp. Immunol. 2011, 35, 1263–1272. [Google Scholar] [CrossRef]
  29. Sepulcre, M.P.; Alcaraz-Pérez, F.; López-Muñoz, A.; Roca, F.J.; Meseguer, J.; Cayuela, M.L.; Mulero, V. Evolution of lipopolysaccharide (LPS) recognition and signaling: Fish TLR4 does not recognize LPS and negatively regulates NF-kappaB activation. J. Immunol. 2009, 182, 1836–1845. [Google Scholar] [CrossRef] [Green Version]
  30. Oshiumi, H.; Tsujita, T.; Shida, K.; Matsumoto, M.; Ikeo, K.; Seya, T. Prediction of the prototype of the human toll-like receptor gene family from the pufferfish, Fugu rubripes, genome. Immunogenetics 2003, 54, 791–800. [Google Scholar] [CrossRef]
  31. Zhang, J.; Huang, J.; Fang, C.; Li, W.; Zhao, H.; Kong, F.; Zhang, H.; Zhang, H.; Wang, Q. Molecular cloning of heat shock protein 60 (SpHSP60) from Schizothorax prenanti and the gene expressions of four SpHSPs during lipopolysaccharide (LPS) infection. Fishes 2022, 7, 139. [Google Scholar] [CrossRef]
  32. Pu, Y.; Zhu, J.; Wang, H.; Zhang, X.; Hao, J.; Wu, Y.; Geng, Y.; Wang, K.; Li, Z.; Zhou, J.; et al. Molecular characterization and expression analysis of Hsp90 in Schizothorax prenanti. Cell Stress Chaperones 2016, 21, 983–991. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Ye, H.; Xiao, S.; Wang, X.; Wang, Z.; Zhang, Z.; Zhu, C.; Hu, B.; Lv, C.; Zheng, S.; Luo, H. Characterization of spleen transcriptome of Schizothorax prenanti during Aeromonas hydrophila infection. Mar. Biotechnol. 2018, 20, 246–256. [Google Scholar] [CrossRef] [PubMed]
  34. Geng, Y.; Wang, K.Y.; Huang, X.L.; Chen, D.F.; Li, C.W.; Ren, S.Y.; Liao, Y.T.; Zhou, Z.Y.; Liu, Q.F.; Du, Z.J.; et al. Streptococcus agalactiae, an emerging pathogen for cultured ya-fish, Schizothorax prenanti, in China. Transbound. Emerg. Dis. 2012, 59, 369–375. [Google Scholar] [CrossRef]
  35. Palacios, G.; Lovoll, M.; Tengs, T.; Hornig, M.; Hutchison, S.; Hui, J.; Kongtorp, R.T.; Savji, N.; Bussetti, A.V.; Solovyov, A.; et al. Heart and skeletal muscle inflammation of farmed salmon is associated with infection with a novel reovirus. PLoS ONE 2010, 5, e11487. [Google Scholar] [CrossRef]
  36. Avunje, S.; Jung, S.J. Poly (I:C) and imiquimod induced immune responses and their effects on the survival of olive flounder (Paralichthys olivaceus) from viral haemorrhagic septicaemia. Fish Shellfish Immunol. 2017, 71, 338–345. [Google Scholar] [CrossRef]
  37. Schaefer, T.M.; Fahey, J.V.; Wright, J.A.; Wira, C.R. Innate immunity in the human female reproductive tract: Antiviral response of uterine epithelial cells to the TLR3 agonist poly(I:C). J. Immunol. 2005, 174, 992–1002. [Google Scholar] [CrossRef] [Green Version]
  38. Thomas, M.; Wang, Z.; Sreenivasan, C.C.; Hause, B.M.; Renukaradhya, G.J.; Li, F.; Francis, D.H.; Kaushik, R.S.; Khatri, M. Poly I:C adjuvanted inactivated swine influenza vaccine induces heterologous protective immunity in pigs. Vaccine 2015, 33, 542–548. [Google Scholar] [CrossRef]
  39. Thompson, J.D.; Gibson, T.J.; Plewniak, F.; Jeanmougin, F.; Higgins, D.G. The CLUSTAL_X windows interface: Flexible strategies for multiple sequence alignment aided by quality analysis tools. Nucleic Acids Res. 1997, 25, 4876–4882. [Google Scholar] [CrossRef] [Green Version]
  40. Tamura, K.; Dudley, J.; Nei, M.; Kumar, S. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol. 2007, 24, 1596–1599. [Google Scholar] [CrossRef]
  41. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C (T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  42. Alvarez-Pellitero, P. Fish immunity and parasite infections: From innate immunity to immunoprophylactic prospects. Vet. Immunol. Immunopathol. 2008, 126, 171–198. [Google Scholar] [CrossRef]
  43. Hwang, S.D.; Asahi, T.; Kondo, H.; Hirono, I.; Aoki, T. Molecular cloning and expression study on toll-like receptor 5 paralogs in Japanese flounder, Paralichthys olivaceus. Fish Shellfish Immunol. 2010, 29, 630–638. [Google Scholar] [CrossRef]
  44. Wang, P.; Zhao, C.; Wang, C.; Fan, S.; Yan, L.; Qiu, L. TLR3 gene in Japanese sea perch (Lateolabrax japonicus): Molecular cloning, characterization and expression analysis after bacterial infection. Fish Shellfish Immunol. 2018, 76, 347–354. [Google Scholar] [CrossRef] [PubMed]
  45. Du, X.; Wu, J.; Li, Y.; Xia, P.; Li, D.; Yang, X.; Yu, G.; Bu, G.; Huang, A.; Meng, F.; et al. Multiple subtypes of TLR22 molecule from Schizothorax prenanti present the functional diversity in ligand recognition and signal activation. Fish Shellfish Immunol. 2019, 93, 986–996. [Google Scholar] [CrossRef] [PubMed]
  46. Huang, J.; Zhang, J.; Zhang, K.; Fang, C.; Li, W.; Wang, Q. Cloning of toll-like receptor 3 gene from Schizothorax prenanti (SpTLR3), and expressions of seven SpTLRs and SpMyD88 after lipopolysaccharide induction. Genes 2022, 13, 1862. [Google Scholar] [CrossRef] [PubMed]
  47. Li, Y.; Wu, J.; Li, D.; Huang, A.; Bu, G.; Meng, F.; Kong, F.; Cao, X.; Han, X.; Pan, X.; et al. Teleost-specific TLR25 identified from Schizothorax prenanti may recognize bacterial/viral components and activate NF-κB and type I IFNs signaling pathways. Fish Shellfish Immunol. 2018, 82, 361–370. [Google Scholar] [CrossRef] [PubMed]
  48. Harada, H.; Fujita, T.; Miyamoto, M.; Kimura, Y.; Maruyama, M.; Furia, A.; Miyata, T.; Taniguchi, T. Structurally similar but functionally distinct factors, IRF-1 and IRF-2, bind to the same regulatory elements of IFN and IFN-inducible genes. Cell 1989, 58, 729–739. [Google Scholar] [CrossRef]
  49. Taniguchi, T.; Ogasawara, K.; Takaoka, A.; Tanaka, N. IRF family of transcription factors as regulators of host defense. Annu. Rev. Immunol. 2001, 19, 623–655. [Google Scholar] [CrossRef]
  50. Honda, K.; Yanai, H.; Negishi, H.; Asagiri, M.; Sato, M.; Mizutani, T.; Shimada, N.; Ohba, Y.; Takaoka, A.; Yoshida, N.; et al. IRF-7 is the master regulator of type-I interferon-dependent immune responses. Nature 2005, 434, 772–777. [Google Scholar] [CrossRef]
  51. Ivashkiv, L.B.; Donlin, L.T. Regulation of type I interferon responses. Nat. Rev. Immunol. 2014, 14, 36–49. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Holland, J.W.; Bird, S.; Williamson, B.; Woudstra, C.; Mustafa, A.; Wang, T.; Zou, J.; Blaney, S.C.; Collet, B.; Secombes, C.J. Molecular characterization of IRF3 and IRF7 in rainbow trout, Oncorhynchus mykiss: Functional analysis and transcriptional modulation. Mol. Immunol. 2008, 46, 269–285. [Google Scholar] [CrossRef]
  53. Iliev, D.B.; Sobhkhez, M.; Fremmerlid, K.; Jørgensen, J.B. MyD88 interacts with interferon regulatory factor (IRF) 3 and IRF7 in Atlantic salmon (Salmo salar): Transgenic SsMyD88 modulates the IRF-induced type I interferon response and accumulates in aggresomes. J. Biol. Chem. 2011, 286, 42715–42724. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ohtani, M.; Hikima, J.; Hwang, S.D.; Morita, T.; Suzuki, Y.; Kato, G.; Kondo, H.; Hirono, I.; Jung, T.S.; Aoki, T. Transcriptional regulation of type I interferon gene expression by interferon regulatory factor-3 in Japanese flounder, Paralichthys olivaceus. Dev. Comp. Immunol. 2012, 36, 697–706. [Google Scholar] [CrossRef] [PubMed]
  55. Lin, F.; Zhou, C.; Chen, H.; Wu, H.; Xin, Z.; Liu, J.; Gao, Y.; Yuan, D.; Wang, T.; Wei, R.; et al. Molecular characterization, tissue distribution and feeding related changes of NUCB2A/nesfatin-1 in Ya-fish (Schizothorax prenanti). Gene 2014, 536, 238–246. [Google Scholar] [CrossRef]
  56. Takano, T.; Kondo, H.; Hirono, I.; Saito-Taki, T.; Endo, M.; Aoki, T. Identification and characterization of a myeloid differentiation factor 88 (MyD88) cDNA and gene in Japanese flounder, Paralichthys olivaceus. Dev. Comp. Immunol. 2006, 30, 807–816. [Google Scholar] [CrossRef]
  57. Zhang, S.; Li, C.Z.; Yan, H.; Qiu, W.; Chen, Y.G.; Wang, P.H.; Weng, S.P.; He, J.G. Identification and function of myeloid differentiation factor 88 (MyD88) in Litopenaeus vannamei. PLoS ONE 2012, 7, e47038. [Google Scholar] [CrossRef]
  58. Skjaeveland, I.; Iliev, D.B.; Strandskog, G.; Jørgensen, J.B. Identification and characterization of TLR8 and MyD88 homologs in Atlantic salmon (Salmo salar). Dev. Comp. Immunol. 2009, 33, 1011–1017. [Google Scholar] [CrossRef]
  59. Takeda, K.; Akira, S. Toll-like receptors in innate immunity. Int. Immunol. 2005, 17, 135–145. [Google Scholar] [CrossRef] [Green Version]
  60. Wei, Y.C.; Pan, T.S.; Chang, M.X.; Huang, B.; Xu, Z.; Luo, T.R.; Nie, P. Cloning and expression of toll-like receptors 1 and 2 from a teleost fish, the orange-spotted grouper Epinephelus coioides. Vet. Immunol. Immunopathol. 2011, 141, 173–182. [Google Scholar] [CrossRef]
  61. Novoa, B.; Romero, A.; Mulero, V.; Rodríguez, I.; Fernández, I.; Figueras, A. Zebrafish (Danio rerio) as a model for the study of vaccination against viral haemorrhagic septicemia virus (VHSV). Vaccine 2006, 24, 5806–5816. [Google Scholar] [CrossRef] [PubMed]
  62. Rodriguez, M.F.; Wiens, G.D.; Purcell, M.K.; Palti, Y. Characterization of toll-like receptor 3 gene in rainbow trout (Oncorhynchus mykiss). Immunogenetics 2005, 57, 510–519. [Google Scholar] [CrossRef] [PubMed]
  63. Huang, X.N.; Wang, Z.Y.; Yao, C.L. Characterization of toll-like receptor 3 gene in large yellow croaker, Pseudosciaena crocea. Fish Shellfish Immunol. 2011, 31, 98–106. [Google Scholar] [CrossRef]
  64. Su, J.; Zhu, Z.; Wang, Y.; Zou, J.; Hu, W. Toll-like receptor 3 regulates Mx expression in rare minnow Gobiocypris rarus after viral infection. Immunogenetics 2008, 60, 195–205. [Google Scholar] [CrossRef] [PubMed]
  65. Stafford, J.L.; Ellestad, K.K.; Magor, K.E.; Belosevic, M.; Magor, B.G. A toll-like receptor (TLR) gene is up-regulated in activated goldfish macrophages. Dev. Comp. Immunol. 2003, 27, 685–698. [Google Scholar] [CrossRef]
  66. Hirono, I.; Takami, M.; Miyata, M.; Miyazaki, T.; Han, H.J.; Takano, T.; Endo, M.; Aoki, T. Characterization of gene structure and expression of two toll-like receptors from Japanese flounder, Paralichthys olivaceus. Immunogenetics 2004, 56, 38–46. [Google Scholar] [CrossRef] [PubMed]
  67. Salazar, C.; Haussmann, D.; Kausel, G.; Figueroa, J. Molecular cloning of Salmo salar toll-like receptors (TLR1, TLR22, TLR5M and TLR5S) and expression analysis in SHK-1 cells during Piscirickettsia salmonis infection. J. Fish. Dis. 2016, 39, 239–248. [Google Scholar] [CrossRef]
  68. Matsuo, A.; Oshiumi, H.; Tsujita, T.; Mitani, H.; Kasai, H.; Yoshimizu, M.; Matsumoto, M.; Seya, T. Teleost TLR22 recognizes RNA duplex to induce IFN and protect cells from birnaviruses. J. Immunol. 2008, 181, 3474–3485. [Google Scholar] [CrossRef] [Green Version]
  69. Xiao, X.; Qin, Q.; Chen, X. Molecular characterization of a Toll-like receptor 22 homologue in large yellow croaker (Pseudosciaena crocea) and promoter activity analysis of its 5′-flanking sequence. Fish Shellfish Immunol. 2011, 30, 224–233. [Google Scholar] [CrossRef]
  70. Lv, J.; Huang, R.; Li, H.; Luo, D.; Liao, L.; Zhu, Z.; Wang, Y. Cloning and characterization of the grass carp (Ctenopharyngodon idella) Toll-like receptor 22 gene, a fish-specific gene. Fish Shellfish Immunol. 2012, 32, 1022–1031. [Google Scholar] [CrossRef]
  71. Ding, X.; Lu, D.Q.; Hou, Q.H.; Li, S.S.; Liu, X.C.; Zhang, Y.; Lin, H.R. Orange-spotted grouper (Epinephelus coioides) toll-like receptor 22: Molecular characterization, expression pattern and pertinent signaling pathways. Fish Shellfish Immunol. 2012, 33, 494–503. [Google Scholar] [CrossRef] [PubMed]
  72. Sundaram, A.Y.M.; Kiron, V.; Dopazo, J.; Fernandes, J.M.O. Diversification of the expanded teleost-specific toll-like receptor family in Atlantic cod, Gadus morhua. BMC Evol. Biol. 2012, 12, 256. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Samanta, M.; Swain, B.; Basu, M.; Mahapatra, G.; Sahoo, B.R.; Paichha, M.; Lenka, S.S.; Jayasankar, P. Toll-like receptor 22 in Labeo rohita: Molecular cloning, characterization, 3D modeling, and expression analysis following ligands stimulation and bacterial infection. Appl. Biochem. Biotechnol. 2014, 174, 309–327. [Google Scholar] [CrossRef] [PubMed]
  74. Panda, R.P.; Chakrapani, V.; Patra, S.K.; Saha, J.N.; Jayasankar, P.; Kar, B.; Sahoo, P.K.; Barman, H.K. First evidence of comparative responses of Toll-like receptor 22 (TLR22) to relatively resistant and susceptible Indian farmed carps to Argulus siamensis infection. Dev. Comp. Immunol. 2014, 47, 25–35. [Google Scholar] [CrossRef]
  75. Muñoz, I.; Sepulcre, M.P.; Meseguer, J.; Mulero, V. Toll-like receptor 22 of gilthead seabream, Sparus aurata: Molecular cloning, expression profiles and post-transcriptional regulation. Dev. Comp. Immunol. 2014, 44, 173–179. [Google Scholar] [CrossRef]
  76. Hu, G.B.; Zhang, S.F.; Yang, X.; Liu, D.H.; Liu, Q.M.; Zhang, S.C. Cloning and expression analysis of a Toll-like receptor 22 (tlr22) gene from turbot, Scophthalmus maximus. Fish Shellfish Immunol. 2015, 44, 399–409. [Google Scholar] [CrossRef]
  77. Reyes-Becerril, M.; Ascencio-Valle, F.; Alamillo, E.; Hirono, I.; Kondo, H.; Jirapongpairoj, W.; Angulo, C. Molecular cloning and comparative responses of Toll-like receptor 22 following ligands stimulation and parasitic infection in yellowtail (Seriola lalandi). Fish Shellfish Immunol. 2015, 46, 323–333. [Google Scholar] [CrossRef]
  78. Li, H.; Yang, G.; Ma, F.; Li, T.; Yang, H.; Rombout, J.H.; An, L. Molecular characterization of a fish-specific Toll-like receptor 22 (TLR22) gene from common carp (Cyprinus carpio L.): Evolutionary relationship and induced expression upon immune stimulants. Fish Shellfish Immunol. 2017, 63, 74–86. [Google Scholar] [CrossRef]
  79. Ding, X.; Liang, Y.; Peng, W.; Li, R.; Lin, H.; Zhang, Y.; Lu, D. Intracellular TLR22 acts as an inflammation equalizer via suppression of NF-κB and selective activation of MAPK pathway in fish. Fish Shellfish Immunol. 2018, 72, 646–657. [Google Scholar] [CrossRef]
  80. Meijer, A.H.; Gabby Krens, S.F.; Medina Rodriguez, I.A.; He, S.; Bitter, W.; Ewa Snaar-Jagalska, B.; Spaink, H.P. Expression analysis of the toll-like receptor and TIR domain adaptor families of zebrafish. Mol. Immunol. 2004, 40, 773–783. [Google Scholar] [CrossRef]
Genes 14 01388 g001 550
Figure 1. Comparison of TLR2 domain structures in S. prenanti and other vertebrates. [Species name (GenBank accession number)]: Tor putitora (UFE16643), Cyprinus carpio (ACP20793), Carassius gibelio (AGR53440), Carassius auratus (QHZ60136) and Carassius carassius (AGO57934), Ctenopharyngodon idella (ACT68333), Danio rerio (NP_997977), Megalobrama amblycephala (ANI19836), Homo sapiens (NP_001305716), Sus scrofa (NP_998926), and Bos indicus (ALZ41705).
Figure 1. Comparison of TLR2 domain structures in S. prenanti and other vertebrates. [Species name (GenBank accession number)]: Tor putitora (UFE16643), Cyprinus carpio (ACP20793), Carassius gibelio (AGR53440), Carassius auratus (QHZ60136) and Carassius carassius (AGO57934), Ctenopharyngodon idella (ACT68333), Danio rerio (NP_997977), Megalobrama amblycephala (ANI19836), Homo sapiens (NP_001305716), Sus scrofa (NP_998926), and Bos indicus (ALZ41705).
Genes 14 01388 g001
Genes 14 01388 g002 550
Figure 2. Comparison of TLR4 domain structures in S. prenanti and other vertebrates. Pfam: LRR_6 represents this is a Pfam domain [Species name (GenBank accession number)]: T. putitora (BBI01014), C. carpio (NP_042592483), C. gibelio (XP_052427945), C. auratus (XP_026080748), C. idella TLR4.1 (AEQ64877), C. idella TLR4.2 (AEQ64878), C. idella TLR4.3 (AEQ64879), C. idella TLR4.4 (AEQ64880), D. rerio TLR4a (ACE74929), D. rerio TLR4b (AAQ90475), H. sapiens (AAF05316), Mus musculus (EDL31078), Rattus norvegicus (QQJ42887), and Gallus (AJR32867).
Figure 2. Comparison of TLR4 domain structures in S. prenanti and other vertebrates. Pfam: LRR_6 represents this is a Pfam domain [Species name (GenBank accession number)]: T. putitora (BBI01014), C. carpio (NP_042592483), C. gibelio (XP_052427945), C. auratus (XP_026080748), C. idella TLR4.1 (AEQ64877), C. idella TLR4.2 (AEQ64878), C. idella TLR4.3 (AEQ64879), C. idella TLR4.4 (AEQ64880), D. rerio TLR4a (ACE74929), D. rerio TLR4b (AAQ90475), H. sapiens (AAF05316), Mus musculus (EDL31078), Rattus norvegicus (QQJ42887), and Gallus (AJR32867).
Genes 14 01388 g002
Genes 14 01388 g003 550
Figure 3. Predicted secondary structure and 3D structural models of the SpTLR2 and SpTLR4 proteins. (a) Predicted secondary structure of SpTLR2 protein. (b) 3D structures of predicted SpTLR2 protein. (c) Predicted secondary structure of SpTLR4 protein. (d) 3D structures of predicted SpTLR4 protein.
Figure 3. Predicted secondary structure and 3D structural models of the SpTLR2 and SpTLR4 proteins. (a) Predicted secondary structure of SpTLR2 protein. (b) 3D structures of predicted SpTLR2 protein. (c) Predicted secondary structure of SpTLR4 protein. (d) 3D structures of predicted SpTLR4 protein.
Genes 14 01388 g003
Genes 14 01388 g004 550
Figure 4. Phylogenetic tree of relationships between SpTLR2/SpTLR4 and other vertebrates. The tree was constructed using the neighbor-joining method with the MEGA 11.0 software. Numbers at nodes indicate proportions of bootstrapping after 1000 replications. ● S. prenanti TLR2, ■ S. prenanti TLR4.
Figure 4. Phylogenetic tree of relationships between SpTLR2/SpTLR4 and other vertebrates. The tree was constructed using the neighbor-joining method with the MEGA 11.0 software. Numbers at nodes indicate proportions of bootstrapping after 1000 replications. ● S. prenanti TLR2, ■ S. prenanti TLR4.
Genes 14 01388 g004
Genes 14 01388 g005 550
Figure 5. Abundance of SpTLR2 (a) and SpTLR4 (b) transcripts under normal conditions in S. prenanti spleen, heart, intraperitoneal fat, gill head kidney, hindgut, muscle, and liver tissues, as determined using qRT-PCR. The loading control was β-actin. a, b, c, and d means with different letters are significantly different from each other (p < 0.05).
Figure 5. Abundance of SpTLR2 (a) and SpTLR4 (b) transcripts under normal conditions in S. prenanti spleen, heart, intraperitoneal fat, gill head kidney, hindgut, muscle, and liver tissues, as determined using qRT-PCR. The loading control was β-actin. a, b, c, and d means with different letters are significantly different from each other (p < 0.05).
Genes 14 01388 g005
Genes 14 01388 g006 550
Figure 6. Relative levels of SpTLR2 (a), SpTLR3 (b), SpTLR4 (c), SpTLR22-1 (d), SpTLR22-2 (e), and SpTLR22-3 (f), SpTLR18 (g), SpMyD88 (h) and SpIRF3 (i) in S. prenanti liver, head kidney, hindgut, and spleen at 12 and 24 h point after poly (I:C) injection. Values were normalized using β-actin. Statistically significant differences between the groups are marked with asterisks (* p < 0.05, ** p < 0.01, *** p < 0.001).
Figure 6. Relative levels of SpTLR2 (a), SpTLR3 (b), SpTLR4 (c), SpTLR22-1 (d), SpTLR22-2 (e), and SpTLR22-3 (f), SpTLR18 (g), SpMyD88 (h) and SpIRF3 (i) in S. prenanti liver, head kidney, hindgut, and spleen at 12 and 24 h point after poly (I:C) injection. Values were normalized using β-actin. Statistically significant differences between the groups are marked with asterisks (* p < 0.05, ** p < 0.01, *** p < 0.001).
Genes 14 01388 g006
Table
Table 1. Primers for SpTLR2 and SpTLR4 cloning and qRT-PCR.
Table 1. Primers for SpTLR2 and SpTLR4 cloning and qRT-PCR.
PrimersSequences (5′–3′)Annealing Temperature (°C)Size (bp)
Primers for CDS cloning
TLR2-FTTAATGGCAGTCAGGATGAG502447
TLR2-RACATTGCGTTTAGGTACTTGG
TLR2 walking 1CCATGCGATCGAACAGGTCTFor sequencing
TLR2 walking 2AATTGGTGCGCGCCTATTTC
TLR4-F
TLR4-R		ATGACCTCAAACAAGGCTGGC502634
AATGTAAAACCATACTGCCAT
TLR4 walkingGATGCTGACGATGTTCCGGAFor sequencing
Primers for qRT-PCR
TLR2-FGATCAACGGCACAGTGTTTG62170
TLR2-RCAGGTCTGAAAGGAGGTTCTG
TLR3-FGCTGAAAGGAGATGAGTTAGAG62110
TLR3-RACGTAGGGACATGGATGAA
TLR4-FCTTGGTGTCGCTTTGAGTTTG62107
TLR4-RGTCTCTGCTCCACTTTAGGTATG
TLR18-FACAGACTAAATGGCCAGGGAAG62118
TLR18-RAACCACAAGCAAGGGCAAAG
TLR22-1-FCCTCTTCTTAGCCTTCCTTTAC6294
TLR22-1-RCTCGTCTTTGGTGTTGTAGG
TLR22-2-FTTCCAGGGACTGTGGTATTTG6298
TLR22-2-RGCCCACAGATAAGGAGTGTAAG
TLR22-3-FCCATCGGCATTCTTTGGTTT62169
TLR22-3-RCTGTGTTCAGGAATGCCTTG
IRF3-FCCAAACCACACCATCCAATCT62109
IRF3-RACTACCTGTTCCTGACGGTATC
MyD88-FGAGTTTCCCACTCCGTTAAGA6292
MyD88-RCGCCGAGATGATGGACTTTA
β-actin-FGACCACCTTCAACTCCATCAT62126
β-actin -RGTGATCTCCTTCTGCATCCTATC
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, J.; Huang, J.; Zhao, H. Molecular Cloning of Toll-like Receptor 2 and 4 (SpTLR2, 4) and Expression of TLR-Related Genes from Schizothorax prenanti after Poly (I:C) Stimulation. Genes 2023, 14, 1388. https://doi.org/10.3390/genes14071388

AMA Style

Zhang J, Huang J, Zhao H. Molecular Cloning of Toll-like Receptor 2 and 4 (SpTLR2, 4) and Expression of TLR-Related Genes from Schizothorax prenanti after Poly (I:C) Stimulation. Genes. 2023; 14(7):1388. https://doi.org/10.3390/genes14071388

Chicago/Turabian Style

Zhang, Jianlu, Jiqin Huang, and Haitao Zhao. 2023. "Molecular Cloning of Toll-like Receptor 2 and 4 (SpTLR2, 4) and Expression of TLR-Related Genes from Schizothorax prenanti after Poly (I:C) Stimulation" Genes 14, no. 7: 1388. https://doi.org/10.3390/genes14071388

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
