Virulent Phage vB_EfaS_WH1 Removes Enterococcus faecalis Biofilm and Inhibits Its Growth on the Surface of Chicken Meat

by
Xinxin Jin
1,2,
Xiuxiu Sun
2,
Zui Wang
1,2,
Junfeng Dou
1,
Zhengdan Lin
2,
Qin Lu
1,3,
Tengfei Zhang
1,3,
Guoyuan Wen
1,3,
Huabin Shao
1,3,
Guofu Cheng
2,* and
Qingping Luo
1,3,*
1
Key Laboratory of Prevention and Control Agents for Animal Bacteriosis (Ministry of Agriculture and Rural Affairs), Institute of Animal Husbandry and Veterinary, Hubei Academy of Agricultural Sciences, Wuhan 430064, China
2
College of Veterinary Medicine, Huazhong Agricultural University, Wuhan 430070, China
3
Hubei Provincial Key Laboratory of Animal Pathogenic Microbiology, Institute of Animal Husbandry and Veterinary, Hubei Academy of Agricultural Sciences, Wuhan 430064, China
*
Authors to whom correspondence should be addressed.
Viruses 2023, 15(5), 1208; https://doi.org/10.3390/v15051208
Submission received: 18 April 2023 / Revised: 16 May 2023 / Accepted: 18 May 2023 / Published: 20 May 2023
(This article belongs to the Special Issue Bacteriophages and Biofilms 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
Enterococcus faecalis is a potential animal and human pathogen. Improper use of antibiotics encourages resistance. Bacteriophages and their derivatives are promising for treating drug-resistant bacterial infections. In this study, phylogenetic and electron microscopy analyses of phage vB_EfaS_WH1 (WH1) isolated from chicken feces revealed it to be a novel phage in the family Siphoviridae. WH1 showed good pH stability (4–11), temperature tolerance (4–60 °C), and broad E. faecalis host range (60% of isolates). Genome sequencing revealed a 56,357 bp double-stranded DNA genome with a G+C content of 39.21%. WH1 effectively destroyed E. faecalis EF01 biofilms, even at low concentrations. When WH1 was applied at 1 × 105 to 1 × 109 PFU/g to chicken breast samples stored at 4 °C, surface growing E. faecalis were appreciably eradicated after 24 h. The phage WH1 showed good antibacterial activity, which could be used as a potential biocontrol agent to reduce the formation of E. faecalis biofilm, and could also be used as an alternative for the control of E. faecalis in chicken products.

1. Introduction

Enterococcus faecalis is a major bacterium in the human and animal intestines. However, it is also considered an opportunistic pathogen [1]. E. faecalis often causes septicemia, root canal infection, and endocarditis, which endanger human and animal health [2,3,4].
E. faecalis has a strong adaptability and resistance to the environment, so it is difficult to be effectively treated in a clinical setting [5,6]. Enterococcus strains have been isolated from chicken and pork sold in retail locations in Sweden and Denmark [7,8]. Bacterial biofilm refers to a large number of bacterial aggregation membrane-like substances formed by bacteria adhering to the contact surface, secreting polysaccharide matrix and fibrin and lipid proteins, and wrapping themselves around it. Bacteria in biofilms are protected from the influence of antibiotics, which leads to infection that is difficult to treat [9]. Therefore, the elimination of E. faecalis biofilm has a positive effect on clinical treatment.
Bacteriophages are a class of viruses that attack bacteria and are highly specific [5]. Only a few studies have examined the effectiveness of phages and their derivatives in controlling biofilms formed by E. faecalis [10,11]. There is evidence that the drug resistance rate of E. faecalis in broiler chicken farms is high and there is a risk of vertical transmission [12].
In this study, we isolated bacteriophage vB_EfaS_WH1 (hereinafter referred to as WH1) from chicken feces using E. faecalis strain EF01 as the host bacterium. Electron microscopy, biological characterization, and whole-genome sequence analyses of this novel phage were performed. The findings implicate WH1 as a possible approach to remove E. faecalis biofilm and control E. faecalis contamination in chicken meat.

2. Materials and Methods

2.1. Bacterial Strains and Media

E. faecalis strain EF01 isolated from chicken livers was stored in the Pathology Laboratory of Huazhong Agricultural University, Wuhan, China. We tested the bacteriophage host range by spot assay using a laboratory collection of 30 bacterial strains, including Staphylococcus, Escherichia coli, Salmonella, and Enterococcus. The strains were cultured overnight in tryptic soy agar (TSA, BD Difco, NJ, USA) or in tryptic soy broth (TSB, BD Difco) at 37 °C

2.2. Isolation and Purification of WH1

Bacteriophage WH1 was isolated from the intestinal contents of chickens. Chicken manure was resuspended in sterile SM buffer (100 mM NaCl, 8.5 mM MgSO4·7H2O, and 50 mM Tris-Cl (pH 7.5)) overnight at 4 °C, as described previously [13]. The SM solution was centrifuged for 10 min at 10,000× g. The collected supernatant was filtered through a 0.22 μm Millex–GP microporous membrane (Millipore, MA, USA) to remove bacteria. A total of 200 μL of the filtrate and 200 μL of exponentially growing E. faecalis EF01 were mixed in 5 mL TSB medium and incubated for 12 h at 37 °C [14]. The culture was centrifuged for 2 min at 12,000× g to remove the bacteria. The supernatant was filtered through another 0.22 μm Millex–GP microporous membrane. Subsequently, three rounds of phage purification were performed using the double-layer ager method [15]. The resulting phage stock was stored at 4 °C until used for further experiments.

2.3. Determination of Host Range of WH1

The host range of the purified WH1 against the 30 bacterial indicator strains included 20 strains of Enterococcus faecalis, 1 strain of Enterococcus faecium, 1 strain of Clostridium perfringens, 1 strain of Staphylococcus aureus, 2 strains of Escherichia coli, and 4 strains of Salmonella, and 1 strain of Klebsiella (Table 1) was determined by the spot method [16]. A total of 100 μL of each newly cultured indicator strain was mixed with 5 mL of 0.5% TSA soft agar at 50 °C and then poured on the surface of a plate of pre-prepared 1% TSA agar. Ten microliters of purified phage WH1 (108 plaque-forming units, PFU) was placed on a double-layer plate and the plates were incubated for 14 h at 37 °C. The susceptibility of bacteria to WH1 infection was confirmed by the presence of clear plaques. The results were divided into plaque-positive (+) and plaque-negative (−) groups.

2.4. Biological Characteristics of WH1

The pH of TSB liquid medium was adjusted to a range of 2.0 to 12.0. A total of 100 μL phage (1 × 108 PFU/mL) was mixed with 900 μL TSB. The phage titer was determined after 1 h of incubation at 37 °C by the double-layer agar (DLA) method [17].
To explore the temperature sensitivity of WH1, 100 μL of the phage suspension containing (1.6 × 108 PFU/mL) was mixed with 900 μL TSB and incubated at 70, 60, 50, 37, 28, and 4 °C for 20, 40, 60, and 80 min for each temperature. The phage titer was determined by the DLA method.
According to the specific multiplicity of infection (MOI, 0.0001, 0.001, 0.01, 0.1, 1, 10, and 100), purified WH1 and the host bacteria were mixed together and cultured for 6 h at 37 °C with shaking at 220 rpm. The mixture was centrifuged for 5 min at 12,000× g. The precipitate was discarded and the supernatant was filtered through a 0.22 μm filtrate [18]. The phage titer of different MOIs from samples was determined by the DLA method. Each experiment had three biological repetitions.
Chloroform was mixed with WH1 in the ratio of 0%, 10%, 20%, 30%, 40%, and 50%. Each mixture was incubated for 1 h at 37 °C with shaking at 220 rpm. The phage titer was determined by a DLA method [19]. Each experiment was repeated three times.

2.5. One-Step Growth Curve of WH1

The one-step growth curve protocol has been described previously [20]. Briefly, E. faecalis EF01 was cultured to the logarithmic stage (optical density at 600 nm (OD600) = 0.5). The bacteria were collected by centrifugation for 15 min at 10,000× g and 4 °C and then suspended in fresh TSB. The bacteria were infected with purified WH1 (MOI of 0.01) and incubated for 5 min at 37 °C. After centrifugation, the supernatant containing unbound phage was discarded. The pellet was suspended in 10 mL of fresh TSB and oscillated for 120 min at 37 °C and 220 rpm. Samples were collected every 10 min and the phage titer was determined by the DLA method. Each experiment had three biological repetitions. The phage burst size was calculated as the ratio of the average phage titer value of the plateau to the average titer value of the incubation period [21].

2.6. Phage DNA Extraction and Genome Sequence Analysis

Genomic DNA of phage WH1 was extracted by an established phenol–chloroform method [17,22]. The Illumina NovaSeq platform 2500 (Shanghai Majorbio Bio-Pharm Technology Co., Ltd. The equipment was purchased from illumina, San Diego, CA, USA) was successfully used to sequence the genomic DNA of phages. Bcl2fastq (v2.17.1.14) software was used for preliminary quality analysis and raw sequencing data were obtained, as previously described [23]. GeneMarkS software (http://topaz.gatech.edu/GeneMark/ accessed on 5 February 2023) was used to predict the protein coding genes of the genome and open reading frames (ORFs) in WH1 [24]. Diamond software was used to compare the coding genes [25]. Bacteriophage resistance and virulence factors in ORFs were analyzed using an antibiotic resistance gene database (https://card.mcmaster.ca/ accessed on 5 February 2023) and Virulence Factors of the Pathogenic Bacteria database (http://www.mgc.ac.cn/cgi-bin/VFs/v5/main.cgi accessed on 5 February 2023). PHASTER was used to predict integrase-related genes and their attachment sites [26].
The CGView server was used to create circular map of WH1 genome [27,28]. The phylogenetic tree of the large subunit amino acid sequence of phage terminase was constructed using the neighbor-joining method in MEGA 7 [29]. This tree was drawn to scale, and the unit used to infer the evolutionary distance of phylogenetic tree was the same as the branch length. The evolutionary distance was calculated by the P-distance method [30]; the units are the number of differences per site base. Easyfig 2.2.5 (http://mjsull.github.io/Easyfig/ accessed on 15 February 2023) was used to map the genome-wide collinearity ratio [31].

2.7. Transmission Electron Microscopy TEM of WH1

The morphology of purified WH1 phage was observed by TEM. Twenty-five microliters of a suspension of purified WH1 was placed on a carbon-coated copper grid for 15 min. Phage was negatively stained with 2% (w/v) phosphotungstic acid for 3 min and observed with a transmission electron microscope (JEOL, Tokyo, Japan) at 80 kV, as previously described [1]. The phage was classified according to the guidelines of the International Committee on Virus Taxonomy (ICTV) [32].

2.8. Effect of WH1 Phage on Biofilms of E. faecalis

E. faecalis EF01 biofilms were prepared as previously described [33,34]. Strain EF01 was inoculated in 5 mL TSB and cultured overnight at 37 °C. The culture was diluted to OD600 of 0.2. Two milliliter aliquots of the dilute bacterial suspension were added to wells of a 12-well plate and cultured for 24 h at 37 °C to permit formation of biofilms. The supernatant was removed from each well and the biofilm was washed four times with 1 mL of sterile phosphate-buffered saline (PBS) to remove floating bacteria. WH1 was then added to each well except the control group to achieve a final titer of 102, 104, 106, or 108 PFU per well and incubated for 24 h at 37 °C. Phage and bacteria suspensions were discarded and the wells were washed four times with 1 mL of PBS each time. The plate was air-dried for 10 min at 37 °C and the wells were stained with 1 mL of 0.1% crystal violet (CV) at room temperature for 25 min. Each biofilm was washed four times with 1mL volumes of PBS to remove the excess CV. One milliliter of 95% ethanol was added to each well, and the plate was placed on a shaker at room temperature for 15 min to dissolve the CV bound to the biofilm. The optical density at 600 nm was measured using a Multiskan FC table reader (Thermo Fisher Scientific, Waltham, MA, USA). We also measured the amount of bacteria in different groups. This experiment was repeated three times.

2.9. Inactivation of E. faecalis in Chicken Breast by Phage WH1

To minimize contamination by spoilage organisms, raw chicken breasts were aseptically cut into slices on a sterile lab bench. Each chicken breast was aseptically cut into 2 cm × 2 cm squares (about 1 g), and sterilized twice with ultraviolet light, as previously described [35,36]. Before artificial inoculation, all samples were inoculated on TSA to ensure there were no microorganisms [37]. In the experiment, the sterile chicken pieces were soaked in a culture of E. faecalis EF01 (approximately 1 × 105 colony forming units (CFU)/g) for 15 min [38]. The breast tissues were placed in wells of a 24-well plate. The surfaces of these tissues were then treated with phage WH1 by dispensing 0.2 mL of a phage suspension containing 105, 107, or 109 PFU/g onto the tissues at 4 °C.
An unsoaked tissue square in the bacterial culture was used as the phage control. Tissues that were not treated with WH1 were used as the bacterial control group. The 24-well plates were immediately sealed in polystyrene Petri dishes and incubated for 1 day at 4 °C. At 0, 1, 6, 12, and 24 h, E. faecalis content in chicken tissue sample was determined as CFU. Each sample was prepared in triplicate.

2.10. Statistical Analysis

One-way analysis of variance (ANOVA) was used to evaluate the difference between the experimental and control groups. All experiments were repeated three times with similar results. GraphPad Prism 7.0 (GraphPad Software, San Diego, CA, USA) was used to plot the data. Significance was evident at p < 0.05, p < 0.01, or p < 0.001, depending on the experiment.

3. Results

3.1. Isolation and Identification of E. faecalis Phage

E. faecalis EF01 was used as the host to form transparent and uniform plaques on a DLA plates. The phages were isolated by purifying the plaques four times. TEM determined that WH1 phage particles had an oblate head (length 120 nm ± 2; width 5 nm ± 1) and long tail (180 mm ± 2) (Figure 1A). According to ICTV guidelines, the isolated phage belongs to the Siphoviridae family of viruses. It was designated vB_EFaS_WH1 (WH1).

3.2. Host Range of Phage WH1

A host range analysis revealed that WH1 could form transparent phagocytic circles when incubated with the 12 selected strains of E. faecalis. The cleavage rate was 60% (12/20). However, WH1 did not lyse bacteria from other genera (Table 1). WH1 did not infect all of the tested Gram-negative bacteria (E. coli, Klebsiella pneumoniae, and Salmonella) and three of the Gram-positive strains (Enterococcus faecium, Clostridium perfringens, and Staphylococcus aureus). The findings were evidence of the wide host range of phage WH1.

3.3. Biological Characteristics of the Phage WH1

To evaluate heat resistance, WH1 was incubated at 4, 28, 37, 50, 60, and 70 °C for up to 80 min. The titer of phage WH1 was stable between 4 and 50 °C, it decreased significantly at 60 °C, and the phage was rapidly deactivated at 70 °C (Figure 1B).
The influence of different pH values on WH1 infectivity was assessed. The results of the acid–base tolerance test showed that WH1 was stable at pH 4.0–11.0. The highest titer obtained occurred at pH 7.0 (Figure 1C). When the MOI was 0.1, the highest number of phage WH1 was 2.0 × 109 PFU/mL. Thus, this MOI was optimal for phage WH1 (Figure 1D).
The results of the phage chloroform sensitivity test are shown in Figure 1F. When <30% chloroform was added, the phage titer was higher. When >40% chloroform was added, the titer of the phage decreased significantly, but it did not lead to inactivation.

3.4. One-Step Growth

The one-step growth curve of WH1 on E. faecalis EF01 was detected to determine the latent period and burst size of WH1 (Figure 1E). The latent period of phage WH1 was 10 min, followed by a burst period of 40 min. WH1 plateaued after 50 min. The average burst size was approximately 70 PFU per cell.

3.5. Whole-Genome Sequencing and Coding Gene Prediction of Phage WH1 Genome

Whole-genome sequencing analysis of WH1 revealed a double-stranded DNA genome with a length of 56,357 bp and a G+C content of 39.21% (Figure 2). BLAST analysis of nucleic acid revealed 95.81% homology of WH1 with the published E. faecalis phage EF-P29 (GenBank: KY303907.1) and 95.69% homology with EF-P10 (GenBank: KY472224.1).
Phage WH1 had 90 ORFs. Of these, 31 had established homology with the functional proteins annotated in the NCBI database, and the remainder were homologous with a hypothetical protein (Table 2). There were eight putative proteins involved in the process of phage DNA packaging and replication: terminase small subunit (ORF 40), terminase large subunit (ORF 43), portal protein (ORF 45), transfer RNA (tRNA; Trp-CCA, ORF 67), DNA primase (ORF 71), DNA replication protein (ORF 73), replicative DNA helicase (ORF 74), and DNA polymerase (ORF 88). The phage genome invasion process is mediated by a DNA channel called a portal protein (ORF 45), through which phage DNA is injected into the host and is involved in protein connections between the phage head and tail. ORF 60 was 99.16% homologous to the published E. faecalis phage vB_EfaS_IME198 lysin (GenBank: YP_009218898.1).
In those structural proteins, ORF48 encodes the phage major head protein. ORF49 encodes the main tail protein of the phage, whereas ORF57 encodes the tail fiber of the phage. The binding of bacteriophages to the host bacteria was mediated by these structural proteins. Among the lysis proteins, ORF42 is interpreted as holin, which can form tiny pores in the inner membrane. ORF60 is associated with lysis of the peptidoglycan layer of the host cell wall. ORF76 encodes HNH homing endonuclease, an intron protein with sequence tolerance and site specificity. Glutaredoxin (ORF 35) and adenylate kinase (ORF 80) were also annotated in WH1. No genes encoding virulence factors or antibiotic resistance and genes related to lysogenicity were predicted, suggesting that WH1 can be used for the treatment of E. faecalis-related diseases. The phylogenetic tree of WH1 was constructed based on the nucleotide sequence of the terminase large subunit (ORF 43). Multiple genome alignments and phylogenetic tree analyses of phage WH1 and E. faecalis EFKL, IME-EF1, EF653P3, EF653P1, PHB08, SSsP-1, EF1c55, Ef2.2, EF653P5, IME198, and EFC1 are shown in Figure 3. The results showed that the whole genome of phage WH1 was highly homologous with the phage IME198 genome. Therefore, IME198 and WH1 were selected for collinearity analysis. Phages WH1 and IME198 showed extremely high collinearity (Figure 4). We found that some genes were located on opposite strands of the DNA, possibly due to genetic rearrangement that allowed the phage to better adapt to its environment.
No homologs of phage transposases, repressors, integrases, and excision enzymes were predicted in the WH1 genome. Based on the sequencing results, phage WH1 can be considered a new phage.

3.6. Effect of Phage WH1 on E. faecalis Biofilm

To detect whether phage WH1 can destroy the biofilm formed by E. faecalis EF01, the CV method was used to stain the biofilms after phage treatment. Phage WH1 significantly reduced biofilm formation, even at very low numbers of 102 plaque-forming units (Figure 5A,B). The finding provided evidence that phage WH1 can effectively reduce the biofilm formed by E. faecalis EF01. The number of bacteria in the phage addition group was significantly reduced compared to the control group (Figure 5C).

3.7. Inactivation of E. faecalis in Chicken Breast Using Phage WH1

Phage WH1 showed a typical dose-dependent inhibition of E. faecalis EF01 (Figure 6). The concentration of E. faecalis decreased by approximately 2.7 log after adding 109 PFU bacteriophage for 24 h. As the phage dose decreased, the inhibition efficiency decreased. The concentration of E. faecalis in the control samples without phage treatment approached the initial concentration after 24 h of incubation.
The decrease in E. faecalis counts were directly proportional to the phage density; the decrease in the E. faecalis count was greater with the increase in phage concentration.

4. Discussion

Phages are the most common and widely distributed group of viruses. Phages have been used in different industries and fields, such as medicine, environment, and livestock production, as well as in aquaculture and food processing [39].
Bacteriophage therapy for E. faecalis infectious diseases has achieved good results [40,41]. In this study, phage WH1, isolated by us, was stable at temperatures ranging from 4 to 60 °C and pHs between 4.0 and 11.0. This stability will be convenient for storage and transportation for future clinical applications. One-step growth experiments showed an average burst size of 70 PFU per cell, which is consistent with the average number of commonly reported phage bursts (approximately 30 PFU–120 PFU/cell per cell) [42]. The morphology of phage WH1 revealed by TEM was typical of the Siphoviridae phage. Most of the E. faecalis phages that have been previously isolated belong to the Siphoviridae family [43,44]. The phage WH1 was sensitive to chloroform, and we speculated that the capsid might contain liposomes.
Genomics is one of the effective methods for understanding the characteristics of phages at the molecular level. The genetic diversity and similarity of genomes are closely related to the lytic ability of phages [45]. The terminase large subunit gene of phages is relatively conserved. The tail protein affected the tail structure of phages and also played an important role in bacteriophage infection [46,47]. The tail fiber of phages contains receptor-binding proteins that bind with cell surface receptors [48]. No presumed antibiotic resistance genes or virulence factors were found by a genome sequencing analysis. This is an interesting discovery. Phage WH1 has a broad cleavage spectrum, which is related to the fact that its tail fiber can recognize a variety of host receptor proteins and may also be particularly effective in the lysin encoded by ORF60 in the WH1 genome. Holin (ORF42) is a perforin protein that penetrates the cell membrane and inserts itself into bacteria [49]. Therefore, WH1 may use the holin–endolysin tactics to lyse the host cell and release lytic virions [50].
Most bacterial infections are related to biofilms, which can hamper treatment [51,52]. Phages and their lyases can degrade biofilms [15]. In this study, phage WH1 displayed an excellent ability to destroy E. faecalis biofilm, which is an equally efficient ability to that of phage EFDG1 [53]. Our results showed that biofilms were inhibited regardless of the phage titer. Phages can reduce the number of bacteria, thus affecting the formation of biofilm, indicating that a phage has the ability to inhibit the formation of biofilms. In the future, we will further investigate the mechanism of action of phages and biofilm exopolysaccharides.
Concerning bacterial resistance, the appropriate phage must be isolated. A “cocktail therapy” involving a phage is a potential candidate for treating infections caused by antibiotic-resistant bacteria [54,55]. The stability of phages is an important parameter for the manufacture of phage preparation [56]. We observed that WH1 is relatively stable at temperatures ranging from 4 to 60 °C, which could permit the manufacturing of the phage. Another study demonstrated that phage cocktails reduced Salmonella contaminations in chicken farms [57]. Previous studies have shown that phages ingested by healthy individuals are safe, active, and they accumulate in the lower intestine, inhibiting human IBD-associated gut microbes [58]. A review of phage therapy shows that phage therapy is generally safe in 20 animal studies, 35 clinical case reports, and 14 clinical trials [59]. The collective findings indicate the future suitability of phage WH1 for reducing pathogenic E. faecalis contamination in farm locations, such as chicken coops or egg incubators.
The present study also demonstrates WH1-mediated inactivation of E. faecalis in chicken breast. With increasing WH1 concentrations, the number of viable E. faecalis decreased significantly. This result is similar to the results of phage inhibition of Listeria monocytogenes in fish and phage inhibition of Clostridium perfringens in chicken [35,57]. Our results demonstrated that phage WH1 can inhibit bacteria at 4 °C, and it is speculated that phages can still recognize and adsorb sensitive bacteria at 4 °C, suggesting that phages can control pathogenic bacteria in frozen meat products.
We evaluated the phage WH1 as a potential biocontrol agent for reducing the biofilm formation of E. faecalis and as an alternative for the prevention and control of E. faecalis in the chicken.

5. Conclusions

In summary, we isolated a virulent phage (WH1) that targets E. faecalis. The findings indicate the potential value of WH1 as a biocontrol agent for reducing biofilm formation of E. faecalis and as an alternative for the prevention and control of E. faecalis contamination of chicken meat. Our future work will address the treatment of bacterial infections with WH1 lyase and the replacement of antibiotics.

Author Contributions

Conceptualization, G.C. and X.J.; methodology, J.D.; software, Q.L. (Qin Lu); validation, X.J., X.S. and Z.W.; formal analysis, X.J.; investigation, T.Z.; resources, X.J.; data curation, Z.L.; writing—original draft preparation, X.J.; writing—review and editing, T.Z.; visualization, J.D.; supervision, G.W.; project administration, G.W.; funding acquisition, H.S. and Q.L. (Qingping Luo). All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Fundamental Research Funds for the Central Universities (No. 140422008), the technological innovation of prevention and control of genetic diseases (G2022027013L), the China Agriculture Research System of MOF and MARA (CARS-41-G13), and the Hubei Major Science and Technology Research and Development Project (2020-620-000-002-04 and 2020-620-000-002-01, and the Key Research and Development Project of Hubei Province 2022BBA0055. And The APC was funded by [Development Project of Hubei Province 2022BBA0055]. The authors would like to thank members of their laboratory for their helpful and constructive advice.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The dataset presented in this study can be accessed in an NCBI online repository (accession number: PRJNA939409).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, R.; Xing, S.; Zhao, F.; Li, P.; Mi, Z.; Shi, T.; Liu, H.; Tong, Y. Characterization and genome analysis of novel phage vB_EfaP_IME195 infecting Enterococcus faecalis. Virus Genes 2018, 54, 804–811. [Google Scholar] [CrossRef]
  2. Stuart, C.H.; Schwartz, S.A.; Beeson, T.J.; Owatz, C.B. Enterococcus faecalis: Its role in root canal treatment failure and current concepts in retreatment. J. Endod. 2006, 32, 93–98. [Google Scholar] [CrossRef]
  3. Sava, I.G.; Heikens, E.; Huebner, J. Pathogenesis and immunity in enterococcal infections. Clin. Microbiol. Infect 2010, 16, 533–540. [Google Scholar] [CrossRef]
  4. Dahl, A.; Bruun, N.E. Enterococcus faecalis infective endocarditis: Focus on clinical aspects. Expert Rev. Cardiovasc. Ther. 2013, 11, 1247–1257. [Google Scholar] [CrossRef]
  5. Xiang, Y.; Li, W.; Song, F.; Yang, X.; Zhou, J.; Yu, H.; Ji, X.; Wei, Y. Biological characteristics and whole-genome analysis of the Enterococcus faecalis phage PEf771. Can. J. Microbiol. 2020, 66, 505–520. [Google Scholar] [CrossRef]
  6. van Harten, R.M.; Willems, R.J.L.; Martin, N.I.; Hendrickx, A.P.A. Multidrug-Resistant Enterococcal Infections: New Compounds, Novel Antimicrobial Therapies? Trends Microbiol. 2017, 25, 467–479. [Google Scholar] [CrossRef]
  7. Quednau, M.; Ahrne, S.; Petersson, A.C.; Molin, G. Antibiotic-resistant strains of Enterococcus isolated from Swedish and Danish retailed chicken and pork. J. Appl. Microbiol. 1998, 84, 1163–1170. [Google Scholar] [CrossRef]
  8. Lee, T.; Jordan, D.; Sahibzada, S.; Abraham, R.; Pang, S.; Coombs, G.W.; O’Dea, M.; Abraham, S. Antimicrobial Resistance in Porcine Enterococci in Australia and the Ramifications for Human Health. Appl. Environ. Microbiol. 2021, 87, e03037-20. [Google Scholar] [CrossRef]
  9. Baldassarri, L.; Cecchini, R.; Bertuccini, L.; Ammendolia, M.G.; Iosi, F.; Arciola, C.R.; Montanaro, L.; Di Rosa, R.; Gherardi, G.; Dicuonzo, G.; et al. Enterococcus spp. produces slime and survives in rat peritoneal macrophages. Med. Microbiol. Immunol. 2001, 190, 113–120. [Google Scholar] [CrossRef]
  10. Yuan, Y.; Li, X.; Wang, L.; Li, G.; Cong, C.; Li, R.; Cui, H.; Murtaza, B.; Xu, Y. The endolysin of the Acinetobacter baumannii phage vB_AbaP_D2 shows broad antibacterial activity. Microb. Biotechnol. 2021, 14, 403–418. [Google Scholar] [CrossRef]
  11. Zhang, Y.; Cheng, M.; Zhang, H.; Dai, J.; Guo, Z.; Li, X.; Ji, Y.; Cai, R.; Xi, H.; Wang, X.; et al. Antibacterial Effects of Phage Lysin LysGH15 on Planktonic Cells and Biofilms of Diverse Staphylococci. Appl. Environ. Microbiol. 2018, 84, e00886-18. [Google Scholar] [CrossRef] [PubMed]
  12. Noh, E.B.; Kim, Y.B.; Seo, K.W.; Son, S.H.; Ha, J.S.; Lee, Y.J. Antimicrobial resistance monitoring of commensal Enterococcus faecalis in broiler breeders. Poult. Sci. 2020, 99, 2675–2683. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, K.; Wen, Z.; Li, N.; Yang, W.; Wang, J.; Hu, L.; Dong, X.; Lu, J.; Li, J. Impact of relative humidity and collection media on mycobacteriophage D29 aerosol. Appl. Environ. Microbiol. 2012, 78, 1466–1472. [Google Scholar] [CrossRef]
  14. Yang, D.; Chen, Y.; Sun, E.; Hua, L.; Peng, Z.; Wu, B. Characterization of a Lytic Bacteriophage vB_EfaS_PHB08 Harboring Endolysin Lys08 Against Enterococcus faecalis Biofilms. Microorganisms 2020, 8, 1332. [Google Scholar] [CrossRef] [PubMed]
  15. Chen, Y.; Li, X.; Wang, S.; Guan, L.; Li, X.; Hu, D.; Gao, D.; Song, J.; Chen, H.; Qian, P. A Novel Tail-Associated O91-Specific Polysaccharide Depolymerase from a Podophage Reveals Lytic Efficacy of Shiga Toxin-Producing Escherichia coli. Appl. Environ. Microbiol. 2020, 86, e00145-20. [Google Scholar] [CrossRef]
  16. Kropinski, A.M.; Mazzocco, A.; Waddell, T.E.; Lingohr, E.; Johnson, R.P. Enumeration of bacteriophages by double agar overlay plaque assay. Methods Mol. Biol. 2009, 501, 69–76. [Google Scholar]
  17. Liu, J.; Zhu, Y.; Li, Y.; Lu, Y.; Xiong, K.; Zhong, Q.; Wang, J. Bacteriophage-Resistant Mutant of Enterococcus faecalis Is Impaired in Biofilm Formation. Front. Microbiol. 2022, 13, 913023. [Google Scholar] [CrossRef]
  18. Lee, D.; Im, J.; Na, H.; Ryu, S.; Yun, C.H.; Han, S.H. The Novel Enterococcus Phage vB_EfaS_HEf13 Has Broad Lytic Activity Against Clinical Isolates of Enterococcus faecalis. Front. Microbiol. 2019, 10, 2877. [Google Scholar] [CrossRef]
  19. Oduor, J.M.O.; Kadija, E.; Nyachieo, A.; Mureithi, M.W.; Skurnik, M. Bioprospecting Staphylococcus Phages with Therapeutic and Bio-Control Potential. Viruses 2020, 12, 133. [Google Scholar] [CrossRef]
  20. Parasion, S.; Kwiatek, M.; Mizak, L.; Gryko, R.; Bartoszcze, M.; Kocik, J. Isolation and characterization of a novel bacteriophage phi4D lytic against Enterococcus faecalis strains. Curr. Microbiol. 2012, 65, 284–289. [Google Scholar] [CrossRef]
  21. Bujak, K.; Decewicz, P.; Kaminski, J.; Radlinska, M. Identification, Characterization, and Genomic Analysis of Novel Serratia Temperate Phages from a Gold Mine. Int. J. Mol. Sci. 2020, 21, 6709. [Google Scholar] [CrossRef] [PubMed]
  22. Lu, S.; Le, S.; Tan, Y.; Zhu, J.; Li, M.; Rao, X.; Zou, L.; Li, S.; Wang, J.; Jin, X.; et al. Genomic and proteomic analyses of the terminally redundant genome of the Pseudomonas aeruginosa phage PaP1, establishment of genus PaP1-like phages. PLoS ONE 2013, 8, e62933. [Google Scholar] [CrossRef] [PubMed]
  23. Hashmi, J.A.; Al-Harbi, K.M.; Ramzan, K.; Albalawi, A.M.; Mehmood, A.; Samman, M.I.; Basit, S. A novel splice-site mutation in the ASPM gene underlies autosomal recessive primary microcephaly. Ann. Saudi Med. 2016, 36, 391–396. [Google Scholar] [CrossRef] [PubMed]
  24. Blake, J.D.; Cohen, F.E. Pairwise sequence alignment below the twilight zone. J. Mol. Biol. 2001, 307, 721–735. [Google Scholar] [CrossRef] [PubMed]
  25. Buchfink, B.; Xie, C.; Huson, D.H. Fast and sensitive protein alignment using DIAMOND. Nat. Methods 2015, 12, 59–60. [Google Scholar] [CrossRef]
  26. Arndt, D.; Grant, J.R.; Marcu, A.; Sajed, T.; Pon, A.; Liang, Y.; Wishart, D.S. PHASTER: A better, faster version of the PHAST phage search tool. Nucleic Acids Res. 2016, 44, W16–W21. [Google Scholar] [CrossRef]
  27. Stothard, P.; Wishart, D.S. Circular genome visualization and exploration using CGView. Bioinformatics 2005, 21, 537–539. [Google Scholar] [CrossRef]
  28. Grant, J.R.; Stothard, P. The CGView Server: A comparative genomics tool for circular genomes. Nucleic Acids Res. 2008, 36, W181–W184. [Google Scholar] [CrossRef]
  29. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  30. Yoshida, R.; Nei, M. Efficiencies of the NJp, Maximum Likelihood, and Bayesian Methods of Phylogenetic Construction for Compositional and Noncompositional Genes. Mol. Biol. Evol. 2016, 33, 1618–1624. [Google Scholar] [CrossRef]
  31. Sullivan, M.J.; Petty, N.K.; Beatson, S.A. Easyfig: A genome comparison visualizer. Bioinformatics 2011, 27, 1009–1010. [Google Scholar] [CrossRef]
  32. Lefkowitz, E.J.; Dempsey, D.M.; Hendrickson, R.C.; Orton, R.J.; Siddell, S.G.; Smith, D.B. Virus taxonomy: The database of the International Committee on Taxonomy of Viruses (ICTV). Nucleic Acids Res. 2018, 46, D708–D717. [Google Scholar] [CrossRef] [PubMed]
  33. Mohamed, J.A.; Huang, W.; Nallapareddy, S.R.; Teng, F.; Murray, B.E. Influence of origin of isolates, especially endocarditis isolates, and various genes on biofilm formation by Enterococcus faecalis. Infect Immun. 2004, 72, 3658–3663. [Google Scholar] [CrossRef]
  34. Runci, F.; Bonchi, C.; Frangipani, E.; Visaggio, D.; Visca, P. Acinetobacter baumannii Biofilm Formation in Human Serum and Disruption by Gallium. Antimicrob. Agents Chemother. 2017, 61, e01563-16. [Google Scholar] [CrossRef]
  35. Tian, Y.; Wu, L.; Lu, R.; Bao, H.; Zhou, Y.; Pang, M.; Brown, J.; Wang, J.; Wang, R.; Zhang, H. Virulent phage vB_CpeP_HN02 inhibits Clostridium perfringens on the surface of the chicken meat. Int. J. Food Microbiol. 2022, 363, 109514. [Google Scholar] [CrossRef]
  36. Spricigo, D.A.; Bardina, C.; Cortes, P.; Llagostera, M. Use of a bacteriophage cocktail to control Salmonella in food and the food industry. Int. J. Food Microbiol. 2013, 165, 169–174. [Google Scholar] [CrossRef] [PubMed]
  37. Guo, Y.; Li, J.; Islam, M.S.; Yan, T.; Zhou, Y.; Liang, L.; Connerton, I.F.; Deng, K.; Li, J. Application of a novel phage vB_SalS-LPSTLL for the biological control of Salmonella in foods. Food Res. Int. 2021, 147, 110492. [Google Scholar] [CrossRef]
  38. Soni, K.A.; Nannapaneni, R. Bacteriophage significantly reduces Listeria monocytogenes on raw salmon fillet tissue. J. Food Prot. 2010, 73, 32–38. [Google Scholar] [CrossRef]
  39. Hampton, H.G.; Watson, B.N.J.; Fineran, P.C. The arms race between bacteria and their phage foes. Nature 2020, 577, 327–336. [Google Scholar] [CrossRef] [PubMed]
  40. Letkiewicz, S.; Miedzybrodzki, R.; Fortuna, W.; Weber-Dabrowska, B.; Gorski, A. Eradication of Enterococcus faecalis by phage therapy in chronic bacterial prostatitis—Case report. Folia Microbiol. (Praha) 2009, 54, 457–461. [Google Scholar] [CrossRef]
  41. Bolocan, A.S.; Upadrasta, A.; Bettio, P.H.A.; Clooney, A.G.; Draper, L.A.; Ross, R.P.; Hill, C. Evaluation of Phage Therapy in the Context of Enterococcus faecalis and Its Associated Diseases. Viruses 2019, 11, 366. [Google Scholar] [CrossRef] [PubMed]
  42. Uchiyama, J.; Rashel, M.; Maeda, Y.; Takemura, I.; Sugihara, S.; Akechi, K.; Muraoka, A.; Wakiguchi, H.; Matsuzaki, S. Isolation and characterization of a novel Enterococcus faecalis bacteriophage phiEF24C as a therapeutic candidate. FEMS Microbiol. Lett. 2008, 278, 200–206. [Google Scholar] [CrossRef] [PubMed]
  43. Horiuchi, T.; Sakka, M.; Hayashi, A.; Shimada, T.; Kimura, T.; Sakka, K. Complete genome sequence of bacteriophage BC-611 specifically infecting Enterococcus faecalis strain NP-10011. J. Virol. 2012, 86, 9538–9539. [Google Scholar] [CrossRef] [PubMed]
  44. Yuan, Y.; Zhao, F.; Wang, L.; Tan, D.; Cong, C.; Li, X.; Xu, Y. Complete genome analysis of the novel Enterococcus faecalis phage vB_EfaS_AL3. Arch. Virol. 2019, 164, 2599–2603. [Google Scholar] [CrossRef] [PubMed]
  45. Hendrix, R.W. Bacteriophages: Evolution of the majority. Theor. Popul. Biol. 2002, 61, 471–480. [Google Scholar] [CrossRef]
  46. Evseev, P.; Shneider, M.; Miroshnikov, K. Evolution of Phage Tail Sheath Protein. Viruses 2022, 14, 1148. [Google Scholar] [CrossRef]
  47. Bhardwaj, P.; Mitra, A.K.; Hurst, M.R.H. Investigating the Process of Sheath Maturation in Antifeeding Prophage: A Phage Tail-Like Protein Translocation Structure. J. Bacteriol. 2021, 203, e0010421. [Google Scholar] [CrossRef]
  48. Le, S.; He, X.; Tan, Y.; Huang, G.; Zhang, L.; Lux, R.; Shi, W.; Hu, F. Mapping the tail fiber as the receptor binding protein responsible for differential host specificity of Pseudomonas aeruginosa bacteriophages PaP1 and JG004. PLoS ONE 2013, 8, e68562. [Google Scholar] [CrossRef]
  49. Guo, T.; Cui, Y.; Zhang, L.; Xu, X.; Xu, Z.; Kong, J. Holin-assisted bacterial recombinant protein export. Biotechnol. Bioeng. 2022, 119, 2908–2918. [Google Scholar] [CrossRef]
  50. Wu, Z.; Zhang, Y.; Xu, X.; Ahmed, T.; Yang, Y.; Loh, B.; Leptihn, S.; Yan, C.; Chen, J.; Li, B. The Holin-Endolysin Lysis System of the OP2-Like Phage X2 Infecting Xanthomonas oryzae pv. oryzae. Viruses 2021, 13, 1949. [Google Scholar] [CrossRef]
  51. Parsek, M.R.; Singh, P.K. Bacterial biofilms: An emerging link to disease pathogenesis. Annu. Rev. Microbiol. 2003, 57, 677–701. [Google Scholar] [CrossRef] [PubMed]
  52. Pires, D.P.; Melo, L.; Vilas Boas, D.; Sillankorva, S.; Azeredo, J. Phage therapy as an alternative or complementary strategy to prevent and control biofilm-related infections. Curr. Opin. Microbiol. 2017, 39, 48–56. [Google Scholar] [CrossRef] [PubMed]
  53. Khalifa, L.; Brosh, Y.; Gelman, D.; Coppenhagen-Glazer, S.; Beyth, S.; Poradosu-Cohen, R.; Que, Y.A.; Beyth, N.; Hazan, R. Targeting Enterococcus faecalis biofilms with phage therapy. Appl. Environ. Microbiol. 2015, 81, 2696–2705. [Google Scholar] [CrossRef] [PubMed]
  54. Chan, B.K.; Abedon, S.T.; Loc-Carrillo, C. Phage cocktails and the future of phage therapy. Future Microbiol. 2013, 8, 769–783. [Google Scholar] [CrossRef] [PubMed]
  55. Gill, J.J.; Hyman, P. Phage choice, isolation, and preparation for phage therapy. Curr. Pharm. Biotechnol. 2010, 11, 2–14. [Google Scholar] [CrossRef]
  56. Pires, D.P.; Costa, A.R.; Pinto, G.; Meneses, L.; Azeredo, J. Current challenges and future opportunities of phage therapy. FEMS Microbiol. Rev. 2020, 44, 684–700. [Google Scholar] [CrossRef]
  57. Cahill, J.; Young, R. Phage Lysis: Multiple Genes for Multiple Barriers. Adv. Virus Res. 2019, 103, 33–70. [Google Scholar]
  58. Federici, S.; Kredo-Russo, S.; Valdés-Mas, R.; Kviatcovsky, D.; Weinstock, E.; Matiuhin, Y.; Silberberg, Y.; Atarashi, K.; Furuichi, M.; Oka, A.; et al. Targeted suppression of human IBD-associated gut microbiota commensals by phage consortia for treatment of intestinal inflammation. Cell 2022, 185, 2879–2898. [Google Scholar] [CrossRef] [PubMed]
  59. Liu, D.; Van Belleghem, J.D.; de Vries, C.R.; Burgener, E.; Chen, Q.; Manasherob, R.; Aronson, J.R.; Amanatullah, D.F.; Tamma, P.D.; Suh, G.A. The Safety and Toxicity of Phage Therapy: A Review of Animal and Clinical Studies. Viruses 2021, 13, 1268. [Google Scholar] [CrossRef]
Viruses 15 01208 g001 550

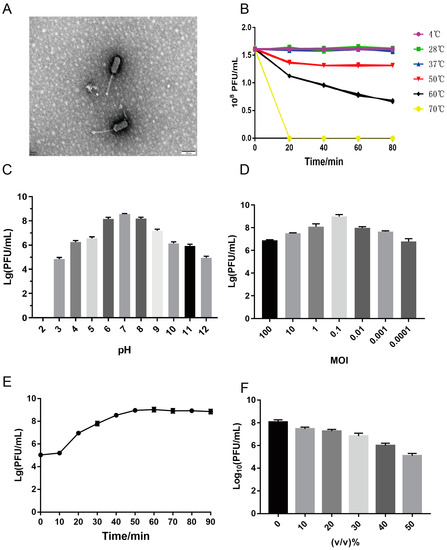

Figure 1. Biological characteristics of phage WH1. (A) Transmission electron microscopy observation of phage vB_EfaS_WH1. The scale bar is 100 nm. (B) Temperature stability of phage WH1. (C) Stability of phage WH1 at different pHs. (D) Optimal multiplicity of infection (MOI) of phage WH1. (E) One-step growth curve of phage WH1 in host strain E. faecalis EF01. (F) Effect of chloroform on phage WH1.
Figure 1. Biological characteristics of phage WH1. (A) Transmission electron microscopy observation of phage vB_EfaS_WH1. The scale bar is 100 nm. (B) Temperature stability of phage WH1. (C) Stability of phage WH1 at different pHs. (D) Optimal multiplicity of infection (MOI) of phage WH1. (E) One-step growth curve of phage WH1 in host strain E. faecalis EF01. (F) Effect of chloroform on phage WH1.
Viruses 15 01208 g001
Viruses 15 01208 g002 550

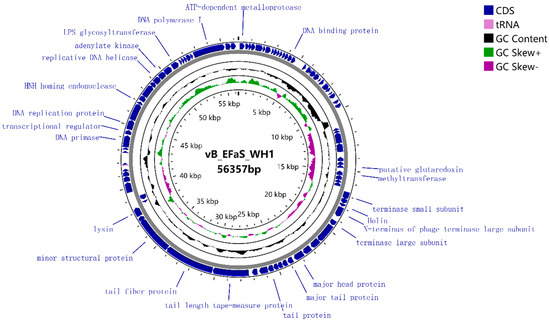

Figure 2. Genome map of phage WH1 generated by CGView. The functions of open reading frames are annotated using BLASTP and the Rast database. The regions in blue represent the distribution of the coding sequence (CDS) region and the arrows indicate the direction of transcription. The total GC content (39.21%) is indicated in black, while the inner ring with green and purple histograms indicates GCskew. For clarity, the hypothetical protein is not described on the map.
Figure 2. Genome map of phage WH1 generated by CGView. The functions of open reading frames are annotated using BLASTP and the Rast database. The regions in blue represent the distribution of the coding sequence (CDS) region and the arrows indicate the direction of transcription. The total GC content (39.21%) is indicated in black, while the inner ring with green and purple histograms indicates GCskew. For clarity, the hypothetical protein is not described on the map.
Viruses 15 01208 g002
Viruses 15 01208 g003 550

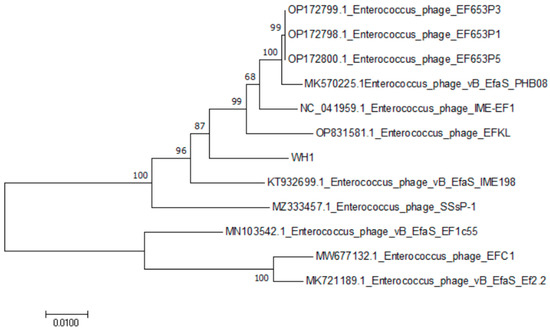

Figure 3. Cluster analysis of E. faecalis phage WH1. The phylogenetic tree was constructed using the neighbor-joining method based on the terminase large subunit.
Figure 3. Cluster analysis of E. faecalis phage WH1. The phylogenetic tree was constructed using the neighbor-joining method based on the terminase large subunit.
Viruses 15 01208 g003
Viruses 15 01208 g004 550

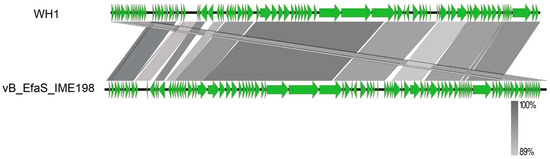

Figure 4. Genome homology analysis of phage WH1 with vB_EfaS_IME198. The green arrows indicates the open reading frames. The color gradient indicates the level of nucleotide identity between the phage genomes.
Figure 4. Genome homology analysis of phage WH1 with vB_EfaS_IME198. The green arrows indicates the open reading frames. The color gradient indicates the level of nucleotide identity between the phage genomes.
Viruses 15 01208 g004
Viruses 15 01208 g005 550

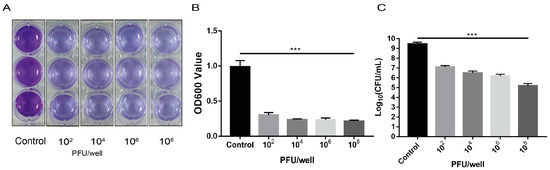

Figure 5. The initial titer of phageWH1 was 102, 104, 106, or 108 PFU/well. The biofilm biomass was obtained after incubation for 24 h. (A) Crystal violet staining analysis. (B) Optical density values measured at 600 nm. (C) The result of the plate count. The results are expressed as the mean ± SD (standard deviation) of three independent experiments. The t-test method was used to detect significant differences between control and test samples. *** p < 0.001.
Figure 5. The initial titer of phageWH1 was 102, 104, 106, or 108 PFU/well. The biofilm biomass was obtained after incubation for 24 h. (A) Crystal violet staining analysis. (B) Optical density values measured at 600 nm. (C) The result of the plate count. The results are expressed as the mean ± SD (standard deviation) of three independent experiments. The t-test method was used to detect significant differences between control and test samples. *** p < 0.001.
Viruses 15 01208 g005
Viruses 15 01208 g006 550

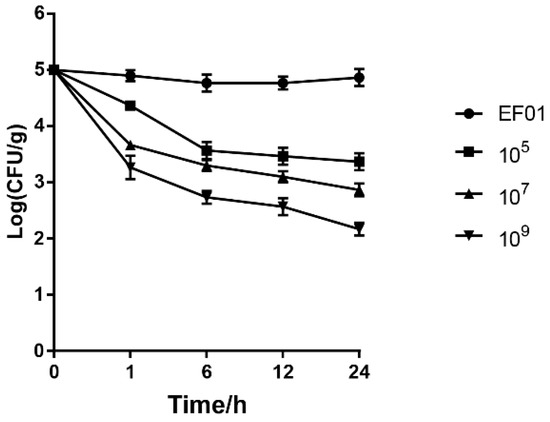

Figure 6. Inactivation of E. faecalis EF01 in chicken meat by WH1 at 4 °C. The data are the average of three separate experiments.
Figure 6. Inactivation of E. faecalis EF01 in chicken meat by WH1 at 4 °C. The data are the average of three separate experiments.
Viruses 15 01208 g006
Table
Table 1. Lytic activity of WH1 against the tested strains of Enterococcus faecalis.
Table 1. Lytic activity of WH1 against the tested strains of Enterococcus faecalis.
NO.Strains of BacteriaPhage Sensitivity aSource
1Enterococcus faecalis E1+Clinical isolate
2Enterococcus faecalis A1+Clinical isolate
3Enterococcus faecalis A2−Clinical isolate
4Enterococcus faecalis A4−Clinical isolate
5Enterococcus faecalis A5+Clinical isolate
6Enterococcus faecalis A7−Clinical isolate
7Enterococcus faecalis A8+Clinical isolate
8Enterococcus faecalis A9−Clinical isolate
9Enterococcus faecalis A10+Clinical isolate
10Enterococcus faecalis A11+Clinical isolate
11Enterococcus faecalis A12+Clinical isolate
12Enterococcus faecalis A13+Clinical isolate
13Enterococcus faecalis A14+Clinical isolate
14Enterococcus faecalis A15+Clinical isolate
15Enterococcus faecalis A16−Clinical isolate
16Enterococcus faecalis N16−Clinical isolate
17Enterococcus faecalis N17−Clinical isolate
18Enterococcus faecalis N18+Clinical isolate
19Enterococcus faecalis N19−Clinical isolate
20Enterococcus faecalis N20+Clinical isolate
21Enterococcus faecium Z3−Clinical isolate
22Clostridium perfringens−ATCC13124
23Staphylococcus aureus−ATCC25923
24Escherichia coli−ATCC25922
25Escherichia coli O157:H7−ATCC
26Salmonella enteritidis−CVCC3375
27Salmonella pullorum−CVCC529
28Salmonella pullorum−CVCC530
29Salmonella typhimurium−ATCC14028
30Klebsiella pneumoniae Y1−Clinical isolate
a Symbols: After the bacteria to be tested are infected with vB_EfaS_WH1 phage, the (+) region is clear zones or (−) has no plaques.
Table
Table 2. Analysis of the main proteins of vB_EfaS_WH1.
Table 2. Analysis of the main proteins of vB_EfaS_WH1.
ORFStartStopStrandFunction
ORF01107499+ATP-dependent metalloprotease
ORF0513721956+Cytidine deaminase
ORF1440854390+DNA-binding protein
ORF3313,85414,219−ABC transporter
ORF3514,54314,803−Putative glutaredoxin
ORF3615,44115,827−Methyltransferase
ORF4016,67917,278+Phage terminase small subunit
ORF4217,65517,903+Holin
ORF4317,96618,769+N-terminus of phage terminase large subunit
ORF4419,14419,560+Terminase large subunit
ORF4519,61721,152+Portal protein
ORF4621,16421,919+Head morphogenesis protein
ORF4722,03022,698+Head scaffolding protein
ORF4822,74723,553+Major head protein
ORF4923,70824,145+Major tail protein
ORF5024,20824,612+Head–tail connector family protein
ORF5325,38325,817+Phage tail protein
ORF5425,83826,530+Major tail protein
ORF5627,35930,244+Tail length tape-measure protein
ORF5730,25834,250+Tail fiber protein
ORF5834,26337,286+Phage minor structural protein
ORF6037,63538,351+Lysin
ORF7143,25644,200+DNA primase
ORF7244,27544,628+Transcriptional regulator
ORF7344,67745,453+DNA replication protein
ORF7445,46546,829+Replicative DNA helicase
ORF7647,13847,578+HNH homing endonuclease
ORF7948,93149,500+Crossover junction endodeoxyribonuclease
ORF8049,49750,066+Adenylate kinase
ORF8250,78351,346+LPS glycosyltransferase
ORF8852,73455,265+DNA polymerase I
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Jin, X.; Sun, X.; Wang, Z.; Dou, J.; Lin, Z.; Lu, Q.; Zhang, T.; Wen, G.; Shao, H.; Cheng, G.; et al. Virulent Phage vB_EfaS_WH1 Removes Enterococcus faecalis Biofilm and Inhibits Its Growth on the Surface of Chicken Meat. Viruses 2023, 15, 1208. https://doi.org/10.3390/v15051208

AMA Style

Jin X, Sun X, Wang Z, Dou J, Lin Z, Lu Q, Zhang T, Wen G, Shao H, Cheng G, et al. Virulent Phage vB_EfaS_WH1 Removes Enterococcus faecalis Biofilm and Inhibits Its Growth on the Surface of Chicken Meat. Viruses. 2023; 15(5):1208. https://doi.org/10.3390/v15051208

Chicago/Turabian Style

Jin, Xinxin, Xiuxiu Sun, Zui Wang, Junfeng Dou, Zhengdan Lin, Qin Lu, Tengfei Zhang, Guoyuan Wen, Huabin Shao, Guofu Cheng, and et al. 2023. "Virulent Phage vB_EfaS_WH1 Removes Enterococcus faecalis Biofilm and Inhibits Its Growth on the Surface of Chicken Meat" Viruses 15, no. 5: 1208. https://doi.org/10.3390/v15051208

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
