Dynamic Mechanical Properties and Modified Johnson-Cook Model Considering Recrystallization Softening for Nickel-Based Powder Metallurgy Superalloys

1
School of Mechanical Engineering, Shandong University, Jinan 250061, China
2
Key National Demonstration Center for Experimental Mechanical Engineering Education, Key Laboratory of High Efficiency and Clean Mechanical Manufacture of MQE, Jinan 250014, China
*
Author to whom correspondence should be addressed.
Materials 2024, 17(3), 670; https://doi.org/10.3390/ma17030670
Submission received: 4 December 2023 / Revised: 22 January 2024 / Accepted: 25 January 2024 / Published: 30 January 2024
(This article belongs to the Special Issue Advanced Manufacturing Processes of Metal Forming)

Abstract

:
The material undergoes high temperature and high strain rate deformation process during the cutting process, which may induce the dynamic recrystallization behavior and result in the evolution of dynamic mechanical properties of the material to be machined. In this paper, the modified Johnson-Cook (J-C) model for nickel-based powder metallurgy superalloy considering dynamic recrystallization behavior in high strain rate and temperature is proposed. The dynamic mechanical properties of the material under different strain rates and temperature conditions are obtained by quasi-static compression test and split Hopkinson pressure bar (SHPB) test. The coefficients of the modified J-C model are obtained by the linear regression method. The modified model is verified by comparison with experimental and model prediction results. The results show that the modified J-C model proposed in this paper can accurately describe the mechanical properties of nickel-based powder metallurgy superalloys at high temperatures and high strain rates. This provides help for studying the cutting mechanism and finite element simulation of nickel-based powder metallurgy superalloy.

1. Introduction

Compared with cast and wrought superalloy, the powder metallurgy (PM) superalloy has been widely used in advanced aero-engine turbine disks [1,2] due to its homogeneous microstructure, fine grains, higher yield strength and no mace segregation [3,4], etc. Although PM is a near-forming process, machining is still a necessary process to meet the final accuracy requirements. However, due to low thermal conductivity and low elastic modulus, PM superalloys are deemed very difficult to machining materials [5,6]. Among them, FGH96 is a typical γ’-phase strengthened nickel-based powder superalloy, which often works at a high temperature of about 750 °C. Since FGH96 has a series of characteristics of PM superalloys, there are some challenges in studying the mechanical properties of FGH96 during the cutting process.
The external power is converted into deformation energy in the cutting process. At the same time, the heat is not easy to release, causing the tool and workpiece material temperature rise, resulting in material softening [7]. On the other hand, with the increase in strain, the material work hardening occurs. The interaction between the two makes the material strength not only a function of strain, but also a function of strain rate and deformation temperature, which is called the constitutive relation equation [8,9]. Establishing the accurate constitutive relationship of the workpiece material in the cutting deformation zone is the key to studying the cutting deformation mechanism.
The constitutive equation for the cutting process is mainly divided into two categories, namely, phenomenological models and physical models [10]. Compared with physical models, phenomenological models have become widely used due to their simple form and wide applicability [11]. As the most widely used phenomenological model, the Johnson-Cook (J-C) model [12] is given in the form of a three-part product, representing strain hardening, strain rate hardening, and thermal softening, respectively. However, the above three items of the J-C model are considered to be independent of each other, and the effects of the microstructure of the material itself and the adiabatic temperature rise on the flow stress are not considered [13,14,15].
The occurrence of dynamic recrystallization in the cutting process has been confirmed by researchers [16,17]. Dynamic recrystallization not only refines the grain size of the workpiece material, but also produces a softening phenomenon that cannot be ignored in the flow stress of the material during the deformation process.
A constitutive equation that can accurately describe the microscopic deformation process is still to be realized. Calamaz M et al. [18] established a JC-TANH modified model to describe the phenomenon of soft flow caused by dynamic recrystallization of cutting titanium alloy materials and applied it to the finite element software. This model was verified by Ulutan [18] in finite element simulation. Other similar corrections to the J-C constitutive equation can be found in the literature [19,20].
However, the above modified models only use the temperature (Tm/2) condition as the critical condition for recrystallization. According to the modified J-C model of Denguir et al. [21], the recrystallization strain threshold was proposed. This critical condition considers the combined effects of temperature and strain rate.
The cutting process is a strong coupling process of transient high strain, high strain rate, and temperature. The occurrence of recrystallization is very important to the dynamic mechanical properties of PM superalloy. However, the current research on the modified constitutive equation considering recrystallization for difficult-to-machine materials focuses on titanium alloys. Research on the dynamic mechanical properties of PM superalloy at high temperatures and high strain rates, especially the influence of dynamic recrystallization, is still very scarce.
This paper analyzed the dynamic mechanical properties of powder metallurgy superalloy by quasi-static test and SHPB test. A modified constitutive model considering the dynamic recrystallization behavior of the cutting process is established. The parameters of the modified model are obtained by linear fitting of the experimental data. Finally, it is verified that the model has good accuracy.

2. Experimental

2.1. Specimen Preparation

The FGH96 superalloy used in this study is prepared by hot isostatic pressing (HIP) and its composition is shown in Table 1. The experiment method consists of two parts, which are quasi-static state compression tests and SHPB tests.
The sample sizes for quasi-static state compression tests and SHPB tests are φ3 mm × 3 mm and φ2 mm × 2 mm, respectively. By grinding the end face and outer surface of the sample obtained by wire cutting, the sample has higher dimensional accuracy and lower surface roughness (Ra ≤ 0.8 mm). In addition, it is necessary to ensure that the parallelism of the two ends is less than 0.01 mm, to reduce the experimental error caused by the sample.

2.2. Quasi-Static State Compression Tests

The quasi-static compression test of the FGH96 superalloy is carried out in the electric universal testing machine. Figure 1 is the test device and schematic diagram. All the experiments are carried out at room temperature. All pieces were subjected to unidirectional compression.
The strain rate of the quasi-static compression test is set to 0.001 s−1 and the compression rate can be obtained as 0.18 mm/min according to Equation (1). The compressive force F and displacement ΔL are obtained by the pressure transducer and displacement transducer, and the true stress σr and true strain εr of the material in the process of compression deformation can be obtained according to the size of the sample. To ensure the reliability of the data, three repeated tests were carried out for each specimen, and the average value was obtained.
ε ˙ = d ε d t = v h

2.3. SHPB Tests

The SHPB equipment system is schematically illustrated in Figure 2. To obtain a higher strain rate, the diameter of the incident bar and the transmitted bar is reduced to 5 mm. By adding different air pressures to the gas bar to change the speed of the strike bar, different strain rate conditions are achieved. Considering the softening effect of high temperature on the material, the same strain rate can be achieved by appropriately reducing the air pressure. Different loading temperatures are controlled by the thermocouple. To make the sample fully heated, it is necessary to carry out heat preservation treatment. In addition, the error caused by the friction between the specimen and the compression bar is reduced by uniformly applying a high-temperature-resistant lubricant on the contact surface between the sample and the rod.
The wave velocity of the incident rod is recorded by the velocimeter, and the incident, transmitted, and reflected pulses are recorded by the strain gauge. According to the one-dimensional stress wave theory, the engineering strain εeng, engineering stress σeng, and strain rate ε ˙ e n g sample can be calculated by Equations (2)–(4).
ε e n g t = 2 c 0 l 0 0 t ε r t d t
σ e n g = A E ε t A 0
ε ˙ e n g = 2 c 0 ε r l 0
where c0 is the wave speed in the incident bar, E and A are Young’s modulus and the cross-sectional area of the bars. A0 and l0 are the cross-sectional area and the length of the cylindrical specimen. εr and εt are the reflected and transmitted strains, respectively, when the reflected and transmitted waves propagate independently.
Under the condition that the material is incompressible, the true strain εT, and true stress σT of the specimen can be obtained, by Equations (5) and (6).
ε T t = ln 1 ε e n g
σ T = σ e n g 1 ε e n g
Considering the strain rate and temperature in the actual cutting process and the applicable conditions of the experimental device, the experimental conditions of SHPB tests are shown in Table 2. To ensure the accuracy of the experimental data, three repeated experiments were carried out under the same conditions, and the holding time and air pressure of each group of repeated experiments were controlled to be consistent.

3. Modified Constitutive Model

The modified model proposed in this paper considers the coupling effect of strain, strain rate, and temperature and the influence of microstructure transformation based on the J-C model, as shown in Equation (7).
σ = ( A + B ε n ) ( 1 + C ln ε ˙ ε ˙ 0 ) 1 T T 0 T m T 0 m H ( ε , ε ˙ , T )
where A represents the yield stress, B and n represent the material strain hardening coefficients, ε represents the true strain, C represents the viscosity coefficient, represents the strain rate, ε0 represents the reference strain rate, T represents the temperature, Tm represents the material melting temperature, T0 represents the room temperature, and m represents the thermal softening coefficient. The effect of dynamic recrystallization on flow stress is characterized by adding a correction item H ( ε , ε ˙ , T ) to the J-C model. The mathematical expressions of H ( ε , ε ˙ , T ) are shown in Equations (8)–(10). Considering that the recrystallization threshold is affected by both temperature and strain rate, it is expressed by Equation (11).
H ( ε , ε ˙ , T ) = 1 1 h ( ε , ε ˙ ) u ( ε ˙ , T )
u ( ε ˙ , T ) = 0 , ε < ε r 1 , ε ε r
h ( ε , ε ˙ ) = h 0 ε + h 1 ( h 0 ε + h 2 ) ln ε ˙ ε ˙ 0
ε r = r 0 + r 1 T r 2 + r 3 ε ˙ r 4 + r 5 T r 2 ε ˙ r 4
where hi (i = 0, 1, 2) and ri (i =0, 1…5) are material constants, εr is the critical strain for the occurrence of dynamic recrystallization, which is expressed by Equation (11).

4. Results and Discussion

4.1. Dynamic Mechanical Properties

4.1.1. Characteristics of the Stress–Strain Curve

The stress–strain curve of the FGH96 superalloy obtained by the quasi-static compression test is shown in Figure 3. According to Figure 3, in the first stage of the compression process (OA), the material undergoes elastic deformation with the stress increases linearly with the increase in strain. When the strain reaches point A, the growth rate of stress slows down with the increase in strain, indicating that the material enters the plastic deformation stage (AB), showing a clear work hardening phenomenon. When the strain exceeds the strain at point B, the material enters the damage deformation stage which is marked by the decrease in stress with the increase in strain.
According to the above analysis, there is no clear yield phenomenon in the quasi-static compression process of the FGH96 superalloy. The yield stress of bulk samples was measured by 0.2% strain shift method, namely, the stress value when 0.2% plastic deformation occurs is taken as its yield strength (point A in Figure 3). The yield strength of the FGH96 superalloy is σ0.2 = 773 MPa.
The effect of strain rate on the stress–strain curve of FGH96 superalloy obtained by SHPB tests at different temperatures (25 °C, 200 °C, 400 °C, 600 °C, 700 °C, 800 °C) is shown in Figure 4. According to Figure 4a, when the temperature is 25 °C, the maximum strains in the plastic deformation stage corresponding to the strain rates of 4000 s−1,6000 s−1, 10,000 s−1, and 12,000 s−1 are 0.35, 0.42, 0.61, and 0.72, respectively. It can be concluded that under the same compression test device conditions, the plastic deformation stage at room temperature increases significantly with the increase in strain rate. According to Figure 4b–f, under high-temperature deformation conditions (200 °C, 400 °C, 600 °C, 700 °C, 800 °C), compared with the lower strain rate level, the plastic deformation stage of the material under high strain rate conditions also increases significantly. In summary, the PM superalloy has a clear plasticizing effect in the deformation process over a wide range of strain rates.
The effect of temperature on the stress–strain curve of FGH96 superalloy at different strain rates (4000 s−1, 6000 s−1, 10,000 s−1, 12,000 s−1) is shown in Figure 5. According to Figure 5a–d, at the same strain rate, the stress in the plastic deformation stage decreases with the increase in temperature, showing a clear temperature softening effect.
Table 3 shows the yield stress at different temperatures and strain rates under SPHB test conditions. Compared with the yield stress (773 MPa) obtained by the quasi-static compression test at room temperature, the yield stress obtained by SPHB tests at high temperatures and high strain rates increases significantly. When the strain rate is 12,000 s−1, the yield strength reaches 1616 MPa. According to Table 3, when the temperature is 200 °C, 400 °C, 600 °C, 700 °C, and 800 °C, the yield strength increases with the increase in strain rate. It is worth noting that the flow stress of the material also increases with the increase in strain rate (Figure 3), which indicates that the PM superalloy material exhibits a significant strain rate hardening effect.
In addition, under the same strain rate loading conditions, the yield strength of the PM superalloy decreases with the increase in temperature. Combined with Figure 4, the flow stress and yield strength decrease with the increase in temperature, which further confirms the temperature softening effect of the PM superalloy.

4.1.2. Strain Hardening

To quantitatively analyze the strain hardening phenomenon of PM superalloy, the strain hardening rate Q is calculated by Equation (12).
Q i = σ ε = σ i σ i 1 ε i ε i 1
where εi and represent the strain and the stress of the ith experiment, respectively. εi−1 and σi−1 represent the strain and the stress of the (i − 1)th experiment.
Based on the quasi-static compression experimental data, the strain hardening rate-strain curve of the PM superalloy obtained according to Equation (12) is shown in Figure 6. According to Figure 6, in the elastic deformation stage (OA), the strain hardening rate Q of the material increases briefly with the increase in strain and then decreases sharply. In the plastic deformation stage (AB), the decrease in the strain hardening rate slows down, and at point B, it decreases to 0 (it is no longer in the hardening state). In the damage deformation stage, the strain hardening rate is less than 0, and the material is damaged and deformed. Therefore, it can be concluded that during the quasi-static compression test, the strain hardening phenomenon of the FGH96 superalloy is significant, and with the continuous increase in strain, the strain hardening effect gradually weakens and reaches equilibrium at point B. This is because in the process of quasi-static compression deformation, with the increase in strain, thermal softening occurs inside the material [22].
When the temperature is 700 °C, the strain hardening rate–strain curve of the PM superalloy at different strain rates is shown in Figure 7. According to Figure 7, the PM superalloy still exhibits clear strain hardening under high temperature and high strain rate conditions. However, it is worth noting that in the plastic deformation stage, the strain hardening rate Q of the material at the strain rate of 4000 s−1 always remains positive. In contrast, the Q of the material at the strain rate of 6000 s−1 continues to decrease and reaches a negative state after reaching zero. This is because the material not only has the thermal softening effect, but also superimposes the recrystallization softening effect, so that the hardening effect in the plastic deformation stage is greatly weakened, and the flow softening phenomenon appears [23].

4.1.3. Adiabatic Induced Increase in Temperature

According to Section 4.1.1, the PM superalloy has a clear plasticizing effect during high temperature and high strain rate deformation. Researchers have found that the adiabatic temperature rise during material deformation is one of the important factors that cannot be ignored in the plasticizing effect [24]. In addition, the adiabatic temperature rise makes the actual temperature inside the material higher than the experimental loading temperature, which reduces the dislocation slip resistance and strengthens the internal softening of the material. Under the experimental conditions in this paper, the adiabatic temperature rise ΔT in the process of material deformation can be obtained by Equation (13).
Δ T = η ρ C p 0 ε σ d ε
where η is the plastic work–heat conversion coefficient, for the experimental deformation conditions in this paper, it takes 0.9 [25]; ρ is the material density; Cp is the specific heat capacity at atmospheric pressure. The specific heat capacity Cp of the FGH96 superalloy at different temperatures is shown in Table 4.

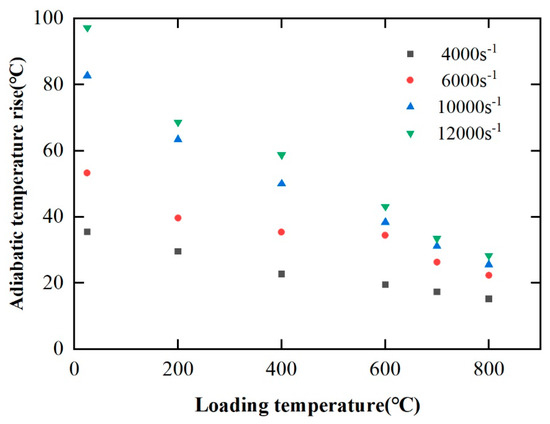

Figure 8 shows the influence of loading temperature on adiabatic temperature rise of FGH96 superalloy under different strain rates. According to Figure 9, at the same strain rate, the adiabatic temperature rise decreases with the increase in temperature. For example, at the strain rate of 12,000 s−1, as the loading temperature increases from 25 °C to 800 °C, the adiabatic temperature rise decreases from 98 °C to 33 °C (reduced by 66%). At the same time, when the strain rate is 4000 s−1, the adiabatic temperature rise decreases from 35 °C to 15 °C with the increase in loading temperature (reduced by 60%). It can be seen that with the decrease in strain rate, the rate of adiabatic temperature rise decreases when the increase in loading temperature is reduced. From the above, with the decrease in strain rate, the reduction rate of adiabatic temperature rise decreases significantly with the increase in loading temperature. At the same loading temperature, the higher the strain rate, the higher the adiabatic temperature rise. For example, at 200 °C, the corresponding adiabatic temperature rises at strain rates of 4000 s−1, 6000 s−1, 10,000 s−1, and 12,000 s−1 are 30 °C, 40 °C, 65 °C, and 70 °C, respectively. At the same time, compared with the temperatures of 25 °C, 200 °C, and 400 °C, the adiabatic temperature rises at 600 °C, 700 °C, and 800 °C decrease significantly with the increase in strain rate.

4.1.4. The Strain Rate Sensitivity

According to Section 4.1.1, the FGH96 superalloy exhibits a strain rate strengthening effect in the plastic deformation stage. To describe the degree of strain rate strengthening of the material, the strain rate sensitivity coefficient q is introduced, as shown in Equation (14). The larger the strain rate sensitivity coefficient q, the stronger the strain rate sensitivity of the material.
q = ln σ ln ε ˙

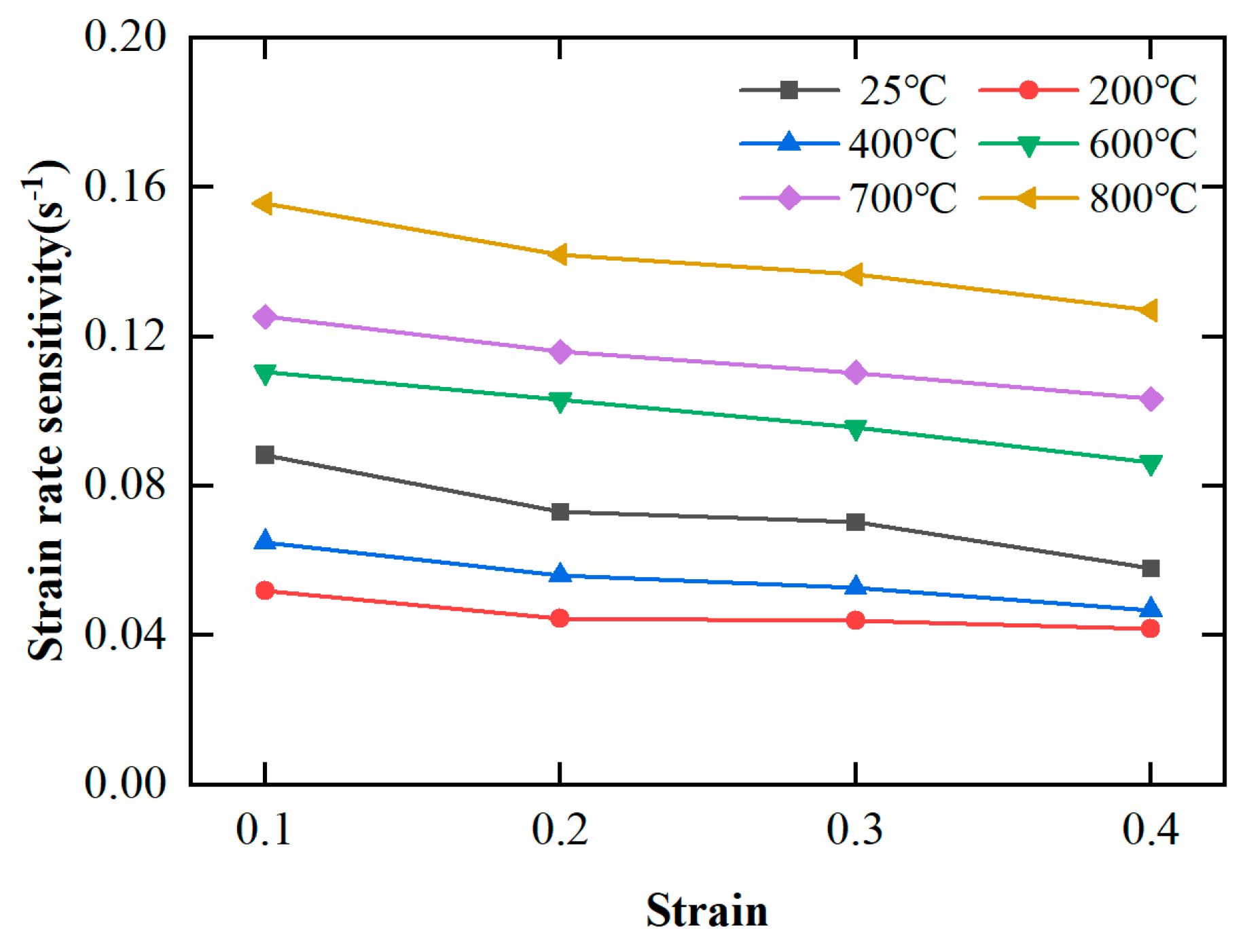

Figure 9 shows the influence of strain on the strain rate sensitivity coefficient of FGH96 superalloy at different temperatures. According to Figure 9, the strain rate sensitivity coefficient decreases with the increase in strain under the experimental temperature conditions. For example, when the temperature is 600 °C, the strain rate sensitivity coefficient decreases from 0.11 to 0.09 with the increase in strain (from 0.1 to 0.4). It is worth noting that the influence of temperature on the strain rate sensitivity coefficient is not clear. For example, for the temperature conditions of 200 °C and 400 °C, the strain rate sensitivity coefficient is lower than the strain rate sensitivity coefficient of 25 °C. However, when the temperature is greater than 600 °C, the strain rate sensitivity coefficient becomes larger and increases with the increase in temperature. At the same time, when the temperature is 800 °C and the strain is 0.1, the largest strain rate sensitivity coefficient is 0.155 (less than 0.2), which shows that FGH96 superalloy exhibits weak strain rate sensitivity.

4.1.5. The Temperature Sensitivity

According to Section 4.1.1, the FGH96 superalloy shows a strong temperature softening effect in the plastic deformation stage. To quantitatively describe the temperature sensitivity of the material, the temperature sensitivity coefficient s is introduced, as shown in Equation (15). The greater the temperature sensitivity coefficient s, the stronger the temperature sensitivity of the material.
s = ln σ ln T

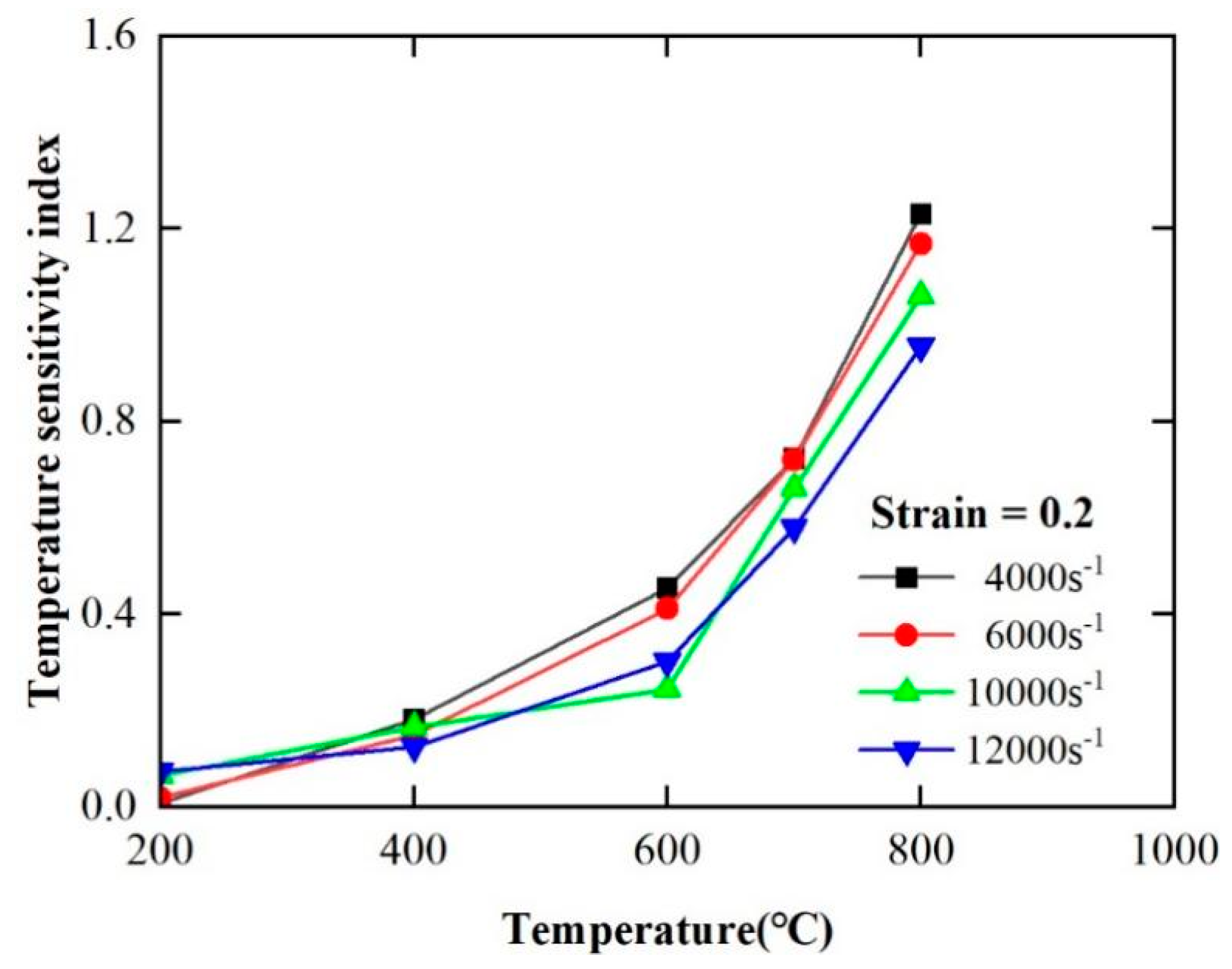

The variation of the temperature sensitivity coefficient of FGH96 superalloy with temperature at different strain rates calculated by Equation (15) is shown in Figure 10. According to Figure 10, the temperature sensitivity coefficient increases significantly with the increase in temperature under the same strain rate. When the strain rate is 4000 s−1, the temperature sensitivity coefficient is 0.1 at 200 °C and reaches 1.2 at 800 °C. At the same time, the temperature sensitivity coefficient decreases with the increase in strain rate. When the temperature is 800 °C, the temperature sensitivity coefficient is 1.3 at 4000 s−1 and decreases to 0.9 at 12,000 s−1. From the above, the temperature sensitivity of the PM superalloy increases significantly with the increase in temperature and decreases with the decrease in strain rate. In summary, FGH96 superalloy exhibits strong temperature sensitivity.

4.2. Construction of Constitutive Model

4.2.1. Recrystallization Critical Condition

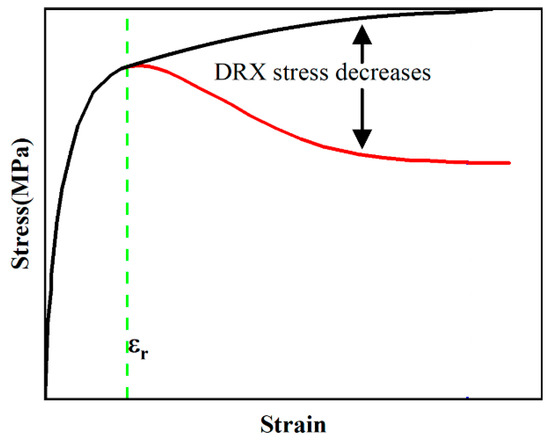

The effect of dynamic recrystallization on the stress–strain curve of the material is shown in Figure 11. If there is no dynamic recrystallization during the deformation process, the flow stress of the material increases slowly with the increase in strain, as shown in the black solid line in Figure 11. When the strain reaches the critical strain of dynamic recrystallization, the flow stress decreases, which is manifested as the recrystallization softening effect as shown in the red line in Figure 10. However, when the strain reaches a certain value (critical strain εr), the material undergoes dynamic recrystallization. At this time, the flow stress shows a significant downward trend, as shown in the red solid line in Figure 11, which is the flow softening phenomenon. Therefore, the determination of the critical condition of dynamic recrystallization, namely, the critical strain, is the key to the study of dynamic recrystallization flow softening.
The dynamic recrystallization critical strain of the PM superalloy obtained under the experimental conditions in this paper is shown in Table 5. It can be seen from the data in Table 5 that the critical strain of dynamic recrystallization of FGH96 is not only related to the deformation temperature but also to the strain rate, which verifies the conclusion of Denguir [21]. The critical strain decreases with the increase in temperature and decreases with the increase in strain rate.

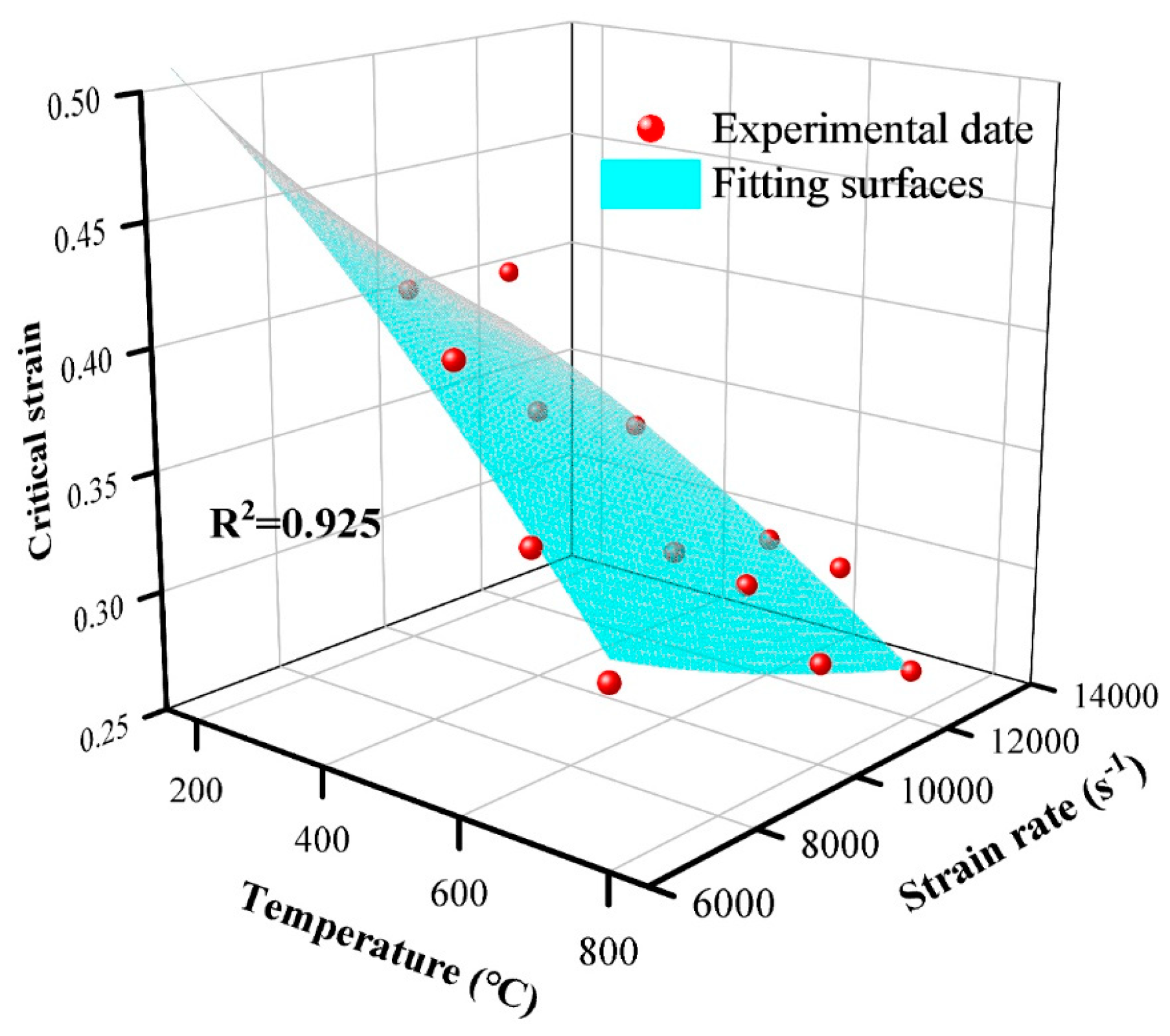

Based on the data in Table 3, the fitting surface of the critical strain is obtained by polynomial fitting (Equation (11)), as shown in Figure 12.
The equation for calculating the critical strain of dynamic recrystallization of FGH96 under experimental conditions in this paper is shown in Equation (16).
ε r = 1.445 5.85 × 10 5 T 1.415 0.139 ε ˙ 0.215 + 6.45 × 10 6 T 1.415 ε ˙ 0.215

4.2.2. Identification of Constitutive Model’s Coefficients

(1)
Linear Regression Method
The modified J-C constitutive model (Equation (7)) represents the strain hardening effect, strain rate strengthening effect, thermal softening effect, and recrystallization softening effect from left to right. According to the linear regression parameter solving method, A, B, C, n, m, and Hi are the parameters to be fitted, ε0, T0, and Tm are 0.001 s−1, 25 °C, and 1350 °C, respectively.

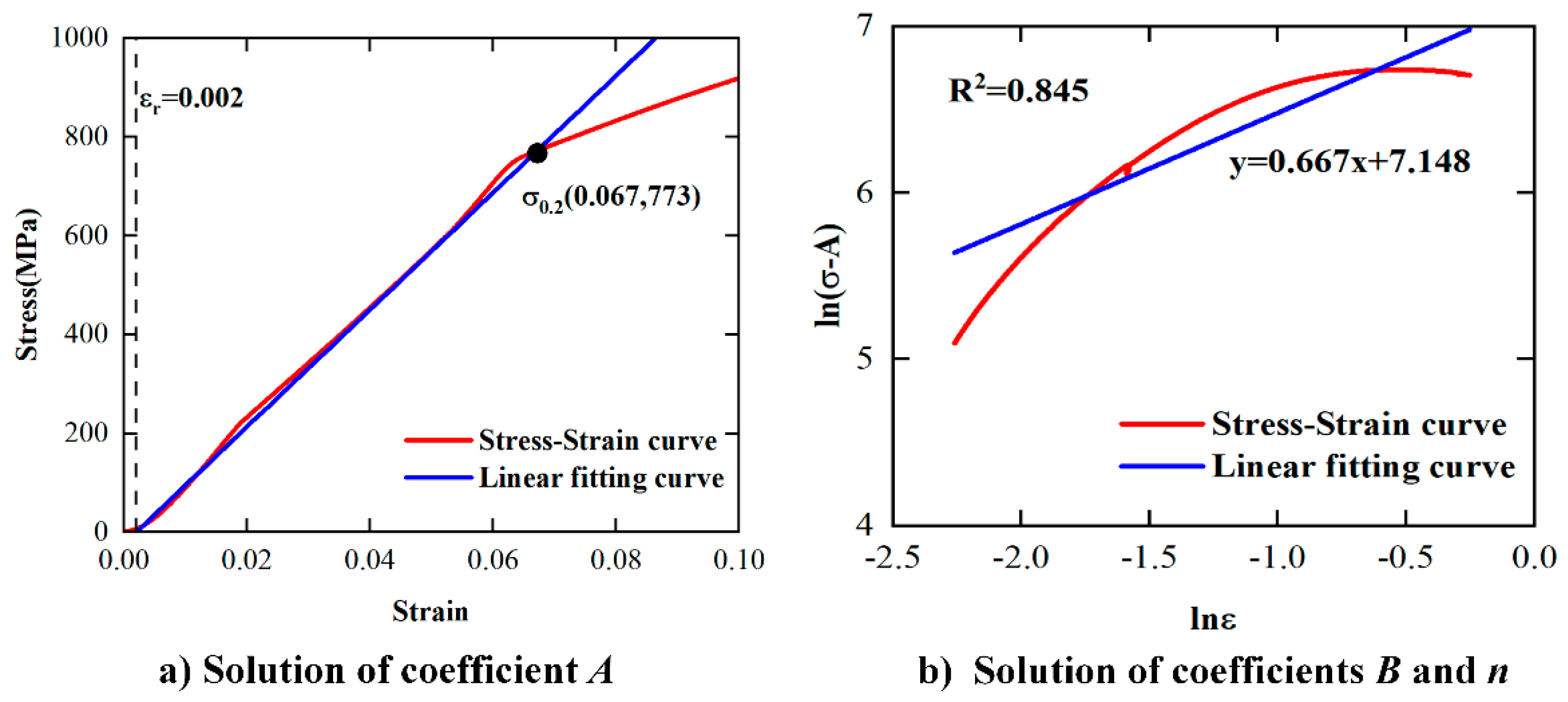

The strain hardening coefficient can be obtained by processing the quasi-static compression test data at room temperature. The proposed constitutive model is simplified as shown in Equation (17). The quasi-static compression tests permitted to determine the yield stress are represented by coefficient A (Figure 13a). Equation (18) was obtained by taking the logarithm on both sides of the Equation (17). The solution of the coefficients n and B can be obtained by a slope and an intercept of a fitting straight line (Figure 13b). As shown in Figure 12, A = σ0.2 = 773 MPa, n = 0.667, B = 1271 MPa.
σ = A + B ε n
ln ( σ A ) = n ln ε + ln B
The strain rate sensitivity coefficient C, the thermal softening index m, and the recrystallization softening correction coefficient Hi in the modified J-C constitutive model were obtained from the result of SHPB tests.
According to SHPB tests at room temperature for different strain rates, the constitutive equation is simplified to Equation (19). The stress–strain curves of materials at different strain rates at room temperature in this paper are shown in Figure 14. The mean value of multiple sets of test results is taken as the final result (C = 0.031).
σ = ( A + B ε n ) ( 1 + C   ln ε ˙ ε ˙ 0 )
The thermal softening coefficient m is determined according to Equation (20). The data of the SHPB tests under high-temperature conditions were used. Finally, the fitting relationship between m and strain rate is obtained as shown in Figure 15.
m ln ( T T 0 T m T 0 ) = ln 1 σ A + B ε n 1 + C ln ε ˙ ε ˙ 0
The coefficients hi (i = 0, 1, 2) related to the dynamic recrystallization can be obtained according to Equation (21). The ratio of the actual flow stress after recrystallization to the predicted stress of the J-C model can be obtained by taking the above parameters into account. The value of parameter hi (i = 0, 1, 2) can be obtained by fitting the experimental results.
σ f ( ε ) f ( ε ˙ ) f ( T ) = 1 1 ( h 0 ε + h 1 ) + ( h 0 ε + h 2 ) ln ( ε ˙ ε ˙ 0 )
In summary, the modified constitutive model obtained by the linear regression method is shown in Table 6.
(2)
Function iteration method
According to the function iteration method [26,27], the proposed model is shown in Equation (22). The iterative function method determines the coefficients of the prediction model by continuously iterating the function through the optimization algorithm.
σ = f ( ε ) f ( ε ˙ ) f ( T ) f ( H i )
The stress values corresponding to the room temperature T0 and the reference strain rate ε0 conditions are selected as the initial values. The quasi-static compression test data at room temperature are selected for polynomial fitting to obtain the results of f(ε), which are shown in Figure 16a. Then, according to the relationship between measured stress in the SHPB test at room temperature and f(ε), the relationship between stress and strain rate is obtained by iteration, which is f( ε ˙ ) as shown in Figure 16b. Finally, the results of f(T) and f(Hi) can be obtained according to the high-temperature SHPB experimental data by the iteration process, as shown in Figure 16c and Figure 16d, respectively.
In the iterative process, the error R2 is used to judge the accuracy of the results. When the result meets Equation (23), the result is considered to be accepted.
R k 2 R k 1 2 10 3
where R k 2 is the error of determination of the ith iterated function, R k 1 2 is the error of determination of the (i − 1)th iterated function.
Finally, the constitutive model constructed by the function iteration method is obtained. The constitutive model after reaching the critical strain of recrystallization is shown in Equation (24).
σ = ( 427.05 + 4856.82 ε 7502.10 ε 2 + 4053.41 ε 3 381.92 ε 4 ) × ( 0.969 + 0.042 l n ( ε ˙ ε ˙ 0 ) ) × ( 0.924 ( T T 0 T m T 0 ) 3.768 ) × ( 1 ( 0.008 / ε + 7.094 ) + ( 0.008 / ε + 0.479 ) ln ( ε ˙ ε ˙ 0 ) 1
(3)
Comparison of different methods
To optimize the solution method of the parameters, the stress–strain curves obtained by the constitutive equations solved by the two methods described in the previous section are compared with the experimental results. Under the condition of strain rate is 10,000 s−1 and the temperature is 25 °C, 200 °C, 400 °C, 600 °C, 700 °C, 800 °C, the comparison results of stress–strain curves are shown in Figure 17. Figure 17a,b are the experimental comparison results of the linear regression solving method and functional iteration solving method, respectively. According to Figure 16, both of the equations obtained by the linear regression solving method and functional iteration method can describe the trend of stress in the plastic deformation stage.
To quantitatively evaluate the overall error of the two methods, the scatter plot is used to calculate the correlation value. The results of the correlation between the calculated stress and the experimental stress obtained by the two methods are shown in Figure 18. Figure 18a,b are the results of the linear regression solving method and functional iteration solving method, respectively. Compared with Figure 18b (R2 = 0.889), the data correlation index in Figure 18a is higher (R2 = 0.985), namely, the data concentration is higher.
The maximum relative error θ between the measured and predicted stress is also calculated to evaluate prediction accuracy, as shown in Equation (25).
θ = max σ p σ m σ m × 100 %
where σp is the predicted stress, σm is the measured stress.
The maximum relative error of the constitutive model obtained by the linear fitting method and the function iteration method are shown in Table 7. According to Table 7, the accuracy of the model obtained by the linear regression method (11.21%) is much higher than that obtained by the function iteration method (4.74%) in the plastic deformation of the non-dynamic recrystallization stage. Correspondingly, in the recrystallization stage, the accuracy of the model obtained by the function iteration method is improved (4.11%), which is very small compared with the accuracy of the model obtained by the linear regression method (5.11%). By calculating the average value of the maximum error θ ¯ before and after dynamic recrystallization, the model accuracy obtained by the linear regression method is greater than the model obtained by the functional regression method in the whole plastic deformation stage.
In summary, the modified J-C constitutive equation considering the recrystallization softening effect proposed in this paper is solved by the linear regression method, and the results are shown in Equation (26).
σ = ( 773 + 1271 ε 0.667 ) × ( 1 + 0.031 l n ( ε ˙ ε ˙ 0 ) ) × 1 ( T T 0 T m T 0 ) 1.66 + 8.05 × 10 5 ε ˙ × ( 1 ( 0.015 / ε 0.015 ) + ( 0.015 / ε + 0.046 ) ln ( ε ˙ ε ˙ 0 ) 1

4.3. Validation of Modified J-C Constitutive Model

Temperature-dependent J-C model [28,29] is also widely used to predict the flow stress behavior of materials in the cutting process, which is shown in Equation (27).
σ = A + B ε n ( 1 + C ln ε ˙ ε ˙ 0 ) 1 T T 0 T m T 0 m 1 1 ( a b ε )
where a and b are the coefficients related to flow softening caused by dynamic recrystallization. According to the stress–strain data of the plastic deformation stage of the FGH96 under the experimental conditions in this paper, the temperature-dependent J-C model for the plastic deformation stage after reaching the recrystallization critical strain is shown in Equation (28).
σ = ( 773 + 1271 ε 0.667 ) ( 1 + 0.031 ln ε ˙ ε ˙ 0 ) 1 T T 0 T m T 0 1.66 + 8.05 × 10 5 ε ˙ 1 1 ( 0.274 1.234 ε )

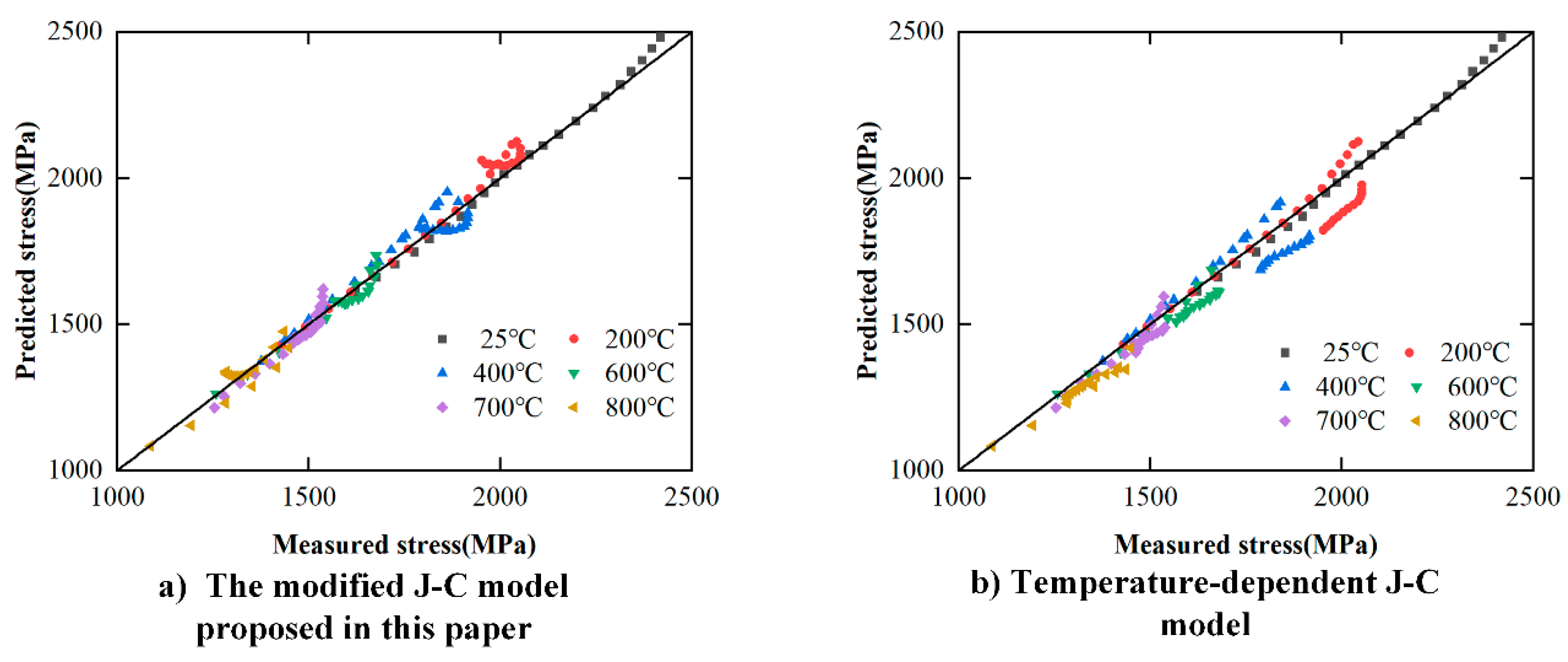

The comparison between the predicted stress and the experimental stress of the two modified models at the 10,000 s−1 strain rate is shown in Figure 19. Figure 19a,b are the comparison results of the model proposed in this paper and the temperature-dependent J-C model, respectively. The temperature-dependent J-C model can also predict the flow stress in the plastic deformation stage.
The results of the correlation analysis between the calculated stress and the experimental stress obtained by the two models are shown in Figure 20. Figure 20a,b are the correlation analysis results of the model proposed in this paper and the temperature-dependent J-C model, respectively. Compared with Figure 20b (R2 = 0.956), the data correlation index in Figure 20a is higher (R2 = 0.985), namely, the data concentration is higher.
According to Equation (25), the average values of the maximum relative error of the two models were calculated. The average value of the maximum relative errors of flow stress predicted by the modified J-C model in this paper and the temperature-dependent J-C model is 5.11% and 8.14%, respectively. Therefore, the constitutive model proposed in this paper can accurately predict the flow stress of FGH96 in the plastic deformation stage under the influence of recrystallization softening.

5. Conclusions

In this work, the dynamic mechanical properties of nickel-based PM superalloy FGH96 are analyzed by quasi-static compression tests and SHPB tests at strain rates of 4000 s−1~12,000 s−1 and temperatures of 25 °C~800 °C. A J-C constitutive model considering the dynamic recrystallization softening effect is proposed. The following conclusions can be drawn in this paper.
(1)
Dynamic mechanical properties of nickel-based PM superalloy were obtained by experiments. The PM superalloy has a clear plasticizing effect in the deformation process over a wide range of strain rates. The PM superalloy material exhibits a significant strain rate hardening effect and temperature softening effect. During the compression test, the strain hardening phenomenon of PM superalloy is significant and the strain hardening effect gradually weakens with the continuous increase in strain. FGH96 superalloy exhibits weak strain rate sensitivity and strong temperature sensitivity.
(2)
Considering the influence of temperature and strain rate, the formula for the flow stress softening term H ( ε , ε ˙ , T ) and critical strain εr of dynamic recrystallization were obtained. On this basis, the modified J-C constitutive model of PM superalloy considering dynamic recrystallization behavior in a wide range of strain rates and temperature is proposed.
(3)
The coefficients of the modified constitutive equation established in this paper were obtained by linear fitting and function iteration, respectively. Through correlation analysis and maximum error analysis, the modified constitutive model solved by the linear fitting method has higher accuracy in predicting flow stress in the plastic deformation stage.
(4)
Compared with the temperature-dependent constitutive model, it is found that the modified constitutive model established in this paper is more suitable to describe the recrystallization softening linearity of flow stress at high temperature and high strain rate in the plastic deformation stage of powder metallurgy superalloy.

Author Contributions

Conceptualization, C.L.; Methodology, C.L., Z.L. and J.Z.; Software, C.L.; Validation, X.W., Y.L., Z.L. and B.W.; Formal analysis, C.L.; Investigation, X.W. and Y.L.; Writing—original draft, C.L.; Writing—review & editing, C.L. and X.R.; Visualization, J.Z.; Supervision, X.R., Z.L. and J.Z.; Funding acquisition, X.R. All authors have read and agreed to the published version of the manuscript.

Funding

The project is supported by the National Natural Science Foundation of China (No. 52105460). This work is also supported by grants from China Postdoctoral Science Foundation (2022M71190), Shandong Provincial Key Research and Development Program (Major Scientific and Technological Innovation Project) (No. 2020CXGC010204), Natural Science Foundation of Shandong Province (ZR202111150191), Key Laboratory of High-efficiency and Clean Mechanical Manufacture at Shandong University and Taishan Scholar Foundation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Boyer, R.; Cotton, J.; Mohaghegh, M.; Schafrik, R. Materials considerations for aerospace applications. MRS Bull. 2015, 40, 1055–1066. [Google Scholar] [CrossRef]
  2. Yang, L.; Ren, X.; Ge, C.; Yan, Q. Status and development of powder metallurgy nickel-based disk superalloys. Int. J. Mater. Res. 2019, 110, 901–910. [Google Scholar] [CrossRef]
  3. Dever Joyce, A.; Nathal Michael, V.; Dicarlo James, A. Research on High-Temperature Aerospace Materials at NASA Glenn Research Center. J. Aerosp. Eng. 2013, 26, 500–514. [Google Scholar] [CrossRef]
  4. Selvaraj, S.K.; Sundaramali, G.; Jithin Dev, S.; Srii Swathish, R.; Karthikeyan, R.; Vijay Vishaal, K.E.; Paramasivam, V. Recent Advancements in the Field of Ni-Based Superalloys. Adv. Mater. Sci. Eng. 2021, 2021, 9723450. [Google Scholar] [CrossRef]
  5. Zhang, X.; Chen, Y.; Hu, J. Recent advances in the development of aerospace materials. Prog. Aerosp. Sci. 2018, 97, 22–34. [Google Scholar] [CrossRef]
  6. Guo, N.; Leu, M.C. Additive manufacturing: Technology, applications and research needs. Front. Mech. Eng. 2013, 8, 215–243. [Google Scholar] [CrossRef]
  7. Zhang, H.; Zeng, H.; Yan, R.; Wang, W.; Peng, F. Analytical modeling of cutting forces considering material softening effect in laser-assisted milling of AerMet100 steel. Int. J. Adv. Manuf. Technol. 2021, 113, 247–260. [Google Scholar] [CrossRef]
  8. Melkote, S.N.; Grzesik, W.; Outeiro, J.; Rech, J.; Schulze, V.; Attia, H.; Arrazola, P.-J.; M’Saoubi, R.; Saldana, C. Advances in material and friction data for modeling of metal machining. Cirp Ann. 2017, 66, 731–754. [Google Scholar] [CrossRef]
  9. Ucun, İ.; Aslantas, K. Numerical simulation of orthogonal machining process using multilayer and single-layer coated tools. Int. J. Adv. Manuf. Technol. 2011, 54, 899–910. [Google Scholar] [CrossRef]
  10. Hou, X.; Liu, Z.; Wang, B.; Lv, W.; Liang, X.; Hua, Y. Stress-strain curves and modified material constitutive model for Ti-6Al-4V over the wide ranges of strain rate and temperature. Materials 2018, 11, 938. [Google Scholar] [CrossRef] [PubMed]
  11. Liu, H.; Xu, X.; Zhang, J.; Liu, Z.; He, Y.; Zhao, W.; Liu, Z. The state-of-the-art on numerical simulation of the effect of microstructure and its evolution in metal cutting processes. Int. J. Mach. Tools Manuf. 2022, 177, 103890. [Google Scholar] [CrossRef]
  12. Johnson, G.R. A constitutive model and data for materials subjected to large strains, high strain rates, and high temperatures. In Proceedings of the 7th International Symposium on Ballistics, Hague, The Netherlands, 19–21 April 1983; pp. 541–547. [Google Scholar]
  13. He, A.; Xie, G.; Zhang, H.; Wang, X. A comparative study on Johnson–Cook, modified Johnson–Cook and Arrhenius-type constitutive models to predict the high temperature flow stress in 20CrMo alloy steel. Mater. Des. (1980–2015) 2013, 52, 677–685. [Google Scholar] [CrossRef]
  14. Shokry, A.; Gowid, S.; Mulki, H.; Kharmanda, G. On the Prediction of the Flow Behavior of Metals and Alloys at a Wide Range of Temperatures and Strain Rates Using Johnson–Cook and Modified Johnson–Cook-Based Models: A Review. Materials 2023, 16, 1574. [Google Scholar] [CrossRef] [PubMed]
  15. Song, B.; Sanborn, B. A Modified Johnson–Cook Model for Dynamic Response of Metals with an Explicit Strain- and Strain-Rate-Dependent Adiabatic Thermosoftening Effect. J. Dyn. Behav. Mater. 2019, 5, 212–220. [Google Scholar] [CrossRef]
  16. Sakai, T.; Belyakov, A.; Kaibyshev, R.; Miura, H.; Jonas, J.J. Dynamic and post-dynamic recrystallization under hot, cold and severe plastic deformation conditions. Prog. Mater. Sci. 2014, 60, 130–207. [Google Scholar] [CrossRef]
  17. Shin, H.; Ju, Y.; Choi, M.K.; Ha, D.H. Flow stress description characteristics of some constitutive models at wide strain rates and temperatures. Technologies 2022, 10, 52. [Google Scholar] [CrossRef]
  18. Calamaz, M.; Coupard, D.; Girot, F. A new material model for 2D numerical simulation of serrated chip formation when machining titanium alloy Ti–6Al–4V. Int. J. Mach. Tools Manuf. 2008, 48, 275–288. [Google Scholar] [CrossRef]
  19. Ulutan, D.; Sima, M.; Özel, T. Prediction of machining induced surface integrity using elastic-viscoplastic simulations and temperature-dependent flow softening material models in titanium and nickel-based alloys. Adv. Mater. Res. 2011, 223, 401–410. [Google Scholar] [CrossRef]
  20. Rotella, G.; Umbrello, D. Finite element modeling of microstructural changes in dry and cryogenic cutting of Ti6Al4V alloy. Cirp Ann. 2014, 63, 69–72. [Google Scholar] [CrossRef]
  21. Liang, X.; Liu, Z.; Wang, B.; Hou, X. Modeling of plastic deformation induced by thermo-mechanical stresses considering tool flank wear in high-speed machining Ti-6Al-4V. Int. J. Mech. Sci. 2018, 140, 1–12. [Google Scholar] [CrossRef]
  22. Denguir, L.A.; Outeiro, J.C.; Fromentin, G.; Vignal, V.; Besnard, R. A physical-based constitutive model for surface integrity prediction in machining of OFHC copper. J. Mater. Process. Technol. 2017, 248, 143–160. [Google Scholar] [CrossRef]
  23. Pan, Z.; Wu, Z.; Xiong, J. High-speed infrared imaging and mesostructural analysis of localized temperature rise in damage and failure behavior of 3-D braided carbon/epoxy composite subjected to high strain-rate compression. Polym. Test. 2019, 80, 106151. [Google Scholar] [CrossRef]
  24. Liang, H.; Guo, H.; Nan, Y.; Qin, C.; Peng, X.; Zhang, J. The construction of constitutive model and identification of dynamic softening mechanism of high-temperature deformation of Ti–5Al–5Mo–5V–1Cr–1Fe alloy. Mater. Sci. Eng. A 2014, 615, 42–50. [Google Scholar] [CrossRef]
  25. Guo, Y.; Ruan, Q.; Zhu, S.; Wei, Q.; Chen, H.; Lu, J.; Hu, B.; Wu, X.; Li, Y.; Fang, D. Temperature rise associated with adiabatic shear band: Causality clarified. Phys. Rev. Lett. 2019, 122, 015503. [Google Scholar] [CrossRef] [PubMed]
  26. Su, X.; Wang, G.; Li, J.; Rong, Y. Dynamic mechanical response and a constitutive model of Fe-based high temperature alloy at high temperatures and strain rates. SpringerPlus 2016, 5, 504. [Google Scholar] [CrossRef] [PubMed]
  27. Lin, Y.C.; Chen, X.M.; Liu, G. A modified Johnson–Cook model for tensile behaviors of typical high-strength alloy steel. Mater. Sci. Eng. A 2010, 527, 6980–6986. [Google Scholar] [CrossRef]
  28. Murugesan, M.; Jung, D.W. Johnson Cook material and failure model parameters estimation of AISI-1045 medium carbon steel for metal forming applications. Materials 2019, 12, 609. [Google Scholar] [CrossRef]
  29. Andrade, U.; Meyers, M.; Vecchio, K.; Chokshi, A.H. Dynamic recrystallization in high-strain, high-strain-rate plastic deformation of copper. Acta Metall. Mater. 1994, 42, 3183–3195. [Google Scholar] [CrossRef]

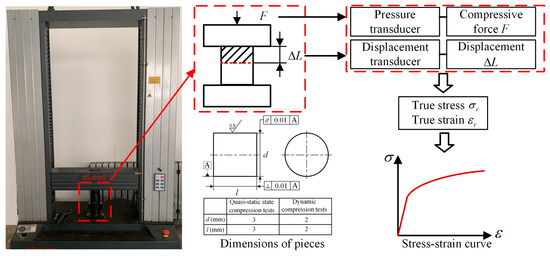

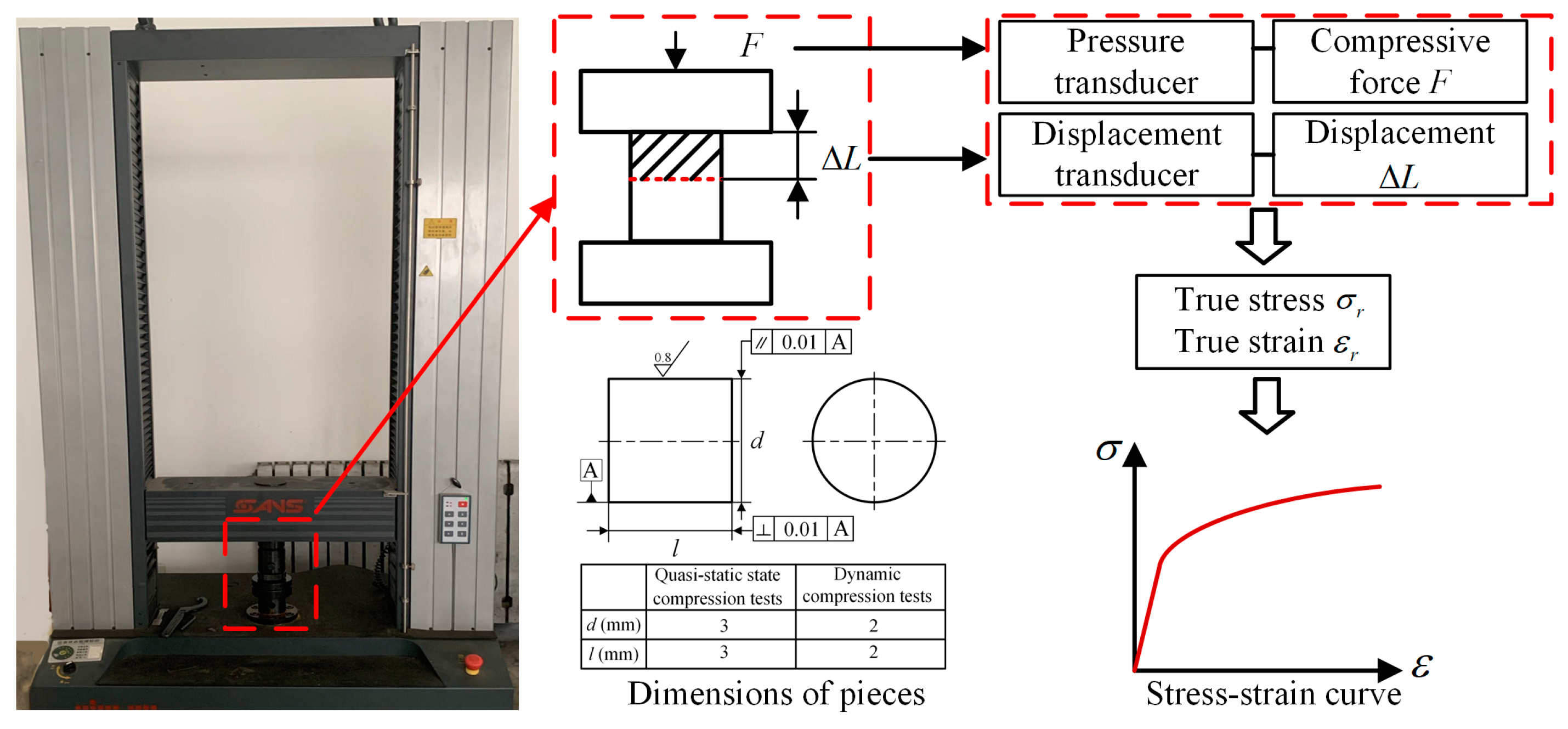

Figure 1. Schematic diagram of quasi-static compression test device.
Figure 1. Schematic diagram of quasi-static compression test device.
Materials 17 00670 g001

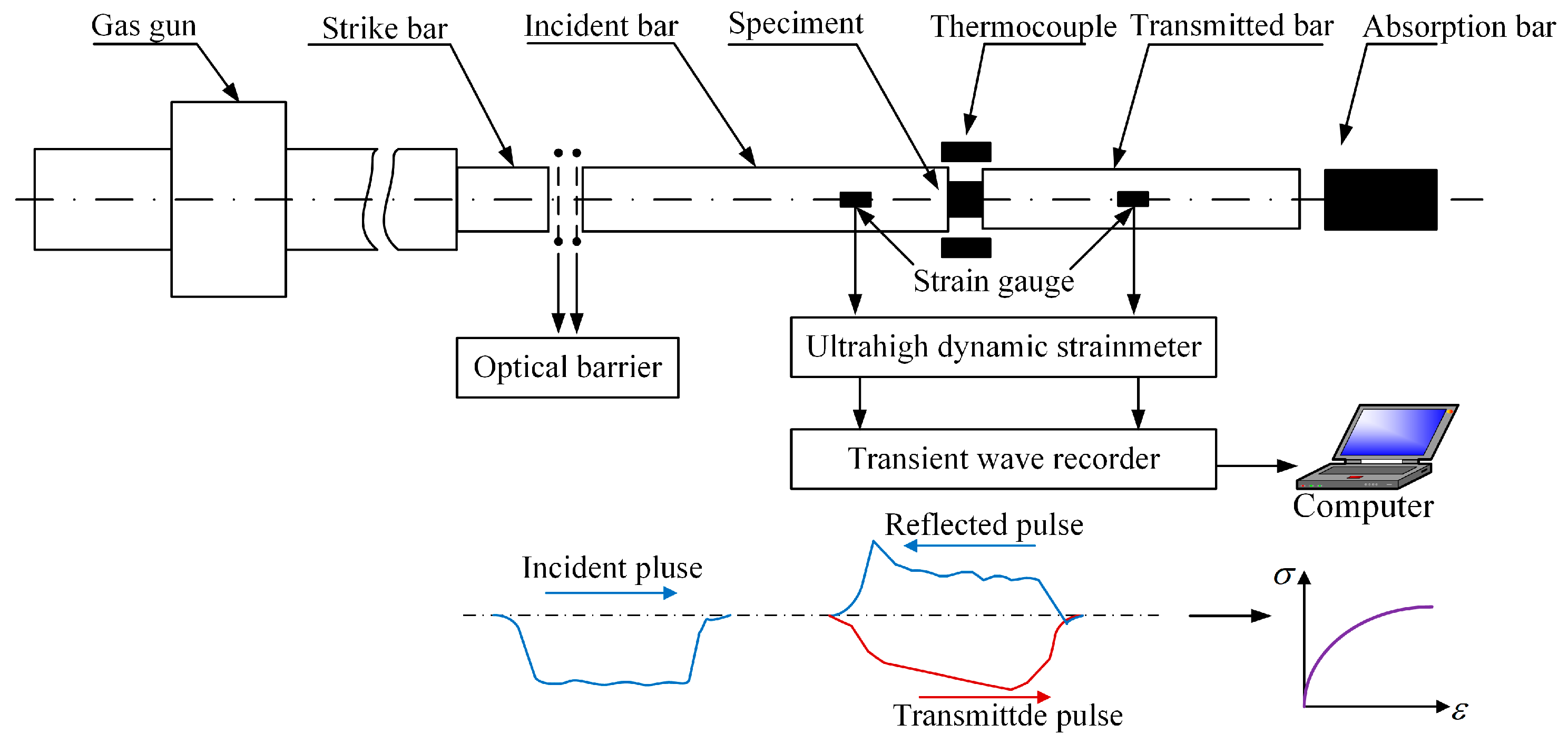

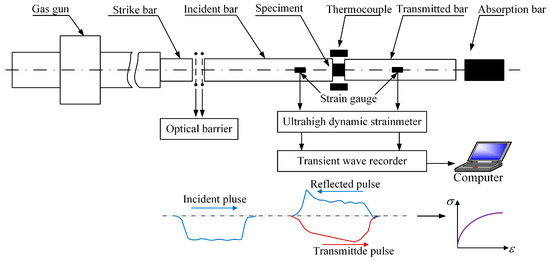

Figure 2. Schematic diagram of SHPB equipment system.
Figure 2. Schematic diagram of SHPB equipment system.
Materials 17 00670 g002

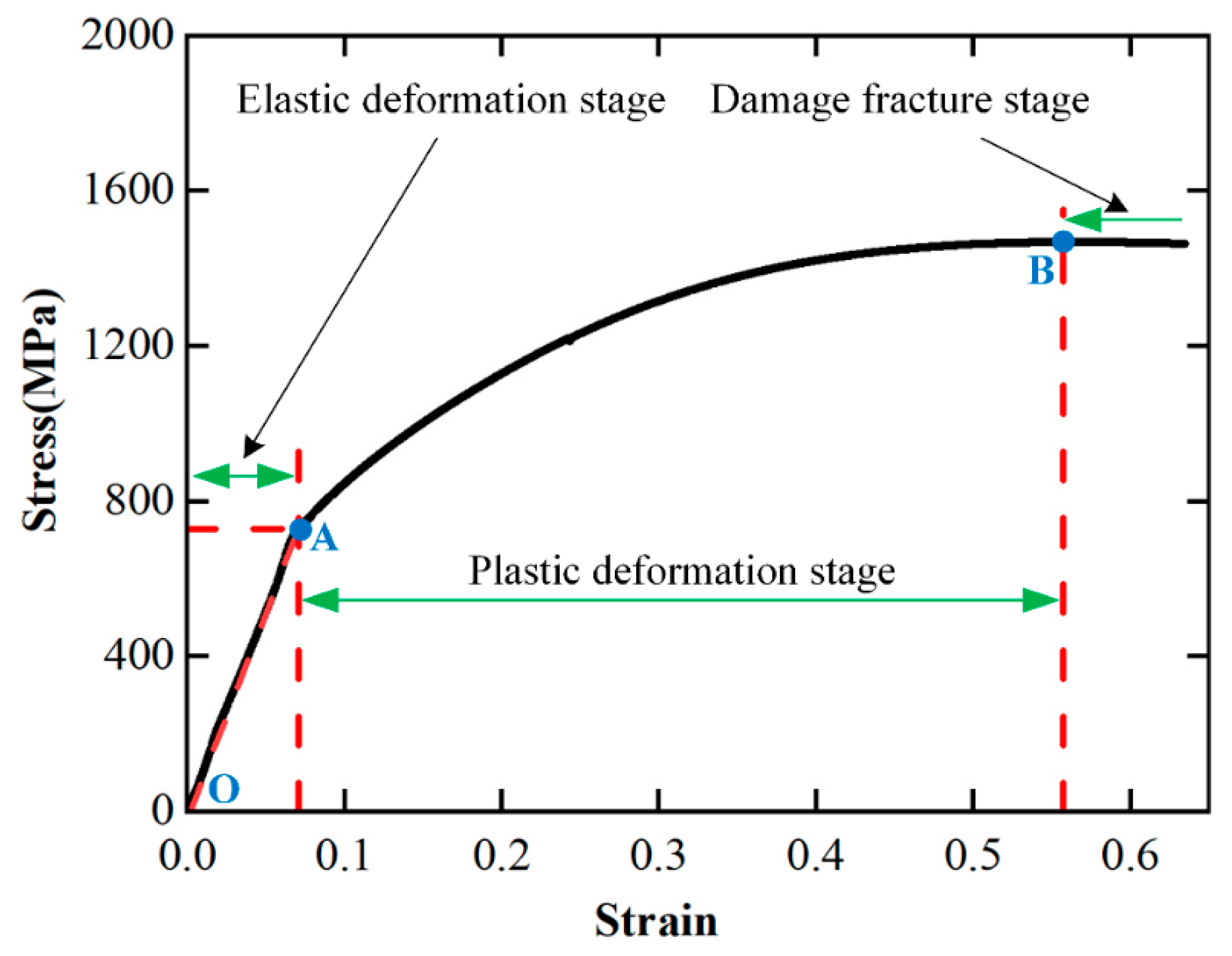

Figure 3. Stress–strain curve of FGH96 superalloy in the quasi-static compression test.
Figure 3. Stress–strain curve of FGH96 superalloy in the quasi-static compression test.
Materials 17 00670 g003

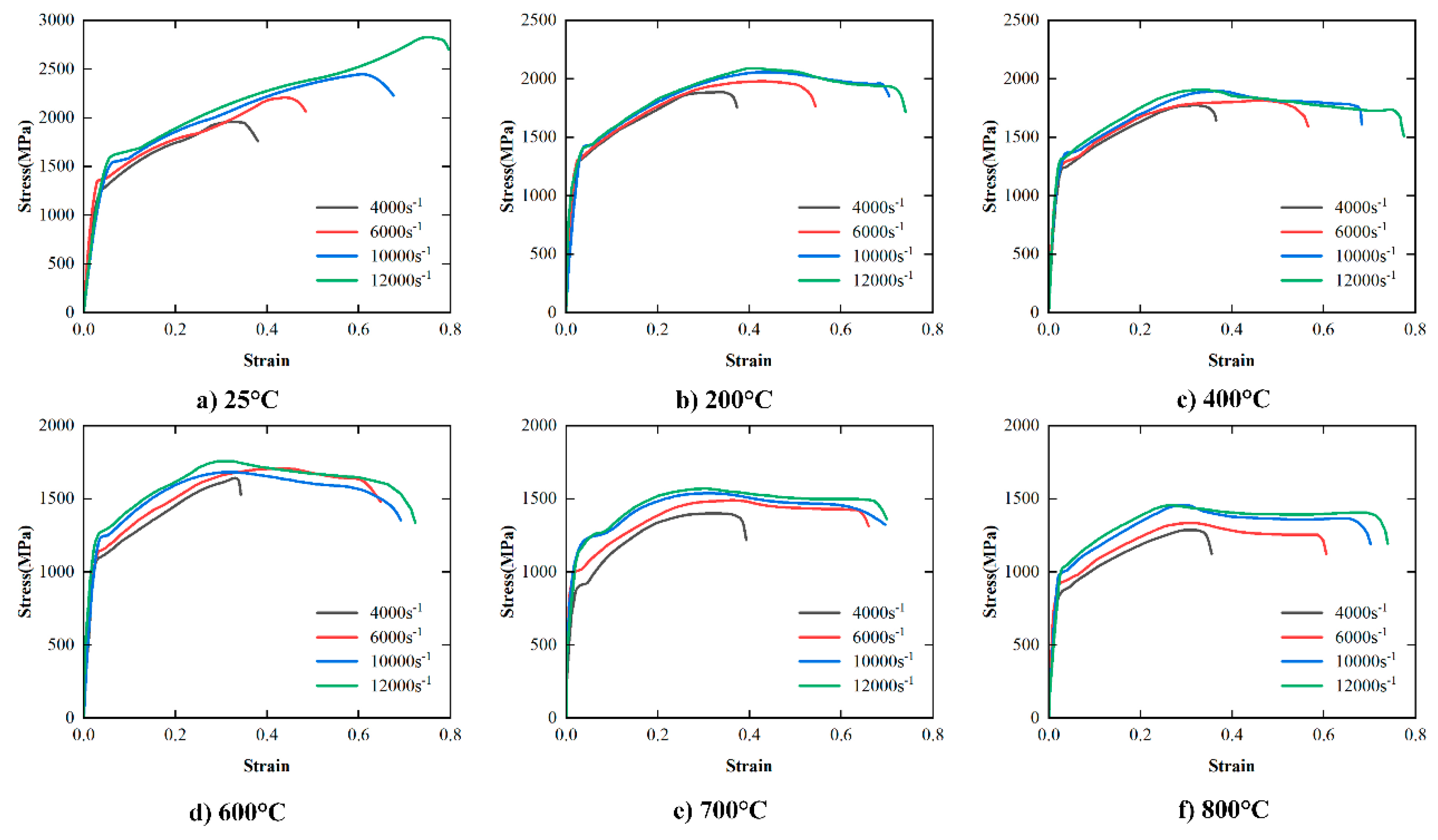

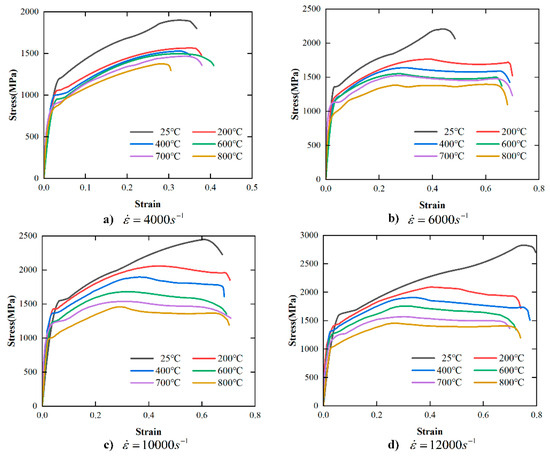

Figure 4. Stress–strain curves of FGH96 superalloy over the wide range of temperature in the SHPB tests.
Figure 4. Stress–strain curves of FGH96 superalloy over the wide range of temperature in the SHPB tests.
Materials 17 00670 g004

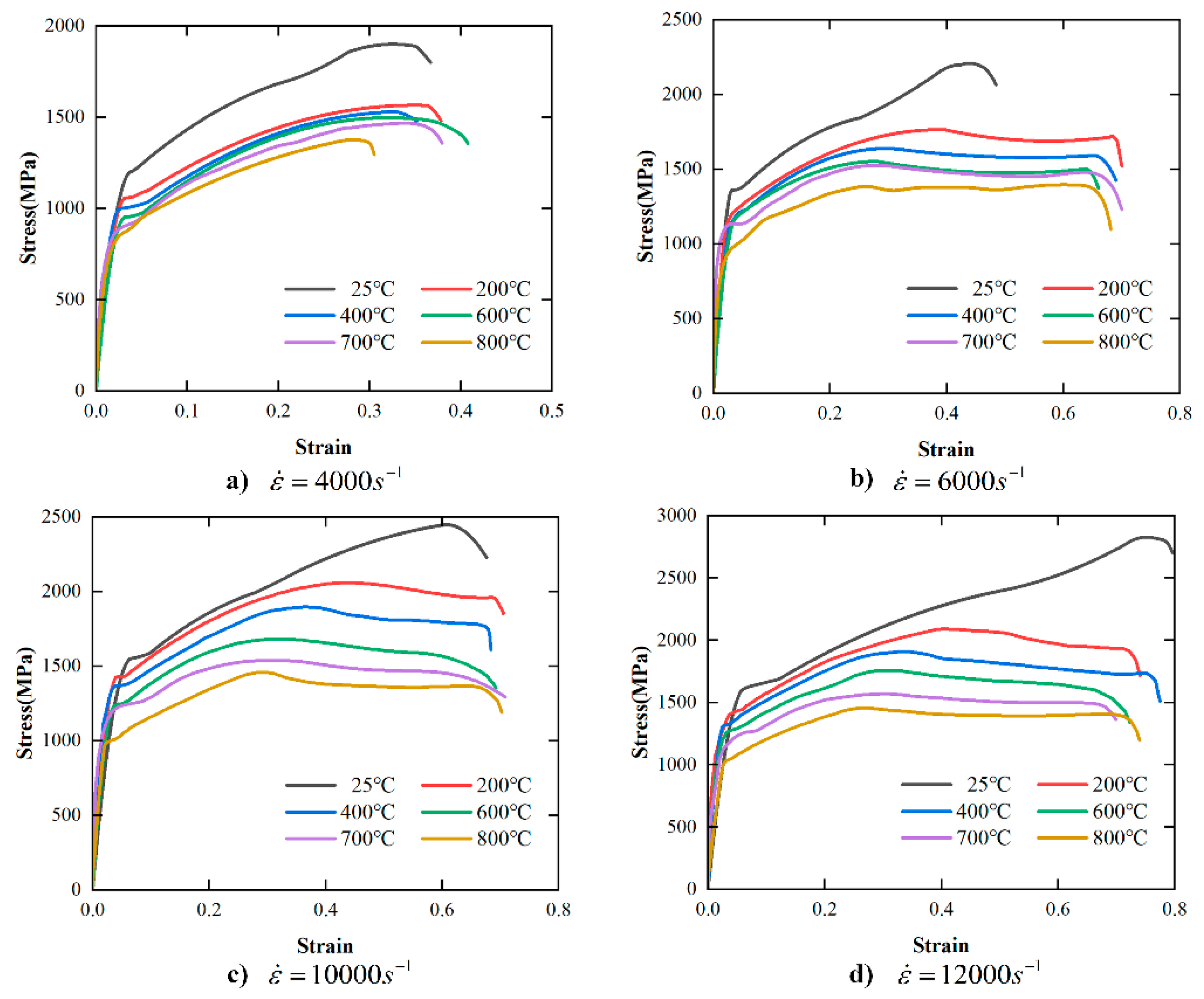

Figure 5. Stress–strain curves of FGH96 superalloy over the wide range of strain rates in the SHPB tests.
Figure 5. Stress–strain curves of FGH96 superalloy over the wide range of strain rates in the SHPB tests.
Materials 17 00670 g005

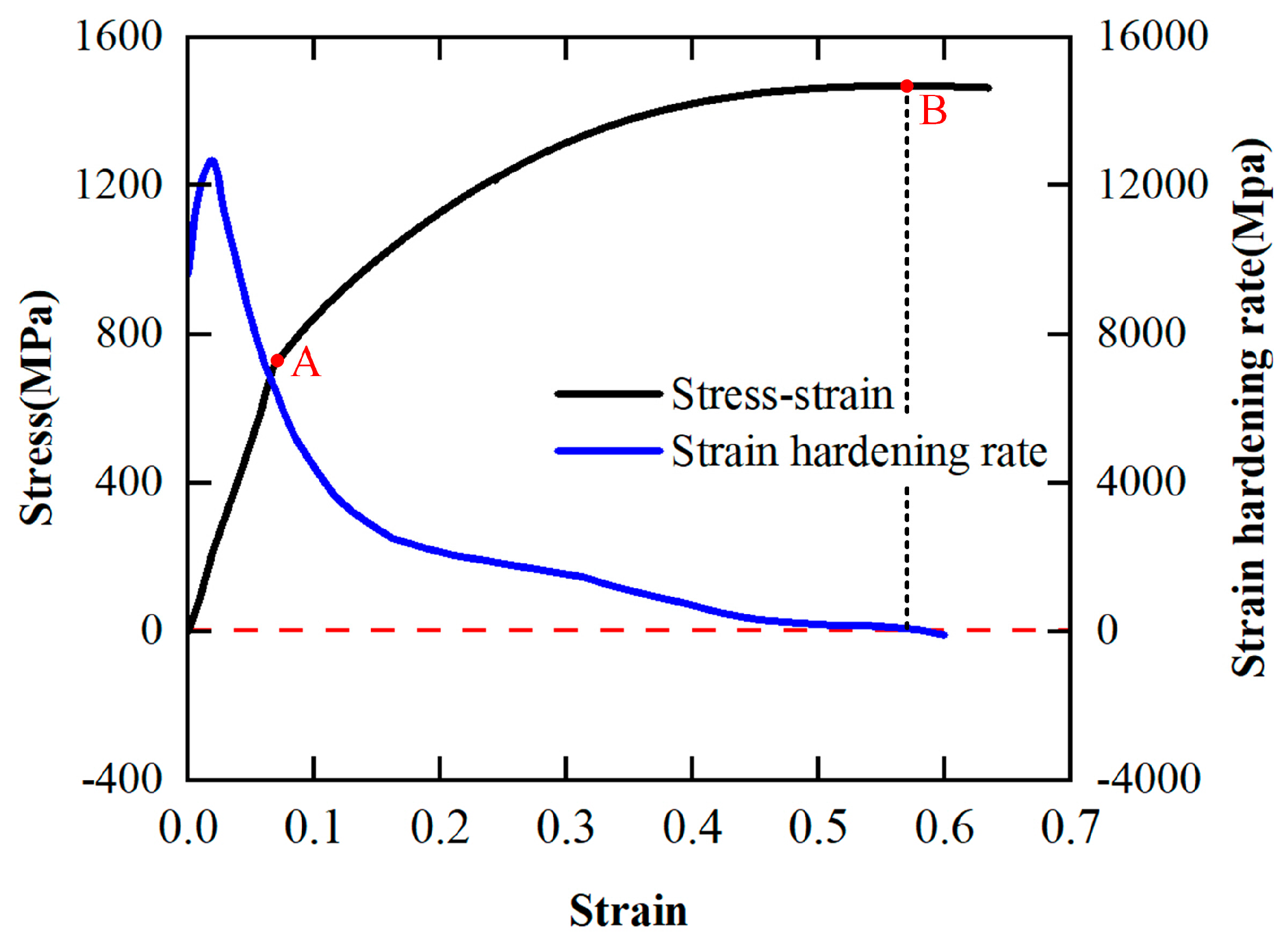

Figure 6. Strain hardening rate–strain curve under quasi-static compression test conditions.
Figure 6. Strain hardening rate–strain curve under quasi-static compression test conditions.
Materials 17 00670 g006

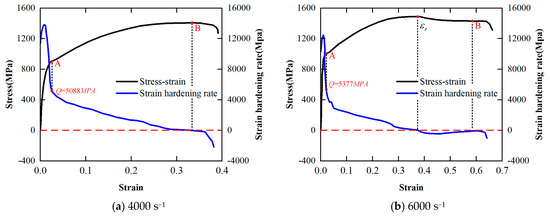

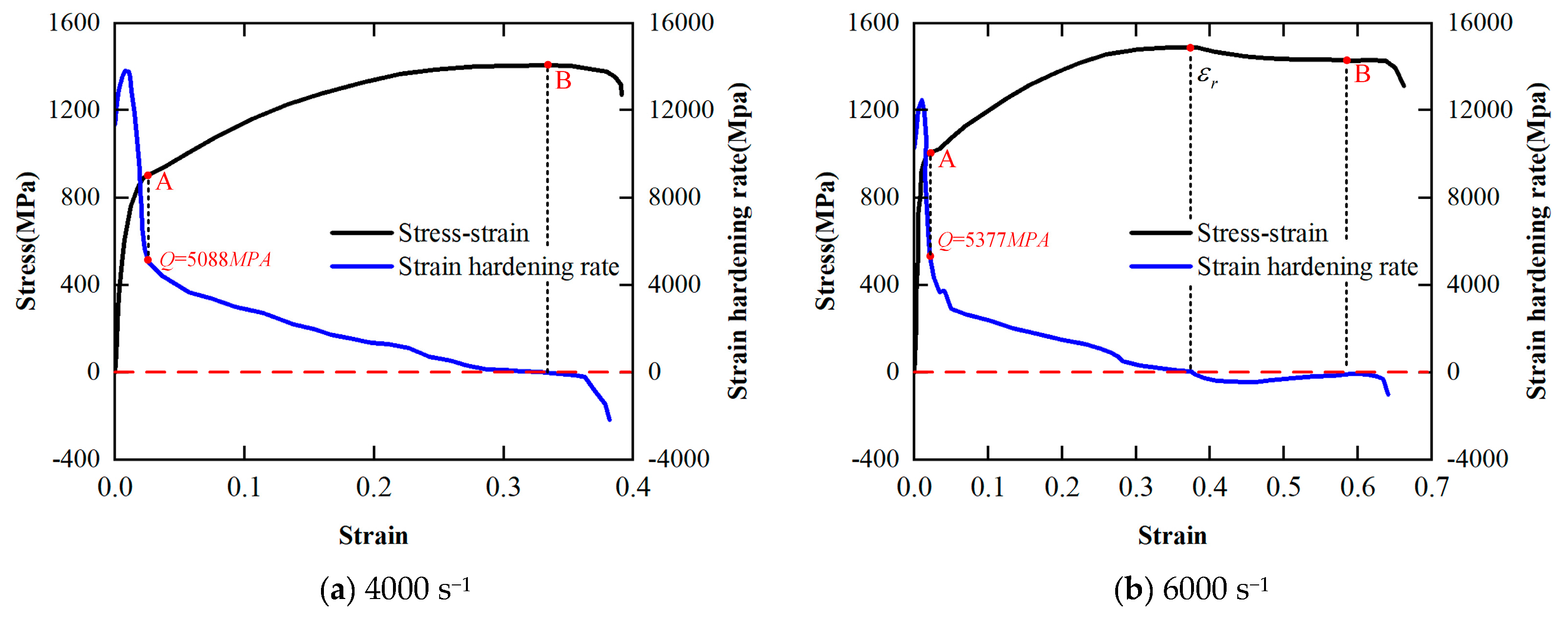

Figure 7. The strain hardening rate–strain curve at 700 °C obtained by SHPB tests.
Figure 7. The strain hardening rate–strain curve at 700 °C obtained by SHPB tests.
Materials 17 00670 g007
Figure 8. The influence of loading temperature on adiabatic temperature rise during deformation under different strain rates.
Figure 8. The influence of loading temperature on adiabatic temperature rise during deformation under different strain rates.
Materials 17 00670 g008
Figure 9. Strain rate sensitivity coefficient–strain curves of FGH96 superalloy at different temperatures.
Figure 9. Strain rate sensitivity coefficient–strain curves of FGH96 superalloy at different temperatures.
Materials 17 00670 g009
Figure 10. Temperature sensitivity coefficient–temperature curves of FGH96 superalloy at different strain rates.
Figure 10. Temperature sensitivity coefficient–temperature curves of FGH96 superalloy at different strain rates.
Materials 17 00670 g010
Figure 11. Flow softening of stress–strain curve induced by dynamic recrystallization.
Figure 11. Flow softening of stress–strain curve induced by dynamic recrystallization.
Materials 17 00670 g011
Figure 12. Solving method and results of dynamic recrystallization critical strain.
Figure 12. Solving method and results of dynamic recrystallization critical strain.
Materials 17 00670 g012
Figure 13. Solution of coefficients A, B, and n.
Figure 13. Solution of coefficients A, B, and n.
Materials 17 00670 g013

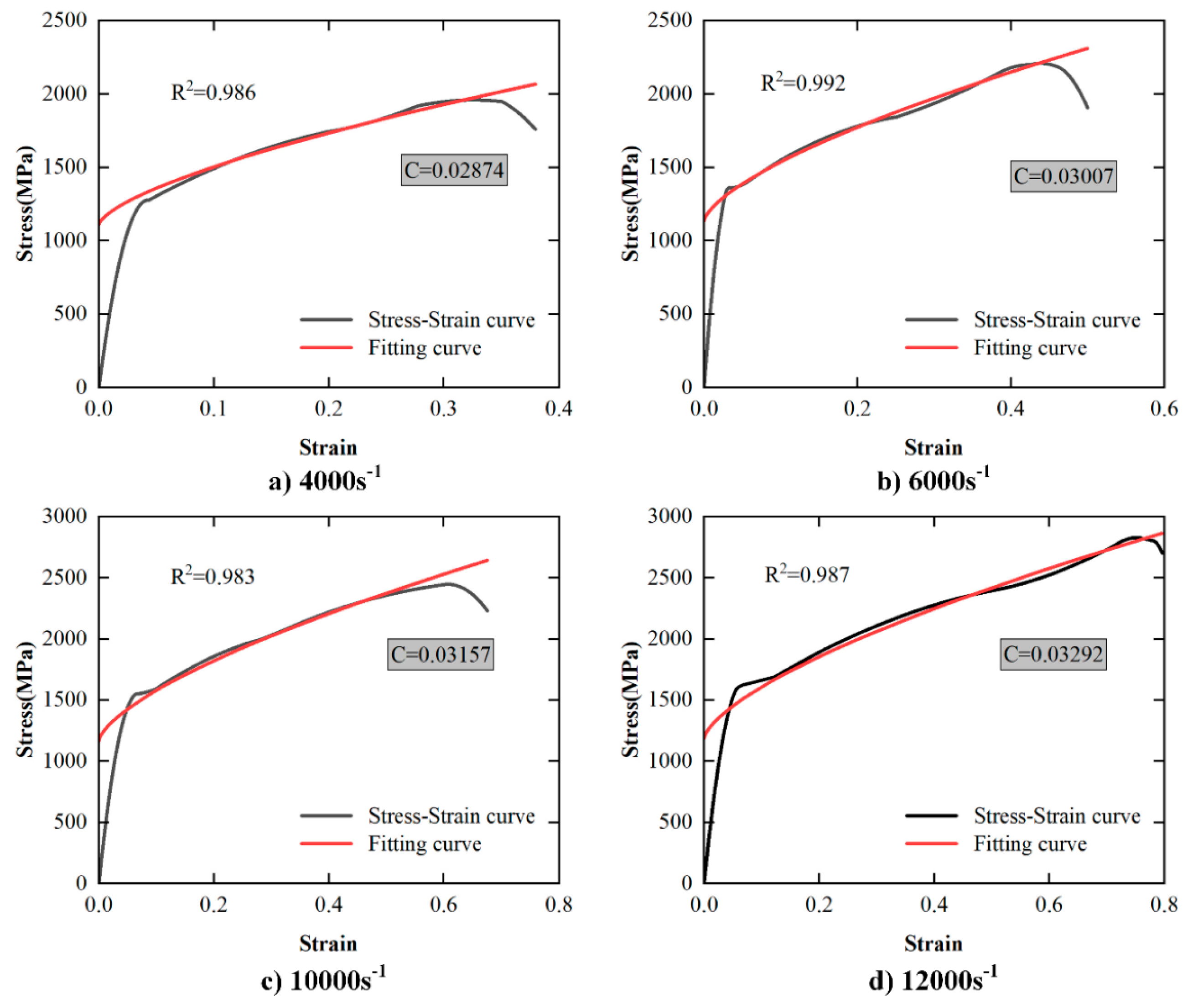

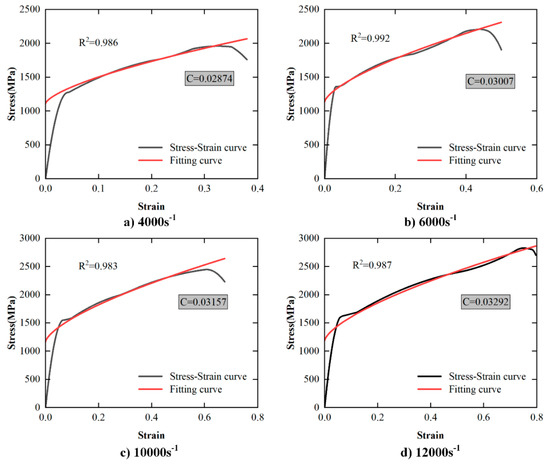

Figure 14. The results of strain rate sensitivity coefficient C.
Figure 14. The results of strain rate sensitivity coefficient C.
Materials 17 00670 g014

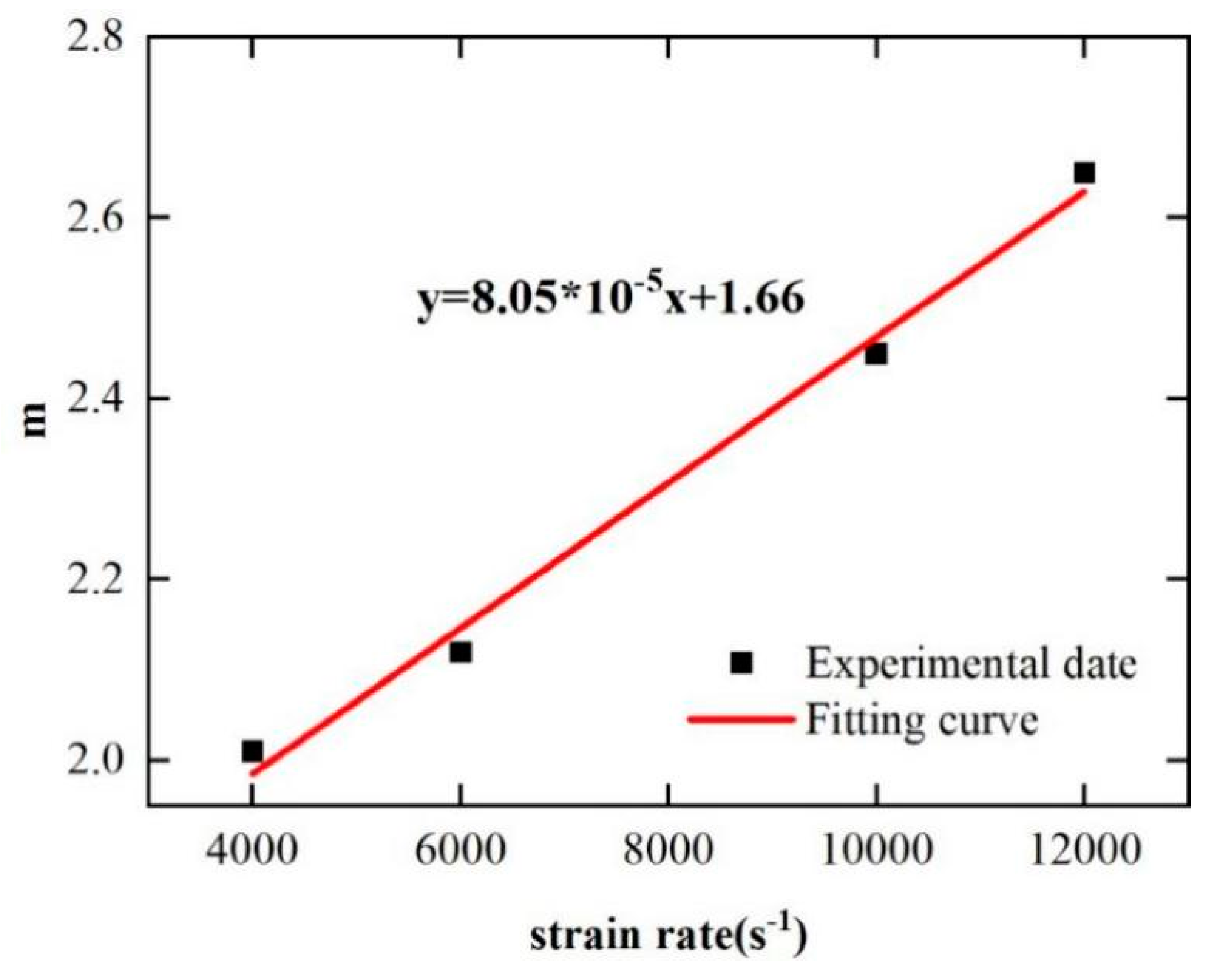

Figure 15. Solution of thermal softening coefficient m.
Figure 15. Solution of thermal softening coefficient m.
Materials 17 00670 g015

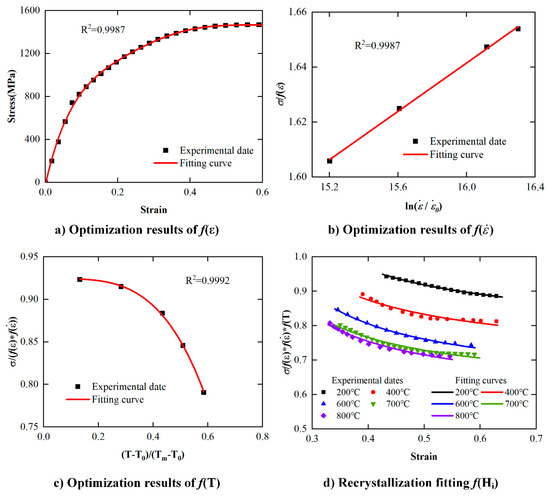

Figure 16. Function iteration method model solution results.
Figure 16. Function iteration method model solution results.
Materials 17 00670 g016

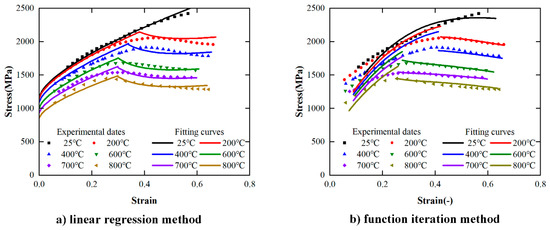

Figure 17. Comparison of experimental results and predicted results ( ε ˙ = 10,000 s 1 ).
Figure 17. Comparison of experimental results and predicted results ( ε ˙ = 10,000 s 1 ).
Materials 17 00670 g017

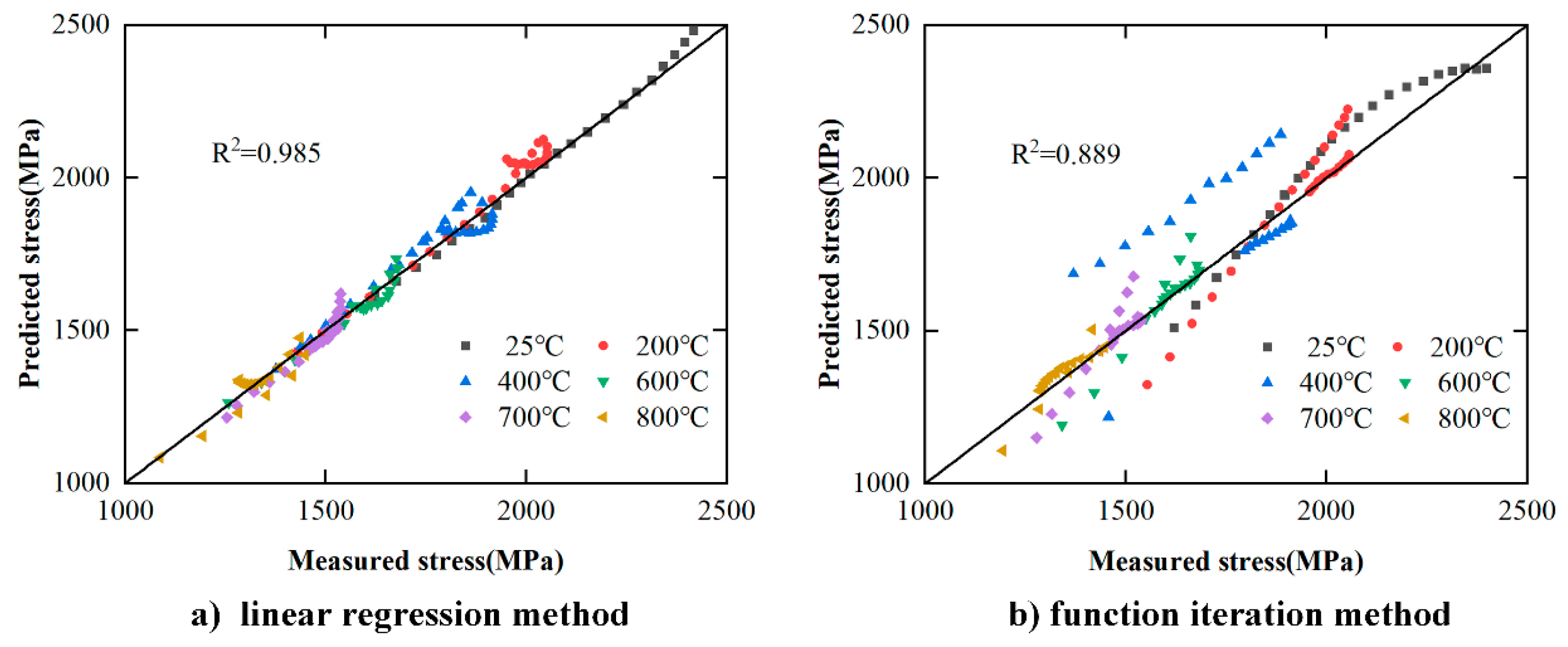

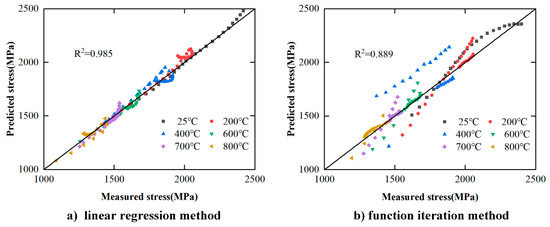

Figure 18. Comparison of correlation between predicted stress and measured stress by different solving methods.
Figure 18. Comparison of correlation between predicted stress and measured stress by different solving methods.
Materials 17 00670 g018
Figure 19. Comparison of correlation between predicted stress and measured stress by two models.
Figure 19. Comparison of correlation between predicted stress and measured stress by two models.
Materials 17 00670 g019

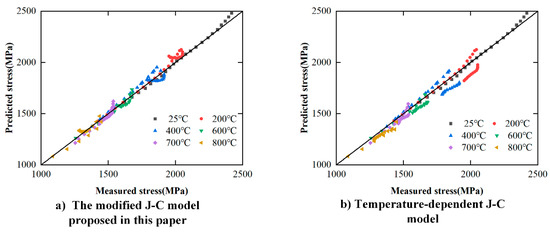

Figure 20. Comparison of correlation between predicted stress and measured stress by different modified models.
Figure 20. Comparison of correlation between predicted stress and measured stress by different modified models.
Materials 17 00670 g020
Table 1. Chemical composition of FGH96 superalloy.
Table 1. Chemical composition of FGH96 superalloy.
ElementCAlTiCrCoNbMoWNi
Wt. (%)0.032.23.716130.844Bal
Table 2. Experimental conditions of SHPB tests.
Table 2. Experimental conditions of SHPB tests.
VariableValues
Strain rate ε ˙ (s−1)4000, 6000, 10,000, 12,000
Temperature T (°C)25, 200, 400, 600, 700, 800
Table 3. Yield strength at different temperatures and strain rates (MPa).
Table 3. Yield strength at different temperatures and strain rates (MPa).
Strain Rate (s−1)Temperature, T (°C)
25200400600700800
40001315130512341097903883
600013591318128011421001926
10,00015441487132212271182994
12,000161615881355127112051043
Table 4. Specific heat capacity of FGH96 superalloy at different temperatures.
Table 4. Specific heat capacity of FGH96 superalloy at different temperatures.
Temperature, T (°C)25200400600700800
Cp (kJ/ (kg‧°C))0.3910.4220.4550.4870.5030.525
Table 5. Critical strain εr under different temperature and strain rate conditions.
Table 5. Critical strain εr under different temperature and strain rate conditions.
Strain Rate (s−1)Temperature, T (°C)
200400600700800
6000 0.42330.36210.3211
10,0000.40330.36400.31990.31440.2911
12,0000.39990.34430.30910.30510.2698
Table 6. Constitutive model coefficients of linear regression method.
Table 6. Constitutive model coefficients of linear regression method.
CoefficientsValue
A (MPa)773
B (MPa)1271
C0.031
n0.667
m 8.05 × 10 5 ε ˙ + 1.66
h0−0.015
h1−0.015
h20.046
ε r 1.445 5.85 × 10 5 T 1.415 0.139 ε ˙ 0.215 + 6.45 × 10 6 T 1.415 ε ˙ 0.215
Table 7. Comparison of the maximum relative errors of two different methods.
Table 7. Comparison of the maximum relative errors of two different methods.
Maximum Relative ErrorsLinear Regression MethodFunction Iteration Method
θ 1 ( ε < ε r ) 4.74%11.21%
θ 2 ( ε ε r ) 5.11%4.11%
θ ¯ 4.93%7.66%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Ling, C.; Ren, X.; Wang, X.; Li, Y.; Liu, Z.; Wang, B.; Zhao, J. Dynamic Mechanical Properties and Modified Johnson-Cook Model Considering Recrystallization Softening for Nickel-Based Powder Metallurgy Superalloys. Materials 2024, 17, 670. https://doi.org/10.3390/ma17030670

AMA Style

Ling C, Ren X, Wang X, Li Y, Liu Z, Wang B, Zhao J. Dynamic Mechanical Properties and Modified Johnson-Cook Model Considering Recrystallization Softening for Nickel-Based Powder Metallurgy Superalloys. Materials. 2024; 17(3):670. https://doi.org/10.3390/ma17030670

Chicago/Turabian Style

Ling, Chen, Xiaoping Ren, Xuepeng Wang, Yinghao Li, Zhanqiang Liu, Bing Wang, and Jinfu Zhao. 2024. "Dynamic Mechanical Properties and Modified Johnson-Cook Model Considering Recrystallization Softening for Nickel-Based Powder Metallurgy Superalloys" Materials 17, no. 3: 670. https://doi.org/10.3390/ma17030670

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
