Search Results (8)

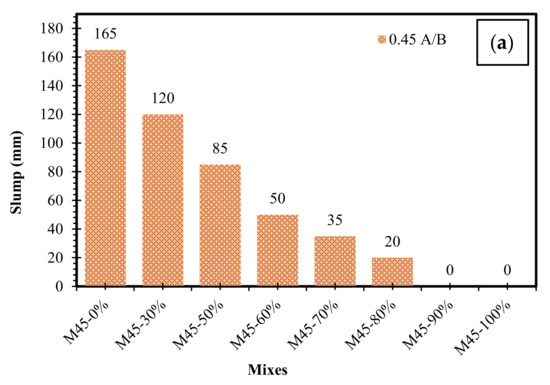

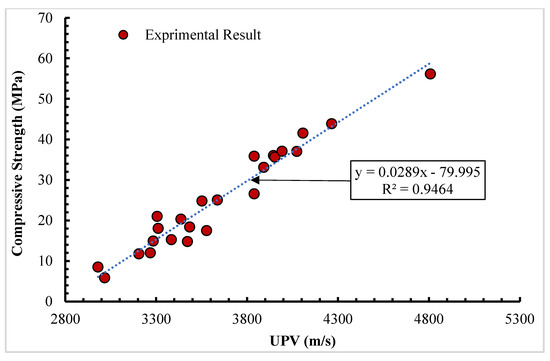

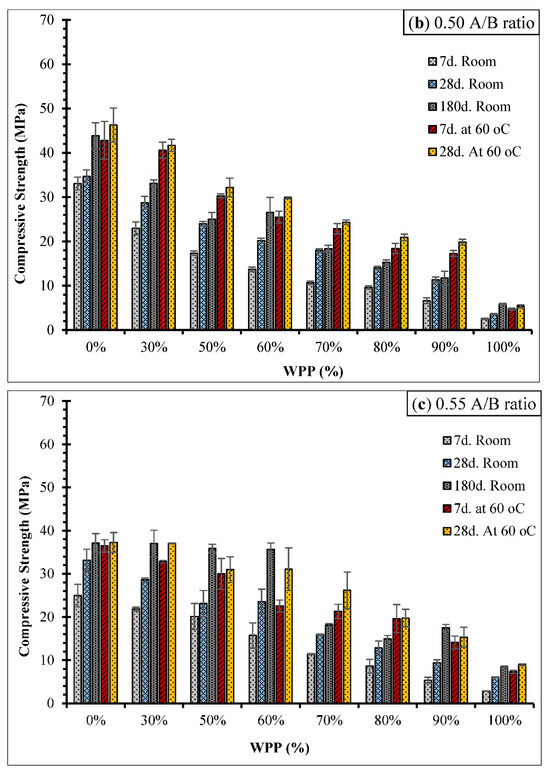

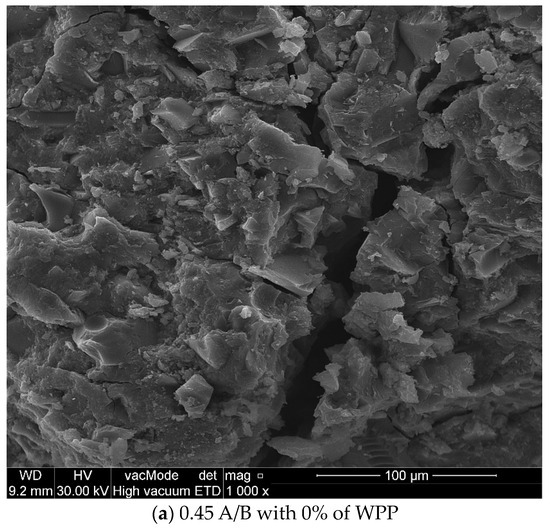

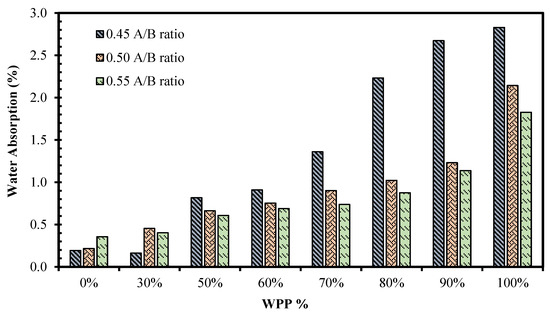

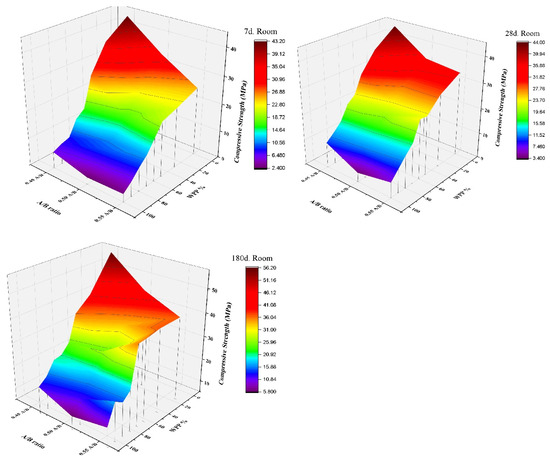

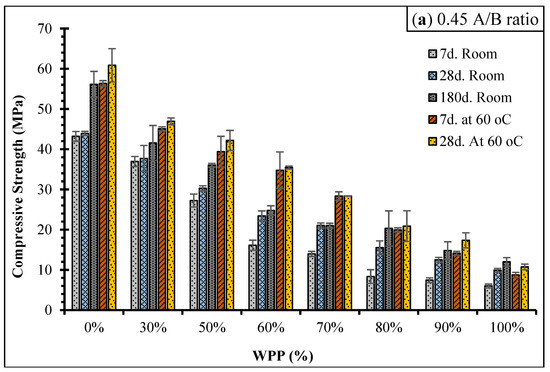

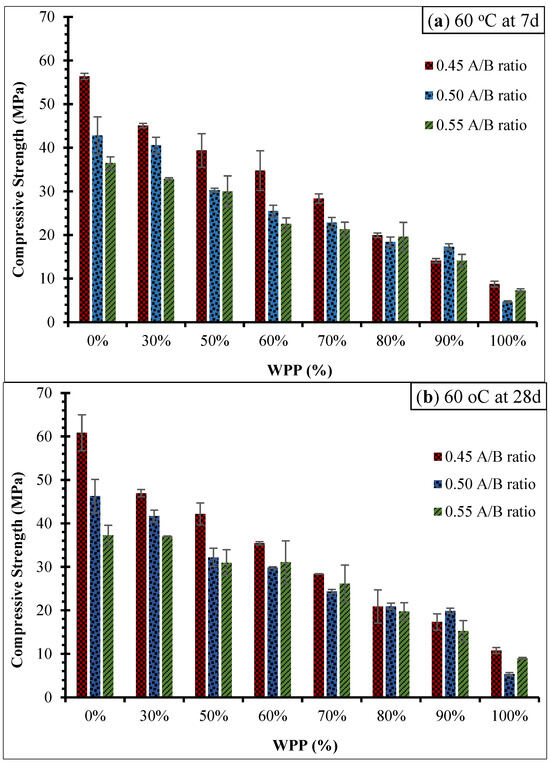

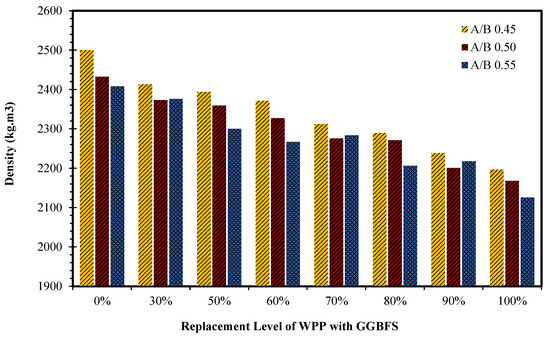

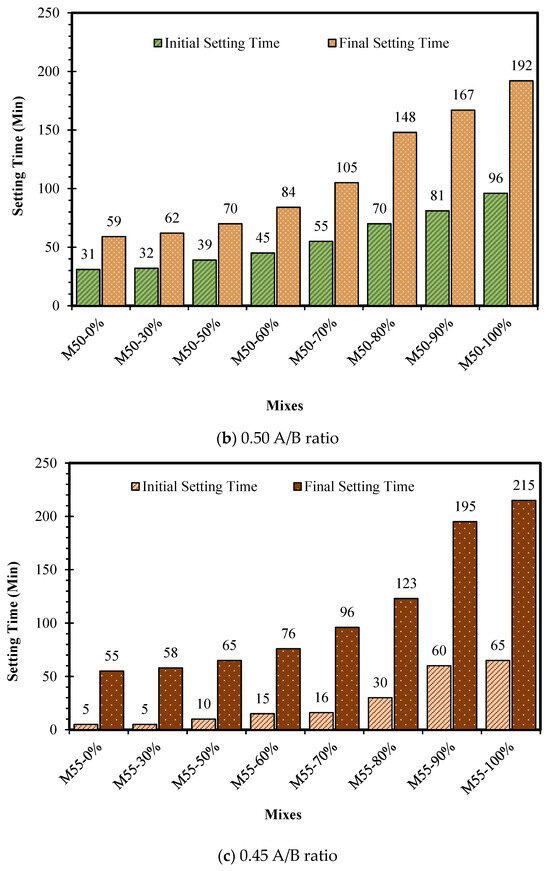

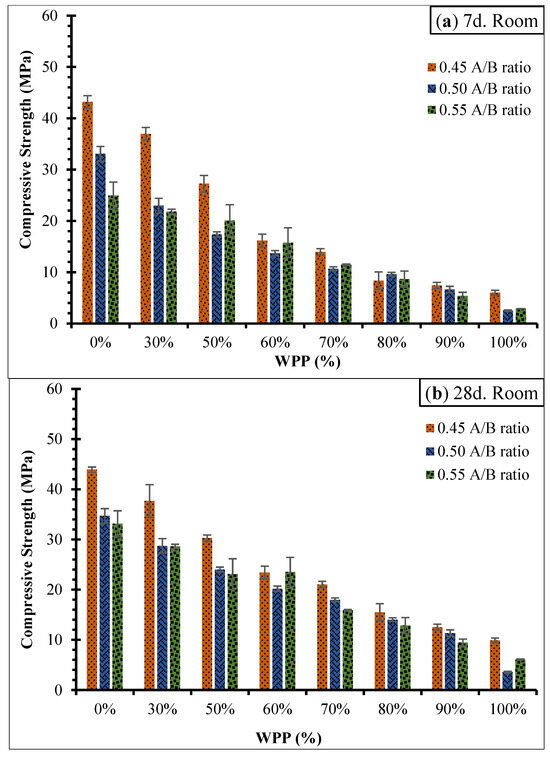

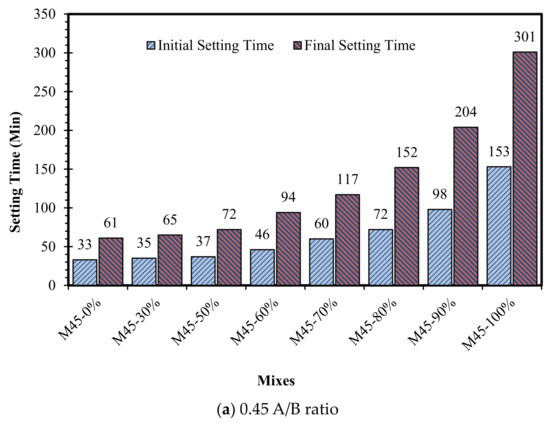

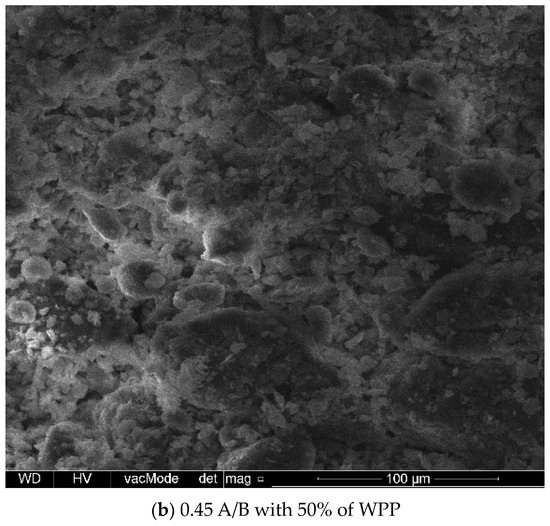

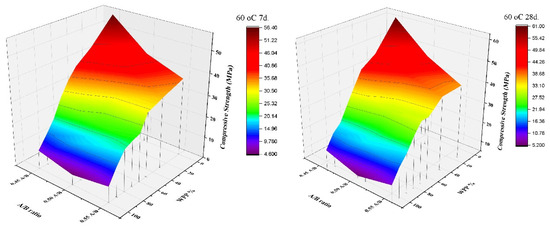

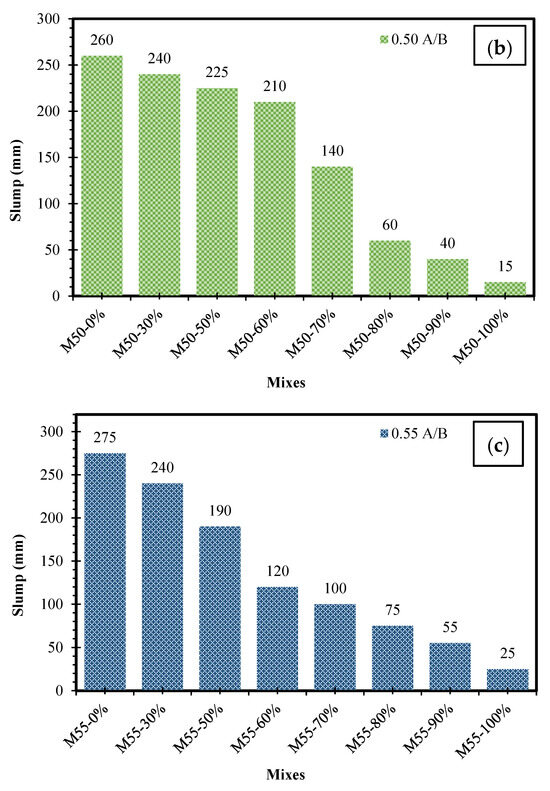

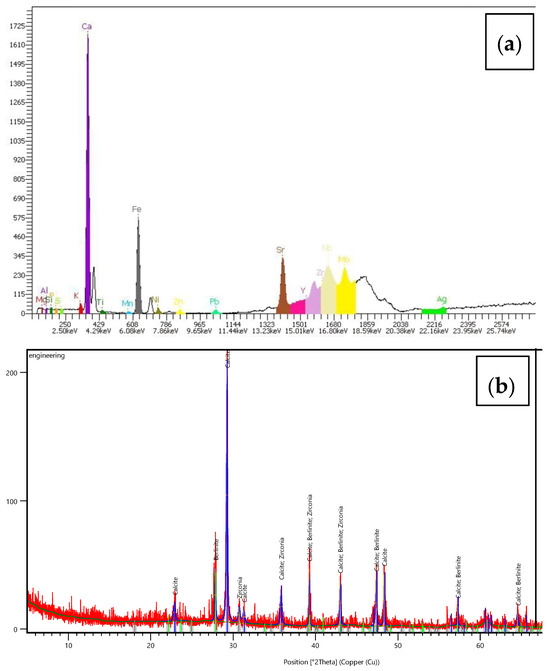

In societies worldwide, there is significant pressure on the construction industry to employ waste/recycled materials instead of natural-sourced materials to develop infrastructures to mitigate negative environmental consequences. This study investigated the feasibility of using waste pumice powder as a binder in place of granular blast-furnace slag to manufacture geopolymer concrete. Three sets of GC mixes were developed with three ratios of alkaline activator/binder (A/B) of 0.45, 0.5, and 0.55. Eight GC mixes were prepared for each set, with eight replacement ratios of GGBFS with WPP (0%, 30%, 50%, 60%, 70%, 80%, 90%, and 100%). The influence of WPP addition as a substitute source of aluminosilicate precursors on the fresh (workability and setting time), mechanical (compressive strength and flexural strength), physical characteristics (density and water absorption), and microstructure morphology of WPP/slag-based geopolymers were studied. A linear correlation between UPV and compressive strength was found. The results revealed that setting times and workability are affected by the A/B ratio and content of WPP. WPP reduces the workability and increases setting time (both initial and final). There was a drop in compressive and flexural strengths as the percentage of WPP in the GC increased. The maximum compressive (60 MPa) and flexural strength (4.96 MPa) at an A/B ratio of 0.45 for a 100% slag content mix were obtained. However, a GC mix containing 50% WPP and 50% slag with a compressive strength of 28 MPa after 28 days of curing at ambient temperature was achieved, which is acceptable for structural applications. Full article

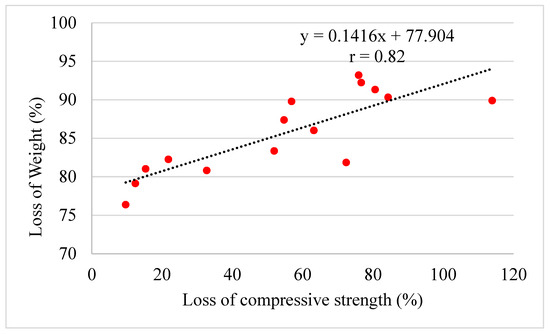

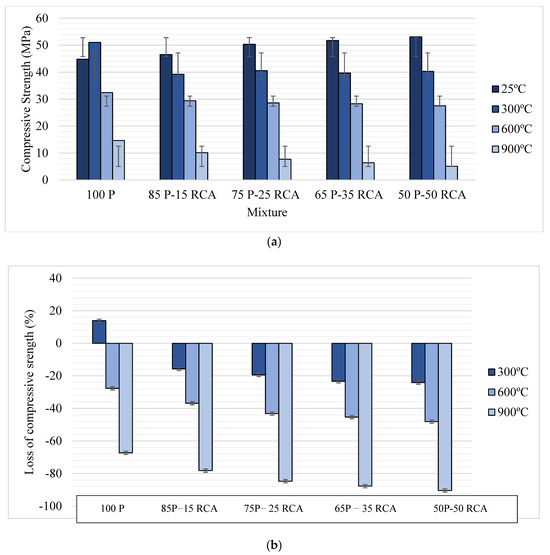

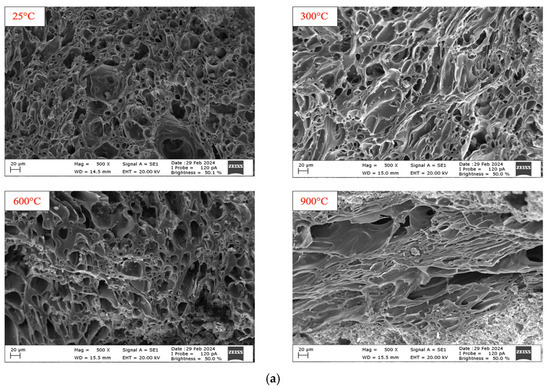

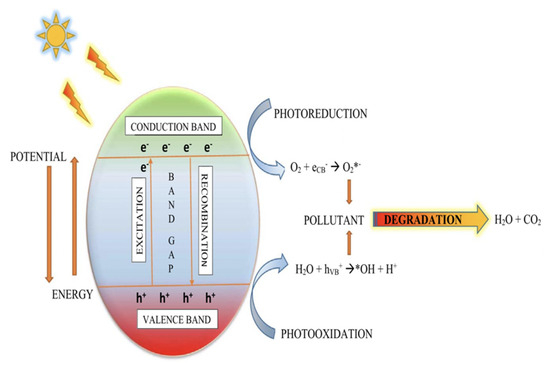

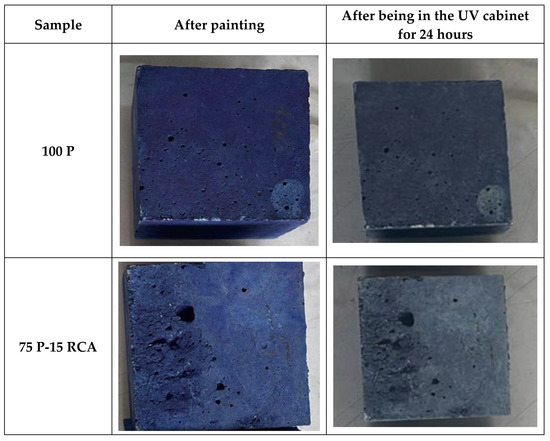

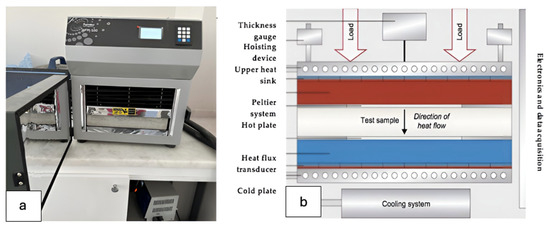

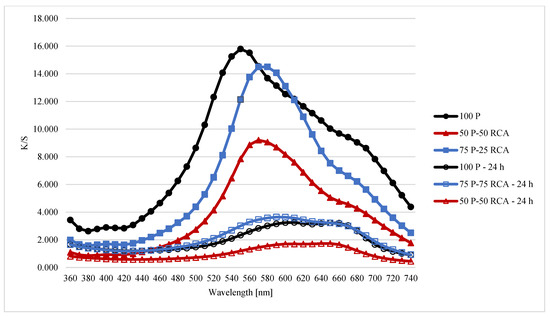

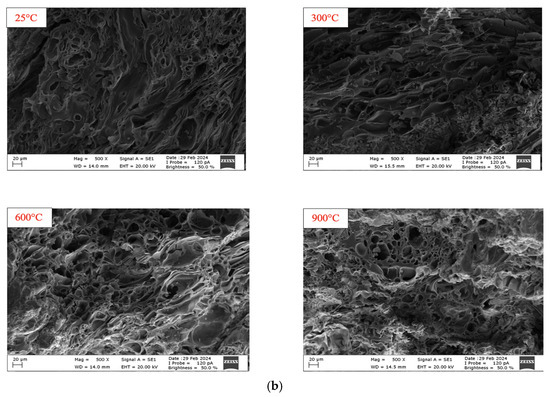

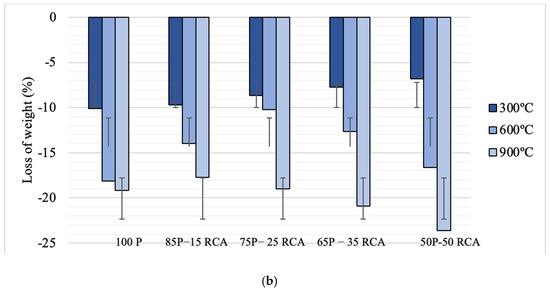

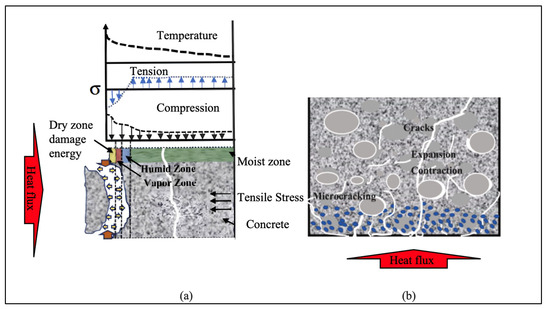

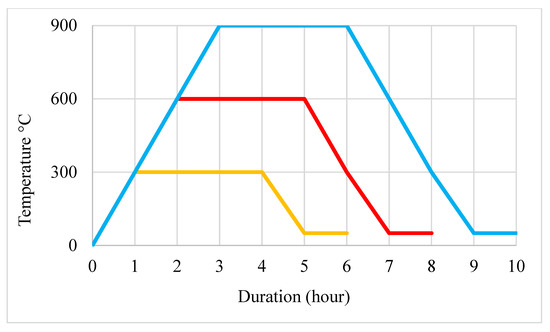

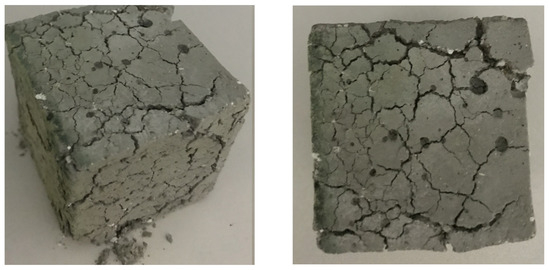

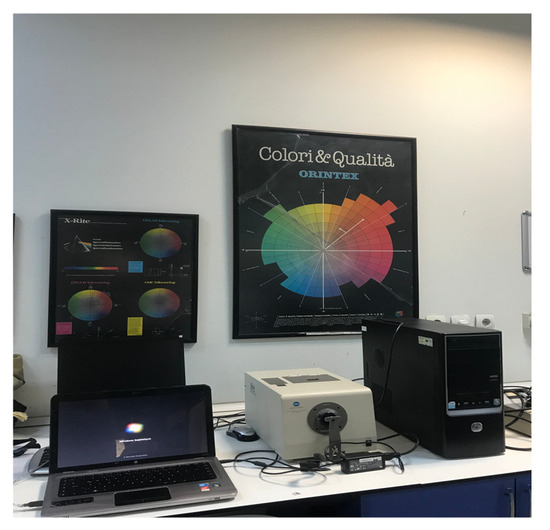

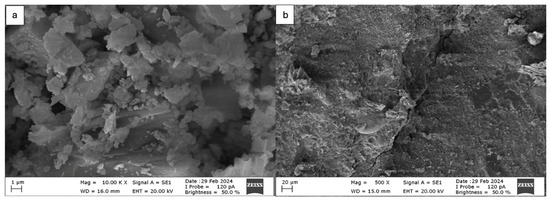

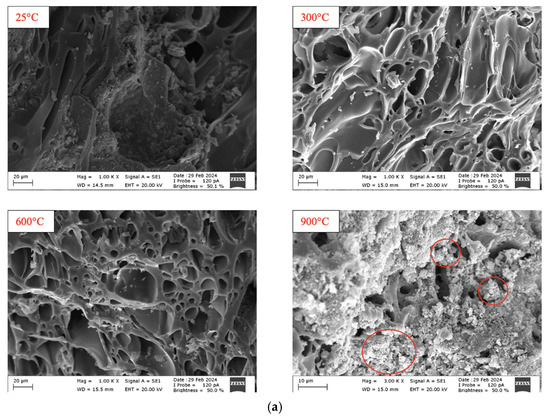

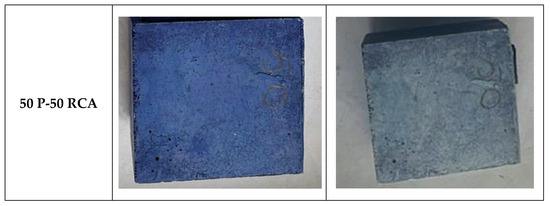

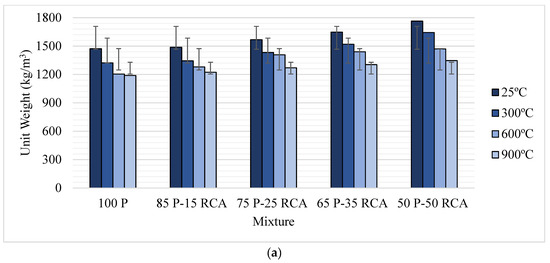

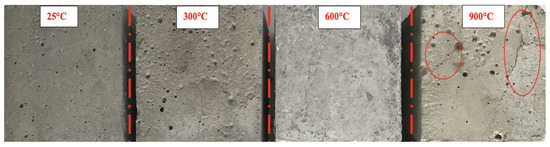

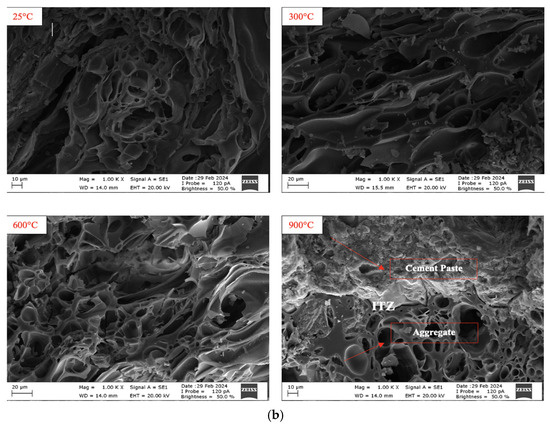

In today’s environment, where energy is desired to be used more efficiently, it has been understood that the interest in the use of lightweight concrete with superior performance in terms of thermal insulation properties has increased. On the other hand, it has been stated that construction waste increases rapidly, especially after severe earthquakes. In this context, encouraging the use of recycled concrete waste and efficient disposal of construction and demolition waste is of great importance for the European Green Deal. It is also known that pollutants such as CO_x and NO_x stick to facades over time, causing environmental pollution and visual deterioration. It has been reported that materials with photocatalytic properties are used in lightweight concrete facade elements to prevent such problems. This study examines the effect of using recycled concrete aggregates on the thermal properties of self-cleaning lightweight concrete mixtures (SCLWC). For this purpose, an SCLWC containing 1% TiO₂ and 100% pumice aggregate was prepared. By replacing pumice aggregate with recycled concrete aggregate at the rates of 15%, 25%, 35%, 45% and 50%, four different SCLWCs with self-cleaning properties were produced. High-temperature resistance, thermal conductivity performance, microstructure analysis and photocatalytic properties of the produced mixtures were examined. It has been understood that the unit volume weight loss of SCLWC mixtures exposed to high temperatures generally decreases due to the increase in the recycled concrete-aggregate substitution rate. However, it was determined that the loss of compressive strength increased with the increase in the amount of recycled concrete-aggregate replacement. Additionally, it was determined that the thermal-conductivity coefficient values of the mixtures decreased with the use of pumice. After SCLWC mixtures were exposed to 900 °C, small round-shaped crystals formed instead of C–S–H crystals. Full article

The present investigation studies the use of three natural precursors of volcanic origin (pozzolana, ignimbrite and pumice) in the synthesis of low-cost and environmentally friendly zeolites. The developed zeolites were evaluated as sustainable catalysts for the catalytic pyrolysis process in the chemical recycling of polypropylene. A zeolite was synthesized from each precursor. The hydrothermal treatment was performed with NaOH (3M) at 160 °C for 72 h and NH₄Cl (1M) was added to convert it into proton form. The synthesized zeolites were characterized by FTIR, XRD, SEM and BET. The evaluation of the catalytic ability of the obtained zeolites was carried out with polypropylene mixed with a 4, 6 and 8 wt.% catalyst in a ceramic crucible. Pyrolysis was always carried out at 450 °C and for 30 min in a tubular furnace with a continuous flow rate of 250 L·min⁻¹ of gaseous nitrogen. The gases generated were captured in the cooling system. The characterized zeolites show a resemblance to the ZSM-5 commercial zeolite, especially for the ignimbrite and pozzolan zeolites. Likewise, in pyrolysis, liquid products, gases and waxes were obtained. As the amount of catalyst was increased (from 4 to 8%), the yield of the desired liquid–gas products was also increased. The synthesized zeolites showed similar pyrolytic characteristics to ZSM-5, although they did not reach the same pyrolytic efficiency. Zeolites improved the pyrolysis products, especially at 8 wt.%, when compared to thermal pyrolysis. This study highlights the potential of the developed zeolite catalysts to efficiently convert PP into valuable light olefins, advancing sustainable polyolefin recycling technologies. Full article

The integration of waste materials in extrudable cement mixtures has the potential to make the construction industry more sustainable by reducing carbon footprints and developing eco-friendly materials. This along with advancements in 3D concrete printing (3DCP) provides engineering and architectural benefits by reducing material waste and costs. In this paper, the impact of waste incorporation on properties of mortar and concrete is examined. The use of waste materials, such as pumice, coal slag, agricultural lignocellulosic residues, and recycled rubber tyres, to improve thermal insulation and durability of cementitious composites is discussed. In addition, the incorporation of air-entraining admixtures with surfactant activity is explored for their indirect effect on thermal behaviour, pore size reduction, and enhancement in concrete properties. This review includes important topics such as a strength resistance to freezing and thawing, fire resistance, plasticising effect, and delay in cement hydration. These findings highlight the benefits of using diverse waste materials in construction, providing a multidimensional approach to waste management, cost optimization, and enhanced construction materials in the context of 3DCP. Full article

With the increasing severity of global climate change and environmental degradation, countries have put forward strategies to reduce carbon emissions and promote sustainable development. The construction industry is a major source of carbon emissions, and as such, the development of green concrete is now critically important to the industry’s growth. Traditional concrete production methods use a lot of resources and produce a lot of carbon emissions. The study examines the use of recycled pumice and sodium dodecyl benzene sulfonate to modify waste rubber powder, which is then externally mixed into recycled coarse aggregate concrete. The study analyzes the impact of these modifiers on the rubber powder particles, as well as the effects of particle size and mixing amount on the resulting concrete. The investigation proved that the rubber recycled coarse aggregate concrete’s performance was enhanced by the modifier. This improvement addressed the issue of low compressive strength in rubber concrete to some extent and also had a positive impact on its resistance to freeze-thaw cycles. The experiment concluded that the best results were achieved by selecting rubber powder particles of Sipan 40 with a mesh size of 80 mesh and an external admixture of 6%. This type of green concrete can solve the problem of construction waste disposal while also enhancing the performance and durability of the concrete. It has a promising future application prospect. Full article

The ornamental nursery industry is steadily growing in Europe, and a consequent increase in the demand for substrates related to container plant cultivations is expected in the coming years. Currently, substrates consist in part or entirely of peat, a non-renewable resource with concerns about its environmental impact due to extraction, transport, and use. Therefore, it is essential to focus on alternative materials, particularly waste by-products to be recycled as components of substrates to achieve more sustainable cultivations. In this study, substrates obtained by mixing co-composted dredged sediments (S) and green waste (GW) in different ratios (1:3; 1:1; 3:1) were tested for cultivation, and plant growth was compared with a control growing media (peat and pumice in a 1:1 ratio). The cultivation trial lasted for one year and was carried out on two potted ornamental evergreen shrubs (Photinia × fraseri and Viburnum tinus). The results showed that the plant growth parameters of both species, occurring in substrates with co-composted materials, were not significantly affected compared to the control, with the exception of below-ground biomass in V. tinus. Moreover, a Life Cycle Assessment (LCA) analysis was carried out to quantify the greenhouse gas emissions (GHG) deriving from the replacement of peat with the other proposed substrates. The functional unit was 10 L (Ø 24 cm) potted plants and the results were expressed in kg of CO₂ equivalent (kg CO₂eq). We demonstrated that the replacement of peat-based substrates with the alternative substrates was able to reduce the GHG emission by an average of 11.56 to 23.13%. Higher GHG emissions were related to the cultivation phase (0.9 kg CO₂eq/plant), and while comparing substrates, we obtained an average percentage reduction of 28.1% to 59.6%. Thus, our results suggest that co-composted mixtures of dredged sediments with green waste could be used as sustainable techno-soils for pot nursery cultivation of ornamental species with reduced environmental impact. Full article

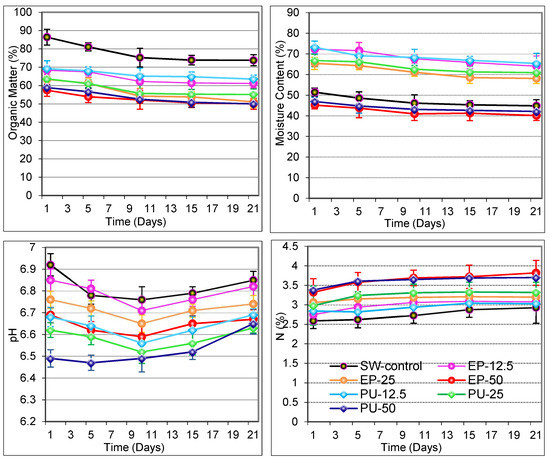

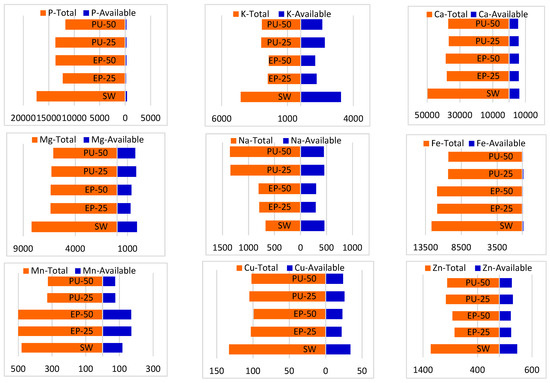

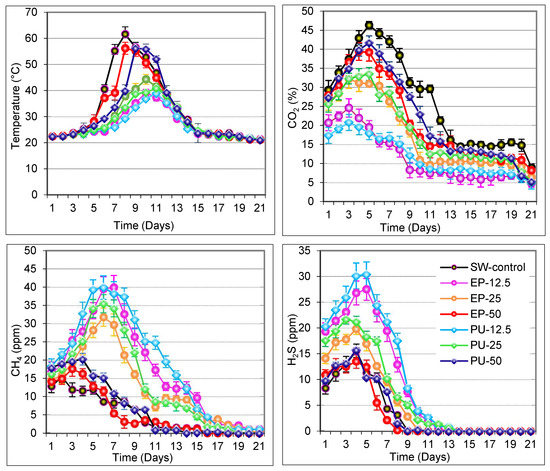

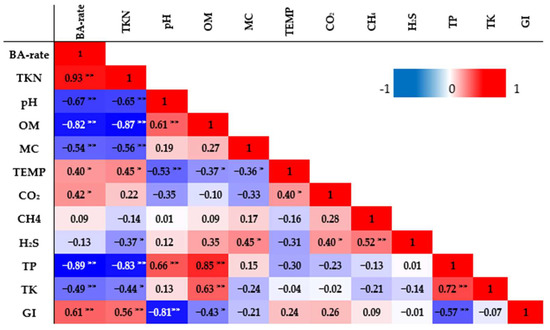

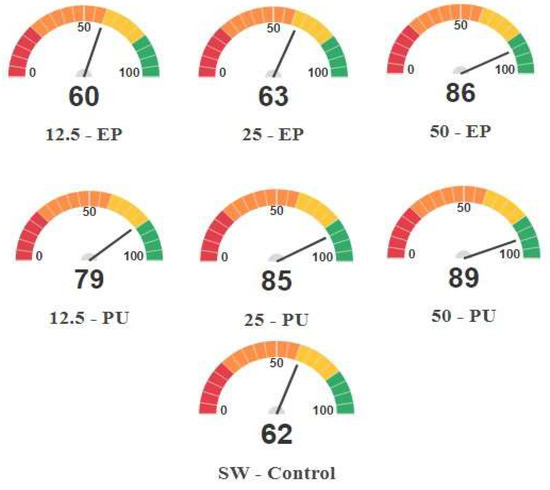

Using waste products is a promising and sustainable alternative to conventional non-renewable peat and nutrient-rich renewable materials. Their products are gaining importance for closing the loop in the ornamental plant industry. Porous inorganic materials have recently become potential bulking agents (BA) for sewage sludge (SS) owing to their high porosity, surface area, passivation capacity, high recycling potential, and potting soil components. The main purpose of the present work was to investigate the feasibility of pumice (PU) and expanded perlite (EP) on composting parameters, nutrient bioavailability and suitability of SS to serve as an ornamental substrate. The addition of PU and EP at 50% (v/v) resulted in higher porosity, optimal initial moisture content, higher temperature rise (56.24 ± 0.13 °C, 56.21 ± 0.11 °C, respectively), and higher CO₂ evolution (39.41 ± 0.17%, 41.70 ± 0.22% daily peaks). Composting with inorganic BA at EP-50 and PU-50 mixtures was beneficial owing to high nitrogen content (3.82 and 3.70%, respectively) and readily bioavailable nutrients (270 mg kg⁻¹ phosphates and 1835 mg kg⁻¹ potassium). The use of PU and EP was found helpful in improving the slow-release nutrient properties of the compost. The overall results indicated that composting SS with PU and EP is a viable approach to achieve good composting properties and a good nutrient-providing profile if the compost is used as a component for potting soil components or garden soil amendments. Full article

The agricultural sector faces looming challenges including dwindling fertiliser reserves, environmental impacts of conventional soil inputs, and increasingly difficult growing conditions wrought by climate change. Naturally-occurring rocks and minerals may help address these challenges. In this case, we explore opportunities through which the geosphere could support viable agricultural systems, primarily via a literature review supplemented by data analysis and preliminary-scale experimentation. Our objective is to focus on opportunities specifically relating to emerging agricultural challenges. Our findings reveal that a spectrum of common geological materials can assist across four key agricultural challenges: 1. Providing environmentally-sustainable fertiliser deposits especially for the two key elements in food production, nitrogen (via use of slow release N-rich clays), and phosphorus (via recovery of the biomineral struvite) as well as through development of formulations to tap into mineral nutrient reserves underlying croplands. 2. Reducing contamination from farms—using clays, zeolites, and hydroxides to intercept, and potentially recycle nutrients discharged from paddocks. 3. Embedding drought resilience into agricultural landscapes by increasing soil moisture retention (using high surface area minerals including zeolite and smectite), boosting plant availability of drought protective elements (using basalts, smectites, and zeolites), and decreasing soil surface temperature (using reflective smectites, zeolites, and pumices), and 4. mitigating emissions of all three major greenhouse gases—carbon dioxide (using fast-weathering basalts), methane (using iron oxides), and nitrous oxide (using nitrogen-sorbing clays). Drawbacks of increased geological inputs into agricultural systems include an increased mining footprint, potential increased loads of suspended sediments in high-rainfall catchments, changes to geo-ecological balances, and possible harmful health effects to practitioners extracting and land-applying the geological materials. Our review highlights potential for ‘geo-agriculture’ approaches to not only help meet several key emerging challenges that threaten sustainable food and fiber production, but also to contribute to achieving some of the United Nations Sustainable Development Goals—‘Zero Hunger,’ ‘Life on Land,’ and ‘Climate Action.’ Full article
