Search Results (14)

High-quality powders with spherical particles and controllable properties can be produced using centrifugal force. This review provides a comparative analysis of two centrifugal atomization techniques: the plasma rotating electrode process (PREP) and centrifugal atomization (CA). It systematically examines the fundamental principles, film disintegration modes, and the resultant powder characteristics, with a focus on mechanisms that lead to common defects. By evaluating current technological limitations and highlighting potential pathways for advancement, this review aims to offer valuable insights for the future development of high-quality, spherical metal powders for advanced manufacturing applications. Full article

In this study, various characterization techniques were utilized to investigate the effects of heat treatments on the microstructure and mechanical properties of Ti-48Al-3Nb-1.5Ta (at. %) alloy prepared by the supreme-speed plasma rotating electrode process and hot isostatic pressing. By comparing the microstructures of the alloy under different heat treatments conditions, it was found that the nearly lamellar structure with a size of about 145 μm is formed by a simple heat treatment (1400 °C/10 min, FC to 1300 °C, AC, 850 °C/3 h/FC). Under this heat treatment condition, the alloy exhibited satisfied mechanical properties, with a tensile fracture strain of 1.2% at room temperature and a tensile fracture strain of 7.5% at 750 °C. No fracture occurred after 225 h when creeping at 750 °C/250 MPa. Ta inhibited the growth of lamellae and the expansion of pores, thereby improving creep performance. In summary, the TiAl alloy with satisfied performance was obtained through a simple heat treatment process, which provides a significant idea for engineering application. Full article

The Nb-16Si-24Ti-2Al-2Cr alloy was prepared by plasma rotating electrode process (PREP) technology and the hot-pressing (HP) method, and the effects of sintering temperature on the microstructure, mechanical properties and fracture behavior were investigated. The HP alloys sintered at temperatures below 1400 °C are composed of Nbss (Nb solid solution), Nb₃Si and Nb₅Si₃ phases. When the sintering temperature reaches 1450 °C, the Nb₃Si phase is completely decomposed into Nbss and Nb₅Si₃ phases. Meanwhile, the microstructure coarsens significantly. Compared with the cast alloy, the HP alloy shows better mechanical properties. The fracture toughness of the alloy sintered at 1400 °C reaches 20.2 MPa·m^1/2, which exceeds the application threshold. The main reason for the highest fracture toughness is attributed to the decomposition of large-sized brittle Nb₃Si phase and the formation of a fine microstructure, which greatly increases the number of phase interfaces and improves the chance of crack deflection. In addition, the reduction in the size and content of silicides also reduces their plastic constraints on the ductile Nbss phase. Full article

TiAl pre-alloyed powder is the foundation for additive manufacturing of TiAl alloys. In this work, TiAl pre-alloyed powder was prepared using a plasma rotating electrode process (PREP). The effects of electrode rotating speeds and current intensity on the microstructure and characteristics of TiAl pre-alloyed powder have been investigated in detail. The results show that the electrode rotating speeds mainly affected the average particle size of the powder (D50). As the electrode rotating speed increased, the D50 of the powder decreased. The current intensity mainly affected the particle size distribution of the powder. As the current intensity increased, the particle size distribution of the powder became narrower, which was concentrated at 45~105 μm. In addition, the current intensity had a significant effect on the sphericity degree of the powder with the particle size > 105 μm, but it had little effect on that <105 μm powder. TiAl pre-alloyed powder with a particle size > 45 μm demonstrated a dendritic + cellular structure, and the <45 μm powder had a microcrystalline structure. The powder was mainly composed of the α₂ phase and γ phase. There were two kinds of phase structure inside the powder, namely the α₂ + γ lamellar microstructure (particle size < 45 µm) and the α₂ + γ network microstructure (particle size > 45 µm). The phase structure of the powder was related to the solidification path and cooling rate of molten droplets in the PREP. The average thickness of the α₂ + γ lamellar was about 200 nm, in which the lamellar γ phases were arranged in an orderly manner in the α₂ phase matrix with a thickness of about 20 nm. The network phase structure was corrugated, and the morphology of the γ phase was not obvious. Full article

The plasma rotating electrode process (PREP) is an ideal method for the preparation of metal powders such as nickel-based, titanium-based, and iron-based alloys due to its low material loss and good degree of sphericity. However, the preparation of silver alloy powder by PREP remains challenging. The low hardness of the mould casting silver alloy leads to the bending of the electrode rod when subjected to high-speed rotation during PREP. The mould casting silver electrode rod can only be used in low-speed rotation, which has a negative effect on particle refinement. This study employed continuous casting (CC) to improve the surface hardness of S800 Ag (30.30% higher than mould casting), which enables a high rotation speed of up to 37,000 revolutions per minute, and silver alloy powder with an average sphericity of 0.98 (5.56% higher than gas atomisation) and a sphericity ratio of 97.67% (36.28% higher than gas atomisation) has been successfully prepared. The dense S800 Ag was successfully fabricated by laser powder bed fusion (LPBF), which proved the feasibility of preparing high-quality powder by the “CC + PREP” method. The samples fabricated by LPBF have a Vickers hardness of up to 271.20 HV (3.66 times that of mould casting), leading to a notable enhancement in the strength of S800 Ag. In comparison to GA, the S800 Ag powder prepared by “CC + PREP” exhibits greater sphericity, a higher sphericity ratio and less satellite powder, which lays the foundation for dense LPBF S800 Ag fabrication. Full article

In this study, Ti-48Al-3Nb-1.5Ta powders were manufactured from cast bars by the supreme-speed plasma rotating electrode process (SS-PREP) and used to prepare hot isostatically pressed (HIPed) material at 1050–1260 °C with 150 MPa for 4 h. The phase, microstructure and mechanical performance were analyzed by XRD, SEM, electrical universal material testing machine and other methods. The results revealed that the phase constitution changed from γ phase to α₂ phase and then to γ phase with the material changing from as-cast to powders and then to as-HIPed. Compared with the as-cast material, the grain size and element segregation were significantly reduced for both powders and as-HIPed. When the hot isostatic pressing (HIP) temperature was low, the genetic characteristics of the powder microstructure were evident. With the HIP temperature increasing, the homogeneity of the composition and microstructure increased, and the prior particle boundaries (PPBs) gradually disappeared. The elastic moduli of powder and as-HIPed were superior to those of as-cast, which increased with the HIP temperature increasing. The hardness of as-HIPed was lower than that of the powder. The compressive strength, compressive strain, bending strength, and tensile strength of as-HIPed were higher than those of as-cast. With an increase in the HIP temperature, the compressive strength decreased gradually, and the compressive strain first decreased and then increased. Full article

High-activity spherical TaNbTiZr refractory high-entropy alloy (REHA) powders were successfully prepared by electrode induction melting gas atomization (EIGA) and plasma rotating electrode process (PREP) methods. Both the EIGAed and PREPed TaNbTiZr RHEA powders have a single-phase body-centered cubic (BCC) structure and low oxygen content. Compared with the EIGAed powders, the PREPed powders exhibit higher sphericity and smoother surface, but larger particle size. The average particle sizes of the EIGAed and PREPed powders are 51.8 and 65.9 μm, respectively. In addition, both the coarse EIGAed and PREPed powders have dendritic structure, and the dendrite size of the EIGAed powders is larger than that of the PREPed powders. Theoretical calculation indicates that the cooling rate of the PREPed powders is one order of magnitude higher than that of the EIGAed powders during the solidification process, and the dendritic structure has more time to grow during EIGA, which is the main reason for the coarser dendrite size of the EIGAed powders. Full article

Ultrasonic-magnetic field coaxial hybrid GTAW(U-M-GTAW) is a new non-melting electrode welding method proposed by combining ultrasonic assisted GTAW(U-GTAW) and magnetic assisted GTAW(M-GTAW) on the regulation characteristics of the GTAW arc. U-M-GTAW introduces ultrasonic and magnetic field effects into GTAW to improve arc characteristics. The orthogonal experiment was designed to investigate the degree of influence of different process parameters on the arc. The degree of influence of ultrasonic power P, radiator height H, magnetic field current C_W, welding current C_W and tungsten electrode height H_T on ΔL₁ (degree of arc root diameter change), ΔL₂ (degree of maximum diameter change) and ΔS (degree of area change) were analyzed. In the parameter range, P has the greatest degree of influence on ΔL₁ and ΔL₂. As all process parameters increase, L₁ shows a tendency to decrease, indicating an increase in the compression of the arc root. ΔL₂ with the increase in P and C_W shows a trend of first decreasing and then increasing. ΔL₂ with the increase in H decreases, indicating that the acoustic radiation force increases, the arc energy increases, and the dark region decreases. The magnetic field current increases, the bottom of the arc expands, and the height of the tungsten electrode increases, the arc dispersion and thus the difference between the dark and luminous regions at the bottom increases, resulting in ΔL₂ with the increase in C_M and H_T increases. C_W has the greatest degree of influence on ΔS. ΔS decreases and then increases as P and H increase, which indicates that the force on acoustic radiation increases and then decreases in the range. An increase in the magnetic field current increases the rotation of the arc, leading to an increase in the arc area. An increase in welding current leads to an increase in arc energy, expansion of the arc morphology, and an increase in ΔS. The tungsten electrode height increases, the arc diverges, the dark region increases, the luminous area decreases, and ΔS increases. Finally, combined with the analysis of ultrasonic field and magnetic field theory, changes in process parameters will affect the force of the arc and thus the arc morphology. The U-M-GTAW arc under the action of acoustic radiation force, the plasma flow is shifted in the direction of the arc axis, and the arc contraction, under the action of magnetic field force to generate circumferential current, the arc undergoes periodic rotation, which improves GTAW arc characteristics. Full article

A plasma jet-triggered gas switch (PJT-GS) has been developed as an important piece of equipment to operate in an $\pm$800 kV ultra-high voltage direct current transmission system (UHV DC) to achieve grid system protection and control. The crucial factors that would affect its operational performance, such as the current level the PJT-GS could withstand and the gas gap distance between the two rotating electrodes, are comparatively studied in the present work by analysing the arc dynamic characteristics. The rotating electrode used in the PJT-GS is designed with a helical-slotted structure, and the arc can be rotated circularly driven by the produced transverse magnetic field (TMF) along the electrode edge. The objective of such research is to provide a thorough study of the arc dynamic behaviour during the current flowing process of the PJT-GS and also to characterise the physical mechanism that affects the arc rotation and the PJT-GS operation performance. The magnetohydrodynamic-based (MHD) approach is applied by establishing a 3D arc model. Following such a study, the variation of arc characteristics under different operation conditions could be thoroughly determined and it also could provide the guidance for the PJT-GS optimum design reasonably to support its corresponding engineering applications. Full article

A Chinese superalloy, GH4099 (~20 vol.% γ′ phase), which can operate for long periods of time at temperatures of 1173–1273 K, was fabricated by electron beam melting (EBM). Argon gas atomized (GA) and plasma rotation electrode process (PREP) powders with similar composition and size distribution were used as raw materials for comparison. The microstructure and mechanical properties of both the as-EBMed and post-treated alloy samples were investigated. The results show that the different powder characteristics result in different build temperatures for GA and PREP samples, which are 1253 K and 1373 K, respectively. By increasing the building temperature, the EBM processing window shifts towards a higher scanning speed direction. Microstructure analysis reveals that both as-EBM samples show a similar grain width (measured to be ~200 μm), while the size of γ′ precipitated in the PREP sample (~90 nm) is larger than that of the GA sample (~130 nm) due to the higher build temperature. Fine spherical γ′ phase precipitates uniformly after heat treatment (HT). Furthermore, intergranular cracking was observed for the as-fabricated PREP sample as a result of local enrichment of Si at grain boundaries. The cracks were completely eliminated by hot isostatic pressing (HIP) and did not re-open during subsequent heat treatment (HT) of solution treatment and aging. The tensile strength of the PREP sample after HIP and HT is ~920 MPa in the building direction and ~850 MPa in the horizontal direction, comparable with that of the wrought alloy. Full article

In this study, Ag-Mn_xO_y/C composite catalysts deposited on reduced graphene oxide (rGO) and, for the first time on N-doped graphene oxide (NGO), were prepared via a facile synthesis method. The influence of the carbon support material on the activity and stability of the oxygen reduction reaction (ORR) and on the tolerance to ethanol in alkaline medium was focused and investigated. The physicochemical properties of the Ag-Mn_xO_y/C catalysts were analyzed by X-ray diffraction (XRD), scanning electron microscopy with energy dispersive X-ray spectroscopy (SEM-EDS), Brunauer–Emmett–Teller (BET) method, atomic absorption spectroscopy (AAS), inductively coupled plasma-mass spectrometry (ICP-MS), and thermogravimetric gas analysis (TGA). Electrochemical characterization was performed by rotating disk electrode (RDE) experiments. The results show that the active manganese species MnO₂ was assembled as nanorods and nanospheres on rGO and NGO, respectively. Ag was assumed to be present as very small or amorphous particles. Similar redox processes for Ag-Mn_xO_y/rGO and Ag-Mn_xO_y/NGO were examined via cyclic voltammetry. The Ag-Mn_xO_y/rGO resulted in a more negative diffusion limiting current density of −3.01 mA cm⁻² compared to Ag-Mn_xO_y/NGO. The onset potential of approximately 0.9 V vs. RHE and the favored 4-electron transfer pathway were independent of the support material. Ag-Mn_xO_y/NGO exhibited a higher ORR stability, whereas Ag-Mn_xO_y/rGO showed a better ethanol tolerance. Full article

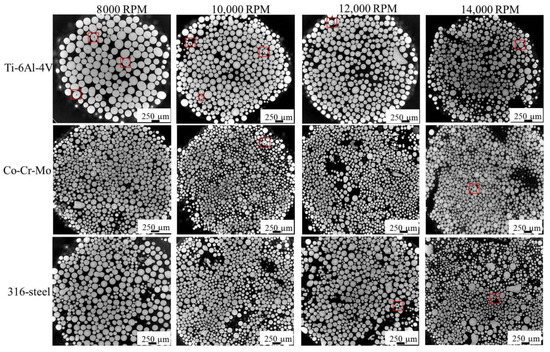

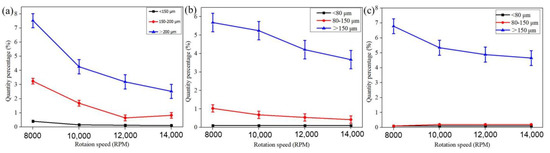

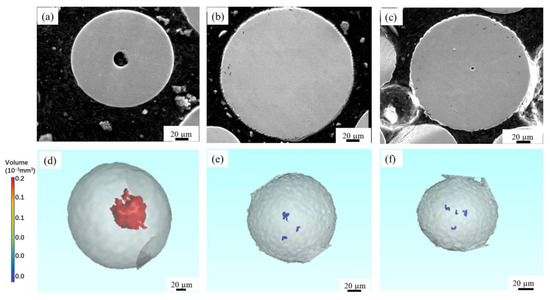

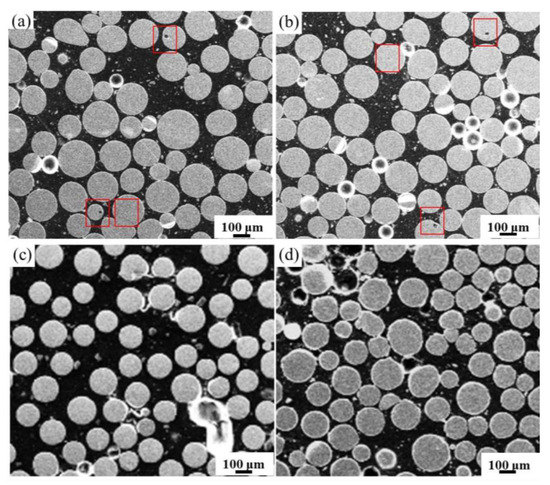

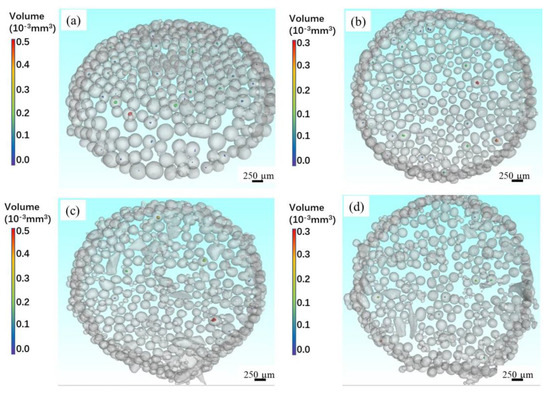

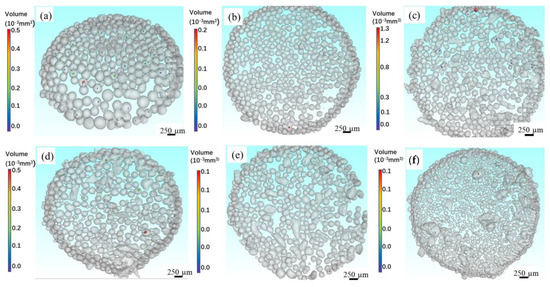

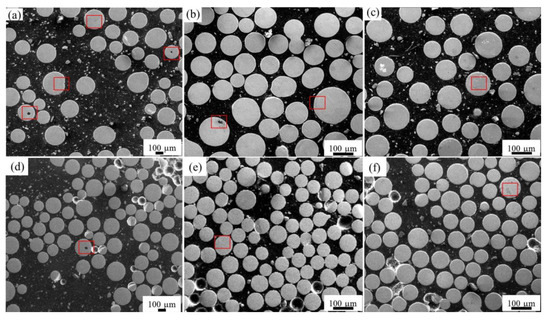

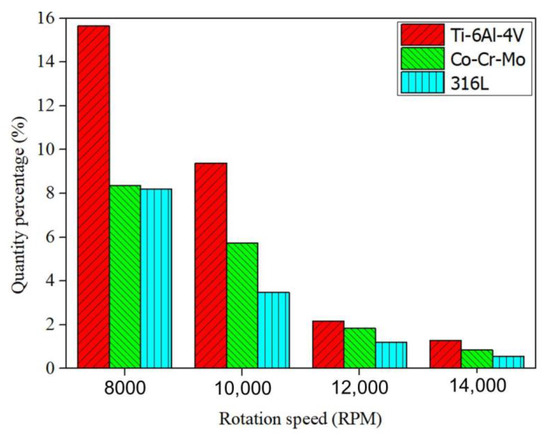

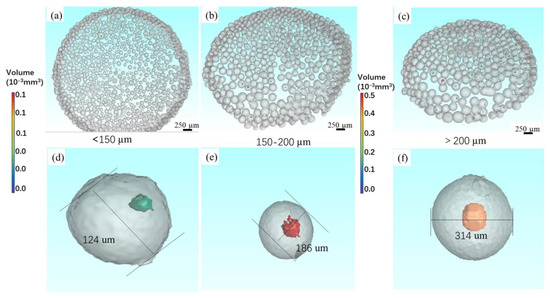

In this study, the distribution, proportion and characteristics of internal defects in three kinds of powders of Ti-6Al-4V, 316-steel and Co-29Cr-6Mo alloys, produced by the plasma rotating electrode process (PREP) at various rotation speeds, are characterized by using both scanning electron microscopy (SEM) and synchrotron X-ray computed tomography (CT). The results show that in the powder of a given alloy, internal pores are formed more easily in coarse particles than in fine powder during PREP. The proportion of powder with pores can be reduced by appropriately increasing the rotation speed. In addition, the composition of an alloy has a great influence on the defect formation. Full article

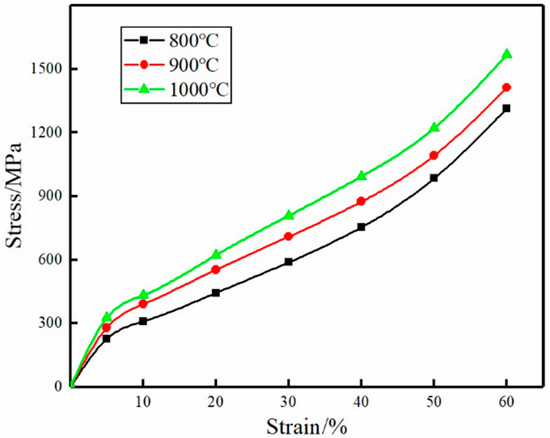

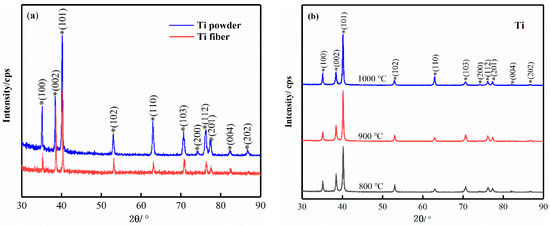

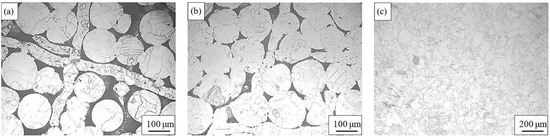

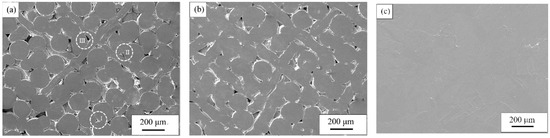

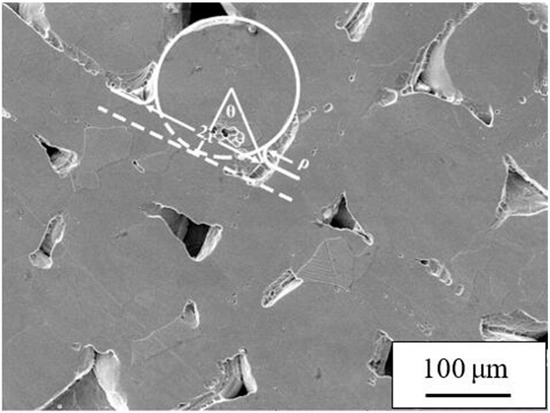

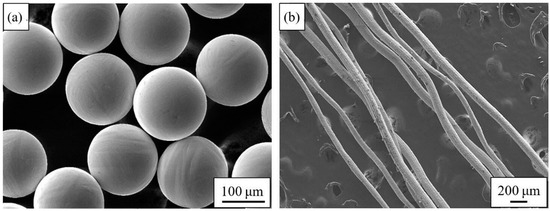

Porous titanium is a functional structural material with certain porosity, which is prepared from titanium powder and titanium fiber. In order to study the porosity, phase structure, microstructure, sintering mechanism and mechanical properties of porous titanium obtained by spark plasma sintering of a Ti powder–fiber mixture at different sintering temperatures, a spherical titanium powder (D₅₀ of 160 μm) was prepared via plasma rotating electrode processing, and titanium fiber (average wire diameter of fiber of 110 μm) was prepared by drawing, and they were mixed as raw materials according to different mass ratios. Porous titanium with a fiber–powder composite porous structure was prepared by spark plasma sintering at sintering temperatures of 800 °C, 900 °C and 1000 °C under a sintering pressure of 20 MPa. The results showed that there were no new phases occurring in porous titanium with porosity of 1.24–24.6% after sintering. Titanium fiber and titanium powder were sintered using powder/powder, powder/fiber and fiber/fiber regimes to form composite pore structures. The mass transfer mechanism of the sintered neck was a diffusion-dominated material migration mechanism during sintering. At higher sintering temperatures, the grain size was larger, and the fiber (800 °C; 10–20 μm) was finer than the powder (800 °C; 10–92 μm). The stress–strain curve of porous titanium showed no obvious yield point, and the compressive strength was higher at higher sintering temperatures. The results of this paper can provide data reference for the preparation of porous titanium obtained by spark plasma sintering of a Ti powder–fiber mixture. Full article

Stability of cathode catalyst support material is one of the big challenges of polymer electrolyte membrane fuel cells (PEMFC) for long term applications. Traditional carbon black (CB) supports are not stable enough to prevent oxidation to CO₂ under fuel cell operating conditions. The feasibility of a graphitized carbon (GC) as a cathode catalyst support for low temperature PEMFC is investigated herein. GC and CB supported Pt electrocatalysts were prepared via an already developed polyol process. The physical characterization of the prepared catalysts was performed using transmission electron microscope (TEM), X-ray Powder Diffraction (XRD) and inductively coupled plasma optical emission spectrometry (ICP-OES) analysis, and their electrochemical characterizations were conducted via cyclic voltammetry(CV), rotating disk electrode (RDE) and potential cycling, and eventually, the catalysts were processed using membrane electrode assemblies (MEA) for single cell performance tests. Electrochemical impedance spectroscopy (EIS) and scanning electrochemical microscopy (SEM) have been used as MEA diagonostic tools. GC showed superior stability over CB in acid electrolyte under potential conditions. Single cell MEA performance of the GC-supported catalyst is comparable with the CB-supported catalyst. A correlation of MEA performance of the supported catalysts of different Brunauer–Emmett–Teller (BET) surface areas with the ionomer content was also established. GC was identified as a promising candidate for catalyst support in terms of both of the stability and the performance of fuel cell. Full article
