Search Results (43)

Aluminum, boron, and titanium microalloyed into high-strength low-alloy boron steel exhibit a complex interplay, competing for nitrogen, with titanium demonstrating the highest affinity, followed by boron and aluminum. This competition affects the formation and distribution of nitrides, impacting the microstructure and mechanical properties of the steel. Titanium protects boron from forming BN and facilitates the nucleation of acicular ferrite, enhancing toughness. The segregation of boron to grain boundaries, rather than its precipitation as boron nitride, promotes the formation of martensite and thus the through-hardenability. Aluminum nitride is critical in controlling grain size through a pronounced pinning effect. In this study, we employ energy- and wavelength-dispersive X-ray spectroscopy and computer-aided particle analysis to analyze the phase content of 12 high-purity vacuum induction-melted samples. The primary objective of this study is to correctly describe the microstructural evolution in the Fe-Al-B-Ti-C-N system using the Calphad approach, with special emphasis on correctly predicting the dissolution temperatures of nitrides. A multicomponent database is constructed through the incorporation of available binary and ternary descriptions, employing the Calphad approach. The experimental findings regarding the solvus temperature of the involved nitrides are employed to validate the accuracy of the thermodynamic database. The findings offer a comprehensive understanding of the relative phase stabilities and the associated interplay among the involved elements Al, B, and Ti in the Fe-rich corner of the system. The type and size distribution of the stable nitrides in microalloyed steel have been demonstrated to exert a substantial influence on the properties of the material, thereby rendering accurate predictions of phase stabilities of considerable relevance. Full article

W-Mo-V high-speed steel (HSS) is a high-alloy high-carbon steel with a high content of carbon, tungsten, chromium, molybdenum, and vanadium components. This type of high-speed steel has excellent red hardness, wear resistance, and corrosion resistance. In this study, the alloying element ratios were adjusted based on commercial HSS powders. The resulting chemical composition (wt.%) is C 1.9%, W 5.5%, Mo 5.0%, V 5.5%, Cr 4.5%, Si 0.7%, Mn 0.55%, Nb 0.5%, B 0.2%, N 0.06%, and the rest is Fe. This design is distinguished by the inclusion of a high content of molybdenum, vanadium, and trace boron in high-speed steel. When compared to traditional tungsten-based high-speed steel rolls, the addition of these three types of elements effectively improves the wear resistance and red hardness of high-speed steel, thereby increasing the service life of high-speed steel mill-roll covers. JMatPro (version 7.0) simulation software was used to create the composition of W-Mo-V HSS. The phase composition diagrams at various temperatures were examined, as well as the contents of distinct phases within the organization at various temperatures. The influence of austenite content on the martensitic transformation temperature at different temperatures was estimated. The heat treatment parameters for W-Mo-V HSS were optimized. By studying the phase equilibrium of W-Mo-V high-speed steel at different temperatures and drawing CCT diagrams, the starting temperature for the transformation of pearlite to austenite (A_c1 = 796.91 °C) and the ending temperature for the complete dissolution of secondary carbides into austenite (A_ccm = 819.49 °C) during heating was determined. The changes in carbide content and grain size of W-Mo-V high-speed steel at different tempering temperatures were calculated using JMatPro software. Combined with analysis of A_c1 and A_ccm temperature points, it was found that the optimal annealing temperatures were 817–827 °C, quenching temperatures were 1150–1160 °C, and tempering temperatures were 550–610 °C. The scanning electron microscopy (SEM) examination of the samples obtained with the aforementioned heat treatment parameters revealed that the martensitic substrate and vanadium carbide grains were finely and evenly scattered, consistent with the simulation results. This suggests that the simulation is a useful reference for guiding actual production. Full article

The presented study investigates the effects of weight percentages of boron carbide reinforcement on the wear properties of aluminum alloy composites. Composites were fabricated via ball milling and the hot extrusion process. During the fabrication of composites, B₄C content was varied (0, 5, and 10 wt.%), as well as milling time (0, 10, and 20 h). Microstructural observations with SEM microscopy showed that with an increase in milling time, the distribution of B₄C particles is more homogeneous without agglomerates, and that an increase in wt.% of B₄C results in a more uniform distribution with distinct grain boundaries. Taguchi and ANOVA analyses are applied in order to investigate how parameters like particle content of B₄C, normal load, and milling time affect the wear properties of AA2024-based composites. The ANOVA results showed that the most influential parameters on wear loss and coefficient of friction were the content of B₄C with 51.35% and the normal load with 45.54%, respectively. An artificial neural network was applied for the prediction of wear loss and the coefficient of friction. Two separate networks were developed, both having an architecture of 3-10-1 and a tansig activation function. By comparing the predicted values with the experimental data, it was demonstrated that the well-trained feed-forward-back propagation ANN model is a powerful tool for predicting the wear behavior of Al2024-B₄C composites. The developed models can be used for predicting the properties of Al2024-B₄C composite powders produced with different reinforcement ratios and milling times. Full article

The effect of boron (B) on the microstructures and low-temperature impact toughness of medium-carbon CrMo steel quenched at 870~1050 °C and tempered at 600 °C was studied via Charpy impact testing and microstructure characterizations. The results showed that with an increasing B content from 0 to 50 ppm, the low-temperature impact toughness deteriorated significantly at quenching temperatures (T_q) lower than 950 °C but increased at a higher T_q of 1050 °C. Undissolved M₂B particles remained and coarsened during the holding process due to the low T_q, decreasing the critical stress required for crack initiation and deteriorating the impact toughness accordingly. However, this detrimental effect of B could be mitigated by a higher T_q, and the favorable influences on the impact toughness improvement could be attributed to (1) the finer M₂B particles formed during quenching effectively pinning the austenite grain boundaries (GBs), leading to a finer block size and a high density of high-angle grain boundaries, which reduced the critical stress for crack initiation; and (2) the fact that the coarsening of M₂₃C₆ on the GBs during tempering was slightly suppressed by the segregated B, eventually increasing the energy required for crack propagation. However, the degree of the favorable effect due to B was still lower than the negative effect of a high T_q. Full article

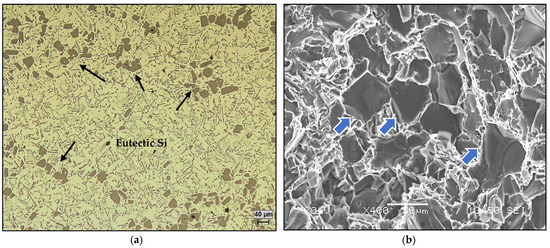

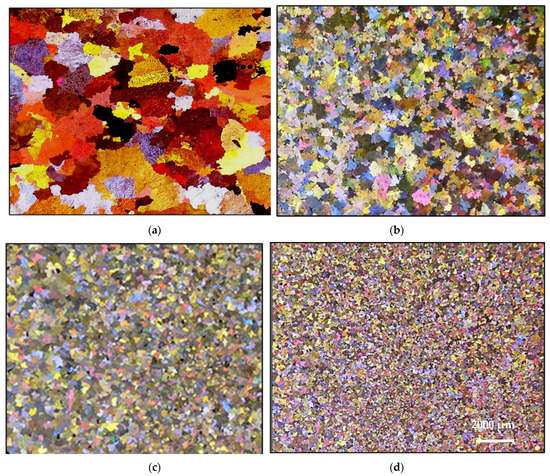

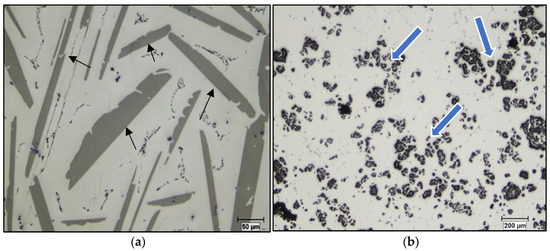

The objective of the current work is to establish, on the one hand, the conventional mechanisms of grain refining and, on the other hand, the effect of the refining-modification interaction in Sr-modified Al-Si alloys on the achieved grain refining and the modification of eutectic silicon. For this purpose, the hypereutectic alloy A390.1 (~17%Si) was used. Various grain refiners were used, namely, Al-10%Ti, Al-5%Ti-1%B, and Al-4%B. After the preparation of the liquid metal, several concentrations of these master alloys were added to the liquid bath according to the desired objective. The different melts prepared were heated at 750 °C and cast in a preheated graphite mold with a solidification rate of around 0.8 °C/s. The liquid metal was. The presence of strontium (added in the form of Al-10%Sr master alloy) and boron completely affects the microstructure of the alloy. An atom of Sr unites with 6 atoms of B to form a compound whose stoichiometric formula is of the SrB₆ type, leading to a significant reduction in the modification. A strong relationship exists between the addition of B and the recovery level of Sr. The affinity between titanium and boron is stronger than the affinity between boron and strontium. Both B and TiB₂ phase particles do not react with Si; it is only the Ti part of the Al-Ti-B master that forms (Al, Si)₃Ti. Regardless of the amount of Si content in the alloy, the Al-4%B master alloy achieves the best grain refining compared to Ti-containing master alloys. Full article

Boron carbide (B₄C) powders with defined stoichiometry, high crystallinity, minimal impurity content, and a fine particle size are imperative for realizing the exceptional properties of this compound in advanced high-technology applications. Nevertheless, achieving the desired stoichiometry and particle size using traditional synthesis methods, which rely on prolonged high-temperature processes, can be challenging. The primary objective of this study is to synthesize fine B₄C powders characterized by high crystallinity and a sub-micron particle size, employing a fast and energy-efficient method. B₄C powders are synthesized from elemental boron and carbon in a high-frequency induction heating furnace using the electromagnetic induction synthesis (EMIS) method. The rapid heating rate achieved through contactless heating promotes the ignition and propagation of the exothermic chemical reaction between boron and carbon. Additionally, electromagnetic effects accelerate atomic diffusion, allowing the reaction to be completed in an exceptionally short timeframe. The grain size and crystallinity of B₄C can be finely tuned by adjusting various process parameters, including the post-ignition holding temperature and the duration of heating. As a result, fine B₄C powders can be synthesized in under 10 min. Moreover, these synthesized B₄C powders exhibit oxidation onset temperatures higher than 500 °C when exposed to air. Full article

The pre-sintered preform (PSP) is an advanced technology for repairing the Ni-based superalloy blade in a turbine. In general, boron is added to the Ni-based superalloys in small quantities (<0.1 wt.%) to increase boundary strength and cohesivity. Despite this, the effect of high B content (>1.0 wt.%) on the microstructure evolution and mechanical properties in Ni-based superalloys for the PSP application is rarely studied. The variety, composition and evolution of the precipitates during solution heat treatment in the alloy with high B content were determined by EBSD, EPMA and SEM. The results indicate that Cr, W and Mo-rich M₅B₃ type borides precipitate from the matrix and its area fraction reaches up to about 8%. The area fraction of boride decreases with the prolonging of solution time and the increase of temperature higher than 1120 °C. The borides nearly disappear after solution treatment at 1160 °C for 2 h. The redissolution of boride and eutectic results in the formation of B-rich area with low incipient melting (about 1189 °C). It can bond metallurgically with the blade under the melting point of the blade, which decreases the precipitation of harmful phases of the blade after PSP repairing. The microhardness within the grain in the PSP work-blank first decreases (lower than 1160 °C) and then increases (higher than 1185 °C) with the increase of solution heat treatment temperature due to the dissolving and precipitation of borides. The tensile strength of the combination of PSP work-blank and Mar-M247 matrix at room temperature after solution treatment is related to the area fraction of boride, incipient melting and the cohesion between PSP work-blank and Mar-M247 matrix. Full article

The grain yield of wheat is primarily limited by drought. To increase the level of productivity under these conditions, a pot experiment was carried out to investigate the effect of foliar fertilizer with boron and magnesium under drought at either tillering or anthesis stages on some physiological parameters and yield components of two varieties of durum wheat. Foliar application with combined boron and magnesium significantly improved the transpiration rate, relative water content, and total chlorophyll content. Foliar application with combined boron and magnesium significantly increased the grain weight of wheat varieties at tillering and anthesis drought by 25% and 36%, respectively. Our findings showed the significance of foliar application at anthesis drought rather than at tillering for improvement of grain yield. Full article

This article presents a novel and feasible approach for researching the quantity of the ceramic phase and component optimization in high-temperature titanium alloys with small trace amounts of ceramic phases. Different near-α titanium alloys with varying yttrium and boron contents were prepared through the utilization of a vacuum non-consumable arc furnace melting method. The alloy used was a Ti-5.9Al-4Sn-3.9Zr-3.8Mo-0.4Si base. Its microstructure, texture, mechanical properties, and fracture behavior were studied. The observation of the as-cast structure shows that the addition of different doses of trace Y and B elements significantly refines both the original β grains and α grains. Moreover, the addition of the B element transforms the Widmanstätten structure in the titanium alloy structure into a basketweave structure. The addition of Y can refine the grain structure, improve the uniformity of the matrix structure, and act as a strong deoxidizer, which will take away the oxygen in the matrix and purify it. The TiB whiskers generated with the addition of B promotes dynamic recrystallization behavior and leads to more equiaxed α grains being precipitated around them, resulting in a significant refinement of the microstructure of the as-cast alloy. After adding a small amount of B, the texture strength of the α phase is significantly reduced, indicating that TiB whiskers inhibit the formation of texture. After conducting performance screening and structure analysis, the study supplements the analysis of Y’s regulation of the titanium alloy structure. The regulation is primarily explained by combining the results of the analysis of boron content, phase diagram analysis, mechanical properties, and fracture analysis. The mechanical analysis introduces the unique load transfer strengthening of TiB whiskers combined with an analysis of high-temperature mechanical properties, as the threshold for addition. The optimal amounts of Y and B additions are 0.6 wt% and 0.8 wt%, respectively. The optimized alloy obtained under this condition can achieve a tensile strength of 950 Mpa at 500 °C without any plastic deformation or heat treatment. Full article

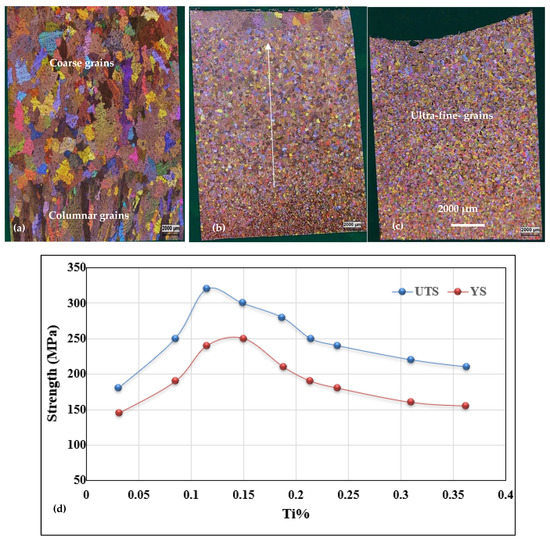

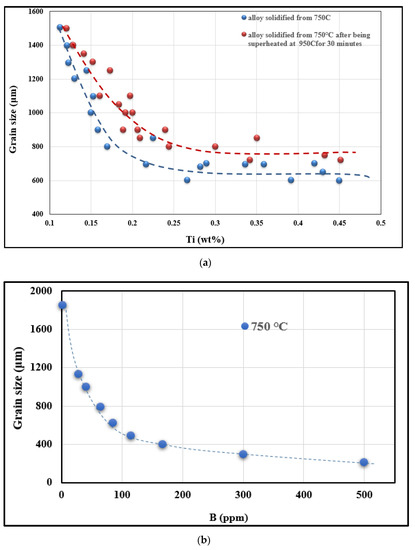

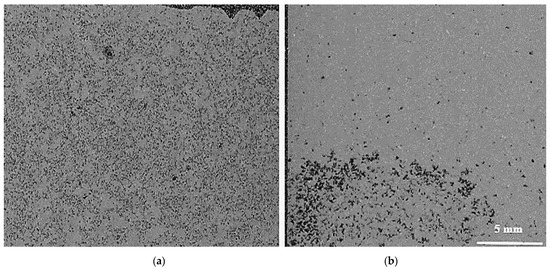

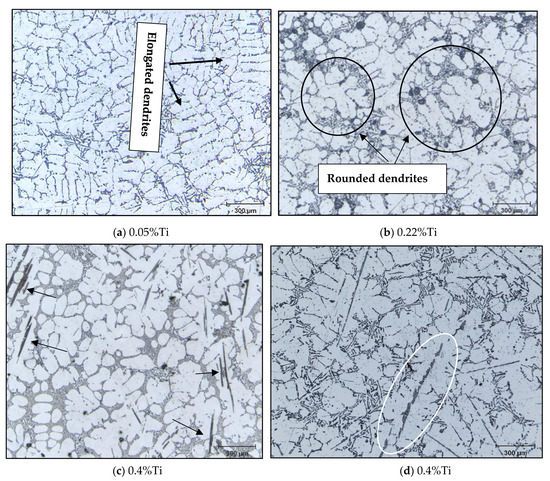

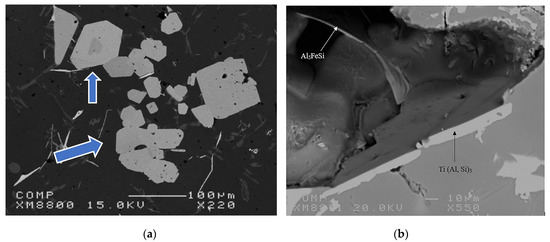

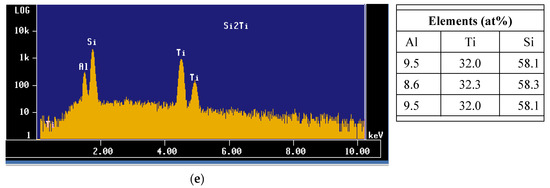

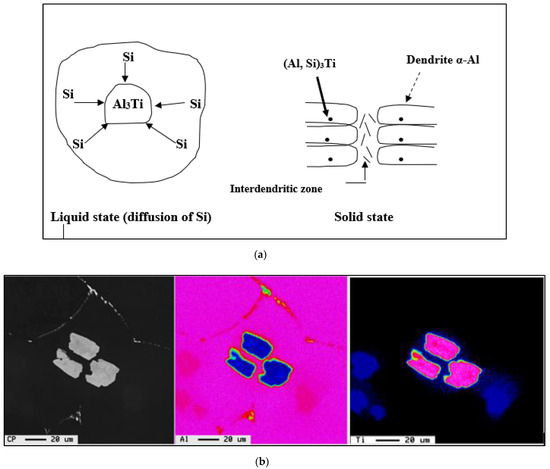

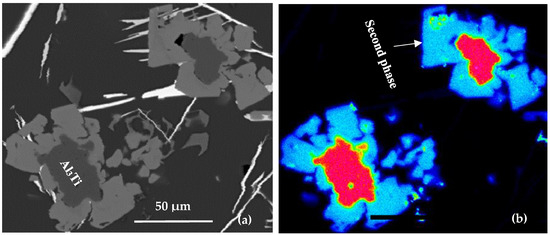

The present analysis addresses the solidification and thermodynamic parameters involved during the solidification of aluminum (Al)-based alloys as presented in the literature using different systems viz., binary aluminum-boron (Al-B) and aluminum-titanium (Al-Ti) systems, ternary aluminum-titanium-boron (Al-Ti-B) and aluminum-titanium-carbon (Al-Ti-C) systems, as well as taking into consideration the silicon-titanium-aluminide (Si-TiAl₃) interaction in Al-based alloys containing Si. The analysis is supported by recent metallographic evidence obtained by the authors on A356.2 alloys. The sections on thermodynamic aspects cover the different models proposed concerning nucleation and growth on a newly formed Al grain. The value of the recalescence parameter reduces gradually with the increase in the Ti added. At a level of 0.20 wt%, this parameter becomes zero. If the concentration of grain refiner exceeds a certain amount, the grain size becomes minimal. Another parameter to be considered is the interaction between the grain refiner and traces of other metals in the base alloy. For example, Al-4%B can react with traces of Ti that may exist in the base alloy, leading to the reaction between boron and titanium to form titanium diboride (TiB₂). Grain refinement is achieved primarily with TiB₂ rather than aluminum diboride (AlB₂), or both, depending on the Ti content in the given alloy. Full article

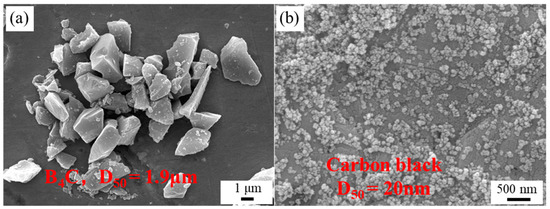

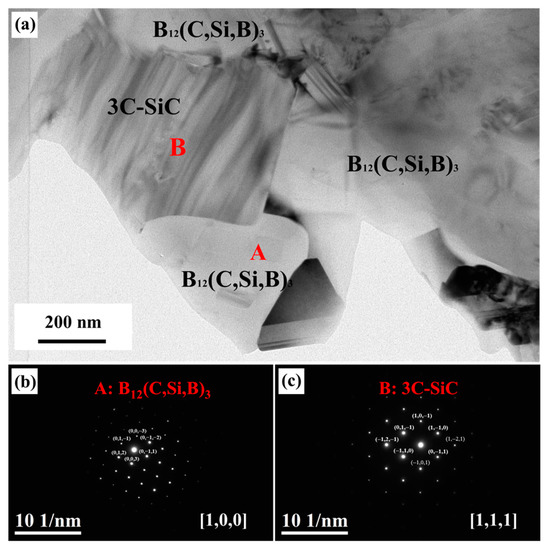

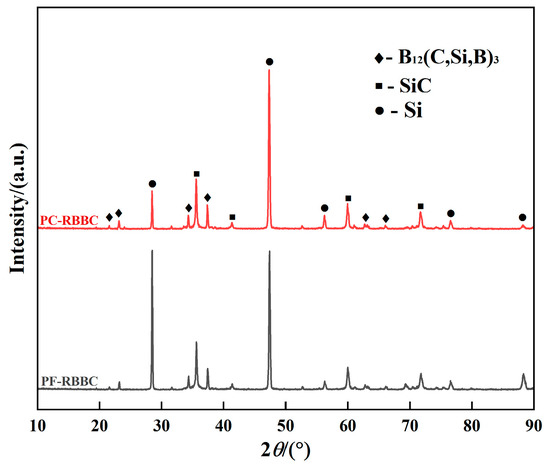

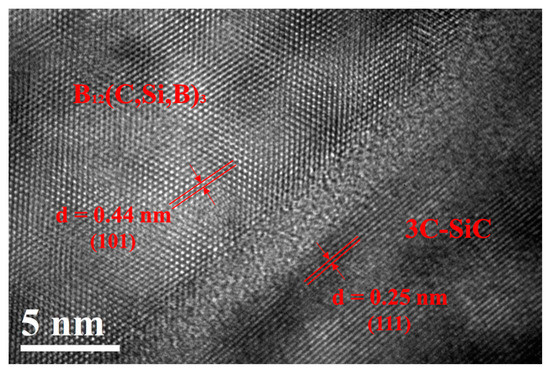

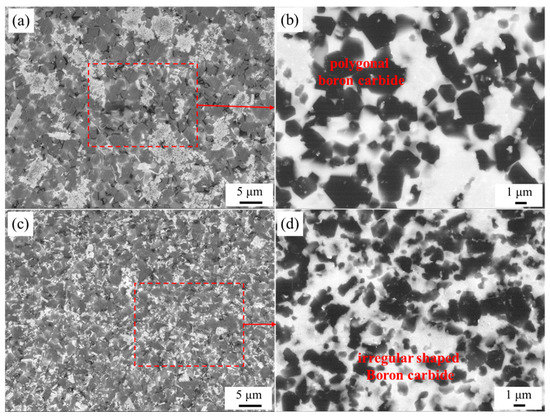

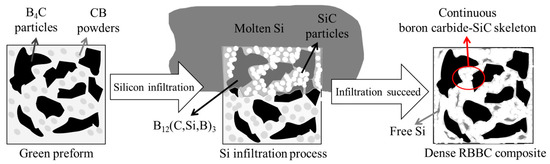

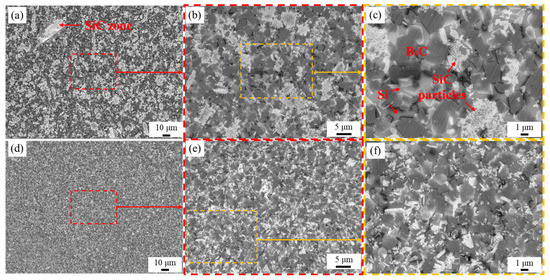

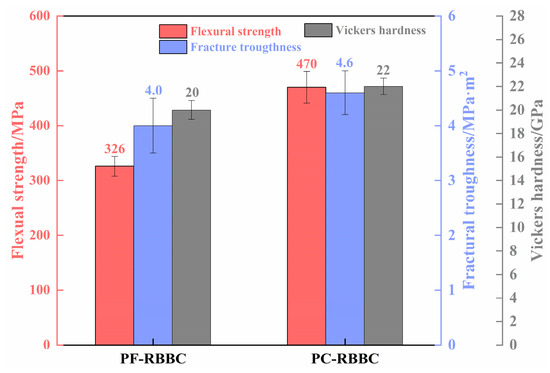

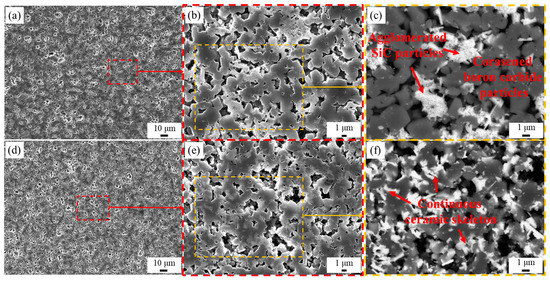

Reaction-bonded boron carbide (RBBC) composites have broad application prospects due to their low cost and net size sintering. The microstructure, reaction mechanism of boron carbide with molten silicon (Si), and mechanical properties have been substantially studied. However, the mechanical properties strengthening mechanism of reaction-bonded boron carbide composites are still pending question. In this study, dense boron carbide ceramics were fabricated by liquid Si infiltration of B₄C-C preforms with dispersed carbon black (CB) as the carbon source. Polyethyleneimine (PEI) with a molecular weight of 1800 was used as the dispersant. CB powders uniformly distributed around boron carbide particles and efficiently protected them from reacting with molten Si. The uniformly distributed CB powders in situ reacted with molten Si and formed uniformly distributed SiC grains, thus forming a continuous boron carbide–SiC ceramic skeleton. Meanwhile, the Si content of the composites was reduced. Using PEI-dispersed CB powders as additional carbon source, the composites’ flexural strength, fracture toughness, and Vickers hardness reach up to 470 MPa, 4.6 MPa·m^1/2, and 22 GPa, which were increased by 44%, 15%, and 10%, respectively. The mechanisms of mechanical properties strengthening were also discussed. Full article

Wheat (Triticum aestivum L.) is a staple and the most important food crop around the world. The growth and productivity of wheat are influenced by different factors, viz., sowing time, tillage system and nutrient application. The current field experiment consists of different boron (B) application rates, viz., B₀ = No application (Control), B₁ = soil applied (2 kg ha⁻¹), B₂ = foliar applied (2 kg ha⁻¹), B₃ = water spray; two tillage systems, viz., zero tillage (ZT) and conventional tillage (CT); and three sowing dates (S₁ = 15 November; S₂ = 5 December and S₃ = 25 December). It was conducted during the years 2019–2020 and 2020–2021 under a split-split plot arrangement. The results showed that sowing dates and boron had beneficial impacts on the growth and productivity of wheat. The wheat crop sown on 15 November showed the highest plant height, chlorophyll contents, grains per spike, and grains’ boron content. Similarly, the application of boron under late sown conditions also improved the plant height (83.8 cm), chlorophyll contents (45.6), biological (5418 kg ha⁻¹) and grain (4018 kg ha⁻¹) yield as compared to control during both years. Furthermore, the higher crop growth and yield parameters were noted with the foliar application of boron at 2 kg ha⁻¹. However, wheat crop growth and yield characteristics were not significantly affected by tillage techniques, h. In conclusion, the application of boron @ 2 kg ha⁻¹ could be a suitable option for achieving higher wheat grain yield and productivity under late-sown conditions. Full article

The decrease of superplastic forming temperature and improvement of post-forming mechanical properties are important issues for titanium-based alloys. Ultrafine-grained and homogeneous microstructure are required to improve both processing and mechanical properties. This study focuses on the influence of 0.01–2 wt.% B (boron) on the microstructure and properties of Ti-4Al-3Mo-1V (wt.%) alloys. The microstructure evolution, superplasticity, and room temperature mechanical properties of boron-free and boron-modified alloys were investigated using light optical microscopy, scanning electron microscopy, electron backscatter diffraction, X-ray diffraction analysis, and uniaxial tensile tests. A trace addition of 0.01 to 0.1 wt.% B significantly refined prior β-grains and improved superplasticity. Alloys with minor B and B-free alloy exhibited similar superplastic elongations of 400–1000% in a temperature range of 700–875 °C and strain rate sensitivity coefficient m of 0.4–0.5. Along with this, a trace boron addition provided a stable flow and effectively reduced flow stress values, especially at low temperatures, that was explained by the acceleration of the recrystallization and globularization of the microstructure at the initial stage of superplastic deformation. Recrystallization-induced decrease in yield strength from 770 MPa to 680 MPa was observed with an increase in boron content from 0 to 0.1%. Post-forming heat treatment, including quenching and ageing, increased strength characteristics of the alloys with 0.01 and 0.1% boron by 90–140 MPa and insignificantly decreased ductility. Alloys with 1–2% B exhibited an opposite behavior. For the high-boron alloys, the refinement effect of the prior β-grains was not detected. A high fraction of borides of ~5–11% deteriorated the superplastic properties and drastically decreased ductility at room temperature. The alloy with 2% B demonstrated non-superplastic behavior and low level of strength properties; meanwhile, the alloy with 1% B exhibited superplasticity at 875 °C with elongation of ~500%, post-forming yield strength of 830 MPa, and ultimate tensile strength of 1020 MPa at room temperature. The differences between minor boron and high boron influence on the grain structure and properties were discussed and the mechanisms of the boron influence were suggested. Full article

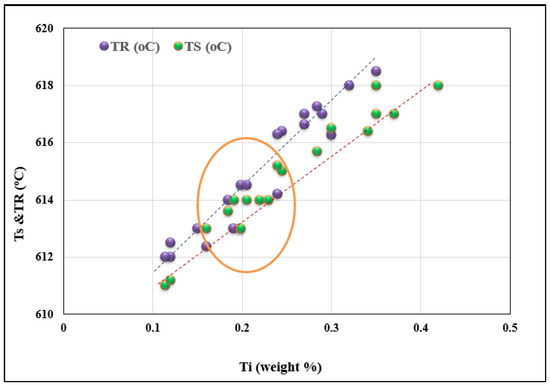

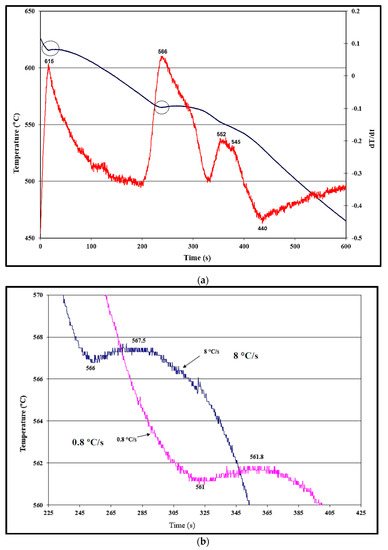

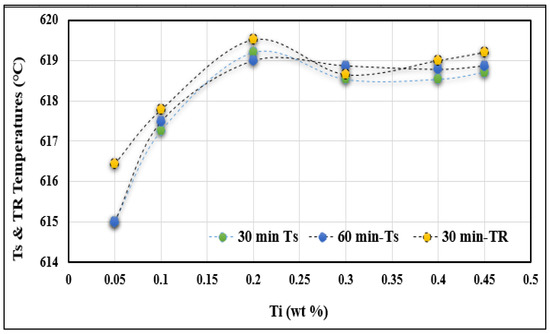

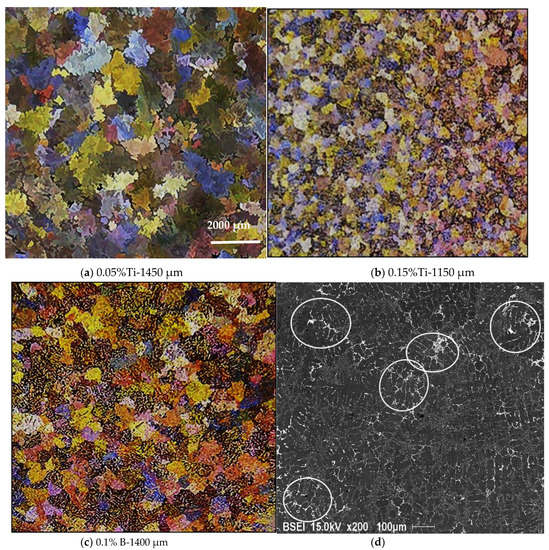

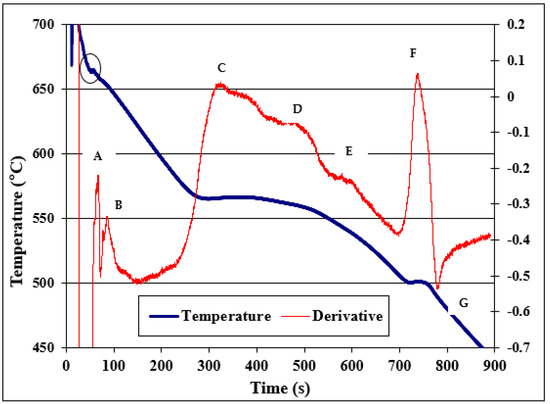

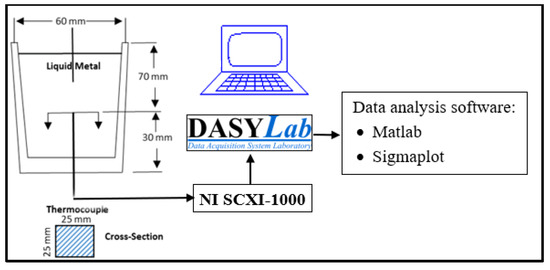

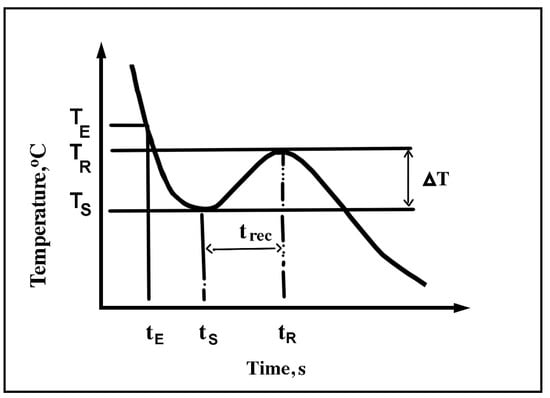

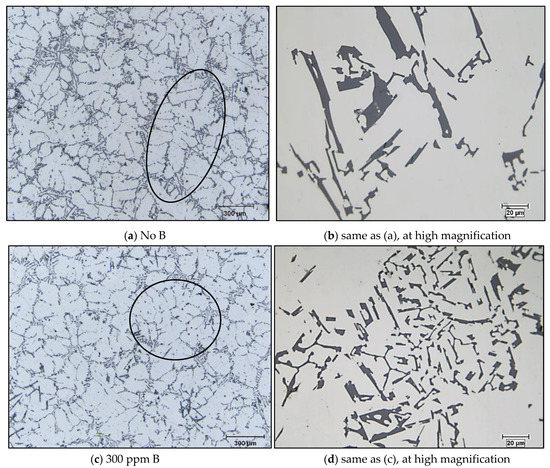

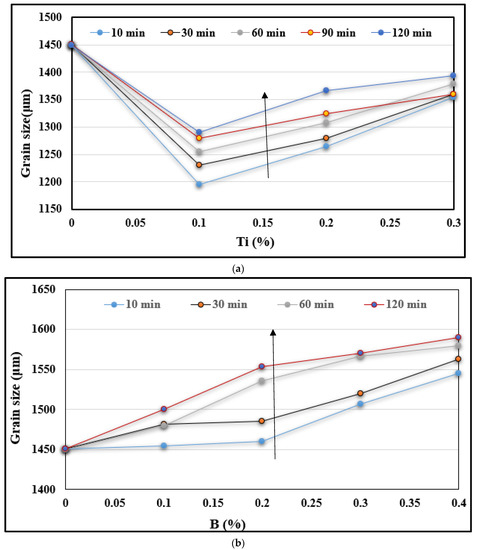

The present article addresses solidification parameters, and includes analyses of the macrostructure and microstructure in the light of the results obtained from the thermal analysis, from which it is possible to conclude that undercooling (T_S) and recalescence (T_R) temperatures increase with the initial increase in titanium (Ti) concentration. If the concentration reaches approximately 0.25%, a rapid decrease in these temperatures is observed. Thereafter, the temperatures increase again with the further increase in Ti concentration, and eventually become constant. These temperatures also vary depending on the superheating and casting temperature. The ∆T parameter (i.e., T_S − T_R) decreases with the Ti concentration and, from a concentration of around 0.20% Ti, this parameter becomes zero. The grain size decreases with the Ti concentration. If the concentration exceeds about 0.20%, the grain size becomes the minimum. Another parameter to be considered is the interaction between the grain refiner and the traces of other metals in the base Al alloy. For example, Al-4%B can react with traces of Ti that may exist in the base alloy, leading to the reaction between boron (B) and Ti to form TiB₂. Grain refinement is achieved primarily with TiB₂ rather than AlB₂, or both, depending on the Ti content in the given alloy. Full article

Austenitic stainless steels are selected as candidate materials for in-core and out-of-core components of Generation-IV fast reactors due to their excellent operating experience in light-water reactors over several decades. However, the performance of conventional austenitic stainless steels proves to be inadequate through operation feedback in fast reactors. To withstand the demands for material performance exposure to the extreme operating environment of fast reactors, modified austenitic stainless steels for in-core and out-of-core components have been developed from the first-generation 300-series steels. The design of an appropriate microstructure becomes a top priority for improving material performance, and key metallurgical features including δ-ferrite content, grain size and secondary phase precipitation pertinent to austenitic stainless steel are focused on in this paper. δ-ferrite content and grain size are closely correlated with the fabrication program and their effects on mechanical properties, especially creep and fatigue properties are critically assessed. Moreover, the impacts of some major elements including nitrogen, stabilization elements (Nb, Ti, V), phosphorus and boron on secondary phase precipitation behaviors during aging or creep are reviewed in detail. Based on the role of the aforementioned metallurgical features, the recommended specification of nitrogen content, stabilization ratio, phosphorus content, boron content, δ-ferrite content and grain size are put forward to guarantee the best-expected performance, which could provide reactors designers with attractive options to optimize fast reactor systems. Full article
