This study presents a new design for a MEMS electrostatic speaker array with out-of-plane piston-like diaphragm displacement using a simplified silicon-on-insulator microfabrication process. The device comprises an array of parallel actuating membranes with small circular mechanically open but acoustically sealed apertures that enable controlled etching of the buried oxide to be released directly from the front side, but retain a high acoustic impedance acting as a flat membrane. This approach simplifies the microfabrication process, requiring only two lithography masks and increasing process tolerances. Preliminary experimental measurements validate the concept and demonstrate the electromechanical and acoustic performance compared with theoretical models. Full article

Here, we introduce ultrafast tunable MEMS mirrors consisting of a miniature circular mirrored membrane, which can be electrostatically actuated to change the mirror curvature at unprecedented speeds. The central deflection zone is a close approximation to a parabolic mirror. The device is fabricated with a minimal membrane diameter, but at least double the size of a focused optical spot. The theory and simulations are used to predict maximum relative focal shifts as a function of membrane size and deflection, beam waist, and incident focal position. These devices are demonstrated to enable fast tuning of the focal wavefront of laser beams at ≈MHz tuning rates, two to three orders of magnitude faster than current optical focusing technologies. The fabricated devices have a silicon membrane with a 30–100 μm radius and a 350 nm gap spacing between the top and bottom electrodes. These devices can change the focal position of a tightly focused beam by ≈1 mm at rates up to 4.9 MHz and with response times smaller than 5 μs. Full article

A particular 1D II-order differential semi-linear elliptic model for electrostatic membrane MEMS devices, which is well-known in the literature, considers the amplitude of the electric field locally proportional to the membrane’s geometric curvature, which contains a term involving the fringing field according to Pelesko and Driscoll’s theory. Thus, in this paper, we will begin from this elliptical model, of which the uniqueness condition for the solution does not depend on the electromechanical properties of the membrane’s constituent material. In particular, after analyzing the model’s advantages and disadvantages, we present a new uniqueness condition for the solution depending on the properties listed above, which appears to be more important than the existence condition of the solution that is well-known in literature. Therefore, once the fringing field’s mode of action on the electrostatic force acting on the membrane is evaluated, suitable numerical techniques are used and compared to recover the membrane profile without ghost solutions and to propose an innovative criterion for selecting the membrane material, which depends on the electrical operative parameters and vice-versa. Finally, the possible industrial uses of the studied device are evaluated. Full article

The recovery of the membrane profile of an electrostatic micro-electro-mechanical system (MEMS) is an important issue, because, when an external electrical voltage is applied, the membrane deforms with the risk of touching the upper plate of the device producing an unwanted electrostatic effect. Therefore, it is important to know whether the movement admits stable equilibrium configurations especially when the membrane is closed to the upper plate. In this framework, this work analyzes the behavior of a two-dimensional (2D) electrostatic circular membrane MEMS device subjected to an external voltage. Specifically, starting from a well-known 2D non-linear second-order differential model in which the electrostatic field in the device is proportional to the mean curvature of the membrane, the stability of the only possible equilibrium configuration is studied. Furthermore, when considering that the membrane is equipped with mechanical inertia and that it must not touch the upper plate of the device, a useful range of possible values has been obtained for the applied voltage. Finally, the paper concludes with some computations regarding the variation of potential energy, identifying some optimal control conditions. Full article

An important problem in membrane micro-electric-mechanical-system (MEMS) modeling is the fringing-field phenomenon, of which the main effect consists of force-line deformation of electrostatic field $\mathbf{E}$ near the edges of the plates, producing the anomalous deformation of the membrane when external voltage V is applied. In the framework of a 2D circular membrane MEMS, representing the fringing-field effect depending on ${|\nabla u|}^2$ with the u profile of the membrane, and since strong $\mathbf{E}$ produces strong deformation of the membrane, we consider $\left|\mathbf{E}\right|$ proportional to the mean curvature of the membrane, obtaining a new nonlinear second-order differential model without explicit singularities. In this paper, the main purpose was the analytical study of this model, obtaining an algebraic condition ensuring the existence of at least one solution for it that depends on both the electromechanical properties of the material constituting the membrane and the positive parameter $\delta$ that weighs the terms ${|\nabla u|}^2$. However, even if the the study of the model did not ensure the uniqueness of the solution, it made it possible to achieve the goal of finding a stable equilibrium position. Moreover, a range of admissible values of V were obtained in order, on the one hand, to win the mechanical inertia of the membrane and, on the other hand, to ensure that the membrane did not touch the upper disk of the device. Lastly, some optimal control conditions based on the variation of potential energy are presented and discussed. Full article

The evolution of engineering applications is increasingly shifting towards the embedded nature, resulting in low-cost solutions, micro/nano dimensional and actuators being exploited as fundamental components to connect the physical nature of information with the abstract one, which is represented in the logical form in a machine. In this context, the scientific community has gained interest in modeling membrane Micro-Electro-Mechanical-Systems (MEMS), leading to a wide diffusion on an industrial level owing to their ease of modeling and realization. Physically, once the external voltage is applied, an electrostatic field, orthogonal to the tangent line of the membrane, is established inside the device, producing an electrostatic pressure that acts on the membrane, deforming it. Evidently, the greater the amplitude of the electrostatic field is, the greater the curvature of the membrane. Thus, it seems natural to consider the amplitude of the electrostatic field proportional to the curvature of the membrane. Starting with this principle, the authors are actively involved in developing a second-order semi-linear elliptic model in 1D and 2D geometries, obtaining important results regarding the existence, uniqueness and stability of solutions as well as evaluating the particular operating conditions of use of membrane MEMS devices. In this context, the idea of providing a survey matures to discussing the similarities and differences between the analytical and numerical results in detail, thereby supporting the choice of certain membrane MEMS devices according to the industrial application. Finally, some original results about the stability of the membrane in 2D geometry are presented and discussed. Full article

In this paper, a stable numerical approach for recovering the membrane profile of a 2D Micro-Electric-Mechanical-Systems (MEMS) is presented. Starting from a well-known 2D nonlinear second-order differential model for electrostatic circular membrane MEMS, where the amplitude of the electrostatic field is considered proportional to the mean curvature of the membrane, a collocation procedure, based on the three-stage Lobatto formula, is derived. The convergence is studied, thus obtaining the parameters operative ranges determining the areas of applicability of the device under analysis. Full article

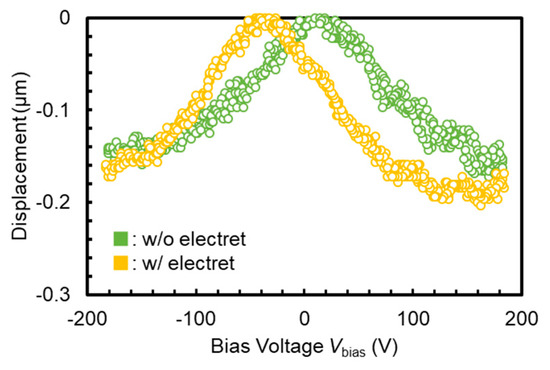

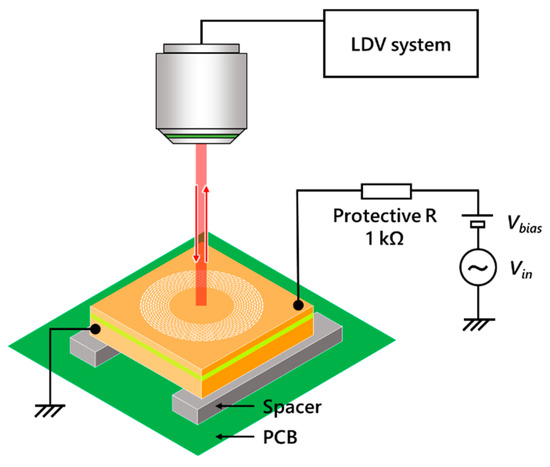

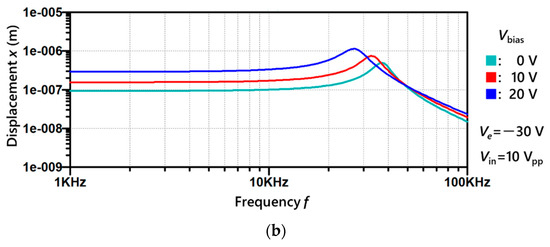

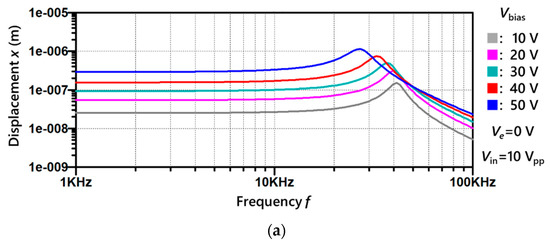

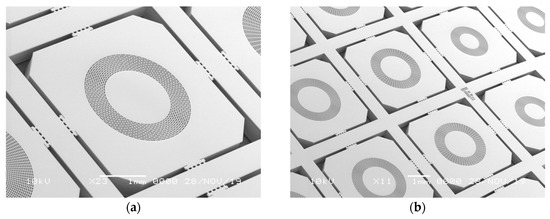

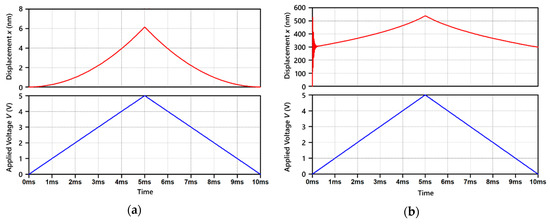

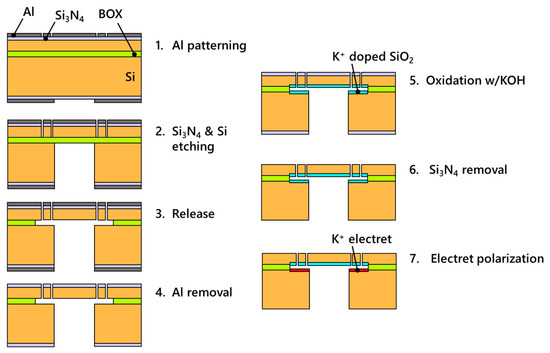

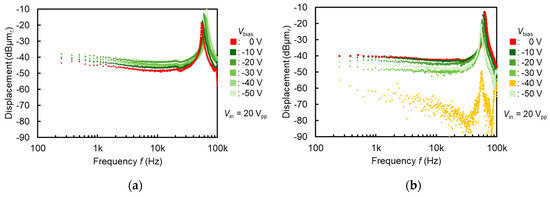

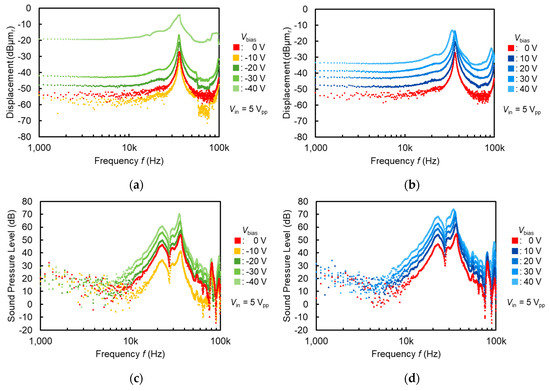

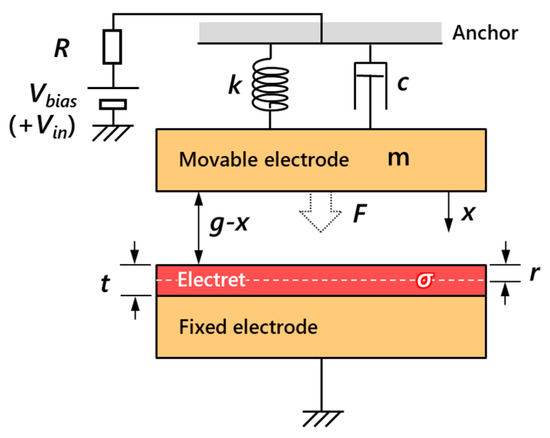

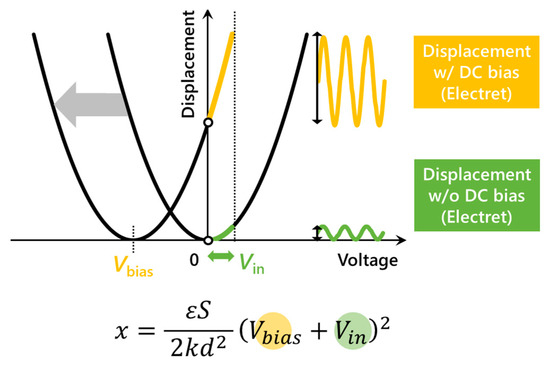

Despite the development of energy-efficient devices in various applications, microelectromechanical system (MEMS) electrostatic actuators yet require high voltages to generate large displacements. In this respect, electrets exhibiting quasi-permanent electrical charges allow large fixed voltages to be integrated directly within electrode structures to reduce or eliminate the need of DC bias electronics. For verification, a $-40\mathrm{V}$ biased electret layer was fabricated at the inner surface of a silicon on insulator (SOI) structure facing a 2 μm gap owing to the high compatibility of silicon micromachining and the potassium-ion-electret fabrication method. A $-10\mathrm{V}$ electret-augmented actuator with an out-of-plane motion membrane reached a sound pressure level (SPL) of 50 dB maximum with AC input voltage of $V_{in}=5 {\mathrm{V}}_{\mathrm{pp}}$ alone, indicating a potential for acoustic transducer usage such as microspeakers. Such devices with electret biasing require only the input signal voltage, thus contributing to reducing the overall power consumption of the device system. Full article

In the framework of 2D circular membrane Micro-Electric-Mechanical-Systems (MEMS), a new non-linear second-order differential model with singularity in the steady-state case is presented in this paper. In particular, starting from the fact that the electric field magnitude is locally proportional to the curvature of the membrane, the problem is formalized in terms of the mean curvature. Then, a result of the existence of at least one solution is achieved. Finally, two different approaches prove that the uniqueness of the solutions is not ensured. Full article

This study proposes a microfabricated resonant pressure sensor based on electrostatic excitation and low-impedance piezoresistive detection in which a pair of double-ended tuning forks were utilized as resonators for differential outputs. In operations, targeted pressures deforms the pressure-sensitive membrane, resulting in stress variations of two resonators, leading to shifts of the intrinsic resonant frequencies, which were then measured piezoresistively. The developed microfabricated resonant pressure sensor was fabricated using simple SOI-MEMS processes and quantified in both open-loop and closed-loop manners, where the quality factor, differential sensitivity and linear correlation coefficient were quantified as higher than 10,000, 79.4 Hz/kPa and 0.99999, respectively. Compared to previous resonant piezoresistive sensors, the developed device leveraged single-crystal silicon as the piezoresistor, with advantages in simple sensing structures and fabrication steps. Furthermore, the differential setup was adopted in this study which can further improve the performances of the developed sensors. Full article

This paper presents a resonant pressure microsensor relying on electrostatic excitation and piezoresistive detection where two double-ended tuning forks were used as resonators, enabling differential outputs. Pressure under measurement caused the deformation of the pressure sensitive membrane, leading to stress buildup of the resonator under electrostatic excitation with a corresponding shift of the resonant frequency detected piezoresistively. The proposed microsensor was fabricated by simplified SOI-MEMS technologies and characterized by both open-loop and closed-loop circuits, producing a quality factor higher than 10,000, a sensitivity of 79.44 Hz/kPa and an accuracy rate of over 0.01% F.S. In comparison to the previously reported resonant piezoresistive sensors, the proposed device used single-crystal silicon as piezoresistors, which was featured with low DC biased voltages, simple sensing structures and fabrication steps. In addition, the two double-ended tuning forks were used as resonators, producing high quality factors and differential outputs, which further improved the sensor performances. Full article
