Search Results (6)

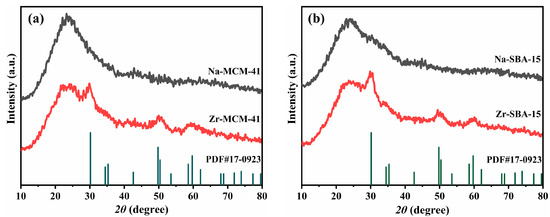

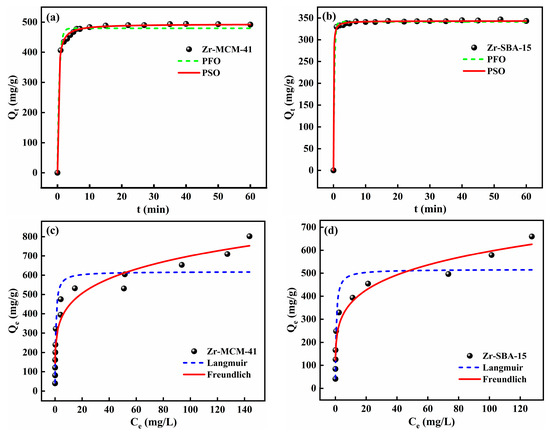

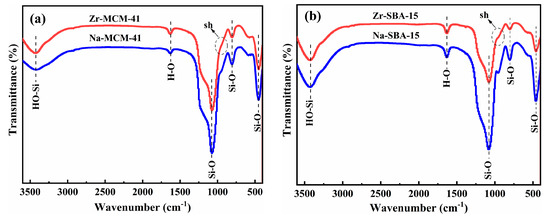

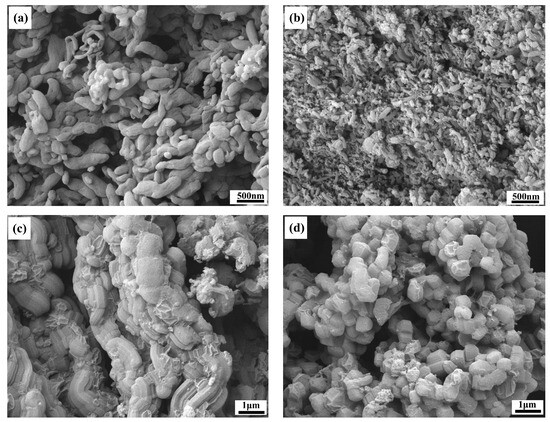

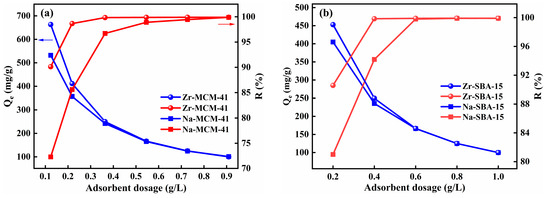

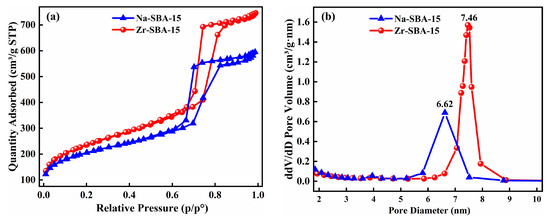

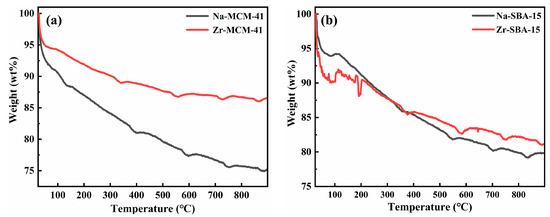

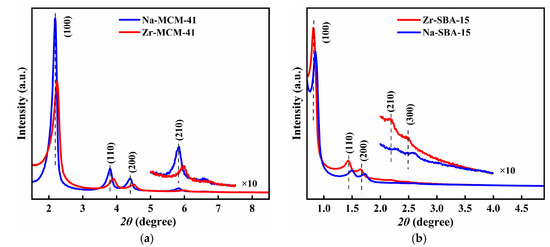

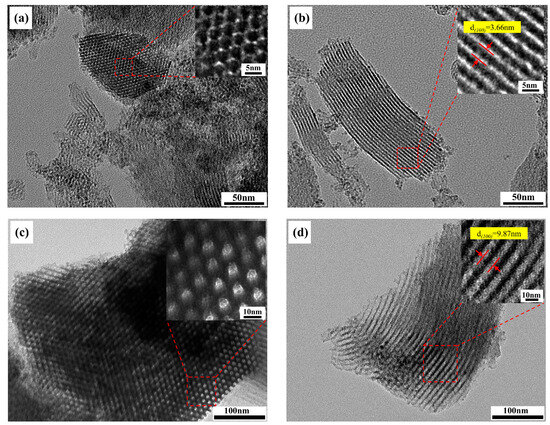

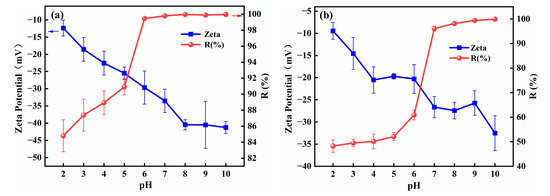

Zr-containing silica residue (ZSR) is an industrial by-product of ZrOCl₂ production obtained through an alkali fusion process using zircon sand. In this study, low-cost and efficient Zr-doped mesoporous silica adsorption materials (Zr-MCM-41 and Zr-SBA-15) were prepared in one step via the hydrothermal synthesis method using ZSR as the silicon source for the removal of methylene blue (MB) from dye-contaminated wastewater. The samples were characterized using X-ray fluorescence (XRF) spectroscopy, X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), Fourier transform infrared (FT-IR) spectroscopy, thermogravimetry (TG), and N₂ adsorption–desorption measurements. The findings indicate that the synthesized Zr-MCM-41 and Zr-SBA-15 possess highly ordered mesoscopic structures with high specific surface areas of 910 and 846 m²/g, large pore volumes of 1.098 and 1.154 cm³/g, and average pore diameters of 4.18 and 5.35 nm, respectively. The results of the adsorption experiments show that the adsorbent has better adsorption properties under alkaline conditions. The adsorption process obeys the pseudo-quadratic kinetic model and the Freundlich adsorption isotherm model, indicating the coexistence of physical and chemisorption processes. The maximum adsorption capacities of Zr-MCM-41 and Zr-SBA-15 are 618.43 and 516.58 mg/g, respectively, as calculated by the Langmuir model (pH = 9, temperature of 25 °C). Compared with mesoporous silica prepared with sodium silicate as the silicon source, Zr-MCM-41 and Zr-SBA-15 have different structural properties and better adsorption properties due to Zr doping. These findings indicate that ZSR is the preferred silicon source for preparing mesoporous silica, and the mesoporous silica prepared using Zr silicon slag is a promising adsorbent and has great application potential in wastewater treatment. Full article

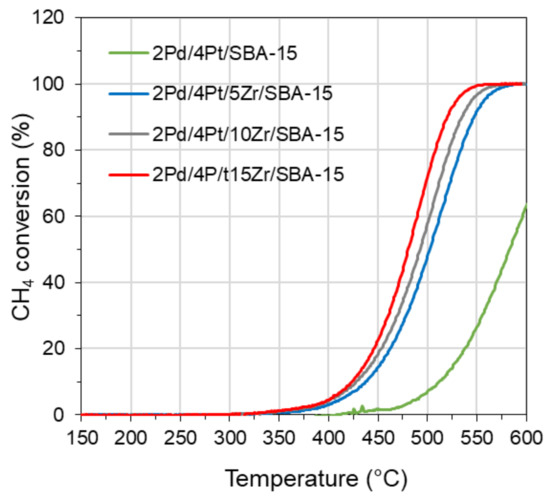

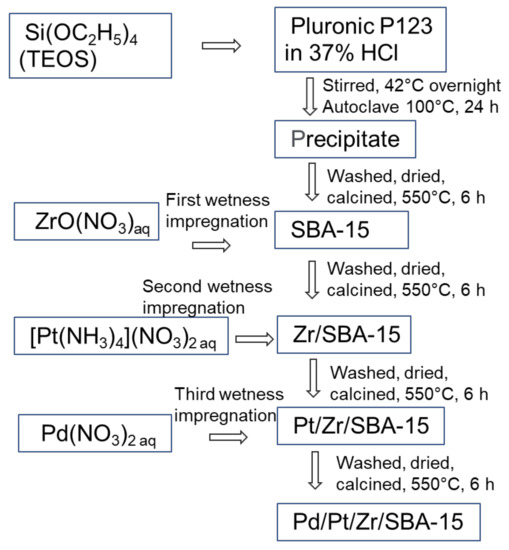

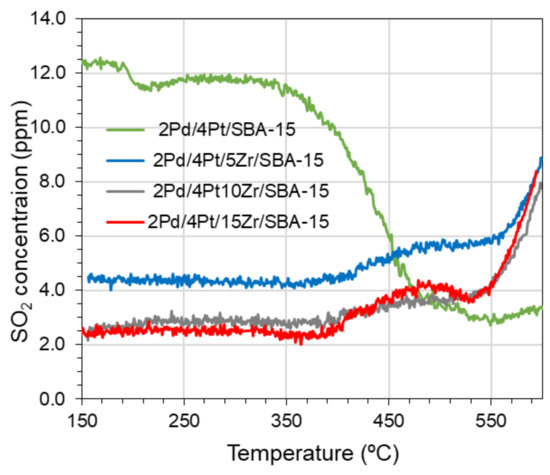

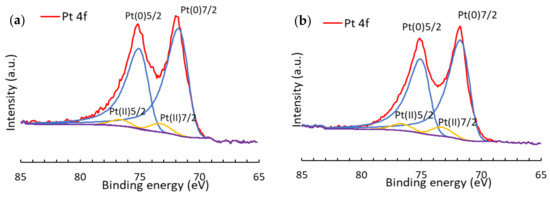

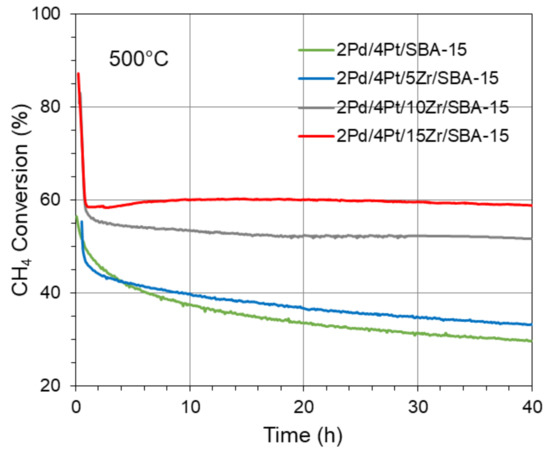

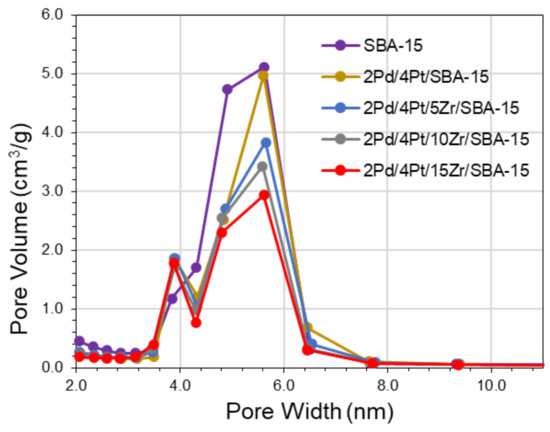

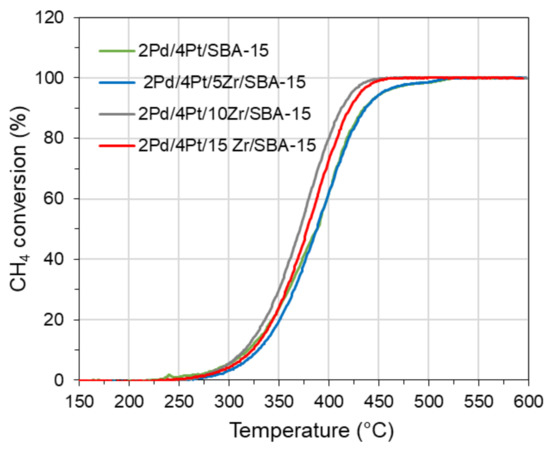

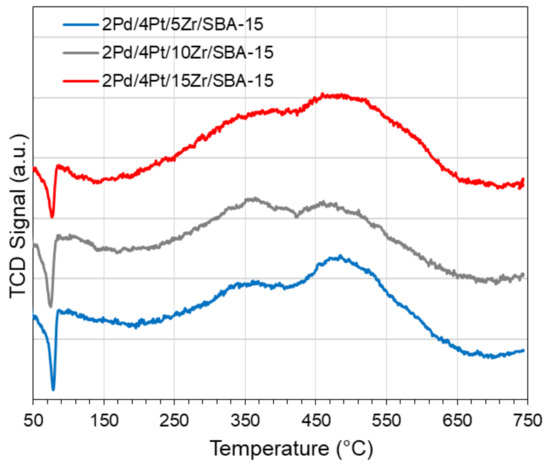

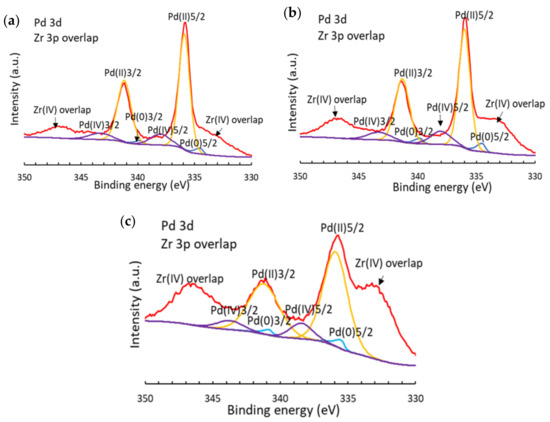

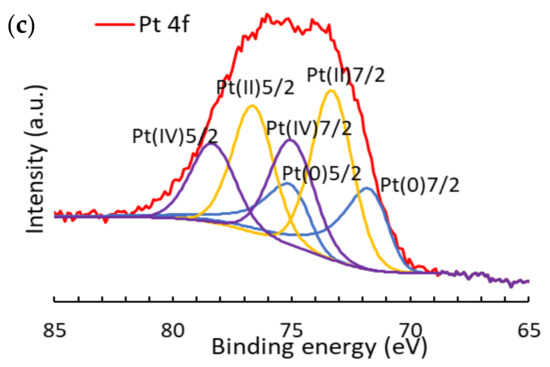

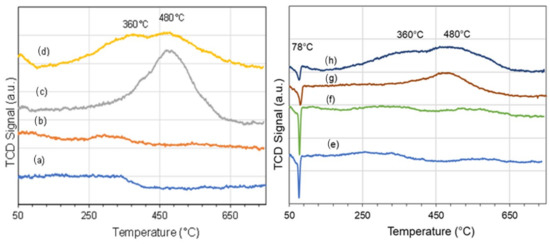

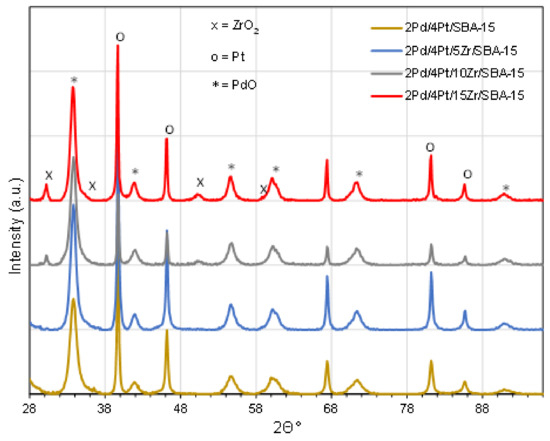

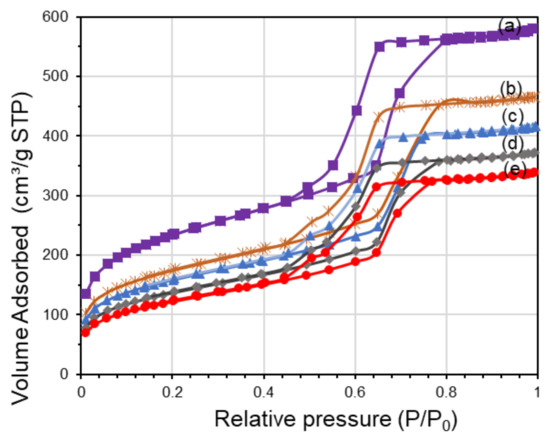

A series of methane oxidation catalysts were prepared by doping Santa Barbara Amorphous-15 (SBA-15), a highly mesoporous silica sieve, with varying amounts of Zr (5, 10, and 15 wt%) and loading with 2 wt% Pd and 4 wt% Pt. The catalysts were characterized using various techniques, including BET, X-ray diffraction (XRD), X-ray photoelectron spectroscopy (XPS), and H₂-temperature programmed reduction (H₂-TPR). Fresh and aged catalysts were evaluated for methane oxidation. Aging was performed using a simulated lean burn natural gas (NG) engine exhaust containing water vapor (10% vol) and sulfur (10 ppm). It was found that the catalyst with 15 wt% zirconia was the most active and stable of the series, exhibiting the lowest T₅₀ of 481 °C after 40 h of aging. The Pd–Pt catalyst loaded on pure SBA-15 had a T₅₀ of 583 °C after aging, which was 102 °C higher than that of the Pd–Pt catalyst with 15 wt% Zr. The results suggest that the increased performance was due to the higher amount of reducible PtO_x species in the proximity of ZrO₂ and the sulfur scavenging effect of zirconia, which protected the active metals from forming inactive sulfur complexes. Overall, the Pd–Pt catalyst with 15 wt% Zr loaded on SBA-15 demonstrated excellent methane oxidation activity, hydrothermal stability, and sulfur resistance and can be considered a viable candidate for reducing the methane slip from a lean burn NG engine exhaust. Full article

We described the novel nanocomposite of silver doped ZrO₂ combined graphene-based mesoporous silica (ZrO₂-Ag-G-SiO₂,) in bases of low-cost and self-assembly strategy. Synthesized ZrO₂-Ag-G-SiO₂ were characterized through X-ray diffraction (XRD), scanning electron microscopy (SEM), energy-dispersive X-ray spectrometry (EDX), transmission electron microscopy (TEM), high-resolution transmission electron microscopy (HRTEM), Raman spectroscopy, Nitrogen adsorption-desorption isotherms, X-ray photoelectron spectroscopy (XPS), and Diffuse Reflectance Spectroscopy (DRS). The ZrO₂-Ag-G-SiO₂ as an enzyme-free glucose sensor active material toward coordinate electro-oxidation of glucose was considered through cyclic voltammetry in significant electrolytes, such as phosphate buffer (PBS) at pH 7.4 and commercial urine. Utilizing ZrO₂-Ag-G-SiO₂, glucose detecting may well be finished with effective electrocatalytic performance toward organically important concentrations with the current reaction of 9.0 × 10⁻³ mAcm⁻² and 0.05 mmol/L at the lowest potential of +0.2 V, thus fulfilling the elemental prerequisites for glucose detecting within the urine. Likewise, the ZrO₂-Ag-G-SiO₂ electrode can be worked for glucose detecting within the interferometer substances (e.g., ascorbic corrosive, lactose, fructose, and starch) in urine at proper pH conditions. Our results highlight the potential usages for qualitative and quantitative electrochemical investigation of glucose through the ZrO₂-Ag-G-SiO₂ sensor for glucose detecting within the urine concentration. Full article

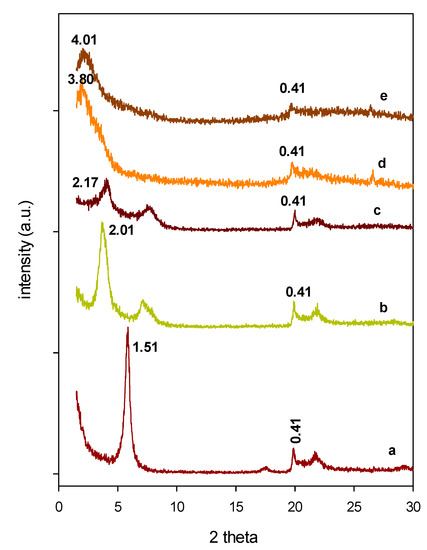

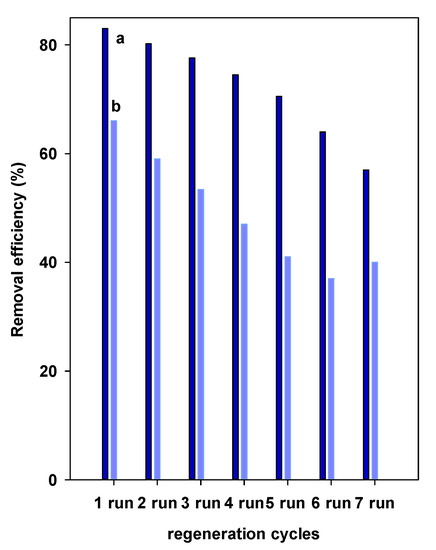

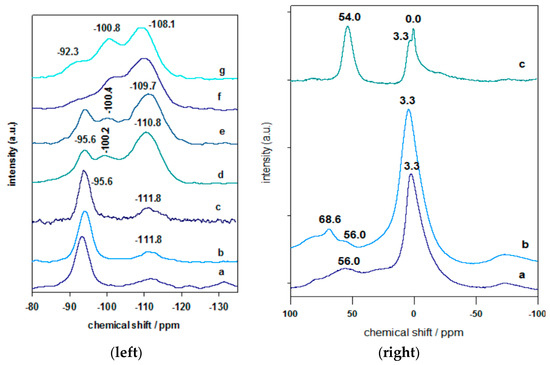

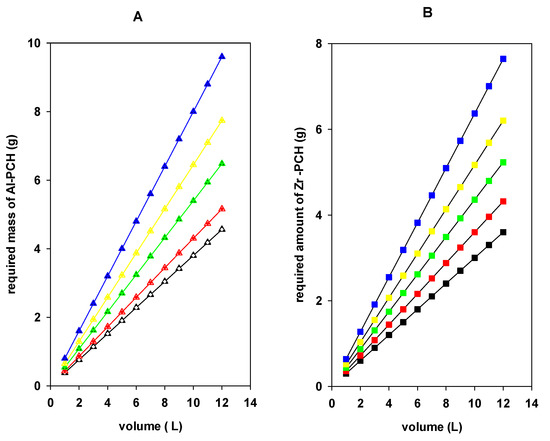

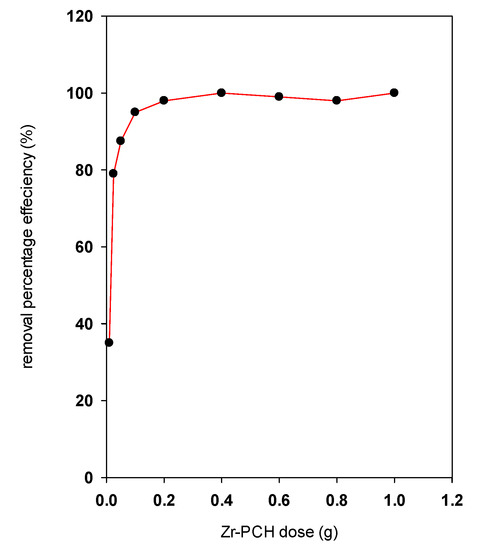

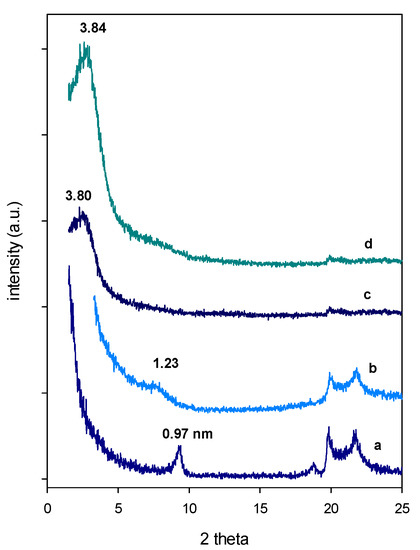

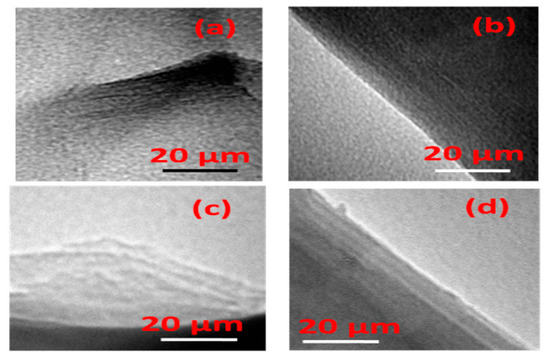

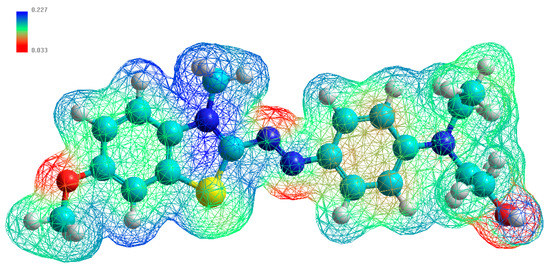

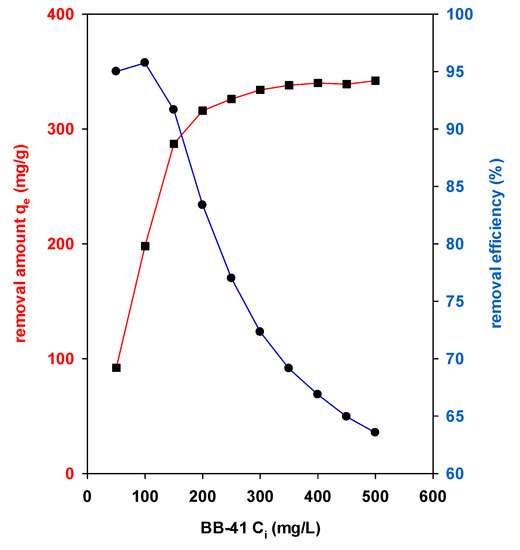

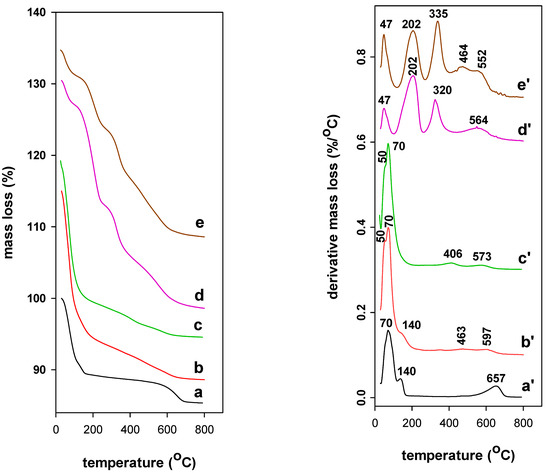

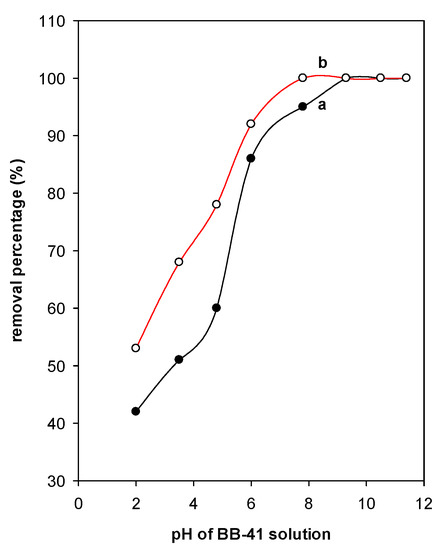

The removal of Basic Blue-41 dye molecules was carried out by using two doped porous clay heterostructures by aluminum (Al) or zirconium (Zr) species. The proposed method of synthesis showed its efficiency, starting from Al or Zr intercalated hydrolyzed species, prior to its reaction with dodecylamine (C₁₂ amine) and tetraethyl orthosilicate (TEOS) as a silica source. The intercalated precursors and their porous clay heterostructures (PCH) derivatives were characterized by different techniques. Solid NMR technique proved the presence of Al species into the intercalated silica between the clay sheets, and in addition to Si in different environments within the PCH materials. The Zr-PCH material exhibited a higher surface area and pore volume compared to its Al-PCH counterpart, with a mesoporous character for both materials. A maximum removed amount of 279 and 332 mg/g was achieved and deduced from the Langmuir equation. The regeneration tests revealed that the removal efficiency of Zr-PCH was retained after five regeneration runs, with a loss of 15% of the original value; meanwhile, the Al-PCH lost 45% of its efficiency after only three cycles. A single-stage batch design was proposed based on the Langmuir isotherm parameters. The increase of the removal capacity of Zr-PCH led to the reduction of the required amounts for the target removal of BB-41 dye compared to Al-PCH. Full article

Zr-doped mesoporous silicas with different textural parameters have been synthesized in the presence of structure-modifying agents, and then characterized by X-ray diffraction (XRD), transmission electron microscopy (TEM), N₂ adsorption-desorption at −196 °C, NH₃ thermoprogrammed desorption (NH₃–TPD), CO₂ thermoprogrammed desorption (CO₂–TPD), and X-ray photoelectron spectroscopy (XPS). These porous materials were evaluated in the furfural hydrogenation through the Meerwein-Ponndorf-Verley (MPV) reaction. The catalytic results indicate that the catalyst synthesized under hydrothermal conditions and adding a pore expander agent is more active and selective to furfuryl alcohol. However, the Zr-doped porous silica catalysts that were synthesized at room temperature, which possess narrow pore sizes, tend to form i-propyl furfuryl and difurfuryl ethers, coming from etherification between furfuryl alcohol (FOL) and isopropanol molecules (used as H-donor) by a S_N2 mechanism. Full article

Due to their high-porosity, nanoporous structure and pores, aerogel materials possess extremely low thermal conductivity and have broad potential in the thermal insulation field. Silica aerogel materials are widely used because of their low thermal conductivity and high temperature resistance. Pure silica aerogel is very fragile and nearly transparent to the infrared spectrum within 3–8 μm. Doping fibers and opacifiers can overcome these drawbacks. In this paper, the influences of opacifier type and content on the thermal conductivity of silica fiber mat-aerogel composite are experimentally studied using the transient plane source method. The thermal insulation performances are compared from 100 to 750 °C at constant pressure in nitrogen atmosphere among pure fiber mat, fiber mat-aerogel, 20% SiC-fiber mat-aerogel, 30% ZrO₂-fiber mat-aerogel and 20% SiC + 30% ZrO₂-fiber mat-aerogel. Fiber mat-aerogel doped with 20% SiC has the lowest thermal conductivity, 0.0792 W/m·K at 750 °C, which proves that the proper type and moderate content of opacifier dominates the low thermal conductivity. The pore size distribution indicates that the volume fraction of the micropore and mesopore is also the key factor for reducing the thermal conductivity of porous materials. Full article
