Search Results (6)

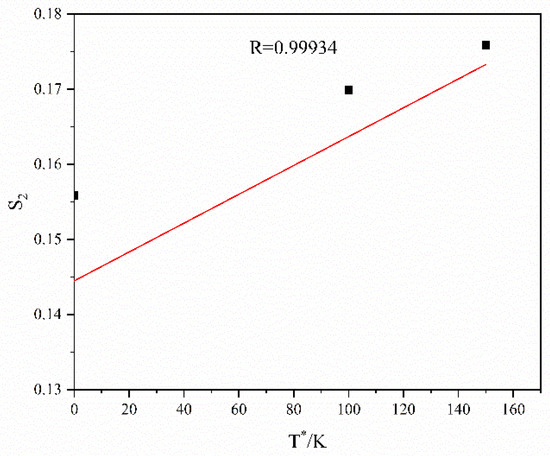

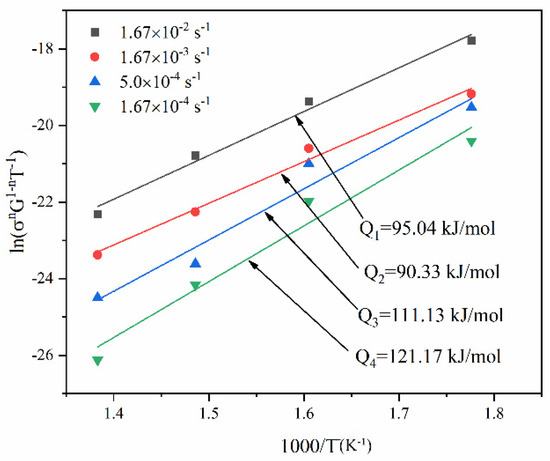

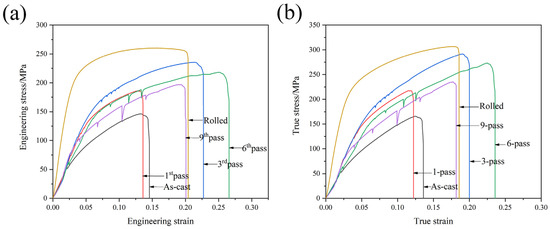

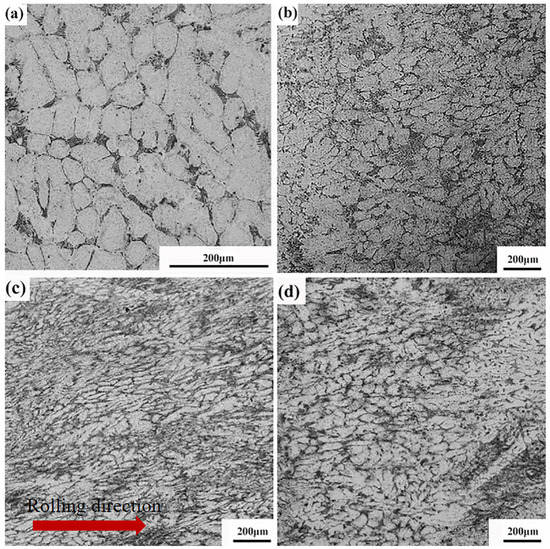

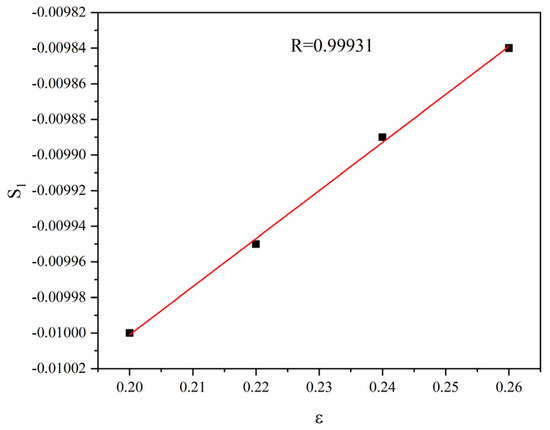

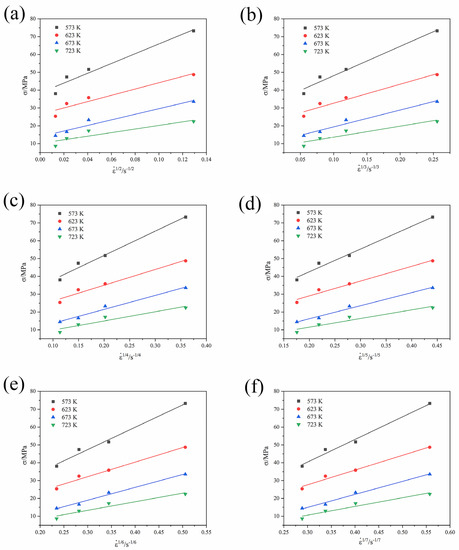

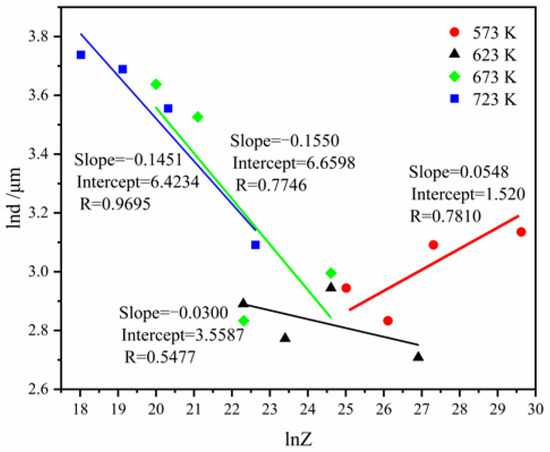

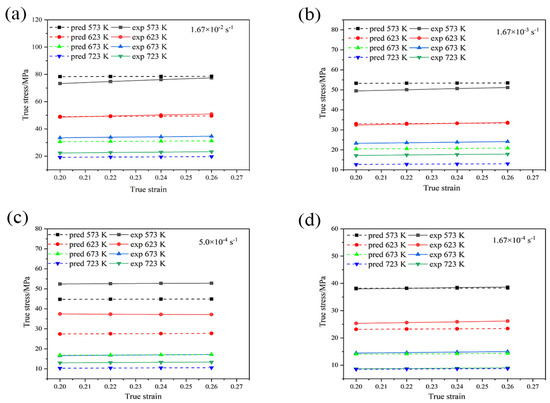

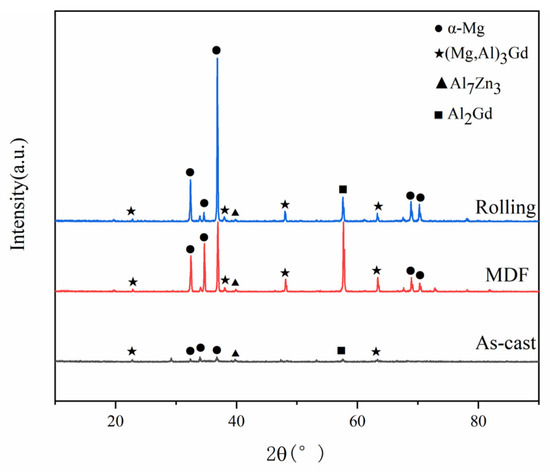

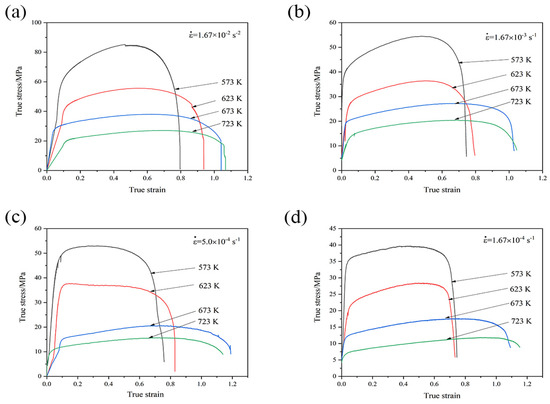

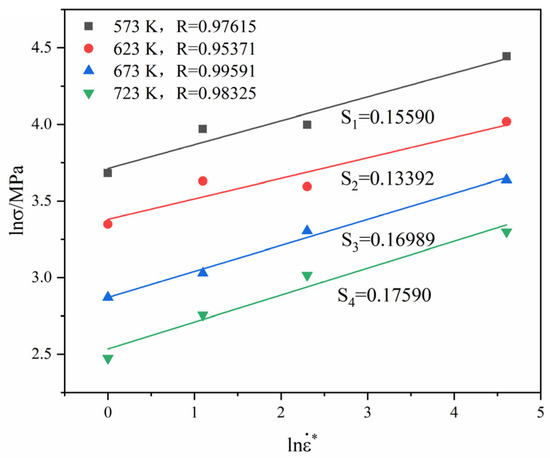

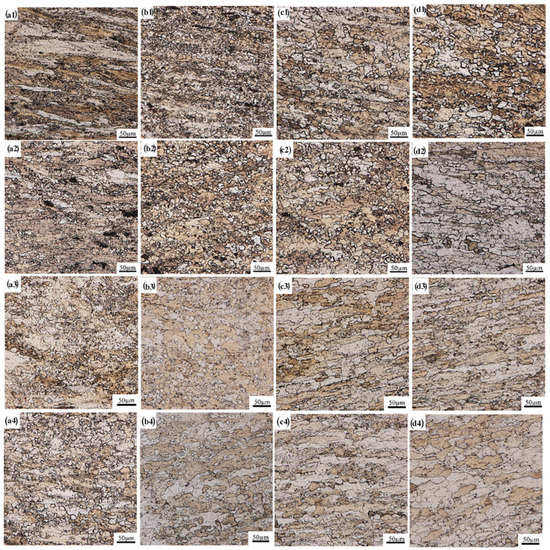

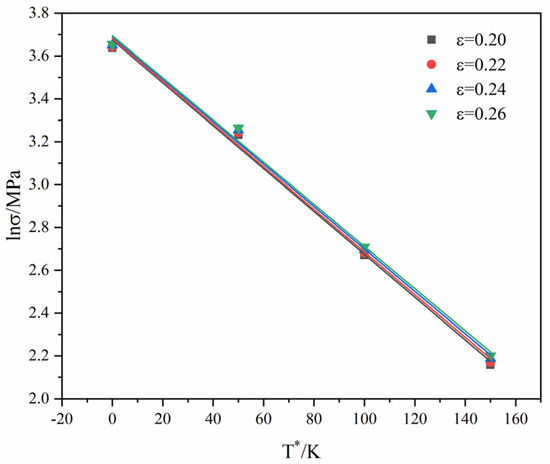

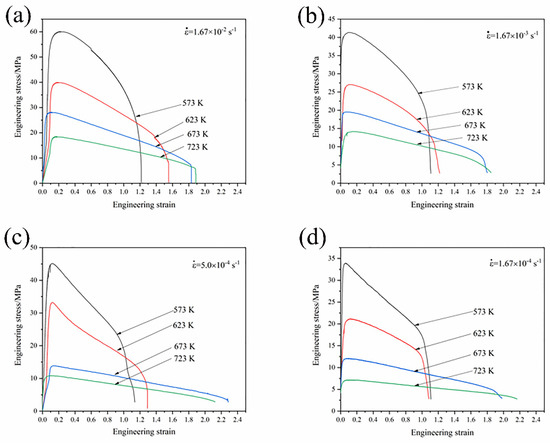

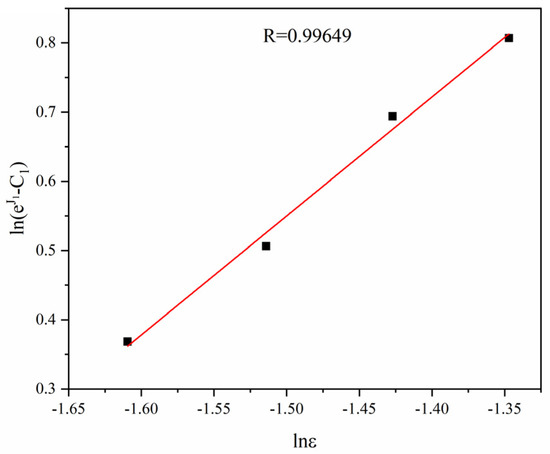

To explore room-temperature strengthening and high-temperature ductility, a lightweight novel Mg-1.85Gd-0.64Al-0.62Zn alloy was fabricated by innovative multidirectional forging and a hot-rolling technique. Microstructures and mechanical properties were studied at room and elevated temperatures with an optical microscope, an X-ray diffractometer, and a tensile tester. An ultimate tensile strength of 260 MPa, yield strength of 171 MPa, and elongation of 20.4% were demonstrated at room temperature. The room-temperature strengthening mechanisms were identified by strengthening the model estimation. A type C Portevin-Le Chatelier effect was discovered and elucidated in this alloy. X-ray diffraction analysis revealed that the phase composition is α-Mg solid solution and (Mg, Al)₃Gd, Al₇Zn₃, and Al₂Gd intermetallic compounds. Examination of the microstructure at elevated temperatures revealed that dynamic recrystallization and dynamic grain growth occur. In particular, it was discovered that bimodal microstructures or incomplete dynamic recrystallization microstructures exist in high-temperature deformation. A maximum quasi-superplasticity of 228.4% was demonstrated in this alloy at 673 K and 5.0 × 10⁻⁴ s⁻¹. Flow stress curves showed that the present alloy exhibits Sotoudeh–Bate curves or a long intermediate strain-hardening stage followed by a strain-softening stage. A modified Zerilli–Armstrong constitutive equation incorporating the number of dislocations was established. The power-law constitutive equation was established to identify the deformation mechanism. Both constitutive models had good predictability. At 673 K and 5.0 × 10⁻⁴ s⁻¹, the stress exponent was 4, and the average deformation activation energy was 104.42 kJ/mol. The number of dislocations inside a grain was 146. This characteristic evidence confirmed that dislocation motion controlled by pipe diffusion dominates the rate-controlling process under this condition. Full article

The effect of 0–1.0 at.% Al additions on grain refinement and phase transformation of the Mg-2.0Gd-1.2Y-0.5Zn-0.2Mn (at.%) alloy containing a long period stacking ordered (LPSO) phase was investigated in this work. The addition of Al promoted the formation of the Al₂RE phase in the Mg-2.0Gd-1.2Y-0.5Zn-0.2Mn (at.%) alloy, and the dominant secondary phases in the as-cast Mg-2.0Gd-1.2Y-0.5Zn-0.2Mn-1.0Al (at.%) alloy were the Mg₃RE phase, LPSO phase, and Al₂RE phase. With increased Al addition, the area fraction of the Al₂RE phase increased monotonously, while the area fraction of LPSO phase and Mg₃RE phase decreased gradually. The orientation relationship between the Al₂RE phase and the α-Mg matrix was determined to be <112>_Al2RE//<11$\overline{2}$0>_α-Mg, {101}_Al2RE//{10$\overline{1}$0}_α-Mg, which was not affected by Zn and Mn concentrations in the Al₂RE phase. Since the Al₂RE particles with a size more than 6 μm located at the center of grains could act as nucleants for α-Mg grains, the average grain size of the as-cast alloys decreased from 276 μm to 49 μm after 1.0% Al addition. The effect of the Al addition on the grain refinement of the Mg-2.0Gd-1.2Y-0.5Zn-0.2Mn alloy was comparable to that of the Zr refined counterpart. Full article

Typically, steel is protected from corrosion by employing sacrificial anodes or coatings based on Zn, Mg, Al or Cd. However, stricter environmental regulations require new environmentally friendly alternatives to replace Cd. Traditionally, Al-based anodes have been employed to cathodically protect steel in marine applications or as ion vapour deposition (IVD)-Al sacrificial coatings for aerospace applications. However, Al tends to passivate, thus losing its protective effect. Therefore, it is important to identify possible alloys that can provide a constantly sufficient current. In this study, Al-X alloys (X = Ag, Bi, Ca, Cr, Cu, Ga, Gd, In, Mg, Mn, Ni, Sb, Si, Sn, V, Ti, Zn and Zr) were firstly tested for a screening of the sacrificial properties of binary systems. Al-0.5Cr, Al-1Sn, Al-0.2Ga, Al-0.1In, Al-2Si and Al-5Zn alloys were suggested as promising sacrificial Al-based alloys. Suitable heat treatments for each system were implemented to reduce the influence of the secondary phases on the corrosion properties by minimising localised attack. extensive evaluation of the corrosion properties, including galvanic coupling of these alloys to steel, was performed in the NaCl electrolyte. A comparative analysis was conducted in order to choose the most promising alloy(s) for avoiding the passivation of Al and for efficient cathodic protection to steel. Full article

In the present paper, the Mg-11Gd-2Y-1Zn alloys with different Al addition were fabricated by the gravity permanent mold method. The effect of Al content on microstructure evolution and mechanical properties of as-cast Mg-11Gd-2Y-1Zn alloy was studied by metallographic microscope, scanning electron microscope, XRD and tensile testing. The experimental results showed that the microstructure of as-cast Mg-11Gd-2Y-1Zn alloy consisted of α-Mg phase and island-shaped Mg₃ (RE, Zn) phase. When Al element was added, Al₂RE phase and lamellar Mg₁₂REZn (LPSO) phase were formed in the Mg-11Gd-2Y-1Zn alloy. With increasing Al content, LPSO phase and Mg₃ (RE, Zn) phase gradually decreased, while Al₂RE phase gradually increased. There were only α-Mg and Al₂RE phases in the Mg-11Gd-2Y-1Zn-5Al alloy. With the increase of Al content, the grain size decreased firstly and then increased. When the Al content was 1 wt.%, the grain size of the alloy was the minimum value (28.9 μm). The ultimate tensile strength and elongation increased firstly and then decreased with increasing Al addition. And the fracture mode changed from intergranular fracture to transgranular fracture with increasing addition. When Al addition was 1 wt.%, the maximum ultimate tensile strength reached 225.6 MPa, and the elongation was 7.8%. When the content of Al element was 3 wt.%, the maximum elongation reached 10.2% and the ultimate tensile strength was 207.7 MPa. Full article

In this work, the generalized stacking fault energies (GSFEs) of {10-11}<11-23> slip system in a wide range of Mg-X (X = Ag, Al, Bi, Ca, Dy, Er, Gd, Ho, Li, Lu, Mn, Nd, Pb, Sc, Sm, Sn, Y, Yb, Zn and Zr) binary alloys has been studied. The doping concentration in the doping plane and the Mg-X system is 12.5 at.% and 1.79 at.%, respectively. Two slip modes (slip mode I and II) were considered. For pure magnesium, these two slip modes are equivalent to each other. However, substituting a solute atom into the magnesium matrix will cause different effects on these two slip modes. Based on the calculated GSFEs, two design maps were constructed to predict solute effects on the behavior of the {10-11}<11-23> dislocations. The design maps suggest that the addition of Ag, Al, Ca, Dy, Er, Gd, Ho, Lu, Nd, Sm, Y, Yb and Zn could facilitate the {10-11}<11-23> dislocations. Full article

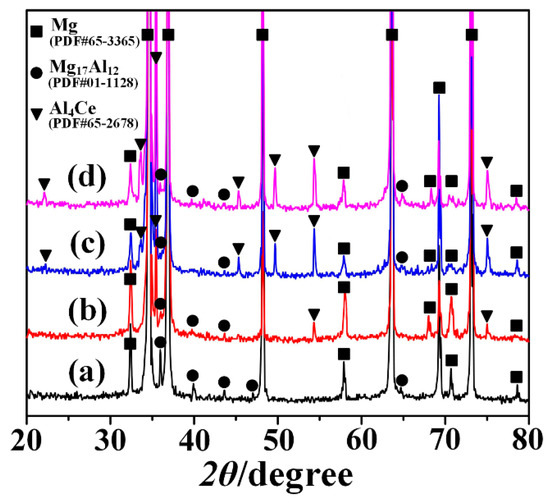

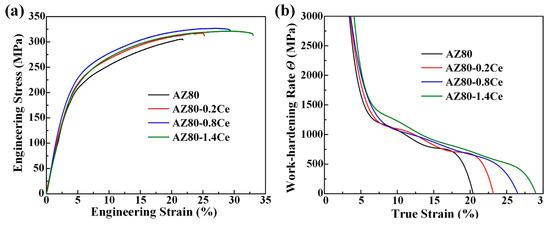

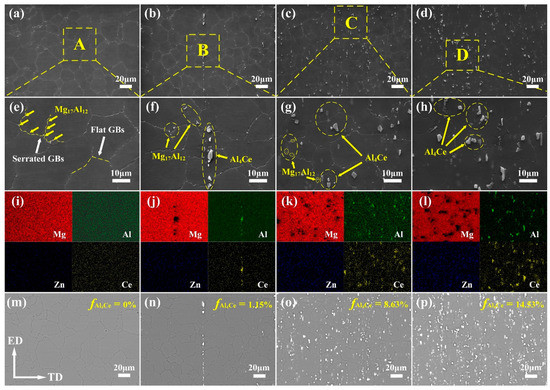

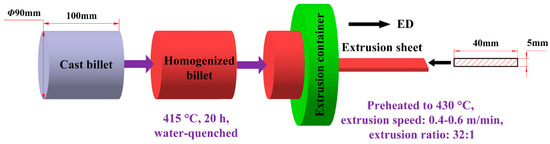

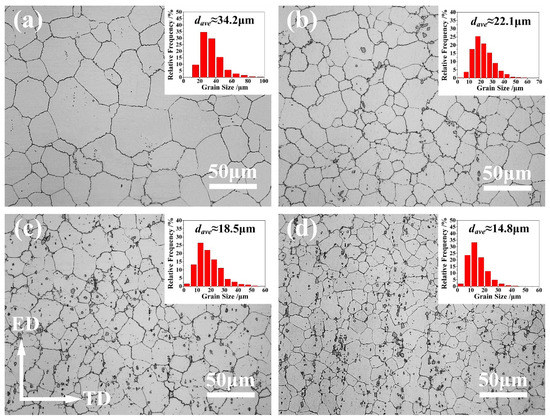

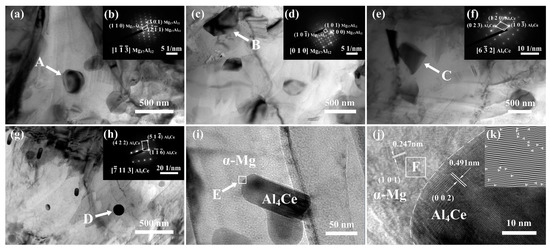

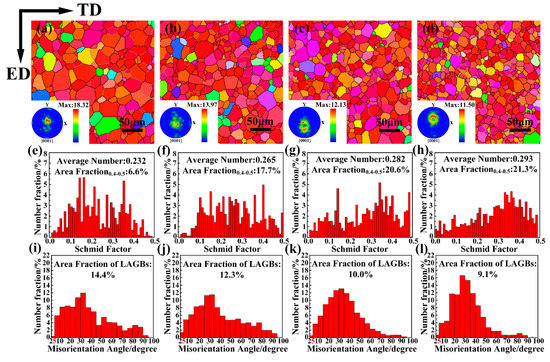

Forming magnesium alloys with rare earth elements (La, Gd, Nd, Y, Ce) is a routine method for modifying their microstructure and properties. In the present work, the effect of Ce addition on the microstructure evolution and the mechanical properties of as-extruded Mg-8Al-0.5Zn (AZ80) alloy was investigated. All of the extruded AZ80-xCe (x = 0, 0.2, 0.8 and 1.4 wt %) alloys exhibited equiaxed grains formed by fully dynamic recrystallization, and the grain size of the extruded AZ80 alloy was remarkably reduced by ~56.7% with the addition of 1.4 wt % Ce. Furthermore, the bulk-shaped Al₄Ce phase formed when Ce was first added, with the Ce content rising to 0.8 wt % or higher, and Al₄Ce particles in both the nano- and micron sizees were well distributed in the primary α-Mg matrix. The area fraction of the Al₄Ce particles expanded with increasing Ce content, providing more nuclei for dynamic recrystallization, which could contribute to the grain refinement. The results of the tensile tests in this study showed that Ce addition effectively improved the room temperature formability of the as-extruded AZ80 alloy, without sacrificing strength. The significantly improved mechanical properties were ascribed to excellent grain refinement, weakened texture strength, an increased Schmid factor, and a reduced area fraction of low-angle grain boundaries, all resulting from Ce addition to the as-extruded AZ80 alloy. The contribution of the nano-Al₄Ce precipitates on improving the mechanical properties was also discussed in this paper. Full article
