Search Results (23)

In this study, the vitrification of asbestos-cement waste (ACW) and glass cullet from cathode-ray tubes (CRTs) was performed. The resulting product of vitrification from the abovementioned waste was used as the reinforcing phase in a composite with the AA7075 alloy matrix. The composite was made by means of the FSP (friction stir processing) method. The main aim of this work was to determine whether the product of the vitrification can be utilized as the reinforcing phase in the composite. The tests show that introducing the vitrification product into the composite matrix increases both the hardness of the material and its wear resistance. The composite was characterized by a 39% higher hardness and 30.4% higher wear resistance compared to the initial AA7075 alloy. The changes in the properties were caused by strong refinement of the grains, but primarily by the presence of the hard particles of the reinforcing phase in the composite matrix. This research demonstrates that vitrified material, thanks to its properties, can constitute a full-value reinforcing material that can ultimately replace more expensive engineering materials in composites. Full article

From commercial pellets of recycled polyethylene terephthalate glycol (R-PETG), 1.75 mm diameter filaments for 3D printing were produced. By varying the filament’s deposition direction between 10° and 40° to the transversal axis, parallelepiped specimens were fabricated by additive manufacturing. When bent at room temperature (RT), both the filaments and the 3D-printed specimens recovered their shape during heating, either without any constraint or while lifting a load over a certain distance. In this way, free-recovery and work-generating shape memory effects (SMEs) were developed. The former could be repeated without any visible fatigue marks for as much as 20 heating (to 90 °C)-RT cooling–bending cycles, while the latter enabled the lifting of loads over 50 times heavier than the active specimens. Tensile static failure tests revealed the superiority of the specimens printed at larger angles over those printed at 10°, since the specimens printed at 40° had tensile failure stresses and strains over 35 MPa and 8.5%, respectively. Scanning electron microscopy (SEM) fractographs displayed the structure of the successively deposited layers and a shredding tendency enhanced by the increase in the deposition angle. Differential scanning calorimetry (DSC) analysis enabled the identification of the glass transition between 67.5 and 77.3 °C, which might explain the occurrence of SMEs in both the filament and 3D-printed specimens. Dynamic mechanical analysis (DMA) emphasized a local increase in storage modulus of 0.87–1.66 GPa that occurred during heating, which might explain the development of work-generating SME in both filament and 3D-printed specimens. These properties recommend 3D-printed parts made of R-PETG as active elements in low-price lightweight actuators operating between RT and 63 °C. Full article

This paper presents an alternative way to recycle cathode ray tube glass waste, together with fly ash and kaolin, into new glass ceramic materials. The samples were obtained using three firing temperatures: 700, 800, and 900 °C. The effect of the fly ash/CRT waste ratio upon the materials’ firing shrinkage, apparent density, apparent and total porosity, chemical stability, and compression strength was investigated. The firing shrinkage used as a dimensional stability parameter, a firing shrinkage range between 2.19–8.18%, was positively influenced by the waste mix amount. The apparent density of the obtained materials is positively affected by the heat treatment temperature, rising from 2.09 to 2.93 (g·cm⁻³), while the apparent porosity decreases with the increase of the firing temperature from 6.08 to 2.24 %. All the studied glass ceramics show very good chemical stability and complete immobilization of the Pb²⁺ and Ba²⁺ ions in the glass ceramic matrix. The compression strength of the sintered materials ranges between 1.42–11.83 (N·mm⁻²), being positively influenced by the kaolin amount and negatively influenced by porosity. The obtained results confirm the viability of the proposed alternative to use CRT waste and fly ash together with kaolin to obtain glass ceramic materials that can be used for outdoor paving applications. Full article

In this study, the photocatalytic effect of TiO₂ (1 wt. % and 3 wt. %) deposited on the surface of sintered cathode ray tube glass was examined, as well as its effect on an E. coli strain (BL21(DE3)). DTA analysis indicated the sintering temperature for samples to be 820 °C while scanning electron microscopy (SEM)showed an intimate contact and a strong interface between the support and photocatalyst. Near-ambient pressure X-ray photoelectron spectroscopy (NAP-XPS) was employed to establish the chemical and bonding environment of the samples. The investigations of the bacterial viability were conducted using flow cytometry, a specific cellular viability assay, while bacterial growth was measured using the turbidimetric method. The experimental results show the influence of the TiO₂ concentration on the bacterial inactivation process: higher concentrations (3% wt.) have a bactericidal effect in the long term, whereas lower concentrations (1% wt.) render them inactive for a shorter time in the exponential growth stage. The preliminary results were used to calculate the efficiency of microbial inactivation and the parameters of the kinetics of inactivation using ANOVA software. The results indicate that this material could be an effective solution for water disinfection. Full article

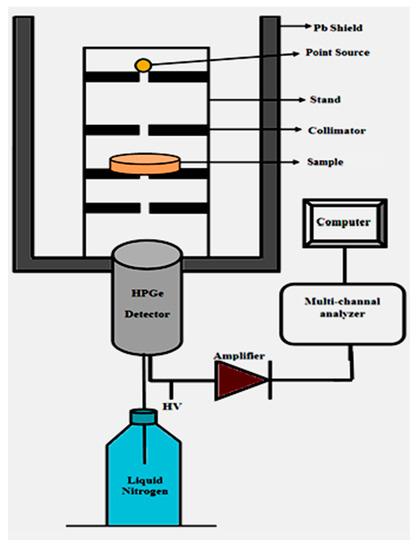

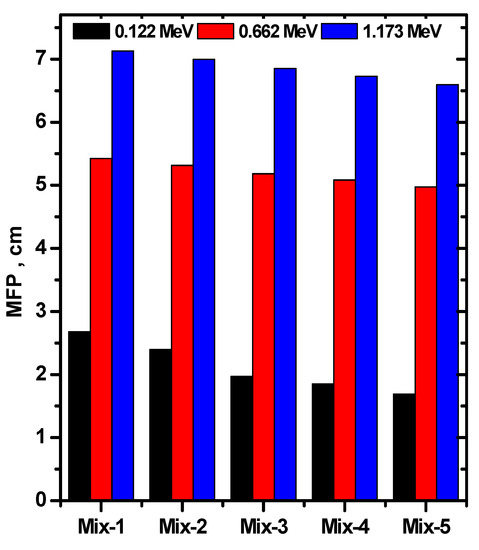

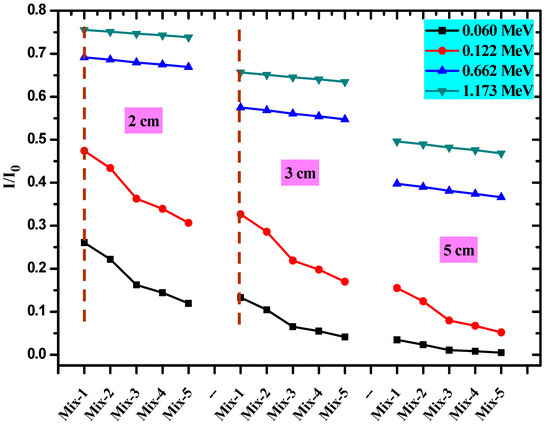

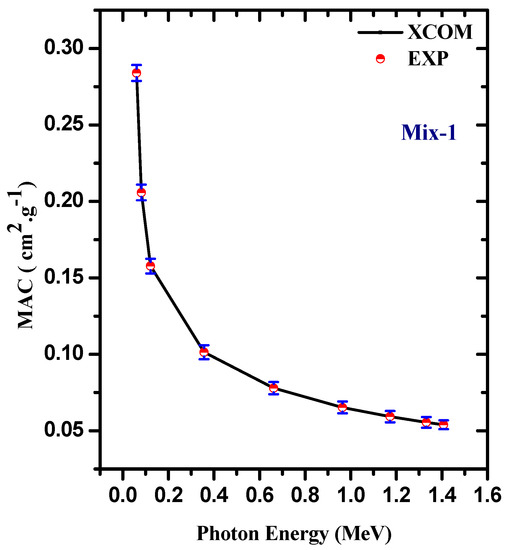

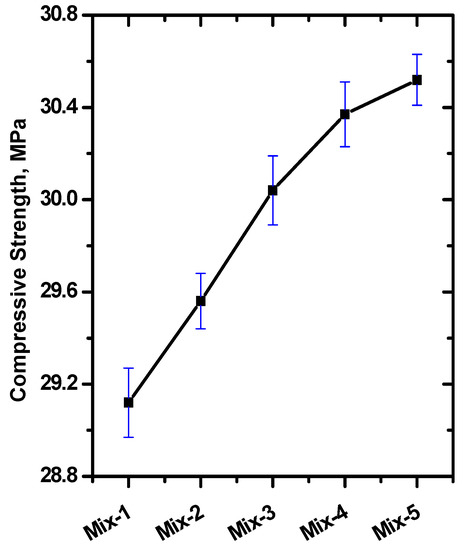

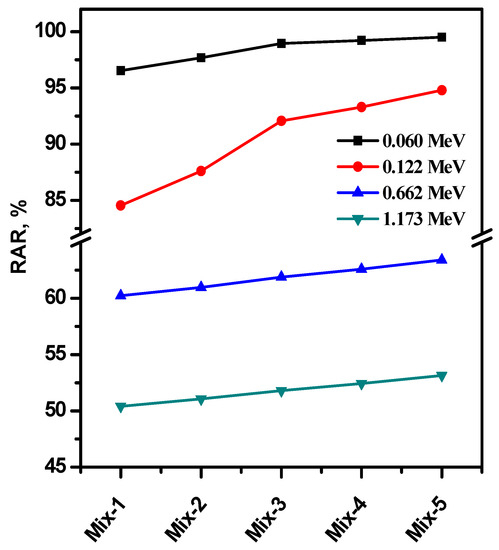

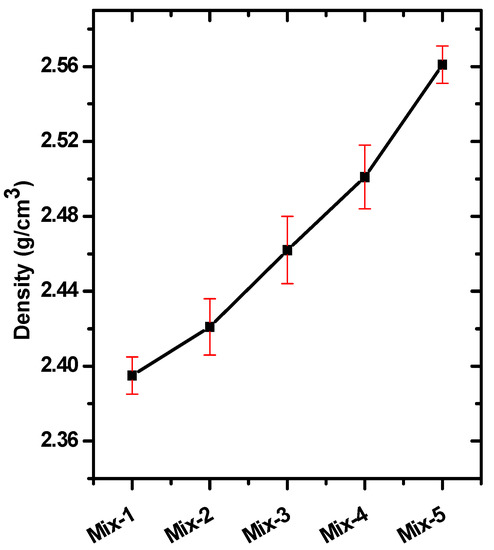

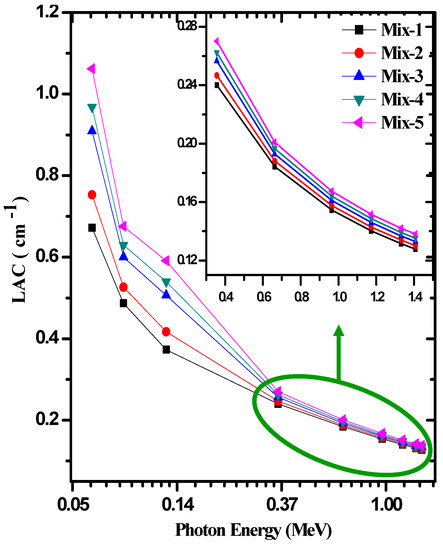

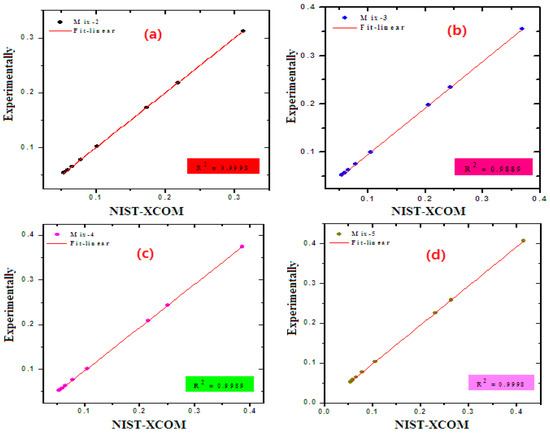

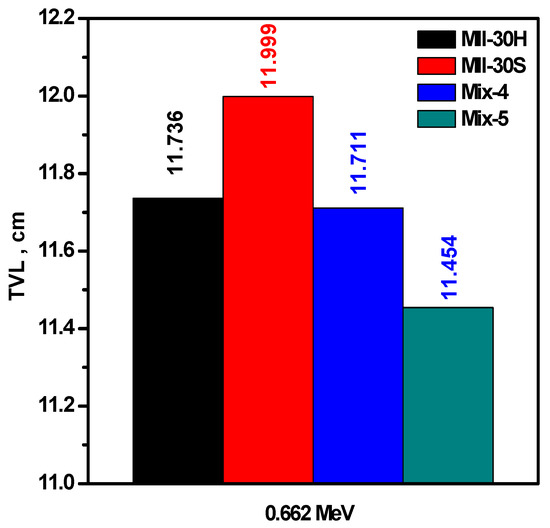

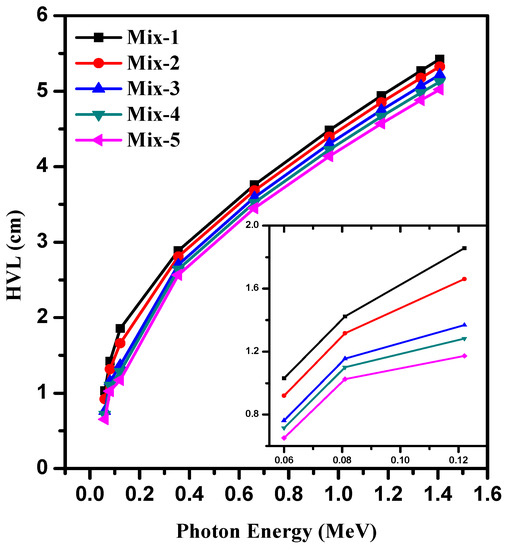

The present investigation was aimed at the utilization of alternate materials, emphasizing hazardous industrial products (red mud and cathode ray tubes), as constituents of radiation shielding concrete. The usage of these hazardous industrial products improves the sustainability and performance of the radiation shielding concrete. Five concrete blocks were cast and their density, compressive strength, gamma shielding factors, radiation absorption ratio, and transmission factor were explored. For this purpose, gamma-ray shielding measurements were done with the help of an HPGe detector. Mix-1, with zero contents of red mud and CRTs, had the lowest LAC. The LAC results demonstrated that the shielding performance of the current concretes would be better with the increase in red mud and cathode ray tube glass. The Transmission factor (TF) for the prepared concretes with a thickness of 2 cm varied between 11.9–26.1% at 0.06 MeV, while it varied between 4–13% for a thickness of 3 cm. The TF results showed that the composites with a thickness of 2, 3, or 5 cm are good shields against lower energy radiation. The radiation absorption ratio (RAR) for the prepared concretes is high at low energy, suggesting that these new composites can absorb most of the low-energy photons. The RAR results emphasize that the increase in CRTs in the new composites enhanced the radiation shielding features, and when the CRT glass is at a maximum, more attenuation was achieved. Full article

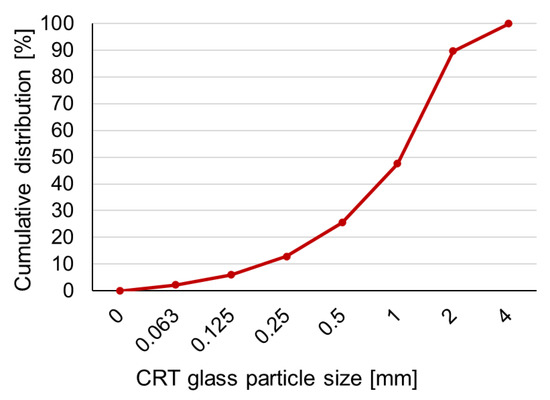

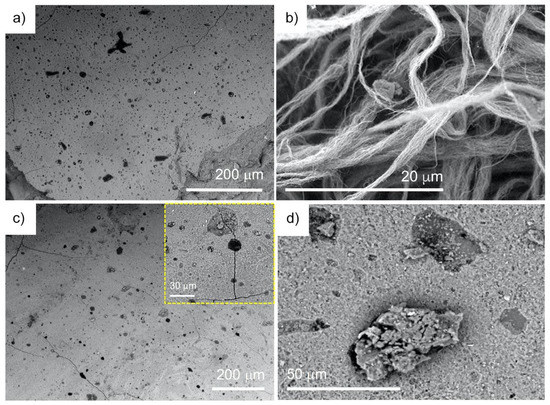

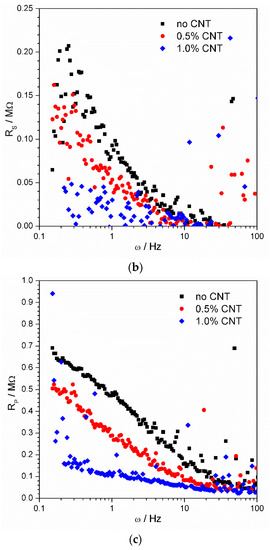

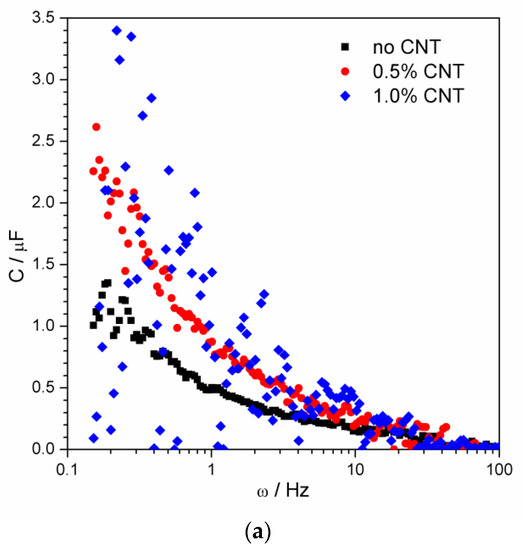

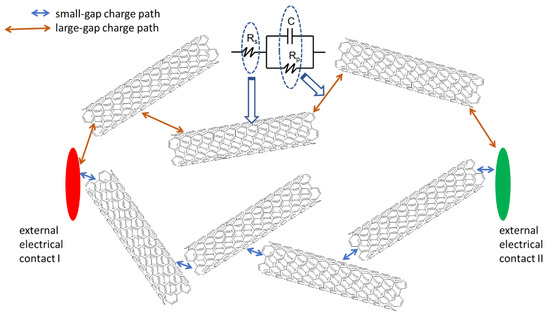

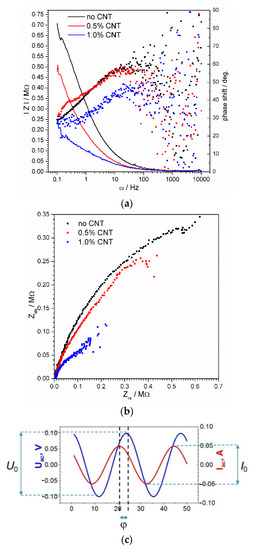

Geopolymers, recognized as an ecological alternative to cement concrete, are gaining more and more interest from researchers and the construction industry. Due to the registrable electrical conductivity, this material also attracts the interest of other fields of science and industry as a potential functional material. The article discusses the used geopolymer material, created on the basis of metakaolin and waste Cathode Ray Tubes (CRT) glass, reinforced with ultra-long in-house carbon nanotubes (CNT), in the context of its use as a smart material for Structural Health Monitoring. Long in-house made carbon nanotubes were added to enhance the electrical conductivity of the geopolymer. The impedance spectroscopy method was applied to investigate the conductive properties of this material. The paper shows the microscopic and mechanical characteristics of the materials and presents the results of promising impedance spectroscopy tests. Full article

Abstract symmetric patterns are generally preferred to less regular patterns. Here, we studied 2D patterns presented as 2D images in the plane, and therefore producing a symmetric pattern on the retina, and the same patterns seen in perspective. This perspective transformation eliminates the presence of perfect symmetry in terms of retinotopic coordinates. Stimuli were abstract patterns of local coplanar elements, or irregular polygons. In both cases they can be understood as 2D patterns on a transparent glass pane. In the first study we found that perspective increased reaction time and errors in a classification task, even when the viewing angle was kept constant over many images. In a second study we tested a large sample (148 participants) and asked for a rating of beauty for the same images. In addition, we used the Cognitive Reflection Test (CRT) to test the hypothesis that people who tend to give the more immediate and intuitive answer would also show a stronger preference for the symmetry presented in the frontoparallel plane (in the image and on the retina). Preference for symmetry was confirmed, and there was a cost for perspective viewing. CRT scores were not related to preference, thus not supporting the hypothesis of a stronger preference for symmetry in the image when people follow a more immediate and intuitive gut response. Full article

The potential to use waste glass, including cathode ray tube (CRT) glass, for making new products or as an admixture to existing ones is being intensively investigated. This kind of research intensified particularly in the period after CRT TV sets and computer monitors were replaced in the market by the advanced technology of thin film transistor (TFT) and liquid crystal display (LCD) screens. Cathode ray tube glass represents a considerable part of electronic waste (e-waste). E-waste globally increases at a far higher rate than other solid waste materials. There is a possibility to recycle cathode ray tube glass and use it in the construction industry. This paper shows the test results of physical and mechanical properties of blocks and paving flags. The reference specimen was made with quartz sand, while the other product employed a combination of quartz sand and ground panel cathode ray tube glass. The glass was ground to the fraction 0.25/1.00 mm, which corresponds to quartz sand fineness. The following tests were performed: shape and dimensions, resistance to freeze/thaw and de-icing salts, water absorption, splitting tensile strength and tensile strength by bending. Special attention was paid to the tests of Böhme wear resistance, slip resistance of the top surface of CRT products using a pendulum, radioactivity and leaching. The texture of the experimental concrete products was observed by SEM (scanning electron microscopy) and analyzed. The results obtained by experimental testing unequivocally show that CRT glass can successfully be used for making concrete blocks and paving flags. Full article

Polymer concrete (PC) is a composite construction material that boasts several advantages, such as lightness, low water permeability, high resistance to corrosive environments, and chemical degradation. Consequently, it has recently attracted interest as an alternative material to the traditional ones for several civil applications. In this study, unsaturated polyester resin was considered the matrix phase of PC. Aimed to produce green PC, the commonly dispersed phase of natural aggregate was totally replaced by recycled glass aggregate (RGA) deriving from cathode ray tube (CRT) glass waste. Fine and coarse fractions of non-hazardous CRT glass were considered in different ratios. Chemical and physical analyses were carried out through XRF, particle size distribution and microstructural analysis to characterize RGA. The influence of RGA particle size and percentage on PC performance was investigated by microstructural analysis and aggregate packing, chemical resistance, water absorption, and mechanical analyses, such as bending, impact, and scratch test. Using solely the coarse fraction of RGA led to the manufacturing of a green PC with similar performance to the traditional PC and in addition lower in density. The PC quality mainly depended on the matrix crosslinking which, for PC containing fine RGA, was promoted by adding 4 wt% of silane coupling agent. Full article

Aluminium dross is a hazardous industrial waste generated during aluminium production. It contains metallic oxides of aluminium and magnesium, other phases (aluminum nitride), and residues of fluxes and salts from the melting process of aluminium. Discarding this by-product is considered an environmental and economic challenge due to the high reactivity of dross with water or even air humidity. After removing the hazardous components from the as-received dross, one of the optional approaches is to incorporate the treated dross into construction materials. Dross is applied in several types of research as a secondary raw material source for alumina, clinker, cement or glass-ceramic production, but only a few papers focus on the usage of dross as a foaming agent for foams. Even fewer research are reported where dross was applied as a basic component of foam glasses. In this work, foam glasses were produced completely from waste materials: Aluminium dross, container (SLS) glass, and cathode ray tube (CRT) glass. The research holds several specificities, i.e., combining two industrial waste materials (CRT glass and dross), and adding an increased amount from the wastes. The physical and mechanical characteristics were examined with a special focus on the effect of the foam glass components on the microstructure, density, thermal conductivity, and compressive strength. Full article

Background: Maintenance treatment with immune-checkpoint inhibition (ICI) has been shown to significantly improve patient prognosis after chemoradiotherapy (CRT) for inoperable stage III NSCLC. This survival advantage may be achieved at the expense of an increased probability for symptomatic pneumonitis as CRT as well as ICI treatment is associated with the risk of treatment-related pulmonary toxicity. Methods: We screened a prospective chemoradioimmunotherapy (CRT-IO) cohort consisting of 38 patients and identified patients with therapy-related grade 3 pneumonitis. All patients were treated with intravenous high dose corticosteroids and closely monitored by CT-scans and extended longitudinal lung function tests. We analyzed lung function parameters and CT morphological features to characterize patients’ outcome. Results: Six (16%) patients treated with CRT-IO developed grade 3 pneumonitis one to six months after completion CRT. In the CT imaging, pneumonitis was characterized by diffuse ground glass capacities and in part pulmonary consolidations within and outside the planning target volume. Onset of pneumonitis was accompanied by a reduction in diffusion capacity in all cases. The mean decline of diffusion capacity was 25.8% [6–53%]. Under treatment with corticosteroids, all patients recovered regarding symptoms and changes in CT morphology. In five out of six patients, diffusion capacity improved to at least 80% of the baseline [80–96%]. One patient showed a significant increase of diffusion capacity after treatment (from 32% to 53%) but reached only 62% of the initial value. Conclusions: Pneumonitis is a severe complication of CRT-IO. High-resolution CT imaging and extended lung function testing proved to be a suitable approach in detecting and monitoring of CRT-IO associated pneumonitis. Full article

Among many alternatives to replace sand in cement-based materials, cathode-ray tube (CRT) glass emerges as a suitable replacement for many reasons. This paper provides a state-of-the-art review on the use of cathode-ray tube (CRT) glass waste in cement-based concrete and mortar in accordance with PRISMA guidelines. The new aspects of the research are the literature coverage up to 2021 which would make it distinct from other articles. This review would act as a catalyst to use CRT glass waste in concrete mixtures. A total of 61 papers from literature were analyzed with emphasis on the fresh, mechanical, and durability performance of cement-based materials containing CRT glass waste as fine aggregates. The analysis revealed that the majority of the studies agreed that replacing sand with CRT glass waste increased the consistency where the low permeability of the CRT glass caused this effect. Strength of cement-based materials, on the other hand, decreased due to the weaker bond between the cement paste and the aggregates. The low water absorption of the CRT glass defined its effect on the durability properties of cement-based materials, such as drying shrinkage and water absorption capacity, leading to an improved performance. In addition, CRT glass waste activated the alkali-silica reaction in cement-based materials causing undesirable expansion. Additionally, several investigations proposed solutions to mitigate the lead leaching associated with the lead content found in the CRT glass. In general, it was assessed that CRT glass waste could be a valid component in the production of sustainable cement-based materials, especially for radiation shielding applications. The recommendations for future research are also suggested. Full article

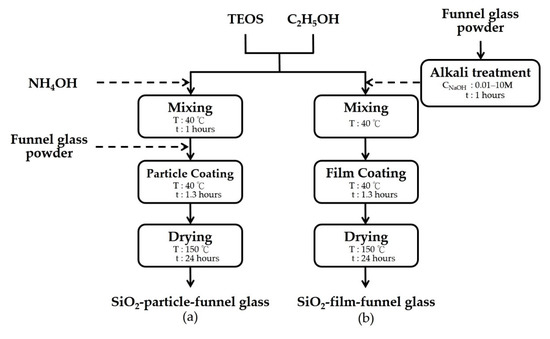

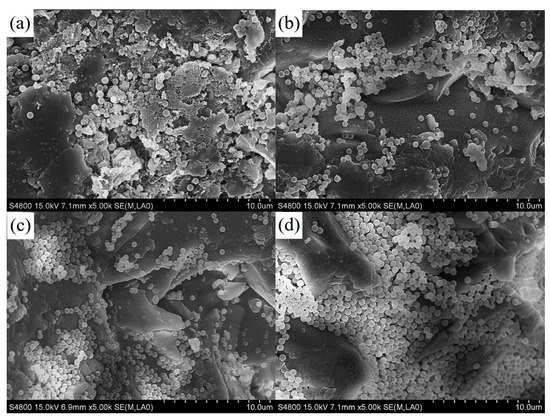

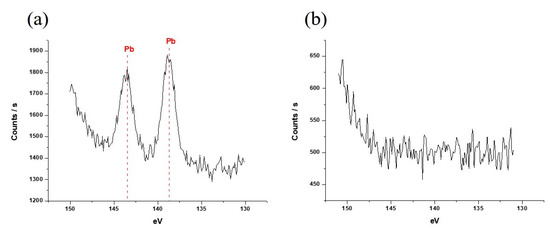

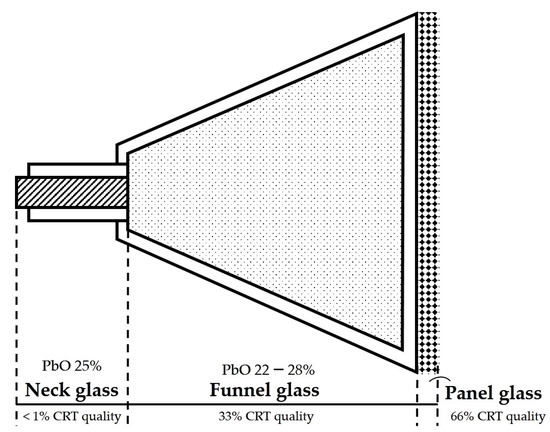

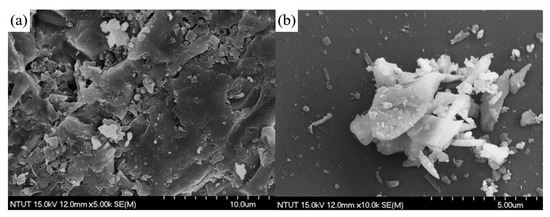

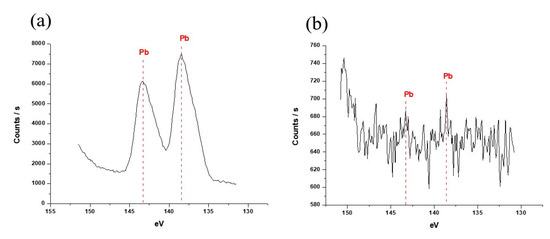

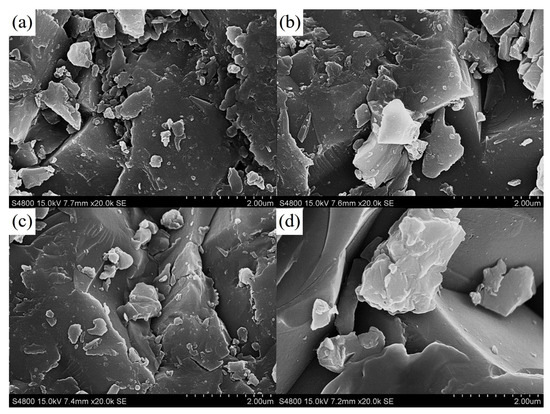

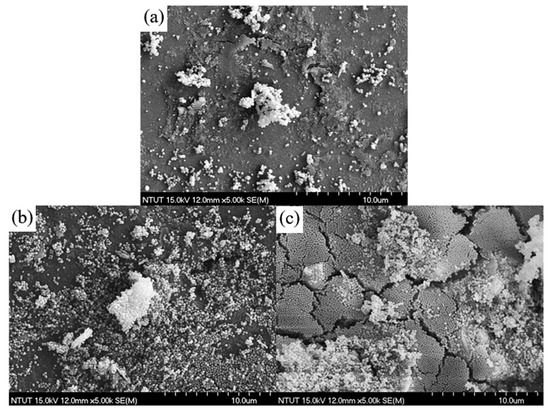

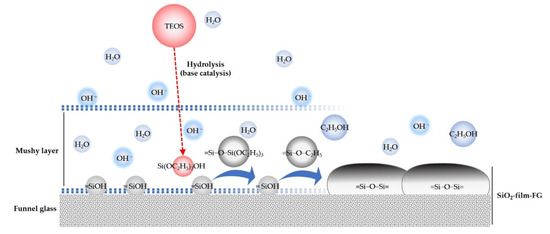

The funnel glass of the CRT monitor contains about 22–28% of lead oxide, of which lead is a highly toxic species and hazardous to the environment. This study proposes a process to form a protective layer of SiO₂ film coating on the funnel glass to reduce the hazardous effect of lead leaching to the environment. The film coating benefits from the advantages of the sol–gel method. There are two key procedures of the stabilization technique, including the alkaline treatment and the formation of SiO₂ coating from TEOS. The results show that the funnel glass powder treated with 10 M NaOH can produce a mushy layer on the surface. The mushy layer, which comprises OH⁻ and water, can promote the formation of the SiO₂ film layer on the surface of funnel glass powder. The conditions of the SiO₂ film coating proposed in this study are: alkaline treatment by 10 M NaOH, the addition ratio of TEOS and funnel glass powder 2: 1, reaction temperature 40 °C, and reaction time 1.3 h. The EDS and ESCA results show that the Pb peak intensity on the surface of funnel glass decreases with the film coating. In the TCLP test, the leaching amount for Pb of the SiO₂ film coated funnel glass powders is 0.7 mg/L, which is far lower than the standard in Taiwan EPA. Based on the experimental results, the formation mechanism of the SiO₂ film layer on the surface of waste funnel glass powder is proposed. This study demonstrates that the SiO₂ film coating is a potentially effective method to solve the problem of the waste funnel glass. Full article

This paper presents the testing of the durability of concrete where a part of cement was replaced with ground panel cathode ray tube glass (CRT) finer than 63 µm. The percentage of cement replaced with glass is 5%, 10%, 15%, 20%, and 35%, by mass. The highest percent share of mineral admixtures in CEM II (Portland-composiste cement) cement was chosen as the top limit of replacement of cement with glass. In terms of the concrete durability, the following tests are performed: freeze-thaw resistance, freeze-thaw resistance with de-icing salts-scaling, resistance to wear according to the Böhme test, sulfate attack resistance, and resistance to penetration of water under pressure. A compressive strength test is performed, and shrinkage of concrete is monitored. In order to determine the microstructure of concrete, SEM (Scanning Electron Microscopy) and EDS (Energy Dispersive X-ray Spectroscopy) analyses were performed. The obtained research results indicate that the replacement of a part of cement with finely ground CRT glass up to 15% by mass has a positive effect on the compressive strength of concrete in terms of its increase without compromising the durability of concrete. The results obtained by experimental testing unequivocally show that concrete mixtures made with partial replacement (up to 15%) of cement with finely ground CRT glass have the same freeze-thaw resistance, resistance to freeze/thaw with de-icing salt, resistance to wear by abrasion, and resistance to sulfate attack as the reference concrete. In terms of environmental protection, the use of CRT glass as a component for making concrete is also very significant. Full article

This paper presents novel research on a fluidized bed combustion (FBC) fly ash-based geopolymer as a contribution to the problem of FBC fly ash disposal, and a proposal for a new geopolymer composition—an environmentally friendly material that is possible to use in construction. Geopolymer samples of various composition (containing FBC fly ash as the main raw material, metakaolin and CRT glass as additional components, and sodium silicate and sodium hydroxide as activators) were subjected to flexural and compressive strength tests. An investigation on the effect of the demolding time was carried out on one selected mixture. The test showed that both the composition and the demolding time have a decisive influence on the basic mechanical properties. A mixture containing FBC fly ash to metakaolin in a mass ratio of 3:1, removed from the mold after 14 days, was found to be the best in terms of the mechanical parameters expected from a material that could be used in construction, e.g., for the production of precast elements. According to the results obtained, FBC fly ash is a promising and environmentally friendly raw material for the production of geopolymer, with good mechanical properties and low density. Moreover, a high compressive strength can be obtained by curing the geopolymer at ambient temperature. Full article
