Search Results (6)

This study investigates hydrogels based on 2-Acrylamido-2-methyl-1-propanesulfonic acid sodium salt (AMPS) copolymers, incorporating N-hydroxyethyl acrylamide (HEA) and 3-sulfopropyl acrylate potassium salt (SPA). The addition of HEA and SPA is designed to fine-tune the hydrogels’ water absorption and mechanical properties, ultimately enhancing their characteristics and expanding their potential for biomedical applications. A copolymer of AMPS, 2-carboxyethyl acrylate (CEA) combined with methacrylic acid (MAA) as poly(AMPS-stat-CEA-stat-MAA, PACM), was preliminarily synthesized. CEA and MAA were modified with allyl glycidyl ether (AGE) through ring-opening, yielding macromers with pendant allyl groups (PACM-AGE). Copolymers poly(AMPS-stat-HEA-stat-CEA-stat-MAA) (PAHCM) and poly(AMPS-stat-SPA-stat-CEA-stat-MAA) (PASCM) were also synthesized and modified with AGE to produce PAHCM-AGE and PASCM-AGE macromers. These copolymers and macromers were characterized by ¹H NMR, FT-IR, and GPC, confirming successful synthesis and functionalization. The macromers were then photocrosslinked into hydrogels and evaluated for swelling, water content, and mechanical properties. The results revealed that the PASCM-AGE hydrogels exhibited superior swelling ratios and water retention, achieving equilibrium water content (~92%) within 30 min. While the mechanical properties of HEA and SPA containing hydrogels show significant differences compared to PACM-AGE hydrogel (tensile strength 2.5 MPa, elongation 47%), HEA containing PAHCM-AGE has a higher tensile strength (5.8 MPa) but lower elongation (19%). In contrast, SPA in the PASCM-AGE hydrogels led to both higher tensile strength (3.7 MPa) and greater elongation (92%), allowing for a broader range of hydrogel properties. An initial study on drug delivery behavior was conducted using PACM-AGE hydrogels loaded with photosensitizers, showing effective absorption, release, and antibacterial activity under light exposure. These AMPS-based macromers with HEA and SPA modifications demonstrate enhanced properties, making them promising for wound management and drug delivery applications. Full article

Preformed particle gels (PPGs) based on acrylamide (AAm), (3-acrylamidopropyl) trimethylammonium chloride (APTAC), and 2-acrylamido-2-methyl-1-propanesulfonic acid sodium salt (AMPS) were synthesized via conventional free radical copolymerization. The resultant PPGs of various compositions were characterized using FTIR spectroscopy, TG and DT analysis, and mechanical testing. The swelling behavior of PPGs depending on ionic strength, temperature, degree of crosslinking, and pH was also studied. The obtained results show that the swelling mechanism of PPGs is mainly due to the diffusion of the solvent. The mechanical properties of PPGs were improved by creating a composite polymer network by adding the clay mineral (bentonite) to the reaction mixture of monomers, which also makes it possible to control the Young’s modulus and the swelling degree of the samples. Full article

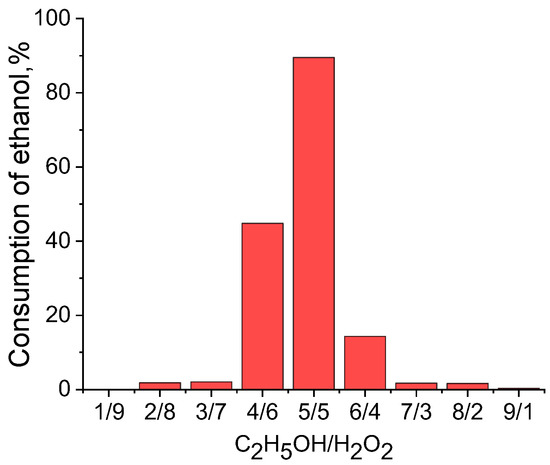

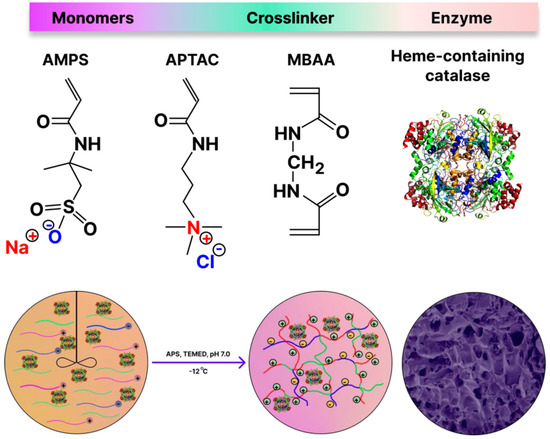

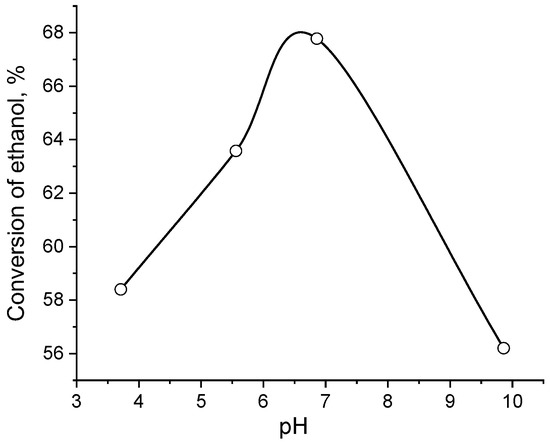

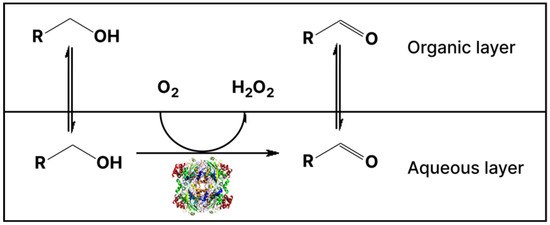

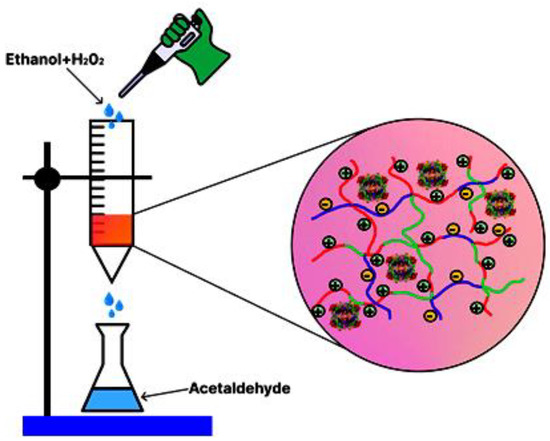

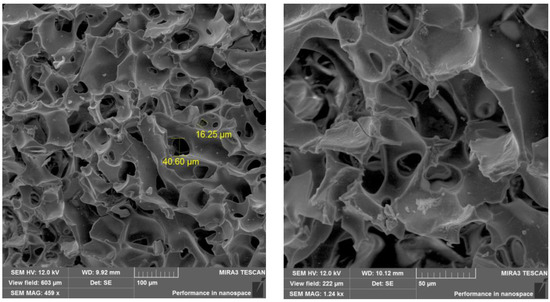

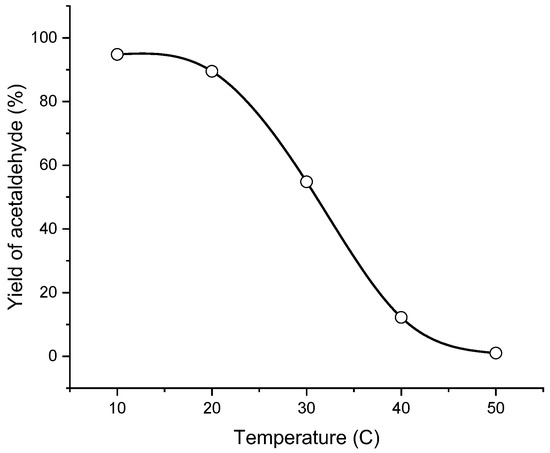

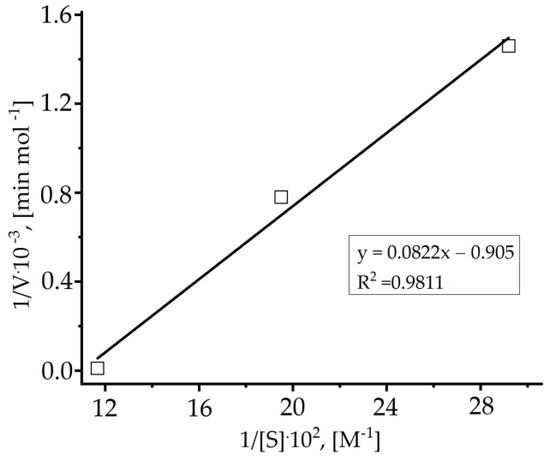

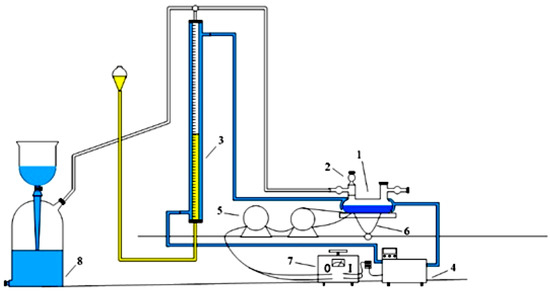

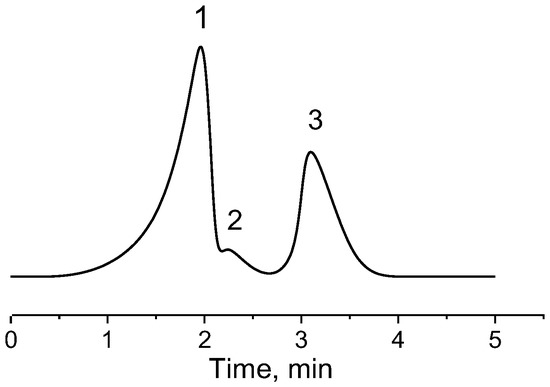

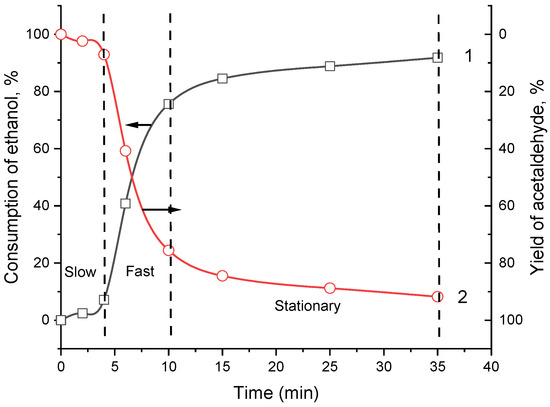

In this article, the biocatalytic oxidation of ethanol into acetaldehyde was studied using a catalase entrapped within a monolithic polyampholyte cryogel, p(APTAC-co-AMPS), as catalyst. When an anionic monomer, 2-acrylamido-2-methyl-1-propanesulfonic acid sodium salt (AMPS), was mixed with a cationic monomer, (3-acrylamidopropyl) trimethylammonium chloride (APTAC), under cryo-polymerization conditions at a molar ratio of monomers [APTAC]:[AMPS] = 75:25 mol.% in the presence of 10 mol.% cross-linking agent, N,N-methylenebisacrylamide (MBAA), the macroporous polyampholyte cryogels containing various amounts of catalase were synthesized in situ. The conversion of ethanol into acetaldehyde in good-to-high yields was observed in flow-through and batch-type reactors under optimal conditions: at T = 10–20 °C, pH = 6.9–7.1, [C₂H₅OH]:[H₂O₂] = 50:50 vol.%. According to the SEM images, the pore sizes of the p(AMPS-co-APTAC) cryogel vary from 15 to 55 μm. The catalytic activity of catalase entrapped within a monolithic polyampholyte cryogel in the conversion of ethanol into acetaldehyde was evaluated through the determination of kinetic parameters such as the Michaelis constant (K_m), maximum enzymatic rate (V_max), activation energy (E_a), turnover number (TON) and turnover frequency (TOF). The catalase encapsulated within the monolithic polyampholyte cryogel exhibits a high conversion of ethanol into acetaldehyde. The key parameters of ethanol oxidation in flow and batch reactors in the presence of the cryogel monolith were calculated. Full article

Understanding multi-component transport through polymer membranes is critical for separation applications such as water purification, energy devices, etc. Specifically for CO₂ reduction cells, where the CO₂ reduction products (alcohols and carboxylate salts), crossover of these species is undesirable and improving the design of ion exchange membranes to prevent this behavior is needed. Previously, it was observed that acetate transport increased in copermeation with alcohols for cation exchange membranes consisting of poly(ethylene glycol) diacrylate (PEGDA) and 2-acrylamido-2-methyl-1-propanesulfonic acid (AMPS) and that the inclusion of poly(ethylene glycol) methacrylate (PEGMA) (n = 5, n represents the number of ethylene oxide repeat units) could suppress this behavior. Here, we further investigate the role of PEGMA in modulating fractional free volume and transport behavior of alcohols and carboxylates. PEGDA-PEGMA membranes of varied membranes are fabricated with both varied pre −polymerization water content at constant PEGMA (n = 9) content and varied PEGMA content at two pre −polymerization water contents (20 and 60 wt.% water). Permeability to sodium acetate also decreases in these charge-neutral PEGDA-PEGMA membranes compared to PEGMA-free films. Therefore, incorporation of comonomers such as PEGMA with long side chains may provide a useful membrane chemistry structural motif for preventing undesirable carboxylate crossover in polymer membranes. Full article

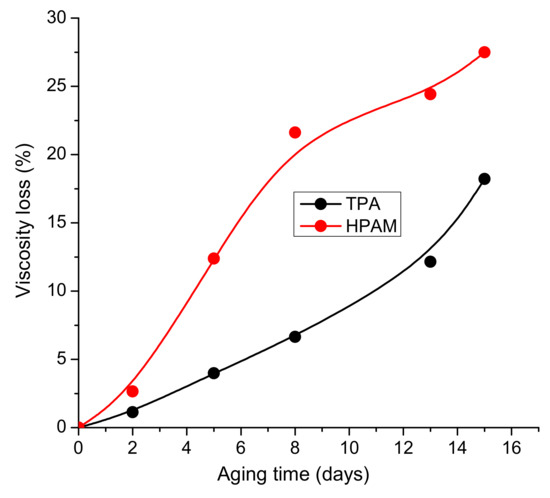

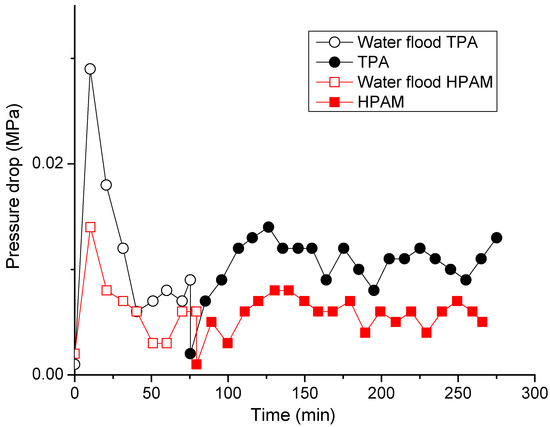

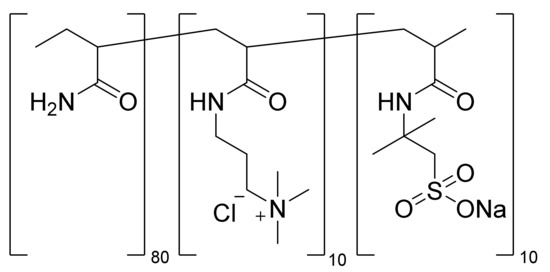

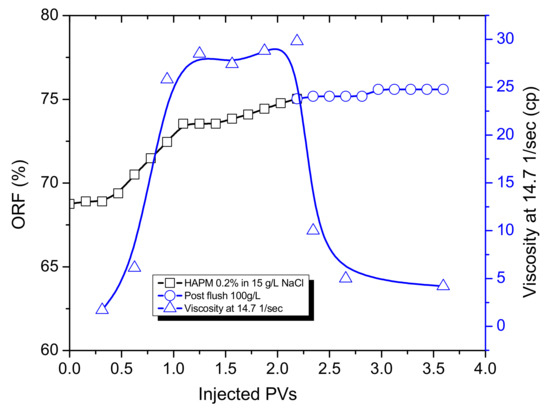

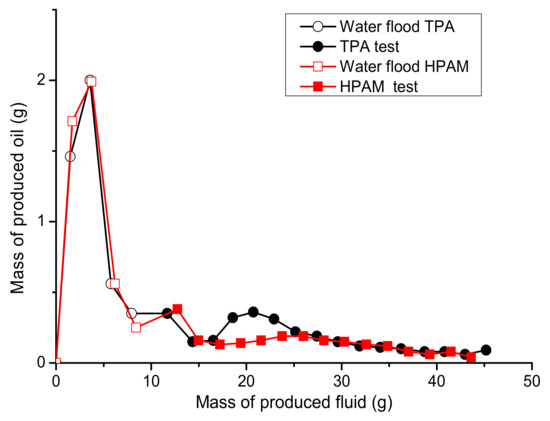

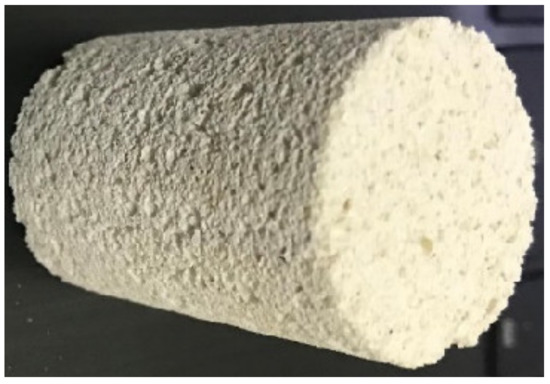

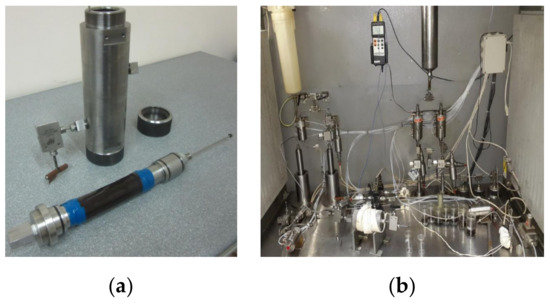

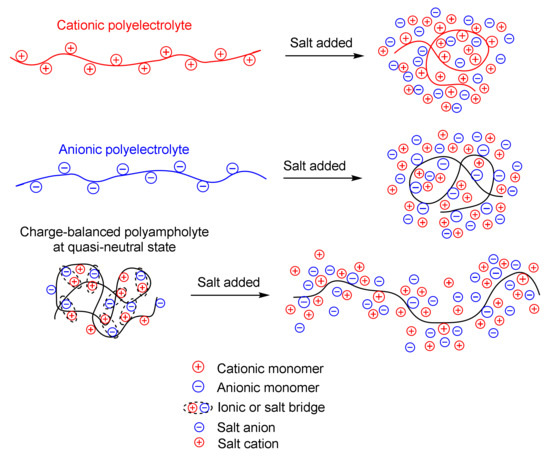

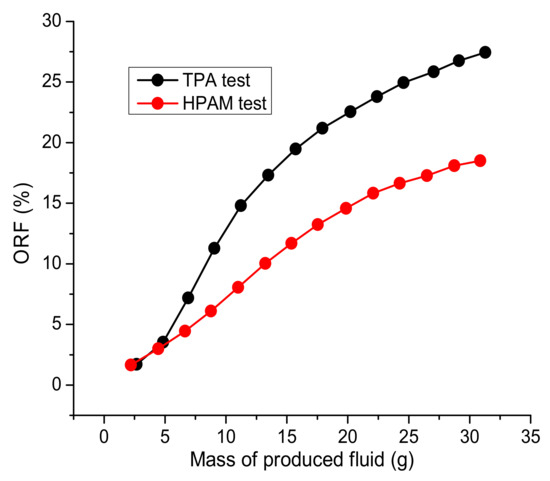

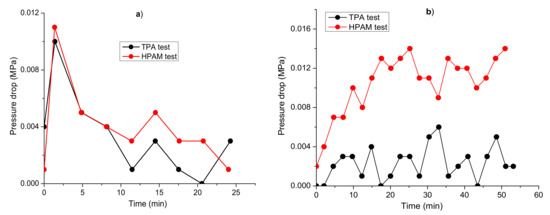

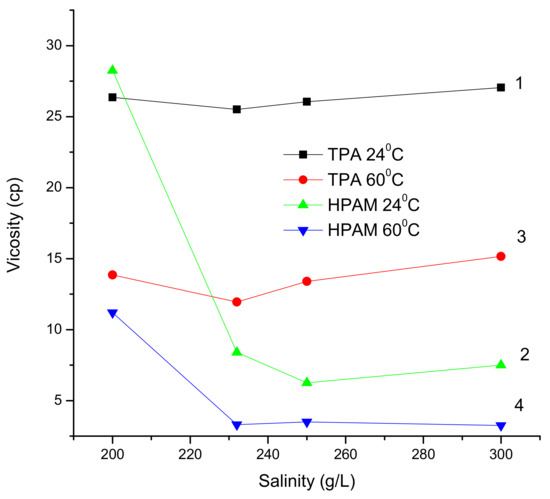

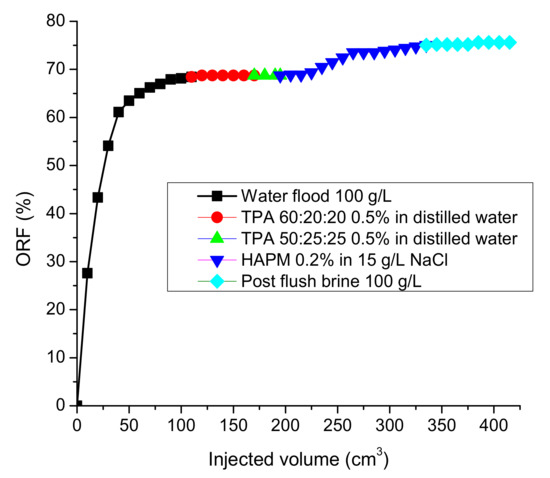

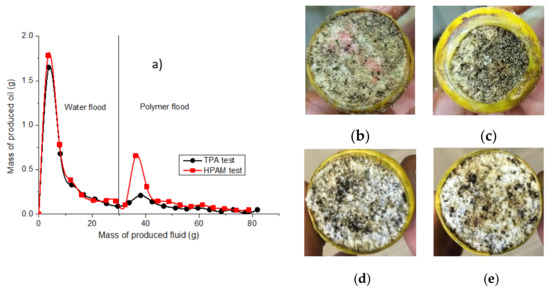

This paper presents the viscosifying and oil recovery efficiencies of a novel high-molecular-weight ternary polyampholyte (TPA), composed of 80 mol.% acrylamide (AAm) (a nonionic monomer), 10 mol.% 2-acrylamido-2-methyl-1-propanesulfonic acid sodium salt (AMPS) (an anionic monomer), and 10 mol.% (3-acrylamidopropyl) trimethylammonium chloride (APTAC) (a cationic monomer), in various high-salinity brines as compared to the efficiency of hydrolyzed poly(acrylamide) (HPAM), which is the most commonly used polymer in oil production. The results show that, in a range of salinity from 200 to 300 g∙L⁻¹, the viscosity of the TPA solution is rather high and relatively stable, whereas that of HPAM severely decreases. The ability of TPA to increase its viscosity in extremely high salinity brines is explained by the antipolyelectrolyte effect, resulting in the unfolding of macromolecular chains of charge-balanced polyampholytes at a quasi-neutral state, which occurs due to the screening of the electrostatic attraction between oppositely charged moieties. The novelty of this research is that, in high-salinity reservoirs, the amphoteric terpolymer Aam-AMPS-APTAC may surpass HPAM in oil displacement capability. Full article

Polyampholyte nanogels based on N-isopropylacrylamide (NIPAM), (3-acrylamidopropyl) trimethylammonium chloride (APTAC) and 2-acrylamido-2-methyl-1-propanesulfonic acid sodium salt (AMPS) were synthesized via conventional redox-initiated free radical copolymerization. The resultant nanogels of various compositions, specifically [NIPAM]:[APTAC]:[AMPS] = 90:5:5; 90:7.5:2.5; 90:2.5:7.5 mol.%, herein abbreviated as NIPAM₉₀-APTAC₅-AMPS₅, NIPAM₉₀-APTAC_7.5-AMPS_2.5 and NIPAM₉₀-APTAC_2.5-AMPS_7.5, were characterized by a combination of ¹H NMR and FTIR spectroscopy, TGA, UV–Vis, DLS and zeta potential measurements. The temperature and salt-responsive properties of amphoteric nanogels were studied in aqueous and saline solutions in a temperature range from 25 to 60 °C and at ionic strengths (μ) of 10⁻³ to 1M NaCl. Volume phase transition temperatures (VPTT) of the charge-balanced nanogel were found to reach a maximum upon the addition of salt, whereas the same parameter for the charge-imbalanced nanogels exhibited a sharp decrease at higher saline concentrations. A wide bimodal distribution of average hydrodynamic sizes of nanogel particles had a tendency to transform to a narrow monomodal peak at elevated temperatures and higher ionic strengths. According to the DLS results, increasing ionic strength results in the clumping of nanogel particles. Full article
