Search Results (21)

A simple and inexpensive thermal oxidation process is used to grow β-Ga₂O₃ oxide (β-Ga₂O₃) thin films/nanorods on a c-plane (0001) sapphire substrate using Ag/Au catalysts. The effect of these catalysts on the growth mechanism of Ga₂O₃ was studied by different characterization techniques, including X-ray diffraction analysis (XRD), Scanning Electron Microscopy (SEM), and Energy Dispersive X-ray analysis (EDX). The XRD results of the grown Ga₂O₃ on a sapphire substrate show three sharp diffraction peaks located at 19.31°, 38.70° and 59.38° corresponding to the $\left(\overline{2}01\right), \left(\overline{4}02\right)$ and $\left(\overline{6}03\right)$ planes of β-Ga₂O₃. Field Emission Scanning Electron Microscope (FESEM) analysis showed the formation of longer and denser Ga₂O₃ nanowires at higher temperatures, especially in the presence of silver nanoparticles as catalysts. Full article

Efficient detection of toxic and flammable vapors remains a major technological challenge, especially for environmental and industrial applications. This paper reports on the fabrication technology and gas-sensing properties of nanostructured Ga₂O₃/GaS_0.98Se_0.02. The β-Ga₂O₃ nanowires/nanoribbons with inclusions of Ga₂S₃ and Ga₂Se₃ microcrystallites were obtained by thermal treatment of GaS_0.98Se_0.02 slabs in air enriched with water vapors. The microstructure, crystalline quality, and elemental composition of the obtained samples were investigated using electron microscopy, X-ray diffraction, and Raman spectroscopy. The obtained structures show promising results as active elements in gas sensor applications. Vapors of methanol (CH₃OH), ethanol (C₂H₅OH), and acetone (CH₃-CO-CH₃) were successfully detected using the nanostructured samples. The electrical signal for gas detection was enhanced under UV light irradiation. The saturation time of the sensor depends on the intensity of the UV radiation beam. Full article

Epitaxial growth of β-Ga₂O₃ nanowires on silicon substrates was realized by the low-pressure chemical vapor deposition (LPCVD) method. The as-grown Si/Ga₂O₃ heterojunctions were employed in the Underwater DUV detection. It is found that the carrier type as well as the carrier concentration of the silicon substrate significantly affect the performance of the Si/Ga₂O₃ heterojunction. The p-Si/β-Ga₂O₃ (2.68 × 10¹⁵ cm⁻³) devices exhibit a responsivity of up to 205.1 mA/W, which is twice the performance of the devices on the n-type substrate (responsivity of 93.69 mA/W). Moreover, the devices’ performance is enhanced with the increase in the carrier concentration of the p-type silicon substrates; the corresponding device on the high carrier concentration substrate (6.48 × 10¹⁷ cm⁻³) achieves a superior responsivity of 845.3 mA/W. The performance enhancement is mainly attributed to the built-in electric field at the p-Si/n-Ga₂O₃ heterojunction and the reduction in the Schottky barrier under high carrier concentration. These findings would provide a strategy for optimizing carrier transport and interface engineering in solar-blind UV photodetectors, advancing the practical use of high-performance solar-blind photodetectors for underwater application. Full article

Using the Bridgman technique, GaSe single crystals were obtained which were mechanically split into plane-parallel plates with a wide range of thicknesses. By heat treatment in air at 820 °C and 900 °C, for 30 min and 6 h, micro- and nanocomposite layers of Ga₂Se₃–Ga₂O₃ and β–Ga₂O₃ (native oxide) with surfaces made of nanowires/nanoribbons were obtained. The obtained composite Ga₂Se₃–Ga₂O₃ and nanostructured β–Ga₂O₃ are semiconductor materials with band gaps of 2.21 eV and 4.60 eV (gallium oxide) and photosensitivity bands in the green–red and ultraviolet-C regions that peaked at 590 nm and 262 nm. For an applied voltage of 50 V, the dark current in the photodetector based on the nanostructured β–Ga₂O₃ layer was of 8.0 × 10⁻¹³ A and increased to 9.5 × 10⁻⁸ A upon 200 s excitation with 254 nm-wavelength radiation with a power density of 15 mW/cm². The increase and decrease in the photocurrent are described by an exponential function with time constants of τ_1r = 0.92 s, τ_2r = 14.0 s, τ_1d = 2.18 s, τ_2d = 24 s, τ_1r = 0.88 s, τ_2r = 12.2 s, τ_1d = 1.69 s, and τ_2d = 16.3 s, respectively, for the photodetector based on the Ga₂Se₃–Ga₂S₃–GaSe composite. Photoresistors based on the obtained Ga₂Se₃–Ga₂O₃ composite and nanostructured β–Ga₂O₃ layers show photosensitivity bands in the spectral range of electronic absorption bands of ozone in the same green–red and ultraviolet-C regions, and can serve as ozone sensors (detectors). Full article

Solar-blind ultraviolet photodetectors are gaining attention for their high signal-to-noise ratio and strong anti-interference capabilities. With the rising demand for applications in high-strain environments, such as fire rescue robots and smart firefighting suits, a flexible photodetector that maintains stable performance under bending strain is needed. Current devices struggle to balance strain cycle stability and responsivity. This paper presents a β-Ga₂O₃ nanowire photodetector on a flexible ultra-thin silicon substrate, fabricated using microchannel engraving and chemical vapor deposition. The device achieves a responsivity of 266 mA W⁻¹ without strain, with less than 5.5% variation in photogenerated current under bending strain (0–60°), and a response time of 360 ms. After 500 cycles of 60° bending, the photogenerated current changes by only 1.5%, demonstrating excellent stability and responsivity, with broad application potential in flame detection and biological sensing. Full article

This work studies the technological preparation conditions, morphology, structural characteristics and elemental composition, and optical and photoluminescent properties of GaSe single crystals and Eu-doped β–Ga₂O₃ nanoformations on ε–GaSe:Eu single crystal substrate, obtained by heat treatment at 750–900 °C, with a duration from 30 min to 12 h, in water vapor-enriched atmosphere, of GaSe plates doped with 0.02–3.00 at. % Eu. The defects on the (0001) surface of GaSe:Eu plates serve as nucleation centers of β–Ga₂O₃:Eu crystallites. For 0.02 at. % Eu doping, the fundamental absorption edge of GaSe:Eu crystals at room temperature is formed by n = 1 direct excitons, while at 3.00 at. % doping, Eu completely shields the electron–hole bonds. The band gap of nanostructured β–Ga₂O₃:Eu layer, determined from diffuse reflectance spectra, depends on the dopant concentration and ranges from 4.64 eV to 4.87 eV, for 3.00 and 0.05 at. % doping, respectively. At 0.02 at. % doping level, the PL spectrum of ε–GaSe:Eu single crystals consists of the n = 1 exciton band, together with the impurity band with a maximum intensity at 800 nm. Fabry–Perrot cavities with a width of 9.3 μm are formed in these single crystals, which determine the interference structure of the impurity PL band. At 1.00–3.00 at. % Eu concentrations, the PL spectra of GaSe:Eu single crystals and β–Ga₂O₃:Eu nanowire/nanolamellae layers are determined by electronic transitions of Eu²⁺ and Eu³⁺ ions. Full article

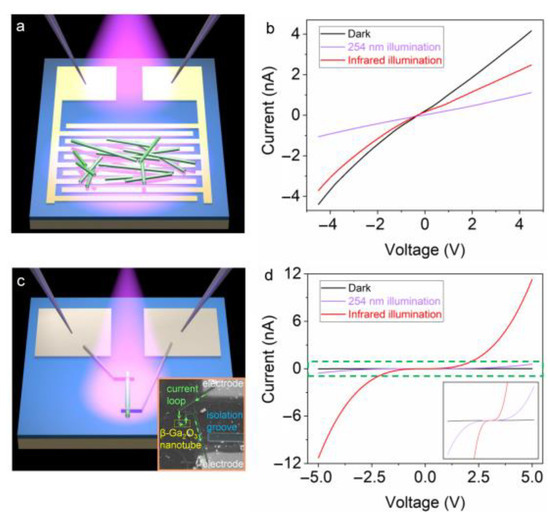

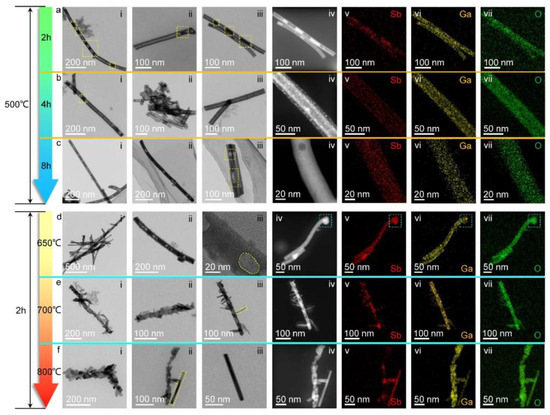

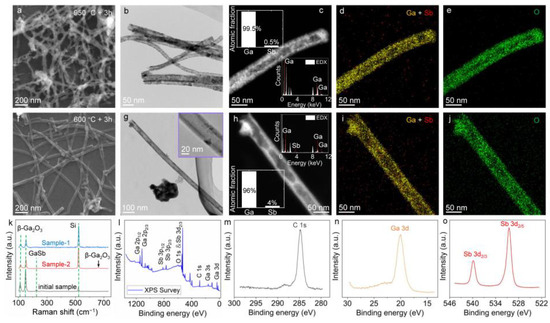

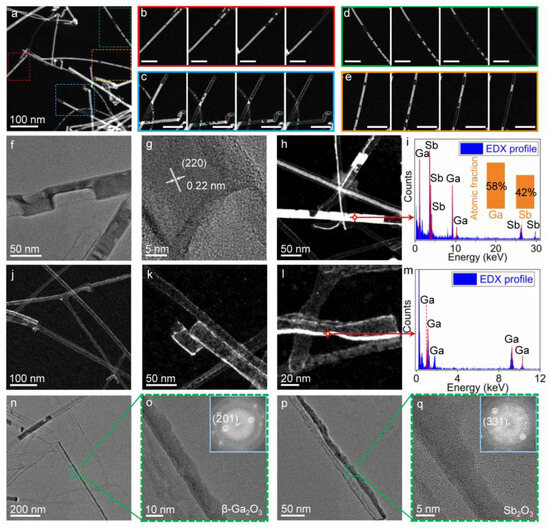

β-Ga₂O₃ nanostructures are attractive wide-band-gap semiconductor materials as they exhibit promising photoelectric properties and potential applications. Despite the extensive efforts on β-Ga₂O₃ nanowires, investigations into β-Ga₂O₃ nanotubes are rare since the tubular structures are hard to synthesize. In this paper, we report a facile method for fabricating β-Ga₂O₃ nanotubes using pre-synthesized GaSb nanowires as sacrificial templates. Through a two-step heating-treatment strategy, the GaSb nanowires are partially oxidized to form β-Ga₂O₃ shells, and then, the residual inner parts are removed subsequently in vacuum conditions, yielding delicate hollow β-Ga₂O₃ nanotubes. The length, diameter, and thickness of the nanotubes can be customized by using different GaSb nanowires and heating parameters. In situ transmission electron microscopic heating experiments are performed to reveal the transformation dynamics of the β-Ga₂O₃ nanotubes, while the Kirkendall effect and the sublimation process are found to be critical. Moreover, photoelectric tests are carried out on the obtained β-Ga₂O₃ nanotubes. A photoresponsivity of ~25.9 A/W and a detectivity of ~5.6 × 10¹¹ Jones have been achieved with a single-β-Ga₂O₃-nanotube device under an excitation wavelength of 254 nm. Full article

GaS_xSe_1−x solid solutions are layered semiconductors with a band gap between 2.0 and 2.6 eV. Their single crystals are formed by planar packings of S/Se-Ga-Ga-S/Se type, with weak polarization bonds between them, which allows obtaining, by splitting, plan-parallel lamellae with atomically smooth surfaces. By heat treatment in a normal or water vapor-enriched atmosphere, their plates are covered with a layer consisting of β–Ga₂O₃ nanowires/nanoribbons. In this work, the elemental and chemical composition, surface morphology, as well as optical, photoluminescent, and photoelectric properties of β–Ga₂O₃ layer formed on GaS_xSe_1−x (0 ≤ x ≤ 1) solid solutions (as substrate) are studied. The correlation is made between the composition (x) of the primary material, technological preparation conditions of the oxide-semiconducting layer, and the optical, photoelectric, and photoluminescent properties of β–Ga₂O₃ (nanosized layers)/GaS_xSe_1−x structures. From the analysis of the fundamental absorption edge, photoluminescence, and photoconductivity, the character of the optical transitions and the optical band gap in the range of 4.5–4.8 eV were determined, as well as the mechanisms behind blue-green photoluminescence and photoconductivity in the fundamental absorption band region. The photoluminescence bands in the blue-green region are characteristic of β–Ga₂O₃ nanowires/nanolamellae structures. The photoconductivity of β–Ga₂O₃ structures on GaS_xSe_1−x solid solution substrate is determined by their strong fundamental absorption. As synthesized structures hold promise for potential applications in UV receivers, UV-C sources, gas sensors, as well as photocatalytic decomposition of water and organic pollutants. Full article

In this work, we prepared ultra-long Si-doped β-Ga₂O₃ nanowires on annealed Al₂O₃-film/Si substrate by low-pressure chemical vapor deposition (LPCVD) assisted by Au as catalyst. The length of nanowires exceeds 300 μm and diameters range from ~30 to ~100 nm in one-dimensional structures. The nanowires show good crystal quality and exhibit (201) orientation, confirmed by transmission electron microscopy and X-ray diffraction analysis. The PL spectrum obtained from these β-Ga₂O₃ nanowires has three obvious blue luminescence peaks at 398 nm (3.12 eV), 440 nm (2.82 eV), and 492 nm (2.51 eV). The electrical properties obtained from Si-doped β-Ga₂O₃ nanowires exhibit good conductivity. A metal-semiconductor-metal device is made by using Ti/Au as the electrode, and the device current reaches 200 pA at a bias voltage of 3 V. Our results show that ultra-long Si-doped β-Ga₂O₃ nanowires can be grown directly on the surface of Al₂O₃-film/Si substrates. These nanowires have a very high length-diameter ratio and good electrical properties. A possible mechanism for Si doping is also presented. Full article

An accurate knowledge of the optical properties of β-Ga₂O₃ is key to developing the full potential of this oxide for photonics applications. In particular, the dependence of these properties on temperature is still being studied. Optical micro- and nanocavities are promising for a wide range of applications. They can be created within microwires and nanowires via distributed Bragg reflectors (DBR), i.e., periodic patterns of the refractive index in dielectric materials, acting as tunable mirrors. In this work, the effect of temperature on the anisotropic refractive index of β-Ga₂O₃ n(λ,T) was analyzed with ellipsometry in a bulk crystal, and temperature-dependent dispersion relations were obtained, with them being fitted to Sellmeier formalism in the visible range. Micro-photoluminescence (μ-PL) spectroscopy of microcavities that developed within Cr-doped β-Ga₂O₃ nanowires shows the characteristic thermal shift of red–infrared Fabry–Perot optical resonances when excited with different laser powers. The origin of this shift is mainly related to the variation in the temperature of the refractive index. A comparison of these two experimental results was performed by finite-difference time-domain (FDTD) simulations, considering the exact morphology of the wires and the temperature-dependent, anisotropic refractive index. The shifts caused by temperature variations observed by μ-PL are similar, though slightly larger than those obtained with FDTD when implementing the n(λ,T) obtained with ellipsometry. The thermo-optic coefficient was calculated. Full article

β-Ga₂O₃ nanostructures, including nanowires (NWs), nanosheets (NSHs), and nanorods (NRs), were synthesized using thermally dewetted Au nanoparticles as catalyst in a chemical vapor deposition process. The morphology of the as-grown β-Ga₂O₃ nanostructures depends strongly on the growth temperature and time. Successful growth of β-Ga₂O₃ NWs with lengths of 7–25 μm, NSHs, and NRs was achieved. It has been demonstrated that the vapor–liquid–solid mechanism governs the NW growth, and the vapor–solid mechanism occurs in the growth of NSHs and NRs. The X-ray diffraction analysis showed that the as-grown nanostructures were highly pure single-phase β-Ga₂O₃. The bandgap of the β-Ga₂O₃ nanostructures was determined to lie in the range of 4.68–4.74 eV. Characteristic Raman peaks were observed with a small blue and red shift, both of 1–3 cm⁻¹, as compared with those from the bulk, indicating the presence of internal strain and defects in the as-grown β-Ga₂O₃ nanostructures. Strong photoluminescence emission in the UV-blue spectral region was obtained in the β-Ga₂O₃ nanostructures, regardless of their morphology. The UV (374–377 nm) emission is due to the intrinsic radiative recombination of self-trapped excitons present at the band edge. The strong blue (404–490 nm) emissions, consisting of five bands, are attributed to the presence of the complex defect states in the donor (V_O) and acceptor (V_Ga or V_Ga–O). These β-Ga₂O₃ nanostructures are expected to have potential applications in optoelectronic devices such as tunable UV–Vis photodetectors. Full article

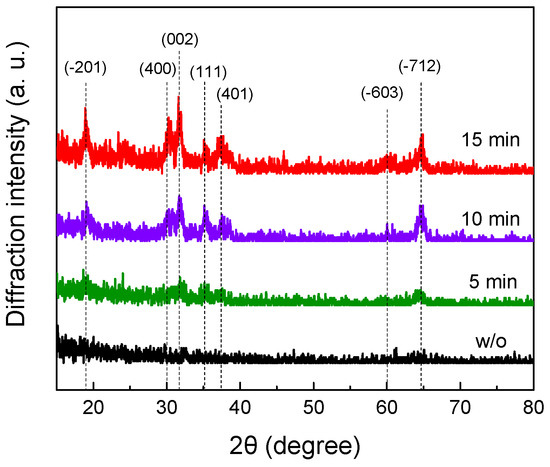

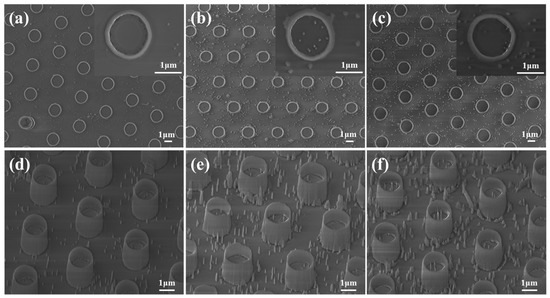

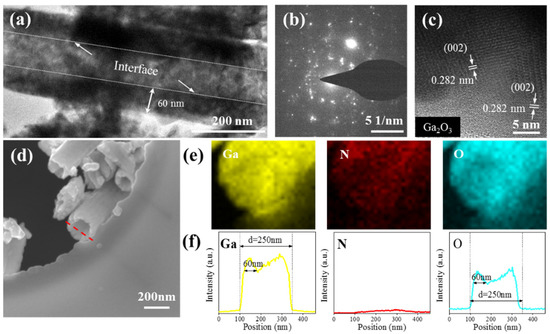

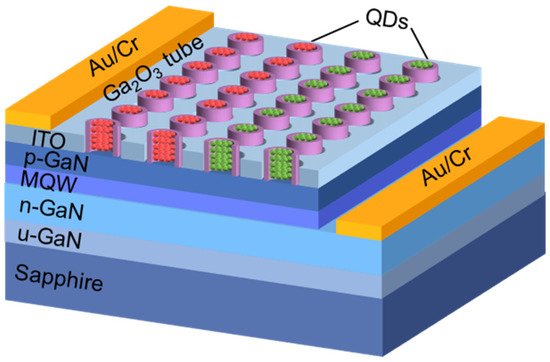

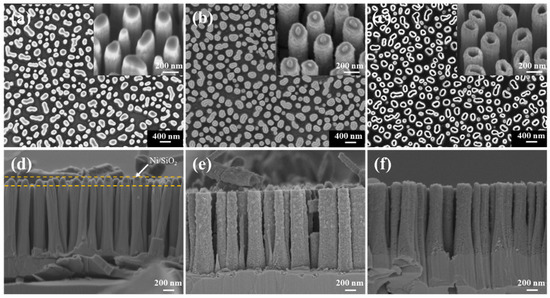

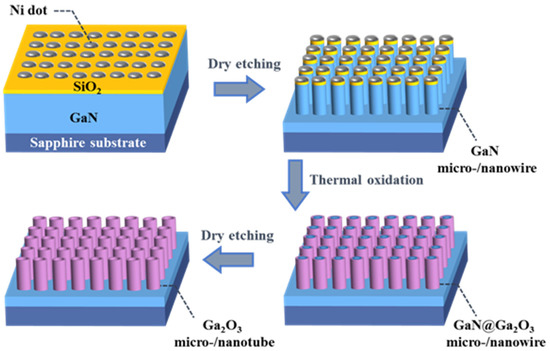

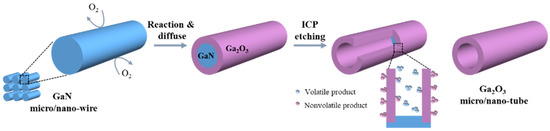

In this paper, based on the different etching characteristics between GaN and Ga₂O₃, large-scale and vertically aligned β-Ga₂O₃ nanotube (NT) and microtube (MT) arrays were fabricated on the GaN template by a facile and feasible selective etching method. GaN micro-/nanowire arrays were prepared first by inductively coupled plasma (ICP) etching using self-organized or patterning nickel masks as the etching masks, and then the Ga₂O₃ shell layer converted from GaN was formed by thermal oxidation, resulting in GaN@Ga₂O₃ micro-/nanowire arrays. After the GaN core of GaN@Ga₂O₃ micro-/nanowire arrays was removed by ICP etching, hollow Ga₂O₃ tubes were obtained successfully. The micro-/nanotubes have uniform morphology and controllable size, and the wall thickness can also be controlled with the thermal oxidation conditions. These vertical β-Ga₂O₃ micro-/nanotube arrays could be used as new materials for novel optoelectronic devices. Full article

One of the promising nonvolatile memories of the next generation is resistive random-access memory (ReRAM). It has vast benefits in comparison to other emerging nonvolatile memories. Among different materials, dielectric films have been extensively studied by the scientific research community as a nonvolatile switching material over several decades and have reported many advantages and downsides. However, less attention has been given to low-dimensional materials for resistive memory compared to dielectric films. Particularly, β-Ga₂O₃ is one of the promising materials for high-power electronics and exhibits the resistive switching phenomenon. However, low-dimensional β-Ga₂O₃ nanowires have not been explored in resistive memory applications, which hinders further developments. In this article, we studied the resistance switching phenomenon using controlled electron flow in the 1D nanowires and proposed possible resistive switching and electron conduction mechanisms. High-density β-Ga₂O₃ 1D-nanowires on Si (100) substrates were produced via the VLS growth technique using Au nanoparticles as a catalyst. Structural characteristics were analyzed via SEM, TEM, and XRD. Besides, EDS, CL, and XPS binding feature analyses confirmed the composition of individual elements, the possible intermediate absorption sites in the bandgap, and the bonding characteristics, along with the presence of various oxygen species, which is crucial for the ReRAM performances. The forming-free bipolar resistance switching of a single β-Ga₂O₃ nanowire ReRAM device and performance are discussed in detail. The switching mechanism based on the formation and annihilation of conductive filaments through the oxygen vacancies is proposed, and the possible electron conduction mechanisms in HRS and LRS states are discussed. Full article

Gas sensitive structures made of nanowires exhibit extremally large specific surface area, and a great number of chemically active centres that can react with the ambient atmosphere. This makes the use of nanomaterials promising for super sensitive gas sensor applications. Monoclinic β-Ga₂O₃ nanowires (NWs) were synthesized from metallic gallium at atmospheric pressure in the presence of nitrogen and water vapor. The nanowires were grown directly on interdigitated gold electrodes screen printed on Al₂O₃ substrates, which constituted the gas sensor structure. The observations made with transmission electron microscope (TEM) have shown that the nanowires are monocrystalline and their diameters vary from 80 to 300 nm with the average value of approximately 170 nm. Au droplets were found to be anchored at the tips of the nanowires which may indicate that the nanowires followed the Vapor–Liquid–Solid (VLS) mechanism of growth. The conductivity of β-Ga₂O₃ NWs increases in the presence of volatile organic compounds (VOC) even in the temperature below 600 °C. The gas sensor based on the synthesized β-Ga₂O₃ NWs shows peak sensitivity to 100 ppm of ethanol of 75.1 at 760 °C, while peak sensitivity to 100 ppm of acetone is 27.5 at 690 °C. Full article

A simple and inexpensive thermal oxidation process was performed to synthesize gallium oxide (Ga₂O₃) nanowires using Ag thin film as a catalyst at 800 °C and 1000 °C to understand the effect of the silver catalyst on the nanowire growth. The effect of doping and orientation of the substrates on the growth of Ga₂O₃ nanowires on single-crystal gallium arsenide (GaAs) wafers in atmosphere were investigated. A comprehensive study of the oxide film and nanowire growth was performed using various characterization techniques including XRD, SEM, EDS, focused ion beam (FIB), XPS and STEM. Based on the characterization results, we believe that Ag thin film produces Ag nanoparticles at high temperatures and enhances the reaction between oxygen and gallium, contributing to denser and longer Ga₂O₃ nanowires compared to those grown without silver catalyst. This process can be optimized for large-scale production of high-quality, dense, and long nanowires. Full article
