Article

Improving Microspectroscopic Microplastic Data Extrapolation: From Field of View to Full Sample, and from Fragment 2D-Morphology to Mass

1
Microplastic Solution, Castanet-Tolosan, 31320 Toulouse, France
2
Centre de Recherche sur la Biodiversité et l’Environnement (CRBE-UMR5300), Université de Toulouse, Toulouse INP, CNRS, IRD, CRBE, 31326 Toulouse, France
3
Géosciences Environnement Toulouse, CNRS UMR5563-IRD UR 234, Université Toulouse III-Paul Sabatier (UT3), 14 Avenue Edouard Belin, 31400 Toulouse, France
*
Authors to whom correspondence should be addressed.
Microplastics 2025, 4(4), 80; https://doi.org/10.3390/microplastics4040080
Submission received: 14 July 2025 / Revised: 2 October 2025 / Accepted: 9 October 2025 / Published: 28 October 2025

Abstract

Microplastic (MP) analysis via microspectroscopy typically examines only 1–10% of filter substrates due to time constraints, requiring reliable extrapolation methods for quantitative environmental monitoring. Current subsampling strategies suffer from heterogeneous particle dispersion, leading to 50–80% error in MP quantification. Additionally, MP researchers require enhanced environmental MP mass datasets, necessitating reliable conversion algorithms from two-dimensional morphological data to mass estimates. This study introduces an area-based extrapolation technique for organic rich samples that compares the MP-to-generic particle area ratio within a rectangular field of view against total particle area on the entire filter membrane, combined with a simplified fragment morphology-to-mass conversion model (SFMM). First, two Sphagnum moss samples were analyzed using Raman microspectroscopy and critical angle darkfield illumination microscopy. The results demonstrated stable MP concentrations (17% RSD [n = 8]) despite heterogeneous generic particle distribution (31% RSD [n = 8]), with mean particle-area coverage of 2.4% per subsample. Then, twenty EasyMPTM fragment reference materials (10 µm to 1500 µm), of known composite mass, were used to calibrate two different volume (V) expressions, one based on analyzed particle area (A) and minimum Feret diameter (FMin, i.e., width), yielding V = 0.34 × FMin × A. A second more approximate expression based on only the maximum Feret diameter (FMax, i.e., length) yielded V = 0.097 × (FMax)3. These methods enable MP quantification and mass estimation from limited spectroscopic analysis.

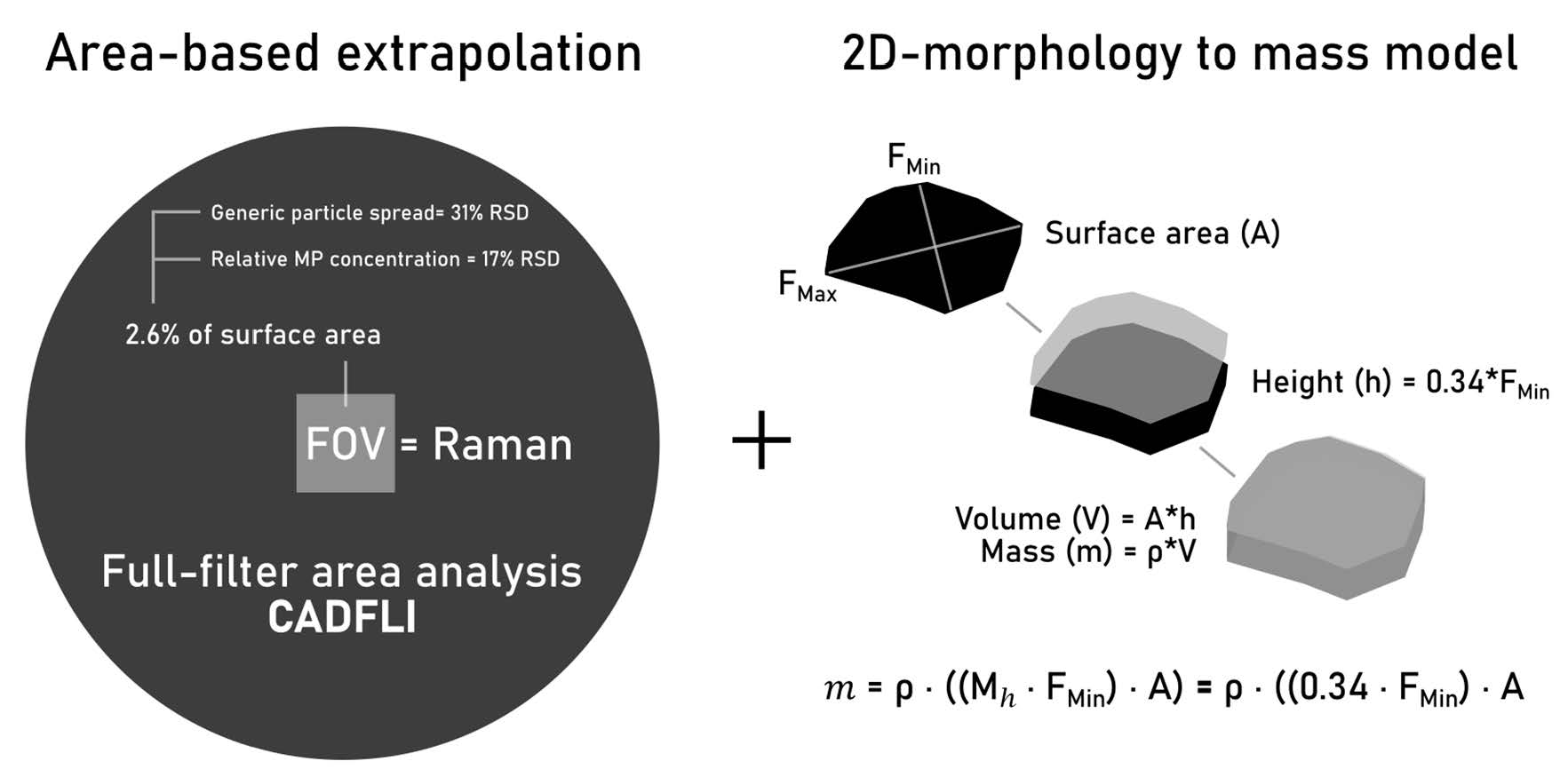

Graphical Abstract

1. Introduction

Microplastics (MPs) are synthetic polymer particles that measure between 1 µm and 5 mm on their largest axis. When conducting microspectroscopic analysis for quantitative identification of MPs in the smallest size range, often only a small percentage of the filter substrate can be examined due to time constraints [1,2,3]. Even when n > 20,000 individual particles are analyzed over a 24 h period using Raman microspectroscopy, only 2–3% of the total filter area can be investigated [4,5]. Current Raman microspectroscopy subsampling strategies measure about 1 to 10% of the filter area [6].
Simplified extrapolation based on upscaling the analyzed fraction of a rectangular field of view (FOV) is unprecise because particle dispersion on a filter membrane is often heterogenous [6,7]. To correct for heterogenous particle dispersion by collecting data that is representative of the complete filter membrane, spectral acquisition techniques including wedge-shaped analysis [1], random particle selection [8] as well as spirals and crosses [9], have been developed. These methods all rely on adjusting data-sampling parameters to achieve statistically reliable MP content extrapolation based solely on the analyzed fraction.
However, particle count extrapolation represents only one component of comprehensive MP number concentration analysis. While accurate extrapolation of MP particle numbers addresses one analytical challenge, reliable conversion methods from morphological data to mass estimates are essential for comprehensive environmental monitoring [10,11,12]. Thermo-analytical methods such as pyrolysis GC/MS is able to provide direct MP mass concentrations for select polymers, but without quantification of MP size, and is therefore highly complementary to micro-spectroscopy. Because spectroscopic techniques dominate current MP analysis workflows [13,14,15], reliable conversion formulas that transform two-dimensional morphological data into mass estimates are needed. Most existing models estimate the volume of a particle by assuming a known three-dimensional geometric shape based on observed metrics such as area and size [16,17,18,19]. However, the irregular nature of environmental MP fragments makes it challenging to apply standardized geometric models consistently across diverse samples.
To address these issues, we present two novel approaches for particle count extrapolation and conversion from counts to mass. First, we developed a novel extrapolation approach that compares the ratio of generic particle area to MP distribution, within a single rectangular FOV against the total generic particle area across the complete filter membrane. Second, we present a Simplified Fragment Mass Model (SFMM) model to calculate the volume of small MP particles in the 10–1500 µm range using two observable parameters: (i) surface area, and (ii) minimum Feret diameter. The conversion formula uses a constant multiplier value to determine particle height, calibrated on observations presented in this study. This simple model relies on the principle that for a three-dimensional detached object perceived in two dimensions, the observed lateral dimensions (y- and x-axis) are likely superior in length, in comparison to the forward direction (z-axis) when the particle is in a resting state. This is because the gravitational force guides the particle towards a state of stable equilibrium, which is unlikely to be the shortest dimension [20], unless otherwise affected by surface adhesion not accounted for in this study. Because published MP studies typically report the distribution of particle length, but not width or area, we also calibrate our volume expression for MP length alone.
These two combined methodologies aim to enable accurate extrapolation of MP counts and mass conversion from limited spectroscopic analysis of small FOVs, facilitating efficient analysis of large environmental sample sets while maintaining analytical precision and reducing time constraints inherent to current microspectroscopic workflows.

2. Methods and Materials

2.1. Particle-Area Based Extrapolation

2.1.1. Experimental Setup

Two Sphagnum moss samples collected in France (sample-A and sample-B, respectively), were manipulated according to the complete purged air-assisted digestion and density separation protocol [5]. The final MP-enriched analyte was vacuum filtered onto two individual aluminium oxide filter membranes [pore size: 0.1 µm, filter diameter: 25 mm] (Anodisc, Whatman, Buckinghamshire, UK). The diameter of the filtered area was restricted by the width of the glass filtration funnel, measuring 14 mm in diameter. On each of the two filter membranes, four individual 4 mm2 square FOVs were analyzed by Raman microspectroscopy, following the pattern visualized in Figure 1. Between the individual samples, the total number and surface area of MPs and generic particles, as well as the relative size and polymer type distributions within the four FOVs were compared.

2.1.2. Raman Microspectroscopy

A 4 mm2 square FOV was analyzed by stitching 1666 micrographs into a high-resolution mosaic at a spatial resolution of 0.3 µm/pixel (effectively ~1 µm due to the fundamental refraction limit of visible light). Particles measuring ≥ 2 µm in area-equivalent diameter (circular model) were subject to µRaman analysis. Measurements were carried out at 20 °C using a Horiba LabRAM Soleil (Horiba Jobin Yvon, Paris, France). The samples were excited at 8% (7.2 mW) power output with a high stability air-cooled He–Cd 532 nm laser diode utilizing a Nikon LV-NUd5 100× objective (Nikon, Tokyo, Japan). The lateral resolution of the unpolarized confocal laser beam was on the order of 1 µm. Spectra were generated in the range of 200–3400 cm−1 using a 600 grooves/cm grating with a 100 µm split. The spectral resolution was on the order of 1 cm−1. Particles within each mosaic, constructed using the LabSpec6 (LS6) SmartView configuration, were analyzed using the Particle Finder application V2. LS6 SmartView determines the topography (±50 µm) and saves the focal point of all particles on the captured micrograph, enabling the stage to rapidly move the relevant particle into focus. The micrograph is converted into an 8-bit 0–255 greyscale image in which parameters are set by the user to visually separate particles from the darker filter substrate. Each particle was analyzed for 1 s by 2 accumulations at the above-described settings.

2.1.3. Spectral Matching and Verification

Using the Spectragryph spectral analysis software V1.2.17d (Dr. Friedrich Menges SoftwareEntwicklung, www.effemm2.de/spectragryph (accessed on 1 February 2025)), all raw spectra were processed using adaptive baseline correction with 15% coarseness. The processed spectra were cross-referenced for their entire spectral range, using our in-house library containing selected spectra from the SLoPP and SLoPP-E [21] and the Cabernard [22] spectral libraries, also including self-obtained in-house polymer spectra. Spectral matches were denominated by hit quality index (HQI)-values from 0 to 100% match. Spectra rated above 65% HQI were considered MP candidates and were manually inspected and sorted by a trained interpreter to determine their validity. Additionally, unintentionally partitioned MP particles (edge particles) were merged using a dedicated merging tool [4].

2.1.4. Full-Filter Particle-Area Estimation

Critical angle darkfield illumination (CADFLI) microscopy (ColSpec® MK2, LightForm, Inc., Asheville, NC, USA) was used to capture multiple micrographs at a spatial resolution of 2.6 µm/pixel. 28 micrographs were merged using the Grid/collection stitching tool [23] to construct mosaics displaying the entire filter membrane. CADFLI microscopy enables the visual elimination of the filter substrate to isolate the residual particles, providing an effective means of estimating the total particle-area on the filter membrane (Figure 2).

2.2. Two-Dimensional Particle Morphology to Mass Conversion Model

2.2.1. Experimental Setup

The following EasyMP™ fragment reference materials, produced through cryomilling and cascade sieving [24,25] in dry, neat (powder) format (EasyMP™, Microplastic Solution, Toulouse, France) were used in this experiment:
  • Sample 1: polystyrene (PS) (500–1500 µm), Blue.
  • Sample 2: polypropylene (PP) (100–500 µm), Red.
  • Sample 3: polyethylene (PE) (10–200 µm), Blue.
  • Sample 4: polypropylene (PP) (10–200 µm), Clear/transparent.
  • Sample 5: polyethylene (PE) (10–100 µm), Green.
All data is available in the Supporting Information File S1 (SI1). For each sample, four subsamples were prepared. The total dry mass of each sample was determined using a PCE-ABT 220L balance (PCE instruments, Meschede, Germany). The dry mass of samples 2–5 were determined at 52.1 mg, 9.8 mg, 3.8 mg, and 5.4 mg, respectively. The powders were weighed in glass pipette bottles (Oputec, Bendorf, Germany) and were suspended in either 30, 50- or 100 mL ethanol (95 vol.%), adapted to the quantity of MP powder to avoid filter saturation. For each sample, four subsamples between 0.5 and 1.0 mL were pipetted onto 25 mm filter membranes to capture photomicrographs via CADFLI microscopy. The mass of individual subsamples followed the current logic, using sample 2 as an example:
Dry MP powder mass: 52.1 mg (52,100 µg) MP Powder suspended in 50 mL ethanol (95 vol.%) solution 1 mL solution containing 1042 µg MP powder (52,100 µg/50 = 1042 µg) filtered onto 25 mm membrane for CADFLI microscopic analysis.
The applied dosing method represents a mean relative standard deviation (RSD) of 10% (n = 5) [24] not accounted for in this study. The comparatively larger particle size range of sample 1 allowed for the weighing of individual subsamples, where subsamples 1–4 weighed 17.4 mg, 20.4 mg, 14.0 mg, and 23.4 mg, respectively.

2.2.2. Particle Segmentation and Mass Conversion

CADFLI microscopy was applied to capture images of the individual subsamples for visual segmentation of the reference MP fragments. Depending on the image resolution, 28 to 50 micrographs at a spatial resolution from 2.0 to 2.6 µm/pixel were merged using the Grid/collection stitching tool [23] to construct mosaics displaying the entire filter membrane (Figure 3).
This study presents a particle morphology to mass conversion formula (SFMM) where particle volume, and incidentally mass, is calculated on the basis of two observable 2D parameters: surface area (A), and minimum Feret diameter (FMin). The volume (V) is calculated as the area of the particle multiplied by its height (h). Following the assumption that the observed lateral dimensions (y- and x-axis) are likely superior in length in comparison to the forward direction (z-axis or height), h is calculated as FMin multiplied by the height multiplier (Figure 4). Mh is calibrated on the basis of the weighed mass of samples 1, 2, 3, 4 and 5.
Mass (m) is calculated by multiplying V by the specific gravity (ρ) of the polymer type in question, as per Equation (1):
m = ρ · V = ρ · ( h · A ) = ρ · ( M h · F Min · A )
To calculate the optimal height multiplier for fragments, Mh was initially set to 1, which assumes particle height (h) equals the minimum Feret axis (FMin). The ratio of weighed mass to the sum of calculated mass of all particles in the subsample determined the calibrated Mh for each individual subsample, as per Equation (2).
M h Calibrated = m Calculated m Weighed = ρ · ( M h · F Min · A ) m Weighed = ρ · ( 1 · F Min · A ) m Weighed
The current morphology to mass conversion equation is only applicable to particles with fragment-type morphology. However, in environmental settings, fragments constitute the majority of MPs found in natural samples; especially in the range of fine MPs < 100 µm in diameter [26,27,28,29].

3. Results and Discussion

3.1. Particle-Area Based Extrapolation

3.1.1. Sample-A

Within FOVs 1–4, a total of n = 7087, 16,754, 18,850, and 20,023 particles > 2 µm in area-equivalent diameter were segmented and analyzed by Raman microspectroscopy, respectively (Table 1). Here, n = 412, 751, 899, and 699 particles were identified as MPs, corresponding to 5.8%, 4.5%, 4.8% and 3.5% of the particle distribution, respectively. Although the total number of particles within individual FOVs varied by as much as n = 15 679 ± 5097 (33% RSD) (n = 4) the mean concentration of MPs remained more stable at 4.6% ± 0.8 (n = 4) (RSD = 18%).
The particle-area on the complete filter membrane was determined at 22.52 mm2. Resultantly, FOVs 1–4 covered 2.84%, 2.01%, 2.85%, and 2.80% of the total particle-area, respectively, resulting in a mean particle-area coverage of 2.2% ± 0.72 per subsample.
Between the four investigated FOVs, the polymer type distribution remained consistent, with polyethylene (PE) making up 95.2% ± 1.1 (n = 4) of the polymer type distribution, followed by polyurethane (PU) at 2.0% ± 0.6 (n = 4) (Figure 5). Only 5 out of 12 detected polymer types were found in all four FOVs. Polymer types that comprised >0.5% of the relative distribution were detected in all four FOVs. The particle size distribution of detected MPs across the four FOVs remained stable with RSD values below 20% in most size groups.

3.1.2. Sample-B

Within FOVs 1–4, a total of n = 23,890, 13,616, 23,234, and 12,662 particles > 2 µm in area-equivalent diameter were segmented and analyzed by Raman microspectroscopy, respectively (Table 2). Here, n = 612, 364, 403, and 302 particles were identified as MPs, corresponding to 2.6%, 2.7%, 1.7% and 2.4% of the particle distribution, respectively. Although the total number of particles within individual FOVs varied by as much as n = 18 351 ± 5228 (29% RSD) (n = 4) the mean concentration of MPs remained more stable at 2.3% ± 0.4 (n = 4) (RSD = 16%).
The particle-area on the complete filter membrane was determined at 20.35 mm2. Consequently, FOVs 1–4 covered 3.14%, 1.67%, 2.86%, and 2.34% of the total particle-area, respectively, resulting in a mean particle-area coverage of 2.5% ± 0.56 per subsample.
Between the four investigated FOVs, the polymer type distribution remained consistent, with PE constituting 85.6% ± 3.8 (n = 4) of the polymer type distribution, followed by PU at 7.5% ± 2.7 (n = 4) (Figure 6). 7 out of 13 detected polymer types were found in all four FOVs. Polymer types that comprised >0.5% of the relative distribution were detected in all four FOVs. The particle size distribution of detected MPs across the four FOVs remained relatively stable with the highest noticeable relative standard deviation (RSD) in the 2–3 µm fraction at 38% due to an outlying PSD profile of subsample 4.

3.2. Summary

For sample-A and sample-B the total number of particles within individual FOVs deviated by 33% and 29% RSD (n = 4) (Mean RSD = 31% [n = 8]), respectively, whereas relative MP concentrations were more stable at 18% (n = 4) and 16% RSD (n = 4), respectively (Mean RSD = 17% [n = 8]). This demonstrates that although particle spread on a filter membrane is heterogenous, the relative MP concentration remains relatively stable. Therefore, by establishing the MP concentration within a subsample, the total area of particles on a filter membrane can be used as a proxy for total MP count. These preliminary results suggest that the current extrapolation technique is viable and may even outperform subsampling strategies such as ‘random subsampling’, ‘random layout’, and ‘spiral layout’ which demonstrated 50–80% error in FOVs with 2–5% sample coverage [6]. However, because the current extrapolation technique relies on the ratio between the number of MP particles and the area of generic particles, and not the number of generic particles, the extrapolation must be performed on this basis. The MP-to-generic-particle-area ratios for Sample-A and Sample-B were determined to be 0.0015 n/µm2 ± 0.0002 (RSD = 16%) and 0.0008 n/µm2 ± 0.0002 (RSD = 22%), respectively, with an average RSD of 19% (n = 8). This error is comparable to the 17% RSD observed in the particle-to-particle based MP concentration and is still lower than the overall particle spread of 31% RSD.

3.2.1. Polymer Type and Particle Size Distribution

The relative polymer type distribution of detected MPs within the four FOVs remained relatively stable with close to negligible variation for both sample-A and sample-B. In both samples, any polymer type that exceeded 0.5% of the relative distribution was consistently detected in all four FOVs. The particle size distribution (PSD) in sample-A remained stable across all four FOVs. In contrast, sample-B exhibited greater PSD variation, particularly in the 2–3 µm fraction, with an RSD value of 38% due to subsample 4 being an outlier. To our knowledge, no previous extrapolation studies have reported performance data on the reproducibility of polymer type- or PSDs between FOVs. To achieve reproducibility values comparable to those in the current study, FOVs must include the analysis of at least 7000 particles [6], with at least 96 being MPs [30].

3.2.2. Data Comparability Despite Discrepancy Between Imaging Methods

By comparing the surface-area of the filter membrane covered by particles within individual FOVs to the total particle area of the filter, we estimated mean particle-area coverage of 2.2% ± 0.7 (n = 4) for Sample-A and 2.5% ± 0.6 (n = 4) for sample-B. These values agree well with the theoretical filter coverage of 2.6% per 2 × 2 mm FOV (4 mm2) within a circular filter of Ø = 1.4 cm (154 mm2): 4 mm2/154 mm2·100 = 2.6%. These preliminary findings indicate that both imaging techniques provide consistent estimates of surface area coverage despite a difference in spatial resolution, i.e., 1 µm/pixel (Raman) vs. 2.6 µm/pixel (CADFLI). The observed consistency can be attributed to the fact that the relative particle size distribution remains stable across individual FOVs (Figure 7). This is important because although smaller particles may be missed or visually merged at lower resolution, the contribution of larger particles, which dominate total surface area, remains proportional to that of smaller ones. As a result, imaging the full membrane at lower resolution still yields a reliable estimate of overall coverage. Furthermore, particles < 5 µm accounted for only 10% (sample-A) and 17% (sample-B) of the total particle area (mean = 14%), suggesting that their omission or agglomeration in CADFLI microscopy has limited impact on area-based results. It was also found that the ratio between FMax and particle surface area was highly comparable between the two techniques, although their particle size detection ranges differed. Raman imaging typically resolved particles up to ~40 µm, whereas ColSpec captured particles up to ~400 µm, with most falling between 20 and 60 µm. Consequently, while ColSpec is unsuitable for determining absolute counts of very fine particles due to visual agglomeration, it still provides sufficiently accurate estimates of total particle surface area coverage. Our investigation is still preliminary, so exact error quantification is not yet possible. Still, the results show good overall agreement, with only minor bias from missing very fine particles at lower resolution, suggesting the approach is promising.

3.3. Two-Dimensional Particle Morphology to Mass Conversion Model

Calibration of the height multiplier (Mh) was performed with data from twenty weighed subsamples shown in Figure 8, covering MP fragments ranging from 10 µm to 1500 µm (1.5 mm) in diameter.
Calibrated Mh values for individual subsamples are listed in Table 3. Across 20 subsamples, Mh ranged from 0.26 to 0.47 with a mean value of 0.34 ± 0.05 (15% RSD) (Figure 9). The SFMM calculates MP fragment mass from 2D morphological data by applying a simplified 3D model where particle height equals one third (0.34) of the minimum Feret axis (FMin).
In conclusion, the mass of a MP fragment can be calculated on the basis of FMin and surface area (A) alone, assuming a particle height equating to approximately one third (0.34) of FMin as per Equation (3).
m = ρ · ( M h · F M i n · A ) = ρ · ( 0.34 · F M i n · A )
However, published morphological data such as FMin and area are rarely provided in environmental datasets, whereas FMax is more commonly reported [31,32]. Therefore, an alternative formula for calculating particle volume based on FMax instead of FMin is proposed here. The ratio between FMin and FMax was determined for all investigated particles within each subsample (Figure 10).
Between all particles in individual subsamples, the FMin/FMax ratio was determined to be 0.68 ± 0.11 (17% RSD) [n = 37,780], demonstrating fair coherency between the minor and major axis of MP fragments.
Similar FMin/FMax ratios of 0.67 ± 0.22 were reported for environmental MP in the 10–300 µm range [19], and 0.67 for particles and fibers from multiple aquatic compartments [3]. We are then able to calibrate a single proportionality constant, kh, for particle height relative to FMin in the classical ellipsoid volume expression:
V = 4 3 π · F M a x 2 · 0.68 · F M a x 2 · k h · 0.68 · F M a x 2
Based on the 20 individual subsamples of varying MP range, we find that kh = 0.40 ± 0.08 (SD; 20% RSD), We note that kh varies randomly as a function of particle size range, and number of particles counted. By combining all the various constants in Equation (4), including π, into a single constant (4/3·π·1/2·1/2·1/2·0.68·0.40·0.68 = 0.097), we can express a simplified MP fragment mass approximation, for cases where only the length estimator FMax is reported:
m = ρ · 0.097 · F M a x 3
Previous studies have assumed kh to be identical to FMin/FMax, i.e., around 0.67 [33,34]. Our lower calibrated kh value of 0.40 leads to a 40% ([0.67 − 0.40/0.67]) lower volume and mass estimate for each small MP fragment. It is of interest to note that our final volume expression in Equation (5), V = 0.097·(FMax)3, is identical within the overall combined uncertainty of the constant, 0.097 ± 0.032 (33% RSD) to the volume expression for a flat-shaped ellipse assumed by Cozar et al. [34]: V = 0.1·(L)3, where L = particle length (FMax here in this study). The SFMM equation (Equation (5)) provides a practical alternative for when only FMax measurements are available. However, because it introduces an additional layer of uncertainty it should only be used when FMin and area are unavailable.

3.4. Limitations

3.4.1. Particle-Area Based Extrapolation

Matrix-Specific Effects
The area-based extrapolation technique was validated using Sphagnum moss samples, which may not represent the particle distribution patterns found in other environmental matrices such as sediments, marine waters, or urban runoff. Different sample types may exhibit varying degrees of particle aggregation or settling behavior that could affect extrapolation accuracy.
Instrumental Limitations
The spatial resolution differences between Raman microspectroscopy (0.3 μm/pixel) [effectively ~1 µm/pixel] and CADFLI microscopy (2.6 μm/pixel) may introduce systematic errors in area measurements, particularly for smaller particles approaching the detection limits of either technique. More sensitive techniques may be required for full filter imaging of less charged filters, where particle density is insufficient for reliable darkfield visualization and accurate area quantification.

3.4.2. Two-Dimensional Morphology-To-Mass Conversion Model

Polymer Density
Mass calculations require accurate polymer density values, which may vary between virgin and weathered MPs. Environmental microplastics may have altered densities due to biofilm formation, photodegradation, or additive leaching, potentially affecting mass estimates [35,36,37]. However, it should be noted that while weathering processes may change the current measured density of particles, the calculations still represent the original plastic mass released into the environment, which is the fundamental parameter needed for environmental impact assessments and plastic flux modeling.
MP Morphology
The current model is calibrated using data from artificially generated microplastic (MP) fragments and should therefore only be applied to samples in which fragments represent the dominant MP type. Notably, most environmental MPs smaller than 50 µm exhibit fragment-type morphology, as they primarily arise from the fragmentation of larger plastics [38,39]. Accordingly, the SFMM is best suited for fine MP samples or for samples with larger MPs in which fragments predominate.

4. Conclusions and Perspectives

This study presents two methodological advances for environmental microplastic analysis: an area-based extrapolation technique for organic-rich samples and a simplified morphology-to-mass conversion model (SFMM). The area-based extrapolation technique uses MP-to-generic particle area ratios rather than particle counts for extrapolation. While total particle distribution varied considerably (31% RSD [n = 8]), MP concentrations showed greater stability (17% RSD [n = 8]). The method achieved reliable extrapolation from ~2.6% mean filter coverage, outperforming existing subsampling strategies that report 50–80% error rates in the 2–5 µm size range. Polymer types that constituted > 0.5% of the distribution were consistently detected across all fields of view (FOVs). The SFMM converts 2D morphological data to mass estimates using surface area and minimum Feret diameter. Calibration across 20 reference material subsamples, using MP fragments ranging from 10 to 1500 µm in diameter, yielded a height multiplier of 0.34 ± 0.05 (15% RSD), establishing that fragment height equals approximately one-third of the minimum Feret diameter for this simplified plane-particle model. The model is applicable to fragment-type particles only as per the following equation:
m = ρ · ( M h · F M i n · A ) = ρ · ( 0.34 · F M i n · A )
where m is mass, ρ is the specific gravity of the relevant polymer, Mh is the height multiplier calibrated to be 0.34, A is the surface area, and FMin is the minimum Feret axis of the particle. An alternative equation is provided for when FMin is unavailable, using maximum Feret axis (FMax). These methods provide practical advantages for routine environmental monitoring: reduced analysis time, direct mass estimation capability, and compatibility with existing spectroscopic workflows. Ideally the new volume and mass parameterizations can be intercompared directly with direct mass-based techniques such as pyrolysis GC-MS.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/microplastics4040080/s1.

Author Contributions

O.H. conceptualized and administered the project, and led the laboratorial work. O.H. and J.E.S. interpreted data and led manuscript writing with help from H.M. and N.Y. J.E.S. and G.l.R. secured part of the funding and provided critical revision of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work is funded by Microplastic Solution (MPS). Raman analyses were funded by an 80Prime CNRS grant «4DµPlast» (G.l.R., J.E.S.) and supported by ANR-20-CE34-0014 ATMO-PLASTIC (G.l.R, J.E.S.), ANR-23-CE34-0012 BUBBLEPLAST (J.E.S.) and the Plasticopyr project (G.l.R.) within the Interreg V-A Spain-France-Andorra program (G.l.R.) as well as observatoire Homme-Milieu Pyrénées Haut Vicdessos—LABEX DRIIHM ANR-11-LABX0010 (G.l.R.).

Data Availability Statement

All data will be made available upon request.

Acknowledgments

We thank Jeremy M. Lerner and LightForm® Inc. for their ongoing technical support.

Conflicts of Interest

Oskar Hagelskjær, Henar Margenat, and Nadiia Yakovenko were employed by the company Microplastic Solution; Jeroen E. Sonke and Gaël Le Roux are the scientific advisors of Microplastic Solution (non-profit).

Abbreviations

The following abbreviations are used in this manuscript:
MPMicroplastic
nNumber of particles
SDStandard deviation
RSDRelative standard deviation
MhHeight multiplier
khProportionality constant for particle height relative to FMin
mMass
hHeight
AArea
VVolume
FOVField of view
CADFLICritical angle darkfield illumination
FMinMinimum Feret diameter
FMaxMaximum Feret diameter
PEPolyethylene
PPPolypropylene
PSPolystyrene

References

  1. El Khatib, D.; Langknecht, T.D.; Cashman, M.A.; Reiss, M.; Somers, K.; Allen, H.; Ho, K.T.; Burgess, R.M. Assessment of filter subsampling and extrapolation for quantifying microplastics in environmental samples using Raman spectroscopy. Mar. Pollut. Bull. 2023, 192, 115073. [Google Scholar] [CrossRef] [Scilit]
  2. ISO 24187; 2023 Principles for the Analysis of Microplastics Present in the Environment. International Organization for Standardization: Geneva, Switzerland, 2023. Available online: https://www.iso.org/standard/78033.html (accessed on 1 October 2025).
  3. ISO/FDIS 16094-2; Water Quality—Analysis of Microplastic in Water: Part 2: Vibrational Spectroscopy Methods for Waters with Low Content of Suspended Solids Including Drinking Water. ISO: Geneva, Switzerland, 2025. Available online: https://www.iso.org/standard/84460.html (accessed on 1 April 2025).
  4. Hagelskjær, O.; Hagelskjær, F.; Margenat, H.; Yakovenko, N.; Sonke, J.E.; Le Roux, G. Majority of potable water microplastics are smaller than the 20 μm EU methodology limit for consumable water quality. PLoS Water 2025, 4, 1–14. [Google Scholar]
  5. Hagelskjær, O.; Le Roux, G.; Liu, R.; Dubreuil, B.; Behra, P.; Sonke, J.E. The recovery of aerosol-sized microplastics in highly refractory vegetal matrices for identification by automated Raman microspectroscopy. Chemosphere 2023, 328, 138487. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  6. Brandt, J.; Fischer, F.; Kanaki, E.; Enders, K.; Labrenz, M.; Fischer, D. Assessment of Subsampling Strategies in Microspectroscopy of Environmental Microplastic Samples. Front. Environ. Sci. 2021, 8, 579676. Available online: https://www.frontiersin.org/journals/environmental-science/articles/10.3389/fenvs.2020.579676 (accessed on 1 April 2025). [CrossRef] [Scilit]
  7. Thaysen, C.; Munno, K.; Hermabessiere, L.; Rochman, C.M. Towards Raman Automation for Microplastics: Developing Strategies for Particle Adhesion and Filter Subsampling. Appl. Spectrosc. 2020, 74, 976–988. [Google Scholar] [CrossRef] [Scilit]
  8. De Frond, H.; O’Brien, A.M.; Rochman, C.M. Representative subsampling methods for the chemical identification of microplastic particles in environmental samples. Chemosphere 2023, 310, 136772. [Google Scholar] [CrossRef] [Scilit]
  9. Huppertsberg, S.; Knepper, T.P. Instrumental analysis of microplastics—Benefits and challenges. Anal. Bioanal. Chem. 2018, 410, 6343–6352. [Google Scholar] [CrossRef] [Scilit]
  10. Everaert, G.; Van Cauwenberghe, L.; De Rijcke, M.; Koelmans, A.A.; Mees, J.; Vandegehuchte, M.; Janssen, C.R. Risk assessment of microplastics in the ocean: Modelling approach and first conclusions. Environ. Pollut. 2018, 242, 1930–1938. [Google Scholar] [CrossRef] [Scilit]
  11. Gouin, T.; Becker, R.A.; Collot, A.; Davis, J.W.; Howard, B.; Inawaka, K.; Lampi, M.; Serrano Ramon, B.; Shi, J.; Hopp, P.W. Toward the Development and Application of an Environmental Risk Assessment Framework for Microplastic. Environ. Toxicol. Chem. 2019, 38, 2087–2100. [Google Scholar] [CrossRef] [Scilit]
  12. Thompson, R.C.; Courtene-Jones, W.; Boucher, J.; Pahl, S.; Raubenheimer, K.; Koelmans, A.A. Twenty years of microplastics pollution research—What have we learned? Science 2024, 386, eadl2746. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  13. Huang, Z.; Hu, B.; Wang, H. Analytical methods for microplastics in the environment: A review. Environ. Chem. Lett. 2023, 21, 383–401. [Google Scholar] [CrossRef] [Scilit]
  14. Lykkemark, J.; Mattonai, M.; Vianello, A.; Gomiero, A.; Modugno, F.; Vollertsen, J. Py–GC–MS analysis for microplastics: Unlocking matrix challenges and sample recovery when analyzing wastewater for polypropylene and polystyrene. Water Res. 2024, 261, 122055. [Google Scholar] [CrossRef] [Scilit]
  15. Yang, Z.; Nagashima, H.; Arakawa, H. Development of automated microplastic identification workflow for Raman micro-imaging and evaluation of the uncertainties during micro-imaging. Mar. Pollut. Bull. 2023, 193, 115200. [Google Scholar] [CrossRef] [Scilit]
  16. Barchiesi, M.; Kooi, M.; Koelmans, A.A. Adding Depth to Microplastics. Environ. Sci. Technol. 2023, 57, 14015–14023. [Google Scholar] [CrossRef] [Scilit]
  17. Contreras, L.; Edo, C.; Rosal, R. Mass concentration of plastic particles from two-dimensional images. Sci. Total Environ. 2024, 946, 173849. [Google Scholar] [CrossRef] [Scilit]
  18. Kataoka, T.; Iga, Y.; Baihaqi, R.A.; Hadiyanto, H.; Nihei, Y. Geometric relationship between the projected surface area and mass of a plastic particle. Water Res. 2024, 261, 122061. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  19. Simon, M.; van Alst, N.; Vollertsen, J. Quantification of microplastic mass and removal rates at wastewater treatment plants applying Focal Plane Array (FPA)-based Fourier Transform Infrared (FT-IR) imaging. Water Res. 2018, 142, 1–9. [Google Scholar] [CrossRef] [Scilit]
  20. Almádi, G.; MacG. Dawson, R.J.; Domokos, G.; Regős, K. On Equilibria of Tetrahedra. Math. Intell. 2023, 46, 247–254. [Google Scholar] [CrossRef] [Scilit]
  21. Munno, K.; De Frond, H.; O’Donnell, B.; Rochman, C.M. Increasing the Accessibility for Characterizing Microplastics: Introducing New Application-Based and Spectral Libraries of Plastic Particles (SLoPP and SLoPP-E). Anal. Chem. 2020, 92, 2443–2451. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  22. Cabernard, L.; Roscher, L.; Lorenz, C.; Gerdts, G.; Primpke, S. Comparison of Raman and Fourier Transform Infrared Spectroscopy for the Quantification of Microplastics in the Aquatic Environment. Environ. Sci. Technol. 2018, 52, 13279–13288. [Google Scholar] [CrossRef] [Scilit]
  23. Preibisch, S.; Saalfeld, S.; Tomancak, P. Globally optimal stitching of tiled 3D microscopic image acquisitions. Bioinformatics 2009, 25, 1463–1465. [Google Scholar] [CrossRef] [Scilit]
  24. Hagelskjær, O.; Hagelskjær, F.; Margenat, H.; Sonke, J.E.; Roux, G.L. EasyMP: Diverse and Environmentally Relevant Microplastic Reference Materials Encompassing Fragments and Fibers. Nano. Sel. 2025, 6, e70004. [Google Scholar] [CrossRef] [Scilit]
  25. McColley, C.J.; Nason, J.A.; Harper, B.J.; Harper, S.L. An assessment of methods used for the generation and characterization of cryomilled polystyrene micro- and nanoplastic particles. Microplastics Nanoplastics 2023, 3, 20. [Google Scholar] [CrossRef] [Scilit]
  26. Allen, D.; Allen, S.; Le Roux, G.; Simonneau, A.; Galop, D.; Phoenix, V.R. Temporal Archive of Atmospheric Microplastic Deposition Presented in Ombrotrophic Peat. Environ. Sci. Technol. Lett. 2021, 8, 954–960. [Google Scholar] [CrossRef] [Scilit]
  27. Boettcher, H.; Kukulka, T.; Cohen, J.H. Methods for controlled preparation and dosing of microplastic fragments in bioassays. Sci. Rep. 2023, 13, 5195. [Google Scholar] [CrossRef] [Scilit]
  28. Velasco, A.d.J.N.; Rard, L.; Blois, W.; Lebrun, D.; Lebrun, F.; Pothe, F.; Stoll, S. Microplastic and Fibre Contamination in a Remote Mountain Lake in Switzerland. Water 2020, 12, 2410. [Google Scholar] [CrossRef] [Scilit]
  29. Stefánsson, H.; Peternell, M.; Konrad-Schmolke, M.; Hannesdóttir, H.; Ásbjörnsson, E.J.; Sturkell, E. Microplastics in Glaciers: First Results from the Vatnajökull Ice Cap. Sustainability 2021, 13, 4183. [Google Scholar] [CrossRef] [Scilit]
  30. Cowger, W.; Markley, L.; Moore, S.; Gray, A.; Upadhyay, K.; Koelmans, A. How Many Microplastics Do You Need to (Sub)Sample? Ecotoxicol. Environ. Saf. 2023, 275, 116243. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  31. Sonke, J.E.; Koenig, A.; Segur, T.; Yakovenko, N. Global environmental plastic dispersal under OECD policy scenarios toward 2060. Sci. Adv. 2025, 11, eadu2396. [Google Scholar] [CrossRef] [Scilit]
  32. Sonke, J.E.; Koenig, A.M.; Yakovenko, N.; Hagelskjær, O.; Margenat, H.; Hansson, S.V.; De Vleeschouwer, F.; Magand, O.; Le Roux, G.; Thomas, J.L. A mass budget and box model of global plastics cycling, degradation and dispersal in the land-ocean-atmosphere system. Microplastics Nanoplastics 2022, 2, 1–14. [Google Scholar] [CrossRef] [Scilit]
  33. Kooi, M.; Primpke, S.; Mintenig, S.M.; Lorenz, C.; Gerdts, G.; Koelmans, A. Characterizing the multidimensionality of microplastics across environmental compartments. Water Res. 2021, 202, 117429. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  34. Cózar, A.; Echevarría, F.; González-Gordillo, J.I.; Irigoien, X.; Úbeda, B.; Hernández-León, S.; Palma, Á.T.; Navarro, S.; García-de-Lomas, J.; Ruiz, A.; et al. Plastic debris in the open ocean. Proc. Natl. Acad. Sci. USA 2014, 111, 10239–10244. [Google Scholar] [CrossRef] [Scilit]
  35. Jansen, M.A.K.; Andrady, A.L.; Bornman, J.F.; Aucamp, P.J.; Bais, A.F.; Banaszak, A.T.; Barnes, P.W.; Bernhard, G.H.; Bruckman, L.S.; Busquets, R.; et al. Plastics in the environment in the context of UV radiation, climate change and the Montreal Protocol: UNEP Environmental Effects Assessment Panel, Update 2023. Photochem. Photobiol. Sci. 2024, 23, 629–650. [Google Scholar] [CrossRef] [Scilit]
  36. Moyal, J.; Dave, P.H.; Wu, M.; Karimpour, S.; Brar, S.K.; Zhong, H.; Kwong, R.W. Impacts of Biofilm Formation on the Physicochemical Properties and Toxicity of Microplastics: A Concise Review. Rev. Environ. Contam. Toxicol. 2023, 261, 8. [Google Scholar] [CrossRef] [Scilit]
  37. Yu, W.; Wen, Q.; Yang, J.; Xiao, K.; Zhu, Y.; Tao, S.; Lv, Y.; Liang, S.; Fan, W.; Zhu, S.; et al. Unraveling oxidation behaviors for intracellular and extracellular from different oxidants (HOCl vs. H2O2) catalyzed by ferrous iron in waste activated sludge dewatering. Water Res. 2019, 148, 60–69. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  38. Hagelskjær, O.; Crézé, A.; Le Roux, G.; Sonke, J.E. Investigating the correlation between morphological features of microplastics (5–500 µm) and their analytical recovery. Microplastics Nanoplastics 2023, 3, 22. [Google Scholar] [CrossRef] [Scilit]
  39. Chamas, A.; Moon, H.; Zheng, J.; Qiu, Y.; Tabassum, T.; Jang, J.H.; Abu-Omar, M.; Scott, S.L.; Suh, S. Degradation Rates of Plastics in the Environment. ACS Sustain. Chem. Eng. 2020, 8, 3494–3511. [Google Scholar] [CrossRef] [Scilit]

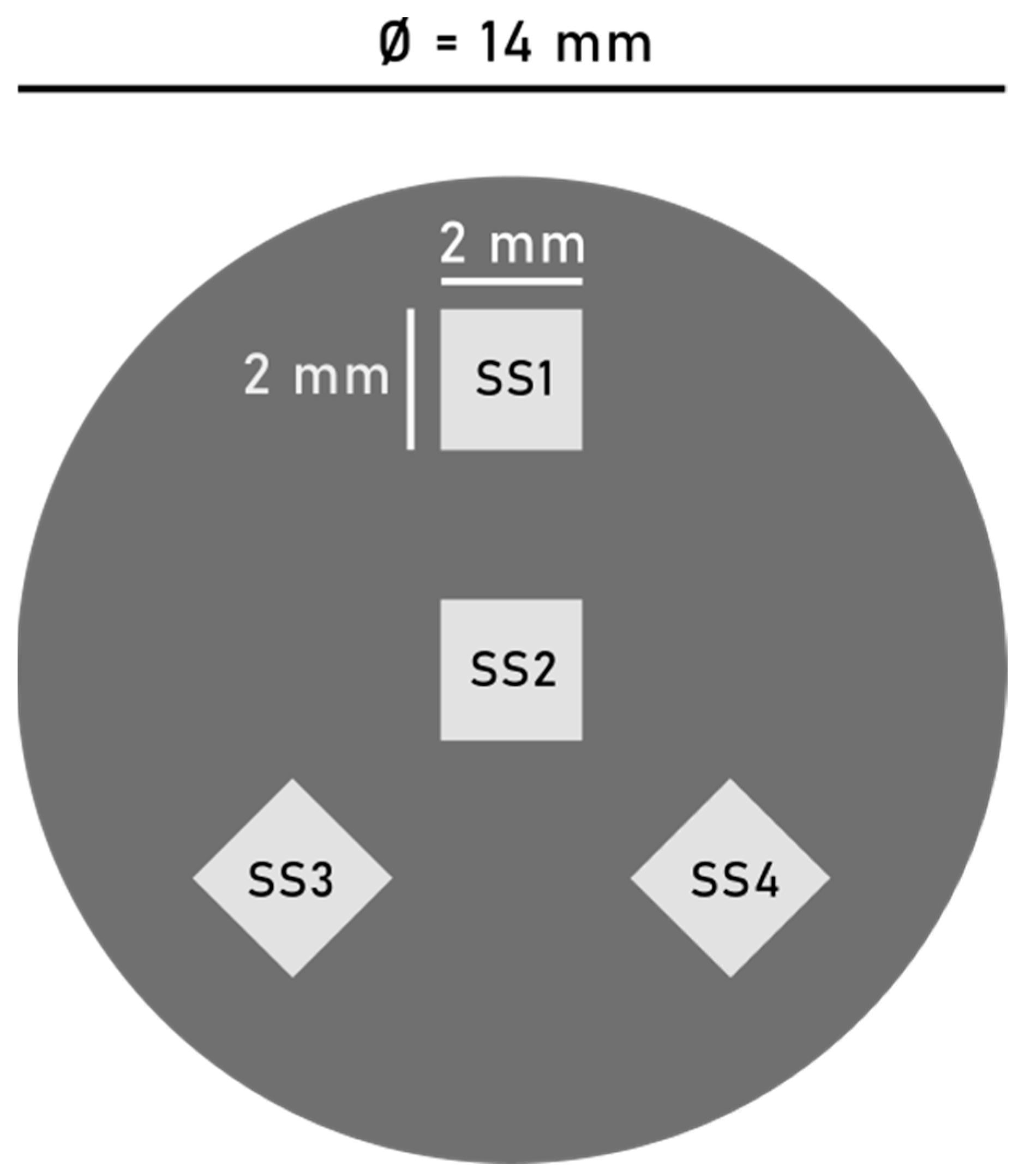

Figure 1. Visual representation of the distribution pattern of the four investigated 4 mm2 FOVs on the filter area, in true relative scale. Graphic made with Inkscape V. 1.4.2.
Figure 1. Visual representation of the distribution pattern of the four investigated 4 mm2 FOVs on the filter area, in true relative scale. Graphic made with Inkscape V. 1.4.2.
Microplastics 04 00080 g001
Figure 2. Micrograph mosaic captured under darkfield illumination depicting sample-B. ‘Mask’ refers to a masked version of the same image where all defined particles have been highlighted.
Figure 2. Micrograph mosaic captured under darkfield illumination depicting sample-B. ‘Mask’ refers to a masked version of the same image where all defined particles have been highlighted.
Microplastics 04 00080 g002

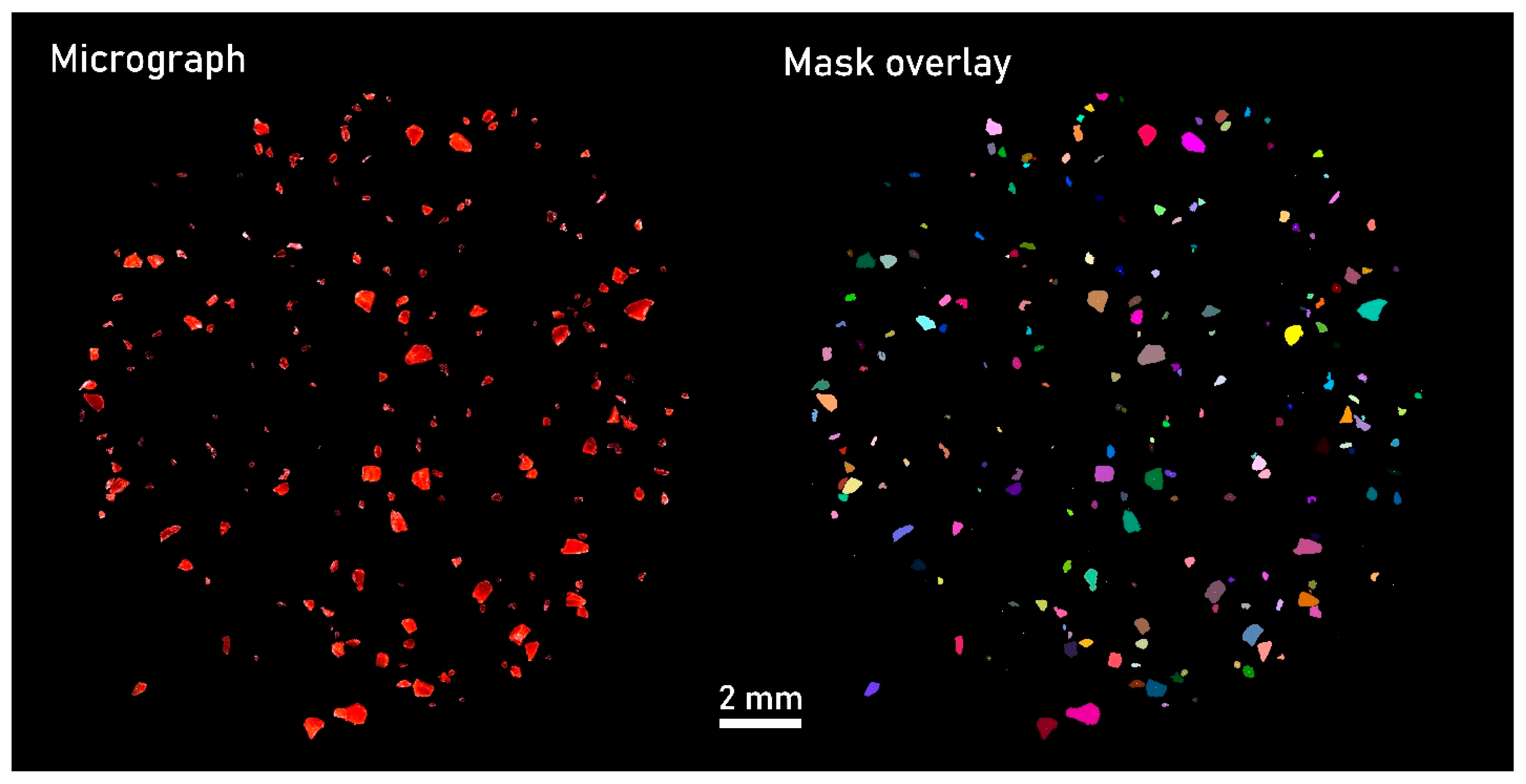

Figure 3. True-color micrograph mosaic captured under darkfield illumination at a spatial resolution of 2.6 µm/pixel, depicting subsample 1 of sample 1. ‘Mask overlay’ uses distinct colors to define individual MP particles.
Figure 3. True-color micrograph mosaic captured under darkfield illumination at a spatial resolution of 2.6 µm/pixel, depicting subsample 1 of sample 1. ‘Mask overlay’ uses distinct colors to define individual MP particles.
Microplastics 04 00080 g003

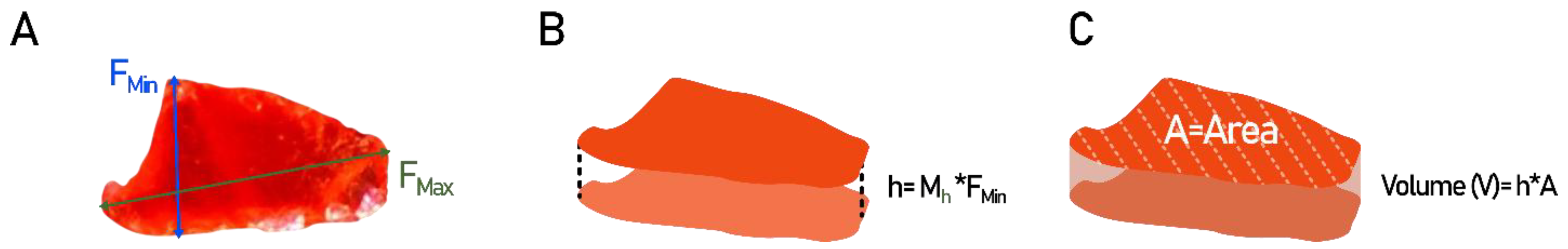

Figure 4. Outlining of 2D particle morphology to volume conversion model (SFMM). (A) Determine minimum Feret diameter (FMin). (B) The height (h) of the particle is determined as FMin multiplied by the height multiplier Mh. (C) The volume (V) of the particle is determined as h multiplied by the surface area (A) of the particle. Graphic made with Inkscape.
Figure 4. Outlining of 2D particle morphology to volume conversion model (SFMM). (A) Determine minimum Feret diameter (FMin). (B) The height (h) of the particle is determined as FMin multiplied by the height multiplier Mh. (C) The volume (V) of the particle is determined as h multiplied by the surface area (A) of the particle. Graphic made with Inkscape.
Microplastics 04 00080 g004

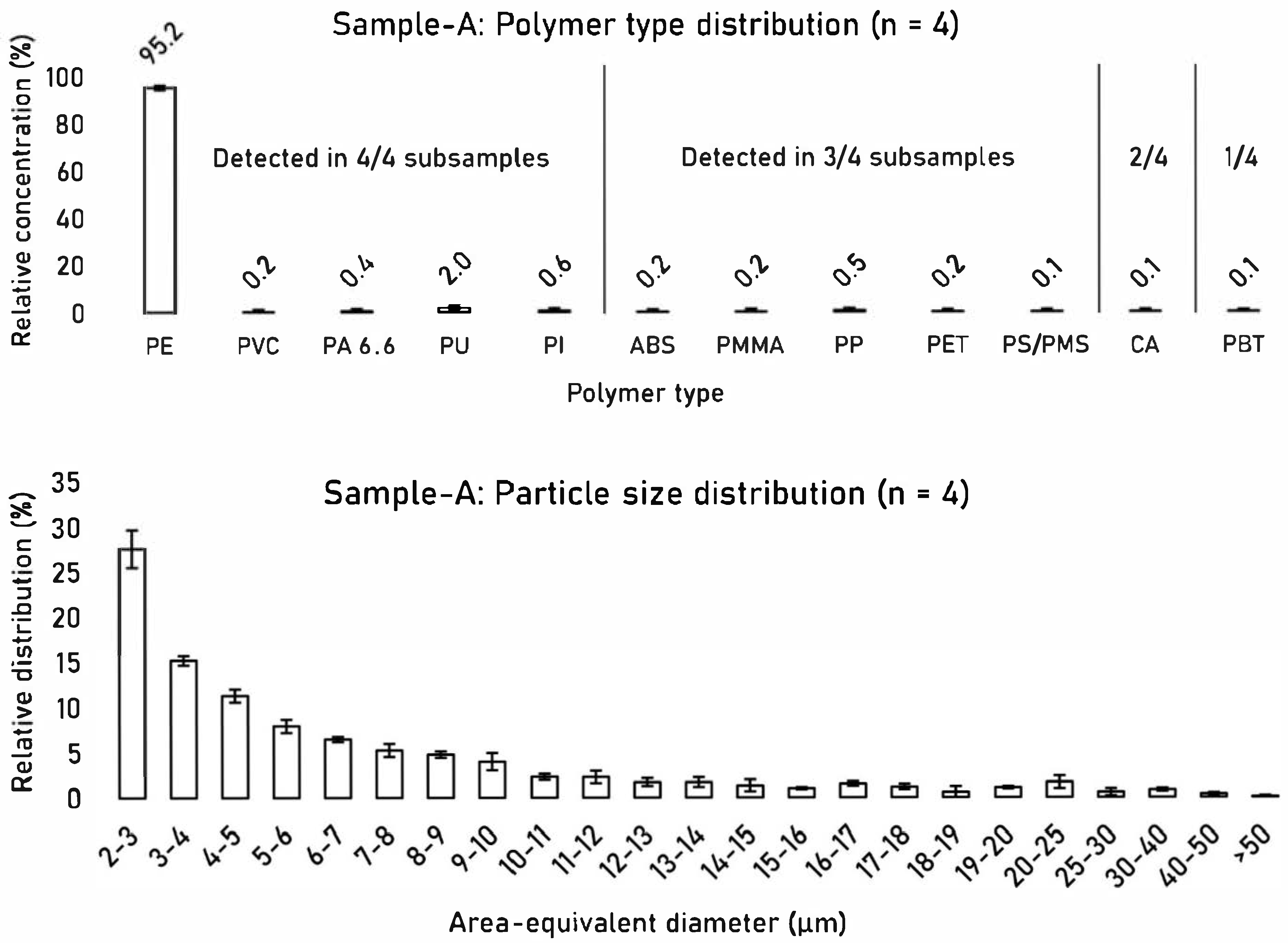

Figure 5. Relative polymer type distribution (top) and particle size distribution (PSD) (bottom) of detected MPs between FOVs 1–4 of sample-A.
Figure 5. Relative polymer type distribution (top) and particle size distribution (PSD) (bottom) of detected MPs between FOVs 1–4 of sample-A.
Microplastics 04 00080 g005

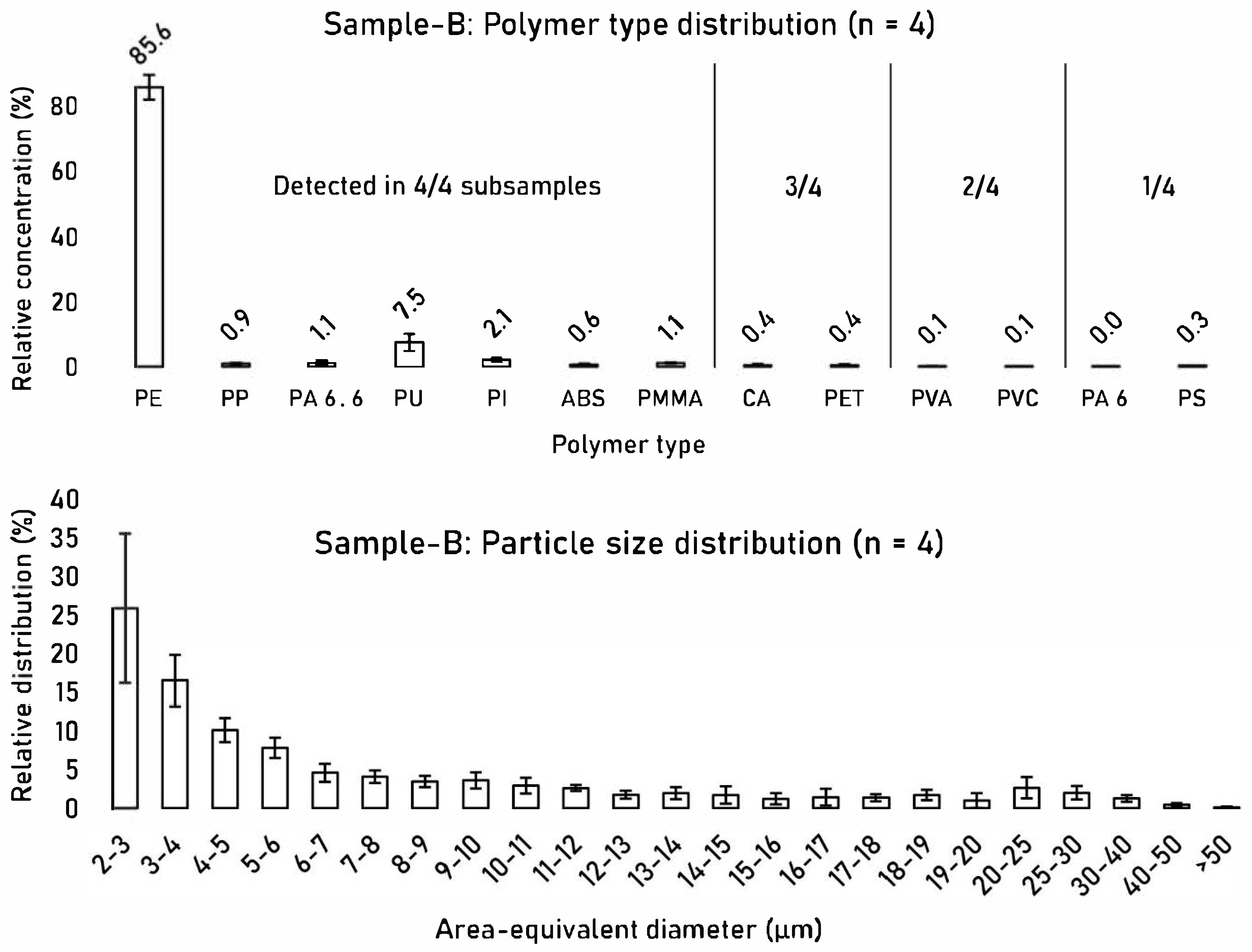

Figure 6. Relative polymer type distribution (top) and particle size distribution (PSD) (bottom) of detected MPs between FOVs 1–4 of sample-B.
Figure 6. Relative polymer type distribution (top) and particle size distribution (PSD) (bottom) of detected MPs between FOVs 1–4 of sample-B.
Microplastics 04 00080 g006

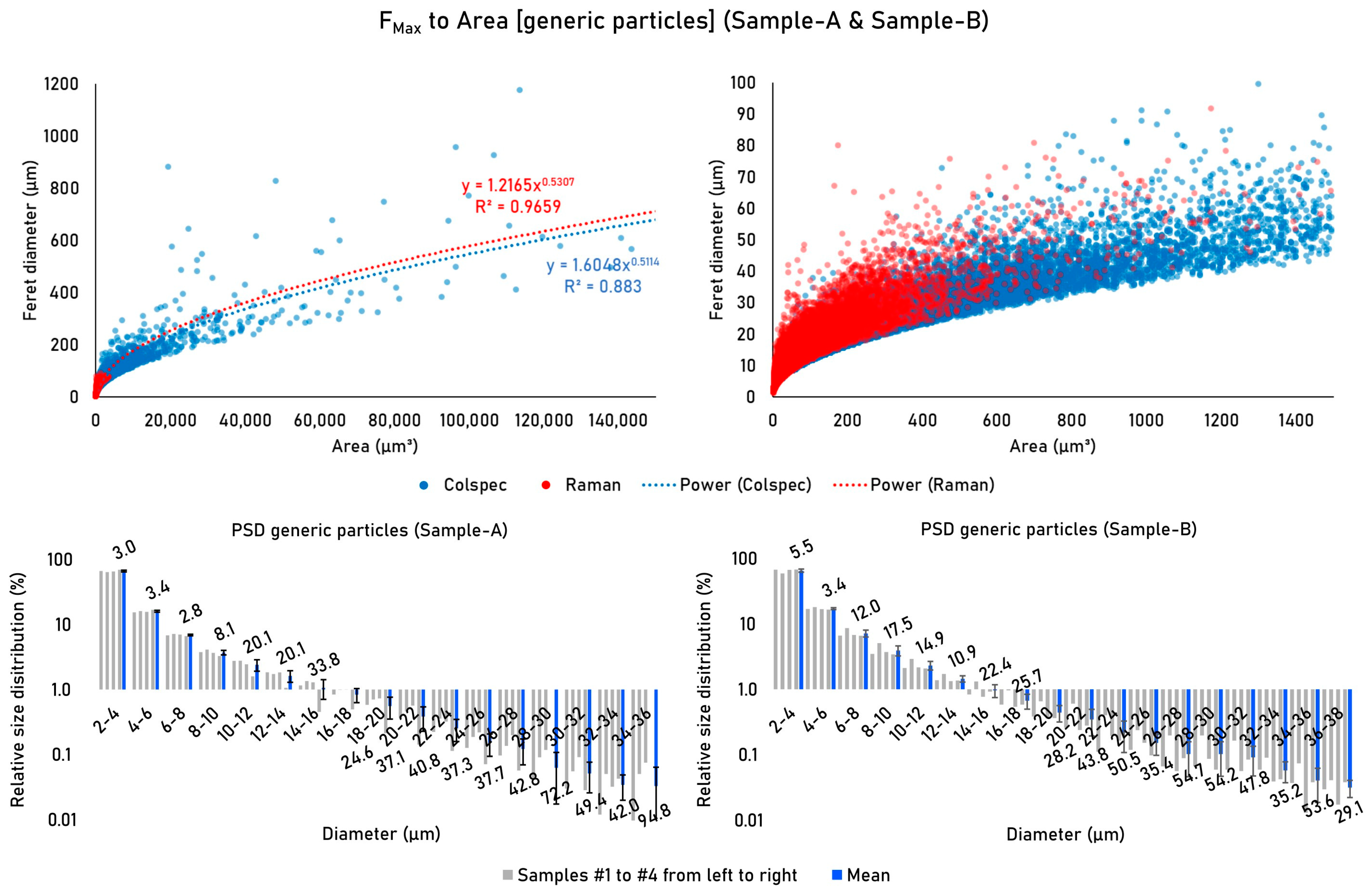

Figure 7. (Top) Comparison of the ratio between FMax and particle surface area obtained by Raman and ColSpec imaging. Both methods show good agreement, although Raman did not capture larger particles that were resolved by ColSpec. (Bottom) Relative particle size distributions based on Raman imaging across four subsamples from samples A and B. Values indicate relative standard deviation of PSD within size groups. The relatively stable distributions indicate that the surface area of larger particles reliably reflects that of smaller ones, allowing the surface area of larger particles to be used as a proxy for the total surface area and, by extension, the abundance of smaller particles.
Figure 7. (Top) Comparison of the ratio between FMax and particle surface area obtained by Raman and ColSpec imaging. Both methods show good agreement, although Raman did not capture larger particles that were resolved by ColSpec. (Bottom) Relative particle size distributions based on Raman imaging across four subsamples from samples A and B. Values indicate relative standard deviation of PSD within size groups. The relatively stable distributions indicate that the surface area of larger particles reliably reflects that of smaller ones, allowing the surface area of larger particles to be used as a proxy for the total surface area and, by extension, the abundance of smaller particles.
Microplastics 04 00080 g007
Figure 8. Micrograph mosaics captured under darkfield illumination of subsamples 1–4 from samples 1–5 (20 subsamples total), showing MP fragments spanning 10 µm to 1500 µm (1.5 mm) in Feret diameter.
Figure 8. Micrograph mosaics captured under darkfield illumination of subsamples 1–4 from samples 1–5 (20 subsamples total), showing MP fragments spanning 10 µm to 1500 µm (1.5 mm) in Feret diameter.
Microplastics 04 00080 g008

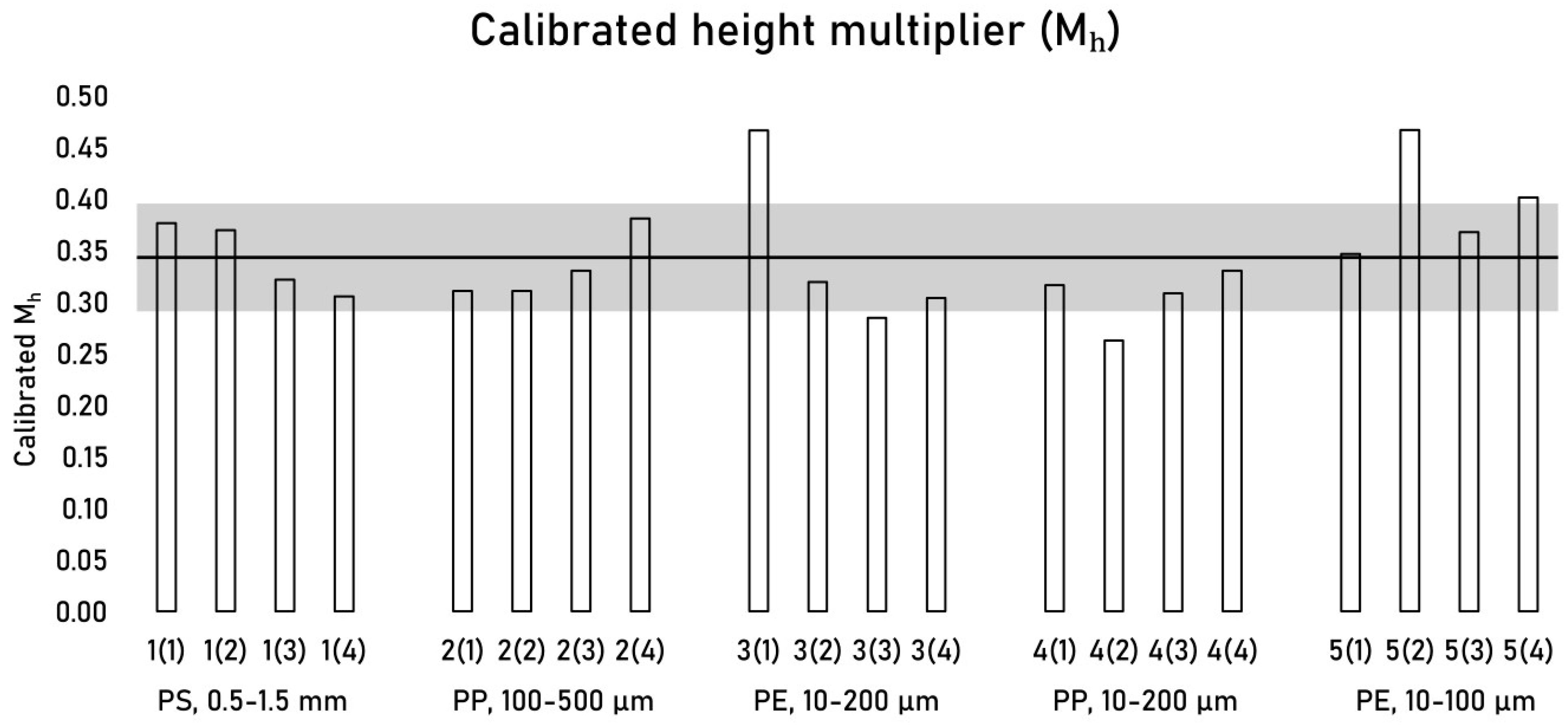

Figure 9. Height multiplier (Mh) calibration results for subsamples 1–4 from samples 1–5 (n = 20). Sample identification: 1(2) denotes subsample 2 of sample 1. The solid black line represents the mean Mh (0.34), and the grey bar indicates ± the standard deviation (0.05).
Figure 9. Height multiplier (Mh) calibration results for subsamples 1–4 from samples 1–5 (n = 20). Sample identification: 1(2) denotes subsample 2 of sample 1. The solid black line represents the mean Mh (0.34), and the grey bar indicates ± the standard deviation (0.05).
Microplastics 04 00080 g009

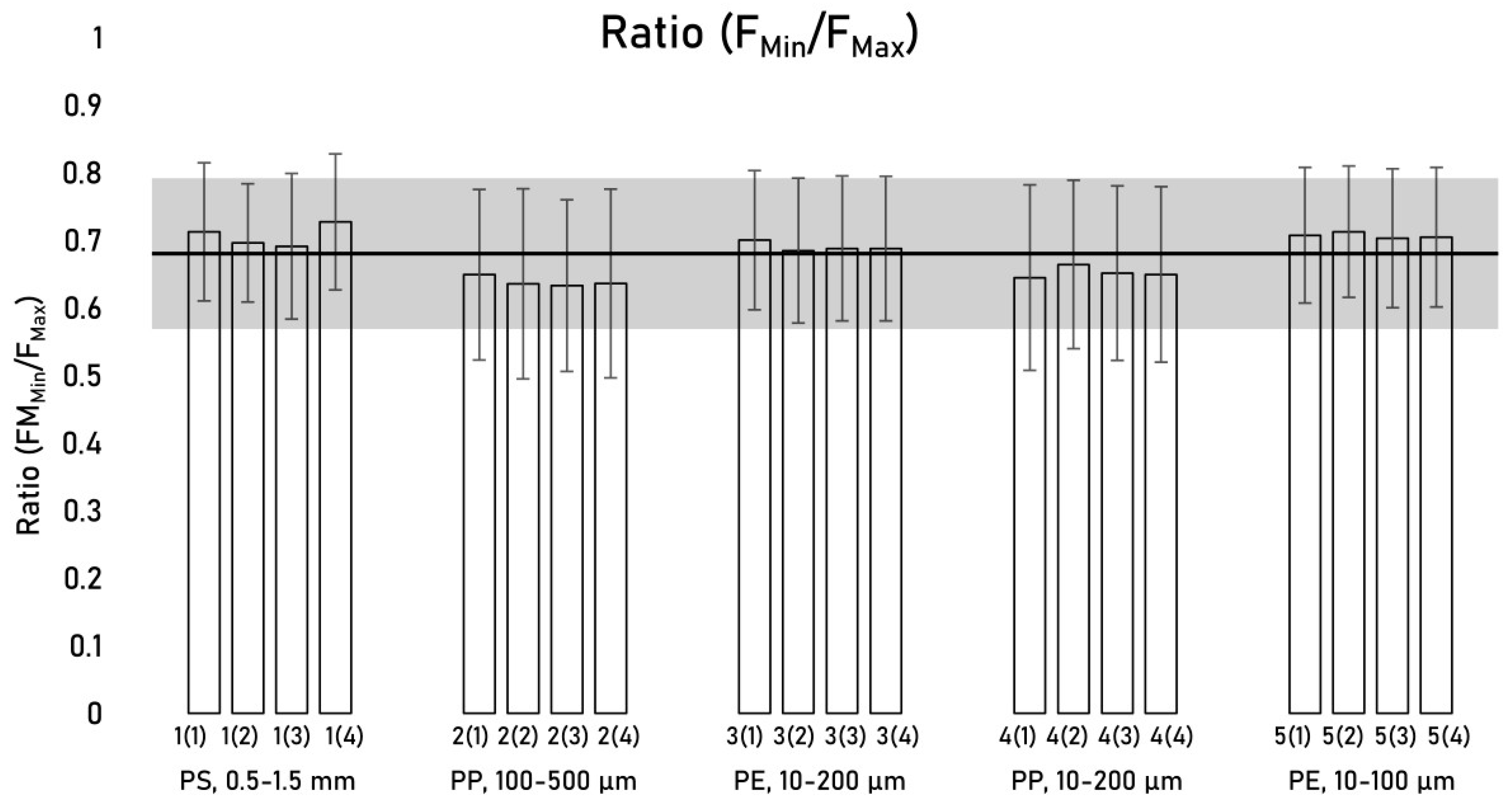

Figure 10. Mean FMin/FMax ratios within individual subsamples. Sample identification: 1(2) denotes subsample 2 of sample 1. The error bars represent the standard deviation within the individual subsamples. The solid black line represents the mean FMin/FMax ratio (0.68), and the grey bar indicates ± the overall standard deviation (0.11).
Figure 10. Mean FMin/FMax ratios within individual subsamples. Sample identification: 1(2) denotes subsample 2 of sample 1. The error bars represent the standard deviation within the individual subsamples. The solid black line represents the mean FMin/FMax ratio (0.68), and the grey bar indicates ± the overall standard deviation (0.11).
Microplastics 04 00080 g010
Table 1. Particle count and surface area analysis for FOVs 1–4 of sample-A, showing generic particles, MP particles, area coverage ratios, and concentrations. N/A = not applicable.
Table 1. Particle count and surface area analysis for FOVs 1–4 of sample-A, showing generic particles, MP particles, area coverage ratios, and concentrations. N/A = not applicable.
Sample/Value1 (TOP)2 (LEFT)3 (RIGHT)4 (MID)MeanSDRSD (%)
MP count (n)41275189969969017725.6
Generic particle count (n)708716,75418,85020,02315,679509732.5
MP count concentration (%)5.84.54.83.54.60.817.8
MP area (µm2)2.77 × 1044.97 × 1047.68 × 1045.85 × 104N/AN/AN/A
Generic particle area (µm2)2.43 × 1054.52 × 1056.42 × 1056.30 × 105N/AN/AN/A
MPs (n) per generic particle area (µm2)0.00170.00170.00140.00110.00150.000216.0
MP area concentration (%)11.411.012.09.310.91.09.1
Particle area full filter (µm2)2.25 × 1072.25 × 1072.25 × 1072.25 × 107N/AN/AN/A
Investigated particle area (%)1.082.012.852.802.20.72N/A
Table 2. Particle count and surface area analysis for FOVs 1–4 of sample-B, showing generic particles, MP particles, area coverage ratios, and concentrations. N/A = not applicable.
Table 2. Particle count and surface area analysis for FOVs 1–4 of sample-B, showing generic particles, MP particles, area coverage ratios, and concentrations. N/A = not applicable.
Sample/Value1 (TOP)2 (LEFT)3 (RIGHT)4 (MID)MeanSDRSD (%)
MP count (n)62036440330242212028.4
Generic particle count (n)23,89013,61623,23412,66218,351522828.5
MP count concentration (%)2.62.71.72.42.30.415.7
MP area (µm2)6.13 × 1043.08 × 1044.65 × 1041.19 × 104N/AN/AN/A
Generic particle area (µm2)6.38 × 1053.40 × 1055.82 × 1054.77 × 105N/AN/AN/A
MPs (n) per generic particle area (µm2)0.00100.00110.00070.00060.00080.000221.9
MP area concentration (%)9.69.18.05.78.11.518.4
Particle area full filter (µm2)2.04 × 1072.04 × 1072.04 × 1072.04 × 107N/AN/AN/A
Investigated particle area (%)3.141.672.862.342.50.56N/A
Table 3. Summary data for investigated subsamples including weighed mass, calibrated height multiplier (Mh), number of MP particles, and particle size range. N/A = not applicable.
Table 3. Summary data for investigated subsamples including weighed mass, calibrated height multiplier (Mh), number of MP particles, and particle size range. N/A = not applicable.
SampleWeighed Mass (µg)Calibrated Height Multiplier (Mh) as per Equation (2)Number of Particles (n)Size Range (µm)
1(1)17,4000.37657500–1500
1(2)20,4000.369102500–1500
1(3)14,0000.321118500–1500
1(4)23,4000.305133500–1500
2(1)10420.311207100–500
2(2)10420.311214100–500
2(3)10420.330193100–500
2(4)10420.381200100–500
3(1)1980.466634410–200
3(2)1980.319520510–200
3(3)1980.284524610–200
3(4)1980.304543810–200
4(1)63.30.31657110–200
4(2)63.30.26350510–200
4(3)63.30.30852410–200
4(4)63.30.33049210–200
5(1)540.346314010–100
5(2)540.466317910–100
5(3)540.368274010–100
5(4)540.401317210–100
MeanN/A0.344N/AN/A
SDN/A0.053N/AN/A
RSD (%)N/A15.4N/AN/A
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hagelskjær, O.; Margenat, H.; Yakovenko, N.; le Roux, G.; Sonke, J.E. Improving Microspectroscopic Microplastic Data Extrapolation: From Field of View to Full Sample, and from Fragment 2D-Morphology to Mass. Microplastics 2025, 4, 80. https://doi.org/10.3390/microplastics4040080

AMA Style

Hagelskjær O, Margenat H, Yakovenko N, le Roux G, Sonke JE. Improving Microspectroscopic Microplastic Data Extrapolation: From Field of View to Full Sample, and from Fragment 2D-Morphology to Mass. Microplastics. 2025; 4(4):80. https://doi.org/10.3390/microplastics4040080

Chicago/Turabian Style

Hagelskjær, Oskar, Henar Margenat, Nadiia Yakovenko, Gaël le Roux, and Jeroen E. Sonke. 2025. "Improving Microspectroscopic Microplastic Data Extrapolation: From Field of View to Full Sample, and from Fragment 2D-Morphology to Mass" Microplastics 4, no. 4: 80. https://doi.org/10.3390/microplastics4040080

APA Style

Hagelskjær, O., Margenat, H., Yakovenko, N., le Roux, G., & Sonke, J. E. (2025). Improving Microspectroscopic Microplastic Data Extrapolation: From Field of View to Full Sample, and from Fragment 2D-Morphology to Mass. Microplastics, 4(4), 80. https://doi.org/10.3390/microplastics4040080

Article Metrics

Back to TopTop
