# Fractional Frequency Reuse Optimal SINR Threshold Selection Using NIR and ISODATA

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

#### 2.1. Cellular Network Model

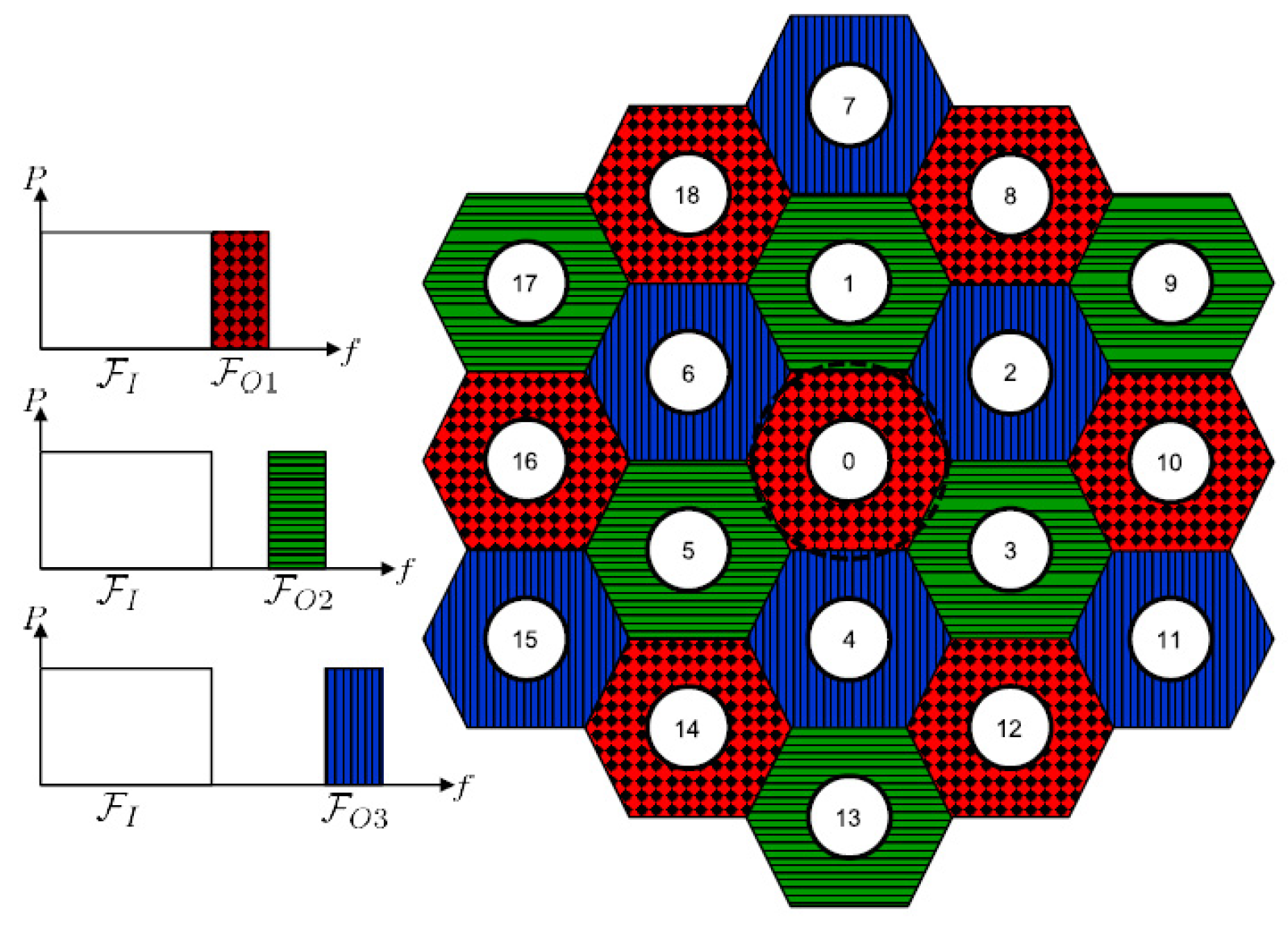

#### 2.2. FFR Network Layout

#### 2.3. SINR

#### 2.4. Throughput

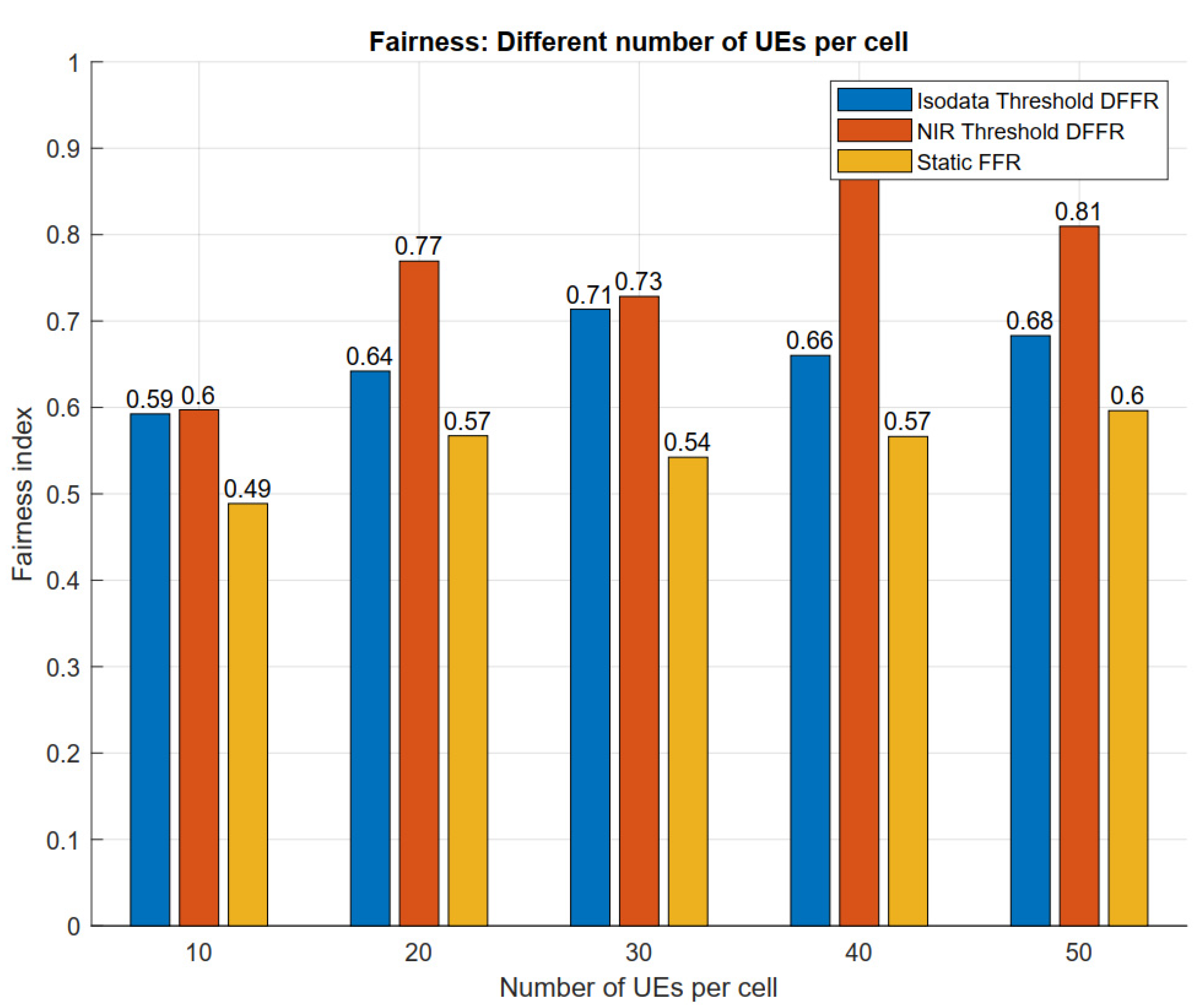

#### 2.5. Jain’s Index of Fairness

#### 2.6. Proportionally Fair (PF) Scheduling

#### 2.7. Native Integral Ratio (NIR) Method

#### 2.8. The Iterative Self-Organizing Data Analysis (ISODATA) Method

#### 2.9. ISODATA Algorithm

- ▪
- Select an initial threshold value, ${T}_{o}$, for instance, half of the maximum dynamic range.
- ▪
- Loop
- ▪
- Divide the histogram into two such that one segment corresponds to the foreground and the other to the background.
- ▪
- Calculate the sample mean of gray values of foreground and background pixels (${h}_{f}$ and ${h}_{m}$).
- ▪
- Determine a new threshold value, ${T}_{1}$; this is the average of these two samples’ means.
- ▪
- Re-segment the histogram again into two.

- ▪
- Check if any mean value has changed. If so, go to loop or else terminate.

## 3. Methodology

#### System Algorithm

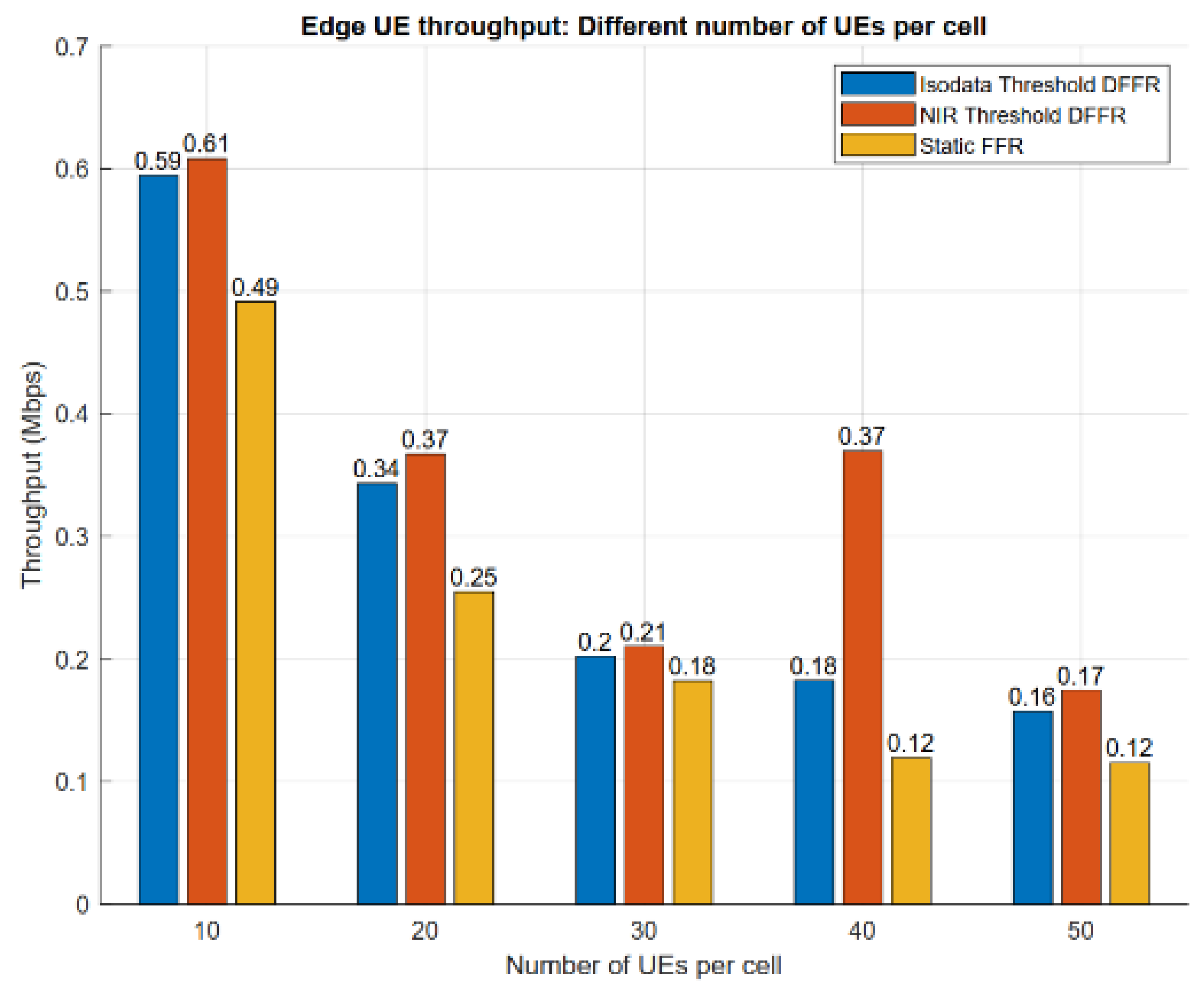

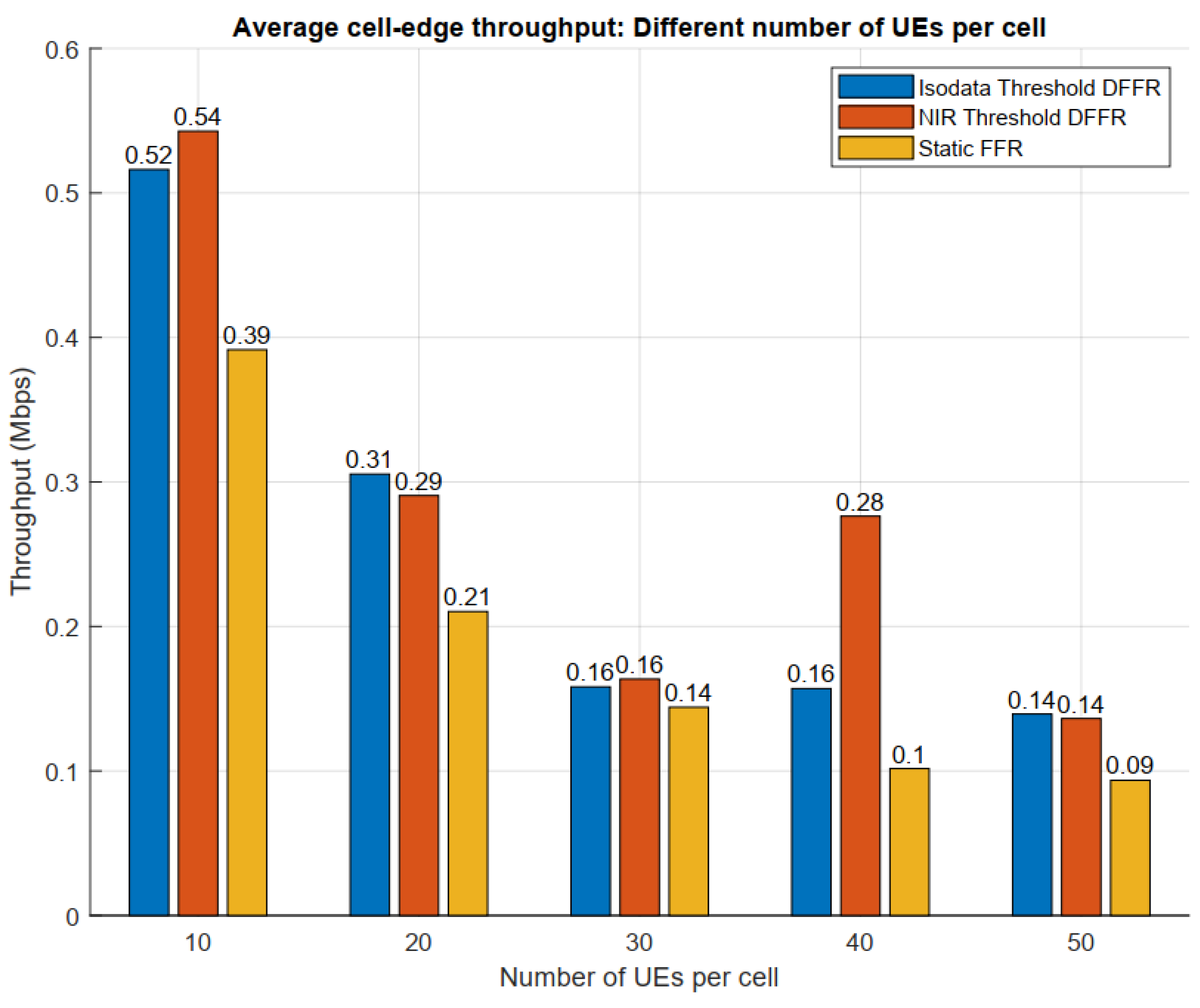

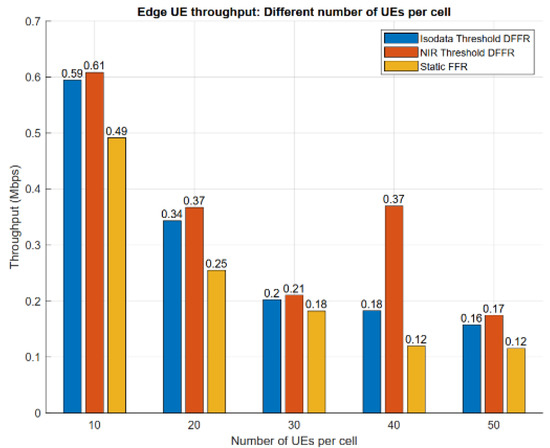

## 4. Results

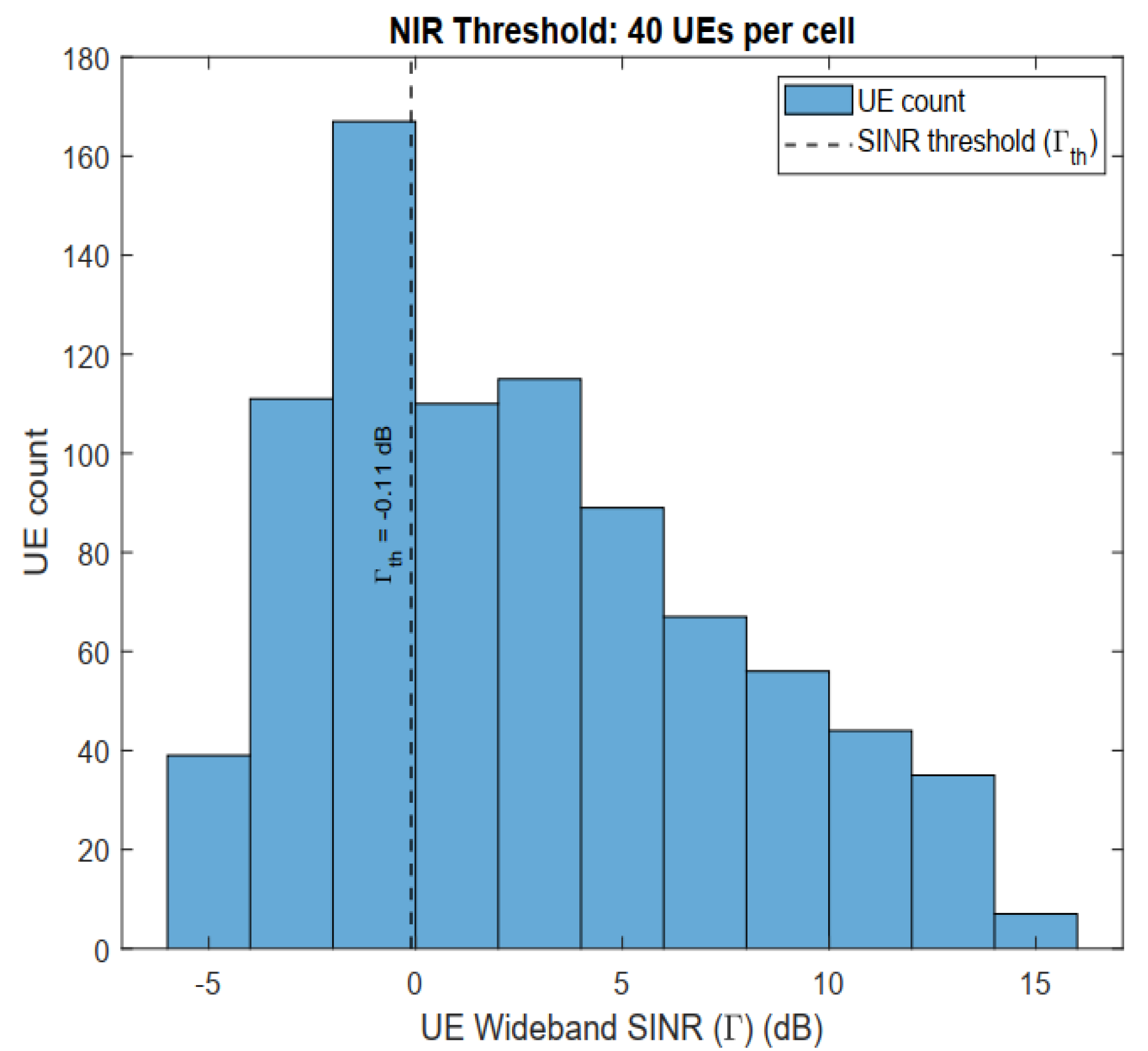

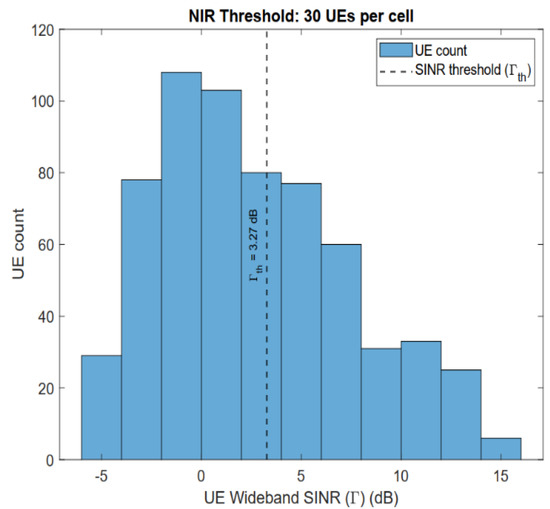

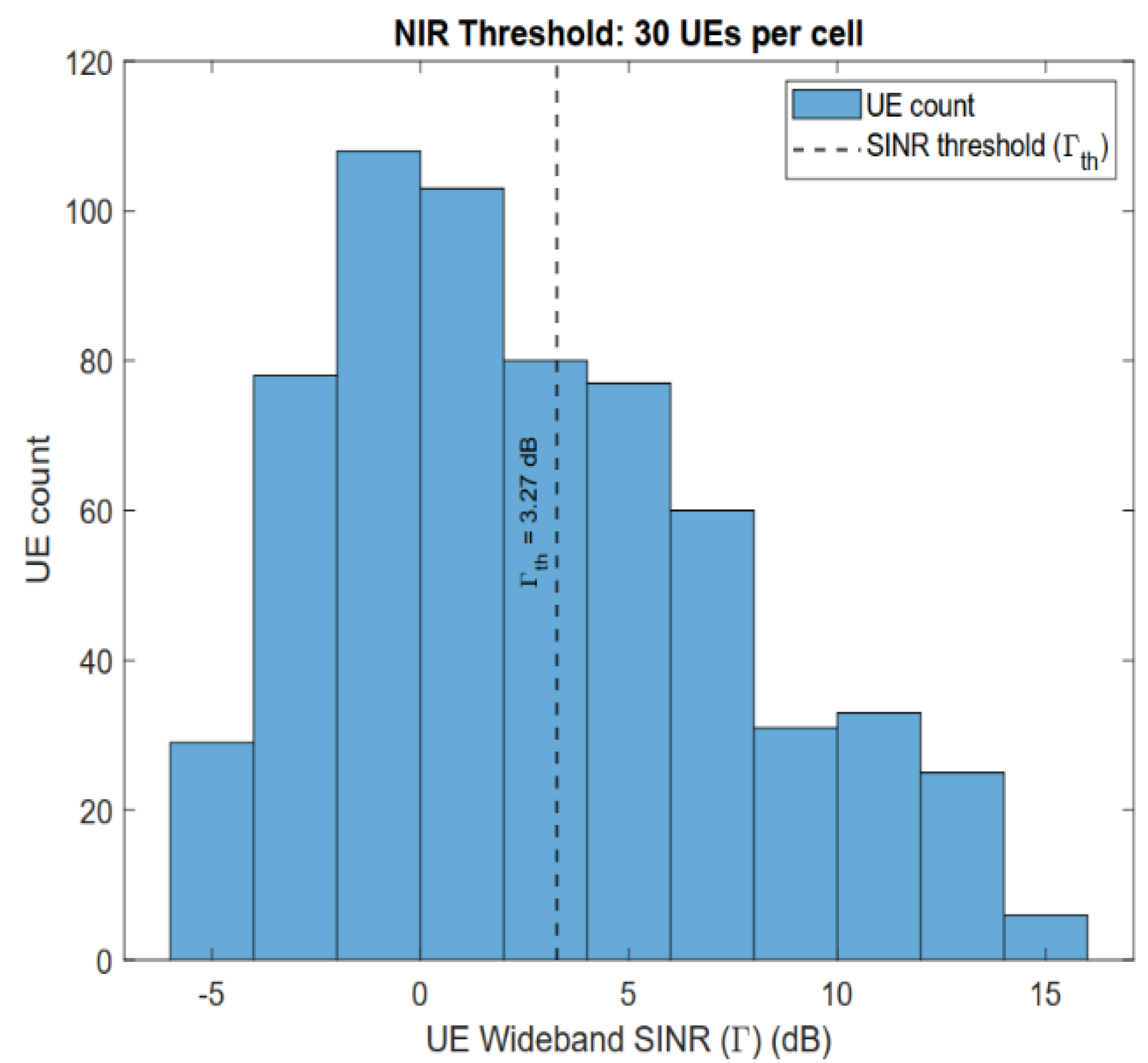

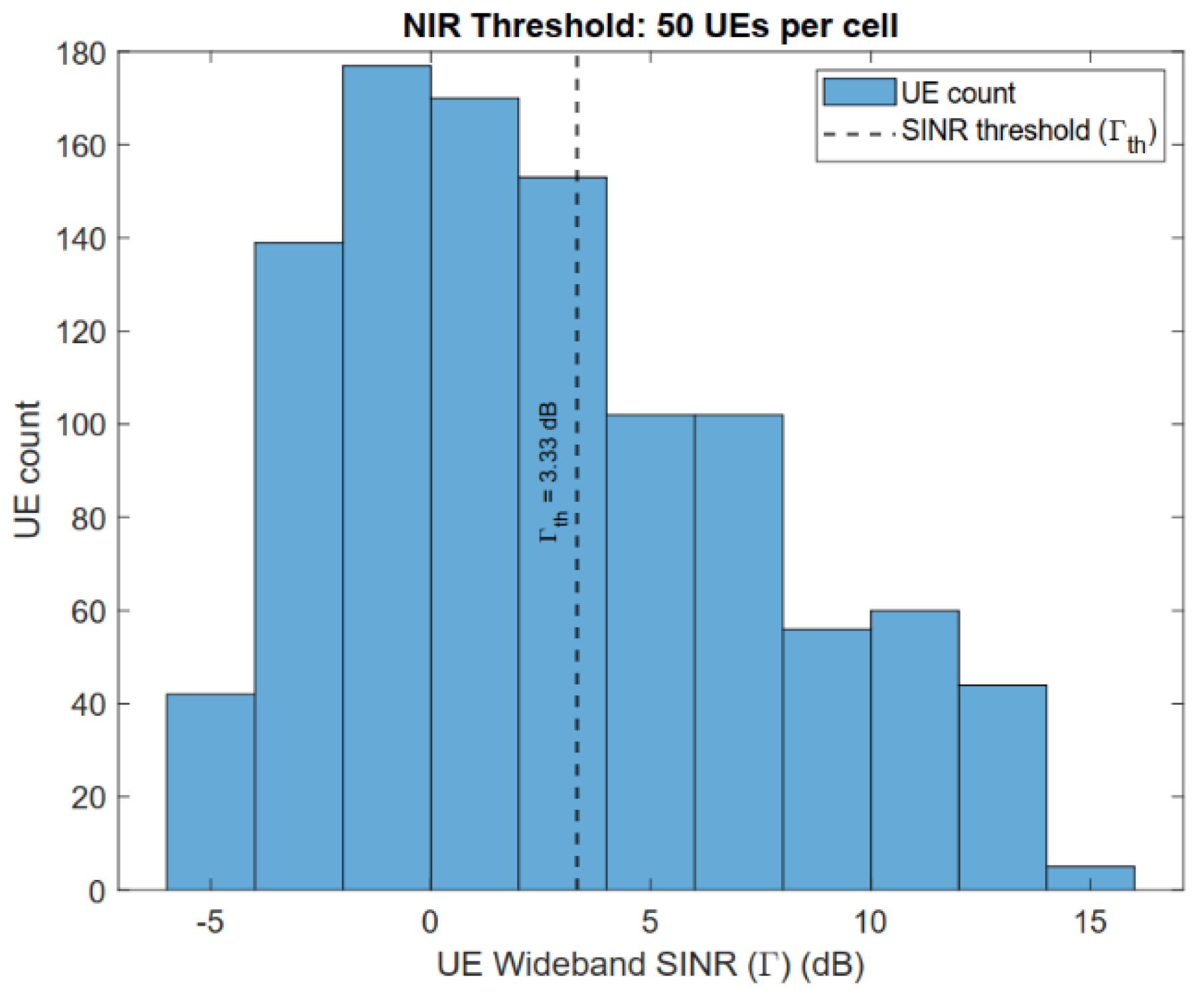

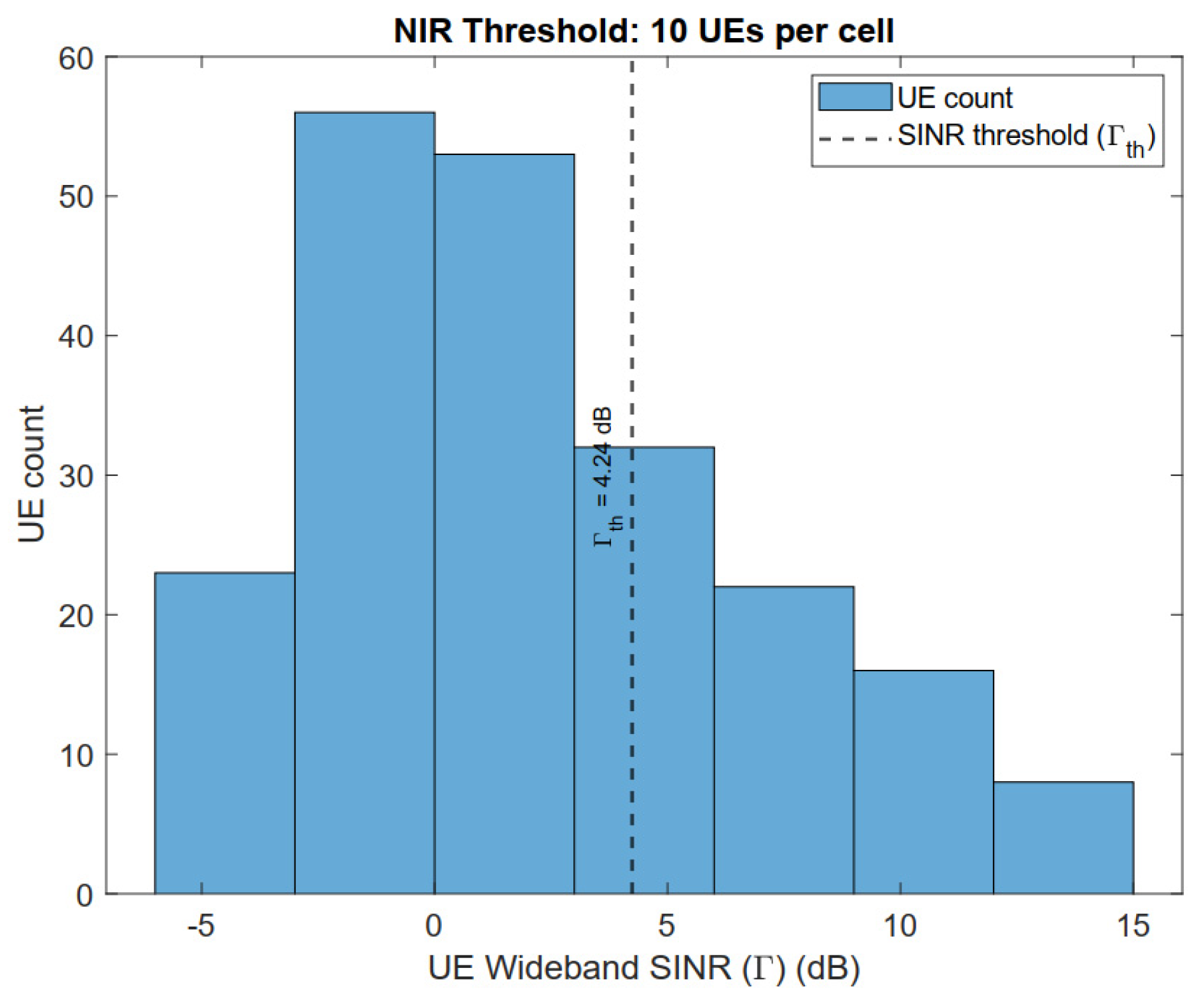

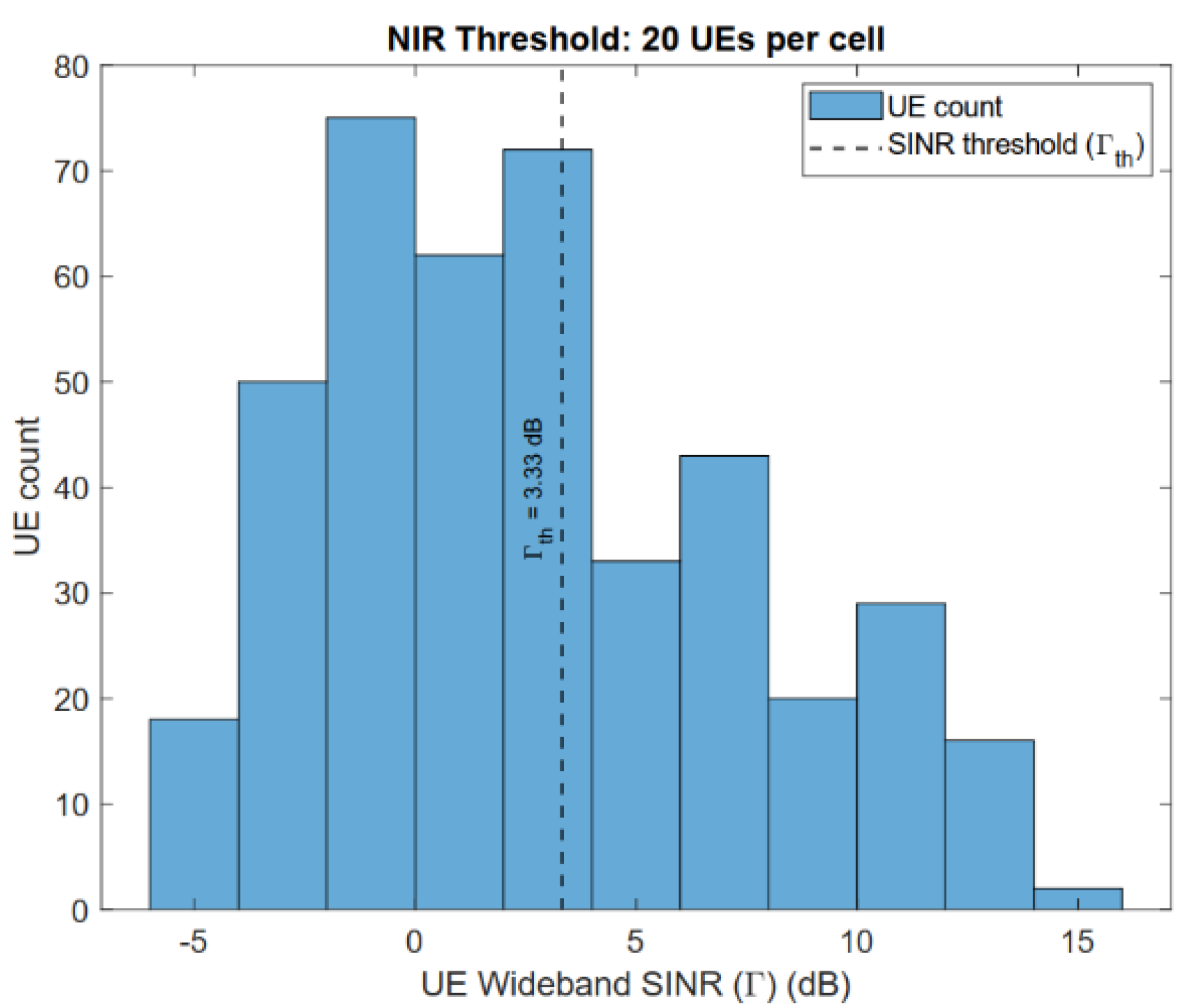

#### 4.1. UE Wideband SINR Distributions

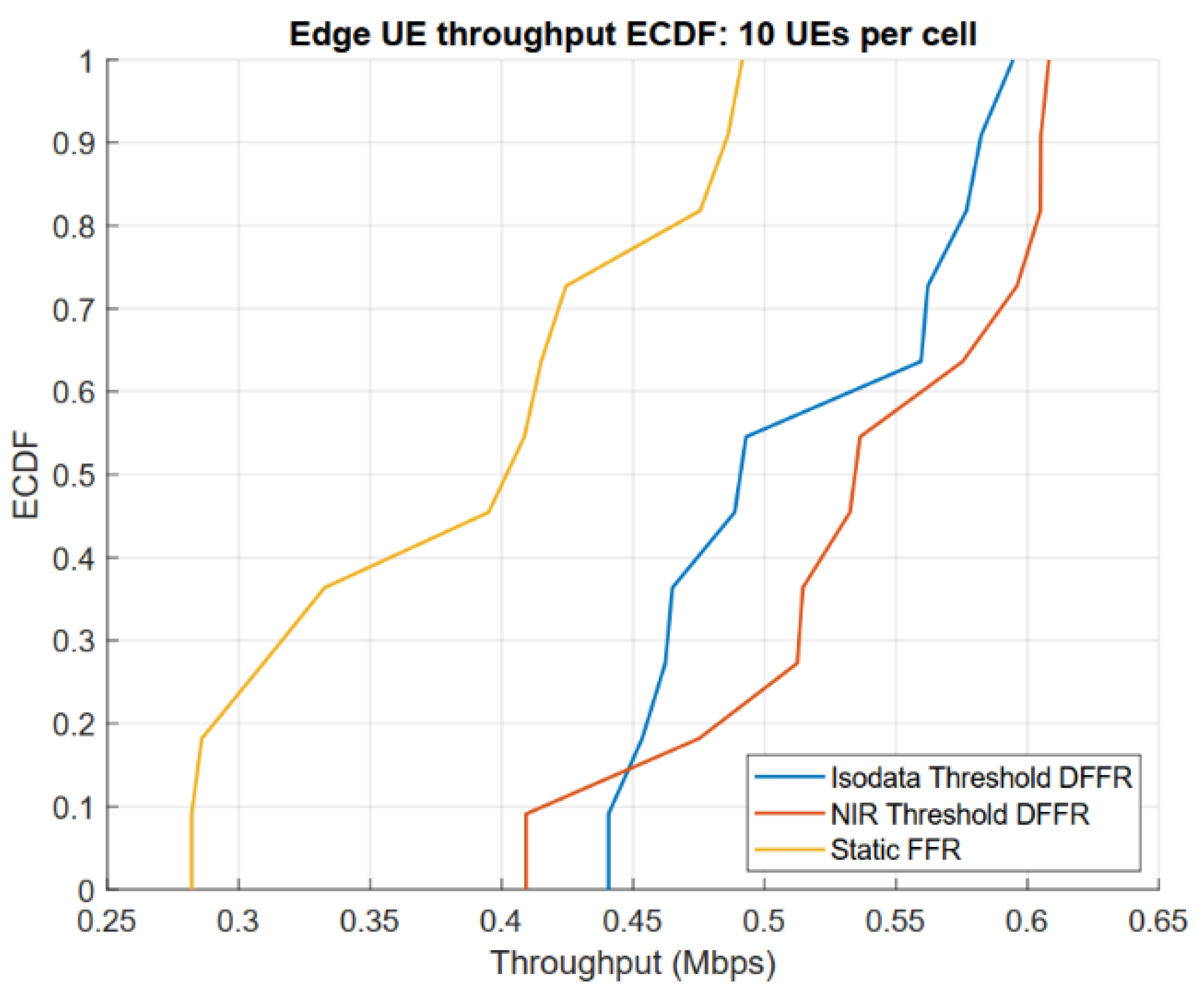

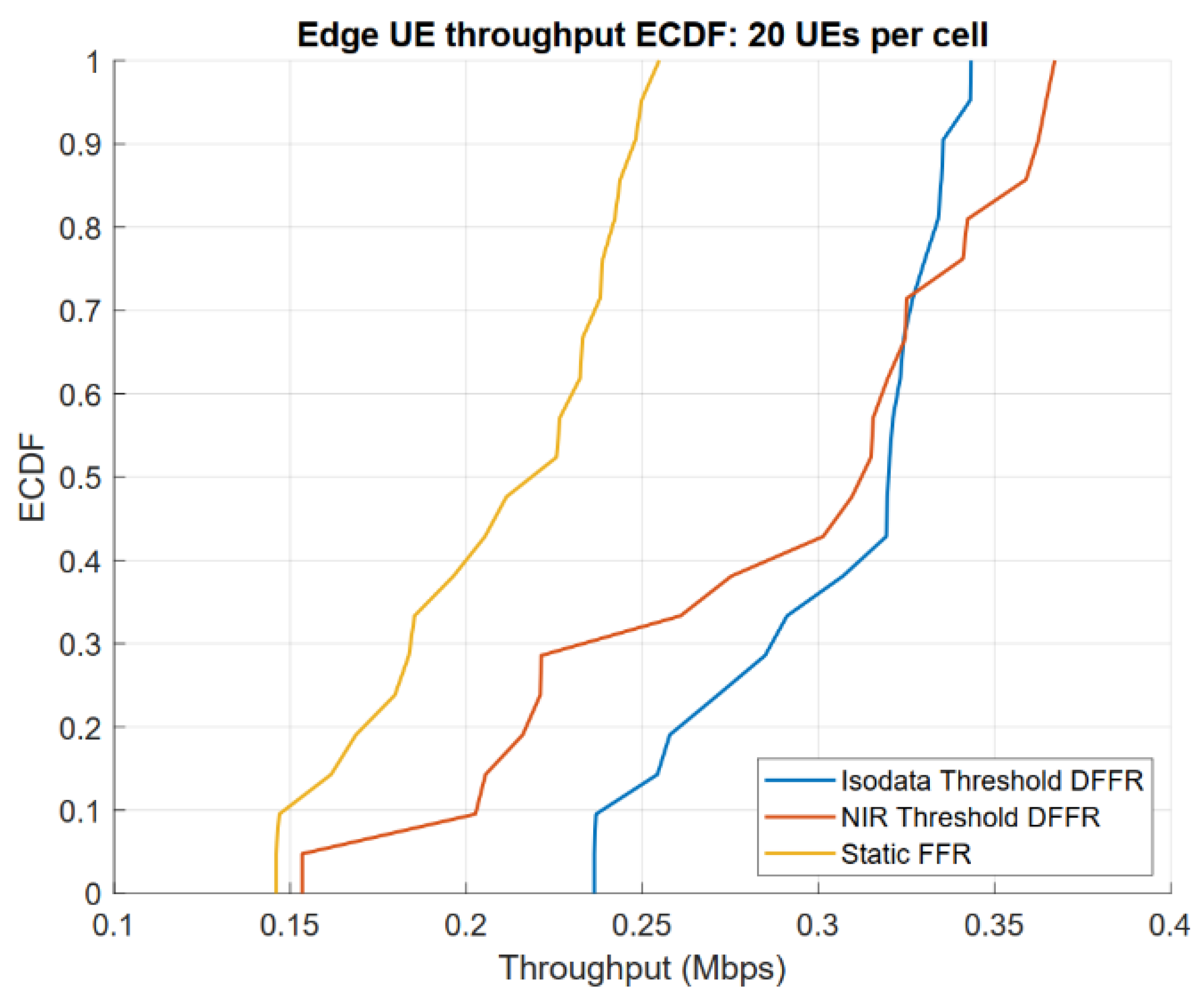

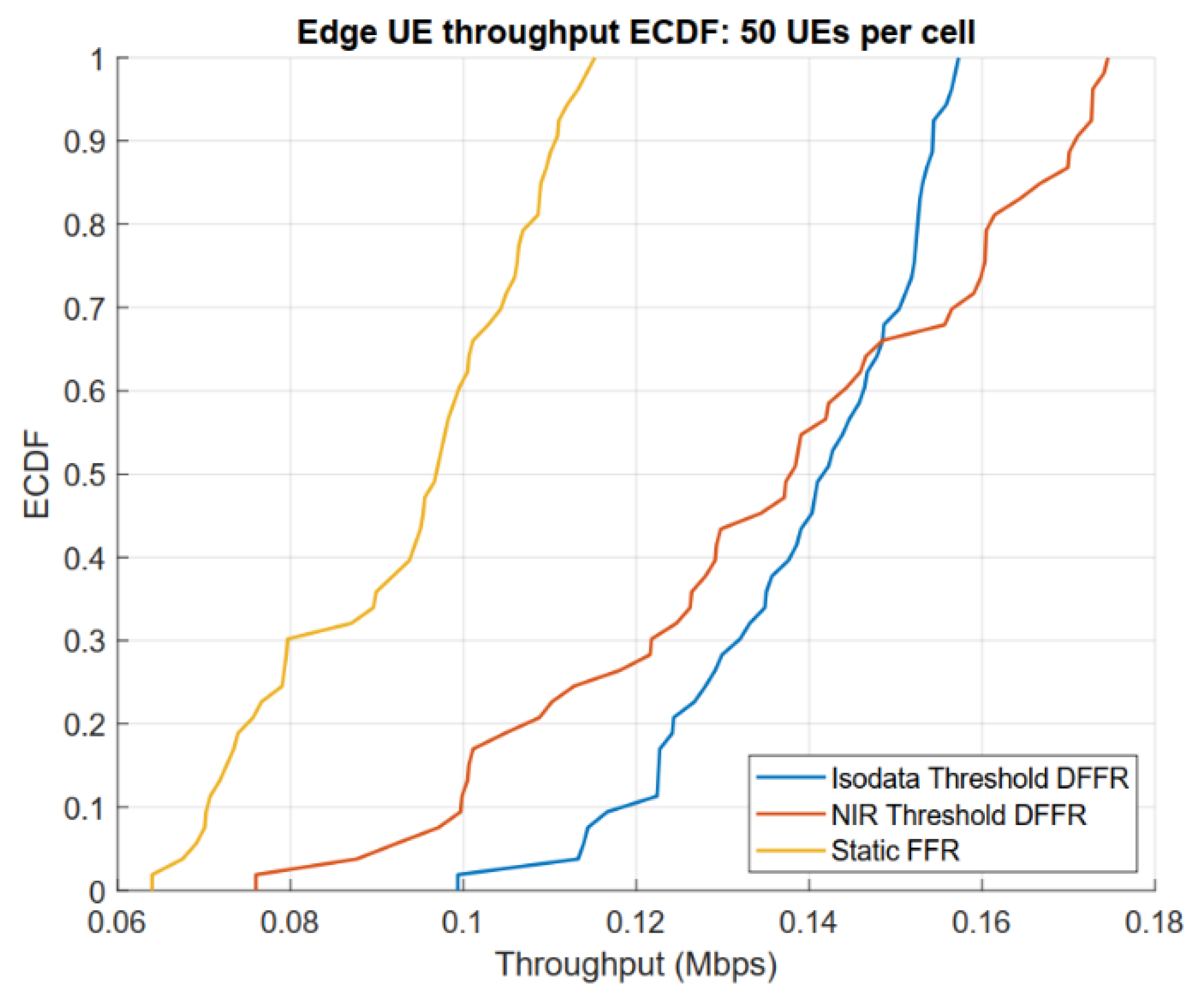

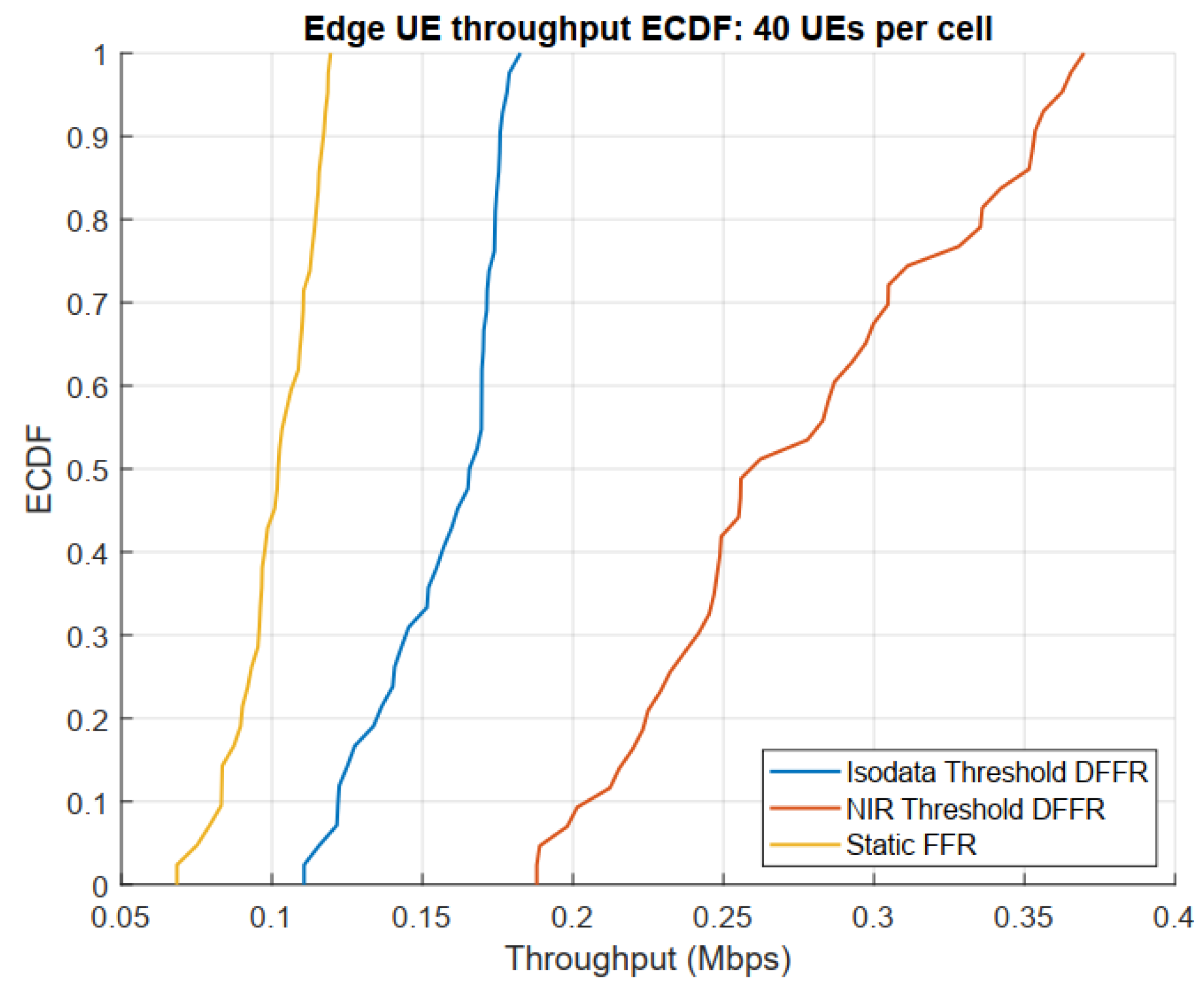

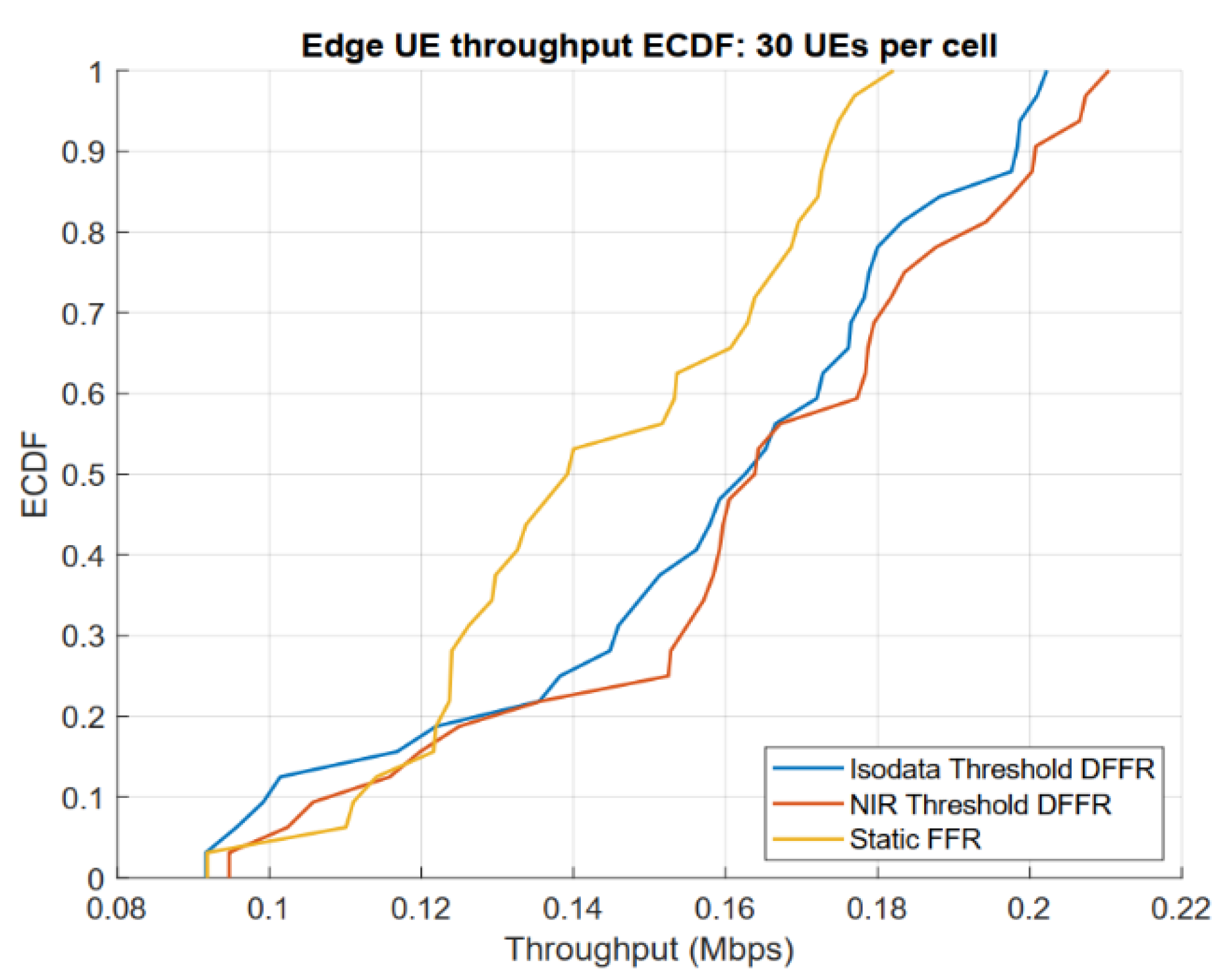

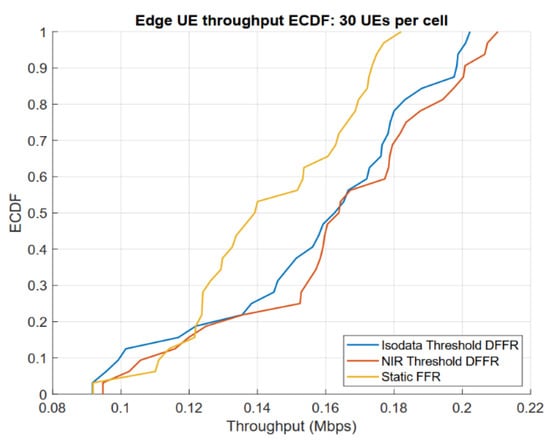

#### 4.2. Empirical Cumulative Distributed Function (ECDF) Curves

## 5. Discussion

## 6. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

AMC | Adaptive Modulation and Coding |

BS | Base Station |

ECDF | Empirical Cumulative Distribution Function |

CQI | Channel Quality Indicators |

FFR | Fractional Frequency Reuse |

FR | Full Reuse |

ISODATA | Iterative Self-Organizing Data Analysis |

LTE | Long-Term Evolution |

LTE-A | Long-Term Evolution—Advanced |

MCL | Maximum-Coupling Loss |

MIMO | Multiple Input Multiple Output |

MS | Mobile Station |

NIR | Native Integral Ratio |

OFDMA | Orthogonal Frequency Division Multiple Access |

PF | Proportionally Fair |

PMI | Precoding Matrix Indicator |

PR | Partial Re-use |

RI | Rank Indicator |

RR | Round Robin |

SINR | Signal-to-Interference-plus-Noise-Ratio |

TTI | Transmission Time Interval |

TU | Typical Urban |

UE | User Equipment |

## References

- Hamza, S.; Khalifa, S.S.; Hamza, H.S.; Elsayed, K. A survey on inter-cell interference coordination techniques in OFD-MA-based cellular networks. IEEE Commun. Surv. Tutor.
**2013**, 15, 1642–1670. [Google Scholar] [CrossRef] [Green Version] - Afroz, F.; Sandrasegaran, K. Interference management in LTE downlink networks. Int. J. Wirel. Mobile Netw.
**2015**, 7, 91–106. [Google Scholar] [CrossRef] - Novlan, T.D.; Ganti, R.K.; Ghosh, A.; Andrews, J.G. Analytical Evaluation of Fractional Frequency Reuse for OFDMA Cellular Networks. IEEE Trans. Wirel. Commun.
**2011**, 10, 4294–4305. [Google Scholar] [CrossRef] [Green Version] - Senthilkumaran, N.; Vaithegi, S. Image segmentation by using thresholding techniques for medical images. Comput. Sci. Eng. Int. J.
**2016**, 6, 1–13. [Google Scholar] - Bhargavi, K.; Jyothi, S. A survey on threshold based segmentation technique in image processing. Int. J. Innov. Res. Dev.
**2014**, 13, 234–239. [Google Scholar] - Eesa, M.; Talib, H.R. Comparison of the Methods of Image Slicing after Initial Image Processing Using the Statistical Confidence Limits. Ann. Pure Appl. Math.
**2021**, 24, 53–64. [Google Scholar] - Leedham, G.; Varma, S.; Patankar, A.; Govindaraju, V. Separating text and background in degraded document images—A comparison of global thresholding techniques for multi-stage thresholding. In Proceedings of the Eighth International Workshop on Frontiers in Handwriting Recognition (IWFHR’02), Niagara-on-the-Lake, ON, Canada, 6–8 August 2002; IEEE: Piscataway, NJ, USA, 2002; pp. 244–249. [Google Scholar] [CrossRef]
- Solihin, Y.; Leedham, G. Integral ratio: A new class of global thresholding techniques for handwriting images. IEEE Trans. Pattern Anal. Mach. Intell.
**1999**, 21, 761–768. [Google Scholar] [CrossRef] - Mapay, T.; Viriri, S.; Tapamo, J.R. Comparative study of retinal vessel segmentation based on global thresholding techniques. Comput. Math. Methods Med.
**2015**, 2015, 895267. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Ali, H.S.; Leung, V.C. Dynamic frequency allocation in fractional frequency reused OFDMA networks. IEEE Trans. Wirel. Commun.
**2009**, 8, 4286–4295. [Google Scholar] [CrossRef] - AlAmmour, J.; Andrews, G.; Baccelli, F. SINR and throughput of dense cellular networks with stretched exponential path loss. IEEE Trans. Wirel. Commun.
**2017**, 17, 1147–1160. [Google Scholar] [CrossRef] - Basilashvili, G. Study of spectral efficiency for LTE network. Acad. Sci. Res. J. Eng. Technol. Sci.
**2017**, 29, 21–32. [Google Scholar] - Jain, R.K.; Chiu, D.M.; Hawe, W.R. A Quantitative Measure of Fairness and Discrimination; Eastern Research Laboratory, Digital Equipment Corporation: Hudson, MA, USA, 1984; p. 21. [Google Scholar]
- Kim, H.; Kim, K.; Han, Y.; Yun, S. A proportional fair scheduling for multicarrier transmission systems. IEEE Commun. Lett.
**2005**, 210–212. [Google Scholar] [CrossRef] - Jawahar, C.; Biswas, P.; Ray, A. Investigations on fuzzy thresholding based on fuzzy clustering. Pattern Recognit.
**1997**, 30, 1605–1613. [Google Scholar] [CrossRef] - Vimala, R.; Marimuthu, A.; Venkateswaran, S.; Poongodi, R. Unsupervised ISODATA algorithm classification used in the landsat image for predicting the expansion of Salem urban, Tamil, Nadu. Indian J. Sci. Technol.
**2020**, 13, 1619–1629. [Google Scholar] - Ahmed, S. Comparison of Satellite Images Classification Techniques using Landsat-8 Data for Land Cover Extraction. Int. J. Intell. Comput. Inf. Sci.
**2021**, 21, 29–43. [Google Scholar] [CrossRef] - Thieu, Q.-T.; Hsieh, H.-Y.; Wang, C.-H. A Wideband Scheduling Method for Non-Orthogonal Multiple Access in the Vienna LTE-A Downlink System-Level Simulator. In Proceedings of the IEEE Globecom Workshops (GC Wkshps), Washington, DC, USA, 4–8 December 2016; pp. 1–6. [Google Scholar] [CrossRef]

Parameter | Value |
---|---|

UE speed | 5 Km/h |

Number of cells | 21 |

UEs per cell | 10, 20, 30, 40, 50 |

Antenna pattern | TS 36.942 |

Transmit power | 40 W |

Feedback | AMC: CQI, MIMO: RI & PMI |

Shadow fading | None |

Minimum-coupling loss | 70 dB |

Noise spectral density | −174 dBm/Hz |

Simulation length | 50 sub frames (TTIs) |

Receiver model | Zero forcing |

Inter-eNodeB distance | 500 |

Transmission bandwidth | 20 MHz (100 resource blocks) |

Antennas (NTX × NRX) | 4 × 2 |

Channel model | TU |

Pathloss model | TS 36.942—Urban area, 70 dB MCL |

Scheduling algorithm | Proportional fair |

1. INITIATE |

2. AFTER EVERY 50 TTIs DO |

3. $\mathrm{FORMULATE}\text{}\mathrm{histogram}\text{}\mathrm{of}\text{}\mathrm{SIN}\mathrm{R}\text{}\mathrm{distribution},\text{}{H}_{\gamma}$ for UEs |

4. IMPLEMENT NIR method to determine threshold, T |

5. $\mathrm{T}=\mathrm{nirthresh}\text{}({H}_{\gamma}$); #Note: T = isothresh for the case of ISODATA |

6. $\mathrm{SCALE}\text{}\mathrm{T}\text{}\mathrm{to}\text{}{\Gamma}_{th}$ |

7. ${\Gamma}_{th}={H}_{{\gamma}_{lower\text{}limit}}+\left({H}_{{\gamma}_{upper}}-{H}_{{\gamma}_{lower}}\right)\times \mathrm{T}$ |

8. FFR UE MAPPING |

9. PR_zone_UEs = 0 |

10. FR_zone_UEs = 0 |

11. $\mathrm{If}\text{}\mathrm{User}\text{}\mathrm{Equip}\text{}\mathrm{SIN}\mathrm{R}\text{}\ge $${\mathsf{\Gamma}}_{th}$ |

12. ALLOT User Equip to FR zone |

13. FR_zone_UEs++ |

14. else |

15. ALLOT User Equip to PR zone |

16. PR_zone_UEs++ |

17. end |

18. $\mathrm{COMPUTE}\text{}{\beta}_{FR}$ |

19. ${\beta}_{FR}=\mathrm{FR}\text{\_}\mathrm{zone}\text{\_}\mathrm{UEs}\text{}/\left(\mathrm{FR}\text{\_}\mathrm{zone}\text{\_}\mathrm{UEs}+\mathrm{PR}\text{\_}\mathrm{zone}\text{\_}\mathrm{UEs}\text{}\right)$ |

20. $\mathrm{SET}\text{}\mathrm{new}\text{}\mathrm{values}\text{}\mathrm{of}\text{}{\mathsf{\Gamma}}_{th}$$\text{}\mathrm{and}\text{}{\beta}_{FR}$ |

1 | 2 | 3 | 4 | 5 | |
---|---|---|---|---|---|

Number of UEs per cell | 10 | 20 | 30 | 40 | 50 |

Total number of UEs | 210 | 420 | 630 | 840 | 1050 |

$\mathrm{Optimal}\text{}{\Gamma}_{th}$ (dB) | 4.24 | 3.33 | 3.27 | 0.11 | 3.33 |

${\beta}_{FR}$ | 0.347 | 0.53 | 0.48 | 0.59 | 0.46 |

1 | 2 | 3 | 4 | 5 | |
---|---|---|---|---|---|

Number of UEs per cell | 10 | 20 | 30 | 40 | 50 |

Total number of UEs | 210 | 420 | 630 | 840 | 1050 |

$\mathrm{Optimal}\text{}{\Gamma}_{th}$ (dB) | 3.66 | 4.26 | 3.51 | 3.87 | 3.92 |

${\beta}_{FR}$ | 0.34 | 0.33 | 0.40 | 0.36 | 0.35 |
