1. Introduction
A single European transport area should facilitate the movement of citizens and freight transport [
1], reduce costs, and increase the sustainability of European transport [
2]. Regarding maritime transport, the existence of a “Blue Belt” in European seas will simplify formalities for ships traveling between European Union (EU) ports. It is necessary to establish an appropriate framework for European inland waterway transport. Market access to ports needs to be improved further.
Water transport accounts for 90% of world trade, and cargo ships are part of the backbone of the global economy. Internationally, it has been found that transported goods have an estimated annual value of USD 4.5 trillion, and this value is expected to increase by about 4.7% in coming years, according to the Water Quality Assurance Union (2020) [
3].
In addition, specialists have indicated that this means of transport is not exploited to its true potential [
4]. Inland waterways transport should be developed because it plays a significant role in environmental protection and developing small enterprises [
5]. However, this is a challenge for shipowners, and progress can be made only with the help of the European Commission.
International trade undertaken on the water is essential to provide direct links. Inland waterways are essential for the European States [
6] because they connect these States, and for import–export activities to and from Asia. It is a significant priority for the European Commission to develop a unified navigation system to connect and maximize trans-European navigation potential.
The significant advantage of river navigation is the capability to transport a large quantity of heavy and oversized goods, simultaneously with price advantages [
7]. Considerations of operationality also concern the estimated travel time and the related time costs. When calculating the estimated time, it is essential to consider crew costs, fuel, docking, transshipment, waste discharging, waiting times for customs formalities, and waiting times for unloading–loading. Economic conditions and territorial aspects can stimulate water transport [
8], and these two factors must be in concordance with the needs of shipowners. The primary conditions for efficient water transport can be improved, and the bottlenecks addressed, by the relevant authorities.
The abundance of administration burdens reduces the economic and environmental potential of water transport, thus harming the economic growth and social welfare of the entire region. The international legal regulation of rivers represents one major problem [
9]. Mitigating significant administrative barriers in a transnational coordinated manner is the primary step towards better governance of this mode of transport, and reduces the logistical costs of large industries that depend on inland waterway transport. The European Commission has sought to address administrative barriers and derivatives, and reduction of these factors is a significant priority in the agenda of its current transport policy. Consultation between the Directorate General for Mobility and Transport of the European Commission, which is responsible for the EU’s mobility and transport policy (DG MOVE), and the Department of the European Commission, which is responsible for the EU policy on the development of European regions and cities (DG Regio), led to the development of a program for the implementation of the EU Strategy for the Danube Region (and its priority area 1a). This implementation—the Transnational Danube Program—is a platform on which stakeholders can efficiently identify essential, concrete, and specific solutions to the many existing barriers.
The European institutions responsible for the Danube Region have developed many strategies and projects in order to improve shipping quality. We consider that it is essential to prioritize the measures implemented by the European Commission considering the bottlenecks identified by the shipowners, as presented in
Section 3 of this paper.
Quality Function Deployment (QFD) was selected for the analysis in this study. This method was used to measure the impact of administrative burdens identified by shipowners on technical measures implemented by the European Commission to optimize the flow of goods on the Danube. Implementing the quality function is an approach to quality assurance in the product development process, but is not necessarily applied at every stage [
10].
Quality Function Deployment is an instrument that is used in many fields, including maritime transport. Many studies have been conducted to help decision makers to improve their activities. Zeiner Sener and Ece Ozturk (2015) proposed the use of QFD to select an appropriate ship considering the company’s needs [
11]. Ship routing is another vital element related to water transport. Many experts have used QFD for selecting suitable routes for the successful transfer of goods and passengers [
12,
13,
14].
The results of the applied methodology indicate the essential point of intervention. In this study, we developed a set of recommendations to improve the navigation conditions on the Danube River.
2. Materials and Methods
Developed in Japan in 1960, Quality Function Deployment (QFD) was introduced into the United States in the early 1980s, and was adopted due to its popularity and history of success in the automotive industry [
15]. Copying the model from manufacturers such as Toyota and Mitsubishi, the “Big Three” United States car manufacturers used QFD to better meet customer requirements in their industry. Once adopted, this method significantly shortened the design cycles and reduced the total number of employees required in the design process. Subsequent to its success in Japan, this method has been extensively developed [
16,
17].
The new standard of the International Organization for Standardization (ISO) 16355 -2015 [
10] defines and demonstrates the dynamic nature of a customer-based approach. Since its establishment in 1966, the quality function has expanded and deepened the methods and tools to respond to changing business conditions of QFD users, management, customers, and products. Those who used QFD older models will find that these improvements QFD easier and faster to use. Methods and tools presented in the standards represent decades of improvements QFD list is neither exhaustive nor exclusive.
ISO 16355 describes the process of implementing the quality function, its purpose, users, and tools. It is not a standard management system, and it does not provide requirements or guidance for organizations to systematically develop and manage their policies, processes, and procedures to achieve specific objectives. Users of this part of ISO 16355 will include all organizational functions necessary to ensure customer satisfaction, including business planning, marketing, sales, research and development (R&D), engineering, information technology (IT) [
18], production, procurement, quality, production, services, packaging and logistics, support, testing, regulation and other phases in hardware, software, services, and system organizations.
The primary tool developed in this method is the House of Quality. The “House of Quality” is obtained through the development of matrices that allow the identification of areas for improvement, their classification, and their weighting in a final matrix [
16,
19]. The quality house (HoQ) is the essential tool by this method [
20]. The house consists of a matrix that links the input and output data [
16]. This stage is the most important. Over time, this method has been applied and adapted in various products, tourism, medical services, electricity, and transportation.
The traditional HoQ matrix is composed of seven major parts, including shipowners’ requirements (CR), priority requirements, technical measures (TM), correlation matrix, relationship matrix (between TM and CR), the sum of products of priority degrees and degrees of relationship, and, finally, the degree of priority of TMs [
21]. With the help of this graphic representation, the needs of the shipowners concerning the technical measures will be visible.
In practice, it is both difficult, and unnecessary to include all HOQ elements and build different HOQ models involving different elements. The simplest but most widely used HOQ model contains only customer needs and their relative importance, technical measures and the relationships between the two elements, and assessments of the importance of technical measures. Some authors add correlation matrices to this simple model [
22]. Fewer models include technical competitive assessment because this information is challenging to treat. As such, the objectives and probability factors for technical measures are rare in HOQ studies—even if they are included, they are challenging to incorporate into the calculation of importance ratings, which does not refer to the competitive technical assessment.
To avoid inconsistencies and facilitate applications, we propose in this paper a unified HOQ model in 5 steps (

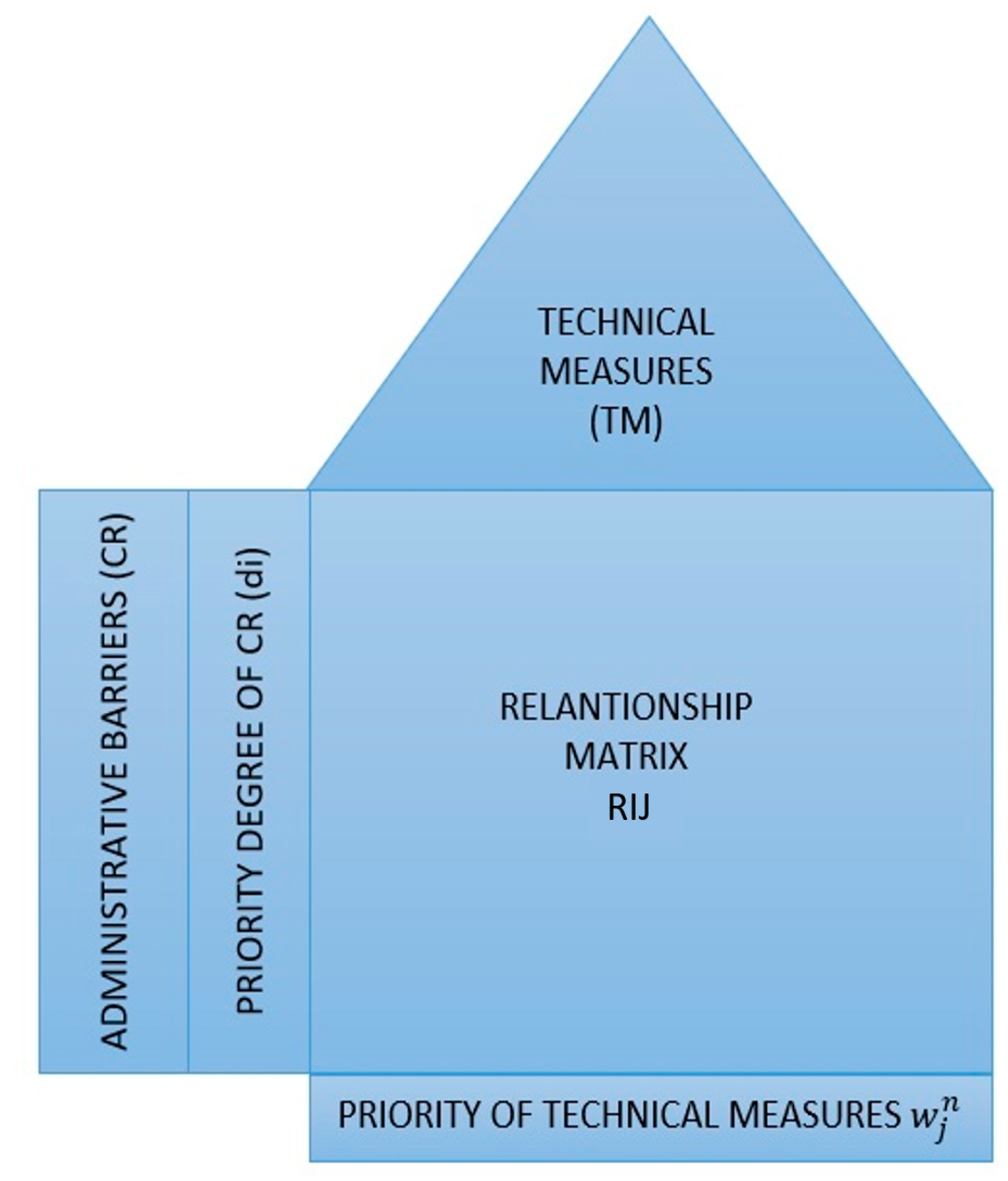

Figure 1 House of Quality) after the model of Chan and Wu [
23] contains the frequently used HOQ elements. The needs of customers, in our case shipowners, which are listed in the left column and are connected to the technical requirements, in our case to the action pillars, listed at the top, completing the section called the Rij relationship matrix [
24]. Here, the weighted matrix of customer requirements is used to determine the weighted characteristics of the product.
The model applied by us have five steps presented in
Figure 1 and detailed below:
- (a)
The left side is represented by the voice of customers (CR), in our specific case by the administrative barriers identified by the shipowners, detailed in
Section 3.1.
- (b)
It is necessary to calculate a priority degree of shipowner’s needs (di), detailed in
Section 3.2. By prioritizing them, we can find out that the most critical shipowners’ needs are not the most important regarding the technical measures taken.
- (c)
The roof is represented by the Technical Measures (TM) and is detailed in
Section 3.3.
- (d)
Rij: This matrix is a systematic means of identifying the relationship level between CR and TM. Usually, these relationships are measured by the following scale (1), which places more weight on the solid relationship [
25,
26].
Without relationship | Low relationship | Moderate relationship | Strong relationship | |
0 | 1 | 5 | 9 | (1) |
Either R or the matrix of the relationship between CR and TM, the element Rij indicates the level of impact of TM on CR satisfaction.
The correlation matrix allows the identification of conflicting design requirements, i.e., the rows or columns that remain blank indicate that there are no relationships between them. This means that shipowners’ requirements do not affect any performance indicator selected. That step is detailed in
Section 3.4. The numerical process for assigning the priority degree of TMs is as follows:
Let m be the requirements of the shipowners indicated by CRi, (i = 1, 2, ..., m) and n technical measures indicated by TMi (i = 1, 2, ..., n).
Let di (i = 1, 2, ..., m) be the priority degree of i between the whole set of CR, while we (j = 1, 2, ..., n) which indicates the relative weight of the importance j TM, is determined by the relationship between CR and TM.
The sum of the product of the priority degree, di and Rij is calculated as follows:
So, barriers identified by shipowners will be marked with CR. The priority level of a requirement is derived through the sum-product measures the relative weight of the European Commission in terms of performance and degree of relationship corresponding technical measures provided. The pillars of the European Commission’s action will be marked with TM (technical measures). A normalized value of the result will show the relative weight (the priority) technical measure to satisfy the need of the shipowner.
This method offers us an appropriate approach to prioritize the technical measures (TM). By developing this research method in this paper, we have the entire decision-making problem process and the possibility of prioritizing the best solution and even offering a set of recommendations by using a one-to-one relationship [
27]. One of the most common issues in the decision-making process is the connectivity with the customers’ desires (CR). After we browse all the steps mentioned in
Figure 1, the technical measures will be prioritized by their impact on the system. We will have an objective point of view that will give the action direction.
4. Summary and Discussion
Based on the correlation matrix and the prioritization performed on the needs of shipowners, the relative importance of the technical measures concerning the identified needs could be determined, applying Equation (2) exemplified above. This set of competitive priority ratings is presented in the last line of
Appendix B. The relationship between administrative barriers in the Danube navigation sector and the action pillars proposed by the European Commission, presented in
Figure 2, from which we note that “Improving mobility and intermodality” is the highest priority, followed by “Developing society through research, education and information technology” and “Investing in people and skills.
Of the four significant intervention directions in the Danube region, we can see in
Figure 2 that the main direction is towards “Building prosperity in the Danube Region,” with a need intensity of 45%. According to the measures proposed by European Commission in “Action Plan- European Union Strategy for the Danube Region”, this direction of intervention refers primarily to:
Smart growth strengthens all three themes of this goal [
32]: innovation by improving the framework conditions to turn ideas into marketable products or services; education by improving the human capital of the region; and the digital society by improving internet access and availability of electronic content.
Sustainable growth, as innovation and new technologies will help combat climate change, increase energy efficiency and reduce transport pollution. In addition, the priority area of business competitiveness will improve the business environment, especially for SMEs [
32].
Inclusive growth strengthens human capital through education and training, and that issue will be complemented by a better functioning of the macro-regional labor market. It also emphasizes the fight against poverty, especially against marginalized communities [
32].
The second most crucial direction of intervention in the Danube Region is represented by “Consolidation of Danube Region.” The main focus in that direction is to ensure the most substantial cooperation between institutions and increase security.
A harmonized administrative process will have a substantial contribution in optimizing the shipping time. Furthermore, in that direction, the European Authorities develop projects that fight against corruption. They consider that a well-governed and safer region is more attractive for people, and their standard of living will increase.
Through the research method applied, we have demonstrated that in shipowners’ opinion, the priority directions should be those who have a central focus on the investment in human capacity and their standard of life. If the water transport is stimulated, the ports and the cities from riparian states will also be developed like commercial hubs. Part of the advantages will be:
The framework conditions will be improved by innovation, the products and services will be developed in order to be merchandized;
The education of the human capital will be improved by accessing new technologies and new markets;
Sustainable growth will occur because the businesses will be more competitive and will improve their business environment.
Based on the applied method results, we think it is essential to show through diagrams the relationship based on the influence degree between the shipowner’s needs and the authority position. For this, we used two excel tools, a spider chart (
Figure 3) and a histogram chart (
Figure 4). We will analyze the first three measures according to their relationship resulting from
Appendix B, with the barriers identified by shipowners. For shipowner’s needs, we maintain the same numeration as in
Table 1.
From

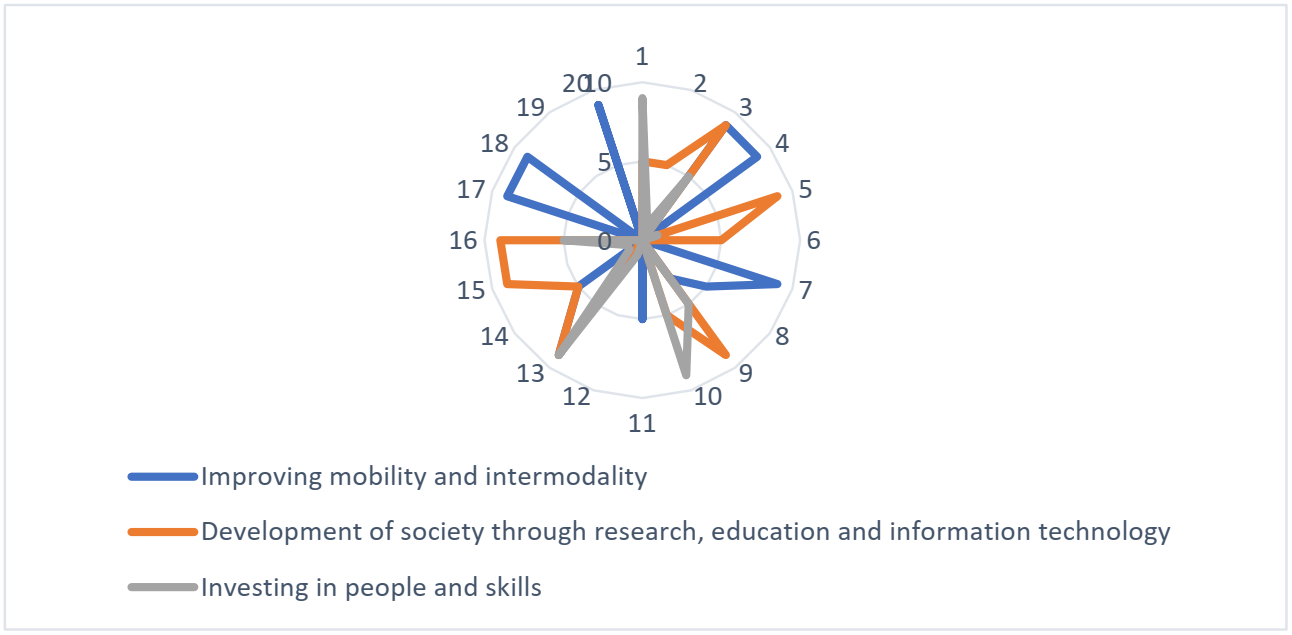

Figure 3, we can see the linear relationship between the 3 measures, so there are no significant differences between them, their degree of priority being similar. In contrast, from

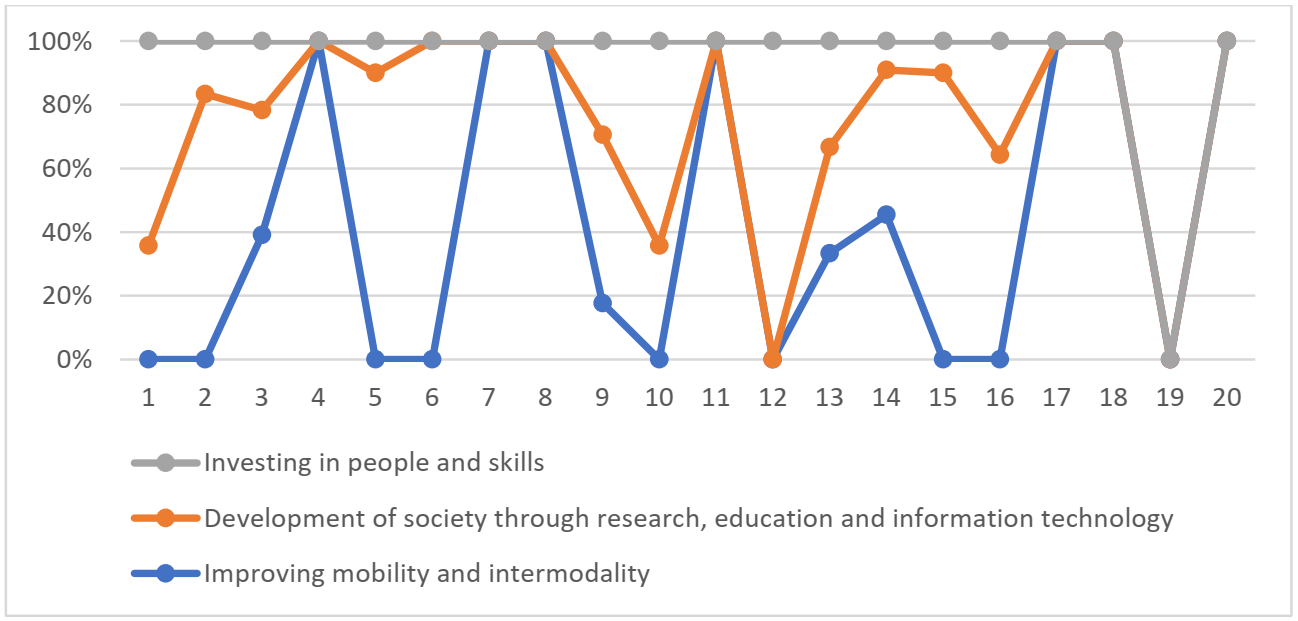

Figure 4, we can see that human resources have the most outstanding contribution in reducing existing barriers. The main direction of the action “Building Prosperity in the Danube Region” is given by investing in people’s skills, improving access to information technology, and raising living standards. Several research projects have shown that organizational performance is greatly improved by paying special attention and giving human resources clear work directions.
QFD results lead to preventive action or corrective actions depending on whether efforts to improve were to address quality problems or improve a product or process. In case this method has helped to prioritize variables depending on the degree of relationship with technical measures. The tools used have shown that the main factor that all technical measures have in common and that could significantly optimize travel time is human resources. Certain but also uncertain factors are taken into account in the planning of river transport. Usually, uncertainty is given by weather conditions, but through this study, we have shown that human resources represent an equally important factor.
5. Conclusions
In this paper, we have prioritized the main measures to be taken in order to take advantage of the opportunities offered by the Danube River at the international level. These are in line with the directions set out in the “White Paper Roadmap to a Single European Transport Area—Towards a competitive and resource-efficient transport system.”
The proposed approach uses the QFD methodology to identify and prioritize areas for improvement. HOQ links the areas for improvement to the technical barriers mentioned. The disclosure of these connections helps identify and prioritize the technical features that will generate the most significant improvement impacts.
Congestion, in the case of this type of transport, takes place in ports. If the operations were more efficient in the transit and transshipment points, the planned time and the time traveled would be the same or the diminished delays.
The main actors involved in the import–export process on inland waterways are shipowners. Their main objective is to be more efficient considering the travel time and the quality of the goods. That requirement comes to them from the customers.
Through the applied research method, we met their main requirements, with the technical measures provided by the European Commission, and thus a prioritization could be performed. The tools used have shown that the main factor that all technical measures have in common and that could significantly optimize travel time is human resources. Certain but also uncertain factors are taken into account in the planning of river transport. Usually, uncertainty is given by weather conditions, but through this study, we have shown that also an important factor is human resources. The goals established can be achieved through programs developed by well-trained and dedicated people. Human resources constitute an essential factor in improving the value chain process. It has been observed a necessity to strengthen collaboration through academic entities and shipping companies, and authorities. It could be necessary to develop specialized training pieces and ensure a technological transfer from academia to the workplace. The communication between those entities can be done bidirectional, and the curricula improvement should be made in partnership.
Another critical point observed in the study conducted in this paper is done by information technology. Digitalization of the process, considering the border, fiscal, loading, unloading formalities, will optimize the time spent by a ship in a port. That factor is essential to connect with the curricula developed to train people with advanced digital skills.
One of the most urgent demands of the shipowners is to harmonize the legislation in all Danube countries though the principle if we cross the same river is essential to have the same rules in all riparian countries. It is mandatory to have more transparent and efficient border control procedures, which could be achieved through digitalization. The new direction should be well-trained people in digitalized ports.
