Single-Photon Detection Module Based on Large-Area Silicon Photomultipliers for Time-Domain Diffuse Optics

Acerbi, Fabio; Behera, Anurag; Dalla Mora, Alberto; Di Sieno, Laura; Gola, Alberto

doi:10.3390/instruments5020018

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessArticle

Single-Photon Detection Module Based on Large-Area Silicon Photomultipliers for Time-Domain Diffuse Optics

^1,*

²,

and

Fondazione Bruno Kessler (FBK), Via Sommarive 18, 38123 Trento, Italy

Dipartimento di Fisica, Politecnico di Milano, Piazza Leonardo da Vinci 32, 20133 Milano, Italy

Author to whom correspondence should be addressed.

Academic Editors: Antonio Ereditato and Pasquale Arpaia

Instruments 2021, 5(2), 18; https://doi.org/10.3390/instruments5020018

Received: 27 April 2021 / Revised: 14 May 2021 / Accepted: 17 May 2021 / Published: 19 May 2021

(This article belongs to the Special Issue Feature Papers in Instruments 2021–2022)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

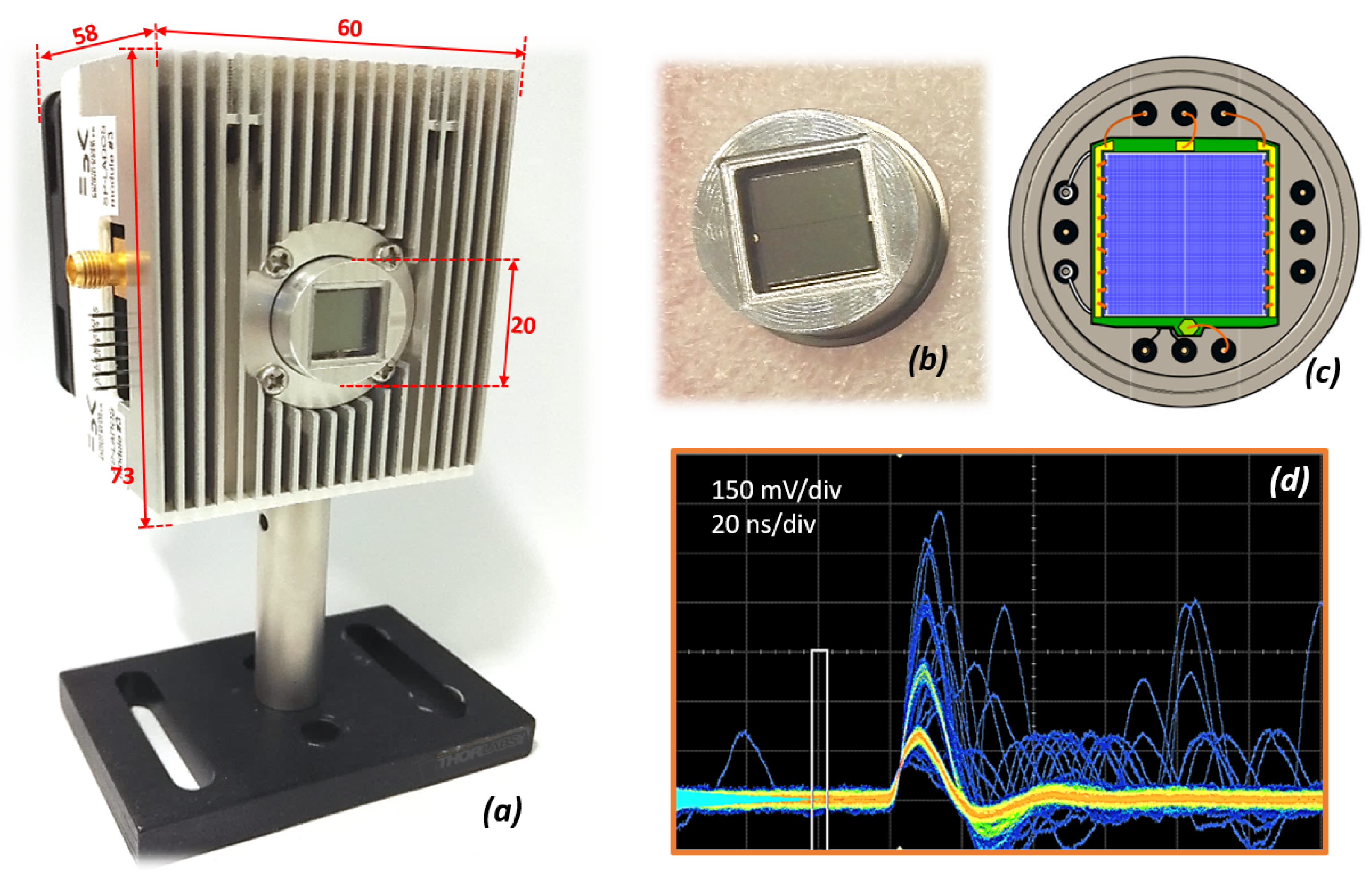

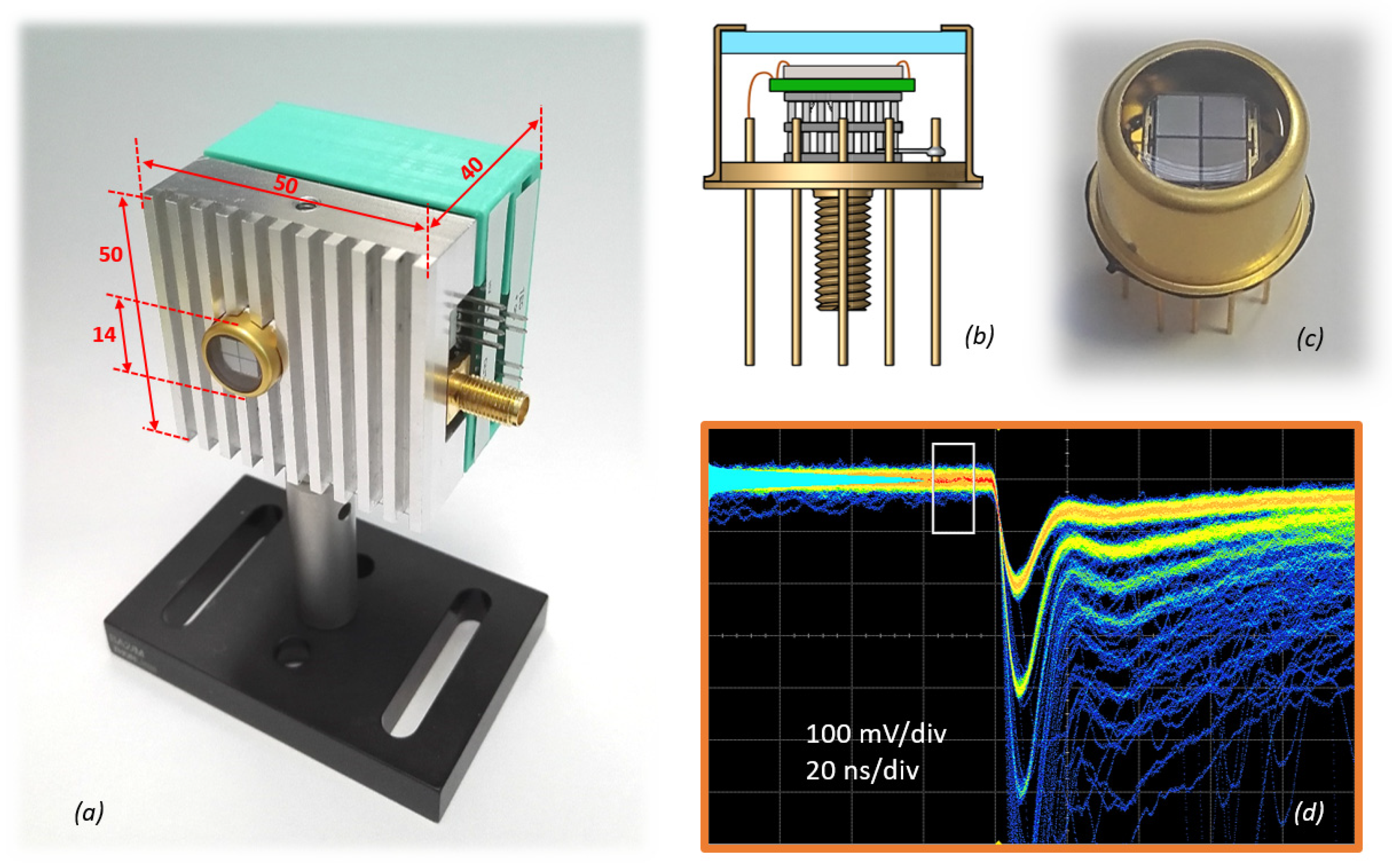

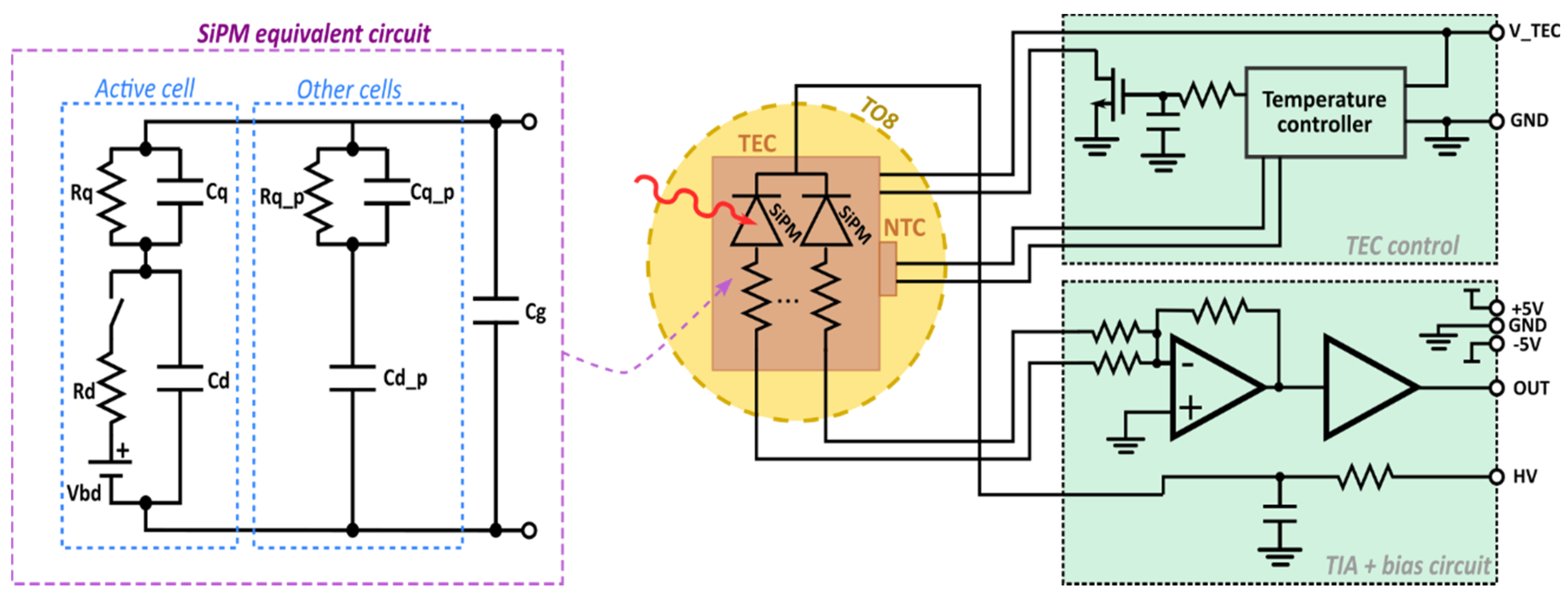

Silicon photomultipliers (SiPM) are pixelated single-photon detectors combining high sensitivity, good time resolution and high dynamic range. They are emerging in many fields, such as time-domain diffuse optics (TD-DO). This is a promising technique in neurology, oncology, and quality assessment of food, wood, and pharmaceuticals. SiPMs can have very large areas and can significantly increase the sensitivity of TD-DO in tissue investigation. However, such improvement is currently limited by the high detector noise and the worsening of SiPM single-photon time resolution due to the large parasitic capacitances. To overcome such limitation, in this paper, we present two single-photon detection modules, based on 6 × 6 mm² and 10 × 10 mm² SiPMs, housed in vacuum-sealed TO packages, cooled to −15 °C and −36 °C, respectively. They integrate front-end amplifiers and temperature controllers, being very useful instruments for TD-DO and other biological and physical applications. The signal extraction from the SiPM was improved. The noise is reduced by more than two orders of magnitude compared to the room temperature level. The full suitability of the proposed detectors for TD-DO measurements is outside the scope of this work, but preliminary tests were performed analyzing the shape and the stability of the Instrument Response Function. The proposed modules are thus fundamental building blocks to push the TD-DO towards deeper investigations inside the body. View Full-Text

Keywords: silicon photomultiplier; diffuse-optics; single-photon; detection module; photodetector
