Foods 2019, 8(8), 336; https://doi.org/10.3390/foods8080336

Article
Potential of Cooperage Byproducts Rich in Ellagitannins to Improve the Antioxidant Activity and Color Expression of Red Wine Anthocyanins
1
Food Colour and Quality Laboratory, Área de Nutrición y Bromatología, Facultad de Farmacia, Universidad de Sevilla, 41012 Sevilla, Spain
2
Department of Analytical Chemistry, Facultad de Farmacia, Universidad de Sevilla, 41012 Sevilla, Spain
*
Author to whom correspondence should be addressed.
Received: 28 June 2019 / Accepted: 7 August 2019 / Published: 9 August 2019

Abstract

:
Cooperage byproducts are an important source of phenolic compounds that could be used for wine technology applications. The effects of the addition of two types of oak wood shavings (American, AOW, and Ukrainian, UOW) on the antioxidant activity and color of red wine anthocyanins, in a wine model solution, were evaluated by spectrophotometric and colorimetric analyses. Phenolic compounds from shavings, mainly ellagitannins, were determined by ultra-high-performance liquid chromatography/mass spectrometry (UHPLC/MS). Antioxidant and copigmentation effects varied depending on the type of shavings (AOW and UOW) and the phenolic concentration (100, 400, and 500 mg/L). Phenolic compounds from shavings improved the color characteristics (darker and more bluish color) and the copigmentation effect of red wine anthocyanins, being UOW a better source of copigments than AOW shavings. The best antioxidant activity was found for the 400 and 500 mg/L model solutions for both types of shavings. Results show a winemaking technological application based on the repurposing of cooperage byproducts, which could improve color and antioxidant characteristics of red wines.
Keywords:
oak shavings; phenolic compounds; model solutions; antioxidant activity; copigmentation

1. Introduction

In geographical areas with typical climatological conditions of warm climate, such as Andalucía (Spain), the elevated temperatures make it difficult to obtain high-quality red wines because of color instability over time. In these regions, at the moment of harvesting, different levels of both phenolic and sugar maturity exist. Therefore, copigmentation is affected in the winemaking process because phenolic compound levels are not adequate [1,2]. Phenolic compounds are involved in the copigmentation phenomenon, which is a natural process based on noncovalent complexation between anthocyanins among themselves (self-association), between the central anthocyanin chromophore and aromatic acyl residues covalently linked to their glycosyl moieties (intramolecular copigmentation), or through intermolecular interaction with a wide variety of colorless organic compounds named copigments or copigmentation cofactors (mainly other phenolic compounds). This phenomenon plays a crucial role in the color evolution and stability of young red wines [3,4]. Therefore, an extra contribution of phenolic compounds could solve the color instability problem of red wines.
Several studies have reported that the external addition of phenolic compounds from natural sources, such as byproducts derived from grapes or wood barrels, improves the phenolic content and the color stabilization in wines [5,6,7]. For example, white grape byproducts contain large amounts of phenolic compounds [8] and the addition of seeds from these byproducts during the red wine elaboration increases the phenolic content, the antioxidant activity and the color stabilization [9,10]. In a previous paper, our research group studied the effects on the copigmentation and antioxidant activity of winemaking byproducts (pomace, skins, stems, and seeds). The results indicated that these could improve the color of the anthocyanins and the bioactivity of wines [11]. Moreover, the wine color can be stabilized by the addition of tannins derived from wood [12,13].
Wood shavings are byproducts obtained from the manufacture of wooden barrels that cause environmental and economic problems for cooperages. Therefore, the valorization of those byproducts attracts a great interest [14,15]. Wood shavings are rich in different phenolic acids such as gallic, ellagic, protocatechuic, 4-hydroxybenzoic, vanillic, caffeic, p-coumaric, ferulic, syringic and sinapic acids, phenolic aldehydes such as protocatechuic aldehyde, syringaldehyde, coniferaldehyde and sinapaldehyde, and ellagitannins such as vescalagin, castalagin, grandinin, and some roburins [16].
As previously mentioned, phenolic compounds from these byproducts have copigmentation effects and they could be used to solve the problem of color stabilization of red wines. In addition, phenolic compounds are the main contributors to the antioxidant capacity of woods used in cooperage [17]. Therefore, wood shavings could also increase the bioactivity of the wine.
Nowadays, the manufacture of wood barrels generates a high amount of these shavings, which are a source of high added value compounds [14,15,17]. As far as we know, no previous studies have been published regarding wood shavings in order to simultaneously improve antioxidant activity and color stability of red wines. Therefore, it is interesting to carry out studies in this respect.
The aim of this work was, firstly, to evaluate and compare the potential of two different oak wood shavings, American (AOW) and Ukrainian (UOW), as a source of antioxidants and copigments, and, secondly, to ascertain the potential influence of these cooperage byproducts on the antioxidant activity and the color of red wines anthocyanins. For this purpose, the model solutions (in conditions close to those existing in wines) were prepared with phenolic extracts from two type of wood shavings and anthocyanins from red grape skins, and the antioxidant activity, the copigmentation effects and the color of the solutions were measured.

2. Materials and Methods

2.1. Reagents

Sodium carbonate, sodium acetate, potassium persulphate, 2,4,6-tris(2-pyridyl)-s-triazine (TPTZ) and phosphate-buffered saline (PBS) were purchased from Sigma-Aldrich (Madrid, Spain). Hydrochloric acid, ethanol, glycine, Folin reagent, and iron trichloride (FeCl3·6H2O) were obtained from Panreac (Barcelona, Spain). ABTS (2,2-azino-bis-(3 ethylbenzothiazolne-6-sulfonic acid) diammonium salt) and Trolox (6-hydroxy-2,5,7,8-tetramethyl-chroman-2-carboxylic acid) were purchased from Fluka (Madrid, Spain).

2.2. Samples

Oakwood raw shavings from two oak species classified by their geographical origin were used in this study: American (Quercus alba) (AOW) and Ukrainian (Quercus petraea) (UOW). Shavings samples, collected as byproducts from the manufacture of non-toasted oak wood barrels, were supplied by the cooperage Salas S.L. (Bollullos Par del Condado, Spain), where these two types of wood are the most abundant.
Usually, barrels used in vinification have different toasting levels, however, these shavings were collected during the process of making barrels with unroasted wood. The shavings were generated by a sawing process of the staves in the longitudinal direction of the fibers. A total of ten samples were collected, grouped, and mixed. Samples were stored in a dry chamber until use.
Additionally, skins of red grapes from Tempranillo variety (Vitis vinifera cv. Tempranillo) cultivated in “Condado de Huelva” designation of origin in south-western Spain were used. This grape variety is one of the main red grapes in this region. Grapes were collected at technological ripeness. Skins were manually separated from the pulps and stored at −20 °C until analysis.

2.3. Phenolic Extraction

Prior to the extraction process, oak wood raw shavings and red grape skins were freeze-dried in a lyophilizer (Cryodos-80, Telstar Varian DS 102) for 24 h and ground with a mill (IKA A11-B) to obtain a fine and homogeneous powder.
The phenolic extraction from shavings was carried out in a wine-like medium (hydroalcoholic solution: 5 g/L tartaric acid in 12% ethanol, pH = 3.6 and ionic strength adjusted to 0.2 M). Each sample (500 mg of fine powder) was macerated in 10 mL of the hydroalcoholic solution with agitation for 24 h. The mixture was centrifuged at 4500 rpm for 5 min in order to separate the liquid fraction (containing the phenolic compounds extracted) from the solid residue. The solid residue was subjected to the same process twice more (with 1 h of maceration instead of 24 h). The three supernatants (liquid fractions rich in phenolic compounds) were combined and filtered through 0.45 μm filter, thus obtaining the oak phenolic extracts.
The oak phenolic extracts from each type of shavings (AOW and UOW) were analyzed for their phenolic composition (spectrophotometric and chromatographic analysis) and antioxidant activity, and used as a source of copigments and antioxidants for the model solutions.
The extraction of anthocyanins from red grape skins was carried out macerating 5 g of dried and ground skins in 75 mL of the hydroalcoholic solution, following the process previously described for shavings. The anthocyanin solution was analyzed (chromatographic analysis) and used for the model solutions as a source of pigments.

2.4. Preparation of Model Solutions

Model solutions were made in a wine-like medium using the skins’ anthocyanin extracts from red grapes and the oak phenolic extracts obtained from wood shavings. For this purpose, each oak phenolic extract (AOW and UOW) was added to the skins anthocyanin extract at three different levels. The final total phenolic content (TPC), being 100, 400, and 500 mg/L, and the final total anthocyanin content (TAC), which was the same in all cases (200 mg/L), were adjusted by dilution with the hydroalcoholic solution. These concentrations were used considering the results of a previous study in model solutions [11].
All model solutions (2 mL) were prepared in triplicate and stored in darkness at 25 °C. After 2 h from their preparation [11], antioxidant activity, color, and copigmentation of model solutions were evaluated. The skins anthocyanin extract, conveniently diluted with the hydroalcoholic solution, was used as the control solution.

2.5. Total Phenolic Content

The TPC of oak phenolic extracts from wood shavings was evaluated using the Folin–Ciocalteu assay [18]. Gallic acid was employed as a calibration standard (0–1000 mg/L, y = 0.002x + 0.009, r2 = 0.998), and results were expressed as milligrams of gallic acid equivalents per liter of solution (mg GAE/L). All oak phenolic extracts were analyzed in triplicate.

2.6. Individual Phenolic Profile

The individual phenolic compounds of the oak phenolic extracts from shavings were determined by ultra-high-performance liquid chromatography (UHPLC), in an Agilent 1290 chromatograph (Agilent Technologies, Palo Alto, CA, USA) equipped with a diode-array detector, following the method previously described [19]. A C18 Eclipse Plus 120 column (1.8 μm, 2.1 × 50 mm) was used. For analysis, samples were filtered through a 0.45 μm pore size membrane filter, and 0.3 μL of sample was injected in the column.
Mass spectrometry (MS) detection was performed in a 3200 Qtrap (ABSCIEX) equipped with an electrospray ionization source and a triple-quadrupole ion trap mass analyzer, which was controlled by Analyst 1.7 software. MS spectra were acquired in the negative ionization modes between m/z 100 and 2000. The MS detector was programmed to perform a full scan. The experimental conditions of the method were reproduced following a previous study [20]. Phenolic compounds were identified by their retention time, UV-vis spectra, and mass spectra and by comparison with our data library and standards when available. The compounds were quantified from the areas of their chromatographic peaks recorded at 280 nm and results are expressed in percentages.
The individual anthocyanins of the skins anthocyanin extract from red grape were identified by high performance liquid chromatography (HPLC) as previously described [11]. The identity of these compounds was also confirmed by MS. TAC (mg/L) was calculated as the sum of individual anthocyanins contents from a calibration curve of malvidin-3-O-glucoside (0–200 mg/L, y = 34.116x + 110.560, r2 = 0.999). Individual anthocyanins contents are expressed in percentages.
Three replicates from each sample were analyzed and all the samples and standards were injected three times to obtain the means.

2.7. Antioxidant Activity

The antioxidant activity was measured by two spectrophotometric methods: ferric reducing antioxidant power (FRAP) and ABTS, that were performed using the protocols previously described [21,22].
For both assays, different dilutions of each sample were assayed, and the results were obtained by interpolating the absorbance on a calibration curve obtained with the Trolox standard (30–1000 μM). Three independent experiments were performed in triplicate, and the results were expressed as Trolox-equivalent antioxidant capacity (TEAC): μmols Trolox with the same antioxidant capacity as 1 L of solution (μmol TE/L).

2.8. Color and Copigmentation Analyses

The whole visible transmission spectrums (380–770 nm, Δλ = 2 nm) of samples were registered with an Agilent UV-vis 8453 spectrophotometer (Agilent Technologies. Palo Alto, CA, USA), using 2 mm path length glass cells. Distilled water was used as a reference blank. The control and model solutions were analyzed by triplicate.
The CIELAB parameters (L*, a*, b*, C*ab, and hab) were calculated with software CromaLab® [23], following the recommendations of the Commission Internationale de L’Eclairage [24]: D65 Standard Illuminant, 10° Standard Observer.
Color difference parameter is used to evaluate relationships between visual and numerical analyses. This color difference parameter (ΔE*ab) was calculated as the Euclidean distance between two points in three-dimensional space defined by L*, a*, and b*:
ΔE*ab = ((ΔL*)2 + (Δa*)2 + (Δb*)2)1/2
The magnitude of the copigmentation (% copigmentation) was calculated by comparing control solution absorbance (A0) and model solution absorbance (Ac), at 520 nm [25]:
% Copigmentation = [(Ac − A0)/A0] × 100
Following the methodology previously described [11], diverse color difference formulas were applied in the CIELAB color space.
The total color (E) was assessed as the CIELAB color difference between sample color (L*, a*, b*) and distilled water (L* = 100, a* = 0, b* = 0):
E = ((L* − 100)2 + (a* − 0)2 + (b* − 0)2)1/2
The color variation due to copigmentation was evaluated also by tristimulus colorimetry comparing the total color of the control solution (E0) and the total color of the model solutions (Ec).
[(Ec − E0)/E0 ] × 100
The color variation induced by copigmentation was assessed as the CIELAB color difference (ΔE*ab) between the control solution color (L*0, a*0, and b*0) and the model solutions color (L*c, a*c, and b*c):
ΔE*ab(c-0) = ((L*c − L*0)2 + (a*c − a*0)2 + (b*c − b*0)2)1/2
The relative contribution of lightness (%ΔL*), chroma (%ΔC*ab), and hue (%Δhab) to each total color difference induced by copigmentation was calculated as follows:
%ΔL* = ((ΔL*c-0)2/(ΔE*ab(c-0))2) × 100
%ΔC*ab = ((ΔC*ab(c-0))2/(ΔE*ab(c-0))2) × 100
%ΔH = ((ΔHc-0)2/(ΔE*ab(c-0))2) × 100
ΔH being deduced from ΔE*ab, ΔL*, and ΔC*ab values as follows:
ΔHc-0 = ((ΔE*ab(c-0))2 − ((ΔL*c-0)2 + (ΔC*ab(c-0))2)1/2

2.9. Statistical Analysis

For the statistical treatment of the data, the Statistica v.8.0 software was used [26]. In order to study significant differences between the different types of model solutions in terms of phenolic composition, antioxidant activity, and color characteristics, a one-way and factorial analysis of variance were carried out using the general linear model procedure (GLM). Tuckey’s test was used to evaluate the significance of the analysis. In addition, correlations between TPC and antioxidant activity values were studied. In all cases, statistically significant level was considered at p < 0.05.
Each model solution and each extract were prepared in triplicate (n = 3) and each triplicate was analyzed three times (nine analysis). Results are expressed as mean ± standard deviation (except in percentages, in which values are expressed without deviation).

3. Results and Discussion

3.1. Phenolic Composition of Oak Phenolic Extracts

The total phenolic contents of oak phenolic extracts from shavings are shown in Table 1.
The oak phenolic extract from UOW and AOW shavings had similar TPC (665.47 ± 80.98 and 556.58 ± 87.94 mg GAE/L, respectively), and significant differences were not found (p > 0.05).
In a previous work, the extracts from American woods (Quercus alba) had lower total phenolic content than the extracts from two European woods (Quercus robur and Quercus petraea) [17]. In addition, other authors indicated that American oak woods have a content of total ellagitannins lower than that of European oaks [27]. The major compounds in woods are ellagitannins, which constitute a complex class of polyphenols characterized by one or more hexahydroxydiphenoyl moieties esterified to a sugar [16,17].
The detailed phenolic profiles of oak phenolic extracts from AOW and UOW shavings are shown in Table 1. A total of ten compounds were determined. Regarding phenolic acids, only gallic acid and ellagic acid were detected. Among ellagitannins, four monomers (vescalagin, castalagin, grandinin, and roburin E) and four dimers (roburins A, B, C and D) were identified. These compounds were reported in the literature as important components of oak wood [20,28,29,30].
As is shown in Table 1, the qualitative phenolic profile is the same for the two types of oak phenolic extracts. Vescalagin and castalagin were the most abundant compounds found in both oak phenolic extracts (28.5% and 26.4% for AOW, and 29.2% and 29.7% for UOW, respectively). The rest of ellagitannins showed lower relative proportions, between 3% and 11%. Considering phenolic acids, these compounds were in a lower proportion than all ellagitannins evaluated (<3%). Gallic acid had a higher proportion than ellagic acid in the oak phenolic extracts (2.7% and 3% vs. 0.5% and 0.4%, respectively).

3.2. Antioxidant Activity of Oak Phenolic Extracts

Results showed that the antioxidant activity was in accordance with the TPC of each oak phenolic extract, according to the type of wood (Table 2). Antioxidant activity for the oak phenolic extracts from UOW shavings was 7713.61 ± 411.34 and 3809.98 ± 508.80 μmol TE/L, for ABTS and FRAP methods, respectively. These values for oak phenolic extracts from AOW shavings were 6733.79 ± 319.35 and 2385.29 ± 406.12 μmol TE/L, respectively. Significant differences (p < 0.05) were found between the antioxidant activity of oak phenolic extracts from UOW and AOW shavings for the FRAP data. However, the antioxidant activity of UOW and AOW determined by the ABTS assay was not significantly different (p > 0.05).
The correlation between TPC and antioxidant activity values was evaluated and a high positive and significant correlation (p < 0.05) was found: r = 0.87 for the FRAP assay, and r = 0.81 for the ABTS assay. Therefore, the lower FRAP values of the oak phenolic extract from AOW shavings may be due to the TPC of this type of wood. According to other authors, phenols, especially ellagitannins, are mainly responsible for the antioxidant capacity of wood extracts [17,27].

3.3. Composition and Antioxidant Activity of Skins Anthocyanin Extract

The total anthocyanin content and the individual anthocyanins of the skins’ anthocyanin extract obtained from Tempranillo grapes are shown in Table 3.
Eleven anthocyanins were identified and quantified, constituting a TAC of 253.79 ± 15.96 mg/L. Malvidin-3-O-glucoside was the predominant anthocyanin (44.7%), followed by malvidin-3-O-acetyl-glucoside (16.4%), which is in agreement with those reported in Tempranillo and Syrah skins [11,31].
Values of antioxidant activity were 6919.83 ± 106.29 and 4950.64 ± 61.56 μmol TE/L, for ABTS and FRAP assays, respectively (Table 2). Although other phenolic compounds from grape skins could have antioxidant activity, it has been indicated that the anthocyanin fraction from Tempranillo skins was the greatest contributor to antioxidant activity [32].

3.4. Antioxidant Activity of Model Solutions

Results of antioxidant activity of the control solution and the model solutions with different TPC are shown in Table 4.
As can be observed, differences in the antioxidant activity of the model solutions were found depending on the type of wood (from UOW and AOW) and the phenolic concentration level (100, 400, and 500 mg/L). Antioxidant activity was higher for all concentration levels than for control (Table 4).
Regarding ABTS assay, the same pattern was observed for model solutions from UOW and AOW shavings. Control model solution (TAC = 200 mg/L) had the lowest antioxidant activity (1300.89 ± 37.33 μmol TE/L). The antioxidant activity for the 100 mg/L model solutions was not significantly different (p > 0.05) from that of the control solution (1396.81 ± 33.74 and 1489.61 ± 224.16 for UOW and AOW, respectively). An increase in the antioxidant activity for the 400 and 500 mg/L model solutions was observed (2037.66 ± 33.74 and 1839.07 ± 150.59 for UOW, respectively; 2248.57 ± 0.97 and 1707.33 ± 274.98 for AOW, respectively), showing significant differences with the control solution and the 100 mg/L model solution (p < 0.05).
Antioxidant activity measured by FRAP method also was higher for the 400 and 500 mg/L model solutions than for the 100 mg/L model solution and the control solution (Table 4) (p < 0.05). A correlation analysis between TPC and antioxidant activity confirmed that the greater antioxidant effects in the 400 and 500 mg/L model solutions than in 100 mg/L and control solutions are due to their higher TPC.
Significant differences were not found between model solutions from AOW and UOW shavings for the antioxidant activity.

3.5. Color and Copigmentation Effect in Model Solutions

A color analysis (CIELAB space) of the model solutions and control solutions was performed. Figure 1 depicts the location of the samples within the (a*b*) diagram and lightness values (L*).
The CIELAB color parameters of the solutions were influenced by the type of wood (AOW and UOW) and the TPC of the model solutions. Lightness, chroma and hue values (L*, C*ab, and hab, respectively) of the model solutions decreased with the increase of the TPC. In general, solutions in the presence of the copigments exhibited darker and more bluish color than the control solution. These results show that an important part of the expression of the color of the anthocyanins could be due to the copigmentation phenomenon in which they are involved, leading to changes at both quantitative and qualitative levels in the color of the wine.
The effect of the type of wood (AOW and UOW shavings) and TPC on color characteristics of the model solutions was evaluated. Significant differences between the two types of wood were found (p < 0.01), as well as between model solutions with different TPC (p < 0.001). The results indicated a strong influence (p < 0.001) of TPC on all colorimetric parameters (L*, C*ab, hab). However, the type of wood influenced (p < 0.05) all colorimetric variables except L*.
In the model solutions from AOW, the colorimetric parameter values (L*, C*ab, hab) were lower for all concentration levels (100 mg/L: 14.9, 47.4 CIELAB units, 26.5°; 400 mg/L: 11.7, 42.5 CIELAB units, 23.6°; 500 mg/L: 1.2, 5.7 CIELAB units, 14.7°, respectively) than for the control solution (21.6, 58.5 CIELAB units, and 28.5°, respectively) (Figure 1a). These differences were significant (p < 0.05) between the control solution and the 500 mg/L model solution for L*, and between the 500 mg/L model solution and all the other model solutions for C*ab.
Differences were also found between the control solution and UOW model solutions. UOW model solutions showed lower chroma (C*ab), lightness (L*) and hue (hab) values than the control solution (Figure 1b). The decrease in C*ab and hab was more noticeable for the 400 and 500 mg/L model solutions (400 mg/L: 0.1 CIELAB units and 14.2°; 500 mg/L: 2.6 CIELAB units and 16.0°, respectively), and presented significant differences with the control solution (p < 0.05).
The total color and the effect of copigmentation of the model solutions with increasing concentrations of phenolic compounds are shown in Figure 2.
Intermolecular copigmentation was observed in the model solutions: The control solution showed a hyperchromic shift of its λmax (520 nm) and an increase of its initial total color (97.8 CIELAB units) (Figure 2a).
The copigmentation magnitude evaluated by the absorbance at 520 nm and by tristimulus colorimetry was different depending on the type of wood and the TPC (Figure 2b,c). It was observed that the copigmentation effects of model solutions from UOW (15.93%, 95.20%, and 80.32%, for 100, 400 and 500 mg/L, respectively) were higher than of solutions from AOW (8.90%, 19.90%, and 26.82%, for 100, 400 and 500 mg/L, respectively) (Figure 2b). The effect was significantly different (p < 0.05) for the 400 mg/L model solution.
The color changes that provide color information related to visual perception were carried out by means of color differences calculation between the control solution and model solutions with different TPC (Figure 3). Moreover, the relative contribution of each colorimetric parameter (%∆L, %∆C and %∆h) to color difference permits an objective comparison of the colorimetric effects among samples. Results showed that the color changes of the model solutions from AOW and UOW shavings at all the concentrations were visually perceptible (∆E*ab > 3, [33]). It can be observed that, in general, the relative contribution of lightness and chroma to color differences was greater than that of hue (%∆L = 23% and 16%; %∆C = 75% and 74%; %∆h = 2% and 9%, for AOW and UOW model solutions, respectively).
Our results indicate that phenolic compounds extracted from oak byproducts improve the color characteristics and copigmentation effect of red anthocyanins in model solutions. These results are in accordance with the ones reported by some authors about the influence of some compounds from wood, like ellagic acid and ellagitannins, on the copigmentation and color of wine [34,35,36,37,38]. UOW shavings are a better source of colorless copigments than AOW shavings. The difference between both kinds of wood (AOW and UOW) could be due to American oak wood is characterized by a lower total ellagitannin content than the European oak [39].

4. Conclusions

Oak phenolic extracts obtained from oak wood shavings were a great source of phenolic compounds, mainly ellagitannins, which had antioxidant and copigmentation effects. Extracts from the two types of oak wood improved the antioxidant activity and the color of red wine anthocyanins in the model solutions. These effects depended on the oak phenolic extract (AOW and UOW) and the phenolic concentration level in the model solution (100, 400, and 500 mg/L).
In general, the best antioxidant activity and color characteristics were found for the 400 and 500 mg/L model solutions for AOW and UOW. Regarding the type of wood, UOW and AOW model solutions had similar antioxidant activity values. However, the model solutions from UOW had a darker and more bluish color, and a higher magnitude of copigmentation than AOW.
The results indicate that cooperage byproducts are a good natural source of antioxidants and copigments, providing Ukrainian shavings better effects on anthocyanins color stability. Therefore, the use of these byproducts in red wine vinification could improve color and bioactivity of wines. These results may be of interest to the wine industry and the cooperages implied in the manufacture of wooden barrels.

Author Contributions

F.J.H., M.L.E.-G. and M.J.J.-P. designed the whole research and reviewed the final manuscript. C.G.-L. performed the experiment. M.L.E.-G. and M.J.J.-P. performed the experiment, analyzed data, interpreted results, and wrote the manuscript. D.H. analyzed and discussed the results and established the analytical method. All the authors have read and approved the final version.

Funding

This research was funded by Ministerio de Economía y Competitividad, Gobierno de España (Project AGL2017-84793-C2-2-R) and VI Plan Propio de Investigación y Transferencia, Universidad de Sevilla (Acción I.5).

Acknowledgments

Authors thank the assistance of the technical staff of Biology and Microanalysis Services (SGI, Universidad de Sevilla, Seville, Spain).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lopez, M.I.; Sanchez, M.T.; Diaz, A.; Ramirez, P.; Morales, J. Influence of a deficit irrigation regime during ripening on berry composition in grapevines (Vitis vinifera L.) grown in semi-arid areas. Int. J. Food Sci. Nutr. 2007, 58, 491–507. [Google Scholar] [CrossRef] [PubMed]
  2. Mira de Orduña, R. Climate change associated effects on grape and wine quality and production. Food Res. Int. 2010, 43, 1844–1855. [Google Scholar] [CrossRef]
  3. Boulton, R. The copigmentation of anthocyanins and its role in the color of red wine: A critical review. Am. J. Enol. Vitic. 2001, 52, 67–87. [Google Scholar]
  4. Gordillo, B.; Rodríguez-Pulido, F.J.; Escudero-Gilete, M.L.; González-Miret, M.L.; Heredia, F.J. Comprehensive colorimetric study of anthocyanic copigmentation in model solutions. Effects of pH and molar ratio. J. Agric. Food Chem. 2012, 60, 2896–2905. [Google Scholar] [CrossRef] [PubMed]
  5. Cejudo-Bastante, M.J.; Rodríguez-Morgado, B.; Jara-Palacios, M.J.; Rivas-Gonzalo, J.C.; Parrado, J.; Heredia, F.J. Pre-fermentative addition of an enzymatic grape seed hydrolysate in warm climate winemaking. Effect on the differential colorimetry, copigmentation and polyphenolic profiles. Food Chem. 2016, 209, 348–357. [Google Scholar] [CrossRef] [PubMed]
  6. Gordillo, B.; Cejudo-Bastante, M.J.; Rodríguez-Pulido, F.J.; González-Miret, M.L.; Heredia, F.J. Application of the differential colorimetry and polyphenolic profile to the evaluation of the chromatic quality of Tempranillo red wines elaborated in warm climate. Influence of the presence of oak wood chips during fermentation. Food Chem. 2013, 141, 2184–2190. [Google Scholar] [CrossRef]
  7. Pedroza, M.A.; Carmona, M.; Alonso, G.L.; Salinas, M.R.; Zalacain, A. Pre-bottling use of dehydrated waste grape skins to improve colour, phenolic and aroma composition of red wines. Food Chem. 2013, 136, 224–236. [Google Scholar] [CrossRef]
  8. Jara-Palacios, M.J.; Rodríguez-Pulido, F.J.; Hernanz, D.; Escudero-Gilete, M.L.; Heredia, F.J. Determination of phenolic substances of seeds skins and stems from white grape marc by near-infrared hyperspectral imaging. Aust. J. Grape Wine Res. 2016, 22, 11–15. [Google Scholar] [CrossRef]
  9. Jara-Palacios, M.J.; Hernanz, D.; Escudero-Gilete, M.L.; Heredia, F.J. The use of grape seed by-products rich in flavonoids to improve the antioxidant potential of red wines. Molecules 2016, 21, 1526. [Google Scholar] [CrossRef]
  10. Rivero, F.J.; Gordillo, B.; Jara-Palacios, M.J.; González-Miret, M.L.; Heredia, F.J. Effect of addition of overripe seeds from white grape by-products during red wine fermentation on wine colour and phenolic composition. LWT-Food Sci. Technol. 2017, 84, 544–550. [Google Scholar] [CrossRef]
  11. Jara-Palacios, M.J.; Gordillo, B.; González-Miret, M.L.; Hernanz, D.; Escudero-Gilete, M.L.; Heredia, F.J. Comparative study of the enological potential of different winemaking Byproducts: Implications in the antioxidant activity and color expression of red wine anthocyanins in a model solution. J. Agric. Food Chem. 2014, 62, 6975–6983. [Google Scholar] [CrossRef] [PubMed]
  12. Bautista-Ortin, A.B.; Martinez-Cutillas, A.; Ros-Garcia, J.M.; Lopez-Roca, J.M.; Gomez-Plaza, E. Improving colour extraction and stability in red wines: The use of maceration enzymes and enological tannins. Int. J. Food Sci. Technol. 2005, 40, 867–878. [Google Scholar] [CrossRef]
  13. Vivas, N.; Glories, Y. Role of oak wood ellagitannins in the oxidation process of red wines during aging. Am. J. Enol. Vitic. 1996, 47, 103–107. [Google Scholar]
  14. Baca-Bocanegra, B.; Nogales-Bueno, J.; Hernández-Hierro, J.M.; Heredia, F.J. Evaluation of extractable polyphenols released to wine from cooperage byproduct by near infrared hyperspectral imaging. Food Chem. 2018, 244, 206–212. [Google Scholar] [CrossRef] [PubMed]
  15. Baca-Bocanegra, B.; Nogales-Bueno, J.; García-Estévez, I.; Escribano-Bailón, M.T.; Hernández-Hierro, J.M.; Heredia, F.J. Screening of wine extractable total phenolic and ellagitannin contents in revalorized cooperage by products: Evaluation by Micro-NIRS technology. Food Bioprocess Technol. 2019, 12, 477–485. [Google Scholar] [CrossRef]
  16. Alañón, M.E.; Castro-Vázquez, L.; Díaz-Maroto, M.C.; Gordon, M.H.; Pérez-Coello, M.S. A study of the antioxidant capacity of oak wood in wine ageing and the correlation with polyphenol composition. Food Chem. 2011, 128, 997–1002. [Google Scholar] [CrossRef]
  17. Alañón, M.E.; Castro-Vázquez, L.; Díaz-Maroto, M.C.; Hermosín-Gutiérrez, I.; Gordon, M.H.; Pérez-Coello, M.S. Antioxidant capacity and phenolic composition of different woods used in cooperage. Food Chem. 2011, 129, 1584–1590. [Google Scholar] [CrossRef]
  18. Singleton, V.L.; Rossi, J.A. Colorimetry of total phenolics with phosphomolybdic- phosphotungstic acid reagents. Am. J. Enol. Vitic. 1965, 16, 144–158. [Google Scholar]
  19. Jara-Palacios, M.J.; Goncalves, S.; Hernanz, D.; Heredia, F.J.; Romano, A. Effects of in vitro gastrointestinal digestion on phenolic compounds and antioxidant activity of different white winemaking byproducts extracts. Food Res. Int. 2018, 109, 433–439. [Google Scholar] [CrossRef]
  20. García-Estévez, I.; Escribano-Bailón, M.T.; Rivas-Gonzalo, J.C.; Alcalde-Eon, C. Validation of a mass spectrometry method to quantify oak ellagitannins in wine samples. J. Agric. Food Chem. 2012, 60, 1373–1379. [Google Scholar] [CrossRef]
  21. Benzie, I.F.; Strain, J.J. The ferric reducing ability of plasma (FRAP) as a measure of “antioxidant power”: The FRAP assay. Anal. Biochem. 1996, 239, 70–76. [Google Scholar] [CrossRef] [PubMed]
  22. Re, R.; Pellegrini, N.; Proteggente, A.; Pannala, A.; Yang, M.; Rice-Evans, C. Antioxidant activity applying an improved ABTS radical cation decolorization assay. Free Rad. Biol. Med. 1999, 26, 1231–1237. [Google Scholar] [CrossRef]
  23. Heredia, F.J.; Álvarez, C.; González-Miret, M.L.; Ramírez, A. CromaLab®, Análisis de Color; Registro General de la Propiedad Intelectual: Sevilla, Spain, 2004.
  24. CIE. Technical Report Colorimetry; Commission Internationale de l’Eclairage Central Bureau: Vienna, Austria, 2004. [Google Scholar]
  25. Boulton, R. A method for the assessment of copigmentation in red wines. In Proceedings of the Conference of the 47th Annual Meeting of the American Society for Enology and Viticulture, Reno, NV, USA, 26–28 June 1996. [Google Scholar]
  26. StatSoft Inc. STATISTICA (Data Analysis Software System), V 8.0; StatSoft Inc.: Tulsa, OK, USA, 2007. [Google Scholar]
  27. Prida, A.; Puech, J.L. Influence of geographical origin and botanical species on the content of extractives in American, French, and East European oak woods. J. Agric. Food Chem. 2006, 54, 8115–8126. [Google Scholar] [CrossRef] [PubMed]
  28. García-Estévez, I.; Escribano-Bailón, M.T.; Rivas-Gonzalo, J.C.; Alcalde-Eon, C. Development of a fractionation method for the detection and identification of oak ellagitannins in red wines. Anal. Chim. Acta 2010, 660, 171–176. [Google Scholar] [CrossRef] [PubMed]
  29. Glabasnia, A.; Hofmann, T. Sensory-directed identification of taste-active ellagitannins in American (Quercus alba L.) and European oak wood (Quercus robur L.) and quantitative analysis in bourbon whiskey and oak-matured red wines. J. Agric. Food Chem. 2006, 54, 3380–3390. [Google Scholar] [CrossRef]
  30. Viriot, C.; Scalbert, A.; Herve du Penhoat, C.L.M.; Moutounet, M. Ellagitannins in woods of sessile oak and sweet chestnut dimerization and hydrolysis during wood ageing. Phytochemistry 1994, 36, 1253–1260. [Google Scholar] [CrossRef]
  31. Nogales-Bueno, J.; Baca-Bocanegra, B.; Jara-Palacios, M.J.; Hernández-Hierro, J.M.; Heredia, F.J. Evaluation of the influence of white grape seed extracts as copigment sources on the anthocyanin extraction from grape skins previously classified by near infrared hyperspectral tools. Food Chem. 2017, 221, 1685–1690. [Google Scholar] [CrossRef]
  32. López de Lerma, N.; Peinado, J.; Peinado, R.A. In vitro and in vivo antioxidant activity of musts and skin extracts from off-vine dried Vitis vinifera cv. “Tempranillo” grapes. J. Funct. Foods 2013, 5, 914–922. [Google Scholar] [CrossRef]
  33. Martínez, J.A.; Melgosa, M.; Pérez, M.M.; Hita, E.; Negueruela, A.I. Visual and instrumental color evaluation in red wines. Food Sci. Technol. Int. 2001, 7, 439–444. [Google Scholar] [CrossRef]
  34. Chassaing, S.; Lefeuvre, D.; Jacquet, R.; Jourdes, M.; Ducasse, L.; Galland, S.; Grelard, A.; Saucier, C.; Teissedre, P.L.; Dangles, O. Physicochemical studies of new anthocyano-ellagitannin hybrid pigments: About the origin of the influence of oak C-glycosidic ellagitannins on wine color. Eur. J. Org. Chem. 2010, 2010, 55–63. [Google Scholar] [CrossRef]
  35. Kunsagí-Máté, S.; Ortmann, E.; Kollár, L.; Kikfardjam, M.P. Effect of the solvatation shell exchange on the formation of malvidin-3-O-glucoside-ellagic acid complexes. J. Phys. Chem. B 2007, 111, 11750–11755. [Google Scholar] [CrossRef] [PubMed]
  36. Kunsagí-Máté, S.; Ortmann, E.; Kollár, L.; Kikfardjam, M.P. Entropy-driven complex formation of malvidin-3-O-glucoside with common polyphenols in ethanol-water binary solutions. Spectrochim. Acta Part A 2008, 70, 860–865. [Google Scholar] [CrossRef]
  37. Zhang, B.; He, F.; Liu, Y.; Cai, J.; Duan, C.Q. Impact of adding ellagic acid to red grapes on the phenolic composition and chromatic quality of cabernet sauvignon wines from warm climate. J. Food Process. Preserv. 2017, 41, e13080. [Google Scholar] [CrossRef]
  38. Zhang, X.K.; He, F.; Zhang, B.; Reeves, M.J.; Liu, Y.; Zhao, X.; Duan, C.Q. The effect of prefermentative addition of gallic acid and ellagic acid on the red wine color, copigmentation and phenolic profiles during wine aging. Food Res. Int. 2018, 106, 568–579. [Google Scholar] [CrossRef]
  39. Zhang, B.; Cai, J.; Duan, C.Q.; Reeves, M.J.; He, F. A review of polyphenolics in oak woods. Int. J. Mol. Sci. 2015, 16, 6978–7014. [Google Scholar] [CrossRef] [PubMed]

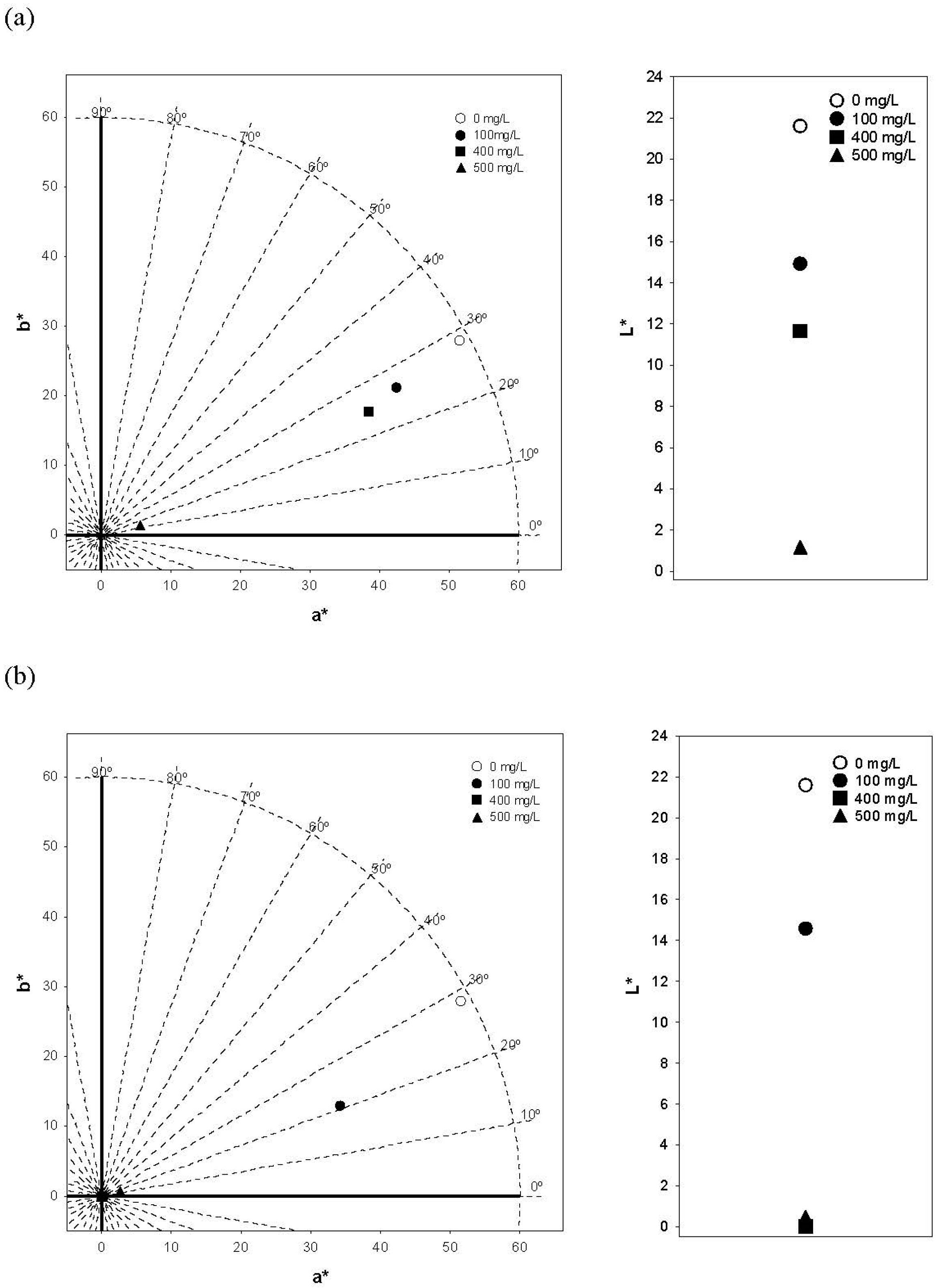

Figure 1. (a*b*) Color diagram and lightness (L*) of the control solution and the model solutions with different TPC from (a) American (AOW) and (b) Ukrainian (UOW) shavings.
Figure 1. (a*b*) Color diagram and lightness (L*) of the control solution and the model solutions with different TPC from (a) American (AOW) and (b) Ukrainian (UOW) shavings.
Foods 08 00336 g001

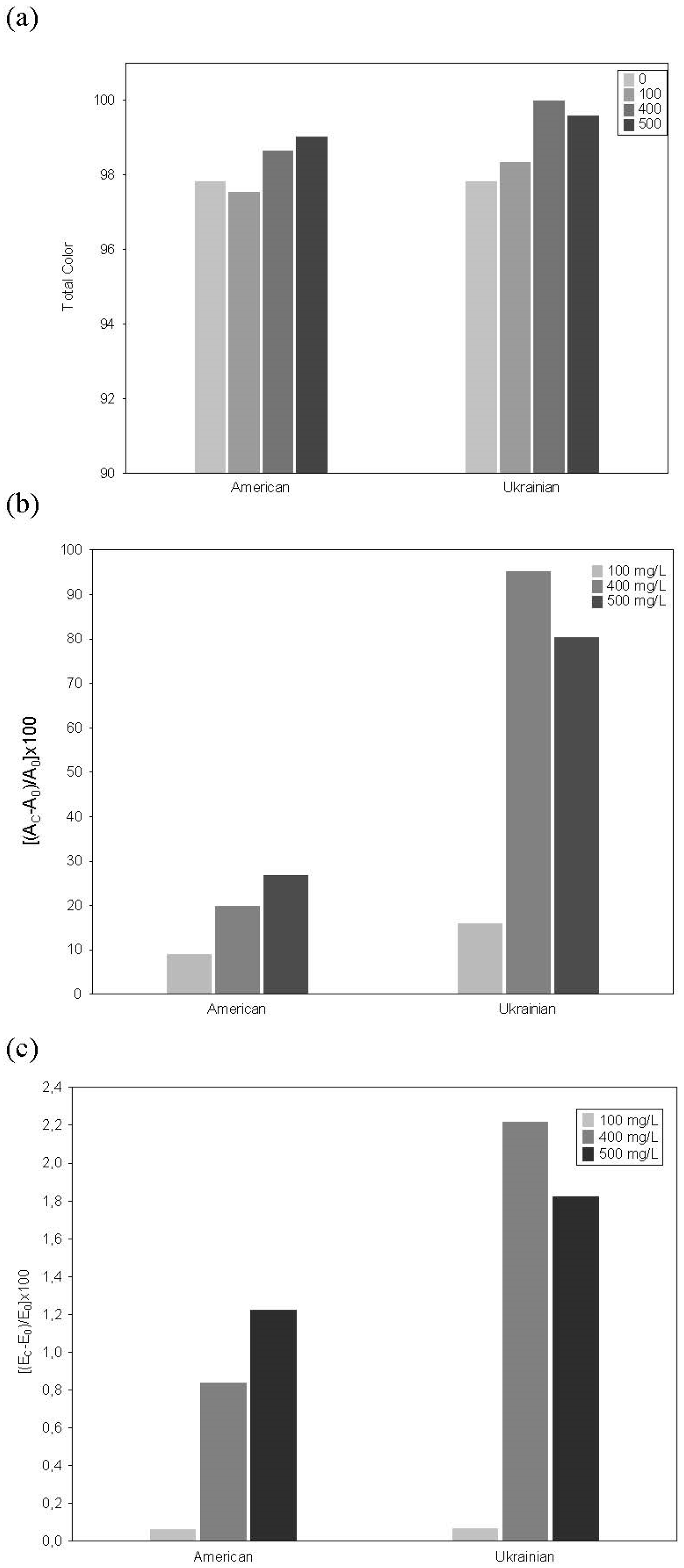

Figure 2. (a) Total color, (b) magnitude of copigmentation evaluated by the absorbance at 520 nm (c) and by tristimulus colorimetry of the control solution and model solutions with different TPC.
Figure 2. (a) Total color, (b) magnitude of copigmentation evaluated by the absorbance at 520 nm (c) and by tristimulus colorimetry of the control solution and model solutions with different TPC.
Foods 08 00336 g002

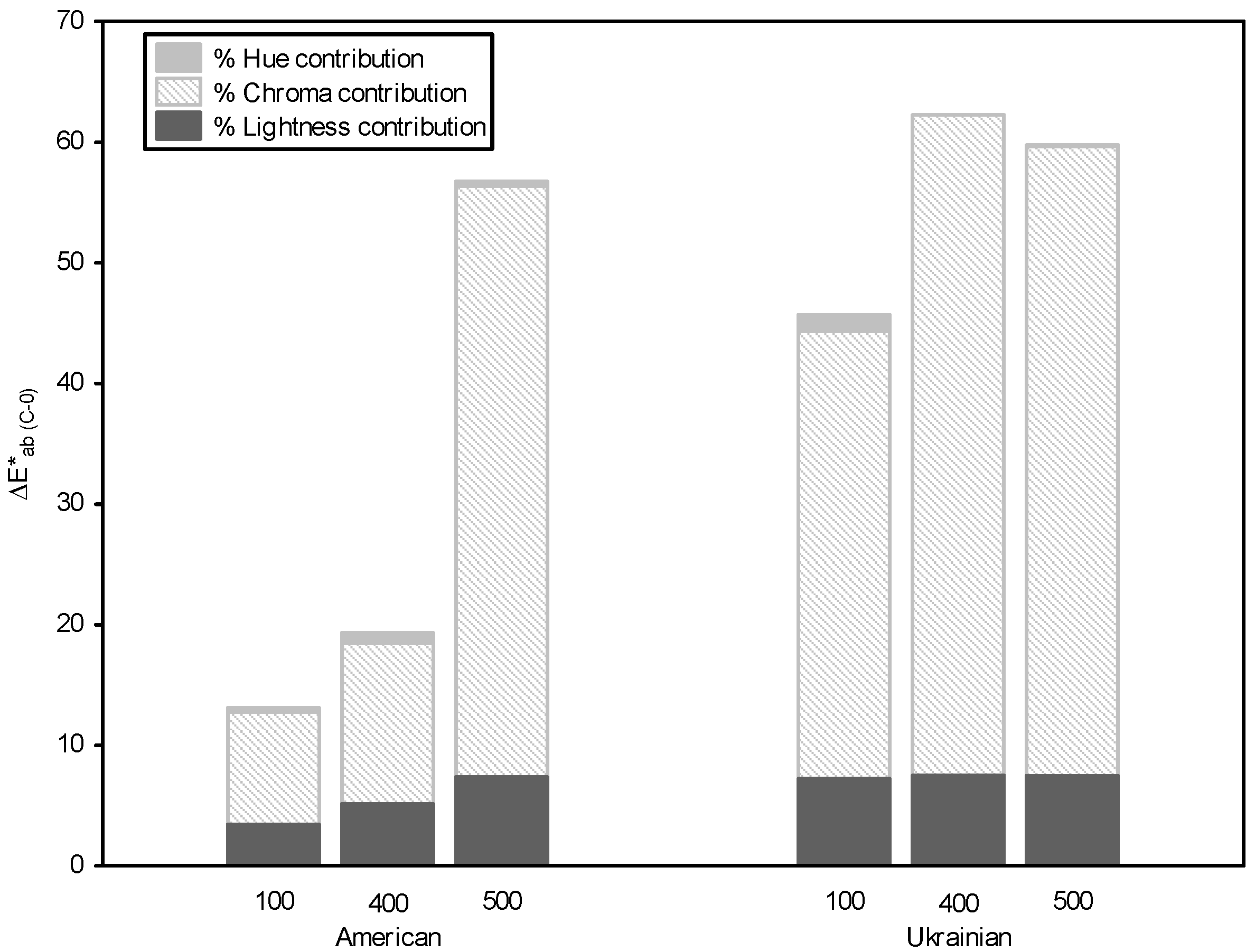

Figure 3. Total color difference induced by copigmentation (∆E*ab (C-0)), between the color of the control solution and the color of the model solutions with different TPC from American (AOW) and Ukrainian (UOW) shavings. Relative contribution of chroma, lightness and hue (%∆C, %∆L, %∆h) to the color difference.
Figure 3. Total color difference induced by copigmentation (∆E*ab (C-0)), between the color of the control solution and the color of the model solutions with different TPC from American (AOW) and Ukrainian (UOW) shavings. Relative contribution of chroma, lightness and hue (%∆C, %∆L, %∆h) to the color difference.
Foods 08 00336 g003
Table 1. Total phenolic content and distribution of ellagitannins and phenolic acids identified by ultra-high-performance liquid chromatography/mass spectrometry (UHPLC/MS) in the oak phenolic extracts from American (AOW) and Ukrainian (UOW) shavings.
Table 1. Total phenolic content and distribution of ellagitannins and phenolic acids identified by ultra-high-performance liquid chromatography/mass spectrometry (UHPLC/MS) in the oak phenolic extracts from American (AOW) and Ukrainian (UOW) shavings.
AOWUOW
TPC (mg/L) 556.58 ± 87.94 a665.47 ± 80.98 a
CompoundMWMSRelative Proportion (%)
Ellagitanins
Monomers
Vescalagin934933, 46628.529.2
Castalagin934933, 46626.427.9
Grandinin106610654.84.7
Roburin E106610655.76.1
Dimers
Roburin A1851924, 61611.09.9
Roburin D1851924, 6167.47.2
Roburin B1983990, 6609.38.7
Roburin C1983990, 6603.83.4
Phenolic acids
Ellagic acid3023010.50.4
Gallic acid1701692.73.0
Each value represents mean (n = 3) ± standard deviation. For total phenolic content (TPC), values followed by the same letter in the same row indicate no significant differences (p > 0.05). MW: molecular weight, MS: Mass spectrometric.
Table 2. Antioxidant activity of the oak phenolic extracts from American (AOW) and Ukrainian (UOW) shavings and of the skins anthocyanin extract from red grapes.
Table 2. Antioxidant activity of the oak phenolic extracts from American (AOW) and Ukrainian (UOW) shavings and of the skins anthocyanin extract from red grapes.
AOWUOWSkins Anthocyanin Extract
ABTS (µmol TE/L)6733.79 ± 319.35 a7713.61 ± 411.34 a6919.83 ± 106.29
FRAP (µmol TE/L)2385.29 ± 406.12 a3809.98 ± 508.80 b4950.64 ± 61.56
Each value represents mean (n = 3) ± standard deviation. Values followed by different letters in the same row indicate significant differences (p < 0.05).
Table 3. Total anthocyanin content and distribution of anthocyanins identified by HPLC/MS in the skins’ anthocyanin extract from red grapes.
Table 3. Total anthocyanin content and distribution of anthocyanins identified by HPLC/MS in the skins’ anthocyanin extract from red grapes.
AnthocyaninRelative Proportion (%)
Delphinidin-3-O-glucoside 6.1
Cyanidin-3-O-glucoside 1.2
Petunidin-3-O-glucoside 9.2
Peonidin-3-O-glucoside 7.4
Malvidin-3-O-glucoside44.7
Petunidin-3-O-acetyl-glucoside 1.6
Peonidin-3-O-acetyl-glucoside 1.1
Malvidin-3-O-acetyl-glucoside 16.4
Petunidin-3-O-p-coumaroyl-glucoside 1.6
Peonidin-3-O-p-coumaroyl-glucoside 2.5
Malvidin-3-O-p-coumaroyl-glucoside 8.1
TAC (mg/L)253.79 ± 15.96
Table 4. Antioxidant activity of the control and model solutions with different TPC from American (AOW) and Ukrainian (UOW) shavings.
Table 4. Antioxidant activity of the control and model solutions with different TPC from American (AOW) and Ukrainian (UOW) shavings.
AOWUOW
ABTSFRAPABTSFRAP
Control solution1300.89 ± 37.33 a509.45 ± 41.32 a1300.89 ± 37.33 a509.45 ± 41.32 a
Model solution
100 mg/L1489.61 ± 224.16 a608.05 ± 2.85 a1396.81 ± 33.74 a716.63 ± 76.88 a
400 mg/L2248.57 ± 0.97 b927.43 ± 40.97 b2037.66 ± 33.74 b847.93 ± 87.92 b
500 mg/L1707.33 ± 274.98 b851.27 ± 153.28 b1839.07 ± 150.59 b1006.12 ± 43.28 b
Each value represents mean (n = 3) ± standard deviation. Values followed by different letters within a column indicate significant differences (p < 0.05). Results are expressed as µmol TE/L.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
