Article
Activation of the Cyano Group at Imidazole via Copper Stimulated Alcoholysis
Department of Chemistry, University of Eastern Finland, P.O. Box 111, FI-80101 Joensuu, Finland
*
Correspondence: [email protected]
Current address: Department of Chemistry, University of Jyväskylä, P.O. Box 35, FI-40014 Jyväskylä, Finland.
Received: 19 June 2019 / Accepted: 5 July 2019 / Published: 9 July 2019

Abstract

:
Reactions of 4,5-dicyano-1-methylimidazole with CuX2 (X = Cl, Br) in alcohol solvents (ethanol and methanol) resulted in the formation of Cu(II) carboximidate complexes [CuCl2(5- cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1), [Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2), [Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3), and [Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4). The structures were determined by the X-ray crystallographic method, and further spectroscopic and computational methods were employed to explain the structural features. The solvent contributed to the alcoholysis reaction of the cyano group, as the result of which the ligand coordinated to the metal center in bidentate mode forming a five-membered chelating ring. In 1, the solvent also acts as an additional ligand, which coordinates to the metal center of a monomeric complex. In compounds 24, two halogen ligands link the metal atoms forming dihalo-bridged copper dimers. The infrared absorption characteristics were verified by simulation of the infrared spectra at the density functional theory level. In addition, the electronic absorption characteristics were explained by simulation of the UV–Vis spectra using the TD-DFT method. Molecular modelling at the DFT level was performed to study the effects of halogen type and steric hindrance of the alkoxy groups in forming the copper(II) complexes.
Keywords:
copper complex; imidazole; cyano; alcoholysis; structural analysis; DFT; QTAIM (Quantum Theory of Atoms in Molecules)

1. Introduction

Compounds with imidazole rings have been increasingly studied because imidazole plays a significant role in biological processes [1,2,3,4]. For instance, some derivatives are used for the treatment of fungal and cancer diseases [5,6]. Imidazoles are found in many medicines, such as antifungal drug series, the sedative midazolam, and the nitroimidazole series of antibiotics [7,8,9,10]. On the other hand, imidazole derivatives are used in the synthesis of polymers [11,12] or copolymers [13,14]. Their utilization as ligands with electron acceptor properties and as promising ligands for the synthesis of anisotropic conductors has been reported [15,16,17,18].
It is well known, that the CN group is sensitive to nucleophilic attack [19]. Alcoholysis of the nitrile group gives rise to carboximidates or more generally, imidates. The carboximidate group is thus an imino ether and can also be considered as an iminoester formed from carboximidic acid and alcohol. Metal complexes with cyanoimidazole ligands are rare. Rasmussen et al. reported synthesis and characterization of the Cu(I) complex, where the 4,5-dicyanoimidazole ligand coordinated to the Cu(I) ion in bidentate fashion via one imidazole N atom and the N atom of the imidato group, which was formed due to a nucleophilic reaction of methanol to one CN group in the presence of carbon monoxide. Typically, imidazole was deprotonated and acted an anionic ligand. Two triphenylphosphine groups completed the coordination sphere of the metal [20]. In some Cu(II) complexes based on cyanopyridine ligands, similar alcoholysis of cyano groups takes place [20,21,22,23,24,25,26]. The methyl group at the nitrogen atom prevents deprotonation of the imidazole ring in 4,5-dicyano-1-methylimidazole, which is thus less acidic than 4,5-dicyanoimidazole [27]. Therefore, the apparent coordination sites are one of the imidazole nitrogens and the two cyano groups.
Our earlier studies on this ligand in Ag(I) complexes revealed that the polydentate character of 4,5-dicyano-1-methylimidazole gives rise to formation of coordination polymers. In [Ag(4,5-dicyano-1-methylimidazole)2]n[CF3SO3]n and [Ag2(4,5-dicyano-1-methylimidazole)2][NO3]2, the imidazole N atom and N atom of one cyano group are involved in coordination with Ag(I) ions, whereas in the [Ag2(4,5-dicyano-1-methylimidazole)2]n[ClO3]2n complex, all three coordination sites of the ligand are utilized [28].
There are still no known organometallic complexes derived from 4,5-dicyano-1-methylimidazole, where the ligand coordinates to the metal ion in bidentate fashion through the N atoms of the heterocycle and of carboximidate, obtained from CN activation. However, based on reported carboximidate metal complexes derived from cyanopyridine [20,21,22,23,24,25,26] and 4,5-dicyanoimidazol [20], it is logical to assume that such complexes also can be synthesized based on this ligand. Therefore, in the present study, the reactions of 4,5-dicyano-1-methylimidazole with CuCl2 and CuBr2 were compared in different alcoholic media. As products, we describe four new Cu(II) complexes based on 4,5-dicyano-1-methylimidazole ligands. All compounds are water soluble, which is typical for imidazole derivatives and broadens the scope of their applicability.

2. Results and Discussion

The Cu(II) complexes 14 were synthesized via reactions of CuCl2 or CuBr2 with 4,5-dicyano-1-methylimidazole in alcoholic media and successive crystallization at +5 °C. The summary of the reactions is presented in Figure 1.

2.1. Structural Analysis

All the structures were solved by the single-crystal X-ray crystallographic method. X-ray structures for 14 are presented in Figure 2 and their important geometric parameters are shown in Table 1. All complexes crystallized in the triclinic crystal system P 1 ¯ space group. Complex 1 has a monomeric structure while the others have a centrosymmetric dimeric structure. In 1, the metal center adopts a distorted square-pyramidal geometry with the oxygen atom of coordinated ethanol molecule in the apical position. The binuclear complexes 24 adopt the same geometry around the metal center, but they contain a bridging halogen ligand in an apex of the square-pyramid instead of the ethanol molecule. In all complexes, the square base is completed by two halogen ligands and two nitrogen atoms of the ligand.
The geometries and the ground state spin states of complexes 14 were also optimized computationally at the DFT level of theory. The singlet ground state of complex 1 showed a good match with experimental geometry. Furthermore, the optimized geometry of the dimeric complexes 24 in the triplet ground state demonstrated good agreement with experimental structures (less than 3% average deviation). The selected optimized parameters are compared with the experimental ones in Tables S1–S4. In addition, the calculations confirmed the presence of the H atom at the imino group in all complexes, and therefore allowed the tautomeric form of the ligand in coordination to be verified.
In the synthesis of the compounds, the presence of alcohol solvent is responsible for the transformation of the ligand. One of the cyano groups undergoes nucleophilic addition of the solvent molecule to generate a chelating imidate ligand. Furthermore, the nature and the oxidation state, and hence the Lewis acidity of the metal plays an important role in the reaction. The earlier reported Ag(I) complexes with 4,5-dicyano-1-methylimidazole showed that the ligand was not susceptible to nucleophilic attack by alcohol solvent [28]. In the copper(II) compounds obtained in the present study, the solvent molecules play an additional role in coordination of the ligands to the metal center. According to computational analysis, the bridging halogens are able to stabilize the dimeric structure in 24, but not in 1. One plausible explanation of this behavior is that due to either larger Cu–Br distances of the halogen bridges (optimized distances 2.903 Å vs. 2.789 Å in 4 and 2, respectively), or the smaller size of the solvent molecule (methanol vs. ethanol in 2 and 1, respectively), energetic reasons favor formation of a dimer in 24, but the larger steric demands of the EtOH solvent molecule favor the formation of a monomer in 1. Copper(II) acts as promoter for alcoholysis of the cyano group in the ligand. The solvent not only participates in solvolysis but it also acts as an additional ligand in complex 1. Therefore, copper stimulates the cyano group for alcoholysis reaction, which agrees with previously reported studies [19,30].
The ligand coordinates to the metal center through the imidazole nitrogen N1 and the imidato nitrogen N2 to form a five-membered chelating ring in the equatorial position. The Cu1–N1 and Cu1–N2 bond lengths lie in the narrow ranges of 1.989–2.025 Å and 2.009–2.036 Å, respectively, which agree with earlier reported copper(II) complexes [20,21,23,25,31,32,33,34,35]. The nitrogen–halogen distances at basal planes are almost symmetrical in all compounds. The axial bond lengths of Cu1–X’ and Cu1–O2 lie in a similar range to earlier published values [36,37,38,39,40,41,42,43,44]. As expected, the bond distances between the metal center and halogen atoms in the equatorial position are shorter than in the apical position.
Two equatorial angles O2/X’–Cu1–N1 and O2/X’–Cu1–N2 are formed with almost ideal values of 90°, whereas X1–Cu1–X2 is slightly larger than 90°. The bite angle N1–Cu1–N2 is thus less 90°, which is common for this type of coordination [20,21,23,25,31,34] and the apex of the pyramid is slightly shifted towards the two nitrogen atoms. In five-coordinated complexes, the degree of distortion was evaluated by the geometry index τ depending on the two largest angles (β > α) around the metal center as τ = (β − α)/60°, where the τ value varies from 0 to 1.37 The extreme τ values such as 0 and 1 indicate ideal square pyramidal and trigonal-bipyramidal geometries, respectively. The τ value for 14 (0.038–0.087) is a sign that almost perfect square pyramidal geometry is formed around the Cu(II) ion. In all complexes, the torsion angle Cu1–N1–C5–C3 is close to 180°, showing that the copper atom is almost co-planar with the imidazole ring.
In the middle of the dimers 24, two halogen ligands bridge the copper centers building up a planar Cu2X2 unit. The distance between the two copper centers varies between 3.395–3.860 Å, which is typical for dihalo-bridged copper dimers [29,30] and shows no metallophilic interaction between the two copper(II) ions. It is also noteworthy, that in 13 the alkoxy group at copper lies in the trans position to the terminal halogen, while in 4 it is trans to the bridging halogen.

2.2. Computational Studies

We optimized the geometry of the molecular complexes 14 in order to compare the nature of the intramolecular interactions and their effect on the structural features by DFT calculations and by performing QTAIM (Quantum Theory of Atoms in Molecules) analysis for the optimized compounds. Figure 3 displays the bond paths and the corresponding bond critical points for the dimeric complexes 24. The results for the analysis are presented in Table 2.
The major difference between monomeric compound 1 and dimeric compound 2 is that in the former compound the apical position occupies a solvent molecule instead of a Cl ligand. This is energetically favorable, since the interaction strength of the Cu–O bond in 1 (BCP #4′) is about twice the value of the corresponding Cu–Cl in 2 (BCP #4). However, as previously pointed out, there is a subtle balance between electronic and steric effects in complexation.
In dimeric compounds 24, the halogen atoms, which are trans to nitrogen atoms, coordinate with stronger, partially covalent Cu–X bonds, as can be seen by the larger EINT values and |V|/G >1 for BCPs #3 and #5. The trans effect makes a large contribution, therefore there is no difference between the interaction strengths of bridging and non-bridging halogens. On the other hand, the halogen, which has no trans atoms in the coordination sphere, shows a rather weak and effectively non-covalent interaction to the copper center (for example, EINT = −121 kJ·mol−1 vs. −25 kJ·mol−1 for Cu–Cl). The halogen effect is smaller, Cu–Cl bonds (EINT = −121 kJ·mol−1) are stronger than Cu–Br (EINT = −90 kJ·mol−1). Furthermore, the coordinated nitrogen atom from the activated cyano group forms a slightly stronger interaction with copper than the imidazole nitrogen. Otherwise there are no major differences between the intermolecular interactions in compounds 24. Even the intramolecular weak interactions are very similar, and the different orientation of the ligands in 4 vs. 3 has no major effect.
In the solid state of the molecular complexes, several weak intermolecular interactions are present (Figure 4). In 1, intermolecular Cl1–H contact 2.627 Å to imine hydrogen and N–H contact 2.508 Å between the free cyano group and the methyl group at the imidazole give rise to a chain structure. Furthermore, Cl1 has a short contact 2.294 Å to the OH hydrogen at the coordinated ethanol molecule creating a 3D structure. The sum of the van der Waals radii is 2.95 Å for Cl–H and 2.75 Å for N–H. In 2 and 3, the nitrogen atom in the uncoordinated cyano group has distances of 2.504 and 2.499 Å with the H in the methoxy group. In these, the imidazole hydrogen also has short contact with the terminal halogen of 2.640 Å and 2.757 Å (sum of vdW 3.05 Å for H and Br). In 4 the nitrogen of the free CN forms an interaction of 2.384 Å with the H at the imidazole methyl. The Br···H of the imine is 2.788 Å.
The intermolecular interactions were further studied via topological charge density analysis using extended models cut from the crystal structures of 1, 2, and 4. The bond paths and the bond critical points for models (1)4, (2)2, and (4)2 are shown in Figures S1–S3 (See Supplementary Materials). Table S6 lists the properties of the electron density at selected BCPs representing different types of weak intermolecular interactions.
It is no surprise, that the strongest intermolecular interactions are the hydrogen bonds between the chloride ligands and the hydrogen atoms from the OH or NH groups of neighboring molecules. The fairly strong Cl···H(O) interactions, compared to compounds 24, further stabilize the crystal structure of 1. According to the small |V|/G value (<1), all intermolecular interactions are clearly electrostatic in nature. Formation of dimers, however, limits the amount of “free” chlorides (non- bridging), and therefore hydrogen bonding interactions form between the non-modified cyano groups and the MeO/MeN groups.

2.3. IR Analysis

The IR spectra were measured in KBr. The assigned characteristic IR bands for complexes 14 agree with the X-ray crystallographic study of the single crystal. The spectra of the complexes significantly differ from the IR spectrum of the free ligand due to the alcoholysis of the cyano group. Table 3 shows the comparison of the main IR bands of the complexes 14 with the free 4,5-dicyano-1-methylimidazole ligand. The infrared absorption characteristics were verified by simulation of the infrared spectra at the density functional theory level. Results for the experimental and computational IR frequencies are given in the supporting information (Tables S7–S11).
The appearance of N2–H stretching at 3359–3283 cm−1 and strong C6=N2 stretching bands at 1653–1639 confirm the formation of carboximidate complexes. The intensity of the N2–H stretching bands varies from medium (in 2 and 3) to weak (in 1, 4). The C6=N2 and C5=C3 stretching modes are presented as two sharp intense bands, which are consistent with the previously reported values of the bands [26,45,46].
The modified part of the ligand in the complexes can be considered as an ester including the alkoxy group and the imine group. As a rule, an ester is characterized by two bands of asymmetric C–O stretching in the 1300–1000 cm−1 region [47], which in the metal complexes is shifted to higher frequency region [24,30,44]. In all spectra of the complexes 14, a strong band at ca. 1300 cm−1 is assigned to the asymmetric C–O stretching mode. The second asymmetric C–O stretching band related to the alkoxy group should lie in the 1200–1000 cm−1 region. In 2 and 3, the band at 1145 and 1144 cm−1, respectively, is attributed to asymmetric C–O stretching combined with the methyl-rocking mode of the methoxy group, which is consistent with earlier reported values of the bands. In 1 and 4, the asymmetric C–O stretching mode mixed with the skeletal vibrations of ethoxy was observed at 1007 and 1005 cm−1, respectively, which agrees with asymmetric C–O stretching for primary alcohols [48].
The C≡N stretching vibration in the complexes appears at almost the same wavenumber as in the free ligand, but the intensity significantly changes from strong to weak. This indicates the decrease of the number of free cyano groups in a molecule. The slight deviation in wavenumbers is probably due to weak intermolecular C≡N···H interactions [19].
In the spectrum of 1, the O–H stretching is observed at 3368 cm−1, which is consistent with the reported value in the literature for organometallic compounds having a coordinated alcohol molecule to the metal atom.

2.4. UV–Vis Analysis

We measured the UV–Vis spectra of compounds 14 and analyzed their absorption characteristics via TD-DFT calculations. The experimental and computational results in acetonitrile solution are compared in Table 4, and the selected spectra are shown in Figures S4–S6. It should be noted that because of the many nearly degenerate MOs, the interpretation is complicated by the mixing of several weaker transitions in the excited states. Examples of the MOs involved in the main excitations are presented in Figures S7–S10.
Mixing of the different kinds of electronic transitions with excitations between the copper d- orbitals explains the relatively dark color of the crystals. According to the appearance of the MOs shown in Figures S7 and S8, the main difference between the monomeric 1 and dimeric 2 can be seen in the lowest energy signal at 731 nm (1) or 802 nm (2). In 2, the lowest energy excitation involves MOs which are concentrated on the Cu-μ(Cl2)-Cu system, including also some contribution from the π system of the activated cyano group. On the other hand, the lowest energy signal in 1 includes mixing of dd excitation with metal-to-ligand charge transfer, where the ligand part includes also the axial ethanol solvent molecule. This M(X)LCT contribution leads to a blue shift in the lowest energy signal. The other main excitations presented in Table 4 are very similar for both 1 and 2, and consist mainly of ligand-to-metal-to-halogen charge transfer transitions.
The influence of the halogen is clearly seen in the UV–Vis spectra of bromide-bridged 3 and 4, when compared with the corresponding chloride compound 2. The lowest energy excitations are strongly blue-shifted in 3 and 4 because of the larger contribution of the aromatic ligands (Figures S9 and S10). In contrast, the large participation of all the bromide ligands in the excitations at around 500 nm leads to a red-shift compared to the corresponding excitations in 2 (406 nm). Additionally, the signal at 315 nm corresponding to transitions between ligand based orbitals and metal + halogen orbitals is clearly visible only in 3 and 4. The most intense signals in the UV-area are also red-shifted for 3 and 4, compared to 2. The reason for the shift is again the larger halogen-effect of bromido ligands compared to chlorido ligands. However, it can be concluded, that a different solvent (ethanol/methanol) does not present any apparent changes in the electronic excitations.

3. Materials and Methods

3.1. General

Commercially available reagents anhydrous CuCl2 (99%, Aldrich, St. Louis, MO, USA), CuBr2 (99%, Aldrich) and 4,5-dicyano-1-methylimidazole (97%, Alfa Aesar, Ward Hill, MA, USA) were used without purification. The organic solvents were dried using molecular sieves. Infrared spectra were measured from KBr pellets using a Bruker VERTEX 70 FT-IR spectrometer (Billerica, MA, USA) in the range of 4000–400 cm−1. The elemental analysis was performed on a varioMICRO V1.7 (Elementar Analysensysteme GmbH, Langenselbold, Germany). The 1H NMR spectra were recorded in DMSO-d6 on a Bruker Avance 400 MHz (Bruker Spectrospin, Rheinstetten, Germany). UV–Vis spectra were obtained by a Perkin Elmer Lambda 9000 UV/VIS/NIR spectrometer (Waltham, MA, USA).

3.2. Synthesis of Complexes 14

[CuCl2(5-cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1). A solution of 4,5-dicyano-1-methylimidazole (0.0200 g, 0.1514 mmol) in ethanol (2 mL) was added to a solution of CuCl2 (0.0102 g, 0.0757 mmol) in ethanol (1 mL). After an hour stirring, the resulting solution was filtered. The filtrate was kept at 5 °C for slow evaporation. Pale green crystals of a needle shape were formed after a few days. Yield: 0.0190 g, 70%. Anal. Calc. for C10H16CuN4O2Cl2: C, 33.48; H, 4.50; N, 15.62. Found: C, 33.31; H, 4.43; N, 15.73. IR (KBr, cm−1): 3283 (w), 3123 (w), 2236 (w), 1644 (s), 1587 (vs), 1516 (m), 1304 (s), 1173 (m), 1111 (w), 1079 (w), 1049 (w), 1007 (w), 889 (w), 873 (w), 839 (w), 818 (w). 1H NMR δ: 8.11 (NH, 1H, s), 4.35 (O–CH2–CH3, 2H, br), 3.79 (N–CH3, 3H, s), 1.06 (O–CH2–CH3, 3H, t). UV–Vis [λmax, nm]: acetonitrile 380, 750; DMSO 268, 799.
[Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2). 4,5-dicyano-1-methylimidazole (0.0200 g, 0.1514 mmol) and CuCl2 (0,0407 g, 0.3028 mmol) were dissolved in 1.5 mL and 1 mL methanol, respectively. Blue-greenish needle crystals suitable for X-ray diffraction examination were isolated after a few days. Yield: 0.0340 g, 38%. Anal. Calc. for C14H16Cu2N8O2Cl4: C, 28.16; H, 2.70; N, 18.76. Found: C, 27.97; H, 2.92; N, 18.47. IR (KBr, cm−1): 3353 (m), 3100 (m), 2242 (w), 1653 (vs), 1593 (s), 1514 (m), 1298 (s), 1181 (w), 1145(w), 1041 (w), 812 (m), 777 (m). 1H NMR δ: 8.37 (NH, 1H, s), 3.78 (N–CH3, 3H, s), 1.08 (O–CH3, 3H, s). UV–Vis [λmax, nm]: acetonitrile 380, 734; DMSO 287.
[Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3). The procedure of the synthesis is similar to complex 2, but it differs in terms of the metal salt. A solution of the ligand (0.0100 g, 0.0757 mmol) in methanol (0.5 mL) was mixed with a solution of CuBr2 (0.0338 g, 0.1514 mmol) in methanol (1 mL). Dark green crystals of a needle shape were formed. Yield: 0.007 g, 12%. Anal. Calc. for C14H16Cu2N8O2Br4: C, 21.70; H, 2.08; N, 14.46. Found: C, 21.70; H, 2.17; N, 14.49. IR (KBr, cm−1): 3347 (m), 3097 (m), 2242 (w), 1651 (vs), 1591 (s), 1514 (m), 1296 (s), 1180 (w), 1144(w), 1039 (w), 810(m), 773 (m). 1H NMR δ: 8.04 (NH, 1H, s), 3.77 (N–CH3, 3H, s), 1.00 (O–CH3, 3H, s). UV–Vis [λmax, nm]: acetonitrile 257, 302, 480; DMSO 274.
[Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4). The ligand (0.0200 g) and CuBr2 (0.0338 g) were dissolved in 1 mL and 0.8 mL ethanol, respectively. Dark green crystals of a needle shape were formed. Yield: 0.0515 g, 42%. Anal. Calc. for C16H20Cu2N8O2Br4: C, 23.82; H, 2.51; N, 13.89. Found: C, 23.93; H, 2.68; N, 13.95. IR (KBr, cm−1): 3289 (w), 3153 (w), 2245 (w), 1639 (s), 1586 (vs), 1515 (m), 1302 (s), 1171 (m), 1106 (w), 1043 (w), 1005 (w), 821 (w), 802 (w). 1H NMR δ: 8.10 (NH, H, s), 4.31 (O–CH2–CH3, 2H, br), 3.79 (N–CH3, 3H, s). 1.06 (O–CH2–CH3, 3H, t). UV–Vis [λmax, nm]: acetonitrile 256, 301, 481; DMSO 293.

3.3. Crystal Structure Determination

The crystals of 14 were immersed in cryo-oil, mounted in a Nylon loop, and measured at a temperature of 150 K. The X-ray diffraction data were collected on Bruker Kappa Apex II Duo and Smart Apex II diffractometers using Mo Kα radiation (λ = 0.71073 Å). The APEX2 [49] program package was used for cell refinements and data reductions. The structures were solved by direct methods using the SHELXS-2014 [50] program with the WinGX [51] graphical user interface. A semi- empirical absorption correction (SADABS) [52] was applied to all data. Structural refinements were carried out using SHELXL-2014 [50].
The N–H imidate hydrogen atoms were located from the difference Fourier map and constrained to ride on their parent atoms, with Uiso = 1.2 Ueq (parent atom). All other hydrogen atoms were positioned geometrically and constrained to ride on their parent atoms, with C–H = 0.95–0.99 Å and Uiso = 1.2–1.5 Ueq (parent atom). The crystallographic details are summarized in Table 5.

3.4. Computational Details

All calculations were performed by applying Gaussian 09 software package [53]. The optimized geometry and simulated non-scaled infrared spectra for the copper(II) complexes were obtained by PBE0 functional [54] with 6-311+(d) basis set for non-metal atoms and Def2-TZVPPD basis set [31,32,33,34,35,36] for copper atom.
To obtain the electronic properties of the complexes, we performed topological charge density analysis with the QTAIM (Quantum Theory of Atoms in Molecules) [55] method, which allowed us to access the nature of the bonding via calculating different properties of the electron density at the bond critical points (BCPs). The analysis was done with the AIMALL program [56] using the wavefunctions obtained from the DFT calculations.
TD-DFT calculations were employed to further compare the electronic properties of the complexes. The UV–VIS spectra were simulated with fully optimized separate molecular models. Solvent effects of the acetonitrile solvent were calculated with the conductor-like polarized continuum model (CPCM) [57] for the gas phase optimized structures.

4. Conclusions

In this research, we described four new Cu(II) complexes based on 4,5-dicyano-1-methylimidazole ligands. Both the nature of the metal and the solvent play an important role in the coordination of the ligand to the metal center. Copper (II) acts as the promoter for the alcoholysis of the cyano group in the ligand. This leads to the formation of the carboximidate group thereby transforming the 4,5-dicyano-1-methylimidazole into bidentate chelating ligand. The solvent not only participates in solvolysis but it also acts as a second ligand in complex 1. Both the modification of one of the cyano groups and the coordination of the solvent were verified via detailed analysis of the IR bands, assisted by computational simulation of the spectra.
In addition, molecular modelling at the DFT level of theory was performed to study the effects of the halogen type and the steric hindrance of the alkoxy groups on the formation of the copper(II) complexes. The formation of the monomeric or dimeric complex was found to be determined by very small differences in the electronic and steric properties of the coordination sphere of copper. On the other hand, the absorption characteristics of the compounds do not depend on the type of solvent or the nuclearity of the complexes because of the rather similar coordination spheres of the Cu(II) ions. Comparison of the experimental and computationally simulated UV–Vis spectra showed that the main source of differences in the excitations is the type of halogen. Bromido ligands were found to have a larger contribution on the molecular orbitals involved in the main excitations, and therefore a larger halogen effect than the chlorido ligands.

Supplementary Materials

The following are available online at https://www.mdpi.com/2304-6740/7/7/87/s1. The crystallographic data for compounds [CuCl2(5-cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1), [Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2), [Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3), and [Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4) were deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC 1921767-1921770. Copies of this information may be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif. Supplementary material includes the cif and checkcif files for 14. The experimental and the optimized geometry parameters are also included. Supplementary material includes also the experimental IR data and UV–Vis spectra; data of simulated IR spectra and UV–Vis spectra and the interpretation of the selected excitations, as well as bond paths and bond critical points of extended models of 14. Supplementary data associated with this article can be found in the online version.

Author Contributions

Preparation of complexes was performed by R.G.; spectroscopic measurements and analysis were performed by R.G. and S.J. Preparation of the manuscript draft was carried out by R.G. Theoretical calculations and computational analysis were performed by P.H. The project was planned and supervised by S.J. and P.H. Structural analysis was done by R.G. under supervision of I.O.K. The final revision of the manuscript was made by all the authors.

Funding

This research received no external funding.

Acknowledgments

We acknowledge grants of computer capacity from the Finnish Grid and Cloud Infrastructure (persistent identifier urn:nbn:fi:research-infras-2016072533). COST action CM1302: European Network on Smart Inorganic Polymers (SIPs) is also gratefully acknowledged.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Satterfield, M.; Brodbelt, J.S. Relative Binding Energies of Gas-Phase Pyridyl Ligand/Metal Complexes by Energy-Variable Collisionally Activated Dissociation in a Quadrupole Ion Trap. Inorg. Chem. 2001, 40, 5393–5400. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, Z.-M.; Lin, H.-K.; Zhu, S.-R.; Liu, T.-F.; Chen, Y.-T. Spectroscopy, cytotoxicity and DNA-binding of the lanthanum(III) complex of an l-valine derivative of 1,10-phenanthroline. J. Inorg. Biochem. 2002, 89, 97–106. [Google Scholar] [CrossRef]
  3. Masood, M.A.; Hodgson, D.J. Synthesis and characterization of the multidentate ligand 2,9-bis(N-pyrazolylmethyl)-1,10-phenanthroline (bpmp) and its copper(I) and copper(II) complexes. Inorg. Chem. 1993, 32, 4839–4844. [Google Scholar] [CrossRef]
  4. Erden, I.; Demirhan, N.; Avcıata, U. Synthesis and Characterization of a New Imidazole Ligand and its Complexes with Cobalt(II), Nickel(II) and Copper(II). Synth. React. Inorg. Met. Nano-Metal. Chem. 2007, 36, 559–562. [Google Scholar] [CrossRef]
  5. Handyside, T.M.; Lockhart, J.C.; McDonnell, M.B.; Rao, P.V.S. Ligands for the alkali metals. Part 6. Some bis(crown) Schiff bases which form pocket complexes with alkali-metal cations of appropriate size. J. Chem. Soc. Dalton Trans. 1982, 2331–2336. [Google Scholar] [CrossRef]
  6. Sandbhor, U.; Kulkarni, P.; Padhye, S.; Kundu, G.; MacKenzie, G.; Pritchard, R. Antimelanomal activity of the copper(II) complexes of 1-substituted 5-amino-imidazole ligands against B16F10 mouse melanoma cells. Bioorg. Med. Chem. Lett. 2004, 14, 2877–2882. [Google Scholar] [CrossRef] [PubMed]
  7. Katritzky, A.R.; Rees, C.W. Comprehensive Heterocyclic Chemistry: The Structure, Reactions, Synthesis, and Uses OF Heterocyclic Compounds; Pergamon Press: Oxford, UK, 1984. [Google Scholar]
  8. Grimmett, M.R. Imidazole and Benzimidazole Synthesis; Academic Press: New York, NY, USA, 1997. [Google Scholar]
  9. Brown, E.G. Ring Nitrogen and Key Biomolecules: The Biochemistry of N-Heterocycles; Springer Science + Business Media: Dordrecht, The Netherlands, 1998. [Google Scholar]
  10. Pozharskii, A.F.; Soldatenkov, A.T.; Katritzky, A.R. Heterocycles in Life and Society: An Introduction to Heterocyclic Chemistry and Biochemistry and the Role of Heterocycles in Science, Technology, Medicine, and Agriculture; John Wiley & Sons: Chichester, UK, 1997. [Google Scholar]
  11. Li, J.-X.; Du, Z.-X.; Zhou, J.; An, H.-Q.; Zhu, B.-L.; Wang, S.-R.; Zhang, S.-M.; Wu, S.-H.; Huang, W.-P. A potassium and cadmium coordination polymer connected by two kinds of coordination modes of 4,5-dicyanoimidazole ligands: Synthesis, crystal structure and fluorescent properties of {[K[Cd(dci)2(H2O)2]6]Cl}n. Inorg. Chem. Commun. 2010, 13, 127–130. [Google Scholar] [CrossRef]
  12. Hu, T.-P.; Wang, X.-X.; Zheng, B.-H.; Wang, X.-Q.; Hao, X.-N.; Liu, J.-F. Assembly of a 3D chiral Cu(I) metal–organic framework based on 4,5-dicyanoimidazole: CD spectrum, luminescence and selective gas adsorption. Inorg. Chem. Commun. 2016, 68, 17–20. [Google Scholar] [CrossRef]
  13. Wu, K.; Chang, T.; Wang, Y.; Hong, Y.; Wu, T. Interactions and mobility of copper(II)–Imidazole-containing copolymers. Eur. Polym. J. 2003, 39, 239–245. [Google Scholar] [CrossRef]
  14. Carella, A.; Centore, R.; Riccio, P.; Sirigu, A.; Quatela, A.; Palazzesi, C.; Casalboni, M. Polymethacrylate Copolymers Containing 4,5-Dicyanoimidazole-Based Chromophores and their Nonlinear Optical Behavior. Macromol. Chem. Phys. 2005, 206, 1399–1404. [Google Scholar] [CrossRef]
  15. Cocco, M.; Olla, C.; Onnis, V.; Schivo, M.; De Logu, A. 1-Acylamonoimidazoles synthesis and antimicrobial activity. Farmaco 1992, 47, 229–238. [Google Scholar] [PubMed]
  16. Sundberg, R.J.; Martin, R.B. Interactions of histidine and other imidazole derivatives with transition metal ions in chemical and biological systems. Chem. Rev. 1974, 74, 471–517. [Google Scholar] [CrossRef]
  17. Townsend, L.B.; Revankar, G.R. Benzimidazole nucleosides, nucleotides, and related derivatives. Chem. Rev. 1970, 70, 389–438. [Google Scholar] [CrossRef] [PubMed]
  18. Chao, H.; Ye, B.-H.; Li, H.; Li, R.-H.; Zhou, J.-Y.; Ji, L.-N. Synthesis, electrochemical and spectroscopic properties of ruthenium(II) complexes containing 1,3-bis([1,10]phenanthroline-[5,6-d]imidazol-2-yl) benzene. Polyhedron 2000, 19, 1975–1983. [Google Scholar] [CrossRef]
  19. Storhoff, B.N.; Lewis, H.C., Jr. Organonitrile complexes of transition metals. Coord. Chem. Rev. 1977, 23, 1–29. [Google Scholar] [CrossRef]
  20. Rasmussen, P.; Rongguang, L.; Butler, W.; Bayón, J. Dicyanoimidazole complexes of Cu(I): A carbonyl assisted alcoholysis of nitrile. Inorg. Chim. Acta 1986, 118, 7–13. [Google Scholar] [CrossRef]
  21. Du, M.; Zhao, X.-J.; Batten, S.R.; Ribas, J. From 1-D Coordination Polymers to 3-D Hydrogen-Bonding Networks: Crystal Engineering and Magnetism of CuII–dca–Cyanopyridine Supramolecular Systems (dca = Dicyanamide, N(CN)2). Cryst. Growth Des. 2005, 5, 901–909. [Google Scholar] [CrossRef]
  22. Du, M.; Wang, Q.; Wang, Y.; Zhao, X.-J.; Ribas, J. Metal dicyanamide layered coordination polymers with cyanopyridine co-ligands: Synthesis, crystal structures and magnetism. J. Solid State Chem. 2006, 179, 3926–3936. [Google Scholar] [CrossRef]
  23. Mei, L.; Jia, X.; Cheng, Z.J. Synthesis and catalytic activity of metallo-organic complexes bearing 5-amino 2-ethylpyridine-2-carboximidate. J. Chem. Sci. 2016, 128, 855–860. [Google Scholar] [CrossRef]
  24. Devi, R.B.; Devi, S.P.; Singh, R.B.; Singh, R.H.; Swu, T.; Devi, W.R.; Singh, C.B. Synthesis, spectroscopic, and biological studies on copper(II) complexes containing equatorial–apical chloride bridges: Crystal structure of [Cu2(μ-Cl)2(O-2-butoxyethylpyridine-2-carboximidate)2Cl2]. J. Coord. Chem. 2014, 67, 891–909. [Google Scholar] [CrossRef]
  25. Xuan, R.-C.; Xu, M.; Cheng, D.-P. Dichloro (O-ethyl 3-methylpyridine-2-carboximidic acid-κ2N,N′) copper(II). Acta Crystallogr. Sect. C Cryst. Struct. Commun. 2006, 62, m587–m589. [Google Scholar] [CrossRef] [PubMed]
  26. Gurbanov, A.V.; Mahmoudi, G.; Da Silva, M.F.C.G.; Zubkov, F.I.; Mahmudov, K.T.; Pombeiro, A.J. Cyanosilylation of aldehydes catalyzed by mixed ligand copper(II) complexes. Inorg. Chim. Acta 2018, 471, 130–136. [Google Scholar] [CrossRef]
  27. Kelley, S.P.; Nuss, J.S.; Rogers, R.D. Nonstoichiometric, Protic Azolium Azolate Ionic Liquids Provide Unique Environments for N-Donor Coordination Chemistry. Chem. Eur. J. 2015, 21, 17196–17199. [Google Scholar] [CrossRef] [PubMed]
  28. Jaaskelainen, S.; Appiah, N.S.; Koshevoy, I.; Hirva, P.; Appiah, N.S.; Koshevoy, I. Impacts of the counter ions on 4,5-dicyano-1-methylimidazole silver coordination. New J. Chem. 2018, 42, 3363–3370. [Google Scholar] [CrossRef]
  29. Addison, A.W.; Rao, T.N.; Reedijk, J.; Van Rijn, J.; Verschoor, G.C. Synthesis, structure, and spectroscopic properties of copper (II) compounds containing nitrogen–sulphur donor ligands; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane] copper(II) perchlorate. J. Chem. Soc. Dalton Trans. 1984, 1349–1356. [Google Scholar] [CrossRef]
  30. Jamnicky, M.; Segl’A, P.; Koman, M. Methanolysis of pyridine-2-carbonitrile in the coordination sphere of copper(II), cobalt(II) and nickel(II). The structure of [Ni(o-methylpyridine-2-carboximidate)3]Br2·4H2O. Polyhedron 1995, 14, 1837–1847. [Google Scholar] [CrossRef]
  31. Godlewska, S.; Jezierska, J.; Baranowska, K.; Augustin, E.; Dołęga, A. Copper(II) complexes with substituted imidazole and chlorido ligands: X-ray, UV–Vis, magnetic and EPR studies and chemotherapeutic potential. Polyhedron 2013, 65, 288–297. [Google Scholar] [CrossRef]
  32. Sun, Y.; Lemaur, V.; Beltrán, J.I.; Cornil, J.; Huang, J.; Zhu, J.; Wang, Y.; Fröhlich, R.; Wang, H.; Jiang, L.; et al. Neutral Mononuclear Copper(I) Complexes: Synthesis, Crystal Structures, and Photophysical Properties. Inorg. Chem. 2016, 55, 5845–5852. [Google Scholar] [CrossRef]
  33. Du, H.; Sivappa, R.; Lovely, C.J.; He, Y. New Methods of Imidazole Functionalization—From Imidazole to Marine Alkaloids. Synlett 2006, 2006, 965–992. [Google Scholar] [CrossRef]
  34. Gulli, S.; Poli, R.; Daran, J.-C.; Daran, J. Synthesis and Structure of Four-Coordinate Copper(II) Complexes Stabilized by β-Ketiminato Ligands and Application in the Reverse Atom-Transfer Radical Polymerization of Styrene. Eur. J. Inorg. Chem. 2011, 2011, 1666–1672. [Google Scholar] [CrossRef]
  35. Sreekanth, A.; Kurup, M.R.P. Structural and spectral studies on four coordinate copper(II) complexes of 2-benzoylpyridine N(4),N(4)-(butane-1,4-diyl)thiosemicarbazone. Polyhedron 2003, 22, 3321–3332. [Google Scholar] [CrossRef]
  36. Yang, L.; Chen, W.; Chen, Y.; Liu, W.; Lei, T.; Li, L.; Lin, M.; Wu, J.; Cao, Y.; Li, W.; et al. Copper(II) and Cadmium(II) Complexes Based on N,N-Bis(3,5-dimethyl-2-hydroxybenzyl)-N-(2-pyridylmethyl) amine Ligand: Syntheses, Structures, Magnetic, and Luminescent Properties. Z. Anorg. Allg. Chem. 2012, 638, 1833–1838. [Google Scholar] [CrossRef]
  37. O’Connor, C.J.; Eduok, E.E.; Owens, J.W.; Stevens, E.D.; Klein, C.L. The synthesis, magnetic properties, and crystal structure of two copper(II) complexes prepared from 2-aminomethylpyridine. Inorg. Chim. Acta 1986, 117, 175–181. [Google Scholar] [CrossRef]
  38. Helis, H.M.; Goodman, W.H.; Wilson, R.B.; Morgan, J.A.; Hodgson, D.J. A novel halogen-bridged system: Synthesis and structures of dibromo [2-(2-aminomethyl) pyridine] copper(II) and dibromo (2-methyl-1, 2-diaminopropane) copper(II). Inorg. Chem. 1977, 16, 2412–2416. [Google Scholar] [CrossRef]
  39. Žilić, D.; Maity, D.; Cetina, M.; Molčanov, K.; Džolić, Z.; Herak, M. Magnetostructural Characterization of Oxalamide Dihalo-Bridged Copper Dimers: Intra- and Interdimer Interactions Studied by Single-Crystal Electron Spin Resonance Spectroscopy. ChemPhysChem 2017, 18, 2397–2408. [Google Scholar] [CrossRef]
  40. Yang, J.-P.; Hu, H.-P.; Cheng, Z.-Y.; Qiu, X.-J.; Wang, C.-X. Structural insights into the coordination and selective extraction of copper(II) by tertiary amine ligands derived from 2-aminomethylpyridine. Polyhedron 2017, 128, 76–84. [Google Scholar] [CrossRef]
  41. Gentschev, P.; Möller, N.; Krebs, B. New functional models for catechol oxidases. Inorg. Chim. Acta 2000, 300–302, 442–452. [Google Scholar] [CrossRef]
  42. Grigereit, T.E.; Ramakrishna, B.L.; Place, H.; Willett, R.D.; Pellacani, G.C.; Manfredini, T.; Menabue, L.; Bonomartini-Corradi, A.; Battaglia, L.P. Structures and magnetic properties of trinuclear copper(II) halide salts. Inorg. Chem. 1987, 26, 2235–2243. [Google Scholar] [CrossRef]
  43. Kapoor, R.; Kataria, A.; Venugopalan, P.; Kapoor, P.; Corbella, M.; Rodríguez, M.; Romero, I.; Llobet, A. New Tetranuclear Cu(II) Complexes: Synthesis, Structure, and Magnetic Properties. Inorg. Chem. 2004, 43, 6699–6706. [Google Scholar] [CrossRef]
  44. Macías, B.; Villa, M.V.; Chicote, E.; Martín-Velasco, S.; Castiñeiras, A.; Borrás, J. Copper complexes with dithiocarbamates derived from natural occurring amino acids. Crystal and molecular structure of [Cu(en)(EtOH)(H2O)3][Cu(dtc-pro)2]. Polyhedron 2002, 21, 1899–1904. [Google Scholar] [CrossRef]
  45. Barnard, B.F.B. Metal-promoted reactions of 2-cyanopyridine: Iron(II), cobalt(II), nickel(II), and copper(II) complexes of O-methylpyridine-2-carboximidate. J. Chem. Soc. A Inorg. Phys. Theor. 1969, 2140–2144. [Google Scholar] [CrossRef]
  46. Cini, R.; Caputo, P.A.; Intini, F.P.; Natile, G. Mechanistic and Stereochemical Investigation of Imino Ethers Formed by Alcoholysis of Coordinated Nitriles: X-ray Crystal Structures of cis-and trans-Bis(1-imino-1-methoxyethane)dichloroplatinum(II). Inorg. Chem. 1995, 34, 1130–1137. [Google Scholar] [CrossRef]
  47. Socrates, G. Infrared and Raman Characteristic Group Frequencies: Tables and Charts, 3rd ed.; John Wiley & Sons: Chichester, UK, 2001. [Google Scholar]
  48. Pavia, D.L.; Lapman, G.M.; Kriz, G.S. Introduction to Spectroscopy, 3rd ed.; Saunders Golden Sunburst Series; Thomson Brooks/Cole: Belmont, CA, USA, 1996. [Google Scholar]
  49. Bruker AXS. APEX2—Software Suite for Crystallographic Programs; Bruker AXS, Inc.: Madison, WI, USA, 2010. [Google Scholar]
  50. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C: Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  51. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  52. Sheldrick, G.M. SADABS-2008/1—Bruker AXS Area Detector Scaling and Absorption Correction; Bruker AXS: Madison, WI, USA, 2008. [Google Scholar]
  53. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision, C.01; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  54. Perdew, J.P.; Ernzerhof, M.; Burke, K. Rationale for mixing exact exchange with density functional approximations. J. Chem. Phys. 1996, 105, 9982–9985. [Google Scholar] [CrossRef]
  55. Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Oxford University Press: Oxford, UK, 1990. [Google Scholar]
  56. Keith, T.A. AIMAll (Version 12.06.03), TK Gristmill Software; AIMAll: Overland Park, KS, USA, 2003. [Google Scholar]
  57. Cossi, M.; Rega, N.; Scalmani, G.; Barone, V. Energies, structures, and electronic properties of molecules in solution with the C-PCM solvation model. J. Comput. Chem. 2003, 24, 669–681. [Google Scholar] [CrossRef]
Figure 1. Formation of complexes 14. The hydrogen atoms are omitted for clarity.
Figure 1. Formation of complexes 14. The hydrogen atoms are omitted for clarity.
Inorganics 07 00087 g001
Figure 2. X-ray structures of [CuCl2(5-cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1), [Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2), [Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3), and [Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4). Thermal ellipsoids are shown at 50% probability level.
Figure 2. X-ray structures of [CuCl2(5-cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1), [Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2), [Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3), and [Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4). Thermal ellipsoids are shown at 50% probability level.
Inorganics 07 00087 g002
Figure 3. Bond paths and bond critical points (BCPs) in the copper compounds 14 according to QTAIM (Quantum Theory of Atoms in Molecules) analysis. Compound 2 shows the numbering of the BCPs, which is used in Table 3 for all compounds. For the color scheme of the atoms, see Figure 1.
Figure 3. Bond paths and bond critical points (BCPs) in the copper compounds 14 according to QTAIM (Quantum Theory of Atoms in Molecules) analysis. Compound 2 shows the numbering of the BCPs, which is used in Table 3 for all compounds. For the color scheme of the atoms, see Figure 1.
Inorganics 07 00087 g003

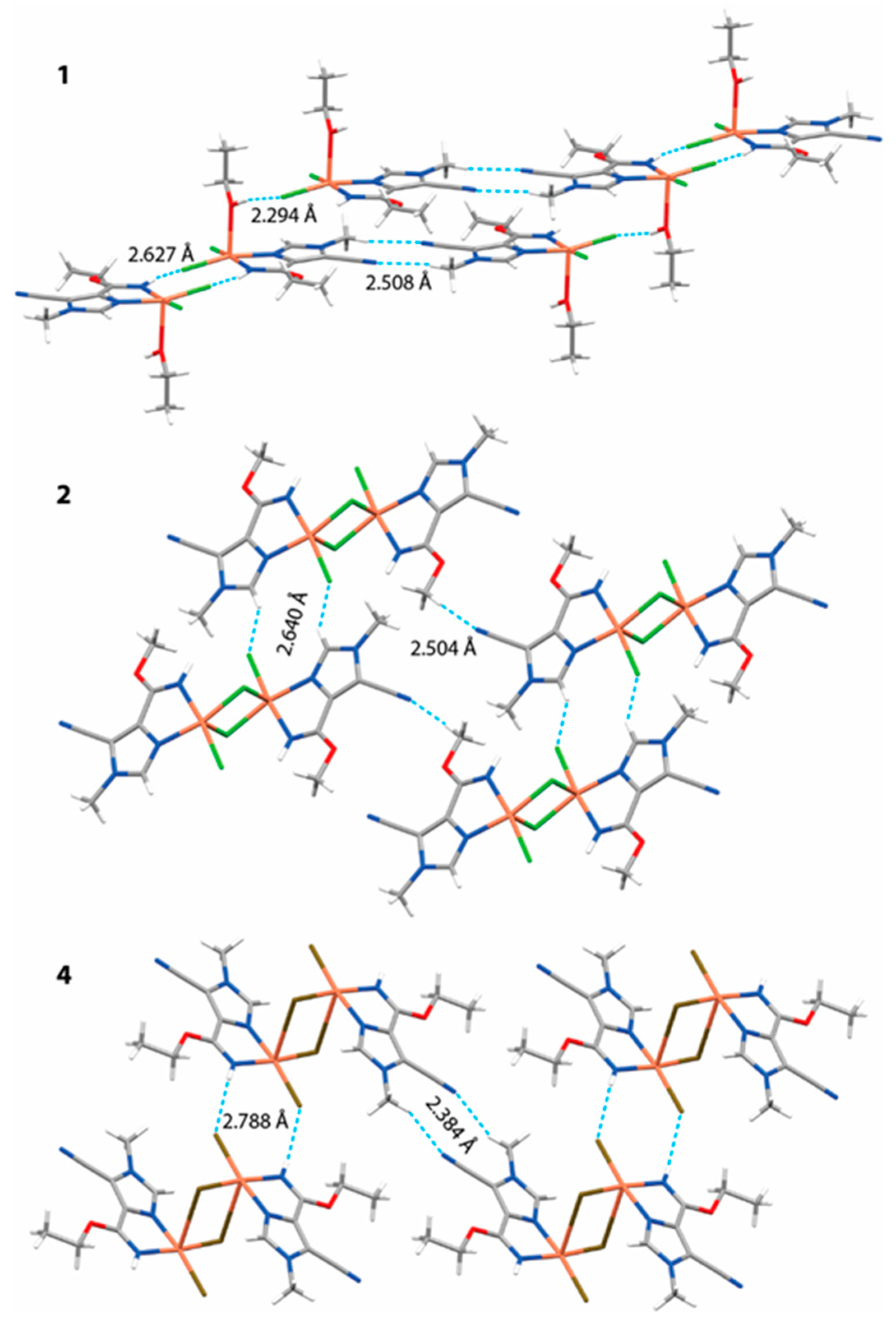

Figure 4. Packing in solid state for 1, 2, and 4. 2 and 3 have a similar type of packing.

Figure 4. Packing in solid state for 1, 2, and 4. 2 and 3 have a similar type of packing.
Inorganics 07 00087 g004
Table 1. Important geometry parameters for complexes 14.
Table 1. Important geometry parameters for complexes 14.
ParameterComplex 1Complex 2Complex 3Complex 4
Bond distance (Å)
Cu1–N12.0242.0162.0161.989
Cu1–N22.0382.0102.0122.032
Cu1–O2/X’ (ax)2.2752.7812.9443.139
Cu1–X12.2652.2502.3802.395
Cu1–X22.2522.2502.3882.387
Cu1–Cu1′-3.3953.5263.860
Angle (o)
O2/X’–Cu1–X1100.495.897.892.6
O2/X’–Cu1–X297.1100.799.7105.6
O2/X’–Cu1–N191.089.888.278.8
O2/X’–Cu1–N292.282.583.088.7
X1–Cu1–N289.889.990.3170.0
X1–Cu1–N1165.2167.9168.290.3
X1–Cu1–X296.495.895.295.8
X2–Cu1–N191.593.793.8172.3
X2–Cu1–N2167.7173.1173.493.3
N1–Cu1–N280.380.280.380.3
Cu1–N1–C5–C3−173.6173.9−172.8−168.2
τ **0.0420.0870.0850.038
** Geometry index τ = (β − α)/60o, where 0 ≤ τ ≤ 1, α and β are two largest angles (β > α); τ = 0 for an ideal square-pyramid, τ = 1 for an ideal trigonal-bipyramid [29].
Table 2. Properties of the electron density in the selected bond critical points (BCPs) for compounds 14. For the numbering scheme of the BCPs, see Figure 3. Atom numbers follow the scheme in Figure 2.
Table 2. Properties of the electron density in the selected bond critical points (BCPs) for compounds 14. For the numbering scheme of the BCPs, see Figure 3. Atom numbers follow the scheme in Figure 2.
BCP#Typeρ(eÅ−3)|V|/GEINT (kJ·mol−1)
[CuCl2(5-cyano-4-C(OEt)N-1-methylimidazole)(EtOH)] (1)
1Cu1–N20.4961.20−144
2Cu1–N10.4731.18−138
3Cu1–Cl10.5461.34−136
4′Cu1–O20.2060.97−41
5Cu1–Cl20.4931.31−119
[Cu2(µ-Cl)2Cl2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (2)
1Cu1–N20.5251.22−153
2Cu1–N10.5051.20−150
3Cu1–Cl10.4941.31−121
4Cu1–Cl1′0.1620.99−25
5Cu1–Cl20.4971.31−121
[Cu2(µ-Br)2Br2(5-cyano-4-C(OMe)N-1-methylimidazole)2] (3)
1Cu1–N20.5251.22−153
2Cu1–N10.4911.20−144
3Cu1–Br10.4341.34−90
4Cu1–Br1′0.1601.03−23
5Cu1–Br20.4401.36−91
[Cu2(µ-Br)2Br2(5-cyano-4-C(OEt)N-1-methylimidazole)2] (4)
1Cu1–N20.5261.22−155
2Cu1–N10.4961.20−144
3Cu1–Br20.4281.34−89
4Cu1–Br1′0.1441.01−20
5Cu1–Br10.4401.35−91
Table 3. The most important IR absorptions.
Table 3. The most important IR absorptions.
υ(N2–H)υ(C1–H)υ(C≡N)υ(C6=N2)υ(C5=C3)υ(C–O) υas(C–O)
υ(C5=C3)υ(C6=N2)β(N2–H) β(C1–H) υ(C5–N1) υ(N3–C2)ρ(Me)/OEt skeletal
-31262240(vs)--1316(m) *-
1328331232236(w)1644(s)1587(vs)1304(s)1007
2335931002242(w)1653(vs)1593(s)1298(s)1145
3334730972242(w)1651(vs)1591(s)1296(s)1144
4328931532245(w)1639(s)1586(vs)1302(s)1005
* there is no υ(C–O).
Table 4. The main excitations (λmax [nm] and type) according to the TD-DFT calculations for compounds 14 in acetonitrile. The experimental λmax values are given in parenthesis.
Table 4. The main excitations (λmax [nm] and type) according to the TD-DFT calculations for compounds 14 in acetonitrile. The experimental λmax values are given in parenthesis.
1234
731 (742)dd+M(X)LCT802 (807)dd+Cl(p)+CN(π)683 (698)dd+LM(X)CT722 (687)dd+LM(X)CT
399 (380)dd+Cl(p)+CN(π)406 (380)dd+Cl(p)+CN(π)511 (483)dd+Br(p)+CN(π)499 (483)dd+Br(p)+CN(π)
315 (303)dd+LM(X)CT314 (303)dd+LM(X)CT
255 (256)LM(X)CT255 (255)LM(X)CT275 (259)M(X)LCT+LL269 (259)M(X)LCT+LL
Table 5. Crystal data and structure refinement for 14.
Table 5. Crystal data and structure refinement for 14.
1234
Empirical formulaC10H16Cl2CuN4O2C14H16Cl4Cu2N8O2C14H16Br4Cu2N8O2C8H10Br2CuN4O
Fw (g·mol–1)358.71597.23775.07401.56
Crystal systemTriclinicTriclinicTriclinicTriclinic
Space group P 1 ¯ P 1 ¯ P 1 ¯ P 1 ¯
a (Å)5.6535(5)7.1887(4)7.3978(2)7.3737(9)
b (Å)10.3149(8)7.4368(5)7.6151(2)8.4147(11)
c (Å)13.5498(10)10.5356(7)10.7043(3)10.6554(14)
α (o)108.336(3)82.585(3)81.023(2)83.614(5)
β (o)95.921(3)89.776(3)88.684(2)76.079(5)
γ (o)98.615(3)84.799(3)84.835(2)75.706(5)
Z2112
ρcalc (Mg·m–3)1.6271.7832.1702.148
μ(Mo Kα) (mm–1)1.8592.4218.5568.178
F(000)366298370386
θ range for data collection (o)1.604 to 29.0001.949 to 29.9991.926 to 28.9981.972 to 26.998
Refl. collected28668240422010918426
Independent refl.3882 [R(int) = 0.0514]3229 [R(int) = 0.0466]3143 [R(int) = 0.0703]2728 [R(int) = 0.0767]
GOOF on F21.0231.0501.0791.024
Final R indices [I>2σ(I)] aR1 = 0.0363, wR2 = 0.0813R1 = 0.0295, wR2 = 0.0707R1 = 0.0546, wR2 = 0.1000R1 = 0.0349, wR2 = 0.0668
R indices (all data)R1 = 0.0541, wR2 = 0.0878R1 = 0.0438, wR2 = 0.0753R1 = 0.0724, wR2 = 0.1068R1 = 0.0709, wR2 = 0.0771
aR1 = Σ||Fo|−|Fc||/Σ|Fo|; wR2 = [Σ [w(Fo2Fc2)2]/Σ[w(Fo2)2]]1/2.
