Experimental Study of Fine Particle Separation in a Multichannel Cyclone with Curvilinear Design and Theoretical Assessment Under Harsh Microclimatic Conditions

Abstract

Contaminated gas flows are encountered in most industrial processes and require efficient removal of fine dispersed particles of various types and characteristics. Conventional cyclones are widely used under harsh operating conditions; however, their separation efficiency for fine particulate fractions remains relatively low. In this study, next-generation cyclones with a multichannel design featuring cylindrical and spiral casings are investigated, enabling particle collection efficiencies of approximately 90% for particles with a diameter of 2 µm. Under harsh microclimatic conditions—particularly at high humidity levels of 70% or higher and elevated temperatures of 50 to 200 °C—such technology is prone to clogging, necessitating complex regeneration procedures. Recent research has focused on improved channel geometries incorporating secondary peripheral flows, adapted for gas cleaning in harsh environments. Experimental results demonstrate effective removal of fine-dispersed glass and clay particles up to 20 µm in size at initial concentrations of 0.5–15 g/m³. The theoretical assessment of the influence of harsh gas flow conditions includes analyses of critical flow characteristics and the mechanical forces acting on fine particles under varying temperature and humidity conditions. The results indicate a maximum purification efficiency of up to 87.3% with an aerodynamic pressure drop of 440 Pa. The impact of harsh microclimatic conditions is most pronounced in the magnitudes of the centrifugal and drag forces: with an increase in the gas flow temperature by every 50 °C within the range from 0 to 200 °C, these forces increase by factors of 7.3–32.7 and 4–6.3, respectively.

1. Introduction

Cyclone separators are widely used to remove particles (dust) from gas flows due to their simple design, low operating costs, and ability to operate under extreme conditions. Their principle is based on the creation of a vortex gas flow: centrifugal forces carry the particles toward the chamber walls, from where they are collected in a hopper. Such devices are suitable for operation at elevated temperatures and pressures, as well as in harsh environments (acids, abrasive gases). Numerous studies show that, despite its apparent simplicity, the flow within a cyclone exhibits a complex, unsteady vortex that is sensitive to geometry and operating conditions. This necessitates integrating experimental data, theoretical models, and numerical simulations to evaluate and optimize cyclone performance [1,2,3,4,5,6].

For modern gas flow purification technologies, particle capture efficiency, including that of fine particles, is particularly important. Cyclones effectively separate large particles (typically larger than 5–10 μm), but their efficiency decreases as particle size decreases. As noted in the literature, cyclones can capture particles with diameters greater than 10 μm almost completely. In contrast, droplets or particles smaller than this size are difficult to remove using standard methods. Special measures are being developed to improve the capture of fine particles. For example, the introduction of a spray agglomeration system upstream of the cyclone filter increases the effective particle size due to droplet agglomeration (which could be used for both dry and wet post-treatment approaches). Researchers also describe designs with multi-stage separation or built-in filters, which improve the removal of ultrafine particles. However, device geometry and flow conditions remain the primary determining factors: for particles of approximately 5 μm or smaller, it is often advisable to combine cyclones with other methods (electrostatic precipitation, chemical coagulants, etc.) [7,8,9,10,11,12,13].

It has been experimentally confirmed that increasing particle moisture (i.e., the presence of water droplets or an adhesive layer) alters the separation characteristics. Thus, a study of an axial cyclone revealed that as material moisture increases, fine particles tend to agglomerate, increasing the fraction of large particles and thereby enhancing both the overall efficiency and the classification of large fractions. In particular, capture efficiency increases with increasing humidity for larger particles (>10 μm), whereas for smaller particles, the trend may be the opposite. Thus, the humidity of the operating environment can play a dual role: it accelerates the deposition of droplets and condensed particles, but can also cause additional pressure losses and unpredictability. Specific experimental results show that, all other conditions being equal, sequential humidification of the material leads to a significant increase in the proportion of large particles (due to aggregation). This feature is used in some systems that inject water or monomers upstream of the cyclone (wet cyclone separation) [14,15,16,17].

The traditional design of the cyclone separator has been extensively studied, both experimentally and theoretically. Therefore, most research focuses on investigating the qualitative properties of the technology with the view of geometrically optimizing the design. The geometry of the cyclone is a key factor in determining the separation characteristics and aerodynamic losses. Numerous studies have been devoted to optimizing the dimensions and shapes of cyclone components (the inlet nozzle section, the cylindrical section, the inner tube, the “vortex retainer”, and the cone). Thus, in a hybrid Computational Fluid Dynamics (CFD)–Discrete Element Method (DEM)–Artificial Neural Network (ANN) study, researchers analyzed the parameters of the inlet aspect (the ratio of the height to the width of the inlet slot), the diameter of the vortex retainer, and the height of the cylinder. Increasing the diameter or length of the vortex generator intensifies the “double-vortex” (Rankine-type) flow and creates additional secondary flows, ultimately reducing separation efficiency. The study also identified the optimal input aspect ratio at which a balance between pressure and particle removal is achieved. The authors conclude that optimization requires consideration of parameter interactions: for example, increasing the cross-sectional area without adjusting other dimensions reduces efficiency due to decreased vorticity [18,19].

Many studies applied multi-criteria optimization (ANOVA, MOGA), semi-empirical models, and machine-learning prediction to obtain a set of compromise solutions that increase efficiency without a significant change in factors such as pressure drop or energy consumption, among others. Such a statistical methodology, analogous to industrial optimization, allows the identification of effective geometries without exhaustive search [20,21,22,23,24,25].

Optimization studies are also conducted in multistage cyclone systems and designs with additional obstacles. For example, Ayli and Kocak (2024) modeled a two-stage nested cyclone with inner and outer housings, equipped with a baffle [1]. Changing the position of this baffle radically alters the velocity distribution and pressure field. When it is moved closer to the inlet of the inner cyclone, the low-velocity zone (which aids in particle capture) expands, and the symmetry of the pressure drop is enhanced. However, the height of the partition has a smaller effect: it only slightly increases the pressure difference as the height increases, and the efficiency first increases and then falls (by only about 10%). Such studies provide practical recommendations: for internal multistage systems, it is advantageous to position the partition closer to the inlet to expand the low-pressure zone and improve separation [26,27].

Some innovations are also being investigated in specialized designs. For example, insertion pipes beneath the vortex generator were analyzed. It turned out that divergent and convergent inserts affect the flow differently: a longer insert and a larger angle of inclination expand the central low-pressure zone, while a divergent tube typically increases pressure losses. In particular, the convergent insert demonstrated better performance for very fine particles (≤5 μm). In comparison, the divergent insert performed better for larger particles (>5 μm), allowing for a reduction in pressure drop without compromising efficiency [28,29,30].

In most cases, technological processes on modern production lines take place under non-standard operating conditions that are most favorable from a technical, energy, and/or environmental standpoint. Cyclone separators are not only used under standard temperature and pressure conditions; they are widely employed in harsh, aggressive, or extreme environments. As noted in the reviews, its design can be adapted for high temperatures (hundreds of °C and above) and high pressures by selecting heat-resistant materials and structural calculations. Examples include cyclone heat exchangers in the cement industry or gasification plants. CFD capabilities have been tested in such applications, for example, in the work by Nakhai et al. (2020), which systematically reviewed studies of cyclones at different temperatures [2]. They emphasized that at high temperatures, the gas’s properties (viscosity, density) change, which affects pressure drop and efficiency. In particular, high temperatures decrease gas density, thereby reducing particle inertia and making it more difficult to retain very fine particles.

A corrosive environment (acidic or abrasive gases) usually leads to corrosion and wear. A research example—cleaning of oxygen-regeneration flue gases in metallurgy, Zhang et al. (2016)—demonstrated that a special high-precision cyclone can simultaneously capture hydrochloric acid (HCl) vapors and iron oxides [31]. At gas velocities of 5–10 m/s, the separation efficiency for HCl and Fe₂O₃ exceeded 80–90%. This demonstrates that a properly designed cyclone, accounting for the mixture’s aggressiveness (acid-resistant materials and an air-cooled design), can handle such tasks. At the same time, the dynamics of the parameters are similar: the efficiency first increases with pressure drop and then decreases (saturation effect).

Another factor is the corrosion and wear of the cyclone walls. Studies show that separators are particularly susceptible to abrasive wear at the inlet nozzle and cone. Researchers compared a standard cyclone or liquid-jet separator made of different materials with a modified device featuring curvilinear elements, demonstrating that the rate of wall wear increases with particle size. When the average particle diameter exceeds 40 µm, erosion increases significantly and, with very large particles, it reaches the lower part of the housing. Therefore, when designing for corrosive environments, it is important to consider the need for more durable coatings or configurations that reduce particle-wall collisions (e.g., special vortex separators that reduce peak loads) [32,33,34,35].

High gas-phase humidity is also an atypical operating condition for dry cyclones. As noted previously, high relative humidity leads to the formation of water condensate and droplets, thereby altering aerodynamics. One of the latest developments is the use of spray agglomeration: a liquid is sprayed at the chamber inlet, which “coalesces” fine particles into droplets, after which the now-coalesced particles are more easily collected by the cyclone. Such technologies enable improved capture of particulate matter (PM) with diameters up to 10 µm (PM10) and 2.5 µm (PM2.5) from moist smoke emitted by industrial facilities [36,37].

Theoretical cyclone models are based on the Navier–Stokes equations under various approximations. These models are easy to use but do not account for complex flow characteristics. Therefore, as computational capabilities have grown, numerical methods have been developed. Three-dimensional gas-flow modeling that accounts for solid-phase particles allows for detailed tracking of vortices and trajectories. At the same time, non-conventional operating conditions necessitate consideration of additional factors, including aggressive environments (chemically active solutions and mixtures, abrasive particles), as well as elevated temperatures and humidity. Modern modeling approaches, such as CFD, CFD–DEM, and machine-learning techniques, successfully capture these effects and are widely applied in the design of advanced separators [38,39,40,41].

Thus, contemporary research on cyclone separators encompasses a broad spectrum of methods and conditions, ranging from classical experimental studies to numerical simulations of complex unsteady flows and multi-objective optimization. The results obtained enable the development of designs with enhanced separation performance, including fine particles and humid environments, while maintaining acceptable energy consumption, ensuring the continued relevance of cyclone technology in emerging industrial applications.

1.1. Particle Separation Under Harsh Microclimatic Operating Conditions

Traditional cyclones have long been used for dust flows of various origins under normal dry-cleaning conditions. However, they are not particularly effective at cleaning gases, especially those contaminated with low-dispersion pollutants (up to 20 μm in diameter). The latter operates on the widely used principle of particle separation in a cyclone separator, with a cleaning efficiency of 75–85% and a cleaned gas flow free of particles larger than 20 microns in diameter. This is not sufficient to achieve the objectives of the Revised European Union (EU) Ambient Air Quality Directive (2024) (Directive 2024/2881), requiring compliance with the concentrations of bigger particles (PM10) and smaller particles (PM2.5)—stronger than earlier regulations from European countries’ legislation and worldwide [42,43,44].

Purification of dust-laden gases under conditions of elevated temperature, high humidity, and increased pressure represents one of the most challenging tasks in industrial gas cleaning. These conditions simultaneously intensify particle agglomeration, equipment corrosion, growth of hydraulic resistance, and the degradation of filtering materials. For example, a ceramic filter for dry scrubbing of syngas is used at an operation temperature up to 400 °C and a differential pressure of 1–2 kPa [45]. Gas economizer technologies for recovering waste heat from exhaust gases are among the most widely used systems, with gas humidity reaching 80% and temperatures up to 70 °C [46]. Electrostatic precipitation systems combined with molecular sieves are also well known, in which the gasification process is carried out at humidity levels of up to 45% [47].

During the purification of the gas flow at elevated temperatures (50–200 °C), high relative humidity (>95%), and increased pressure, the mechanisms of filtration, the structure of the dust cake, and the service life of the equipment undergo significant changes. Increased gas viscosity and thermal sintering of deposited particulate matter, resulting in higher hydraulic resistance and unstable pressure drop across filtration systems [48]. Condensation-capillary effects under high humidity conditions, leading to particle agglomeration, pore blockage, and accelerated corrosion of filtering elements [49]. Under elevated pressure, gas density and mechanical load on the ceramic candle filters increase, affecting regeneration efficiency and the material’s fatigue strength [50]. The combined effects of temperature, moisture, and pressure accelerate the thermochemical degradation of porous materials and shorten the operational lifetime of gas-cleaning systems, particularly in biomass gasification and hot syngas cleaning processes.

Multi-channel cyclones are widely used in non-harsh operating conditions to capture fine particles ranging in size from 1 μm. Their action is based on the fact that the contaminated dust flow, passing through the cyclone channel system, is cleaned of the contaminating particles not only under the action of centrifugal forces, but also by additionally trapping part of the particles formed by a “gas flow curtain” and directing the contaminants into the segmented slots of the separation chamber [51,52,53,54]. Traditional and multi-channel cyclones are more suitable for removing sticky particles from gas flows. However, under certain conditions—high humidity, elevated temperatures, and chemical compounds in the gas flow—they can become clogged, and the cleaning process stops. Their regeneration is practically impossible. Therefore, operation in such conditions requires additional scientific evaluation of cleaning equipment with the introduction of design improvements. In the most widely used traditional and multi-channel cyclones, the uniformity of gas cleaning from particles is determined by particle interactions with flow-limiting surfaces. The sediment layers of particles that form on surfaces also affect flow, altering the particle deposition mechanism and reducing particle capture efficiency [55,56].

During the movement of moist gas flow in cyclone channels, sediment layers are formed. This phenomenon is analyzed as the elastic rebound of contaminant particles and their adhesion to the surface, the magnitudes of the forces from these two factors, and a comparison of these forces. The ratio of these forces is directly proportional to the diameter of the particles to the third power. Thus, for small particles that interact with the surface, the forces of adhesion and cohesion are significant. Studies have shown that even in a rectangular channel, intensive particle sedimentation occurs on the surface. Small particles are those carried along with the flow due to turbulent pulsations.

At the first stage of particle sedimentation, monolayers of small particles form, which level the surface and create a laminar gas flow, characterized by a low dispersing effect on the sediments. As sediment accumulates, larger particles can penetrate this layer and destroy these formations. When contaminated gas flow enters the cyclone separation chamber, agglomerates of small particles at the structure’s outlets hit the walls and stick to them. In this case, depending on the mass of these agglomerates and their location in the cyclone cross-section, adhesion will be uneven, leading to irregularities on the surface.

Despite the theory, large cyclones are capable of depositing even small particles, since additional inertial forces act near the surface, which arise during turbulent particle transport at large gradients of particle pulsation velocities directed towards the surface. In large cyclones, due to lower centrifugal accelerations near the surface of confining flows, the adhesion of agglomerates consisting of small particles is less likely [57].

1.2. Concept and Aim of Study

This study presents an analysis of gas flow dynamics under harsh microclimatic operating conditions in next-generation cyclone separators with varying geometries. Variations in aerodynamic flow parameters in curvilinear channels were examined as a function of the positioning of internal structural elements. The fractional deposition of fine particles of different origins was established by implementing secondary peripheral flow modifications, and a comparative assessment was conducted against configurations employing continuous structural geometries. A theoretical evaluation was performed to quantify changes in key mechanical forces acting on particles—centrifugal, gravitational, and adhesive—as functions of aggressive gas microclimate parameters, including elevated temperatures of up to 200 °C, increased humidity of up to 95%, and increased flow turbulence due to pressure drop. The influence of these forces on gas cleaning efficiency was analyzed, revealing particle distribution patterns and identifying optimal design solutions to improve separation performance under extreme operating conditions.

The aim of the study is to experimentally and theoretically evaluate changes in the operating parameters of a multi-channel cyclone with a different design under harsh microclimatic conditions, based on characteristic ratios. We determine and compare changes in the aerodynamic parameters of the gas flow, the acting particle forces, and the separation efficiency.

2. Materials and Methods

The operating principle of this type of technology can be concisely described as follows. A two-phase flow (gas-particles) enters tangentially through the inlet and enters the separation chamber, the first channel of the cyclone, which is bounded by the peripheral wall and the first curvilinear elements (curved quarter ring). The flow, flowing out of the previous channel, collides with a semi-ring wall (edge) and divides into two flows, peripheral and transit. Part of the peripheral flow enters the previous channel, filtering the contaminated flow with the reverse flow. The transit flow then enters the next channel along the device axis and exits the cyclone. Thus, the gas flow is distributed through channels of varying curvature and filtered through the gaps between the semi-rings.

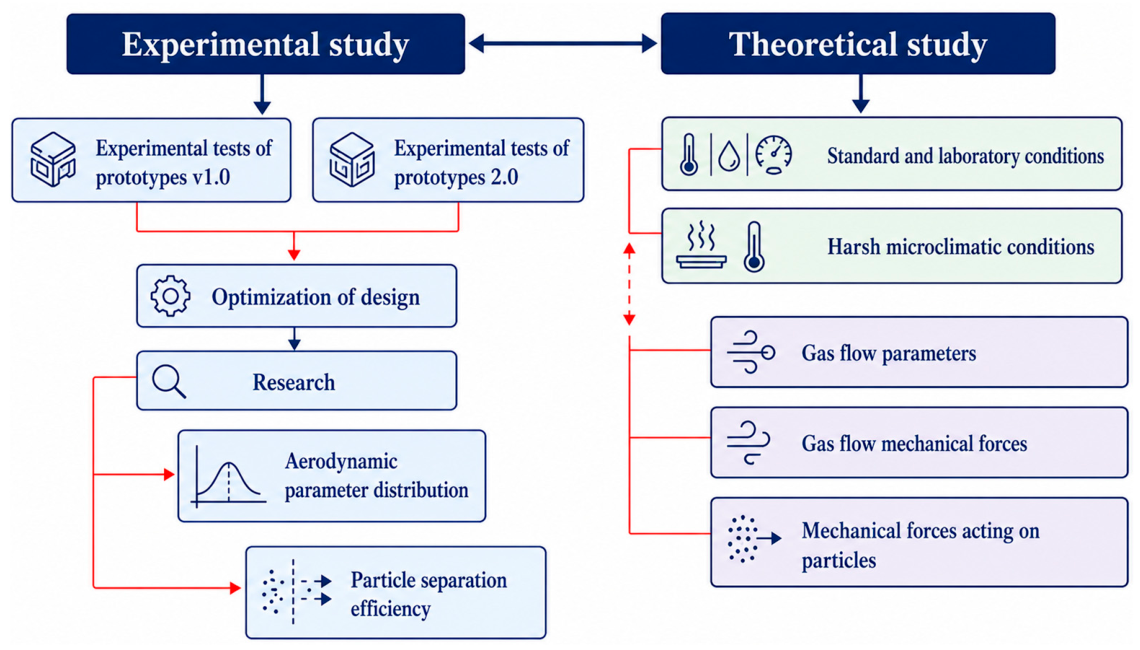

A short general flowchart of the study is presented in Figure 1.

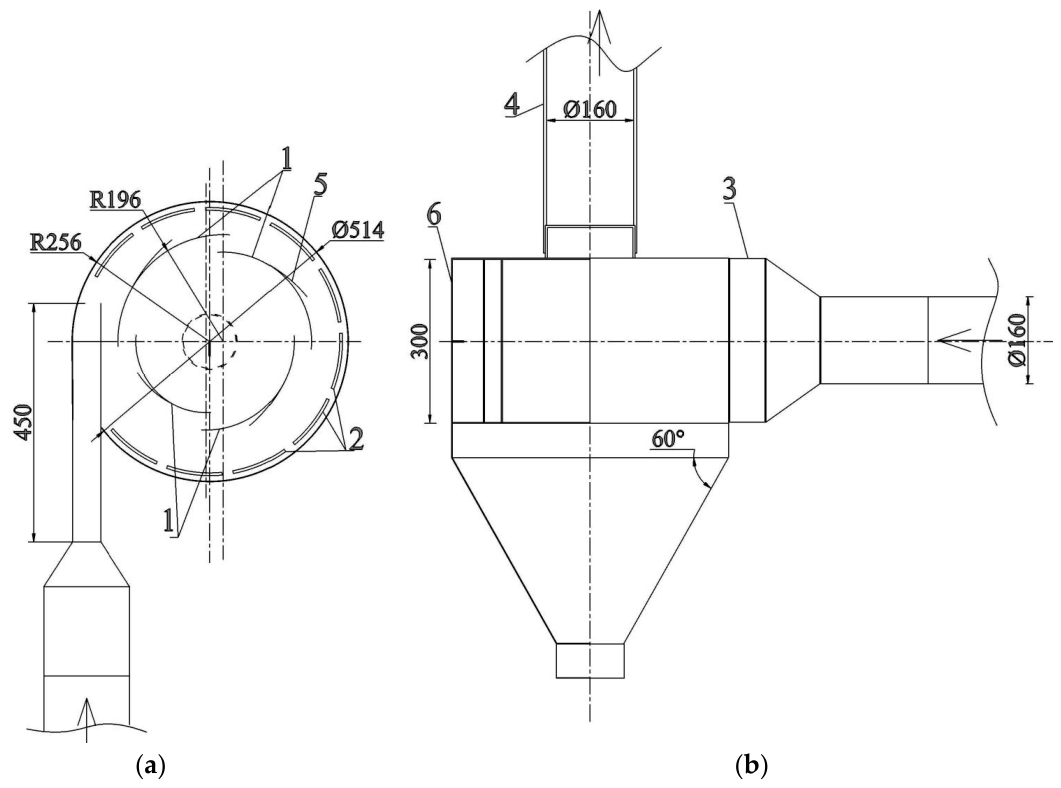

Sketches of the multi-channel cyclone are presented in Figure 2. Under the action of centrifugal forces generated by the vortex flow and the resulting filtration effect in the flow separation zone, particles settle and accumulate in the cyclone hopper, entering it through segmented ring slots.

For both the comparative experimental and theoretical investigations, an even more advanced version of the multichannel geometry was used, as shown in Figure 3. The operating principle remains similar. However, in this prototype, the number of interconnections between channels has been multiplied by incorporating openings into the internal curvilinear quarter-rings, forming elements instead of semi-rings. This design promotes greater recirculation of residual particle flow from the internal channels to the external ones. Additionally, this configuration is significant for hydrothermal dilution and for extending filtration time under harsh microclimatic operating conditions.

Mechanical Impact of Harsh Microclimatic Conditions on Particles in a Cyclone Separator Channel

The purified gas flow that has passed through all the cyclone channels exits the system through the gas flow outlet. The dusty gas flow is filtered in the active zone of the channels, and, as a result of particle interactions during coagulation, the particles are removed. The effect of humidity on gas flow parameters. Humidity is the amount of water vapor in the gas phase.

The partial pressure of this water vapor in the gas flow does not exceed the saturated vapor pressure under certain gas flow conditions. The water vapor formed in the gas flow reduces its density, since the molar mass of water (18 g/mol) is lower than that of the dry gas (29 g/mol). A wet gas/vapor flow can be considered an ideal mixture of gases, with the density of each component equal to the required mixture density. Thus, the density can be determined with an error of less than 0.2% over the temperature range from −10 to 50 °C. The theoretical assessment considered cases where the temperature varied from 0 to 200 °C and the humidity from 0 to 70%, respectively. It is assumed that the gas flow temperature is inversely proportional to its humidity.

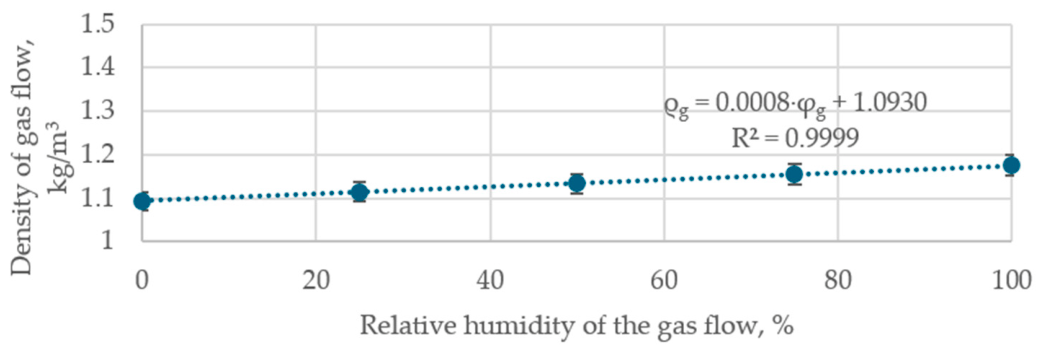

The relationship between the density of the wet gas flow and the parameters of the harsh environment is described by the following Equation (1):

$${\rho }_{wg}={\displaystyle \frac{p_{dg}}{R_{dg}\cdot T}}+{\displaystyle \frac{p_{wv}}{R_{wv}\cdot T}},$$

(1)

The following applies to Equation (1): ρ_wg—density of the wet gas flow, kg/m³; p_dg—partial pressure of the dry gas flow, Pa; R_dg—gas constant for the dry gas, equal to 287.058 J/(kg·K); T—pressure of temperature, K; p_wv—water vapor, Pa; R_wv—gas constant for water vapor, equal to 461.495 J/(kg·K).

The water vapor pressure can also be calculated based on relative humidity, as in Equation (2):

$$p_{wv}=\phi \cdot p_{\mathrm{sat}.\mathrm{wv}},$$

(2)

The following applies to Equation (2): p_wv—water vapor pressure; φ—humidity ratio; p_sat.wv—partial pressure of saturated water vapor, which can be calculated using the following Equation (3):

$$p_{sat.wv}=6.1078\cdot e^{{\displaystyle \frac{17.08085\cdot t}{234.175+t}}},$$

(3)

The following applies to Equation (3): t—water vapor temperature, °C.

When the environment changes, the forces acting on particles in a moving gas flow also change. When gas and particles move through the cyclone channels, a pressure force (resistance force) acts on the particles, causing them to move in a horizontal flow. The pressure force on a particle in a gas flow can be calculated using Equation (4):

$$F_{pr}=cS\rho {\displaystyle \frac{{\overline{u}}^2}{2}},$$

(4)

The following applies to Equation (4): c—particle pressure coefficient; ρ—gas flow density, kg/m³; S—cross-sectional area of the moving particle, m²; $\overline{u}$—mean gas flow velocity, m/s.

The change in pressure force due to operating parameters under harsh environmental conditions was estimated in similar cases by calculating the gas flow density.

The force generated by the gas flow acting on a particle is proportional to the square of the gas flow velocity, i.e., F~v². Thus, when the gas flow velocity in the cyclone decreases, the force decreases by a factor of two. For this reason, the separation of particles from the surface decreases significantly with the distance from the cyclone inlet and practically disappears at a distance of 10–15 mm.

The centrifugal force acting on a particle characterizes the magnitude of the force to which a characteristic particle is subjected when it moves in the cyclone channel around the axis of the device. The magnitude of this force is determined by the inertia of the moving particle, since the direction of its movement in a multi-channel cyclone is constantly changing. The magnitude of this force is calculated using Equation (5):

$$F_c={\displaystyle \frac{\frac{4}{3}\pi {\rho }_d{r}_p^3{v}^2}{r_{cs}}},$$

(5)

The following applies to Equation (5): ρ_p—particle density, kg/m³; r_p—particle radius, m; v—gas flow velocity, m/s; r_cs—radius of the cyclone channel, m.

The gas flow moving in a multi-channel cyclone is turbulent. Hence, the drag force Equation (6) is as follows:

$$F_d=0.173d_p^2(u-v{)}^2\rho ,$$

(6)

The following applies to Equation (6): µ—dynamic viscosity coefficient; u—gas flow velocity in the cyclone, m/s; v—particle velocity in the cyclone, m/s; d_p—particle diameter, m.

Using the ratio of dynamic and kinematic viscosity coefficients µ = νρ, Equation (6) for the drag force to a turbulent gas flow can be written as follows (Equation (7)):

$$F_d=0.173d(u-v)\mathit{Re}\mu ,$$

(7)

When a particle moves through the cyclone channel, it is affected not only by the centrifugal forces of the gas flow but also by the gravitational forces of the particles themselves, which have mass. This force changes the trajectory of the particles, causing them to be separated from the gas flow and deposited in the cyclone hopper. The standard expression of the force of gravity acting on the body under consideration was used for the assessment (Equation (8)):

$$F_{gr}=4{\displaystyle \frac{\pi {\left(\frac{d_p}{2}\right)}^3}{3}}\cdot {\rho }_d\cdot g,$$

(8)

It is assumed that the density of the particles is 1000 kg/m³ and that the particles are spherical in shape. The gravitational force acting on particles measuring 1, 2.5, 5, 10, and 20 micrometers was evaluated.

Adhesion phenomena occur when bodies come into contact and result from molecular interactions, as when a particle comes into direct contact with a surface. The adhesive force depends on the contact surface area, since molecular interactions are proportional to it.

Detachment of finely dispersed adhered particles from the surface under the action of a gas flow occurs in several stages. First, the larger upper particles detach, followed by the smaller ones, i.e., the adhesive forces of the layer are overcome. The detachment of the upper particles is possible when F_adh > F_cohesion. The detachment of particles due to self-adhesion forces is called erosion. When F_adh < F_cohesion, the layer detaches along its surface, i.e., its boundary. In this case, the adhesive forces are overcome, and this process is called denudation.

Despite electrical and capillary forces, the true shape of particles, and other factors, the magnitude of the adhesive force is expressed by the dependence:

$$F_{adh}={\displaystyle \frac{h\omega }{16\pi z_0^2}}{d}_p={\displaystyle \frac{h\omega }{8\pi z_0^2}}{r}_d,$$

(9)

The following applies to Equation (9): hω—Lifshitz–van der Waals constant, J; z₀—distance between the particle and the plane surface at which adhesion forces are maximal; r_p—particle radius, m.

Studies have shown that at a distance of 4 × 10⁻¹⁰ m, the adhesive force is at its maximum and equals the following:

$$F_{adh}=2.4\cdot 10^{-7}{r}_d,$$

(10)

The adhesive force decreases proportionally to the square of the surface area. Therefore, small particles have a larger surface area than large particles, and their adhesive force is greater than that of large particles. For this reason, less force is required to detach large particles from the surface than to detach small dispersed particles. Therefore, large particles detach from the surface more easily and at lower gas flow rates.

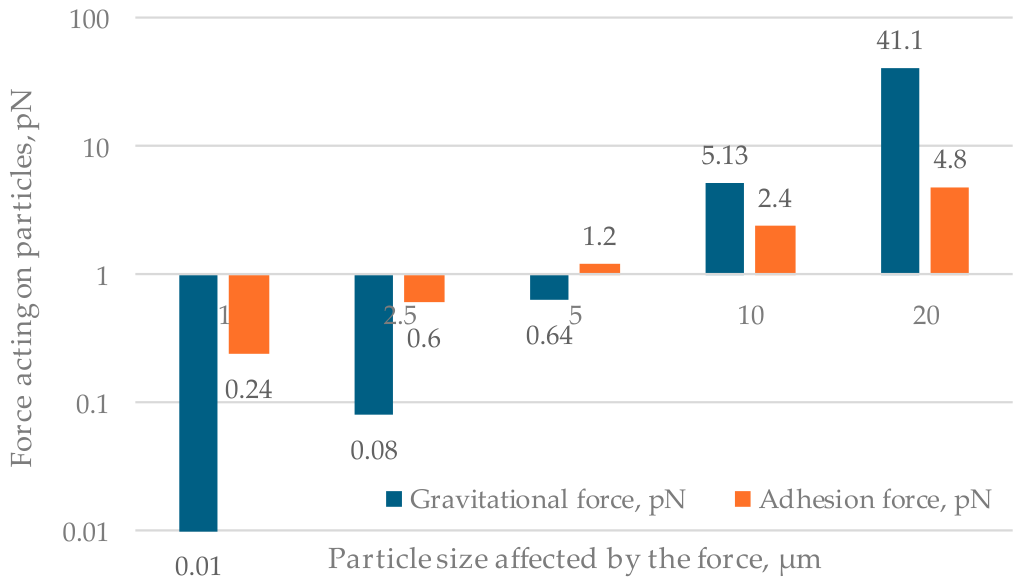

Adhesion forces were estimated for particles with sizes of 1, 2.5, 5, 10, and 20 μm, assuming that the adhesion force is maximum in all cases.

The experiments confirm the structural performance under standard laboratory conditions, and the obtained results are used as input parameters for calculating the theoretical characteristics of the gas flow and mechanical forces under harsh microclimatic conditions. Aerodynamic studies of dynamic pressure resistance were conducted using a single-phase gas flow. The cyclone gas cleaning efficiency was evaluated by introducing dried glass and clay particles up to 20 µm in size. Prior to testing, the solid particles were sieved using a Roto-shake RS 12 (C. Gerhardt GmbH & Co. KG, Konigswinter, Germany) sample shaker. During the experiments, Glenammer (Ayr, UK) sieves with mesh sizes of 900, 200, 50, and 20 μm were used. Dynamic gas flow pressures were measured using a Pitot–Prandtl tube connected to a multifunctional Testo-400 meter (Testo, Titisee-Neustadt, Germany) (temperature measurement range: 20–70 °C, accuracy ±0.2 °C, velocity measurement range: 1–30 m/s, accuracy ±0.05 m/s, dynamic pressure measurement range: 1–2000 Pa, accuracy ±0.5 Pa). Openings in the covers of the cyclone separation chambers allowed the insertion of the dynamic pressure measurement tube at critical locations: in the semicircular and peripheral boundary layers, 2 mm from the surface of each curvilinear semicircle, in the first channel, and in the inter-ring gap (at the midpoint of the distance). The measured axial dynamic pressure corresponded to the sixth channel. The aerodynamic resistance of the six-channel cyclone (pressure difference between the inlet and outlet static pressures) indicates the pressure loss experienced by the gas flow through the multichannel cyclones. Aerodynamic resistance was investigated using multifunctional meters equipped with differential pressure sensors (“Testo 440 dP”). Technical data of the Testo 440 dP multimeter: measuring ranges of 0–50 m/s, −20–+70 °C, 5–95% RH, and 700–1100 hPa; accuracy ± (0.03 m/s + 4% of the measured value (m.v.)) (0 to 20 m/s), ±0.5 °C (0 to +70 °C), ±3.0% RH (10 to 35% RH) and ±2.0% RH (35 to 65% RH), and ±3 hPa; resolution 0.01 m/s, 0.1 °C, 0.1% RH, and 0.1 hPa.

Dynamic and static pressure tests were repeated at least five times over periods of no less than 30 s, during which the measured values varied by no more than ±3%, in order to avoid systematic errors and reduce the uncertainty in the averaged test results. The standard deviation was calculated using the traditional method and is indicated alongside the numerical values of the results; the confidence intervals are presented in the figures based on the ranges of variation in the results.

For the cylindrical cyclone, the maximum flow rate was selected corresponding to an inlet velocity of 21.9 m/s. In the spiral cyclone, an axial fan was installed, for which gas flow regulation is not provided; therefore, a nominal performance was chosen, corresponding to an inlet velocity of 17.8 m/s. Three positions of the curvilinear semicircular elements were investigated (Figure 2, denoted Positions I, II, and III), and dynamic pressure and aerodynamic resistance measurements were made accordingly. This adjustment procedure was designed to determine the optimal semicircle arrangement to achieve the best aerodynamic characteristics of the device and the purification efficiency of the gas flow. During the adjustment, the semicircular elements were displaced 10 mm to the left for Position I and 10 mm to the right for Position III relative to the reference Position II (Figure 2). The adjustments involved repositioning the second semicircle to 175 mm radius in the cylindrical cyclone and 100 mm in the spiral cyclone; the third semicircle to 160 mm and 90 mm, respectively; and the fourth semicircle to 130 mm and 72 mm.

For the experimental determination of the efficiency of the six-channel cyclone in cleaning contaminated gas flows, the typical particles typical of the construction and materials processing industries were selected. To feed particles into the inlet gas flow for efficiency tests, a Palas RBG 1000 solid particle disperser (Palas, Karlsruhe, Germany) was used to generate and inject a polluted gas flow from powders as a simulated emission source. The concentrations of particles were quantified using the Welas digital 3000 H instrument, both upstream and downstream of the cyclone-separator installation. The removal efficiency of the technology was studied on the concentration of particulate matter. The mass concentration was only used to determine the dosage, that is, the number of particles delivered to the inlet gas duct. Particle concentration tests were repeated at least ten times over periods of no less than 60 s, during which the measured values varied by no more than ±5%, in order to avoid systematic errors and reduce the uncertainty in the averaged test results. Laser sensors were used in the pre- and post-cleaning sections to capture samples and quantify the particle size composition. A detailed grain composition of the tested particulate matter is presented in

Table 1. Particle dispersion content.

Parameter	Glass	Clay
Particle diameter at 10% cumulative volume, µm	2.66	1.95
Particle diameter at 50% cumulative volume, µm	9.26	7.52
Particle diameter at 90% cumulative volume, µm	18.58	16.25
Median diameter, µm	10.02	8.95

.

The bulk density of the glass sample was 1650 kg/m³, and the particle density was 2430 kg/m³. The bulk density of the clay sample was 1350 kg/m³, and the particle density was 2560 kg/m³. The bulk density of the particles was determined by freely pouring the powder through a funnel into a calibrated container, followed by calculation of the mass-to-volume ratio. The particle density was determined by liquid pycnometry. The method was based on measuring the volume displacement of a liquid by a known mass of particles. Particle shapes and surface visual characteristics (Figure 4) were made using a JEOL JSM-7600F (Tokyo, Japan) scanning electron microscope. A Quorum Q150R ES (Laughton, East Sussex, United Kingdom) was used to coat the samples with metal and carbon. Low-aberration zoom lenses allowed for a stable high-definition image even at high light beam induced current (N200 nA at 15 kV). With these, highly precise analyses of nanostructures could be performed. The device magnification ranged from 25 to 10⁶ times, at a spatial resolution of up to 1 nm at 15 kV.

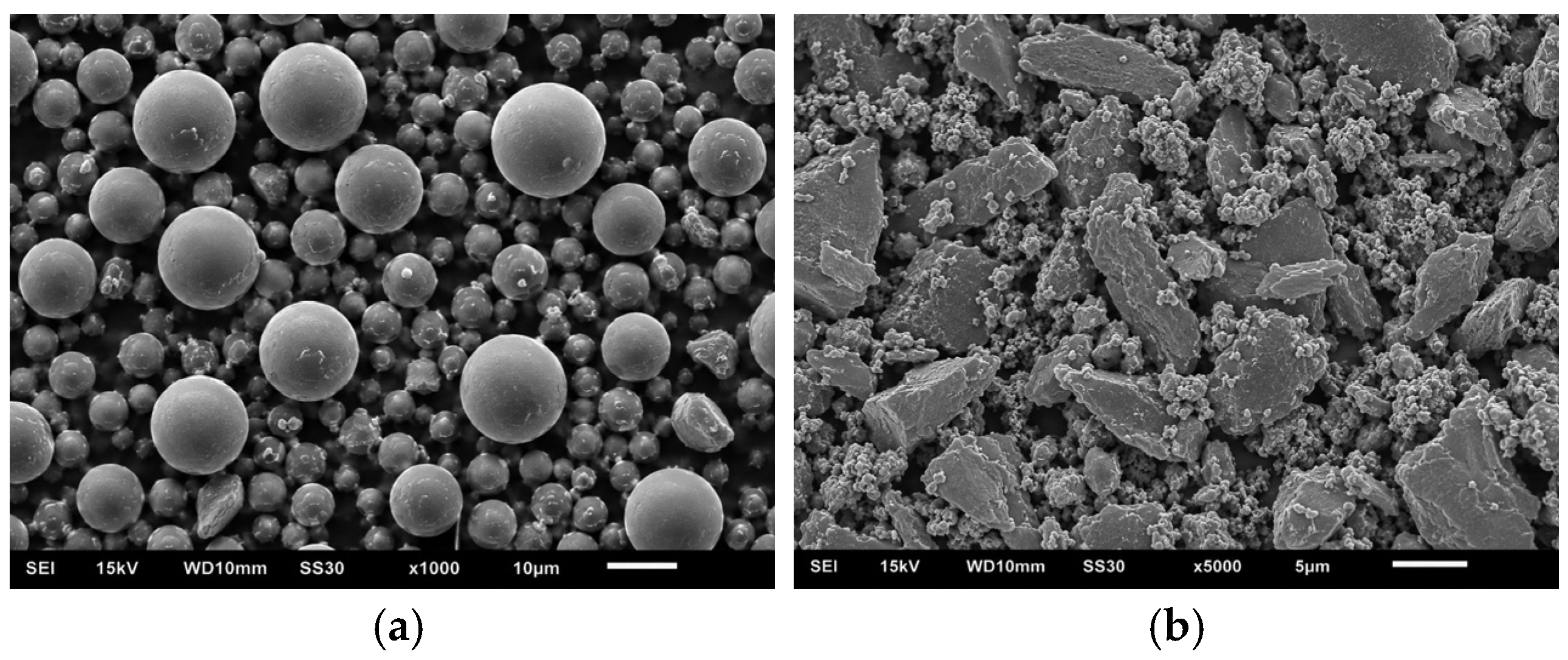

The materials used in this study were industrial raw materials obtained directly from production lines. The glass was soda-lime silicate container glass supplied from a glass packaging manufacturing line. The clay was a naturally occurring industrial ceramic clay used in ceramic production processes.

The openings (window-shaped zones) in the curvilinear elements allow the gas flow to re-enter the preceding channel section. Each window is cut below the horizontal symmetry line of the semicircle to ensure that particles specifically enter the adjacent wall-limiting channel, while not obstructing the passage of clean gas flow further toward the outlet. The window design also allows one to adjust by varying the curvature width of the cutout curve. In the experiments, all four quarter-rings were equipped with windows, with a curvature width of 20 mm. Since the experiments were conducted with glass and clay dusts of different origins, after tests with the first type of sample, the entire system, including hoses and the cyclone structure, was cleaned (regenerated) by blowing through it with a high-velocity gas flow.

3. Results

3.1. Gas Flow Parameters at Normal and Harsh Microclimatic Conditions

The dynamic and kinematic viscosities of the gas play a significant role in the flow of harsh gas. Since kinematic viscosity is directly proportional to dynamic viscosity, correlations that account for temperature and density parameters are applied. According to established principles of molecular physics and thermodynamics, the dynamic viscosity of harsh microclimatic conditions varies primarily with the gas temperature, whereas the kinematic viscosity depends on both the gas temperature and density.

For the study of gas dynamic viscosity under harsh microclimatic conditions, baseline values were first calculated under standard conditions, that is, at 0 °C and 0% relative humidity, with a pressure of 101.3 kPa. Under these conditions, the dynamic viscosity is 17.17 µPa·s, and the kinematic viscosity is 13.28 mm²/s. Additional cases were calculated using thermodynamic–microclimate correlations, with the results presented in

Table 2. Gas flow parameters depending on the characteristics under harsh microclimatic conditions.

Parameter	µg	νwg	Dew Point
Dimensions	µPa × s	mm2/s	°C
At normal conditions (0 °C and 0% RH)	17.17	13.28	-
t = 50 °C,	19.26	16.44	49.0
ϕ = 95% RH
t = 100 °C,	21.25	14.11	98.6
ϕ = 95% H
t = 150 °C,	23.16	8.25	142.0
ϕ = 80% RH
t = 200 °C,	24.99	4.26	184.0
ϕ = 70% RH

.

The temperature and relative humidity of the gas flow under harsh microclimatic conditions frequently vary during the operation of a multichannel cyclone. To investigate this, a theoretical study was conducted for relative humidities of 0%, 50%, and 95%, while the temperature varied between 20 °C and 200 °C.

As previously noted, the dynamic viscosity depends solely on the gas temperature. Thus, this parameter was evaluated only at different temperatures. Under standard conditions (20 °C gas flow temperature) and relative humidity ranging from 0% to 95%, the dynamic viscosity is 18.02 µPa·s.

Theoretical analysis of gas flow under harsh microclimatic conditions showed that at 50 °C and 95% relative humidity, the density of wet gas flow is 1.172 kg/m³. Under these conditions, the dynamic viscosity of the gas flow is 19.26 µPa·s, the kinematic viscosity is 16.44 mm²/s, and the temperature of the dew point is 49 °C.

Such harsh operating conditions are typical in thermal boiler plants, where the flue gases of a biomass boiler pass through coolers (economizers). In this case, the gas temperature ranges from 50 °C to 100 °C, and the dynamic viscosity of the gas flow under harsh microclimatic conditions is higher than under standard conditions by 7% and 18%, respectively. At 100 °C, the maximum possible relative humidity remains 95%, with a dynamic viscosity of 21.25 µPa·s and a kinematic viscosity of 13.94 mm²/s. The dew point temperature is close to the gas flow temperature (98.6 °C), indicating that the gas flow is supersaturated and condensation occurs even on slightly cooled surfaces.

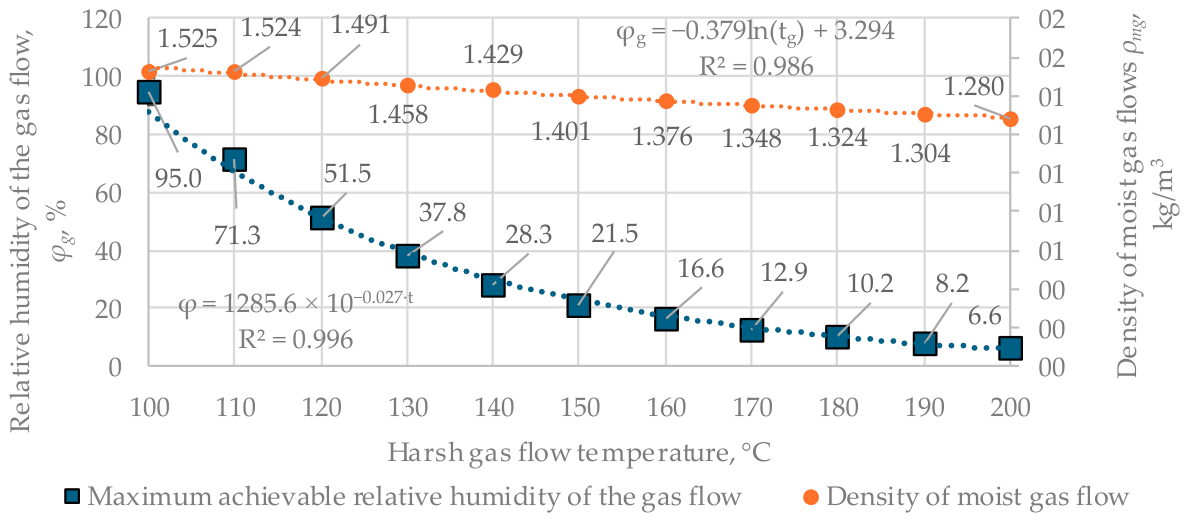

In the theoretical study, at the highest temperatures considered (150 °C and 200 °C), the dynamic viscosity reached 23.16 µPa·s and 24.99 µPa·s, respectively, and the kinematic viscosity ranged from 8.25 mm²/s to 4.26 mm²/s. The temperatures at the dew point in these cases were 100.8 °C and 101.7 °C. For temperatures of 150 °C and 200 °C, the dew point exceeds 100 °C, which is thermodynamically impossible, indicating a supersaturated environment; therefore, no further variations were evaluated. Such gas temperatures are encountered in industrial flue gas flows after combustion processes (boilers, autoclaves), where the relative humidity may reach up to 10% after the boiler, or 5–30% after various drying furnaces when wet raw materials or injected reagents/special solutions are used.

The kinetic viscosity of the gas flow under harsh microclimatic conditions is inversely proportional to the relative humidity in the temperature range. Exceptions include cases with 0% relative humidity, where kinematic viscosity is directly proportional to gas temperature. Another notable exception is the gas flow at 50% relative humidity: kinematic viscosity initially increases with temperature up to 100 °C and then decreases. This behavior is associated with water evaporation, where water is transitioned to the gas phase, reducing friction forces between particles. At 95% relative humidity, the critical temperature is 61 °C, above which the kinematic viscosity decreases with increasing temperature. This indicates that in highly humid gas flows, evaporation occurs more intensely, reducing friction at temperatures lower than the boiling point (100 °C).

At 20 °C and 0% relative humidity, the kinematic viscosity is 14.96 mm²/s. At 50% and 95% relative humidity, the values decrease by 0.7% and 1.3%, respectively. At higher temperatures (50 °C and 100 °C), viscosity increases significantly (1.1–1.2 times), yielding 17.62 mm²/s, 16.98 mm²/s, and 16.44 mm²/s at humidity of 0%, 50%, and 95% humidity. For the exceptional temperature ranges, the dry gas kinematic viscosity reaches 22.45 mm²/s, and for 50% and 95% humidity, 16.99 mm²/s and 13.94 mm²/s, respectively. At 150 °C and 200 °C, the kinematic viscosity at 0% humidity increases on average by 1.22 times per 50 °C interval, reaching 33.49 mm²/s at 200 °C. At 200 °C and 6.6% relative humidity, the kinematic viscosity increases by 40% compared to the 100 °C case at 95% humidity.

The behavior of gas flow under harsh microclimatic conditions in the improved multichannel cyclone involves complex aerodynamic and mechanical processes. Peripheral and transitional flow interactions occur, generating centrifugal, gravitational, and adhesive forces on the particles, as well as drag, capillary, and electrostatic forces. Evaluating these processes and their impact on the operation of the improved multichannel cyclone is essential for the theoretical study of particle removal from gas flow under harsh microclimatic conditions.

3.2. Mechanical Forces of the Gas Flow and Mechanical Forces Acting on Particles

Theoretical studies analyzed different effects of harsh microclimatic conditions on particle-laden gas parameters in the improved multi-channel cyclone, whose schematic is shown in Figure 5. The particles contacted with the hot-humid gas flow are distributed within the cyclone channels. The forces acting on the particles are most effectively analyzed in the initial inlet zone of the first channel, where they are assumed to reach maximum values. Adhesion effects should be evaluated on vertical surfaces, as the separation chamber channels are composed of curvilinear elements (curved vertical plates) continuously exposed to the gas flow. The adhesion forces can then be compared with gravitational and centrifugal forces. This results in several possible outcomes: particles may remain adhered to the wall, be carried out with the cleaned gas through the outlet, or fall to the bottom of the separation chamber or into the cyclone collection bin under the action of gravity.

As particles move through the cyclone channels, they are entrained by the gas flow, which generates a drag force that causes motion in the horizontal flow direction. The magnitude of the force exerted by the gas flow on a particle is proportional to the square of the gas velocity, i.e., F~ū²; therefore, as the gas velocity decreases within the cyclone, the force decreases quadratically. Consequently, particle detachment from surfaces decreases significantly along the cyclone channel and practically vanishes at distances of 10–15 mm from the inlet. According to the laws of curvilinear mechanics, the drag force is directly proportional to the particle drag coefficient, its cross-sectional area, the gas density, and the square of the mean gas velocity.

Applying this relationship to fine particles in the improved multi-channel cyclone under non-harsh microclimatic conditions, the pressure force was found to be 1.07 mN. For particles moving in a gas flow under harsh microclimatic conditions with temperatures ranging from 0 °C to 200 °C and relative humidity levels from 0% to 95% (taking into account the reduction in humidity due to vapor supersaturation), the pressure force acting on a particle decreases by only 5% at a temperature of 50 °C, while at 200 °C it increases by a factor of 2.2. Although the absolute values are sufficiently large, the effect of harsh microclimatic conditions on this force can be neglected in relative terms.

The centrifugal force acting on a particle describes the force experienced by a characteristic particle moving around the cyclone axis. Its magnitude is determined by the inertia of the moving particle, since the trajectory of the particle continuously changes in the multichannel cyclone. In general, the centrifugal force is directly proportional to the radius of the particle density, the cube, and the gas velocity, and inversely proportional to the radius of the cyclone channel through which the particle moves.

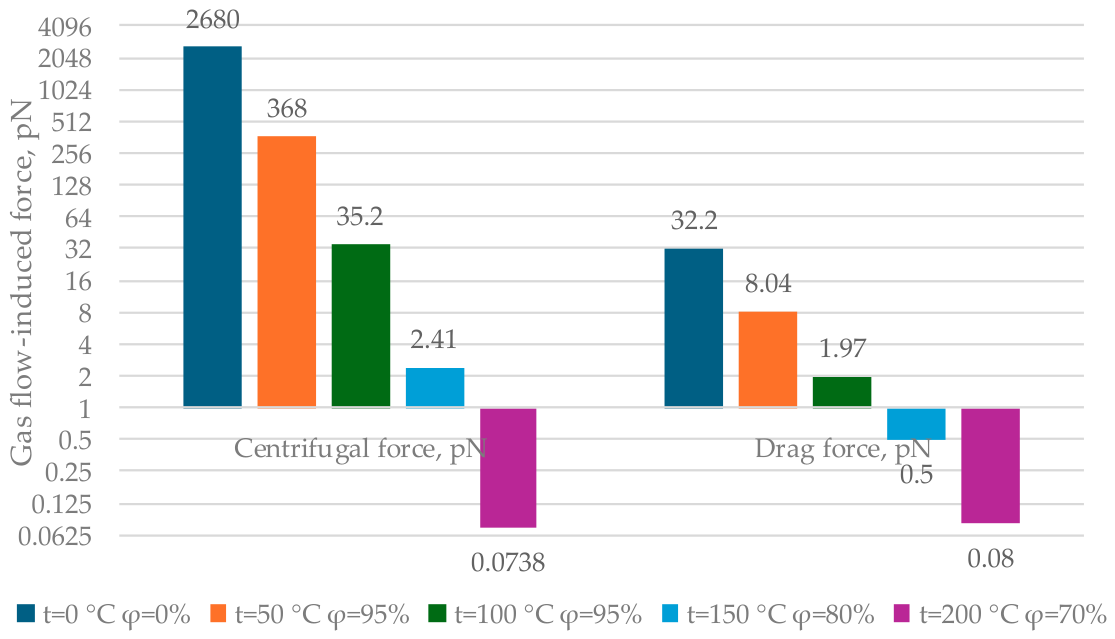

To evaluate the centrifugal force of gas flow under harsh microclimatic conditions, it was assumed that the particle density was 1000 kg/m³, and particles with diameters of 2.5 µm and 10 µm were analyzed. Particles of 1 µm diameter experience a negligibly small centrifugal force and are therefore not considered. According to the theoretical results, for a gas temperature of 20 °C and a relative humidity of 50%, 2.5 µm and 10 µm particles experience centrifugal forces of 5.2 pN and 335.1 pN, respectively, with a force ratio of 64.4. Calculations at a constant gas density were also performed for 95% relative humidity and 100 °C. The results reflect recalculated gas velocities that vary with temperature and humidity: 12 m/s under non-harsh microclimatic conditions, 10.7 m/s at 100 °C, and 11.7 m/s at 200 °C. At 100 °C, centrifugal forces decrease by approximately 20%, producing 4.2 pN for 2.5 µm particles and 266.7 pN for 10 µm particles. At the maximum gas temperature of 200 °C, the centrifugal forces increase slightly compared to 100 °C, reaching 5.0 pN and 317.7 pN for 2.5 µm and 10 µm particles, respectively.

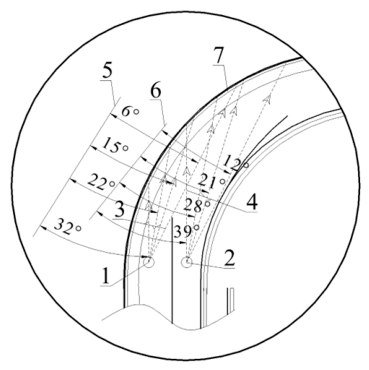

Peripheral–transit flow interactions in the improved multichannel cyclone influence the forces acting on particles in the gas flow under harsh microclimatic conditions, including centrifugal forces. Theoretical studies examined centrifugal filtration forces acting on 2.5 µm and 10 µm particles.

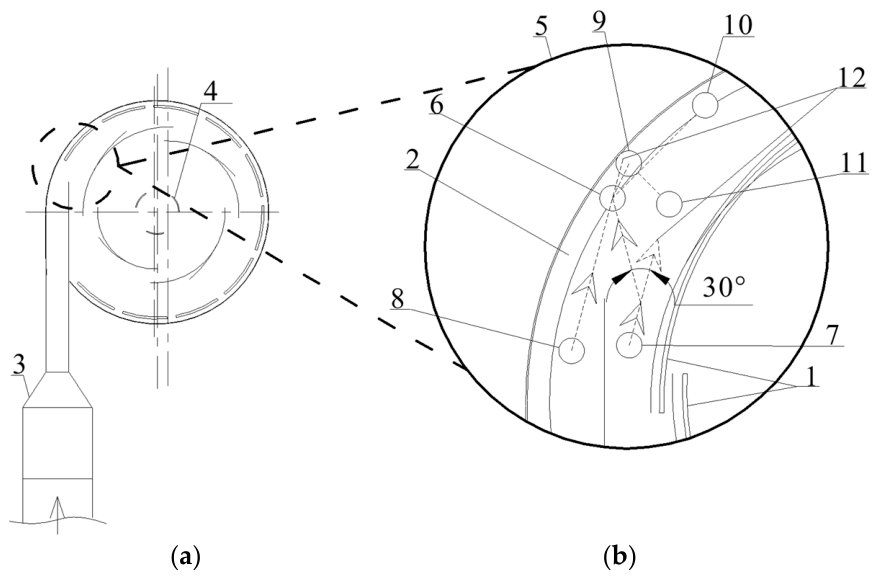

Consider a case where a particle (II) (Figure 5, No. 8) enters the first channel of the improved cyclone along the main trajectory (transit flow), while another particle (I) (Figure 5, No. 7) returns from the fourth channel along a peripheral trajectory. Both particles collide within the first channel. The assumptions for this analysis include: the centrifugal force is uniform along the first channel; the particle trajectories are parallel; particle velocities are equal; and the peripheral particle (I), acted on by centrifugal force, is deflected 30° toward the outer wall upon entering the first channel. Other forces are neglected.

According to mechanical phenomena, the centrifugal force of particle I moving in the peripheral flow is reduced as follows: cosα·F_c = 0.866·F_c.p2, where α is the trajectory deflection of particle I, and F_c.p2 is the centrifugal force acting on particle II in the transit flow.

The centrifugal–filtration force acting on particle II was determined from the previously calculated centrifugal forces. For harsh microclimate conditions, when the gas temperature is 200 °C and the relative humidity is 6.6%, this force decreases by approximately 15%, reaching 4.3 pN and 275.1 pN for 2.5 µm and 10 µm particles, respectively. Assuming that the entire centrifugal filtration force of particle I contributes to the deceleration of particle II, the resulting force is F_c − cos α·F_c. This force will decrease approximately seven times, reaching 0.7 pN and 42.6 pN for particles with diameters of 2.5 µm and 10 µm, respectively.

These results indicate that filtration in the improved multichannel cyclone reduces the centrifugal force from the incoming gas flow under harsh microclimatic conditions and increases the force on particles moving from the previous channel with the peripheral flow. It should be emphasized that specific assumptions and conditions were applied, idealizing the scenario.

In addition to centrifugal forces from the gas flow, particles moving through the cyclone channels experience their own mass and gravitational forces. Acting vertically downward, gravity directs the trajectories toward the separation chamber. Particles entering the segmented annular gaps are separated from the gas flow and deposited in the cyclone collection bin. According to the general expression for the gravitational force, this force is directly proportional to the diameter of the cube of the particle and its density.

As the dust-laden gas flow moves through the cyclone channels, the particles within it are acted upon by the flow generated by the centrifugal fan at the specified flow rate. The calculated changes in the pressure force at an average velocity in the first channel of 12 m/s in the cyclone under various harsh microclimatic conditions are presented in

Table 3. Drag force acting on particles under harsh microclimatic gas flow conditions.

Gas Flow Characteristics (Temperature, Humidity)	Pressure Force, mN
under normal conditions (0 °C and 0% RH)	1.07
t = 50 °C, ϕ = 95%	1.02
t = 100 °C, ϕ = 95%	1.16
t = 150 °C, ϕ = 80%	1.58
t = 200 °C, ϕ = 70%	2.37

.

In the channels of the multi-channel cyclone, the Reynolds number of the gas flow exceeds 2300, indicating a turbulent flow regime. Consequently, using Equation (7), the changes in the calculated drag force are evaluated under various harsh microclimatic conditions. It is assumed that the particle is spherical and the average gas flow velocity in the first cyclone channel is 12 m/s. The calculated results are presented in Figure 6.

In harsh microclimatic conditions, particles interact with water vapor and other chemical compounds, leading to an increase in particle mass and, consequently, in the gravitational force acting on them. For this purpose, the gravitational force acting on particles of different diameters (1 µm, 2.5 µm, and 10 µm) and densities (500–2000 kg/m³) was determined in the gas flow under harsh microclimatic conditions. It is assumed that the particles are spherical, and particle saturation in the gas flow is neglected.

Analysis showed that the smallest selected particle (1 µm diameter) is subjected to a gravitational force of 0.003–0.01 pN, depending on the density (500–2000 kg/m³). As the density increases, the gravitational force increases linearly; however, the maximum relative difference was observed between the 500 kg/m³ and 1000 kg/m³ cases. For particles with diameters equal to or greater than 2.5 µm, the force increases rapidly, with the average difference between these forces being approximately 11.7 times. Particles with a 10 µm diameter experience a gravitational force eight times greater than that on 2.5 µm particles. Specifically, the gravitational force acting on 1 µm particles is 0.01 pN, while for 10 µm particles it reaches 10.3 pN. Similar to other acting forces, there is a significant increase in force magnitude for particles larger than 2.5 µm.

Adhesion phenomena arise from contact between bodies and result from molecular interactions that occur during direct contact between a particle and a surface. The adhesion force depends on the contact area, as molecular interactions are proportional to this area. In the improved multichannel cyclone, the adhesion force is evaluated between particles moving in the gas flow and vertical internal surfaces, i.e., the peripheral walls of the separation chamber and quarter-ring elements with bent plates.

Fine particles have a larger surface area relative to their volume than coarse particles, resulting in higher adhesion forces. Therefore, the detachment of coarse particles from surfaces requires a smaller force compared to the detachment of fine particles. Consequently, coarse particles are removed from surfaces more easily and at lower gas flow velocities.

The removal of fine particles adhering to vertical surfaces by the gas flow occurs sequentially: larger upper particles are detached first, followed by smaller particles, thereby overcoming the adhesion forces of the particle layer. Detachment of only the upper particles is possible when F_adhesion > F_cohesion. Particle detachment under the action of auto-adhesion forces is referred to as erosion. When F_adhesion < F_cohesion, detachment occurs along the surface layer. In this case, the adhesion forces are overcome, and this process is termed denudation.

In this theoretical study, the adhesion force was evaluated based on its maximum magnitude, that is, when the gap between the particle and the planar surface is equal to 4 × 10⁻¹⁰ m.

Based on the results, it can be stated that the adhesion force acting on 1 µm and 2.5 µm particles in the gas flow under harsh microclimatic conditions is greater than the gravitational force. The maximum adhesion force on a 1 µm particle is 0.24 pN, and on a 2.5 µm particle it is equal to 0.6 pN. However, as the diameter increases, the force grows proportionally, and compared to other forces, the relative significance of adhesion decreases. Therefore, it can be concluded that such fine particles are more prone to accumulate on the vertical internal elements of the enhanced multi-channel cyclone since, in this case, the adhesion force exceeds the gravitational force. In contrast, particles with diameters equal to or greater than 10 µm can be easily detached from surfaces even under the influence of gravity alone, and the adhesion force is equal to 2.4 pN (Figure 7).

The theoretical analysis of adhesion can be approached as a comparison of the forces responsible for particle retention versus detachment from the surface. For this study, particles of 2.5 µm and 10 µm diameter with a density of 1000 kg/m³ were selected.

A particle with a diameter of 2.5 µm moving under harsh gas flow conditions experiences a centrifugal filtration force of 0.7 pN, while the adhesion force is 14.3% lower. Therefore, the adhesion force is not sufficient to retain the particle on the vertical surface of the first channel of the cyclone separation chamber; consequently, the particle rebounds and continues along the cyclone channel. A similar rebound occurs for a 10 µm particle, since the centrifugal filtration force in this case is 19.3 times higher than the adhesion force.

Theoretically, it was found that a 10 µm particle can adhere to the surface and remain there only when the velocity of the harsh gas flow in the first channel does not exceed 2.8 m/s at 200 °C and a relative humidity of 6.6%, that is, when the adhesion force (2.4 pN) exceeds the centrifugal filtration force (2.39 pN). For smaller particles, such as a 2.5 µm particle, adhesion occurs if the flow velocity decreases from 11.7 m/s to 11.0 m/s, at which point the adhesion force (0.6 pN) exceeds the centrifugal–filtration force (0.59 pN).

The gas flow in the enhanced multi-channel cyclone is turbulent; therefore, the drag force, according to applied aerodynamic physical expressions, is directly proportional to the particle diameter squared, the gas density, and the square of the relative velocity between the particle and the gas in the first channel of the cyclone.

Applying the relationship between dynamic and kinematic viscosity μ = ν⋅ρ, the Reynolds number of the particle is calculated to evaluate the drag in turbulent gas flow under harsh microclimatic conditions. The assumptions include a spherical particle shape and a particle speed 5% lower than the gas flow velocity. The drag force was calculated for particles of 1 µm, 2.5 µm, and 10 µm, with the gas velocity in the first channel at 11.7 m/s. The analysis indicates that the influence of the harsh gas flow on the drag force is negligible, with variations of only 0.001 pN arising from changes in temperature and humidity. Therefore, this effect can be neglected relative to neutral gas conditions. For a 1 µm particle, the drag force is 0.076 pN, and the Reynolds number is 0.030. For a 2.5 µm particle, the drag increases 6.3 times to 0.47 pN, and the Reynolds number increases 2.5 times to 0.075. For a 10 µm particle, the drag increases significantly to 7.56 pN, with a Reynolds number of 0.299. It is evident that particles larger than 2.5 µm experience a substantial increase in drag force.

The drag force acting on particles under harsh gas flow conditions is 1.49 times and 5.63 times less than the centrifugal–filtration force for particles 2.5 µm and 10 µm particles, respectively. These results indicate that drag cannot be neglected, as it affects particle trajectories in the multi-channel cyclone by slowing particles in the gas flow. While larger particles experience higher drag, the ratio of drag to centrifugal–filtration force for 2.5 µm and 10 µm particles is 16 and 60.9, respectively. Furthermore, the double diameter approximately quadruples the drag force, reflecting its dependence on the cross-sectional area exposed to the flow.

When in contact with a flat surface, capillary adhesion is directly proportional to the surface tension of the liquid layer (i.e., water on the metal walls), the distance between the particle and the surface, and the wetting angle. Auto-adhesion, which occurs between particles that have already adhered to the surface and water droplets on their surface, is approximately half as strong as adhesion, since it acts only on the external portion of the surface (Figure 8).

Theoretical investigations evaluated the maximum adhesion and auto-adhesion forces acting on a particle under harsh microclimatic conditions. It was assumed that the particle enters the primary gas inlet and moves through the first channel at various angles relative to the cross-sectional centerline. The water droplets were assumed to be evenly distributed across the peripheral wall, with a temperature of 200 °C and a surface tension of 37.8 mN/m. The wetting angle was determined from the trajectory of the particle relative to the channel curvature in each case. The particle-surface distance was 4 × 10⁻¹⁰ m, consistent with molecular adhesion analysis, where attractive forces dominate over repulsive forces.

The results indicate that the capillary adhesion and auto-adhesion forces act more strongly on transient particles than on peripheral particles, because of lower wetting angles for particles entering the cyclone. The maximum auto-adhesion force was 94.5 pN, and the adhesion force was 189 pN, acting on transient particles with wetting angles of 6° to 32°. Peripheral particles experienced forces on average 4.5% lower, with adhesion peaking at 185.9 pN at 12°. The analysis shows that capillary adhesion is strongest in regions of highest curvature along the peripheral wall, increasing as particles travel further along the channel. Consequently, adhesion due to capillary forces is stronger at the end of the cyclone channels than at the beginning, assuming uniform flow and characteristics throughout the channel.

Compared to other forces acting on a particle, the capillary adhesion force is significant in magnitude, slightly lower than the centrifugal–filtration force, and greater (by more than an order of magnitude) than the drag or gravitational forces.

Fine particles entering a multi-channel cyclone under harsh gas flow conditions come into contact with its internal surfaces. The electrical charges present on the particle surfaces attract charges of opposite sign on the cyclone walls. It is assumed that, upon particle detachment from the cyclone surface, a residual charge remains on the wall equal in magnitude but opposite in sign to that of the particle. In this case, the electrical adhesion force is directly proportional to the particle charge squared during detachment and inversely proportional to the contact surface area (cm²) of the particle with the multi-channel cyclone wall (Figure 9).

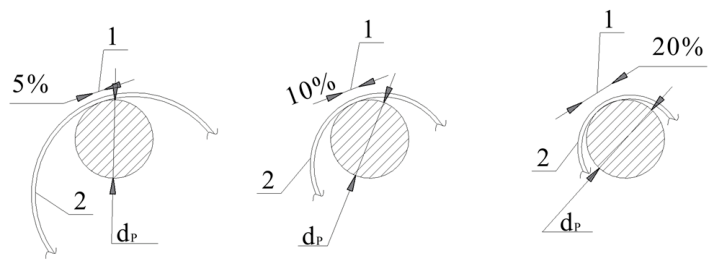

To standardize the measurement units of particle charge, a multiplier of 2π is applied. A simplified case is considered, neglecting the surface and subsurface properties of both contact interfaces. For the theoretical investigations, fine particles were assumed to be ideally spherical, resulting in surface areas of 3.14 × 10⁻⁸ cm², 1.96 × 10⁻⁷ cm², and 3.14 × 10⁻⁶ cm² for particles of 1 µm, 2.5 µm, and 10 µm, respectively. On the basis of surface curvature, the contact area for each particle was determined. The particle charges were assumed as follows: 1 µm—20 × 10⁻¹⁵ Cu; 2.5 µm—40 × 10⁻¹⁵ Cu; and 10 µm—100 × 10⁻¹⁵ Cu. These correspond to the measured perpendicular charge of a glass particle detached from a metallic surface.

Under these conditions, the electrical adhesion force at the contact area of 5% (that is, the smallest case considered) is 1.6 × 10⁻⁶ pN, 1.02 × 10⁻⁶ pN, and 4 × 10⁻⁷ pN for fine particles of 1 µm, 2.5 µm, and 10 µm, respectively. As the contact area increases, the particle charge is proportionally transferred to the surface, reducing the electrical adhesion force, which ranges between 2 and 8 × 10⁻⁶ pN. When the contact area reaches 20% of the total surface of the adhesion, the electrical force acting on 1–10 µm fine particles becomes extremely small, not exceeding 4 × 10⁻⁷ pN. Based on these results, it can be concluded that, for sufficiently small particle charges, the electrical adhesion force is negligible and does not significantly influence particle adhesion in the multi-channel cyclone, since other forces are three to four orders of magnitude greater.

Additional studies considered the peak particle charge, at which the electrical force exceeds the adhesion or centrifugal–filtration forces. Theoretical analysis indicated that, depending on the diameter of the particle, the electrical adhesion force could reach 62.5 to 1000 pN if the particle carries a charge of 0.5–2.5 × 10⁻⁹ Cu. In such cases, even 10 µm particles carrying a charge of 2.5 × 10⁻⁹ C may significantly enhance adhesion in a multi-channel cyclone after entering the first channel under harsh gas flow conditions, as the electrical adhesion force (62.5–250 pN) exceeds the centrifugal adhesion force. However, particles can acquire such high charges only when exposed to a specially created discharge field, e.g., in an electrostatic filter. For comparison, in a discharge field, quartz particles acquire a charge of 0.32 × 10⁻¹² Cu, while polymer particles can acquire significantly higher charges of up to 3 × 10⁻⁵ Cu. Considering these cases, it can be concluded that electrical adhesion forces acting on fine particles do not significantly increase adhesion within the multi-channel cyclone. Adhesion of agglomerates consisting of small particles is less likely [57].

3.3. Experimental Research on Gas Flow Dynamics in Different Design Multi-Channel Cyclone

Table 4. Changes in dynamic pressure in the cyclones of cylindrical and spiral shells depending on the positions and geometry of curvilinear semi-rings.

Average Dynamic Pressures at Positions I, II, and III of the Semicircular Segments, Pa	I Channel	II Channel	III Channel	IV Channel	V Channel	VI Channel	Axial
Cylindrical cyclone with continuous semicircular segments	60.1	71.5	101.9	125.1	157.8	176.8	224.4
	57.7	72.8	100.2	127.5	157.1	179.2	222.6
	55.9	74.5	100.8	128.8	156.8	180.1	220.5
Cylindrical cyclone with semicircular segments containing openings	61.0	72.5	103.5	125.5	158.5	177.0	225.1
	58.7	74.0	101.7	128.0	157.7	179.5	223.6
	57.5	75.5	101.5	129.0	157.0	180.3	221.8
Spiral cyclone with continuous semicircular segments	57.7	62.2	66.3	78.8	99.8	177.3	187.0
	57.1	60.8	67.5	78.0	101.0	176.5	183.8
	56.1	59.6	68.6	77.2	103.2	175.0	181.3
Spiral cyclone with semicircular segments containing openings	58.4	62.8	67.1	79.2	100.1	177.5	187.5
	57.6	61.6	68.2	78.5	101.4	176.8	184.5
	56.8	60.3	69.3	77.8	103.5	175.1	182.3

: After conducting experimental studies of aerodynamic characteristics, the average dynamic pressures in the cyclone channels were determined at the following input velocities: cylindrical—21.9 m/s; spiral—17.8 m/s. The results are presented in Table 4.

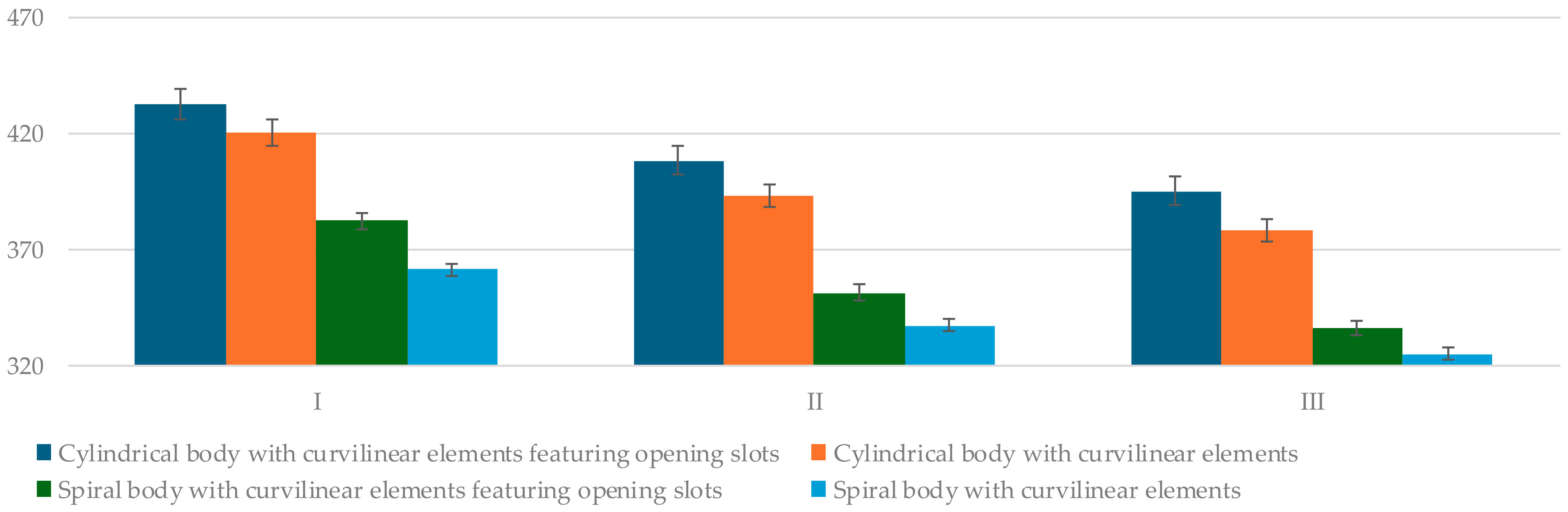

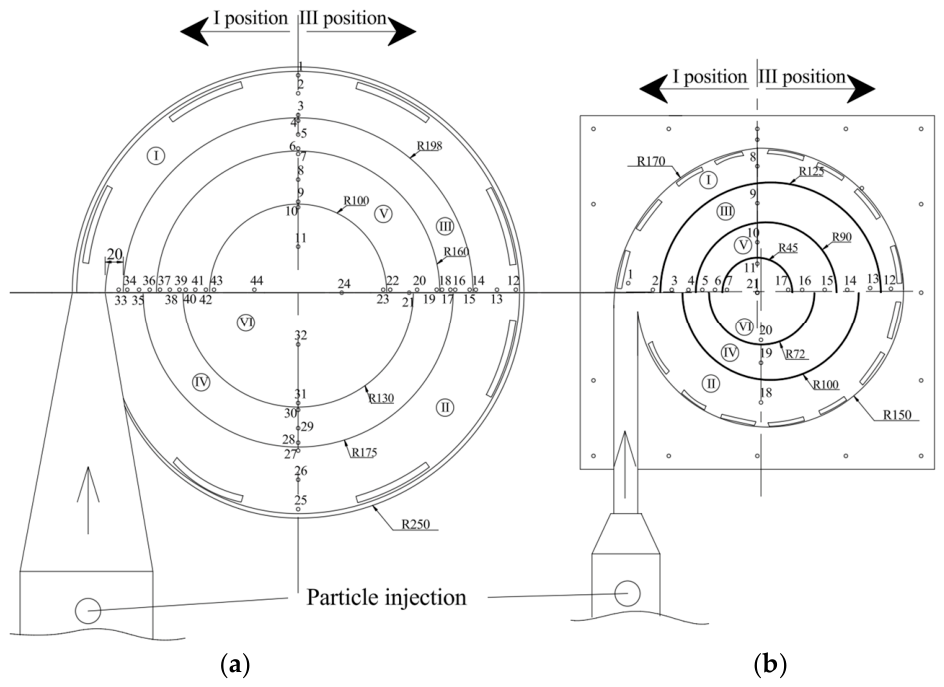

Dynamic pressures were measured at the points indicated in Figure 2, within each channel, in the spaces between the curvilinear elements (at mid-distance). All data were grouped by the corresponding channels, and average values of the dynamic pressures were calculated. Higher dynamic pressures were recorded in the cylindrical cyclone. Although the volume of the cylindrical cyclone is more than 7.3 times larger than that of the spiral cyclone, the installed fan, operated at maximum power, generates a higher flow. The maximum dynamic pressure was measured at the third position of the semicircular segment in the sixth channel of the cylindrical cyclone, reaching 180.3 Pa (standard deviation (S.D. 0.3 Pa). In contrast, in the spiral cyclone, the maximum value was recorded at the first semicircular segment position in the sixth channel, equal to 177.5 Pa (S.D. 0.4 Pa). For other semicircular segment positions, the values measured in the sixth channel were as follows: cylindrical cyclone—177.0 Pa (S.D. 0.7 Pa) and 179.5 Pa (S.D. 1.4 Pa) (first and second positions); spiral cyclone—176.8 Pa (S.D. 0.6 Pa) and 175.1 Pa (S.D. 0.5 Pa).

The maximum dynamic pressures inside the cyclone structures were recorded along the device axes in six channels. The highest values were found in the cylindrical cyclone, with a peak of 225.1 Pa (S.D. 0.7 Pa), whereas in the spiral cyclone, the corresponding value was only 187.5 Pa. The results indicate that as the gas flow moves from one cyclone channel to another, the average dynamic pressure changes by approximately 1.05–1.45 times, due to the reduction in the cross-section of the channel, which increases both the dynamic pressure and velocity.

The motion of the swirling flow is influenced by the variable spin-inducing design of the spiral cyclone. This design feature causes noticeable differences in dynamic pressures when the positions of the curvilinear elements are altered. In the spiral cyclone, the dynamic pressures are highest in the first and even-numbered channels (II, IV, VI) at the first semicircular segment position, while in the odd-numbered channels (III, V), the maximum pressures occur at the third position. Conversely, in the cylindrical cyclone, the highest dynamic pressures are observed in the even-numbered channels at the third position, and in the odd-numbered channels at the first position.

The aerodynamic resistances of the cleaning devices were measured depending on the internal arrangement of semicircular segments with the fans operating at nominal power. On the basis of the experimental results, it can be concluded that the devices generate low resistance. The maximum pressure for the cylindrical cyclone, at an inlet velocity of 21.9 m/s, reached only 432 Pa (S.D. 1.5 Pa), while for the spiral cyclone, at an inlet velocity of 17.8 m/s, it was 382 Pa (S.D. 1.4 Pa). Changing the positions of the semicircular segments alters the aerodynamic resistance according to the flow direction. The highest resistance in the cylindrical cyclone was observed in the first segment position, that is, when the segments were shifted 10 mm from the second position to the tangential inlet deflector (Figure 10).

As the distance from the inlet deflector wall increases to the right, at the second semicircular segment, the maximum aerodynamic resistance is observed—408 Pa (S.D. 1.6 Pa) —while at the third position, the minimum is observed—395 Pa (S.D. 1.7 Pa). A similar trend is observed in the spiral cyclone, where arranging the semicircular segments in the second position produces a maximum resistance of 351 Pa (S.D. 1.4 Pa), and in the third position, 336 Pa (S.D. 1.4 Pa). The presence of opening slots in curvilinear elements (semicircular segments) increases resistance by approximately 4%. However, this geometric modification also enhances the filtration efficiency and, consequently, the overall cleaning performance of the device.

Cyclone resistance arises due to flow deceleration, the generation of centrifugal forces, wall friction, and internal fluid flow friction. Among these, the first two losses are the most significant, and therefore calculations typically consider only their effects.

3.4. Experimental Research on Particle Separation Efficiency in Different Design Multi-Channel Cyclone

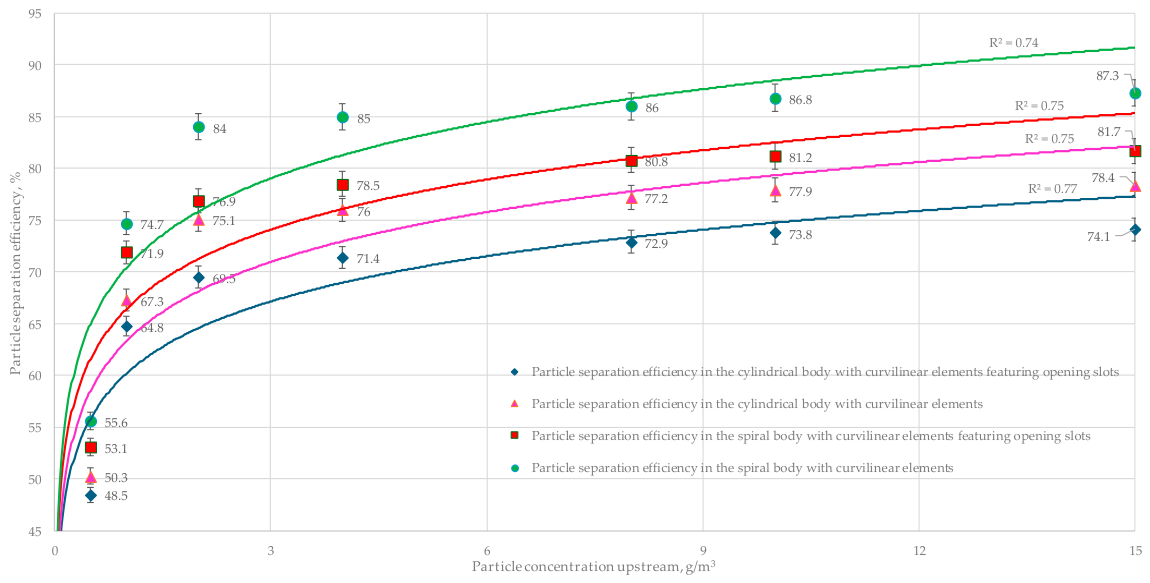

The study investigated the cleaning efficiency of six-channel cylindrical and spiral cyclones for gas flow contaminated with particles. The concentrations of the test glass and clay particles were determined gravimetrically. During the experiments, particle concentrations before cleaning varied from 500 mg/m³ to 15 g/m³. The objective was to assess the degree of particle separation at different concentrations and to compare the performance of the improved six-channel cyclones.

For determining concentrations and efficiency, the maximum inlet velocity was 21.9 m/s for the cylindrical cyclone and 17.8 m/s for the spiral cyclone. Cleaning efficiency tests were conducted under optimal conditions, with curvilinear elements set to the second position. The study examined the cleaning efficiency of six-channel cyclones for fine particles (up to 20 µm) and different internal geometries, using both continuous curvilinear elements and curvilinear elements featuring opening slots.

During the tests with curvilinear elements featuring opening slots, the improvement allowed the contaminated gas flow to re-enter the preceding channel, enabling additional particles to settle and enter the collection hopper through the segmented ring gaps (Figure 2).

By measuring the concentrations of glass particles in the ducts before and after cleaning, the maximum cleaning efficiency for the spiral cyclone was 87.3% at a particle concentration of 15 g/m³ using improved curvilinear elements featuring opening slots. Under the same conditions, the cylindrical cyclone achieved an efficiency of 78.4%. Across different inlet concentrations, the relative performance of the cyclones remained fairly consistent. On average, the cleaning efficiency was 11.3% higher than that of the cylindrical cyclone.

The lowest efficiency was recorded at a 500 mg/m³ concentration of glass particles: 48.5% for the cylindrical cyclone and 53.1% for the spiral cyclone. For conventional internal geometry using continuous curvilinear elements, the maximum cleaning efficiency also occurred at the highest inlet concentration (15 g/m³), reaching 81.7% for the spiral cyclone and 74.1% for the cylindrical cyclone. The minimum efficiency, as noted, was 48.5% (spiral) and 53.1% (cylindrical) at the 500 mg/m³ inlet concentration (Figure 11).

When comparing the experimental results for clay particles, the highest cleaning efficiency was also observed at the maximum input concentration (15 g/m³), but was lower than for glass particles. In the cylindrical cyclone, using continuous segments, efficiency reached 64.5%, while with curvilinear elements featuring opening slots, it was 69.3%, corresponding to reductions of 1.16 and 1.13 times relative to glass particles. In the spiral cyclone, the efficiency difference between the cyclones was 20% with continuous segments (68.1% efficiency) and 18% with curvilinear elements with opening slots (74.1% efficiency) (Figure 12).

Analysis of fine particle capture indicates that, in both cyclones, clay particles are collected less efficiently than glass particles. However, the separation efficiency across particle types is more uniform in the cylindrical cyclone than in the spiral cyclone.

As the uniformity in the cylindrical cyclone is greater than in the spiral cyclone, when examining cyclones of different housings and internal geometries, the average cleaning efficiency for gas flow containing glass and clay particles differs by a factor of 1.17.

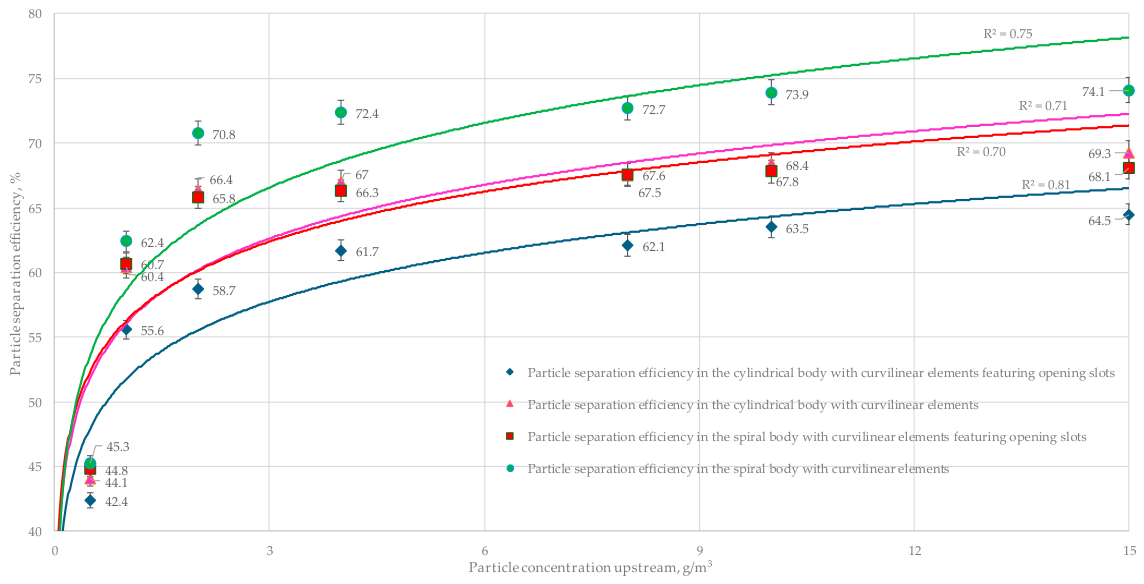

The maximum gas cleaning efficiency for clay particles using continuous semicircular segments in the cylindrical cyclone is 64.5%, which is 9.6% lower than that for glass particles. In the spiral cyclone, the corresponding efficiency values are 68.1% and 13.6%. The trend of efficiency dependence on particle concentration remains consistent: the separation efficiency increases with increasing concentration.

Using curvilinear elements featuring opening slots, the cleaning efficiencies for glass and clay particles in both cyclone designs differ by a factor of 1.07. This segment design provided the greatest improvement in cleaning efficiency when applied in the cylindrical cyclone, particularly for the separation of clay particles.

4. Discussion

When harsh gas flows, high temperature, and elevated humidity alter both aerodynamic (e.g., gas velocity) and physical (e.g., viscosity) parameters, thereby affecting cyclone separation efficiency. Under these conditions, the gas flow becomes saturated with moisture, enhancing the agglomeration of the particles, the adhesion forces with the internal elements of the multichannel cyclone, and the auto-adhesion forces among the fine particle agglomerates themselves. Collectively, these factors create a gas–vapor environment that can clog the gaps and openings in the curvilinear elements of the separation chamber, rendering the device inoperable.

In the initial stage of fine particle deposition, monolayers composed of fine particles, which smooth the surfaces where laminar gas flow develops, exhibit minimal dispersive effects on the deposits. As the deposits accumulate, larger particles may embed within this layer, compacting the formed structures.

Large-scale multichannel cyclones are capable of capturing fine particles due to additional inertial forces acting near the surfaces. These forces arise during the turbulent transport of particles when high gradients of pulsating particle velocities are directed toward the surfaces. However, in large cyclones, the adhesion of particle agglomerates composed of fine solids near surfaces is less probable due to reduced centrifugal accelerations.

As contaminated gas enters the multichannel cyclone separation chamber, fine particle agglomerates adhere to the vertical walls in the cyclone’s curved sections. Depending on the mass and spatial distribution of these agglomerates across the inlet cross-section, deposition of fine particles is uneven, resulting in surface irregularities.

To account for the characteristics of harsh gas flows, simplified theoretical expressions were developed to determine gas density and viscosity. These expressions consider parameters such as partial pressures of dry gas, saturated vapors, and water vapor. Parameter values were selected to represent extreme operating conditions, that is, the maximum possible temperature and humidity of the incoming gas.

In theoretical analyses, the moist gas/vapor mixture is treated as an ideal gas mixture, where the total density equals the sum of the individual component densities. Under this assumption, the density deviation is less than 0.2% in a temperature range of −10 °C to 50 °C. It is also assumed that the relative humidity of the gas flow is inversely proportional to the temperature.

Experimental studies have shown that the density of a moist gas flow under harsh conditions is directly proportional to the sum of the partial pressures of dry gas and water vapor and inversely proportional to temperature.

The densities of dry and moist gas flows under harsh gas flow conditions were calculated over a temperature range of 0 to 200 °C with a step of 25 °C. For moist gas calculations, the maximum relative humidity was assumed to be 95%. For cases where the gas temperature exceeded 100 °C, the relative humidity was calculated based on the ratio of atmospheric pressure to saturated water vapor. The pressure inside the multichannel cyclone was assumed to be constant and equal to atmospheric pressure. Theoretical results are presented in Figure 13.

At lower gas flow temperatures of 25 °C and 50 °C, the dry gas decreases by 9% and 18%, respectively, relative to the density at standard conditions (0 °C), while the density of moist gas decreases by 7% and 11%, respectively. The partial pressure of the saturated vapors increased more than 3.9 times when the temperature changed from 25 °C to 50 °C. At a gas temperature of 100 °C and 95% relative humidity, the density of the moist gas flow is 1.525 kg/m³, while the density of the dry gas flow is 0.945 kg/m³.

As the gas flow temperature increases above 101.7 °C, the maximum achievable relative humidity drops below 95%. The exponential increase in saturated water vapor pressure contributes to a decrease in both the relative humidity and the density of the moist gas flow. At 120 °C, the relative humidity falls to 51.5%, and at 140 °C and 160 °C, it decreases further to 28.3% and 16.6%, respectively. The saturated water vapor pressure increases 6.1 times as the temperature increases from 100 °C to 160 °C, reaching 611.7 kPa. The density of dry gas continues to decrease gradually within the 150–200 °C range, reaching 0.745 kg/m³ at 200 °C. For moist gas, the density within the 160 to 180 °C range is 1.376–1.324 kg/m³, while the relative humidity at 180 °C is 10.2% and at 190 °C is 8.2%. At a gas temperature of 200 °C, the relative humidity of the moist gas flow decreases to 6.6%, with a corresponding density of 1.280 kg/m³, while the theoretically determined saturated water vapor pressure increases to 1529.6 kPa. Achieving such pressure under practical conditions is possible but requires multi-stage heating systems and vessels specifically designed to withstand high pressures. Additionally, a deaerator operating at 1400–1800 kPa must be integrated with the heating system.

When the gas flow temperature exceeds 100 °C, similar trends are observed in density changes for moist and dry gas flows. For every 10 °C increase in temperature, the density of the moist gas decreases by approximately 1%, while the density of the dry gas decreases by about 2%. The partial pressure of saturated vapor increases sharply with temperature, exhibiting near-exponential growth; for example, from 100 °C to 200 °C, the pressure increases by a factor of 15.2.

Gas parameters and mechanical forces under conditions of reduced humidity at temperatures above 100 °C were analyzed under thermodynamic equilibrium conditions. Thus, for dry air (0% humidity) at 100 °C, the kinematic viscosity is 22.45 mm²/s; at 100 °C and 95% humidity, it is 13.94 mm²/s; and at 200 °C and the maximum achievable humidity of 6.6%, it increases by almost 40% relative to the latter case, reaching 33.49 mm²/s. Based on studies by Lawrence [58] and Wallace and Hobbs [59], it has been established that as the temperature of the gas flow increases, the relative humidity decreases exponentially. Theoretical calculations assumed that the critical relative humidity of 95% is maintained at 101.7 °C, corresponding to a saturated water vapor pressure of 106.7 kPa.

The available literature provides data on the variation in relative humidity in gas flows at low temperatures (up to 50 °C) [60]. However, since multichannel cyclones operate at temperatures above 100 °C, these data are insufficient. Therefore, theoretical analyses were conducted, resulting in an approximate mathematical expression (Equation (11)) describing the variation in relative humidity in gas flows at temperatures exceeding 100 °C.

$${\phi }_g=1285.6\cdot e^{-0.027\cdot t_g},\hspace{0.33em}\%,$$

(11)

The following applies to Equation (11): φ_g—gas flow relative humidity, %, t_g—gas flow temperature, °C, e = 2.718.

Special conditions influence the density of the gas flow, which is closely related to its viscosity, and determines the flow behavior within the cyclone channels. For theoretical calculations, a simplified scenario was selected in which the gas flow consisted of a mixture of gas and water vapor.

Theoretical studies were conducted to derive an expression for the density of the gas flow under harsh microclimatic conditions. The sensitivity analysis indicated that the smallest average deviation occurred between the gas flow density and relative humidity parameters at a temperature of 50 °C, with a value of ±0.24 °C. Based on these results, Equation (12) can be created specifically in a simplified form for calculating the density of gas flows under harsh microclimatic conditions.

$${\rho }_g=x_1\cdot {\phi }_g+y_1,$$

(12)

If t_g = 20 °C, x₁ = 0.0002, y₁ = 1.2048; if t_g = 50 °C, x₁ = 0.0008, y₁ = 1.093; if t_g = 100 °C, x₁ = 0.0061, y₁ = 0.946; if t_g = 200 °C, x₁ = 0.0809, y₁ = 0.7463.

The following applies to Equation (12): ρ_g—gas flow density, kg/m³; φ_d.s.—relative humidity of the gas flow, % (this expression can be applied when the gas flow temperature is constant, i.e., t_g = const, °C); x₁—the first variable of density; y₁—the second density variable.

The accuracy of the calculation was determined by applying different values of the relative humidity of the gas flow. The deviation of Equation (12) ranged from −0.22% (when φ_g = 95%) to +0.02% (when φ_g = 0%) (Figure 14).

The maximum deviation of the gas flow density values is 0.22%, which indicates that the accuracy of using Equation (12) for calculating the gas density is sufficient.

Analysis of the particle separation efficiency indicates that the gas flow contaminated with clay particles is not as effectively cleaned by the studied device. This is probably due to specific particle properties such as density, shape, degree of agglomeration, and specific surface area (SSA). For example, SSA values ranging from 0.1 to 1 m²/g for glass particles and are generally in the range of approximately 10–50 m²/g for industrial clays [61,62]. Studies on conventional cyclone designs showed that at high concentrations of particles, the effectiveness of centrifugal separation decreases due to attenuation of the swirling flow and enhanced particle–particle interactions, leading to reduced separation efficiency in cyclones [63,64,65].

The arrangement of curvilinear elements within the six-channel cyclone affects the aerodynamic properties, including dynamic pressure, gas flow velocity, and aerodynamic resistance. Reducing the gaps between the segments and the peripheral walls increases the acting dynamic forces, which in turn modify other flow parameters. Changes in dynamic pressures influence particle capture efficiency, as particles are transported to the collection hopper through the segmental ring gaps at the bottom by continuous flow. The measured distribution of dynamic pressures confirms the aerodynamic behavior described in the literature and verified experimentally, allowing the identification of design characteristics, potential defects, and opportunities for further optimization of the device.

Increasing the inlet particle concentration results in higher cleaning efficiency because of the stronger action of centrifugal forces. The six-channel cyclone design is particularly effective because a dynamic gas–dust layer forms in the gaps between the curvilinear elements. As the contaminated gas flow passes through this layer, a portion of the particles is retained, thereby enhancing the overall separation efficiency.

5. Conclusions

The present experimental investigation was dedicated to analyzing the aerodynamic characteristics of gas flow in both cylindrical and spiral cyclone shells, which are specifically designed for the separation of fine particles from tangentially introduced gas flows. Special emphasis was placed on examining the distribution of dynamic pressure within the six-channel cyclone configurations. Furthermore, the study evaluated the efficiency of particle removal under varying flow phase conditions and when different types of fine particles were introduced, providing comprehensive information on the performance of these cyclone systems.

• Harsh environmental factors, such as the high temperature in water vapor–saturated flows, have a significant effect on gas properties. At a temperature of 200 °C and a thermodynamically balanced relative humidity of 6.6%, the density of the humid gas flow decreases by 16%, reaching a value of 1.28 kg/m³, while its kinematic viscosity increases by 40%, reaching 19.53 mm²/s, compared to the values obtained at 100 °C and 95% relative humidity.
• Analysis of the forces acting on particles within the multi-channel cyclone revealed that the pressure force is one of the dominant forces in terms of absolute magnitude; however, the relative difference between the values obtained under normal and harsh microclimatic conditions remains negligible. Compared to standard conditions, the pressure force acting on a particle decreases by approximately 5% under conditions of 200 °C and 6.6% relative humidity. Fouling of the multi-channel cyclone system by fine particles is primarily influenced by adhesion forces, while particle deposition is dominated by gravity. For fine particles with diameters below 5 µm, adhesion forces significantly exceed the gravitational forces. For 1–2 µm particles, the force ratio is 24 to 7.5 times, while for 5–10 µm particles, the ratio decreases to 1.8 to 2.1. The maximum gravitational force, 41.1 pN, acts on 20 µm particles, while adhesion accounts for only 11.68% (4.8 pN) of this value.
• Experimental measurements of dynamic pressures in cyclones indicated a maximum value of 180.3 Pa in the sixth channel of the cylindrical cyclone, compared to 177.5 Pa in the spiral cyclone. The maximum aerodynamic resistance of the spiral cyclone reached 382 Pa, while the cylindrical cyclone exhibited 432 Pa. The arrangement and geometry of curvilinear elements significantly influence aerodynamic resistance, increasing it near the inlet deflector wall under Position I and when curvilinear elements with opening slots are employed.
• Gas purification efficiency experiments were conducted using glass and clay particles up to 20 µm, which conventional cyclone designs generally do not separate. Using glass particles, the spiral cyclone with curvilinear elements achieved a maximum removal efficiency of 87.3% at an inlet concentration of 15 g/m³. The cylindrical cyclone under the same conditions showed an efficiency of 11.3% lower, with a maximum of 78.4%. For clay particles, the highest separation efficiency reached 74.1% in the spiral cyclone using curvilinear elements at 15 g/m³ inlet concentration. In the cylindrical cyclone, the maximum efficiency was 69.3%, approximately 13% lower.
• Calculations indicated that 10 µm particles in gas flow under harsh microclimatic conditions are predominantly influenced by centrifugal–filtration forces in peripheral flow regions and by adhesion–capillary forces in transitional flow zones. The centrifugal–filtration force reaches up to 600 pN, while the adhesion–capillary force is roughly 3.2 times weaker. Compared to standard conditions (0 °C temperature, 50% relative humidity), the humid gas decreases from 1.295 kg/m³ to 1.280 kg/m³, the dynamic viscosity increases from 17.17 µPa·s to 24.99 µPa·s, and the kinematic viscosity decreases from 16.44 mm²/s to 4.26 mm²/s.

This study is part of an investigation of the fundamental principles and the development of improved cyclone separator designs. The unique geometry and specific operating conditions should be investigated in greater detail in future studies, not only experimentally, but also through numerical simulations. It is particularly important to develop models of gas flow dynamics under severe operating conditions. This involves studying the interaction between particle and gas flows, as well as with tertiary phases such as condensate droplets of varying chemical composition and physical properties in regions where transitional and peripheral flows intersect. Investigation of pressure variations and pressure balance within device channels, aimed at improving the efficiency of polydisperse particle separation, would enable energy-efficient optimization of the distribution of primary and secondary flows, as well as reduction in operational losses.

The cylindrical and spiral configurations exhibit similar overall characteristics; however, depending on the properties of the particles being separated, the selection of the geometry may be application-specific. In the spiral configuration, particles are subjected to greater variations in centrifugal force due to the curvature of the peripheral wall. Consequently, for particles with higher density, the spiral geometry can provide a higher deposition efficiency compared to the cylindrical configuration. On the contrary, the cylindrical design is characterized by higher average flow velocities and lower velocity gradients within the channels, creating more favorable conditions for the separation of low-density particles. The application of segmented elements with integrated openings significantly increases the separation efficiency of fine particles. However, such a geometry is more complex to manufacture and may additionally require periodic regeneration and maintenance procedures to prevent particle clogging and to preserve the required internal geometry of the separator.
