Microwave Assisted Green Synthesis of Silver Nanoparticles Using Mulberry Leaves Extract and Silver Nitrate Solution
1
Office of the Board of Trustees, Duy Tan University, 03 Quang Trung, Danang 550000, Vietnam
2
Faculty of Natural Sciences, Duy Tan University, 03 Quang Trung, Danang 550000, Vietnam
*
Author to whom correspondence should be addressed.
Received: 20 December 2018 / Accepted: 31 December 2018 / Published: 5 January 2019

Abstract

:
In this work, silver nanoparticles (AgNPs) were synthesized quickly and in an eco-friendly manner using the extract of Mulberry leaves and aqueous solution of silver nitrate without any toxic chemicals (Yuet et al. Int. J. Nanomed. 2012, 7, 4263–4267; Krishnakuma and Adavallan. Adv. Nat. Sci. Nanosci. Nanotechnol. 2014, 5, 025018). The Mulberry leaves extract functions as both a stabilizing and reducing agent. The UV-Vis spectroscopy shows a peak maximum at 430 nm. The transmission electron microscopy (TEM) image illustrated of synthesized AgNPs were nearly spherical-shaped particles whose sizes range from 15 to 20 nm. The TEM image of Nano Silver solution sample synthesized by the microwave assisted method shows nearly spherical particles, with an average particle size estimated at 10 nm. The absorption UV-vis spectrum of silver nanoparticles synthesized by the microwave assisted method (AgNPsmw) shows a sharp absorption band around 415 nm. The UV-Vis spectrum of AgNPsmw after two months of storage shows negligible peak changes of silver nanoparticles.
Keywords:
silver nanoparticles; mulberry leaves extract

1. Introduction

Nanoparticles (NPs) are defined as small particles sized between 1 and 100 nm. Compared with the material bulk states, NPs have gained prominence in recent technological advancements due to their tunable physicochemical characteristics such as their melting point, wettability, electrical and thermal conductivity, catalytic activity, light absorption, better tunable optical properties, and higher reactivity. Various chemical and physical methods have been employed to prepare silver nanoparticles, including chemical reduction electrochemical techniques, and photochemical reduction. Among all the synthetic methods, chemical reduction is most commonly used. However, the chemical synthesis of nanoparticles may lead to the presence of some toxic chemicals. Several studies have focused on green synthesis approaches to avoid using hazardous materials. Synthesizing silver nanoparticles using mulberry leaves extract as a reducing agent not only offers many advantages but also uses less chemicals, thus reducing the pollution caused to the environment. In recent years, nanostructured materials have obtained many applications relevant to daily life. Silver nanoparticles (AgNPs) are used in a wide range of applications, including pharmaceuticals, cosmetics, medical devices, foodware, clothing and water purification, agriculture and in wastewater treatment, etc. due to their antimicrobial properties [1,2,3,4,5,6,7]. In this study, mulberry leaves extract had been used as a reduction agent and stabilizing agent. Synthesizing silver nanoparticles using mulberry leaves extract as a reducing agent not only offers many advantages but also uses less chemicals. The green synthesis combined with the microwave assistance make up a highly effective and eco-friendly method.
The mulberry (Figure 1) is a woody plant that grows quickly and within a short proliferation period. There are about 10 to 16 species of genus Morus that are found in the subtropical climates and the warm and temperate regions of Africa and North America [8]. Those species have been cultivated in many Asian countries such as China, India, Korea, Japan, Thailand and Vietnam, where the leaves have been used as food for silkworms [9]. Mulberry is known to be used in some traditional Chinese medicinal formulas. There are several studies have shown that it may provide health benefits. There are many biologically active compounds and many phytochemicals in mulberry leaves. There are also many important pharmacological properties such as antibacterial, antiviral [5,6,7,8,9], antitussive, hypoglycemic, antiatherogenic [10], hypotensive [11], diuretic, astringent, antioxidant [12,13] and α-amylase inhibitory effects [10].

2. Materials and Methods

2.1. Preparation of Mulberry Leaves Extract and Silver Nitrate Solution

Mulberry leaves were collected from a residential garden house in Hoi An, Quang Nam province, Vietnam. The leaves collected must be intact and at their prime (neither be too young or too old). Those fresh leaves were then cleaned with fresh water and let air dried by laying them out evenly. 10 g of fresh leaves was obtained, cut into thin strips, then placed into a 200 mL heat-resistant glass flask. Then, they were boiled with distilled water in 5 min, cooled and the mixture was filtered with Whatman filter paper using a vacuum filter [4,5,6,7]. The mulberry leaves extract had a light yellow color. The extracted solution was stored in a fridge for further use. Dissolved silver nitrate (AgNO3) from Sigma Aldrich was mixed with distilled water to get 4.10−3 M aqueous AgNO3 solution.

2.2. Synthesis of Nano Silver Material

2.2.1. Non-Microwave Assisted Synthesis of Nano Silver

Visual Observation and UV-vis Spectral

AgNO3 4.10−3 M solution and mulberry leaves extract were mixed at different ratios as shown in Table 1. These mixtures were placed on a shaker and stirred for 30 min, 150 rpm at room temperature. After 30 min, the color of all the mixtures changed from light brown to dark red, except for mixtures M0 and M1. The color of each mixture varies depending on the ratio of AgNO3 concentration and mulberry leaves extract that were used (Figure 2). This observation implied that Nano Silver particles were formed.
Characterization Techniques: In order to investigate the optical properties, we measured the UV-vis absorption spectra using GE Ultrospec 7000 UV-vis spectrophotometer (GE Lifesciences, Freiburg, Germany). Transmission Electron Microscope (TEM) analysis of silver nanoparticles was done using JEOL JEM 1010 (JEOL, Tokyo, Japan). X-ray diffraction spectra were measured by the diffractometer Bruker D8-Advance (Bruker, Karlsruhe, Germany), Fourier transform infrared (FTIR) Spectra. For mulberry leaves, extract was obtained in the range 400–4000 cm−1 with IRAffinity-1S Shimadzu FTIR spectrophotometer (Shimadzu, Tokyo, Japan).
The intensity of absorption within the wavelength of 200 to 250 nm is very strong. Therefore, before measuring UV-vis, samples were diluted 40 times. The UV-vis spectrum of the material shows a strong surface plasmonic resonance band centered at 430 nm. For the samples M2, M3 and M4, the absorbance intensity increasesd as we increased the volume of mulberry leaf extract from 1 mL to 5 mL. For samples whose volume of mulberry leaves extract were more than 5 mL, the intensity decreased as the volume of mulberry leaves extract increased. Combining spectral information with qualitative observation, we could conclude that AgNPs has been formed when mixing AgNO3 solution with mulberry leaves extract. Among our samples, the sample M4 not only showed the highest peak intensity value but also had the darkest red color; the observations indicated that it had the most AgNPs particles. We can also infer that, at high concentration of mulberry leaves extract, the rate of AgNPs production is so rapid that it prevents the formation of protective layer between particles. For this to happen, the aggregation phenomenon between particles occurred and increased the particle size. The increased particle size reduced peak intensity and shifted the peak to a longer wavelength (as in M5, M6 and M7 samples). The absorption spectrum of AgNO3 aqueous solution, shown in the olive colored line in Figure 3, had no peak in the measuring range. The absorption spectrum of mulberry leaves extract, shown in orange line in Figure 3, had absorption peak in the short wavelength region due to an organic substance found in the extract solution and had no peak at wavelengths longer than 400 nm. The spectral information indicated that AgNPs particles were formed only when AgNO3 was mixed with mulberry extract. When magnified from 380 to 700 nm of the absorption spectrum (Figure 3), discrete lines were shown.

2.2.2. Microwave Asissted Systhesis of Nano Silver

Visual Observation and UV-vis Spectral

We mixed 50 mL of AgNO3 solution with 6 mL of mulberry leaves extract and divided it into 2 equal portions. Then, we put the first portion (M8) on a shaker machine and stirred for 30 min, 150 rpm at room temperature. The other portion (M9) was heated in a microwave for one minute. The changed colors of M9 from light yellow to dark red within one minute in the microwave indicated that the efficiency of (AgNPsmw) synthesis using the microwave assisted method was higher than the non-microwave assisted method. The sample colors are shown in Figure 4.
The UV-vis spectra (Figure 5) shows that absorption intensity at around 415 nm of M9 is higher than that of M8 and the maximum wavelength of M9 is smaller than the M8. After two months of storage, the M9 sample was renamed M10. Compared to the spectrum of M9, the UV-vis spectrum taken for M10 (the blue line of Figure 5) shows a slight decrease in the peak intensity and the peak shift of 5 nm towards a longer wavelength. The above observations indicated that the synthesized colloid solution is highly stable. Compared with the work of other authors, our study resulted in a smaller particle size, short-time synthesis, and a higher absorption peak intensity.

2.3. X-ray Diffraction (XRD) Studies

Cloth was cut into 25 cm2 pieces and dipped into a colloids solution of AgNPs for 10 min, and another piece of cloth was not dipped into a colloids solution of AgNPs. The XRD pattern of the cloth dipped into a colloids solution AgNPs and the cloth not dipped into a colloids solution AgNPs are shown in Figure 6. The XRD pattern of the undipped cloth showed no characteristics of peak silver. On the other hand, the XRD pattern of the cloth that was dipped in the colloids AgNPs showed the characteristic of peak silver. Four main characteristics of the diffraction peak for Ag were observed at 2θ values of 38.2°, 44.1°, 64.5°, and 77.6°, which correspond to the (111), (200), (220) and (311) crystallographic planes of face-centered cubic (fcc) Ag crystals, respectively (JCPDS 00-004-0783) [14,15]. Because the AgNps concentration was low and the cloth’s internal structure had lots of empty spaces, not many AgNPs particles were deposited onto the cloth surface, thus the peaks intensity was low.

2.4. Transmission Electron Microscope (TEM) Analysis

The size and shape of the AgNPs was further confirmed by TEM analysis, is shown in Figure 7. The TEM image of M8 showed a relatively uniform spherical particle size, ranging from 15–20 nm. The TEM image of M9 showed particle size about 10 nm. The particle sizes were more uniform and no sign of nanoparticle clustering was observed.
Figure 8 shows the histogram of size distribution of silver nano particles. The average particle size measured from the TEM image is 10 nm. This large variation in particle size was due to the presence of a few irregular shaped particles.

2.5. FT-IR Spectrum

0.5 mL of the AgNO3 solution was dropped into 50 mL of mulberry leaves extract to prevent the extracted solution from rotting before taking the spectrum for mulberry leaf extract (From the sample synthesis to the FT-IR spectrum takes about 5 days). An FT-IR spectrum of silver nanoparticles synthesized by this green method is shown in Figure 9. A number of absorption peaks at 3261 cm−1 and 1637 cm−1. The peaks at 3261 cm−1 corresponds to O-H and N-H bonds, the peak at 1637 cm−1 corresponds to the C=O bond, indicating the biomaterial bind to the silver nanoparticles through amine and C=O of amide I and amid II of the protein [1,6,7,16]. These results indicate that mulberry leaves extract acts as a reducing and stabilizing agent for silver particles. According to studies by A.K. Mittal et al., the extract of Dhatura metel contained alkaloids, proteins, enzymes, amino acids, alcoholic compounds, and polysaccharides, which were said to be responsible for the reduction of the silver ions to nanoparticles. Quinol and chlorophyll pigments present in the extract also contributed to the reduction and stabilization of the nanoparticles [17]. Leaf extracts of Mulberry also contain similar leaf extracts of Dhatura metel [18]. Therefore, mulberry leaf extract also played a role in the reduction and stabilization of the nanoparticles.

3. Conclusions

The silver nanoparticles (AgNPs) colloid solution has been successfully synthesized, using a green and eco-friendly method. This is a quick, highly effective and less chemical-consuming method. The Microwave assisted green synthesis method is more effective than the non-microwave assisted method. The UV-Vis spectrum of AgNPs has an absorbance peak ranging from 425 nm–435 nm. Nano-silver particles are spherical shaped with size ranging from 15 nm to 20 nm. UV-vis spectrum of AgNPsmw shows peak at 415 nm, with an average particle size of 10 nm. The results observed after two months of storage of AgNPsmw are quite stable.

Author Contributions

Conceptualization, L.N.L.; Methodology, L.N.L. and N.P.T.; Validation, L.N.L. and N.P.T.; Formal analysis, L.N.L.; Investigation, L.N.L., D.N. and N.P.T.; Writing—Original draft preparation, L.N.L.; Writing—Review and Editing, L.N.L., D.N. and N.P.T; supervision, L.N.L.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yuet, Y.-L.; Buong, W.-C.; Mitsuaki, N.; Son, R. Synthesis of Silver Nanoparticles by Using Tea Leaf Extract from Camellia Sinensi. Int. J. Nanomed. 2012, 7, 4263–4267. [Google Scholar]
  2. Krishnakuma, N.; Adavallan, K. Mulberry leaf extract mediated synthesis of gold nano particles and its anti-bacterial activity against human pathogens. Adv. Nat. Sci. Nanosci. Nanotechnol. 2014, 5, 025018. [Google Scholar]
  3. Jaiswal, S.; Duffy, B.; Jaiswal, A.-K.; Stobie, N.; McHale, P. Enhancement of the antibacterial properties of silver nanoparticles using β-cyclodextrin as a capping agent. Int. J. Antimicrob. Agents 2010, 36, 280–283. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Sun, Q.; Cai, X.; Li, J.; Zheng, M.; Chen, Z.; Yu, C.-P. Green synthesis of silver nanoparticles using tea leaf extract and evaluation of their stability and antibacterial activity. Colloids Surf. Physicochem. Eng. Asp. 2014, 444, 226–231. [Google Scholar] [CrossRef]
  5. Sajeshkumar, N.-K.; Prem, J.-V.; Jiby, J.-M.; Anupa, S. Synthesis of silver nano particles from curry leaf (murraya koenigii) extract and its antibacterialactivity. CIBTech J. Pharm. Sci. 2015, 4, 15–25. [Google Scholar]
  6. Awwad, A.-M.; Salem, N.-M. Green synthesis of silver nanoparticles by Mulberry leavesextrac. Nanosci. Nanotechnol. 2012, 2, 125–128. [Google Scholar] [CrossRef]
  7. Awwad, A.-M.; Salem, N.-M.; Abdeen, A.-O. Biosynthesis of silver nanoparticles using Loquat leaf extract and its antibacterial activity. Adv. Mater. Lett. 2013, 4, 338–342. [Google Scholar] [CrossRef]
  8. Shahid, L.; Umer, Y.; Sirajuddin; Kim, W.-C.; Raja, A.-S.; Uddin, M.-K. Proximate Composition and Antioxidant Potential of Leaves from Three Varieties of Mulberry (Morus sp.): A Comparative Study. Int. J. Mol. Sci. 2012, 13, 6651–6664. [Google Scholar]
  9. Nuengchamnong, N.; Ingkaninan, K.; Kaewruang, W.; Wongareonwanakij, S.; Hongthongdaeng, B. Quantitative determination of 1-deoxynojirimycin in mulberry leaves using liquid chromatography-tandem mass spectrometry. J. Pharm. Biomed. Anal. 2007, 44, 853–858. [Google Scholar] [CrossRef] [PubMed]
  10. Bahman, N.; Golboo, M. Influence of Three Morus Species Extracts on α-Amylase Activity. Iran. J. Pharm. Res. 2009, 8, 115–119. [Google Scholar]
  11. Chirino, Y.-I.; Pedraza, C.-J. Role of oxidative and nitrosative stress in cisplatin-induced nephrotoxicity. Exp. Toxicol. Pathol. 2009, 61, 223–242. [Google Scholar] [CrossRef] [PubMed]
  12. Yang, Y.; Gong, T.; Liu, C.-H.; Chen, R.-Y. Four new 2-arylbenzofuran derivatives from leaves of Morus alba L. Chem. Pharm. Bull. 2010, 58, 257–260. [Google Scholar] [CrossRef] [PubMed]
  13. Kobayashi, Y.; Miyazawa, M.; Kojima, T. The use of Morus alba L (mulberry): And Eucommia ulmoides (Tochu): Leaves as functional foods: A promising approach in the management of hyperlipidemia. J. Tradit. Med. 2010, 27, 227–230. [Google Scholar]
  14. Jagpreet, S.; Navalpreet, S.; Aditi, R.; Deepak, K.; Mohit, R. Facile Approach to Synthesize and Characterization of Silver Nanoparticles by Using Mulberry Leaves Extract in Aqueous Medium and its Application in Antimicrobial Activity. J. Nanostruct. 2017, 7, 134–140. [Google Scholar]
  15. Siby, J.; Beena, M. Synthesis of silver nanoparticles by microwave irradiation and investigation of their catalytic activity. Res. J. Recent Sci. 2014, 3, 185–191. [Google Scholar]
  16. Dhivya, G.; Rajasimman, M. Synthesis of silver nanoparticles using Momordica charantia and its applications. J. Chem. Pharm. Res. 2015, 7, 107–113. [Google Scholar]
  17. Amit, K.-M.; Yusuf, C.; Banerjee, U.C. Synthesis of metallic nanoparticles using plant extract. Biotechnol. Adv. 2013, 31, 346–356. [Google Scholar]
  18. Olfa, R.; Manel, B.; Sami, F.; Mohamed, A. Phytochemicals from Mulberry extract (Morus sp.): Antioxidant and neuroprotective potentials. J. Appl. Pharm. Sci. 2017, 7, 217–222. [Google Scholar]
Figure 1. Picture of Mulberry trees leaves.
Figure 1. Picture of Mulberry trees leaves.
Technologies 07 00007 g001
Figure 2. Photograph color change of colloids.
Figure 2. Photograph color change of colloids.
Technologies 07 00007 g002

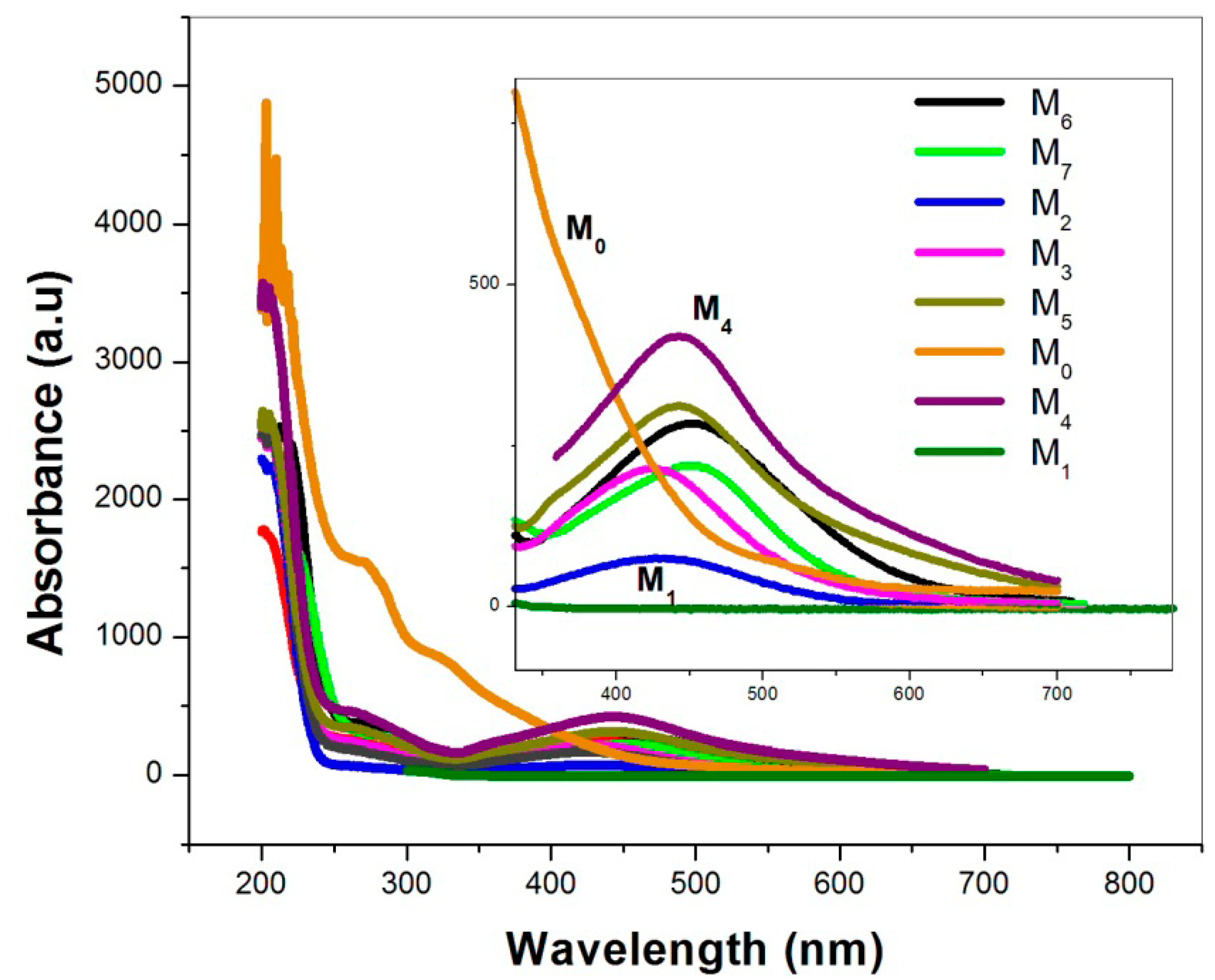

Figure 3. UV-Vis spectra of AgNO3 solution (M1), Mulberry extract (M0) and AgNps prepared at different Mulberry leaves extract.
Figure 3. UV-Vis spectra of AgNO3 solution (M1), Mulberry extract (M0) and AgNps prepared at different Mulberry leaves extract.
Technologies 07 00007 g003
Figure 4. Photograph of silver nanoparticles (AgNPs) (M8) and of AgNPsmw (M9).
Figure 4. Photograph of silver nanoparticles (AgNPs) (M8) and of AgNPsmw (M9).
Technologies 07 00007 g004
Figure 5. UV-Vis spectra of AgNPs (M8), of AgNPsmw (M9) and of AgNPsmw after two months of storage (M10).
Figure 5. UV-Vis spectra of AgNPs (M8), of AgNPsmw (M9) and of AgNPsmw after two months of storage (M10).
Technologies 07 00007 g005

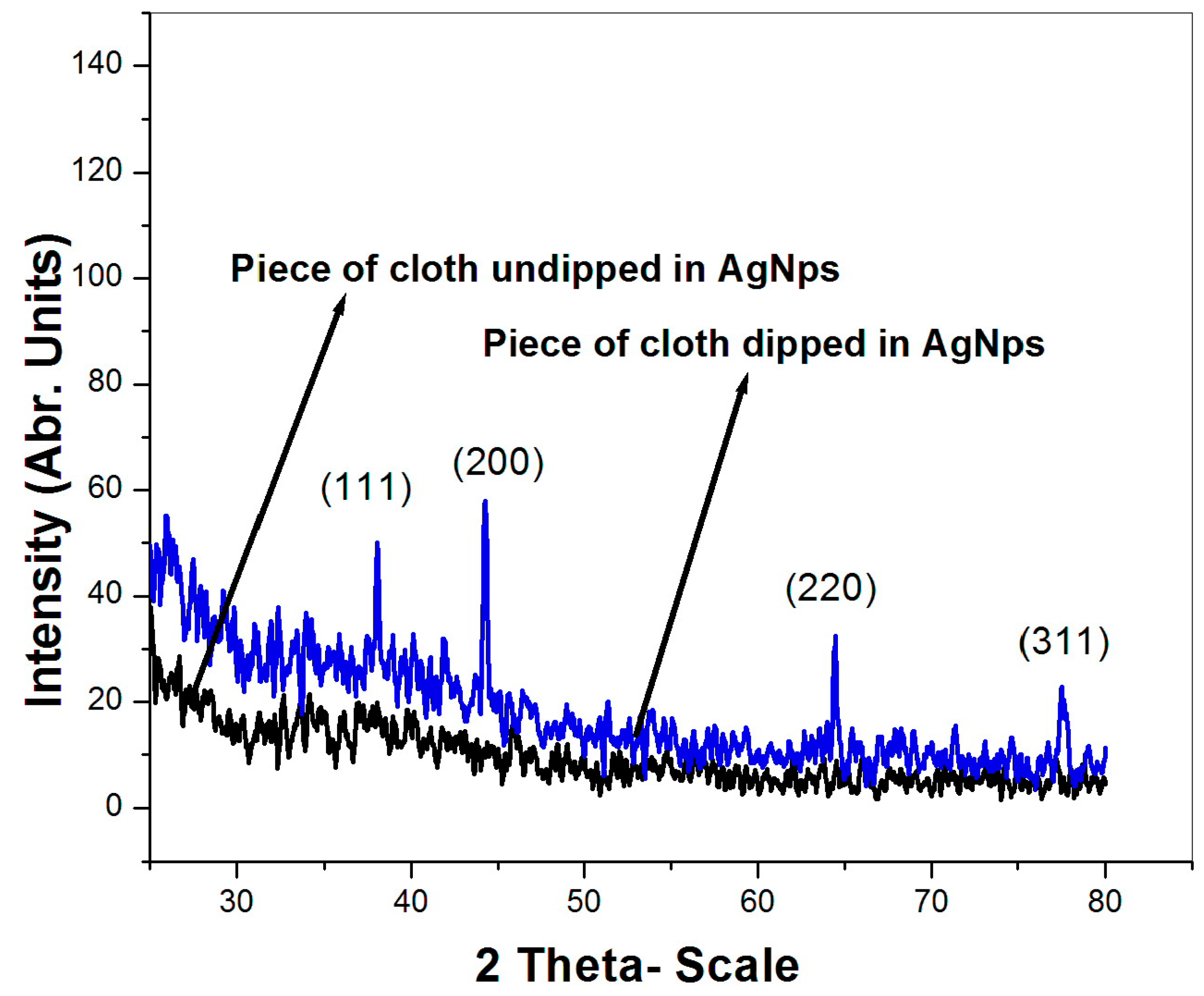

Figure 6. X-ray diffraction of a pieces of cloth dipped into a colloids solution AgNPs (blue line), and a pieces of cloth not dipped into a colloids solution AgNPs (black line).
Figure 6. X-ray diffraction of a pieces of cloth dipped into a colloids solution AgNPs (blue line), and a pieces of cloth not dipped into a colloids solution AgNPs (black line).
Technologies 07 00007 g006

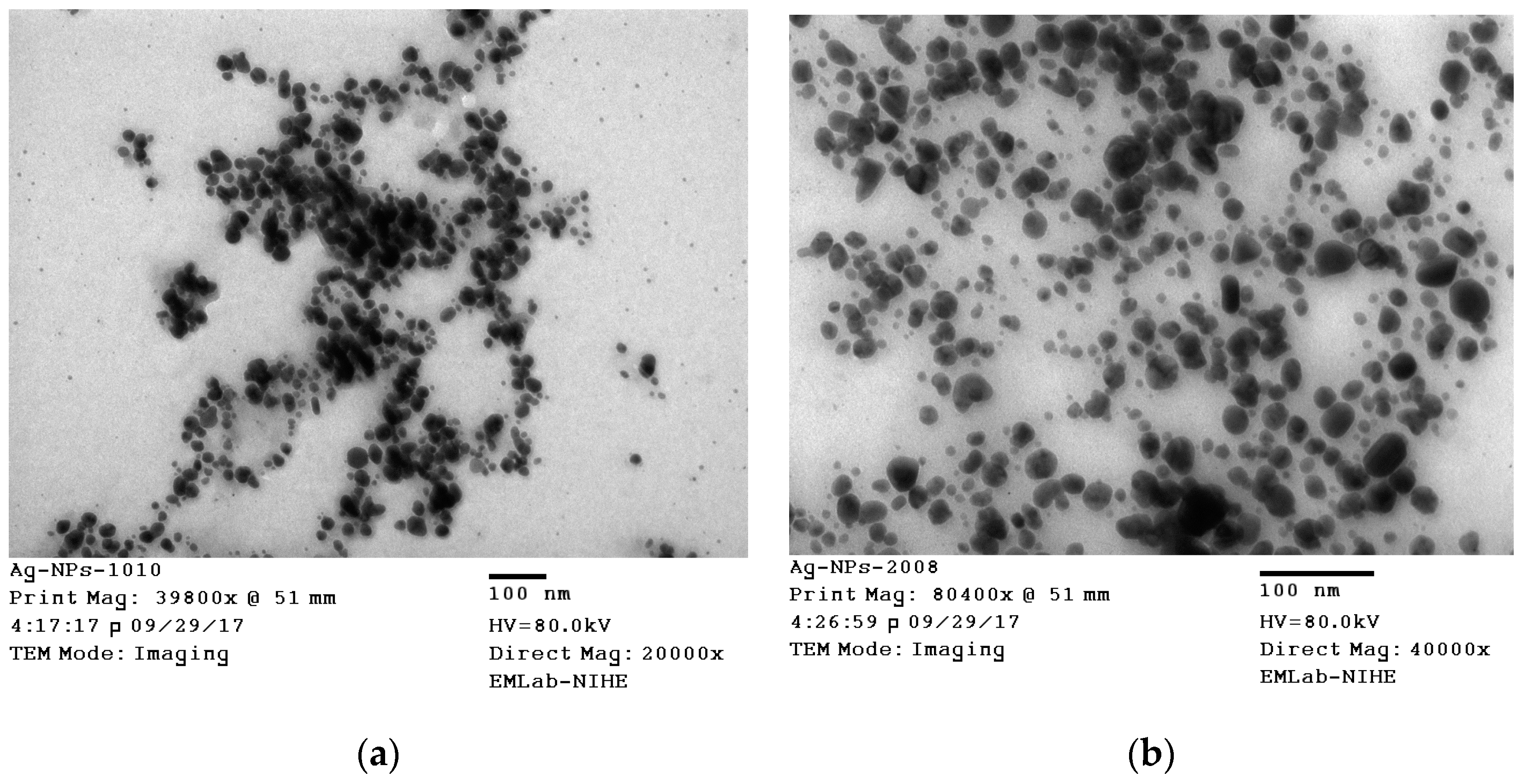

Figure 7. Transmission Electron Microscope (TEM) images of silver nanoparticles (M8 and M9).
Figure 7. Transmission Electron Microscope (TEM) images of silver nanoparticles (M8 and M9).
Technologies 07 00007 g007

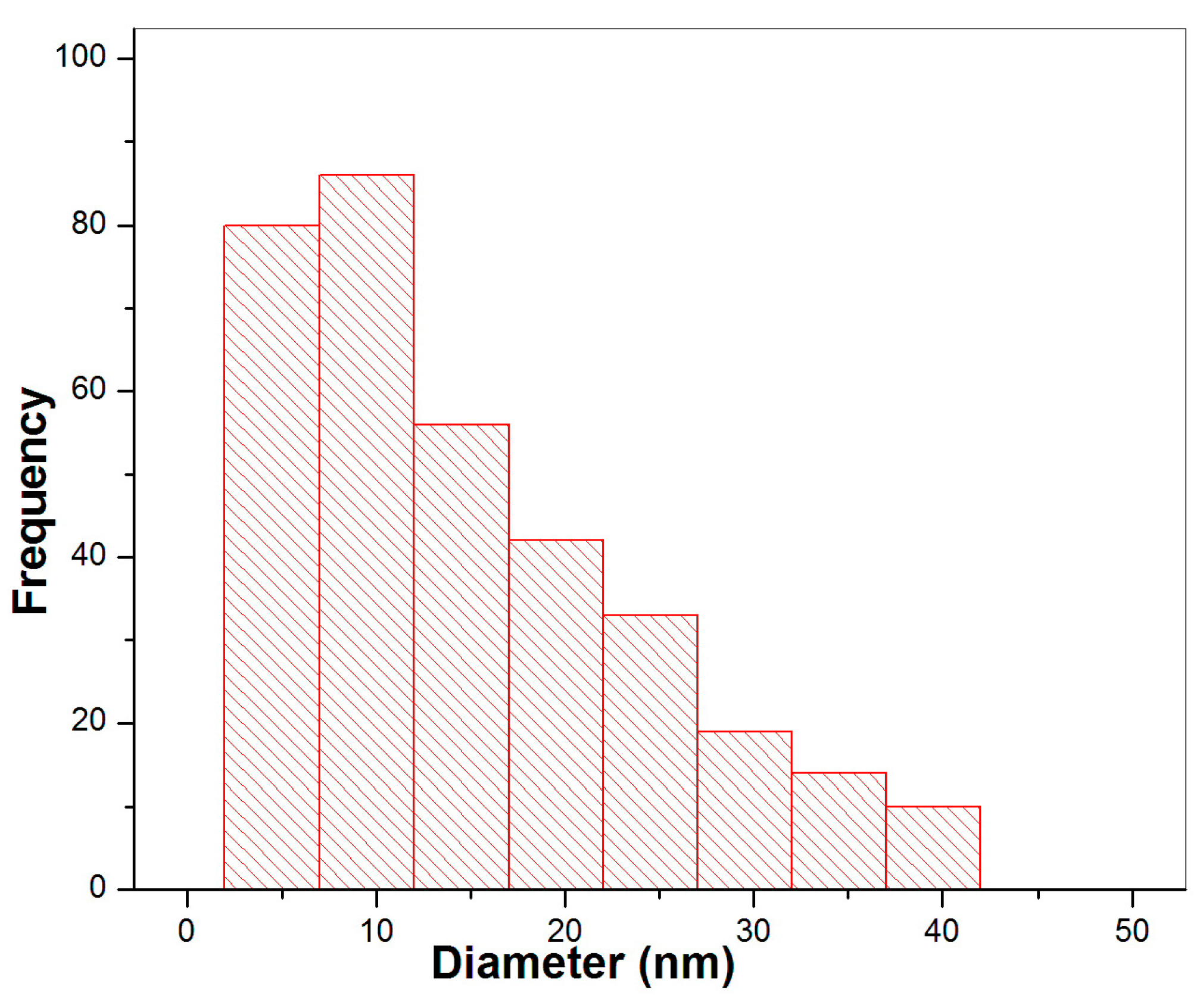

Figure 8. Histogram showing the particle sizes of AgNPs corresponding to TEM images M9.
Figure 8. Histogram showing the particle sizes of AgNPs corresponding to TEM images M9.
Technologies 07 00007 g008

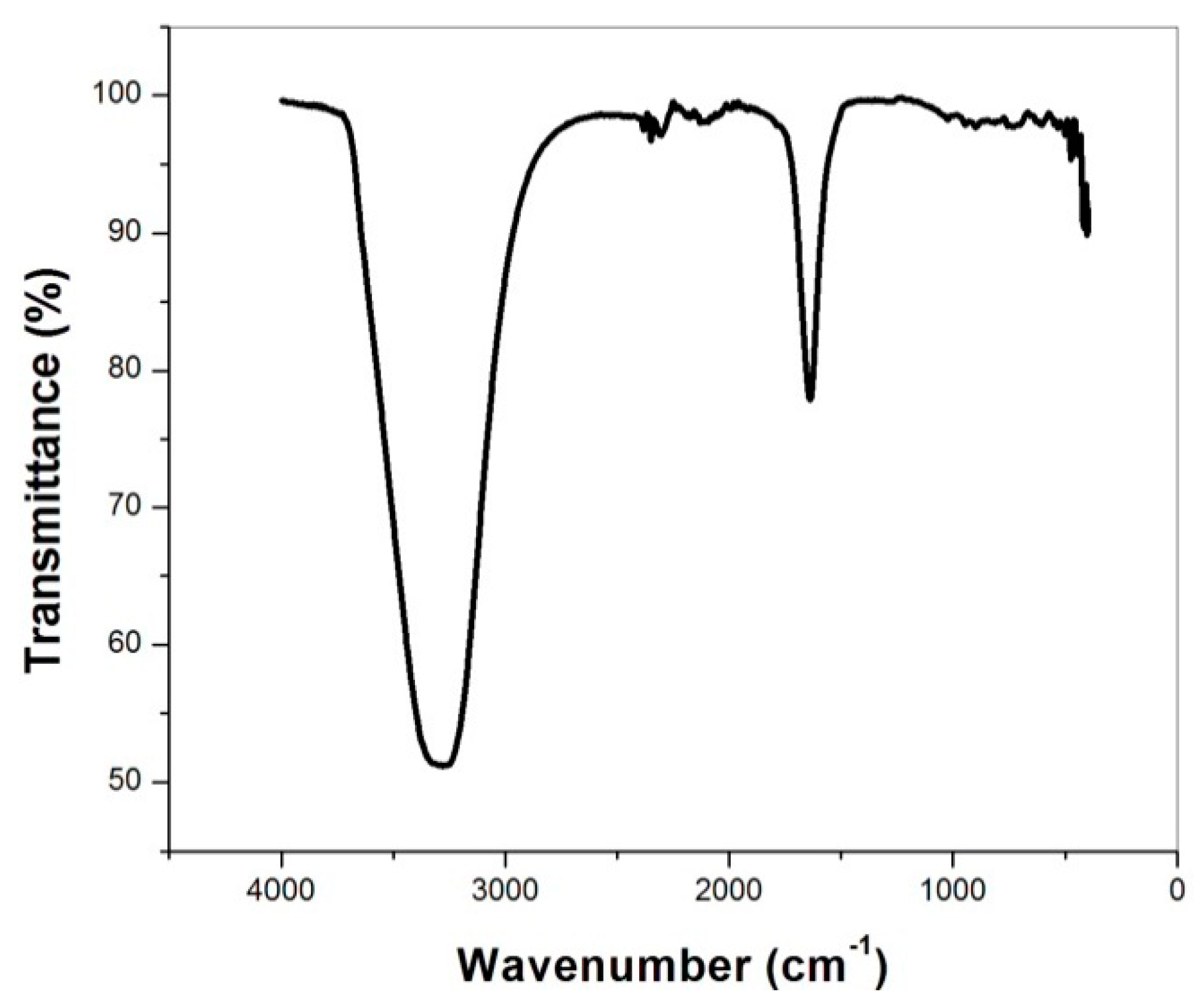

Figure 9. FTIR spectrum of mulberry leaves extract.
