Article

Mediator of DNA Damage Checkpoint Protein 1 Facilitates V(D)J Recombination in Cells Lacking DNA Repair Factor XLF

by
Carole Beck
1,2,
Sergio Castañeda-Zegarra
1,2,
Camilla Huse
1,2,
Mengtan Xing
1,2 and
Valentyn Oksenych
1,2,3,*
1
Department of Clinical and Molecular Medicine (IKOM), Norwegian University of Science and Technology (NTNU), 7491 Trondheim, Norway
2
St. Olavs Hospital, Trondheim University Hospital, Clinic of Medicine, Postboks 3250 Sluppen, 7006 Trondheim, Norway
3
Department of Biosciences and Nutrition (BioNuT), Karolinska Institutet, 14183 Huddinge, Sweden
*
Author to whom correspondence should be addressed.
Biomolecules 2020, 10(1), 60; https://doi.org/10.3390/biom10010060
Submission received: 27 November 2019 / Revised: 23 December 2019 / Accepted: 24 December 2019 / Published: 30 December 2019
(This article belongs to the Special Issue DNA Damage Response)
Browse Figures
Versions Notes

Abstract

:
DNA double-strand breaks (DSBs) trigger the Ataxia telangiectasia mutated (ATM)-dependent DNA damage response (DDR), which consists of histone H2AX, MDC1, RNF168, 53BP1, PTIP, RIF1, Rev7, and Shieldin. Early stages of B and T lymphocyte development are dependent on recombination activating gene (RAG)-induced DSBs that form the basis for further V(D)J recombination. Non-homologous end joining (NHEJ) pathway factors recognize, process, and ligate DSBs. Based on numerous loss-of-function studies, DDR factors were thought to be dispensable for the V(D)J recombination. In particular, mice lacking Mediator of DNA Damage Checkpoint Protein 1 (MDC1) possessed nearly wild-type levels of mature B and T lymphocytes in the spleen, thymus, and bone marrow. NHEJ factor XRCC4-like factor (XLF)/Cernunnos is functionally redundant with ATM, histone H2AX, and p53-binding protein 1 (53BP1) during the lymphocyte development in mice. Here, we genetically inactivated MDC1, XLF, or both MDC1 and XLF in murine vAbl pro-B cell lines and, using chromosomally integrated substrates, demonstrated that MDC1 stimulates the V(D)J recombination in cells lacking XLF. Moreover, combined inactivation of MDC1 and XLF in mice resulted in synthetic lethality. Together, these findings suggest that MDC1 and XLF are functionally redundant during the mouse development, in general, and the V(D)J recombination, in particular.

1. Introduction

In mammalian cells, DNA double-strand breaks (DSBs) activate the DNA damage response signaling (DDR). During DDR, Ataxia telangiectasia mutated (ATM) protein kinase phosphorylates multiple substrates, including histone H2AX and the scaffold proteins, mediator of DNA damage checkpoint protein 1 (MDC1) and p53-binding protein 1 (53BP1) [1]. The E3 ubiquitin ligases, really interesting new gene (RING) finger (RNF) 8 and RNF168, function downstream of the ATM to enhance 53BP1 binding, which, in turn, facilitates the recruitment of DDR effectors, Pax transactivation domain-interacting protein (PTIP), and Rap1-interacting factor 1 (RIF1) [1]. Moreover, methylated [2,3,4] and acetylated [5] histones may facilitate the DDR. In particular, histone H4 lysine 20 di-methylation (H4K20me2) [3] and histone H3 lysine 79 mono- and di-methylation (H3K79me1/2) [4] were thought to facilitate recruitment of 53BP1 to the sites of damaged DNA. Homologous recombination (HR), classical non-homologous end joining (NHEJ), and alternative end joining (A-EJ) are cellular pathways that recognize and repair DSBs. NHEJ is initiated by the recruitment of the core Ku70/Ku80 (Ku) sensor to the DSB sites. Ku facilitates the recruitment of downstream factors, including the DNA-dependent protein kinase, catalytic subunit (DNA-PKcs), and the NHEJ core factors DNA ligase 4 (Lig4) and X-ray repair cross-complementing protein 4 (XRCC4). A number of NHEJ proteins, including accessory factors, stabilize the DNA repair complex and process DNA overhangs to facilitate ligation [1]. Among them, nuclease Artemis [6], XRCC4-like factor (XLF, or Cernunnos) [7,8], a paralogue of XRCC4 and XLF (PAXX) [9,10,11], and modulator of retrovirus infection (Mri) [12,13].
During the B and T lymphocyte development, both DDR and NHEJ pathways function in response to the recombination activating gene (RAG)-induced DSBs in the process known as the variable (V), diversity (D) and joining (J) gene segments recombination (V(D)J recombination). RAG is the nuclease that generates DSBs adjacent to the V, D, and J gene segments of immunoglobulin and T cell receptor genes. NHEJ is the only known process to recognize and efficiently repair RAG-induced DSBs [1,14]. V(D)J recombination is ablated in mice lacking core NHEJ factors, Ku70 [15] and Ku80 [16]. Inactivation of XRCC4 or Lig4 resulted in embryonic lethality in mice, while conditional inactivation or knocking down of XRCC4 or Lig4 in lymphocytes blocked the V(D)J recombination and NHEJ [1,17,18]. Accessory NHEJ factors DNA-dependent protein kinase, catalytic subunit (DNA-PKcs) and Artemis are required for the V(D)J recombination-associated DNA repair. Artemis is a nuclease that processes RAG-induced hairpin-sealed DNA ends, and DNA-PKcs is required to both structurally stabilize and phosphorylate Artemis [6,19,20,21,22,23]. On the contrary, germline inactivation of XLF [24,25], PAXX [26,27,28,29], or Mri [12,13] had no or modest impact on the DNA repair and lymphocyte development in general, and the V(D)J recombination in particular. Combined inactivation of XLF and PAXX resulted in the V(D)J recombination defect in cells [30,31,32] and synthetic lethality in mice [26,28,29,33]. Moreover, XLF is functionally redundant with DNA-PKcs [33,34,35], Mri [12,13], and RAG2 [36].
DDR factors were thought to be dispensable for the V(D)J recombination, because germline inactivation of ATM [37], H2AX [38,39], MDC1 [40], or 53BP1 [41] resulted in modest or no effect on early stages of B and T lymphocyte development. Strikingly, combined inactivation of XLF and ATM [42], or XLF and 53BP1 [43,44], resulted in live-born mice with nearly no mature B and T lymphocytes due to the impaired V(D)J recombination. Additional ATM-dependent DDR factors, including MDC1, may be involved in the V(D)J recombination, and their functions might be revealed in the XLF-deficient background [1,42,43,44].
XLF is the NHEJ factor. Mutations in the XLF gene in humans result in combined immunodeficiency [8,45], and inactivation of the XLF gene in mice results in a modest reduction of B and T lymphocytes count [24,25]. XLF shares a structure with XRCC4, and binds XRCC4 to stimulate the Lig4 activity [7]. XLF has a yeast homolog Nej1 that also stimulates the DNA repair in yeast [46]. Moreover, the lack of XLF results in increased levels of medulloblastoma in Trp53-deficient mice [24]. Together, these observations place XLF to the group of “core” NHEJ factors. MDC1 is a DNA damage response protein acting downstream of ATM and upstream of 53BP1 [47]. Like XLF, the MDC1 has no enzymatic activity and likely stabilizes the DNA repair complex and facilitates the recruitment of other DNA repair factors. Both MDC1 and XLF can be phosphorylated by ATM and likely by DNA-PKcs to regulate their functions in DNA repair [1]. Moreover, both XLF and MDC1 were proposed to tether the DNA at the DSB sites before the DNA ligation [1,48].
Here, we generated MDC1−/−XLF−/− double-knockout cell lines and demonstrated that MDC1 is stimulating the V(D)J recombination in cells lacking XLF. Moreover, we demonstrated that combined inactivation of MDC1 and XLF resulted in synthetic lethality in mice.

2. Materials and Methods

2.1. Generation of Abelson Murine Leukemia Virus-Transformed (vAbl) Cell Lines

Eμ-Bcl2+ and XLF−/−Eμ-Bcl2+ vAbl cells were published earlier [34,42,43]. Five independent clones of MDC1−/−Eμ-Bcl2+ were generated using two three-week-old mice following the procedure described previously [34,42,43,49,50]. Additionally, the XLF gene was inactivated in Eμ-Bcl2+ vAbl cells to obtain XLF−/−Eμ-Bcl2+ cell lines, and in MDC1−/−Eμ-Bcl2+ to generate MDC1−/−XLF−/−Eμ-Bcl2+ vAbl lines, using the clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9) gene-editing approach as described earlier [51]. Briefly, oligonucleotides corresponding to single guide RNAs (sgRNAs) were cloned into the plasmid vector LentiCRISPR v2 (Addgene plasmid #52961, Addgene, Watertown, MA, USA) [52]. The following sgRNAs were used to target exon 3 of the XLF gene: sgRNA1_FWD: 5′-CTTAGCATACACCAACTTC-3′; sgRNA1_REV: 5′-GAAGTTGGTGTATGCTAAG-3′; sgRNA2_FWD: 5′-CCACCAACAGGTACTCATA-3′; sgRNA2_REV: 5′-TATGAGTACCTGTTGGTGG-3′. Parental vAbl cells were transduced with lentiviral vectors containing corresponding sgRNA sequences, and up to 200 clones were screened by western blot. The cells lacking the XLF signal were used to validate the deletion of the exon 3 by DNA sequencing (available upon request). Two XLF−/− clones and four MDC1−/−XLF−/− clones were used for experiments. Mock-treated and parental vAbl cells were used as DNA repair-proficient controls.

2.2. Antibodies

The following antibodies were used for western blot: rabbit polyclonal anti-XLF (Bethyl, Montgomery, TX, USA; A300-730A, dilution 1:2000), swine polyclonal anti-rabbit immunoglobulin-horseradish peroxidase-conjugated (Ig-HRP; Dako antibodies, Dako, Glostrup, Denmark; #P0399, dilution 1:5000), mouse monoclonal anti-β-actin (Abcam, Cambridge, UK; ab8226, dilution 1:2000), rabbit polyclonal anti-mouse Ig-HRP (Dako antibodies, Dako, Glostrup, Denmark; #P0260, dilution 1:5000), and goat polyclonal anti-mouse Ig-HRP (Dako antibodies, Dako, Glostrup, Denmark; #P0447, dilution 1:5000).

2.3. Variable (V), Diversity (D) and Joining (J) Gene Segments Recombination (V(D)J Recombination) Assays Based on Chromosomally Integrated pMX Cassettes

V(D)J recombination assays were performed using chromosomally-integrated pMX inversion (pMX-INV) and pMX deletion (pMX-DEL) substrates, as previously described [34,42,43,49,50]. In the pMX-INV cassette, the green fluorescent protein (GFP) gene is placed in the reversed orientation and the GFP protein is not expressed. Upon the RAG-induced V(D)J recombination, the GFP gene is placed in the sense orientation leading to the GFP protein expression. The GFP protein is then detected by flow cytometry to estimate the V(D)J recombination efficiency in indicated vAbl cells [42,49,50]. For the Southern blot-based experiments, we used chromosomally-integrated pMX-DEL cassettes. During the V(D)J recombination, the pMX-DELCJ cassette results in an intermediate product with hairpin-sealed coding ends that require Artemis nuclease activity to open the hairpins prior DNA ligase 4-dependent DNA ligation, leading to coding joints (CJ). On the contrary, the pMX-DELSJ cassette results in the RAG-dependent generation of blunt signal ends (SE) that can be directly ligated by DNA ligase 4 and do not require Artemis nuclease activity, leading to signal joints (SJ) [34,42,43,49,50].

2.4. Mice

All experiments involving mice were performed according to the protocols approved by the Norges teknisk-naturvitenskapelige universitet (NTNU), FOTS#8319. MDC1+/− [40], XLF+/Δ [24], and Eμ-Bcl2+ [53] mice were described previously. The Eμ-Bcl2+ transgenic mice were used to generate vAbl pre-B cells and increase cell survival during the experimental procedures [49].

2.5. Proliferation Assay

Fifty thousand vAbl cells were plated in 2 mL of Roswell Park Memorial Institute (RPMI) medium in triplicates into 6-well plates. Similarly, fifty thousand human haploid 1 (HAP1) cells were plated in Iscove’s Modified Dulbecco’s Medium (IMDM; Thermo Fisher, Waltham, MA, USA; 21980065) and supplemented with 10% fetal bovine serum, FBS (Sigma, St. Louis, MO, USA; F7524), and 1% penicillin-streptomycin (Thermo Fisher, Waltham, MA, USA; 15140122) at 37 °C with 5% CO2, according to the manufacturer’s instructions. MDC1∆ HAP1 cells are nearly haploid human cells that were custom-generated by request and provided by Horizon Discovery (Waterbeach, Cambridge, UK; HZGHC005077c003). The HAP1 cells are human, nearly haploid cell lines derived from the chronic myelogenous leukemia (CML) cell line (KMB-7). The HAP1 model has been recently used to develop knockout human cells (e.g., References [13,33,51,54]).
Both vAbl and HAP1 cells were counted every 24 h using a Countess™ Automated Cell Counter (Invitrogen, Carlsbad, CA, USA) with Trypan blue staining (Invitrogen, Carlsbad, CA, USA) and bright-field detection. Statistical analyses were performed using GraphPad Prism 8 (La Jolla, CA, USA), one-way analysis of variance (ANOVA), and t-test.

3. Results

3.1. Robust V(D)J Recombination in Progenitor-B Cells Lacking Mediator of DNA Damage Checkpoint Protein 1 (MDC1)

Mice lacking MDC1 possess nearly wild-type levels of B and T lymphocytes [40]. Combined inactivation of MDC1 and Artemis suggests that MDC1 protects or stabilizes RAG-induced DSBs before ligation. In particular, the vAbl cells lacking MDC1 and Artemis possess ATM-dependent degradation of free DNA ends during the attempted V(D)J recombination [55]. To further determine the impact of MDC1 on the V(D)J recombination, we inter-crossed MDC1+/−Eμ-Bcl2+ mice and isolated the cells from the bone marrow of three-week-old MDC1−/−Eμ-Bcl2+ animals. We then established Abelson murine leukemia virus kinase-transformed pro-B cells (vAbl) and chromosomally-integrated either pMX-INV or pMX-DEL V(D)J recombination cassettes, as described previously [18,34,42,43,49]. Similar to wild type (WT) controls, two independently generated MDC1-deficient vAbl cell lines possessed robust coding-end (CE) and signal end (SE) joining (Supplementary Figure S1). We concluded that MDC1 is dispensable for the V(D)J recombination in WT vAbl progenitor B cells.

3.2. Synthetic Lethality Between Mediator of DNA Damage Checkpoint Protein 1 (MDC1) and XRCC4-Like Factor (XLF) in Mouse

To further investigate the role of MDC1 during the V(D)J recombination, we first attempted to generate the MDC1−/−XLF−/− double knockout mice. Individual inactivation of MDC1 or XLF results in live-born mice that possess modest levels of DNA repair defects [24,25,34,40,42,43,44]. First, we obtained MDC1+/−XLF−/− mice, starting with available heterozygous MDC1+/− [40] and XLF+/− [24] animals. By inter-crossing MDC1+/−XLF−/− mice, we obtained and genotyped 104 pups, including 34 MDC1+/+XLF−/− and 70 MDC1+/−XLF−/− (Table 1). Strikingly, we detected no MDC1−/−XLF−/− double knockout pups, and the final genotype distribution was 34:70:0 (1:2:0) (Table 1). We concluded that combined inactivation of MDC1 and XLF results in embryonic lethality.

3.3. Generation of XLF−/− Knockout and MDC1−/−XLF−/− Double Knockout vAbl Cell Lines

To obtain double knockout MDC1−/−XLF−/− and control XLF−/− vAbl cells, we inactivated the XLF gene in MDC1−/− and WT vAbl cells using the CRISPR/Cas9 gene-editing approach (see the Materials and Methods Section). Briefly, we targeted exon 3 of the XLF gene (Figure 1A) and verified gene inactivation by western blot (Figure 1B) and DNA sequencing (available upon request). The proliferation of WT, XLF−/−, and MDC1−/− vAbl cells were of similar rates during the 72 h, p > 0.05 (Figure 1C). On the contrary, MDC1−/−XLF−/− double knockout vAbl cell lines possessed reduced proliferation rates (****, p < 0.0001) at 48 and 72 h of the experiment (Figure 1C). Inactivation of the MDC1 gene in human HAP1 cells resulted in proliferation rates similar to WT cells at 24–72 h, and reduced proliferation rates at 96 and 120 h (Figure 1D).

3.4. Reduced V(D)J Recombination Efficiency in vAbl Pro-B Cells Lacking both MDC1 and XLF

To determine the impact of MDC1 on V(D)J recombination, we chromosomally-integrated the cassette-carrying GFP gene in reverse orientation and flanked by DNA sequences recognized by RAG (pMX-INV) [49,50] (Figure 2A). To induce the RAG expression, we exposed the cells to the vAbl kinase inhibitor STI571 (Gleevec). Upon a successful V(D)J recombination event, the cells expressing GFP were detectable by flow cytometry [42,49,50]. The cells lacking MDC1 possessed relatively high levels of V(D)J recombination reflected by GFP expression (29%), which was in the range of WT and XLF−/− cell lines (34% and 37%, respectively) (Figure 2B–D). Strikingly, combined inactivation of MDC1 and XLF resulted in a significantly reduced proportion of GFP-expressing vAbl cells when compared to WT and single knockout controls (average levels of 20%; ****, p < 0.0001). Double knockout DNA-PKcs−/−XLF−/− vAbl cells were used as a negative control to establish background levels of the experiments (0% of GFP-positive cells) [34]. We concluded that MDC1 is stimulating the V(D)J recombination in XLF-deficient cells, due to functional complementarity between MDC1 and XLF in this process.

4. Discussion

Inactivation of RAG and most of the known NHEJ factor genes in mice leads to immunodeficiency [12,56]. Recently, we and others found that single inactivation of XLF, PAXX, or Mri genes results in mice with the nearly normal immune system, due to the overlapping functions between XLF and PAXX [26,27,28,29,33], as well as XLF and Mri [12,13] (Table 2). The ATM-dependent DDR pathway was initially thought to be dispensable for the V(D)J recombination, although more recent studies using combined genetic inactivation of XLF and ATM [42], as well as DNA-PKcs and ATM [21,57], revealed that ATM is indeed involved in the early stages of B and T lymphocyte development and its function is partially compensated by XLF and DNA-PKcs. Later, we and others found that ATM substrates, H2AX and 53BP1, are also required for B and T lymphocyte development due to their functions in V(D)J recombination [42,43,44] (Table 2). Here, we show that another ATM substrate, MDC1, is involved in the V(D)J recombination and its function is compensated in WT cells by XLF. Combined inactivation of ATM and XLF, or 53BP1 and XLF, resulted in immunodeficient mice of smaller sizes than single knockouts or wild-type controls, with abrogated NHEJ, resembling Ku70−/− or Ku80−/− knockouts [1,42,43,44]. Differently, combined inactivation of DNA-PKcs and XLF [34,35], H2AX and XLF [42], or MDC1 and XLF ([33]; and this study) resulted in embryonic lethality in mice, challenging genetic interaction studies in vivo (Table 2). One option to overcome this obstacle is to develop conditional knockouts allowing inactivation of DNA-PKcs, XLF, or MDC1 in developing B and T lymphocytes in adult mice. An alternative option is to develop more complex mouse models using. for example, p53−/− or p53+/− backgrounds, allowing for the rescue of embryonic lethality (e.g., References [33,35]).
Knocking out genes of interest in cell lines may complement and sometimes substitute in vivo experiments using transgenic mice. In particular, vAbl cell lines can be modified using the CRISPR/Cas9 gene-editing approach and serve as a model system to elucidate the specific roles of a particular gene (e.g., References [30,31,32,50]). Moreover, human, nearly haploid HAP1 cells derived from the KMB-7 cell lines have been recently used to develop genetically-modified cells (e.g., References [13,33,51,54]).
It becomes more accepted that the DDR pathway contributes to the V(D)J recombination in developing B and T lymphocytes [1,34,42,43,44]. However, the mechanistic aspects underlying the specific roles of the DDR factors in this process remain unclear. One can speculate that DDR factors share the functions with XLF, e.g., by stabilizing the DNA repair complex or supporting timely recruitment and dissociation of the NHEJ factors. The DDR pathway may also contribute to distinct but complementary XLF aspects of the DNA repair, e.g., by recruiting the downstream enzymes, supporting the DNA damage-induced post-translational modifications of DNA repair factors and histones, or protecting the free DNA ends from the nuclease-dependent processing before the DNA ligation step [1,34,42,43,44,55]. In particular, the role of MDC1 during the V(D)J recombination might be to stabilize the DNA repair complex, to protect the free DNA ends, to ensure efficient recruitment of downstream DDR factors, such as 53BP1, PTIP, RIF1, Shieldin, etc. [1,42,43,44,47,55,58], or to exit from the G1 phase of the cell cycle following the RAG-induced DSB [59]. Further research is required to identify specific roles of MDC1 and XLF in DNA repair.
The proliferation rate of vAbl cells lacking both XLF and MDC1 was reduced when compared to single-deficient and WT controls (Figure 1) at 72 h. Moreover, proliferation rates of MDC1-deficient cells were also reduced when compared to WT, although not significant. Furthermore, the lack of MDC1 alone resulted in significantly reduced proliferation rates of human HAP1 cells at 96 and 120 h (Figure 1). These observations may suggest that, first, the lack of MDC1 is compensated by the presence of XLF in murine cells, and second, that the MDC1 is required for efficient DNA repair and proliferation of human cells, likely by supporting the cell cycle progression and DNA damage tolerance [47,59].

5. Conclusions

Multiple DDR factors are involved in the V(D)J recombination. Due to the functional redundancy between the DDR and NHEJ pathways, complex genetic in vivo and in vitro models will be appropriate to uncover specific functions of DDR factors in B and T lymphocyte development and further elucidate mechanisms underlying their roles.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/10/1/60/s1, Figure S1: Robust V(D)J recombination in vAbl cells lacking MDC1.

Author Contributions

All the authors designed, performed, and analyzed the experiments. The manuscript was written by V.O. All of the authors read and approved the final version of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Research Council of Norway Young Talent Investigator grant (#249774) to V.O. In addition, Oksenych group was supported by the Liaison Committee for education, research, and innovation in Central Norway (#13477; #38881), the Norwegian Cancer Society (#182355), FRIMEDBIO grants (#270491 and #291217), and The Outstanding Academic Fellow Program at NTNU (2017–2021).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kumar, V.; Alt, F.W.; Oksenych, V. Functional overlaps between XLF and the ATM-dependent DNA double strand break response. DNA Repair 2014, 16, 11–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Oksenych, V.; Zhovmer, A.; Ziani, S.; Mari, P.O.; Eberova, J.; Nardo, T.; Stefanini, M.; Giglia-Mari, G.; Egly, J.M.; Coin, F. Histone methyltransferase DOT1L drives recovery of gene expression after a genotoxic attack. PLoS Genet. 2013, 9, e1003611. [Google Scholar] [CrossRef] [PubMed]
  3. Botuyan, M.V.; Lee, J.; Ward, I.M.; Kim, J.E.; Thompson, J.R.; Chen, J.; Mer, G. Structural basis for the methylation state-specific recognition of histone H4-K20 by 53BP1 and Crb2 in DNA repair. Cell 2006, 127, 1361–1373. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Huyen, Y.; Zgheib, O.; Ditullio, R.A., Jr.; Gorgoulis, V.G.; Zacharatos, P.; Petty, T.J.; Sheston, E.A.; Mellert, H.S.; Stavridi, E.S.; Halazonetis, T.D. Methylated lysine 79 of histone H3 targets 53BP1 to DNA double-strand breaks. Nature 2004, 432, 406–411. [Google Scholar] [CrossRef] [PubMed]
  5. Lee, H.S.; Park, J.H.; Kim, S.J.; Kwon, S.J.; Kwon, J. A cooperative activation loop among SWI/SNF, gamma-H2AX and H3 acetylation for DNA double-strand break repair. EMBO J. 2010, 29, 1434–1445. [Google Scholar] [CrossRef] [PubMed]
  6. Ma, Y.; Pannicke, U.; Schwarz, K.; Lieber, M.R. Hairpin opening and overhang processing by an Artemis/DNA-dependent protein kinase complex in nonhomologous end joining and V(D)J recombination. Cell 2002, 108, 781–794. [Google Scholar] [CrossRef] [Green Version]
  7. Ahnesorg, P.; Smith, P.; Jackson, S.P. XLF interacts with the XRCC4-DNA ligase IV complex to promote DNA nonhomologous end-joining. Cell 2006, 124, 301–313. [Google Scholar] [CrossRef] [Green Version]
  8. Buck, D.; Malivert, L.; de Chasseval, R.; Barraud, A.; Fondaneche, M.C.; Sanal, O.; Plebani, A.; Stephan, J.L.; Hufnagel, M.; le Deist, F.; et al. Cernunnos, a novel nonhomologous end-joining factor, is mutated in human immunodeficiency with microcephaly. Cell 2006, 124, 287–299. [Google Scholar] [CrossRef] [Green Version]
  9. Craxton, A.; Somers, J.; Munnur, D.; Jukes-Jones, R.; Cain, K.; Malewicz, M. XLS (c9orf142) is a new component of mammalian DNA double-stranded break repair. Cell Death Differ. 2015, 22, 890–897. [Google Scholar] [CrossRef] [Green Version]
  10. Ochi, T.; Blackford, A.N.; Coates, J.; Jhujh, S.; Mehmood, S.; Tamura, N.; Travers, J.; Wu, Q.; Draviam, V.M.; Robinson, C.V.; et al. DNA repair. PAXX, a paralog of XRCC4 and XLF, interacts with Ku to promote DNA double-strand break repair. Science 2015, 347, 185–188. [Google Scholar] [CrossRef] [Green Version]
  11. Xing, M.; Yang, M.; Huo, W.; Feng, F.; Wei, L.; Jiang, W.; Ning, S.; Yan, Z.; Li, W.; Wang, Q.; et al. Interactome analysis identifies a new paralogue of XRCC4 in non-homologous end joining DNA repair pathway. Nat. Commun. 2015, 6, 6233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Hung, P.J.; Johnson, B.; Chen, B.R.; Byrum, A.K.; Bredemeyer, A.L.; Yewdell, W.T.; Johnson, T.E.; Lee, B.J.; Deivasigamani, S.; Hindi, I.; et al. MRI Is a DNA Damage Response Adaptor during Classical Non-homologous End Joining. Mol. Cell 2018, 71, 332–342.e8. [Google Scholar] [CrossRef]
  13. Castaneda-Zegarra, S.; Huse, C.; Røsand, Ø.; Sarno, A.; Xing, M.; Gago-Fuentes, R.; Zhang, Q.; Alirezaylavasani, A.; Werner, J.; Ji, P.; et al. Generation of a Mouse Model Lacking the Non-Homologous End-Joining Factor Mri/Cyren. Biomolecules 2019, 9, 798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Alt, F.W.; Zhang, Y.; Meng, F.L.; Guo, C.; Schwer, B. Mechanisms of programmed DNA lesions and genomic instability in the immune system. Cell 2013, 152, 417–429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gu, Y.; Seidl, K.J.; Rathbun, G.A.; Zhu, C.; Manis, J.P.; van der Stoep, N.; Davidson, L.; Cheng, H.L.; Sekiguchi, J.M.; Frank, K.; et al. Growth retardation and leaky SCID phenotype of Ku70-deficient mice. Immunity 1997, 7, 653–665. [Google Scholar] [CrossRef] [Green Version]
  16. Nussenzweig, A.; Chen, C.; da Costa Soares, V.; Sanchez, M.; Sokol, K.; Nussenzweig, M.C.; Li, G.C. Requirement for Ku80 in growth and immunoglobulin V(D)J recombination. Nature 1996, 382, 551–555. [Google Scholar] [CrossRef] [PubMed]
  17. Yan, C.T.; Kaushal, D.; Murphy, M.; Zhang, Y.; Datta, A.; Chen, C.; Monroe, B.; Mostoslavsky, G.; Coakley, K.; Gao, Y.; et al. XRCC4 suppresses medulloblastomas with recurrent translocations in p53-deficient mice. Proc. Natl. Acad. Sci. USA 2006, 103, 7378–7383. [Google Scholar] [CrossRef] [Green Version]
  18. Boboila, C.; Oksenych, V.; Gostissa, M.; Wang, J.H.; Zha, S.; Zhang, Y.; Chai, H.; Lee, C.S.; Jankovic, M.; Saez, L.M.; et al. Robust chromosomal DNA repair via alternative end-joining in the absence of X-ray repair cross-complementing protein 1 (XRCC1). Proc. Natl. Acad. Sci. USA 2012, 109, 2473–2478. [Google Scholar] [CrossRef] [Green Version]
  19. Bosma, G.C.; Custer, R.P.; Bosma, M.J. A severe combined immunodeficiency mutation in the mouse. Nature 1983, 301, 527–530. [Google Scholar] [CrossRef]
  20. Rooney, S.; Sekiguchi, J.; Zhu, C.; Cheng, H.L.; Manis, J.; Whitlow, S.; DeVido, J.; Foy, D.; Chaudhuri, J.; Lombard, D.; et al. Leaky Scid phenotype associated with defective V(D)J coding end processing in Artemis-deficient mice. Mol. Cell 2002, 10, 1379–1390. [Google Scholar] [CrossRef]
  21. Zha, S.; Jiang, W.; Fujiwara, Y.; Patel, H.; Goff, P.H.; Brush, J.W.; Dubois, R.L.; Alt, F.W. Ataxia telangiectasia-mutated protein and DNA-dependent protein kinase have complementary V(D)J recombination functions. Proc. Natl. Acad. Sci. USA 2011, 108, 2028–2033. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Jiang, W.; Crowe, J.L.; Liu, X.; Nakajima, S.; Wang, Y.; Li, C.; Lee, B.J.; Dubois, R.L.; Liu, C.; Yu, X.; et al. Differential phosphorylation of DNA-PKcs regulates the interplay between end-processing and end-ligation during nonhomologous end-joining. Mol. Cell 2015, 58, 172–185. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Gao, Y.; Chaudhuri, J.; Zhu, C.; Davidson, L.; Weaver, D.T.; Alt, F.W. A targeted DNA-PKcs-null mutation reveals DNA-PK-independent functions for KU in V(D)J recombination. Immunity 1998, 9, 367–376. [Google Scholar] [CrossRef] [Green Version]
  24. Li, G.; Alt, F.W.; Cheng, H.L.; Brush, J.W.; Goff, P.H.; Murphy, M.M.; Franco, S.; Zhang, Y.; Zha, S. Lymphocyte-specific compensation for XLF/cernunnos end-joining functions in V(D)J recombination. Mol. Cell 2008, 31, 631–640. [Google Scholar] [CrossRef] [Green Version]
  25. Vera, G.; Rivera-Munoz, P.; Abramowski, V.; Malivert, L.; Lim, A.; Bole-Feysot, C.; Martin, C.; Florkin, B.; Latour, S.; Revy, P.; et al. Cernunnos deficiency reduces thymocyte life span and alters the T cell repertoire in mice and humans. Mol. Cell Biol. 2013, 33, 701–711. [Google Scholar] [CrossRef] [Green Version]
  26. Balmus, G.; Barros, A.C.; Wijnhoven, P.W.; Lescale, C.; Hasse, H.L.; Boroviak, K.; le Sage, C.; Doe, B.; Speak, A.O.; Galli, A.; et al. Synthetic lethality between PAXX and XLF in mammalian development. Genes Dev. 2016, 30, 2152–2157. [Google Scholar] [CrossRef] [Green Version]
  27. Gago-Fuentes, R.; Xing, M.; Saeterstad, S.; Sarno, A.; Dewan, A.; Beck, C.; Bradamante, S.; Bjoras, M.; Oksenych, V. Normal development of mice lacking PAXX, the paralogue of XRCC4 and XLF. FEBS Open Bio 2018, 8, 426–434. [Google Scholar] [CrossRef]
  28. Liu, X.; Shao, Z.; Jiang, W.; Lee, B.J.; Zha, S. PAXX promotes KU accumulation at DNA breaks and is essential for end-joining in XLF-deficient mice. Nat. Commun. 2017, 8, 13816. [Google Scholar] [CrossRef]
  29. Abramowski, V.; Etienne, O.; Elsaid, R.; Yang, J.; Berland, A.; Kermasson, L.; Roch, B.; Musilli, S.; Moussu, J.P.; Lipson-Ruffert, K.; et al. PAXX and Xlf interplay revealed by impaired CNS development and immunodeficiency of double KO mice. Cell Death Differ. 2018, 25, 444–452. [Google Scholar] [CrossRef] [Green Version]
  30. Kumar, V.; Alt, F.W.; Frock, R.L. PAXX and XLF DNA repair factors are functionally redundant in joining DNA breaks in a G1-arrested progenitor B-cell line. Proc. Natl. Acad. Sci. USA 2016, 113, 10619–10624. [Google Scholar] [CrossRef] [Green Version]
  31. Hung, P.J.; Chen, B.R.; George, R.; Liberman, C.; Morales, A.J.; Colon-Ortiz, P.; Tyler, J.K.; Sleckman, B.P.; Bredemeyer, A.L. Deficiency of XLF and PAXX prevents DNA double-strand break repair by non-homologous end joining in lymphocytes. Cell Cycle 2017, 16, 286–295. [Google Scholar] [CrossRef] [Green Version]
  32. Lescale, C.; Lenden Hasse, H.; Blackford, A.N.; Balmus, G.; Bianchi, J.J.; Yu, W.; Bacoccina, L.; Jarade, A.; Clouin, C.; Sivapalan, R.; et al. Specific Roles of XRCC4 Paralogs PAXX and XLF during V(D)J Recombination. Cell Rep. 2016, 16, 2967–2979. [Google Scholar] [CrossRef] [Green Version]
  33. Castaneda-Zegarra, S.; Xing, M.; Gago-Fuentes, R.; Saeterstad, S.; Oksenych, V. Synthetic lethality between DNA repair factors Xlf and Paxx is rescued by inactivation of Trp53. DNA Repair 2019, 73, 164–169. [Google Scholar] [CrossRef]
  34. Oksenych, V.; Kumar, V.; Liu, X.; Guo, C.; Schwer, B.; Zha, S.; Alt, F.W. Functional redundancy between the XLF and DNA-PKcs DNA repair factors in V(D)J recombination and nonhomologous DNA end joining. Proc. Natl. Acad. Sci. USA 2013, 110, 2234–2239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Xing, M.; Bjoras, M.; Daniel, J.A.; Alt, F.W.; Oksenych, V. Synthetic lethality between murine DNA repair factors XLF and DNA-PKcs is rescued by inactivation of Ku70. DNA Repair 2017, 57, 133–138. [Google Scholar] [CrossRef] [PubMed]
  36. Lescale, C.; Abramowski, V.; Bedora-Faure, M.; Murigneux, V.; Vera, G.; Roth, D.B.; Revy, P.; de Villartay, J.P.; Deriano, L. RAG2 and XLF/Cernunnos interplay reveals a novel role for the RAG complex in DNA repair. Nat. Commun. 2016, 7, 10529. [Google Scholar] [CrossRef] [Green Version]
  37. Zha, S.; Sekiguchi, J.; Brush, J.W.; Bassing, C.H.; Alt, F.W. Complementary functions of ATM and H2AX in development and suppression of genomic instability. Proc. Natl. Acad. Sci. USA 2008, 105, 9302–9306. [Google Scholar] [CrossRef] [Green Version]
  38. Bassing, C.H.; Chua, K.F.; Sekiguchi, J.; Suh, H.; Whitlow, S.R.; Fleming, J.C.; Monroe, B.C.; Ciccone, D.N.; Yan, C.; Vlasakova, K.; et al. Increased ionizing radiation sensitivity and genomic instability in the absence of histone H2AX. Proc. Natl. Acad. Sci. USA 2002, 99, 8173–8178. [Google Scholar] [CrossRef] [Green Version]
  39. Bassing, C.H.; Suh, H.; Ferguson, D.O.; Chua, K.F.; Manis, J.; Eckersdorff, M.; Gleason, M.; Bronson, R.; Lee, C.; Alt, F.W. Histone H2AX: A dosage-dependent suppressor of oncogenic translocations and tumors. Cell 2003, 114, 359–370. [Google Scholar] [CrossRef] [Green Version]
  40. Lou, Z.; Minter-Dykhouse, K.; Franco, S.; Gostissa, M.; Rivera, M.A.; Celeste, A.; Manis, J.P.; van Deursen, J.; Nussenzweig, A.; Paull, T.T.; et al. MDC1 maintains genomic stability by participating in the amplification of ATM-dependent DNA damage signals. Mol. Cell 2006, 21, 187–200. [Google Scholar] [CrossRef]
  41. Manis, J.P.; Morales, J.C.; Xia, Z.; Kutok, J.L.; Alt, F.W.; Carpenter, P.B. 53BP1 links DNA damage-response pathways to immunoglobulin heavy chain class-switch recombination. Nat. Immunol. 2004, 5, 481–487. [Google Scholar] [CrossRef] [PubMed]
  42. Zha, S.; Guo, C.; Boboila, C.; Oksenych, V.; Cheng, H.L.; Zhang, Y.; Wesemann, D.R.; Yuen, G.; Patel, H.; Goff, P.H.; et al. ATM damage response and XLF repair factor are functionally redundant in joining DNA breaks. Nature 2011, 469, 250–254. [Google Scholar] [CrossRef] [Green Version]
  43. Oksenych, V.; Alt, F.W.; Kumar, V.; Schwer, B.; Wesemann, D.R.; Hansen, E.; Patel, H.; Su, A.; Guo, C. Functional redundancy between repair factor XLF and damage response mediator 53BP1 in V(D)J recombination and DNA repair. Proc. Natl. Acad. Sci. USA 2012, 109, 2455–2460. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Liu, X.; Jiang, W.; Dubois, R.L.; Yamamoto, K.; Wolner, Z.; Zha, S. Overlapping functions between XLF repair protein and 53BP1 DNA damage response factor in end joining and lymphocyte development. Proc. Natl. Acad. Sci. USA 2012, 109, 3903–3908. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Du, L.; Peng, R.; Bjorkman, A.; Filipe de Miranda, N.; Rosner, C.; Kotnis, A.; Berglund, M.; Liu, C.; Rosenquist, R.; Enblad, G.; et al. Cernunnos influences human immunoglobulin class switch recombination and may be associated with B cell lymphomagenesis. J. Exp. Med. 2012, 209, 291–305. [Google Scholar] [CrossRef] [PubMed]
  46. Valencia, M.; Bentele, M.; Vaze, M.B.; Herrmann, G.; Kraus, E.; Lee, S.E.; Schar, P.; Haber, J.E. NEJ1 controls non-homologous end joining in Saccharomyces cerevisiae. Nature 2001, 414, 666–669. [Google Scholar] [CrossRef] [PubMed]
  47. Salguero, I.; Belotserkovskaya, R.; Coates, J.; Sczaniecka-Clift, M.; Demir, M.; Jhujh, S.; Wilson, M.D.; Jackson, S.P. MDC1 PST-repeat region promotes histone H2AX-independent chromatin association and DNA damage tolerance. Nat. Commun. 2019, 10, 5191. [Google Scholar] [CrossRef] [PubMed]
  48. Leimbacher, P.A.; Jones, S.E.; Shorrocks, A.K.; de Marco Zompit, M.; Day, M.; Blaauwendraad, J.; Bundschuh, D.; Bonham, S.; Fischer, R.; Fink, D.; et al. MDC1 Interacts with TOPBP1 to Maintain Chromosomal Stability during Mitosis. Mol. Cell 2019, 74, 571–583.e8. [Google Scholar] [CrossRef] [Green Version]
  49. Bredemeyer, A.L.; Sharma, G.G.; Huang, C.Y.; Helmink, B.A.; Walker, L.M.; Khor, K.C.; Nuskey, B.; Sullivan, K.E.; Pandita, T.K.; Bassing, C.H.; et al. ATM stabilizes DNA double-strand-break complexes during V(D)J recombination. Nature 2006, 442, 466–470. [Google Scholar] [CrossRef]
  50. Lenden Hasse, H.; Lescale, C.; Bianchi, J.J.; Yu, W.; Bedora-Faure, M.; Deriano, L. Generation and CRISPR/Cas9 editing of transformed progenitor B cells as a pseudo-physiological system to study DNA repair gene function in V(D)J recombination. J. Immunol. Methods 2017, 451, 71–77. [Google Scholar] [CrossRef]
  51. Dewan, A.; Xing, M.; Lundbaek, M.B.; Gago-Fuentes, R.; Beck, C.; Aas, P.A.; Liabakk, N.B.; Saeterstad, S.; Chau, K.T.P.; Kavli, B.M.; et al. Robust DNA repair in PAXX-deficient mammalian cells. FEBS Open Bio 2018, 8, 442–448. [Google Scholar] [CrossRef] [PubMed]
  52. Sanjana, N.E.; Shalem, O.; Zhang, F. Improved vectors and genome-wide libraries for CRISPR screening. Nat. Methods 2014, 11, 783–784. [Google Scholar] [CrossRef] [Green Version]
  53. Strasser, A.; Harris, A.W.; Cory, S. bcl-2 transgene inhibits T cell death and perturbs thymic self-censorship. Cell 1991, 67, 889–899. [Google Scholar] [CrossRef]
  54. Xing, M.; Oksenych, V. Genetic interaction between DNA repair factors PAXX, XLF, XRCC4 and DNA-PKcs in human cells. FEBS Open Bio 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Helmink, B.A.; Tubbs, A.T.; Dorsett, Y.; Bednarski, J.J.; Walker, L.M.; Feng, Z.; Sharma, G.G.; McKinnon, P.J.; Zhang, J.; Bassing, C.H.; et al. H2AX prevents CtIP-mediated DNA end resection and aberrant repair in G1-phase lymphocytes. Nature 2011, 469, 245–249. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Kumar, V.; Alt, F.W.; Oksenych, V. Reprint of “Functional overlaps between XLF and the ATM-dependent DNA double strand break response”. DNA Repair 2014, 17, 52–63. [Google Scholar] [CrossRef]
  57. Gapud, E.J.; Dorsett, Y.; Yin, B.; Callen, E.; Bredemeyer, A.; Mahowald, G.K.; Omi, K.Q.; Walker, L.M.; Bednarski, J.J.; McKinnon, P.J.; et al. Ataxia telangiectasia mutated (Atm) and DNA-PKcs kinases have overlapping activities during chromosomal signal joint formation. Proc. Natl. Acad. Sci. USA 2011, 108, 2022–2027. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Dev, H.; Chiang, T.W.; Lescale, C.; de Krijger, I.; Martin, A.G.; Pilger, D.; Coates, J.; Sczaniecka-Clift, M.; Wei, W.; Ostermaier, M.; et al. Shieldin complex promotes DNA end-joining and counters homologous recombination in BRCA1-null cells. Nat. Cell Biol. 2018, 20, 954–965. [Google Scholar] [CrossRef]
  59. Innes, C.L.; Hesse, J.E.; Morales, A.J.; Helmink, B.A.; Schurman, S.H.; Sleckman, B.P.; Paules, R.S. DNA damage responses in murine Pre-B cells with genetic deficiencies in damage response genes. Cell Cycle 2020, 19, 67–83. [Google Scholar] [CrossRef]
  60. Deriano, L.; Chaumeil, J.; Coussens, M.; Multani, A.; Chou, Y.; Alekseyenko, A.V.; Chang, S.; Skok, J.A.; Roth, D.B. The RAG2 C terminus suppresses genomic instability and lymphomagenesis. Nature 2011, 471, 119–123. [Google Scholar] [CrossRef] [Green Version]
Biomolecules 10 00060 g001 550
Figure 1. Generation of MDC1−/−XLF−/− vAbl cells. (A) Clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9)-mediated inactivation of the XLF gene targeting exon 3 in Abelson murine leukemia virus-transformed (vAbl) progenitor-B cell lines. (B) Western blot detecting XRCC4-like factor (XLF) protein in wild type (WT) and Mediator of DNA Damage Checkpoint Protein 1-deficient (MDC1−/−) vAbl cells. No signal corresponding to XLF was detected in XLF−/− and MDC1−/−XLF−/− vAbl cells. Antibody against beta-actin was used to detect beta-actin, a loading control (left). Polymerase chain reaction (PCR) followed by agarose gel electrophoresis detecting MDC1 null and WT alleles (right). The 500 base pairs (bp) band corresponds to the WT allele, and the 700 bp band corresponds to the MDC1 null allele (right). (C) The proliferation of vAbl cells lacking either XLF or MDC1, both MDC1/XLF, and WT controls. WT, XLF−/−, and MDC1−/− cells proliferate with a similar rate (n.s., p > 0.05). MDC1−/−XLF−/− cells proliferate slower than WT, XLF−/− and MDC1−/− vAbl cells (****, p < 0.0001). Data represent the mean ± standard deviation (SD) of three independent experiments using 1 WT control, 2 MDC1−/−, 2 XLF−/−, and 2 MDC1−/−XLF−/− clones. (D) The proliferation of haploid 1 (HAP1) cells lacking MDC1, and wild type (WT) controls. MDC1∆ HAP1 cells possess reduced proliferation rates when compared to WT at 96 and 120 hours (h) of the experiment (*, p < 0.05; **, p < 0.01). Data represent the mean ± standard deviation (SD) of three independent experiments using WT parental control and MDC1∆ clones.
Figure 1. Generation of MDC1−/−XLF−/− vAbl cells. (A) Clustered regularly interspaced short palindromic repeats (CRISPR)/CRISPR-associated protein 9 (Cas9)-mediated inactivation of the XLF gene targeting exon 3 in Abelson murine leukemia virus-transformed (vAbl) progenitor-B cell lines. (B) Western blot detecting XRCC4-like factor (XLF) protein in wild type (WT) and Mediator of DNA Damage Checkpoint Protein 1-deficient (MDC1−/−) vAbl cells. No signal corresponding to XLF was detected in XLF−/− and MDC1−/−XLF−/− vAbl cells. Antibody against beta-actin was used to detect beta-actin, a loading control (left). Polymerase chain reaction (PCR) followed by agarose gel electrophoresis detecting MDC1 null and WT alleles (right). The 500 base pairs (bp) band corresponds to the WT allele, and the 700 bp band corresponds to the MDC1 null allele (right). (C) The proliferation of vAbl cells lacking either XLF or MDC1, both MDC1/XLF, and WT controls. WT, XLF−/−, and MDC1−/− cells proliferate with a similar rate (n.s., p > 0.05). MDC1−/−XLF−/− cells proliferate slower than WT, XLF−/− and MDC1−/− vAbl cells (****, p < 0.0001). Data represent the mean ± standard deviation (SD) of three independent experiments using 1 WT control, 2 MDC1−/−, 2 XLF−/−, and 2 MDC1−/−XLF−/− clones. (D) The proliferation of haploid 1 (HAP1) cells lacking MDC1, and wild type (WT) controls. MDC1∆ HAP1 cells possess reduced proliferation rates when compared to WT at 96 and 120 hours (h) of the experiment (*, p < 0.05; **, p < 0.01). Data represent the mean ± standard deviation (SD) of three independent experiments using WT parental control and MDC1∆ clones.
Biomolecules 10 00060 g001
Biomolecules 10 00060 g002 550

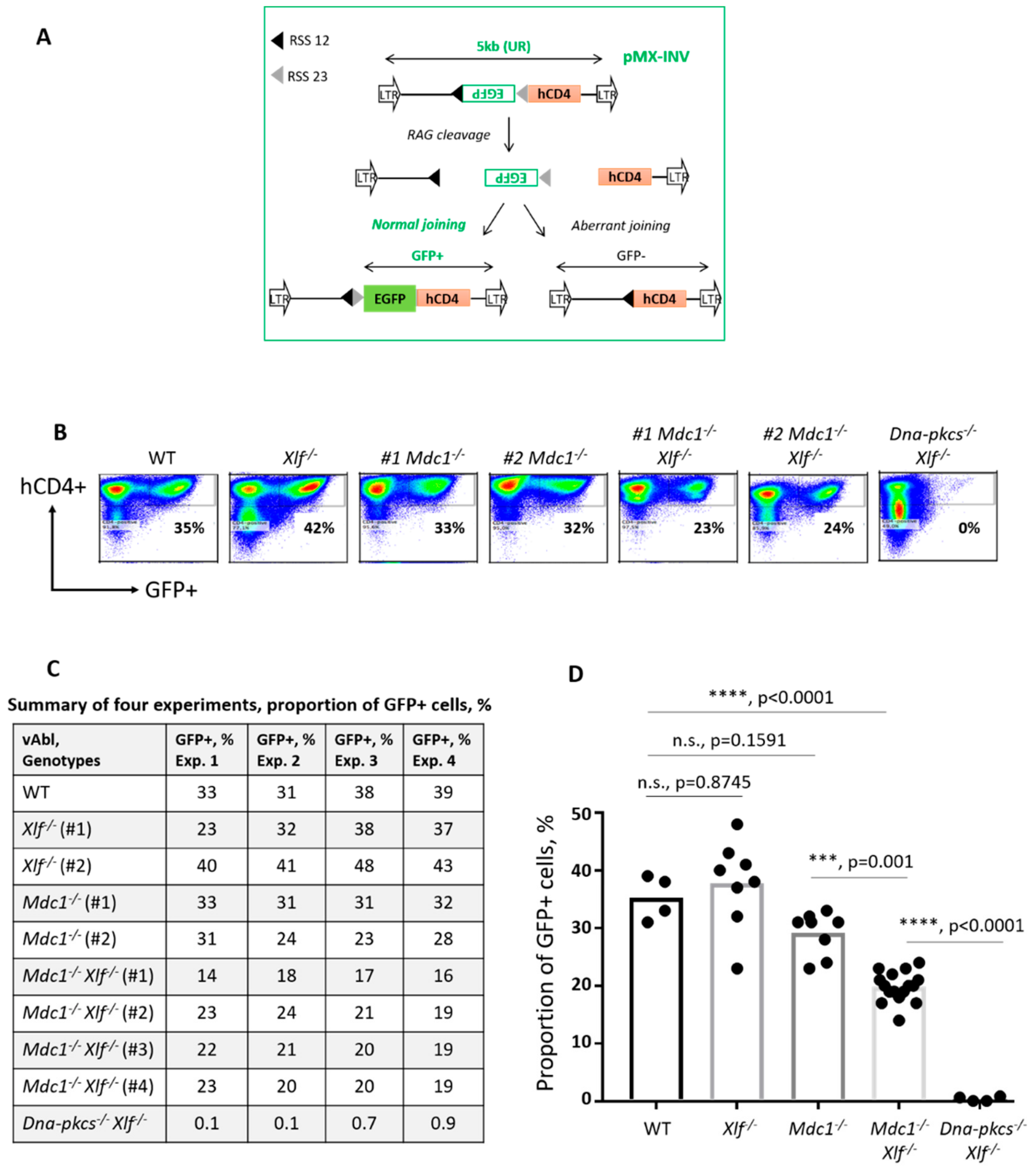

Figure 2. Mediator of DNA Damage Checkpoint Protein 1 (MDC1) stimulates the variable (V), diversity (D) and joining (J) gene segments recombination (V(D)J recombination) in the cells lacking XRCC4-like factor (XLF). (A) Schematic representation of the green fluorescent protein (GFP) expression-based V(D)J recombination reporter. Upon treatment with STI571, the recombination activating gene (RAG) induces DNA double-strand breaks (DSBs) at dedicated sites flanking the GFP gene in reverse orientation. After inversion and DSB repair, the GFP gene is placed in the sense orientation, and the GFP protein is expressed and detected by flow cytometry. (B) Examples of flow cytometry-based quantification of GFP-positive vAbl cells (WT, XLF−/−, MDC1−/−, MDC1−/−XLF−/−, and DNA-PKcs−/−XLF−/−) following exposure to STI571 for 96 hours (h). The human cluster of differentiation 4 (hCD4) was used as a surface marker of the chromosomally integrated V(D)J recombination cassette. At day 0, vAbl cells were sorted based on the hCD4 expression, and hCD4-positive cells were used for the experiments. (C) Proportions of the GFP-positive vAbl cells of indicated genotypes in the V(D)J recombination experiments using chromosomally integrated cassettes. Data represent the mean ± standard deviation (SD) of four independent experiments using one WT, two XLF−/−, two MDC1−/−, and four MDC1−/−XLF−/− lines, used in all the experiments. DNA-PKcs−/−XLF−/− vAbl cells were used as a non-homologous end joining (NHEJ)-deficient negative control, to establish background levels of GFP expression. (D) Statistical analyses of V(D)J recombination efficiency in vAbl cells. WT versus XLF−/− (n.s., p = 0.8745); WT versus MDC1−/− (n.s., p = 0.1591), WT versus MDC1−/−XLF−/− (****, p < 0.0001); WT versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); XLF−/− versus MDC1−/−XLF−/− (****, p < 0.0001); XLF−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); MDC1−/− versus MDC1−/−XLF−/− (***, p = 0.0001); MDC1−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); MDC1−/−XLF−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001).
Figure 2. Mediator of DNA Damage Checkpoint Protein 1 (MDC1) stimulates the variable (V), diversity (D) and joining (J) gene segments recombination (V(D)J recombination) in the cells lacking XRCC4-like factor (XLF). (A) Schematic representation of the green fluorescent protein (GFP) expression-based V(D)J recombination reporter. Upon treatment with STI571, the recombination activating gene (RAG) induces DNA double-strand breaks (DSBs) at dedicated sites flanking the GFP gene in reverse orientation. After inversion and DSB repair, the GFP gene is placed in the sense orientation, and the GFP protein is expressed and detected by flow cytometry. (B) Examples of flow cytometry-based quantification of GFP-positive vAbl cells (WT, XLF−/−, MDC1−/−, MDC1−/−XLF−/−, and DNA-PKcs−/−XLF−/−) following exposure to STI571 for 96 hours (h). The human cluster of differentiation 4 (hCD4) was used as a surface marker of the chromosomally integrated V(D)J recombination cassette. At day 0, vAbl cells were sorted based on the hCD4 expression, and hCD4-positive cells were used for the experiments. (C) Proportions of the GFP-positive vAbl cells of indicated genotypes in the V(D)J recombination experiments using chromosomally integrated cassettes. Data represent the mean ± standard deviation (SD) of four independent experiments using one WT, two XLF−/−, two MDC1−/−, and four MDC1−/−XLF−/− lines, used in all the experiments. DNA-PKcs−/−XLF−/− vAbl cells were used as a non-homologous end joining (NHEJ)-deficient negative control, to establish background levels of GFP expression. (D) Statistical analyses of V(D)J recombination efficiency in vAbl cells. WT versus XLF−/− (n.s., p = 0.8745); WT versus MDC1−/− (n.s., p = 0.1591), WT versus MDC1−/−XLF−/− (****, p < 0.0001); WT versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); XLF−/− versus MDC1−/−XLF−/− (****, p < 0.0001); XLF−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); MDC1−/− versus MDC1−/−XLF−/− (***, p = 0.0001); MDC1−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001); MDC1−/−XLF−/− versus DNA-PKcs−/−XLF−/− (****, p < 0.0001).
Biomolecules 10 00060 g002
Table
Table 1. Synthetic lethality between Mediator of DNA Damage Checkpoint Protein 1 (MDC1) and XRCC4-like factor (XLF).
Table 1. Synthetic lethality between Mediator of DNA Damage Checkpoint Protein 1 (MDC1) and XRCC4-like factor (XLF).
GenotypesLive BornExpected (1:2:1)Expected * (1:2:0)
MDC1+/+XLF−/−342635
MDC1+/−XLF−/−705269
MDC1−/−XLF−/−0260
Total104104104
* Corrected expected distribution, which does not include the probability of MDC1−/−XLF−/− mice.
Table
Table 2. Impact of NHEJ-deficiency on V(D)J recombination in mice.
Table 2. Impact of NHEJ-deficiency on V(D)J recombination in mice.
GenotypesV(D)J RecombinationMice
Single Knockouts
DNA-PKcs−/− [23]NoAlive
PAXX−/− [9,10,11,27]NormalAlive
Mri−/− [12,13]NormalAlive
XLF−/− [24,25]NormalAlive
ATM−/− [37]NormalAlive
H2AX−/− [38,39]ReducedAlive
MDC1−/− [40]NormalAlive
53BP1−/− [41]NormalAlive
RAG2Δ/Δ [60]ReducedAlive
Double Knockouts
XLF−/− DNA-PKcs−/− [34,35]NoEmbryonic lethality
XLF−/− PAXX−/− [26,28,29,33]NoEmbryonic lethality
XLF−/− Mri−/− [12]NoEmbryonic lethality
XLF−/− ATM−/− [42]Very lowAlive, small
XLF−/− H2AX−/− [42]ReducedEmbryonic lethality
XLF−/− MDC1−/− [*]ReducedEmbryonic lethality
XLF−/−53BP1−/− [43,44]Very lowAlive, small
XLF−/− RAG2Δ/Δ [36]Very lowAlive
References are cited. This study [*].
