15 August 2020

Lexicon-based Sentiment Analysis Using the Particle Swarm Optimization

,
,
and
1
Department of Cybernetics and Artificial Intelligence, Faculty of Electrical Engineering and Informatics, Technical University of Košice, Letna 9, 04200 Košice, Slovakia
2
School of Engineering and Computer Science, Victoria University of Wellington, P.O. Box 600, Wellington 6140, New Zealand
*
Author to whom correspondence should be addressed.
This article belongs to the Special Issue Human Computer Interaction for Intelligent Systems

Abstract

This work belongs to the field of sentiment analysis; in particular, to opinion and emotion classification using a lexicon-based approach. It solves several problems related to increasing the effectiveness of opinion classification. The first problem is related to lexicon labelling. Human labelling in the field of emotions is often too subjective and ambiguous, and so the possibility of replacement by automatic labelling is examined. This paper offers experimental results using a nature-inspired algorithm—particle swarm optimization—for labelling. This optimization method repeatedly labels all words in a lexicon and evaluates the effectiveness of opinion classification using the lexicon until the optimal labels for words in the lexicon are found. The second problem is that the opinion classification of texts which do not contain words from the lexicon cannot be successfully done using the lexicon-based approach. Therefore, an auxiliary approach, based on a machine learning method, is integrated into the method. This hybrid approach is able to classify more than 99% of texts and achieves better results than the original lexicon-based approach. The final hybrid model can be used for emotion analysis in human–robot interactions.

1. Introduction

Online discussions generate a huge amount of data every day, which are hard to process manually by a human. The processing of this discourse content of social networks can bring useful information about the opinions of the crowd on some web trend, political event, person, or product. Approaches to sentiment analysis, particularly to opinion classification, can be used in recognition of antisocial behavior in online discussions, which is a hot topic at present. Negative opinions are often connected with antisocial behavior; for example, “trolling” posting behaviors. This approach can also be used in HRIs (Human–Robot Interactions), where a robot can use information about the polarity of an opinion or mood of the human, in order to communicate appropriately. When a robot communicates with a human (e.g., an elder), it must choose one from many answers which are suitable to the situation. For example, it can choose an answer which can cheer up the person, if it has information that the current emotional situation/mood of the person is sad. It can also adapt its movements and choose a movement from all possible movements, in order to cheer up the human. Therefore, understanding of the emotional moods of humans can lead to better acceptance of communication with robots by humans.
Opinion analysis can be achieved using either a lexicon-based approach or a machine learning approach. These approaches are used, in opinion analysis, to distinguish between positive or negative (sometimes also neutral [1]) opinions with respect to a certain subject. Machine learning approaches are most often based on the Naive Bayes classifier, Support Vector Machines, Maximum Entropy, k-Nearest Neighbors [2,3,4], or Deep Learning (i.e., based on neural network training) [5,6]. The study [5] presented an approach based on a new deep convolutional neural network which exploits character- to sentence-level information to perform sentiment analysis of short texts. This approach was tested on movie reviews (SSTb, Stanford Sentiment Treebank) and Twitter messages (STS, Stanford Twitter Sentiment). For the SSTb corpus, they achieved 85.7% accuracy in binary positive/negative sentiment classification, while for the STS corpus, they achieved a sentiment prediction accuracy of 86.4%. The study [6] proved that deep learning approaches have emerged as effective computational models which can discover semantic representations of texts automatically from data without feature engineering. This work presented deep learning approaches as a successful tool for sentiment analysis tasks. They described methods to learn a continuous word representation: the word embedding. As a sentiment lexicon is an important resource for many sentiment analysis systems, the work also presented neural methods to build large-scale sentiment lexicons.
The study [7] presented an approach for classifying a textual dialogue into four emotion classes: happy, sad, angry, and others. In this work, sentiment analysis is represented by emotional classification. The approach ensembled four different models: bi-directional contextual LSTM (BC-LSTM), categorical Bi-LSTM (CAT-LSTM), binary convolutional Bi-LSTM (BIN-LSTM), and Gated Recurrent Unit (GRU). In this approach, two systems achieved Micro F1 = 0.711 and 0.712. The two systems were merged by assembling, the result of which achieved Micro F1 = 0.7324.
However, machine learning methods have a disadvantage: they require a labelled training data set to learn models for opinion analysis. An interesting fact is that the lexicon approach can be used for the creation of labelled training data for machine learning algorithms.
On the other hand, the lexicon-based approach requires a source of external knowledge, in the form of a labelled lexicon which contains sentiment words with an assigned polarity of opinion expressed in the word. The polarity of opinion has the form of a number that indicates how strong the word is correlated with positive or negative polarity, which is assigned to each word in the lexicon. However, this information is very unbalanced across different languages. In this paper, we focus on adapting and modifying existing approaches to the Slovak language.
This work focuses on an opinion analysis based on a lexicon. In the process of lexicon creation, the lexicon must be labelled to find optimal values for the polarity of words in the lexicon. To assign correct polarity values to words, a human annotator is needed for manual labelling. The manual labelling is time-consuming and expensive. Thus, we tried to replace a human annotator by the Particle Swarm Optimization (PSO) algorithm, as lexicon labelling can be considered an optimization problem. The goal of labelling is to find an optimal set of polarity values; that is, labels for all words in the generated lexicon. These labels are optimized recursively until the opinion classification of texts in data sets using this lexicon with the new labels gives the best results. Therefore, the resulting values of the Macro F1 measure of the opinion classification represent the values of the fitness function in the optimization process. We compare the effectiveness of opinion classification using the lexicon labelled by PSO and using the lexicon annotated by a human.
On the other hand, even when we use the best lexicon, it may still not cover all sentiment words. For this reason, some analyzed posts could not be classified as having positive or negative opinion. To solve this problem, we extend the lexicon approach with a machine learning module, in order to classify unclassified posts using the lexicon-based approach. This module was trained on training data labelled using a lexicon approach for opinion classification. We applied the Naive Bayes classifier to build the module.
The contributions of the paper are as follows:
  • A new approach to lexicon labelling using the PSO algorithm is presented. PSO optimizes the values of opinion polarity for all words in a labelled lexicon, where the fitness function is represented by the effectiveness measure of sentiment analysis using the labelled lexicon. This automatic labelling avoids the subjectivity of human labelling.
  • We generated 60 lexicons using PSO (30 small and 30 big lexicons) for an analysis of the distributions of value polarities in lexicons and an analysis of the values preferred by PSO, in comparison with those preferred by a human.
  • We present a hybrid approach which integrates a machine learning model into the sentiment analysis method, in order to classify texts not containing words in the lexicons.
  • Extending the new sentiment analysis approach by topic identification in the texts and providing a new means for the interactive combination of switch and shift negation processing.
  • The creation of two lexicons—Small and Big—in the Slovak language and the creation of a new General data set of short texts. The lexicons (Small and Big, labelled by human) and the General data set are available at (http://people.tuke.sk/kristina.machova/useful/).
The proposed approach is focused on lexicon-based sentiment analysis. The effectivity of a lexicon approach to sentiment analysis depends on the quality of the used lexicon. The quality of the lexicon is influenced by selection of words in the lexicon, as well as by a measure of precision of the estimated polarity values of words in the lexicon. Our approach uses PSO and BBPSO for the optimal estimation of polarity values. The deep learning method cannot satisfactorily generate the polarity values of words in the lexicon, as clear information about these weight values is lost in the large number of inner layers involved. On the other hand, deep learning can be successfully used in the auxiliary model for the hybrid approach trained by machine learning methods. It is generally assumed that deep learning can achieve better results than the Naive Bayes method in the field of text processing.

3. Lexicon Generation

There are many approaches for the generation of a lexicon. A lexicon can be generated for a given domain. This lexicon is obviously very precise in this domain, but usually has a weak performance in different domains. Another way is to generate a general lexicon. This lexicon usually has the same effectiveness in all domains, which is mostly not very high.
We generated two lexicons to analyze opinion in Slovak posts using a lexicon approach. We used two different methods of generation: translation and composition from many relevant lexicons. The first (Big) lexicon was translated from English and then extended by a human. It was enlarged by domain-dependent words, in order to increase its effectiveness. The domain-dependent words were words which may be common, but which have different meanings in different domains. For example, the word “long” has a different opinion polarity in the electrical domain (i.e., “long battery life”) than in the movie domain (i.e., “too long movie”). Thus, the Big lexicon was domain-dependent, which is its disadvantage. For this reason, we decided to generate another new (Small) lexicon. This lexicon was expected to be domain-independent, as it was extracted from six English lexicons in which only domain-independent words were included. Domain-independent words are words which have the same meaning in different domains. They were analyzed and only overlapping words from all lexicons were picked up. The advantage of the Small lexicon is its smaller size, in comparison with the Big lexicon. This is an important feature, as each particle in our PSO implementation represents the whole labelled lexicon; more precisely, a set of polarity values for all words in the lexicon. A smaller lexicon, thus, means that a smaller set of labels must be optimized. So, the size of the lexicon influences the time needed to find the optimal solution. The words in the lexicon were selected once, but the labels of those words (i.e., polarity values) were found by optimization using PSO and BBPSO in 60 iterations. During optimization, the labels of the words were recursively changed many times, until the fitness function gave satisfactory results.
For both lexicons, three versions were generated: The first version was labelled manually by a human annotator, the second version was labelled by PSO, and the third one using BBSPO. Then, all versions were used for opinion analysis of post texts in the Slovak language and tested. We could engage more annotators in the process of human labelling, but the subjectivity of labels would remain, and averaging the values of labels may obscure the accurate estimation of the word polarities by one expert human.
The Big lexicon was generated by manual human translation from an original English lexicon [10], which consists of 6789 words including 13 negations. The generated lexicon in Slovak was smaller than original lexicon, as some words have in Slovak less synonyms than in English. We translated only positive and negative words to Slovak. Synonyms and antonyms of original words were found in a Slovak thesaurus. The thesaurus was also used to determine intensifiers and negations. The final Big lexicon consisted of 1430 words: 598 positive words, 772 negative words, 41 intensifiers, and 19 negations. The first version of this lexicon was labelled by a human. The range of polarity from −3 (the most negative word) to +3 (the most positive word) was chosen to assign the polarity value to each word. For each word in the lexicon, the English form was searched in a double translation. “Double translation” means that each word from the lexicon was translated into English and then was translated back to Slovak, in the case that the word had the same meaning before and after translation, the final form of the word was added to the lexicon.
The Small lexicon was derived from six different English lexicons, as used in the works [10,15,24,25,26,27]. The English lexicons were analyzed and only overlapping words were chosen to form the new lexicon. To translate these words to Slovak, the English translations from the Big lexicon were used. Overlapping words were found, and their Slovak forms were added to the lexicon. This new lexicon contained 220 words, including 85 positive words and 135 negative words. Intensifiers and negations were not added, as they were not included in all original lexicons. The first version of the lexicon was labelled manually, with a range of polarity from −3 to 3. The details of the lexicons used for the creation of the Small lexicon are as follows:
  • Hu and Liu lexicon [10] (4783 positives, 2006 negatives, and 13 opposites)
  • SenticNet 4.0 [15] (27,405 positives and 22,595 negatives)
  • Sentiment140 [24] (38,312 positives and 24,156 negatives)
  • AFINN [25] (878 positives and 1598 negatives)
  • Taboada lexicon [26] (2535 positives, 4039 negatives, and 219 intensifiers)
  • SentiStrength [27] (399 positives, 524 negatives, 28 intensifiers, and 17 opposites).

4. Lexicon Labelling Using Particle Swarm Optimization

Particle Swarm Optimization (PSO) was chosen as a method for the lexicon labelling, as labelling is an optimization problem where a combination of values of labels for all words in a lexicon has to create the best overall evaluation of the polarity of a given text. PSO is an efficient and robust optimization method, which has been successfully applied to solve various optimization problems. In the optimization process of lexicon labelling using PSO, each particle represents one version of the lexicon for labelling. A lexicon can be encoded as a vector Xi = (xi1, xi2,…, xiD). Each word of the lexicon is labelled by a number, representing the measure of polarity from negative to positive xij ∈ {−3,3}, i = 1, 2, …, N, where N is the number of particles and j = 1,2,…,D, where D denotes the number of words in the lexicon. Thus, the particle size depends on the size of the lexicon.
From the Big lexicon, only positive and negative words were used. Therefore, the particle size was decreased from 1470 to 1370 polarity values. The particle representing the Small lexicon had 220 polarity values. The designed approach is described in the following Algorithm 1:
Algorithm 1: PSO algorithm
generate the initial population
for number of iterations do
  for particle_i do
    ϕi evaluate particle_i using fitness function
    ζi compute value of fitness function for pbest of particle_i
    if ϕi > ζi then update pbest
    end if
    if pbest > gbest then update gbest
    end if
  end for
  for each particle_i do
    for each dimension d do
      compute new velocity according (1)
      compute new position according (2)
    end for
  end for
end for
return the value of gbest particle
The goal of labelling a lexicon using PSO is to find an optimal set of polarity values for all words in this lexicon. One position of the particle represents one potential solution (one set of labels of words), which is recursively changed during the process of optimization. Each potential solution can be represented as a vector in D-dimensional space, where D is the number of words in the lexicon. In our approach, the initial population was generated randomly and then, the PSO method was applied. In PSO optimization, each particle was evaluated based on the fitness function (values of MacroF1). For each actual particle, pbest (particle best) was set and gbest for the whole swarm (global best) was searched. For the next iteration, a velocity of each particle was calculated (1) based on its pbest and gbest, and then the position of the particle was updated using Formula (2). Then, the particle was evaluated again and pbest and gbest were updated again. This process was run recursively until a fixed number of iterations was met. For experiments with standard PSO, the following parameters were used:
  • inertia weight = 0.729844
  • number of particles = 15,000
  • number of iterations = 100
  • c1 = 1.49618
  • c2 = 1.49618
  • max velocity = 2

4.1. Labelling by Bare-Bones Particle Swarm Optimization

Bare-Bones PSO uses a different approach to find an optimal polarity value for each word in a lexicon. BBPSO works with a mean and standard deviation of a Gaussian distribution. The mean and deviation are calculated from pbest and gbest. The process of labelling is shown in the following Algorithm 2:
Algorithm 2: BBPSO algorithm
generate the initial population
for number of iterations do
  for particle_i do
    ϕi evaluate particle_i using fitness function
    ζi compute value of fitness function for pbest of particle_i
    if ϕi > ζi then update pbest
    end if
    if pbest > gbest then update gbest
    end if
  end for
  for each particle_i do
    for each dimension d do
      compute new position using Gaussian distribution
    end for
  end for
end for
return the value of gbest particle
BBPSO uses a Gaussian distribution N(µid,σid) with mean µid and standard deviation σid. These values are calculated using Equations (6) and (7):
μ i d = g b e s t d + p b e s p b e s t i d 2
σ i d = | g b e s t d p b e s t i d |
where
  • d = 1, 2, …, D, with D representing the number of words in the lexicon, and
  • i = 1, 2, …, N, where N is the number of particles in the swarm.

4.2. Fitness Function for Optimization

The fitness function was based on the lexicon approach used to classify the opinion of post texts in data sets. This classification was provided repetitively with all lexicons generated by PSO (or BBPSO). Every opinion classification using all particular lexicons was evaluated by the F1 rate, which is a harmonic mean between Precision and Recall, calculated by Equation (8). The F1 rate played the role of the fitness function.
F 1 = 2 × P r e c i s i o n × R e c a l l P r e c i s i o n + R e c a l l
The opinion classification was implemented in the following way: Each input post text was tokenized. Each word was compared with words in the temporary test lexicon. If the word was found in the dictionary, the polarity value of the post was updated. If the word was positive, the polarity of the post was increased and if the word was negative, the post polarity was decreased, according to Equation (9):
P p = p v w
where
  • Pp is the post’s polarity and
  • pvw is the word’s polarity.
Precision and Recall were calculated based on the comparison of the automatically assigned labels with the gold-standard class labels. These were applied to calculate the F1 rate. However, the final values of the fitness function were not derived from F1 rate, but instead from the MacroF1 rate (10), which better evaluates the performance on an unbalanced data set. The MacroF1 rate (10) shows the effectiveness in each class, independent of the size of the class:
M a c r o F 1 = F 1 p + F 1 n 2 ,
where
  • F1p is the F1 rate for positive posts and
  • F1n is the F1 rate for negative posts.
The use of this fitness function was based on the defined measure of classification effectivity (MacroF1). All words in the lexicon were repeatedly labelled and the effectivity of opinion classification of texts from the data set using this lexicon (with new labels) was evaluated, until the labels were found to be optimal. In this way, the labelled polarity of words in the lexicon could be domain-dependent, if the data set of texts was domain-dependent. Therefore, we used two data sets: one being domain-dependent (Movie), while the other was domain-independent (Slovak-General). The labelling of a lexicon is an optimization problem and, in this case, supervised learning was used only for computing the values of the fitness function. However, supervised learning was also used for model training in the hybrid approach for opinion classification (see Section 7.2). This model was then used for classification of texts with a difficult dictionary.

5. Experiments with Various Labelling

5.1. Data Sets

Experiments with different labelling methods were tested on two data sets. The General data set contained 4720 reviews from different websites in the Slovak language. It consisted of 2455 positive and 2265 negative comments. Neutral comments were removed. The reviews referred to different domains such as electronics reviews, books reviews, movie reviews, and politics. The data set included 155,522 words. The Slovak-General data set is available at (http://people.tuke.sk/kristina.machova/useful/).
The Movie data set [2] contained 1000 positive and 1000 negative posts collected from rottentomatos.com. The data set was pre-processed and translated to Slovak. All data sets were labelled as positive or negative by human annotators. Each data set was randomly split with a ratio of 90:10—90% for training and 10% unseen posts for validation. All results were obtained on the testing set. The same subsets were applied in all experiments, including the human-labelled lexicon.

5.2. Experiments with PSO and BBPSO Labelling

In the process of optimizing the labelling of the Big and Small lexicons, the initial labelling, a set of polarity values for all words in the lexicon was first found (1370 values for Big and 220 values for Small lexicon; the Big lexicon originally had 1430 words, but only positive and negative words were included in the experiments). This set of values (1370 or 220) represented one particle for PSO optimization. Then, this set of values was changed with the aid of pbest and gbest, until the effectiveness of using the particle (set of labelling values for each word in the lexicon) in the lexicon-based opinion classification was the highest. Within the labelling optimization, not only one but 30 labels for the Small lexicon and 30 labels for the Big lexicon were generated, in order to achieve statistically significant results.
A set of experiments were carried out, where both data sets (General and Movie) were used for testing of labelling for both lexicons (Big and Small). Two methods for labelling these lexicons were tested: using PSO and BBPSO.
Each experiment was repeated 30 times, in order to achieve statistically significant results. The following tables show only the results for the best experiment and the average results of all 30 repeats. The achieved results of these experiments were obtained on the respective validation sets. The results are presented in Table 1, Table 2, Table 3, Table 4, Table 5, Table 6, Table 7 and Table 8. The results of these experiments are measured by Precision in the positive class (Precision Pos.), Precision in the negative class (Precision Neg.), Recall in the positive class (Recall Pos.), Recall in the negative class (Recall Neg.), F1 Positive, F1 Negative, and Macro F1.
Table 1. The results of Precision and Recall in positive and negative class on Movie data set using Big lexicon labelled by Particle Swarm Optimization (PSO) and Bare-bones Particle Swarm Optimization (BBPSO).
Table 2. Results of F1 rate in positive and negative classes and Macro F1 rate on Movie data set using Big lexicon labelled by PSO and BBPSO.
Table 3. The results of Precision and Recall in positive and negative classes on Movie data set using Small lexicon labelled by PSO and BBPSO.
Table 4. Results of F1 rate in positive and negative classes and Macro F1 rate on Movie data set using Small lexicon labelled by PSO and BBPSO.
Table 5. The results of Precision and Recall in positive and negative classes on General data set using Big lexicon labelled by PSO and BBPSO.
Table 6. The results of F1 rate in positive and negative classes and Macro F1 rate on General data set using Big lexicon labelled by PSO and BBPSO.
Table 7. The results of Precision and Recall in positive and negative classes on General data set using Small lexicon labelled by PSO and BBPSO.
Table 8. Results of F1 rate in positive and negative classes and Macro F1 rate on General data set using Small lexicon labelled by PSO and BBPSO.
Table 1 and Table 2 represent experiments on the Movie data set using the Big lexicon. Table 1 shows that using the lexicon labelled by BBPSO was more precise for opinion classification than PSO in all cases, with only one exception. Another observation was that, in all experiments, Precision in classification of positive posts was better than Precision in classification of negative posts; however, for Recall, the observation was opposite. The Macro F1 rate in Table 2 gives us more results. There were no significant differences between classification of positive and negative posts. The important result is that labelling by BBPSO led to a more precise lexicon than labelling by PSO.
Table 3 and Table 4 represent experiments on the Movie data set using the Small lexicon. Comparison of Table 1 with Table 3 and Table 2 with Table 4 shows that using the Small and Big lexicons gave very similar results, in terms of Precision, Recall, and Macro F1 rate, on the Movie data set.
We also provide results for four similar experiments on the General data set, which are presented in Table 5, Table 6, Table 7 and Table 8. The results in Table 5 show that experiments on the General data set led to similar results to the experiments on the Movie data set. Precision in classification of positive posts was better than classification of negative posts; however, the observation was opposite in Recall.
The results in Table 5 and Table 6 show that using the lexicon labelled by BBPSO was more precise for opinion classification than PSO, in most cases. Table 7 demonstrates that using the Small lexicon on the General data set led to very poor results; only Recall in positive posts gave good results.
The Macro F1 rate, presented in Table 8, confirms this finding. The reason for this failure could be that the Small lexicon was generated from six English lexicons and only overlapping words from all lexicons were chosen. So, the Small lexicon may have not contained specific words which were important for polarity identification in a given text; that is, it did not contain all necessary words with sentiment polarities needed for the successful sentiment classification of general texts.
The significance test is also provided. Paired sample t-test was used to prove the statistically significant improvement between PSO and BBPSO. A 95% confidence interval and 29 degrees of freedom were applied. We tested the Macro F1 measure, and the results (see Table 9) showed that BBPSO was significantly better than PSO.
Table 9. Results of significance test of Macro F1 rate in experiments on Movie and General data sets using Big and Small lexicons.
The p-value represents the probability that there is no statistically significant difference between the results. The p-values were small in all cases. This means that the probability that there was no statistically significant difference between the results presented in Table 1, Table 2, Table 3, Table 4, Table 5, Table 6, Table 7 and Table 8 is small. Thus, we can say that the difference between the results was statistically significant. This statement is valid with 95% confidence.
The complexity of the automatic labelling of lexicons using the optimization methods PSO and BBPSO is O ( I MAX · N · D ) , where I MAX is the maximum number of iterations, N is the total number of words in the training set, and D is the number of words in the lexicon. This means that the complexity is linear in the size of the training set and the lexicon. In our case, the General data set contained 155,522 words and the Big lexicon contained 1370 words. The complexity of the lexicon approach for opinion classification, which was used for computing the values of the fitness function, was linear in the size of posts in the training set M and the number of words in the lexicon D, such that its complexity is O ( M · D ) .

5.3. Comparison of PSO and BBPSO Labelling with Human Labelling

In the previous section, it was shown that BBPSO was better than simple PSO. We wanted to also compare this approach to human labelling. Within this experiment, we decided to evaluate results of the opinion classification only in terms of Macro F1 rate. The results are illustrated in Table 10. It was shown that automatic labelling using nature-inspired optimization algorithms, especially BBPSO, was better than human labelling of lexicons for the lexicon approach to opinion classification.
Table 10. The comparison of labelling by human, PSO, and BBPSO in Macro F1 rate on Movie and General (Slovak) data sets using Big and Small lexicons labelled by PSO and BBPSO.
The results in Table 10 confirm the findings in Table 7 and Table 8: that using the Small lexicon on the General (Slovak) data set led to very poor results, not only when using PSO and BBPSO labelling but also for human labelling. The most important fact is that BBPSO was able to find the best polarity values for the words in the lexicon, independently of the used lexicon (Big or Small) and data set (Movie or General—Slovak). These results are illustrated also in Figure 1a,b for the Big and Small lexicons, respectively.

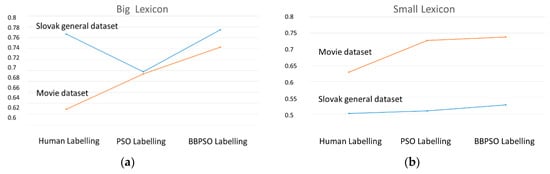

Figure 1. The comparison of the Big lexicon in part (a) and Small lexicon in part (b) labelling by a human, Particle Swarm Optimization (PSO), and Bare-bones Particle Swarm Optimization (BBPSO) in Macro F1 rate.
We found seven other approaches which used the Movie data set. Table 11 contains a comparison of our approach to those other related works with experiments on the Movie data set. For our needs, the data set was automatically translated into Slovak language, which had an impact on the overall results of our tests. The last row of the Table 11 contains results of our hybrid approach (Section 7.2) on Movie data set, but the results of the same approach on General dataset were better (Accuracy = 0.865).
Table 11. The comparison of effectiveness of our approaches with seven other related approaches tested on Movie data set. The last row contains results of our hybrid approach (Section 7.2), which uses the lexicon approach composed with a machine learning approach (Naive Bayes).

6. Distribution of Values of Polarities in Generated Lexicons

The main purpose of this section is the comparison of human labelling and automatic labelling, in order to answer the following questions: Which integer labels are preferred in PSO and BBPSO labelling, in comparison with human labelling? Can the subjectivity of human labelling cause a decrease of effectiveness of lexicon-based opinion classification?
We worked under the assumption that automatic labelling is not subjective, like human labelling. This is because, in the process of PSO labelling, the effectivity of lexicon use in lexicon-based opinion classification is a decisive factor. Many human annotators can easily agree on whether an opinion is positive or negative, but when determining the intensity degrees of the polarity of opinions, it is difficult to reach an agreement. So, labelling using PSO optimization seemed to be a good solution. This assumption was supported by our results, which are shown in Figure 2, Figure 3, Figure 4 and Figure 5.

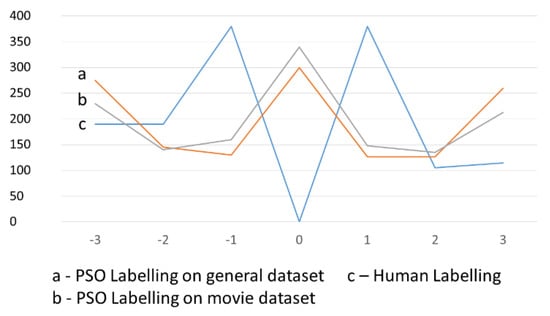

Figure 2. Distribution of values of the intensity of polarities acquired in the process of the Big lexicon labelling (1370 words) using PSO, in comparison to human labelling. Axis X represents the intensity of a word polarity and axis Y represents the number of words with the given intensity of polarity.

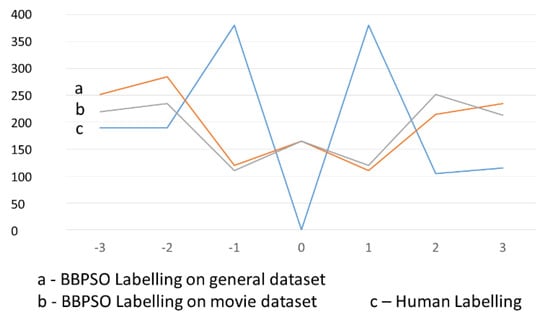

Figure 3. Distribution of values of the intensity of polarities acquired in the process of Big lexicon labelling (1370 words) using BBPSO, in comparison to human labelling. Axis X represents the intensity of a word polarity and axis Y represents the number of words with the given intensity of polarity.

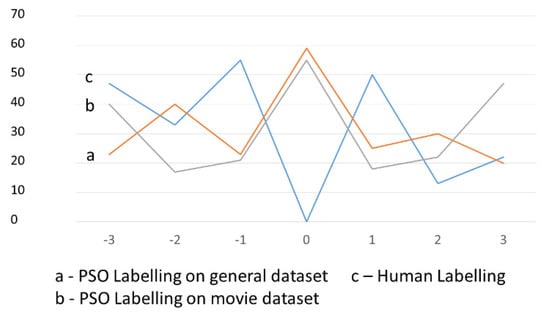

Figure 4. Distribution of values of the intensity of polarities acquired in the process of the Small lexicon labelling (220 words) using PSO, in comparison to human labelling. Axis X represents the intensity of a word polarity and axis Y represents the number of words with the given intensity of polarity.

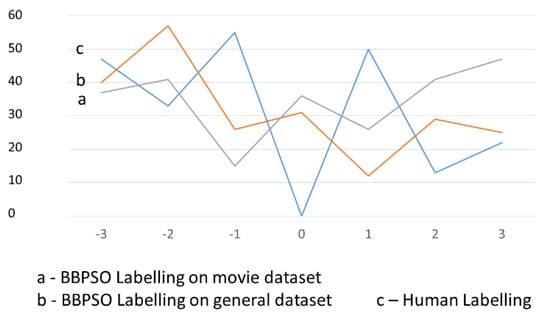

Figure 5. Distribution of values of the intensity of polarities acquired in the process of the Small lexicon labelling (220 words) using BBPSO, in comparison to human labelling. Axis X represents the intensity of a word polarity and axis Y represents the number of words with the given intensity of polarity.
We also examined the distribution of polarity values, which were assigned by the automatic labelling in the interval of integers <−3, +3> in labelled lexicons. We wanted to know if there were some differences between labelling by human and automatic labelling (PSO, BBPSO); in other words, we wanted to find some integer values in the interval <−3, +3> which are preferred by a human or an automatic annotator, respectively. Our findings are illustrated in Figure 2, Figure 3, Figure 4 and Figure 5.
The models of PSO and BBPSO labelling were generated using both General and Movie data sets. Of course, human labelling is independent of any data set. In Figure 2 and Figure 3, the result distributions of the intensity of polarity values in the Big lexicon are shown. Figure 2 illustrates the results of comparison of PSO and human labelling, while Figure 3 illustrates the comparison of BBPSO and human labelling. We can see, in these two figures, that the human annotator avoided labelling words with zero. They expected only positive or negative words in the lexicon and no neutral ones. On the other hand, PSO frequently used a zero-polarity label. BBPSO also used zero polarity values, but they were not applied as often.
We ran similar experiments with the Small lexicon. Figure 4 and Figure 5 illustrate the resulting distributions of the intensity of polarity values in the Small lexicon. These results confirm similar findings as for the Big lexicon; in that PSO labelling most often used intensity polarity labels equal to zero. BBPSO labelling of the Small lexicon often used extreme (−3 and 3) polarity values.
We must point out that labelling some words with a zero value means rejecting this word from the lexicon, as the word is not helpful in the process of opinion classification. An interesting discovery is the fact that labelling by nature-inspired algorithms (PSO, BBPSO) achieved very good results, despite the fact that they rejected some words in the process of the opinion classification. PSO labelling rejected from 21% to 25% of all words from the Big lexicon and from 25% to 28% of all words from the Small lexicon. BBPSO labelling rejected approximately 12% of words from the Big lexicon and from 12% to 16% of words from the Small lexicon.

7. New Lexicon Approach to Opinion Analysis

The new approach proposes a new means for negation processing, by combining switch and shift negation. It also incorporates a new means for intensifier processing, which is dependent on the type of negation.
Besides summing polarities of words in analyzing the opinion of posts, according to (9), intensifiers and negations should be processed in the opinion classification. Intensifiers are special words which can increase or decrease the intensity of polarity of connected words. In our approach to opinion analysis, the intensifiers are processed using a special part of the lexicon. In this part of the lexicon, words are accompanied by numbers, which represent a measure of increasing or decreasing the polarity of connected words. This means that words with strong polarity (positive or negative) are intensified more than words with weak polarity. The value of the intensification is set with the value “1” from the beginning. After that, a connected word’s polarity is multiplied by the actual value of the intensifier; for example, in the sentence “It is very good solution”, the polarity P = 1 of the word “good” is increased by the word “very” to the final polarity of P = 2∗[1] = 2.
In our approach, negations are processed in a new way, using the interactivity of switch and shift negation [26]. Switch negation only turns polarity to its opposite (e.g., from +2 to −2), as illustrated in Figure 6a. Shift negation is more precise than switch negation, only shifting the polarity of a connected word towards the direction to opposite polarity, as illustrated in Figure 6b.

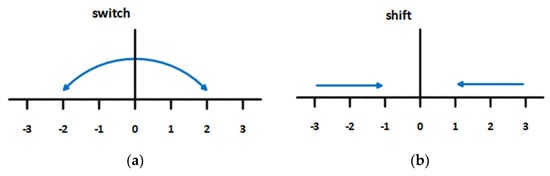

Figure 6. Illustration of switch negation (a) and shift negation (b) of polarity intensity of connected words in analyzed posts.
We designed the interactive so-called ‘combined negation processing’, where shift negation is applied to extreme values of polarity of connected words (+/−3) and switch negation is used for processing most obvious polarities (with absolute value 1 or 2). The combined approach significantly increases the effectivity of opinion classification, as illustrated in Table 12.
Table 12. The effectivity of composite approach to negation processing of words in analyzed posts, in terms of Macro F1 rate.
After involving intensifiers and negations, the polarity of the whole post is not calculated using the simple approach (9) but, instead, using the new approach (11):
P p = P w ( P i ) ( P n )
where
  • Pp is the post’s polarity,
  • Pw is the word’s polarity,
  • Pi is the multiplication of polarity of words by intensifiers in a post, and
  • Pn is the multiplication of polarity of words by negations in a post.

7.1. Topic Identification in Opinion Classification

Another method that we used to increase the effectiveness of the opinion classification was involving topic identification. Topic identification can be helpful in increasing the influence of a text of post concentrated on the topic of an online discussion. Polarity of these posts was increased using greater weights. We tested two methods for topic identification: Latent Dirichlet Allocation (LDA) and Term Frequency (TF). LDA is a standard probabilistic method, based on the Dirichlet distribution of probability of topic for each post. In the output of the LDA, there is a list of words accompanied with their relevancy to all texts in the data set (so called topics). An experiment was carried out, with all texts in the data set processed using LDA. The output was a list of 50 words relevant to topics present in the texts. As there were too many “topics”, the list was reduced to 15 words with the highest relevancy to the topics of the processed texts.
The second method was topic identification based on the term frequencies of words in posts. We assumed that the words in posts relevant to the topic of online discussion should have higher occurrence in these texts. A disadvantage of this method is the highest occurrence of stop words in texts. For this reason, stop words must be excluded in pre-processing. We did not create this list, instead using a known list of stop words.
First, the opinion polarity of posts was estimated. In the second step, words relevant to the identified topic of discussion were searched for in the post. If such words were found in the post, then the opinion polarity of the post was increased (by multiplication with value 1.5). The value of 1.5 was set experimentally, after experiments with three values: 1.5, 2, and 3. The double and triple changes of polarity led to slight decreases in the quality of the results obtained. Results of experiments with topic identification in the opinion analysis are illustrated in Table 13.
Table 13. Results of Precision Recall in positive and negative classes and Macro F1 without Topic Identification (TI) and with TI using Term Frequency (TF) and Latent Dirichlet Allocation (LDA) methods.
The results of the experiments, as presented in Table 13, show that the implementation of topic identification increased the Precision and Recall of the opinion classification of posts in online discussions. Topic identification using LDA achieved better results than using the term frequency method. People often express negative opinions while talking about the main topic. This negative opinion is usually compensated for by more positive posts related to less important aspects of the discussed problem. In this case, topic identification can significantly increase the precision of opinion classification.

7.2. A Hybrid Approach to Opinion Classification

The proposed hybrid approach to opinion classification combines the advantages of two different techniques for an opinion classification model creation. The first technique is the lexicon-based approach, which is simple and intuitive; however, it can fail when the lexicon is not sufficiently expressive. The second technique—The machine learning approach—Does not depend on the quality of the lexicon, but requires a labelled training set as an input for training an opinion classification model. Therefore, we designed the hybrid approach to increase the effectiveness of the opinion analysis of posts when the lexicon approach fails (see Figure 7). The posts which were successfully classified as having positive or negative opinion using the lexicon (and, in this way, were labelled) were put into the training data set, in order to train a probability model based on the Naive Bayes machine learning method. This model was then able to classify posts that did not contain words from the lexicon and could not be classified using the lexicon approach.

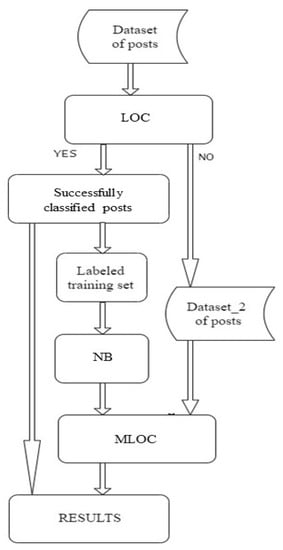

Figure 7. Illustration of new hybrid approach for opinion classification. In this approach, there is co-operation between the lexicon approach for opinion classification (LOC) and the machine learning approach for opinion classification (MLOC), represented by the Naïve Bayes model (NB).
At first, Lexicon-based Opinion Classification (the “LOC” block) is applied to classify all posts in the data set. Once all posts are classified either successfully (YES) or unsuccessfully (NO), the dataset is split into two groups: labelled and unlabelled posts (Dataset_2). Labelled posts represent the training set, which is used for Naïve Bayes model training (the “NB” block). The trained Naïve Bayes model is then applied to classify posts in Dataset_2 which were not classified by Lexicon-based Opinion Classification; this is the “MLOC” (Machine Learning Opinion Classification) block. All classified posts, as classified by LOC and MLOC, are then saved (the “RESULTS” block).
The hybrid approach for opinion classification was tested and compared with the original lexicon approach. The results of testing are presented in Table 14, in the form of F1 rate—particularly, F1 Positive (F1 rate on positive posts), F1 Negative (F1 rate on negative posts), and Macro F1 rates—on the General data set. The results in Table 14 show a strong increase of efficiency, as measured by F1 rate, when the hybrid approach for opinion classification was used. The reason for this increase of efficiency can be explained by decreasing of the number of unclassified posts. The unclassified posts decreased the precision of classification, as positive and negative posts were classified to neutral ones due to absence of positive or negative words in the lexicon. Using the hybrid approach, the number of unclassified posts was reduced from 18% to 0.03%. In future research, we would like to use deep learning [35] for the machine learning-based opinion analysis method in the hybrid approach.
Table 14. Effectivity of hybrid approach, in comparison to simple lexicon approach, for labelling by human, PSO, and BBPSO in F1 Positive, F1 Negative, and Macro F1 rates.
The complexity of the lexicon approach for opinion classification is O ( M · D ) , thus being linear in the size of posts in the training set M and the size of lexicon D. The complexity of the machine learning approach for opinion classification using the Naive Bayes algorithm is O ( M · N ) , thus linearly depending on the total number of posts in the training set M and the number of attributes (words) in the training set N. It follows that the complexity of the hybrid approach is O ( M · N · D ) .

8. Discussion

The main purpose of this paper is to find the best method for labelling a lexicon for a lexicon-based approach to opinion classification. Therefore, it is natural that our baseline was the lexicon-based approach, not a machine learning approach. This is the reason for comparison of the effectiveness of the hybrid approach with the lexicon approach as a baseline. This basic lexicon approach was extended by a machine learning approach, in order to achieve better results in the case when the lexicon could not overlay texts using another dictionary.
It was not our goal to test all machine learning methods but, instead, to discover whether a supplementary model trained by machine learning can decrease the number of failures in the opinion classification of problematic texts. The use of Naïve Bayes was a natural choice, as this method also gives weights to words (i.e., labels) in the form of a conditional probability of the word belonging to a given class in the data. Deep learning also trains the weights of attributes (words, in this case), but clear information about these weights is lost due to the large number of inner layers used. In the field of text processing, we also often use Random Forest or kernel SVM methods. However, these machine learning methods do not provide intuitive and explainable solutions with clear information about the measure of sensitivity of words in a model either.
The findings of the presented work are useful for our research in the field of antisocial behavior recognition in online communities and in the field of human–robot interaction. Our approach can provide the results of opinion and mood analysis of texts for use in these fields. The presented work is focused on opinion classification using a lexicon approach and, so, we needed to generate a high-quality lexicon using effective labeling.
In this paper, an automated method for lexicon labelling was proposed. It used nature-inspired optimization algorithms—Particle Swarm Optimization (PSO) and Bare-bones Particle Swarm Optimization (BBPSO)—to find optimal polarity values for words in the lexicon. The results of numerous tests on two data sets (Movie and General) were provided and presented in the paper. These tests showed that BBPSO labelling is better than PSO labelling, and that both are better than human labelling. Two lexicons (Big and Small) were created, in order to achieve good performance, which were labelled by both PSO and BBPSO. The experiments showed another finding: the human annotator avoided labelling words with a number close to zero, whereas PSO or BBPSO assigned zero values to some words.
We tested the labelling of lexicons using our new lexicon approach. The novelty of this approach comprised a new approach for intensifier processing and an interactive approach for negation processing. This new approach also involved topic identification and a hybrid approach for opinion classification, using not only lexicon-based, but also machine learning-based opinion classification methods. The hybrid approach was applied to classify the posts which were not classified by the lexicon approach.
For the future, we would like to extend our automatic lexicon labelling to learn polarity values representing the concept-domain pair. In some cases, the polarity of the word can be different in different domains. In that case, the polarity value represents the polarity of the word in the given domain. Furthermore, we would like to focus on the statistical analysis of words labelled by PSO and BBPSO, respectively. On one hand, the optimized labels will be compared with human labelling. On the other hand, removed words (i.e., the words labelled with zero) will be analyzed deeper, in order to answer the following questions: Which words were removed from the lexicons? How often are they removed?
The final hybrid model for sentiment analysis can be used in our research in the field of emotion analysis in human–robot interactions, where understanding of human mood by a robot can increase the acceptance of a robot as an assistant.
We are also using our work in sentiment analysis in the field of recognition of antisocial behavior in online communities. We would like to model the sentiment and mood of society in connection with the phenomenon of CoViD-19 [36].

Author Contributions

Conceptualization, K.M. and M.M. (Martin Mikula); methodology, K.M.; software, M.M. (Martin Mikula); validation, M.M. (Martin Mikula); formal analysis, X.G.; investigation, X.G.; resources, M.M. (Martin Mikula); data curation, M.M. (Martin Mikula); writing—original draft preparation, K.M.; writing—review and editing, K.M., M.M. (Marian Mach) and X.G.; visualization, M.M. (Marian Mach); supervision, K.M.; project administration, K.M.; funding acquisition, K.M. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Slovak Research and Development Agency under the contract No. APVV-17-0267 “Automated Recognition of Antisocial Behavior in Online Communities” and the contract No. APVV-16-0213 “Knowledge-based Approaches for Intelligent Analysis of Big Data”.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Chaturvedi, I.; Ragusa, E.; Gastaldo, P.; Zunino, R.; Cambria, E. Bayesian network based extreme learning machine for subjectivity detection. J. Frankl. Inst. 2018, 355, 1780–1797. [Google Scholar] [CrossRef]
  2. Pang, B.; Lee, L.; Vaithyanathan, S. Thumbs up? Sentiment classification using machine learning technique. In Proceedings of the EMNLP, Philadelphia, PA, USA, 6–7 July 2002; pp. 79–86. [Google Scholar]
  3. Ahmad, M.; Aftab, S.; Muhamad, S.S.; Ahmad, S. Machine learning methods for sentiment analysis: A Review. Int. J. Multidiscip. Sci. Eng. 2013, 8, 27–32. [Google Scholar]
  4. Tan, S.; Zhang, J. An empirical study of sentiment analysis for Chinese documents. Expert Syst. Appl. 2008, 34, 2622–2629. [Google Scholar] [CrossRef]
  5. Dos Santos, C.N.; Gatti, M. Deep Convolutional Neural Networks for Sentiment Analysis of Short Texts. In Proceedings of the COLING 2014—25th International Conference on Computational Linguistics, Dublin, Ireland, 23–29 August 2014; pp. 69–78. [Google Scholar]
  6. Tang, D.; Wei, F.; Qin, B.; Liu, T.; Zhou, M. Coooolll: A Deep Learning System for Twitter Sentiment Classification. In Proceedings of the SemEval 2014—8th International Workshop on Semantic Evaluation, Dublin, Ireland, 23–24 August 2014; pp. 208–212. [Google Scholar]
  7. Rebiai, Z.; Andersen, S.; Debrenne, A.; Lafargue, V. SCIA at SemEval-2019 Task 3: Sentiment analysis in textualconversations using deep learning. In Proceedings of the SemEval-2019—13th International Workshop on SemanticEvaluation, Minneapolis, MN, USA, 6–7 June 2019; pp. 297–301. [Google Scholar]
  8. Mikula, M.; Gao, X.; Machová, K. Adapting sentiment analysis system from English to Slovak. In Proceedings of the 2017 IEEE Symposium Series on Computational Intelligence (SSCI), Honolulu, HI, USA, 27 November–1 December 2017. [Google Scholar]
  9. Stone, P.J.; Dunphy, D.C.; Smith, M.S.; Ogilvie, D.M. The General Inquirer: A Computer Approach to Content Analysis; The MIT Press: Cambridge, MA, USA, 1966; 704p. [Google Scholar]
  10. Hu, M.; Liu, B. Mining and Summarizing Customer Reviews. In Proceedings of the KDD 04—10th International Conference on Knowledge Discovery and Data Mining, Seattle, WA, USA, 22–25 August 2004; pp. 168–177. [Google Scholar]
  11. Warriner, A.B.; Kuperman, V.; Brysbaert, M. Norms of valence, arousal, and dominance for 13,915 English lemmas. Behav. Res. Methods 2013, 45, 1191–1207. [Google Scholar] [CrossRef] [PubMed]
  12. Mohammad, S.M.; Turney, P.D. Crowdsourcing a word-emotion association Lexicon. Comput. Intell. 2012, 29, 436–465. [Google Scholar] [CrossRef]
  13. Baccianella, S.; Esuli, A.; Sebastiani, F. SentiWordNet 3.0: An Enhanced Lexical Resource for Sentiment Analysis and Opinion Mining. In Proceedings of the LREC, Valletta, Malta, 17–18 May 2010; pp. 2200–2204. [Google Scholar]
  14. Strapparava, C.; Valittutii, A. WordNetAffect: An Affective Extension of WordNet. In Proceedings of the LREC 2004—4th International Conference on Language Resources and Evaluation, Lisbon, Portugal, 26–28 May 2004; pp. 39–46. [Google Scholar]
  15. Bajpai, R.; Cambria, E.; Poria, S.; Schuller, B.W. SenticNet 4: A semantic resource for sentiment analysis based on conceptual primitives. In Proceedings of the COLING, Osaka, Japan, 11–16 December 2016; pp. 2666–2677. [Google Scholar]
  16. Yang, X.; Zhang, Z.; Zhang, Z.; Mo, Y.; Li, L.; Yu, L.; Zhu, P. Automatic construction and global optimization of a multi-sentiment lexicon. Comput. Intell. Neurosci. 2016, 2016, 2093406. [Google Scholar] [CrossRef] [PubMed]
  17. Gupta, D.K.; Reddy, K.S.; Sôhweta, A.; Ekbal, A. PSO-ASent: Feature Selection Using Particle Swarm Optimization for Aspect Based Sentiment Analysis. In Proceedings of the NLDB, Passau, Germany, 13–15 June 2002; Volume 9103, pp. 79–86. [Google Scholar]
  18. Basari, S.; Hussin, B.; Anantaa, L.G.P.; Zeniarja, J. Opinion mining of movie review using hybrid method of support vector machine and particle swarm optimization. Procedia Eng. 2013, 53, 453–462. [Google Scholar] [CrossRef]
  19. Escalante, H.J.; Garcia-Limon, M.A.; Morales-Reyes, A.; Graff, M.; Montes-y-Gomez, M.; Morales, E.F.; Martinez-Carranza, J. Term-weighting learning via genetic programming for text classification. Knowl.-Based Syst. 2015, 83, 176–189. [Google Scholar]
  20. Xing, F.Z.; Pallucchini, F.; Cambria, E. Cognitive-inspired domain adaptation of sentiment lexicons. Inf. Process. Manag. 2019, 56, 554–564. [Google Scholar] [CrossRef]
  21. Kacprzyk, J.; Pedrycz, J. Handbook of Computational Intelligence; Springer: Berlin/Heidelberg, Germany, 2015; 1663p, ISBN 978-3-662-43504-5. [Google Scholar]
  22. Van den Bergh, F.; Engelbrecht, A.P. A study of particle swarm optimization particle trajectories. Inf. Sci. Inform. Comput. Sci. Intell. Syst. Appl. Int. J. 2006, 176, 937–971. [Google Scholar]
  23. Kennedy, K. Bare bones particle swarms. In Proceedings of the SIS 03—IEEE Swarm Intelligence Symposium, Indianapolis, IN, USA, 8–10 June 2003; pp. 80–87. [Google Scholar]
  24. Mohammad, S.M.; Kiritchenko, S.; Zhu, X. NRC-Canada: Building the State-of-the-Art in Sentiment Analysis of Tweets. In Proceedings of the SemEval 13—7th International Workshop on Semantic Evaluation Exercises, Atlanta, GA, USA, 14–15 June 2013; pp. 321–327. [Google Scholar]
  25. Nielsen, F.A. A new ANEW: Evaluation of a word list for sentiment analysis in microblogs. In Proceedings of the ESWC2011 Workshop on ‘Making Sense of Microposts’: Big Things Come in Small Packages, Heraklion, Crete, Greece, 30 May 2011; pp. 93–98. [Google Scholar]
  26. Taboada, M.; Brooke, J.; Tofiloski, M.; Voli, K.; Stede, M. Lexicon-based Methods for Sentiment Analysis. Comput. Linguist. 2011, 38, 267–307. [Google Scholar] [CrossRef]
  27. Thelwall, M.; Buckley, K.; Paltoglou, G.; Cai, D. Sentiment strength detection in short informal text. J. Am. Soc. Inf. Sci. Technol. 2010, 61, 2544–2558. [Google Scholar] [CrossRef]
  28. Pang, B.; Lee, L. A sentimental education: Sentiment analysis using subjectivity summarization based on minimum cuts. In Proceedings of the 42nd Annual Meeting on Association for Computational Linguistics, Barcelona, Spain, 21–26 July 2004; pp. 271–278. [Google Scholar]
  29. Kennedy, A.; Inkpen, D. Sentiment classification of movie reviewsusing contextual valence shifters. Comput. Intell. 2006, 22, 110. [Google Scholar] [CrossRef]
  30. Martineau, J.; Finin, T.; Joshi, A.; Patel, S. Improving binary classificationon text problems using differential word features. In Proceedings of the 18th ACM Conference on Information and Knowledge Management, Hong Kong, China, 2–6 November 2009; pp. 2019–2024. [Google Scholar]
  31. Maas, A.L.; Daly, R.E.; Pham, P.T.; Huang, D.; Ng, A.Y.; Potts, C. Learning wordvectors for sentiment analysis. In Proceedings of the 49th Annual Meetingof the Association for Computational Linguistics: Human Language Technologies, Portland, OR, USA, 19–24 June 2011; Volume 1, pp. 142–150. [Google Scholar]
  32. Tu, Z.; He, Y.; Foster, J.; Van Genabith, J.; Liu, Q.; Lin, S. Identifyinghigh-impact sub-structures for convolution kernels in document-levelsentiment classification. In Proceedings of the 50th Annual Meeting of the Association for Computational Linguistics, Jeju Island, Korea, 8–14 July 2012; Volume 2, pp. 338–343. [Google Scholar]
  33. Nguyen, D.Q.; Nguyen, D.Q.; Pham, S.B. A two-stage classifier forsentiment analysis. In Proceedings of the Sixth International Joint Conference on Natural Language Processing, Asian Federation of Natural Language Processing, Nagoya, Japan, 14–18 October 2013; pp. 897–901. [Google Scholar]
  34. Ghorbani, M.; Bahaghighad, M.; Xin, Q.; Ozen, F. ConvLSTMConv network: A deep learning approach for sentiment analysis in cloud computing. J. Cloud Comput. Adv. Syst. Appl. 2020, 9, 16. [Google Scholar] [CrossRef]
  35. Dang, N.C.; Moreno-Garcia, M.N.; De la Prieta, F. Sentiment Analysis Based on Deep Learning: A Comparative Study. Electronics 2020, 9, 483. [Google Scholar] [CrossRef]
  36. Alamo, T.; Reina, D.G.; Mammarella, M.; Abella, A. Covid-19: Open-data Resources for Monitoring, Modeling, and Forecasting the Epidemic. Electronics 2020, 9, 827. [Google Scholar] [CrossRef]

Article Metrics

Citations

Article Access Statistics

Multiple requests from the same IP address are counted as one view.
