Abstract

:
All-inorganic cesium lead halide perovskite CsPbX3 (X = Cl, Br, I) nanocrystals (NCs) have attracted significant attention owing to their fascinating electronic and optical properties. However, researchers still face challenges to achieve highly stable and photoluminescent CsPbX3 NCs at room temperature by the direct-synthesis method. Herein, we synthesize CsPbX3 NCs by a facile and environmentally friendly method, which uses an aqueous solution of metal halides to react with Cs4PbBr6 NCs via interfacial anion exchange reactions and without applying any pretreatment. This method produces monodisperse and air-stable CsPbX3 NCs with tunable spectra covering the entire visible range, narrow photoluminescence emission bandwidth, and high photoluminescence quantum yield (PL QY, 80%). In addition, the chemical transformation mechanism between Cs4PbBr6 NCs and CsPbX3 NCs was investigated. The Cs4PbBr6 NCs were converted to CsPbBr3 NCs first by stripping CsBr, and then, the as-prepared CsPbBr3 NCs reacted with metal halides to form CsPbX3 NCs. This work takes advantage of the chemical transformation mechanism of Cs4PbBr6 NCs and provides an efficient and environmentally friendly way to synthesize CsPbX3 NCs.
Keywords:
Cs4PbBr6 NCs; CsPbX3 NCs; interfacial anion exchange; chemical transformation

1. Introduction

In recent years, all-inorganic cesium lead halide perovskite CsPbX3 (X = Cl, Br, and I) nanocrystals (NCs) have attracted a lot of attention due to their excellent properties, such as high photoluminescence (PL) quantum yield (QY), broad wavelength coverage, narrow PL emission bandwidth, and low trap state density [1,2,3,4]. These outstanding properties of CsPbX3 NCs distinguish them from traditional semiconductor NCs and make them promising candidates for various optoelectronic applications, including solar cells [5], lasers [6], photodetectors [7], and light emitting diodes (LEDs) [8].
To date, many methods have been developed for the synthesis of CsPbX3 NCs, such as hot-injection [9], solvothermal synthesis [10], post-treatment [11], ultrasonication [12], and mechanochemistry [13,14]. However, researchers still face challenges to achieve highly stable and photoluminescent CsPbX3 NCs at room temperature by the direct-synthesis method. In addition to studying various direct synthesis methods, the chemical transformation of pre-synthesized NCs has drawn researchers’ attention in synthesizing CsPbX3 NCs because they allow for the precise control of the NCs and enable the synthesis of materials with different morphologies and sizes, such as nanowires and nanorods that are difficult to obtain directly [15,16]. Recently, the chemical transformation between non-luminescent Cs4PbX6 and luminescent CsPbX3 has sparked researchers’ interest. For example, the Akkerman group [17] treated pre-synthesized Cs4PbX6 NCs with excess PbX2 to synthesize green fluorescent CsPbX3 NCs. The Jing group [18] reported highly luminescent CsPbBr3 nanorods (NRs) through chemical transformation from Cs4PbBr6 NCs and tuned PL emission of the NRs over the full visible range through a halide anion-exchange reaction using hot-injection. During these processes, anion exchange is a common strategy used to modify the chemical composition of as-prepared NCs and regulate their spectrum. However, most chemical transformation anion exchange processes use oleylamine-X or PbX2 as anion sources, which require inert conditions, high temperatures, and pre-treated precursors [19]. For example, anion sources, such as PbX2 need to be dissolved in octadecene (ODE) first and then a is added, such as oleic acid or oleylamine, to dissolve the halogen ions. Moreover, in order to obtain highly stable and PL QY NCs, inert conditions are required during the anion exchange process. These anion exchange methods are limited to the direct mixing of solid halogen ions with perovskite solutions, which not only requires a cumbersome dissolution process but also brings in a large number of non-luminescence materials during the anion exchange process.
Ion transport across the interface between two immiscible liquids is a fundamental study in catalysis and electrochemistry, namely, different ions can be transferred through the interface of two incompatible solvent interfaces. Herein, we report a novel interfacial anion exchange route in the chemical transformation of Cs4PbBr6 to CsPbX3 on the n-hexane/water interface. Taking advantage of ion transport across the interface between two immiscible liquids, we can easily synthesize highly stable and PL QY CsPbX3 NCs at room temperature. By using different metal halides, the band-gap energy and PL spectra were readily tuned over the entire visible spectral region. Differing from the mostly reported chemical transformation used anion sources, the metal halides are dissolved in deionized water due to their high solubility in water. This process does not need any complicated pretreatment, such as heating in a vacuum or adding oleic acid and oleylamine to dissolve the halide source, which not only improves synthetic efficiency and product purity but also lowers the production cost. In addition, the chemical transformation mechanism between Cs4PbBr6 NCs and CsPbX3 NCs was investigated. We further demonstrated the potential applications of the perovskite NCs in white LED (WLEDs) by combining the green luminescent CsPbBr3 NCs with red luminescent CdSe NCs and a blue GaN LED chip, showing an encompassing 125% color gamut of the National Television System Committee (NTSC, 1913) standard.

2. Materials and Methods

2.1. Chemicals and Materials

Cesium carbonate (Cs2CO3, 99.99%), lead bromide (PbBr2, 99.99%), 1-octadecene (ODE, 90%), oleic acid (OA, 90%), and oleylamine (OAm, 90%) were purchased from Sigma-Aldrich Co. (St. Louis, MO, USA). N-hexane, methyl acetate, and poly (methyl methacrylate) (PMMA) were purchased from Shanghai Aladdin Biochemical Technology Co. (Shanghai, China). Transparent silicone resin (OE-6650A and B) was purchased from Dow Corning Co. (Midland, MI, USA). All chemicals were used as received without any further purification.

2.2. Preparation of Cesium-Oleate Solution

A total of 0.16 g Cs2CO3 (0.49 mmol), 1.0 mL OA and 16 mL ODE were loaded into a 30 mL flask, dried for 30 min at 120 °C under N2, and then heated to 150 °C until all Cs2CO3 reacted with OA to form a cesium-oleate solution.

2.3. Preparation of Cs4PbX6 NCs

In a typical synthesis of Cs4PbBr6 NCs, 1.0 mL OAm, 1.0 mL OA, 10 mL ODE, and 0.2 mmol PbBr2 were loaded into a 25 mL three-neck flask and dried under vacuum for 30 min. The reaction system was heated to 140 °C. Then, hot (~150 °C) Cs-oleate solution (4.4 mL in ODE, the molar ratio of Cs-oleate and PbBr2 was 1.35:1, prepared as described above) was rapidly injected into the PbBr2 solution. Seven seconds later, the mixture was immediately cooled with an ice-water bath.

2.4. Interfacial Anion Exchange Reactions

The anion exchange process on the interface of n-hexane/KX aqueous solution is shown in Scheme 1. The reaction was conducted under ambient condition. In a typical interfacial anion exchange process to prepare CsPbI3, 3.0 mL Cs4PbBr6 n-hexane dispersion was added into a 10 mL glass bottle. The original Cs4PbBr6 solution is colorless, as shown in Scheme 1-Stage I. Then, 3.0 mL KI aqueous solution (0.5 M) was injected quickly, the color of the upper Cs4PbBr6 n-hexane dispersion was changed from colorless to green rapidly under UV light irradiation, as shown in Scheme 1-Stage II. After 24 h, the color of supernatant gradually turned yellow, orange, and eventually red, as shown in Scheme 1-Stage III. When KI aqueous solution was replaced by KCl aqueous solution, the upper green n-hexane dispersion would turn indigo and then blue-purple. This process takes 32 h or even more. In addition, when KI aqueous solution was substituted with KBr aqueous solution, the color of the upper green n-hexane dispersion remained unchanged. Moreover, slightly disturbing the mixing solution during this process would increase the anion exchange rate. The KX can be substituted by other metal halides, such as NaX, ZnX2, CuX2, MgX2, and CaX2, the color change of the mixture is almost as the same as KX, while the reaction time is variable depending on the halide source.

2.5. Fabrication of WLEDs Devices

To obtain highly efficient WLEDs, a blue GaN chip with a rough structure was applied [20]. The WLEDs devices consist of a CsPbBr3 NC film, a CdSe NC film, and a blue GaN chip. To fabricate green CsPbBr3 NCs film, the as-synthesized CsPbBr3 NCs were dispersed into a PMMA/n-hexane solution and the mixture was vigorously stirred with a vacuum homogenizer for 6 min to degas. After that, the mixture was injected into a mold and heated at 60 °C for 2 h to remove n-hexane. The CdSe film was prepared by adding red CdSe NCs into the silicone gel (OE-6650 A and B) and vigorously stirring with a vacuum homogenizer for 12 min to degas. Then, the mixture was injected into a mold and solidified in a vacuum oven at 80 °C for 30 min and at 150 °C for 2 h, sequentially. Finally, the green and red film layers were orderly coated on the surface of a blue GaN chip.

2.6. Characterizations

The crystal phase and surface morphology of the samples were characterized by transmission electron microscopy (TEM, JEM-2100F, JEOL, Tokyo, Japan) with an accelerating voltage of 200 kV. The phase of the as-prepared perovskite NCs were measured using an X-ray diffractometer (XRD, D8-Advance, Bruker, Germany) with a Cu–Kα radiation source (λ = 0.15418 nm) at a counting rate of 2° per minute in the scanning angle (2θ) range from 5° to 50°. The ultraviolet-visible (UV-vis) absorption spectra of the samples were tested using a UV-vis spectrometer (Shimadzu, Kyoto, Japan) over the wavelength range from 300 nm to 700 nm, at 1 nm intervals. The photoluminescence (PL) spectra of the products were recorded using a fluorescence spectrophotometer (RF-6000, Shimadzu, Kyoto, Japan) with a Xe lamp as an excitation source.

3. Results and Discussion

The surface morphology of the as-synthesized Cs4PbBr6 NCs was characterized by TEM, as shown in Figure 1a. The TEM image demonstrates that the Cs4PbBr6 NCs have a diamond-like shape and show good dispersion. Figure 1b indicates that Cs4PbBr6 NCs have a relatively wide particle size distribution and their average size is 23.6 nm. To determine the phase structure, XRD was applied to measure the as-synthesized Cs4PbBr6 NCs. As shown in Figure 1c, the XRD patterns show that Cs4PbBr6 NCs can be indexed as rhombohedral phase (JCPDS card No. 73-2478). In addition, no other phases were observed, suggesting a high sample purity.
The UV-vis absorption spectra and PL emission spectra of the original Cs4PbBr6 NCs are shown in Figure 1d. The UV-vis absorption spectrum has a single and spiculate absorption peak at 319 nm. This absorption feature is consistent with that of bulk Cs4PbBr6, which has been confirmed to be the localized 6s1/2-6p1/2 transition within the isolated [PbBr6]4− octahedra separated by Cs+ ions [21,22]. No PL emission was observed for Cs4PbBr6 NCs. According to previous reports, the purified Cs4PbBr6 NCs did not show obvious PL emission over the entire visible range owing to their large bandgap (Eg = 3.94 eV) [23,24,25], suggesting the as-prepared Cs4PbBr6 NCs in this work are highly purified.
TEM was applied to characterize the three typical products obtained by interfacial anion exchange reactions. Figure 2a shows the TEM image of samples by adding KCl aqueous solution into Cs4PbBr6 n-hexane solution, demonstrating the samples have a regular cuboid shape with the average width of ca. 13 nm and length of ca. 32 nm, as shown in Figure S1a, b. When KCl was substituted with KBr or KI, the shape of products was almost the same as KCl, while the size and high-aspect-ratio are different, as shown in Figure 2b,c. For example, when the samples were directly obtained by Cs4PbBr6 transformation with KBr aqueous solution, the average width and length were 15 nm and 45 nm, respectively, and the high-aspect-ratio was 3. For the samples were synthesized by Cs4PbBr6 transformation with KI aqueous solution, the average width and length were 22 nm and 50 nm, respectively, and the high-aspect-ratio was 2.27. According to previous studies, this phenomenon is believed to be due to the self-assembly phenomenon of water on the formation of perovskite crystals [26,27,28]. This provides a new opportunity to directly synthesize crystals with different morphologies of other components. To determine the phase structure, XRD and high-angle annular dark field scanning TEM (HAADF-STEM) were used to characterize the as-prepared samples. The element mapping of HAADF-STEM in Figure S2 confirmed that the samples prepared by adding KCl into Cs4PbBr6 n-hexane solution were CsPbBr1Cl2. In addition, XRD patterns (Figure S3) indicated that the samples prepared using KBr and KI are CsPbBr3 and CsPbI3, respectively.
The UV-vis absorption and PL spectra of the corresponding samples are illustrated in Figure 2d,f. The CsPbBr1Cl2 NCs show a sharp first characteristic absorption at 427 nm and a strong PL emission peak at 435 nm with a full width at half maximum (FWHM) of 22 nm, as presented in Figure 2d. Furthermore, the small Stokes shift (8 nm) indicates the PL emission of CsPbBr1Cl2 NCs results from the bound exciton recombination [29]. In addition, the UV-vis absorption spectra and PL emission spectra of CsPbBr3 NCs show the first characteristic absorption peak of approximately 508 nm and the PL emission of around 520 nm with a narrow FWHM of 18 nm, and the UV-vis absorption peak and PL emission peak of CsPbI3 NCs were 670 nm and 690 nm, respectively. The PL QY of the as-prepared CsPbBr1Cl2 NCs, CsPbBr3 NCs and CsPbI3 NCs were measured to be ca. 45%, 80%, and 68% (Rhodamin 101 as reference, PL QY is 100%), respectively [30,31]. The insets in Figure 2d–f are representative digital pictures of each sample under 365 nm UV light irradiation, showing bright blue, green, and red fluorescence and indicating samples with high PL QY were formed. The above results clearly confirmed that the interfacial anion exchange processes were successfully completed for synthesizing different component products.
To observe the spectral shift of these anion-exchange reactions in situ, representative UV-vis absorption spectra and PL spectra of such exchanged CsPbX3 NCs, are shown in Figure 3. By adding KCl into Cs4PbBr6 n-hexane solution, the first characteristic absorption peak of as-prepared samples gradually blue-shifted and finally reached 420 nm. This gradual shift is consistent with the XRD result due to the substitution of Br with Cl. When KCl was substituted with KI, the absorption peak gradually red-shifted and finally reached 675 nm. In addition, we observed that the first characteristic absorption spectra gradually became sharper when adding KCl and became broader when adding KI over time, which is similar to a previously reported study [19]. The PL spectra of the CsPbX3 NCs that transformed from Cs4PbBr6 NCs are Stokes-shifted with respect to the optical absorption, as shown in Figure 3b,c. According to the interfacial ion exchange process, the UV-vis absorption and PL spectra matched well with those of the directly synthesized CsPbX3 NCs in previous reports [32], indicating that the CsPbX3 can be easily obtained by anion exchange in the interface of an n-hexane and KX aqueous solution.
The concentration of KX plays an important role in the spectral shift during the anion exchange process. To study the effect of concentration of KX aqueous on optical properties of as-prepared samples, a series of KX aqueous concentrations control experiments have been conducted. During the interfacial anion exchange process, some aliquots of the reaction mixture were removed from the reaction system, and the samples were characterized by PL spectrometry. Figure 4a,b show the emission peak position and PL emission energy as a function of time after adding different concentrations of KCl solution into the Cs4PbBr6 n-hexane solution. When the concentration of KCl was 0.2 M, the PL emission peak increased from 520 nm to 425 nm over time, and the corresponding PL emission energy increased from 2.38 eV to 2.88 eV. As the concentration of KCl increased, the rate of blue-shift increased. This is because the increase of ion concentration results in the increase of the frequency of ion contact, which leads to the acceleration of the exchange rate. When KI was added to the Cs4PbBr6 n-hexane solution, the PL emission peak shifted from 520 nm to 650 nm with a displacement of 130 nm, and the corresponding emission energy decreased from 2.38 eV to 1.90 eV (Figure 4c,d). Increasing the concentration of KX will improve the exchange rate, but the ultimate limit of movement is almost the same.
Furthermore, this process could be repeated when KX was replaced by other halide sources, such as NaX and ZnX2, as demonstrated in Figures S4 and S5. The change in the PL spectra of the samples that were synthesized by Cs4PbBr6 transformation with ZnX2 solutions, as shown in Figure S4a–b, suggested the Cs4PbBr6 successfully transformed to CsPbX3 in these solutions and realized the spectral shift. For different metal halides, the reaction time of interfacial anion exchange reaction and the wavelength range for the PL emission spectra are different. This phenomenon is thought to be caused by the influence of different metal cations on the diffusion of halogen ions at the interface.
To detailed explore the process of interfacial anion exchange, TEM and XRD were applied to monitor the change on the morphology and size of typical CsPbBrxI3−x NCs. Figure 5a shows the representative TEM images of Cs4PbBr6 NCs after 0, 4, 8, and 24 h when KI was added, respectively. At 4 h, the TEM image shows a mainly regular cuboid shape with a small portion of diamond-like shape, indicating the interfacial anion exchange reaction occurred. As storage time was extended, well-defined, and mono-dispersed, CsPbI3 NCs were achieved and their size increased significantly. The XRD pattern of the samples is depicted in Figure 5b. The diffraction peaks of the Cs4PbBr6 NCs were indexed as rhombohedral phase (JCPDS card No. 73-2478), and no other peaks were observed. When the original Cs4PbBr6 n-hexane reacted with the KI aqueous solution for only 4 h, main diffraction peaks at 2θ = 13.1°, 17.6°, 25.7°, 27.4°, 30.4°, 35.3°, 37.7°, and 44.4° were detected, indicating that the CsPbBrxI3−x NCs were formed. Significantly, the peaks at 2θ = 15.2°, 21.6°, 26.5°, 30.6°, 34.4°, 37.8°, and 43.9° were observed, indicating that CsPbBr3 NCs were synthesized. Upon the addition of KI solution, due to the high solubility of CsBr in water solution (1243 g/L at 25 °C) [33], the decomposition of Cs4PbBr6 and the formation of CsPbBr3 NCs was driven. This is consistent with the phenomenon where the mixture turned green immediately after the KX solution was added into the Cs4PbBr6 n-hexane solution. Moreover, it is worth mentioning that no broad peaks at 2θ = 20–25° (a characteristic feature of amorphous materials) have been detected, which can be ascribed to the high crystallinity of Cs4PbBr6 and CsPbBr3 NCs. These results confirmed that at the KX aqueous solution interface, the driving force of water will first convert Cs4PbBr6 into CsPbBr3, while the halogen ion does not directly react with Cs4PbBr6 but with CsPbBr3.
The corresponding digital photos of four typical samples are shown in Figure 5c. When KI was added, the original transparent Cs4PbBr6 n-hexane solution divided into two layers immediately and showed a light green-yellow color in the top layer. With the time prolonged, the green-yellow color became yellow and red gradually, implying the interfacial anion exchange reaction between Br and I occurred. When the as-prepared products were irradiated with UV light, a bright photoluminescence was observed. Significantly, as the anion exchange reaction completed, the color of the sample synthesized by this method showed a much higher stability. After being stored for 48 h, the sample underwent UV light irradiation, the red solution kept almost the same color and no clear decay in photoluminescence was detected, implying high stability against moisture.
Through the above-mentioned analysis, a possible mechanism was proposed, as illustrated in Figure 6. The original material Cs4PbBr6 NCs were dispersed in n-hexane and their surface coated with the oleic acid and oleylamine, which resulted in hydrophobicity to ensure the stable presence of NCs in non-polar solvents. After adding KX aqueous solution, CsBr was stripped through the n-hexane/water interface due to its high solubility and the non-fluorescent Cs4PbBr6 NCs were converted to green fluorescent CsPbBr3 NCs. Meanwhile, oleic acid and oleylamine on the NCs surface are highly dynamic due to the water-driven mechanism, which makes the conversion process more accessible. It is well-known that KX has very low solubility in n-hexane but its solubility in water is very high and it would be quickly ionized into halogen ions in water. Therefore, the halogen anions in the aqueous phase have an excellent diffusion capacity at the n-hexane/water interface. When KX solution was added to Cs4PbBr6 NCs n-hexane solution, ionized halogen ions slowly diffused into the n-hexane and reacted with as-synthesized CsPbBr3 NCs causing the optical spectrum redshift or blueshift. Since the halogen ions diffusing near the n-hexane interface are consumed after the reaction, the diffusion behavior of the anions can be continuously performed without external energy input. Notably, the solubility of KX in n-hexane is extremely low; thus, only a small part of the K+ ion in the aqueous phase can enter n-hexane. This ensures the “pure” in that the anion exchange process does not create other non-luminescent substances. Additionally, when this system encounters slight stirring after adding KX aqueous solution, the rate of interface anion exchange can be accelerated.
Perovskite NCs or other quantum dots are generally unstable at high temperatures [34]. Considering such thermal instability of the perovskite NCs and the heat generated by blue LED chips, an effective approach to avoid the temperature effect is to use the remote phosphor configuration, in which the phosphor layer is separated from the LED excitation light source [35,36]. To evaluate the as-synthesized CsPbX3 NCs for white LED (WLED) applications, the WLEDs, including green CsPbBr3 NCs film, a red CdSe film, and a blue LED chip, were fabricated. The electroluminescence (EL) spectra of Figure 7a revealed that the CsPbBr3 NCs have a narrow EL bandwidth, which coincides with the white light requirement of backlight displays. The International Commission on Illumination (CIE) chromaticity coordinates in Figure 7b shows that the WLEDs device presents cold white light (CCT is at approximately 6,300 and (x, y) is at around (0.32, 0.34), respectively) at different currents. Moreover, the WLEDs device shows an encompassing 125% color gamut of the National Television System Committee (NTSC, 1913) standard. This result indicates that the device could be useful as a next-generation candidate for high-end professional displays. The EL spectra of the WLEDs at different driving currents are shown in Figure 7c. The spectral intensity increased as current from 50 to 600 mA and the spectral shape remained almost unchanged, indicating that the CsPbBr3 NCs were not saturated by blue light. The luminous efficiency and flux of the WLEDs were determined, as shown in Figure 7d. The highest luminous efficiency was 32.7 lm/W, which is much higher than most perovskite quantum dot LEDs (Table S1).

4. Conclusions

In summary, we reported a facile and environmentally friendly method for the synthesis of highly stable and photoluminescent CsPbX3 through interfacial anion exchange reaction. By adding KX aqueous solution, we enabled the efficient chemical transformation of non-luminescent Cs4PbBr6 NCs to highly photoluminescent CsPbX3 NCs. The spectral shift of CsPbX3 NCs under different metal halide concentrations and sources were also investigated. By using different metal halides, the bandgap energy and PL spectra of CsPbX3 NCs were readily tuned over the entire visible spectral region. In addition, a chemical transformation mechanism between Cs4PbBr6 NCs and CsPbX3 NCs was investigated. The mechanism revealed that Cs4PbBr6 NCs dispersed in n-hexane were converted to CsPbBr3 NCs first by stripping CsBr through an interfacial reaction with aqueous solution. This process takes advantage of the high solubility of CsBr in KX aqueous solution, producing air-stable CsPbBr3 NCs, and then the CsPbBr3 NCs exchange with halogen ions at the interface of n-hexane/water. The interfacial anion exchange method eliminates the dependence of halogen ionic solubility on oleic acid and oleylamine. Moreover, water and n-hexane separated perovskite NCs from halogenated inorganic salts at the interface, so that non-luminescent substances could not enter into the CsPbX3 NCs in large quantities, ensuring their purity. WLEDs device were fabricated by combining the green luminescent CsPbBr3 NCs with red luminescent CdSe NCs and a blue GaN LED chip, obtaining a high color gamut of 125% (NTSC standard). There is still a need to obtain pure and highly stable CsPbX3 NCs, especially for CsPbCl3 NCs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/9/9/1296/s1, Figure S1a,b. The statistics of width and length of the samples when KCl was added. Figure S1c,d. The statistics of width and length of the samples when KBr was added. Figure S1e,f. The statistics of width and length of the samples when KI was added. Figure S2: Element mapping of the samples prepared by Cs4PbBr6 transformation with KCl aqueous solution, Figure S3: XRD patterns of the samples prepared by Cs4PbBr6 transformation with (a) KBr and (b) KI aqueous solution, Figure S4: The PL spectra of the samples that were synthesized by Cs4PbBr6 transformation with different halide solutions (a) ZnCl2, (b) ZnI2, (c) NaCl, and (d) NaI, Figure S5. The color change of the samples that were synthesized by the Cs4PbBr6 transformation with different concentrations of (a) ZnCl2 and (b) ZnI2 aqueous solution. Table S1. The luminous efficiency of different types of perovskite light emitting-diodes.

Author Contributions

Conceptualization, L.R. and Z.L.; methodology, L.R., C.S., and H.L.; software, K.C., C.Y., and H.L.; validation, X.D. and Z.L.; formal analysis, L.R., C.Y., and Z.L.; investigation, H.L., C.Y., and K.C.; resources, Y.T. and Z.L.; data curation, C.S.; writing—original draft preparation, Z.L., C.S., and L.R.; writing—review and editing, L.R., C.S., Z.L., and Y.T.; visualization, Z.L. and L.R.; supervision, X.D., Z.L., and B.Y.; project administration, Y.T, X.D., B.Y., and Z.L.; funding acquisition, Z.L., B.Y., and Y.T.

Funding

This work was supported by National Natural Science Foundation of China (51775199, 51735004), Natural Science Foundation of Guangdong Province (2018B030306008), and the Science & Technology Program of Guangdong Province (2017B010115001).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. He, X.; Qiu, Y.; Yang, S. Fully-inorganic trihalide perovskite nanocrystals: A new research frontier of optoelectronic materials. Adv. Mater. 2017, 29, 1700775. [Google Scholar] [CrossRef] [PubMed]
  2. Huang, H.; Bodnarchuk, M.I.; Kershaw, S.V.; Kovalenko, M.V.; Rogach, A.L. Lead halide perovskite nanocrystals in the research spotlight: Stability and defect tolerance. ACS Energy Lett. 2017, 2, 2071–2083. [Google Scholar] [CrossRef] [PubMed]
  3. Rao, L.; Tang, Y.; Song, C.; Xu, K.; Vickers, E.T.; Bonabi Naghadeh, S.; Ding, X.; Li, Z.; Zhang, J.Z. Polar-solvent-free synthesis of highly photoluminescent and stable CsPbBr3 nanocrystals with controlled shape and size by ultrasonication. Chem. Mater. 2018, 31, 365–375. [Google Scholar] [CrossRef]
  4. Swarnkar, A.; Chulliyil, R.; Ravi, V.K.; Irfanullah, M.; Chowdhury, A.; Nag, A. Colloidal CsPbBr3 perovskite nanocrystals: Luminescence beyond traditional quantum dots. Angew. Chem. Int. Ed. 2015, 54, 15424–15428. [Google Scholar] [CrossRef] [PubMed]
  5. Chang, X.; Li, W.; Zhu, L.; Liu, H.; Geng, H.; Xiang, S.; Liu, J.; Chen, H. Carbon-based CsPbBr3 perovskite solar cells: All-ambient processes and high thermal stability. ACS Appl. Mater. Interfaces 2016, 8, 33649–33655. [Google Scholar] [CrossRef]
  6. Park, K.; Lee, J.W.; Kim, J.D.; Han, N.S.; Jang, D.M.; Jeong, S.; Park, J.; Song, J.K. Light-matter interactions in cesium lead halide perovskite nanowire lasers. J. Phys. Chem. Lett. 2016, 7, 3703–3710. [Google Scholar] [CrossRef] [PubMed]
  7. Song, X.; Liu, X.; Yu, D.; Huo, C.; Ji, J.; Li, X.; Zhang, S.; Zou, Y.; Zhu, G.; Wang, Y. Boosting two-dimensional MoS2/CsPbBr3 photodetectors via enhanced light absorbance and interfacial carrier separation. ACS Appl. Mater. Interfaces 2018, 10, 2801–2809. [Google Scholar] [CrossRef]
  8. Rao, L.; Tang, Y.; Yan, C.; Li, J.; Zhong, G.; Tang, K.; Yu, B.; Li, Z.; Zhang, J.Z. Tuning the emission spectrum of highly stable cesium lead halide perovskite nanocrystals through poly (lactic acid)-assisted anion-exchange reactions. J. Mater. Chem. C 2018, 6, 5375–5383. [Google Scholar] [CrossRef]
  9. Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Krieg, F.; Caputo, R.; Hendon, C.H.; Yang, R.X.; Walsh, A.; Kovalenko, M.V. Nanocrystals of cesium lead halide perovskites (CsPbX3, X = Cl, Br, and I): Novel optoelectronic materials showing bright emission with wide color gamut. Nano Lett. 2015, 15, 3692–3696. [Google Scholar] [CrossRef]
  10. Li, G.; Wang, H.; Zhang, T.; Mi, L.; Zhang, Y.; Zhang, Z.; Zhang, W.; Jiang, Y. Solvent-polarity-engineered controllable synthesis of highly fluorescent cesium lead halide perovskite quantum dots and their use in white light-emitting diodes. Adv. Funct. Mater. 2016, 26, 8478–8486. [Google Scholar] [CrossRef]
  11. Zhang, W.; Eperon, G.E.; Snaith, H.J. Metal halide perovskites for energy applications. Nat. Energy 2016, 1, 16048. [Google Scholar] [CrossRef]
  12. Tong, Y.; Bladt, E.; Aygüler, M.F.; Manzi, A.; Milowska, K.Z.; Hintermayr, V.A.; Docampo, P.; Bals, S.; Urban, A.S.; Polavarapu, L. Highly luminescent cesium lead halide perovskite nanocrystals with tunable composition and thickness by ultrasonication. Angew. Chem. Int. Ed. 2016, 55, 13887–13892. [Google Scholar] [CrossRef] [PubMed]
  13. Jana, A.; Mittal, M.; Singla, A.; Sapra, S. Solvent-free, mechanochemical syntheses of bulk trihalide perovskites and their nanoparticles. Chem. Commun. 2017, 53, 3046–3049. [Google Scholar] [CrossRef] [PubMed]
  14. Protesescu, L.; Yakunin, S.; Nazarenko, O.; Dirin, D.; Kovalenko, M. Low-cost synthesis of highly luminescent colloidal lead halide perovskite nanocrystals by wet ball milling. ACS Appl. Nano Mater. 2018, 1, 1300–1308. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, D.; Eaton, S.W.; Yu, Y.; Dou, L.; Yang, P. Solution-phase synthesis of cesium lead halide perovskite nanowires. J. Am. Chem. Soc. 2015, 137, 9230–9233. [Google Scholar] [CrossRef] [PubMed]
  16. Zhou, H.; Yuan, S.; Wang, X.; Xu, T.; Wang, X.; Li, H.; Zheng, W.; Fan, P.; Li, Y.; Sun, L. Vapor growth and tunable lasing of band gap engineered cesium lead halide perovskite micro/nanorods with triangular cross section. ACS Nano 2016, 11, 1189–1195. [Google Scholar] [CrossRef]
  17. Akkerman, Q.A.; Park, S.; Radicchi, E.; Nunzi, F.; Mosconi, E.; De Angelis, F.; Brescia, R.; Rastogi, P.; Prato, M.; Manna, L. Nearly monodisperse insulator Cs4PbX6 (X = Cl, Br, I) nanocrystals, their mixed halide compositions, and their transformation into CsPbX3 nanocrystals. Nano Lett. 2017, 17, 1924–1930. [Google Scholar] [CrossRef]
  18. Jing, Q.; Su, Y.; Xing, X.; Lu, Z. Highly luminescent CsPbBr3 nanorods synthesized by a ligand-regulated reaction at the water-oil interface. J. Mater. Chem. C 2019, 7, 1854–1858. [Google Scholar] [CrossRef]
  19. Nedelcu, G.; Protesescu, L.; Yakunin, S.; Bodnarchuk, M.I.; Grotevent, M.J.; Kovalenko, M.V. Fast anion-exchange in highly luminescent nanocrystals of cesium lead halide perovskites (CsPbX3, X = Cl, Br, I). Nano Lett. 2015, 15, 5635–5640. [Google Scholar] [CrossRef]
  20. Li, Z.; Cao, K.; Li, J.; Tang, Y.; Xu, L.; Ding, X.; Yu, B. Investigation of light-extraction mechanisms of multiscale patterned arrays with rough morphology for gan-based thin-film LEDs. IEEE Access 2019, 7, 73890–73898. [Google Scholar] [CrossRef]
  21. Rao, L.; Ding, X.; Du, X.; Liang, G.; Tang, Y.; Tang, K.; Zhang, J.Z. Ultrasonication-assisted synthesis of CsPbBr3 and Cs4PbBr6 perovskite nanocrystals and their reversible transformation. Beilstein J. Nanotech. 2019, 10, 666–676. [Google Scholar] [CrossRef] [PubMed]
  22. Liu, Z.; Bekenstein, Y.; Ye, X.; Nguyen, S.C.; Swabeck, J.; Zhang, D.; Lee, S.-T.; Yang, P.; Ma, W.; Alivisatos, A.P. Ligand mediated transformation of cesium lead bromide perovskite nanocrystals to lead depleted Cs4PbBr6 nanocrystals. J. Am. Chem. Soc. 2017, 139, 5309–5312. [Google Scholar] [CrossRef] [PubMed]
  23. Yin, J.; Zhang, Y.; Bruno, A.; Soci, C.; Bakr, O.M.; Brédas, J.-L.; Mohammed, O.F. Intrinsic lead ion emissions in zero-dimensional Cs4PbBr6 Nanocrystals. ACS Energy Lett. 2017, 2, 2805–2811. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Saidaminov, M.I.; Dursun, I.; Yang, H.; Murali, B.; Alarousu, E.; Yengel, E.; Alshankiti, B.A.; Bakr, O.M.; Mohammed, O.F. Zero-dimensional Cs4PbBr6 perovskite nanocrystals. J. Phys. Chem. Lett. 2017, 8, 961–965. [Google Scholar] [CrossRef] [PubMed]
  25. Akkerman, Q.A.; Abdelhady, A.L.; Manna, L. Zero-dimensional cesium lead halides: History, properties, and challenges. J. Phys. Chem. Lett. 2018, 9, 2326–2337. [Google Scholar] [CrossRef] [PubMed]
  26. Zhang, X.; Bai, X.; Wu, H.; Zhang, X.; Sun, C.; Zhang, Y.; Zhang, W.; Zheng, W.; Yu, W.W.; Rogach, A.L. Water-assisted size and shape control of CsPbBr3 perovskite nanocrystals. Angew. Chem. Int. Ed. 2018, 57, 3337–3342. [Google Scholar] [CrossRef] [PubMed]
  27. Pushkarev, A.P.; Korolev, V.I.; Markina, D.I.; Komissarenko, F.E.; Naujokaitis, A.; Drabavičius, A.; Pakštas, V.; Franckevičius, M.; Khubezhov, S.A.; Sannikov, D.A. A few-minute synthesis of CsPbBr3 nanolasers with a high quality factor by spraying at ambient conditions. ACS Appl. Mater. Interfaces 2018, 11, 1040–1048. [Google Scholar] [CrossRef] [PubMed]
  28. Turedi, B.; Lee, K.J.; Dursun, I.; Alamer, B.; Wu, Z.; Alarousu, E.; Mohammed, O.F.; Cho, N.; Bakr, O.M. Water-induced dimensionality reduction in metal-halide perovskites. J. Phys. Chem. C 2018, 122, 14128–14134. [Google Scholar] [CrossRef]
  29. Liang, Z.; Zhao, S.; Xu, Z.; Qiao, B.; Song, P.; Gao, D.; Xu, X. Shape-controlled synthesis of all-inorganic CsPbBr3 perovskite nanocrystals with bright blue emission. ACS Appl. Mater. Interfaces 2016, 8, 28824–28830. [Google Scholar] [CrossRef]
  30. Brouwer, A.M. Standards for photoluminescence quantum yield measurements in solution (IUPAC Technical Report). Pure Appl. Chem. 2011, 83, 2213–2228. [Google Scholar] [CrossRef]
  31. Ishida, H.; Bünzli, J.; Beeby, A. Guidelines for measurement of luminescence spectra and quantum yields of inorganic and organometallic compounds in solution and solid state (IUPAC Technical Report). Pure Appl. Chem. 2016, 88, 701–711. [Google Scholar] [CrossRef]
  32. Li, X.; Wu, Y.; Zhang, S.; Cai, B.; Gu, Y.; Song, J.; Zeng, H. CsPbX3 quantum dots for lighting and displays: Room-temperature synthesis, photoluminescence superiorities, underlying origins and white light-emitting diodes. Adv. Funct. Mater. 2016, 26, 2435–2445. [Google Scholar] [CrossRef]
  33. Wu, L.; Hu, H.; Xu, Y.; Jiang, S.; Chen, M.; Zhong, Q.; Yang, D.; Liu, Q.; Zhao, Y.; Sun, B. From nonluminescent Cs4PbX6 (X = Cl, Br, I) nanocrystals to highly luminescent CsPbX3 nanocrystals: Water-triggered transformation through a CsX-stripping mechanism. Nano Lett. 2017, 17, 5799–5804. [Google Scholar] [CrossRef] [PubMed]
  34. Li, Z.; Song, C.; Qiu, Z.; Li, J.; Cao, K.; Ding, X.; Tang, Y. Study on the thermal and optical performance of quantum dot white light-emitting diodes using metal-based inverted packaging structure. IEEE Trans. Electron Devices 2019, 66, 3020–3027. [Google Scholar] [CrossRef]
  35. Li, J.; Tang, Y.; Li, Z.; Ding, X.; Rao, L.; Yu, B. Effect of quantum dot scattering and absorption on the optical performance of white light-emitting diodes. IEEE Trans. Electron Devices 2018, 65, 2877–2884. [Google Scholar] [CrossRef]
  36. Tang, Y.; Lu, H.; Li, J.; Li, Z.; Du, X.; Ding, X.; Yu, B. Improvement of optical and thermal properties for quantum dots WLEDs by controlling layer location. IEEE Access 2019, 7, 77642–77648. [Google Scholar] [CrossRef]

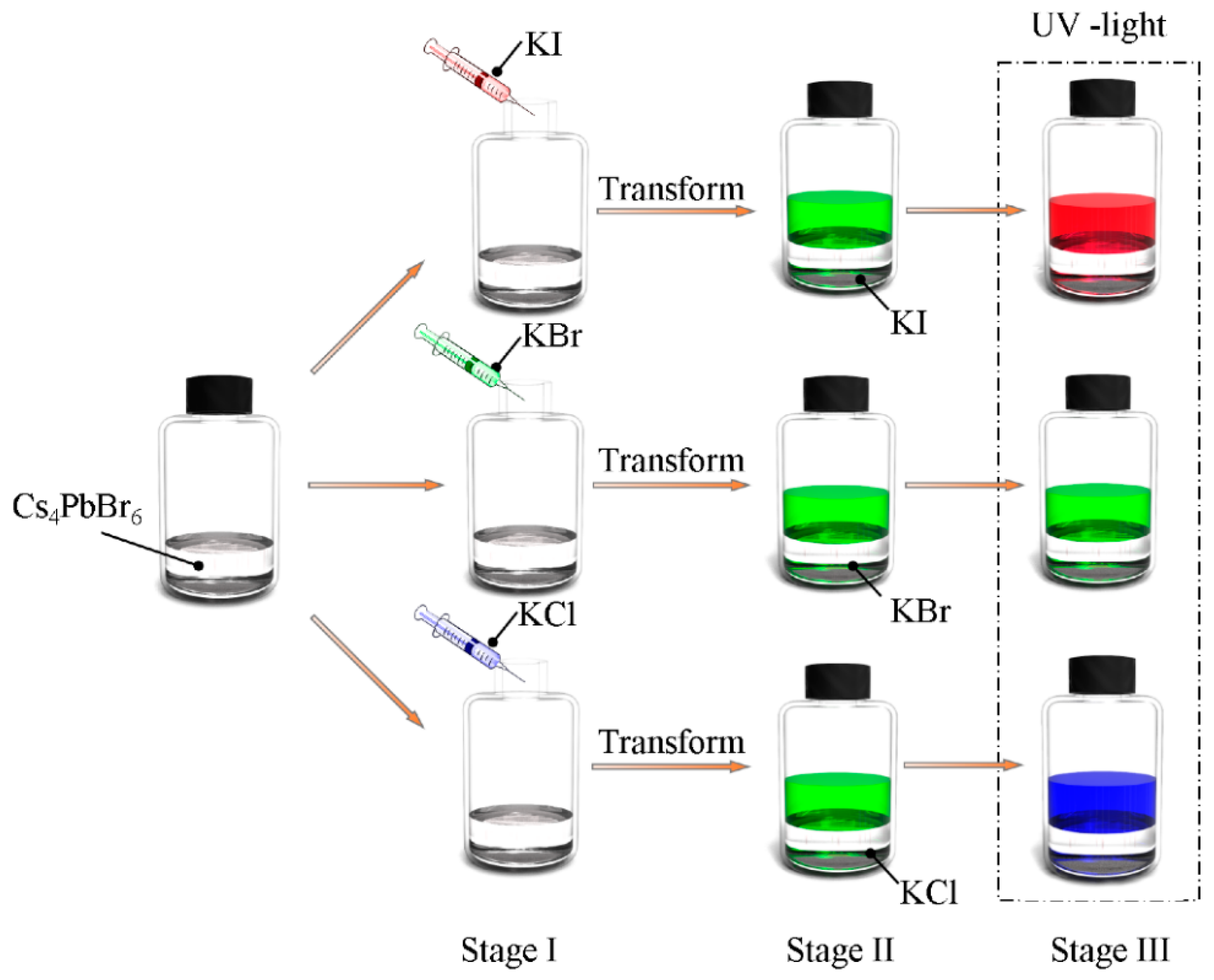

Scheme 1. Schematic diagram of synthesizing CsPbX3 (X = Cl, Br, and I) by an interfacial anion exchange reaction. Stage I shows the color of Cs4PbBr6 solution before KX added; Stage II shows the color of Cs4PbBr6 solution changed to green within several seconds when KX was added; Stage III shows the color of Cs4PbBr6 solution changed to red when KI was added for 24 h and changed to blue-purple when KCl was added for 32 h, respectively.
Scheme 1. Schematic diagram of synthesizing CsPbX3 (X = Cl, Br, and I) by an interfacial anion exchange reaction. Stage I shows the color of Cs4PbBr6 solution before KX added; Stage II shows the color of Cs4PbBr6 solution changed to green within several seconds when KX was added; Stage III shows the color of Cs4PbBr6 solution changed to red when KI was added for 24 h and changed to blue-purple when KCl was added for 32 h, respectively.
Nanomaterials 09 01296 sch001

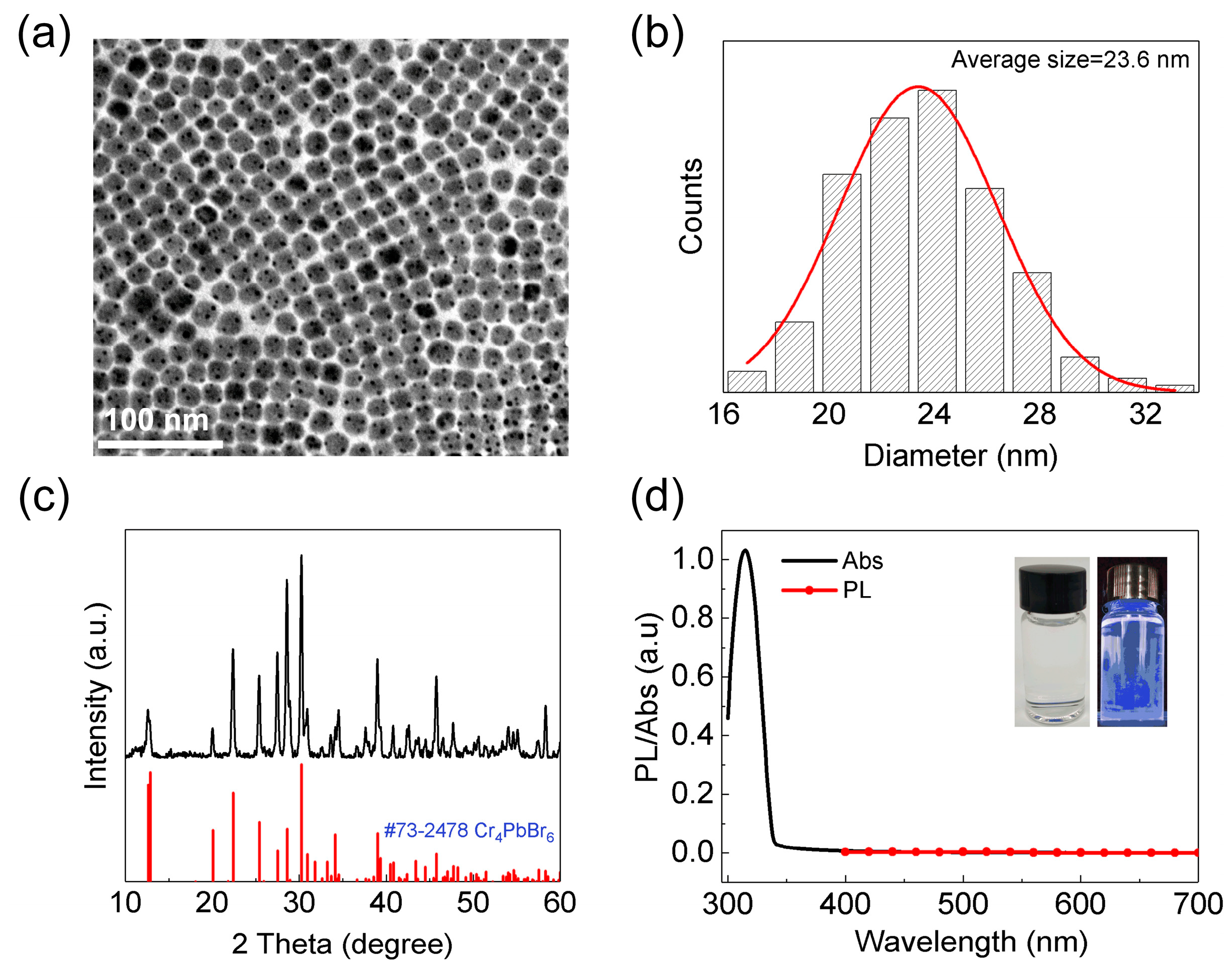

Figure 1. Characterization of Cs4PbBr6 nanocrystals (NCs): (a) TEM image, (b) particle size distribution, (c) X-ray diffractometer (XRD) pattern, and (d) UV-vis absorption and photoluminescence (PL) spectra. Insets are the photographs of Cs4PbBr6 NCs under sunlight and UV light irradiation.
Figure 1. Characterization of Cs4PbBr6 nanocrystals (NCs): (a) TEM image, (b) particle size distribution, (c) X-ray diffractometer (XRD) pattern, and (d) UV-vis absorption and photoluminescence (PL) spectra. Insets are the photographs of Cs4PbBr6 NCs under sunlight and UV light irradiation.
Nanomaterials 09 01296 g001

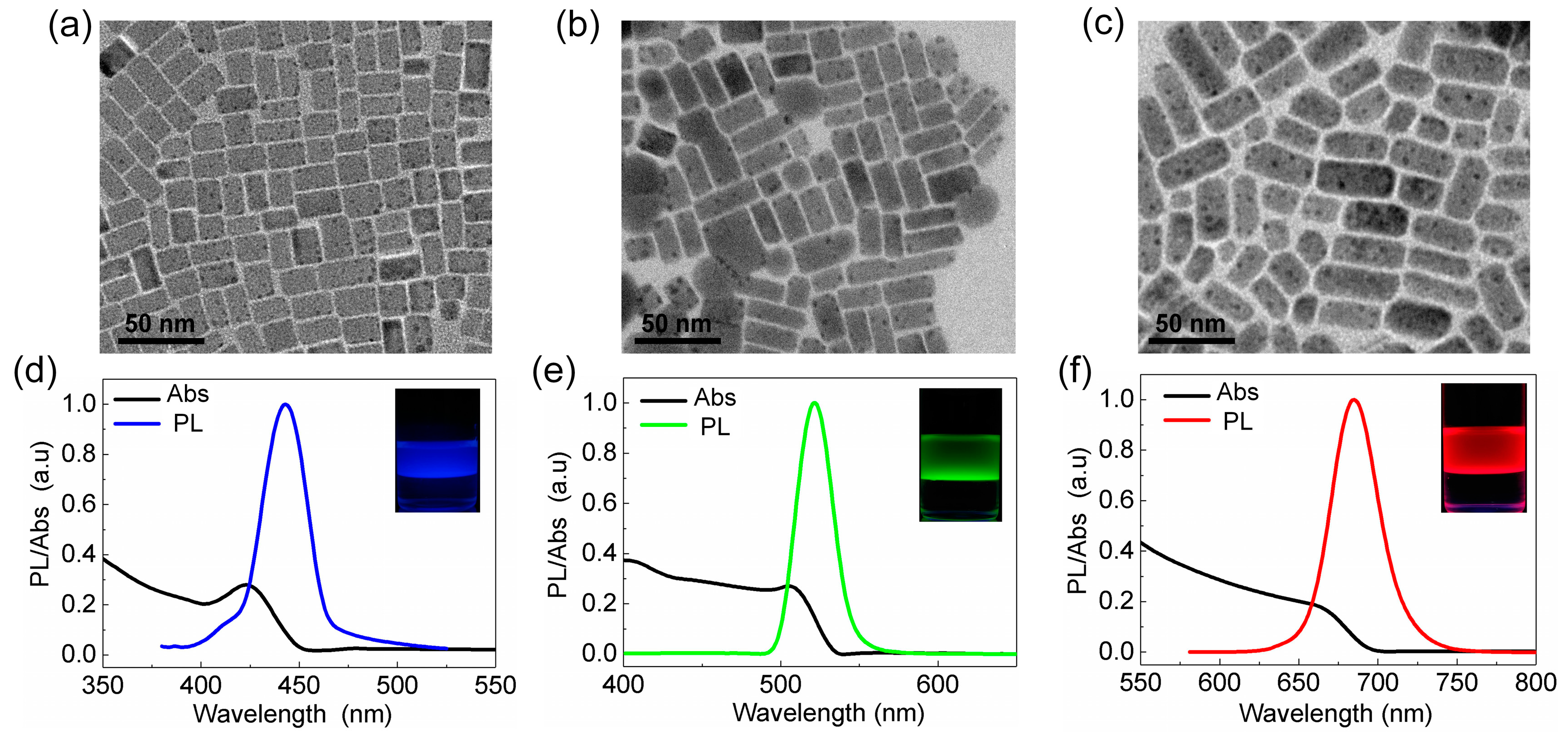

Figure 2. TEM images of samples prepared by Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, I) aqueous solution: (a) KCl aqueous solution, (b) KBr aqueous solution, (c) KI aqueous solution. UV-vis absorption spectra and PL emission spectra of samples prepared by Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, I) aqueous solution: (d) KCl aqueous solution, (e) KBr aqueous solution, (f) KI aqueous solution. The insets are digital photos of the products under UV light irradiation.
Figure 2. TEM images of samples prepared by Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, I) aqueous solution: (a) KCl aqueous solution, (b) KBr aqueous solution, (c) KI aqueous solution. UV-vis absorption spectra and PL emission spectra of samples prepared by Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, I) aqueous solution: (d) KCl aqueous solution, (e) KBr aqueous solution, (f) KI aqueous solution. The insets are digital photos of the products under UV light irradiation.
Nanomaterials 09 01296 g002
Figure 3. (a) Evolution of the UV-vis absorption spectra of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, and I) aqueous solution. (b) PL spectra of the exchanged NCs obtained from the Cs4PbBr6 n-hexane dispersion by using (b) KCl and (c) KI aqueous solution as anion exchange resources.
Figure 3. (a) Evolution of the UV-vis absorption spectra of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with 0.5 mmol/mL KX (X = Cl, Br, and I) aqueous solution. (b) PL spectra of the exchanged NCs obtained from the Cs4PbBr6 n-hexane dispersion by using (b) KCl and (c) KI aqueous solution as anion exchange resources.
Nanomaterials 09 01296 g003

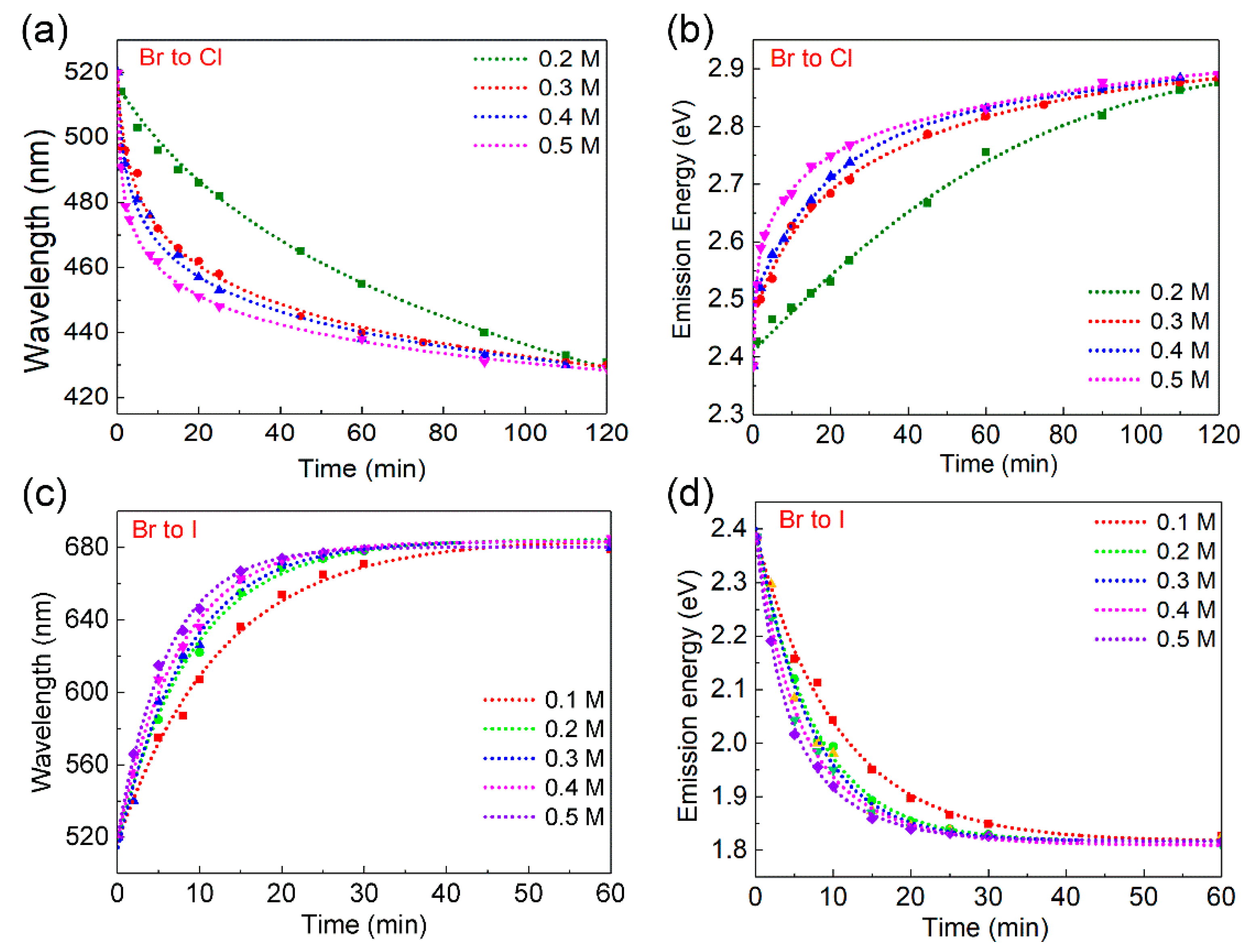

Figure 4. (a) PL wavelength and (b) emission peak energies of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with various concentrations (0.2 M ~ 0.5 M) of KCl aqueous solution. (c) PL wavelength and (d) emission peak energies of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with various concentrations (0.1 M ~ 0.5 M) of KI aqueous solution.
Figure 4. (a) PL wavelength and (b) emission peak energies of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with various concentrations (0.2 M ~ 0.5 M) of KCl aqueous solution. (c) PL wavelength and (d) emission peak energies of samples that were prepared by the Cs4PbBr6 n-hexane dispersion reaction with various concentrations (0.1 M ~ 0.5 M) of KI aqueous solution.
Nanomaterials 09 01296 g004
Figure 5. (a) Time-dependent TEM image of the product obtained by Cs4PbBr6 NCs reacting with KI aqueous solution. (b) XRD pattern of the final product of KI aqueous solution reaction. (c) Digital photos of the system under sunlight and UV light.
Figure 5. (a) Time-dependent TEM image of the product obtained by Cs4PbBr6 NCs reacting with KI aqueous solution. (b) XRD pattern of the final product of KI aqueous solution reaction. (c) Digital photos of the system under sunlight and UV light.
Nanomaterials 09 01296 g005

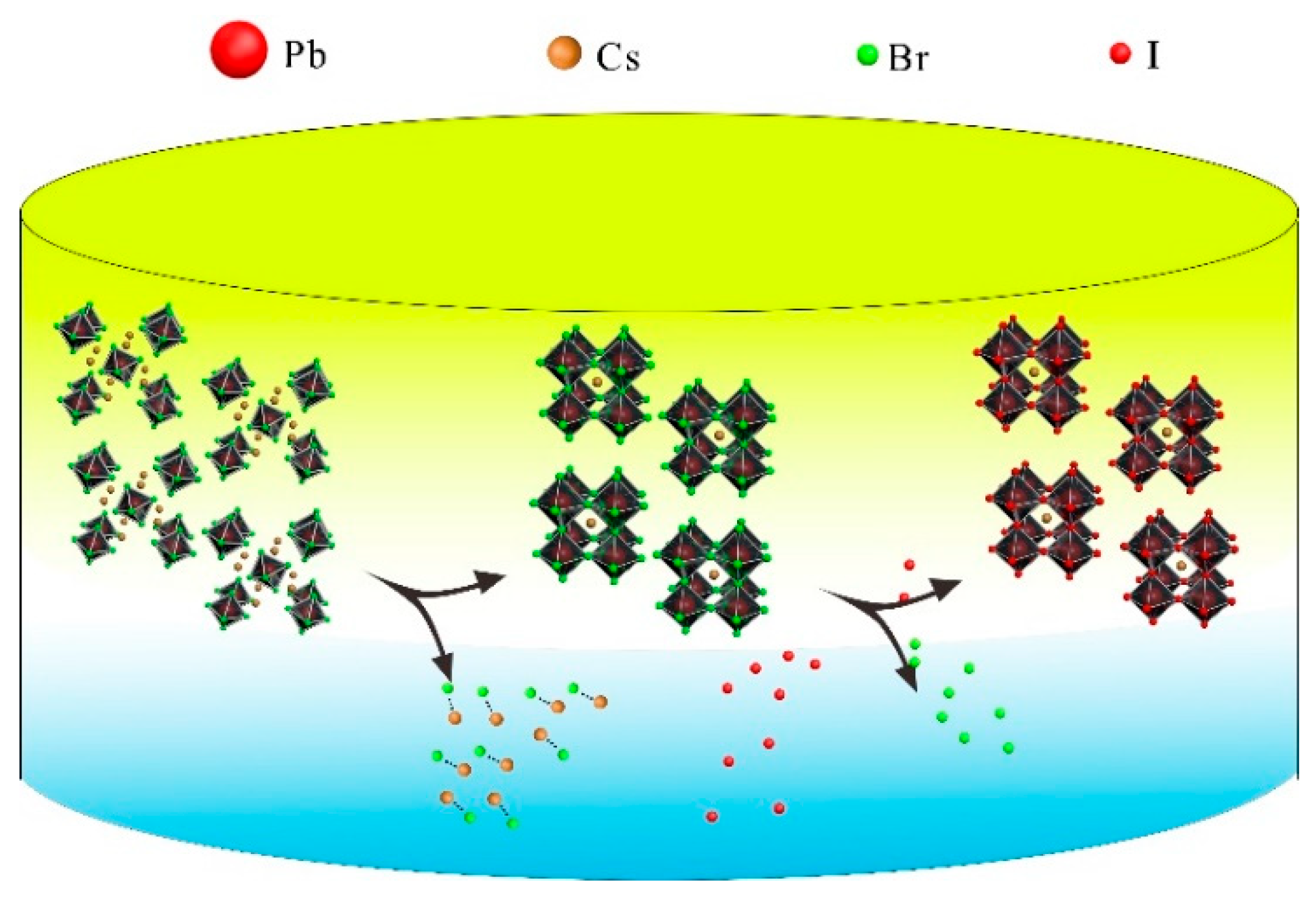

Figure 6. Illustration of the mechanism for the synthesis of CsPbX3 perovskite NCs by interfacial anion exchange reaction.
Figure 6. Illustration of the mechanism for the synthesis of CsPbX3 perovskite NCs by interfacial anion exchange reaction.
Nanomaterials 09 01296 g006

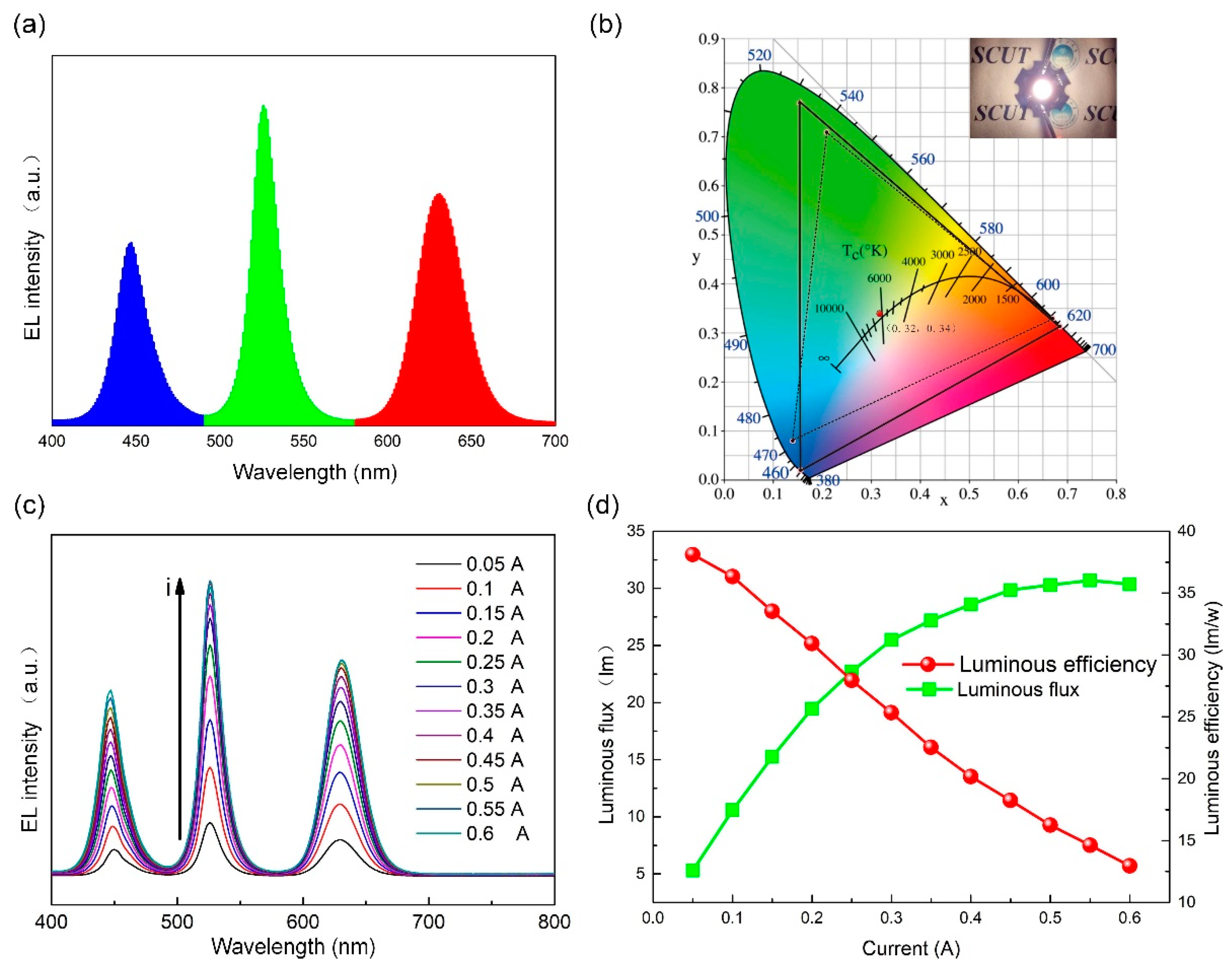

Figure 7. (a) Electroluminescence (EL) spectra of the white LED (WLED) device based on transformed CsPbBr3 NCs. (b) The International Commission on Illumination (CIE)t color diagram of the WLED device and the color gamut of blue LED, green CsPbBr3 NCs, red CdSe NCs (solid line), and NTSC standard (dashed line). The labeled red point in the c is the color coordinate of the CsPbBr3-based device. Inset shows a photograph of the device operating at a forward current of 100 mA. (c) Current-dependent EL spectra. (d) Luminous flux and luminous efficiency of WLEDs at different forward currents.
