Next Article in Journal
Aggregation, Sedimentation, and Dissolution of Copper Oxide Nanoparticles: Influence of Low-Molecular-Weight Organic Acids from Root Exudates
Next Article in Special Issue
Improvement of the Bias Stress Stability in 2D MoS2 and WS2 Transistors with a TiO2 Interfacial Layer
Previous Article in Journal
Preparation of a Stable Nanoscale Manganese Residue-Derived [email protected] Carbon Composite for the Adsorption of Safranine T
Previous Article in Special Issue
Interlayer Difference of Bilayer-Stacked MoS2 Structure: Probing by Photoluminescence and Raman Spectroscopy
Open AccessArticle

Preparation and Tribological Properties of WS2 Hexagonal Nanoplates and Nanoflowers

1
School of Mechanical Engineering, Jiangsu University of Technology, Changzhou 213001, China
2
School of Materials Science and Engineering, Jiangsu University of Technology, Changzhou 213001, China
*
Author to whom correspondence should be addressed.
Nanomaterials 2019, 9(6), 840; https://doi.org/10.3390/nano9060840
Received: 27 April 2019 / Revised: 22 May 2019 / Accepted: 27 May 2019 / Published: 1 June 2019
(This article belongs to the Special Issue Preparation and Properties of 2D Materials)

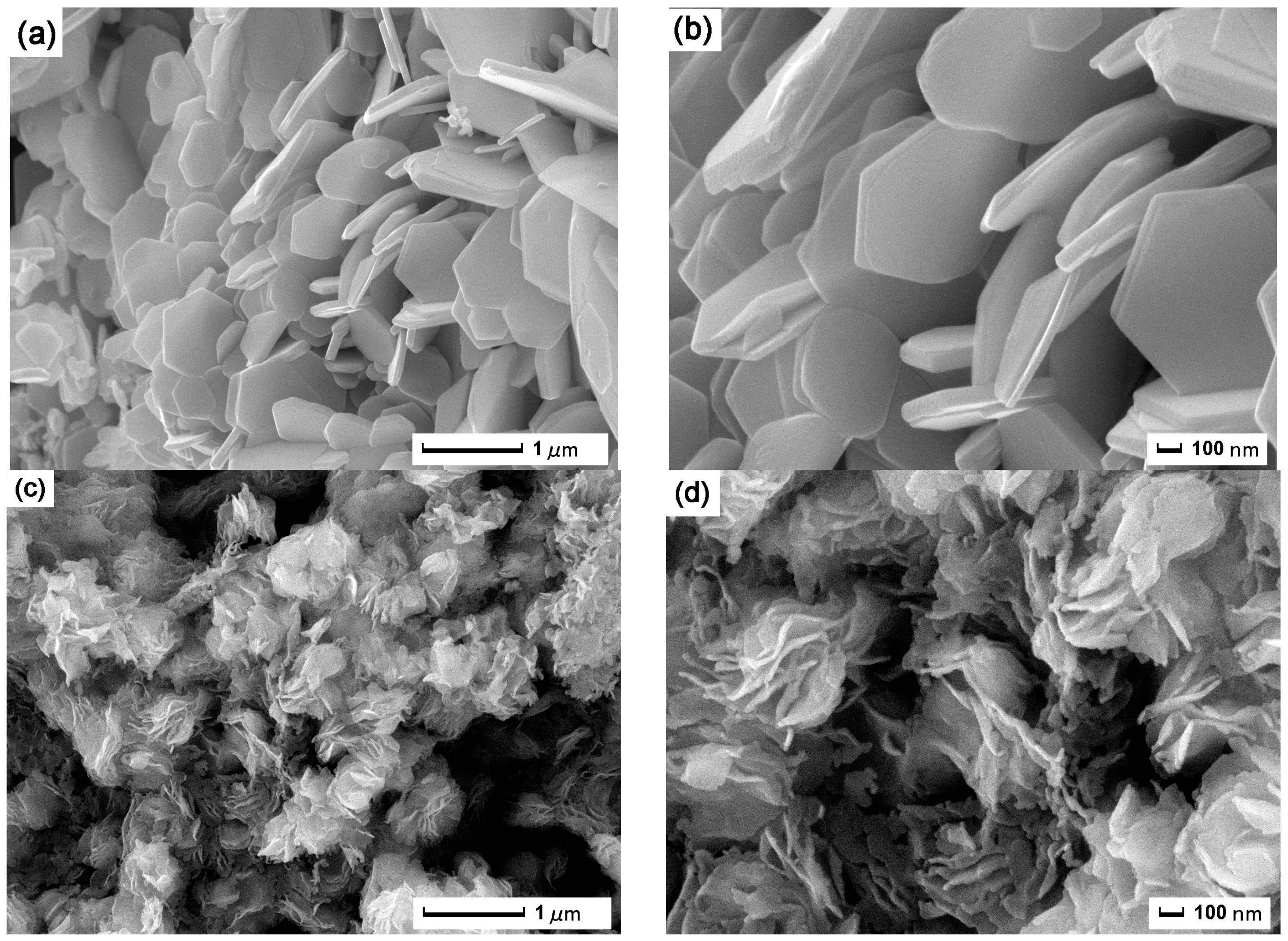

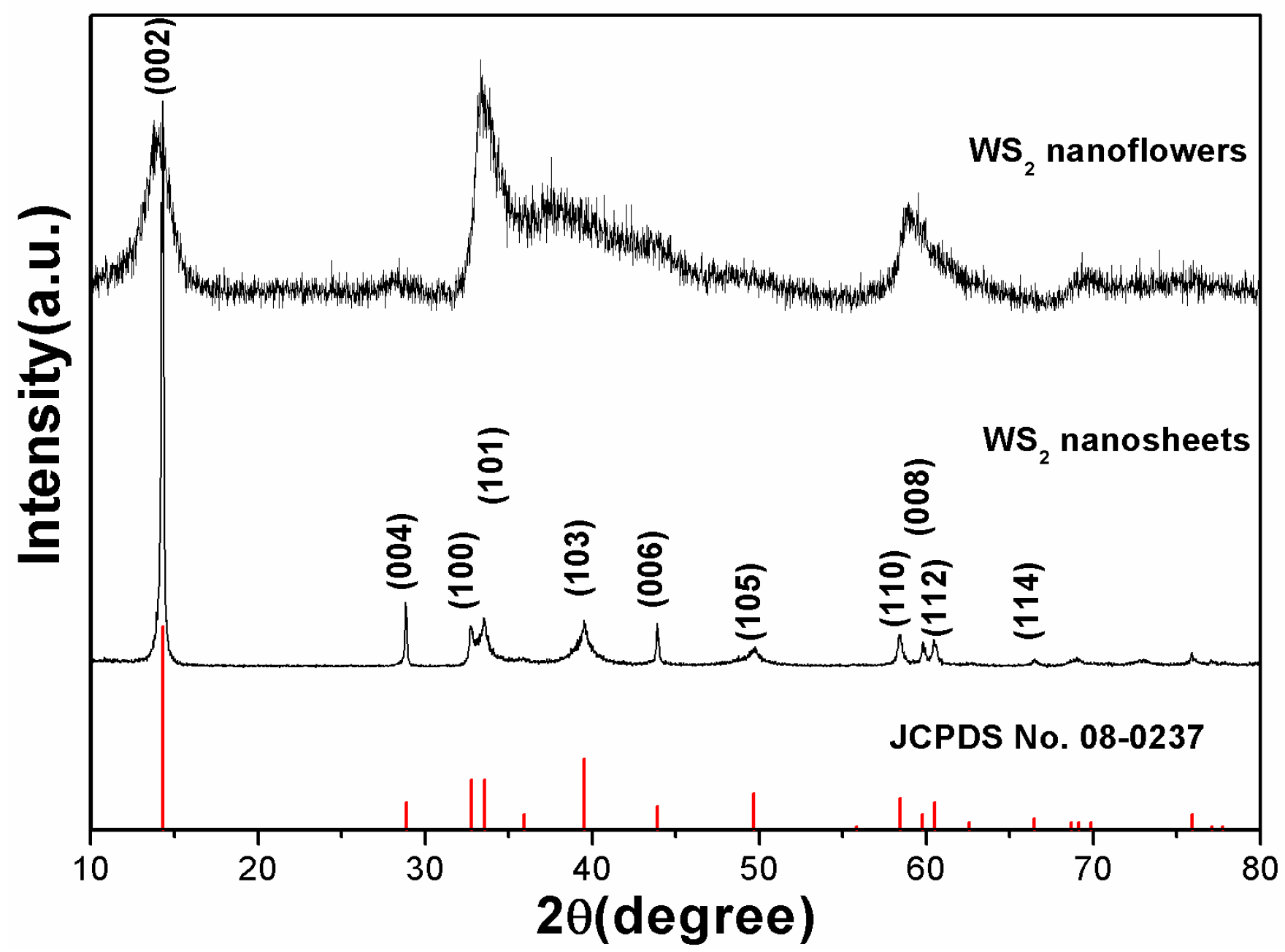

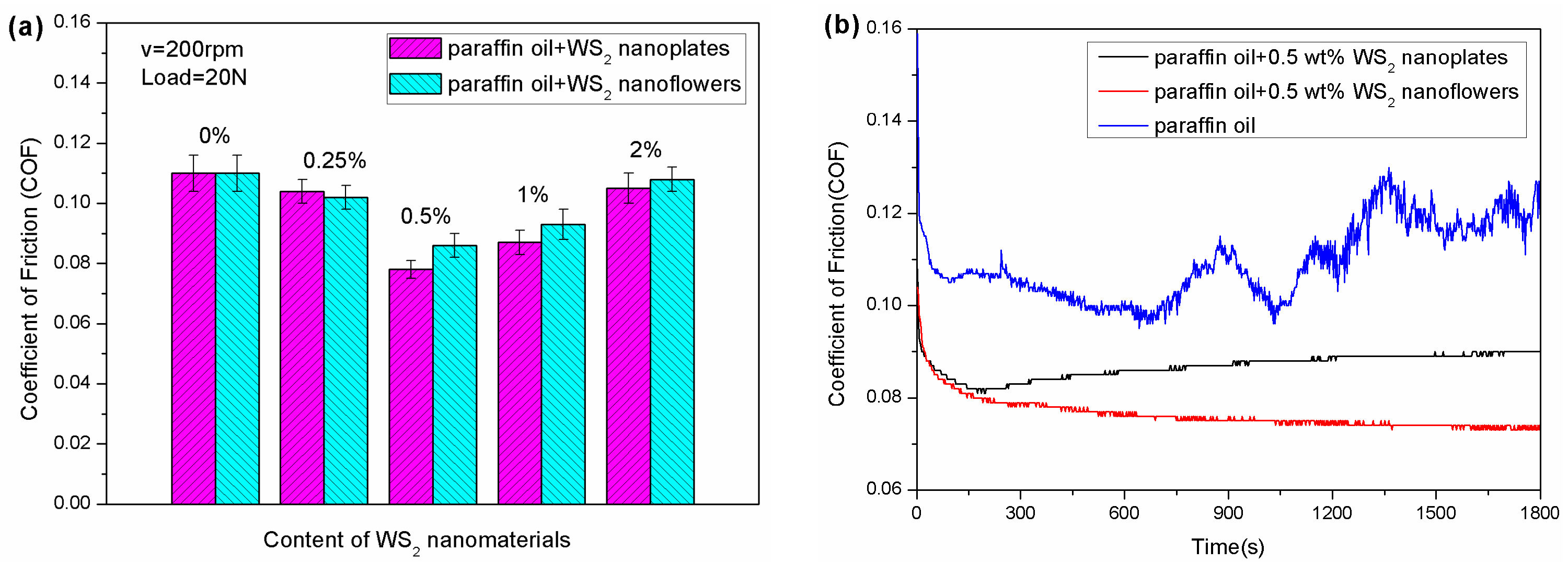

This paper presents the facile synthesis of two different morphologies of WS2 nanomaterials—WS2 hexagonal nanoplates and nanoflowers—by a sulfurization reaction. The phases and morphology of the samples were investigated by X-ray diffraction (XRD), scanning electron microscopy (SEM), and transmission electron microscopy (TEM). The tribological performance of the two kinds of WS2 nanomaterials as additives in paraffin oil were measured using a UMT (Universal Mechanical Tester)-2 tribotester. The results demonstrated that the friction and wear performance of paraffin oil can be greatly improved with the addition of WS2 nanomaterials, and that the morphology and content of WS2 nanomaterials have a significant effect on the tribological properties of paraffin oil. The tribological performance of lubricating oil was best when the concentration of the WS2 nanomaterial additive was 0.5 wt %. Moreover, the paraffin oil with added WS2 nanoflowers exhibited better tribological properties than paraffin oil with added WS2 hexagonal nanoplates. The superior tribological properties of WS2 nanoflowers can be attributed to their special morphology, which contributes to the formation of a uniform tribo-film during the sliding process. View Full-Text
Keywords: WS2; lubricant additives; tribological properties WS2; lubricant additives; tribological properties

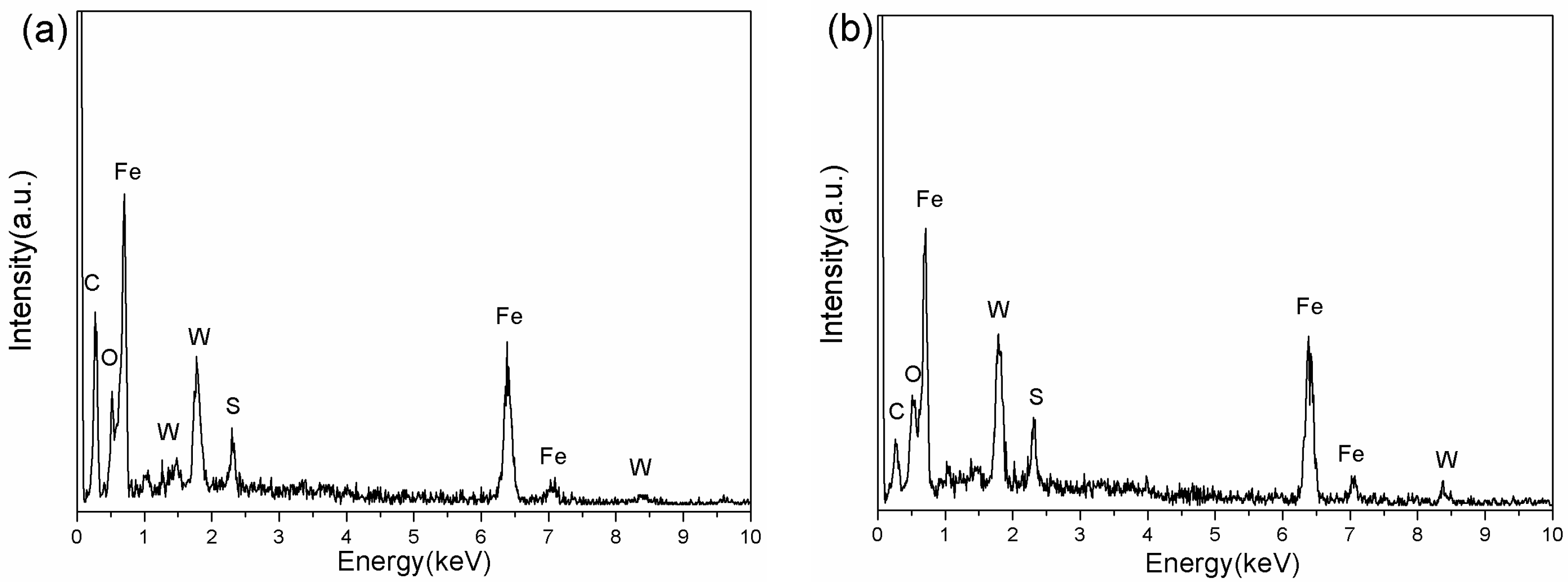

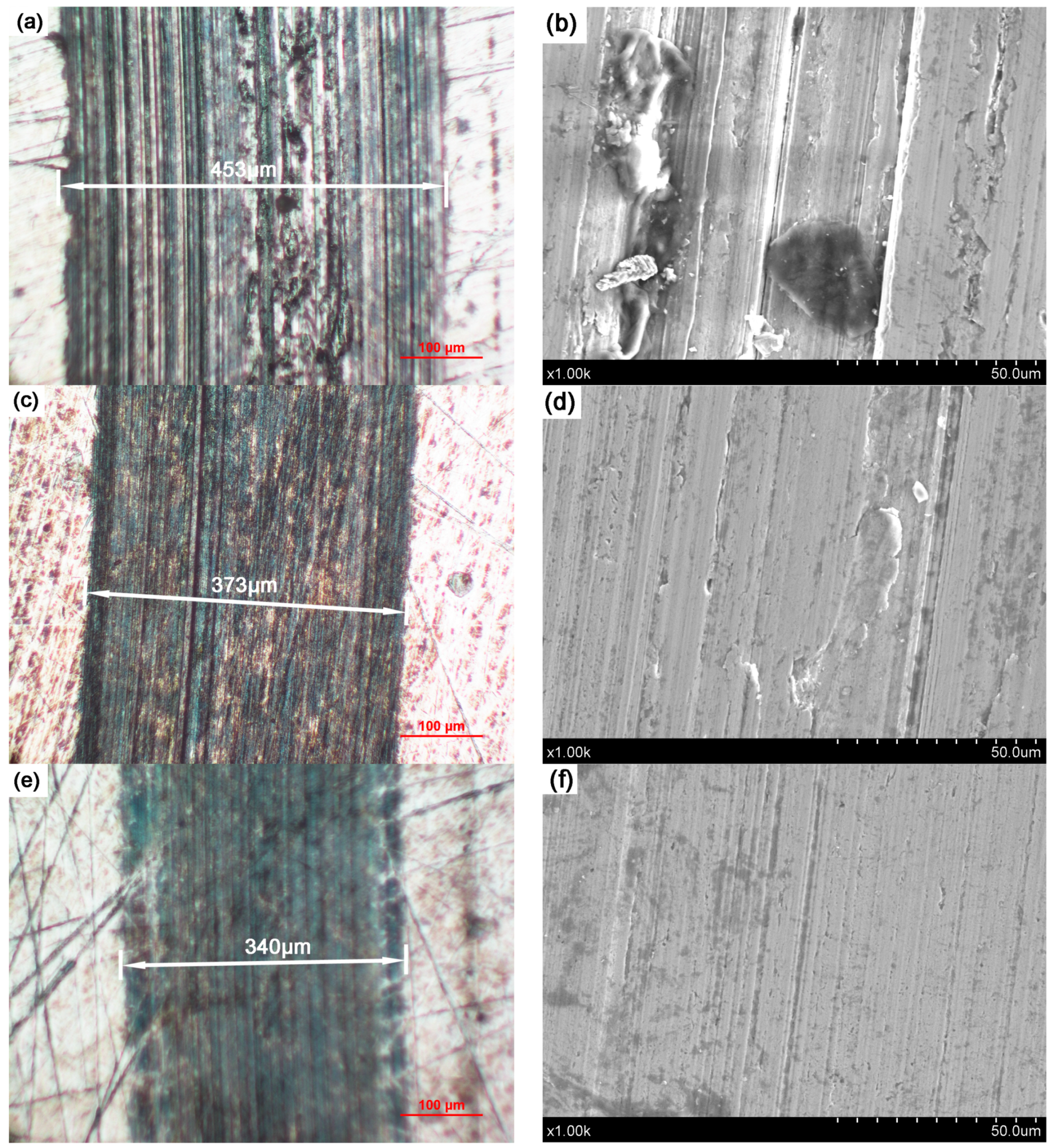

Show Figures

Figure 1

MDPI and ACS Style

Zhang, X.; Wang, J.; Xu, H.; Tan, H.; Ye, X. Preparation and Tribological Properties of WS2 Hexagonal Nanoplates and Nanoflowers. Nanomaterials 2019, 9, 840.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
