Design Space Exploration on Blind Equalization Algorithms: Numerical Representation Analysis for SoC-FPGA

Abstract

Field-Programmable Gate Arrays (FPGAs) have become an important platform for accelerating real-time communication systems, and System-on-Chip (SoC) devices provide the flexibility to design and optimize architectures that support high data rates, different modulation formats, and channel equalization schemes. Selecting the appropriate architecture can be guided through Design Space Exploration (DSE) using high-level synthesis tools, which enables the identification of numerical representations that balance performance with reduced hardware resource consumption. Despite their relevance, recent developments in communication systems often overlook the impact of numerical precision in Digital Signal Processing algorithms, particularly the trade-offs between floating- and fixed-point arithmetic when targeting hardware implementations. In this work, two widely used blind equalization algorithms, the Constant Modulus Algorithm (CMA) and the Multi-Modulus Algorithm (MMA), were implemented on a low-cost Ultra96 SoC-FPGA to analyze the effect of a fixed-point representation. A multi-objective Design Space Exploration methodology was applied to minimize hardware utilization while maintaining reliable transmission performance. Resource consumption, latency, and throughput were measured across different binary formats using the Minimum Mean Square Error (MMSE) criterion. Parallelization techniques were incorporated to improve throughput. The DSE generated comprehensive performance surfaces quantifying latency, MMSE convergence, and FPGA resource utilization (DSP48E/FF/LUT/BRAM) across fixed-point formats, achieving optimal 4 MS/s throughput configurations. Although this throughput is naturally lower than the Gigabit speeds required in backbone optical networks, the results demonstrate the effectiveness of numerical representation optimization in resource-constrained SoC-FPGA devices, offering a practical approach for real-time Edge and IoT implementations where cost and hardware limitations are critical.

1. Introduction

Digital Signal Processing in communications has recently focused on advanced techniques to reduce harmful effects on transmission, such as interchannel interference (ICI) or noise reduction [1]. The results using advanced techniques are promising, but real-time implementation remains challenging. While traditional optical backbone networks demand multi-Gigabit processing, the emerging field of decentralized Edge Computing and IoT imposes a different, yet equally severe challenge: deploying complex DSP algorithms under extreme power, area, and cost constraints.

Recently, Field-Programmable Gate Array (FPGA) device implementations are an alternative to real-time implementation without fabricating an Application-Specific Integrated Circuit (ASIC) [2]. FPGA-based boards can be re-programmed, allowing exploration of the design space to find an optimal algorithm implementation by applying parallelization techniques to increase throughput [3,4]. Also, unlike other parallel computing architectures such as Graphics Processing Units (GPUs), FPGAs have high-speed transceivers for low-latency communication with hardware [5].

Another critical aspect in hardware-accelerated DSP is that FPGAs support fixed-point operations, allowing user-defined size operations, optimizing hardware resources, and increasing processing speed [6]. For example, floating-point operations can use more than 100 times as many gates as fixed-point operations, resulting in worse performance when implementing the same algorithm.

For hardware reconfiguration, the System-on-Chip–FPGA (SoC-FPGA) has recently emerged as a technological solution for real-time implementations of parallel machine learning (ML) algorithms [7]. SoC-FPGA interconnects a microprocessor and an FPGA on a single chip, providing the flexibility of FPGA architecture and management functionality, as well as the ability to re-program the programmable logic from the microprocessor [8]. SoC devices have also been recently used for Visible Light Communications (VLCs) [9], and the field of Photonic Networks-on-Chip (NoC) is expected to continue attracting the community’s attention [10,11].

On the other hand, given the limitations on hardware resources imposed by current electronic device technology, FPGA (or SoC-FPGA) designs are critical for programming complex and recurrent DSP operations in high-speed transmission systems [12]. Hardware designers use methodologies that apply optimization directives to obtain hardware architectures that balance the performance and minimum hardware resource utilization [13]. In this paper, we explore the design space of two well-known blind equalization algorithms: the Constant Modulus Algorithm (CMA) and the Multi-Modulus Algorithm (MMA). The selection of the algorithms was based on their continued use across different applications, such as blind linear channel equalization. Even in recent applications of machine learning algorithms, their relevance remains evident [14,15]. Thus, the focus of the paper’s readers will be on the application of the methodology and on extrapolating the concepts to other applications. Historically, CMA and MMA have been the cornerstone of high-speed optical communication systems to mitigate severe chromatic dispersion. However, these traditional deployments rely on massive, high-end FPGAs (e.g., Virtex Ultrascale) and floating-point arithmetic to achieve Gigabit-per-second (Gbps) throughputs. Today, a critical paradigm shift is required: transitioning these heavy algorithms to severely resource-constrained Edge System-on-Chips (SoC-FPGAs) to support decentralized networks, such as localized Software-Defined Radio (SDR) and IoT gateways.

We present a methodology for the SoC-FPGA design and implementation for minimum hardware resource utilization. The methodology first proposes identifying and implementing frequently used recurrent functions, referred to as Custom Processing Units, for this manuscript [16]. Then, optimization directives and fixed-point numerical representations are applied during hardware design to improve floating-point performance in terms of latency while maintaining accuracy. We then explore different numeric representations implemented during online, real-time experiments running on the SoC-FPGA to ensure minimal hardware resource utilization and accurate results compared to the floating-point analysis.

We also present an extensive study of real-time channel equalization algorithms that minimize FPGA hardware resources to validate the methodology. A step-by-step design of the Constant Modulus Algorithm (CMA) and the Multi-Modulus Algorithm (MMA) is presented. As part of the methodology, we validate the designs by testing the hardware structures implemented on the SoC-FPGA using synthetic input signals modulated in 4-QAM, 16-QAM, and 64-QAM and passing through an emulated time-variant channel [17]. The proposed methodology uses a Xilinx Vivado high-level synthesis (HLS) 2023.1 (Advanced Micro Devices—AMD, Inc., Santa Clara, CA, USA) for rapid prototyping as an alternative to the traditional Register Transfer Level (RTL) design.

The main contributions of this work are summarized as follows: (i) A formal multi-objective Design Space Exploration (DSE) framework targeting the minimization of hardware resources for complex adaptive equalizers on Edge SoC-FPGAs. (ii) The modular architectural mapping of Constant and Multi-Modulus Algorithms into Custom Processing Units (CuPUs) optimized for bit-level fixed-point operations. (iii) A dynamic scaling factor methodology that mitigates severe quantization noise, relaxing mathematical convergence bounds to allow larger step-sizes without divergence. (iv) The validation of the hardware architectures via a bit-true fixed-point emulation coupled with a time-variant multipath channel modeled directly on the processing system (PS) of the SoC-FPGA.

The rest of this paper is organized as follows: Section 2 details the proposed Design Space Exploration (DSE) methodology and the hardware mapping of the processing algorithms on the SoC-FPGA. Section 3 presents the experimental results and the real-time hardware emulation, and Section 4 draws the final conclusions.

2. Design of DSP Algorithms on SoC-FPGA

This section presents the DSE for real-time DSP algorithm implementation on SoC-FPGA. Along the process, we define two types of performance analysis. First, we define “application performance” as the correct implementation of the targeted function, such as channel equalization. The final goal is to equalize the communication channel as much as possible. Second, we refer to “system performance” as the FPGA device’s performance in terms of latency and hardware resources. The final objective is to minimize both variables.

The methodology is composed of four stages: (i) identification of Custom Processing Units; (ii) high-level synthesis of identified CuPU applying parallelization directives, ensuring successful application performance; (iii) characterization of application performance using real-time channel emulation; and (iv) analysis and adjustment of numeric representations of the processed data in the SoC-FPGA device for minimum hardware resources utilization.

To address the complexity of optimizing numerical representations without degrading the equalization performance, the DSE is formally defined as a constrained multi-objective search algorithm. As detailed in Algorithm 1, the methodology systematically evaluates the design space bounded by the total word length (B) and the fractional bits (P). The objective function aims to minimize the hardware area and latency footprint ($A(B,P)$ and $L(B,P)$) extracted from the HLS synthesis, subject to the strict constraint that the quantization noise does not disrupt system convergence. This constraint is enforced by ensuring the evaluated $MMSE(B,P)$ remains below a tolerable threshold (${\gamma }_{target}$) derived from the ideal floating-point baseline. To clearly summarize the stages and objectives of our proposed methodology, Algorithm 1 outlines the complete DSE workflow, detailing the initialization, boundary constraints, and the multi-objective optimization process.

Algorithm 1 Constrained multi-objective Design Space Exploration (DSE)

Require:  Modulation Set $\mathcal{M}=\{4\text{-}\mathrm{QAM},16\text{-}\mathrm{QAM},64\text{-}\mathrm{QAM}\}$, target MMSE ${\gamma }_{\mathrm{target}}$, scaling factor set $\mathcal{S}$ Ensure:  Optimal word length $B_{\mathrm{opt}}$ and fractional bits $P_{\mathrm{opt}}$ per modulation 1:   for each  $m\in \mathcal{M}$  do 2:      $A_{\min }\leftarrow \infty$;    $(B_{\mathrm{opt}},P_{\mathrm{opt}})\leftarrow \varnothing$ 3:      $s_m\leftarrow \mathrm{SelectScaleFactor}(\mathcal{S},m)$ 4:      for $B=16$ to 32 do 5:          for $P=2$ to 12 do 6:              {1. Hardware Synthesis Evaluation} 7:              $\{A(B,P),L(B,P)\}\leftarrow \mathrm{HLS}\text{\_}\mathrm{Synthesis}(B,P,s_m)$ 8:              {2. Bit-True Emulation & Error Calculation} 9:              ${ϵ}_{\mathrm{MMSE}}(B,P)\leftarrow \mathrm{Calc}\text{\_}\mathrm{MMSE}(B,P,s_m)$ 10:            {3. Multi-Objective Constraint Checking} 11:            if ${ϵ}_{\mathrm{MMSE}}(B,P)\le {\gamma }_{\mathrm{target}}\wedge A(B,P)<A_{\min }$ then 12:                 $A_{\min }\leftarrow A(B,P)$ 13:                $(B_{\mathrm{opt}},P_{\mathrm{opt}})\leftarrow (B,P)$ 14:            end if 15:        end for 16:     end for 17:     Output: $(B_{\mathrm{opt}},P_{\mathrm{opt}})$ as the hardware-efficient solution for m 18: end for

2.1. Custom Processing Unit (CuPU)

CuPUs have been defined as recurrently used DSP operations on which more complex functions, or high-level DSP structures, can be constructed. For this paper, we defined the following three functions as CuPUs: (i) Euclidean distance calculation, (ii) a generalized Finite Impulse Response (FIR) filter structure, and (iii) the routine for FIR coefficients update. CuPUs are chosen because of their recurrence for channel equalization algorithm implementations based on the CMA and MMA.

2.2. High-Level Synthesis

The proposed methodology is implemented using a high-level synthesis (HLS) tool, allowing the programmer to describe the system in high-level languages such as C/C++ or SystemC. The HLS tools translate an algorithm from a software programming approach to an RTL hardware description. HLS allows the programmer to do loops, arithmetic operations, and function calls. These programming structures are automatically converted into processing cores, memories, counters, and finite state machines. In this stage, identified CuPus are programmed following parallelization directives. HLS tools use parallelization directives, such as pipelining and loop unrolling, to achieve performance comparable to or even better than that of a Register Transfer Level (RTL) design. The C/C++ language is used to describe the algorithm and perform simulation tests. The HLS tool performs automatic transformation into HDL for real-time hardware implementation.

2.3. Real-Time Emulation on Heterogeneous Architecture Based on SoC-FPGA

SoC-FPGA combines a microprocessor and an FPGA on a single chip, providing greater integration with lower power consumption and high-bandwidth communication between the processor and the FPGA. SoC-FPGA also includes a variety of peripherals and high-speed transceivers and can be reprogrammed at any time.

SoC-FPGA consists of two main components, the processing system (PS) and the programmable logic (PL). PS is based on a standard hardware architecture, including a real-time processor and a Graphics Processing Unit (GPU), and it requires additional hardware to run an operating system (OS). On the other hand, PL is an FPGA with high-performance digital inputs and outputs. The interconnection between the PS and the PL allows hardware reconfiguration from the PS. In this work, SOC-FPGA enabled joint real-time emulation of a time-variant channel on the PS and an equalization algorithm implementation on the PL.

2.4. Numeric Representations Analysis

Real-time applications typically perform computations in the IEEE 754 [18] 32-bit single-precision floating-point format because of the wide dynamic range of numeric values. In this work, we adopted the 32-bit model as a baseline for precision metrics. However, a fixed-point numerical representation is also used to represent real numbers in DSP, especially when system performance is more important than precision. The reason lies in the fact that fixed-point arithmetic is much faster than floating-point arithmetic. We explore system performance by applying different fixed-point formats to minimize hardware resources without sacrificing application performance. The representation for the fixed point was defined as FxP$B,P$, where FxP means fixed-point, B is the size of the binary number in base-2, and P is the position of the decimal point from the most significant bit (MSB). For example, the representation FxP8,3 corresponds to a binary number of 8 bits with 3 bits for the integer part and 5 bits for the fractional part: $011.00111$.

2.5. Case Study: Blind Equalization Algorithms

In this section, we show the application of the introduced methodology in Section 2 to the real-time implementation of blind channel equalization algorithms, CMA and MMA [19], using geometric calculations to separate the distorted data symbols of a constellation diagram in a communication channel.

In the CMA algorithm, the first step calculates the Euclidean distance between the expected position of a data symbol and the position of the distorted data symbol once it has passed through the distorted multipath communication channel. The channel was modeled by adding additive white Gaussian noise (AWGN) to the data and passing them through a Finite Impulse Response (FIR) filter.

The received distorted symbols are stored in a buffer. They are divided into segments $X_n$ in the delay line and organized in a Toeplitz matrix X. The $X_n$ segments are used as training data to update the equalizer’s filter weights W during algorithm iterations. The partial results of this filtering are stored in $y_n$, and the expression is given by

$$y_n=W^T\ast X_n$$

(1)

The Euclidean distance $e_n$ for CMA is calculated as

$$e_n={\left|y_n\right|}^2-R_{CMA}^2$$

(2)

The metric referred to in Equation (2) represents the error between the distorted symbols and the expected value $R_{CMA}$, which is constant for Phase Shift Keying (PSK) modulation because all symbols have the same expected power. Optimization algorithms adjust the filter coefficients $W_n$ to minimize the error. The process of updating the coefficients is carried out by applying the gradient descent, as follows:

$$W_{n+1}=W_n-\mu e_n{y}_n^{\ast }{X}_n$$

(3)

where the constant $\mu$ regulates the step used to find the minimum error in each iteration n.

The MMA algorithm is a modification of CMA, which separates $y_n$ into real ($y_{nR}$) and imaginary ($y_{nI}$) parts. The algorithm works similarly to CMA, but applies the calculus of distance to each real and imaginary part separately, calculated by

$$e_{nR}=y_{nR}^2-R_{MMA}^2$$

(4)

$$e_{n,I}=y_{nI}^2-R_{MMA}^2$$

(5)

where $R_{MMA}$ is the statistical expected value for the MMA algorithm. Unlike PSK, the amplitude in QAM constellations is not constant. Therefore, as established in the foundational framework by Yang et al. [19], the dispersion constant $R_{MMA}$ must be mathematically pre-calculated based on the statistical moments of the input symbols (a) to guarantee that the gradient of the cost function reaches zero at convergence:

$$R_{MMA}={\displaystyle \frac{E\left[\right|a_R{|}^4]}{E\left[\right|a_R{|}^2]}}={\displaystyle \frac{E\left[\right|a_I{|}^4]}{E\left[\right|a_I{|}^2]}}$$

(6)

By extracting the precise mathematical moments for the evaluated alphabets (e.g., yielding $R_{MMA}^2=8.2$ for 16-QAM), the equalizer avoids the instability of empirical tuning and seamlessly translates the theoretical boundary into the optimized fixed-point hardware architecture.

$$y_n=y_{nR}+j{y}_{nI}$$

(7)

$$e_n=e_{nR}+j{e}_{nI}$$

(8)

The filter coefficients are updated using the same equation used in CMA; see Equation (3).

2.6. CuPUs for CMA and MMA Blind Equalizers

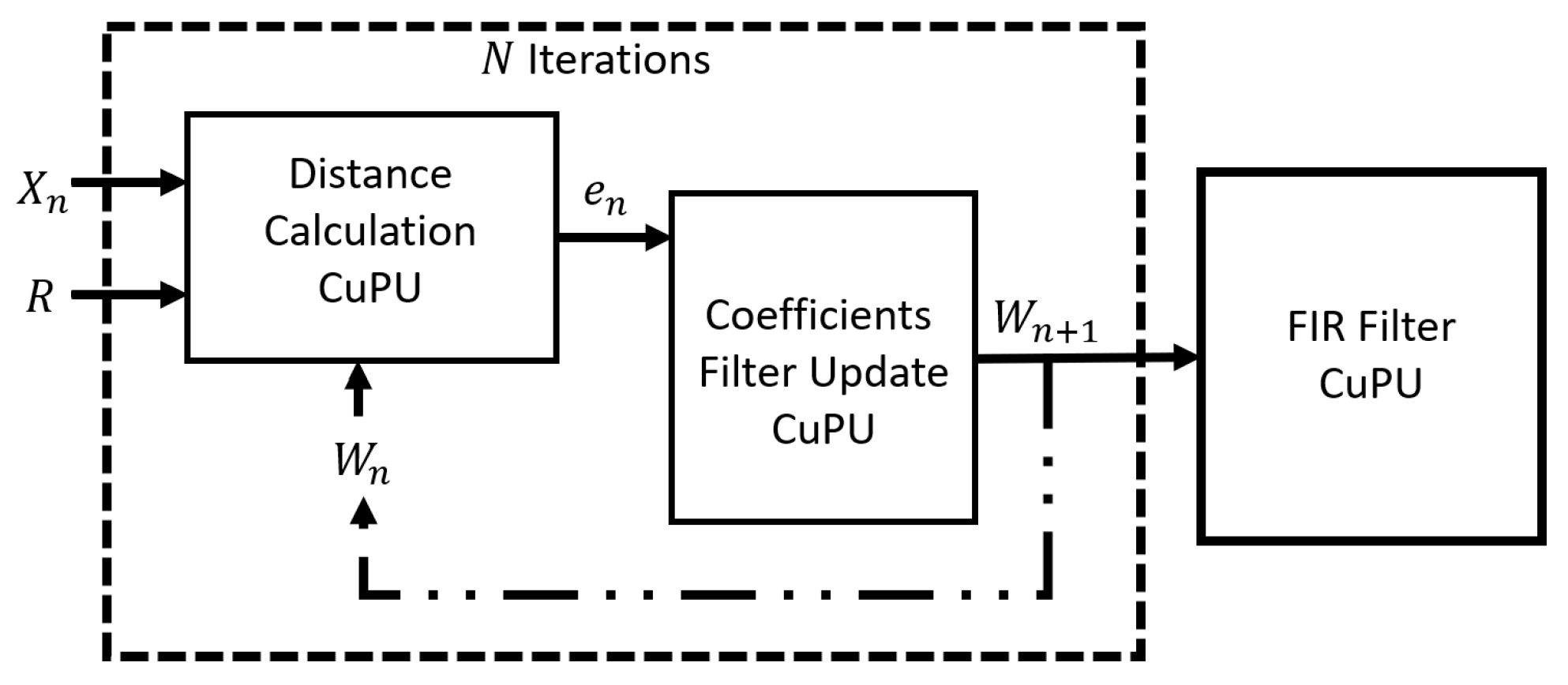

Two of the identified CuPUs are used for the blind equalization algorithm, the distance calculation, and filter coefficient update. These processing units are combined in N iterations. An additional FIR filter unit is used outside of the cycle to apply the coefficients stored in W to the X input matrix. Figure 1 shows the connections of Custom Processing Units to build CMA and MMA blind equalization.

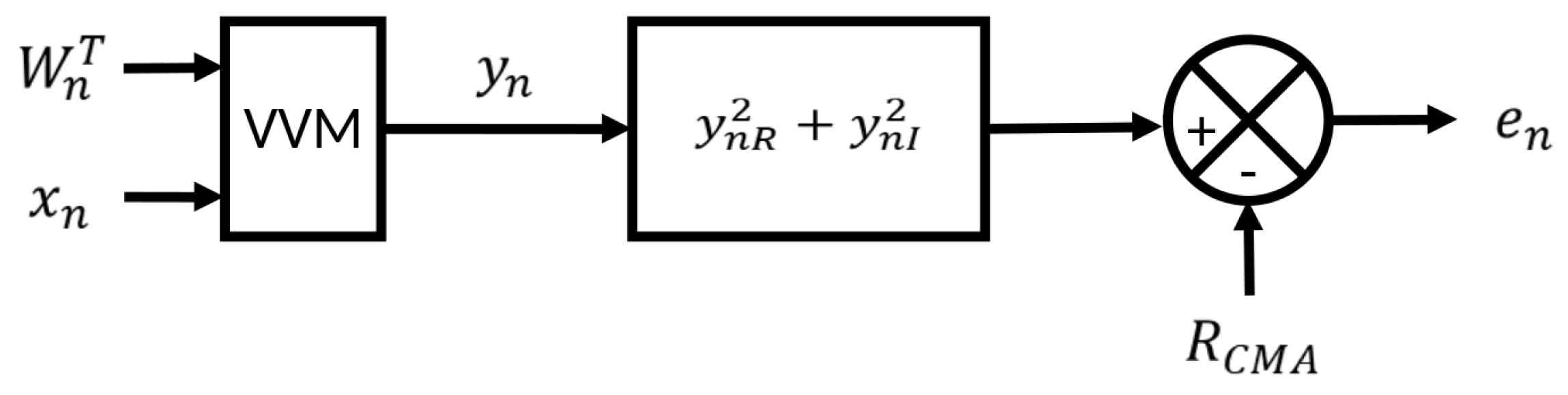

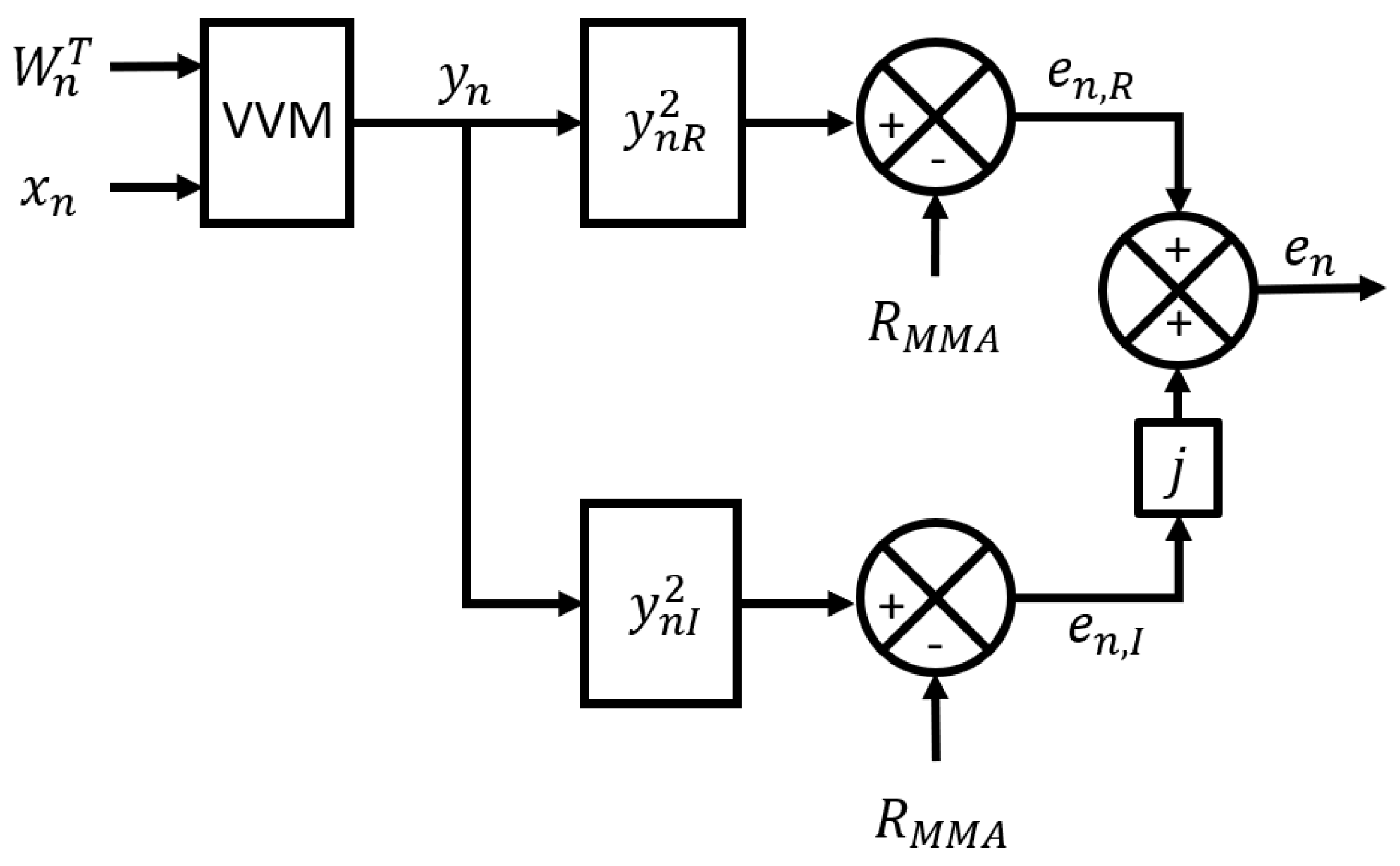

Figure 2 and Figure 3 show the internal structure of processing units for distance calculation in CMA and MMA, respectively. These internal blocks compute different values in each iteration. Parallelization is applied within each iteration because W must be updated on another CuPU, creating a data dependency. The block VVM represents the multiplication between the two vectors $W_n^T$ and $X_n$, both of size $1\times n$, which produces a result $y_n$ of 1 × 1 size. Since the baseband signals and the filter weights (W) are complex-valued, the VVM hardware module is specifically designed to perform complex Multiply-Accumulate (MAC) operations. Through the high-level synthesis (HLS) directives, each complex multiplication is inferred and partitioned at the Register Transfer Level (RTL) into four real-valued multipliers and two adders/subtractors (i.e., $(x_R+j{x}_I)(w_R+j{w}_I)=(x_R{w}_R-x_I{w}_I)+j(x_R{w}_I+x_I{w}_R)$). Importantly, the optimized fixed-point numerical representation (e.g., FxP16,3) enables these real-valued multiplications to map natively and efficiently onto the integer multipliers within the dedicated DSP48E slices of the SoC-FPGA. This architectural mapping maximizes throughput while avoiding the extensive logic (LUT) overhead characteristic of floating-point implementations.

2.7. Hardware Architectural Mapping and Pipelining via HLS

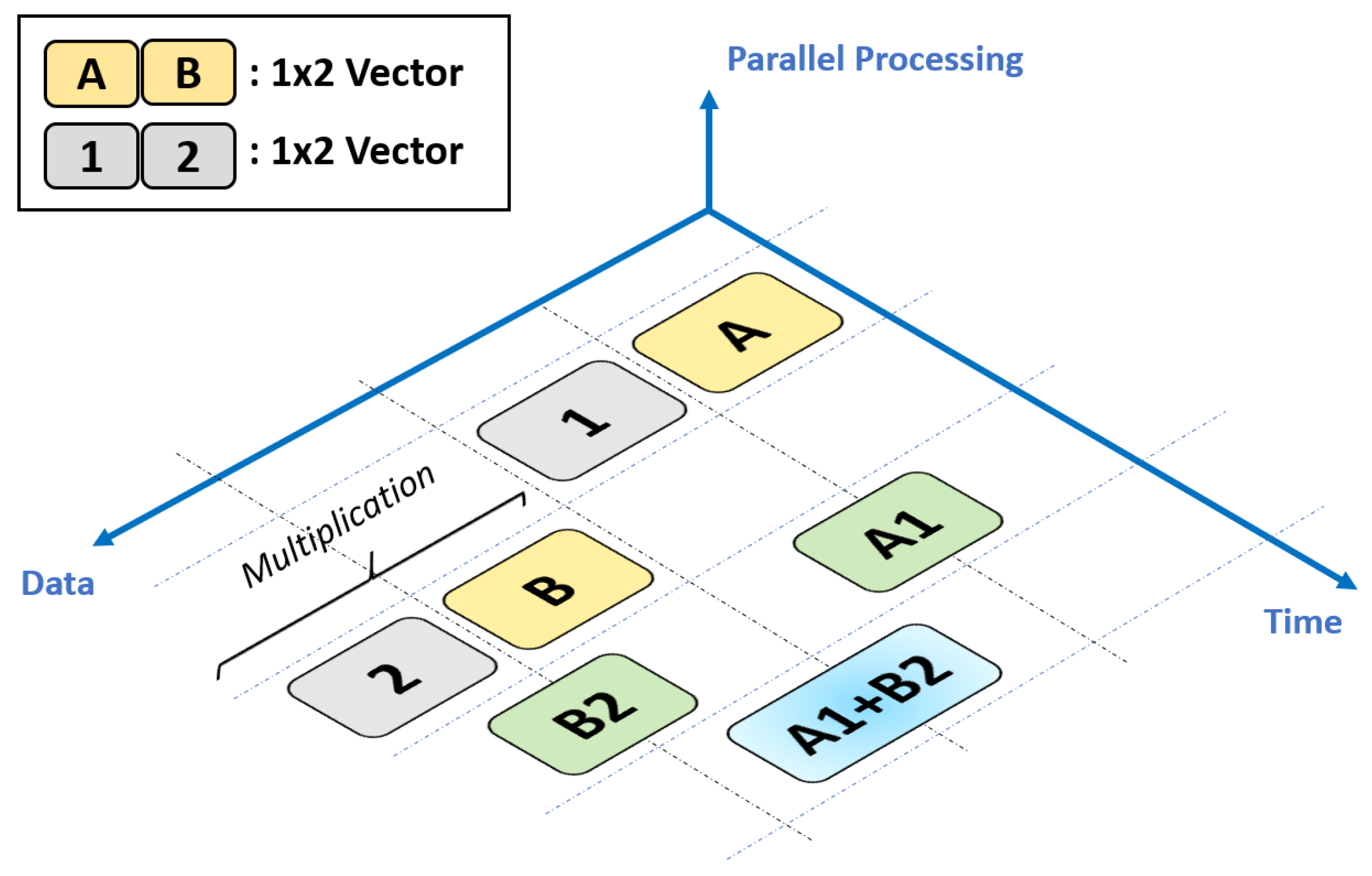

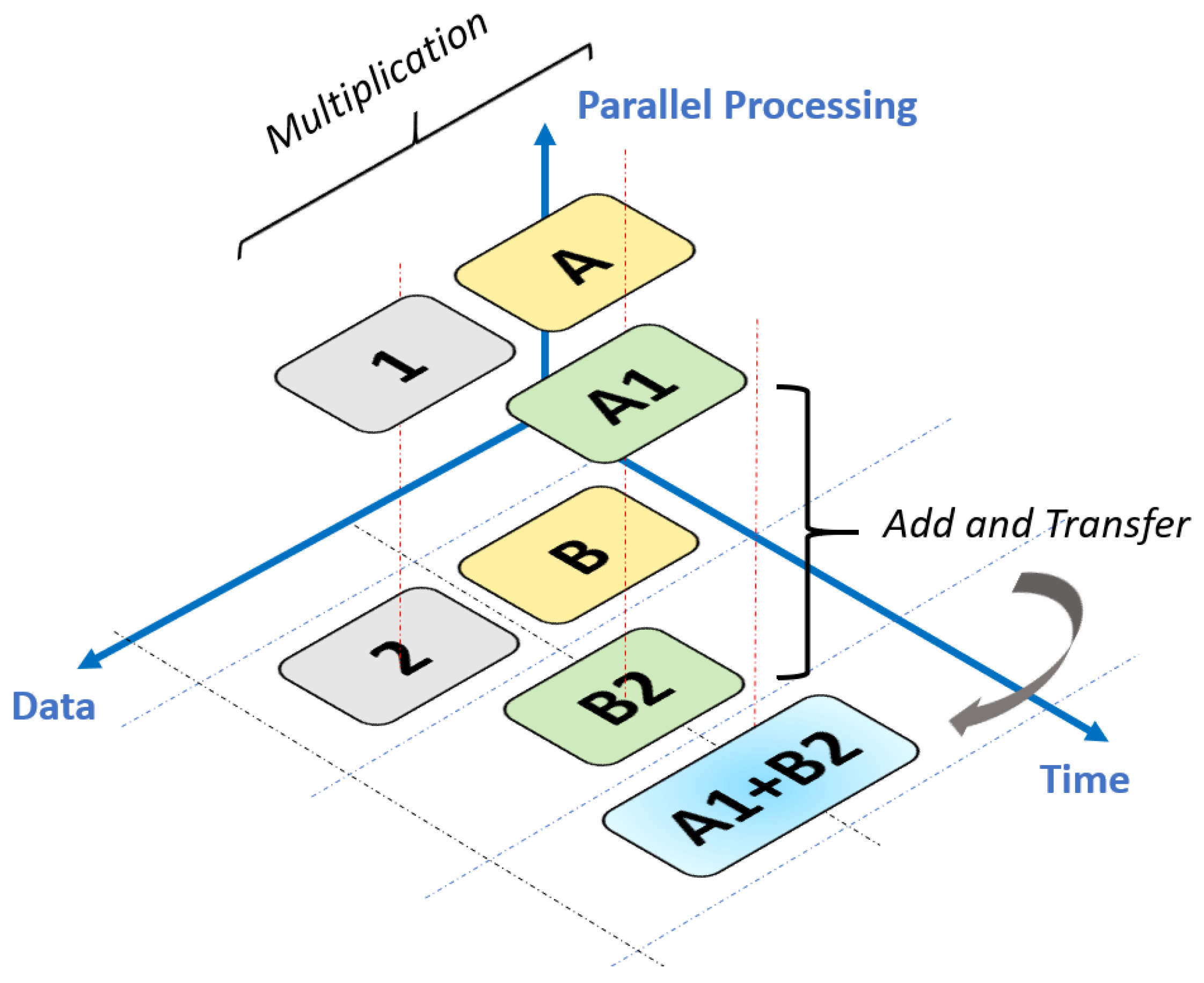

While parallelization techniques such as loop unrolling and pipelining are standard in FPGA design, their direct application to highly iterative stochastic algorithms like CMA and MMA often leads to resource exhaustion on Edge devices. Instead of blindly parallelizing the loops, our mapping strategy uses HLS directives constrained by the optimal numeric representations found during the DSE ($B_{opt},P_{opt}$), which ensures that the inferred hardware matches the exact capability of the SoC-FPGA’s DSP48E slices without requiring excess floating-point LUT overhead. The parallelizations applied were based on three techniques widely used in hardware design: data partitioning, loop pipelining, and loop unrolling. These were applied using HLS parallelization directives. Figure 4 shows the application of the directive pipeline on the VVM block.

The equation for the coefficient filter update is shown in Equation (3). In this equation, the variable in lowercase is 1 × 1, and the variables in uppercase are vectors. Thus, the operation is defined as the multiplication of constants by a vector, followed by vector subtraction. The applied parallelization directive is complete loop unrolling to obtain the result for each element of $W_{n+1}$ simultaneously.

The FIR filter processing unit was implemented using matrix representation. The input symbol Toeplitz matrix X needs to be multiplied by the weight vector W generated by the equalizer. This multiplication equalizes the input; see Figure 5.

3. Experimental  Results

To ensure rigorous, reproducible performance evaluation, specific experimental parameters were established. The equalizer’s complex weight vector was initialized using the center-spike method, setting the middle tap to $1+j0$ and all remaining taps to zero, thereby allowing the initial signal to pass while the error gradient stabilized. Instead of isolated Monte Carlo simulations, the hardware-in-the-loop methodology and its bit-true emulation utilized a continuous stream of pseudo-random QAM symbols to intrinsically capture the statistical variations of the noise and data. The algorithms processed the incoming data iteratively, and the convergence criterion was defined as the system reaching a steady state. Empirical observations confirmed that the required number of iterations to bypass the transient state scales with the modulation order due to progressively smaller step sizes ($\mu$) needed to ensure fixed-point stability. Specifically, steady-state was achieved after processing approximately 3000, 10,000, and 20,000 symbols for 4-QAM, 16-QAM, and 64-QAM, respectively. Consequently, all performance metrics and visual constellation diagrams were calculated exclusively on the steady-state symbols, deliberately discarding the initial transient convergence period.

3.1. Emulation of Blind Equalization Algorithm on SoC-FPGA

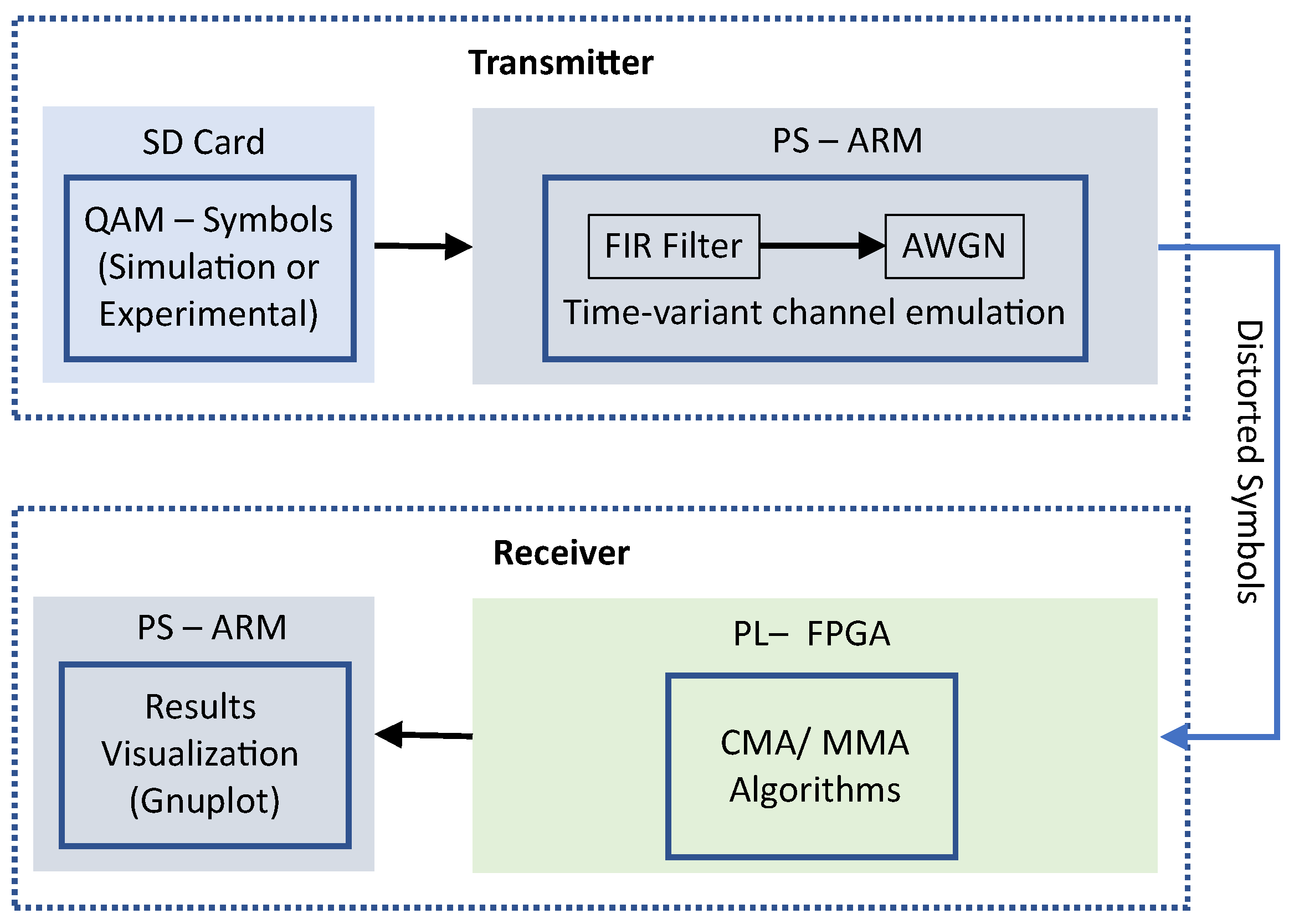

The blind equalization emulation uses the PS of the SoC-FPGA as the transmitter, generating QAM modulation signals. The physical communication channel is emulated as a time-varying multipath channel to distort the symbols of the input signal. This is implemented using an FIR filter where the time-varying coefficients are updated using independent Gaussian random processes to simulate stochastic tap variations, combined with additive white Gaussian noise (AWGN). This approach effectively captures the dynamic fading conditions and Doppler shifts typical in Edge and wireless environments, as shown in Figure 6.

Gnuplot is used for real-time signal plotting to verify general system operation. Although this is not practical for final real-time implementation, it is helpful at the design stage. However, visualizing status and control signals in a real-time application might be a solution. The Custom Processing Units were implemented in the PL of the SoC-FPGA. PL receives the distorted symbols, applies the equalization algorithms, and sends the result back to PS for visualization.

Communication between PS and PL uses the Advanced eXtensible Interface (AXI) protocol. The AXI protocol enables point-to-point communication in microcontroller systems, achieving high bandwidth and low latency. This protocol is part of ARM and Advanced Microcontroller Bus Architecture (AMBA) specifications. On the PS side, it works like typical Linux file management functions, and on the PL side, it is handled as a standard read/write to a FIFO.

3.2. Numeric Representation for Minimum Hardware Resources Utilization of CMA and MMA

This approach focuses on minimizing hardware resource utilization. For this reason, the experiments were designed to achieve the best performance within the constraints of a low-cost SoC-FPGA board. The fixed-point representation FxP$B,P$ was used to improve performance by varying B from 16 to 32. P was selected, taking into account the maximum values for each QAM modulation.

The minimum mean-square error (MMSE) between floating-point and fixed-point representations allows for identifying suitable values for final implementations. While system-level metrics such as Bit Error Rate (BER) or Error Vector Magnitude (EVM) are standard for evaluating end-to-end communication systems, the primary objective of this DSE framework is to isolate and quantify the hardware degradation introduced specifically by fixed-point quantization. Therefore, the MMSE between the ideal floating-point baseline and the quantized fixed-point hardware implementation is established as the primary evaluation metric. This approach allows precise measurement of quantization noise while deliberately decoupling it from the inherent channel noise.

To complement this hardware-focused metric and provide qualitative proof of the end-to-end equalization process, visual validation through constellation diagrams is presented alongside the MMSE results. However, to visually evaluate this system-level performance across different modulation orders without exceeding the real-time memory capture limits of the physical FPGA testbed (e.g., Vivado ILA buffers), a bit-true fixed-point emulation of the proposed architecture was developed. This model strictly incorporates the hardware constraints defined by the DSE, including the exact word-length truncation, scaling factors, and hardware clipping limits.

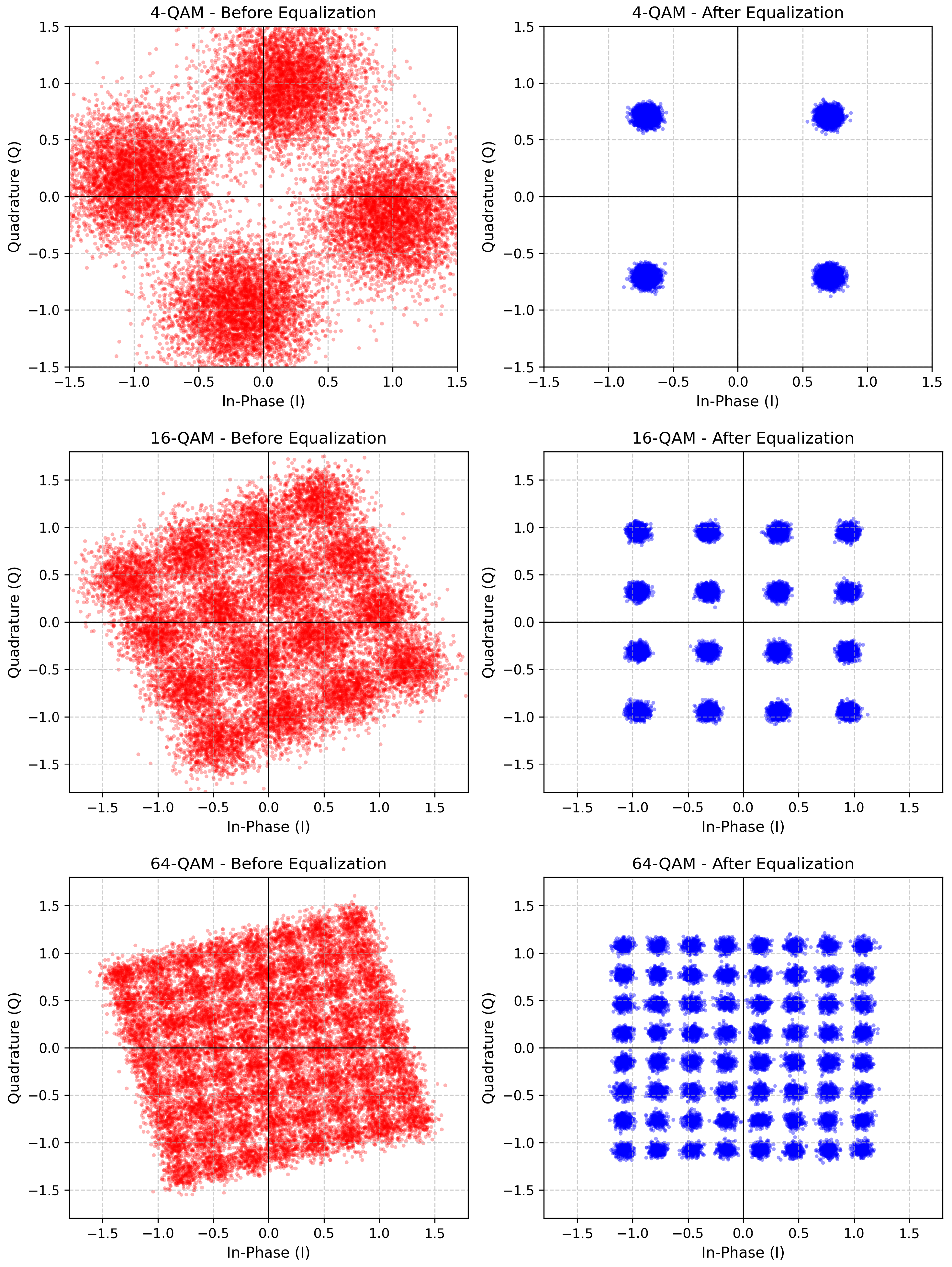

As illustrated in Figure 7, the emulated hardware successfully tracks and mitigates the time-varying multipath distortion, achieving a clear separation between the constellation points for 4-QAM, 16-QAM, and 64-QAM. This visual evidence confirms that the mathematical boundaries established for the fixed-point parameters are strictly valid, ensuring reliable symbol recovery without the need to calculate real-time hardware BER, which would exceed the logical footprint limits of the Edge SoC-FPGA.

Scale Factor MMSE increases with the modulation size because it needs better representations for both the integer and fractional parts; thus, it must increase the numerical representation size. A solution is to scale all variables involved in the operations, while keeping the format. A benefit of the experimental results is that $\mu$ can take on a larger value; see

Table 1. Scale factor and corresponding optimized step-size ($\mu$) parameters required to maintain hardware stability and prevent gradient divergence across different QAM modulation orders within the fixed-point implementation.

Modulation	Scale Factor	$\mathit{\mu }$
4-QAM	1	0.0035
4-QAM	2	0.04
16-QAM	1	0.000015
16-QAM	4	0.01
64-QAM	1	0.0000015
64-QAM	8	0.002

.

Theoretically, to guarantee convergence in adaptive equalizers, the step-size $\mu$ must be strictly bounded by the inverse of the input signal’s power. However, in fixed-point architectures, severe quantization noise and saturation (clipping) alter this boundary. The scaling factors introduced act as a dynamic normalization mechanism, artificially compressing the dynamic range of higher-order modulations (e.g., shifting bits for 64-QAM) to fit within the restricted fixed-point word length. This bit-shifting prevents arithmetic overflow and mathematically relaxes the convergence bound, allowing the hardware to utilize a larger, more aggressive effective step-size ($\mu$) without diverging, as summarized in Table 1.

3.3. Performance Comparison

The real-time hardware implementation of the algorithms and subsequent testing on an emulated channel were performed on a low-cost board called Ultra96. This board is an ARM-based, Xilinx Zynq UltraScale+ ^TM MPSoC development board based on the Linaro 96Boards. The algorithm was designed in Xilinx SDx^TM, and the results were plotted in real time using Gnuplot 6.0. The signal-to-noise ratio (SNR) was fixed to 25 dB. Input data is processed in a streaming fashion using a 1024-sample buffer for temporary storage, and the blind equalizer filter has 21 coefficients.

3.4. Latency and Sample Rate Analysis

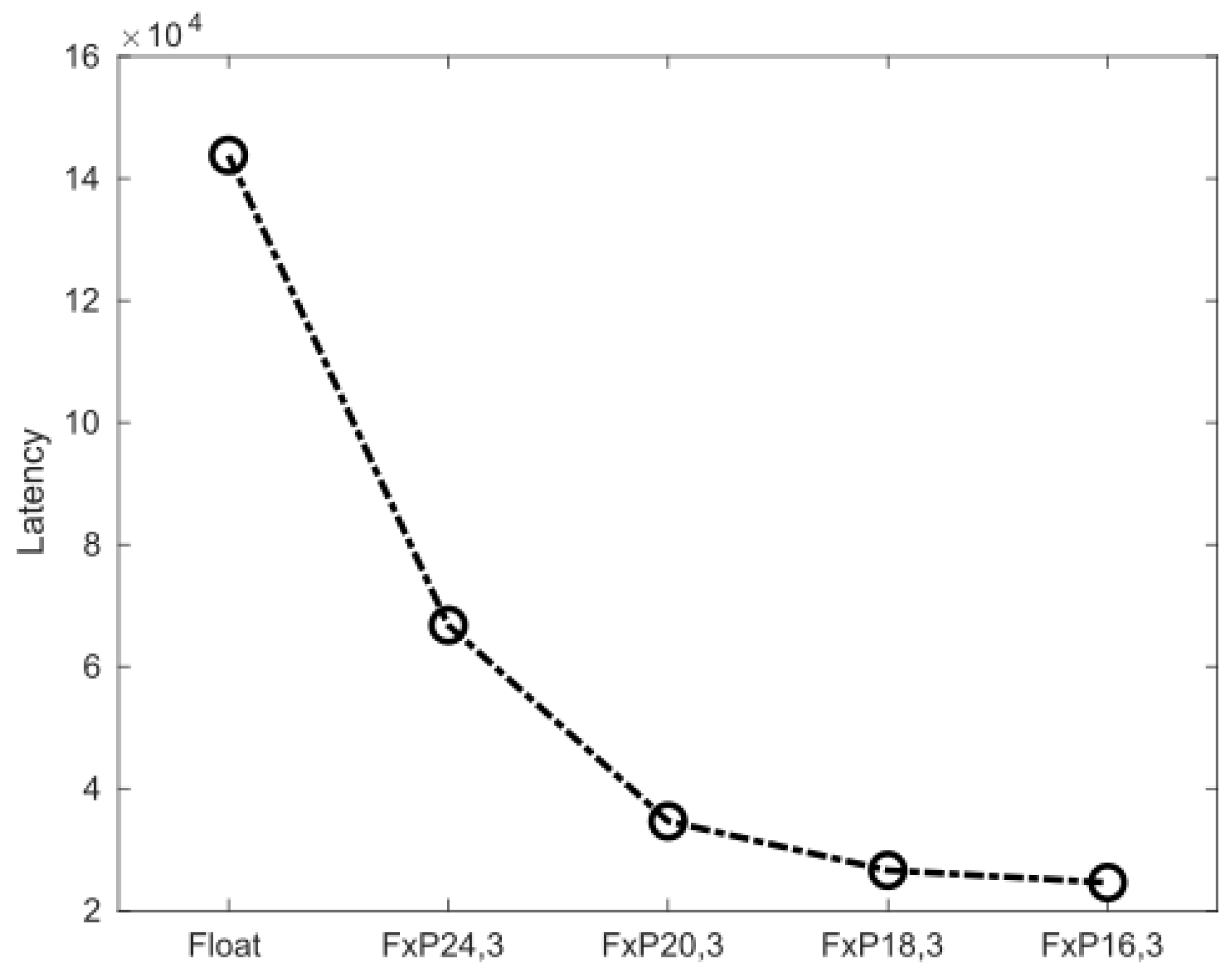

Figure 8 illustrates the latency measured in clock cycles for both floating-point and fixed-point representations across different binary word sizes (B) for a 4-QAM modulated input. The experimental results demonstrate a clear inverse relationship between the number of bits and latency: as B decreases from 32 (floating-point) to 16 bits, the latency decreases significantly, with optimal performance at FxP_16,3. This reduction in latency can be attributed to the lower complexity of arithmetic operations in fixed-point representations, which require fewer hardware resources and faster computation cycles than floating-point implementations.

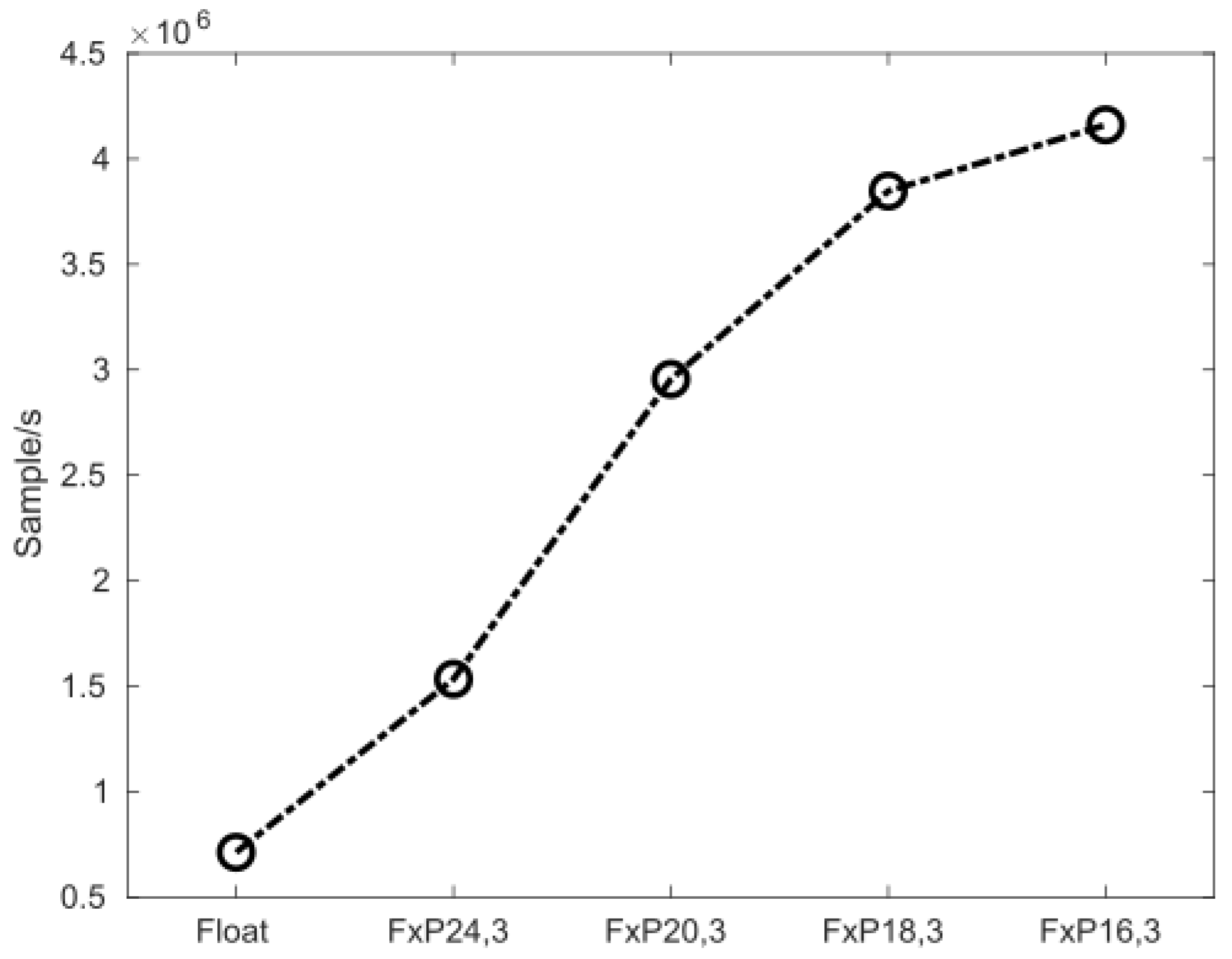

Notably, the position of the decimal point (P) does not affect the latency or the sample rate shown in Figure 9. The sample rate remains relatively constant across different values of P for a given word size B, indicating that the fractional bit allocation does not affect the system’s throughput. This observation is significant because it allows designers to independently optimize fractional precision (P) to improve accuracy without sacrificing data rate.

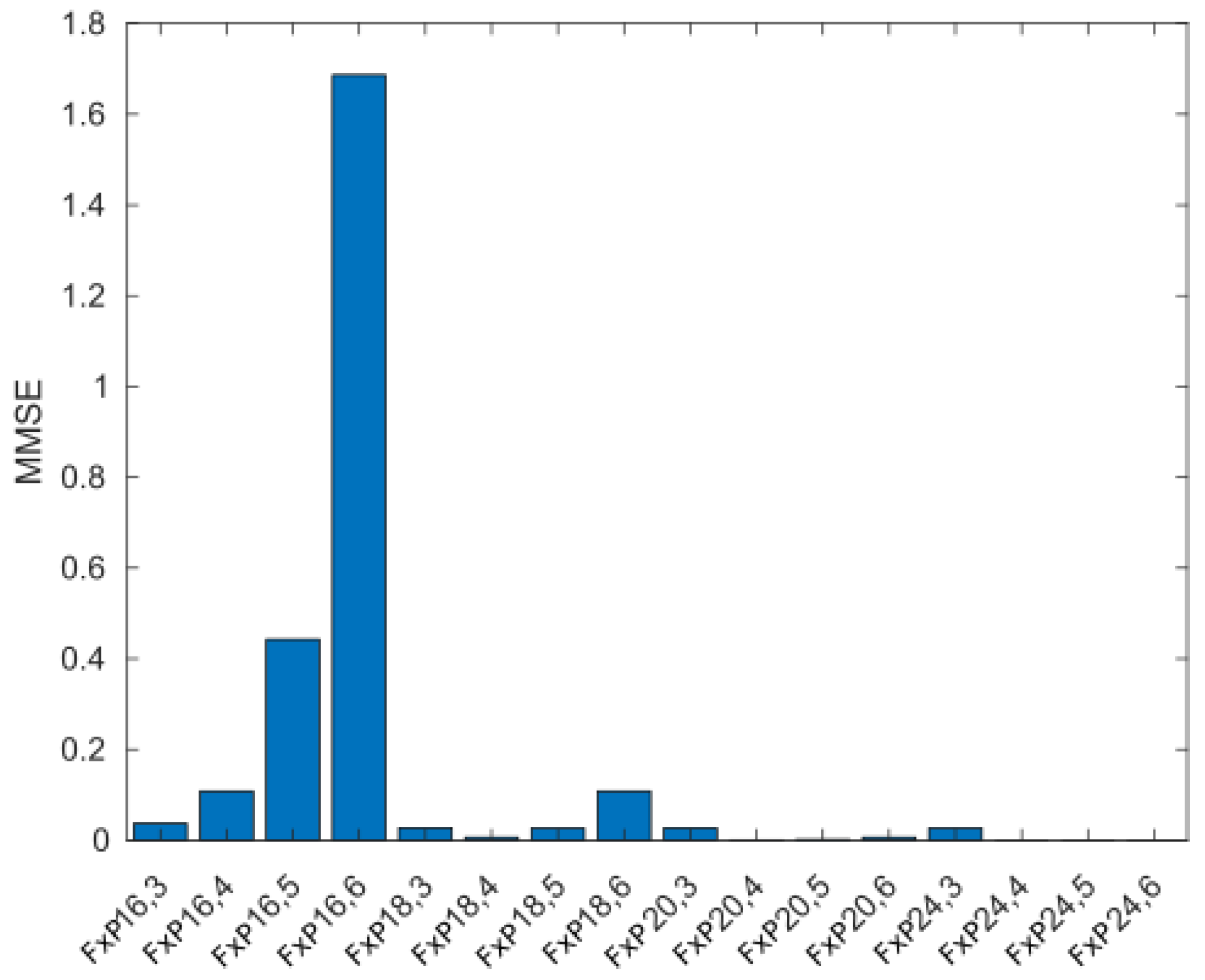

However, the parameter P does modify the accuracy of the algorithm as demonstrated in Figure 10, which presents the MMSE changes for different combinations of B and P. This relationship reveals a critical trade-off: while reducing B improves latency and throughput, the choice of P directly affects numerical precision and, consequently, equalization performance. The MMSE results show distinct performance regions in which certain $(B,P)$ combinations yield superior accuracy, providing a roadmap for selecting optimal numerical representations that meet target hardware constraints.

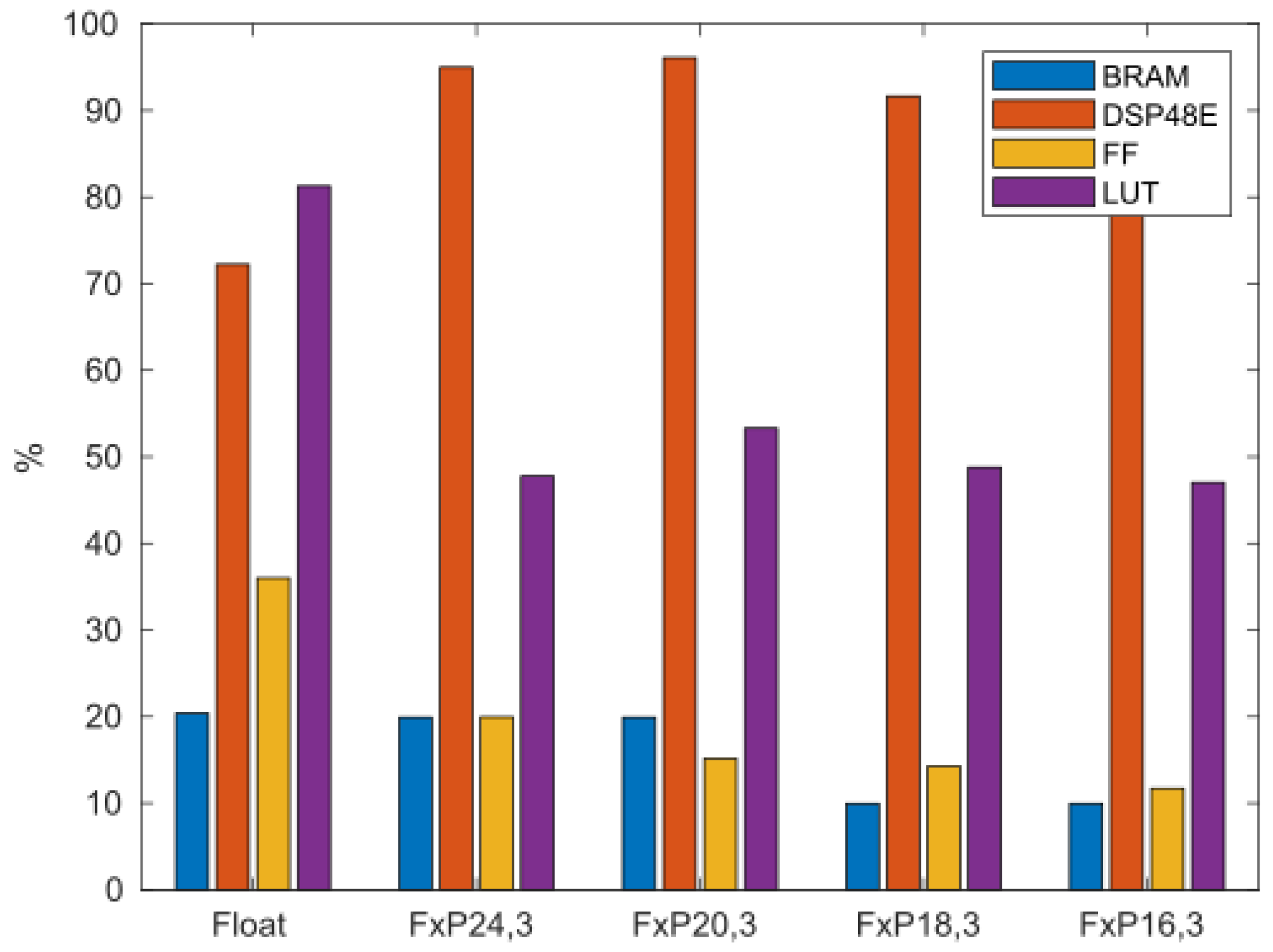

The consumption of hardware resources (BRAM, DSP48E, FF, LUT) is presented in Figure 11. CMA and MMA share the same CuPU, except for the calculation of the distance. However, the figure shows no difference in the amount of DSPs and BRAM across configurations; for this reason, we used the same results for both blind algorithms. Figure 11 is used to adjust the design, making it fit on the selected SoC-FPGA and increasing the interval for reading the parallelization directive, sacrificing performance. In other words, when any of the hardware resources exceeds 100% of the selected hardware.

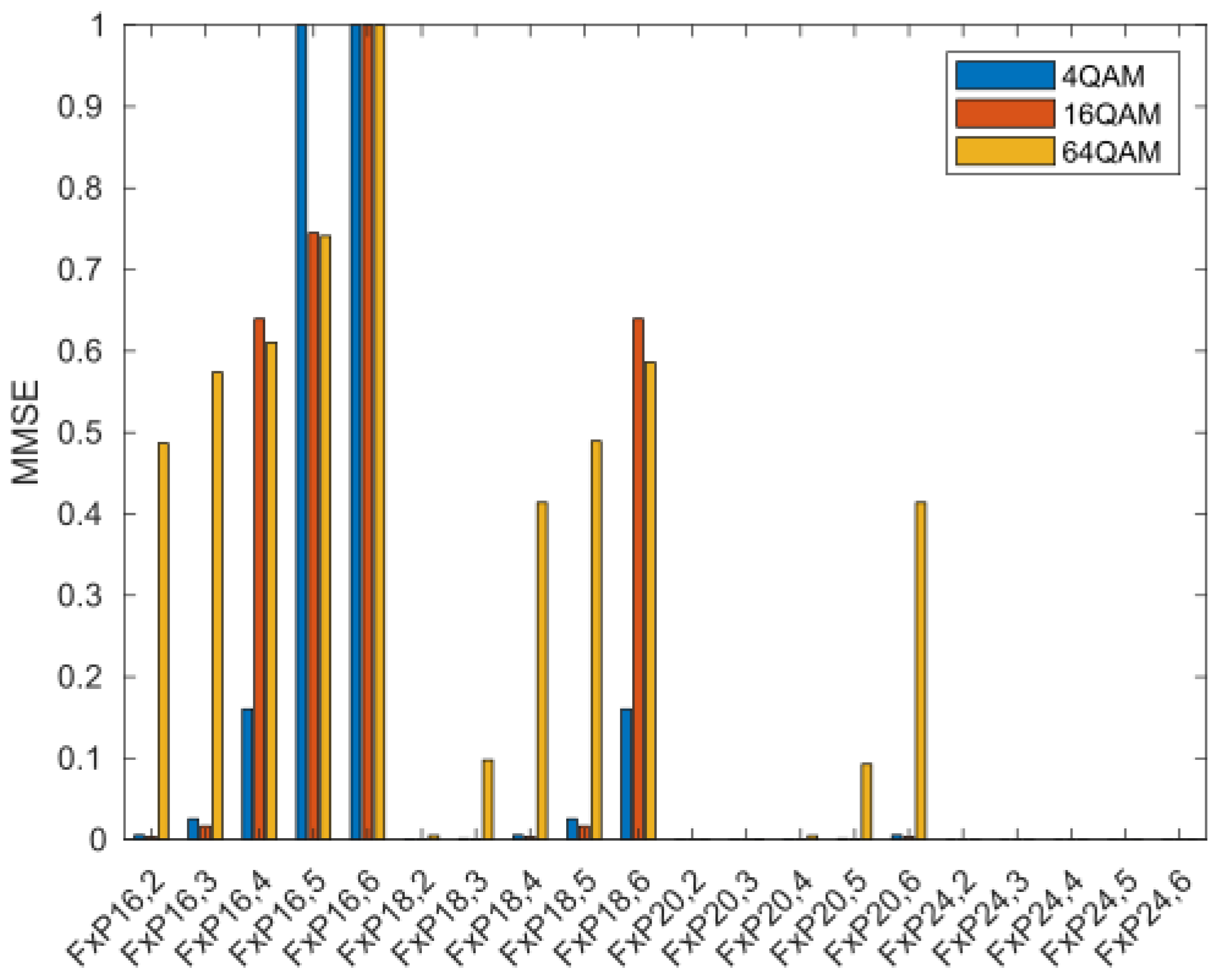

Figure 12 shows the MMSE of several fixed-point representations for 4-QAM, 16-QAM, and 64-QAM. This information is used to select the minimum representation with a low MMSE. For example, a viable implementation for 64-QAM is FxP18,2 or FxP20,2 using the scale factor in Table 1.

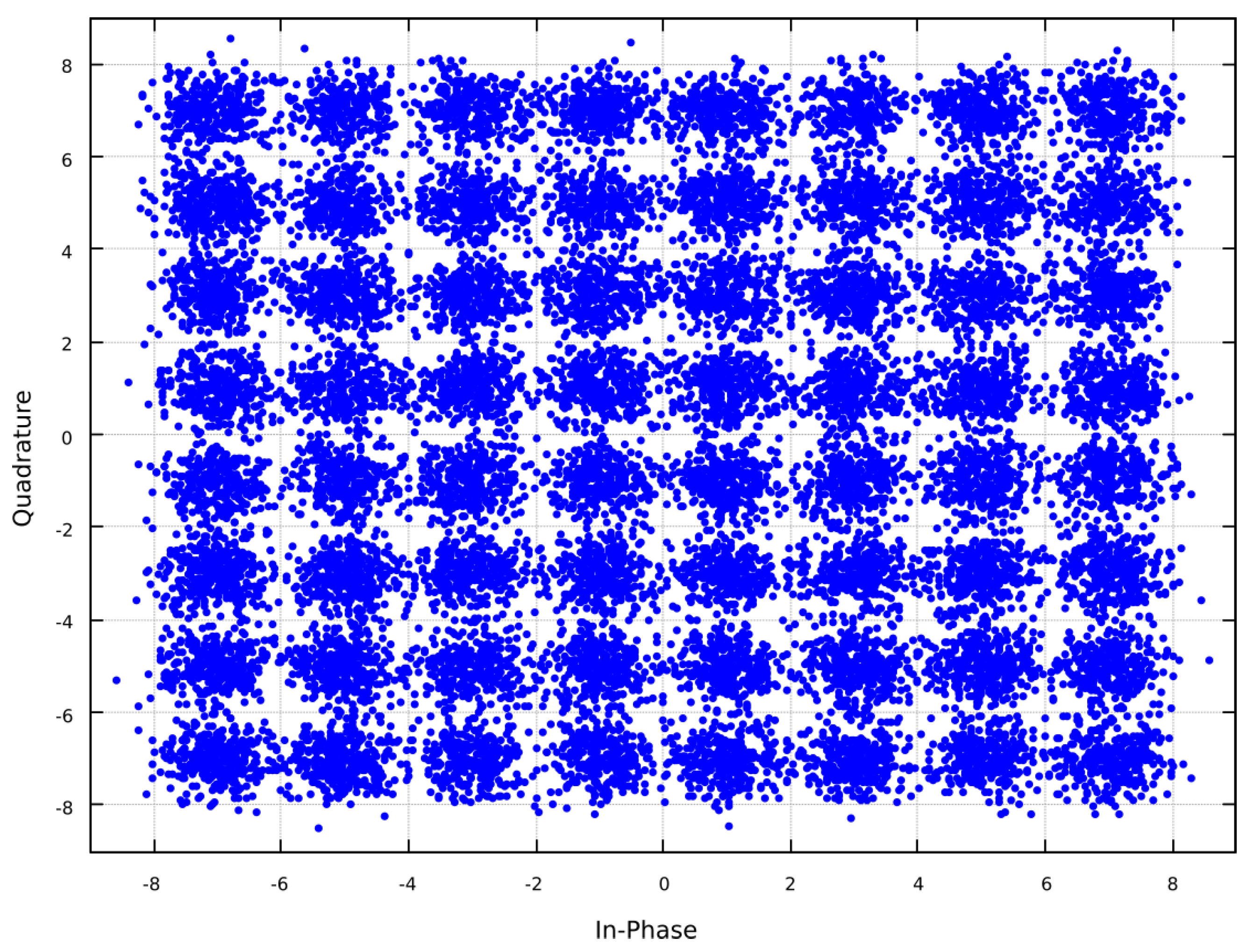

Figure 13 shows the result of applying a scale factor to 64-QAM data input for the MMA blind equalizer implementation. Then, the scale factor can be reversed to obtain the same visualization of the original design.

4. Discussion

The results indicate that blind equalization algorithms such as CMA and MMA can be implemented on a low-cost SoC-FPGA with limited hardware resources when the numerical representation is optimally defined. The design’s structure uses Custom Processing Units and employs high-level synthesis with parallelization techniques. It becomes feasible to achieve processing rates of several mega-samples per second. Overall, these findings help narrow the gap between theoretical, floating-point signal processing methods commonly seen in academic simulations and the real-time execution required for programmable hardware applications.

In the context of Edge Computing and localized Software-Defined Radio (SDR), this work underscores the importance of considering real-time performance and cost constraints early in the algorithm design process. The investigation into fixed-point formats and their effects on latency, throughput, and resource consumption provides a clear alternative for algorithms implemented on FPGAs without floating-point arithmetic. Managing the trade-off between precision and hardware efficiency is crucial to making advanced techniques such as equalization, channel estimation, and impairment correction applicable on a broader scale in decentralized telecommunications, IoT gateways, and resource-constrained Edge nodes.

The study suggests the potential of combining aggressive fixed-point quantization with AI-based modules that compensate for any loss in precision, looking toward the future of more complex DSP developments. A key question remains: how much numerical precision can be sacrificed to maximize parallelism and reduce costs while still allowing a trained model to reconstruct or refine the output signal effectively? We can establish design guidelines for AI modules, including acceptable distortion levels, latency requirements, and robustness to channel variations. The integration of numerical optimization and hardware parallelization advances the deployment of complex adaptive equalizers into next-generation Edge communication systems.

While state-of-the-art FPGA implementations targeting optical backbone networks achieve multi-Gigabit throughputs using high-end Virtex Ultrascale devices and massive parallelization, our approach deliberately targets a different operational domain. By sacrificing maximum throughput (achieving 4 MS/s), the proposed DSE methodology enables the deployment of complex CMA/MMA equalizers on highly resource-constrained, low-cost Edge SoC-FPGAs. This demonstrates a novel trade-off: trading extreme data rates for critical reductions in power, area footprint, and silicon cost, which is essential for decentralized IoT gateways and localized SDR applications.

To contextualize the efficiency of our proposed DSE framework, Table 2 compares our optimal fixed-point architecture with recent FPGA-based blind equalizers. Direct throughput comparisons across disparate application domains often mask the underlying engineering challenges. High-end implementations targeting optical backbones inherently achieve Gigabit speeds by heavily relying on massive, power-hungry FPGAs. In contrast, the true novelty of our work lies in the extreme compression of complex stochastic equalizers for severely constrained Edge environments. By strictly bounding the fixed-point quantization via our DSE methodology, we deliberately trade off peak data rates for ultra-low resource utilization, successfully demonstrating that robust CMA/MMA equalization is viable on low-cost, low-power IoT and SDR gateway nodes.

It is important to emphasize that direct data-rate comparisons across the literature require careful interpretation. While backbone network architectures prioritize maximizing throughput by using resource-intensive FPGAs (e.g., [20]), our DSE framework is mathematically tailored for severely constrained Edge SoC platforms. Furthermore, evaluating effective throughput in the hardware literature can be ambiguous; for instance, Ashmawy et al. [21] report a maximum synthesis clock frequency ($F_{max}$) of 22 MHz, but the effective symbol throughput (MS/s) remains unspecified. Similarly, while works like Hanzálek et al. [22] and Kolosovs [23] explore the architectural trade-offs of blind equalizers, our approach uniquely provides a fully transparent resource footprint. By mathematically bounding the fixed-point quantization, our design guarantees stable symbol recovery while minimizing logic area, making it ideal for decentralized IoT nodes.

Table 2. Performance comparison of FPGA-based blind equalizers.

Work / Year	Target Domain	Algorithm	Hardware Platform	Data Format	Throughput
Wang et al. (2023) [20]	Optical Backbone	Parallel CADAMA	Kintex Ultrascale	Floating/Custom	∼15 Gbps
Hanzálek et al. [22]	Wireless Comm.	Modified CMA	Generic FPGA	Fixed/Floating	Variable
Kolosovs (2024) [23]	Wireless QAM	Adaptive Blind Eq.	Generic FPGA	Fixed-Point	Variable
Ashmawy et al. (2022) [21]	Edge/Wireless	CMA/MMA	Zynq-7000 SoC	Fixed-Point	Not Reported
Our Work (Proposed)	Edge / IoT nodes	CMA / MMA	Zynq Ultra96-V2	Optimized FxP16,3	4 MS/s

Table 2. Performance comparison of FPGA-based blind equalizers.

Work / Year	Target Domain	Algorithm	Hardware Platform	Data Format	Throughput
Wang et al. (2023) [20]	Optical Backbone	Parallel CADAMA	Kintex Ultrascale	Floating/Custom	∼15 Gbps
Hanzálek et al. [22]	Wireless Comm.	Modified CMA	Generic FPGA	Fixed/Floating	Variable
Kolosovs (2024) [23]	Wireless QAM	Adaptive Blind Eq.	Generic FPGA	Fixed-Point	Variable
Ashmawy et al. (2022) [21]	Edge/Wireless	CMA/MMA	Zynq-7000 SoC	Fixed-Point	Not Reported
Our Work (Proposed)	Edge / IoT nodes	CMA / MMA	Zynq Ultra96-V2	Optimized FxP16,3	4 MS/s

5. Conclusions

We presented a comprehensive methodology for minimum hardware utilization using SoC-FPGA devices. The experimental results showed the application of our approach in CMA and MMA blind equalization. The exploration of the design space was based on the definition of Custom Processing Units, parallelization using high-level synthesis, the emulation on SoC-FPGA for the design stage, and the numeric representation focused on minimum hardware utilization. The results showed an improvement in performance with the fixed-point representation, with floating-point precision as the reference. The methodology helps define an adequate fixed-point for the hardware selected, reaching more than four mega-samples per second in a low-cost Ultra96 board. Ultimately, this DSE framework provides a practical, highly resource-efficient blueprint for deploying adaptive equalizers in real-time Edge telecommunication nodes. It proves that advanced DSP is feasible on low-end silicon architectures without incurring the prohibitive area or power costs associated with traditional optical-grade hardware.
