Detecting Broken Strands in Transmission Lines Based on Pulsed Eddy Current
Abstract
:1. Introduction

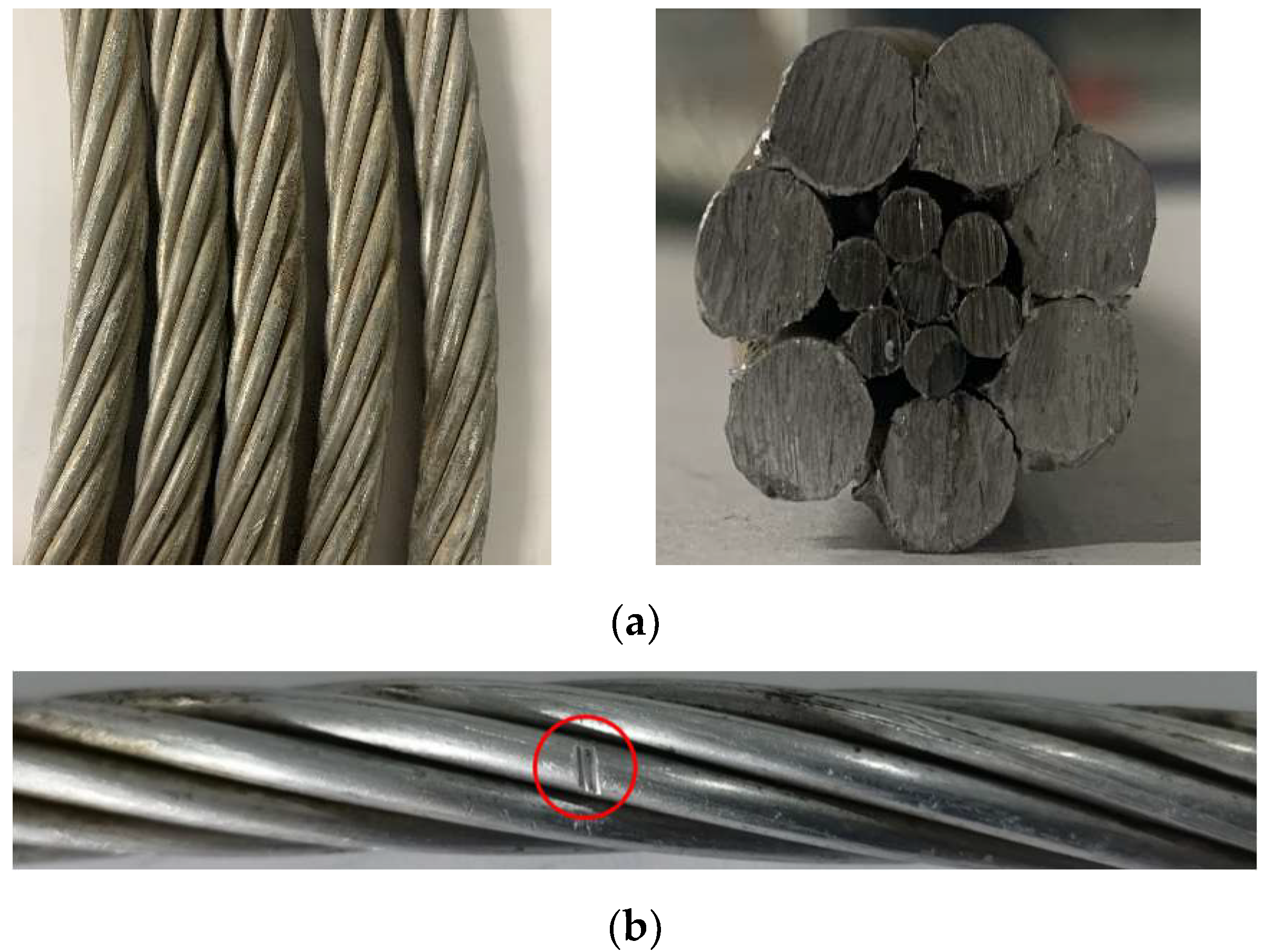

2. Object under Investigation

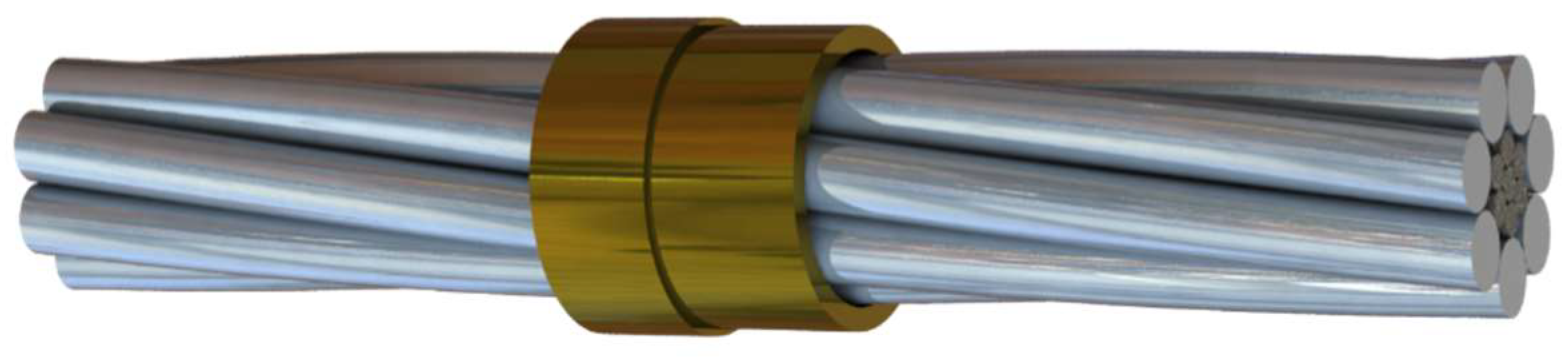

3. Principle of Pulse Eddy Current Detection of Broken Strands in Transmission Lines with a Coaxial Encircling Coil

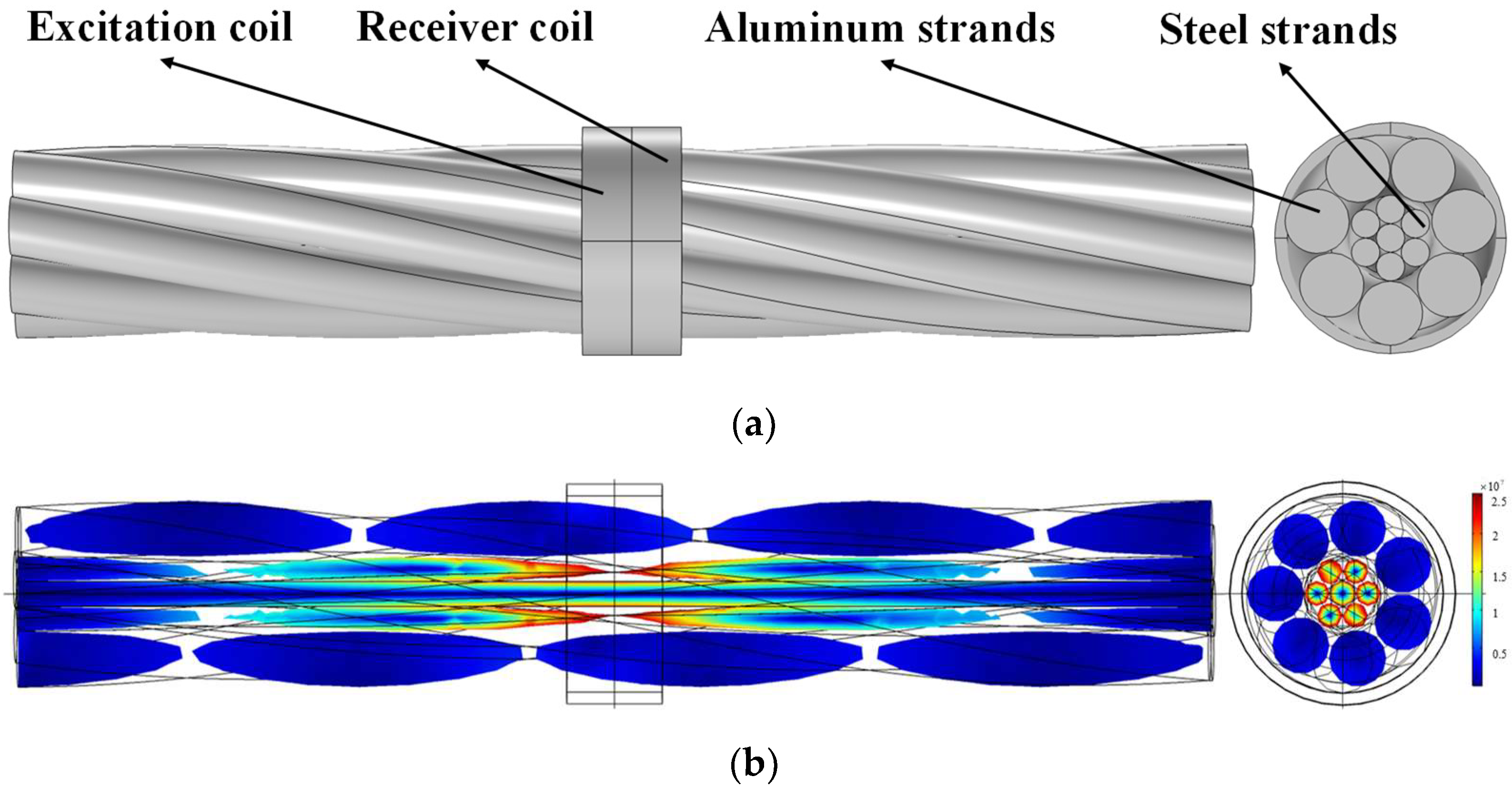

3.1. Simulation Model

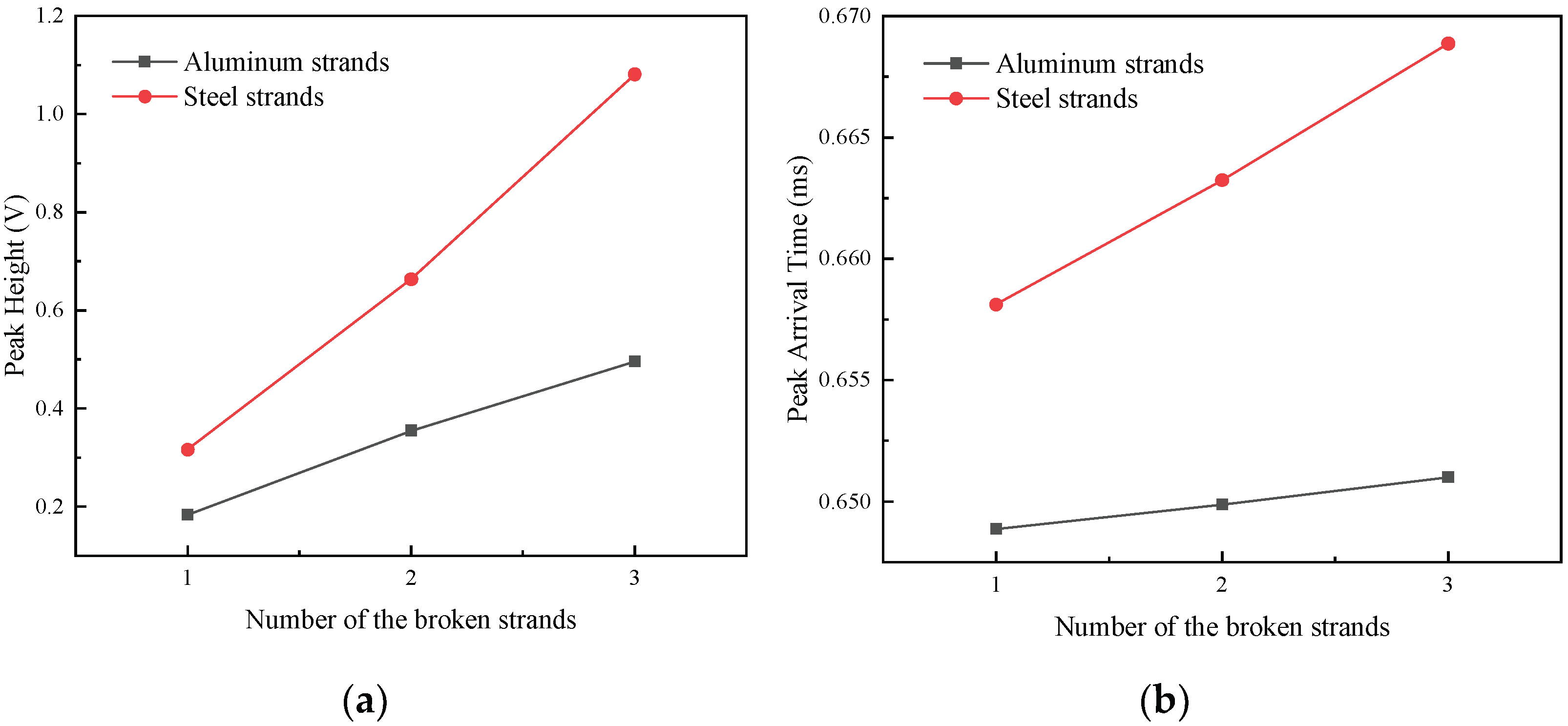

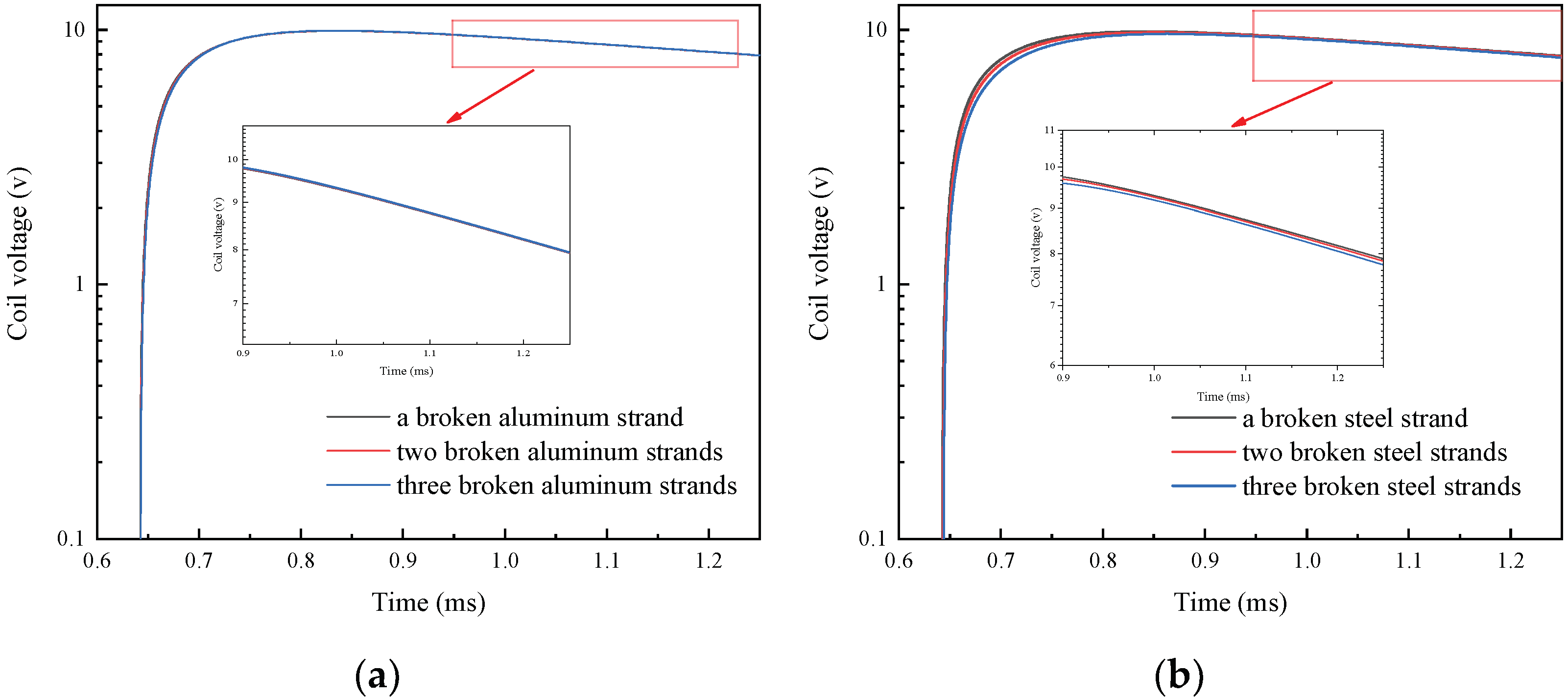

3.2. Extraction of the Detected Broken Strands Features
4. Experimental Validation
4.1. Experimental Setup
4.2. Experimental Results
5. Conclusions

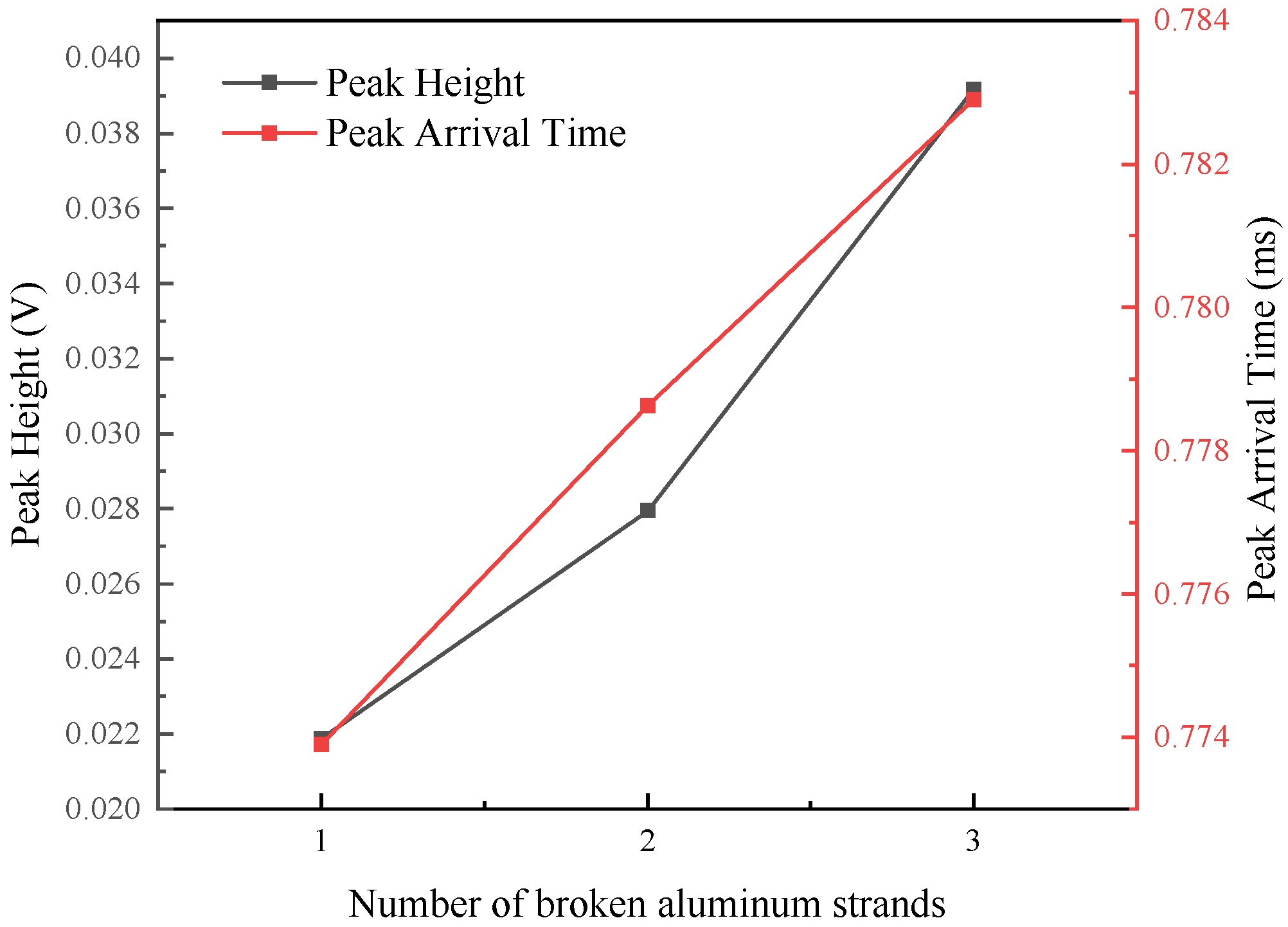

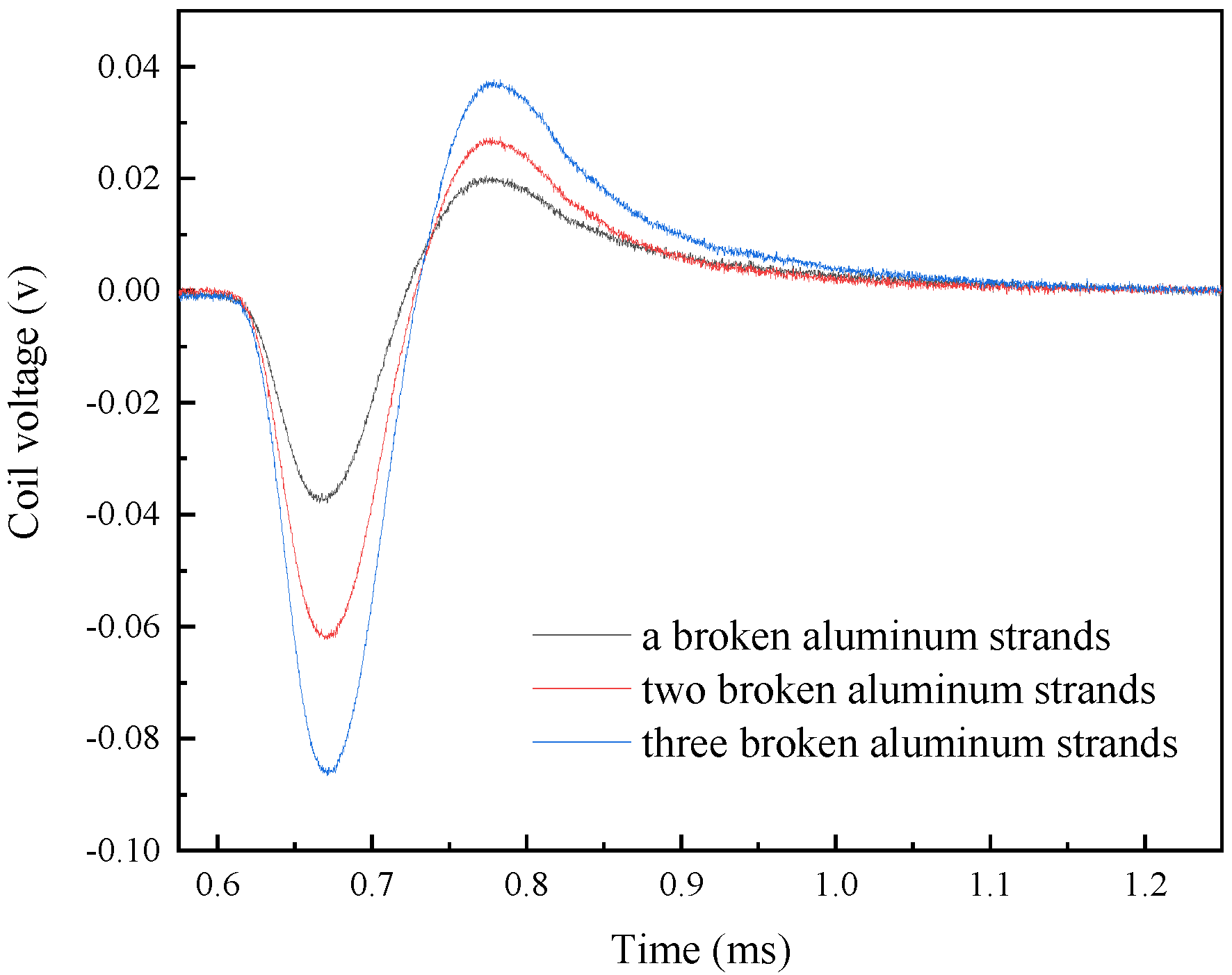

- From the modeling simulation and experimental results on Al strands with a different number of broken strands, it was found that the broken strands in the Al strands could change the coil voltage and lead to the appearance of the zero-crossing phenomenon. As the number of broken strands increased, both the decay rate, peak arrival time, and the peak value of coil voltage increased;

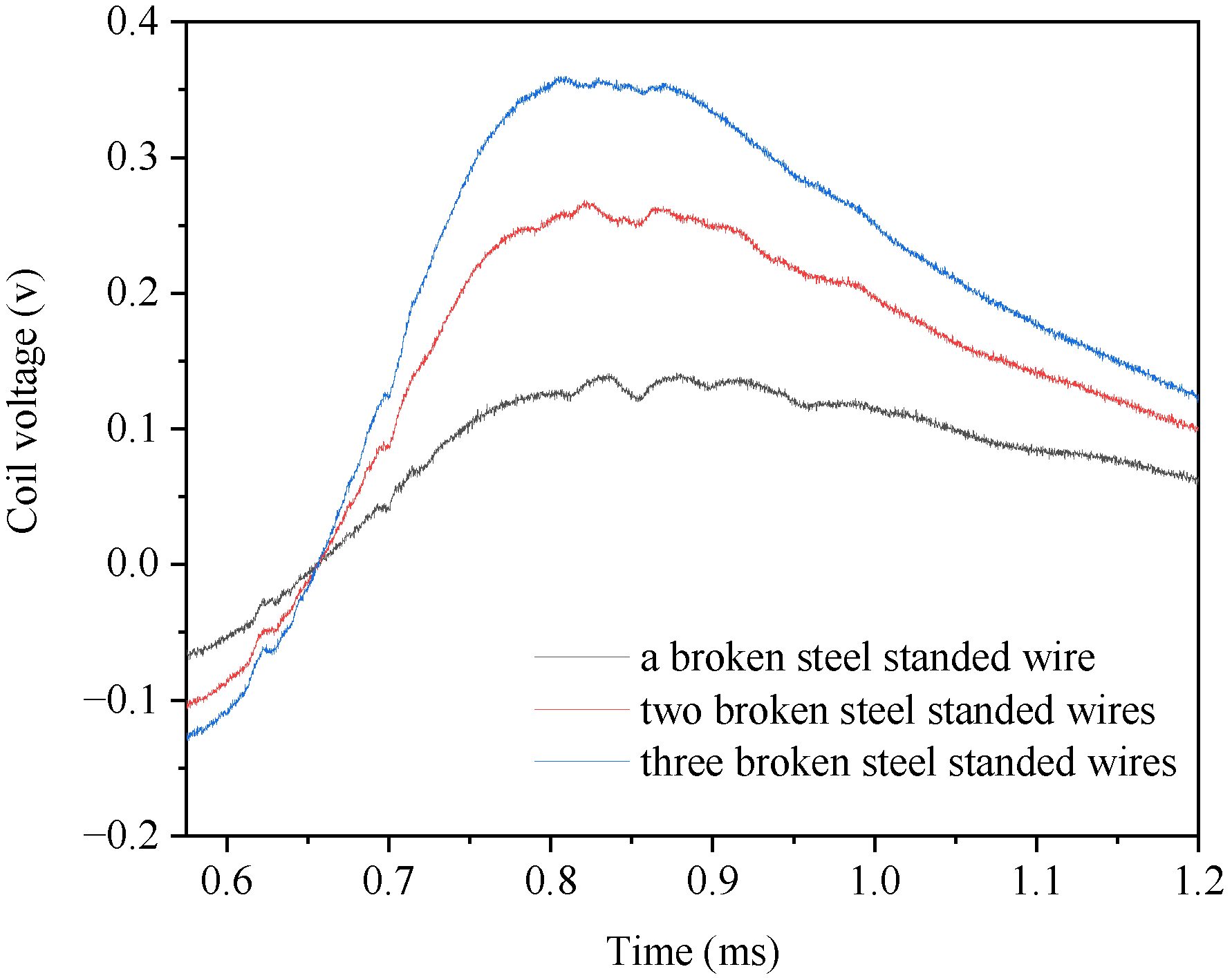

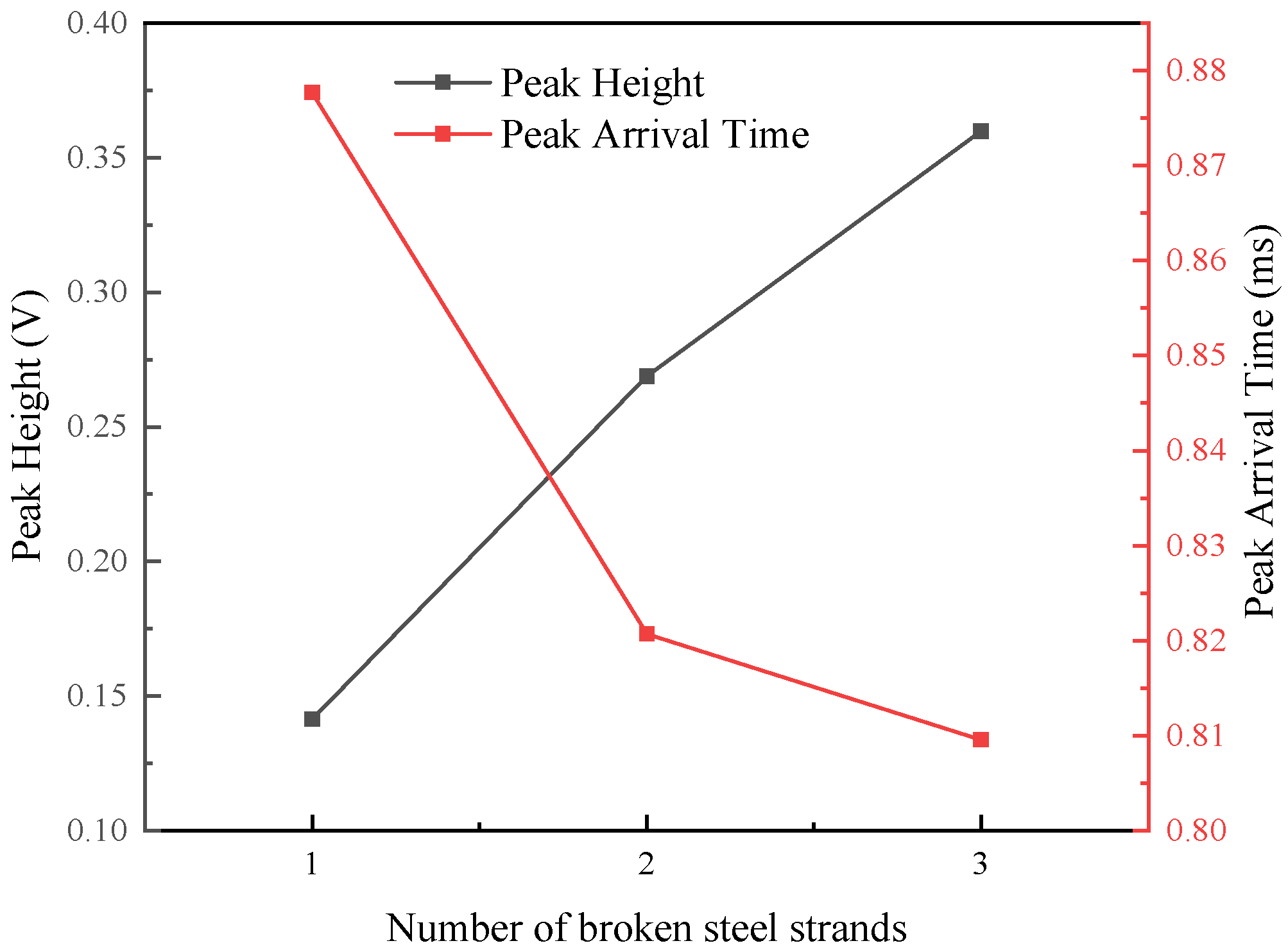

- The broken strands in the steel strands could induce an increase in the voltage of the detection coil. The change in the coil voltage amplitude was positively correlated with the number of broken strands. In addition, the coil voltage dropped gradually after reaching a peak value, and the decay rate increased with the increase in the number of broken strands;

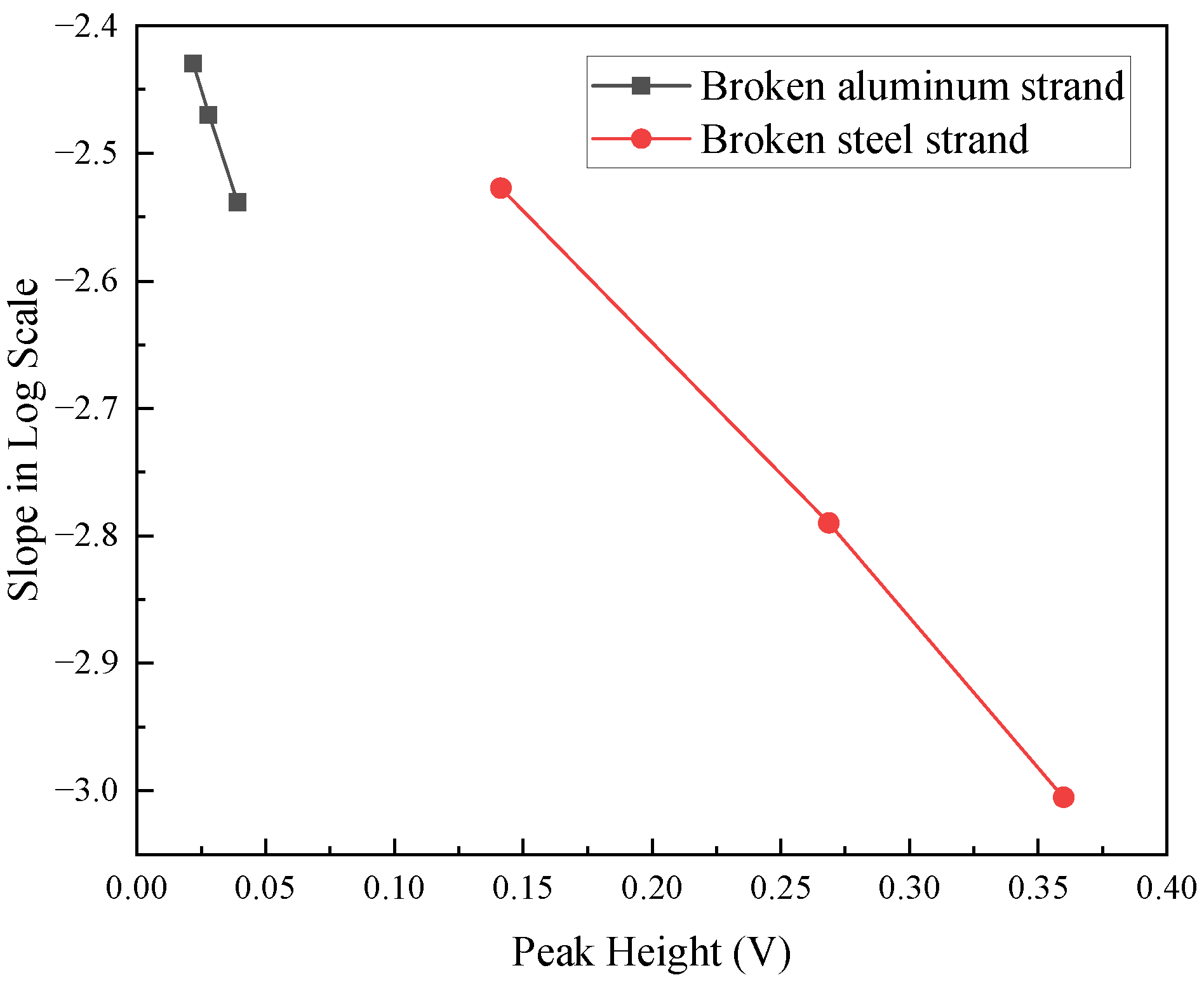

- Based on the difference in the detection signals between the broken strands in the steel and Al strands, the slope in the logarithmic scale and the peak value were determined as the characteristic parameters in the detection of broken strands in ACSR lines. Moreover, the feasibility of the proposed detection method was validated via experiment and simulation. Thus, the proposed method can provide an effective means for locating and quantitatively recognizing broken strands in power transmission lines.
