The spotted wing Drosophila (SWD), Drosophila suzukii
(Matsumura) (Diptera: Drosophilidae), is an invasive vinegar fly unintentionally introduced from Asia. It was first documented in the continental United States in 2008 [1
]. After its introduction, D. suzukii
spread rapidly across much of the country including Maine where it was first documented in 2012 [2
]. Unlike native Drosophila
, the females have a serrated ovipositor that allows them to oviposit into intact ripe fruit. The larvae develop inside the fruit. This causes softening and introduces microbes that shorten shelf life and renders fruit unmarketable [3
]. The attack of undamaged ripe fruit along with its wide host range has made it a serious insect pest in many fruit crops such as cherries, raspberries, blackberries, strawberries, and blueberries [4
Maine produces 10% of all blueberries in North America [6
]. Maine’s wild blueberry (lowbush) crop (Vaccinium angustifolium
Aiton) is produced on approximately 17,000 ha of managed land. Production contributes over $
250 million to the state’s economy each year [6
]. Wild blueberries are unique in that they are grown on a two-year cycle; the first year is a prune year and is characterized by vegetative growth and the development of flower buds. The second year is when bloom and berry harvest occur [7
]. Growers in Maine produce wild blueberries both organically and conventionally. There are three levels of conventional production (low, medium, and high input) [8
]. These production systems vary in the intensity of capital inputs used to produce the crop. Conventional growers rely primarily on insecticide based spotted wing drosophila pest management; there are fewer options for organic control of D. suzukii
]. Drosophila suzukii
caused an estimated $
1.4 million crop loss in Maine wild blueberry during 2012, the first growing season it was present in the state [11
]. Falling blueberry prices coupled with increased production costs for monitoring and managing D. suzukii
have presented challenges to Maine’s blueberry growers [7
Since its first detection in the continental United States in 2008, much research has been conducted, though there are still gaps in knowledge that limit our understanding of this pest. To date, most studies of D. suzukii
population dynamics have only investigated population fluctuations across one, and sometimes, two years [12
]. One study, Briem et al. [16
], analyzed adult trap catch data in Germany from 2012–2018. Except for their study, data are lacking on long-term population dynamics immediately following the invasion of this species. Invasive species population dynamics can change after their initial establishment with short-term population dynamics quite different from long-term population dynamics [17
]. There have been several investigations that have evaluated factors appearing to affect population growth and immature and adult survival. Predation and parasitism of immature stages by natural enemies has been investigated both in Europe and North America [19
] and in its native range [23
]. Winter temperatures appear to affect overwintering survival of adults [25
] and extreme high lethal temperatures have been shown to reduce longevity of adults during the summer [30
]. In addition, dispersal over long distances likely maintain meta-populations of D. suzukii
]. Landscape level plant resources for reproduction and intrinsic rate of growth have also been shown to affect population levels [5
In order for growers to respond effectively to continued D. suzukii threats, they and pest management specialists need to understand factors that affect population increase in this invasive pest. Our study examined population trends of D. suzukii in Maine wild blueberries over the course of seven years. Studying D. suzukii over multiple years may help growers know what they can expect from this invasive insect population so they can make appropriate decisions on monitoring and management. This study is organized into the following topics: (1) annual trends and phenology, (2) effects of management on adults and fruit infestation, (3) effects of wild fruits and natural enemies, and (4) action thresholds for predicting fruit infestation and grower decision-making. We measured relative abundance of adults, the first date of D. suzukii adult appearance and fruit infestation each year, sex ratio and the relationship between adult density and fruit infestation levels across all seven years. We investigated potential relationships between population dynamics and weather and what impact different management systems and production stages (organic versus conventional, vegetative versus fruiting fields, and pesticide usage) have on D. suzukii populations. Our hope is that this research provides growers with a better basis for development of integrated pest management (IPM) tools for monitoring, predicting, and controlling D. suzukii, especially the practicality of action thresholds.
2. Materials and Methods
2.1. Data Collection and Analysis Software
2.1.1. Sampling Adult D. suzukii by Trapping to Estimate Population Relative Abundance
This study was conducted over a period of seven years (2012–2018) in Maine wild blueberry fields to investigate the population dynamics of D. suzukii. Field studies were conducted in 10–20 managed wild blueberry fields per year in Hancock, Knox, Lincoln, Waldo, and Washington counties, Maine, USA (Table 1
). Baited traps were used to estimate the relative abundance of adult fly populations in wild blueberry fields. All adult sampling between 2012–2018 utilized spotted wing drosophila traps consisting of 473 ml of red polystyrene Solo®
(Dart Container Corp., Mason, MI, USA) cups with 7–10, 0.48-cm-diameter holes punched evenly around the top rim and light-blocking lids [2
]. Traps were baited with 118-mL standard yeast/sugar bait (2012–2018) (5.07 g dry active yeast, 25.35 g sugar, 450 mL water) [2
]. This bait is highly attractive to D. suzukii
in the Maine wild blueberry landscape [40
]. For all trials in 2012, a yellow sticky card was also hung inside each trap to facilitate captured fly species identification. In all sampling (2012–2018) traps were hung 0.30 to 0.61 m above the top of the blueberry canopy using 0.91-m plant stands and were placed along wild blueberry crop field edges. The exception to this trap placement protocol was for the crop cycle study, described in Section 2.5
where traps were deployed along the edges of both crop and vegetative fields. Traps were deployed at densities of 3–5 traps per field (more traps in larger size fields) and checked 1–2 times per week. At each visit, traps were replaced with new traps and fresh bait. Traps that were removed from the field were returned to the lab and drained through a fine mesh sieve to count the number of male and female D. suzukii
2.1.2. Sampling Larval Infestation
Wild blueberry infestation by larvae was determined by visiting fields weekly, once fruit was vulnerable to larval infestation, the first signs of individual ripe fruit [2
]. Blueberries were sampled by collecting 1 L samples (ca. 500 berries/sample) at different locations (blueberry clones) representatively throughout the field. The berries were stored in a cooler with an ice pack for transfer to the laboratory. In the laboratory, fruit was added to a 4 L Zip Lock®
(S. C. Johnson & Son, Inc., Racine, WI, USA) polyethylene bag. A 1-L 10% saline solution was mixed (1 part salt:10 parts water, v:v) and ca. 236 mL was added to the bag containing the berries. The bag was sealed and the berries were gently pressed with a wooden block just enough to crack the skins. The split berries were allowed to remain in saline for 60 min. The berries and saline liquid were then strained through a coarse sieve into a dark colored tray. The fruit in the sieve was discarded and the strained liquid was inspected for larvae that sink to the bottom of the pan (modified from Drummond et al. [2
2.1.3. Statistical Analysis and Modeling
We used Microsoft Excel®
for database management. The statistical software JMP PRO version 14 [42
] was used for all analysis. The specific hypotheses, approaches and statistical models are mentioned under each subsection below. Bonferroni corrected P-values were estimated when multiple sequential tests were performed. Kaliedagraph®
version 4.5.1 graphical software [43
] was used for non-linear least squares (Levenberg-Marquardt), and the minimization of sums of squares was based upon the partial derivative solutions developed by one of the authors, F. Drummond.
2.2. Seasonal and Annual Adult D. suzukii Population Relative Abundances
We conducted exploratory analyses to test the following hypotheses: (1) D. suzukii relative abundances have increased either linearly, non-linearly, or are periodic since the year of first arrival in Maine wild blueberry (2012); (2) rate of fly trap capture (on a per day basis) within the growing is geometric and variable among years; (3) the degree day of first adult trap capture has become earlier as the invasive D. suzukii population has become established over time; and (4) annual weather conditions determine D. suzukii fly abundance levels in commercial wild blueberry fields.
In order to determine changes in seasonal occurrence in D. suzukii
populations (2012–2018), we sampled adult population levels in wild blueberry fields using the trapping method previously described (Section 2.1.1
). We refer to trap capture abundance of flies as relative abundance throughout this study because we realize that trap capture is only an index of absolute density as trap captures are affected by behavior, weather conditions, the habitat, and their interactions.
Across the seven years, using general linear models, we assessed D. suzukii
seasonal rate of increase (based upon trap capture of adults), annual trend in adult relative abundance (based upon cumulative adult trap capture at degree day 705 (base 10 °C, with 1 April as the start date). This degree day index corresponds to average length of the wild blueberry growing season, 1 April to early September (harvest). Maximum and minimum daily air temperatures were used from the nearest weather station to each field and that the calculation of cumulative degree days was initiated on 1 April of each year. In order to calculate the number of degree days accumulated for each day, we added the maximum and minimum air temperatures for that day and divided by two to estimate the average temperature for that day ([Max + Min]/2 = Average Daily Temperature). Then the developmental threshold, in our case, 10 °C was subtracted from the daily average temperature to derive the number of degree days ([Average Daily Temperature − Developmental or Base Temperature] = Degree Days). If the resulting degree day estimate is equal to or greater than 0.0, then this number of degree days is added to the cumulative degree days to this point. If the number of degree days derived for that day is less than 0.0, then 0.0 is added to the cumulative degree days). Tochen et al. [30
] suggested a developmental threshold of 7.2 °C for D. suzukii
, but state that temperatures between 10–28 °C resulted in significant impact on blueberries and so we adopted the threshold of 10 °C.
We selected a “standardized growing season” degree day accumulation so that D. suzukii
relative abundances could be compared between years. This as described above is the cumulative number of degree days typical in most years that encompasses the start of plant development in the spring (1 April) to harvest (mid-August) [44
]. Therefore, this standardized growing season is a plant development period that is relative to D. suzukii
activity. The rationale for selecting a standardized physiological time or standardized growing season is so that relative abundance, based upon trap capture, could be compared from one year to the next. Not all fields could be used in the standardized degree day comparison because some fields were too distant from a local weather station and some fields were harvested long before the accumulated degree days occurred. To test the hypotheses stated above we conducted the following analyses.
First, to determine if logarithm of annual fly captures per trap over the season (using standardized growing season of 705 DD as length of season) increased linearly or nonlinearly over time or were characterized by periodicity (2012–2018), we fit the following models for testing this hypothesis: (1) a linear generalized model (Gaussian error) using maximum likelihood and year as the independent variable; (2) non-linear generalized model, polynomial in form (fourth order) regression; (3) a penalized piece-wise spline regression (to prevent over-fitting of the data); and (4) a Fourier sine/cosine non-linear model [42
]. The piece-wise spline and the Fourier models were fit to the time series data using a generalized mixed model where the spline or Fourier coefficients are treated as random effects estimated as best linear unbiased predictors [42
]. Visual inspection of model residuals compared to model predictions and AICc (Akaike information criterion corrected for small sample sizes) were used to provide evidence for selection of a model that would best support either a linear increase or the non-linear alternative models representing periodic or oscillatory dynamics. In addition, we tested if the alternative non-linear models significantly reduced the unexplained variance in the base linear model by comparing the model deviances (−2 log likelihood statistics) of the non-linear models to the base linear model with the Chi-square distribution.

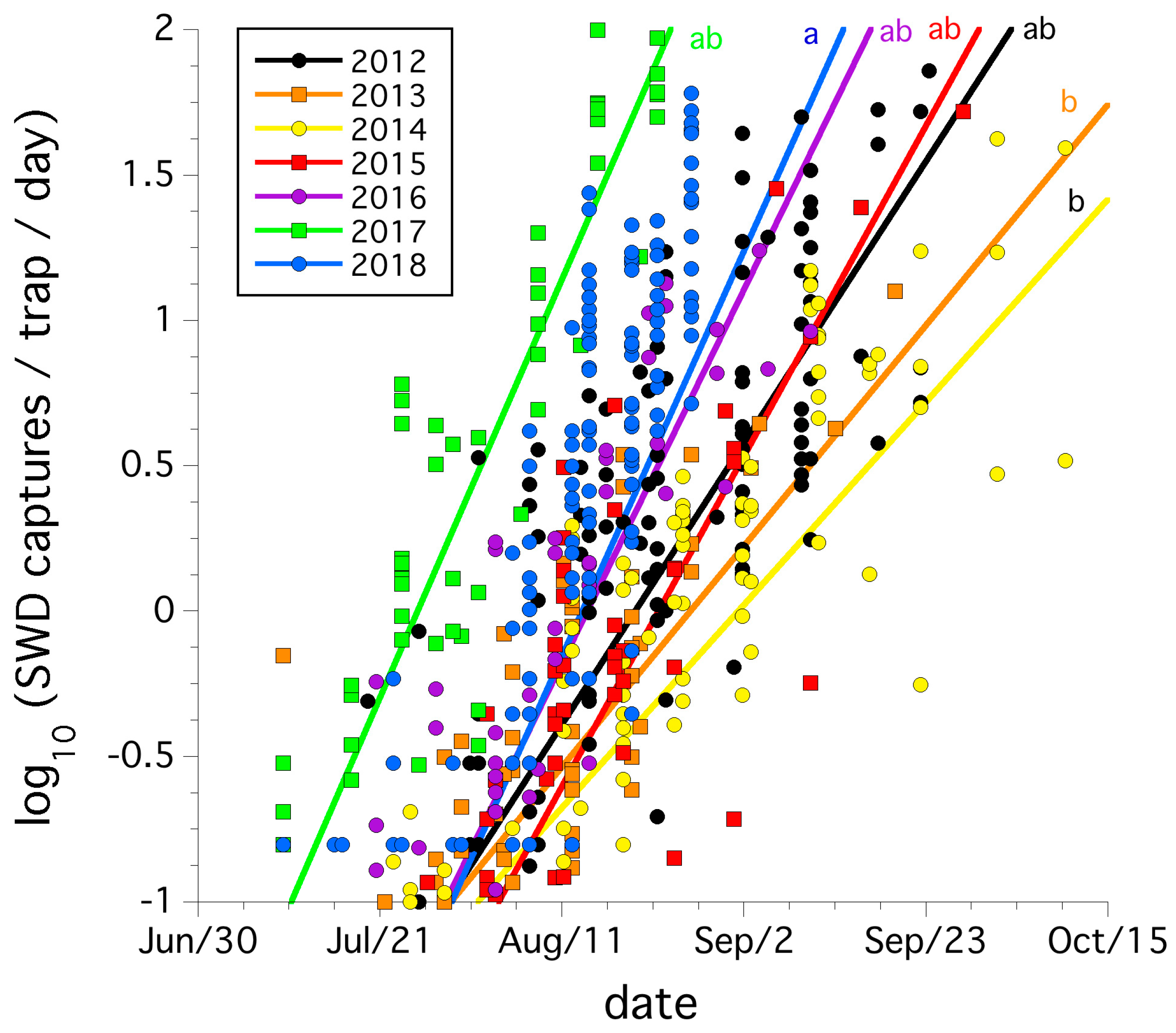

Second, we used general linear models to determine if daily capture rates and cumulative daily capture during the growing season (logarithm transformed) varied among years. Estimates of annual rates of trap captures (slopes) were compared by assessing the overlap in 95% confidence intervals among the slopes years.
Third, we determined if the cumulative degree day (initiated on 1 April) of first adult capture is occurring earlier in the growing season. We used a general linear model to test this hypothesis where year was the independent variable and degree day at first occurrence was the dependent variable.
Fourth, we investigated potential weather factors that might predict logarithm transformed cumulative daily and total fly captures per trap prior to harvest. General linear models were constructed with independent variables of mean spring and early summer air temperatures (June–July), mean winter air temperatures prior to the growing season, and degree day of first fly capture.
2.3. Sex Ratio Changes during the Study
Sex ratio of fly trap captures was assessed over the seven year study using two methods. First the number of captured males vs female trap capture in each field in each year was assessed to determine if total male captures relative to total female trap captures were independent of relative abundance. This hypothesis was tested using linear regression of log transformed trap captures (log males vs log females). The slope was evaluated for significance and if it was different from 1.0. A second analysis was conducted to determine if sex ratio changed over the seven-year period of the study. Sex ratios (males/ (males + females)) were analyzed for every sampled field for each year. A binomial logistic regression a model with the number of males the successes and the total number of draws (the number of males plus the number of females) was used to test if sex ratio changed over time. Odds ratios were calculated by year and over the seven-year period to quantify the likelihoods of sex ratio change per year and over the entire seven-year study period.
2.4. Management System Impact on D. suzukii Relative Abundance and Fruit Infestation
In order to determine the response of D. suzukii
to management system (2012–2017), fifty-eight fields were grouped by blueberry production system (organic or conventional: low, medium, or high input). Our hypothesis was that organic production systems would have higher average D. suzukii
relative abundance and high input production systems would have lower relative abundance levels because of more intensive management. Typical levels of inputs used by growers in the four management systems for the production of wild blueberries are given in Table 2
. The cumulative number of adult D. suzukii
per trap in each field type was compared at degree day 705 and the degree day of first infestation using fixed model analysis of variances (general linear model) with production system (categorical) and year (continuous) as main effects along with their interaction. Poisson regression was used to determine if insecticide application frequency was determined by production system. Multiple paired independent Poisson contrasts (Bonferroni corrected) were used to determine which production systems differed in insecticide application from each other.

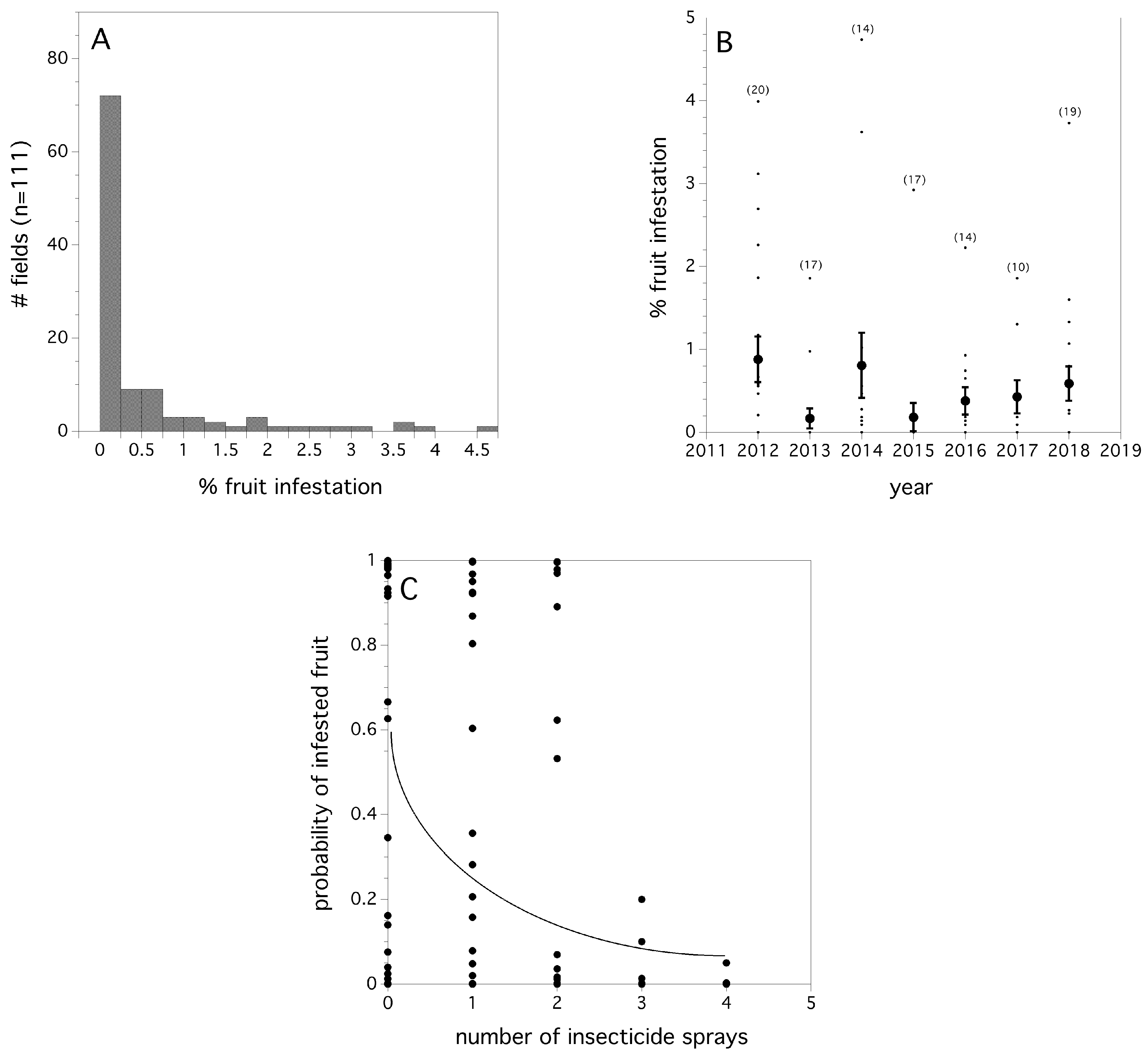

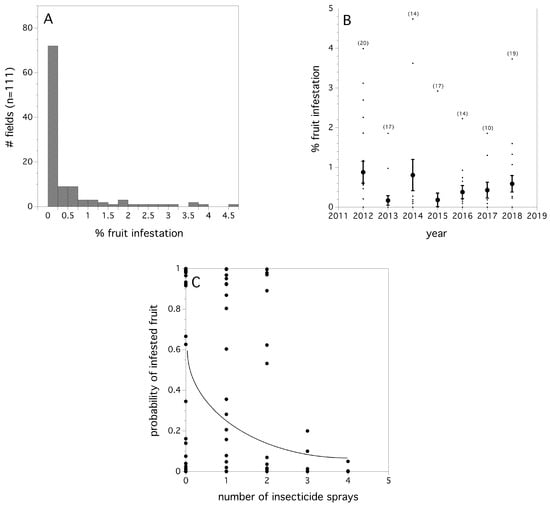

We also investigated the distribution of the severity of larval infestation among fields by year using a general linear model with year as the independent variable. In order to describe the distribution of infestation rates for each sampled field over all years, an empirical frequency distribution was constructed. A theoretical probability density function could only be fit to the distribution of infestation rates (excluding non-infested fields). A Kolmogorov’s D test was used to determine the goodness of fit of the empirical data and the theoretical probability density function [42
]. The impact of insecticides on larval infestation and adult relative abundance measured as the logarithm transformed cumulative adults captured per trap by standardized growing season cumulative degree day 705. In most fields during each year, once fruit became susceptible to attack (ripe), blueberries were hand harvested and inspected for larval infestation (for details see Section 2.1.2
, Sampling larval infestation). Logistic regression was used to determine factors that predict blueberry infestation rate (proportion infested fruit) prior to harvest. The independent variables were logarithm (base 10) transformed cumulative fly abundance/trap, year, and the number of late summer insecticides (these are applied both to blueberry maggot fly, Rhagoletis mendax
Curran (Diptera, Tephritidae), and D. suzukii
, sometimes simultaneously) applied to the field. The number of insecticides used in fields that we sampled were recorded by us after interviewing each grower who agreed to provide this information (n
= 86 fields between 2012 and 2018).
2.5. Crop Cycle Effect on D. suzukii Relative Abundance
Wild blueberry production in almost all fields in Maine is on a two-year cycle. In the first year of the cycle plants grow vegetatively and do not produce fruit. During this time flower buds are produced that will bloom the following year. In the second year, bloom occurs and fruit is produced and harvested. Our hypothesis was that fields in the vegetative or prune cycle have lower relative abundance of D. suzukii than fields that bear fruit (crop fields). Ten fields were simultaneously sampled for adult D. suzukii relative abundance in vegetative vs fruiting fields (five fruiting and five vegetative fields, a pair at each of five geographic locations) in 2012. Three traps were hung in each field located in Columbia, Columbia Falls, and Jonesboro, Washington Co. ME on 11 August for one week. Analysis of variance (randomized complete block design, paired field location as block) was used to compare trap capture of D. suzukii adults in crop (fruit-bearing) versus prune (vegetative) fields. The dependent variables for three non-replicated two-way ANOVAs (randomized complete block designs) were male, female, and total fly captures per trap.
2.6. Impact of Natural Enemies and Wild Fruits on D. suzukii Relative Abundance in Wild Blueberry Fields
We have previously shown that spotted wing drosophila utilize wild non-blueberry fruits along field edges to build up their populations prior to blueberry ripening [39
]. We have also shown that predation of SWD pupae in wild blueberry fields can be quite high and appears to be mostly associated with insect predators, especially crickets [21
]. This study, conducted in 2018, was designed to assess how wild fruit utilization and predation affect the population buildup of D. suzukii
in wild blueberry fields. Our hypothesis was that fields with high abundance of wild fruits on the periphery of wild blueberry fields would have high D. suzukii
relative abundance and fields with high abundance of natural predators would have low relative abundance by the end of the growing season and that these dynamics occur independent of field size. Twenty commercial wild blueberry fields were selected in 2018, 10 in each of the two major growing regions (Midcoast and Downeast) as described in Section 2.1.1
and Table 1
. Three traps were placed in each field in early July, 2018. At the time of trap deployment field size was obtained from the growers. Traps were monitored at 5–7 day intervals until harvest. Throughout the study, on each sample date, traps set the previous week were collected and returned to the laboratory where male, female, and total abundance adults were determined and recorded. New traps were deployed weekly. Using these data, we calculated the total number of D. suzukii
adults and males per trap captured from each site for each date and the mean cumulative number of adults and males over the entire sampling period.
An index of predation relied upon deploying sentinel D. suzukii
pupae in the fields (see Ballman et al. [21
] for detailed methods). Pupae were removed from our laboratory colony, rinsed under running water to remove media, and examined under magnification to verify the presence of a developing fly. All pupae were frozen for 24 h prior to the start of the experiment. Killed pupae were affixed to 9 cm white-painted Petri dishes by two, 7 cm rows of double-sided tape. Each piece of tape had 10 pupae for a total of 20 pupae per plate. At each field site, three plates were placed along the field edge 3 m apart and lightly covered with duff collected from the field. All plates were left in the field for 24 hours and then retrieved. The numbers of intact pupae were counted in the lab under magnification. Pupae that were obviously chewed, but not completely consumed, were counted as predated.
Wild fruit host abundances were quantified along the edges of wild blueberry fields. Wild fruit was surveyed 2–3 times in blueberry fields in late July, early August, and late August. To evaluate wild fruit, three, 30-m transects were set up along each of four field edges. The presence or absence of wild fruit was recorded at every other 0.3 m along each transect for a total of 50 observations per transect. The species of wild fruit along each field were also recorded (see Ballman et al. [21
] for more details).
We constructed a general linear model to determine the field level factors that explained the variation in the end of season total (male + female) D. suzukii captures per trap in each field. The potential predictors that were considered for the model were: field size (ha), production system (organic, and low, medium, and high conventional), the prevalence (% of transect landcover) of non-crop wild fruit along the edges of the field, and the intensity (% of sentinel pupae predated) of predation on pupae in the field. In addition, we included all of the two- and three-way interactions in the model.
2.7. Management-Early Harvest Tactic and Action Thresholds for D. suzukii in Wild Blueberry
The wild blueberry fields sampled in the seasonal occurrence study described above (Section 2.1
) were used to determine if action thresholds for D. suzukii
adults could be developed for growers. Our approach was to base the action thresholds on adult male trap captures. Once pigmentation develops in the wings of newly emerged males, they are easy to identify with little error by growers in Maine. There are no other species of drosophila or other small sized Diptera in Maine that have similar wing pigmentation and can be confused with male D. suzukii

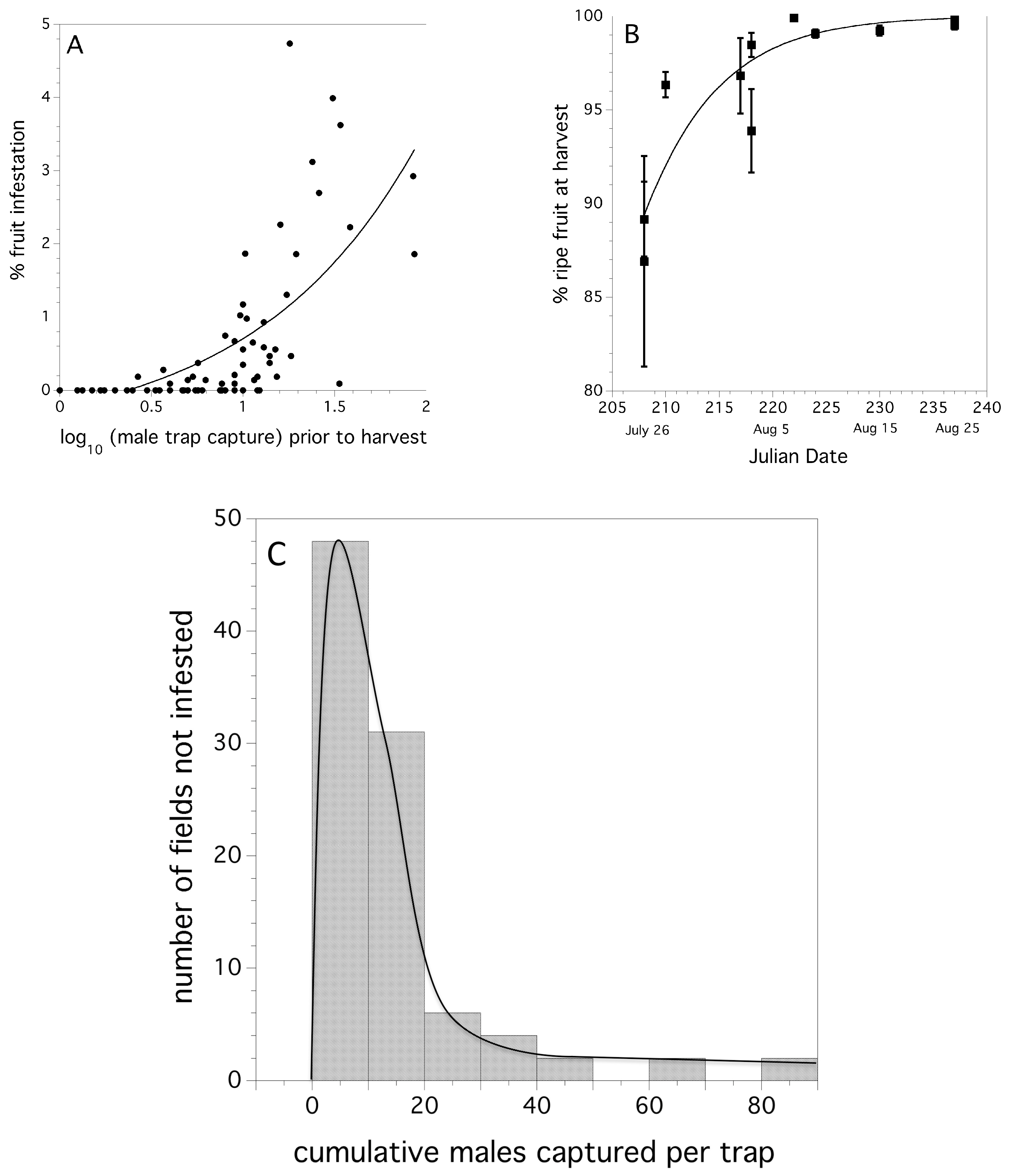

. A statistical model to determine the relationship between male trap capture and percent fruit infestation the following week was fit to all wild blueberry fields that were sampled for infestation prior to harvest (n
= 92) between 2012 and 2017. Thus, fields not sampled for infestation of fruit before harvest could not be used for this model even if they were monitored for adult relative abundance. Because the relationship was non-linear in nature, we fit a linearized exponential model to the data to determine if a significant relationship existed and then using the Levenberg-Marquardt’s non-linear least squares algorithm, we fit a three-parameter exponential model to the data to construct a predictive equation [45
] (see Methods, Section 2.1.3
: Statistical Analysis and Modeling).
We first developed a tactic of early harvest. In all years (2012–2018) fields that were harvested prior to any D. suzukii males being captured were assessed as to their level of infested fruit and the date of harvest. From this data (n = 10), we hypothesized that an early harvest tactic to avoiding damage was practical. To test this hypothesis, the proportion of non-ripe fruit present in 11 fields was assessed at harvest in 2016 in order to show the cost–benefit of an early harvest tactic. Three samples of 500 fruit throughout each field were collected in order to determine the mean and standard error of percent ripe fruit (green fruit/(green + ripe fruit)). A predictive linear model was developed to determine the crop loss due to non-ripe fruit and the time of harvest.
Our second approach was to develop “risk-based” action thresholds. This involved fitting a probability density function to all fields (n = 92). The density function was then used to determine the probability or likelihood of infested fruit the week following a given mean cumulative male adult trap capture. We tested several continuous variate density functions as models for our empirical data. Depending upon the density function, a Kolmogorov-Smirnov cumulative frequency distribution test or a Cramer-von Mises frequency distribution test was used to evaluate the goodness of fit of the selected density function to the empirical data (α = 0.05). This information was then used to construct action thresholds for growers with varying risk aversion, based upon male D. suzukii in trap captures. Validation of the early harvest tactic and action thresholds derived from the probability model was performed on 14, 10, and 19 fields in 2016–2018. The 2016 validation was upon a probability model derived from a subset of fields sampled between 2012 and 2016 (n = 82); whereas, the 2017 and 2018 validations were based upon the probability model derived from fields sampled between 2012 and 2017 (n = 92). Fields were pre-assigned with an action threshold. The fields were monitored for the growers and with the assigned thresholds in mind, fields were either harvested before or immediately after the threshold was reached, or the growers applied an insecticide. The observed infestation rates of fruit for each of the action thresholds attained the previous week were then compared to the expected probability of infested fruit derived from the probability density function of male D. suzukii action thresholds.
Briem et al. [16
] in a long-term trapping study cautioned about regarding trap capture as absolute population density. We agree that their warning is warranted. In a previous study we showed that only 15–20% of flies in a caged population are captured by the type of trap that we used in this study [46
]. In addition, Briem et al. [16
] show that trap captures for D. suzukii
can be affected by the environment surrounding the trap and weather conditions. This has been shown for other insect species as well [47
]. Therefore, in this study we refer to trap capture as a relative abundance estimate of D. suzukii
and that trap captures only provide an index of population density. While we have observed its rate of trap capture to increase logarithmically, within a growing season, this is not related to the production system or the rate of degree day accumulation during the summer. Most crop production systems in other states also are characterized by explosive logarithmic rates of trap captures during the stage that ripe fruit is available for D. suzukii
]. The rate of increase in trap capture during the growing season was explained by a negative relationship with degree day accumulation in the spring. It is not clear why cooler springs would result in a higher rate if trap capture increase in the late summer. We speculate that either the rate of spring degree day accumulation is negatively correlated to a causal factor that we did not measure or that it might be related to overwintered adult synchrony with spring available food resources such as early ripening fruit (ex. Cornus canadensis
L. (bunchberry), Lonicera
spp. (honeysuckles) and Rubus
spp. (dewberry species) and/or early fungi that produce fruiting bodies. The authors have observed D. suzukii
adults on the surface and larvae in the interior of fungal fruiting structures (toadstools) in Maine.
We found that the date of first detection determined cumulative relative abundance of flies at a standardized growing season of 705 DD. The earlier flies were captured in a field, the higher the relative abundance at this point in the growing season. Pelton et al. [13
] found that in higher altitude woodlands, flies were detected earlier in the season than in low croplands, but unlike our study, they did not find any difference in fly relative abundance due to earlier detection. Briem et al. [16
] found that the rate of degree day accumulation in the summer determined seasonal relative abundance of flies. We might be witnessing the same phenomenon, but it might be confounded by the increasingly earlier detection of flies in wild blueberry fields.
Our hypothesis that D. suzukii

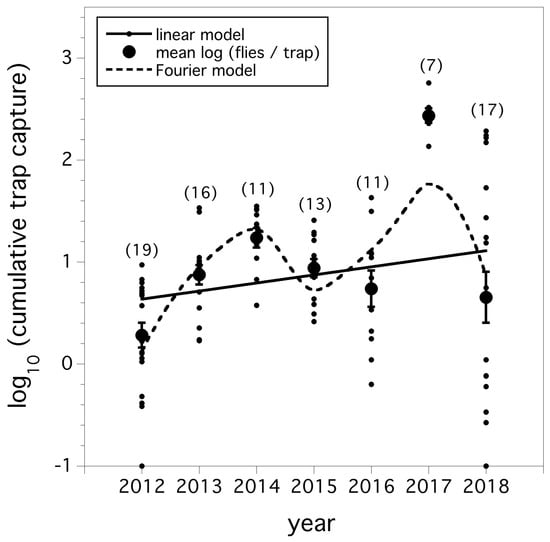

relative abundance has been increasing each year is borne out by a linear model, but an alternative Fourier model suggests a periodic dynamic and not a simple linear increase. We base this on the better balance of residuals for the non-linear model (see Figure 1
), reduction in model deviance and the better AICc index for a Fourier model compared to a linear model. However, we are uncertain about the conclusion of the D. suzukii
relative abundance being periodic. A seven-year study is not a long enough time horizon to provide a confident conclusion. Only future monitoring of the population will allow more certainty. An annual oscillating relative abundance might suggest that predation is dampening D. suzukii
population increase from one year to another. We have shown that predation can reach 100% of deployed sentinel D. suzukii
pupae in commercial wild blueberry fields [21
]. However, another hypothesis that might explain this periodic or oscillatory dynamic might be overwintering. An annual increase in D. suzukii
relative abundance over the seven-year period is indicative of D. suzukii
overwintering in Maine. There is evidence that while D. suzukii
can over winter in north temperate US climate zones, survival rates are low [27
]. Experimental studies of ours suggest that the survival rate in Maine is also low [29
]. Some winters were more severe for overwintering than others during our seven-year study. The winter of 2017–2018 was one of the colder winters in recent years with extreme temperatures below −26 °C in southern Maine. This was 9–10 °C colder than in 2016 or 2017. Therefore, the large drop in relative abundance from 2017 to 2018 could be due to this extreme harsh winter. A negative correlation between summer relative abundance of D. suzukii
and the previous winter temperatures is expected. Our analysis of relative abundance from one year to the next showed that mild winter temperatures resulted in higher relative abundance in wild blueberry fields the subsequent year and harsh winter temperatures resulted in lower relative abundance the following year. A similar finding by Briem et al. [16
] provided evidence in a seven-year study in Germany that mild winters can positively influence relative abundance of flies.
Crop production system does not appear to affect relative abundance of D. suzukii adults in wild blueberry fields, other than indirectly by determining the number of insecticides that are applied during the period of D. suzukii buildup. One would think that because insecticide applications reduce fruit infestation, that this would translate into lower adult D. suzukii relative abundance. However, the explosive logarithmic increase in trap captures prior to harvest suggests that insecticides are functioning more as crop protectants from fruit infestation then reducing buildup of adult populations.

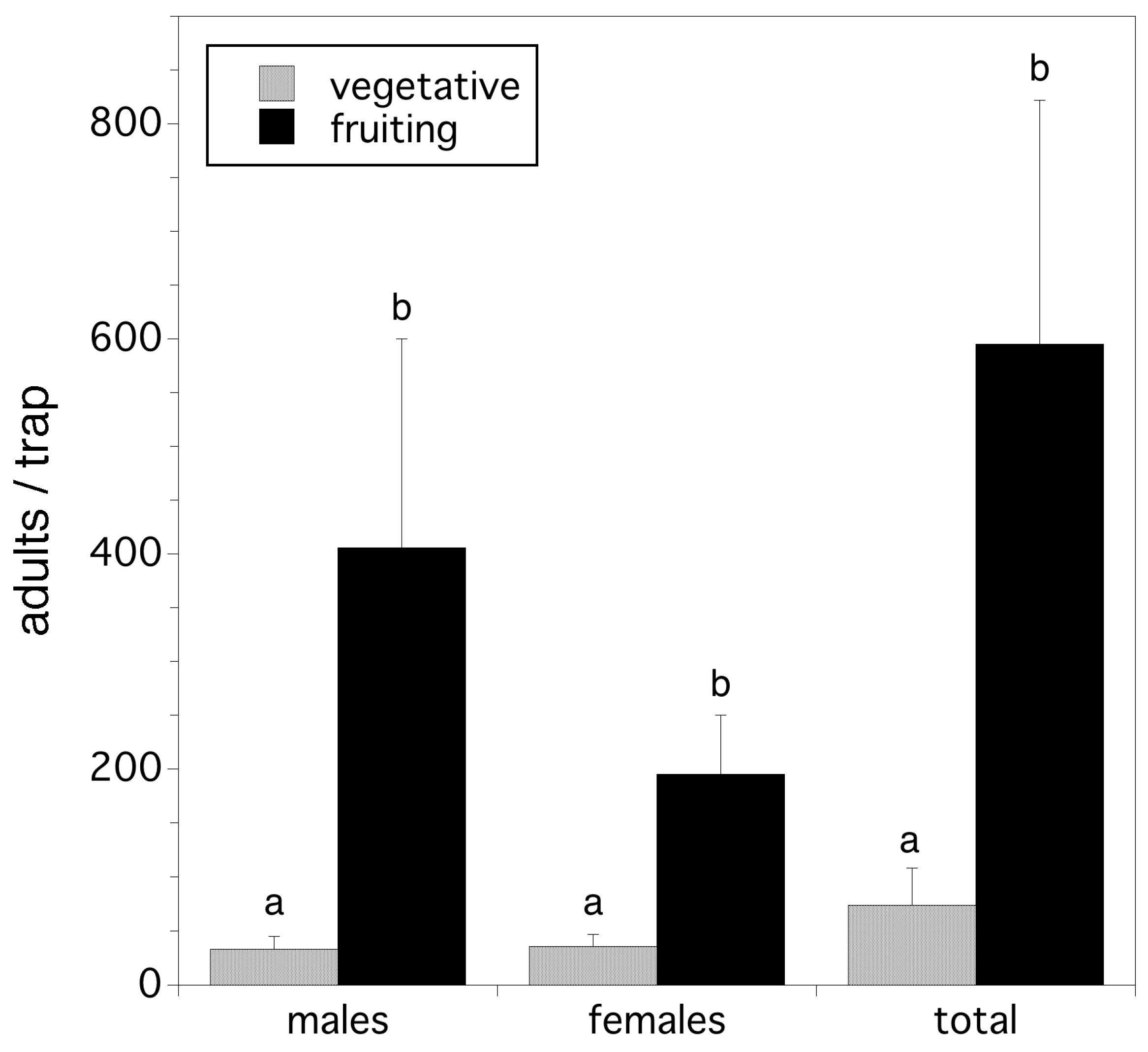

Crop stage does affect relative abundance of flies captured. Fruit bearing fields were found to have significantly higher relative abundance than vegetative fields (no commercially produced fruit present). We have previously shown that wild non-blueberry fruits are important in the buildup and colonizing levels of D. suzukii
in fruit-bearing fields [38
]. However, the existence of D. suzukii
in vegetative fields also suggests that wild non-crop fruits serve as host reservoirs that can maintain populations in a field when there is no crop until the following year when a susceptible crop will be present. These vegetative field populations may also be important if flies migrate seasonally to crop field habitats. We do not know if this occurs in Maine wild blueberry, but Tait et al. [33
] demonstrated that seasonal migration over large spatial scales (ca. 9 km) in Italy facilitates exploitation of resources in patchy environments. Briem et al. [16
] also found that different habitats affected relative abundance of D. suzukii
in Germany, but in their case, forest edges and hedgerows had higher population relative abundances than crop fields. This is opposite of what we found, there is no corollary of alternating fruit crops from one year to the next in other fruit crop systems that we know of, with the exception of strawberries. However, we did not find a discussion of this phenomenon with strawberry production in the literature.

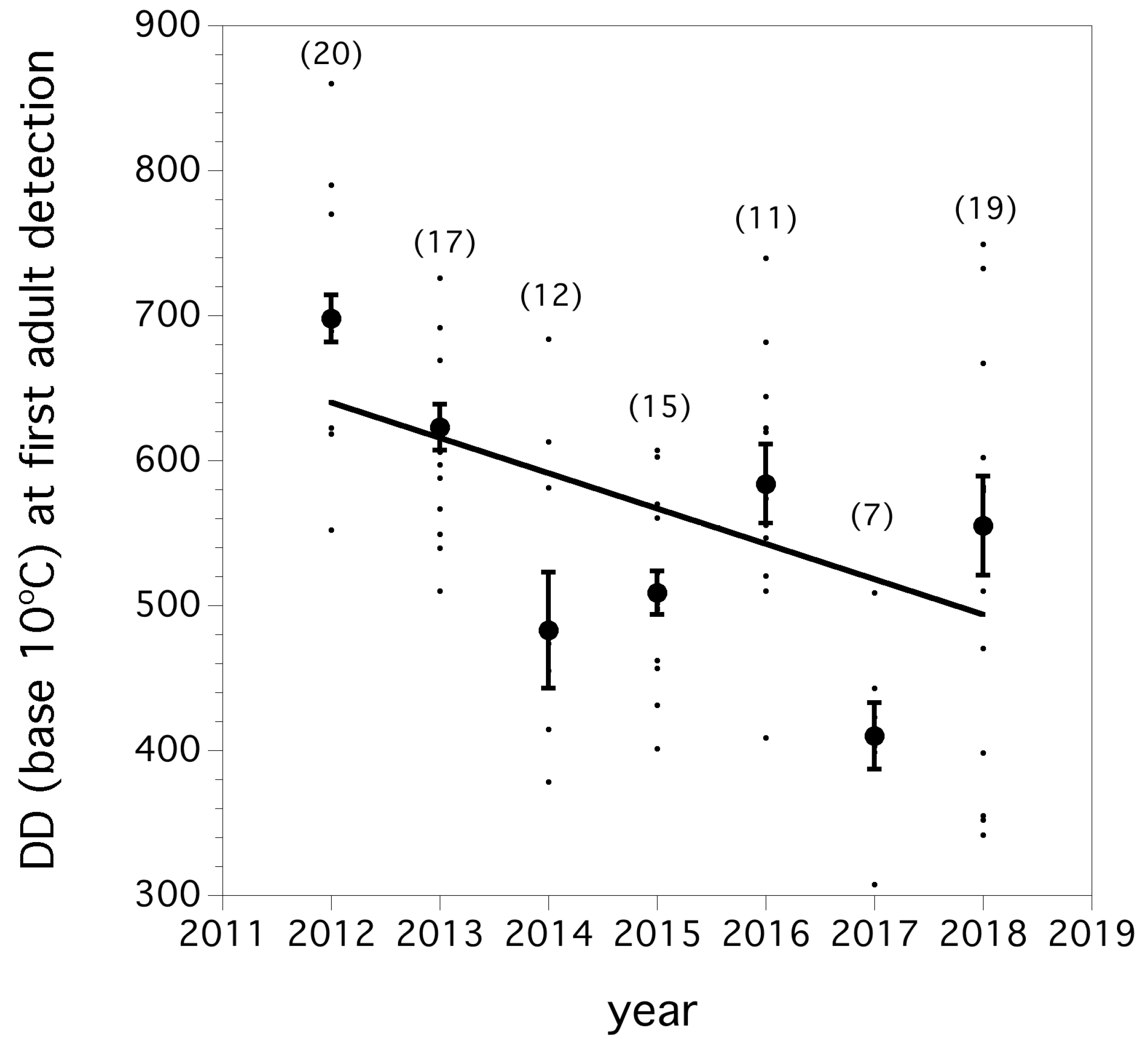

We also found that the first detection of D. suzukii
adults in traps was earlier with each year of the invasion. We have not found this phenomenon reported by other researchers. We speculate this may reach a more stable date once the population becomes more adapted to Maine climates, as has been documented with other invasive organisms [17
]. However, this also might not be the case. Earlier dates of infestation might reflect climate change. Hotter summers have occurred in Maine over the past decade. In our analysis of summer temperatures in Maine based upon National Weather Service data [49
], we found that between 1970 and 1980 there were 449 days that were 26.7 °C or hotter, whereas, between 2008 and 2018 there were 501 days that were 26.7 °C or hotter. This earlier detection of flies in traps was not directly associated with earlier infestation rates in wild blueberry fields. However, we did find an indirect relationship. Earlier detection appears to result in higher relative abundance of flies, and higher relative abundance of flies results in higher fruit infestation rates.
Fruit infestation rates are relatively low in Maine wild blueberry, ranging from 0–5%. Very little has been reported in the literature about fruit infestation levels by D. suzukii
in various crops, although several studies have documented economic losses. DiGiacomo et al. [50
] reported on a survey of Minnesota raspberry growers that suggested losses ranging from 2–100% of planted crop land and a total loss of U.S. $
2.36 million. Asplen et al. [23
] cite Goodhue et al. [51
] and suggest that if not controlled D. suzukii
can result in an annual loss of $
500 million in western U.S. strawberry and raspberry production. Dal Fava et al. [52
] published an economic cost/benefit analysis for fruit production in Italy. Their conclusion was that fruit infestation was not a clear measure of crop loss. It was the frequency of insecticide applications that made profit less likely, especially under high fly pressure. However, it is not the absolute crop loss that many growers worry about, but more the detection of any larvae in fruit that is bound for markets with low tolerance, such as foreign export markets [52
]. As mentioned previously, we did find that fruit infestation level is related to adult relative abundance, but additional variation in fruit infestation is explained by year to year variation (we suspect this is due to variation in weather conditions), and insecticide applications. Crop management system was indirectly related to fruit infestation level because management system determines the average number of insecticide applications applied during the late summer. There has not been a lot of data documenting commercial “field-level” effectiveness of multiple insecticide applications in growers commercial fields in reducing fruit infestation. But more specifically, the relationship between increased frequency of applications and the subsequent increased reduction of infestation. A few studies in other states and crop systems have shown that insecticide applications in general reduce fruit infestation [53

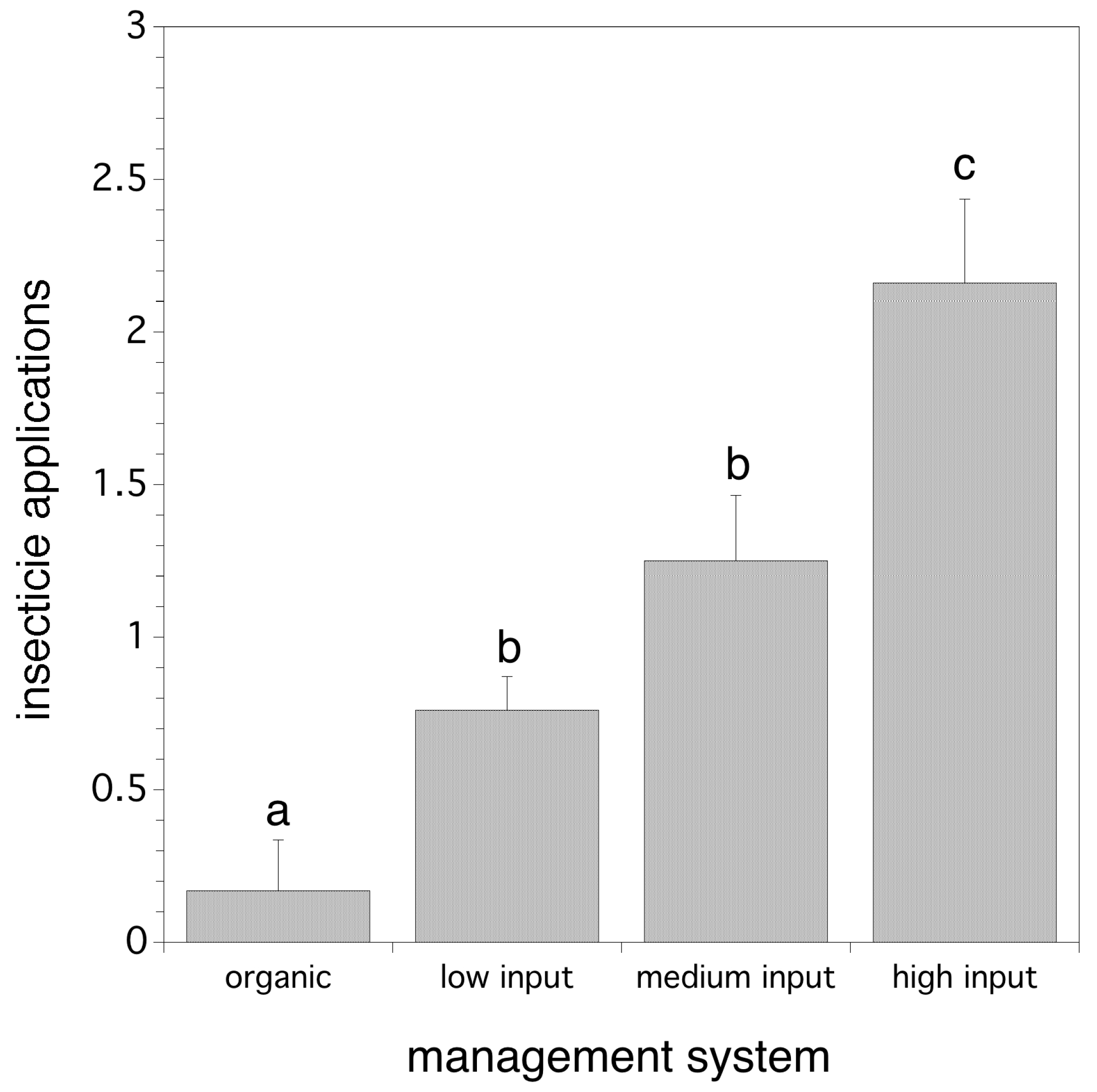

]. The average insecticide application frequency for control of D. suzukii
was observed to be the highest in the high input management system, with the average insecticide application being two per season. However, some commercial fields received three and four applications during the summer. Our data suggests that more than two applications targeting D. suzukii
during the growing season will have no added benefit in reducing fruit infestation.
A very interesting finding of ours is that sex ratio relative to males has been declining over the seven year period (Figure 4
B). When male abundance is compared to female abundance over the entire seven-year period, the proportions of male and female flies appear relatively constant as a function of relative abundance (Figure 4
A). Therefore, we are not confident that the trend we have observed in declining sex ratio relative to males is real. This is because the logistic regression on sex ratio that we conducted is highly leveraged by the observed sex ratios in 2012. If this drop in the proportion of males is happening, then one hypothesis is that D. suzukii
populations in Maine are infected with Wolbachia
spp. This bacterial infection is known to be lethal to males in several insect species, most notably in Drosophila [56
bacteria has been observed in high prevalence levels in D. suzukii
in Europe, but only moderate infection rates (7–58%) and no cytoplasmic incompatibility have been observed in North American D. suzukii
]. At this time, we have not sampled and assayed flies in Maine to verify the presence of this bacterial pathogen.
The invasion of D. suzukii
has disrupted well-established effective IPM programs throughout the U.S. [54
]. Some fruit production systems in North America increased insecticide applications dramatically to minimize fruit infestation [55
]. Biological control and removal of non-crop fruit hosts in the vicinity of crops have been presented as alternatives or complimentary management tactics to insecticides for this invasive pest [19
]. We have found from two studies in wild blueberry, this one and Ballman and Drummond [39
], that increased abundance of non-crop fruit along field edges results in increased fly pressure in the crop as measured by trap capture. We have also found that predation of D. suzukii
pupae is high in wild blueberry fields [21
], but before this study, we did not have any measure of the impact of natural enemies on relative abundance of flies in fields. We showed that natural enemies do reduce fly pressure, but only in fields that have high non-crop wild fruit abundance. We interpret this in the following way. Fields that have high non-crop wild fruit abundance have higher fly pressure resulting in higher rates of reproduction in fruit bearing fields or in non-crop wild fruit refugia along wild blueberry field edges. Under high D. suzukii
relative abundance and reproduction, natural enemies numerically respond, and under this situation, reduce the higher level pest populations. However, because the fly pressure is so high under this scenario, the amount of reduction in the fly population does not appear to be capable, on its own, of reducing pest pressure to a level that reduces risk for growers. This dynamic needs to be researched further and in other crop systems. We are not suggesting that biological control is of little benefit. Lee et al. [58
] have reviewed all of the biological control studies conducted on D. suzukii
worldwide. They make a strong case that biological control is promising and that it may be influential in lowering risk to growers of crops that are currently vulnerable to D. suzukii
invasions have resulted in increased insecticide applications to many crops vulnerable to this pest in both North America and Europe. Dal Fava et al. [52
] show in an economic analysis of D. suzukii
management, that it is the increased frequency in insecticide applications than actual damage from fruit infestation that is the serious economic consequence to farmers. This may well be the case for Maine wild blueberry growers as well. We have shown that insecticide applications do decrease the infestation levels of fruit in Maine wild blueberry production, but more applications than two per season appear to reduce the benefit of this management tactic and may only reduce net profit margins for farmers.
We were able to develop action thresholds between 2012 and 2017. A risk-aversion gradient approach was taken [61
]. A risk-based action threshold is appropriate given the different production systems that exist in Maine for wild blueberry and given that markets range from local fresh market roadside sales, to the export of frozen berries to foreign markets. Therefore, growers can select the threshold level that best suits their capital investment and perceived risk due to D. suzukii
damage potential. Other than, the first occurrence of flies in traps, we do not know of any other fruit crop IPM programs that utilize action thresholds for management of D. suzukii
. Wild blueberry growers are currently using these thresholds [2
]. The thresholds were well supported by the 2016 and 2017 validation studies. There was only a minimal departure between observed and expected proportion of infested fields resulting from the selection of each specific threshold value. In 2018, while the early harvest tactic was still highly effective, the thresholds did not prove to match up the expected with the observed proportion of fields with infested fruit. So, in two of three years the thresholds worked well. This threshold system does have a buffer for preventing unexpected losses. We recommend that growers take a fruit sample to determine the percent fruit infestation before they reach threshold levels. In this way growers can have confidence in this decision making tool and also catch any damage before it gets too high if the thresholds break down. However, in all three years, the infestation rates in 24 of 35 fields (68.6%) in our validation test were well predicted by our probability model. Even in 2018, most of the infestation levels were between 1-3% and so infestation rates were still relatively low in the absence of insecticides. Clearly, we need to conduct several more years of validation in order to verify that these thresholds minimize the risk for growers, or at the very least, determine how likely the thresholds are to provide accurate predictions. We can only speculate why the thresholds did not perform well in 2018. That summer was one of the hottest summers on record for Maine, with extreme high air temperatures of 35º C for both July and August. We hypothesize that the fermentation bait we recommend either lost its attraction to flies, or that under extremely hot conditions, flies are reluctant to enter the traps. In either case, the threshold based upon trap capture would be underestimating cumulative male fly relative abundance. Briem et al. [16
] showed evidence of high temperatures diminishing trap efficacy for D. suzukii
. Rogers et al. [63
] demonstrated that in high tunnel production of fall red raspberries air temperatures exceeded optimal temperatures for development, mating, and oviposition. In addition, although not mentioned by the authors, these temperatures could have been important in their observed low trap captures compared to trap captures within the raspberry crop outside of the tunnels. High temperature regimes might be a phenomenon that needs more attention in the future, especially as climate change is predicted to result in hotter future summers in many north temperate fruit growing regions.
