Minerals 2019, 9(9), 546; https://doi.org/10.3390/min9090546

Article
Evidence for a Carbonatite-Influenced Source Assemblage for Intraplate Basalts from the Buckland Volcanic Province, Queensland, Australia
Department Earth and Planetary Sciences and ARC Centre of Excellence for Core to Crust Fluid Systems, Macquarie University, North Ryde 2109, New South Wales, Australia
*
Author to whom correspondence should be addressed.
Received: 20 June 2019 / Accepted: 7 September 2019 / Published: 10 September 2019

Abstract

:
Eastern Australia contains a widespread suite of primitive (MgO ≥ 7.5 wt.%) intraplate basaltic provinces, including those sited along the longest continental hotspot track on Earth (≈2000 km), the Cosgrove track. The Buckland volcanic province is the most southerly basaltic province on the Cosgrove track before a >1600 km stretch that contains only sparse leucitite volcanism. Buckland is also situated just northeast of the edge of thick cratonic lithosphere where it transitions to a thinner continental lithosphere (<110 km) to the east, which may influence the production of plume-derived melts. Here, analysis of minor and trace elements in olivines in alkali basalts and basanites from the Buckland Province are combined with whole-rock compositions to elucidate the mantle source assemblages, and to calibrate minor and trace element indicators in olivine for application to source mineralogy. Olivine xenocrysts show element concentration ranges typical for peridotites; Mn and Al concentrations indicate that the ambient mantle is spinel, rather than garnet, peridotite. High modal pyroxene content is indicated by high Ni, Zn/Fe, and Fe/Mn in olivines, while high Ti/Sc is consistent with amphibole in the source. Residual phlogopite in the source of the basanites is indicated by low K/Nb in whole rocks, while apatite contains high P2O5 and low Rb/Sr (≥0.015) and Sr/La (≥13). The basanite source assemblage probably contains apatite, phlogopite, olivine, clinopyroxene and orthopyroxene, whereas the alkali basalt source assemblage is probably amphibole, olivine, orthopyroxene and clinopyroxene ± phlogopite ± apatite. Both source assemblages correspond broadly to olivine websterite, with the basanite source lying deeper than that for alkali basalt, explaining the occurrence of phlogopite in the source. This mineralogy, along with whole-rock Ti/Eu, Zr/Hf and P2O5/TiO2 values approaching those of natural carbonatites, provide evidence showing that the Buckland source consists of a peridotite that has interacted with a carbonate-rich melt whose origin may be in the deep lithosphere or asthenosphere beneath the craton. Similar enrichment processes are probably common throughout eastern Australia, controlling trace element characteristics in basaltic provinces. The topography of the underside of the lithosphere may play a significant role in determining mantle source assemblages by diverting and concentrating melt flow, and thus influence the location of basaltic provinces.
Keywords:
mantle metasomatism; carbonatite; olivine; trace elements; mantle source; pyroxenite; eastern Australia; intraplate basalts; Buckland

1. Introduction

The identification of primitive basalt source assemblages provides a way to understand mantle processes, such as the recycling of crustal material and mantle metasomatism, that are not directly observable on the surface [1,2]. Considerable work has been carried out on major and trace elements of bulk rocks to identify primary melt compositions and infer mantle source assemblages. However, the source assemblages of many basaltic provinces are still debated, such as the Canary Islands, Baffin Island, West Greenland and intraplate alkali basalts in eastern China [1,2,3,4,5,6,7,8].
Alkaline basic melts in both continental and oceanic environments frequently show a continuous range from alkali basalts through basanites and nephelinites to melilitites [9]. From the 1970s onwards, it was recognised from the trace element compositions of volcanic rock and peridotite xenoliths of southeastern Australia that the origin of the more alkaline members of these series could not be explained without enrichment of the source by mantle metasomatism [10,11]. Furthermore, experiments showed that H2O and CO2 in the source were required to explain melilitites [12]. These early models of melt production in a homogeneously metasomatised peridotite source have been replaced by the acceptance that hydrous (and possibly carbonate) minerals are sequestered in separate lithologies rich in amphibole, mica and clinopyroxenes [13], with minor apatite and oxide minerals. It is worthy of note here that eastern Australian volcanics contain xenoliths rich in amphibole and apatite [14,15]. High-pressure experiments investigating the melting of these ultramafic mantle assemblages have shown that melts of amphibole-rich rocks are nephelinitic to basanitic [16,17] because of the high mode of amphibole in the melting reaction and the similarity of amphibole and nephelinite compositions [16]. The mineralogy of the metasomatic assemblages can be explained by the fractionation of basanitic melts at mantle depths [18,19,20].
Since Sobolev et al. [21], minor and trace elements in olivine have been increasingly used to add resolution to this problem since they capture the earliest information from magmas that enable a primary melt composition to be characterised [1,22,23]. This use of minor and trace elements in olivine attributes their concentrations to the modal mineralogy of the source assemblage, which in turn affects the primary melt composition through variations in partition coefficients ( D ol / melt ). However, more recent work has shown that pressure, temperature and oxygen fugacity may also change the partitioning behaviour of elements that have been used to distinguish peridotite from pyroxenite sources [2,5,23,24].
Matzen et al. [24] showed that high-Ni olivine phenocrysts are consistent with the high-temperature partial melting of spinel lherzolite followed by low-temperature crystallization of olivine; this provides evidence against an olivine-free mantle assemblage for the Koolau and Mauna Loa tholeiites [21]. However, Herzberg et al. [5] do not agree, arguing that the high-Ni olivines have a distinct pyroxenite signature that high-temperature partial melting and low-temperature olivine crystallisation cannot produce. Yang et al. [2] noted that olivines in basalts derived from metasomatised peridotite and pyroxenite can bear similar indicators, highlighting the need for care if olivine chemistry is to provide further insights into the mineralogy of mantle source assemblages and processes [2,5,23].
There is currently a notable lack of high-quality data for minor and trace elements in olivines from Eastern Australian intraplate basalts. This relatively new geochemical tool has been applied to other off-craton intraplate basalt settings, such as Hawaii, West Greenland, Baffin Island, The Canary Islands and eastern China, but has generally been only poorly calibrated against whole-rock chemistry indicators [2,5,21,22]. Here, we combine data for whole-rock and olivine compositions for alkali basalts and basanites from the Buckland volcanic province, Queensland, Australia, to add resolution to well-established indicators for source assemblages and mantle processes based on whole-rock chemistry and to define new olivine indicators. We aim to identify the source assemblages for the Buckland alkali basalts and basanites, shed light on mantle processes and produce a holistic and robust method capable of detecting diverse mantle source assemblages beneath eastern Australia.

2. Geological Setting

Eastern Australia hosts one of the world’s most extensive intraplate volcanic settings that stretches from northern Queensland to southern Tasmania [25]. Numerous petrological studies have been carried out to distinguish possible mantle source assemblages and metasomatic processes, mainly focusing on whole-rock chemistry, isotopes and xenolith evidence [10,26,27,28]. Mantle metasomatism has been identified in many locations in eastern Australia, and is required to account for magmas enriched in light rare earth elements (LREE) and large ion lithophile elements (LILE), and the presence of minerals, such as amphibole and apatite, in entrained mantle xenoliths [10,11,29,30,31,32]. Mantle metasomatism has also been invoked to account for enrichments and unusual variations in trace elements of intraplate basalts and for the presence of amphibole, apatite and mica in xenoliths throughout eastern Australia. These include the Atherton Tablelands (Queensland), Dubbo and the Southern Tablelands (New South Wales), and the Newer Volcanics (Victoria) [27,28,29,30,31,32,33,34,35,36]. Yaxley et al. [35] presented evidence from mantle xenoliths from the Newer Volcanic Field in Victoria that suggested a reaction between a carbonate-rich melt and mantle peridotite to produce apatite-bearing wehrlite and lherzolite.
Eastern Australian intraplate basalts comprise over 50 provinces, which were mostly emplaced <70 Ma, with no single geodynamic model explaining all their emplacement mechanisms [29,37]. Central volcanoes are characterised by predominately basaltic flows, which erupted from well-defined vent areas and form large volcanic complexes, together with felsic flows and felsic and mafic intrusions. These provinces form age-progressive tracks running north–south through eastern Australia, for which a plume hypothesis has been invoked [37,38]. Lava fields comprise extensive and often thin lavas that are exclusively basaltic and often contain small amounts of scoria, lava cones and maars. For the Newer Volcanic Field in Victoria, an edge-driven convection model has been proposed [39], although it is unclear if or to what extent mantle plumes may have interacted with edge-driven convection [38,40]. Leucitite volcanism in western New South Wales has also been related to plume activity and is defined by small potassium-rich mafic intrusions commonly containing leucite, phlogopite and K-richterite, with rare flows of limited extent and volume.
Davies et al. [38] linked the lithospheric thickness to the distribution of intraplate basalts in eastern Australia, suggesting that lithospheric thickness is a dominant influence over their composition and volume. They showed that basaltic compositions are typically found in regions where the lithosphere is <110 km thick, whereas leucitite volcanism occurs in areas of intermediate lithosphere thickness, and no volcanism occurs where the lithosphere is >150 km. The Buckland Province lies on a transitional zone with a lithosphere thickness ≈120 km, with a thin lithosphere to the northeast and thick cratonic lithosphere to the southwest.
Buckland is a central volcano forming the most southerly basaltic province along the Cosgrove track in Queensland, north of a >1600 km stretch essentially free of volcanism, which contains only rare leucitite volcanism (Figure 1a). The Buckland lavas erupted between 30.7 Ma ± 0.5 Ma and 27.3 ± 0.8 Ma through the late Paleozoic to early Mesozoic sedimentary Bowen, Galilee, Eromanga and Surat Basins (Figure 1b) [38,41,42]. Two eruption episodes are recognised, the “old” (30.3 Ma ± 0.1 Ma) and the “young” (27.4 ± 0.2 Ma) episode, which were separated by a ≈ 2.5 Myr hiatus with little to no volcanic activity [42,43]. Kennett et al. [44] place the Moho depth underneath Buckland at 38–40 km, and Davies et al. [38] place the lithosphere–asthenosphere boundary (LAB) at ≈125 km.
Griffin et al. [33] and Skae [46] described xenoliths from Buckland, which provide direct information about the lithospheric mantle. Griffin et al. [33] described two spinel lherzolites and a garnet websterite from Buckland in a large central-east Queensland xenolith dataset. Opx-spinel thermometry yielded temperatures of 900–1050 °C, with an estimated pressure equivalent to 25–50 km in depth, placing these xenoliths close to the Moho, either in the lowermost crust or the upper lithospheric mantle. Skae [46] collected 14 anhydrous xenoliths from Buckland basanites, where the majority were spinel lherzolites with mineral proportions of olivine > orthopyroxene > clinopyroxene > spinel. The xenoliths from both Skae [46] and Griffin et al. [33] add weight to the suggestion that the primitive basanites were sourced from the spinel lherzolite stability field.
Crossingham et al. [43] provide the most comprehensive genetic study for Buckland and suggest the source assemblage was a garnet-phlogopite-amphibole-bearing peridotite source. They infer the presence of residual phlogopite from negative K anomalies, which may be due to the interaction of a deep mantle-derived melt with a subcontinental lithospheric mantle. Further, they show there is no petrographic or geochemical evidence for magma mixing and use this to suggest a relatively quick ascent to the surface. They make a case for crustal contamination in the Buckland lavas using coupled increases of Pb and K with Ce/Pb, Nb/U with radiogenic 87Sr/86Sr, and 207Pb/204Pb with less radiogenic 143Nd/144Nd as time progressed to show higher degrees of crustal contamination in young Buckland lavas than in older lavas.

3. Analytical Methods

Samples were selected based on hand sample examination for olivine phenocrysts suitable for laser ablation in primitive basalts; sample locations are given in Figure 1. Selected samples were mostly from altitudes ascribed to old Buckland lavas, with a single sample (75,240) at altitudes ascribed to young Buckland [42,43]; altitudes for each sample are given in Supplementary Table S2.

3.1. Whole-Rock Geochemistry

Whole-rock sample fractions were powdered in a tungsten carbide mill and melted into glass discs for X-ray fluorescence (XRF) analysis. Glass discs were prepared in a platinum crucible with a flux of 12:22 lithium borate:lithium metaborate. Each sample was placed in a rocking furnace for 20 min at 1050 °C. Analysis was carried out using a PANalytical Axios, Almelo, The Netherlands, wavelength dispersive 1 kW (WD) XRF at Macquarie GeoAnalytical, using the United States Geological Survey (USGS) Hawaiian Basalt BHVO-2 as a reference material. Volatile contents were determined via loss on ignition at 1100 °C.
Whole-rock digestions for solution ICP-MS analysis were prepared using the following method: 0.1 g of sample powder was weighed into clean 15 mL Savillex Teflon beakers and the mass recorded to four decimal places. Samples were digested using a 1:1 mixture of concentrated HF (Merck, Darmstadt, Germany, Suprapur grade) and distilled concentrated HNO3 (Merck, Darmstadt, Germany, Analar grade) at 150 °C for 24 h, then dried down and repeated. Then, 2 mL of perchloric acid HClO4 (Merck, Darmstadt, Germany, Suprapur) were added and refluxed at 170 °C. The perchloric acid solution was dried down at 150 °C, 170 °C and 190 °C to remove any fluorides that may have formed. A few millilitres of 6 N HCl was added and dried down at 190 °C to remove any residual perchloric acid left in the sample. Finally, 6 N HNO3 was added and heated at 150 °C for 24 h but not allowed to fully dry, and then taken up in 10 mL of 2% HNO3 and 0.25% HF. Each sample solution was diluted with up to 100 mL with 2% HNO3 and 0.25% HF. Five millilitres of each sample solution was spiked with 0.02 mL of a 6Li, As, Rh, In, Tm and Bi solution to allow for correction of instrument drift during analysis. The spiked samples were run on an Agilent 7500cs quadrupole ICP-MS at Macquarie GeoAnalytical using USGS reference material BCR-2 as the calibration standard. Spiked solutions (1:1000 and 1:5000) of standards BIR-1, BHVO-2, and BCR-2 were run regularly as a check for accuracy and checked against reported values along with blanks of HNO3.

3.2. Olivine Analyses

Electron probe micro-analysis (EPMA) was carried out on a CAMECA, Gennevilliers, France, SX100, at Macquarie GeoAnalytical, Department of Earth and Planetary Sciences, Macquarie University. Operating conditions were a 20 kV acceleration voltage, 20 nA electron beam current, and 2 µm beam diameter, using long count times for the minor elements Ni, Al, and Mn (Table 1). Alteration zones, cracks and inclusions were avoided during EPMA analysis to obtain reliable data and to allow for later laser ablation at the same locations.
For laser ablation inductively coupled plasma mass spectrometry (LA-ICP-MS), a 193 nm ArF excimer laser was used with argon as the carrier gas. The isotopes 7Li, 11B, 23Na, 24Mg, 26Mg, 27Al, 29Si, 30Si, 31P, 43Ca, 44Ca, 45Sc, 47Ti, 49Ti, 51V, 53Cr, 55Mn, 59Co, 60Ni, 62Ni, 63Cu, 66Zn, 67Zn, 88Sr, 89Y, 90Zr, 93Nb, 135Ba, 137Ba, 139La, 140Ce, 157Gd and 172Yb were monitored using an Agilent, Lexington, MA, USA, 7700cx Quadrupole LA-ICP-MS at Macquarie GeoAnalytical. Background was collected for 120 s, with a 60-s ablation time for laser shots at 10 Hz with a fluence of 5 J/cm2. National Institute of Standards and Technology (NIST) 612 and 610 glasses [47], BCR-2G [48], and San Carlos Olivine [49] were used as reference materials with the recommended GeoReM values from http://georem.mpch-mainz.gwdg.de/start.asp?dataversion=current. 29Si was used as an internal standard. Homogeneous sections of signal were selected to avoid inclusions and fractionation with depth in the laser ablation holes. Data reduction was carried out using the Glitter software package, version 4.0, developed at Macquarie University, Australia [50]. The laser spot size was mostly 85 µm, and 65 µm in very few cases (three in total) for small crystals, or where necessary to avoid cracks, zonation boundaries or iddingsite alterations. A small spot size has been shown to cause element fractionation [51], but this effect should not be relevant for 85-µm ablation holes, as indicated by values for NIST 612 analysed as secondary standards falling within 1 SD of GeoRem values (Supplementary Table S1), and all measurements for 63Cu within 1 SD for BCR-2G. Isobaric interferences were considered for 45Sc, 63Cu, 66Zn and 67Zn. The interference of 29Si16O on 45Sc amounts to about 0.2–0.25 ppm [52,53]; the latter value of 0.25 ppm was used here. Correct values for 63Cu were acquired by re-running data reduction using BCR-2G as the external standard to circumvent the problem of 23Na40Ar interferences from the NIST 612 glass, which contains 14 wt.% Na2O [53]. For zinc, we used the 66Zn isotope in preference to similar results for 67Zn (only 0.5% difference) due to its higher abundance, and there is little 26Mg40Ar production in the plasma [52], which could potentially interfere with 66Zn.

4. Results

4.1. Whole-Rock Major and Minor Element Compositions

Whole-rock compositions are given in Supplementary Table S2. Samples were alkali basalts and basanites, as classified on the total alkali versus silica TAS diagram.
The alkali basalts had primitive MgO contents (8.82–10.1 wt.%), high Ni (185–241 ppm) and moderate to high Cr concentrations (109–149 ppm), consistent with primitive mantle-derived melts. Na2O (2.92–3.35 wt.%) was considerably higher than K2O (1.22–1.27 wt.%; Na2O + K2O = 4.14–4.62). P2O5 (0.37–0.52 wt.%) was high compared to TiO2 (1.69–1.77 wt.%), yielding elevated P2O5/TiO2 (0.21–0.31).
The basanites also had primitive MgO contents (9.7–11.7 wt.%), high Ni (217−300 ppm) and high Cr (125−289 ppm), consistent with primitive mantle-derived melts. Na2O (2.63–5.9 wt.%) was considerably higher than K2O (1.31–2.11 wt.%; Na2O + K2O = 4.66–8.00 wt.%). P2O5 (0.92–1.73 wt.%) and TiO2 (1.98–2.60 wt.%) contents yielded more elevated P2O5/TiO2 (0.35–0.87) than the alkali basalts.

4.2. Whole-Rock Incompatible Elements

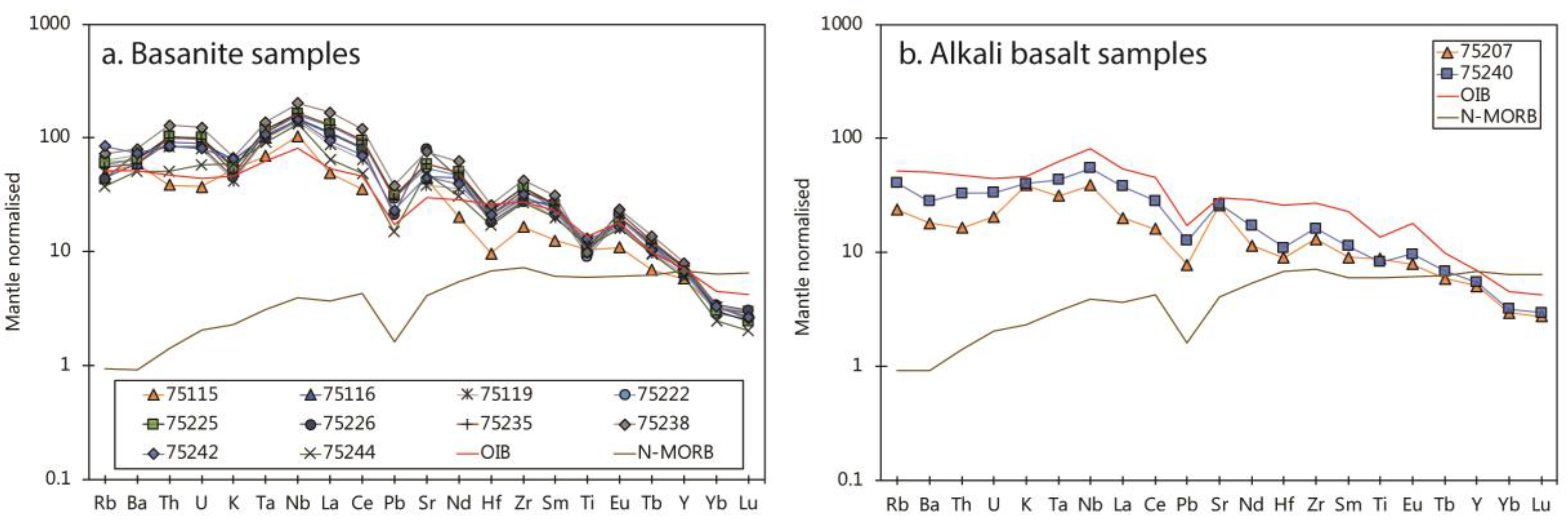

Primitive mantle-normalised incompatible element patterns are shown in Figure 2. The basanites and alkali basalts both had ocean island basalt (OIB)-like patterns [45]. However, they contained some significant deviations from OIB patterns for Rb, Ba, K, Pb, Sr, Hf and Ti for both the basanites and alkali basalts. Eastern Australian intraplate basalts had characteristically high large ion lithophile elements (LILEs) and rare earth elements (REEs). The Buckland basanites had significantly higher Nb/Yb (41.9–76.5) than OIB values (22.2) [54]. However, Nb/Yb values in the alkali basalts (16.4–21.4) were slightly lower than the OIB values but significantly higher than the N-MORB values (0.66) [54].

4.3. Olivine Chemistry

Chemical compositions of more than 100 olivines are given in Supplementary Table S3, and representative analyses are given in Table 2. Olivines had a large range of Mg# ((100Mg/(Mg + Fe); 73.2–91.3), which was reflected in the large range in the olivine/matrix distribution coefficient for Mg and Fe ( K D ,   F e M g o l / m a t r i x = 0.13–0.59). There were large variations in most minor and trace elements. This included large ranges for indicator elements that had been used to distinguish peridotite from pyroxenite source assemblages: Ni (3292–1402 ppm), Fe/Mn (47–87) and (Zn/Fe) × 104 (5.8–18.9). There was a noticeable decoupling of V and Sc concentrations (V 1.01–18.4 ppm and Sc 1.83–7.52 ppm), and large variations in Ti (1.17–113 ppm), P (21.3–334 ppm), Li (1.63–6.43 ppm) and Cr (11.9–331 ppm) concentrations.

5. Discussion

5.1. Constraints on Igneous Processes in the Buckland Magma Source Region

No melt segregation pressures have been given for the Buckland magmas, although Ewart [55] estimated segregation pressures for a variety of primitive rocks in eastern Australia: 0.9−1.4 GPa for quartz tholeiites, 0.4−1.6 GPa for olivine tholeiites, 1.6−2.1 GPa for basanites and 2.9−3.1 GPa for nephelinites. These estimates are based on melt compositions in high-pressure experiments, in which alkali basaltic melts are in equilibrium with peridotite at lower pressures than basanitic melts [18,56]. Primitive Buckland basanites have previously been attributed to the melting of a volatile-bearing lherzolite source assemblage with X H 2 O ≤ 0.2 and X H 2 O + CO 2 ≤ 0.5 wt.% [46], whereas a source for the alkali basalts has not been constrained. These pressure estimates provide constraints for the stability fields of various minerals that may be present in the source.
Both the alkali basalts’ and basanites’ whole-rock chemistry from Buckland had unusual fractionations of trace element ratios, particularly Zr/Hf and Ti/Eu ratios, which were removed from typical OIB values. Similar characteristics have been used to argue for the influence of carbonatite metasomatism in the source region [32,57,58]. Zr/Hf values of up to 48 are significantly higher than the typical OIB value of 36, and the difference cannot be caused by crystal fractionation because of the primitive compositions of the magmas and the minimal effect of liquidus phases on Zr/Hf [54,57]. Zr/Hf of the alkali basalts (≈50) and basanites (51–58) also exceeded primitive mantle values and trended towards the mean Zr/Hf values of wehrlite, lherzolite and harzburgite xenoliths from the Newer Volcanic Province in Victoria (>65), for which carbonatite metasomatism of the source has been proposed [32].

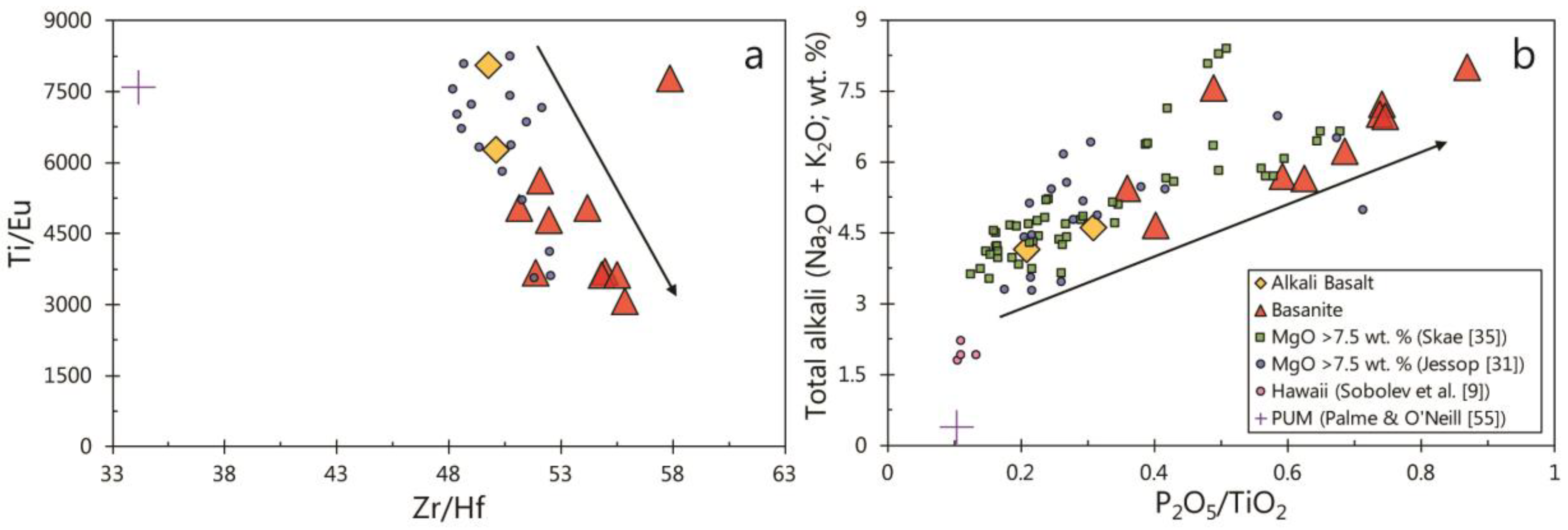

High Zr/Hf is commonly associated with low Ti/Eu during the process of carbonatite metasomatism. The Buckland alkali basalts had similar Ti/Eu (6267–8059) to primitive mantle (7598), whereas the basanites had a large range (3071–7776), mostly well below primitive mantle and trending towards values observed in natural carbonatites (3–2400 [59]; Figure 3a). This may indicate a greater influence of carbonatite enrichment in the source of the basanites than that of the alkali basalts. The very low degree of melting involved in carbonatite generation from peridotite with CO2 and H2O imparts very high incompatible trace element concentrations [60,61], causing melts derived from carbonatite-metasomatised domains to be strongly enriched in incompatible elements [62,63], but with these specific signatures for Zr/Hf and Ti/Eu [32,57].
The low solubility of Ti minerals, such as rutile and ilmenite, and the relatively high solubility of apatite in carbonate melts makes a high P2O5/TiO2 a good indicator for carbonate melt interaction in basaltic source assemblages [64]. Silicate melts generally do not deviate much from primitive mantle values for P2O5/TiO2 (0.1; [65]), whereas carbonatite melts can exhibit extremely high values (up to 16; [64]). Figure 3b compares P2O5/TiO2 to total alkali contents of the Buckland melts; the basanites showed much higher P2O5/TiO2 ratios (0.36–0.87) than the alkali basalts (0.21–0.31) on account of the much higher P2O5 0.92–1.53 versus 0.37–0.52 wt.% (Supplementary Table S2). P2O5/TiO2 ratios for both were substantially higher than primitive upper mantle (PUM) and Hawaiian tholeiites (average = 0.13) from Sobolev et al. [21], for which, an olivine-free pyroxenite source assemblage produced by the reaction of peridotite with silicate melts has been proposed. The linear increase of P2O5/TiO2 with total alkali concentrations in the Buckland melts (R2 = 0.70) suggests that the high P2O5/TiO2 values were derived from a combination of alkali-carbonatite melt metasomatism and low degree of melting. High P2O5/TiO2 and high total alkali concentrations, coupled with high Zr/Hf and low Ti/Eu, were more marked in the Buckland basanites, indicating that their source was more extensively influenced by an alkali-carbonatite metasomatic agent than that of the alkali basalts.

5.2. Constraints on Source Mineralogy from Whole-Rock Geochemistry

Potassium shows a slight trough in the trace element pattern for basanites (Figure 2a), indicating that phlogopite may be a residual phase that was also holding back Rb and Ba [54]. During partial melting, residual phlogopite produces low K/Nb in the extracted melt [36], while silicate melts without residual phlogopite in the source showed K/Nb close to primitive mantle values. K/Nb in the Buckland alkali basalts ranged from primitive mantle (437; [65]) to lower values (323–437), whereas the basanites (129–221) had values exclusively substantially lower than primitive mantle. The spread of values probably represents the varying importance of residual phlogopite in the source assemblage (the source for sample 75,207 may not contain residual phlogopite), with the basanite source being more influenced by phlogopite than the alkali basalts. Sun and McDonough [54] suggested Rb/Cs and Ba/Rb as indicators for residual phlogopite, but variations in Ba and Rb may also be caused by apatite and amphibole in the source.
Apatite and amphibole are present as accessory phases in mantle-derived xenoliths from many eastern Australian basaltic provinces [15,27,29,31,36]. Phosphorus concentrations were high in the Buckland alkali basalts (1615–2268 ppm) and basanites (4011–7558 ppm) compared to N-MORB (510 ppm; [54]), but only P concentrations of the basanites were higher than OIB values (2700 ppm; [54]). Apatite contributing to the melt can elevate P and impart low Sr/La, Rb/La, K/U and K/Ba values to melts [36]. However, Rb, K and U signatures will also be affected by contributions from residual phlogopite and/or amphibole. Amphiboles in mantle xenoliths from southern Victoria have high Sr/La and low La/U and have been used to infer contributions from amphibole to basalts in northern Queensland [32,36].

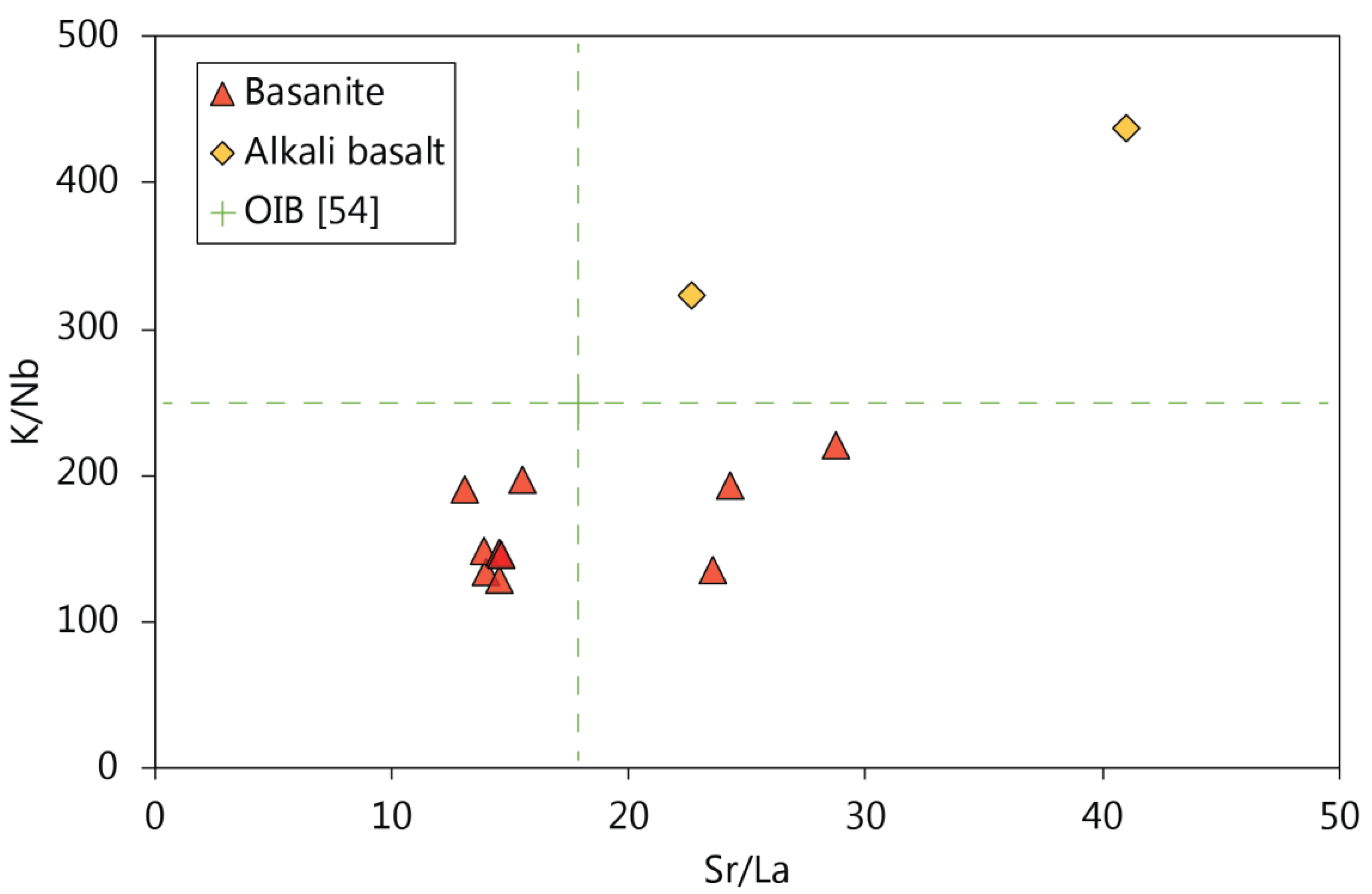

Figure 4 compares and assesses indicators for phlogopite, apatite and amphibole in the source: low K/Nb is an indicator for residual phlogopite, whereas Sr/La is an indicator for melt contributions from apatite (low values) and amphibole (high values) [36,54]. Most Buckland samples contained low K/Nb, which was probably the result of widespread phlogopite in the mantle source region for these melts. Most basanites also had low Sr/La, suggesting residual phlogopite and a melt contribution from apatite. However, some basanites with low K/Nb and high P2O5 (0.92–1.73 wt.%) had high Sr/La values, suggesting that residual phlogopite and apatite interfered with the Sr/La amphibole indicator. The alkali basalt samples contained high Sr/La and high K/Nb compared to basanites and OIB values, which was probably driven by amphibole contributions to the melt. The combination of low P2O5 (0.37–0.52 wt.%) with high Sr/La and high K/Nb in the alkali basalts probably rules out significant apatite contribution and residual phlogopite for the alkali basalts.
In OIB, Ba and Cs have large and similar phlogopite/melt KD values relative to Rb, resulting in almost constant abundance ratios of Ba/Rb ≈ 12 and Rb/Cs ≈ 80 compared to OIB abundance ratios (Ba/Rb = 11; Rb/Cs = 80) when residual phlogopite is present in the source [54]. The Buckland basanites had mean abundance ratios for Ba/Rb of 75 and Rb/Cs of 14, reinforcing a role for residual phlogopite in the source. In contrast, the alkali basalts had low Ba/Rb (8.7–9.7) and a large range of Rb/Cs (37–78), which suggests very minor or no residual phlogopite in the alkali basalt source. These signatures agree with K/Nb signatures for residual phlogopite, with both suggesting residual phlogopite in the basanites and little or no residual phlogopite for the alkali basalts. Although apatite and amphibole contributions to a melt may interfere with Ba and Rb, they did not appear to eliminate Ba/Rb and Rb/Cs signatures for residual phlogopite in the Buckland basalts, as judged by their similarities to K/Nb signatures, which did not have this problem.
Mantle xenoliths containing apatite, amphibole and phlogopite have been collected throughout eastern Australia, notably from the Atherton Tablelands northern Queensland, the southern highlands and Kiama in southeastern New South Wales, the Newer Volcanics in Victoria and Bow Hill in Tasmania [15,28,29,30,31,32,33,36,66]. Yaxley et al. [32] proposed that the presence of phlogopite, amphibole and apatite in carbonate-bearing spinel wehrlite, lherzolite and harzburgite xenoliths in the Newer Volcanics of Victoria is related to carbonatite metasomatism in the source region. Their model is consistent with carbonatite signatures being the cause of the characteristics of both alkali basalts and basanites at Buckland.

5.3. Olivine/Melt Equilibrium in the Buckland Rocks

The recognition of olivines that are in equilibrium with the groundmass of their host rocks can help to discriminate between xenocrysts and phenocrysts, and thus their suitability for use in identifying source assemblages. Intraplate basalts in eastern Australia frequently contain abundant mantle xenoliths [29], which may contaminate basalts when disaggregated during ascent. Basalts often carry high-Mg# olivine xenocrysts to the surface that are not in equilibrium with the melt.
The following expression from Kesson [26] was used to model the Mg# of olivine in equilibrium with the alkali basalt and basanite melts from Buckland, with reference to a variety of KD values (Table 3). Fe2+ was used in the Mg# calculation for the melt with an approximation of 20% Fe as Fe3+, and all Fe in olivine was assumed to be Fe2+.
X o l i v i n e = X L ÷ ( X L + K D ; F e 2 + M g o l / l i q ( 100 X L ) ) ,   where   X = 100 M g / ( M g + F e )
A K D ; F e 2 + M g o l / l i q = 0.3 is typically assumed for tholeiitic basalts, but the Buckland rocks had moderate to high alkali contents (4.14–8.00 wt.%) for which a lower K D ; F e 2 + M g o l / l i q is suitable [24,67]. Using K D ; F e 2 + M g o l / l i q = 0.27, olivines in the most primitive alkali basalts should have Mg# of 88.4 and Mg# of 87.7 in the basanites, suggesting that olivine with a higher Mg# may be xenocrysts.
Olivines with Mg# up to 91.3 in the basanites would require a K D ; F e 2 + M g o l / l i q = 0.17 for equilibrium, which is unrealistic; this may only be appropriate for strongly alkaline olivine melilitites and nephelinites that have much higher alkali concentrations than the basanites [67] (Table 3). Therefore, olivines with K D ; F e 2 + M g o l / l i q ≤ 0.27 were assumed to be xenocrysts while those >0.27 were assumed to be phenocrysts.

Characterising Olivine Xenocrysts

Minor and trace elements in olivine are well documented for spinel and garnet peridotite facies [23,52,68]. The Buckland olivine xenocrysts plotted clearly in the spinel peridotite field, despite the large range for both Al (28–502 ppm) and Mn (1071–1697 ppm) (Figure 5). Ti concentrations of Buckland xenocrysts fell in the range 2 to 30 ppm, also indicating derivation from the spinel peridotite facies, as Ti contents in garnet peridotites are typically >30 ppm and garnet-spinel bearing peridotites <2 ppm [52].

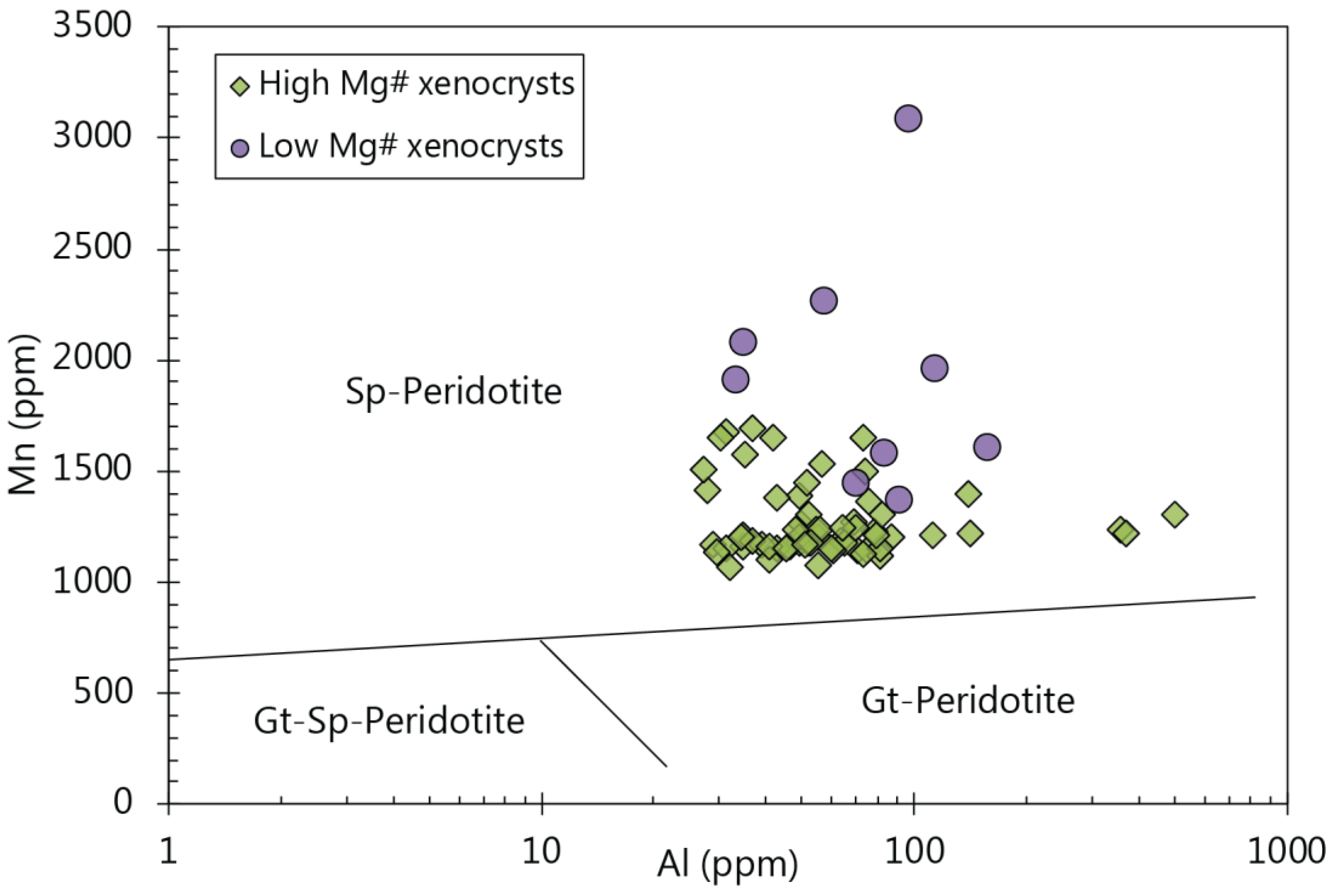

Bussweiler et al. [68] compiled a major and minor element scheme for identifying xenocrysts derived from cratonic mantle peridotite: Mg# ≥ 90, NiO ≥ 0.3 wt.% (≥2350 ppm), MnO ≤ 0.15 wt.% (≤1160 ppm), and CaO ≤ 0.1 wt.% (≈785 ppm); and Foley et al. [23] showed that mantle peridotite xenocrysts typically have <70 ppm Ti, Ni 2200–3400 ppm, and 80% contain <130 ppm of Al. The Buckland xenocrysts entire Ni range (2214–3292 ppm) lay within the limits outlined by Foley et al. [23]; only three olivine xenocrysts had Ca > 785 ppm, their entire range of Ti (1–64 ppm) lay within the mantle peridotite range, and 96% contained Al < 130 ppm.
The range of Mg# for the Buckland xenocrysts was 88.3–91.3, and only 24% were ≥90 (24%), but their minor and trace element criteria agreed with peridotitic criteria. However, mantle metasomatism was expected to lower the Mg# of peridotitic olivine, which may indicate that the Buckland olivines were xenocrysts from enriched spinel peridotite.
A group of olivines with lower Mg# (75.7–87.2), but in apparent equilibrium with their groundmass, contained minor and trace element concentrations remarkably similar to the xenocrysts and distinct from those of alkali basalt and basanite phenocrysts. These may be xenocrysts from a mantle domain with Mg# lowered by mantle metasomatism, or they could be phenocrysts from precursor melts that fractionated within the mantle. These are distinguished as a group referred to as low Mg# xenocrysts for the remainder of this paper.
Mn concentrations in olivine were >1200 ppm for 34% of Buckland xenocrysts, significantly higher than concentrations suggested for cratonic peridotites [68]. However, spinel lherzolite xenoliths from Boowinda Creek, Carnarvon Gorge in Buckland, had higher MnO concentrations (0.1– 0.17 wt.%; [33,54]) than PUM and other representative upper mantle compositions (KLB-1 MnO = 0.14 wt.%), showing good overlap between high MnO xenoliths and high Mn xenocrysts from Buckland.

5.4. Constraints on Using Olivine Chemistry as a Source Assemblage Indicator

The partitioning of minor and trace elements between olivine and melt depends on pressure, temperature, composition and oxygen fugacity (ƒO2) [23,24,52,69]. It is therefore necessary to constrain the relevant pressure, temperature and oxygen fugacity conditions in order to infer source conditions. We used the thermometer of Förster et al. [70], which is appropriate for the high alkali concentrations (Na2O + K2O > 3 wt.%) in the Buckland basalts, since this geothermometer uses melt composition (SiO2, MgO, FeO, Na2O, K2O, TiO2 and K2O) and the partitioning of Ni between olivine and melt ( D N i o l / m e l t ). For this calculation, only melts with olivines in equilibrium with the groundmass were used, and D N i o l / m e l t values were used from olivines with K D ; F e 2 + M g o l / l i q ≥ 0.27, which were considered to be phenocrysts. This yielded values of 1280–1329 °C for the alkali basalts, and 1289–1388 °C for the basanites, indicating similar and small ranges of temperature, such that temperature effects on olivine partitioning between the two compositions was negligible. However, the weaker metasomatic signature for alkali-carbonatite in the alkali basalts than in the basanites may indicate a different pressure of origin. This is based on the assumption that a metasomatic agent percolating into the system from below will result in stronger metasomatism at the base of the lithospheric mantle.

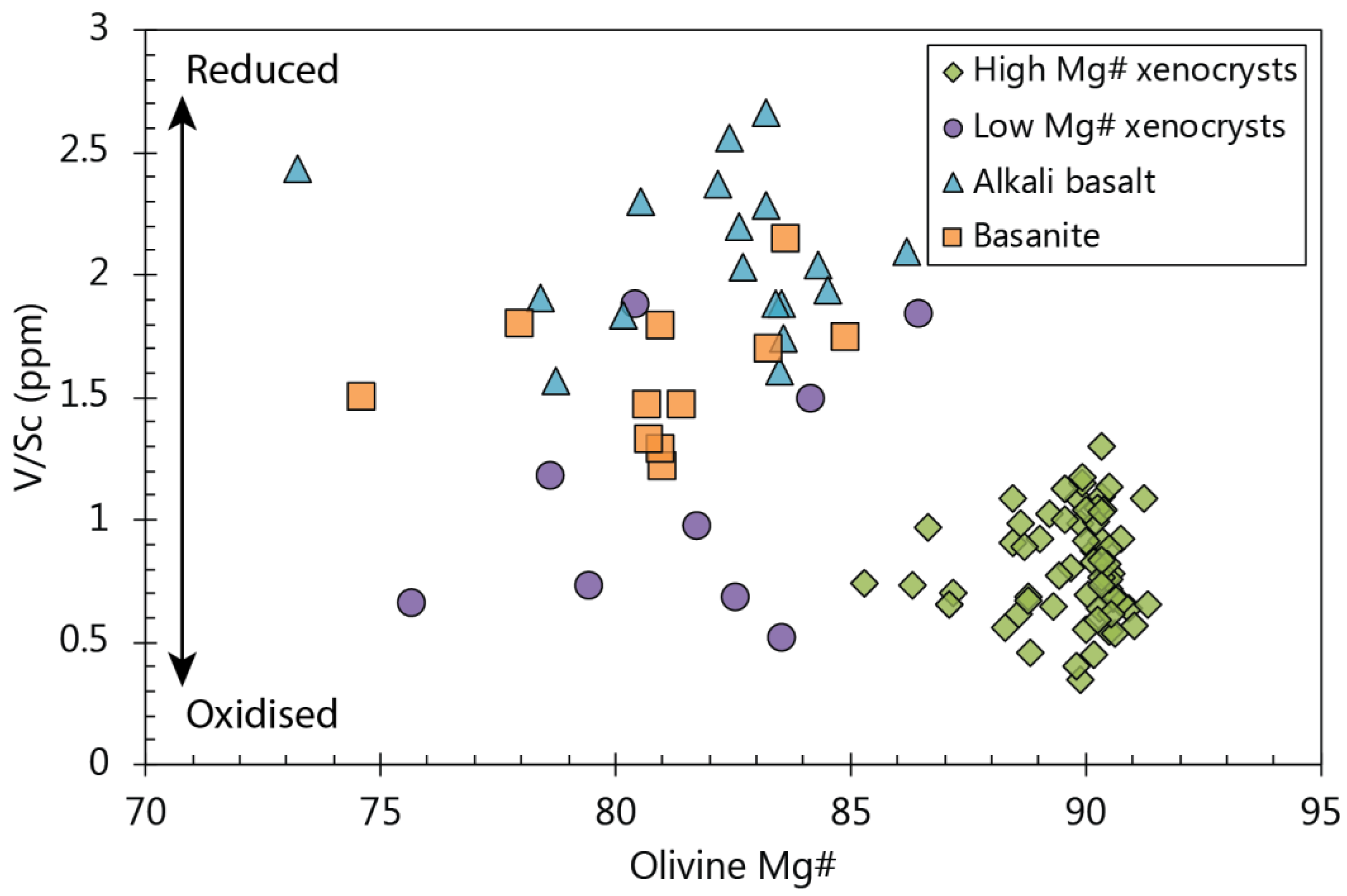

The oxygen fugacity of the system can be indicated by V/Sc in olivine since the incorporation of V into olivine is promoted under reduced conditions [11]. Xenocrysts (both high and low Mg# groups) have consistently lower V/Sc than alkali basalt and basanite phenocrysts (Figure 6), implying a more oxidised environment of crystallization. However, V and Sc concentrations in the alkali basalts and basanites may be significantly affected by the presence of amphibole in the source, in a similar way to the effect of phlogopite on the V/Sc ratio of olivine [71]; this is discussed in more detail below. No influence was expected for temperature or ƒO2 on minor and trace element partitioning into olivine, whereas a pressure effect could not be discounted. All other concentration anomalies were assumed to be characteristic of the source assemblage.

5.5. Possible Source Indicators from Minor and Trace Elements in Olivine

5.5.1. Indicators for a Pyroxene-Rich Source Assemblage

High Ni in olivine (>3500–4000 ppm for Mg# >90) is commonly used to identify a significant pyroxenite component in the source assemblage. Sobolev et al. [21] used high-Ni olivines in Hawaiian tholeiites to argue that these melts require a substantial proportion of olivine-free pyroxenite in their source. This concept was further propagated by the models of Herzberg [1] and subsequent work. However, the modelling of Ni and other minor and trace elements in olivine are hampered by the large uncertainties involved, which leaves room for several interpretations. For example, Herzberg et al. [5] showed that Ni in olivines in basalts related to the West Greenland and Icelandic plumes could be interpreted as being due to Ni enrichment in the source plume caused by interaction at the core–mantle boundary [72], or by elevated partitioning of Ni into olivine during lithospheric underplating [24]. Furthermore, the effect of alkalis on Ni partitioning complicates interpretations, as D N i o l / m e l t in strongly potassic compositions such as lamproites may have extreme D N i o l / m e l t > 50 [53], substantially higher than primitive tholeiites ( D N i o l / m e l t = 5–10). Furthermore, Yang et al. [2] suggested caution in using Ni as a source assemblage indicator due to the differences in diffusion rates between Ni and other elements, such as Ca, that have been used together to infer a pyroxenite source. Many geodynamic settings are more complex than Hawaii, so multiple indicators should be used to arrive at conclusions about source assemblages.

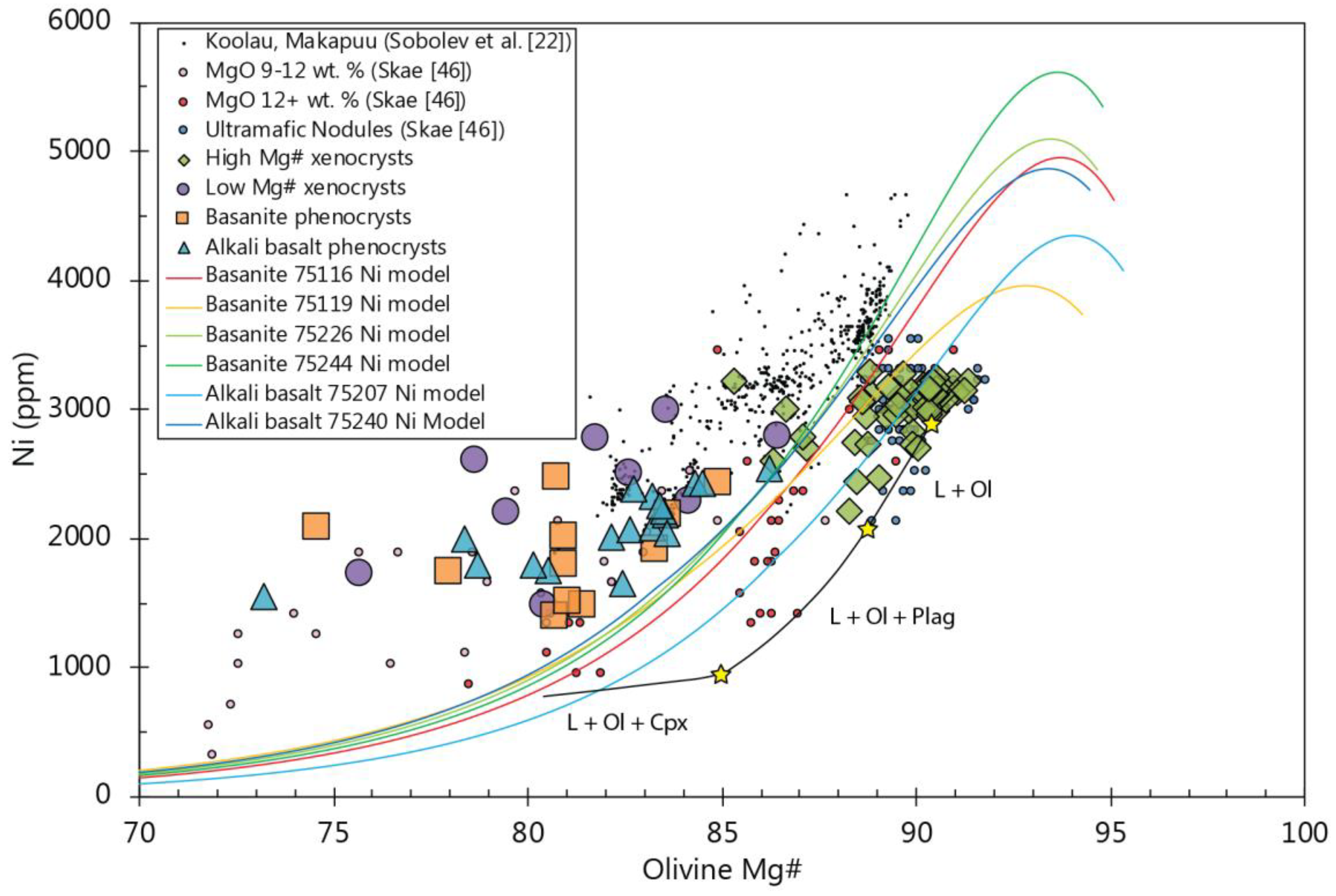

In Figure 7, models of Ni concentration in olivine assuming a peridotite source are calculated using PRIMELT3 [73]. The Ni concentrations in olivine phenocrysts from both Buckland lava types plotted well above the modelled lines, with a greater deviation at lower Mg#. These deviations could not be the result of fractionation of other minerals, such as clinopyroxene and plagioclase, as this would require extensive crystallization of clinopyroxene prior to and/or with the crystallization of olivine, which is the liquidus phase in primitive basanites and alkali basalts. Fractionation of mixtures of olivine, clinopyroxene and plagioclase from picritic parent melts for Icelandic basalts were modelled by Herzberg et al. [5,74], who showed that a mixture of 70% clinopyroxene and 30% olivine flattens the curves in Figure 7 and could result in olivine phenocrysts with 1800–2800 ppm Ni at Mg# 87–89. Olivine is the first major phenocryst phase in the Buckland rocks, and is joined later by clinopyroxene, which never dominates the phenocryst population. Co-fractionation of olivine and clinopyroxene may explain some of the alkali basalt olivines, which plotted only marginally above the coloured lines in Figure 7 at Mg# 82–85, but it could not explain most of the low-Mg# xenocrysts or phenocryst from both the alkali basalts and basanites. Crossingham et al. [43] showed there is no petrographic or geochemical evidence for magma mixing in the Buckland melts, which rules out this process for producing high-Ni olivines. The Buckland phenocrysts followed a similar progression at lower Mg# as the Koolau phenocrysts from Hawaii [22], which have been attributed to a pyroxenite olivine-free mantle source assemblage. Buckland olivine phenocrysts were also significantly higher than the olivine liquid line of descent from Figure 6 of Herzberg et al. [5] and the PRIMELT3 modelled lines from whole-rock compositions. Both models in Figure 7 assumed peridotite source assemblages and could not account for high-Ni concentrations in Buckland phenocrysts, instead supporting the argument for a pyroxenite-like source.
A source peridotite that has reacted with an infiltrating alkali-carbonatite melt at 1.5−2.0 GPa, consuming orthopyroxene, clinopyroxene and spinel to produce clinopyroxene, olivine and minor amphibole through a number of primary reactions [32] will cause an initial lherzolite to evolve into an olivine wehrlite or cpx-rich lherzolite assemblage. Secondary reactions involving a carbonatite melt interacting with olivine and clinopyroxene produced during first-stage reactions would produce orthopyroxene and halo-apatite [32], moving the assemblage towards an olivine websterite ± apatite and ± amphibole [32]. In the resulting pyroxene-rich assemblage, the control of olivine on the bulk partition coefficient for Ni was substantially diminished, so that Ni increased in subsequent melts because of the lower partition coefficients for pyroxenes. However, the presence of some olivine produced melts with lower Ni concentrations than the Hawaiian tholeiites but with Ni concentrations that were still elevated compared to melts derived from primitive upper mantle peridotites.
Low-Ca olivines have been used to identify pyroxenite mantle source assemblages [1] and hydrous mantle sources [75]. However, Ca activity may also be lowered by the elevated K2O in a peridotite influenced by alkali-carbonatite [2,76]. Low-Ca olivines in the Buckland rocks had comparable concentrations to low-Ca olivines from the Koolau flow, Hawaii [1,21].
The primitive melt compositions for the Buckland lavas had high K2O and low CaO, similar to primary melts derived from metasomatised peridotites [76]. Yang et al. [2] showed that olivines from K2O-rich (up to 1.5 wt.%) metasomatised peridotite source assemblages produce olivines with low Ca, comparable to concentrations typically assigned to olivines derived from a pyroxenite source assemblage [1]. The Buckland melts contained olivines that were poor in Ca, suggesting that low Ca activity was a result of the elevated K2O, and may not be an indicator for a pyroxenite or a hydrous source assemblage.

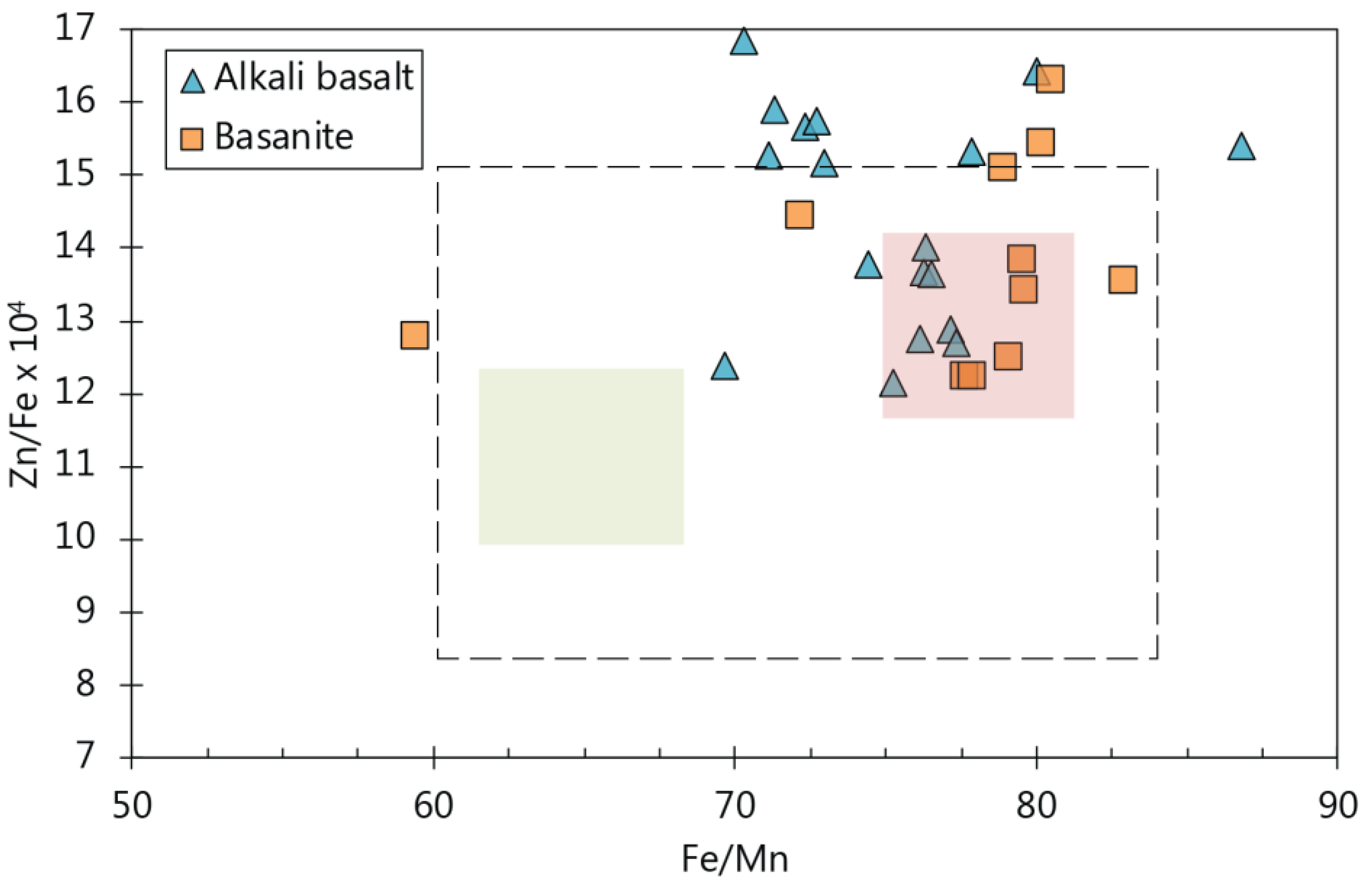

Zn/Fe and Fe/Mn in olivine have also been used to indicate a high pyroxene contribution to primary melts [1,8,22]. However, metasomatism or an episode of depletion in a melt component can alter these values for a peridotite. The dashed box in Figure 8 indicates the range of values for peridotitic olivine, where the green shaded box shows olivine compositions expected to crystallize from a primary melt from a primitive mantle domain, and the red box shows values for olivines crystallising from a primary melt from a lherzolite estimated to be within 10 cm of a metasomatised conduit (PHN 1611; [77]). The Buckland olivines had Zn/Fe and Fe/Mn in the upper part of, or beyond, the range for peridotites; this may indicate that the Buckland source consisted of a mixture of metasomatised peridotite and pyroxenite, which is consistent with the high Ni concentrations in these olivines.

5.5.2. Possible Indicators for Clinopyroxene and Amphibole in the Source

Amphibole may result from the reaction between an infiltrating hydrous carbonatite melt and surrounding peridotite wall rock [32,35]. Amphiboles in eastern Australian ultramafic xenoliths entrained in intraplate basalts are typically pargasites [35] and/or kaersutites [79], and are typical of amphibole compositions in mantle peridotites elsewhere [80]. Table 4 summarizes mineral/silicate melt partitioning behaviour appropriate for upper mantle conditions relevant to the source of the Buckland volcanic province. Ti, V, Sc, Cr, Co, Ni and Cu are moderately to highly compatible in amphibole [66,80] and the budget of these elements is strongly influenced by amphibole in ultramafic assemblages. Since amphibole is a major contributor to initial melts, controlling their major element compositions [16], melts will be enriched in Ni > Cr > V > Sc > Ti > Co. However, due to the relatively low abundance of amphibole in ultramafic xenoliths affected by carbonatite metasomatism, pyroxene probably controls the bulk partitioning of Ni and Co [35,63]. V, Sc and Ti all diffuse slowly in olivine and vary little with Mg#, which makes them good candidates for source assemblage indicators [52,81,82]. It should also be noted that V and Sc may be temperature dependent, but there is only a small temperature difference between the alkali basalts and basanites (see Section 5.1), so this effect is considered negligible for the Buckland olivines.
Blundy and Dalton [60] suggested that the partitioning behaviour for a carbonated peridotite is a simple relationship between silicate and carbonatite, which depends on the degree of interaction between peridotite and infiltrating carbonatite melts. Clinopyroxene partitioning behaves similarly in silicate and carbonatite melts, apart from Ti and V, which are much more compatible in clinopyroxene in carbonate melts ( D T i c p x / c a r b = 0.81–2.02, average 1.4 ± 0.61; D V c p x / c a r b = 1.68–3.46, average 2.89 ± 0.9; [84]). It is likely that a clinopyroxene-rich carbonated assemblage would increase Ti and V partitioning into olivine in derived primary melts [76].
Under oxidised conditions, V and Sc behave similarly during the melting of peridotite, and so Ti/V and Ti/Sc should behave similarly [23,52]. However, a clinopyroxene-rich carbonatite-derived assemblage decouples Ti/V from Ti/Sc because carbonatite metasomatism does not facilitate Sc enrichment in clinopyroxene the same way as Ti and V [84]. The Buckland olivine xenocrysts lie along a 1:1 line, as expected, for the derivation from peridotite (Figure 9).
Olivine phenocrysts typically have higher Ti concentrations than xenocrysts [23], which should place them further along this 1:1 trend if the melts were derived from a purely peridotite source. However, a melt derived from an assemblage with a high modal clinopyroxene formed from carbonatite metasomatism would have Ti and V concentrations that are elevated more than Sc, resulting in high Ti/Sc compared to Ti/V. This is exactly what was seen for the Buckland basanite and alkali basalt olivine phenocrysts, which defined a ratio of ≈1.4 instead of 1 (Figure 8). The lower Ti/Sc and Ti/V of the alkali basalt phenocrysts relative to the basanite phenocrysts may have been due to amphibole, in which V and Sc are more compatible than Ti [80]. This means that any amphibole contribution to a melt would result in decreased Ti/V and Ti/Sc in later olivine phenocrysts when compared to a melt without amphibole contribution.
The alkali basalt olivines had similar Ti/V to the olivine xenocrysts, but considerably higher concentrations of both Ti (average Ti = 74 vs. 15.2 ppm in xenocrysts) and V (12 vs. 2.3 ppm). The alkali basalt olivines also had significantly higher V and Sc than the basanite olivines. The indication of amphibole in the Ti/Sc and Ti/V signature of the alkali basalt olivines aligned with high whole rock Sr/La, as in amphibole-bearing spinel lherzolites that reacted with carbonatite melts [35].
Ti and V could potentially be influenced strongly by Fe-Ti oxide minerals if these are present in the source. Gervasoni et al. [85] found oxide minerals in reaction zones between peridotite and a silicate-carbonate melt at 6 GPa, corresponding to metasomatic processes in the deep cratonic lithosphere, but similar experiments involving carbonatite melts at 2.2–2.5 GPa did not produce Fe-Ti oxides. The latter conditions and melt compositions were appropriate for the Buckland source region and corresponded to the reactions in natural peridotites outlined by Yaxley et al. [32].
If oxide minerals were present in the source region, the data for ilmenite/melt and rutile/melt pairs can be used to predict that ilmenite would cause olivine signatures further to the lower right in Figure 9 than is seen in the alkali basalt and basanite phenocrysts [84]. In contrast, the higher DTi than DV for rutile/melt pairs [86,87] would move the olivines upwards from the 1:1 peridotite source line in Figure 9, which is the opposite direction to that seen in the Buckland phenocrysts. Note that experiments on hydrous pyroxenite show that both these oxide minerals are likely to melt completely and not remain in the residue [16].

5.5.3. Elevated P and Li Concentrations

Olivines from the Buckland alkali basalts and basanites have elevated P concentrations (alkali basalts = 74–219 ppm with an average of 127; basanites = 36.6–334 ppm, with an average of 131), much higher than the high-Mg# xenocrysts (301–92 ppm), low-Mg# xenocrysts (37–160) and primitive mantle (87 ppm; [65]). The high P concentrations may be due to the effect of apatite on olivine compositions. However, whole-rock chemistry showed a stronger apatite signature (low Sr/La and high P2O5) in the basanites compared to the alkali basalts, which does not agree with higher P in the basanite olivines.
Li diffuses rapidly in olivine, so care is needed in using it as an indicator [88]. Melts extracted quickly from newly formed or recently metasomatised source assemblages may have elevated Li, which can indicate recycled sedimentary material or mica in the source assemblage [23,89]. However, the lack of Li enrichment does not discount the involvement of recycled crustal material in sources that have been stored in the mantle for extensive periods, as Li may have been lost by diffusion in the intervening period [90,91]. Some Li concentrations in Buckland phenocrysts (2.18–6.46 ppm) were elevated with respect to mantle values (< 3 ppm; [91]), but there was no significant correlation with Zn or Ti that may indicate mica or the input of recycled sediment [23]. This may indicate that there was only minor involvement of recycled crustal material, or that there was a substantial time period between the hydrous-alkali-carbonatite metasomatic event and the subsequent production of the primary melts at Buckland. The elevated Li in olivine suggests crustal material in the source area rather than crustal contamination during the ascent to the surface [43].

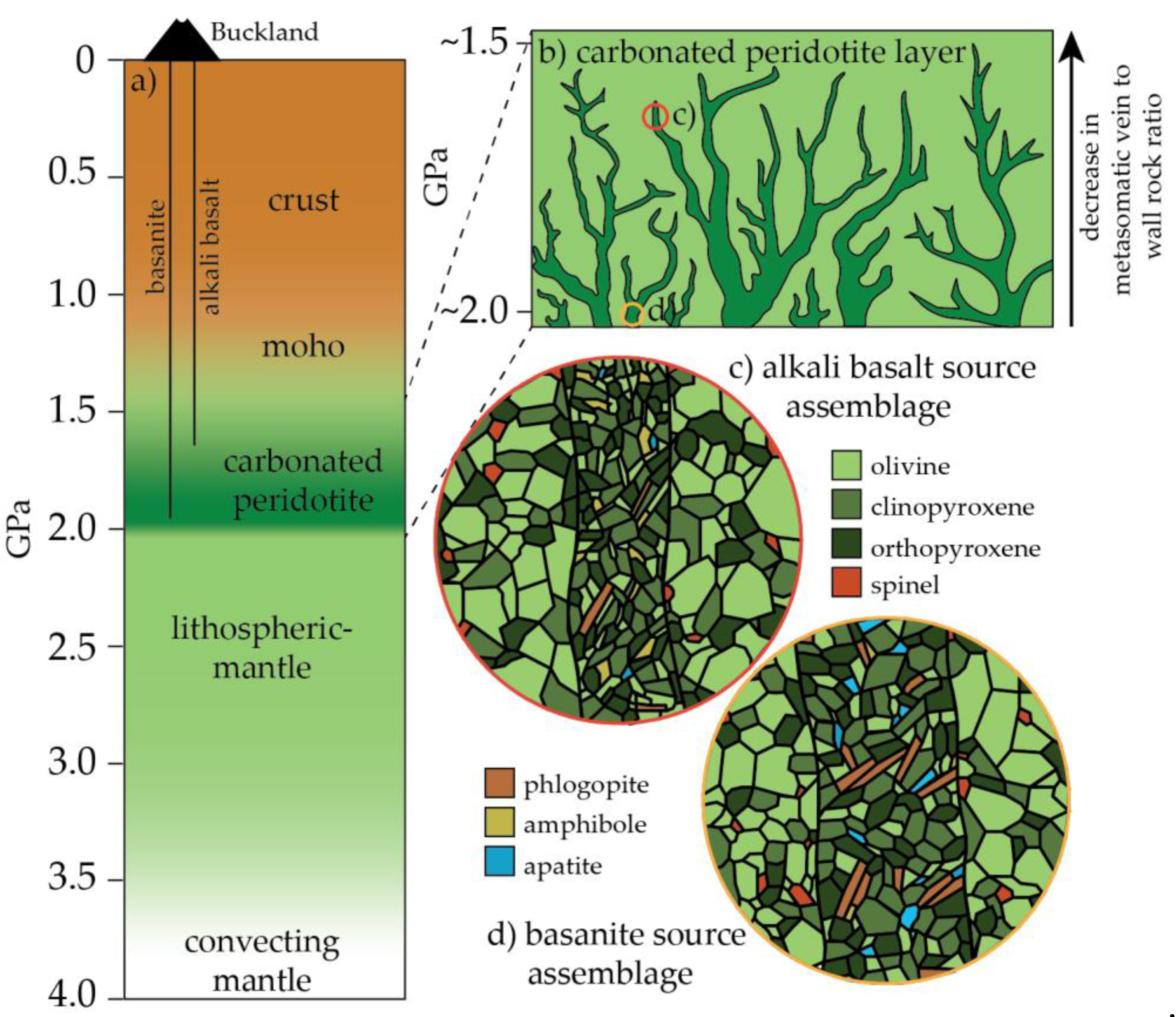

5.6. A Carbonated Peridotite Source Assemblage for the Buckland Volcanic Province

As a carbonatite melt infiltrates the base of the sub-continental lithosphere and percolates towards the surface, it will react with the surrounding peridotite wall-rock material at 1.5–2.0 GPa, producing a wehrlite to olivine webserite from harzburgite or lherzolite [23,76]. Any significant water content in the carbonatite can produce hydrous phases, such as phlogopite, amphibole or apatite, when reacting with the peridotite [32]. Beneath Buckland, the proportion of peridotite affected by interaction with carbonatite melt probably increased with depth, driving mineral assemblages at the base of the lithosphere towards olivine websterite mineralogy. Later pulses of carbonatite melt may have travelled through coated channels to shallower depths and reacted with shallower peridotite material [13,32]. During later melting of this metasomatised mantle, deeper-derived melts could be expected to possess stronger indications of this metasomatic history.
The minor and trace element chemistry of the olivines coupled with whole-rock geochemical characteristics of the Buckland lavas were consistent with this scenario. Melting at deeper levels favoured melting of the olivine websterite domains in a mixed websterite/peridotite mantle due to the lower solidus temperature of the pyroxene-rich lithologies. This results in olivine phenocrysts with minor and trace element signatures that superficially resembled those thought to be generated following silicate melt metasomatism beneath Hawaii [21]. However, melting of olivine websteritic domains that result from carbonatite/peridotite interaction will retain carbonatite-like Ti/Eu, Zr/Hf and P2O5/TiO2, as at Buckland, differing from the Hawaiian case. The whole-rock chemistry retained carbonatite-like Ti/Eu, Zr/Hf and P2O5/TiO2, with weaker carbonatite-like signatures in melts sourced from less metasomatised assemblages (Figure 10). Higher degrees of melting would dilute this signature with peridotite-like signatures. The dilution of pyroxenite/olivine websterite-derived melt by further melting to include peridotite wall-rock material was probably the cause of much of the ambiguity in many high-Ni olivine pyroxenite signatures, such as those found in continental intraplate basalts in eastern China [2].
This process may happen on a large scale underneath the continental crust and may be an important process in the refertilisation of depleted peridotite in the sub-continental lithospheric mantle, in a similar way to the production of pyroxenites by silicate metasomatism [21,92,93]. In eastern Australia, a significant proportion of intraplate volcanism occurs along a >3000 km long ledge in the lithosphere base that runs almost parallel to, but 300–400 km west of, the eastern seaboard [38]. This may trigger important cratonic-edge processes that could have caused enhanced interaction between plumes and the sub-lithospheric mantle. This process may enhance trace element indicators that have previously been interpreted as being due to the degree of partial melting of a plume for eastern Australian basalts [38]. Older thicker lithosphere absorbs incipient melts [92]; this may correspond to the source region of the leucitite volcanism in central New South Wales, as well as basaltic provinces on thick lithosphere such as Nandewar [38].
Buckland is located just northeast of this step in the lithosphere thickness; melting below the thicker cratonic lithosphere will be carbonatitic to carbonated silicate in composition [49]. These melts may travel from depth to higher levels east of the step in the base of the lithosphere, impregnating the basaltic province source regions, depositing phlogopite at deeper levels and amphibole at shallower levels.

6. Conclusions

  • Carbonate-rich melt sourced below the thicker lithosphere to the southwest of the Buckland volcanic province modified the Buckland source to locally produce olivine-websterite lithologies. This may be a widespread process in eastern Australia due to many regional variations in the topography of the lithosphere base.
  • Amphibole and clinopyroxene reaction products caused by a carbonatite metasomatic agent reacting with mantle peridotite in the Buckland source region can be recognised in the chemistry of the olivine phenocrysts.
  • A combination of olivine compositions and whole-rock geochemistry irons out many uncertainties in interpretations that can arise from using olivine compositions alone.
  • High Mg# olivine xenocrysts are probably derived from xenoliths above the metasomatised horizon.
  • Low Mg# olivine xenocrysts have many minor and trace element signatures that reflect mantle peridotite. They may be formed in an enriched domain where the minor and trace elements have had time to re-equilibrate between sub-solidus phases.

Supplementary Materials

The following are available online at https://www.mdpi.com/2075-163X/9/9/546/s1, Table S1, Laser-ICP-MS measurements made on the reference materials NIST SRM610, SRM 612, BCR-2G and San Carlos Olviine (SCO) as secondary standards, Table S2, Whole rock analyses of Buckland lavas by XRF (major elements; wt%) and (solution) ICP-MS (trace elements; ppm), Table S3, Individual trace element analyses of olivines by Laser-ICP-MS, with major element information by EMPA.

Author Contributions

This research stems from the MRes thesis work of J.J.S., who carried out the analytical work and prepared the first manuscript draft. S.F.F. assisted with writing, interpretation and editing of the manuscript.

Funding

This research was funded by a Master of Research scholarship to J.J.S. and by the Australian Research Council (ARC) Centre of Excellence for Core to Crust Fluid Systems (CCFS). This is contribution 1349 from the CCFS. SFF is funded by ARC grant FL180100134. The analytical data were obtained using instrumentation funded by DEST systemic infrastructure grants, ARC, LIEF, NCRIS/AuScope, industry partners and Macquarie University.

Acknowledgments

Basalt samples for this study were made available by Kim Jessop, Department of Earth and Planetary Sciences, Sydney, Australia. We thank Yi Jen Lai for assistance with LA-ICP-MS analysis, Tim Murphy for assistance with EPMA analysis. Solution-ICP-MS and XRF analysis was conducted by Peter Wieland.

Conflicts of Interest

The authors declare no conflict of interest.
